Show all 45 parts sections ▼Hide parts sections ▲
- Subframe Assembly
- LH Body Assembly
- RH Body Assembly
- Outer Boom Assembly - 2 Stage
- Inner Boom Assembly - 2 Stage
- Outer Boom Assembly - 3 Stage

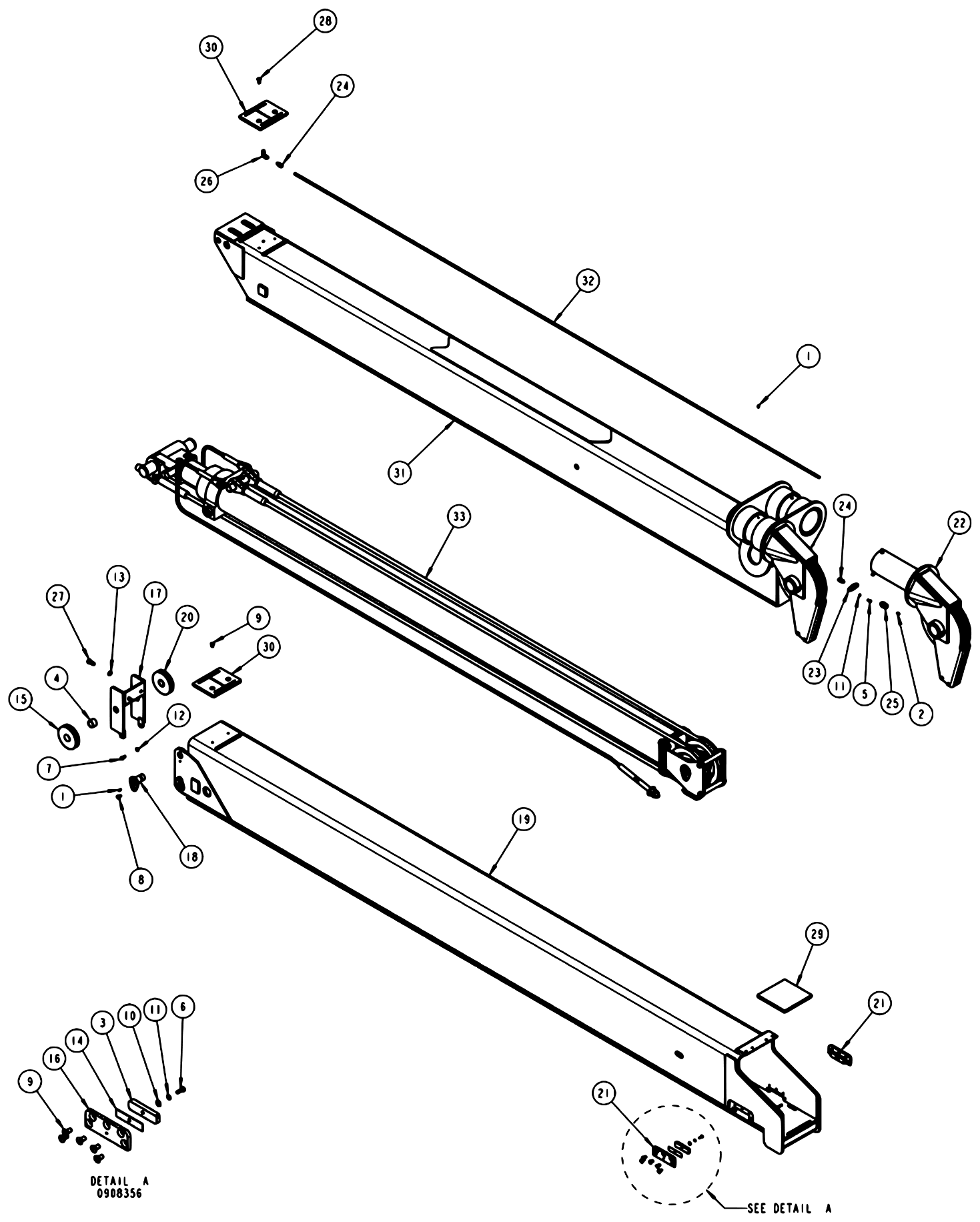

- Inner Boom Assembly - 3 Stage
- 3-Stage Boom Extend System

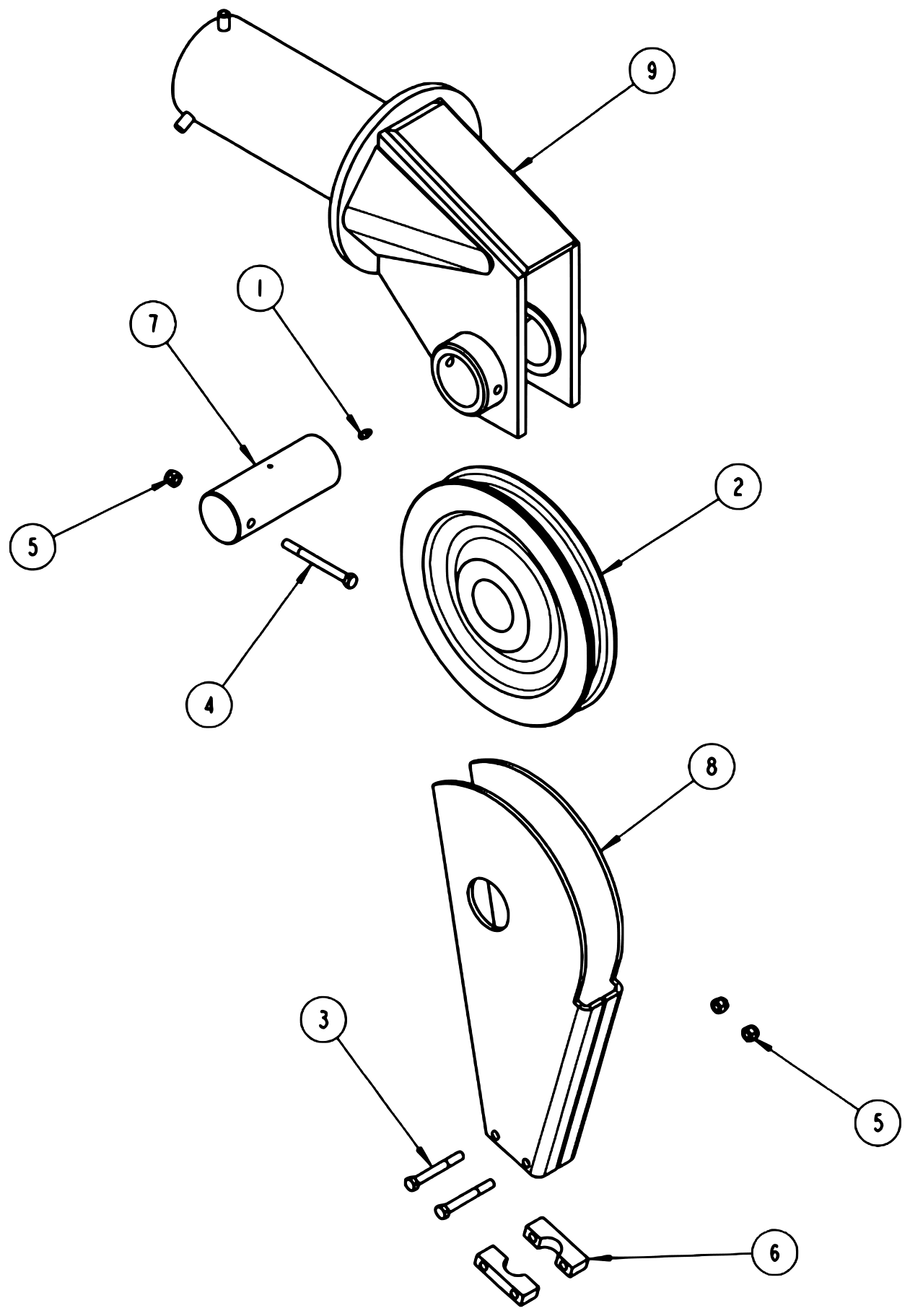

- Boom Swivel Assembly

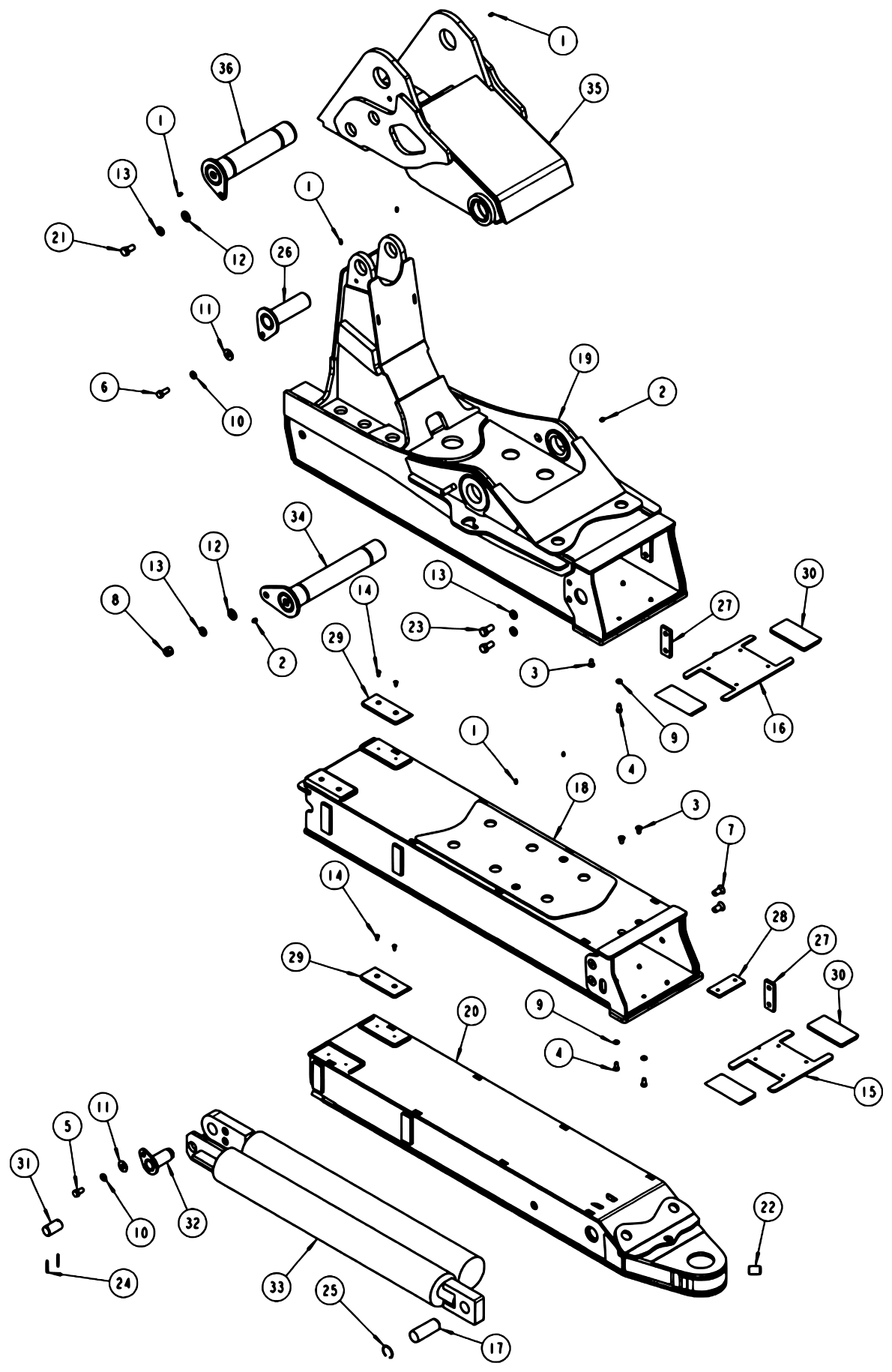

- Standard Stinger Assembly

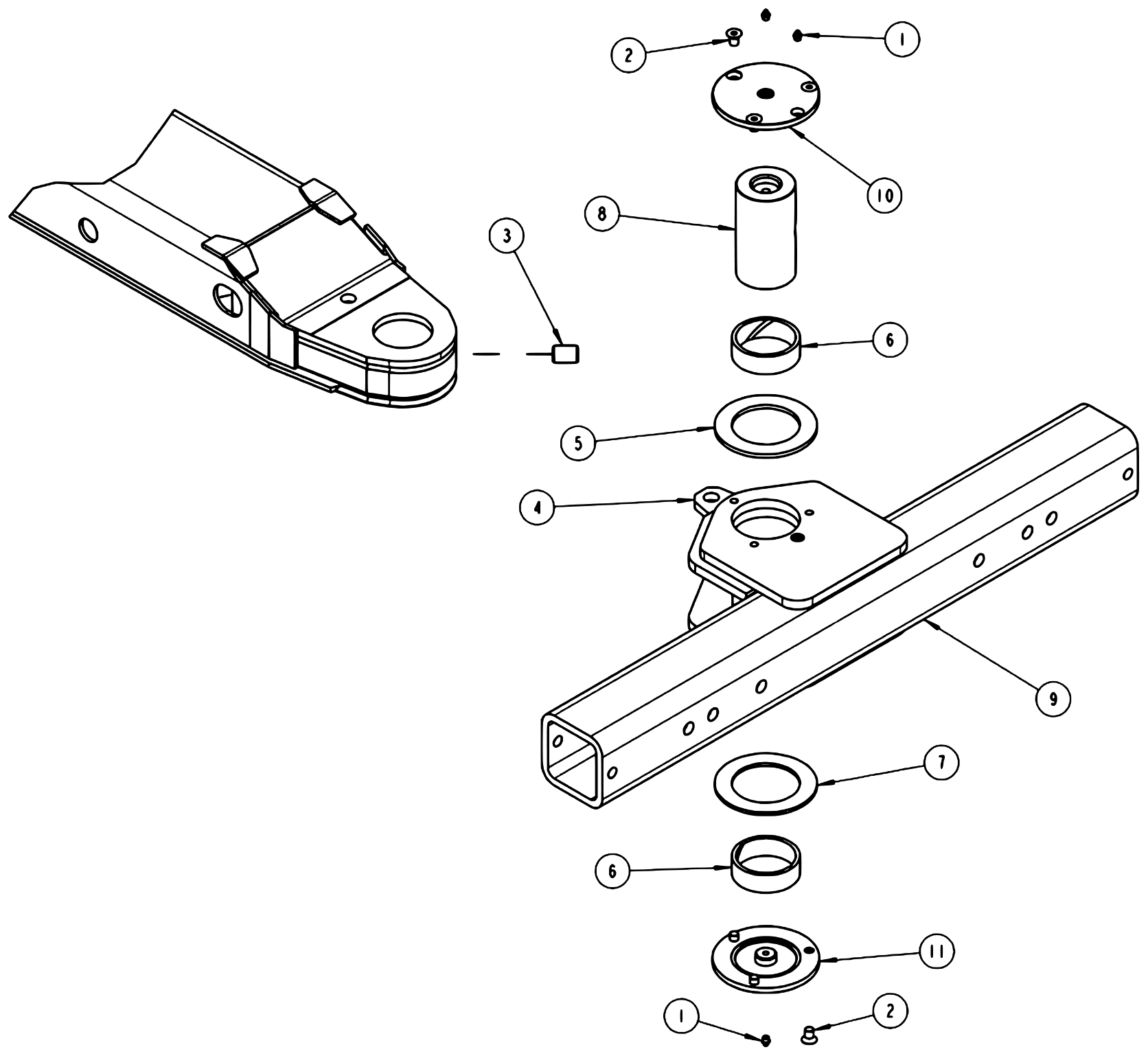

- Crossbar Assembly
- Winch Assembly

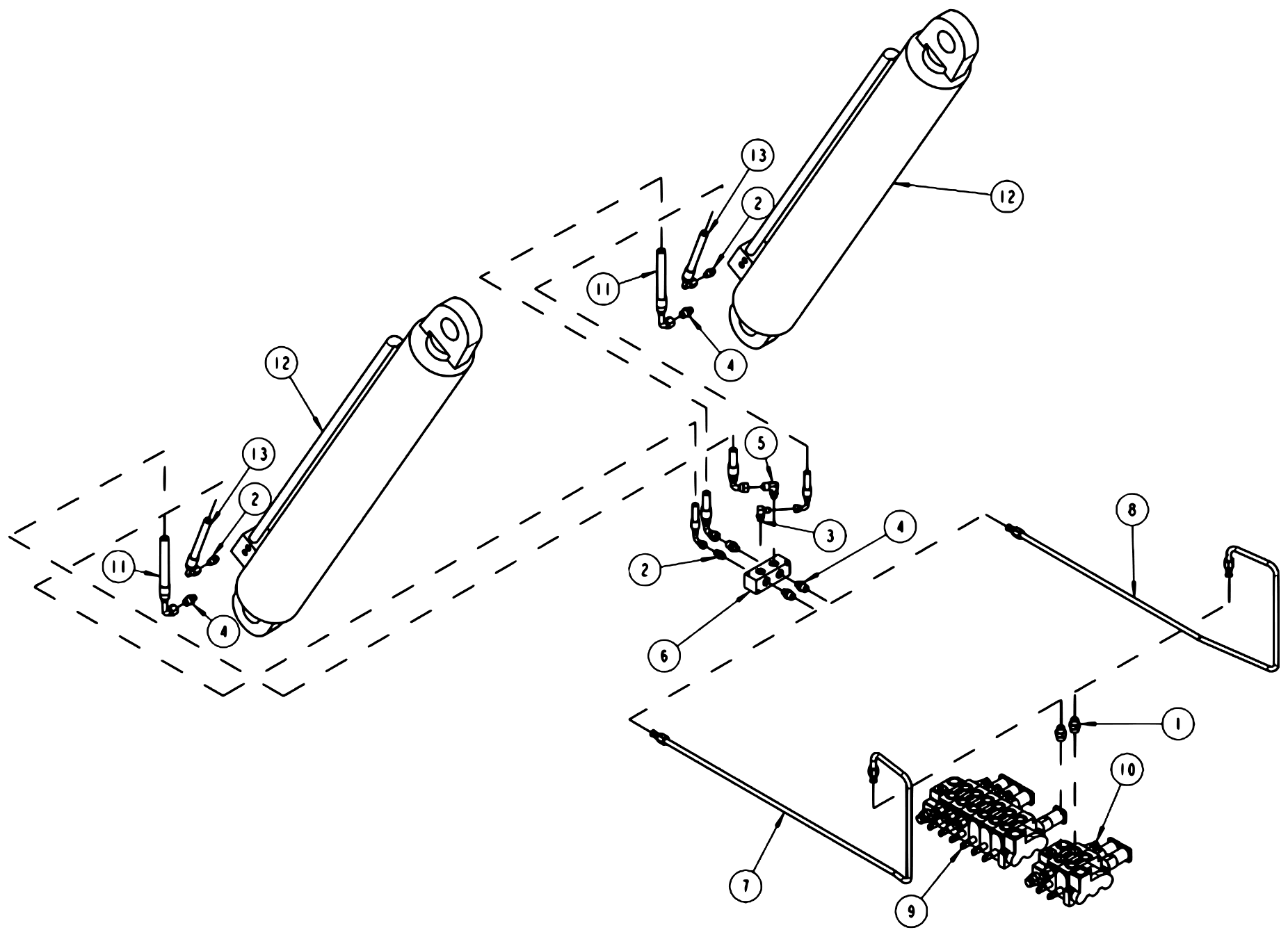

- Boom Lift Hydraulics

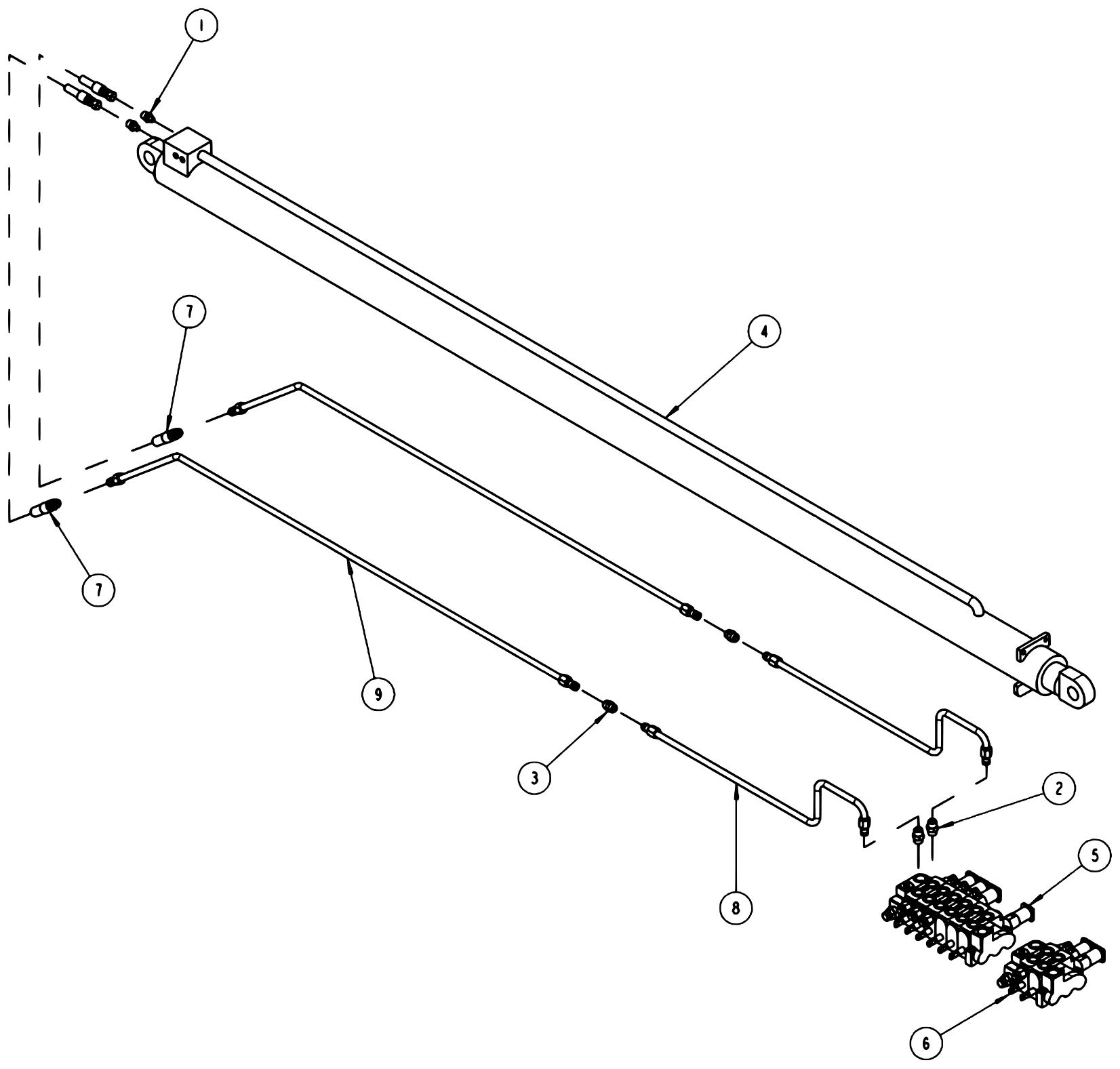

- 2-Stage Boom Extend Hydraulics
- 3-Stage Boom Extend Hydraulics
- Underlift Extend Hydraulics
- Underlift Tilt Hydraulics

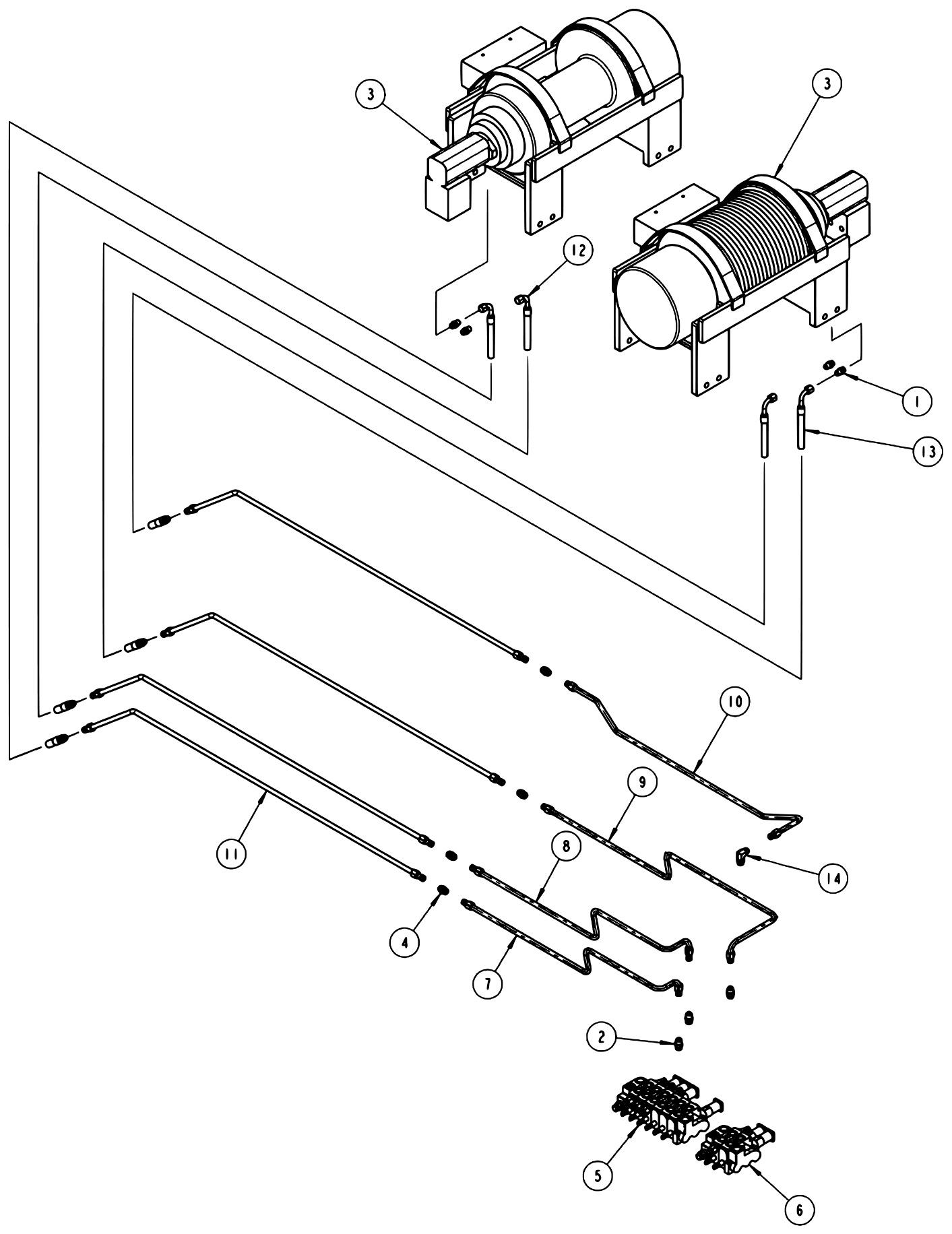

- Winch Hydraulics

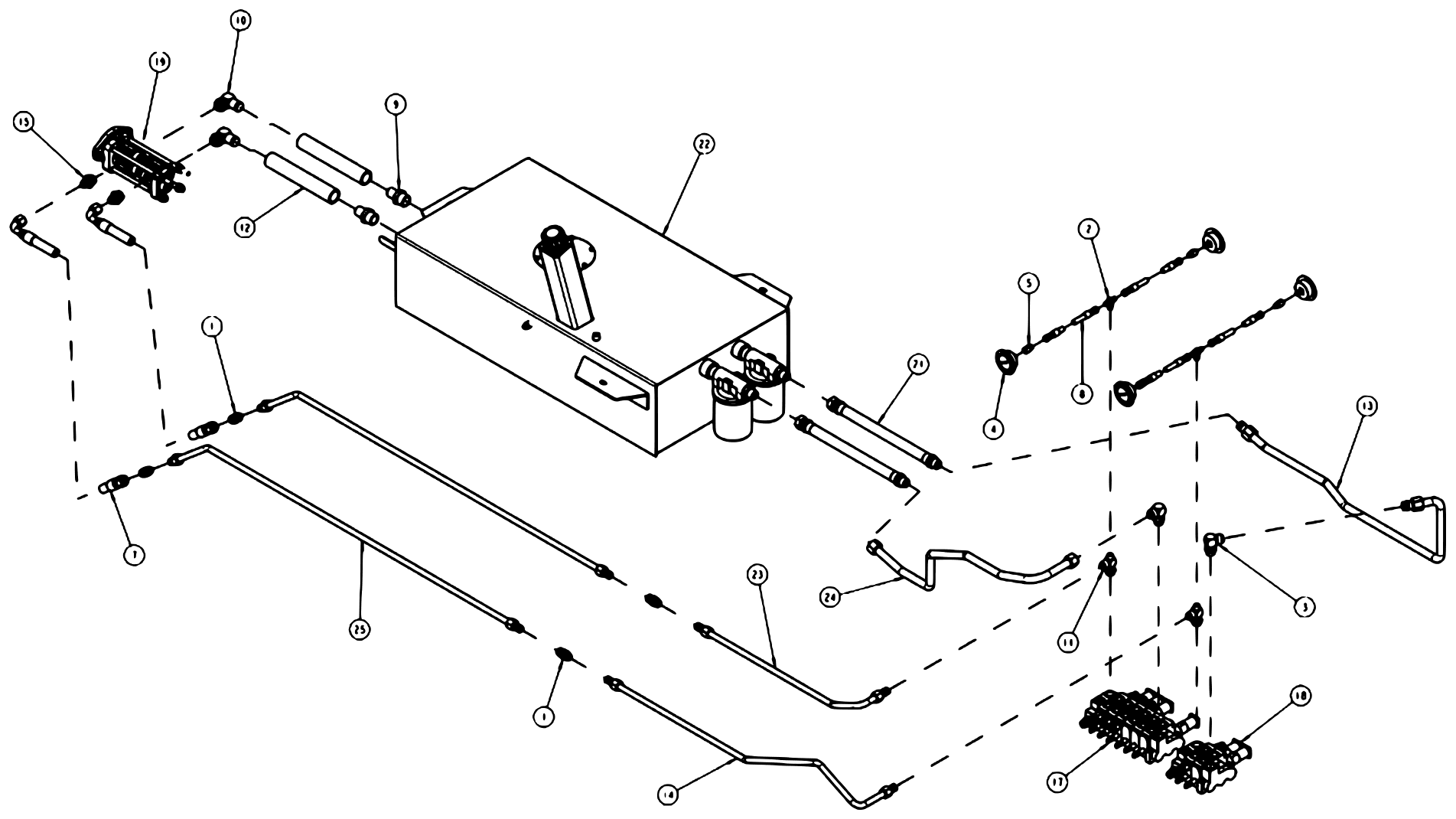

- Subframe Hydraulics
- Hydraulic Tank Assembly

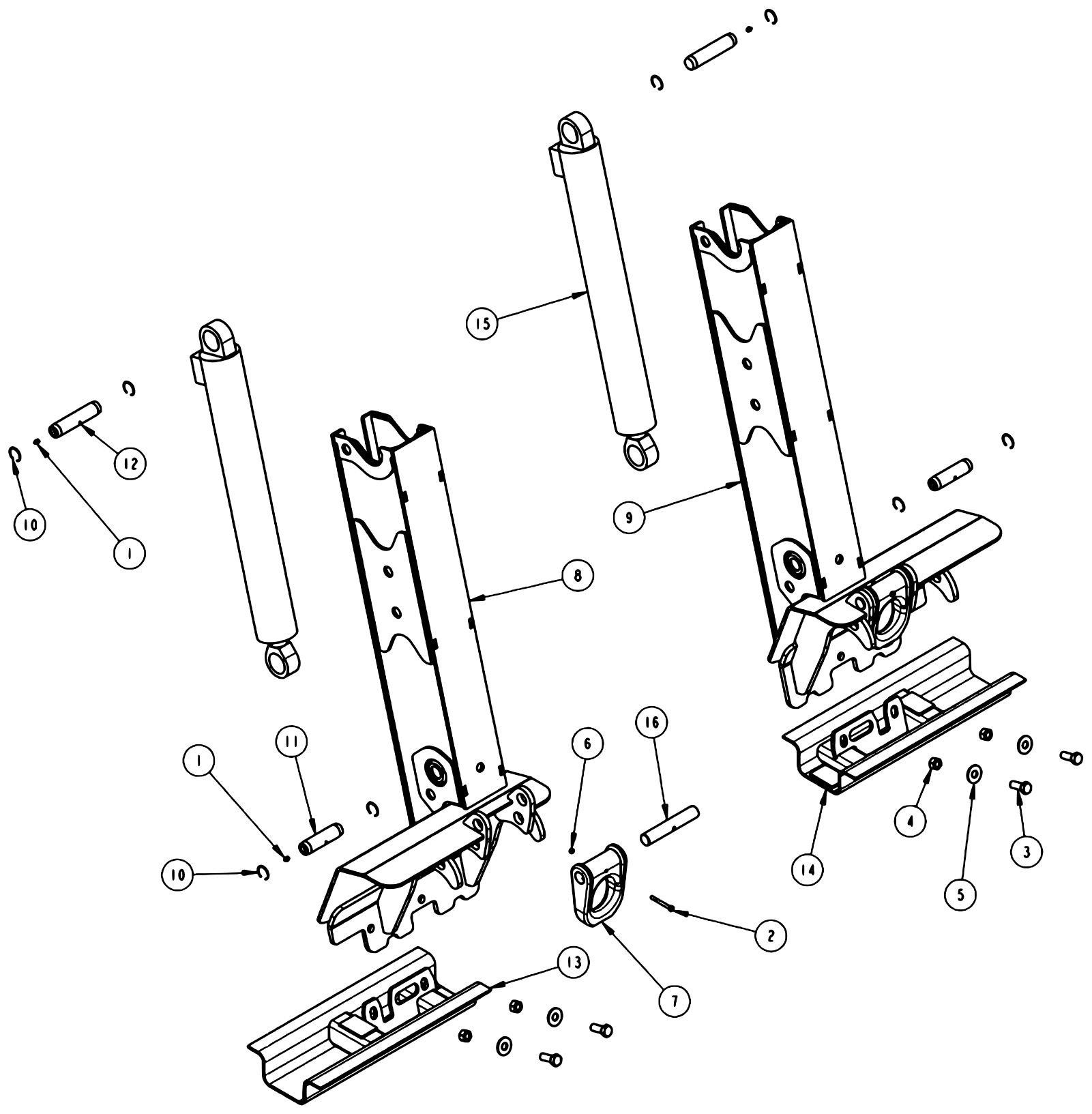

- Standard Jackleg Assembly
- Jackleg Assembly w/ Flipper Feet
- Rear Outrigger Option
- Jackleg Hydraulics
- Outrigger Hydraulics
- Dual Control Assembly

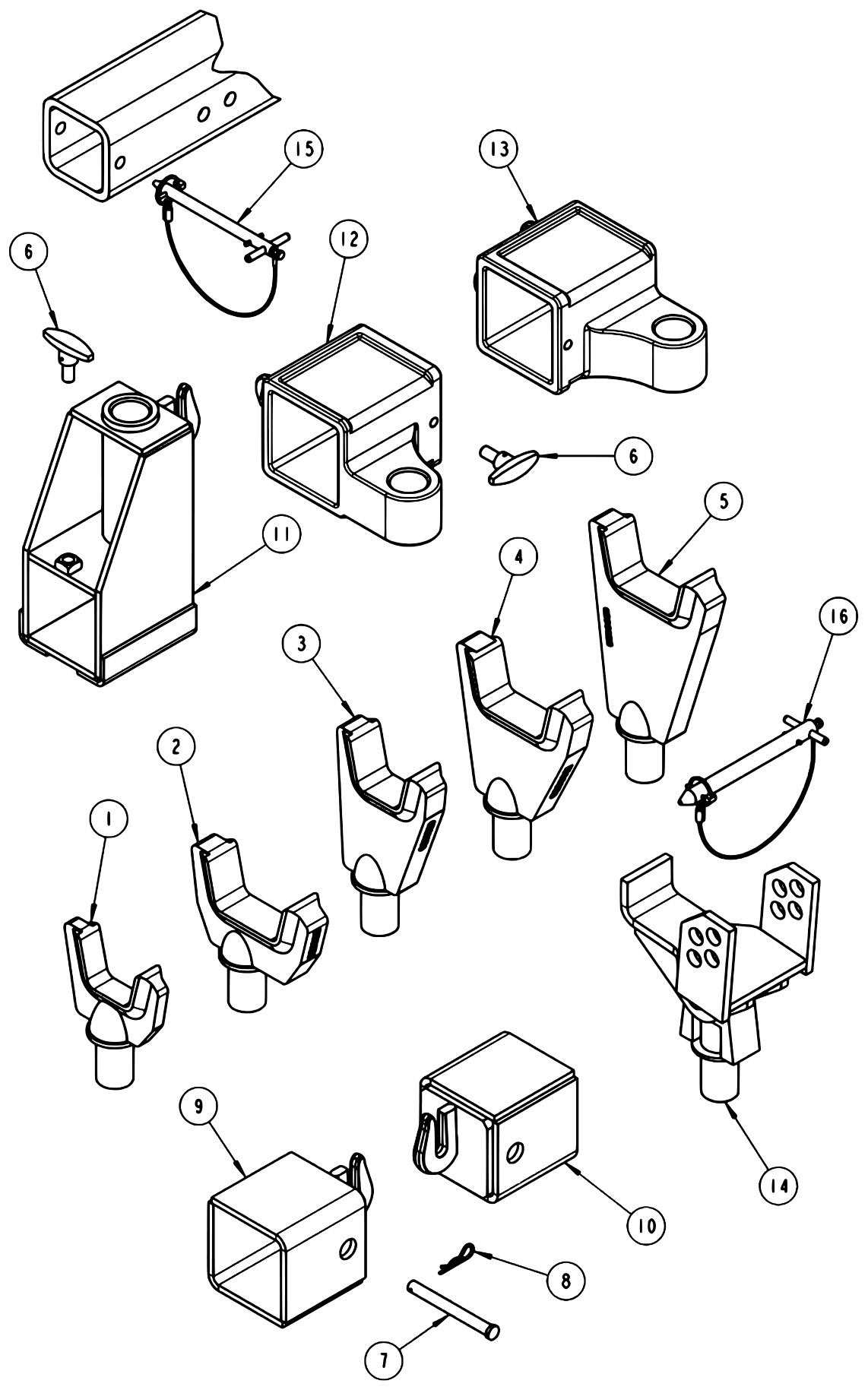

- Lift Adapters

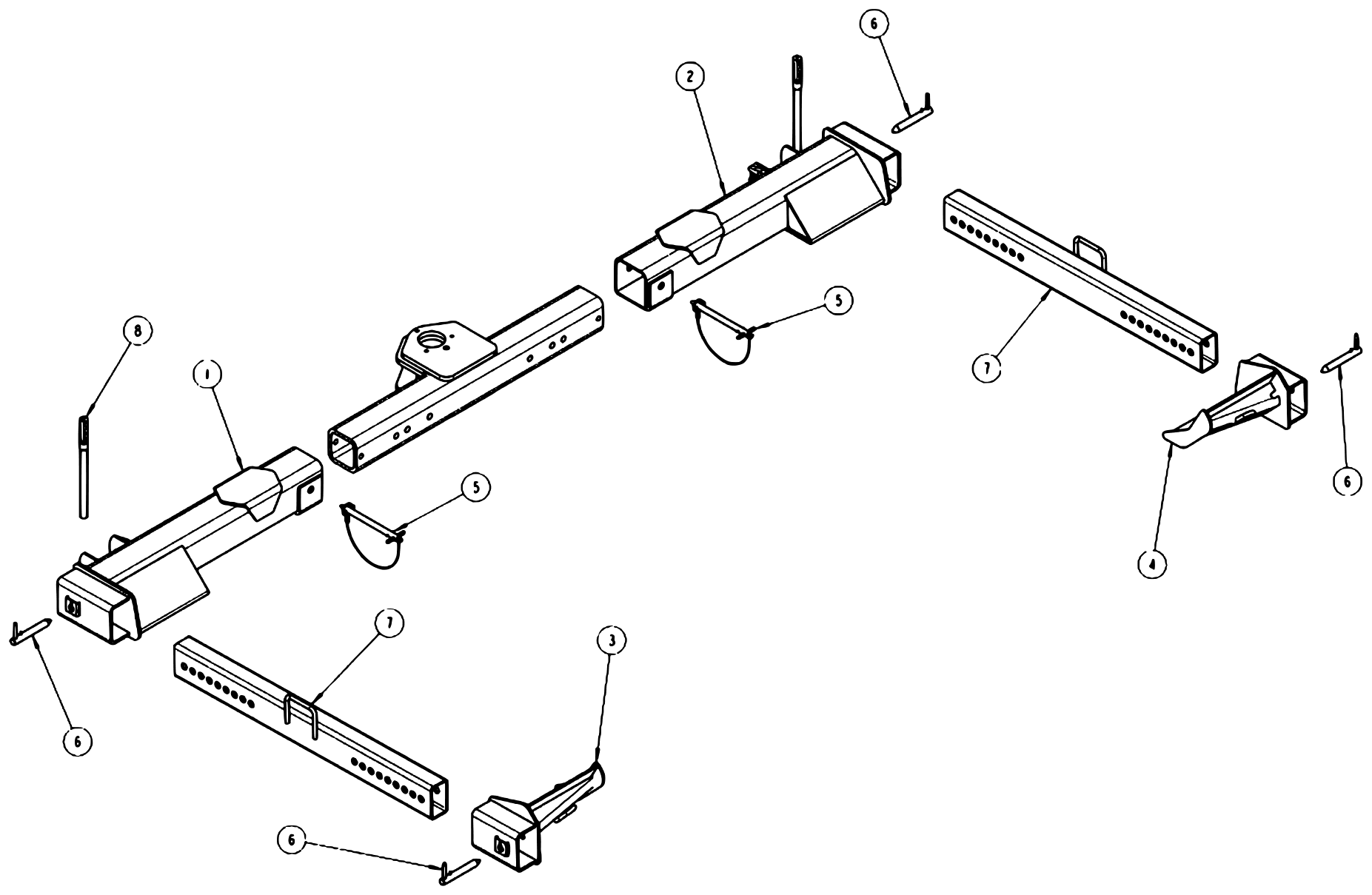

- 5X5 Bus Lift Assembly
- Euro Bus Lift Assembly

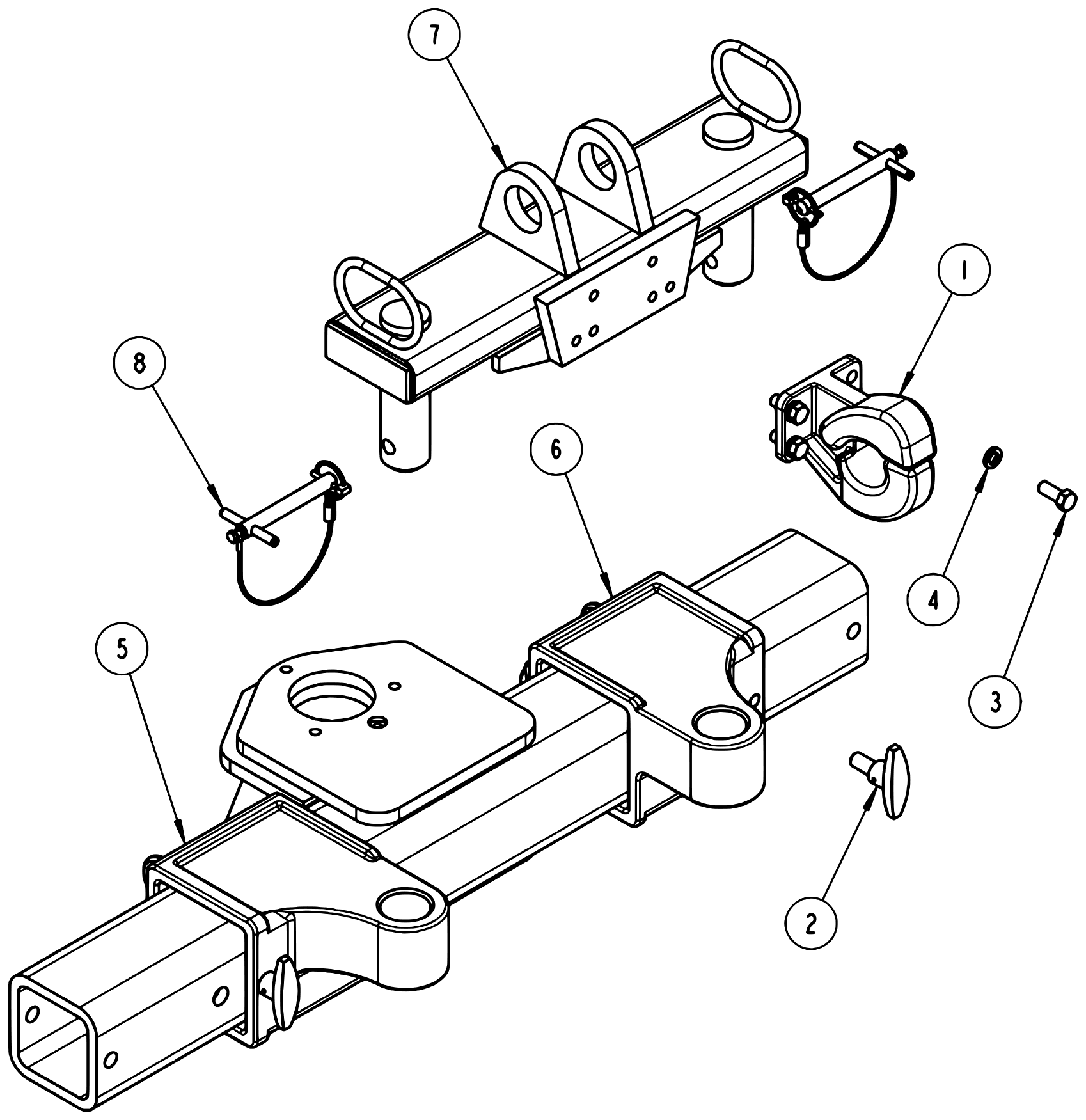

- Pintle Hook Adapter

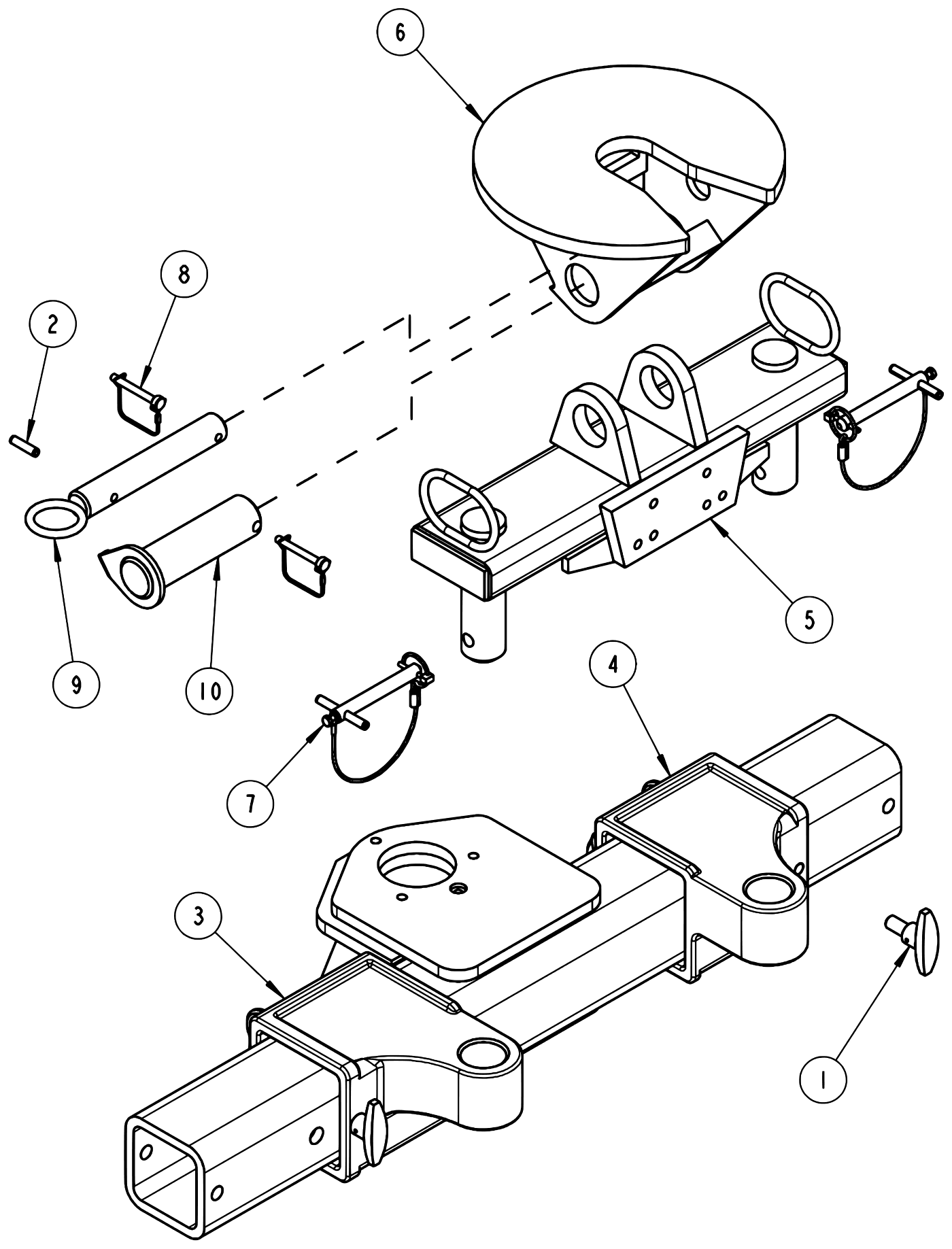

- 5TH Wheel Adapter
- King Pin Adapter

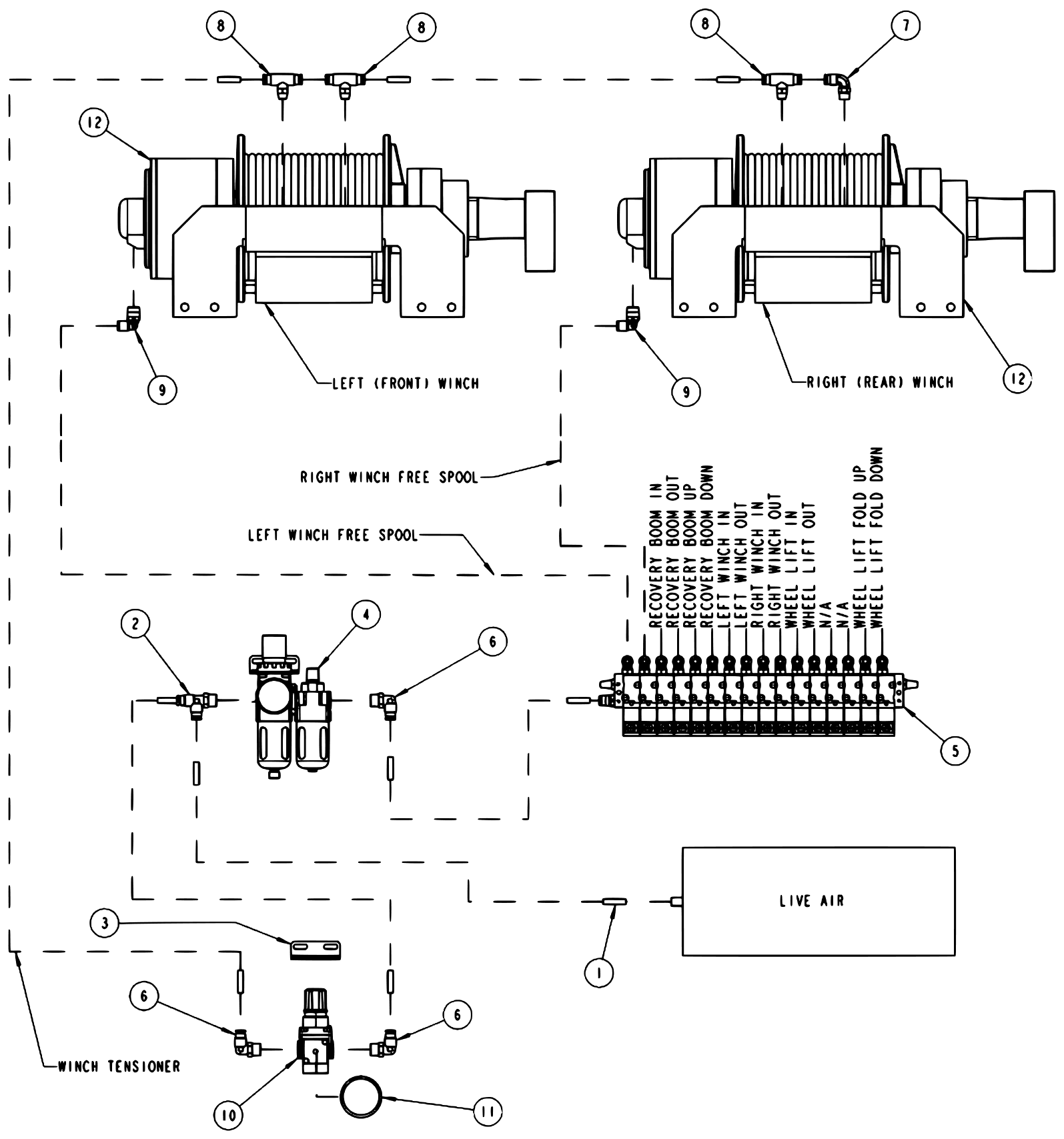

- Air System
- V-100 2-Stage W/ Std Stinger Parts List - 1 of 6
- V-100 2-Stage W/ Std Stinger Parts List - 2 of 6
- V-100 2-Stage W/ Std Stinger Parts List - 3 of 6
- V-100 2-Stage W/ Std Stinger Parts List - 4 of 6
- V-100 2-Stage W/ Std Stinger Parts List - 5 of 6
- V-100 2-Stage W/ Std Stinger Parts List - 6 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 1 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 2 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 3 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 4 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 5 of 6
- V-100 3-Stage W/ Std Stinger Parts List - 6 of 6

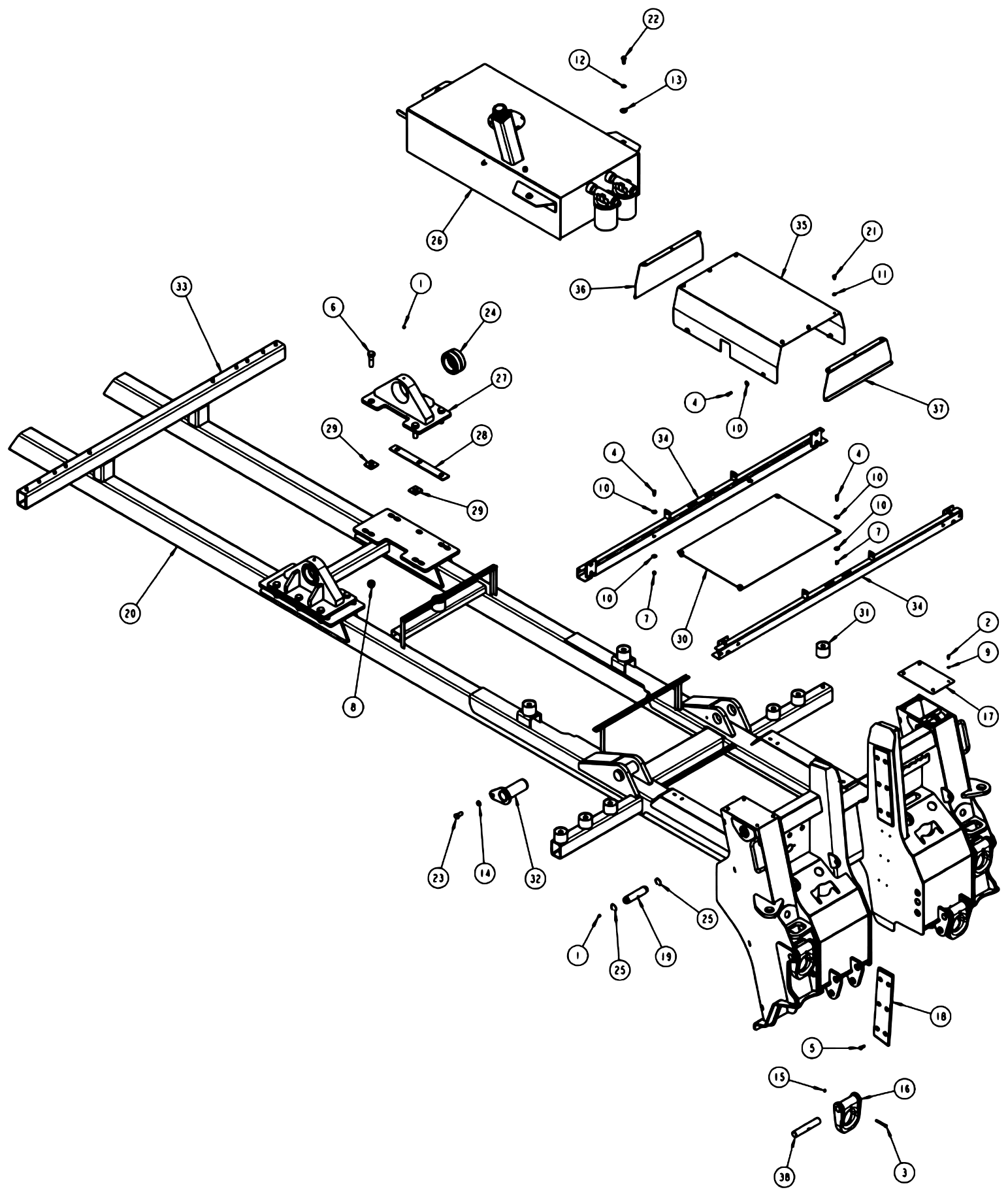

Subframe Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 4 | $5.84 | |
| 2 | 0400066 | 1/4-20 X 3/4 HHCS GR.5, ZP | 8 | $5.84 | |
| 3 | 0400114 | 5/16-18 X 3 HHCS GR 5 ZP | 4 | $5.84 | |
| 4 | 0400126 | 3/8-16 X 1 HHCS GR.5, ZP | 12 | $5.84 | |
| 5 | 0400128 | 3/8-16X1.25 FLAT HD SOC | 24 | $8.01 | |
| 6 | 0400306 | 7/8-9 X 3 HHCS GR. 8 GOLD | 10 | $8.01 | |
| 7 | 0400392 | 3/8-16 NYLOCK HEX NUT ZP | 8 | $5.84 | |
| 8 | 0400437 | 7/8-9 NYLOCK HEX NUT GR.8 ZP | 10 | $19.68 | |
| 9 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 8 | $5.84 | |
| 10 | 0400480 | 3/8 FLAT WASHER ZP | 20 | $4.01 | |
| 11 | 0400482 | 3/8 HELICAL LOCK WASHER ZP | 6 | $5.84 | |
| 12 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 3 | $5.84 | |
| 13 | 0400492 | 1/2 FLAT WASHER ZP | 3 | $5.84 | |
| 14 | 0400508 | 5/8 HELICAL LOCK WASHER ZP | 2 | $5.84 | |
| 15 | 0400776 | 5/16-18 HEX NUT JAM NYLOK | 4 | $5.84 | |
| 16 | 0719585 | "D" RING - TOWING | 4 | $444.92 | |
| 17 | 0724349 | PLATE - SPADE COVER | 2 | Call for price | — |
| 18 | 0724476 | NYLATRON PAD | 4 | $166.84 | |
| 19 | 0724499 | PIN, UPPER JACK LEG CYLINDER | 2 | $60.50 | |
| 20 | 0807731 | SUBFRAME WELDMENT | 1 | Call for price | — |
| 21 | 9041202 | 3/8-16 X 5/8 PL GR8 | 6 | $5.84 | |
| 22 | 9041402 | 1/2-13NC X 1 1/4 HHCS, ZP, GR.8 | 5 | $8.01 | |
| 23 | 9043950 | 5/8-11x1-1/2 | 2 | $8.01 | |
| 24 | 9053041 | BEARING, SPHERICAL TORRIN | 2 | $180.55 | |
| 25 | 9054150 | SNAP RING, 1-1/4" NOM INTERNAL | 4 | $1.90 | |
| 26 | 915780000 | HYDRAULIC TANK ASSY | 1 | $4,252.29 | |
| 27 | 930202500 | PIVOT BLOCK WELD'T | 2 | $2,650.90 | |
| 28 | 930202504 | TIE PLATE | 2 | Call for price | — |
| 29 | 930202505 | WASHER PLATE | 4 | $26.97 | |
| 30 | 930400009 | PLATE- BOTTOM | 1 | Call for price | — |
| 31 | 9402970 | TOOLBOX MTG. PAD | 9 | $54.72 | |
| 32 | 945351500 | PIN WELDMENT - LOWER LIFT CYL | 2 | $114.88 | |
| 33 | 946210500 | FRONT MTG. TUBE WELD'T | 1 | $1,095.52 | |
| 34 | 946400600 | CHANNEL WELD'T | 2 | Call for price | — |
| 35 | 946402501 | TOP PANEL - D.C.V. COVER ASSY | 1 | $195.11 | |
| 36 | 946402600 | REAR PANEL WELDMENT | 1 | $70.82 | |
| 37 | 946402700 | FRONT PANEL WELDMENT | 1 | $69.32 | |
| 38 | GA0215 | PIN, D RING | 4 | $82.07 |
LH Body Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300117 | GROMMET RUBBER | 2 | $1.00 | |
| 2 | 0301696 | ELBOW, 6MJ-6FJX90 | 2 | Call for price | — |
| 3 | 0302201 | BACKUP LIGHT W/ GROMMET & PLUG | 1 | $37.76 | |
| 4 | 0302205 | GAUGE, FLUSH MOUNT 6000 PSI | 2 | $45.17 | |
| 5 | 0302577 | CONNECTOR, 6MJ-4FP | 2 | $4.23 | |
| 6 | 0303128 | GROMMET, TAIL LIGHT | 3 | $3.78 | |
| 7 | 0303365 | BRKT- MOUNTING | 1 | $7.68 | |
| 8 | 0306684 | LIGHT, BACKUP | 1 | $28.28 | |
| 9 | 0306685 | GROMMET, LED LIGHT 45 STT | 4 | $7.68 | |
| 10 | 0307215 | LED LIGHT, RED 45 STT | 2 | $47.42 | |
| 11 | 0307216 | LED LIGHT, AMBER 45 REAR TURN | 1 | $76.59 | |
| 12 | 0307220 | LIGHT OVAL AMBER 60 LED | 3 | $47.42 | |
| 13 | 0307538 | LIGHT, MRKR-RED LED 4.5 X 1.63 | 2 | $69.32 | |
| 14 | 0311016 | 2010 VULCAN AL. BODY 180CB | 1 | Call for price | — |
| 15 | 0400021 | #8-32 X .5 FLAT HEAD PHILLIPS S.S. | 4 | $5.84 | |
| 16 | 0400070 | 1/4-20 X 1 HHCS GR5 ZP | 3 | $5.84 | |
| 17 | 0400451 | 1/4 FLAT WASHER ZP | 3 | $5.84 | |
| 18 | 0402020 | 1/4-20 X 3/4 HHCS SS | 8 | $5.84 | |
| 19 | 0402043 | 3/8-16 X 1-1/4 HHCS SS | 4 | $5.84 | |
| 20 | 0402110 | 1/4 FLATWASHER 316 STAINLESS | 8 | $5.84 | |
| 21 | 0402111 | 1/4 LOCKWASHER 316 STAINLESS | 8 | $5.84 | |
| 22 | 0402120 | 3/8 FLATWASHER 316 SS | 8 | $5.84 | |
| 23 | 0402121 | 3/8 LOCKWASHER 316 STAINLESS | 4 | Call for price | — |
| 24 | 0402122 | HEX NUT 316 STAINLESS | 4 | $4.01 | |
| 25 | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | 1 | $235.71 | |
| 26 | 9010520 | FITTING - ELBOW, 1/4T-1/4NPT MALE | 2 | $13.84 | |
| 27 | 9024041 | MCGILL SWITCH | 4 | $43.74 | |
| 28 | 9025049 | INT. COMPARTMENT LIGHT W/ SWITCH | 2 | $41.94 | |
| 29 | 920400005 | MUD FLAP BRACE PLATE | 1 | $20.81 | |
| 30 | 942480003 | D.C.V. UPPER PANEL | 1 | $136.75 | |
| 31 | 942480200 | D.C.V. LOWER PANEL WELDMENT | 1 | $227.95 | |
| 32 | 942480300 | LH MTG ANGLE WELDMENT | 1 | $152.31 | |
| 33 | 942487300 | RH MTG ANGLE WELDMENT | 1 | $169.27 | |
| 34 | 94320052 | MUDFLAP | 1 | $70.82 | |
| 35 | HA0131 | AIR FILTER / REGULATOR COMBO | 1 | $47.42 | |
| 36 | HA0132 | GAUGE- AIRFILTER/REGULATOR | 1 | $24.66 |
RH Body Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300117 | GROMMET RUBBER | 2 | $1.00 | |
| 2 | 0301696 | ELBOW, 6MJ-6FJX90 | 2 | Call for price | — |
| 3 | 0302201 | BACKUP LIGHT W/ GROMMET & PLUG | 1 | $37.76 | |
| 4 | 0302205 | GAUGE, FLUSH MOUNT 6000 PSI | 2 | $45.17 | |
| 5 | 0302577 | CONNECTOR, 6MJ-4FP | 2 | $4.23 | |
| 6 | 0303128 | GROMMET, TAIL LIGHT | 3 | $3.78 | |
| 7 | 0306684 | LIGHT, BACKUP | 1 | $28.28 | |
| 8 | 0306685 | GROMMET, LED LIGHT 45 STT | 4 | $7.68 | |
| 9 | 0307215 | LED LIGHT, RED 45 STT | 2 | $47.42 | |
| 10 | 0307216 | LED LIGHT, AMBER 45 REAR TURN | 1 | $76.59 | |
| 11 | 0307220 | LIGHT OVAL AMBER 60 LED | 3 | $47.42 | |
| 12 | 0307538 | LIGHT, MRKR-RED LED 4.5 X 1.63 | 2 | $69.32 | |
| 13 | 0311017 | 2010 VULCAN AL. BODY 180CB | 1 | Call for price | — |
| 14 | 0400070 | 1/4-20 X 1 HHCS GR5 ZP | 3 | $5.84 | |
| 15 | 0400451 | 1/4 FLAT WASHER ZP | 3 | $5.84 | |
| 16 | 0402020 | 1/4-20 X 3/4 HHCS SS | 8 | $5.84 | |
| 17 | 0402043 | 3/8-16 X 1-1/4 HHCS SS | 4 | $5.84 | |
| 18 | 0402110 | 1/4 FLATWASHER 316 STAINLESS | 8 | $5.84 | |
| 19 | 0402111 | 1/4 LOCKWASHER 316 STAINLESS | 8 | $5.84 | |
| 20 | 0402120 | 3/8 FLATWASHER 316 SS | 8 | $5.84 | |
| 21 | 0402121 | 3/8 LOCKWASHER 316 STAINLESS | 4 | Call for price | — |
| 22 | 0402122 | HEX NUT 316 STAINLESS | 4 | $4.01 | |
| 23 | 9024041 | MCGILL SWITCH | 4 | $43.74 | |
| 24 | 9025049 | INT. COMPARTMENT LIGHT W/ SWITCH | 2 | $41.94 | |
| 25 | 920400005 | MUD FLAP BRACE PLATE | 1 | $20.81 | |
| 26 | 942480003 | D.C.V. UPPER PANEL | 1 | $136.75 | |
| 27 | 942480200 | D.C.V. LOWER PANEL WELDMENT | 1 | $227.95 | |
| 28 | 942480300 | LH MTG ANGLE WELDMENT | 1 | $152.31 | |
| 29 | 942487300 | RH MTG ANGLE WELDMENT | 1 | $169.27 | |
| 30 | 94320052 | MUDFLAP | 1 | $70.82 |
Outer Boom Assembly - 2 Stage
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 2 | $5.84 | |
| 2 | 0302776 | SNAP RING - EXTERNAL 2" | 2 | $5.67 | |
| 3 | 0400059 | 1/4-20 X 5/8 HHCS GR 5 ZP | 4 | $5.84 | |
| 4 | 0400424 | 5/8-18 HEX NUT ZP | 2 | Call for price | — |
| 5 | 0400426 | 5/8-11 NYLOCK NUT GR.8 ZP | 2 | $8.01 | |
| 6 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 4 | $5.84 | |
| 7 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 1 | $5.84 | |
| 8 | 0400492 | 1/2 FLAT WASHER ZP | 1 | $5.84 | |
| 9 | 0400505 | 5/8 FLAT WASHER SAE | 2 | $5.84 | |
| 10 | 0715517 | PIN - "D" RING OUTER BOOM WELDMENT | 1 | $134.96 | |
| 11 | 0719585 | "D" RING - TOWING | 1 | $444.92 | |
| 12 | 0810006 | OUTER BOOM WLMT (V-100) | 1 | Call for price | — |
| 13 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 14 | 9041403 | 1/2-13 X 1-1/2 HHCS GR 8 ZP | 1 | $5.84 | |
| 15 | 9043605 | SCREW, 5/8"-11 X 4-1/2" SKT HD CAP | 2 | Call for price | — |
| 16 | 9043975 | 5/8-11 X 3-1/2 UNC HHCS GR 8 | 2 | $8.01 | |
| 17 | 9044409 | 5/8-11 X 2-1/4 HHCS GR8 ZP | 2 | $3.55 | |
| 18 | 9048800 | 5/8 WELDLESS CHAIN LINK | 2 | $21.89 | |
| 19 | 9056137 | SNAP RING, 2-1/4" | 2 | $3.78 | |
| 20 | 920255003 | SPACER - LOCK PIN WELD'T | 1 | $3.55 | |
| 21 | 930290002 | COVER PLATE | 1 | $18.95 | |
| 22 | 9400004 | BRONZE BUSHING | 2 | $277.15 | |
| 23 | 945020001 | WASHER PLATE, LOWER LIFT CYLINDER | 2 | $71.13 | |
| 24 | 945030007 | SPRING - HOSE TENSIONER | 2 | $28.28 | |
| 25 | 945040001 | MAIN BOOM PIVOT | 2 | $23.53 | |
| 26 | 945350001 | PIVOT PIN, MAIN BOOM TO SUBFRAME | 1 | $725.75 | |
| 27 | 945350500 | PIN WELD'T-TILT CYL UPPER | 1 | $213.34 | |
| 28 | 945351500 | PIN WELDMENT - LOWER LIFT CYL | 2 | $114.88 | |
| 29 | 946030005 | LOWER WEAR PAD-RECOVERY | 1 | $102.10 | |
| 30 | 946350001 | PIN MAIN BOOM EXT CYL FRONT | 1 | $93.88 | |
| 31 | 946700000 | CYLINDER ASSEMBLY | 2 | $7,868.25 |

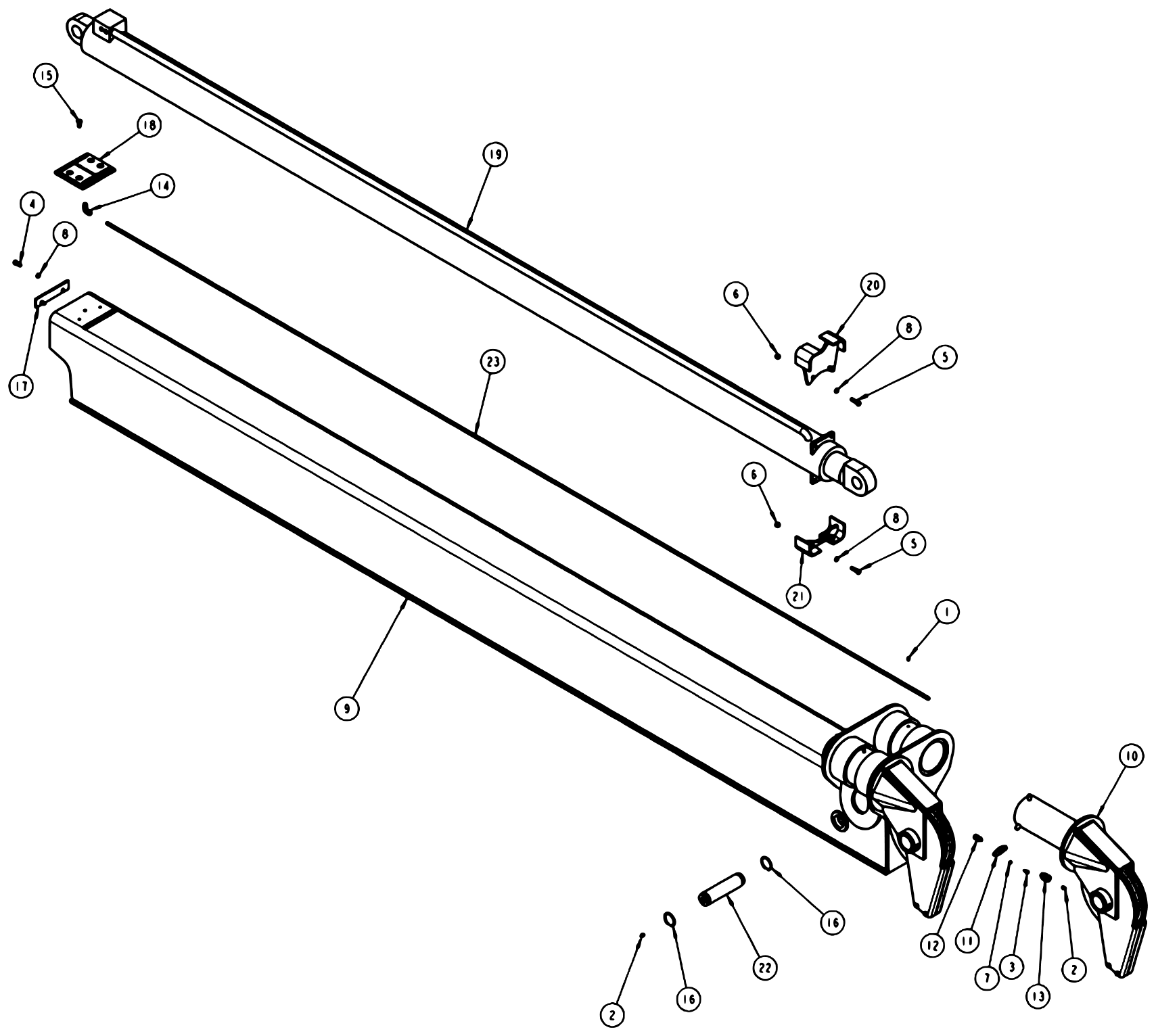

Inner Boom Assembly - 2 Stage
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT SS | 2 | $5.84 | |
| 2 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 2 | $5.84 | |
| 3 | 0400059 | 1/4-20 X 5/8 HHCS GR 5 ZP | 2 | $5.84 | |
| 4 | 0400126 | 3/8-16 X 1 HHCS GR.5, ZP | 2 | $5.84 | |
| 5 | 0400132 | 3/8-16 X 1 1/2 HHCS GR.5 ZP | 4 | $5.84 | |
| 6 | 0400392 | 3/8-16 NYLOCK HEX NUT ZP | 4 | $5.84 | |
| 7 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 2 | $5.84 | |
| 8 | 0400482 | 3/8 HELICAL LOCK WASHER ZP | 6 | $5.84 | |
| 9 | 0806863 | INNER BOOM WELD'T | 1 | Call for price | — |
| 10 | 0908424 | SWIVEL ASSEMBLY | 2 | Call for price | — |
| 11 | 3012-793001 | PLATE - LUBE MTG | 1 | $19.68 | |
| 12 | 9012549 | CONNECTOR, 3/8 TUBE X 1/8 NPT | 1 | $15.67 | |
| 13 | 9012552 | BULKHEAD COUPLING, 1/8 | 1 | $40.12 | |
| 14 | 9012584 | ELBOW, 1/4 NPT X 3/8 TUBE 90 | 1 | $21.51 | |
| 15 | 9044434 | 3/8-16X1 NC FLAT | 2 | $5.84 | |
| 16 | 9054200 | INTERNAL RETAINING RING 2H | 2 | $5.68 | |
| 17 | 945030001 | PAD RETAINING PLATE - UPPER | 1 | $30.25 | |
| 18 | 945030004 | UPPER WEAR PAD - RECOVERY | 1 | $71.13 | |
| 19 | 945710000 | RECOVERY BOOM EXTENSION CYLINDER | 1 | Call for price | — |
| 20 | 946032000 | TOP SPIDER CLAMP WELDMENT | 1 | Call for price | — |
| 21 | 946032500 | BOTTOM SPIDER CLAMP WELDMENT | 1 | Call for price | — |
| 22 | 946350002 | PIN-MAIN BOOM EXT | 1 | $91.19 | |
| 23 | 0301949 | 3/8" OD AIRLINE, SYNFLEXPriced per foot | 1 | $8.01 |

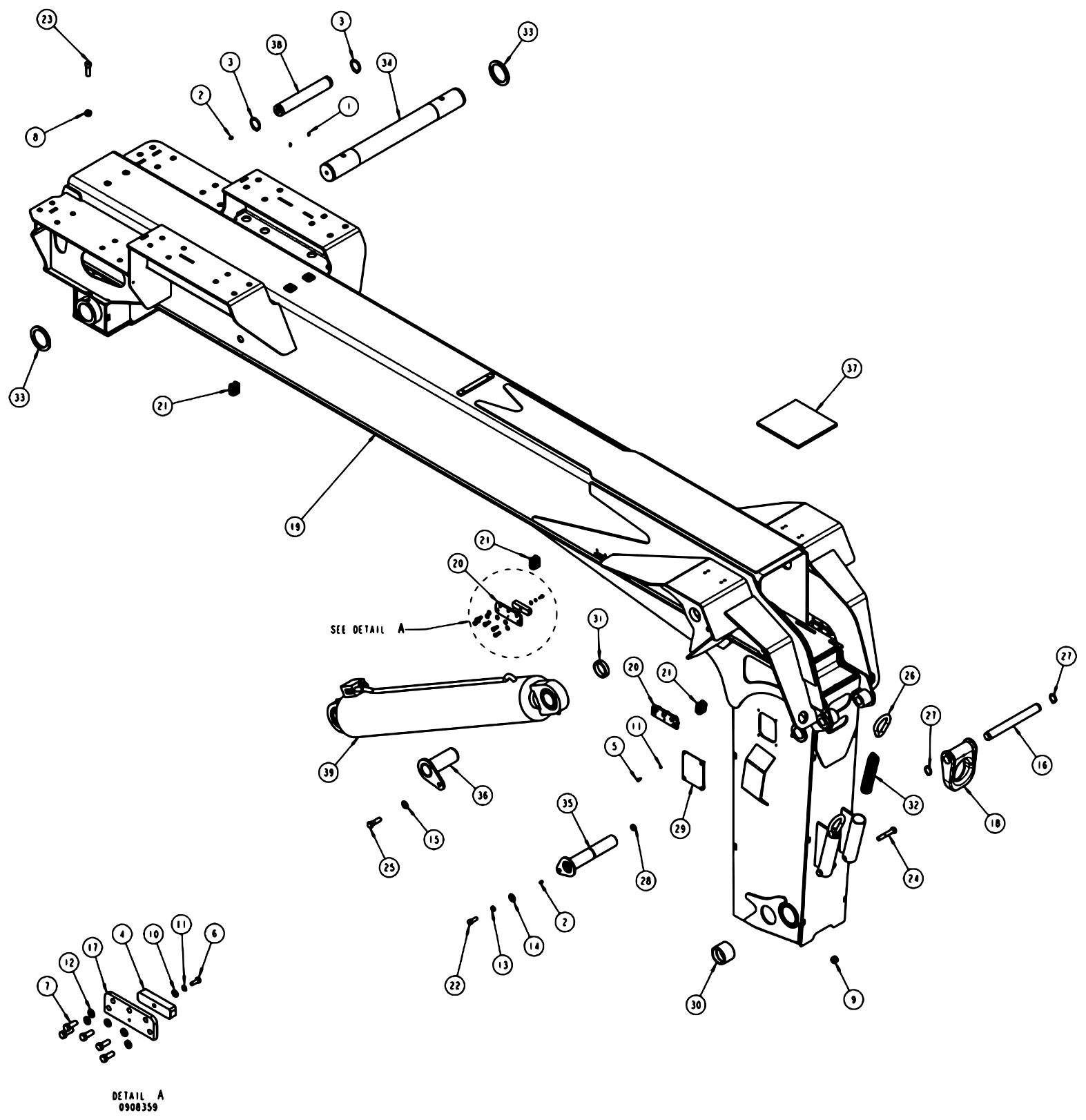

Outer Boom Assembly - 3 Stage
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT SS | 2 | $5.84 | |
| 2 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 2 | $5.84 | |
| 3 | 0302776 | SNAP RING - EXTERNAL 2" | 2 | $5.67 | |
| 4 | 0306825 | PAD - WEAR | 4 | $19.68 | |
| 5 | 0400059 | 1/4-20 X 5/8 HHCS GR 5 ZP | 8 | $5.84 | |
| 6 | 0400066 | 1/4-20 X 3/4 HHCS GR.5, ZP | 4 | $5.84 | |
| 7 | 0400126 | 3/8-16 X 1 HHCS GR.5, ZP | 20 | $5.84 | |
| 8 | 0400424 | 5/8-18 HEX NUT ZP | 2 | Call for price | — |
| 9 | 0400426 | 5/8-11 NYLOCK NUT GR.8 ZP | 2 | $8.01 | |
| 10 | 0400451 | 1/4 FLAT WASHER ZP | 4 | $5.84 | |
| 11 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 12 | $5.84 | |
| 12 | 0400482 | 3/8 HELICAL LOCK WASHER ZP | 20 | $5.84 | |
| 13 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 1 | $5.84 | |
| 14 | 0400492 | 1/2 FLAT WASHER ZP | 1 | $5.84 | |
| 15 | 0400505 | 5/8 FLAT WASHER SAE | 2 | $5.84 | |
| 16 | 0715517 | PIN - "D" RING OUTER BOOM WELDMENT | 1 | $134.96 | |
| 17 | 0717746 | PLATE - SLIDE PAD SUPPORT | 4 | $38.21 | |
| 18 | 0719585 | "D" RING - TOWING | 1 | $444.92 | |
| 19 | 0807971 | OUTER BOOM WLMT (V-100) | 1 | Call for price | — |
| 20 | 0908359 | SLIDE PAD ASSEMBLY | 4 | $63.82 | |
| 21 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 22 | 9041403 | 1/2-13 X 1-1/2 HHCS GR 8 ZP | 1 | $5.84 | |
| 23 | 9043605 | SCREW, 5/8"-11 X 4-1/2" SKT HD CAP | 2 | Call for price | — |
| 24 | 9043975 | 5/8-11 X 3-1/2 UNC HHCS GR 8 | 2 | $8.01 | |
| 25 | 9044409 | 5/8-11 X 2-1/4 HHCS GR8 ZP | 2 | $3.55 | |
| 26 | 9048800 | 5/8 WELDLESS CHAIN LINK | 2 | $21.89 | |
| 27 | 9056137 | SNAP RING, 2-1/4" | 2 | $3.78 | |
| 28 | 920255003 | SPACER - LOCK PIN WELD'T | 1 | $3.55 | |
| 29 | 930290002 | COVER PLATE | 2 | $18.95 | |
| 30 | 9400004 | BRONZE BUSHING | 2 | $277.15 | |
| 31 | 945020001 | WASHER PLATE, LOWER LIFT CYLINDER | 2 | $71.13 | |
| 32 | 945030007 | SPRING - HOSE TENSIONER | 2 | $28.28 | |
| 33 | 945040001 | MAIN BOOM PIVOT | 2 | $23.53 | |
| 34 | 945350001 | PIVOT PIN, MAIN BOOM TO SUBFRAME | 1 | $725.75 | |
| 35 | 945350500 | PIN WELD'T-TILT CYL UPPER | 1 | $213.34 | |
| 36 | 945351500 | PIN WELDMENT - LOWER LIFT CYL | 2 | $114.88 | |
| 37 | 946030005 | LOWER WEAR PAD-RECOVERY | 1 | $102.10 | |
| 38 | 946350001 | PIN MAIN BOOM EXT CYL FRONT | 1 | $93.88 | |
| 39 | 946700000 | CYLINDER ASSEMBLY | 2 | $7,868.25 | |
| 40 | 946750000 | TILT CYLINDER | 1 | $5,113.60 |
Inner Boom Assembly - 3 Stage
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT SS | 6 | $5.84 | |
| 2 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 1 | $5.84 | |
| 3 | 0303490 | WEAR PAD (1/2 X 1 X 4) | 2 | $50.14 | |
| 4 | 0307432 | BUSHING - BRONZE | 4 | Call for price | — |
| 5 | 0400059 | 1/4-20 X 5/8 HHCS GR 5 ZP | 2 | $5.84 | |
| 6 | 0400066 | 1/4-20 X 3/4 HHCS GR.5, ZP | 2 | $5.84 | |
| 7 | 0400121 | 3/8-16NC X 3/4 HHCS GR. B | 2 | $5.84 | |
| 8 | 0400223 | 3/8-16 X 3/4 FL. HD. SOCKET SCREW | 4 | $5.84 | |
| 9 | 0400349 | SCREW, 3/8"-16 X 3/4" FL HD SKT | 12 | $11.00 | |
| 10 | 0400451 | 1/4 FLAT WASHER ZP | 2 | $5.84 | |
| 11 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 4 | $5.84 | |
| 12 | 0400482 | 3/8 HELICAL LOCK WASHER ZP | 2 | $5.84 | |
| 13 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 2 | $5.84 | |
| 14 | 0717262 | SHIM - SLIDE PAD | 2 | $8.01 | |
| 15 | 0717909 | SHEAVE - 5" DIA RETRACT | 4 | $207.68 | |
| 16 | 0718134 | PLATE - SLIDE PAD SUPPORT | 2 | $75.39 | |
| 17 | 0806751 | RETRACT SHEAVE SUPPORT WLD | 1 | $185.11 | |
| 18 | 0806752 | SHAFT - RETRACT SHEAVE WELDMENT | 4 | $119.49 | |
| 19 | 0806824 | INNER BOOM TUBE WLMT | 1 | $11,075.70 | |
| 20 | 0908118 | SHEAVE ASSEMBLY 5" DIA | 4 | $116.73 | |
| 21 | 0908356 | SLIDE PAD ASSEMBLY | 2 | $156.82 | |
| 22 | 0908424 | SWIVEL ASSEMBLY | 2 | Call for price | — |
| 23 | 3012-793001 | PLATE - LUBE MTG | 1 | $19.68 | |
| 24 | 9012549 | CONNECTOR, 3/8 TUBE X 1/8 NPT | 2 | $15.67 | |
| 25 | 9012552 | BULKHEAD COUPLING, 1/8 | 1 | $40.12 | |
| 26 | 9012584 | ELBOW, 1/4 NPT X 3/8 TUBE 90 | 1 | $21.51 | |
| 27 | 9041402 | 1/2-13NC X 1 1/4 HHCS, ZP, GR.8 | 2 | $8.01 | |
| 28 | 9044434 | 3/8-16X1 NC FLAT | 2 | $5.84 | |
| 29 | 916040004 | WEAR PAD - LOWER | 1 | $40.12 | |
| 30 | 946030004 | UPPER WEAR PAD - RECOVERY | 2 | $93.00 | |
| 31 | 947270000 | INNER BOOM TUBE WLMT | 1 | $8,929.49 | |
| 32 | 0301949 | 3/8" OD AIRLINE, SYNFLEXPriced per foot | 1 | $8.01 | |
| 33 | 0908119 | EXTENSION SYSTEM | 1 | $26,255.99 |
3-Stage Boom Extend System
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT SS | 6 | $5.84 | |
| 2 | 0303441 | SHEAVE, 10" | 2 | $434.01 | |
| 3 | 0305023 | SNAP RING 5100-0225PP | 2 | $3.01 | |
| 4 | 0307160 | CABLE - EXT ASSY 3-STAGE BOOM | 2 | $924.50 | |
| 5 | 0307402 | CYLINDER - BOOM EXTEND | 1 | $19,434.45 | |
| 6 | 0307403 | CABLE - ASSY (RETRACT) 3-STAGE | 2 | $658.26 | |
| 7 | 0307432 | BUSHING - BRONZE | 4 | Call for price | — |
| 8 | 0400146 | 3/8-16 X 2-1/4 HHCS GR.5 ZP | 2 | $4.01 | |
| 9 | 0400177 | 1/2-13 X 1 1/4 HHCS GR. 5, ZP | 4 | $5.84 | |
| 10 | 0400223 | 3/8-16 X 3/4 FL. HD. SOCKET SCREW | 1 | $5.84 | |
| 11 | 0400264 | 5/8-11 X 2-1/4 HHCS GR5 ZP | 4 | $5.84 | |
| 12 | 0400349 | SCREW, 3/8"-16 X 3/4" FL HD SKT | 4 | $11.00 | |
| 13 | 0400392 | 3/8-16 NYLOCK HEX NUT ZP | 1 | $5.84 | |
| 14 | 0400421 | 5/8-11 NYLOCK HEX NUT ZP | 4 | $5.84 | |
| 15 | 0400448 | 1-1/4-12 HEX JAM NUT | 2 | $23.53 | |
| 16 | 0400461 | 1-1/4-12 HEX NUT GR8 ZP | 2 | $9.85 | |
| 17 | 0400471 | 7/8-14 UNF HEX NUT | 2 | $6.49 | |
| 18 | 0400472 | 7/8-14 UNF HEX NUT JAM | 2 | $9.82 | |
| 19 | 0400473 | 7/8 FLATWASHER HARDENED | 2 | $4.89 | |
| 20 | 0400480 | 3/8 FLAT WASHER ZP | 2 | $4.01 | |
| 21 | 0400483 | LOCKWASHER, 3/8" COUNTERSUNK | 1 | $5.84 | |
| 22 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 4 | $5.84 | |
| 23 | 0400501 | WASH - SAE 1 1/4 HARDENED PL | 2 | $9.85 | |
| 24 | 0400587 | 1/4 X 1-1/2 ROLL PIN ZP | 2 | $3.55 | |
| 25 | 0717743 | ROD - EXTEND SHEAVE SPACER | 2 | $31.40 | |
| 26 | 0717744 | PIN - EXTEND CYLINDER | 1 | $234.40 | |
| 27 | 0717747 | PIN - CABLE RETRACT | 1 | $56.43 | |
| 28 | 0717909 | SHEAVE - 5" DIA RETRACT | 4 | $207.68 | |
| 29 | 0806721 | EXTEND SHEAVE BRACKET WELDMENT | 1 | $666.02 | |
| 30 | 0806722 | SHAFT, EXTENSION SHEAVE WELDMENT | 1 | $113.88 | |
| 31 | 0806752 | SHAFT - RETRACT SHEAVE WELDMENT | 4 | $119.49 | |
| 32 | GA0215 | PIN, D RING | 2 | $82.07 |
Boom Swivel Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT SS | 1 | $5.84 | |
| 2 | 0300311 | SHEAVE - 12-10-1BB 10 | 1 | $573.63 | |
| 3 | 0400133 | 3/8-16 X 3 HHCS GR.5, ZP | 2 | $5.84 | |
| 4 | 0400140 | 3/8-16 X 4 HHCS GR.5, ZP | 1 | $5.84 | |
| 5 | 0400392 | 3/8-16 NYLOCK HEX NUT ZP | 3 | $5.84 | |
| 6 | 0700511 | GUIDE - BOTTOM CABLE | 2 | $33.38 | |
| 7 | 0700563 | SHAFT - SHEAVE | 1 | $118.53 | |
| 8 | 0802027 | CABLE GUIDE WELDMENT | 1 | $362.89 | |
| 9 | 0806862 | BOOM END SWIVEL WELDMENT | 1 | Call for price | — |
Standard Stinger Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 6 | $5.84 | |
| 2 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 2 | $5.84 | |
| 3 | 0400134 | 3/8-24 X 3/4 FLATHEAD SOCKET SCREW | 4 | $5.84 | |
| 4 | 0400151 | 3/8-24 X 3/4 HHCS GR5 ZP | 6 | $5.84 | |
| 5 | 0400176 | 1/2-13 X 1 HHCS GR5 ZP | 1 | $5.84 | |
| 6 | 0400177 | 1/2-13 X 1 1/4 HHCS GR5 ZP | 1 | $5.84 | |
| 7 | 0400345 | SCREW - 1/4"-20 X 5/8" FL SKT HD | 4 | $17.78 | |
| 8 | 0400421 | 5/8-11 NYLOCK HEX NUT ZP | 1 | $5.84 | |
| 9 | 0400482 | 3/8 HELICAL LOCKWASHER ZP | 6 | $5.84 | |
| 10 | 0400491 | 1/2 HELICAL LOCKWASHER ZP | 2 | $5.84 | |
| 11 | 0400492 | 1/2 FLAT WASHER ZP | 2 | $5.84 | |
| 12 | 0400505 | 5/8 FLAT WASHER SAE | 2 | $5.84 | |
| 13 | 0400508 | 5/8 HELICAL LOCK WASHER ZP | 6 | $5.84 | |
| 14 | 0400594 | SCREW - 1/4"-20 X 5/8" FL SKT HD | 8 | $5.84 | |
| 15 | 0723463 | PLATE, PAD CAGE - 1ST STAGE STINGER | 1 | $97.39 | |
| 16 | 0723476 | PLATE, PAD CAGE - FOLDING BOOM | 1 | $97.39 | |
| 17 | 0724348 | PIN, PIN WELD'T - STINGER EXT. - REAR | 1 | $261.67 | |
| 18 | 0807763 | 1ST STAGE STINGER WELDMENT | 1 | Call for price | — |
| 19 | 0807765 | FOLDING BOOM WELDMENT - 116" REACH | 1 | $11,135.53 | |
| 20 | 0810009 | 2ND STAGE STINGER WELDMENT | 1 | Call for price | — |
| 21 | 9040602 | 5/8-11 X 1-1/4 HHCS GR8 ZP | 1 | $5.84 | |
| 22 | 9044170 | 1-8X1-1/2 SOC SET SCREW | 1 | $15.67 | |
| 23 | 9044471 | SCREW, 5/8"-18 X 1-1/4" HEX HD CAP | 4 | $8.01 | |
| 24 | 9046315 | ROLL PIN, 3/16" X 1" | 2 | $5.84 | |
| 25 | 9054150 | SNAP RING, 1-1/4" NOM INTERNAL | 1 | $1.90 | |
| 26 | 924902000 | LOWER PIN WELDMENT TILT CYLINDER | 1 | $180.55 | |
| 27 | 930150001 | STOP PAD (FOLDING BOOM) | 4 | $69.32 | |
| 28 | 930150002 | SPACER (1ST STAGE STINGER) | 1 | $41.94 | |
| 29 | 930150003 | TOP PAD | 4 | $28.28 | |
| 30 | 930150004 | BOTTOM PAD | 4 | $18.50 | |
| 31 | 930150011 | PIN CYLINDER 1ST STAGE STINGER | 1 | $125.80 | |
| 32 | 930152000 | FRONT MTG. PIN WELDMENT STINGER | 1 | $315.47 | |
| 33 | 930770500 | STINGER EXT. CYLINDER | 1 | $6,715.84 | |
| 34 | 930901500 | SHAFT WELDMENT FOLDING BOOM PIVOT | 1 | $711.14 | |
| 35 | 945300000 | PIVOT FOOT WELDMENT | 1 | $4,917.88 | |
| 36 | 945351000 | SHAFT WELDMENT FOLDING BOOM PIVOT | 1 | $339.17 |
Crossbar Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 3 | $5.84 | |
| 2 | 9043800 | 1/2-13 X 1 FLAT HEAD SOCKET CAP SCR | 6 | $5.68 | |
| 3 | 9044170 | 1-8X1-1/2 SOC SET SCREW | 1 | $15.67 | |
| 4 | 915150004 | LUG PLATE CROSSBAR ASSEMBLY | 1 | $76.59 | |
| 5 | 915150005 | THURST WASHER (.25 THK) | 1 | $277.15 | |
| 6 | 945510006 | BEARING - ALUMINUM BRONZE | 2 | $131.29 | |
| 7 | 945510007 | THURST WASHER (.19 THK) | 1 | $120.33 | |
| 8 | 946350005 | PIVOT PIN | 1 | $455.87 | |
| 9 | 946570500 | 5" CROSSBAR WELDMENT | 1 | $2,760.73 | |
| 10 | 946571000 | TOP COVER PLATE WELDMENT | 1 | $532.44 | |
| 11 | 946571100 | BOTTOM COVER PLATE WELDMENT | 1 | $629.08 |
Winch Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0303505 | WINCH, DP MODEL S50-50K | 2 | $23,351.51 | |
| 2 | 0400288 | 3/4-10 X 2-1/2 HHCS GR.8 GOLD | 32 | $9.85 | |
| 3 | 0400289 | 3/4-10 X 3 HHCS GR.8 GOLD | 16 | Call for price | — |
| 4 | 0400431 | 3/4-10 NYLOCK HEX NUT GR.8 ZP | 32 | $8.01 | |
| 5 | 0400440 | NUT, 3/4"-10 HEX JAM ZP | 16 | $5.84 | |
| 6 | 0400489 | WASHER, 3/4 SAE FLAT HARDENED | 64 | $5.84 | |
| 7 | 0400511 | 3/4 HELICAL LOCK WASHER ZP | 16 | $5.84 | |
| 8 | 0807965 | WINCH MTG BRACKET | 8 | Call for price | — |
Boom Lift Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301376 | CONNECTOR 8MJX10MB | 2 | Call for price | — |
| 2 | 0301522 | CONNECTOR 6MJ-6MB | 3 | $3.78 | |
| 3 | 0301620 | FITTING, ELBOW, 6MJ-6MB90 | 1 | $5.76 | |
| 4 | 0302275 | CONNECTOR 8MJX6MB | 5 | $7.68 | |
| 5 | 0302276 | ELBOW, 8MJ-6MB90 | 1 | $11.32 | |
| 6 | 0306700 | MANIFOLD BLOCK | 1 | $146.03 | |
| 7 | 0310840 | HYD TUBE ASSY BOOM LIFT -"A" PORT | 1 | Call for price | — |
| 8 | 0310841 | HYD TUBE ASSY BOOM LIFT (PORT B) | 1 | Call for price | — |
| 9 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 10 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 11 | 915770002 | HOSE ASSEMBLY, 12" LG | 2 | Call for price | — |
| 12 | 946700000 | BOOM LIFT CYLINDER | 2 | $7,868.25 | |
| 13 | 946770001 | HOSE ASSEMBLY MAIN LIFT CYLINDER | 2 | Call for price | — |
2-Stage Boom Extend Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302275 | CONNECTOR 8MJX6MB | 2 | $7.68 | |
| 2 | 0302827 | CONNECTOR 10MJX10MB | 2 | $7.68 | |
| 3 | 0307003 | INLINE ORIFICE | 2 | $4.46 | |
| 4 | 945710000 | CYLINDER - BOOM EXTEND | 1 | Call for price | — |
| 5 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 6 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 7 | 945770007 | 8AT2(10MJ-8FJ) HCL 48 | 2 | Call for price | — |
| 8 | 946760003 | HYD TUBE ASSY. MAIN BOOM EXT. | 2 | Call for price | — |
| 9 | 946760017 | HYD TUBE ASSY. 5/8" END SECTION | 2 | $307.40 |
3-Stage Boom Extend Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301388 | ELBOW, 8MJ-8MB90 | 2 | $13.32 | |
| 2 | 0302827 | CONNECTOR 10MJX10MB | 2 | $7.68 | |
| 3 | 0307003 | INLINE ORIFICE | 2 | $4.46 | |
| 4 | 0307402 | CYLINDER - BOOM EXTEND | 1 | $19,434.45 | |
| 5 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 6 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 7 | 9018256 | TUBE CLAMP, 3/4" | 4 | $6.43 | |
| 8 | 946760003 | HYDRAULIC TUBE ASSY. MAIN BOOM EXT. | 2 | Call for price | — |
| 9 | 946760017 | HYDRAULIC TUBE ASSY. 5/8" END SECTION | 2 | $307.40 | |
| 10 | 946770006 | HOSE ASSEMBLY, 30" LG | 2 | Call for price | — |
Underlift Extend Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300865 | ADAPTER, 8MJ-6MJ | 4 | $5.67 | |
| 2 | 0301376 | CONNECTOR 8MJX10MB | 2 | Call for price | — |
| 3 | 9012510 | CONNECTOR, 9/16" SAE X 3/8" TUBE | 2 | $16.06 | |
| 4 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 5 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 6 | 915760022 | STINGER SUPPLY TUBE | 1 | $11.24 | |
| 7 | 915760023 | STINGER SUPPLY TUBE | 1 | $13.24 | |
| 8 | 916720000 | STINGER EXT. CYLINDER | 1 | $11,354.69 | |
| 9 | 916760001 | HYDRAULIC TUBE ASSY | 2 | Call for price | — |
| 10 | 916770001 | HOSE ASSEMBLY, 30" LG | 2 | $89.31 | |
| 11 | 946760004 | HYD TUBE ASSY. STINGER EXT. A PORT | 1 | $109.44 | |
| 12 | 946760005 | HYD TUBE ASSY. STINGER EXT. B PORT | 1 | $111.63 | |
| 13 | 946760018 | HYD TUBE ASSY. 1/2" END SECTION | 2 | $103.94 | |
| 14 | 946760019 | HYD TUBE ASSY | 2 | $120.51 | |
| 15 | 946770003 | HOSE ASSEMBLY, 45" LG | 2 | Call for price | — |
Underlift Tilt Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300865 | ADAPTER, 8MJ-6MJ | 4 | $5.67 | |
| 2 | 0301376 | CONNECTOR 8MJX10MB | 2 | Call for price | — |
| 3 | 0301522 | CONNECTOR 6MJ-6MB | 2 | $3.78 | |
| 4 | 0301696 | ELBOW, 6MJ-6FJX90 | 2 | Call for price | — |
| 5 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 6 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 7 | 915740000 | TILT CYLINDER | 1 | $3,243.93 | |
| 8 | 915770008 | 6AT2(6T90S-8MJ) HCL 42 | 2 | Call for price | — |
| 9 | 916760001 | HYDRAULIC TUBE ASSY | 2 | Call for price | — |
| 10 | 946760006 | HYD TUBE ASSY. STINGER TILT A PORT | 1 | $114.88 | |
| 11 | 946760007 | HYD TUBE ASSY. STINGER TILT B PORT | 1 | $109.44 | |
| 12 | 946760018 | HYD TUBE ASSY. 1/2" END SECTION | 2 | $103.94 | |
| 13 | 946760019 | HYD TUBE ASSY | 2 | $120.51 | |
| 14 | 946770003 | HOSE ASSEMBLY, 45" LG | 2 | Call for price | — |
Winch Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300041 | CONNECTOR 8MJX8MB | 4 | $5.67 | |
| 2 | 0302827 | CONNECTOR 10MJX10MB | 3 | $7.68 | |
| 3 | 0303505 | WINCH, DP MODEL S50-50K | 1 | $23,351.51 | |
| 4 | 0307003 | INLINE ORIFICE | 4 | $4.46 | |
| 5 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 6 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 7 | 946760010 | HYDRAULIC TUBE ASSEMBLY | 1 | $240.71 | |
| 8 | 946760011 | HYDRAULIC TUBE ASSEMBLY | 1 | $249.80 | |
| 9 | 946760013 | TUBE, HYD 5/8X48 3/8 | 1 | $144.04 | |
| 10 | 946760014 | TUBE, HYD 5/8X29 3/4 | 1 | $144.04 | |
| 11 | 946760017 | HYDRAULIC TUBE ASSY. 5/8" END SECTION | 4 | $307.40 | |
| 12 | 946770007 | HOSE ASSEMBLY, 89" LG | 2 | Call for price | — |
| 13 | 946770009 | HOSE ASSEMBLY, 89" LG | 2 | Call for price | — |
| 14 | GX263 | FITTING, ELB 10MJ-10MB90 | 1 | $15.14 |
Subframe Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300649 | CONNECTOR, 12MJ-12MJ | 4 | Call for price | — |
| 2 | 0301619 | BRANCH TEE, 6MJ-6MJ-6MB | 2 | $11.32 | |
| 3 | 0302083 | 16MJ-12MB 90 ELBOW | 2 | $31.37 | |
| 4 | 0302205 | GAUGE, FLUSH MOUNT 6000 PSI | 4 | $45.17 | |
| 5 | 0302577 | CONNECTOR, 6MJ-4FP | 4 | $4.23 | |
| 6 | 0302696 | CONNECTOR, 16MJ-20MP | 2 | $12.89 | |
| 7 | 0302901 | HOSE ASSEMBLY, 120" LG | 2 | $246.16 | |
| 8 | 0303394 | HOSE ASSEMBLY, 46" LG | 4 | $42.15 | |
| 9 | 0306538 | HOSE BARB, 20HOSE-20MP | 2 | Call for price | — |
| 10 | 0306539 | HOSE BARB, 20HOSE-16MB90 | 2 | Call for price | — |
| 11 | 0306984 | ELBOW, 12MJ-12MB90 | 2 | $56.54 | |
| 12 | 0310010 | SUCTION HOSE, 1-1/2" I.D. 100R4 | 2 | Call for price | — |
| 13 | 0310837 | HYD TUBE, RETURN REAR VALVE | 1 | Call for price | — |
| 14 | 0310839 | HYD TUBE ASSY, PRESSURE | 1 | Call for price | — |
| 15 | 9012968 | CONNECTOR 8MJX10MB | 2 | Call for price | — |
| 16 | 9015571 | BALL VALVE 1-1/4" | 2 | Call for price | — |
| 17 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 18 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 19 | 9016815 | MUNCIE PUMP TSPKS17-17-2B | 1 | $1,856.28 | |
| 20 | 9018140 | FILTER ASSEMBLY, SPIN-ON | 2 | $238.88 | |
| 21 | 915770017 | HOSE ASSEMBLY | 2 | Call for price | — |
| 22 | 915780000 | HYDRAULIC TANK ASSY | 1 | $4,252.29 | |
| 23 | 946760001 | HYD TUBE ASSEMBLY | 1 | $98.48 | |
| 24 | 946760012 | HYD TUBE ASSY, RETURN LINE | 1 | $280.85 | |
| 25 | 946760016 | HYD TUBE ASSY | 2 | $317.79 |
Hydraulic Tank Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301618 | FITTING, BRASS PLUG 1/4 | 1 | $8.01 | |
| 2 | 0302696 | CONNECTOR, 16MJ-20MP | 2 | $12.89 | |
| 3 | 0302699 | PIPE NIPPLE - 1-1/4 X 2 | 4 | Call for price | — |
| 4 | 0303155 | PIPE PLUG - 3/4 NPT (MAGNETIC) | 1 | $11.66 | |
| 5 | 0305006 | FILLER CAP | 1 | $63.82 | |
| 6 | 0400109 | 5/16-18 X 1 HHCS GR5 ZP | 6 | $5.84 | |
| 7 | 9015571 | BALL VALVE 1-1/4" | 2 | Call for price | — |
| 8 | 9018139 | SUCTION STRAINERS | 2 | $191.48 | |
| 9 | 9018140 | FILTER ASSEMBLY, SPIN-ON | 2 | $238.88 | |
| 10 | 9401408 | INSPECT COVER | 1 | Call for price | — |
| 11 | 9401418 | DIPSTICK WELDMENT | 1 | Call for price | — |
| 12 | 915780500 | HYDRAULIC TANK WELDMENT | 1 | $2,802.61 |
Standard Jackleg Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 6 | $5.84 | |
| 2 | 0400114 | 5/16-18 X 3 HHCS GR 5 ZP | 2 | $5.84 | |
| 3 | 0400283 | 3/4-10 X 2 GR8 HHCS | 4 | Call for price | — |
| 4 | 0400438 | 3/4-10 HEX NUT ZP | 4 | Call for price | — |
| 5 | 0400490 | 3/4 FLAT WASHER GR.8 | 4 | $5.68 | |
| 6 | 0400776 | 5/16-18 HEX NUT JAM NYLOK | 2 | $5.84 | |
| 7 | 0719585 | "D" RING - TOWING | 2 | $444.92 | |
| 8 | 0807947 | LH JACK LEG WELDMENT - STANDARD | 1 | Call for price | — |
| 9 | 0807948 | RH JACK LEG WELDMENT - STANDARD | 1 | Call for price | — |
| 10 | 9054150 | SNAP RING, 1-1/4" NOM INTERNAL | 8 | $1.90 | |
| 11 | 920900007 | PIN, LOWER STIFFLEG CYLINDER | 2 | $56.54 | |
| 12 | 930350001 | PIN, UPPER STIFFLEG | 2 | $94.80 | |
| 13 | 945550500 | LH STABILIZER WELDMENT | 1 | $803.20 | |
| 14 | 945557500 | RH STABILIZER WELDMENT | 1 | $803.20 | |
| 15 | 945720000 | STIFF LEG CYLINDER - 45 | 2 | $2,266.56 | |
| 16 | GA0215 | PIN, D RING | 2 | $82.07 |
Jackleg Assembly w/ Flipper Feet
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 4 | $5.84 | |
| 2 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 6 | $5.84 | |
| 3 | 0310121 | RETAINING RING, 1-1/2" | 8 | $4.46 | |
| 4 | 0400416 | 1/2-13 NYLOCK HEX NUT GR.8, ZP | 14 | $5.84 | |
| 5 | 0400497 | 1/2 FLAT WASHER GR 8 ZP | 14 | $5.84 | |
| 6 | 0400568 | 3/8 X 3 ROLL PIN ZP | 2 | $8.01 | |
| 7 | 0400774 | 1/2-13 X 1 FLAT HEAD SOCKET CAP SCR | 14 | $5.68 | |
| 8 | 0719585 | "D" RING - TOWING | 2 | $444.92 | |
| 9 | 0807725 | LH JACK LEG WELDMENT | 1 | Call for price | — |
| 10 | 0807726 | RH JACK LEG WELDMENT | 1 | Call for price | — |
| 11 | 9054150 | SNAP RING, 1-1/4" NOM INTERNAL | 8 | $1.90 | |
| 12 | 920900007 | PIN, LOWER STIFFLEG CYLINDER | 2 | $56.54 | |
| 13 | 930230101 | PIN - SWIVEL PADS | 4 | $186.14 | |
| 14 | 930230103 | PIN - D RING - INNER LEG FLIPPER TYPE | 2 | Call for price | — |
| 15 | 930232000 | FLIPPER PAD WELDMENT -INNER LEG (LH) | 1 | $2,151.94 | |
| 16 | 930232005 | BLADE FLIPPER PAD WELDMENT | 2 | $199.24 | |
| 17 | 930233000 | PIN ASSEMBLY, LOCK FLIPPER FEET | 2 | $282.64 | |
| 18 | 930239000 | FLIPPER PAD WELDMENT -INNER LEG (RH) | 1 | Call for price | — |
| 19 | 930350001 | PIN, UPPER STIFFLEG | 2 | $94.80 | |
| 20 | 945720000 | STIFF LEG CYLINDER - 45 | 2 | $2,266.56 | |
| 21 | HD1259 | PIN, SAFETY SNAP | 2 | $13.84 |
Rear Outrigger Option
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300109 | RETAINING RING, 1-1/2" | 4 | $1.79 | |
| 2 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 2 | $5.84 | |
| 3 | 0301895 | GREASE FITTING, 1/8 NPT STRAIGHT | 6 | $5.84 | |
| 4 | 0310145 | CYLINDER ASSEMBLY | 2 | $1,668.93 | |
| 5 | 0400066 | 1/4-20 X 3/4 HHCS GR.5, ZP | 16 | $5.84 | |
| 6 | 0400114 | 5/16-18 X 3 HHCS GR 5 ZP | 2 | $5.84 | |
| 7 | 0400382 | 5/16-18 NYLOCK HEX NUT ZP | 2 | $5.84 | |
| 8 | 0400452 | 1/4 HELICAL LOCK WASHER ZP | 16 | $5.84 | |
| 9 | 0719540 | PIN - EXTEND CYLINDER (BASE END) | 2 | $76.99 | |
| 10 | 0719585 | "D" RING - TOWING | 2 | $444.92 | |
| 11 | 0724617 | PLATE - OUTRIGGER COVER | 2 | Call for price | — |
| 12 | 0724635 | PIN - EXTEND CYLINDER | 2 | Call for price | — |
| 13 | 0810030 | LH REAR OUTER OUTRIGGER | 1 | Call for price | — |
| 14 | 0810033 | REAR INNER OUTRIGGER WELD'T | 2 | Call for price | — |
| 15 | 0810035 | REAR OUTRIGGER PAD WELDMT | 2 | Call for price | — |
| 16 | 0810047 | RH REAR OUTER OUTRIGGER | 1 | Call for price | — |
| 17 | 0906963 | PIN REAR OUTRIGGER PAD ASSY | 2 | $328.23 | |
| 18 | 0911122 | RETAINER PIN ASSEMBLY | 2 | $308.63 | |
| 19 | 0911123 | RETAINER PIN ASSEMBLY | 2 | $103.84 | |
| 20 | 0911124 | RETAINER PIN ASSEMBLY | 2 | $375.25 | |
| 21 | 0911167 | SPADE WELDMENT - REAR OUTRIGGER | 2 | $1,258.26 | |
| 22 | 9054150 | SNAP RING, 1-1/4" NOM INTERNAL | 12 | $1.90 | |
| 23 | 920900007 | PIN, LOWER STIFFLEG CYLINDER | 2 | $56.54 | |
| 24 | 930350001 | PIN, UPPER STIFFLEG | 2 | $94.80 | |
| 25 | 945720000 | STIFF LEG CYLINDER - 45 | 2 | $2,266.56 | |
| 26 | GA0215 | PIN, D RING | 2 | $82.07 |
Jackleg Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300052 | ELBOW, 8MJ-10MB90 | 1 | $11.32 | |
| 2 | 0301376 | CONNECTOR 8MJX10MB | 3 | Call for price | — |
| 3 | 0301522 | CONNECTOR 6MJ-6MB | 4 | $3.78 | |
| 4 | 9015738 | HOLDING VALVE | 2 | $818.73 | |
| 5 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 6 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 7 | 930760010 | HYDRAULIC TUBE ASSEMBLY | 1 | $67.45 | |
| 8 | 930760011 | HYDRAULIC TUBE ASSEMBLY | 1 | $60.17 | |
| 9 | 945720000 | STIFF LEG CYLINDER | 2 | $2,266.56 | |
| 10 | 945770003 | HOSE ASSEMBLY - STIFFLEG CYLINDER | 4 | $43.74 | |
| 11 | 946760008 | HYDRAULIC TUBE ASSEMBLY | 1 | $89.31 | |
| 12 | 946760009 | HYDRAULIC TUBE ASSEMBLY | 1 | $98.48 |
Outrigger Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300052 | ELBOW, 8MJ-10MB90 | 1 | $11.32 | |
| 2 | 0301376 | CONNECTOR 8MJX10MB | 3 | Call for price | — |
| 3 | 0301470 | FITTING - HYDRAULIC ELBOW 6MJ-8MB90 | 5 | $7.68 | |
| 4 | 0301522 | CONNECTOR 6MJ-6MB | 12 | $3.78 | |
| 5 | 0301620 | FITTING, ELBOW, 6MJ-6MB90 | 4 | $5.76 | |
| 6 | 0301998 | HOSE HYD, 24" LG | 4 | $56.54 | |
| 7 | 0303017 | CONNECTOR 8MBX6FB | 5 | $5.67 | |
| 8 | 0303170 | HOSE ASSY - 75" LG. | 1 | $94.80 | |
| 9 | 0303185 | HOSE ASSY - 66" LG. | 1 | $72.35 | |
| 10 | 0307525 | HOSE ASSY - 120" LG | 4 | $78.76 | |
| 11 | 0310145 | CYLINDER ASSEMBLY | 2 | $1,668.93 | |
| 12 | 0310881 | 6 WAY DIVERTER VALVE | 2 | $945.12 | |
| 13 | 9012594 | FITTING, HYD RUN TEE, 6MJ-6MB-6MJ | 1 | $21.51 | |
| 14 | 9015738 | HOLDING VALVE | 2 | $818.73 | |
| 15 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 16 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 17 | 930760010 | HYDRAULIC TUBE ASSEMBLY | 1 | $67.45 | |
| 18 | 930760011 | HYDRAULIC TUBE ASSEMBLY | 1 | $60.17 | |
| 19 | 945720000 | STIFF LEG CYLINDER | 2 | $2,266.56 | |
| 20 | 945770003 | HOSE ASSEMBLY - STIFFLEG CYLINDER | 4 | $43.74 | |
| 21 | 946760008 | HYDRAULIC TUBE ASSEMBLY | 1 | $89.31 | |
| 22 | 946760009 | HYDRAULIC TUBE ASSEMBLY | 1 | $98.48 |
Dual Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300341 | KNOB, BLACK (BLANK) | 16 | $9.25 | |
| 2 | 0302726 | GREASE FITTING, 1/4"-28 X 45° | 16 | $3.78 | |
| 3 | 0400126 | 3/8-16 X 1 HHCS GR.5, ZP | 11 | $5.84 | |
| 4 | 0400382 | 5/16-18 NYLOCK HEX NUT ZP | 4 | $5.84 | |
| 5 | 0400387 | 3/8-24 HEX JAM NUT ZP | 16 | $1.79 | |
| 6 | 0400392 | 3/8-16 NYLOCK HEX NUT ZP | 17 | $5.84 | |
| 7 | 0400393 | 3/8"-16 HEX JAM NUT | 16 | $5.84 | |
| 8 | 0400463 | 5/16 FLAT WASHER ZP | 12 | $5.84 | |
| 9 | 0400480 | 3/8 FLAT WASHER ZP | 22 | $4.01 | |
| 10 | 0402043 | 3/8-16 X 1-1/4 HHCS SS | 8 | $5.84 | |
| 11 | 0402120 | 3/8 FLATWASHER 316 SS | 16 | $5.84 | |
| 12 | 0402121 | 3/8 LOCKWASHER 316 STAINLESS | 8 | Call for price | — |
| 13 | 0402122 | HEX NUT 316 STAINLESS | 8 | $4.01 | |
| 14 | 0723377 | D.C.V. MTG. PLATE | 1 | Call for price | — |
| 15 | 0810080 | NV-50 SUBFRAME | 1 | Call for price | — |
| 16 | 0907441 | CONTROL HANDLE ASSY | 8 | $93.00 | |
| 17 | 0907442 | CONTROL HANDLE ASSY | 8 | $87.51 | |
| 18 | 9016021 | VALVE 6 SPOOL | 1 | $4,857.70 | |
| 19 | 9016022 | VALVE 2 SPOOL | 1 | $2,826.37 | |
| 20 | 9041108 | 5/16-18 X 1-3/4 HHCS GR 8 ZP | 4 | $5.84 | |
| 21 | 9041212 | 3/8-16 X 2-3/4 LG. HHCS GR.8 | 6 | $5.84 | |
| 22 | 9043371 | 3/8-16 NYLOCK HEX NUT ZP | 8 | Call for price | — |
| 23 | 9043713 | M8 X 20 SOCKET SHOULDER BOLT | 8 | $9.64 | |
| 24 | 9048513 | SPHERICAL ROD END | 16 | $31.37 | |
| 25 | 930400001 | PIVOT PIN | 2 | $97.39 | |
| 26 | 930400009 | PLATE- BOTTOM | 1 | Call for price | — |
| 27 | 930400012 | RH CONTROL ROD (SHORT) | 8 | Call for price | — |
| 28 | 930400013 | LH CONTROL ROD (SHORT) | 8 | Call for price | — |
| 29 | 930402600 | SHORT LUG WELDMENT | 8 | Call for price | — |
| 30 | 942480300 | LH MTG ANGLE WELDMENT | 2 | $152.31 | |
| 31 | 942487300 | RH MTG ANGLE WELDMENT | 2 | $169.27 | |
| 32 | 946400600 | CHANNEL WELDMENT | 2 | Call for price | — |
Lift Adapters
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0200018 | FORK, SHORT (3" OPENING) | 2 | $160.45 | |
| 2 | 0200019 | FORK, SHORT (3" OPENING) | 2 | $178.69 | |
| 3 | 0200020 | FORK, MEDIUM (3" OPENING) | 2 | $218.80 | |
| 4 | 0200021 | FORK, MEDIUM (3" OPENING) | 2 | $253.45 | |
| 5 | 0200023 | FORK, LONG (3" OPENING) | 2 | $342.83 | |
| 6 | 0306564 | T HANDLE | 4 | $18.95 | |
| 7 | 0310230 | CLEVIS PIN, 5/8 X 6 ZP | 2 | $13.84 | |
| 8 | 0400886 | COTTER PIN, 1-1/4" HAIR PIN | 2 | $2.45 | |
| 9 | 0801186 | CHAIN ADAPTER, RIGHT | 1 | $377.33 | |
| 10 | 0801187 | CHAIN ADAPTER, LEFT | 1 | Call for price | — |
| 11 | 0801459 | RISER BRACKET, HDU | 2 | $902.62 | |
| 12 | 0803591 | LH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 13 | 0803592 | RH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 14 | 0807023 | PIVOT SPRING LIFT BRACKET, EXTRA WIDE | 2 | $610.88 | |
| 15 | 0900900 | RETAINING PIN ASSEMBLY | 2 | $33.12 | |
| 16 | 0908672 | RETAINING PIN, SPRING LIFT | 2 | $43.74 |
5X5 Bus Lift Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0804491 | OUTER CROSSTUBE-WELDMENT-LH 5" | 1 | $3,229.35 | |
| 2 | 0804492 | OUTER CROSSTUBE-WELDMENT-RH 5" | 1 | $3,229.35 | |
| 3 | 0804495 | SUPPORT - TIRE WELDMENT-LH | 1 | $1,121.43 | |
| 4 | 0804496 | SUPPORT - TIRE WELDMENT-RH | 1 | $1,121.43 | |
| 5 | 0902947 | PIN- RETAINER ASSY | 2 | $134.96 | |
| 6 | 0903089 | PIN-RETAINER ASSY | 4 | $43.74 | |
| 7 | 0903480 | TUBE - ADJUSTMENT & DECAL | 2 | $497.80 | |
| 8 | 945520100 | RATCHET HANDLE ASSY - BUS LIFT | 1 | $125.80 | |
| 9 | 945525000 | BUS LIFT WHEEL STRAP ASSY (NS) | 1 | $474.11 |
Euro Bus Lift Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0804499 | TIRE SUPPORT TUBE WELDMENT | 2 | $570.77 | |
| 2 | 0804501 | SUPPORT - TIRE WELDMENT-LH | 1 | $1,154.26 | |
| 3 | 0804502 | TIRE SUPPORT PLATE ASSY (RH) | 1 | $1,154.26 | |
| 4 | 0805974 | ARM WELDMENT | 2 | $2,192.98 | |
| 5 | 0902947 | PIN- RETAINER ASSY | 2 | $134.96 | |
| 6 | 0903089 | PIN-RETAINER ASSY | 2 | $43.74 | |
| 7 | 945520100 | RATCHET HANDLE ASSY - BUS LIFT | 1 | $125.80 | |
| 9 | 945525000 | BUS LIFT WHEEL STRAP ASSY (NS) | 1 | $474.11 |
Pintle Hook Adapter
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302198 | PINTLE HOOK | 1 | $251.63 | |
| 2 | 0306564 | T HANDLE | 2 | $18.95 | |
| 3 | 0400177 | 1/2-13 X 1 1/4 HHCS GR 5, ZP | 4 | $5.84 | |
| 4 | 0400491 | 1/2 HELICAL LOCK WASHER ZP | 4 | $5.84 | |
| 5 | 0803591 | LH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 6 | 0803592 | RH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 7 | 0803831 | 5TH WHEEL & KING PIN ADAPTER | 1 | $991.96 | |
| 8 | 0902378 | RETAINER PIN ASSEMBLY, 3224 | 2 | $63.72 |
5TH Wheel Adapter
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0306564 | T HANDLE | 2 | $18.95 | |
| 2 | 0400555 | 3/8 X 1-1/2 ROLL PIN ZP | 1 | $5.84 | |
| 3 | 0803591 | LH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 4 | 0803592 | RH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 5 | 0803831 | 5TH WHEEL & KING PIN ADAPTER | 1 | $991.96 | |
| 6 | 0804053 | 5TH WHEEL PIVOT PLATE WELDMENT | 1 | $827.85 | |
| 7 | 0902378 | RETAINER PIN ASSEMBLY, 3224 | 2 | $63.72 | |
| 8 | HD1259 | PIN, SAFETY SNAP | 2 | $13.84 | |
| 9 | VA0661 | PULL PIN WELDMENT | 1 | $136.75 | |
| 10 | VA0662 | PIVOT PIN WELDMENT | 1 | $129.48 |
King Pin Adapter
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0306564 | T HANDLE | 2 | $18.95 | |
| 2 | 0803591 | LH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 3 | 0803592 | RH OFFSET FORK RECIEVER | 1 | $911.39 | |
| 4 | 0803605 | ADAPTER - KINGPIN WELDMENT | 1 | $1,490.35 | |
| 5 | 0803831 | 5TH WHEEL & KING PIN ADAPTER | 1 | $991.96 | |
| 6 | 0902378 | RETAINER PIN ASSEMBLY, 3224 | 2 | $63.72 | |
| 7 | HD1259 | PIN, SAFETY SNAP | 1 | $13.84 | |
| 8 | VA0662 | PIVOT PIN WELDMENT | 1 | $129.48 |
Air System
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301577 | TUBING- PLASTIC 1/4 OD X 5" AIR LINEPriced per foot | 220 FT | $5.84 | |
| 2 | 0306983 | MALE RUN TEE, 1/4T-1/4NPT MALE | 1 | $18.95 | |
| 3 | 0311365 | BRACKET | 2 | $25.11 | |
| 4 | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | 1 | $235.71 | |
| 5 | 0910536 | MNFLD PKG 16 VALVE 24VDC | 1 | Call for price | — |
| 6 | 9010520 | ELBOW, 1/4T-1/4NPT MALE | 3 | $13.84 | |
| 7 | 9012537 | ELBOW, 1/4 NPT X 3/8 TUBE 90 | 1 | $15.67 | |
| 8 | 9012575 | TEE FITTING AIR 1/4T-1/4T-1/8 MPX | 3 | $21.51 | |
| 9 | 9012623 | ELBOW, 1/4 TUBE X 1/4 NPT 90 | 2 | Call for price | — |
| 10 | HA0131 | AIR FILTER / REGULATOR COMBO | 1 | $47.42 | |
| 11 | HA0132 | GAUGE- AIR FILTER/REGULATOR | 2 | $24.66 | |
| 12 | 0303505 | WINCH DP 2-SPD S50-50K | 2 | $23,351.51 |
V-100 2-Stage W/ Std Stinger Parts List - 1 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 125100200 | V-100 2-STG, STD STINGER | Call for price | — | |
| 1 | 0910998 | BUA, V-100, STD STINGER | 1 | Call for price | — |
| 2 | 0911031 | SHIP KIT, V-100 | 1 | Call for price | — |
| -- | 0910998 | BUA, V-100, STD STINGER | Call for price | — | |
| 3 | 0910786 | STINGER ASSY - STD - 114" | 1 | Call for price | — |
| 4 | 0911008 | SUBFRAME ASSY V-100 | 1 | Call for price | — |
| 5 | 0911011 | RECOVERY BOOM INSTALL V100 2-S | 1 | Call for price | — |
| -- | 0910786 | STINGER ASSY - STD - 114" | Call for price | — | |
| 6 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 4 | $5.84 | |
| 7 | 0301895 | GREASE FITTING, STR 1/8 PTF | 4 | $5.84 | |
| 8 | 0303193 | BLACK SKUFF JACKET SJ16Priced per foot | 19 | $3.78 | |
| 9 | 0400134 | 3/8-24X3/4 FLTHDSKTSCR | 3 | $5.84 | |
| 10 | 0400176 | 1/2-13X1 HHCS GR5 ZP | 1 | $5.84 | |
| 11 | 0400177 | 1/2-13X1.25 HHCS GR5 ZP | 1 | $5.84 | |
| 12 | 0400248 | 5/8-11X1HHCS GR 8 ZP | 1 | $5.84 | |
| 13 | 0400491 | 1/2" HCL LKWSHR ZP | 2 | $5.84 | |
| 14 | 0400492 | 1/2" FLATWASHER ZP | 2 | $5.84 | |
| 15 | 0400505 | 5/8" SAE WASHER | 2 | $5.84 | |
| 16 | 0400508 | 5/8" HELICAL LCKWSHR ZP | 10 | $5.84 | |
| 17 | 0400594 | 1/4-20X5/8 SOC FLT HD | 8 | $5.84 | |
| 18 | 0723463 | PLATE, PAD RETAINER | 1 | $97.39 | |
| 19 | 0723476 | PLATE, PAD RETAINER | 1 | $97.39 | |
| 20 | 0724348 | PIN, EXT CYL REAR MTG -STINGER | 1 | $261.67 | |
| 21 | 0807763 | 1ST STAGE STINGER WELD'T 116" | 1 | Call for price | — |
| 22 | 0807765 | FOLDING BOOM WELD'T 116" | 1 | $11,135.53 | |
| 23 | 0810009 | 2ND STAGE STINGER - 116" | 1 | Call for price | — |
| 24 | 124004468 | ALUM HEEL PLATE 12" 9055 VULCAN | 1 | $517.87 | |
| 25 | 9012510 | CONNECTOR 6SAE MALE-3/8 | 2 | $16.06 | |
| 26 | 9040602 | 5/8NC X 1 1/4 HHCS GR 8 | 1 | $5.84 | |
| 27 | 9044170 | 1-8X1-1/2 SOC SET SCREW | 1 | $15.67 | |
| 28 | 9044471 | 5/8-18 X 1 1/4 HHCS PL GR8 | 8 | $8.01 | |
| 29 | 9046315 | 3/16 DIAX1 3/4LG ROLL PIN | 2 | $5.84 | |
| 30 | 9046625 | 7/8X6 1/2 LG HITCH PIN | 1 | $78.41 | |
| 31 | 9054150 | 1 1/2 INT. RET. RING (C | 1 | $1.90 | |
| 32 | 915760022 | HYD.TUBE 3/8 STINGER EX | 1 | $11.24 | |
| 33 | 915760023 | HYD.TUBE 3/8 STINGER EX | 1 | $13.24 | |
| 34 | 916770001 | HOSE- HYD. 3/8 - 105" 8MJ-6MFA | 2 | $89.31 | |
| 35 | 924902000 | LOWER PIN WELD'T | 1 | $180.55 | |
| 36 | 930150001 | STOP PAD (FOLDING BOOM) | 4 | $69.32 | |
| 37 | 930150002 | SPACER (1ST STAGE STINGER) | 1 | $41.94 | |
| 38 | 930150003 | TOP PADS | 4 | $28.28 | |
| 39 | 930150004 | BOTTOM PADS | 4 | $18.50 | |
| 40 | 930150011 | PIN (CYL STIFFENER PLATE | 1 | $125.80 | |
| 41 | 930152000 | FRONT MTG. PIN WELD'T | 1 | $315.47 | |
| 42 | 930770500 | TWIN CYL. ARRANGEMENT WELD-ON | 1 | $6,715.84 | |
| 43 | 930901500 | SHAFT WELD'T - FOLD.BOOM PIVOT | 1 | $711.14 | |
| 44 | 945300000 | PIVOT FOOT WELDMENT | 1 | $4,917.88 | |
| 45 | 945351000 | SHAFT WELDT-FOLDING BOOM PIVOT | 1 | $339.17 | |
| -- | 0910786 | STINGER ASSY - STD - 114" (cont'd) | Call for price | — | |
| 46 | 946750000 | TILT CYLINDER 6 DIA | 1 | $5,113.60 | |
| -- | 124004468 | ALUM HEEL PLATE 12" 9055 VULCAN | $517.87 | ||
| 47 | 0400155 | 3/8-16X3/4 FHSCS ZP | 6 | $3.72 | |
| 48 | 0724687 | U/L HEEL PLATE-9055 | 1 | Call for price | — |
| -- | 0911008 | SUBFRAME ASSY V-100 | Call for price | — | |
| 49 | 0300649 | UNION, STRAIGHT 12MJ - 12MJ | 2 | Call for price | — |
| 50 | 0300865 | FITTING, CONNECTOR 8MJ-8MJ | 4 | $5.67 | |
| 51 | 0301522 | FITTING, CONN. 6MJ-6MB | 7 | $3.78 | |
| 52 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 222 | $5.84 | |
| 53 | 0301620 | FITTING, HYD. 6MJ - 6MB90 | 1 | $5.76 | |
| 54 | 0301895 | GREASE FITTING, STR 1/8 PTF | 6 | $5.84 | |
| 55 | 0302275 | FITTING, CONN 8MJ-6MB W/STEP | 5 | $7.68 | |
| 56 | 0302276 | FITTING, ELB 90 DEG | 1 | $11.32 | |
| 57 | 0302696 | FITTING, CONNECTOR | 2 | $12.89 | |
| 58 | 0302726 | GREASE FITTING, 1/4-28 X 45DEG | 16 | $3.78 | |
| 59 | 0303193 | BLACK SKUFF JACKET SJ16Priced per foot | 75 | $3.78 | |
| 60 | 0303394 | HOSE HYD, 46" | 4 | $42.15 | |
| 61 | 0307003 | FITT, HYD UNION 10MJ-10MJ | 6 | $4.46 | |
| 62 | 0311189 | HITCH PIN 1/4" DIA. | 2 | $13.98 | |
| 63 | 0400002 | 4X1/4 DRIVE SCREW RD HD | 4 | $4.01 | |
| 64 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 6 | $5.84 | |
| 65 | 0400109 | 5/16-18X1 HHCS GR5 ZP | 4 | $5.84 | |
| 66 | 0400114 | 5/16-18X3 HHCS GR5 ZP | 2 | $5.84 | |
| 67 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 22 | $5.84 | |
| 68 | 0400128 | 3/8-16X1.25 FLAT HD SOC | 12 | $8.01 | |
| 69 | 0400149 | 3/8-16 X 5/8 HHCS GR5 ZP | 3 | $4.01 | |
| 70 | 0400176 | 1/2-13X1 HHCS GR5 ZP | 14 | $5.84 | |
| 71 | 0400205 | 1/2-13X3 HHCS GR5 ZP | 1 | $5.84 | |
| 72 | 0400306 | 7/8-9X3HHCS GR 8 GOLD | 18 | $8.01 | |
| 73 | 0400393 | 3/8-16 HEX NUT JAM ZP | 16 | $5.84 | |
| 74 | 0400437 | 7/8-9 NYLOK HEX GR 8 ZP | 18 | $19.68 | |
| 75 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 16 | $5.84 | |
| 76 | 0400463 | 5/16" FLATWASHER ZP. | 8 | $5.84 | |
| 77 | 0400482 | 3/8" HELICAL LCKWSHR - ZP | 3 | $5.84 | |
| 78 | 0400491 | 1/2" HCL LKWSHR ZP | 10 | $5.84 | |
| 79 | 0400492 | 1/2" FLATWASHER ZP | 6 | $5.84 | |
| 80 | 0400508 | 5/8" HELICAL LCKWSHR ZP | 2 | $5.84 | |
| 81 | 0400776 | 5/16-18 HEX NUT JAM NYLOK ZP | 2 | $5.84 | |
| 82 | 0501420 | PLATE - SERIAL/DATA (V-70) | 1 | $53.47 | |
| 83 | 0719585 | D-RING, TOWING | 4 | $444.92 | |
| 84 | 0724349 | PLATE, JACK LEG COVER | 2 | Call for price | — |
| 85 | 0724499 | PIN - UPPER JACK LEG CYL | 2 | $60.50 | |
| 86 | 0724500 | PIN - LOWER JACK LEG CYL | 2 | Call for price | — |
| 87 | 0807731 | SUBFRAME WELD'T, V-70, V-100 | 1 | Call for price | — |
| 88 | 0810005 | PIN - FORK RETAINING | 2 | $185.01 | |
| 89 | 0910705 | CONTROL STATION ASSY | 1 | Call for price | — |
| 90 | 0910757 | HYD. TUBE KIT - VULCAN HD | 1 | $8,142.10 |
V-100 2-Stage W/ Std Stinger Parts List - 2 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0911008 | SUBFRAME ASSY V-100 (cont'd) | Call for price | — | |
| 91 | 9012515 | 1 1/16 -12 37 JIC PLUG | 2 | Call for price | — |
| 92 | 9012525 | 9/16 -18 37 JIC MALE PLUG | 4 | Call for price | — |
| 93 | 9015738 | HOLDING VALVE MHB-015-L | 2 | $818.73 | |
| 94 | 9018241 | SINGLE TUBE CLAMP-1 | 2 | $3.96 | |
| 95 | 9018254 | 5/8 TUBE CLAMP SM2160-PP | 12 | $15.67 | |
| 96 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 97 | 9018256 | 3/4 TUBE CLAMP SM3190-PP | 4 | $6.43 | |
| 98 | 9018271 | TRANSITION BLOCK 9E0001 | 1 | $227.95 | |
| 99 | 9041011 | 1/4 NC X 2 1/2 HHCS PL GR8 | 8 | Call for price | — |
| 100 | 9041402 | 1/2 NC X 1 1/4 HHCS PLT GR8 | 5 | $8.01 | |
| 101 | 9043950 | 5/8 NC X 1 1/2 HHCS PL GR 8 | 2 | $8.01 | |
| 102 | 9053041 | BEARING-SPHERICAL TORRIN | 2 | $180.55 | |
| 103 | 9054150 | 1 1/2 INT. RET. RING (C | 8 | $1.90 | |
| 104 | 915770002 | 8AT2(8T90S-8T90S) HCL | 2 | Call for price | — |
| 105 | 915770017 | 16R4(16MJ-16FJ) HCL | 2 | Call for price | — |
| 106 | 915780000 | HYD TANK ASSY 3 POINT M | 1 | $4,252.29 | |
| 107 | 930020001 | SPACER PLATE STIFFLEG SU | 2 | Call for price | — |
| 108 | 930202500 | PIVOT BLOCK WELD'T | 2 | $2,650.90 | |
| 109 | 930202504 | TIE PLATE - BOOM PIVOT A | 2 | Call for price | — |
| 110 | 930202505 | WASHER PLATE - BOOM PIVOT | 4 | $26.97 | |
| 111 | 930400009 | BOTTOM PLATE - DCV DUAL | 1 | Call for price | — |
| 112 | 9401418 | DIPSTICK WELDMENT HYDR TANK | 1 | Call for price | — |
| 113 | 9402970 | TOOLBOX MTG. PAD | 3 | $54.72 | |
| 114 | 945000001 | LOCK PLATE - SPHERICAL B | 2 | Call for price | — |
| 115 | 945020001 | WASHER PLATE-LOWER LIFT | 2 | $71.13 | |
| 116 | 945351500 | PIN WELD'T LOWER LIFT CY | 2 | $114.88 | |
| 117 | 945720000 | STIFF LEG CYLINDER - 45/ | 2 | $2,266.56 | |
| 118 | 945770003 | 6AT2(6T90L-8MJ) 24 HYD | 4 | $43.74 | |
| 119 | 946402500 | COVER ASSEMBLY | 1 | Call for price | — |
| 120 | 946700000 | 45/50 BOOM LIFT CYLINDER | 2 | $7,868.25 | |
| 121 | 946770001 | 6AT2(6T90S-6T90S) HCL | 2 | Call for price | — |
| 122 | DE1381 | 1/2 WASHER SAE 17/32 ID | 4 | $5.68 | |
| 123 | GA0215 | PIN-"D" RING | 4 | $82.07 | |
| -- | 0910705 | CONTROL STATION ASSY | Call for price | — | |
| 124 | 0300052 | FITTING, ELB 8MJ-10MB 90 | 1 | $11.32 | |
| 125 | 0301376 | CONNECTOR 8 MJ - 10 MB | 9 | Call for price | — |
| 126 | 0301619 | FITT, 6MJ-6MJ-6MB BRANCH TEE | 2 | $11.32 | |
| 127 | 0302083 | 16 MJ - 12 MB 90 ELBOW | 2 | $31.37 | |
| 128 | 0302827 | FITTING, CONNECTOR 10MJ-10MB | 5 | $7.68 | |
| 129 | 0306984 | FITT, HYD ELB 12MB-12MJ90 W/HO | 2 | $56.54 | |
| 130 | 0400382 | 5/16-18 NYLOK HEX NUT ZP | 8 | $5.84 | |
| 131 | 0400387 | 3/8-24 HEX JAM NUT ZP(DE1206) | 32 | $1.79 | |
| 133 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 40 | $5.84 | |
| 134 | 0400480 | 3/8 FLATWASHER ZP | 44 | $4.01 | |
| 135 | 0723377 | PLATE, DCV MTG. - VULCAN HD | 1 | Call for price | — |
| 136 | 0907441 | CONTROL HANDLE ASSY - SHORT | 8 | $93.00 | |
| 137 | 0907442 | CONTROL HANDLE ASSY - LONG | 8 | $87.51 | |
| 138 | 9010030 | FITT, BRASS ELB 1/4T-1/8MPX | 12 | $13.84 | |
| -- | 0910705 | CONTROL STATION ASSY (cont'd) | Call for price | — | |
| 139 | 9016021 | VALVE 6 SPOOL 346-9206-018 | 1 | $4,857.70 | |
| 140 | 9016022 | VALVE 2 SPOOL 346-9202-018 | 1 | $2,826.37 | |
| 141 | 9041108 | 5/16 NC X 1 3/4 HHCS PL GR8 | 4 | $5.84 | |
| 142 | 9041212 | 3/8 NC X 2 3/4 HHCS PL GR8 | 6 | $5.84 | |
| 143 | 9043371 | 6 MM LOCKNUT FOR 9043817 | 8 | Call for price | — |
| 144 | 9043713 | M8 X 20 SOC SHOULDER BOLT | 8 | $9.64 | |
| 145 | 9048513 | SPHERICAL ROD END REBPJH- | 16 | $31.37 | |
| 146 | 930400001 | PIN - CONTROL HANDLE PIV | 2 | $97.39 | |
| 147 | 930400012 | RH CONTROL ROD (LONG) - | 8 | Call for price | — |
| 148 | 930400013 | LH CONTROL ROD (SHORT) - | 8 | Call for price | — |
| 149 | 930402600 | SHORT LUG WELD'T - DUAL | 6 | Call for price | — |
| 150 | 930402700 | LONG LUG WELD'T - DUAL C | 2 | Call for price | — |
| 151 | 946400600 | CHANNEL WELD'T | 2 | Call for price | — |
| 152 | GX263 | FITTING, ELB 10MJ-10MB90 | 1 | $15.14 | |
| -- | 0907441 | CONTROL HANDLE ASSY - SHORT | $93.00 | ||
| 153 | 0806515 | CONTROL HANDLE WELD'T | 1 | Call for price | — |
| 154 | 9053524 | BEARING BR. FLG.752 X .879X.75 | 2 | $6.16 | |
| -- | 0907442 | CONTROL HANDLE ASSY - LONG | $87.51 | ||
| 155 | 0806531 | CONTROL HANDLE WELD'T | 1 | Call for price | — |
| 156 | 9053524 | BEARING BR. FLG.752 X .879X.75 | 2 | $6.16 | |
| -- | 0910757 | HYD. TUBE KIT - VULCAN HD | $8,142.10 | ||
| 157 | 0310837 | HYD TUBE ASSY, RETURN - REAR | 1 | Call for price | — |
| 158 | 0310838 | HYD TUBE ASSY, RH WINCH - B | 1 | Call for price | — |
| 159 | 0310839 | HYD TUBE ASSY, REAR PRESSURE | 1 | Call for price | — |
| 160 | 0310840 | HYD TUBE ASSY, BOOM LIFT - A | 1 | Call for price | — |
| 161 | 0310841 | HYD TUBE ASSY, BOOM LIFT - B | 1 | Call for price | — |
| 162 | 0310842 | HYD TUBE ASSY, RH WINCH - A | 1 | Call for price | — |
| 163 | 930760010 | TUBE, HYD 1/2 X 17 15/16 RH ST | 1 | $67.45 | |
| 164 | 930760011 | TUBE, HYD 1/2 X 17 13/16 RH ST | 1 | $60.17 | |
| 165 | 946760001 | TUBE, HYD 3/4 X 30 3/4 FR.VALV | 1 | $98.48 | |
| 166 | 946760003 | TUBE, HYD 5/8 X 32 9/16 MAIN B | 2 | Call for price | — |
| 167 | 946760004 | TUBE, HYD 1/2 X 34 7/16 ST.EXT | 1 | $109.44 | |
| 168 | 946760005 | TUBE, HYD 1/2 X 34 7/16 ST.EXT | 1 | $111.63 | |
| 169 | 946760006 | TUBE, HYD 1/2 X 36 1/16 ST.TIL | 1 | $114.88 | |
| 170 | 946760007 | TUBE, HYD 1/2 X 36 1/16 ST.TIL | 1 | $109.44 | |
| 171 | 946760008 | TUBE, HYD 1/2 LH STIFFLEG | 1 | $89.31 | |
| 172 | 946760009 | TUBE, HYD 1/2 LH STIFFLEG B PO | 1 | $98.48 | |
| 173 | 946760010 | TUBE, HYD 5/8 X 40 11/16 FR.WI | 1 | $240.71 | |
| 174 | 946760011 | TUBE, HYD 5/8 X 40 11/16 FR.WI | 1 | $249.80 | |
| 175 | 946760012 | TUBE, HYD 1" RETURN LINE FR.VA | 1 | $280.85 | |
| 176 | 946760016 | TUBE, HYD 3/4X77 1/4 END SECTI | 2 | $317.79 | |
| 177 | 946760017 | TUBE, HYD 5/8X80 3/8 END SECTI | 6 | $307.40 | |
| 178 | 946760018 | TUBE, HYD 1/2X77 3/8 END SECTI | 4 | $103.94 | |
| -- | 915780000 | HYD TANK ASSY 3 POINT M | $4,252.29 | ||
| 179 | 0301611 | PIPE, 1-1/4 SCH40 BLK | 2 | Call for price | — |
V-100 2-Stage W/ Std Stinger Parts List - 3 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 915780000 | HYD TANK ASSY 3 POINT M (cont'd) | $4,252.29 | ||
| 180 | 0302696 | FITTING, CONNECTOR | 2 | $12.89 | |
| 181 | 0302699 | PIPE NIPPLE - 1-1/4 X 2 | 2 | Call for price | — |
| 182 | 0305006 | FILLER CAP (GO205, FB194) | 1 | $63.82 | |
| 183 | 9011014 | 1/4NPT SOCKET STL PLUG * | 1 | Call for price | — |
| 184 | 9012913 | MAGNETIC PIPE PLUG 3/4NP | 1 | Call for price | — |
| 185 | 9015571 | BALL VALVE - 1 1/4 CV5 | 2 | Call for price | — |
| 186 | 9018139 | SUCT.STRAINER LHA SEH-2 | 2 | $191.48 | |
| 187 | 9018140 | OIL FILTER HEAD-LHA SP50NAHN- | 2 | $238.88 | |
| 188 | 9032122 | GASKET, HYD. TANK COVER | 1 | Call for price | — |
| 189 | 9043477 | 5/16-18X1 SOC HD CAP SCREW | 6 | Call for price | — |
| 190 | 915780500 | HYDRAULIC TANK WELD'T | 1 | $2,802.61 | |
| 191 | 9401408 | INSPECT COVER | 1 | Call for price | — |
| -- | 946402500 | COVER ASSEMBLY | Call for price | — | |
| 192 | 0301851 | TRIM-LOCK 150B2X1/8Priced per foot | 5 | $3.53 | |
| 193 | 9041202 | 3/8-16 X 5/8 HHCS PL GR8 | 6 | $5.84 | |
| 194 | 9045057 | 0400482 3/8 BS LOCK WASHER | 6 | $5.84 | |
| 195 | 946402501 | TOP PANEL - COVER | 1 | $195.11 | |
| 196 | 946402600 | REAR PANEL WELD'T | 1 | $70.82 | |
| 197 | 946402700 | FRONT PANEL WELD'T | 1 | $69.32 | |
| -- | 0911011 | RECOVERY BOOM INSTALL V100 2-STG | Call for price | — | |
| 198 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 105 | $5.84 | |
| 199 | 0310194 | HARNESS, WIRING 2-SPEED | 1 | $155.46 | |
| 200 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 8 | $5.84 | |
| 201 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 4 | $5.84 | |
| 202 | 0400132 | 3/8-16X1.5 HHCS GR5 ZP | 6 | $5.84 | |
| 203 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 12 | $5.84 | |
| 204 | 0400424 | 5/8-18 HEX NUT ZP | 2 | Call for price | — |
| 205 | 0400426 | 5/8-11 GR 8 NYLOK NUT YZ PLT | 4 | $8.01 | |
| 206 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 8 | $5.84 | |
| 207 | 0400482 | 3/8" HELICAL LCKWSHR - ZP | 4 | $5.84 | |
| 208 | 0400505 | 5/8" SAE WASHER | 2 | $5.84 | |
| 209 | 0911034 | RECOVERY BOOM ASSY V-100 2-STG | 1 | Call for price | — |
| 210 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 211 | 9041058 | 1/4 X 1 3/4 HHCS GR8 | 2 | Call for price | — |
| 212 | 9043605 | 5/8-18 X 2 SOC HD CAP | 2 | Call for price | — |
| 213 | 9043975 | H.H.C.SCREW 5/8N.C.X3 1/ | 2 | $8.01 | |
| 214 | 9044409 | 5/8-11 X 2 1/4 HHCS PL GR8 | 2 | $3.55 | |
| 215 | 9044434 | 3/8-16X1 NC FLAT SOCKET HD CAP | 2 | $5.84 | |
| 216 | 9048800 | 5/8 WELDLESS CHAIN LINK | 2 | $21.89 | |
| 217 | 930290001 | STOP BLOCK VERT BOOM WELD | 2 | $373.82 | |
| 218 | 9400004 | BRONZE BUSHING | 2 | $277.15 | |
| 219 | 945020001 | WASHER PLATE-LOWER LIFT | 2 | $71.13 | |
| 220 | 945030007 | CABLE TIE BACK SPRING-1 | 2 | $28.28 | |
| 221 | 945040001 | SPACER, MAIN BOOM PIVOT | 2 | $23.53 | |
| 222 | 945291500 | LOWER GUIDE PAD WELD'T | 2 | $133.13 | |
| 223 | 945350001 | PIVOT PIN, MAIN BOOM | 1 | $725.75 | |
| 224 | 945351500 | PIN WELD'T LOWER LIFT CY | 2 | $114.88 | |
| -- | 0911011 | RECOVERY BOOM INSTALL (cont'd) | Call for price | — | |
| 225 | 945760021 | HYD TUBE UNDER BOOM STINGER | 4 | $314.00 | |
| 226 | 946770003 | HOSE ASSEMBLY - 8MJ-8MJ X 45 | 4 | Call for price | — |
| 227 | 946770007 | HOSE ASSEMBLY - 79 | 2 | Call for price | — |
| 228 | 946770009 | HOSE ASSEMBLY - 104 | 2 | Call for price | — |
| -- | 0911034 | RECOVERY BOOM ASSY V-100 2-STG | Call for price | — | |
| 229 | 0300041 | FITTING, CONNECTOR 8MJ-8MB | 4 | $5.67 | |
| 230 | 0300052 | FITTING, ELB 8MJ-10MB 90 | 1 | $11.32 | |
| 231 | 0301522 | FITTING, CONN. 6MJ-6MB | 2 | $3.78 | |
| 232 | 0301696 | FITTING, ELB 90 DEG 6MJ-6FJX90 | 2 | Call for price | — |
| 233 | 0301895 | GREASE FITTING, STR 1/8 PTF | 6 | $5.84 | |
| 234 | 0301895 | GREASE FITTING, STR 1/8 PTF | 7 | $5.84 | |
| 235 | 0301949 | 3/8" OD AIRLINE, SYNFLEX HOSEPriced per foot | 14 | $8.01 | |
| 236 | 0302776 | SNAP RING, EXTERNAL 2 | 2 | $5.67 | |
| 237 | 0303505 | WINCH-DP MODEL S50-50K (2)SPD | 2 | $23,351.51 | |
| 238 | 0400059 | 1/4-20X5/8 HHCS GR5 ZP | 10 | $5.84 | |
| 239 | 0400059 | 1/4-20X5/8 HHCS GR5 ZP | 2 | $5.84 | |
| 240 | 0400288 | 3/4-10X2.5HHCS GR 8GOLD | 32 | $9.85 | |
| 241 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 32 | $8.01 | |
| 242 | 0400492 | 1/2" FLATWASHER ZP | 1 | $5.84 | |
| 243 | 0400512 | 3/4 FLAT WASHER(SPECIAL) | 64 | Call for price | — |
| 244 | 0715517 | PIN - "D"-RING OUT BOOM WELD'T | 1 | $134.96 | |
| 245 | 0719585 | D-RING, TOWING | 1 | $444.92 | |
| 246 | 0724343 | BAR, CABLE SUPPORT | 1 | $33.05 | |
| 247 | 0724344 | CHANNEL, ROPE GUIDE | 1 | $85.94 | |
| 248 | 0806863 | INNER BOOM WELDMENT V-100 | 1 | Call for price | — |
| 249 | 0807965 | WINCH MTG BRACKET | 8 | Call for price | — |
| 250 | 0810006 | OUTER BOOM WELD'T V-100 | 1 | Call for price | — |
| 251 | 0908425 | KIT - BOOM SWIVEL | 1 | $6,001.01 | |
| 252 | 3012-793001 | PLATE - LUBE MTG. | 1 | $19.68 | |
| 253 | 9010030 | FITT, BRASS ELB 1/4T-1/8MPX | 1 | $13.84 | |
| 254 | 9010520 | FITT, BRASS ELB 1/4T-1/4MP | 2 | $13.84 | |
| 255 | 9012549 | CONNECTOR-MALE 3/8TUBEX1 | 1 | $15.67 | |
| 256 | 9012552 | BULKHEAD ADAPTER 1/8M-1/8F NPT | 1 | $40.12 | |
| 257 | 9012575 | LEGRIS- 3108-56-11 1/8NP | 3 | $21.51 | |
| 258 | 9012584 | ELBOW-1/4NPT X 3/8TUBE 9 | 1 | $21.51 | |
| 259 | 9041403 | 1/2 NC X 1 1/2 HHCS PL GR8 | 1 | $5.84 | |
| 260 | 9054200 | INTERNAL RETN'G RING 2 H | 2 | $5.68 | |
| 261 | 9056137 | RETAINING RING - 1 3/8 | 2 | $3.78 | |
| 262 | 920110015 | ROPE CATCHER | 1 | Call for price | — |
| 263 | 920255003 | SPACER - LOCK PIN WELD'T | 1 | $3.55 | |
| 264 | 930250018 | CABLE RETAINER OUTER BOOM | 1 | Call for price | — |
| 265 | 930290002 | COVER PLATE VERT BOOM MA | 2 | $18.95 | |
| 266 | 945030001 | PAD RETAINING PLATE-UPPE | 1 | $30.25 | |
| 267 | 945350500 | PIN WELD'T-TILT CYL UPPE | 1 | $213.34 | |
| 268 | 945710000 | RECOVERY BOOM EXTENSION CYL. | 1 | Call for price | — |
| 269 | 945770002 | 6AT2(6T90S-8MJ) HCL 48 | 2 | $74.35 | |
| 270 | 946030004 | UPPER WEAR PAD-RECOVERY | 1 | $93.00 | |
| 271 | 946030005 | LOWER WEAR PAD-RECOVERY | 1 | $102.10 |
V-100 2-Stage W/ Std Stinger Parts List - 4 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0911034 | RECOVERY BOOM ASSY V-100 2-STG (cont'd) | Call for price | — | |
| 272 | 946032000 | TOP SPIDER CLAMP WELD'T | 1 | Call for price | — |
| 273 | 946032500 | BOTTOM SPIDER CLAMP WELD | 1 | Call for price | — |
| 274 | 946350001 | PIN MAIN BOOM EXT CYL FR | 1 | $93.88 | |
| 275 | 946350002 | PIN MAIN BOOM EXT CYL RE | 1 | $91.19 | |
| 276 | 946760200 | HYD. TUBE KIT | 1 | Call for price | — |
| 277 | 946770006 | HOSE ASSEMBLY - 62 | 4 | Call for price | — |
| 278 | 946770008 | HOSE ASSEMBLY - 116 | 1 | Call for price | — |
| -- | 0908425 | KIT - BOOM SWIVEL | $6,001.01 | ||
| 279 | 0400557 | 1/2X1-1/4 ROLL PIN ZP | 6 | $5.84 | |
| 280 | 0908424 | SWIVEL-BOOM ASSEMBLY | 2 | Call for price | — |
| -- | 0908424 | SWIVEL-BOOM ASSEMBLY | Call for price | — | |
| 281 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 1 | $5.84 | |
| 282 | 0300311 | SHEAVE, 12-10-1BB 10 | 1 | $573.63 | |
| 283 | 0400133 | 3/8-16X3 HHCS GR5 ZP | 2 | $5.84 | |
| 284 | 0400140 | 3/8-16X4 HHCS GR5 ZP | 1 | $5.84 | |
| 285 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 3 | $5.84 | |
| 286 | 0700511 | GUIDE, BOTTOM CABLE | 2 | $33.38 | |
| 287 | 0700563 | SHAFT, SHEAVE | 1 | $118.53 | |
| 288 | 0802027 | GUIDE-CABLE WELDMENT | 1 | $362.89 | |
| 289 | 0806862 | BOOM END SWIVEL WELDMENT V-70 | 1 | Call for price | — |
| -- | 0911031 | SHIP KIT, V-100 | Call for price | — | |
| 290 | 0301215 | WIRE ROPE 3/4X6X37 IWRC 250' | 2 | $2,741.63 | |
| 291 | 0303056 | D GASKET- H2 ADHESIVEPriced per foot | 8 | $7.68 | |
| 292 | 0307626 | SAFETY CHAIN ASY, 1/2X14' GR100 | 2 | $789.56 | |
| 293 | 0310599 | CRC HD CORROSION INHIBIT SPRAY | 1 | Call for price | — |
| 294 | 0400128 | 3/8-16X1.25 FLAT HD SOC | 12 | $8.01 | |
| 295 | 0501128 | V-90/V-100 OWNERS MANUAL | 1 | $60.17 | |
| 296 | 0723437 | CHANNEL SUPPORT VULCAN | 2 | $108.00 | |
| 297 | 0724476 | PAD - NYLATRON - BOOM GUIDE | 4 | $166.84 | |
| 298 | 0904217 | HARDWARE-BODY MOUNTING | 1 | $239.01 | |
| 299 | 0908202 | KIT, FORK - VULCAN LWRK | 1 | $3,603.15 | |
| 300 | 0908203 | KIT, HDU CHAIN ADPTR -VUL LWRK | 1 | $395.66 | |
| 301 | 0908204 | KIT, HDU RISER BRKT -VUL LWRK | 1 | Call for price | — |
| 302 | 0908205 | KIT, SPRG LIFT BRKT -VUL LWRK | 1 | $761.56 | |
| 303 | 0908206 | KIT, FORK ADAPTER -VUL LWRK | 1 | $1,087.79 | |
| 304 | 0908207 | KIT, PUMP -VUL LWRK | 1 | $2,534.55 | |
| 305 | 0908208 | KIT, MOUNTING -VUL LWRK | 1 | Call for price | — |
| 306 | 0911146 | PURCHASED SHIP KIT-VULCAN HVY | 1 | Call for price | — |
| 307 | 0911148 | VULCAN HD ADDTL BOLT KIT | 1 | Call for price | — |
| 308 | 9401902 | TRAILER RECOVERY LOOP (EA) | 1 | $339.17 | |
| 309 | 946990200 | V-100 DECALS | 1 | $238.88 | |
| -- | 0904217 | HARDWARE-BODY MOUNTING | $239.01 | ||
| 310 | 0400286 | 3/4-10X2.75" HHCSGR 8GOLD | 44 | $8.01 | |
| 311 | 0400301 | 7/8-9X3HHCS GR5 ZP | 4 | Call for price | — |
| 312 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 44 | $8.01 | |
| -- | 0904217 | HARDWARE-BODY MOUNTING (cont'd) | $239.01 | ||
| 313 | 0400436 | 7/8-9 NYLOK HEX NUT ZP | 4 | $5.84 | |
| -- | 0908202 | KIT, FORK - VULCAN LWRK | $3,603.15 | ||
| 314 | 0200018 | FORK-SHORT, 3IN OPNG | 2 | $160.45 | |
| 315 | 0200019 | FORK-SHORT, 4-1/2IN OPNG | 2 | $178.69 | |
| 316 | 0200020 | FORK-MED, 3IN OPNG | 2 | $218.80 | |
| 317 | 0200021 | FORK-MED, 4-1/2IN OPNG | 2 | $253.45 | |
| 318 | 0200023 | FORK-LONG, 4-1/2IN OPNG | 2 | $342.83 | |
| 319 | 0200024 | FORK - OFFSET REAR AXLE | 2 | $253.45 | |
| 320 | 0200042 | FORK - MEDIUM ROUND AXLE | 2 | $185.92 | |
| 321 | 0200058 | FORK - AXLE | 2 | $189.63 | |
| -- | 0908203 | KIT, HDU CHAIN ADPTR -VUL LWRK | $395.66 | ||
| 322 | 0310230 | CLEVIS PIN, 5/8 X 6 ZINC PLT | 2 | $13.84 | |
| 323 | 0400886 | HITCH PIN CLIP, 1/8 DIAX2.6 OAL | 2 | $2.45 | |
| 324 | 0801186 | ADAPTER-HDU CHAIN (LH OR RH) | 1 | $377.33 | |
| 325 | 0801186 | ADAPTER-HDU CHAIN (LH OR RH) | 1 | $377.33 | |
| -- | 0908204 | KIT, HDU RISER BRKT -VUL LWRK | Call for price | — | |
| 326 | 0306564 | ALUM T HANDLE 5/8" X 1-1/4" | 2 | $18.95 | |
| 327 | 0801459 | BRKT-RISER-HDU | 2 | $902.62 | |
| -- | 0908205 | KIT, SPRG LIFT BRKT -VUL LWRK | $761.56 | ||
| 328 | 0807023 | BRKT-PIVOT SPRING LIFT | 2 | $610.88 | |
| 329 | 0908672 | PIN-RET.-SPRING LIFT | 2 | $43.74 | |
| -- | 0908672 | PIN-RET.-SPRING LIFT | $43.74 | ||
| 330 | 0302474 | PIN, LINCH 3/16 | 1 | $3.78 | |
| 331 | 0311167 | 3/16 SWAGE FOR 1/8 COATED CABLE | 1 | $2.94 | |
| 332 | 0311210 | CABLE, PIN RETAINER ASSY .125 | 1 | $28.95 | |
| 333 | 0400568 | 3/8X3" ROLL PIN ZP | 1 | $8.01 | |
| 334 | 0400573 | 3/16X1-1/4ROLL PIN ZP | 1 | $5.84 | |
| 335 | 0402020 | 1/4-20NC X 3/4 HEX HD SS | 1 | $5.84 | |
| 336 | 0718917 | PIN, RETAINER | 1 | Call for price | — |
| -- | 0908206 | KIT, FORK ADAPTER -VUL LWRK | $1,087.79 | ||
| 337 | 0306564 | ALUM T HANDLE 5/8" X 1-1/4" | 2 | $18.95 | |
| 338 | 0803591 | ADAPTER-LEFT FORK | 1 | $911.39 | |
| 339 | 0803592 | ADAPTER-RIGHT FORK | 1 | $911.39 | |
| 340 | 0900900 | PIN-ASSY, RETAINER | 2 | $33.12 | |
| -- | 0900900 | PIN-ASSY, RETAINER | $33.12 | ||
| 341 | 0302474 | PIN, LINCH 3/16 | 1 | $3.78 | |
| 342 | 0311167 | 3/16 SWAGE FOR 1/8 COATED CABLE | 1 | $2.94 | |
| 343 | 0311210 | CABLE, PIN RETAINER ASSY .125 | 1 | $28.95 | |
| 344 | 0400568 | 3/8X3" ROLL PIN ZP | 1 | $8.01 | |
| 345 | 0400573 | 3/16X1-1/4ROLL PIN ZP | 1 | $5.84 | |
| 346 | 0402020 | 1/4-20NC X 3/4 HEX HD SS | 1 | $5.84 | |
| 347 | 0703426 | PIN, RETAINER | 1 | Call for price | — |
V-100 2-Stage W/ Std Stinger Parts List - 5 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0908207 | KIT, PUMP -VUL LWRK | $2,534.55 | ||
| 348 | 0302901 | HOSE HYD, 120" 12C12 | 2 | $246.16 | |
| 349 | 0307995 | HOSE, HYD 103" LG | 2 | $187.81 | |
| 350 | 0310010 | SUCTION HOSE, 1-1/4ID X50 100R4 | 1 | Call for price | — |
| 351 | 9016815 | MUNCIE PUMP TSPKS17-17-2BSSB | 1 | $1,856.28 | |
| -- | 0908208 | KIT, MOUNTING -VUL LWRK | Call for price | — | |
| 352 | 920000501 | REAR MOUNTING PLATE | 2 | Call for price | — |
| 353 | 9401501 | FRONT MTG. PLATE | 2 | $194.00 | |
| 354 | 9401530 | FRONT MTG. BRKT. LOWER | 2 | $133.87 | |
| 355 | 9401540 | FRONT MTG. BRKT. UPPER | 2 | $135.51 | |
| -- | 0911146 | PURCHASED SHIP KIT-VULCAN HVY | Call for price | — | |
| 356 | 0300341 | KNOB, BLACK (BLANK) | 12 | $9.25 | |
| 357 | 0307604 | KNOB, RED LONG - SK0700-07 | 4 | $22.62 | |
| 358 | 0902333 | KIT-GLAD HAND | 1 | Call for price | — |
| 359 | 0904183 | KIT-AIR TENSIONER | 1 | $1,965.68 | |
| 360 | 0906024 | KIT BOX, V100 SHIP-DUAL CNTRL | 1 | Call for price | — |
| 361 | 0908209 | KIT, MUDFLAP -VUL LWRK | 1 | $154.90 | |
| 362 | 0908550 | KIT, SAFETY TREAD DECAL-VULCAN | 1 | $162.49 | |
| -- | 0902333 | KIT-GLAD HAND | Call for price | — | |
| 363 | 0301909 | RECEPTACLE BOOT | 1 | Call for price | — |
| 364 | 0301946 | FITTING, BLKHD CONNECT | 2 | $94.80 | |
| 365 | 0301948 | HD 7 WAY TRAILER CONNECT | 1 | $60.17 | |
| 366 | 0304363 | QUICK DISCONNECT 1/2 FPT | 2 | $65.03 | |
| 367 | 0400070 | 1/4-20X1 HHCS GR5 ZP | 2 | $5.84 | |
| 368 | 0400367 | 1/4-20 NYLOK HEX NUT ZP | 2 | $5.84 | |
| 369 | 0400451 | 1/4 FLATWASHER ZP | 2 | $5.84 | |
| -- | 0904183 | KIT-AIR TENSIONER | $1,965.68 | ||
| 370 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 25 | $5.84 | |
| 371 | 0302495 | CONVOLUTED LOOM 1/4Priced per foot | 25 | $2.82 | |
| 372 | 0311193 | 6" CABLE TIE | 25 | Call for price | — |
| 373 | 0400062 | 1/4-20X3/4 THRD CUT HEX | 2 | $8.01 | |
| 374 | 0700188 | BRKT, BULKHEAD | 2 | $13.84 | |
| 375 | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | 1 | $235.71 | |
| 376 | HA0132 | GAUGE 0-160 PSI | 1 | $24.66 | |
| -- | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | $235.71 | ||
| 377 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 378 | 0303363 | AIR FLTR/REGULATOR COMBO | 1 | $144.04 | |
| 379 | 0306983 | FITT, BRASS RUNTEE 1/4T-1/4MPX | 1 | $18.95 | |
| 380 | 9010520 | FITT, BRASS ELB 1/4T-1/4MP | 1 | $13.84 | |
| -- | 0906024 | KIT BOX, V100 SHIP-DUAL CNTRL | Call for price | — | |
| 381 | 0906018 | H.D. LIGHTING PARTS BAG | 1 | Call for price | — |
| 382 | 0906028 | H.D. FITTINGS BAG | 1 | Call for price | — |
| 383 | 0906839 | GROUND KIT MTG.HARNESS VULCAN | 1 | Call for price | — |
| 384 | 0907304 | KIT - QUICK DISCONNECT AIR | 1 | Call for price | — |
| -- | 0906024 | KIT BOX, V100 SHIP-DUAL CNTRL (cont'd) | Call for price | — | |
| 385 | 124002186 | QUICK CONNECT AIR SUPPLY | 1 | $681.58 | |
| 386 | 945990400 | DUAL CONTROL COMMON DECAL | 1 | $506.91 | |
| -- | 0906018 | H.D. LIGHTING PARTS BAG | Call for price | — | |
| 387 | 0303226 | 80 AMP CIRCUIT BREAKER | 2 | $120.33 | |
| 388 | 9032096 | DECORATIVE TRIM 7500036Priced per foot | 25 | $9.85 | |
| -- | 0906028 | H.D. FITTINGS BAG | Call for price | — | |
| 389 | 0300364 | CLAMP-HOSE, 0.875"-2.75" 50"LBS | 4 | $7.07 | |
| 390 | 0300649 | UNION, STRAIGHT 12MJ - 12MJ | 4 | Call for price | — |
| 391 | 0302698 | FITTING, HOSE BARB, 1-1/4 | 2 | $32.72 | |
| 392 | 0303290 | INSULATED CLAMP 2 1/2 | 10 | $19.68 | |
| 393 | 0303948 | FTG-90DEG ELL 12MJ-16MB90 | 2 | $28.28 | |
| 394 | 0306539 | HOSE BARB 20HOSE16MB90 | 2 | Call for price | — |
| 395 | 0400122 | 3/8-16X1.25 HHCS GR5 ZP | 5 | $5.84 | |
| 396 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 5 | $5.84 | |
| 397 | 0400480 | 3/8 FLATWASHER ZP | 5 | $4.01 | |
| -- | 0906839 | GROUND KIT MTG.HARNESS VULCAN | Call for price | — | |
| 398 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 4 | $5.84 | |
| 399 | 0400382 | 5/16-18 NYLOK HEX NUT ZP | 4 | $5.84 | |
| 400 | 0400481 | 3/8" EXT.TOOTH LOCKWASHER | 4 | $5.84 | |
| 401 | 0400495 | 5/8" EXT.TOOTH LOCKWASHER | 4 | Call for price | — |
| 402 | 0402122 | 3/8-16NC HEX NUT 316 SS | 4 | $4.01 | |
| 403 | 0716468 | LUG - GROUNDING | 4 | Call for price | — |
| -- | 0907304 | KIT - QUICK DISCONNECT AIR | Call for price | — | |
| 404 | 0301621 | PRESSURE PROTECTION VLV. | 1 | $116.73 | |
| 405 | 0301946 | FITTING, BLKHD CONNECT | 1 | $94.80 | |
| 406 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 407 | 0302125 | PIPE, BUSHING 1/2MPT X 1/4FPT | 1 | Call for price | — |
| 408 | 0302534 | FITTING, 45 DEG ELBOW | 2 | $33.38 | |
| 409 | 0302740 | AIR HOSE, 1/2" SYNFLEX DOT | 20 | Call for price | — |
| 410 | 0303538 | FITT, ADAPTER -BRASS 8FP-6MP | 1 | $11.66 | |
| 411 | 0303539 | QUICK DISCONNECT 3/8 FPT | 1 | $37.39 | |
| -- | 124002186 | QUICK CONNECT AIR SUPPLY | $681.58 | ||
| 412 | 0302740 | AIR HOSE, 1/2" SYNFLEX DOT | 20 | Call for price | — |
| 413 | 0311037 | 3/8" RED RUBBER HOSE 50' PRECUT | 1 | $107.10 | |
| 414 | 0910488 | FITTINGS BOX, QUICK CONN AIR | 1 | Call for price | — |
| -- | 0910488 | FITTINGS BOX, QUICK CONN AIR | Call for price | — | |
| 415 | 0301621 | PRESSURE PROTECTION VLV. | 1 | $116.73 | |
| 416 | 0301946 | FITTING, BLKHD CONNECT | 1 | $94.80 | |
| 417 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 418 | 0302125 | PIPE, BUSHING 1/2MPT X 1/4FPT | 1 | Call for price | — |
| 419 | 0302534 | FITTING, 45 DEG ELBOW | 2 | $33.38 | |
| 420 | 0303538 | FITT, ADAPTER -BRASS 8FP-6MP | 1 | $11.66 | |
| 421 | 0303539 | QUICK DISCONNECT 3/8 FPT | 1 | $37.39 |
V-100 2-Stage W/ Std Stinger Parts List - 6 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0910488 | FITTINGS BOX, QUICK CONN AIR (cont'd) | Call for price | — | |
| 422 | 0303540 | NIPPLE, QUICK DISCONNECT 3/8 | 1 | $7.68 | |
| 423 | 0303541 | NIPPLE, QUICK DISCONNECT | 1 | $11.32 | |
| 424 | 0303542 | QUICK DISCONNECT - BARB | 1 | $22.80 | |
| -- | 945990400 | DUAL CONTROL COMMON DECAL | $506.91 | ||
| 425 | 0500554 | FLAG, AMERICAN LT | 2 | $19.68 | |
| 426 | 0500686 | DECAL - RETRACT CAUTION | 2 | $3.78 | |
| 427 | 0500773 | DECAL PLATE-THROTTLE | 2 | $31.37 | |
| 428 | 0501101 | DECAL-CTRL CABLE SPEED | 2 | $49.20 | |
| 429 | 0501157 | TAG-CAUTION WINCH CABLE DAMAGE | 2 | $7.29 | |
| 430 | 9033194 | WARNING DECAL MOVING PARTS | 2 | $9.85 | |
| 431 | 9033196 | WARN.DECAL, DON'T WALK UNDER | 2 | $21.49 | |
| 432 | 9033197 | WARNING DECAL-CABLE TENS | 2 | $21.89 | |
| 433 | 9033198 | DECAL-SAFETY CHAINS | 2 | $11.66 | |
| 434 | 9033212 | NAME PLATE- VULCAN 4 X1 | 4 | $29.10 | |
| 435 | 9033575 | DECAL - REMOTE | 2 | $35.75 | |
| 436 | 9033576 | DECAL - FREE SPOOL LH WINCH | 2 | $15.67 | |
| 437 | 9033577 | DECAL - TENSIONER | 2 | $15.67 | |
| 438 | 9033578 | DECAL - FREE SPOOL RH WI | 2 | $15.67 | |
| 439 | 9033579 | DECAL - DUAL CONTROL UPPER | 1 | $103.94 | |
| 440 | 9033580 | DECAL - DUAL CONTROL LOW | 1 | $129.48 | |
| 441 | 9033581 | DECAL - NEW VULCAN | 2 | $26.83 | |
| 442 | 9033586 | DECAL DUAL CONTROL UPPER | 1 | $102.10 | |
| 443 | 9033587 | DECAL DUAL CONTROL LOWER | 1 | $102.10 | |
| 444 | 920950009 | DECAL - WARNING FOR STIF | 2 | $32.72 | |
| -- | 0908209 | KIT, MUDFLAP -VUL LWRK | $154.90 | ||
| 445 | 920400005 | MUD FLAP BRACE PLATE | 2 | $20.81 | |
| 446 | 94320052 | MUD FLAP 920-940 RUBBER | 1 | $70.82 | |
| -- | 0911148 | VULCAN HD ADDTL BOLT KIT | Call for price | — | |
| 447 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 2 | $8.01 | |
| 448 | 0400490 | 3/4 FLATWASHER GR 8 | 4 | $5.68 | |
| 449 | 9044454 | 3/4-10NC X 7 LG HHCS GRD | 2 | Call for price | — |
| -- | 946990200 | V-100 DECALS | $238.88 | ||
| 450 | 9033583 | DECAL - V100 | 2 | Call for price | — |
| 451 | 9033603 | DECAL WARNING V-100 BOOM | 2 | Call for price | — |
| 452 | 9033606 | DECAL WARNING V-90, V-10 | 2 | Call for price | — |
| 453 | 9033612 | DECAL WARNING V-100 WINCH | 2 | Call for price | — |
V-100 3-Stage W/ Std Stinger Parts List - 1 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 125100300 | V-100 3-STG, STD STINGER | Call for price | — | |
| 1 | 0911002 | BUA, V-100 3-STG STD STINGER | 1 | Call for price | — |
| 2 | 0911031 | SHIP KIT, V-100 | 1 | Call for price | — |
| -- | 0911002 | BUA, V-100 3-STG STD STINGER | Call for price | — | |
| 3 | 0910786 | STINGER ASSY - STD - 114" | 1 | Call for price | — |
| 4 | 0911008 | SUBFRAME ASSY V-100 | 1 | Call for price | — |
| 5 | 0911012 | RECOVERY BOOM INSTALL V100 3-S | 1 | $49,063.05 | |
| -- | 0910786 | STINGER ASSY - STD - 114" | Call for price | — | |
| 6 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 4 | $5.84 | |
| 7 | 0301895 | GREASE FITTING, STR 1/8 PTF | 4 | $5.84 | |
| 8 | 0303193 | BLACK SKUFF JACKET SJ16Priced per foot | 19 | $3.78 | |
| 9 | 0400134 | 3/8-24X3/4 FLTHDSKTSCR | 3 | $5.84 | |
| 10 | 0400176 | 1/2-13X1 HHCS GR5 ZP | 1 | $5.84 | |
| 11 | 0400177 | 1/2-13X1.25 HHCS GR5 ZP | 1 | $5.84 | |
| 12 | 0400248 | 5/8-11X1HHCS GR 8 ZP | 1 | $5.84 | |
| 13 | 0400491 | 1/2" HCL LKWSHR ZP | 2 | $5.84 | |
| 14 | 0400492 | 1/2" FLATWASHER ZP | 2 | $5.84 | |
| 15 | 0400505 | 5/8" SAE WASHER | 2 | $5.84 | |
| 16 | 0400508 | 5/8" HELICAL LCKWSHR ZP | 10 | $5.84 | |
| 17 | 0400594 | 1/4-20X5/8 SOC FLT HD | 8 | $5.84 | |
| 18 | 0723463 | PLATE, PAD RETAINER | 1 | $97.39 | |
| 19 | 0723476 | PLATE, PAD RETAINER | 1 | $97.39 | |
| 20 | 0724348 | PIN, EXT CYL REAR MTG -STINGER | 1 | $261.67 | |
| 21 | 0807763 | 1ST STAGE STINGER WELD'T 116" | 1 | Call for price | — |
| 22 | 0807765 | FOLDING BOOM WELD'T 116" | 1 | $11,135.53 | |
| 23 | 0810009 | 2ND STAGE STINGER - 116" | 1 | Call for price | — |
| 24 | 124004468 | ALUM HEEL PLATE 12" 9055 VULCAN | 1 | $517.87 | |
| 25 | 9012510 | CONNECTOR 6SAE MALE-3/8 | 2 | $16.06 | |
| 26 | 9040602 | 5/8NC X 1 1/4 HHCS GR 8 | 1 | $5.84 | |
| 27 | 9044170 | 1-8X1-1/2 SOC SET SCREW | 1 | $15.67 | |
| 28 | 9044471 | 5/8-18 X 1 1/4 HHCS PL GR8 | 8 | $8.01 | |
| 29 | 9046315 | 3/16 DIAX1 3/4LG ROLL PIN | 2 | $5.84 | |
| 30 | 9046625 | 7/8X6 1/2 LG HITCH PIN | 1 | $78.41 | |
| 31 | 9054150 | 1 1/2 INT. RET. RING (C | 1 | $1.90 | |
| 32 | 915760022 | HYD.TUBE 3/8 STINGER EX | 1 | $11.24 | |
| 33 | 915760023 | HYD.TUBE 3/8 STINGER EX | 1 | $13.24 | |
| 34 | 916770001 | HOSE- HYD. 3/8 - 105" 8MJ-6MFA | 2 | $89.31 | |
| 35 | 924902000 | LOWER PIN WELD'T | 1 | $180.55 | |
| 36 | 930150001 | STOP PAD (FOLDING BOOM) | 4 | $69.32 | |
| 37 | 930150002 | SPACER (1ST STAGE STINGER) | 1 | $41.94 | |
| 38 | 930150003 | TOP PADS | 4 | $28.28 | |
| 39 | 930150004 | BOTTOM PADS | 4 | $18.50 | |
| 40 | 930150011 | PIN (CYL STIFFENER PLATE | 1 | $125.80 | |
| 41 | 930152000 | FRONT MTG. PIN WELD'T | 1 | $315.47 | |
| 42 | 930770500 | TWIN CYL. ARRANGEMENT WELD-ON | 1 | $6,715.84 | |
| 43 | 930901500 | SHAFT WELD'T - FOLD.BOOM PIVOT | 1 | $711.14 | |
| 44 | 945300000 | PIVOT FOOT WELDMENT | 1 | $4,917.88 | |
| 45 | 945351000 | SHAFT WELDT-FOLDING BOOM PIVOT | 1 | $339.17 | |
| -- | 0910786 | STINGER ASSY - STD - 114" (cont'd) | Call for price | — | |
| 46 | 946750000 | TILT CYLINDER 6 DIA | 1 | $5,113.60 | |
| -- | 124004468 | ALUM HEEL PLATE 12" 9055 VULCAN | $517.87 | ||
| 47 | 0400155 | 3/8-16X3/4 FHSCS ZP | 6 | $3.72 | |
| 48 | 0724687 | U/L HEEL PLATE-9055 | 1 | Call for price | — |
| -- | 0911008 | SUBFRAME ASSY V-100 | Call for price | — | |
| 49 | 0300649 | UNION, STRAIGHT 12MJ - 12MJ | 2 | Call for price | — |
| 50 | 0300865 | FITTING, CONNECTOR 8MJ-8MJ | 4 | $5.67 | |
| 51 | 0301522 | FITTING, CONN. 6MJ-6MB | 7 | $3.78 | |
| 52 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 222 | $5.84 | |
| 53 | 0301620 | FITTING, HYD. 6MJ - 6MB90 | 1 | $5.76 | |
| 54 | 0301895 | GREASE FITTING, STR 1/8 PTF | 6 | $5.84 | |
| 55 | 0302275 | FITTING, CONN 8MJ-6MB W/STEP | 5 | $7.68 | |
| 56 | 0302276 | FITTING, ELB 90 DEG | 1 | $11.32 | |
| 57 | 0302696 | FITTING, CONNECTOR | 2 | $12.89 | |
| 58 | 0302726 | GREASE FITTING, 1/4-28 X 45DEG | 16 | $3.78 | |
| 59 | 0303193 | BLACK SKUFF JACKET SJ16Priced per foot | 75 | $3.78 | |
| 60 | 0303394 | HOSE HYD, 46" | 4 | $42.15 | |
| 61 | 0307003 | FITT, HYD UNION 10MJ-10MJ | 6 | $4.46 | |
| 62 | 0311189 | HITCH PIN 1/4" DIA. | 2 | $13.98 | |
| 63 | 0400002 | 4X1/4 DRIVE SCREW RD HD | 4 | $4.01 | |
| 64 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 6 | $5.84 | |
| 65 | 0400109 | 5/16-18X1 HHCS GR5 ZP | 4 | $5.84 | |
| 66 | 0400114 | 5/16-18X3 HHCS GR5 ZP | 2 | $5.84 | |
| 67 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 22 | $5.84 | |
| 68 | 0400128 | 3/8-16X1.25 FLAT HD SOC | 12 | $8.01 | |
| 69 | 0400149 | 3/8-16 X 5/8 HHCS GR5 ZP | 3 | $4.01 | |
| 70 | 0400176 | 1/2-13X1 HHCS GR5 ZP | 14 | $5.84 | |
| 71 | 0400205 | 1/2-13X3 HHCS GR5 ZP | 1 | $5.84 | |
| 72 | 0400306 | 7/8-9X3HHCS GR 8 GOLD | 18 | $8.01 | |
| 73 | 0400393 | 3/8-16 HEX NUT JAM ZP | 16 | $5.84 | |
| 74 | 0400437 | 7/8-9 NYLOK HEX GR 8 ZP | 18 | $19.68 | |
| 75 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 16 | $5.84 | |
| 76 | 0400463 | 5/16" FLATWASHER ZP. | 8 | $5.84 | |
| 77 | 0400482 | 3/8" HELICAL LCKWSHR - ZP | 3 | $5.84 | |
| 78 | 0400491 | 1/2" HCL LKWSHR ZP | 10 | $5.84 | |
| 79 | 0400492 | 1/2" FLATWASHER ZP | 6 | $5.84 | |
| 80 | 0400508 | 5/8" HELICAL LCKWSHR ZP | 2 | $5.84 | |
| 81 | 0400776 | 5/16-18 HEX NUT JAM NYLOK ZP | 2 | $5.84 | |
| 82 | 0501420 | PLATE - SERIAL/DATA (V-70) | 1 | $53.47 | |
| 83 | 0719585 | D-RING, TOWING | 4 | $444.92 | |
| 84 | 0724349 | PLATE, JACK LEG COVER | 2 | Call for price | — |
| 85 | 0724499 | PIN - UPPER JACK LEG CYL | 2 | $60.50 | |
| 86 | 0724500 | PIN - LOWER JACK LEG CYL | 2 | Call for price | — |
| 87 | 0807731 | SUBFRAME WELD'T, V-70, V-100 | 1 | Call for price | — |
| 88 | 0810005 | PIN - FORK RETAINING | 2 | $185.01 | |
| 89 | 0910705 | CONTROL STATION ASSY | 1 | Call for price | — |
| 90 | 0910757 | HYD. TUBE KIT - VULCAN HD | 1 | $8,142.10 |
V-100 3-Stage W/ Std Stinger Parts List - 2 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0911008 | SUBFRAME ASSY V-100 (cont'd) | Call for price | — | |
| 91 | 9012515 | 1 1/16 -12 37 JIC PLUG | 2 | Call for price | — |
| 92 | 9012525 | 9/16 -18 37 JIC MALE PLUG | 4 | Call for price | — |
| 93 | 9015738 | HOLDING VALVE MHB-015-L | 2 | $818.73 | |
| 94 | 9018241 | SINGLE TUBE CLAMP-1 | 2 | $3.96 | |
| 95 | 9018254 | 5/8 TUBE CLAMP SM2160-PP | 12 | $15.67 | |
| 96 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 97 | 9018256 | 3/4 TUBE CLAMP SM3190-PP | 4 | $6.43 | |
| 98 | 9018271 | TRANSITION BLOCK 9E0001 | 1 | $227.95 | |
| 99 | 9041011 | 1/4 NC X 2 1/2 HHCS PL GR8 | 8 | Call for price | — |
| 100 | 9041402 | 1/2 NC X 1 1/4 HHCS PLT GR8 | 5 | $8.01 | |
| 101 | 9043950 | 5/8 NC X 1 1/2 HHCS PL GR 8 | 2 | $8.01 | |
| 102 | 9053041 | BEARING-SPHERICAL TORRIN | 2 | $180.55 | |
| 103 | 9054150 | 1 1/2 INT. RET. RING (C | 8 | $1.90 | |
| 104 | 915770002 | 8AT2(8T90S-8T90S) HCL | 2 | Call for price | — |
| 105 | 915770017 | 16R4(16MJ-16FJ) HCL | 2 | Call for price | — |
| 106 | 915780000 | HYD TANK ASSY 3 POINT M | 1 | $4,252.29 | |
| 107 | 930020001 | SPACER PLATE STIFFLEG SU | 2 | Call for price | — |
| 108 | 930202500 | PIVOT BLOCK WELD'T | 2 | $2,650.90 | |
| 109 | 930202504 | TIE PLATE - BOOM PIVOT A | 2 | Call for price | — |
| 110 | 930202505 | WASHER PLATE - BOOM PIVOT | 4 | $26.97 | |
| 111 | 930400009 | BOTTOM PLATE - DCV DUAL | 1 | Call for price | — |
| 112 | 9401418 | DIPSTICK WELDMENT HYDR TANK | 1 | Call for price | — |
| 113 | 9402970 | TOOLBOX MTG. PAD | 3 | $54.72 | |
| 114 | 945000001 | LOCK PLATE - SPHERICAL B | 2 | Call for price | — |
| 115 | 945020001 | WASHER PLATE-LOWER LIFT | 2 | $71.13 | |
| 116 | 945351500 | PIN WELD'T LOWER LIFT CY | 2 | $114.88 | |
| 117 | 945720000 | STIFF LEG CYLINDER - 45/ | 2 | $2,266.56 | |
| 118 | 945770003 | 6AT2(6T90L-8MJ) 24 HYD | 4 | $43.74 | |
| 119 | 946402500 | COVER ASSEMBLY | 1 | Call for price | — |
| 120 | 946700000 | 45/50 BOOM LIFT CYLINDER | 2 | $7,868.25 | |
| 121 | 946770001 | 6AT2(6T90S-6T90S) HCL | 2 | Call for price | — |
| 122 | DE1381 | 1/2 WASHER SAE 17/32 ID | 4 | $5.68 | |
| 123 | GA0215 | PIN-"D" RING | 4 | $82.07 | |
| -- | 0910705 | CONTROL STATION ASSY | Call for price | — | |
| 124 | 0300052 | FITTING, ELB 8MJ-10MB 90 | 1 | $11.32 | |
| 125 | 0301376 | CONNECTOR 8 MJ - 10 MB | 9 | Call for price | — |
| 126 | 0301619 | FITT, 6MJ-6MJ-6MB BRANCH TEE | 2 | $11.32 | |
| 127 | 0302083 | 16 MJ - 12 MB 90 ELBOW | 2 | $31.37 | |
| 128 | 0302827 | FITTING, CONNECTOR 10MJ-10MB | 5 | $7.68 | |
| 129 | 0306984 | FITT, HYD ELB 12MB-12MJ90 W/HO | 2 | $56.54 | |
| 130 | 0400382 | 5/16-18 NYLOK HEX NUT ZP | 8 | $5.84 | |
| 131 | 0400387 | 3/8-24 HEX JAM NUT ZP(DE1206) | 32 | $1.79 | |
| 133 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 40 | $5.84 | |
| 134 | 0400480 | 3/8 FLATWASHER ZP | 44 | $4.01 | |
| 135 | 0723377 | PLATE, DCV MTG. - VULCAN HD | 1 | Call for price | — |
| 136 | 0907441 | CONTROL HANDLE ASSY - SHORT | 8 | $93.00 | |
| 137 | 0907442 | CONTROL HANDLE ASSY - LONG | 8 | $87.51 | |
| 138 | 9010030 | FITT, BRASS ELB 1/4T-1/8MPX | 12 | $13.84 | |
| -- | 0910705 | CONTROL STATION ASSY (cont'd) | Call for price | — | |
| 139 | 9016021 | VALVE 6 SPOOL 346-9206-018 | 1 | $4,857.70 | |
| 140 | 9016022 | VALVE 2 SPOOL 346-9202-018 | 1 | $2,826.37 | |
| 141 | 9041108 | 5/16 NC X 1 3/4 HHCS PL GR8 | 4 | $5.84 | |
| 142 | 9041212 | 3/8 NC X 2 3/4 HHCS PL GR8 | 6 | $5.84 | |
| 143 | 9043371 | 6 MM LOCKNUT FOR 9043817 | 8 | Call for price | — |
| 144 | 9043713 | M8 X 20 SOC SHOULDER BOLT | 8 | $9.64 | |
| 145 | 9048513 | SPHERICAL ROD END REBPJH- | 16 | $31.37 | |
| 146 | 930400001 | PIN - CONTROL HANDLE PIV | 2 | $97.39 | |
| 147 | 930400012 | RH CONTROL ROD (LONG) - | 8 | Call for price | — |
| 148 | 930400013 | LH CONTROL ROD (SHORT) - | 8 | Call for price | — |
| 149 | 930402600 | SHORT LUG WELD'T - DUAL | 6 | Call for price | — |
| 150 | 930402700 | LONG LUG WELD'T - DUAL C | 2 | Call for price | — |
| 151 | 946400600 | CHANNEL WELD'T | 2 | Call for price | — |
| 152 | GX263 | FITTING, ELB 10MJ-10MB90 | 1 | $15.14 | |
| -- | 0907441 | CONTROL HANDLE ASSY - SHORT | $93.00 | ||
| 153 | 0806515 | CONTROL HANDLE WELD'T | 1 | Call for price | — |
| 154 | 9053524 | BEARING BR. FLG.752 X .879X.75 | 2 | $6.16 | |
| -- | 0907442 | CONTROL HANDLE ASSY - LONG | $87.51 | ||
| 155 | 0806531 | CONTROL HANDLE WELD'T | 1 | Call for price | — |
| 156 | 9053524 | BEARING BR. FLG.752 X .879X.75 | 2 | $6.16 | |
| -- | 0910757 | HYD. TUBE KIT - VULCAN HD | $8,142.10 | ||
| 157 | 0310837 | HYD TUBE ASSY, RETURN - REAR | 1 | Call for price | — |
| 158 | 0310838 | HYD TUBE ASSY, RH WINCH - B | 1 | Call for price | — |
| 159 | 0310839 | HYD TUBE ASSY, REAR PRESSURE | 1 | Call for price | — |
| 160 | 0310840 | HYD TUBE ASSY, BOOM LIFT - A | 1 | Call for price | — |
| 161 | 0310841 | HYD TUBE ASSY, BOOM LIFT - B | 1 | Call for price | — |
| 162 | 0310842 | HYD TUBE ASSY, RH WINCH - A | 1 | Call for price | — |
| 163 | 930760010 | TUBE, HYD 1/2 X 17 15/16 RH ST | 1 | $67.45 | |
| 164 | 930760011 | TUBE, HYD 1/2 X 17 13/16 RH ST | 1 | $60.17 | |
| 165 | 946760001 | TUBE, HYD 3/4 X 30 3/4 FR.VALV | 1 | $98.48 | |
| 166 | 946760003 | TUBE, HYD 5/8 X 32 9/16 MAIN B | 2 | Call for price | — |
| 167 | 946760004 | TUBE, HYD 1/2 X 34 7/16 ST.EXT | 1 | $109.44 | |
| 168 | 946760005 | TUBE, HYD 1/2 X 34 7/16 ST.EXT | 1 | $111.63 | |
| 169 | 946760006 | TUBE, HYD 1/2 X 36 1/16 ST.TIL | 1 | $114.88 | |
| 170 | 946760007 | TUBE, HYD 1/2 X 36 1/16 ST.TIL | 1 | $109.44 | |
| 171 | 946760008 | TUBE, HYD 1/2 LH STIFFLEG | 1 | $89.31 | |
| 172 | 946760009 | TUBE, HYD 1/2 LH STIFFLEG B PO | 1 | $98.48 | |
| 173 | 946760010 | TUBE, HYD 5/8 X 40 11/16 FR.WI | 1 | $240.71 | |
| 174 | 946760011 | TUBE, HYD 5/8 X 40 11/16 FR.WI | 1 | $249.80 | |
| 175 | 946760012 | TUBE, HYD 1" RETURN LINE FR.VA | 1 | $280.85 | |
| 176 | 946760016 | TUBE, HYD 3/4X77 1/4 END SECTI | 2 | $317.79 | |
| 177 | 946760017 | TUBE, HYD 5/8X80 3/8 END SECTI | 6 | $307.40 | |
| 178 | 946760018 | TUBE, HYD 1/2X77 3/8 END SECTI | 4 | $103.94 | |
| -- | 915780000 | HYD TANK ASSY 3 POINT M | $4,252.29 | ||
| 179 | 0301611 | PIPE, 1-1/4 SCH40 BLK | 2 | Call for price | — |
V-100 3-Stage W/ Std Stinger Parts List - 3 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 915780000 | HYD TANK ASSY 3 POINT M (cont'd) | $4,252.29 | ||
| 180 | 0302696 | FITTING, CONNECTOR | 2 | $12.89 | |
| 181 | 0302699 | PIPE NIPPLE - 1-1/4 X 2 | 2 | Call for price | — |
| 182 | 0305006 | FILLER CAP (GO205, FB194) | 1 | $63.82 | |
| 183 | 9011014 | 1/4NPT SOCKET STL PLUG * | 1 | Call for price | — |
| 184 | 9012913 | MAGNETIC PIPE PLUG 3/4NP | 1 | Call for price | — |
| 185 | 9015571 | BALL VALVE - 1 1/4 CV5 | 2 | Call for price | — |
| 186 | 9018139 | SUCT.STRAINER LHA SEH-2 | 2 | $191.48 | |
| 187 | 9018140 | OIL FILTER HEAD-LHA SP50NAHN- | 2 | $238.88 | |
| 188 | 9032122 | GASKET, HYD. TANK COVER | 1 | Call for price | — |
| 189 | 9043477 | 5/16-18X1 SOC HD CAP SCREW | 6 | Call for price | — |
| 190 | 915780500 | HYDRAULIC TANK WELD'T | 1 | $2,802.61 | |
| 191 | 9401408 | INSPECT COVER | 1 | Call for price | — |
| -- | 946402500 | COVER ASSEMBLY | Call for price | — | |
| 192 | 0301851 | TRIM-LOCK 150B2X1/8Priced per foot | 5 | $3.53 | |
| 193 | 9041202 | 3/8-16 X 5/8 HHCS PL GR8 | 6 | $5.84 | |
| 194 | 9045057 | 0400482 3/8 BS LOCK WASHER | 6 | $5.84 | |
| 195 | 946402501 | TOP PANEL - COVER | 1 | $195.11 | |
| 196 | 946402600 | REAR PANEL WELD'T | 1 | $70.82 | |
| 197 | 946402700 | FRONT PANEL WELD'T | 1 | $69.32 | |
| -- | 0911012 | RECOVERY BOOM INSTALL 3-STAGE | $49,063.05 | ||
| 198 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 105 | $5.84 | |
| 199 | 0310194 | HARNESS, WIRING 2-SPEED | 1 | $155.46 | |
| 200 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 8 | $5.84 | |
| 201 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 4 | $5.84 | |
| 202 | 0400132 | 3/8-16X1.5 HHCS GR5 ZP | 6 | $5.84 | |
| 203 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 12 | $5.84 | |
| 204 | 0400424 | 5/8-18 HEX NUT ZP | 2 | Call for price | — |
| 205 | 0400426 | 5/8-11 GR 8 NYLOK NUT YZ PLT | 4 | $8.01 | |
| 206 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 8 | $5.84 | |
| 207 | 0400482 | 3/8" HELICAL LCKWSHR - ZP | 4 | $5.84 | |
| 208 | 0400505 | 5/8" SAE WASHER | 2 | $5.84 | |
| 209 | 0911035 | RECOVERY BOOM ASSY V100 3-STG | 1 | Call for price | — |
| 210 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 211 | 9041058 | 1/4 X 1 3/4 HHCS GR8 | 2 | Call for price | — |
| 212 | 9043605 | 5/8-18 X 2 SOC HD CAP | 2 | Call for price | — |
| 213 | 9043975 | H.H.C.SCREW 5/8N.C.X3 1/2 | 2 | $8.01 | |
| 214 | 9044409 | 5/8-11 X 2 1/4 HHCS PL GR8 | 2 | $3.55 | |
| 215 | 9044434 | 3/8-16X1 NC FLAT SOCKET HD CAP | 2 | $5.84 | |
| 216 | 9048800 | 5/8 WELDLESS CHAIN LINK | 2 | $21.89 | |
| 217 | 930290001 | STOP BLOCK VERT BOOM WELD | 2 | $373.82 | |
| 218 | 9400004 | BRONZE BUSHING | 2 | $277.15 | |
| 219 | 945020001 | WASHER PLATE-LOWER LIFT | 4 | $71.13 | |
| 220 | 945030007 | CABLE TIE BACK SPRING-1 | 2 | $28.28 | |
| 221 | 945040001 | SPACER, MAIN BOOM PIVOT | 2 | $23.53 | |
| 222 | 945291500 | LOWER GUIDE PAD WELD'T | 2 | $133.13 | |
| 223 | 945350001 | PIVOT PIN, MAIN BOOM | 1 | $725.75 | |
| 224 | 945351500 | PIN WELD'T LOWER LIFT CY | 2 | $114.88 | |
| -- | 0911012 | RECOVERY BOOM INSTALL 3-STAGE (cont'd) | $49,063.05 | ||
| 225 | 945760021 | HYD TUBE UNDER BOOM STINGER | 4 | $314.00 | |
| 226 | 946770003 | HOSE ASSEMBLY - 8MJ-8MJ X 45 | 4 | Call for price | — |
| 227 | 946770007 | HOSE ASSEMBLY - 79 | 2 | Call for price | — |
| 228 | 946770009 | HOSE ASSEMBLY - 104 | 2 | Call for price | — |
| -- | 0911035 | RECOVERY BOOM ASSY V100 3-STG | Call for price | — | |
| 229 | 0300041 | FITTING, CONNECTOR 8MJ-8MB | 4 | $5.67 | |
| 230 | 0301522 | FITTING, CONN. 6MJ-6MB | 2 | $3.78 | |
| 231 | 0301895 | GREASE FITTING, STR 1/8 PTF | 1 | $5.84 | |
| 232 | 0303505 | WINCH-DP MODEL S50-50K (2)SPD | 2 | $23,351.51 | |
| 233 | 0307406 | PAD, SLIDE - (3) STAGE 9055 | 1 | $144.04 | |
| 234 | 0309343 | 1/4 TUBE TO 1/8MP STRAIGHT FTG | 1 | Call for price | — |
| 235 | 0310797 | 1" WIRE LOOM | 0.01 | $3.38 | |
| 236 | 0311460 | 1/4" GREASE TUBINGPriced per foot | 14 | $3.86 | |
| 237 | 0311575 | 1/4x1/4 PTC SWIVEL MALE ELBOW | 1 | $14.01 | |
| 238 | 0400059 | 1/4-20X5/8 HHCS GR5 ZP | 10 | $5.84 | |
| 239 | 0400288 | 3/4-10X2.5HHCS GR 8GOLD | 32 | $9.85 | |
| 240 | 0400426 | 5/8-11 GR 8 NYLOK NUT YZ PLT | 4 | $8.01 | |
| 241 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 32 | $8.01 | |
| 242 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 10 | $5.84 | |
| 243 | 0400489 | WASHER -FLAT 3/4 SAE HARDENED | 64 | $5.84 | |
| 244 | 0400491 | 1/2" HCL LKWSHR ZP | 1 | $5.84 | |
| 245 | 0400492 | 1/2" FLATWASHER ZP | 1 | $5.84 | |
| 246 | 0715517 | PIN - "D"-RING OUT BOOM WELD'T | 1 | $134.96 | |
| 247 | 0719585 | D-RING, TOWING | 1 | $444.92 | |
| 248 | 0724343 | BAR, CABLE SUPPORT | 1 | $33.05 | |
| 249 | 0724344 | CHANNEL, ROPE GUIDE | 1 | $85.94 | |
| 250 | 0806824 | BOOM, MID STAGE WELD'T | 1 | $11,075.70 | |
| 251 | 0807965 | WINCH MTG BRACKET | 8 | Call for price | — |
| 252 | 0807971 | V-100 3-STAGE OUTER BOOM | 1 | Call for price | — |
| 253 | 0908119 | BOOM EXTEND SYSTEM 9055 3STAGE | 1 | $26,255.99 | |
| 254 | 0908356 | SLIDE PAD ASSY (9055 3 STAGE) | 2 | $156.82 | |
| 255 | 0908359 | SLIDE PAD ASSY (V100 3 STAGE) | 4 | $63.82 | |
| 256 | 0908425 | KIT - BOOM SWIVEL | 1 | $6,001.01 | |
| 257 | 3012-793001 | PLATE - LUBE MTG. | 1 | $19.68 | |
| 258 | 9010030 | FITT, BRASS ELB 1/4T-1/8MPX | 1 | $13.84 | |
| 259 | 9010520 | FITTING-ELBOW 1/4T-1/4NPT | 2 | $13.84 | |
| 260 | 9012552 | BULKHEAD ADAPTER 1/8M-1/8F NPT | 1 | $40.12 | |
| 261 | 9012575 | LEGRIS- 3108-56-11 1/8NP | 3 | $21.51 | |
| 262 | 9018255 | 1/2 TUBE CLAMP FM2127-PP | 12 | $15.67 | |
| 263 | 9041403 | 1/2 NC X 1 1/2 HHCS PL GR8 | 1 | $5.84 | |
| 264 | 9044434 | 3/8-16X1 NC FLAT SOCKET HD CAP | 4 | $5.84 | |
| 265 | 9056137 | RETAINING RING - 1 3/8 | 2 | $3.78 | |
| 266 | 916040004 | WEAR PAD - LOWER | 1 | $40.12 | |
| 267 | 920255003 | SPACER - LOCK PIN WELD'T | 1 | $3.55 | |
| 268 | 930290002 | COVER PLATE VERT BOOM MA | 2 | $18.95 | |
| 269 | 945350500 | PIN WELD'T-TILT CYL UPPE | 1 | $213.34 | |
| 270 | 945770002 | 6AT2(6T90S-8MJ) HCL 48 | 2 | $74.35 | |
| 271 | 946030004 | UPPER WEAR PAD-RECOVERY | 2 | $93.00 |
V-100 3-Stage W/ Std Stinger Parts List - 4 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0911035 | RECOVERY BOOM ASSY V100 3-STG (cont'd) | Call for price | — | |
| 272 | 947270000 | INNER BOOM TUBE WLMT | 1 | $8,929.49 | |
| -- | 0908119 | BOOM EXTEND SYSTEM 9055 3STAGE | $26,255.99 | ||
| 273 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 4 | $5.84 | |
| 274 | 0301388 | FITTING, 90ELL, 8MJ-8MB90 | 2 | $13.32 | |
| 275 | 0305023 | SNAP RING 5100-0225PP | 2 | $3.01 | |
| 276 | 0307160 | CABLE - EXT ASSY 3-STAGE BOOM | 2 | $924.50 | |
| 277 | 0307402 | CYL HYD 6.5 BORE 3-STAGE 9055& | 1 | $19,434.45 | |
| 278 | 0307403 | CABLE - ASSY (RETRACT) 3-STAGE | 2 | $658.26 | |
| 279 | 0400146 | 3/8-16X2.25 HHCS GR5 ZP | 1 | $4.01 | |
| 280 | 0400223 | 3/8-16X3/4 FL HEAD | 4 | $5.84 | |
| 281 | 0400264 | 5/8-11X2.25 HHCS GR5 ZP | 4 | $5.84 | |
| 282 | 0400398 | 3/8-16 NYLOK HALF-NUT ZP | 1 | $5.84 | |
| 283 | 0400421 | 5/8-11 NYLOK HEX NUT ZP | 4 | $5.84 | |
| 284 | 0400448 | 1.25-12X1/2 HEX JAM NUT | 2 | $23.53 | |
| 285 | 0400461 | NUT, HEX 1.25-12 GR8 PL | 2 | $9.85 | |
| 286 | 0400471 | NUT, HEX 7/8-14 UNF GR8 ZP | 2 | $6.49 | |
| 287 | 0400472 | NUT, JAM 7/8-14 UNF GR8 ZP | 2 | $9.82 | |
| 288 | 0400473 | WASH, FLAT 7/8" PL HARD'N | 2 | $4.89 | |
| 289 | 0400480 | 3/8 FLATWASHER ZP | 6 | $4.01 | |
| 290 | 0400501 | WASH, SAE 1 1/4 HARDENED PL | 2 | $9.85 | |
| 291 | 0717744 | PIN, EXTEND CYL. BASE | 1 | $234.40 | |
| 292 | 0717747 | PIN, RETRACT CABLE | 1 | $56.43 | |
| 293 | 0806752 | SHAFT-RETRACT SHEAVE WELD'T | 4 | $119.49 | |
| 294 | 0908022 | EXTEND SHEAVE ASSY 9055 3STAGE | 1 | Call for price | — |
| 295 | 0908118 | SHEAVE ASSY 5" DIA | 4 | $116.73 | |
| 296 | GA0215 | PIN-"D" RING | 1 | $82.07 | |
| -- | 0908022 | EXTEND SHEAVE ASSY 9055 3STAGE | Call for price | — | |
| 297 | 0300113 | GREASE FITTING, 1/4-28 STRAIGHT | 2 | $5.84 | |
| 298 | 0303441 | SHEAVE-10" DIA X 1.5 BORE | 2 | $434.01 | |
| 299 | 0400177 | 1/2-13X1.25 HHCS GR5 ZP | 4 | $5.84 | |
| 300 | 0400223 | 3/8-16X3/4 FL HEAD | 1 | $5.84 | |
| 301 | 0400483 | 3/8 CNTR'SUNK LOCKWASHER | 1 | $5.84 | |
| 302 | 0400491 | 1/2" HCL LKWSHR ZP | 4 | $5.84 | |
| 303 | 0717743 | ROD, EXTEND SHEAVE SPACER | 2 | $31.40 | |
| 304 | 0806721 | BRKT WELD'T - EXTEND SHEAVE | 1 | $666.02 | |
| 305 | 0806722 | SHAFT - EXTEND SHEAVE WELD'T | 1 | $113.88 | |
| -- | 0908118 | SHEAVE ASSY 5" DIA | $116.73 | ||
| 306 | 0307432 | BUSHING - BRONZE | 1 | Call for price | — |
| 307 | 0717909 | SHEAVE, 5" DIA RETRACT | 1 | $207.68 | |
| -- | 0908356 | SLIDE PAD ASSY (9055 3 STAGE) | $156.82 | ||
| 308 | 0303490 | PAD-WEAR 1/2" X 1" X 4" | 1 | $50.14 | |
| 309 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 1 | $5.84 | |
| 310 | 0400349 | 3/8-16X3/4 FLT SOC HD | 5 | $11.00 | |
| 311 | 0400451 | 1/4 FLATWASHER ZP | 1 | $5.84 | |
| 312 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 1 | $5.84 | |
| -- | 0908356 | SLIDE PAD ASSY (9055 3 STAGE) (cont'd) | $156.82 | ||
| 313 | 0717262 | SHIM - SLIDE PAD | 2 | $8.01 | |
| 314 | 0718134 | PLATE - SLIDE PAD SUPPORT | 1 | $75.39 | |
| -- | 0908359 | SLIDE PAD ASSY (V100 3 STAGE) | $63.82 | ||
| 315 | 0306825 | SLIDE PAD - 3/4 X 1 X 4 | 1 | $19.68 | |
| 316 | 0400066 | 1/4-20X3/4 HHCS GR5 ZP | 1 | $5.84 | |
| 317 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 5 | $5.84 | |
| 318 | 0400451 | 1/4 FLATWASHER ZP | 1 | $5.84 | |
| 319 | 0400452 | 1/4" HELICAL LCKWASHR ZP | 1 | $5.84 | |
| 320 | 0400482 | 3/8" HELICAL LCKWSHR - ZP | 5 | $5.84 | |
| 321 | 0717746 | PLATE, SLIDE PAD SUPPORT | 1 | $38.21 | |
| -- | 0908425 | KIT - BOOM SWIVEL | $6,001.01 | ||
| 322 | 0400557 | 1/2X1-1/4 ROLL PIN ZP | 6 | $5.84 | |
| 323 | 0908424 | SWIVEL-BOOM ASSEMBLY | 2 | Call for price | — |
| -- | 0911031 | SHIP KIT, V-100 | Call for price | — | |
| 324 | 0301215 | WIRE ROPE 3/4X6X37 IWRC 250' | 2 | $2,741.63 | |
| 325 | 0303056 | D GASKET- H2 ADHESIVEPriced per foot | 8 | $7.68 | |
| 326 | 0307626 | SAFETY CHAIN ASY, 1/2X14' GR100 | 2 | $789.56 | |
| 327 | 0310599 | CRC HD CORROSION INHIBIT SPRAY | 1 | Call for price | — |
| 328 | 0400128 | 3/8-16X1.25 FLAT HD SOC | 12 | $8.01 | |
| 329 | 0501128 | V-90/V-100 OWNERS MANUAL | 1 | $60.17 | |
| 330 | 0723437 | CHANNEL SUPPORT VULCAN | 2 | $108.00 | |
| 331 | 0724476 | PAD - NYLATRON - BOOM GUIDE | 4 | $166.84 | |
| 332 | 0904217 | HARDWARE-BODY MOUNTING | 1 | $239.01 | |
| 333 | 0908202 | KIT, FORK - VULCAN LWRK | 1 | $3,603.15 | |
| 334 | 0908203 | KIT, HDU CHAIN ADPTR -VUL LWRK | 1 | $395.66 | |
| 335 | 0908204 | KIT, HDU RISER BRKT -VUL LWRK | 1 | Call for price | — |
| 336 | 0908205 | KIT, SPRG LIFT BRKT -VUL LWRK | 1 | $761.56 | |
| 337 | 0908206 | KIT, FORK ADAPTER -VUL LWRK | 1 | $1,087.79 | |
| 338 | 0908207 | KIT, PUMP -VUL LWRK | 1 | $2,534.55 | |
| 339 | 0908208 | KIT, MOUNTING -VUL LWRK | 1 | Call for price | — |
| 340 | 0911146 | PURCHASED SHIP KIT-VULCAN HVY | 1 | Call for price | — |
| 341 | 0911148 | VULCAN HD ADDTL BOLT KIT | 1 | Call for price | — |
| 342 | 9401902 | TRAILER RECOVERY LOOP (EA) | 1 | $339.17 | |
| 343 | 946990200 | V-100 DECALS | 1 | $238.88 | |
| -- | 0904217 | HARDWARE-BODY MOUNTING | $239.01 | ||
| 344 | 0400286 | 3/4-10X2.75" HHCSGR 8GOLD | 44 | $8.01 | |
| 345 | 0400301 | 7/8-9X3HHCS GR5 ZP | 4 | Call for price | — |
| 346 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 44 | $8.01 | |
| 347 | 0400436 | 7/8-9 NYLOK HEX NUT ZP | 4 | $5.84 | |
| -- | 0908202 | KIT, FORK - VULCAN LWRK | $3,603.15 | ||
| 348 | 0200018 | FORK-SHORT, 3IN OPNG | 2 | $160.45 | |
| 349 | 0200019 | FORK-SHORT, 4-1/2IN OPNG | 2 | $178.69 | |
| 350 | 0200020 | FORK-MED, 3IN OPNG | 2 | $218.80 | |
| 351 | 0200021 | FORK-MED, 4-1/2IN OPNG | 2 | $253.45 |
V-100 3-Stage W/ Std Stinger Parts List - 5 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0908202 | KIT, FORK - VULCAN LWRK (cont'd) | $3,603.15 | ||
| 352 | 0200024 | FORK - OFFSET REAR AXLE | 2 | $253.45 | |
| 353 | 0200042 | FORK - MEDIUM ROUND AXLE | 2 | $185.92 | |
| 354 | 0200058 | FORK - AXLE | 2 | $189.63 | |
| -- | 0908203 | KIT, HDU CHAIN ADPTR -VUL LWRK | $395.66 | ||
| 355 | 0310230 | CLEVIS PIN, 5/8 X 6 ZINC PLT | 2 | $13.84 | |
| 356 | 0400886 | HITCH PIN CLIP, 1/8 DIAX2.6 OAL | 2 | $2.45 | |
| 357 | 0801186 | ADAPTER-HDU CHAIN (LH OR RH) | 1 | $377.33 | |
| 358 | 0801186 | ADAPTER-HDU CHAIN (LH OR RH) | 1 | $377.33 | |
| -- | 0908204 | KIT, HDU RISER BRKT -VUL LWRK | Call for price | — | |
| 359 | 0306564 | ALUM T HANDLE 5/8" X 1-1/4" | 2 | $18.95 | |
| 360 | 0801459 | BRKT-RISER-HDU | 2 | $902.62 | |
| -- | 0908205 | KIT, SPRG LIFT BRKT -VUL LWRK | $761.56 | ||
| 361 | 0807023 | BRKT-PIVOT SPRING LIFT | 2 | $610.88 | |
| 362 | 0908672 | PIN-RET.-SPRING LIFT | 2 | $43.74 | |
| -- | 0908672 | PIN-RET.-SPRING LIFT | $43.74 | ||
| 363 | 0302474 | PIN, LINCH 3/16 | 1 | $3.78 | |
| 364 | 0311167 | 3/16 SWAGE FOR 1/8 COATED CABLE | 1 | $2.94 | |
| 365 | 0311210 | CABLE, PIN RETAINER ASSY .125 | 1 | $28.95 | |
| 366 | 0400568 | 3/8X3" ROLL PIN ZP | 1 | $8.01 | |
| 367 | 0400573 | 3/16X1-1/4ROLL PIN ZP | 1 | $5.84 | |
| 368 | 0402020 | 1/4-20NC X 3/4 HEX HD SS | 1 | $5.84 | |
| 369 | 0718917 | PIN, RETAINER | 1 | Call for price | — |
| -- | 0908206 | KIT, FORK ADAPTER -VUL LWRK | $1,087.79 | ||
| 370 | 0306564 | ALUM T HANDLE 5/8" X 1-1/4" | 2 | $18.95 | |
| 371 | 0803591 | ADAPTER-LEFT FORK | 1 | $911.39 | |
| 372 | 0803592 | ADAPTER-RIGHT FORK | 1 | $911.39 | |
| 373 | 0900900 | PIN-ASSY, RETAINER | 2 | $33.12 | |
| -- | 0900900 | PIN-ASSY, RETAINER | $33.12 | ||
| 374 | 0302474 | PIN, LINCH 3/16 | 1 | $3.78 | |
| 375 | 0311167 | 3/16 SWAGE FOR 1/8 COATED CABLE | 1 | $2.94 | |
| 376 | 0311210 | CABLE, PIN RETAINER ASSY .125 | 1 | $28.95 | |
| 377 | 0400568 | 3/8X3" ROLL PIN ZP | 1 | $8.01 | |
| 378 | 0400573 | 3/16X1-1/4ROLL PIN ZP | 1 | $5.84 | |
| 379 | 0402020 | 1/4-20NC X 3/4 HEX HD SS | 1 | $5.84 | |
| 380 | 0703426 | PIN, RETAINER | 1 | Call for price | — |
| -- | 0908207 | KIT, PUMP -VUL LWRK | $2,534.55 | ||
| 381 | 0302901 | HOSE HYD, 120" 12C12 | 2 | $246.16 | |
| 382 | 0307995 | HOSE, HYD 103" LG | 2 | $187.81 | |
| 383 | 0310010 | SUCTION HOSE, 1-1/4ID X50 100R4 | 1 | Call for price | — |
| 384 | 9016815 | MUNCIE PUMP TSPKS17-17-2BSSB | 1 | $1,856.28 | |
| -- | 0908208 | KIT, MOUNTING -VUL LWRK | Call for price | — | |
| 385 | 920000501 | REAR MOUNTING PLATE | 2 | Call for price | — |
| 386 | 9401501 | FRONT MTG. PLATE | 2 | $194.00 | |
| 387 | 9401530 | FRONT MTG. BRKT. LOWER | 2 | $133.87 | |
| 388 | 9401540 | FRONT MTG. BRKT. UPPER | 2 | $135.51 | |
| -- | 0911146 | PURCHASED SHIP KIT-VULCAN HVY | Call for price | — | |
| 389 | 0300341 | KNOB, BLACK (BLANK) | 12 | $9.25 | |
| 390 | 0307604 | KNOB, RED LONG - SK0700-07 | 4 | $22.62 | |
| 391 | 0902333 | KIT-GLAD HAND | 1 | Call for price | — |
| 392 | 0904183 | KIT-AIR TENSIONER | 1 | $1,965.68 | |
| 393 | 0906024 | KIT BOX, V100 SHIP-DUAL CNTRL | 1 | Call for price | — |
| 394 | 0908209 | KIT, MUDFLAP -VUL LWRK | 1 | $154.90 | |
| 395 | 0908550 | KIT, SAFETY TREAD DECAL-VULCAN | 1 | $162.49 | |
| -- | 0902333 | KIT-GLAD HAND | Call for price | — | |
| 396 | 0301909 | RECEPTACLE BOOT | 1 | Call for price | — |
| 397 | 0301946 | FITTING, BLKHD CONNECT | 2 | $94.80 | |
| 398 | 0301948 | HD 7 WAY TRAILER CONNECT | 1 | $60.17 | |
| 399 | 0304363 | QUICK DISCONNECT 1/2 FPT | 2 | $65.03 | |
| 400 | 0400070 | 1/4-20X1 HHCS GR5 ZP | 2 | $5.84 | |
| 401 | 0400367 | 1/4-20 NYLOK HEX NUT ZP | 2 | $5.84 | |
| 402 | 0400451 | 1/4 FLATWASHER ZP | 2 | $5.84 | |
| -- | 0904183 | KIT-AIR TENSIONER | $1,965.68 | ||
| 403 | 0301577 | 1/4 OD PLASTIC AIRLINE, BLACKPriced per foot | 25 | $5.84 | |
| 404 | 0302495 | CONVOLUTED LOOM 1/4Priced per foot | 25 | $2.82 | |
| 405 | 0311193 | 6" CABLE TIE | 25 | Call for price | — |
| 406 | 0400062 | 1/4-20X3/4 THRD CUT HEX | 2 | $8.01 | |
| 407 | 0700188 | BRKT, BULKHEAD | 2 | $13.84 | |
| 408 | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | 1 | $235.71 | |
| 409 | HA0132 | GAUGE 0-160 PSI | 1 | $24.66 | |
| -- | 0909085 | KIT, AIR FLR/REG/LUBE COMBO 1/4 | $235.71 | ||
| 410 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 411 | 0303363 | AIR FLTR/REGULATOR COMBO | 1 | $144.04 | |
| 412 | 0306983 | FITT, BRASS RUNTEE 1/4T-1/4MPX | 1 | $18.95 | |
| 413 | 9010520 | FITT, BRASS ELB 1/4T-1/4MP | 1 | $13.84 | |
| -- | 0906024 | KIT BOX, V100 SHIP-DUAL CNTRL | Call for price | — | |
| 414 | 0906018 | H.D. LIGHTING PARTS BAG | 1 | Call for price | — |
| 415 | 0906028 | H.D. FITTINGS BAG | 1 | Call for price | — |
| 416 | 0906839 | GROUND KIT MTG.HARNESS VULCAN | 1 | Call for price | — |
| 417 | 0907304 | KIT - QUICK DISCONNECT AIR | 1 | Call for price | — |
| 418 | 124002186 | QUICK CONNECT AIR SUPPLY | 1 | $681.58 | |
| 419 | 945990400 | DUAL CONTROL COMMON DECAL | 1 | $506.91 | |
| -- | 0906018 | H.D. LIGHTING PARTS BAG | Call for price | — | |
| 420 | 0303226 | 80 AMP CIRCUIT BREAKER | 2 | $120.33 | |
| 421 | 9032096 | DECORATIVE TRIM 7500036Priced per foot | 25 | $9.85 |
V-100 3-Stage W/ Std Stinger Parts List - 6 of 6
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | 0906028 | H.D. FITTINGS BAG | Call for price | — | |
| 422 | 0300364 | CLAMP-HOSE, 0.875"-2.75" 50"LBS | 4 | $7.07 | |
| 423 | 0300649 | UNION, STRAIGHT 12MJ - 12MJ | 4 | Call for price | — |
| 424 | 0302698 | FITTING, HOSE BARB, 1-1/4 | 2 | $32.72 | |
| 425 | 0303290 | INSULATED CLAMP 2 1/2 | 10 | $19.68 | |
| 426 | 0303948 | FTG-90DEG ELL 12MJ-16MB90 | 2 | $28.28 | |
| 427 | 0306539 | HOSE BARB 20HOSE16MB90 | 2 | Call for price | — |
| 428 | 0400122 | 3/8-16X1.25 HHCS GR5 ZP | 5 | $5.84 | |
| 429 | 0400392 | 3/8-16 NYLOK HEX NUT ZINC | 5 | $5.84 | |
| 430 | 0400480 | 3/8 FLATWASHER ZP | 5 | $4.01 | |
| -- | 0906839 | GROUND KIT MTG.HARNESS VULCAN | Call for price | — | |
| 431 | 0400126 | 3/8-16X1 HHCS GR5 ZP. | 4 | $5.84 | |
| 432 | 0400382 | 5/16-18 NYLOK HEX NUT ZP | 4 | $5.84 | |
| 433 | 0400481 | 3/8" EXT.TOOTH LOCKWASHER | 4 | $5.84 | |
| 434 | 0400495 | 5/8" EXT.TOOTH LOCKWASHER | 4 | Call for price | — |
| 435 | 0402122 | 3/8-16NC HEX NUT 316 SS | 4 | $4.01 | |
| 436 | 0716468 | LUG - GROUNDING | 4 | Call for price | — |
| -- | 0907304 | KIT - QUICK DISCONNECT AIR | Call for price | — | |
| 437 | 0301621 | PRESSURE PROTECTION VLV. | 1 | $116.73 | |
| 438 | 0301946 | FITTING, BLKHD CONNECT | 1 | $94.80 | |
| 439 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 440 | 0302125 | PIPE, BUSHING 1/2MPT X 1/4FPT | 1 | Call for price | — |
| 441 | 0302534 | FITTING, 45 DEG ELBOW | 2 | $33.38 | |
| 442 | 0302740 | AIR HOSE, 1/2" SYNFLEX DOT | 20 | Call for price | — |
| 443 | 0303538 | FITT, ADAPTER -BRASS 8FP-6MP | 1 | $11.66 | |
| 444 | 0303539 | QUICK DISCONNECT 3/8 FPT | 1 | $37.39 | |
| -- | 124002186 | QUICK CONNECT AIR SUPPLY | $681.58 | ||
| 445 | 0302740 | AIR HOSE, 1/2" SYNFLEX DOT | 20 | Call for price | — |
| 446 | 0311037 | 3/8" RED RUBBER HOSE 50' PRECUT | 1 | $107.10 | |
| 447 | 0910488 | FITTINGS BOX, QUICK CONN AIR | 1 | Call for price | — |
| -- | 0910488 | FITTINGS BOX, QUICK CONN AIR | Call for price | — | |
| 448 | 0301621 | PRESSURE PROTECTION VLV. | 1 | $116.73 | |
| 449 | 0301946 | FITTING, BLKHD CONNECT | 1 | $94.80 | |
| 450 | 0302123 | HEX NIPPLE 4MP-4MP | 1 | $8.01 | |
| 451 | 0302125 | PIPE, BUSHING 1/2MPT X 1/4FPT | 1 | Call for price | — |
| 452 | 0302534 | FITTING, 45 DEG ELBOW | 2 | $33.38 | |
| 453 | 0303538 | FITT, ADAPTER -BRASS 8FP-6MP | 1 | $11.66 | |
| 454 | 0303539 | QUICK DISCONNECT 3/8 FPT | 1 | $37.39 | |
| 455 | 0303540 | NIPPLE, QUICK DISCONNECT 3/8 | 1 | $7.68 | |
| 456 | 0303541 | NIPPLE, QUICK DISCONNECT | 1 | $11.32 | |
| 457 | 0303542 | QUICK DISCONNECT - BARB | 1 | $22.80 | |
| -- | 945990400 | DUAL CONTROL COMMON DECAL | $506.91 | ||
| 458 | 0500554 | FLAG, AMERICAN LT | 2 | $19.68 | |
| 459 | 0500686 | DECAL - RETRACT CAUTION | 2 | $3.78 | |
| 460 | 0500773 | DECAL PLATE-THROTTLE | 2 | $31.37 | |
| -- | 945990400 | DUAL CONTROL COMMON DECAL (cont'd) | $506.91 | ||
| 461 | 0501101 | DECAL-CTRL CABLE SPEED | 2 | $49.20 | |
| 462 | 0501157 | TAG-CAUTION WINCH CABLE DAMAGE | 2 | $7.29 | |
| 463 | 9033194 | WARNING DECAL MOVING PARTS | 2 | $9.85 | |
| 464 | 9033196 | WARN.DECAL, DON'T WALK UNDER | 2 | $21.49 | |
| 465 | 9033197 | WARNING DECAL-CABLE TENS | 2 | $21.89 | |
| 466 | 9033198 | DECAL-SAFETY CHAINS | 2 | $11.66 | |
| 467 | 9033212 | NAME PLATE- VULCAN 4 X1 | 4 | $29.10 | |
| 468 | 9033575 | DECAL - REMOTE | 2 | $35.75 | |
| 469 | 9033576 | DECAL - FREE SPOOL LH WINCH | 2 | $15.67 | |
| 470 | 9033577 | DECAL - TENSIONER | 2 | $15.67 | |
| 471 | 9033578 | DECAL - FREE SPOOL RH WI | 2 | $15.67 | |
| 472 | 9033579 | DECAL - DUAL CONTROL UPPER | 1 | $103.94 | |
| 473 | 9033580 | DECAL - DUAL CONTROL LOW | 1 | $129.48 | |
| 474 | 9033581 | DECAL - NEW VULCAN | 2 | $26.83 | |
| 475 | 9033586 | DECAL DUAL CONTROL UPPER | 1 | $102.10 | |
| 476 | 9033587 | DECAL DUAL CONTROL LOWER | 1 | $102.10 | |
| 477 | 920950009 | DECAL - WARNING FOR STIF | 2 | $32.72 | |
| -- | 0908209 | KIT, MUDFLAP -VUL LWRK | $154.90 | ||
| 478 | 920400005 | MUD FLAP BRACE PLATE | 2 | $20.81 | |
| 479 | 94320052 | MUD FLAP 920-940 RUBBER | 1 | $70.82 | |
| -- | 0911148 | VULCAN HD ADDTL BOLT KIT | Call for price | — | |
| 480 | 0400431 | 3/4-10 NYLOK HEX GR 8 ZP | 2 | $8.01 | |
| 481 | 0400490 | 3/4 FLATWASHER GR 8 | 4 | $5.68 | |
| 482 | 9044454 | 3/4-10NC X 7 LG HHCS GRD | 2 | Call for price | — |
| -- | 946990200 | V-100 DECALS | $238.88 | ||
| 483 | 9033583 | DECAL - V100 | 2 | Call for price | — |
| 484 | 9033603 | DECAL WARNING V-100 BOOM | 2 | Call for price | — |
| 485 | 9033606 | DECAL WARNING V-90, V-10 | 2 | Call for price | — |
| 486 | 9033612 | DECAL WARNING V-100 WINCH | 2 | Call for price | — |
