Century 9055 (2010 manual)

1/4-20 X 3/4 HHCS GR.5, ZP

$5.80

5/16-18 X 1 HHCS GR.5, ZP

$5.80

0400114

5/16-18 X 3 HHCS GR 5 ZP

$5.80

3/8-16NC X 3/4 HHCS GR. 8

$5.80

3/8-16 X 1 1/4 HHCS GR.5, ZP

$5.80

0400128

3/8-16X1.25 FLAT HD SOC

$8.00

3/8-16 X 1 1/2 HHCS GR.5, ZP

$5.80

SCREW, 3/8"-16 X 1-1/2" HEX SKT SET

$5.80

0400148

3/8-16 X 1-1/4 HHCS GR5 ZP

$5.00

0400150

3/8-16 X 2-1/2 HHCS GR5 ZP

$5.80

0400206

1/2-13 X 5 HHCS GR.5, ZP

$9.80

0400288

3/4-10 X 2-1/2 HHCS GR.8 GOLD

$9.80

5/16-18 NYLOK HEX NUT ZP

$5.80

3/8-16 NYLOK HEX NUT ZP

$5.80

1/2-13 NYLOK HEX NUT ZP

$2.80

0400431

3/4-10 NYLOK HEX NUT GR.8, ZP

$8.00

1/4 HELICAL LOCK WASHER ZP

$5.80

3/8 HELICAL LOCK WASHER ZP

$5.80

1/2 HELICAL LOCK WASHER ZP

$5.80

0400497

1/2 FLAT WASHER GR.8, YZ PLATED

$5.80

0400498

WASHER, 1/2" ID X 2" OD X .150

$8.00

0400776

HEX NUT

$5.80

0708094

PIN - LIFT CYLINDER

$314.20

0710545

HR ANGLE

$69.60

0711249

PLATE - CONTROL BOX

$21.60

0711250

PLATE - CONTROL BOX

$16.40

35 0711287 PLATE - BULKHEAD MOUNTING 1 Call for price —

0713128

SHAFT - LOWER SPADE

$56.00

0713129

SHAFT - UPPER SPADE

$59.60

0715584

COVER PLATE

$19.40

0715694

PIN - SPADE PIVOT

$125.60

0717066

COVER - VALVE

$126.20

41 0717827 PLATE - VALVE MOUNTING 1 Call for price —

0719122

PLATE - VALVE MTG.

$13.20

0719585

"D" RING - TOWING

$440.40

0804334

PIN, MULTI-POSITION

$252.80

0804405

BOOM PIVOT BRKT

$884.00

46 0806001 SUBFRAME WELDMENT 1 Call for price —

0806004

FRONT TOOLBOX MOUNT

$808.80

48 0806521 HAND RAIL WLMT 2 Call for price —

0807181

COVER SUPPORT WLMT

$44.20

0807627

INNER SPADE WLMT (LH)

$2,707.00

0807628

INNER SPADE WLMT (RH)

$2,707.00

0807630

LOWER SPADE PAD WELDMENT

$1,020.00

0907802

KIT - RESERVOIR

$3,943.00

9041402

1/2-13NC X 1 1/4 HHCS, ZP, GR.8

$8.00

9041403

1/2-13 X 1-1/2 HHCS GR 8 ZP

$5.80

9046354

1/4 X 2-1/2 ROLL PIN ZP

$5.80

9402970

TOOLBOX MTG. PAD

$54.20

942480011

REAR WASHER PLATE

$25.20

PIN, D RING

$81.20

Body Assembly

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0303127	GROMMET, MARKER LIGHT	2	$3.80
2	0303128	GROMMET, TAIL LIGHT	12	$3.80
3	0306958	LIGHT OVAL AMBER 60 LED	8	$49.20	—
4	0307220	LIGHT OVAL AMBER 60 LED	4	$47.00
5	0310496	MARKER LAMP, RED 2-1/2" ROUND	2	$23.20
6	0310631	MUD FLAP	2	$45.20
7	0310975	TOOLBOX LH AL 156CA 2010	1	Call for price	—
8	0310976	TOOLBOX RH AL 156CA 2010	1	Call for price	—
9	0400103	5/16-18 X 1 1/4 HHCS GR.5, ZP	16	$5.80
10	0400148	3/8-16 X 1-1/4 HHCS GR5 ZP	8	$5.00
11	0400382	5/16-18 NYLOK HEX NUT ZP	16	$5.80
12	0400392	3/8-16 NYLOK HEX NUT ZP	8	$5.80
13	0717386	BAR - MUDFLAP	2	$45.20
14	0718139	ANGLE - MUD FLAP MOUNT	2	$50.60

Boom Assembly

Show parts list (82 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	3012-793001	PLATE - LUBE MOUNT	1	$19.40
2	0300113	GREASE FITTING, 1/4-28 STRAIGHT	10	$5.80
3	0301388	ELBOW, 8MJ-8MB90	2	$13.20
4	0301895	GREASE FITTING, 1/8 NPT STRAIGHT	1	$5.80
5	0303441	SHEAVE, 10"	2	$429.60
6	0303490	WEAR PAD (1/2 X 1 X 4)	2	$49.60
7	0303505	WINCH, DP MODEL S50-50K	1	$20,549.40
8	0305023	SNAP RING 5100-0225PP	2	$3.00
9	0306825	PAD - WEAR	4	$19.40
10	0307160	CABLE - EXT ASSY 3-STAGE BOOM	2	$887.60
11	0307402	CYLINDER - BOOM EXTEND	1	$17,102.40
	Seal kit for 0307402 cylinder: Call for pricing and availability: 770-921-6070
12	0307406	SLIDE PAD	1	$142.60
13	0307432	BUSHING - BRONZE	4	Call for price	—
14	0400059	1/4-20 X 5/8 HHCS GR 5 ZP	2	$5.80
15	0400066	1/4-20 X 3/4 HHCS GR.5, ZP	6	$5.80
16	0400114	5/16-18 X 3 HHCS GR 5 ZP	1	$5.80
17	0400118	5/16-18 X 3/4 HHCS GR.5 ZP	4	$5.80
18	0400121	3/8-16NC X 3/4 HHCS GR. 8	2	$5.80
19	0400126	3/8-16 X 1 HHCS GR.5, ZP	20	$5.80
20	0400146	3/8-16 X 2-1/4 HHCS GR.5 ZP	1	$4.00
21	0400176	1/2-13 X 1 HHCS GR.5, ZP	2	$5.80
22	0400177	1/2-13 X 1 1/4 HHCS GR. 5, ZP	4	$5.80
23	0400206	1/2-13 X 5 HHCS GR.5, ZP	2	$9.80
24	0400211	1/2-13 X 1-3/4 HHCS GR5 ZP	2	$5.80
25	0400220	1/2-13 X 5-1/2 HHCS GR5 ZP	2	$8.00
26	0400223	3/8-16 X 3/4 FL. HD. SOCKET SCREW	5	$5.80
27	0400264	5/8-11 X 2-1/4 HHCS GR5 ZP	4	$5.80
28	0400284	3/4-10 X 2-1/2 HHCS GR.8 GOLD	32	$5.60
29	0400349	SCREW, 3/8"-16 X 3/4" FL HD SKT	14	$11.60
30	0400390	3/8-16 HEX JAM NUT W/PELL	1	$4.00
31	0400408	1/2-13 NYLOK HEX NUT ZP	6	$2.80
32	0400421	5/8-11 NYLOK HEX NUT ZP	4	$5.80
33	0400430	3/4-10 NYLOK HEX NUT ZP	32	$5.80
34	0400448	1-1/4-12 HEX JAM NUT	2	$23.20
35	0400451	1/4 FLAT WASHER ZP	6	$5.80
36	0400452	1/4 HELICAL LOCK WASHER ZP	8	$5.80
37	0400461	1-1/4-12 NEX NUT GR8 ZP	2	$9.80
38	0400471	7/8-14 UNF HEX NUT	2	$6.40
39	0400472	7/8-14 UNF HEX NUT JAM	2	$9.80
40	0400473	7/8 FLATWASHER HARDENED	2	$4.80
41	0400482	3/8 HELICAL LOCK WASHER ZP	22	$5.80
42	0400483	LOCKWASHER, 3/8" COUNTERSUNK	1	$5.80
43	0400491	1/2 HELICAL LOCK WASHER ZP	8	$5.80
44	0400492	1/2 FLAT WASHER ZP	2	$5.80
45	0400501	WASH - SAE 1 1/4 HARDENED PL	2	$9.80
46	0400510	3/4 FLAT WASHER ZP	16	$5.80
47	0400587	1/4 X 1-1/2 ROLL PIN ZP	2	$3.60
48	0400776	HEX NUT	1	$5.80
49	0705104	PLATE - SUPPORT	2	$95.60
50	0708124	PIN-TILT CYL BASE	1	$263.60
51	0709702	HR ANGLE	2	$112.00
52	0709703	HR ANGLE	2	$112.00
53	0709704	HR ANGLE	2	$112.00
54	0709705	HR ANGLE	2	$112.00
55	0715953	PIN - BOOM PIVOT	1	$635.40
56	0717262	SHIM - SLIDE PAD	10	$8.00
57	0717743	ROD - EXTEND SHEAVE SPACER	2	$31.00
58	0717744	PIN - EXTEND CYLINDER	1	$232.00
59	0717746	PLATE - SLIDE PAD SUPPORT	4	$37.80
60	0717747	PIN - CABLE RETRACT	1	$55.80
61	0717909	SHEAVE - 5 " DIA RETRACT	4	$205.60
62	0718134	PLATE - SLIDE PAD SUPPORT	2	$74.60
63	0719585	"D" RING - TOWING	1	$440.40
64	0802460	TOWER PIVOT PIN WLDMT	2	$258.20
65	0802463	LIFT CYL PIN WELDMT	2	$252.80
66	0806712	INNER BOOM TUBE WLMT	1	$9,006.00
67	0806716	9055 OUTER BOOM WLD (3-STAGE)	1	$24,412.40
68	0806721	EXTEND SHEAVE BRACKET WELDMENT	1	$639.40
69	0806722	SHAFT, EXTENSION SHEAVE WELDMENT	1	$112.80
70	0806751	RETRACT SHEAVE SUPPORT WLD	1	$183.20
71	0806752	SHAFT - RETRACT SHEAVE WELDMENT	4	$118.20
72	0806824	INNER BOOM TUBE WLMT	1	$9,746.60
73	9012549	CONNECTOR, 3/8 TUBE X 1/8 NPT	2	$15.60
74	9012552	BULKHEAD COUPLING, 1/8	1	$39.80
75	9012584	ELBOW, 1/4 NPT X 3/8 TUBE 90	1	$21.20
76	9041402	1/2-13NC X 1 1/4 HHCS, ZP, GR.8	2	$8.00
77	916040004	WEAR PAD ~ LOWER	1	$39.80
78	946030004	UPPER WEAR PAD - RECOVERY	2	$92.00
79	GA0215	PIN, D RING	2	$81.20
80	0301949	3/8" OD AIRLINE, SYNFLEXPriced per foot	1	$8.00
81	0307403	CABLE - EXT. ASSEMBLY 3-STAGE	2	$632.00
82	0906535	SWIVEL ASSEMBLY	2	$2,974.20

Underlift & Tower Assembly

Show parts list (56 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

0300108

RETAINING RING

$3.40

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

0301197

DETENT SPRING

$9.20

0301398

DETENT BALL

$15.60

0301817

SLIDE PAD, HORIZ BOOM

$48.80

0301818

SLIDE PAD, HORIZ BOOM

$48.80

0301822

O-RING, PIVOT PIN

$3.80

SPRING BUSHING, 3.5OD X 3ID X 2.5

$189.60

0303088

BUSHING, PIVOT PIN

$393.60

0303097

THRUST WASHER, 1/8" THICK

$90.20

0303098

THRUST WASHER, 1/16" THICK

$54.20

0303501

HYD CYLINDER, EXT

$6,112.00

0304590

Seal kit for 0303501 cylinder: SEAL KIT FOR 0303501

$348.80

0306746

CYLINDER, HYD LIFT

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

0306825

PAD - WEAR

$19.40

0307105

CYLINDER, HYDRAULIC

$2,487.20

Seal kit for 0307105 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03000150	Seal Kit: SEAL KIT, 0307105	$520.00
0312457	Texas (THI) cylinder: SEAL KIT, CYL 0307105 THI	$180.00

0400044

DRIVE SCREW, #10-24 X 1/2" RD HD

$5.80

3/8-16 X 1 1/4 HHCS GR.5, ZP

$5.80

3/8-16 X 1 1/2 HHCS GR.5, ZP

$5.80

SCREW, 3/8"-16 X 1-1/2" HEX SKT SET

$5.80

0400151

3/8-24 X 3/4 HHCS GR5 ZP

$5.80

0400176

1/2-13 X 1 HHCS GR.5, ZP

$5.80

0400196

SCREW, 1/2"-13 X 1-1/4" SKT HD

$8.00

0400228

SCREW, 3/8"-24 X 5/8" BUTTON HEAD SKT

$9.80

0400257

5/8-11 X 3-1/4 HHCS GR5 ZP

$3.40

0400271

SCREW, 5/8"-11 X 4-1/2" SKT HD CAP

$13.80

3/8-16 NYLOK HEX NUT ZP

$5.80

0400421

5/8-11 NYLOK HEX NUT ZP

$5.80

3/8 FLAT WASHER ZP

$4.00

0400481

LOCKWASHER, 3/8" EXT TOOTH

$5.80

3/8 HELICAL LOCK WASHER ZP

$5.80

1/2 HELICAL LOCK WASHER ZP

$5.80

0400508

5/8 HELICAL LOCK WASHER ZP

$5.80

0400990

1/2-13 X 1/2 SKT HD SET SCREW ZP

$9.80

0703277

SLIDER PAD

$11.60

0707034

STOP PLATE

$25.20

0708470

SPACER - DETENT BALL

$17.40

0710051

PIVOT PIN, TOP HALF

$299.60

0710052

PIVOT PIN, BOTTOM HALF

$299.60

0710450

BAR, RETRACT

$41.60

0712195

SHAFT, EXTEND CYL

$86.60

0717095

SHAFT

$355.60

0717851

STOP BLOCK

$82.60

0718764

SHAFT, EXT CYLINDER

$63.20

0719515

PLATE, STOP

$45.20

0802459

PIN-FOLD CYL. WLDMT

$144.40

0802461

PIN - UNDERLIFT PIVOT WELDMENT

$399.00

0802914

CROSSBAR WELDMENT

$2,756.80

0803440

OUTER BOOM WLMT.

$6,858.20

0803441

BOOM, 2ND STAGE WELDMENT

$3,722.80

0803442

BOOM, U/L INNER WELDMENT

$4,952.60

0804483

CABLE TIE BACK WLMT

$166.20

0805960

TOWER WELDMENT - 9055

$12,956.00

0806756

PIN WELDMENT - FOLD CYLINDER

$57.80

9048800

5/8 WELDLESS CHAIN LINK

$21.60

945030007

SPRING - HOSE TENSIONER

$28.00

BK2003

PAD-WEAR

$21.40

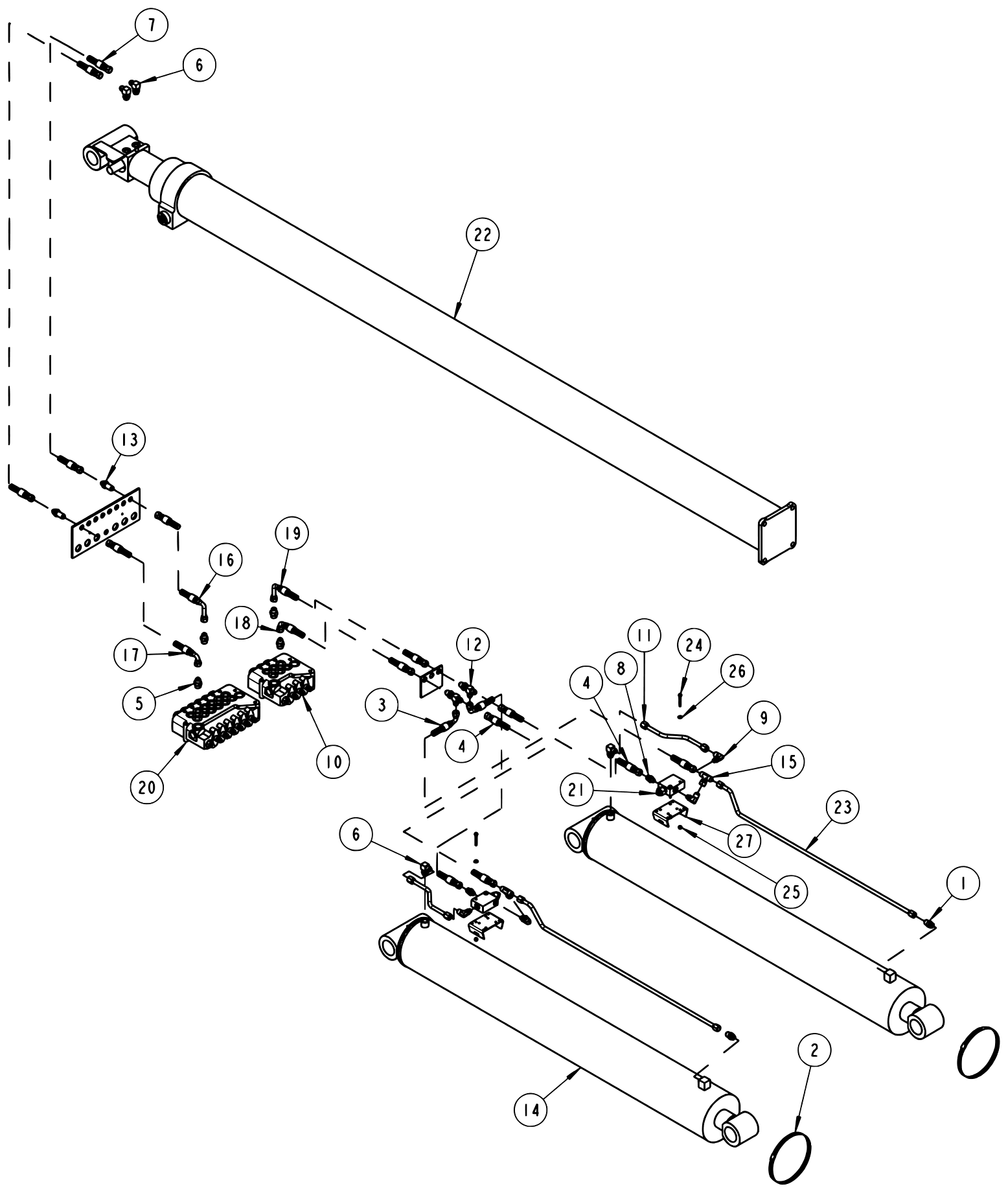

Boom Hydraulics

Show parts list (27 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

0300041

CONNECTOR 8MJX8MB

$5.60

0300644

HOSE CLAMP, 8"

$19.40

0300657

HOSE ASSEMBLY, 46" LG

$84.80

0300659

HOSE ASSEMBLY. 45" LG

$61.40

5 0301376 CONNECTOR 8MJX10MB 4 Call for price —

0301388

ELBOW, 8MJ-8MB90

$13.20

0301529

HOSE ASSEMBLY - 58" LG.

$75.80

0302275

CONNECTOR 8MJX6MB

$7.60

0302276

ELBOW, 8MJ-6MB90

$11.20

0302296

VALVE, 3 SPOOL

$1,331.80

11 0302568 HYDRAULIC TUBING 2 Call for price —

12 0302574 FITTING - BULKHEAD - RUN TEE W/NUT 2 Call for price —

0302576

FITTING, BULKHEAD UNION

$12.40

0302792

HYD CYLINDER

$6,667.40

Seal kit for 0302792 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03007376	Holmac cylinder: SEAL KIT, CYL 0302792 HOLMAC	$236.60
0304528	Southern (SHCI) cylinder: SEAL KIT SOUTHERN	$310.60
0304528T	Texas (THI) cylinder: SEAL KIT THI	$359.40

15 0302796 BRANCH TEE, 8MJ-8MJ-8FJX 2 Call for price —

16 0303346 HOSE ASSEMBLY, 45" LG. 1 Call for price —

17 0303347 HOSE ASSEMBLY, 50" LG 1 Call for price —

0303354

HOSE ASSEMBLY, 33" LG

$70.00

0303355

HOSE ASSEMBLY, 45" LG.

$74.80

0307062

VALVE, 6 SPOOL VDP12-CDDD

$2,384.60

VALVE HOLDING 4000 PSI SAE

$310.60

0307402

CYLINDER - BOOM EXTEND

$17,102.40

Seal kit for 0307402 cylinder: Call for pricing and availability: 770-921-6070

23 0307613 HYDRAULIC TUBING ASSY - 1/2" DIA 2 Call for price —

1/4-20 X 2 HHCS GR5 ZP

$5.80

1/4-20 NYLOK HEX NUT ZP

$5.80

1/4 FLAT WASHER ZP

$5.80

BRACKET - MOUNTING

$24.40

Underlift Hydraulics

Show parts list (43 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

0300044

CONNECTOR 6MJX8MB

$3.80

ELBOW, 6MJ-8MB90

$7.60

0301473

HOSE ASSEMBLY, 18" LG

$57.80

0301619

BRANCH TEE, 6MJ-6MJ-6MB

$11.20

0301620

FITTING, ELBOW, 6MJ-6MB90

$5.80

0301662

HOSE ASSEMBLY, 120" LG

$93.80

0301730

DOUBLE HOLDING VALVE

$542.60

8 0301778 CONNECTOR 6MJX10MB 5 Call for price —

9 0301837 INLINE ORIFICE 1 Call for price —

0302035

HOSE ASSEMBLY, 18" LG

$37.40

0302504

TUBE ASSEMBLY

$231.00

0302514

ADAPTER, 8MJ-6MJ

$5.60

0302548

CLAMPING UNIT (SET) HC-10-6

$28.00

0302549

SPLIT BUSH RUBBER C-SB10-8 1/2

$5.60

0302551

SOCKET HEAD C-SN-10

$11.60

WELD ADAPTER, C-WA-10

$15.60

0302576

FITTING, BULKHEAD UNION

$12.40

0302584

HOSE ASSEMBLY, 50" LG.

$63.20

0302805

HOSE ASSY - 10" LG

$29.80

20 0302842 ELBOW, 8MJ-8MB90 2 Call for price —

0302911

HOSE ASSEMBLY, 88" LG

$72.60

0302914

HOSE ASSEMBLY, 35" LG

$70.20

0302915

HOSE ASSEMBLY, 12" LG

$56.00

0303176

CONNECTOR 10MPX8FB

$7.60

0303342

HOSE ASSEMBLY, 30" LG

$47.00

0303348

HOSE ASSEMBLY, 48" LG

$76.60

0303501

HYD CYLINDER, EXT

$6,112.00

0304590

Seal kit for 0303501 cylinder: SEAL KIT FOR 0303501

$348.80

0303562

HOSE ASSEMBLY, 37" LG

$47.60

0303563

HOSE ASSEMBLY, 27" LG

$42.00

0306746

CYLINDER, HYD LIFT

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

0306870

HOSE ASSEMBLY, 96" LG

$77.00

0307062

VALVE, 6 SPOOL VDP12-CDDD

$2,384.60

0307105

CYLINDER, HYDRAULIC

$2,487.20

Seal kit for 0307105 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03000150	Seal Kit: SEAL KIT, 0307105	$520.00
0312457	Texas (THI) cylinder: SEAL KIT, CYL 0307105 THI	$180.00

0307106

CONNECTOR 4MBX6FB

$9.40

VALVE HOLDING 4000 PSI SAE

$310.60

36 0400064 SCREW, 1/4"-20 X 2 1/4" RD HD PHIL SS 2 Call for price —

1/4-20 X 2 HHCS GR5 ZP

$5.80

0400118

5/16-18 X 3/4 HHCS GR.5 ZP

$5.80

0400366

1/4-20 HEX NUT ZP

$5.80

1/4-20 NYLOK HEX NUT ZP

$5.80

1/4 FLAT WASHER ZP

$5.80

1/4 HELICAL LOCK WASHER ZP

$5.80

BRACKET - MOUNTING

$24.40

Pump, Valve & Filter Hydraulics

Show parts list (45 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300287	PIPE BUSHING, 1 1/4" TO 1" NPT REDUCER	2	Call for price	—
2	0300364	HOSE CLAMP, 7/8" TO 2-3/4"	6	$7.00
3	0300649	CONNECTOR, 12MJ-12MJ	2	Call for price	—
4	0300666	BARB, 24C4-24MP	2	Call for price	—
5	0300671	SUCTION HOSE, 1-1/2" I.D. 100R4Priced per foot	4	$29.80
6	0300891	PIPE NIPPLE - 1-1/2 X 3	2	Call for price	—
7	0301093	BULKHEAD UNION, 3/4" JIC	2	Call for price	—
8	0301350	PIPE, 1-1/2" CLOSE NIPPLE	2	Call for price	—
9	0301545	ELBOW, 12MJ-12MB90	2	$18.80
10	0301894	FILTER ASSEMBLY, SPIN ON	2	$276.20
11	0301965	HOSE ASSEMBLY, 131" LG.	2	$117.40
12	0302083	16MJ - 12MB 90 ELBOW	2	$31.00
13	0302088	BALL VALVE - 1 1/2 BRONZE	2	$91.00
14	0302205	GAUGE, FLUSH MOUNT 6000 PSI	2	$44.80
15	0302227	CENTER BONDED MOUNT	4	$24.40
16	0302228	SPECIAL WASHER	4	$21.60
17	0302242	ELBOW, FLANGE 24-24FL90 W/ FLANGE KIT	2	$373.60
18	0302296	VALVE, 3 SPOOL	1	$1,331.80
19	0302570	SIGHT GAUGE	2	$15.60
20	0302698	HOSE BARB, 1-1/4"	2	$32.40
21	0302756	SUCTION HOSE, 1-1/4" ID (100R4)Priced per foot	1	$21.20
22	0302826	RUN TEE, 12MJ-12FJX-12MJ	2	$37.40
23	0302829	ADAPTER, 12FJ-6MJ	2	Call for price	—
24	0302901	HOSE - HYD ASSY 120" LG	2	$243.60
25	0302932	FITTING ~ 12MJ-20FL 90	2	$151.60
26	0303155	PIPE PLUG - 3/4 NPT (MAGNETIC)	2	$11.60
27	0303338	ELBOW, 16MJ-16MP45	2	$26.40
28	0303339	HOSE ASSEMBLY, 45" LG.	2	Call for price	—
29	0303341	HOSE ASSEMBLY, 31" LG.	2	$155.00
30	0305006	FILLER CAP	2	$63.20
31	0307062	VALVE, 6 SPOOL VDP12-CDDD	1	$2,384.60
32	0307119	HYDR. PUMP - P350B242JEAB20-7MHAB20-1	1	$6,543.80
33	0307344	SUCTION STRAINERS	2	$131.80
34	0400122	3/8-16 X 1 1/4 HHCS GR.5, ZP	8	$5.80
35	0400149	3/8-16 X 5/8 HHCS GR5 ZP	24	$4.00
36	0400150	3/8-16 X 2-1/2 HHCS GR5 ZP	4	$5.80
37	0400177	1/2-13 X 1 1/4 HHCS GR. 5, ZP	4	$5.80
38	0400392	3/8-16 NYLOK HEX NUT ZP	12	$5.80
39	0400480	3/8 FLAT WASHER ZP	24	$4.00
40	0400491	1/2 HELICAL LOCK WASHER ZP	4	$5.80
41	0706114	GASKET - CLEANOUT & FILLER COVER	2	$42.20
42	0802747	FILLER PIPE WELD'T	2	Call for price	—
43	0803193	SUPPORT - RESERVOIR WELDMENT	2	Call for price	—
44	0806653	RESERVOIR LEFT WELDMENT	1	$1,673.20
45	0806654	RESERVOIR RIGHT WELDMENT	1	$1,673.20

Winch Hydraulics

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301093	BULKHEAD UNION, 3/4" JIC	4	Call for price	—
2	0301577	TUBING- PLASTIC 1/4 OD X 5" AIR LINEPriced per foot	2	$5.80
3	0302296	VALVE, 3 SPOOL	1	$1,331.80
4	0302552	WELD ADAPTER, C-WA-10	2	$15.60
5	0302827	CONNECTOR 10MJX10MB	2	$7.60
6	0302835	C-WA-10 WELD ADAPTER	4	Call for price	—
7	0302836	SOCKET HEAD STACKING NUTS	2	$7.60
8	0302837	SPLIT BUSHING 1"	4	$5.60
9	0303079	CONNECTOR, 10MJ-8MB	4	$5.80
10	0303344	10G 10FJX HOSE END	2	Call for price	—
11	0303345	HOSE ASSEMBLY, 48" LG	2	Call for price	—
12	0303350	HOSE ASSEMBLY, 89" LG	2	$170.80
13	0303351	HOSE ASSEMBLY, 105" LG	1	$121.80
14	0303352	HOSE ASSEMBLY, 117" LG	1	$200.80
15	0303505	WINCH, DP MODEL S50-50K	1	$20,549.40
16	0307062	VALVE, 6 SPOOL VDP12-CDDD	1	$2,384.60
17	0400118	5/16-18 X 3/4 HHCS GR.5 ZP	2	$5.80
18	9010520	FITTING, BRASS ELB. 1/4T-1/4MP	2	$13.80
19	9011071	FITTING, BRASS TEE 1/4T-1/4T-1/4T	1	$15.60
20	GX263	FITTING, ELBOW 10MJ-10MB90	2	$15.00

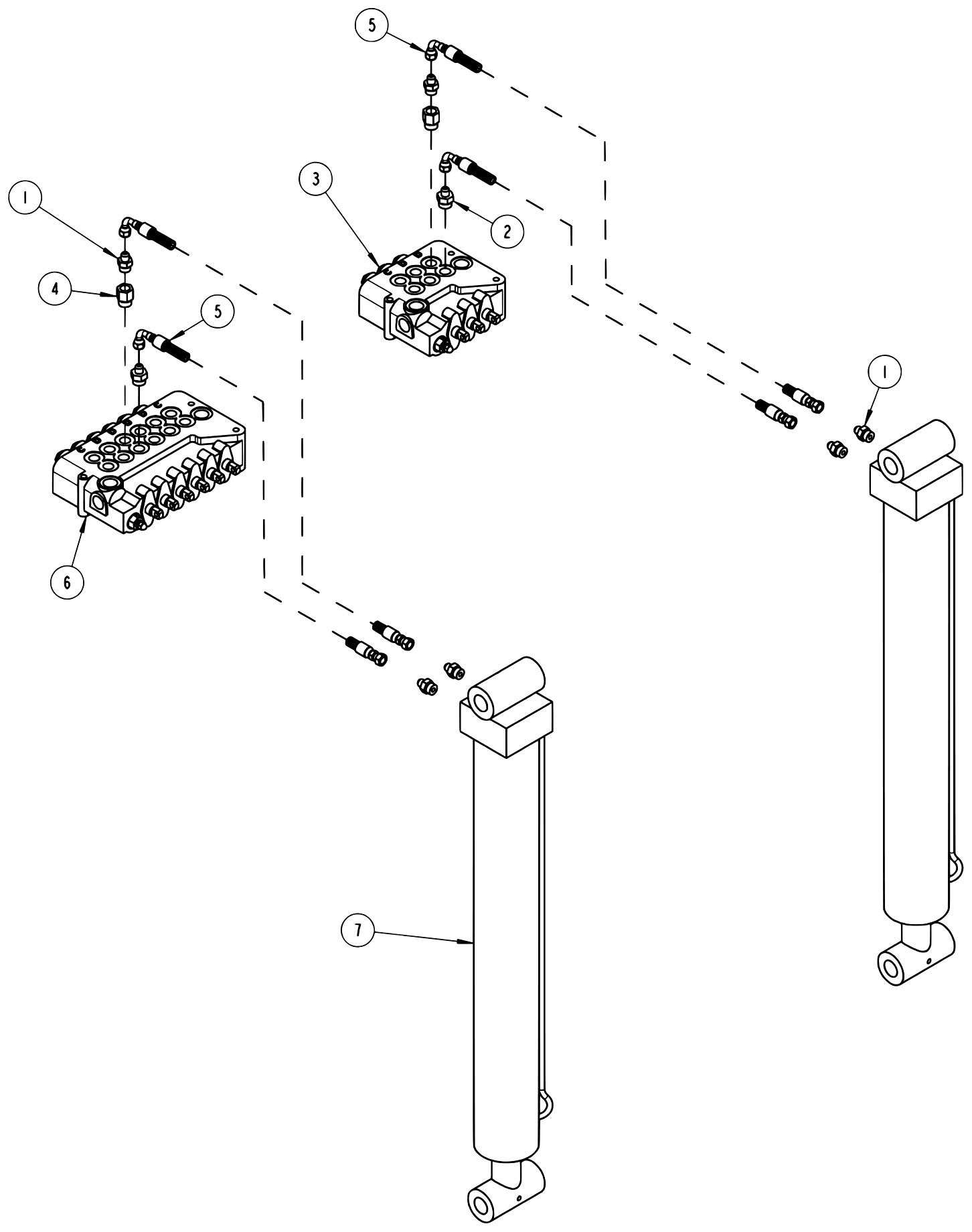

Spade Hydraulics

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300044	CONNECTOR 6MJX8MB	6	$3.80
2	0301778	CONNECTOR 6MJX10MB	2	Call for price	—
3	0302296	VALVE, 3 SPOOL	1	$1,331.80
4	0303176	CONNECTOR 10MPX8FB	2	$7.60
5	0303748	HOSE ASSEMBLY, 32"	4	$106.60
6	0307062	VALVE, 6 SPOOL VDP12-CDDD	1	$2,384.60
7	0307843	CYLINDER - 4" BORE 30" STROKE	2	$2,233.60
	0310275	Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843		$58.80

Control Assembly

Show parts list (12 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1		9055 CONTROL ASSEMBLY 9 HANDLE	1	Call for price	—
2		9055 CONTROL ASSEMBLY RH 6H	1	Call for price	—
3	0302457	CONTROL CABLE	5	$167.80
4	0303008	CLEVIS - ADJUSTABLE	3	$9.40
5	0303427	CONTROL CABLE	10	$167.80
6	0400103	5/16-18 X 1 1/4 HHCS GR.5, ZP	9	$5.80
7	0400382	5/16-18 NYLOK HEX NUT ZP	9	$5.80
8	0400383	5/16-24 HEX NUT ZP	27	$5.80
9	0400466	LOCKWASHER, 5/16" INTERNAL TOOTH	27	$5.80
10	0711249	PLATE - CONTROL BOX	2	$21.60
11	0711250	PLATE - CONTROL BOX	1	$16.40
12	0801054	CONNECTOR - CONTROL CABLE	6	Call for price	—

Left Control Assembly

Show parts list (39 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300835	KNOB, BOOM (UP-DN)	1	$13.20
2	0300836	KNOB, JACK (UP-DN)	2	$18.80
3	0300837	KNOB, BOOM (IN-OUT)	1	$15.00
4	0302205	GAUGE, FLUSH MOUNT 6000 PSI	2	$44.80
5	0302457	CONTROL CABLE	3	$167.80
6	0302726	GREASE FITTING, 1/4"-28 X 45°	9	$3.80
7	0302856	KNOB, TILT (UP-DN)	1	$24.40
8	0302917	KNOB, WHL LIFT EXT (IN-OUT)	1	$31.00
9	0303382	KNOB, FOLD (UP-DN)	1	$17.40
10	0303427	CONTROL CABLE	6	$167.80
11	0307604	KNOB - RED LONG	2	$22.40
12	0307778	PLUG, FILLER	2	$3.40
13	0400005	#6-32 X .5 FLAT HEAD PHILLIPS	6	$5.80	—
14	0400066	1/4-20 X 3/4 HHCS GR.5, ZP	3	$5.80
15	0400101	SCREW, 5/16"-18 X 1" RD HD SLOTTED SS	4	$5.80
16	0400107	5/16-2.5 X 2-1/2 HHCS	4	$5.80
17	0400109	5/16-18 X 1 HHCS GR.5, ZP	4	$5.80
18	0400369	1/4 "J" TYPE TINNERMAN	3	$5.80
19	0400379	CLIP, 5/16" "J" TYPE TINNERMAN	4	$8.00
20	0400382	5/16-18 NYLOK HEX NUT ZP	8	$5.80
21	0400383	5/16-24 HEX NUT ZP	9	$5.80
22	0400393	3/8"-16 HEX JAM NUT	9	$5.80
23	0400466	LOCKWASHER, 5/16" INTERNAL TOOTH	9	$5.80
24	0400512	3/4 FLAT WASHER (SPECIAL)	2	Call for price	—
25	0400527	CLEVIS PIN, 5/16" X 5/8" COTTERLESS	9	$8.00
26	0402094	HEX NUT & STAR WASHER, #8-32 ZP	6	Call for price	—
27	0500914	DECAL- CONTROL PANEL WRECKER	1	$47.00
28	0500915	DECAL - CONTROL PANEL SPADE	1	$47.00
29	0500916	DECAL - CONTROL PANEL UNDERLIFT	1	$45.20
30	0711235	CLAMP - SHAFT	2	$17.40
31	0717198	PIN - CONTROL HANDLE (9)	1	$42.00
32	0717461	PLATE - SHAFT SUPPORT	2	$16.00
33	0723230	PANEL - CONTROL (9)	1	$313.00
34	0723233	PANEL - GAUGE (9 HDL, STD)	1	$177.00
35	0806006	CLEVIS WELDMENT	9	$9.80
36	0806007	CONTROL FRAME WLMT (9) HANDLE	1	Call for price	—
37	0806515	CONTROL HANDLE WLMT	9	Call for price	—
38	9024041	MCGILL SWITCH	3	$43.40
39	9053524	BRONZE BUSHING (.752 X .879 X .750)	18	$6.00

Right Control Assembly

Show parts list (33 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300835	KNOB, BOOM (UP-DN)	1	$13.20
2	0300836	KNOB, JACK (UP-DN)	2	$18.80
3	0300837	KNOB, BOOM (IN-OUT)	1	$15.00
4	0302457	CONTROL CABLE	2	$167.80
5	0302726	GREASE FITTING, 1/4"-28 X 45°	6	$3.80
6	0303427	CONTROL CABLE	4	$167.80
7	0307166	PLUG 7/8	2	$2.00
8	0307604	KNOB - RED LONG	2	$22.40
9	0307778	PLUG, FILLER	2	$3.40
10	0400061	SCREW, 1/4"-20 X 2 1/4" RD HD PHIL SS	3	Call for price	—
11	0400101	SCREW, 5/16"-18 X 1" RD HD SLOTTED SS	4	$5.80
12	0400107	5/16-2.5 X 2-1/2 HHCS	4	$5.80
13	0400109	5/16-18 X 1 HHCS GR.5, ZP	2	$5.80
14	0400369	1/4 "J" TYPE TINNERMAN	3	$5.80
15	0400379	CLIP, 5/16" "J" TYPE TINNERMAN	4	$8.00
16	0400382	5/16-18 NYLOK HEX NUT ZP	6	$5.80
17	0400393	3/8"-16 HEX JAM NUT	12	$5.80
18	0400466	LOCKWASHER, 5/16" INTERNAL TOOTH	6	$5.80
19	0400512	3/4 FLAT WASHER (SPECIAL)	2	Call for price	—
20	0400527	CLEVIS PIN, 5/16" X 5/8" COTTERLESS	6	$8.00
21	0500914	DECAL- CONTROL PANEL WRECKER	1	$47.00
22	0500915	DECAL - CONTROL PANEL SPADE	1	$47.00
23	0711235	CLAMP - SHAFT	2	$17.40
24	0717203	PIN - CONTROL HANDLE (6)	1	$42.00
25	0717206	SPACER	1	$16.80
26	0717461	PLATE - SHAFT SUPPORT	1	$16.00
27	0723231	PANEL - CONTROL (6 HANDLE)	1	$169.60
28	0723232	PANEL - SWITCH	1	$142.60
29	0806006	CLEVIS WELDMENT	6	$9.80
30	0806008	CONTROL FRAME WLMT (6, 7, 8 HANDLE)	1	$835.00
31	0806515	CONTROL HANDLE WLMT	6	Call for price	—
32	9024041	MCGILL SWITCH	2	$43.40
33	9053524	BRONZE BUSHING (.752 X .879 X .750)	12	$6.00

9055 3-Stage 2-Speed Parts List

Show parts list (636 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

-- 125956023 9055 3-STAGE 2-SPEED Call for price —

1 0907135 SHIP KIT - 9055 1 Call for price —

2 0908031 BSC UNIT ASSY 9055 2/SPD 3STG 1 Call for price —

0911135

INTEGRATED NON-LIGHTED CONTROL

$1,170.40

-- 0907135 SHIP KIT - 9055 Call for price —

0300844

3/4 X 1/8 CLOSED CELLPriced per foot

$2.80

0301215

WIRE ROPE 3/4X6X37 IWRC 250'

$2,412.60

0303226

80 AMP CIRCUIT BREAKER

$119.20

0307119

PUMP - HYDRAULIC

$6,543.80

8 0310599 CRC HD CORROSION INHIBIT SPRAY 1 Call for price —

9 0902687 DATA PACKAGE 9055 1 Call for price —

0903064

KIT-BODY MOUNTING 9055

$1,598.40

0903137

KIT-TOWER RAMP 9055/5030

$187.00

12 0903729 CHAIN-SAFETY ASSY 1 Call for price —

0903953

KIT-STANDARD 9055 FORK

$6,176.95

0904217

HARDWARE-BODY MOUNTING

$236.60

0908275

KIT, FENDER SKIRT-AL TBOX LWRK

$54.20

16 0910480 PURCHASED SHIP KIT - 9055 1 Call for price —

-- 0902687 DATA PACKAGE 9055 Call for price —

0500620

MANUAL 9055

$59.60

18 0501763 CENTURY LARGE INT INSTL MANUAL 1 Call for price —

0903064

KIT-BODY MOUNTING 9055

$1,598.40

0707174

ANG TAILGATE MTG

$34.80

0707175

PLATE, MOUNTING 5030

$117.40

21 0711286 SPACER - REAR FRAME BRKT 2 Call for price —

0717507

PLATE - MOUNTING

$561.60

0903137

KIT-TOWER RAMP 9055/5030

$187.00

0303089

RAMP PAD - 9055/5030

$84.80

0400128

3/8-16X1.25 FLAT HD SOC

$8.00

3/8-16 NYLOK HEX NUT ZINC

$5.80

-- 0903729 CHAIN-SAFETY ASSY Call for price —

0307626

SAFETY CHAIN ASY, 1/2X14' GR100

$758.00

0903953

KIT-STANDARD 9055 FORK

$6,176.95

0200018

FORK-SHORT, 3IN OPNG

$158.80

0200019

FORK-SHORT, 4-1/2IN OPNG

$177.00

0200020

FORK-MED, 3IN OPNG

$216.60

0200021

FORK-MED, 4-1/2IN OPNG

$251.00

0200022

FORK-LONG, 3IN OPNG

$261.80

0200023

FORK-LONG, 4-1/2IN OPNG

$339.40

0200024

FORK-OFFSET REAR AXLE

$251.00

0200042

FORK-MEDIUM ROUND AXLE

$184.00

0306564

ALUM T HANDLE 5/8" X 1-1/4"

$18.80

0310230

CLEVIS PIN, 5/8 X 6 ZINC PLT

$13.80

0400585

1-1/4" HAIR PIN COTTER

$5.80

0903953

KIT-STANDARD 9055 FORK (cont'd)

$6,176.95

0400886

HITCH PIN CLIP, 1/8 DIAX2.6 OAL

$2.40

0801186

ADAPTER-HDU CHAIN (LH OR RH)

$373.60

0801186

ADAPTER-HDU CHAIN (LH OR RH)

$373.60

0801459

BRKT-RISER-HDU

$866.60

0803591

ADAPTER-LEFT FORK

$875.00

0803592

ADAPTER-RIGHT FORK

$875.00

0807023

BRKT-PIVOT SPRING LIFT

$586.40

0900900

PIN-ASSY, RETAINER

$32.80

0908672

PIN-RET.-SPRING LIFT

$43.40

0900900

PIN-ASSY, RETAINER

$32.80

0302474

PIN, LINCH 3/16

$3.80

0311167

3/16 SWAGE FOR 1/8 COATED CABLE

$3.00

0311210

CABLE, PIN RETAINER ASSY .125

$28.60

0400568

3/8X3" ROLL PIN ZP

$8.00

0400573

3/16X1-1/4ROLL PIN ZP

$5.80

0402020

1/4-20NC X 3/4 HEX HD SS

$5.80

53 0703426 PIN, RETAINER 1 Call for price —

0908672

PIN-RET.-SPRING LIFT

$43.40

0302474

PIN, LINCH 3/16

$3.80

0311167

3/16 SWAGE FOR 1/8 COATED CABLE

$3.00

0311210

CABLE, PIN RETAINER ASSY .125

$28.60

0400568

3/8X3" ROLL PIN ZP

$8.00

0400573

3/16X1-1/4ROLL PIN ZP

$5.80

0402020

1/4-20NC X 3/4 HEX HD SS

$5.80

60 0718917 PIN, RETAINER 1 Call for price —

0904217

HARDWARE-BODY MOUNTING

$236.60

0400286

3/4-10X2.75" HHCSGR 8GOLD

$8.00

62 0400301 7/8-9X3HHCS GR5 ZP 4 Call for price —

0400431

3/4-10 NYLOK HEX GR 8 ZP

$8.00

0400436

7/8-9 NYLOK HEX NUT ZP

$5.80

0908275

KIT, FENDER SKIRT-AL TBOX LWRK

$54.20

0307270

SIKAFLEX-GRAY 221-G SEALANT

$34.80

9025068

REFLECTOR-PETERSON B489R DECAL

$8.00

-- 0910480 PURCHASED SHIP KIT - 9055 Call for price —

0300132

14" UV BLK CABLE TIE

100

$1.00

0303226

80 AMP CIRCUIT BREAKER

$119.20

0500554

FLAG, AMERICAN LT

$19.40

0500686

DECAL - RETRACT CAUTION

$3.80

0501167

PLATE, CENTURY, NAME, PLASTIC

$52.40

0501669

DECAL, AIR FREE SPOOL

$15.00

73 0711438 BRACKET - HOSE 8 Call for price —

74 0902333 KIT-GLAD HAND 1 Call for price —

0904183

KIT-AIR TENSIONER

$1,729.80

0906838

GROUND KIT MTG.HARNESS CENTURY

$26.80

-- 0910480 PURCHASED SHIP KIT - 9055 (cont'd) Call for price —

0907043

KIT, HOLE PLUG TO0L BOX

$98.60

78 0908095 KIT - PUMP 9055 1 Call for price —

0908382

KIT - MUDFLAP LRG CENTURY WKR

$249.80

80 0908446 KIT, SWITCH/DECALS 2-SPD WINCH 1 Call for price —

0911090

KIT-SAFETY TREAD-INTEGRATED

$143.80

-- 0902333 KIT-GLAD HAND Call for price —

82 0301909 RECEPTACLE BOOT 1 Call for price —

0301946

FITTING, BLKHD CONNECT

$93.80

0301948

HD 7 WAY TRAILER CONNECT

$59.60

0304363

QUICK DISCONNECT 1/2 FPT

$64.40

0400070

1/4-20X1 HHCS GR5 ZP

$5.80

1/4-20 NYLOK HEX NUT ZP

$5.80

1/4 FLATWASHER ZP

$5.80

0904183

KIT-AIR TENSIONER

$1,729.80

0301577

1/4 OD PLASTIC AIRLINE, BLACKPriced per foot

$5.80

0302495

CONVOLUTED LOOM 1/4Priced per foot

$2.80

91 0311193 6" CABLE TIE 25 Call for price —

0400062

1/4-20X3/4 THRD CUT HEX

$8.00

0700188

BRKT, BULKHEAD

$13.80

0909085

KIT, AIR FLR/REG/LUBE COMBO 1/4

$233.40

HA0132

GAUGE 0-160 PSI

$24.40

0909085

KIT, AIR FLR/REG/LUBE COMBO 1/4

$233.40

0302123

HEX NIPPLE 4MP-4MP

$8.00

0303363

AIR FLTR/REGULATOR COMBO

$142.60

0306983

FITT, BRASS RUNTEE 1/4T-1/4MPX

$18.80

9010520

FITT, BRASS ELB 1/4T-1/4MP

$13.80

0906838

GROUND KIT MTG.HARNESS CENTURY

$26.80

100

0400126

3/8-16X1 HHCS GR5 ZP

$5.80

101

3/8-16 NYLOK HEX NUT ZINC

$5.80

102

0400481

3/8" EXT.TOOTH LOCKWASHER

$5.80

103 0400499 3/4" EXT.TOOTH LOCKWASHER 1 Call for price —

104

0402122

3/8-16NC HEX NUT 316 SS

$4.00

105 0716468 LUG - GROUNDING 1 Call for price —

0907043

KIT, HOLE PLUG TO0L BOX

$98.60

106

0307052

WASHER, RUBBER 7/16X1 1/4X1/4

$3.80

107 0400201 1/2-13X1.5 CRGBLT GR5 ZP 4 Call for price —

108

0400407

1/2-13 HEX NUT ZP

$5.80

109

1/2" HCL LKWSHR ZP

$5.80

110

0400492

1/2" FLATWASHER ZP

$5.80

111

0400506

5/8 FLATWASHER ZP

$5.80

-- 0908095 KIT - PUMP 9055 Call for price —

112

0300364

CLAMP-HOSE, 0.875"-2.75" 50"LBS

$7.00

113 0300649 UNION, STRAIGHT 12MJ - 12MJ 2 Call for price —

-- 0908095 KIT - PUMP 9055 (cont'd) Call for price —

114 0300666 FITTING, BARB 24C4-24MP 2 Call for price —

115

0300671

HOSE, SUCTION 1-1/2 IDPriced per foot

$29.80

116 0300891 PIPE NIPPLE, 1-1/2 X 3 2 Call for price —

117

0302088

BALL VALVE

$91.00

118

0302242

FITT, FLANGE 24 HOSE-24FL90

$373.60

119

0302901

HOSE HYD, 120" 12C12

$243.60

120

0302932

FITTING, ELBOW

$151.60

121

0303290

INSULATED CLAMP 2 1/2

$19.40

122

0400126

3/8-16X1 HHCS GR5 ZP

$5.80

123

0400177

1/2-13X1.25 HHCS GR5 ZP

$5.80

124

3/8-16 NYLOK HEX NUT ZINC

$5.80

125

3/8 FLATWASHER ZP

$4.00

126

1/2" HCL LKWSHR ZP

$5.80

0908382

KIT - MUDFLAP LRG CENTURY WKR

$249.80

127

0310631

MUD FLAP, CENTURY

$45.20

128

0400103

5/16-18X1.25 HHCS GR5 ZP

$5.80

129

0400148

3/8-16X1.25 HHCS GR5 ZP

$5.00

130

5/16-18 NYLOK HEX NUT ZP

$5.80

131

3/8-16 NYLOK HEX NUT ZINC

$5.80

132

0717386

BAR - MUDFLAP

$45.20

133

0718139

ANGLE - MUD FLAP MOUNT

$50.60

-- 0908446 KIT, SWITCH/DECALS 2-SPD WINCH Call for price —

134

0501647

DECAL, 2-SPEED

$17.40

135

9024041

SWITCH-ROCKER, LIGHTED 12V

$43.40

-- 0908031 BSC UNIT ASSY 9055 2/SPD 3STG Call for price —

136

0903156

CROSSBAR-5" ASSY

$3,862.40

137

0903902

BOOM HORIZONTAL ASSY

$33,554.80

138 0911092 9055 3STG2SP PURC ASY LESS W/L 1 Call for price —

139 0911095 9055 3STG DATA PKG 1 Call for price —

0903156

CROSSBAR-5" ASSY

$3,862.40

140

0301197

COMP.SPRING, CROSS BAR, FI

$9.20

141

0301398

STEEL BALL, 1-3/16 DIA

$15.60

142

0301822

O-RING - PIVOT PIN

$3.80

143

0303097

THRUST WASHER - 1/8 THK

$90.20

144

0303098

THRUST WASHER - 1/16 THK

$54.20

145

0400271

5/8-11X4.5SKTHDCAPSCREW

$13.80

146

0400508

5/8" HELICAL LCKWSHR ZP

$5.80

147

0708470

SPACER - DETENT BALL SPRG

$17.40

148

0710051

PIN - TOP HALF PIVOT

$299.60

149

0710052

PIN - BOTTOM HALF PIVOT

$299.60

150

0802914

CROSSBAR WELDMENT

$2,756.80

0903902

BOOM HORIZONTAL ASSY

$33,554.80

151

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

152

FITTING, 90ELB 6MJ-8MB90

$7.60

0903902

BOOM HORIZONTAL ASSY (cont'd)

$33,554.80

153

0301817

SLIDE PAD-HORIZ BOOM NYL

$48.80

154

0301818

SLIDE PAD-HORIZ BOOM

$48.80

155

BUSHING - U/L

$189.60

156

0303501

CYL HYD EXT-3M U/LIFT H/CHROME

$6,112.00

0304590

Seal kit for 0303501 cylinder: SEAL KIT FOR 0303501

$348.80

157

0307013

PAD - WEAR

$23.40

158

3/8-16X1.5 HEX SKT SET

$5.80

159

0400151

3/8-24X3/4 HHCS GR5 ZP

$5.80

160

0400204

1/2-13X3/4 SKT HD SET

$5.80

161

0400228

3/8-24X5/8 BUTTON HEAD

$9.80

162

3/8-16 NYLOK HEX NUT ZINC

$5.80

163

0400481

3/8" EXT.TOOTH LOCKWASHER

$5.80

164

0400990

SET SCRW, 1/2-13X1/2 SKT, CUP PT

$9.80

165

0707034

PLATE, STOP

$25.20

166

0712195

SHAFT - EXTEND CYLINDER

$86.60

167

0718764

SHAFT - EXTEND CYL

$63.20

168

0719515

PLATE, STOP

$45.20

169

0803440

BOOM, U/L OUTER WLMT

$6,858.20

170

0803441

BOOM-2ND STAGE U/L WELDMENT

$3,722.80

171 0903901 BOOM-U/L INNER ASSY 1 Call for price —

172

BK2003

PAD-WEAR

$21.40

-- 0903901 BOOM-U/L INNER ASSY Call for price —

173

0303088

BUSHING - PIVOT PIN

$393.60

174

0400044

10X1/2 DRIVE SCREW RD

$5.80

175

0703277

PAD, SLIDER

$11.60

176

0803442

BOOM-U/L INNER WELDT 3RD STAGE

$4,952.60

-- 0911092 9055 3STG2SP PURC ASY LESS W/L Call for price —

177 0907057 WINCH ASSY 9055 W/2-SPD WINCH 1 Call for price —

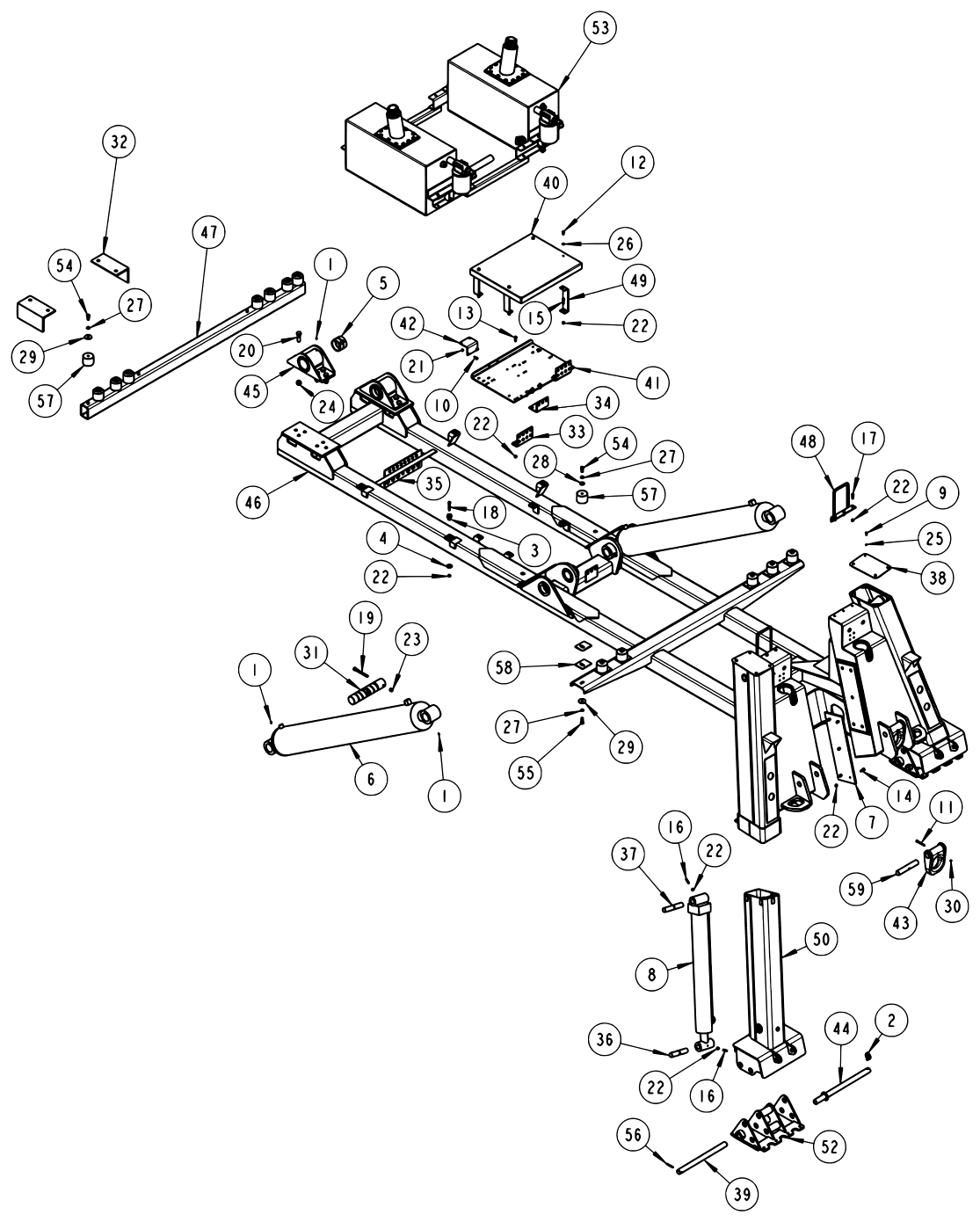

178 0907313 SUBFRAME ASSY - 9055 1 Call for price —

179 0908019 BOOM INSTALLATION 9055 3-STAGE 1 Call for price —

180

0911093

9055 TOWER LESS U/L ASSY

$16,891.80

-- 0907057 WINCH ASSY 9055 W/2-SPD WINCH Call for price —

181

0301577

1/4 OD PLASTIC AIRLINE, BLACKPriced per foot

$5.80

182

0301601

CLAMP, HOSE, INSUL, 5/8

$3.80

183

0302495

CONVOLUTED LOOM 1/4Priced per foot

$2.80

184

0303079

FITTING, CONNECTOR

$5.80

185

0303505

WINCH-DP MODEL S50-50K (2)SPD

$20,549.40

186

0310194

HARNESS, WIRING 2-SPEED

$154.00

187 0311193 6" CABLE TIE 35 Call for price —

188

3/8-16X3/4 HHCS GR5 ZP

$5.80

189

0400284

3/4-10X2.25" HHCS GR5 ZP

$5.60

190

0400430

3/4-10 NYLOK HEXNUT ZP

$5.80

191

0400510

3/4 FLATWASHER ZP

$5.80

192

0709702

ANGLE - WINCH MTG 9055

$112.00

193

0709703

ANGLE - WINCH MTG 9055

$112.00

194

0709704

ANGLE - WINCH MTG 9055

$112.00

195

0709705

ANGLE - WINCH MTG 9055

$112.00

-- 0907057 WINCH ASSY 9055 W/2-SPD WINCH Call for price —

196

0711164

BLOCK - SHEAR

$5.60

197

9010520

FITT, BRASS ELB 1/4T-1/4MP

$13.80

198

9011071

FITT, BRASS TEE 1/4T-1/4T-1/4T

$15.60

-- 0907313 SUBFRAME ASSY - 9055 Call for price —

199

BUSHING - U/L

$189.60

200

0400070

1/4-20X1 HHCS GR5 ZP

$5.80

201

0400288

3/4-10X2.5HHCS GR 8GOLD

$9.80

202

1/4-20 NYLOK HEX NUT ZP

$5.80

203

0400431

3/4-10 NYLOK HEX GR 8 ZP

$8.00

204

0711164

BLOCK - SHEAR

$5.60

205 0711287 PLATE - BULKHEAD 1 Call for price —

206

0712522

BAR

$6.60

207

0714581

PLATE - BOLTING

$13.00

208

0804405

BRACKET - BOOM PIVOT

$884.00

209 0806001 SUBFRAME WELD'T - 7035/9055 1 Call for price —

210

0902553

KIT-D RING LARGE

$402.40

211 0903514 KIT-LIFT CYLINDER 9055 1 Call for price —

212

0903516

KIT-FRAME HYDRAULIC 9055

$2,492.80

213

0903528

LINK-LT.&RT. SIDE CONT.

$145.00

214

0906313

SPADE ASSY - REAR HYDRAULIC

$11,707.60

215 0907138 PAN-VALVE ASSY. -9055 1 Call for price —

216 0907140 KIT-VALVE COVER 9055 1 Call for price —

217

0907288

CONTROL ASSY (9) HANDLES

$3,612.00

218

0907289

RIGHT CONTROL ASSY-(6 HANDLE)

$2,615.00

219 0907347 KIT - REAR HANDRAIL 1 Call for price —

220

0907802

KIT - RESERVOIR 5130-9055

$3,943.00

0902553

KIT-D RING LARGE

$402.40

221

0400114

5/16-18X3 HHCS GR5 ZP

$5.80

222

0400776

5/16-18 HEX NUT JAM NYLOK ZP

$5.80

223

0719585

D-RING, TOWING

$440.40

224

PIN-"D" RING

$81.20

-- 0903514 KIT-LIFT CYLINDER 9055 Call for price —

225

0300041

FITTING, CONNECTOR 8MJ-8MB

$5.60

226

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

227

0300644

HOSE CLAMP, 8 68452/I

$19.40

228

0300657

HOSE HYD, 46" LG

$84.80

229

0300659

HOSE HYD, 45"

$61.40

230

0301388

FITTING, 90ELL, 8MJ-8MB90

$13.20

231

0302275

FITTING, CONN 8MJ-6MB W/STEP

$7.60

232

0302276

FITTING, ELB 90 DEG

$11.20

233 0302568 HYD TUBING 2 Call for price —

234

0302792

CYL HYD HEAVY/CHROME

$6,667.40

Seal kit for 0302792 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03007376	Holmac cylinder: SEAL KIT, CYL 0302792 HOLMAC	$236.60
0304528	Southern (SHCI) cylinder: SEAL KIT SOUTHERN	$310.60
0304528T	Texas (THI) cylinder: SEAL KIT THI	$359.40

235 0302796 FITTING, TEE 2 Call for price —

236

0307106

FITT, CONNECTOR 4MB-6FB

$9.40

237

VALVE, HOLDING 4000 PSI SAE

$310.60

238 0307613 TUBING-HYD ASSY 1/2" DIA 9055 2 Call for price —

-- 0903514 KIT-LIFT CYLINDER 9055 (cont'd Call for price —

239

1/4-20X2 HHCS GR5 ZP

$5.80

240

0400206

1/2-13X5 HHCS GR5 ZP

$9.80

241

1/4-20 NYLOK HEX NUT ZP

$5.80

242

1/2-13 NYLOK HEX NUT ZP

$2.80

243

1/4 FLATWASHER ZP

$5.80

244

BRKT, MTG, CHECK VALVE

$24.40

245

0708094

PIN - LIFT CYLINDER

$314.20

0903516

KIT-FRAME HYDRAULIC 9055

$2,492.80

246 0301093 BULKHEAD UNION, 3/4" JIC 6 Call for price —

247

0301372

FITTING, ST.CONN. 12FJ-8MJ

$9.40

248

0301473

HOSE HYD, 18" LG

$57.80

249 0301837 INLINE ORIFICE 1 Call for price —

250

0301965

HOSE HYD, 131"

$117.40

251

C-WA-10 WELD ADAPTER

$15.60

252 0302574 FITTING-BULKHEAD RUN TEE 2 Call for price —

253

0302576

FITTING, BULKHEAD UNION

$12.40

254

0302584

HOSE HYD, 50"

$63.20

255

0302805

HOSE HYD, 10"

$29.80

256 0302835 C-WA-10 WELD ADAPTER 4 Call for price —

257

0302836

SOCKET-HD STACKING NUTS

$7.60

258

0302837

SPLIT BUSHING 1"

$5.60

259

0303036

8 FJ CAP

$3.20

260 0303339 HOSE HYD, 45" LG 2 Call for price —

261

0303341

HOSE HYD, 36" LG

$155.00

262

0303342

HOSE HYD, 30" LG

$47.00

263 0303344 HOSE HYD, 46" LG 2 Call for price —

264 0303345 HOSE HYD, 48" LG 2 Call for price —

265 0303346 HOSE HYD, 48" LG 1 Call for price —

266 0303347 HOSE HYD, 50" LG 1 Call for price —

267

0303348

HOSE HYD, 48" LG

$76.60

268

0303354

HOSE HYD, 33" LG

$70.00

269

0303355

HOSE HYD, 33" LG

$74.80

270

0303562

HOSE HYD, 37"

$47.60

271

0303563

HOSE HYD, 27"

$42.00

0903528

LINK-LT.&RT. SIDE CONT.

$145.00

272

0303008

ADJUSTABLE CLEVIS

$9.40

273

0400103

5/16-18X1.25 HHCS GR5 ZP

$5.80

274

3/8-16X1.25 HHCS GR5 ZP

$5.80

275

5/16-18 NYLOK HEX NUT ZP

$5.80

276

0400383

5/16-24 HEX NUT ZP

$5.80

277

3/8-16 NYLOK HEX NUT ZINC

$5.80

278

0400466

5/16 INT.TOOTH LOCKWSHR

$5.80

279

0711249

PLATE - CONTROL BULKHEAD

$21.60

280

0711250

PLATE - CONTROL BULKHEAD

$16.40

281 0801054 CONNECTOR-CONTROL CABLE 6 Call for price —

0906313

SPADE ASSY - REAR HYDRAULIC

$11,707.60

282

0300044

FITT, HYD CONN. 6MJ-8MB

$3.80

283

0300134

CLAMP, 1" HOSE INSULATED

$8.80

284

0301861

QUICK PIN, LINCH -B7932 PL 7/16

$3.80

285

0303748

HOSE HYD, 136

$106.60

286

0307843

CYL, HYD TI-S40030032PPBZ

$2,233.60

0310275

Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843

$58.80

287

1/4-20X3/4 HHCS GR5 ZP

$5.80

288

3/8-16X1.5 HEX SKT SET

$5.80

289

3/8-16 NYLOK HEX NUT ZINC

$5.80

290

1/4" HELICAL LCKWASHR ZP

$5.80

291

0713128

SHAFT - LOWER SPADE

$56.00

292

0713129

SHAFT - UPPER SPADE

$59.60

293

0715584

PLATE - REAR SPADE COVER

$19.40

294

0715694

PIN - SPADE PIVOT

$125.60

295

0804334

PIN - MULTI-POSITION

$252.80

296

0807627

INNER SPADE WELD'T LH

$2,707.00

297

0807628

INNER SPADE WELD'T RH REINF

$2,707.00

298

0807630

LOWER SPADE PAD WLMT

$1,020.00

299

9046354

SPRING PIN 1/4 X 2-1/2

$5.80

-- 0907138 PAN-VALVE ASSY. -9055 Call for price —

300

0300044

FITT, HYD CONN. 6MJ-8MB

$3.80

301 0301376 CONNECTOR 8 MJ - 10 MB 4 Call for price —

302

FITTING, 90ELB 6MJ-8MB90

$7.60

303

0301545

FITTING, ELB 12MJ-12MB 90

$18.80

304

0301730

VALVE, DOUBLE HOLDING

$542.60

305 0301778 6MJ - 10MB STRAIGHT CONNECTOR 7 Call for price —

306

0302083

16 MJ - 12 MB 90 ELBOW

$31.00

307

0302296

VALVE, 3 SPOOL

$1,331.80

308

0302826

FITTING, TEE

$37.40

309

0302827

FITTING, CONNECTOR 10MJ-10MB

$7.60

310 0302829 FITTING, ADAPTOR 2 Call for price —

311

0303176

FITTING, CONNECTOR

$7.60

312

0307062

VALVE, 6 SPOOL VDP12-CDDDDC

$2,384.60

313

1/4-20X2 HHCS GR5 ZP

$5.80

314

5/16-18X1 HHCS GR5 ZP

$5.80

315

3/8-16X1.5 HHCS GR5 ZP

$5.80

316 0400135 3/8-16X4.5 HHCS GR5 ZP 6 Call for price —

317

1/4-20 NYLOK HEX NUT ZP

$5.80

318

5/16-18 NYLOK HEX NUT ZP

$5.80

319

3/8-16 NYLOK HEX NUT ZINC

$5.80

320

1/4 FLATWASHER ZP

$5.80

321

3/8 FLATWASHER ZP

$4.00

322 0704045 SPACER-CONTROL VALVE 6 Call for price —

323 0717827 PLATE, VALVE MOUNTING 1 Call for price —

324

0719122

PLATE - VALVE MTG

$13.20

325

GX263

FITTING, ELB 10MJ-10MB90

$15.00

-- 0907140 KIT-VALVE COVER 9055 Call for price —

326

3/8-16X3/4 HHCS GR5 ZP

$5.80

-- 0907140 KIT-VALVE COVER 9055 (cont'd) Call for price —

327

3/8" HELICAL LCKWSHR - ZP

$5.80

328

0717066

COVER - VALVE

$126.20

329

0807181

COVER, SUPPORT WELDMENT

$44.20

0907288

CONTROL ASSY (9) HANDLES

$3,612.00

330

0301473

HOSE HYD, 18" LG

$57.80

331

0302205

GAUGE, FLUSH MNTG-6000 PSI

$44.80

332

0302457

CABLE, CONTROL 104

$167.80

333

0302726

GREASE FITTING, 1/4-28 X 45DEG

$3.80

334

0303427

CABLE, CONTROL 114"

$167.80

335

0400107

5/16-18X2.5 HHCS GR5 ZP

$5.80

336

5/16-18X1 HHCS GR5 ZP

$5.80

337

5/16-18 NYLOK HEX NUT ZP

$5.80

338

0400393

3/8-16 HEX NUT JAM ZP

$5.80

339

1/4 FLATWASHER ZP

$5.80

340 0400512 3/4 FLAT WASHER(SPECIAL) 2 Call for price —

341

0400527

CLEVIS PIN, 5/16X1"X5/8"GRIP

$8.00

342

0711235

CLAMP - SHAFT CONTROL BOX

$17.40

343

0717198

PIN - CONTROL HANDLE (9)

$42.00

344

0717461

PLATE - SUPPORT SHAFT

$16.00

345

0806006

CLEVIS WELD'T

$9.80

346 0806007 CONTROL FRAME WELD'T-(9) HANDLE 1 Call for price —

347

CONTROL HANDLE ASSY - SHORT

$92.00

348

FC41

FITTING-90DEG BLKHD ELB

$15.60

CONTROL HANDLE ASSY - SHORT

$92.00

349 0806515 CONTROL HANDLE WELD'T 1 Call for price —

350

9053524

BEARING BR. FLG.752 X .879X.75

$6.00

0907289

RIGHT CONTROL ASSY-(6 HANDLE)

$2,615.00

351

0302457

CABLE, CONTROL 104

$167.80

352

0302726

GREASE FITTING, 1/4-28 X 45DEG

$3.80

353

0303427

CABLE, CONTROL 114"

$167.80

354

0400107

5/16-18X2.5 HHCS GR5 ZP

$5.80

355

5/16-18X1 HHCS GR5 ZP

$5.80

356

5/16-18 NYLOK HEX NUT ZP

$5.80

357

1/4 FLATWASHER ZP

$5.80

358 0400512 3/4 FLAT WASHER(SPECIAL) 2 Call for price —

359

0400527

CLEVIS PIN, 5/16X1"X5/8"GRIP

$8.00

360

0711235

CLAMP - SHAFT CONTROL BOX

$17.40

361

0717203

PIN - CONTROL HANDLE (6)

$42.00

362

0717206

TUBE - 1.25 OD SPACER

$16.80

363

0717461

PLATE - SUPPORT SHAFT

$16.00

364

0806006

CLEVIS WELD'T

$9.80

365

0806008

CNTRL FRAME WELD'T-(6, 7, 8 HND)

$835.00

366

CONTROL HANDLE ASSY - SHORT

$92.00

CONTROL HANDLE ASSY - SHORT

$92.00

367 0806515 CONTROL HANDLE WELD'T 1 Call for price —

CONTROL HANDLE ASSY - SHORT (cont'd)

$92.00

368

9053524

BEARING BR. FLG.752 X .879X.75

$6.00

-- 0907347 KIT - REAR HANDRAIL Call for price —

369

0400148

3/8-16X1.25 HHCS GR5 ZP

$5.00

370

3/8-16 NYLOK HEX NUT ZINC

$5.80

371 0806521 HAND RAIL WELD'T 2 Call for price —

0907802

KIT - RESERVOIR 5130-9055

$3,943.00

372 0300287 FITTING, PIPE BUSHING, 1.25X1 2 Call for price —

373

0300364

CLAMP-HOSE, 0.875"-2.75" 50"LBS

$7.00

374 0301350 PIPE, 1-1/2 CLOSE NIPPLE 2 Call for price —

375

0301894

SPIN-ON FLTR ASSY

$276.20

376

0302227

CENTER BONDED MOUNT

$24.40

377

0302228

SPECIAL WASHER (LORD)

$21.60

378

0302570

SIGHT GAUGE 3/4 NPT (SVM-12)

$15.60

379

0302756

SUCTION HOSE, 1-1/4IDX100 100R4Priced per foot

2.25

$21.20

380

0303155

PIPE PLUG 3/4 NPT MAGNETIC

$11.60

381

0303338

FITTING, ELBOW

$26.40

382

0305006

FILLER CAP (GO205, FB194)

$63.20

383

0307344

SUCTION STRAINER

$131.80

384

3/8-16X1.25 HHCS GR5 ZP

$5.80

385

0400149

3/8-16 X 5/8 HHCS GR5 ZP

$4.00

386

0400150

3/8-16X2.5 HHCS GR5 ZP

$5.80

387

3/8-16 NYLOK HEX NUT ZINC

$5.80

388

3/8 FLATWASHER ZP

$4.00

389

0706114

GSKT-CLEANOUT&FLLR COVER

$42.20

390 0802747 PIPE-FILLER WLMT 2 Call for price —

391 0803193 SUPPORT-RESERVOIR WLDMT. 2 Call for price —

392

0806653

RESERVOIR-LEFT WELDMENT

$1,673.20

393

0806654

RESERVOIR-RIGHT WELDMENT

$1,673.20

-- 0908019 BOOM INSTALLATION 9055 3-STAGE Call for price —

394

0302504

HYD TUBING

$231.00

395

0302514

ADAPTER 8MJ-6MJ

$5.60

396

0302548

CLAMPING UNIT(SET) HC-10-6

$28.00

397

0302549

SPLIT BUSH.RUBBER C-SB10-8 1/2

$5.60

398

0302551

C-SN-10 SOCKET-HEAD

$11.60

399

C-WA-10 WELD ADAPTER

$15.60

400 0302835 C-WA-10 WELD ADAPTER 3 Call for price —

401

0302836

SOCKET-HD STACKING NUTS

$7.60

402

0302837

SPLIT BUSHING 1"

$5.60

403

0303350

HOSE HYD, 89" LG

$170.80

404

0303351

HOSE HYD, 105" LG

$121.80

405

0303352

HOSE HYD, 117" LG

$200.80

406

0400118

5/16-18X3/4 HHCS GR5 ZP

$5.80

407

0400176

1/2-13X1 HHCS GR5 ZP

$5.80

408

0400211

1/2-13X1.75 HHCS GR5 ZP

$5.80

409

0400220

1/2-13X5.5" HHCS GR5 ZP

$8.00

410

3/8-16 NYLOK HEX NUT ZINC

$5.80

-- 0908019 BOOM INSTALLATION 9055 3-STAGE (cont'd) Call for price —

411

1/2-13 NYLOK HEX NUT ZP

$2.80

412

0400492

1/2" FLATWASHER ZP

$5.80

413

0705104

PLATE-WINCH CABLE SPPT.

$95.60

414

0715953

PIN - BOOM PIVOT

$635.40

415

0802463

PIN-LIFT CYL. PIVOT WLMT

$252.80

416

0906533

KIT - BOOM SWIVEL

$4,270.80

417

0907122

KIT-9055 TILT CYLINDER

$4,078.20

418 0908357 BOOM ASSEMBLY 9055 (3-STAGE) 1 Call for price —

419

DE1381

1/2 WASHER SAE 17/32 ID

$5.60

0906533

KIT - BOOM SWIVEL

$4,270.80

420

0400557

1/2X1-1/4 ROLL PIN ZP

$5.80

421

0906535

SWIVEL-BOOM ASSEMBLY

$2,974.20

0906535

SWIVEL-BOOM ASSEMBLY

$2,974.20

422

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

423

0300311

SHEAVE, 12-10-1BB 10

$550.60

424

0400133

3/8-16X3 HHCS GR5 ZP

$5.80

425

0400140

3/8-16X4 HHCS GR5 ZP

$5.80

426

3/8-16 NYLOK HEX NUT ZINC

$5.80

427

0700511

GUIDE, BOTTOM CABLE

$33.00

428

0700563

SHAFT, SHEAVE

$117.40

429

0802027

GUIDE-CABLE WELDMENT

$359.20

430

0804450

BOOM END SWIVEL WLDT-FIXED9055

$1,979.60

0907122

KIT-9055 TILT CYLINDER

$4,078.20

431

0300108

SNAP RING, 2.5 5100-250

$3.40

432

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

433

FITTING, 90ELB 6MJ-8MB90

$7.60

434

0301619

FITT, 6MJ-6MJ-6MB BRANCH TEE

$11.20

435

0301620

FITTING, HYD. 6MJ - 6MB90

$5.80

436

0302035

HOSE HYD, 18" 6FJX-6FJX -6M1T

$37.40

437

0302805

HOSE HYD, 10"

$29.80

438 0302842 FITTING, TEE 2 Call for price —

439

0302914

HOSE HYD, 35"

$70.20

440

0302915

HOSE HYD, 12"

$56.00

441

0303079

FITTING, CONNECTOR

$5.80

442

0303563

HOSE HYD, 27"

$42.00

443

0307105

CYLINDER, HYD.

$2,487.20

Seal kit for 0307105 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03000150	Seal Kit: SEAL KIT, 0307105	$520.00
0312457	Texas (THI) cylinder: SEAL KIT, CYL 0307105 THI	$180.00

444

0307106

FITT, CONNECTOR 4MB-6FB

$9.40

445

VALVE, HOLDING 4000 PSI SAE

$310.60

446 0400064 1/4-20X2.25 SLOTTED RD 2 Call for price —

447

0400206

1/2-13X5 HHCS GR5 ZP

$9.80

448

0400366

1/4-20 HEX NUT ZP

$5.80

449

1/2-13 NYLOK HEX NUT ZP

$2.80

450

1/4 FLATWASHER ZP

$5.80

451

1/4" HELICAL LCKWASHR ZP

$5.80

452

BRKT, MTG, CHECK VALVE

$24.40

453

0708124

PIN - TILT CYLINDER BASE

$263.60

0907122

KIT-9055 TILT CYLINDER (cont'd)

$4,078.20

454

0717095

SHAFT

$355.60

-- 0908357 BOOM ASSEMBLY 9055 (3-STAGE) 1 Call for price —

455

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

456

0301529

HOSE HYD, 58

$75.80

457

0301895

GREASE FITTING, STR 1/8 PTF

$5.80

458

0301949

3/8" OD AIRLINE, SYNFLEX HOSEPriced per foot

$8.00

459

C-WA-10 WELD ADAPTER

$15.60

460

0307406

PAD, SLIDE - (3) STAGE 9055

$142.60

461

0400059

1/4-20X5/8 HHCS GR5 ZP

$5.80

462

3/8-16X3/4 HHCS GR5 ZP

$5.80

463

0400349

3/8-16X3/4 FLT SOC HD

$11.60

464

1/4" HELICAL LCKWASHR ZP

$5.80

465

0806712

INNER BOOM TUBE WLMT 9055

$9,006.00

466

0806716

BOOM, OUTER WELD'T

$24,412.40

467

0806824

BOOM, MID STAGE WELD'T

$9,746.60

468

0908028

SLIDE PAD ASSY (9055 3 STAGE)

$81.60

469

0908119

BOOM EXTEND SYSTEM 9055 3STAGE

$23,105.20

470

0908356

SLIDE PAD ASSY (9055 3 STAGE)

$155.20

471

0908430

KIT-D RING BOOM

$507.60

472

3012-793001

PLATE - LUBE MTG.

$19.40

473

9012549

CONNECTOR-MALE 3/8TUBEX1

$15.60

474

9012549

CONNECTOR-MALE 3/8TUBEX1

$15.60

475

9012552

BULKHEAD ADAPTER 1/8M-1/8F NPT

$39.80

476

9012584

ELBOW-1/4NPT X 3/8TUBE 9

$21.20

477

916040004

WEAR PAD - LOWER

$39.80

478

946030004

UPPER WEAR PAD-RECOVERY

$92.00

0908028

SLIDE PAD ASSY (9055 3 STAGE)

$81.60

479

0306825

SLIDE PAD - 3/4 X 1 X 4

$19.40

480

1/4-20X3/4 HHCS GR5 ZP

$5.80

481

0400126

3/8-16X1 HHCS GR5 ZP

$5.80

482

1/4 FLATWASHER ZP

$5.80

483

1/4" HELICAL LCKWASHR ZP

$5.80

484

3/8" HELICAL LCKWSHR - ZP

$5.80

485

0717262

SHIM - SLIDE PAD

$8.00

486

0717746

PLATE, SLIDE PAD SUPPORT

$37.80

0908119

BOOM EXTEND SYSTEM 9055 3STAGE

$23,105.20

487

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

488

0301388

FITTING, 90ELL, 8MJ-8MB90

$13.20

489

0305023

SNAP RING 5100-0225PP

$3.00

490

0307160

CABLE - EXT ASSY 3-STAGE BOOM

$887.60

491

0307402

CYL HYD 6.5 BORE 3-STAGE 9055&

$17,102.40

Seal kit for 0307402 cylinder: Call for pricing and availability: 770-921-6070

492

0307403

CABLE - ASSY (RETRACT) 3-STAGE

$632.00

493

0400146

3/8-16X2.25 HHCS GR5 ZP

$4.00

494

0400223

3/8-16X3/4 FL HEAD

$5.80

495

0400264

5/8-11X2.25 HHCS GR5 ZP

$5.80

496

0400390

3/8-16 HEX JAM NUT W/PELLET

$4.00

0908119

BOOM EXTEND SYS 9055 3STAGE (cont'd)

$23,105.20

497

0400421

5/8-11 NYLOK HEX NUT ZP

$5.80

498

0400448

1.25-12X1/2 HEX JAM NUT

$23.20

499

0400461

NUT, HEX 1.25-12 GR8 PL

$9.80

500

0400471

NUT, HEX 7/8-14 UNF GR8 ZP

$6.40

501

0400472

NUT, JAM 7/8-14 UNF GR8 ZP

$9.80

502

0400473

WASH, FLAT 7/8" PL HARD'N

$4.80

503

3/8 FLATWASHER ZP

$4.00

504

0400501

WASH, SAE 1 1/4 HARDENED PL

$9.80

505

0717744

PIN, EXTEND CYL. BASE

$232.00

506

0717747

PIN, RETRACT CABLE

$55.80

507

0806752

SHAFT-RETRACT SHEAVE WELD'T

$118.20

508 0908022 EXTEND SHEAVE ASSY 9055 3STAGE 1 Call for price —

509

0908118

SHEAVE ASSY 5" DIA

$115.60

510

PIN-"D" RING

$81.20

-- 0908022 EXTEND SHEAVE ASSY 9055 3STAGE Call for price —

511

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

512

0303441

SHEAVE-10" DIA X 1.5 BORE

$429.60

513

0400177

1/2-13X1.25 HHCS GR5 ZP

$5.80

514

0400223

3/8-16X3/4 FL HEAD

$5.80

515

0400483

3/8 CNTR'SUNK LOCKWASHER

$5.80

516

1/2" HCL LKWSHR ZP

$5.80

517

0717743

ROD, EXTEND SHEAVE SPACER

$31.00

518

0806721

BRKT WELD'T - EXTEND SHEAVE

$639.40

519

0806722

SHAFT - EXTEND SHEAVE WELD'T

$112.80

0908118

SHEAVE ASSY 5" DIA

$115.60

520 0307432 BUSHING - BRONZE 1 Call for price —

521

0717909

SHEAVE, 5" DIA RETRACT

$205.60

0908356

SLIDE PAD ASSY (9055 3 STAGE)

$155.20

522

0303490

PAD-WEAR 1/2" X 1" X 4"

$49.60

523

1/4-20X3/4 HHCS GR5 ZP

$5.80

524

0400349

3/8-16X3/4 FLT SOC HD

$11.60

525

1/4 FLATWASHER ZP

$5.80

526

1/4" HELICAL LCKWASHR ZP

$5.80

527

0717262

SHIM - SLIDE PAD

$8.00

528

0718134

PLATE - SLIDE PAD SUPPORT

$74.60

0908430

KIT-D RING BOOM

$507.60

529

0400114

5/16-18X3 HHCS GR5 ZP

$5.80

530

0400776

5/16-18 HEX NUT JAM NYLOK ZP

$5.80

531

0719585

D-RING, TOWING

$440.40

532

PIN-"D" RING

$81.20

0911093

9055 TOWER LESS U/L ASSY

$16,891.80

533

GREASE FITTING, 1/4-28 STRAIGHT

$5.80

534

0301601

CLAMP, HOSE, INSUL, 5/8

$3.80

535

0301620

FITTING, HYD. 6MJ - 6MB90

$5.80

0911093

9055 TOWER LESS U/L ASSY (cont'd)

$16,891.80

536

0301662

HOSE HYD, 120" 6M1T 6FJX-6FJX

$93.80

537

BUSHING - U/L

$189.60

538

0302911

HOSE HYD, 88"

$72.60

539

0306746

CYL HYD - FOLD

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

540

0306870

HOSE HYDR - 96"

$77.00

541

0307420

SLEEVE, NYLON PROTECTIVE-24HGPriced per foot

$2.60

542

3/8-16X1.25 HHCS GR5 ZP

$5.80

543

3/8-16X1.5 HHCS GR5 ZP

$5.80

544

0400176

1/2-13X1 HHCS GR5 ZP

$5.80

545

0400196

1/2-13X1.25 SOCKET HD

$8.00

546

3/8-16 NYLOK HEX NUT ZINC

$5.80

547

3/8 FLATWASHER ZP

$4.00

548

3/8" HELICAL LCKWSHR - ZP

$5.80

549

1/2" HCL LKWSHR ZP

$5.80

550

0706432

BLOCK - STOP

$11.60

551

0710450

BAR - RETRACT

$41.60

552 0713217 BAR 6 Call for price —

553 0714762 BAR - RETAINER 2 Call for price —

554

0717657

PLATE, STOP BLOCK SUPRT

$24.40

555

0717851

BLOCK, STOP

$82.60

556

0802459

PIN-FOLD CYL. WLDMT

$144.40

557

0802460

PIN-TOWER PIVOT WLDMT

$258.20

558

0802461

PIN-UNDERLIFT PIVOT WLMT

$399.00

559

0804483

CABLE TIE BACK WLMT

$166.20

560

0805960

TOWER WELDT - 9055

$12,956.00

561

0806756

PIN WELD'T - FOLD CYLINDER

$57.80

562

0906572

KIT-WINCH CABLE STOW

$55.80

563

DE1381

1/2 WASHER SAE 17/32 ID

$5.60

0906572

KIT-WINCH CABLE STOW

$55.80

564

0400257

5/8-11X3.25 HHCS GR5 ZP

$3.40

565

0400421

5/8-11 NYLOK HEX NUT ZP

$5.80

566

0804483

CABLE TIE BACK WLMT

$166.20

567

9048800

5/8 WELDLESS CHAIN LINK

$21.60

568

945030007

CABLE TIE BACK SPRING-1

$28.00

-- 0911095 9055 3STG DATA PKG Call for price —

569

0400002

4X1/4 DRIVE SCREW RD HD

$4.00

570

0501441

PLATE-SERIAL & DATA 9055/CH-50

$105.20

Lowrider (9055) Parts List

Show parts list (46 parts) ▼Hide parts list ▲

Part Number	Description	Qty Used	Price	Quick Add to Cart
125956033	9055 LOW RIDER 3 STAGE 2-SPD		Call for price	—
0908114	9055 2/SPD 3STG BUA	1	Call for price	—
0908114	9055 2/SPD 3STG BUA		Call for price	—
0903156	CROSSBAR-5" ASSY	1	$3,862.40
0908270	ASSEMBLY - LOWRIDER (9055)	1	Call for price	—
0911092	9055 3STG2SP PURC ASY LESS W/L	1	Call for price	—
0911095	9055 3STG DATA PKG	1	Call for price	—
0908270	ASSEMBLY - LOWRIDER (9055)	1	Call for price	—
0300113	GREASE FITTING, 1/4-28 STRAIGHT	6	$5.80
0302538	BUSHING - U/L	2	$189.60
0303968	HOSE HYD, 10" LG	2	Call for price	—
0307425	CYL, HYD - U/L BOOM EXTEND	2	$5,285.60
Seal kit for 0307425 cylinder: Call for pricing and availability: 770-921-6070
0307460	FITTING, HYD 6MJ-6MB90LL	2	Call for price	—
0400079	1/4-20X3/4 FL SKTSCR GR5	8	$5.80
0400086	1/4-20X1.25 FLTHDSKTCPSC	4	$5.80
0400139	3/8-16X1.5 HEX SKT SET	1	$5.80
0400181	1/2-13X1.5 HHCS GR5 ZP	5	$5.80
0400249	5/8-11X1.25" SOC HD CAP S	2	$9.80
0400344	1/2-13X3/4 LG FLAT HD SOCKET 8	8	$5.80
0400392	3/8-16 NYLOK HEX NUT ZINC	1	$5.80
0400491	1/2" HCL LKWSHR ZP	5	$5.80
0400594	1/4-20X5/8 SOC FLT HD	4	$5.80
0400749	1/2-13x1.25 FLT HD SKT CAP SRW	5	$5.60
0400749	1/2-13x1.25 FLT HD SKT CAP SRW	8	$5.60
0717869	PLATE, SPACER (BOLT-ON)	4	$45.20
0717871	PIN, CYLINDER ROD	1	$312.40
0717872	PIN, EXTEND CYLINDER BASE	1	$122.80
0717873	PIN, SHEAR OUTER BOOM	2	$117.40
0718087	PLATE - PAD SPACER	2	$12.40
0718096	BLOCK, STOP	2	$114.60
0724419	PLATE-PLUG RETAINER	2	$54.00
0806808	BOOM - OUTER WLD KIT	1	$18,527.20
0806812	BRACKET - EXTEND CYLINDER	1	$1,568.60
0806814	BOOM - 2nd STAGE WLMT	1	Call for price	—
0908282	INNER BOOM ASSY	1	Call for price	—
9012594	FITT, HYD RUN TEE, 6MJx6MBx6MJ	2	$21.20
930150003	TOP PADS	6	$28.00
0908282	INNER BOOM ASSY		Call for price	—
0300113	GREASE FITTING, 1/4-28 STRAIGHT	2	$5.80
0303088	BUSHING - PIVOT PIN	1	$393.60
0400483	3/8 CNTR'SUNK LOCKWASHER	4	$5.80
0400594	1/4-20X5/8 SOC FLT HD	4	$5.80
0400653	FLAT HD SOCKET SCRW 3/8-24 X 1	4	Call for price	—
0706996	PAD, SPACER	1	$47.00
0806813	BOOM - 3rd STAGE WLMT U/L	1	$8,090.60
930150003	TOP PADS	2	$28.00
