Century 7035 2-Speed (2011 manual)

Century 7035 2-Speed (2011 manual)

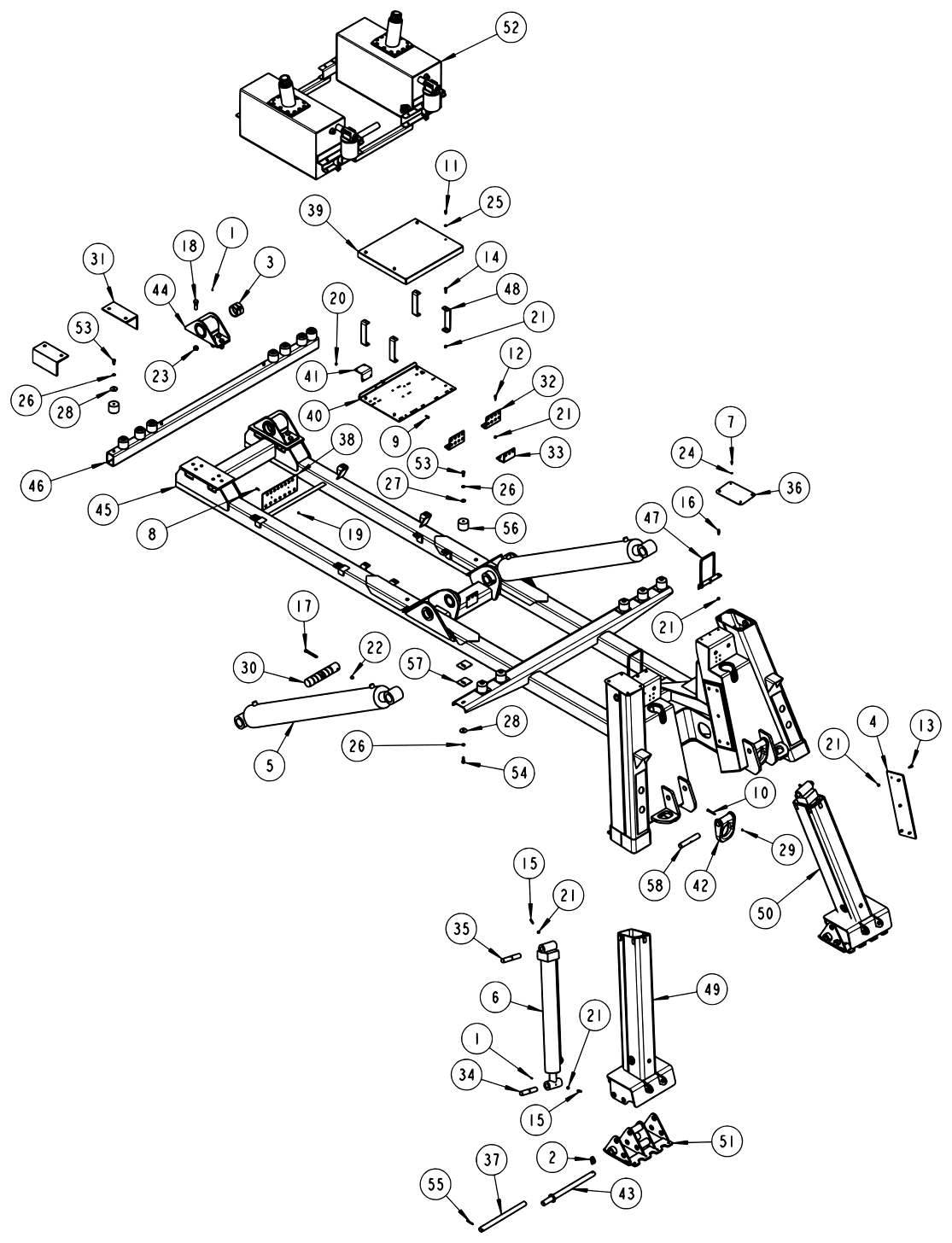

Subframe Assembly

Century 7035 2-Speed (2011 manual) Subframe Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
20301861QUICK PIN2$3.80
30302538SPRING BUSHING, 3.5OD X 3ID X 2.52$189.60
40303089RAMP PAD2$84.80
50306747CYL - BOOM LIFT2$6,139.40
Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601AAshun (MTC) cylinder: SEAL KIT 0306747 MTC$550.60
0304572Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC$276.20
0304601Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER$229.20
0304601RMTRosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOMCall for price770-921-6070
60307843CYLINDER - 4" BORE 30" STROKE2$2,233.60
0310275Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843$58.80
704000661/4-20 X 3/4 HHCS GR.5, ZP8$5.80
804000701/4-20 X 1 HHCS GR5 ZP2$5.80
904001095/16-18 X 1 HHCS GR.5, ZP2$5.80
1004001145/16-18 X 3 HHCS GR 5 ZP2$5.80
1104001213/8-16NC X 3/4 HHCS GR. 84$5.80
1204001223/8-16 X 1 1/4 HHCS GR.5, ZP6$5.80
1304001283/8-16X1.25 FLAT HD SOC10$8.00
1404001323/8-16 X 1 1/2 HHCS GR.5, ZP4$5.80
150400139SCREW, 3/8"-16 X 1-1/2" HEX SKT SET4$5.80
1604001483/8-16 X 1-1/4 HHCS GR5 ZP6$5.00
1704002191/2-13 X 4-1/2 HHCS GR.5 ZP2$8.00
1804002883/4-10 X 2-1/2 HHCS GR.8 GOLD12$9.80
1904003671/4-20 NYLOK HEX NUT ZP2$5.80
2004003825/16-18 NYLOK HEX NUT ZP2$5.80
2104003923/8-16 NYLOK HEX NUT ZP30$5.80
2204004081/2-13 NYLOK HEX NUT ZP2$2.80
2304004313/4-10 NYLOK HEX NUT GR.8, ZP12$8.00
2404004521/4 HELICAL LOCK WASHER ZP8$5.80
2504004823/8 HELICAL LOCK WASHER ZP4$5.80
2604004911/2 HELICAL LOCK WASHER ZP20$5.80
2704004971/2 FLAT WASHER GR.8, YZ PLATED6$5.80
280400498WASHER, 1/2" ID X 2" OD X .15014$8.00
2904007765/16-18 HEX NUT JAM NYLOK2$5.80
300708094PIN - LIFT CYLINDER2$314.20
310710545HR ANGLE2$69.60
320711249PLATE - CONTROL BOX2$21.60
330711250PLATE - CONTROL BOX1$16.40
340713128SHAFT - LOWER SPADE2$56.00
350713129SHAFT - UPPER SPADE2$59.60
360715584COVER PLATE2$19.40
370715694PIN - SPADE PIVOT2$125.60
380716201PLATE - BULKHEAD MOUNTING1Call for price—
390717066COVER - VALVE1$126.20
400717827PLATE - VALVE MOUNTING1Call for price—
410719122PLATE - VALVE MTG.1$13.20
420719585"D" RING - TOWING2$440.40
430804334PIN, MULTI-POSITION2$252.80
440804405BOOM PIVOT BRKT2$884.00
450806001SUBFRAME WELDMENT1Call for price—
460806004FRONT TOOLBOX MOUNT1$808.80
470806521HAND RAIL WLMT2Call for price—
480807181COVER SUPPORT WLMT4$44.20
490807627INNER SPADE WLMT (LH)1$2,707.00
500807628INNER SPADE WLMT (RH)1$2,707.00
510807630LOWER SPADE PAD WELDMENT2$1,020.00
520907802KIT - RESERVOIR1$3,943.00
5390414021/2-13NC X 1 1/4 HHCS, ZP, GR.814$8.00
5490414031/2-13 X 1-1/2 HHCS GR 8 ZP6$5.80
5590463541/4 X 2-1/2 ROLL PIN ZP2$5.80
569402970TOOLBOX MTG. PAD14$54.20
57942480011REAR WASHER PLATE12$25.20
58GA0215PIN, D RING2$81.20
Back to Manual Navigation Menu

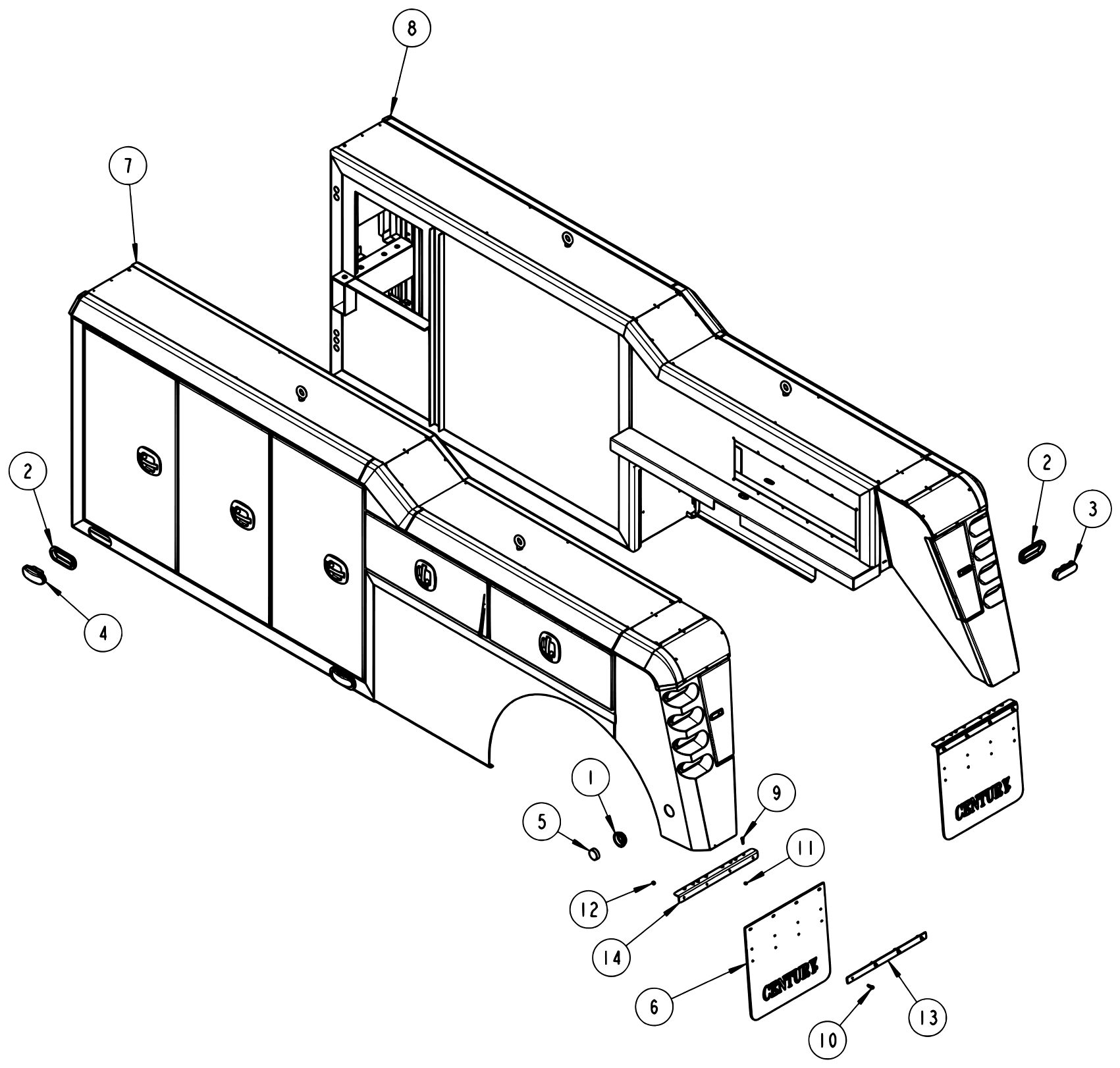

Body Assembly

Century 7035 2-Speed (2011 manual) Body Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10303127GROMMET, MARKER LIGHT2$3.80
20303128GROMMET, TAIL LIGHT12$3.80
30306958LIGHT OVAL AMBER 60 LED8$49.20—
40307220LIGHT OVAL AMBER 60 LED4$47.00
50310496MARKER LAMP, RED 2-1/2" ROUND2$23.20
60310631MUD FLAP2$45.20
70310975TOOLBOX LH AL 156CA 20101Call for price—
80310976TOOLBOX RH AL 156CA 20101Call for price—
904001035/16-18 X 1 1/4 HHCS GR.5, ZP16$5.80
1004001483/8-16 X 1-1/4 HHCS GR5 ZP8$5.00
1104003825/16-18 NYLOK HEX NUT ZP16$5.80
1204003923/8-16 NYLOK HEX NUT ZP8$5.80
130717386BAR - MUDFLAP2$45.20
140718139ANGLE - MUD FLAP MOUNT2$50.60
Back to Manual Navigation Menu

Boom Assembly

Century 7035 2-Speed (2011 manual) Boom Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
13012-793001PLATE - LUBE MOUNT1$19.40
20300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
30301895GREASE FITTING, 1/8 NPT STRAIGHT1$5.80
40303490WEAR PAD (1/2 X 1 X 4)2$49.60
50303799WINCH, DP35K 2-SPEED1$15,473.40
60306743CYLINDER, BOOM EXTEND1$6,643.20
0304625Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103$157.00
704000591/4-20 X 5/8 HHCS GR 5 ZP2$5.80
804001145/16-18 X 3 HHCS GR 5 ZP1$5.80
904001213/8-16NC X 3/4 HHCS GR. 82$5.80
1004001323/8-16 X 1 1/2 HHCS GR.5, ZP2$5.80
1104001333/8-16 X 3 HHCS GR.5, ZP2$5.80
1204001761/2-13 X 1 HHCS GR.5, ZP4$5.80
1304001811/2-13 X 1-1/2 HHCS GR 5 ZP2$5.80
1404002201/2-13 X 5-1/2 HHCS GR5 ZP1$8.00
1504002625/8-11 X 2 1/2 HHCS GR.8, ZP16$5.80
1604003923/8-16 NYLOK HEX NUT ZP2$5.80
1704004081/2-13 NYLOK HEX NUT ZP3$2.80
1804004265/8-11 NYLOK NUT GR.8 ZP16$8.00
1904004521/4 HELICAL LOCK WASHER ZP2$5.80
2004004823/8 HELICAL LOCK WASHER ZP4$5.80
2104004911/2 HELICAL LOCK WASHER ZP4$5.80
2204004921/2 FLAT WASHER ZP2$5.80
2304007765/16-18 HEX NUT JAM NYLOK1$5.80
2404009901/2-13 X 1/2 SKT HD SET SCREW ZP4$9.80
250705104PLATE - SUPPORT1$95.60
260707793PIN - TILT CYLINDER ROD END1$150.60
270711164BLOCK - SHEAR8$5.60
280715947ANGLE - WINCH MOUNTING2Call for price—
290715948ANGLE - WINCH MOUNTING2Call for price—
300715949ANGLE - WINCH MOUNTING2Call for price—
310715950ANGLE - WINCH MOUNTING2Call for price—
320715951PIN - EXT CYL BASE1$93.80
330715952PIN - EXT CYL ROD1$90.20
340715953PIN - BOOM PIVOT1$635.40
350719585"D" RING - TOWING1$440.40
360802365PIN-TOWER PIVOT WLMT2$177.00
370802463LIFT CYL PIN WELDMT2$252.80
380804402OUTER BOOM WLMT - 70351Call for price—
390804403INNER BOOM WLMT1$7,878.40
400906532SWIVEL BOOM ASSEMBLY2$1,897.80
439012584ELBOW, 1/4 NPT X 3/8 TUBE 901$21.20
4490444343/8-16X1 NC FLAT2$5.80
45915040501BOTTOM CLAMP ANGLE EXT. CYL. ASSY2$12.40
46930100002LOWER WEAR PAD - RECOVERY1$70.40
47930105000SPIDER CLAMP - TOP WLMT1$288.80
48945030001PAD RETAINING PLATE1$30.00
49945030004WEAR PAD (UPPER)1$70.40
50GA0215PIN, D RING1$81.20
51HD0151SNAP RING - 2" INTERNAL4$5.80
5203019493/8" OD AIRLINE, SYNFLEXPriced per foot1$8.00
Back to Manual Navigation Menu

Underlift & Tower Assembly

Century 7035 2-Speed (2011 manual) Underlift & Tower Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
20301197DETENT SPRING1$9.20
30301398DETENT BALL1$15.60
40301822O-RING, PIVOT PIN1$3.80
50302538SPRING BUSHING, 3.5OD X 3ID X 2.52$189.60
60302561SLIDE PAD8$18.80
70303088BUSHING, PIVOT PIN1$393.60
80303097THRUST WASHER, 1/8" THICK1$90.20
90303098THRUST WASHER, 1/16" THICK1$54.20
100303490WEAR PAD (1/2 X 1 X 4)2$49.60
110306744CYLINDER - U/L EXTEND1$5,359.40
Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670Southern (SHCI) cylinder: SEAL KIT FOR 0302206$223.80
0311141Texas (THI) cylinder: SEAL KIT 0306744$220.80
120306746CYLINDER, HYD LIFT1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
130306825PAD - WEAR2$19.40
140307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
150400044DRIVE SCREW, #10-24 X 1/2" RD HD8$5.80
1604001223/8-16 X 1 1/4 HHCS GR.5, ZP1$5.80
1704001323/8-16 X 1 1/2 HHCS GR.5, ZP1$5.80
1804001333/8-16 X 3 HHCS GR.5, ZP2$5.80
190400139SCREW, 3/8"-16 X 1-1/2" HEX SKT SET2$5.80
2004001473/8-24X 5/8 HHCS GR5 ZP4$5.80
2104001513/8-24 X 3/4 HHCS GR5 ZP5$5.80
2204001761/2-13 X 1 HHCS GR.5, ZP1$5.80
230400228SCREW, 3/8"-24 X 5/8" BUTTON HEAD SKT8$9.80
2404002575/8-11 X 3-1/4 HHCS GR5 ZP2$3.40
250400271SCREW, 5/8"-11 X 4-1/2" SKT HD CAP2$13.80
2604003923/8-16 NYLOK HEX NUT ZP5$5.80
2704004215/8-11 NYLOK HEX NUT ZP2$5.80
2804004803/8 FLAT WASHER ZP1$4.00
290400481LOCKWASHER, 3/8" EXT TOOTH9$5.80
3004004823/8 HELICAL LOCK WASHER ZP1$5.80
3104004911/2 HELICAL LOCK WASHER ZP1$5.80
3204005085/8 HELICAL LOCK WASHER ZP2$5.80
3304009901/2-13 X 1/2 SKT HD SET SCREW ZP8$9.80
340703277SLIDER PAD2$11.60
350706995BLOCK, STOP 2ND STAGE4$29.00
360706996SPACER PAD1$47.00
370707019EXTEND CYLINDER SHAFT1$97.40
380707028PAD, BEARING1$52.40
390707792PIN - TILT CYLINDER - BASE END1$146.20
400708470SPACER - DETENT BALL1$17.40
410710051PIVOT PIN, TOP HALF1$299.60
420710052PIVOT PIN, BOTTOM HALF1$299.60
430717657PLATE - STOP BLOCK SUPPORT2$24.40
440717851STOP BLOCK2$82.60
450802459PIN-FOLD CYL. WLDMT1$144.40
460802461PIN - UNDERLIFT PIVOT WELDMENT1$399.00
470802914CROSSBAR WELDMENT1$2,756.80
480804421TOWER WELDMENT - 70351$10,314.60
490804422OUTER BOOM WLMT1$5,852.20
5008044232ND STAGE U/L BOOM1$4,156.00
5108044243RD STAGE BOOM WLMT1$3,324.60
520804483CABLE TIE BACK WLMT2$166.20
530806756PIN WELDMENT - FOLD CYLINDER1$57.80
5490488005/8 WELDLESS CHAIN LINK2$21.60
55945030007SPRING - HOSE TENSIONER2$28.00
56RB0205SPLIT BUSHING2$103.00
Back to Manual Navigation Menu

Boom Hydraulics

Century 7035 2-Speed (2011 manual) Boom Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300041CONNECTOR 8MJX8MB2$5.60
20300044CONNECTOR 6MJX8MB2$3.80
30300644HOSE CLAMP, 8"2$19.40
40300657HOSE ASSEMBLY, 46" LG2$84.80
50300659HOSE ASSEMBLY. 45" LG3$61.40
60301388ELBOW, 8MJ-8MB904$13.20
70301529HOSE ASSEMBLY - 58" LG.2$75.80
80302275CONNECTOR 8MJX6MB2$7.60
90302276ELBOW, 8MJ-6MB906$11.20
100302568HYDRAULIC TUBING2Call for price—
110302574FITTING - BULKHEAD - RUN TEE W/NUT2Call for price—
120302576FITTING, BULKHEAD UNION2$12.40
130302584HOSE ASSEMBLY, 50" LG.1$63.20
140302796BRANCH TEE, 8MJ-8MJ-8FJX2Call for price—
150303093CONTROL VALVE, VDP11DDDC1101$1,337.00
160303348HOSE ASSEMBLY, 48" LG1$76.60
170303354HOSE ASSEMBLY, 33" LG1$70.00
180303355HOSE ASSEMBLY, 45" LG.1$74.80
190306743CYLINDER, BOOM EXTEND1$6,643.20
0304625Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103$157.00
200306747CYL - BOOM LIFT2$6,139.40
Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601AAshun (MTC) cylinder: SEAL KIT 0306747 MTC$550.60
0304572Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC$276.20
0304601Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER$229.20
0304601RMTRosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOMCall for price770-921-6070
210307106CONNECTOR 4MBX6FB2$9.40
220307107VALVE HOLDING 4000 PSI SAE2$310.60
230307614HYDRAULIC TUBING2$45.40
2404000781/4-20 X 2 HHCS GR5 ZP4$5.80
2504003671/4-20 NYLOK HEX NUT ZP4$5.80
2604004511/4 FLAT WASHER ZP4$5.80
270703001BRACKET - MOUNTING2$24.40
Back to Manual Navigation Menu

Underlift Hydraulics

Century 7035 2-Speed (2011 manual) Underlift Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300044CONNECTOR 6MJX8MB3$3.80
20301470ELBOW, 6MJ-8MB906$7.60
30301473HOSE ASSEMBLY, 18" LG2$57.80
40301522CONNECTOR 6MJ-6MB1$3.80
50301619BRANCH TEE, 6MJ-6MJ-6MB1$11.20
60301620FITTING, ELBOW, 6MJ-6MB903$5.80
70301662HOSE ASSEMBLY - 120" LG2$93.80
80301730DOUBLE HOLDING VALVE1$542.60
90301778CONNECTOR 6MJX10MB5Call for price—
100301837INLINE ORIFICE1Call for price—
110302035HOSE ASSEMBLY, 18" LG1$37.40
120302504TUBE ASSEMBLY6$231.00
130302514ADAPTER, 8MJ-6MJ6$5.60
140302548CLAMPING UNIT (SET) HC-10-68$28.00
150302549SPLIT BUSH RUBBER C-SB10-8 1/224$5.60
160302551SOCKET HEAD C-SN-108$11.60
170302552WELD ADAPTER, C-WA-108$15.60
180302576FITTING, BULKHEAD UNION6$12.40
190302584HOSE ASSEMBLY, 50" LG.2$63.20
200302805HOSE ASSY - 10" LG2$29.80
210302842ELBOW, 8MJ-8MB902Call for price—
220302911HOSE ASSEMBLY, 88" LG1$72.60
230302914HOSE ASSEMBLY, 35" LG1$70.20
240302915HOSE ASSEMBLY, 12" LG2$56.00
250303094VALVE, 5 SPOOL PARKER1$1,447.40
260303176CONNECTOR 10MPX8FB1$7.60
270303348HOSE ASSEMBLY, 48" LG2$76.60
280303563HOSE ASSEMBLY, 27" LG2$42.00
290306744CYLINDER - U/L EXTEND1$5,359.40
Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670Southern (SHCI) cylinder: SEAL KIT FOR 0302206$223.80
0311141Texas (THI) cylinder: SEAL KIT 0306744$220.80
300306746CYLINDER, HYD LIFT1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
310306870HOSE ASSEMBLY, 96" LG1$77.00
320307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
330307106CONNECTOR 4MBX6FB1$9.40
340307107VALVE HOLDING 4000 PSI SAE1$310.60
350400064SCREW, 1/4"-20 X 2 1/4" RD HD PHIL SS2Call for price—
3604000781/4-20 X 2 HHCS GR5 ZP2$5.80
3704001185/16-18 X 3/4 HHCS GR.5 ZP8$5.80
3804003661/4-20 HEX NUT ZP2$5.80
3904003671/4-20 NYLOK HEX NUT ZP2$5.80
4004004511/4 FLAT WASHER ZP4$5.80
4104004521/4 HELICAL LOCK WASHER ZP2$5.80
420703001BRACKET - MOUNTING1$24.40
430716201PLATE - BULKHEAD MOUNTING1Call for price—
Back to Manual Navigation Menu

Pump, Valve & Filter Hydraulics

Century 7035 2-Speed (2011 manual) Pump, Valve & Filter Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300052ELBOW, 8MJ-10MB902$11.20
20300287PIPE BUSHING, 1 1/4" TO 1" NPT REDUCER2Call for price—
30300348NIPPLE - 1-1/2 X 52$7.80
40300364HOSE CLAMP, 7/8" TO 2-3/4"6$7.00
50300660HOSE ASSEMBLY - 120" LG2$112.00
60301350PIPE, 1-1/2" CLOSE NIPPLE2Call for price—
70301473HOSE ASSEMBLY, 18" LG2$57.80
80301545ELBOW, 12MJ-12MB902$18.80
90301547ELBOW, 8MJ-12MB902$18.80
100301894FILTER ASSEMBLY, SPIN ON2$276.20
110301965HOSE ASSEMBLY, 131" LG.2$117.40
120301995ADAPTER, 8FJ-6MJ STRAIGHT2$5.60
130302052RUN TEE, 8MJ-8MJ-8FJX2$15.00
140302088BALL VALVE - 1 1/2 BRONZE2$91.00
150302205GAUGE, FLUSH MOUNT 6000 PSI2$44.80
160302227CENTER BONDED MOUNT4$24.40
170302228SPECIAL WASHER4$21.60
180302570SIGHT GAUGE2$15.60
190302576FITTING, BULKHEAD UNION2$12.40
200302698HOSE BARB, 1-1/4"4$32.40
210302756SUCTION HOSE, 1-1/4" ID (100R4)Priced per foot1$21.20
220302906ADAPTER, 16MB-12FB2$15.20
230302955HOSE ASSY - 48 1/4"2$63.00
240303093CONTROL VALVE, VDP11DDDC1101$1,337.00
250303094VALVE, 5 SPOOL PARKER1$1,447.40
260303155PIPE PLUG - 3/4 NPT (MAGNETIC)2$11.60
270303338ELBOW, 16MJ-16MP452$26.40
280303435HOSE ASSEMBLY - 58" LG2$139.00
290303867PUMP, BI-ROTATIONAL1$2,046.00
300305006FILLER CAP2$63.20
310306539HOSE BARB, 20HOSE-16MB902Call for price—
320307344SUCTION STRAINERS2$131.80
330307345CONNECTOR, 16MJ-20MP2$14.80
340310010SUCTION HOSE, 1-1/2" I.D. 100R42Call for price—
3504001223/8-16 X 1 1/4 HHCS GR.5, ZP8$5.80
3604001493/8-16 X 5/8 HHCS GR5 ZP24$4.00
3704001503/8-16 X 2-1/2 HHCS GR5 ZP4$5.80
3804001811/2-13 X 1-1/2 HHCS GR 5 ZP2$5.80
3904003923/8-16 NYLOK HEX NUT ZP12$5.80
4004004803/8 FLAT WASHER ZP24$4.00
4104004911/2 HELICAL LOCK WASHER ZP2$5.80
420706114GASKET - CLEANOUT & FILLER COVER2$42.20
430716201PLATE - BULKHEAD MOUNTING1Call for price—
440802747FILLER PIPE WELD'T2Call for price—
450803193SUPPORT - RESERVOIR WELDMENT2Call for price—
460806653RESERVOIR LEFT WELDMENT1$1,673.20
470806654RESERVOIR RIGHT WELDMENT1$1,673.20
48FC41ELBOW - BULKHEAD2$15.60
Back to Manual Navigation Menu

Winch Hydraulics

Century 7035 2-Speed (2011 manual) Winch Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300041CONNECTOR 8MJX8MB4$5.60
20301207HOSE ASSEMBLY - 72" LG2$84.80
30301388ELBOW, 8MJ-8MB902$13.20
40301577TUBING- PLASTIC 1/4 OD X 5" AIR LINEPriced per foot2$5.80
50302508ELBOW, 8MJ-8MB90LL2$13.80
60302546CLAMPING UNIT (SET) HC-10-210$15.60
70302550SPLIT BUSH RUBBER C-SB10-12 3/410$9.80
80302551SOCKET HEAD C-SN-105$11.60
90302552WELD ADAPTER, C-WA-105$15.60
100302576FITTING, BULKHEAD UNION4$12.40
110302955HOSE ASSY - 48 1/4"4$63.00
120303093CONTROL VALVE, VDP11DDDC1101$1,337.00
130303094VALVE, 5 SPOOL PARKER1$1,447.40
140303763HOSE ASSEMBLY - 94"2$115.00—
150303799WINCH, DP35K 2-SPEED1$15,473.40
1604001185/16-18 X 3/4 HHCS GR.5 ZP5$5.80
170716201PLATE - BULKHEAD MOUNTING1Call for price—
189010520FITTING, BRASS ELB. 1/4T-1/4MP2$13.80
199011071FITTING, BRASS TEE 1/4T-1/4T-1/4T1$15.60
Back to Manual Navigation Menu

Spade Hydraulics

Century 7035 2-Speed (2011 manual) Spade Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300044CONNECTOR 6MJX8MB6$3.80
20301522CONNECTOR 6MJ-6MB2$3.80
30303017CONNECTOR 8MBX6FB2$5.60
40303093CONTROL VALVE, VDP11DDDC1101$1,337.00
50303094VALVE, 5 SPOOL PARKER1$1,447.40
60303748HOSE ASSEMBLY, 32"4$106.60
70307843CYLINDER - 4" BORE 30" STROKE2$2,233.60
0310275Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843$58.80
804001353/8-16 X 4-1/2 HHCS GR 5 ZP6Call for price—
904003923/8-16 NYLOK HEX NUT ZP6$5.80
100704045SPACER, CONTROL VALVE6Call for price—
110717827PLATE - VALVE MOUNTING1Call for price—
Back to Manual Navigation Menu

Control Assembly

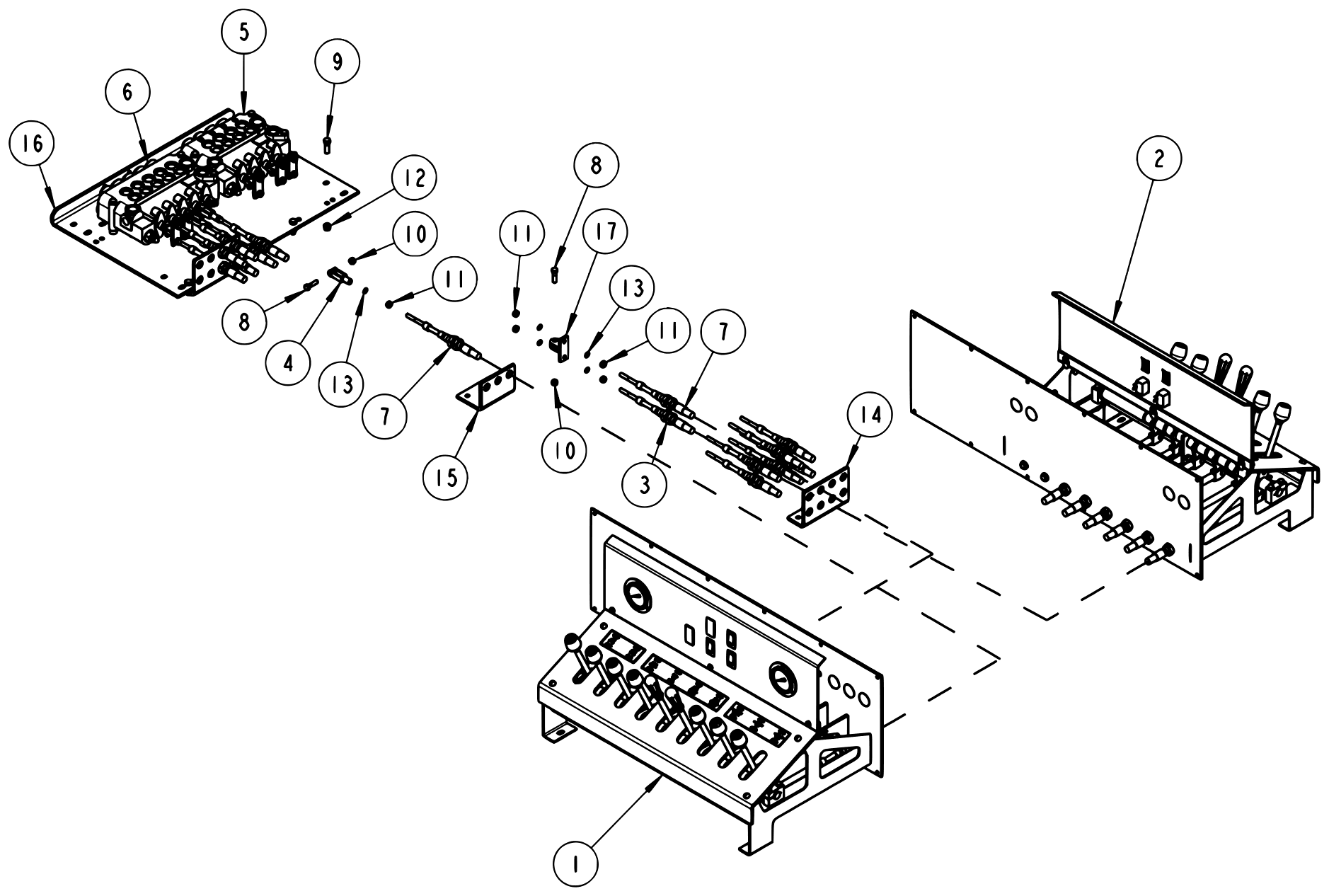

Century 7035 2-Speed (2011 manual) Control Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
17035 CONTROL ASSEMBLY 9 HANDLES1Call for price—
27035 CONTROL ASSEMBLY RH 6H1Call for price—
30302457CONTROL CABLE5$167.80
40303008CLEVIS - ADJUSTABLE3$9.40
50303093CONTROL VALVE, VDP11DDDC1101$1,337.00
60303094VALVE, 5 SPOOL PARKER1$1,447.40
70303427CONTROL CABLE10$167.80
804001035/16-18 X 1 1/4 HHCS GR.5, ZP9$5.80
904001223/8-16 X 1 1/4 HHCS GR.5, ZP6$5.80
1004003825/16-18 NYLOK HEX NUT ZP11$5.80
1104003835/16-24 HEX NUT ZP27$5.80
1204003923/8-16 NYLOK HEX NUT ZP12$5.80
130400466LOCKWASHER, 5/16" INTERNAL TOOTH27$5.80
140711249PLATE - CONTROL BOX2$21.60
150711250PLATE - CONTROL BOX1$16.40
160717827PLATE - VALVE MOUNTING1Call for price—
170801054CONNECTOR - CONTROL CABLE6Call for price—
Back to Manual Navigation Menu

Left Control Assembly

Century 7035 2-Speed (2011 manual) Left Control Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300835KNOB, BOOM (UP-DN)1$13.20
20300836KNOB, JACK (UP-DN)2$18.80
30300837KNOB, BOOM (IN-OUT)1$15.00
40302205GAUGE, FLUSH MOUNT 6000 PSI2$44.80
50302457CONTROL CABLE3$167.80
60302726GREASE FITTING, 1/4"-28 X 45°9$3.80
70302856KNOB, TILT (UP-DN)1$24.40
80302917KNOB, WHL LIFT EXT (IN-OUT)1$31.00
90303382KNOB, FOLD (UP-DN)1$17.40
100303427CONTROL CABLE6$167.80
110307604KNOB - RED LONG2$22.40
120307778PLUG, FILLER2$3.40
130400005#6-32 X .5 FLAT HEAD PHILLIPS6$5.80—
1404000661/4-20 X 3/4 HHCS GR.5, ZP3$5.80
150400101SCREW, 5/16"-18 X 1" RD HD SLOTTED SS4$5.80
1604001075/16-2.5 X 2-1/2 HHCS4$5.80
1704001095/16-18 X 1 HHCS GR.5, ZP4$5.80
1804003691/4 "J" TYPE TINNERMAN3$5.80
190400379CLIP, 5/16" "J" TYPE TINNERMAN4$8.00
2004003825/16-18 NYLOK HEX NUT ZP8$5.80
2104003835/16-24 HEX NUT ZP9$5.80
2204003933/8"-16 HEX JAM NUT9$5.80
230400466LOCKWASHER, 5/16" INTERNAL TOOTH9$5.80
2404005123/4 FLAT WASHER (SPECIAL)2Call for price—
250400527CLEVIS PIN, 5/16" X 5/8" COTTERLESS9$8.00
260402094HEX NUT & STAR WASHER, #8-32 ZP6Call for price—
270500914DECAL- CONTROL PANEL WRECKER1$47.00
280500915DECAL - CONTROL PANEL SPADE1$47.00
290500916DECAL - CONTROL PANEL UNDERLIFT1$45.20
300711235CLAMP - SHAFT2$17.40
310717198PIN - CONTROL HANDLE (9)1$42.00
320717461PLATE - SHAFT SUPPORT2$16.00
330723230PANEL - CONTROL (9)1$313.00
340723233PANEL - GAUGE (9 HDL, STD)1$177.00
350806006CLEVIS WELDMENT9$9.80
360806007CONTROL FRAME WLMT (9) HANDLE1Call for price—
370806515CONTROL HANDLE WLMT9Call for price—
389024041MCGILL SWITCH3$43.40
399053524BRONZE BUSHING (.752 X .879 X .750)18$6.00
Back to Manual Navigation Menu

Right Control Assembly

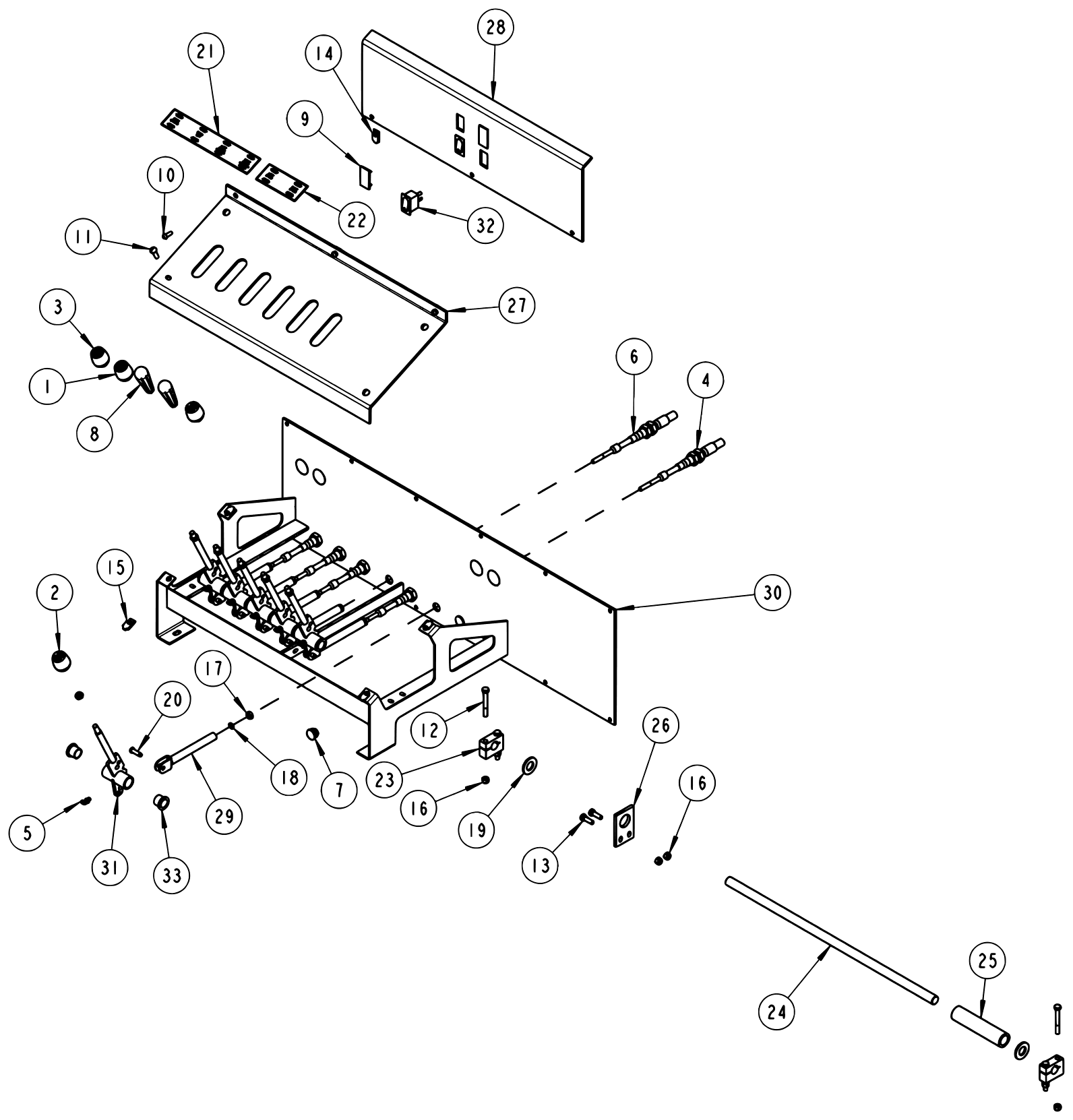

Century 7035 2-Speed (2011 manual) Right Control Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300835KNOB, BOOM (UP-DN)1$13.20
20300836KNOB, JACK (UP-DN)2$18.80
30300837KNOB, BOOM (IN-OUT)1$15.00
40302457CONTROL CABLE2$167.80
50302726GREASE FITTING, 1/4"-28 X 45°6$3.80
60303427CONTROL CABLE4$167.80
70307166PLUG 7/82$2.00
80307604KNOB - RED LONG2$22.40
90307778PLUG, FILLER2$3.40
100400061SCREW, 1/4"-20 X 2 1/4" RD HD PHIL SS3Call for price—
110400101SCREW, 5/16"-18 X 1" RD HD SLOTTED SS4$5.80
1204001075/16-2.5 X 2-1/2 HHCS4$5.80
1304001095/16-18 X 1 HHCS GR.5, ZP2$5.80
1404003691/4 "J" TYPE TINNERMAN3$5.80
150400379CLIP, 5/16" "J" TYPE TINNERMAN4$8.00
1604003825/16-18 NYLOK HEX NUT ZP6$5.80
1704003933/8"-16 HEX JAM NUT12$5.80
180400466LOCKWASHER, 5/16" INTERNAL TOOTH6$5.80
1904005123/4 FLAT WASHER (SPECIAL)2Call for price—
200400527CLEVIS PIN, 5/16" X 5/8" COTTERLESS6$8.00
210500914DECAL- CONTROL PANEL WRECKER1$47.00
220500915DECAL - CONTROL PANEL SPADE1$47.00
230711235CLAMP - SHAFT2$17.40
240717203PIN - CONTROL HANDLE (6)1$42.00
250717206SPACER1$16.80
260717461PLATE - SHAFT SUPPORT1$16.00
270723231PANEL - CONTROL (6 HANDLE)1$169.60
280723232PANEL - SWITCH1$142.60
290806006CLEVIS WELDMENT6$9.80
300806008CONTROL FRAME WLMT (6, 7, 8 HANDLE)1$835.00
310806515CONTROL HANDLE WLMT6Call for price—
329024041MCGILL SWITCH2$43.40
339053524BRONZE BUSHING (.752 X .879 X .750)12$6.00
Back to Manual Navigation Menu

7035 2-Speed Parts List

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--125736021CENTURY 7035 - 2-SPEEDCall for price—
10907112SHIP KIT - 70351Call for price—
20907777BASIC UNIT ASSY-7035 2-SPEED1Call for price—
30911135INTEGRATED NON-LIGHTED CONTROL1$1,170.40
--0907112SHIP KIT - 7035Call for price—
403008443/4 X 1/8 CLOSED CELLPriced per foot15$2.80
5030322680 AMP CIRCUIT BREAKER2$119.20
60303867PUMP, BI-ROTATIONAL1$2,046.00
70306818WIRE, ROPE 3/4X6X37 IWRC 200'2$2,232.80
80310599CRC HD CORROSION INHIBIT SPRAY1Call for price—
90903064KIT-BODY MOUNTING 90551$1,598.40
100903137KIT-TOWER RAMP 9055/50301$187.00
110903729CHAIN-SAFETY ASSY1Call for price—
120904217HARDWARE-BODY MOUNTING1$236.60
130904366KIT-FORK (7) PAIRS1Call for price—
140907708CNTRL KIT RT (KNOB, DECAL, PL)1$686.20
150908275KIT, FENDER SKIRT-AL TBOX LWRK1$54.20
160911145PURCHASED SHIP KIT-70351Call for price—
--0903064KIT-BODY MOUNTING 9055$1,598.40
170707174ANG TAILGATE MTG2$34.80
180707175PLATE, MOUNTING 50302$117.40
190711286SPACER - REAR FRAME BRKT2Call for price—
200717507PLATE - MOUNTING2$561.60
--0903137KIT-TOWER RAMP 9055/5030$187.00
210303089RAMP PAD - 9055/50302$84.80
2204001283/8-16X1.25 FLAT HD SOC10$8.00
2304003923/8-16 NYLOK HEX NUT ZINC10$5.80
--0903729CHAIN-SAFETY ASSYCall for price—
240307626SAFETY CHAIN ASY, 1/2X14' GR1002$758.00
--0904217HARDWARE-BODY MOUNTING$236.60
2504002863/4-10X2.75" HHCSGR 8GOLD44$8.00
2604003017/8-9X3HHCS GR5 ZP4Call for price—
2704004313/4-10 NYLOK HEX GR 8 ZP44$8.00
2804004367/8-9 NYLOK HEX NUT ZP4$5.80
--0904366KIT-FORK (7) PAIRSCall for price—
290200018FORK-SHORT, 3IN OPNG2$158.80
300200019FORK-SHORT, 4-1/2IN OPNG2$177.00
310200020FORK-MED, 3IN OPNG2$216.60
320200021FORK-MED, 4-1/2IN OPNG2$251.00
330200022FORK-LONG, 3IN OPNG2$261.80
340200023FORK-LONG, 4-1/2IN OPNG2$339.40
350200024FORK-OFFSET REAR AXLE2$251.00
360200042FORK-MEDIUM ROUND AXLE2$184.00
370306564ALUM T HANDLE 5/8" X 1-1/4"2$18.80
--0904366KIT-FORK (7) PAIRS (cont'd)Call for price—
380310230CLEVIS PIN, 5/8 X 6 ZINC PLT2$13.80
390400886HITCH PIN CLIP, 1/8 DIAX2.6 OAL2$2.40
400801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
410801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
420803591ADAPTER-LEFT FORK1$875.00
430803592ADAPTER-RIGHT FORK1$875.00
440807023BRKT-PIVOT SPRING LIFT2$586.40
450900900PIN-ASSY, RETAINER2$32.80
460908672PIN-RET.-SPRING LIFT2$43.40
--0900900PIN-ASSY, RETAINER$32.80
470302474PIN, LINCH 3/161$3.80
4803111673/16 SWAGE FOR 1/8 COATED CABLE1$3.00
490311210CABLE, PIN RETAINER ASSY .1251$28.60
5004005683/8X3" ROLL PIN ZP1$8.00
5104005733/16X1-1/4ROLL PIN ZP1$5.80
5204020201/4-20NC X 3/4 HEX HD SS1$5.80
530703426PIN, RETAINER1Call for price—
--0908672PIN-RET.-SPRING LIFT$43.40
540302474PIN, LINCH 3/161$3.80
5503111673/16 SWAGE FOR 1/8 COATED CABLE1$3.00
560311210CABLE, PIN RETAINER ASSY .1251$28.60
5704005683/8X3" ROLL PIN ZP1$8.00
5804005733/16X1-1/4ROLL PIN ZP1$5.80
5904020201/4-20NC X 3/4 HEX HD SS1$5.80
600718917PIN, RETAINER1Call for price—
--0907708CNTRL KIT RT (KNOB, DECAL, PL)$686.20
610300835KNOB-BOOM (UP-DOWN)1$13.20
620300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
630300837KNOB-BOOM (IN-OUT)1$15.00
640307166PLUG 7/82$2.00
650307604KNOB, RED LONG - SK0700-072$22.40
660310021PIGTAIL, PWR - SWITCH1Call for price—
670310022PIGTAIL, GND - SWITCH1Call for price—
6804000611/4-20X3/4 MACH SCREW3Call for price—
6904000621/4-20X3/4 THRD CUT HEX12$8.00
7004000701/4-20X1 HHCS GR5 ZP4$5.80
7104001015/16-18X1 RD MACH HD SS4$5.80
7204001075/16-18X2.5 HHCS GR5 ZP4$5.80
7304003671/4-20 NYLOK HEX NUT ZP4$5.80
7404003691/4 "J" TYPE TINNERMAN3$5.80
7504003795/16-18 "J" NUT TINNERMAN4$8.00
7604003933/8-16 HEX NUT JAM ZP4$5.80
7704004511/4 FLATWASHER ZP6$5.80
780500914DECAL-CTRL PANEL WRECKER1$47.00
790500915DECAL-CTRL PANEL SPADE1$47.00
800501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
--0907708CNTRL KIT RT (KNOB, DECAL, PL) (cont'd)$686.20
810723231PANEL-CONTROL 6 HANDLE1$169.60
820723232PANEL-SWITCH1$142.60
830724648BRACE1$36.00
849024041SWITCH-ROCKER, LIGHTED 12V2$43.40
--0908275KIT, FENDER SKIRT-AL TBOX LWRK$54.20
850307270SIKAFLEX-GRAY 221-G SEALANT1$34.80
869025068REFLECTOR-PETERSON B489R DECAL4$8.00
--0911145PURCHASED SHIP KIT-7035Call for price—
87030013214" UV BLK CABLE TIE100$1.00
880500554FLAG, AMERICAN LT2$19.40
890500686DECAL - RETRACT CAUTION2$3.80
900501167PLATE, CENTURY, NAME, PLASTIC2$52.40
910501669DECAL, AIR FREE SPOOL2$15.00
920711438BRACKET - HOSE8Call for price—
930902333KIT-GLAD HAND1Call for price—
940904183KIT-AIR TENSIONER1$1,729.80
950906485DATA PACKAGE - 7035/T351Call for price—
960906838GROUND KIT MTG.HARNESS CENTURY1$26.80
970907043KIT, HOLE PLUG TOOL BOX1$98.60
980907883KIT- PUMP 5130-70351$1,310.00
990908382KIT - MUDFLAP LRG CENTURY WKR1$249.80
1000908446KIT, SWITCH/DECALS 2-SPD WINCH1Call for price—
1010911090KIT-SAFETY TREAD-INTEGRATED1$143.80
--0902333KIT-GLAD HANDCall for price—
1020301909RECEPTACLE BOOT1Call for price—
1030301946FITTING, BLKHD CONNECT2$93.80
1040301948HD 7 WAY TRAILER CONNECT1$59.60
1050304363QUICK DISCONNECT 1/2 FPT2$64.40
10604000701/4-20X1 HHCS GR5 ZP2$5.80
10704003671/4-20 NYLOK HEX NUT ZP2$5.80
10804004511/4 FLATWASHER ZP2$5.80
--0904183KIT-AIR TENSIONER$1,729.80
10903015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot25$5.80
1100302495CONVOLUTED LOOM 1/4Priced per foot25$2.80
11103111936" CABLE TIE25Call for price—
11204000621/4-20X3/4 THRD CUT HEX2$8.00
1130700188BRKT, BULKHEAD2$13.80
1140909085KIT, AIR FLR/REG/LUBE COMBO 1/41$233.40
115HA0132GAUGE 0-160 PSI1$24.40
--0909085KIT, AIR FLR/REG/LUBE COMBO 1/4$233.40
1160302123HEX NIPPLE 4MP-4MP1$8.00
1170303363AIR FLTR/REGULATOR COMBO1$142.60
1180306983FITT, BRASS RUNTEE 1/4T-1/4MPX1$18.80
1199010520FITT, BRASS ELB 1/4T-1/4MP1$13.80
--0906485DATA PACKAGE - 7035/T35Call for price—
1200500241DECAL-SAFETY CHAIN WARN3$8.00
1210501060MANUAL - OWNERS 7035/T351$92.00
1220501763CENTURY LARGE INT INSTL MANUAL1Call for price—
12305017677035 PARTS MANUAL1$82.40
--0906838GROUND KIT MTG.HARNESS CENTURY$26.80
12404001263/8-16X1 HHCS GR5 ZP1$5.80
12504003923/8-16 NYLOK HEX NUT ZINC1$5.80
12604004813/8" EXT.TOOTH LOCKWASHER1$5.80
12704004993/4" EXT.TOOTH LOCKWASHER1Call for price—
12804021223/8-16NC HEX NUT 316 SS1$4.00
1290716468LUG - GROUNDING1Call for price—
--0907043KIT, HOLE PLUG TOOL BOX$98.60
1300307052WASHER, RUBBER 7/16X1 1/4X1/48$3.80
13104002011/2-13X1.5 CRGBLT GR5 ZP4Call for price—
13204004071/2-13 HEX NUT ZP4$5.80
13304004911/2" HCL LKWSHR ZP4$5.80
13404004921/2" FLATWASHER ZP4$5.80
13504005065/8 FLATWASHER ZP4$5.80
--0907883KIT- PUMP 5130-7035$1,310.00
1360300348NIPPLE, 1-1/2 X 52$7.80
1370300364CLAMP-HOSE, 0.875"-2.75" 50"LBS8$7.00
1380300660HOSE HYD, 120"2$112.00
1390300865FITTING, CONNECTOR 8MJ-8MJ2$5.60
1400301529HOSE HYD, 582$75.80
1410301547FITTING, ELB 8MJ-12MB 902$18.80
1420302088BALL VALVE2$91.00
1430302698FITTING, HOSE BARB, 1-1/42$32.40
1440302906FITTING, ADAPTER2$15.20
1450303290INSULATED CLAMP 2 1/212$19.40
1460303463BUSHING 1 1/2MP-1 1/4FP2$6.80
1470306539HOSE BARB 20HOSE16MB902Call for price—
1480310010SUCTION HOSE, 1-1/4ID X50 100R41Call for price—
14904001811/2-13X1.5 HHCS GR5 ZP2$5.80
15004004911/2" HCL LKWSHR ZP2$5.80
--0908382KIT - MUDFLAP LRG CENTURY WKR$249.80
1510310631MUD FLAP, CENTURY2$45.20
15204001035/16-18X1.25 HHCS GR5 ZP8$5.80
15304001483/8-16X1.25 HHCS GR5 ZP4$5.00
15404003825/16-18 NYLOK HEX NUT ZP8$5.80
15504003923/8-16 NYLOK HEX NUT ZINC4$5.80
1560717386BAR - MUDFLAP2$45.20
1570718139ANGLE - MUD FLAP MOUNT2$50.60
--0908446KIT, SWITCH/DECALS 2-SPD WINCHCall for price—
1580501647DECAL, 2-SPEED2$17.40
--0908446KIT, SWITCH/DECALS 2-SPD WINCH (cont'd)Call for price—
1599024041SWITCH-ROCKER, LIGHTED 12V4$43.40
--0907777BASIC UNIT ASSY-7035 2-SPEEDCall for price—
1600903156CROSSBAR-5" ASSY1$3,862.40
1610906479UNDERLIFT & TOWER ASSY (7035)1$27,325.40
1620910472BUA-7035 2-SP LESS U/L & TOWER1Call for price—
--0903156CROSSBAR-5" ASSY$3,862.40
1630301197COMP.SPRING, CROSS BAR, FI1$9.20
1640301398STEEL BALL, 1-3/16 DIA1$15.60
1650301822O-RING - PIVOT PIN1$3.80
1660303097THRUST WASHER - 1/8 THK1$90.20
1670303098THRUST WASHER - 1/16 THK1$54.20
16804002715/8-11X4.5SKTHDCAPSCREW2$13.80
16904005085/8" HELICAL LCKWSHR ZP2$5.80
1700708470SPACER - DETENT BALL SPRG1$17.40
1710710051PIN - TOP HALF PIVOT1$299.60
1720710052PIN - BOTTOM HALF PIVOT1$299.60
1730802914CROSSBAR WELDMENT1$2,756.80
--0906479UNDERLIFT & TOWER ASSY (7035)$27,325.40
1740300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
1750301601CLAMP, HOSE, INSUL, 5/84$3.80
1760301620FITTING, HYD. 6MJ - 6MB902$5.80
1770301662HOSE HYD, 120" 6M1T 6FJX-6FJX2$93.80
1780302911HOSE HYD, 88"1$72.60
1790306746CYL HYD - FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
1800306870HOSE HYDR - 96"1$77.00
18104001323/8-16X1.5 HHCS GR5 ZP1$5.80
18204001513/8-24X3/4 HHCS GR5 ZP5$5.80
18304001761/2-13X1 HHCS GR5 ZP1$5.80
18404003923/8-16 NYLOK HEX NUT ZINC3$5.80
18504004803/8 FLATWASHER ZP1$4.00
18604004813/8" EXT.TOOTH LOCKWASHER9$5.80
18704004823/8" HELICAL LCKWSHR - ZP1$5.80
18804004911/2" HCL LKWSHR ZP1$5.80
1890706432BLOCK - STOP2$11.60
1900717657PLATE, STOP BLOCK SUPRT2$24.40
1910717851BLOCK, STOP2$82.60
1920802365PIN-TOWER PIVOT WLMT2$177.00
1930802459PIN-FOLD CYL. WLDMT1$144.40
1940802461PIN-UNDERLIFT PIVOT WLMT1$399.00
1950804421TOWER WLMT - 70351$10,314.60
1960804483CABLE TIE BACK WLMT2$166.20
1970806756PIN WELD'T - FOLD CYLINDER1$57.80
1980906480U/L BOOM ASSY (7035)1$14,861.40
1990906572KIT-WINCH CABLE STOW2$55.80
200RB0205SPLIT BUSHING2$103.00
--0906480U/L BOOM ASSY (7035)$14,861.40
2010301470FITTING, 90ELB 6MJ-8MB902$7.60
2020302538BUSHING - U/L2$189.60
2030302561SLIDE PAD8$18.80
2040303490PAD-WEAR 1/2" X 1" X 4"2$49.60
2050306744CYL U/L EXTEND1$5,359.40
Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670Southern (SHCI) cylinder: SEAL KIT FOR 0302206$223.80
0311141Texas (THI) cylinder: SEAL KIT 0306744$220.80
2060306825SLIDE PAD - 3/4 X 1 X 42$19.40
2070307420SLEEVE, NYLON PROTECTIVE-24HGPriced per foot2$2.60
20804001223/8-16X1.25 HHCS GR5 ZP1$5.80
20904001393/8-16X1.5 HEX SKT SET2$5.80
21004001473/8-24X5/8 HHCS GR5 ZP4$5.80
21104001513/8-24X3/4 HHCS GR5 ZP5$5.80
21204002283/8-24X5/8 BUTTON HEAD8$9.80
21304003923/8-16 NYLOK HEX NUT ZINC2$5.80
21404004813/8" EXT.TOOTH LOCKWASHER9$5.80
2150400990SET SCRW, 1/2-13X1/2 SKT, CUP PT8$9.80
2160706995BLOCK-STOP 2ND STAGE4$29.00
2170706996PAD, SPACER1$47.00
2180707019SHAFT, EXTEND CYL1$97.40
2190707028PAD, BOLT-ON BEARING1$52.40
2200716033PIN - EXT CYL (7035 U/L)1$124.60
2210804422OUTER BOOM WLMT - 7035 U/L1$5,852.20
22208044232ND STAGE BOOM WLMT - 70351$4,156.00
22309064813RD STAGE BOOM ASSY - 70351$3,770.00
--09064813RD STAGE BOOM ASSY - 7035$3,770.00
2240303088BUSHING - PIVOT PIN1$393.60
225040004410X1/2 DRIVE SCREW RD8$5.80
2260703277PAD, SLIDER2$11.60
22708044243RD STAGE BOOM WLMT - 70351$3,324.60
2280906572KIT-WINCH CABLE STOW$55.80
22904002575/8-11X3.25 HHCS GR5 ZP1$3.40
23004004215/8-11 NYLOK HEX NUT ZP1$5.80
2310804483CABLE TIE BACK WLMT1$166.20
23290488005/8 WELDLESS CHAIN LINK1$21.60
233945030007CABLE TIE BACK SPRING-11$28.00
--0910472BUA-7035 2-SP LESS U/L & TOWERCall for price—
23404000024X1/4 DRIVE SCREW RD HD4$4.00
2350501219PLATE - SERIAL & DATA GENERIC1$53.00
2360707792PIN-TILT CYL-BASE END1$146.20
2370707793PIN-TILT CYL-ROD END1$150.60
2380906487BOOM INSTALLATION - 70351$27,644.40
2390906531KIT - BOOM SWIVEL1$4,284.40
2400907315SUBFRAME ASSY - 70351Call for price—
2410907778WINCH ASSEMBLY - 7035 2-SPEED1Call for price—
--0906487BOOM INSTALLATION - 7035$27,644.40
2420301207HOSE HYD, 72"2$84.80
2430301895GREASE FITTING, STR 1/8 PTF2$5.80
--0906487BOOM INSTALLATION - 7035 (cont'd)$27,644.40
2440302504HYD TUBING6$231.00
2450302514ADAPTER 8MJ-6MJ6$5.60
2460302546CLAMPING UNIT C-PH-10-26$15.60
2470302548CLAMPING UNIT(SET) HC-10-64$28.00
2480302549SPLIT BUSH.RUBBER C-SB10-8 1/224$5.60
2490302550C-SB-10-12 3/4 SPLIT10$9.80
2500302551C-SN-10 SOCKET-HEAD11$11.60
2510302955HOSE HYD, 48-1/4"2$63.00
2520303763HOSE HYD, 94"2$115.00—
25304001185/16-18X3/4 HHCS GR5 ZP22$5.80
25404001323/8-16X1.5 HHCS GR5 ZP2$5.80
25504001811/2-13X1.5 HHCS GR5 ZP2$5.80
25604002201/2-13X5.5" HHCS GR5 ZP1$8.00
25704003923/8-16 NYLOK HEX NUT ZINC4$5.80
25804004081/2-13 NYLOK HEX NUT ZP3$2.80
25904004921/2" FLATWASHER ZP2$5.80
2600705104PLATE-WINCH CABLE SPPT.1$95.60
2610713217BAR6Call for price—
2620715953PIN - BOOM PIVOT1$635.40
2630802463PIN-LIFT CYL. PIVOT WLMT2$252.80
2640906488KIT - TILT CYLINDER (7035)1Call for price—
2650906489BOOM ASSEMBLY - 70351Call for price—
--0906488KIT - TILT CYLINDER (7035)Call for price—
2660300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
2670301470FITTING, 90ELB 6MJ-8MB902$7.60
2680301522FITTING, CONN. 6MJ-6MB1$3.80
2690301619FITT, 6MJ-6MJ-6MB BRANCH TEE1$11.20
2700301620FITTING, HYD. 6MJ - 6MB901$5.80
2710302035HOSE HYD, 18" 6FJX-6FJX -6M1T1$37.40
2720302805HOSE HYD, 10"1$29.80
2730302842FITTING, TEE2Call for price—
2740302914HOSE HYD, 35"1$70.20
2750302915HOSE HYD, 12"2$56.00
2760303563HOSE HYD, 27"1$42.00
2770307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
2780307106FITT, CONNECTOR 4MB-6FB1$9.40
2790307107VALVE, HOLDING 4000 PSI SAE1$310.60
28004000641/4-20X2.25 SLOTTED RD2Call for price—
28104000781/4-20X2 HHCS GR5 ZP2$5.80
28204001333/8-16X3 HHCS GR5 ZP4$5.80
28304003671/4-20 NYLOK HEX NUT ZP2$5.80
28404003923/8-16 NYLOK HEX NUT ZINC4$5.80
28504021101/4 SS FLAT WASHER2$5.80
2860703001BRKT, MTG, CHECK VALVE1$24.40
2870707792PIN-TILT CYL-BASE END1$146.20
2880707793PIN-TILT CYL-ROD END1$150.60
--0906489BOOM ASSEMBLY - 7035Call for price—
2890300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
290030013214" UV BLK CABLE TIE1$1.00
29103019493/8" OD AIRLINE, SYNFLEX HOSEPriced per foot16$8.00
2920302552C-WA-10 WELD ADAPTER11$15.60
2930303490PAD-WEAR 1/2" X 1" X 4"2$49.60
29404000591/4-20X5/8 HHCS GR5 ZP2$5.80
29504001213/8-16X3/4 HHCS GR5 ZP7$5.80
29604001761/2-13X1 HHCS GR5 ZP2$5.80
29704002485/8-11X1HHCS GR 8 ZP4$5.80
29804004521/4" HELICAL LCKWASHR ZP2$5.80
29904004823/8" HELICAL LCKWSHR - ZP4$5.80
30004004911/2" HCL LKWSHR ZP2$5.80
3010400990SET SCRW, 1/2-13X1/2 SKT, CUP PT4$9.80
3020804402OUTER BOOM WLMT - 70351Call for price—
3030804403INNER BOOM WLMT - 70351$7,878.40
3040906490KIT - EXT. CYLINDER (7035)1Call for price—
3050908430KIT-D RING BOOM1$507.60
3063012-793001PLATE - LUBE MTG.1$19.40
30790444343/8-16X1 NC FLAT SOCKET HD CAP2$5.80
308930100002LOWER WEAR PAD-RECOVERY1$70.40
309945030001PAD RETAINING PLATE-UPPER1$30.00
310945030004UPPER WEAR PAD-RECOVERY1$70.40
311DE13811/2 WASHER SAE 17/32 ID2$5.60
312RB0205SPLIT BUSHING2$103.00
--0906490KIT - EXT. CYLINDER (7035)Call for price—
3130301529HOSE HYD, 582$75.80
3140302276FITTING, ELB 90 DEG2$11.20
3150306743CYL - BOOM EXTEND1$6,643.20
0304625Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103$157.00
31604003923/8-16 NYLOK HEX NUT ZINC2$5.80
31704004823/8" HELICAL LCKWSHR - ZP2$5.80
31804007713/8-16 X 1-1/2 HHCS GR 82$5.60
3190715951PIN - EXT CYL BASE1$93.80
3200715952PIN - EXT CYL ROD1$90.20
3210810012SPIDER CLAMP1$211.00
322HD0151SNAP RING, 2"INTERNAL4$5.80
--0908430KIT-D RING BOOM$507.60
32304001145/16-18X3 HHCS GR5 ZP1$5.80
32404007765/16-18 HEX NUT JAM NYLOK ZP1$5.80
3250719585D-RING, TOWING1$440.40
326GA0215PIN-"D" RING1$81.20
--0906531KIT - BOOM SWIVEL$4,284.40
32704005543/8X1 ROLL PIN ZP6$9.60
3280906532SWIVEL - BOOM ASSEMBLY2$1,897.80
--0906532SWIVEL - BOOM ASSEMBLY$1,897.80
3290300113GREASE FITTING, 1/4-28 STRAIGHT1$5.80
--0906532SWIVEL - BOOM ASSEMBLY (cont'd)$1,897.80
3300303441SHEAVE-10" DIA X 1.5 BORE1$429.60
33104001333/8-16X3 HHCS GR5 ZP1$5.80
33204001503/8-16X2.5 HHCS GR5 ZP2$5.80
33304003923/8-16 NYLOK HEX NUT ZINC3$5.80
3340700801GUIDE, BOTTOM CABLE2$23.20
3350716134SHAFT - SHEAVE1$68.60
3360803313GUIDE-CABLE WELDMENT1$283.40
3370804449BOOM END SWIVEL WLDT-INTEGRATD1$1,129.00
--0907315SUBFRAME ASSY - 7035Call for price—
3380302538BUSHING - U/L2$189.60
33904000701/4-20X1 HHCS GR5 ZP2$5.80
34004002883/4-10X2.5HHCS GR 8GOLD12$9.80
34104003671/4-20 NYLOK HEX NUT ZP2$5.80
34204004313/4-10 NYLOK HEX GR 8 ZP12$8.00
3430711164BLOCK - SHEAR4$5.60
3440712522BAR4$6.60
3450714581PLATE - BOLTING4$13.00
3460716201PLATE - BULKHEAD1Call for price—
3470804405BRACKET - BOOM PIVOT2$884.00
3480806001SUBFRAME WELD'T - 7035/90551Call for price—
3490902553KIT-D RING LARGE1$402.40
3500903528LINK-LT.&RT. SIDE CONT.1$145.00
3510906313SPADE ASSY - REAR HYDRAULIC1$11,707.60
3520906483KIT - LIFT CYLINDER 70351$4,851.80
3530906498KIT-FRAME HYDRAULIC 70351Call for price—
3540907139PAN-VALVE ASSY1Call for price—
3550907140KIT-VALVE COVER 90551Call for price—
3560907288CONTROL ASSY (9) HANDLES1$3,612.00
3570907289RIGHT CONTROL ASSY-(6 HANDLE)1$2,615.00
3580907347KIT - REAR HANDRAIL1Call for price—
3590907802KIT - RESERVOIR 5130-90551$3,943.00
--0902553KIT-D RING LARGE$402.40
36004001145/16-18X3 HHCS GR5 ZP2$5.80
36104007765/16-18 HEX NUT JAM NYLOK ZP2$5.80
3620719585D-RING, TOWING2$440.40
363GA0215PIN-"D" RING2$81.20
--0903528LINK-LT.&RT. SIDE CONT.$145.00
3640303008ADJUSTABLE CLEVIS3$9.40
36504001035/16-18X1.25 HHCS GR5 ZP9$5.80
36604001223/8-16X1.25 HHCS GR5 ZP6$5.80
36704003825/16-18 NYLOK HEX NUT ZP9$5.80
36804003835/16-24 HEX NUT ZP12$5.80
36904003923/8-16 NYLOK HEX NUT ZINC6$5.80
37004004665/16 INT.TOOTH LOCKWSHR47$5.80
3710711249PLATE - CONTROL BULKHEAD2$21.60
3720711250PLATE - CONTROL BULKHEAD1$16.40
--0903528LINK-LT.&RT. SIDE CONT. (cont'd)$145.00
3730801054CONNECTOR-CONTROL CABLE6Call for price—
--0906313SPADE ASSY - REAR HYDRAULIC1$11,707.60
3740300044FITT, HYD CONN. 6MJ-8MB4$3.80
3750300134CLAMP, 1" HOSE INSULATED12$8.80
3760301861QUICK PIN, LINCH -B7932 PL 7/162$3.80
3770303748HOSE HYD, 1364$106.60
3780307843CYL, HYD TI-S40030032PPBZ2$2,233.60
0310275Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843$58.80
37904000661/4-20X3/4 HHCS GR5 ZP8$5.80
38004001393/8-16X1.5 HEX SKT SET4$5.80
38104003923/8-16 NYLOK HEX NUT ZINC10$5.80
38204004521/4" HELICAL LCKWASHR ZP8$5.80
3830713128SHAFT - LOWER SPADE2$56.00
3840713129SHAFT - UPPER SPADE2$59.60
3850715584PLATE - REAR SPADE COVER2$19.40
3860715694PIN - SPADE PIVOT2$125.60
3870804334PIN - MULTI-POSITION2$252.80
3880807627INNER SPADE WELD'T LH1$2,707.00
3890807628INNER SPADE WELD'T RH REINF1$2,707.00
3900807630LOWER SPADE PAD WLMT2$1,020.00
3919046354SPRING PIN 1/4 X 2-1/22$5.80
--0906483KIT - LIFT CYLINDER 7035$4,851.80
3920300365CLAMP, CHECK VALVE RET.72$12.40
3930300657HOSE HYD, 46" LG2$84.80
3940300659HOSE HYD, 45"2$61.40
3950301388FITTING, 90ELL, 8MJ-8MB904$13.20
3960302275FITTING, CONN 8MJ-6MB W/STEP2$7.60
3970302276FITTING, ELB 90 DEG4$11.20
3980302568HYD TUBING2Call for price—
4000302796FITTING, TEE2Call for price—
4010306747CYL - BOOM LIFT2$6,139.40
Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601AAshun (MTC) cylinder: SEAL KIT 0306747 MTC$550.60
0304572Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC$276.20
0304601Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER$229.20
0304601RMTRosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOMCall for price770-921-6070
4020307106FITT, CONNECTOR 4MB-6FB2$9.40
4030307107VALVE, HOLDING 4000 PSI SAE2$310.60
4040307614TUBING-HYD ASSY 1/2" DIA 70352$45.40
40504000781/4-20X2 HHCS GR5 ZP4$5.80
40604002191/2-13X4.5HHCS GR5 ZP2$8.00
40704003661/4-20 HEX NUT ZP4$5.80
40804004081/2-13 NYLOK HEX NUT ZP2$2.80
40904004511/4 FLATWASHER ZP4$5.80
41004004521/4" HELICAL LCKWASHR ZP4$5.80
4110703001BRKT, MTG, CHECK VALVE2$24.40
4120708094PIN - LIFT CYLINDER2$314.20
--0906498KIT-FRAME HYDRAULIC 7035Call for price—
4130301473HOSE HYD, 18" LG2$57.80
4140301837INLINE ORIFICE1Call for price—
4150301965HOSE HYD, 131"2$117.40
4160302546CLAMPING UNIT C-PH-10-22$15.60
--0906498KIT-FRAME HYDRAULIC 7035 (cont'd)Call for price—
4170302550C-SB-10-12 3/4 SPLIT6$9.80
4180302551C-SN-10 SOCKET-HEAD2$11.60
4190302552C-WA-10 WELD ADAPTER3$15.60
4200302574FITTING-BULKHEAD RUN TEE2Call for price—
4210302576FITTING, BULKHEAD UNION14$12.40
4220302584HOSE HYD, 50"3$63.20
4230302805HOSE HYD, 10"1$29.80
4240302835C-WA-10 WELD ADAPTER4Call for price—
4250302955HOSE HYD, 48-1/4"6$63.00
42603030368 FJ CAP2$3.20
4270303342HOSE HYD, 30" LG6$47.00
4280303348HOSE HYD, 48" LG3$76.60
4290303354HOSE HYD, 33" LG1$70.00
4300303355HOSE HYD, 33" LG1$74.80
4310303435HOSE HYD, 58"2$139.00
4320303562HOSE HYD, 37"1$47.60
4330303563HOSE HYD, 27"1$42.00
4340307345FITTING, ADAPTER 16FJ-12MJ2$14.80
43504000781/4-20X2 HHCS GR5 ZP2$5.80
43604001185/16-18X3/4 HHCS GR5 ZP3$5.80
43704003671/4-20 NYLOK HEX NUT ZP2$5.80
--0907139PAN-VALVE ASSYCall for price—
4380300044FITT, HYD CONN. 6MJ-8MB2$3.80
4390301470FITTING, 90ELB 6MJ-8MB902$7.60
4400301730VALVE, DOUBLE HOLDING1$542.60
44104000781/4-20X2 HHCS GR5 ZP2$5.80
44204001095/16-18X1 HHCS GR5 ZP9$5.80
44304001353/8-16X4.5 HHCS GR5 ZP6Call for price—
44404001573/8-16X1.75 HHCS GR5 ZP8$5.80
44504003671/4-20 NYLOK HEX NUT ZP2$5.80
44604003825/16-18 NYLOK HEX NUT ZP2$5.80
44704003845/16-24 NYLOK HEX NUT ZP2$5.80
44804003923/8-16 NYLOK HEX NUT ZINC12$5.80
44904004511/4 FLATWASHER ZP2$5.80
4500704045SPACER-CONTROL VALVE6Call for price—
4510717827PLATE, VALVE MOUNTING1Call for price—
4520719122PLATE - VALVE MTG1$13.20
4530906494VALVE ASSY, PARKER 4 SPL W/FTGS1Call for price—
4540906495VALVE ASSY, PARKER 5 SPL W/FTGS1Call for price—
--0906494VALVE ASSY, PARKER 4 SPL W/FTGSCall for price—
4550300044FITT, HYD CONN. 6MJ-8MB3$3.80
4560300052FITTING, ELB 8MJ-10MB 901$11.20
4570301388FITTING, 90ELL, 8MJ-8MB901$13.20
4580301522FITTING, CONN. 6MJ-6MB3$3.80
4590301545FITTING, ELB 12MJ-12MB 901$18.80
4600301995FITTING, ADAPTER STR1$5.60
4610302052FITTING, RUN TEE1$15.00
--0906494VALVE ASSY, PARKER 4 SPL W/FTGS (cont'd)Call for price—
4620302508FITTING, ELL 8MJ-8MB 90LL1$13.80
4630303017FITTING, CONNECTOR3$5.60
4640303093VALVE, 4 SPOOL PARKER1$1,337.00
--0906495VALVE ASSY, PARKER 5 SPL W/FTGSCall for price—
4650300044FITT, HYD CONN. 6MJ-8MB6$3.80
4660300052FITTING, ELB 8MJ-10MB 901$11.20
4670301388FITTING, 90ELL, 8MJ-8MB901$13.20
4680301522FITTING, CONN. 6MJ-6MB2$3.80
4690301545FITTING, ELB 12MJ-12MB 901$18.80
4700301995FITTING, ADAPTER STR1$5.60
4710302052FITTING, RUN TEE1$15.00
4720302508FITTING, ELL 8MJ-8MB 90LL1$13.80
4730303017FITTING, CONNECTOR2$5.60
4740303094VALVE, 5 SPOOL PARKER1$1,447.40
--0907140KIT-VALVE COVER 9055Call for price—
47504001213/8-16X3/4 HHCS GR5 ZP4$5.80
47604004823/8" HELICAL LCKWSHR - ZP4$5.80
4770717066COVER - VALVE1$126.20
4780807181COVER, SUPPORT WELDMENT4$44.20
--0907288CONTROL ASSY (9) HANDLES$3,612.00
4790301473HOSE HYD, 18" LG2$57.80
4800302205GAUGE, FLUSH MNTG-6000 PSI2$44.80
4810302457CABLE, CONTROL 1043$167.80
4820302726GREASE FITTING, 1/4-28 X 45DEG9$3.80
4830303427CABLE, CONTROL 114"6$167.80
48404001075/16-18X2.5 HHCS GR5 ZP4$5.80
48504001095/16-18X1 HHCS GR5 ZP4$5.80
48604003825/16-18 NYLOK HEX NUT ZP8$5.80
48704003933/8-16 HEX NUT JAM ZP9$5.80
48804004511/4 FLATWASHER ZP8$5.80
48904005123/4 FLAT WASHER(SPECIAL)2Call for price—
4900400527CLEVIS PIN, 5/16X1"X5/8"GRIP9$8.00
4910711235CLAMP - SHAFT CONTROL BOX2$17.40
4920717198PIN - CONTROL HANDLE (9)1$42.00
4930717461PLATE - SUPPORT SHAFT2$16.00
4940806006CLEVIS WELD'T9$9.80
4950806007CONTROL FRAME WELD'T-(9) HANDL1Call for price—
4960907441CONTROL HANDLE ASSY - SHORT9$92.00
497FC41FITTING-90DEG BLKHD ELB2$15.60
--0907441CONTROL HANDLE ASSY - SHORT$92.00
4980806515CONTROL HANDLE WELD'T1Call for price—
4999053524BEARING BR. FLG.752 X .879X.752$6.00
--0907289RIGHT CONTROL ASSY-(6 HANDLE)$2,615.00
5000302457CABLE, CONTROL 1042$167.80
--0907289RIGHT CONTROL ASSY-(6 HANDLE) (cont'd)$2,615.00
5010302457CABLE, CONTROL 1042$167.80
5020302726GREASE FITTING, 1/4-28 X 45DEG6$3.80
5030303427CABLE, CONTROL 114"4$167.80
50404001075/16-18X2.5 HHCS GR5 ZP4$5.80
50504001095/16-18X1 HHCS GR5 ZP2$5.80
50604003825/16-18 NYLOK HEX NUT ZP6$5.80
50704004511/4 FLATWASHER ZP6$5.80
50804005123/4 FLAT WASHER(SPECIAL)2Call for price—
5090400527CLEVIS PIN, 5/16X1"X5/8"GRIP6$8.00
5100711235CLAMP - SHAFT CONTROL BOX2$17.40
5110717203PIN - CONTROL HANDLE (6)1$42.00
5120717206TUBE - 1.25 OD SPACER1$16.80
5130717461PLATE - SUPPORT SHAFT1$16.00
5140806006CLEVIS WELD'T6$9.80
5150806008CNTRL FRAME WELD'T-(6, 7, 8 HND)1$835.00
5160907441CONTROL HANDLE ASSY - SHORT6$92.00
--0907441CONTROL HANDLE ASSY - SHORT$92.00
5170806515CONTROL HANDLE WELD'T1Call for price—
5189053524BEARING BR. FLG.752 X .879X.752$6.00
--0907347KIT - REAR HANDRAILCall for price—
51904001483/8-16X1.25 HHCS GR5 ZP6$5.00
52004003923/8-16 NYLOK HEX NUT ZINC6$5.80
5210806521HAND RAIL WELD'T2Call for price—
--0907802KIT - RESERVOIR 5130-9055$3,943.00
5220300287FITTING, PIPE BUSHING, 1.25X12Call for price—
5230300364CLAMP-HOSE, 0.875"-2.75" 50"LBS2$7.00
5240301350PIPE, 1-1/2 CLOSE NIPPLE2Call for price—
5250301894SPIN-ON FLTR ASSY2$276.20
5260302227CENTER BONDED MOUNT4$24.40
5270302228SPECIAL WASHER (LORD)4$21.60
5280302570SIGHT GAUGE 3/4 NPT (SVM-12)2$15.60
5290302756SUCTION HOSE, 1-1/4IDX100 100R4Priced per foot2.25$21.20
5300303155PIPE PLUG 3/4 NPT MAGNETIC2$11.60
5310303338FITTING, ELBOW2$26.40
5320305006FILLER CAP (GO205, FB194)2$63.20
5330307344SUCTION STRAINER2$131.80
53404001223/8-16X1.25 HHCS GR5 ZP8$5.80
53504001493/8-16 X 5/8 HHCS GR5 ZP24$4.00
53604001503/8-16X2.5 HHCS GR5 ZP4$5.80
53704003923/8-16 NYLOK HEX NUT ZINC12$5.80
53804004803/8 FLATWASHER ZP24$4.00
5390706114GSKT-CLEANOUT&FLLR COVER2$42.20
5400802747PIPE-FILLER WLMT2Call for price—
5410803193SUPPORT-RESERVOIR WLDMT.2Call for price—
5420806653RESERVOIR-LEFT WELDMENT1$1,673.20
5430806654RESERVOIR-RIGHT WELDMENT1$1,673.20
--0907778WINCH ASSEMBLY - 7035 2-SPEEDCall for price—
5440300041FITTING, CONNECTOR 8MJ-8MB4$5.60
54503015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot70$5.80
5460302495CONVOLUTED LOOM 1/4Priced per foot70$2.80
5470302496WIRE, 12GA-WHITE/BLACK4Call for price—
5480303799WINCH, DP35K 2-SPEED2$15,473.40
5490310194HARNESS, WIRING 2-SPEED1$154.00
55003111936" CABLE TIE35Call for price—
55104002625/8-11X2.5" HHCS GR 8 ZP16$5.80
55204004265/8-11 GR 8 NYLOK NUT YZ PLT16$8.00
5530711164BLOCK - SHEAR8$5.60
5540715947ANGLE - WINCH MOUNTING2Call for price—
5550715948ANGLE - WINCH MOUNTING2Call for price—
5560715949ANGLE - WINCH MOUNTING2Call for price—
5570715950ANGLE - WINCH MOUNTING2Call for price—
5589010520FITT, BRASS ELB 1/4T-1/4MP2$13.80
5599011071FITT, BRASS TEE 1/4T-1/4T-1/4T1$15.60
--0911135INTEGRATED NON-LIGHTED CONTROL$1,170.40
5600907708CNTRL KIT RT (KNOB, DECAL, PL)1$686.20
5610907757CNTRL KIT LEFT (KNOB, DECAL, PL)1$717.80
--0907708CNTRL KIT RT (KNOB, DECAL, PL)$686.20
5620300835KNOB-BOOM (UP-DOWN)1$13.20
5630300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5640300837KNOB-BOOM (IN-OUT)1$15.00
5650307166PLUG 7/82$2.00
5660307604KNOB, RED LONG - SK0700-072$22.40
5670310021PIGTAIL, PWR - SWITCH1Call for price—
5680310022PIGTAIL, GND - SWITCH1Call for price—
56904000611/4-20X3/4 MACH SCREW3Call for price—
57004000621/4-20X3/4 THRD CUT HEX12$8.00
57104000701/4-20X1 HHCS GR5 ZP4$5.80
57204001015/16-18X1 RD MACH HD SS4$5.80
57304001075/16-18X2.5 HHCS GR5 ZP4$5.80
57404003671/4-20 NYLOK HEX NUT ZP4$5.80
57504003691/4 "J" TYPE TINNERMAN3$5.80
57604003795/16-18 "J" NUT TINNERMAN4$8.00
57704003933/8-16 HEX NUT JAM ZP4$5.80
57804004511/4 FLATWASHER ZP6$5.80
5790500914DECAL-CTRL PANEL WRECKER1$47.00
5800500915DECAL-CTRL PANEL SPADE1$47.00
5810501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
5820723231PANEL-CONTROL 6 HANDLE1$169.60
5830723232PANEL-SWITCH1$142.60
5840724648BRACE1$36.00
5859024041SWITCH-ROCKER, LIGHTED 12V2$43.40
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL)$717.80
5860300835KNOB-BOOM (UP-DOWN)1$13.20
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL) (cont'd)$717.80
5870300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5880300837KNOB-BOOM (IN-OUT)1$15.00
5890302856KNOB-TILT, 3/8-16 THREAD1$24.40
5900302917KNOB-WHL LIFT EXT IN-OUT1$31.00
5910303382KNOB - FOLD (UP-DN)1$17.40
5920307604KNOB, RED LONG - SK0700-072$22.40
5930307778PLUG, FILLER4$3.40
5940310021PIGTAIL, PWR - SWITCH1Call for price—
5950310022PIGTAIL, GND - SWITCH1Call for price—
5960400005SCREW, ROUND PH 6-32 X 1/2 SS6$5.80—
59704000621/4-20X3/4 THRD CUT HEX12$8.00
59804000661/4-20X3/4 HHCS GR5 ZP3$5.80
59904000701/4-20X1 HHCS GR5 ZP4$5.80
60004001015/16-18X1 RD MACH HD SS4$5.80
60104001075/16-18X2.5 HHCS GR5 ZP4$5.80
60204003671/4-20 NYLOK HEX NUT ZP3$5.80
60304003671/4-20 NYLOK HEX NUT ZP4$5.80
60404003691/4 "J" TYPE TINNERMAN3$5.80
60504003795/16-18 "J" NUT TINNERMAN4$8.00
60604003933/8-16 HEX NUT JAM ZP9$5.80
60704004511/4 FLATWASHER ZP6$5.80
6080402094NUT, HEX 6-32 SS6Call for price—
6090500773DECAL PLATE-THROTTLE1$31.00
6100500914DECAL-CTRL PANEL WRECKER1$47.00
6110500915DECAL-CTRL PANEL SPADE1$47.00
6120500916DECAL-CTRL PNL UNDERLIFT1$45.20
6130501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
6140723230PANEL, CONTROL 91$313.00
6150723233PANEL, GAUGE 91$177.00
6160724648BRACE1$36.00
6179024041SWITCH-ROCKER, LIGHTED 12V3$43.40
Back to Manual Navigation Menu

7035 2-Speed W/ Lowrider 3 Parts List

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--1257360337035 2-SP W/ LOWRIDER 3Call for price—
10911086BUA 7035 W/ LOWRIDER 31Call for price—
--0911086BUA 7035 W/ LOWRIDER 3Call for price—
204000024X1/4 DRIVE SCREW RD HD4$4.00
30903156CROSSBAR-5" ASSY1$3,862.40
40910472BUA-7035 2-SP LESS U/L & TOWER1Call for price—
50911087U/L AND TOWER LOWRIDER 31Call for price—
--0911087U/L AND TOWER LOWRIDER 3Call for price—
60306745CYL - U/L TILT2$2,954.20
0304668Seal kit for 0306745 cylinder: SEAL KIT FOR 0307040, 0302785$157.00
70306746CYL HYD - FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
804001761/2-13X1 HHCS GR5 ZP2$5.80
90802365PIN-TOWER PIVOT WLMT2$177.00
100802459PIN-FOLD CYL. WLDMT1$144.40
110802461PIN-UNDERLIFT PIVOT WLMT1$399.00
120806756PIN WELD'T - FOLD CYLINDER1$57.80
130807647TOWER WLMT - 70351$5,913.60
--0906572KIT-WINCH CABLE STOW$55.80
1409110397035 LOWRIDER 3 ASSY1Call for price—
15RB0205SPLIT BUSHING2$103.00
--09110397035 LOWRIDER 3 ASSYCall for price—
160300113GREASE FITTING, 1/4-28 STRAIGHT6$5.80
170302538BUSHING - U/L2$189.60
180310629CYL, HYD - U/L BOOM EXTEND2$3,823.40
0310906Seal kit for 0310629 cylinder: SEAL KIT-THI-FOR 0310629$177.80
1904000791/4-20X3/4 FL SKTSCR GR58$5.80
2004000861/4-20X1.25 FLTHDSKTCPSC4$5.80
2104001393/8-16X1.5 HEX SKT SET1$5.80
2204002495/8-11X1.25" SOC HD CAP S2$9.80
2304003441/2-13X3/4 LG FLAT HD SOCKET 88$5.80
2404003923/8-16 NYLOK HEX NUT ZINC1$5.80
2504005941/4-20X5/8 SOC FLT HD4$5.80
2604007491/2-13X1.25 FLT HD SKT CAP SRW8$5.60
270717869PLATE, SPACER (BOLT-ON)4$45.20
280717871PIN, CYLINDER ROD1$312.40
290717872PIN, EXTEND CYLINDER BASE1$122.80
300717873PIN, SHEAR OUTER BOOM2$117.40
310718087PLATE - PAD SPACER2$12.40
320718096BLOCK, STOP2$114.60
330724419PLATE-PLUG RETAINER2$54.00
340807973OUTER UL BOOM 7035 LOWRIDER 31Call for price—
350807974CTR UL BOOM 7035 LOWRIDER 31Call for price—
360810014BRACKET-EXT CYL1Call for price—
370911040LOWRIDER 3 INNER ASSY1Call for price—
38930150003TOP PADS6$28.00
--0911040LOWRIDER 3 INNER ASSYCall for price—
390300113GREASE FITTING, 1/4-28 STRAIGHT2$5.80
--0911040LOWRIDER 3 INNER ASSY (cont'd)Call for price—
400303088BUSHING - PIVOT PIN1$393.60
4104004833/8 CNTR'SUNK LOCKWASHER4$5.80
4204005941/4-20X5/8 SOC FLT HD4$5.80
430400653FLAT HD SOCKET SCRW 3/8-24 X 14Call for price—
440706996PAD, SPACER1$47.00
450807975INNER UL BOOM 7035 LOWRIDER 31$4,422.40
46930150003TOP PADS2$28.00
Back to Manual Navigation Menu
