Vulcan V-70 2-Winch (2023 manual)

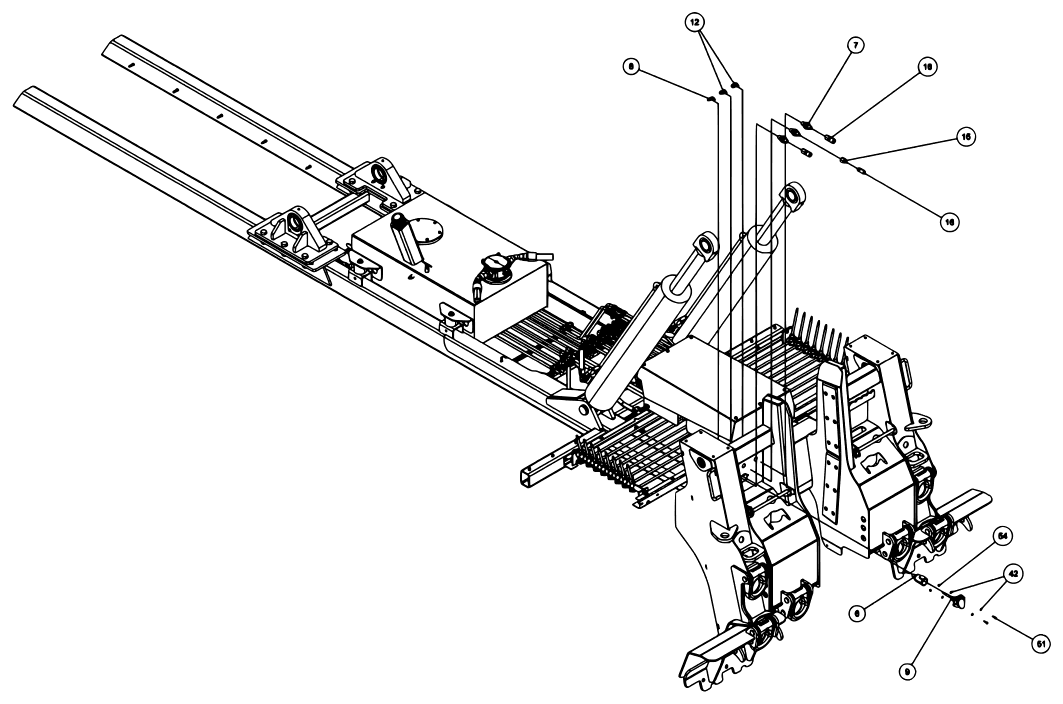

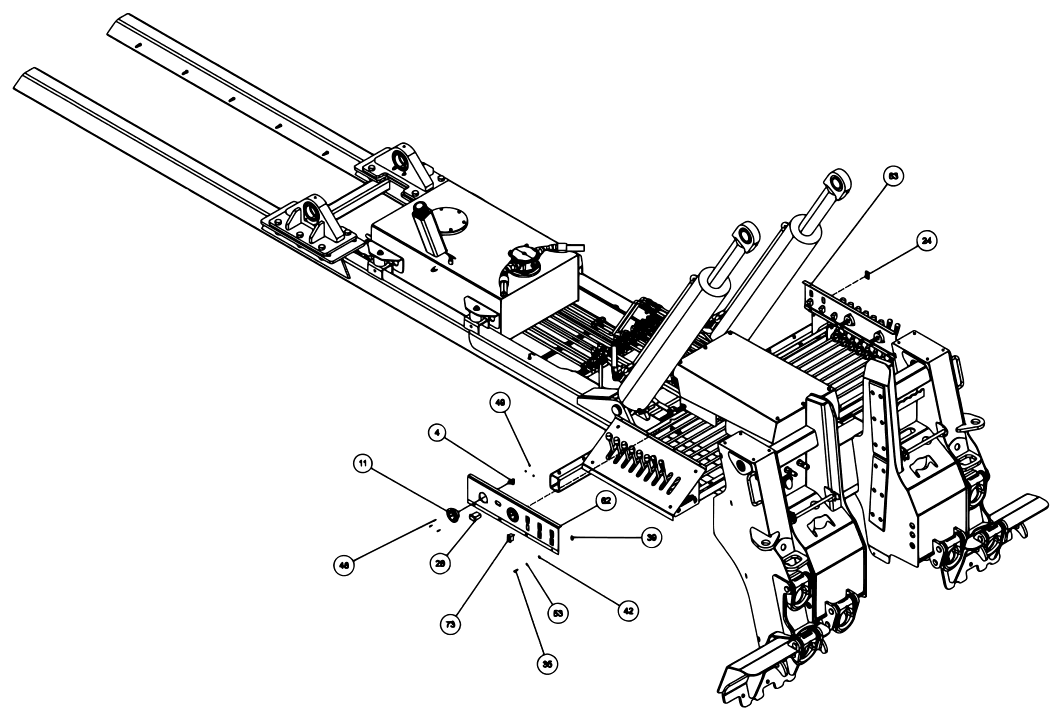

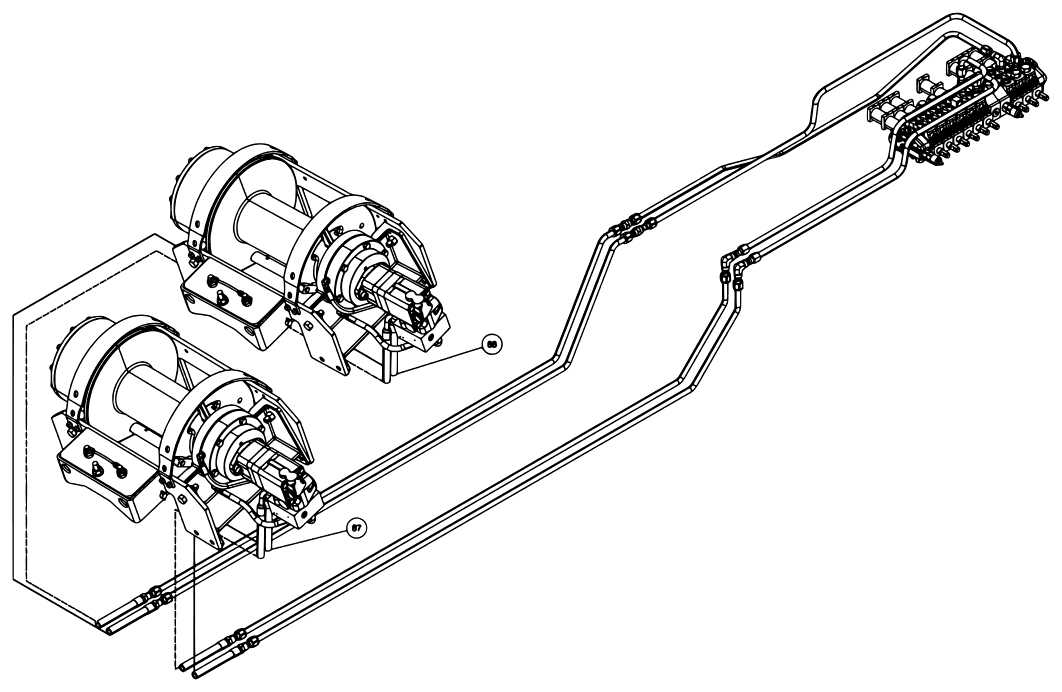

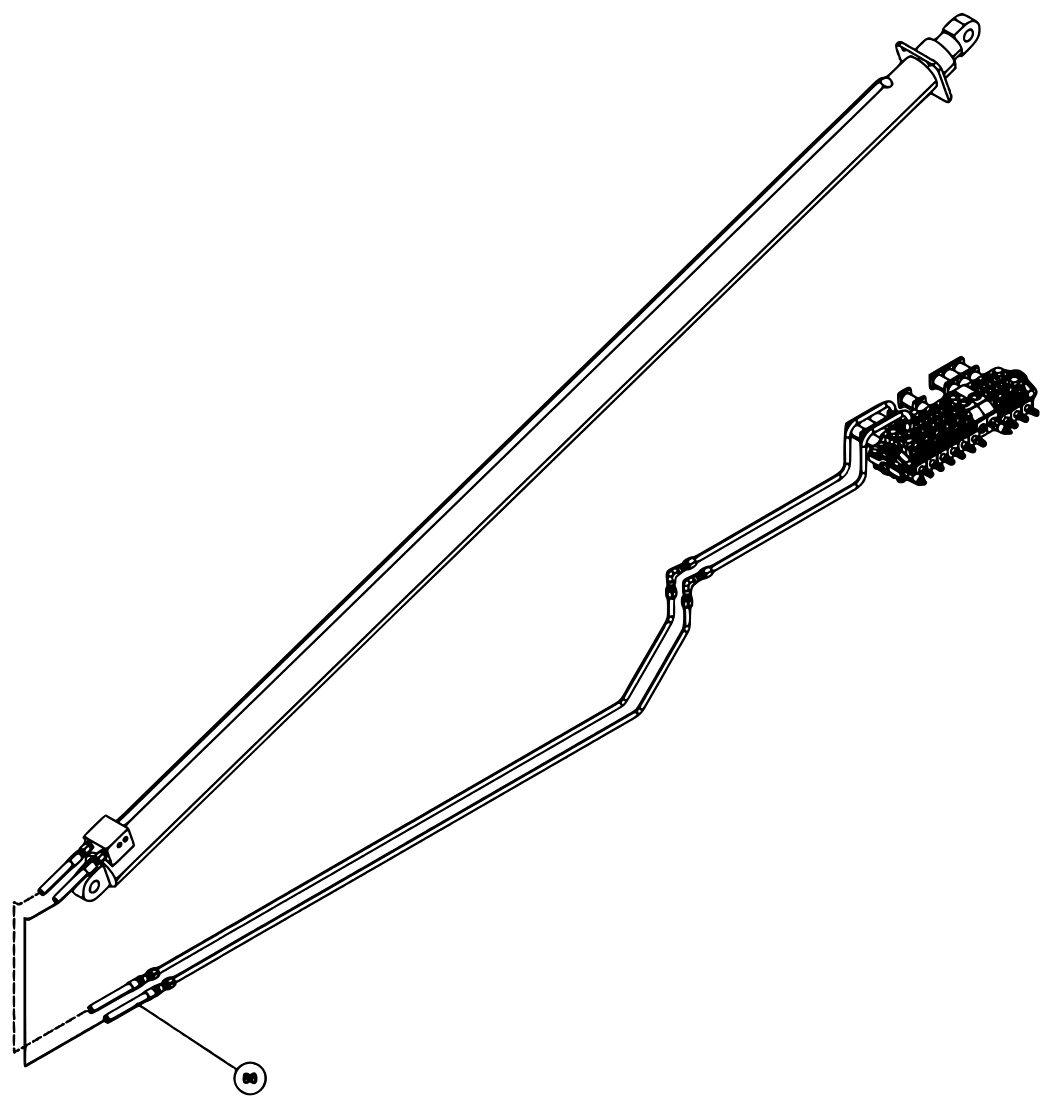

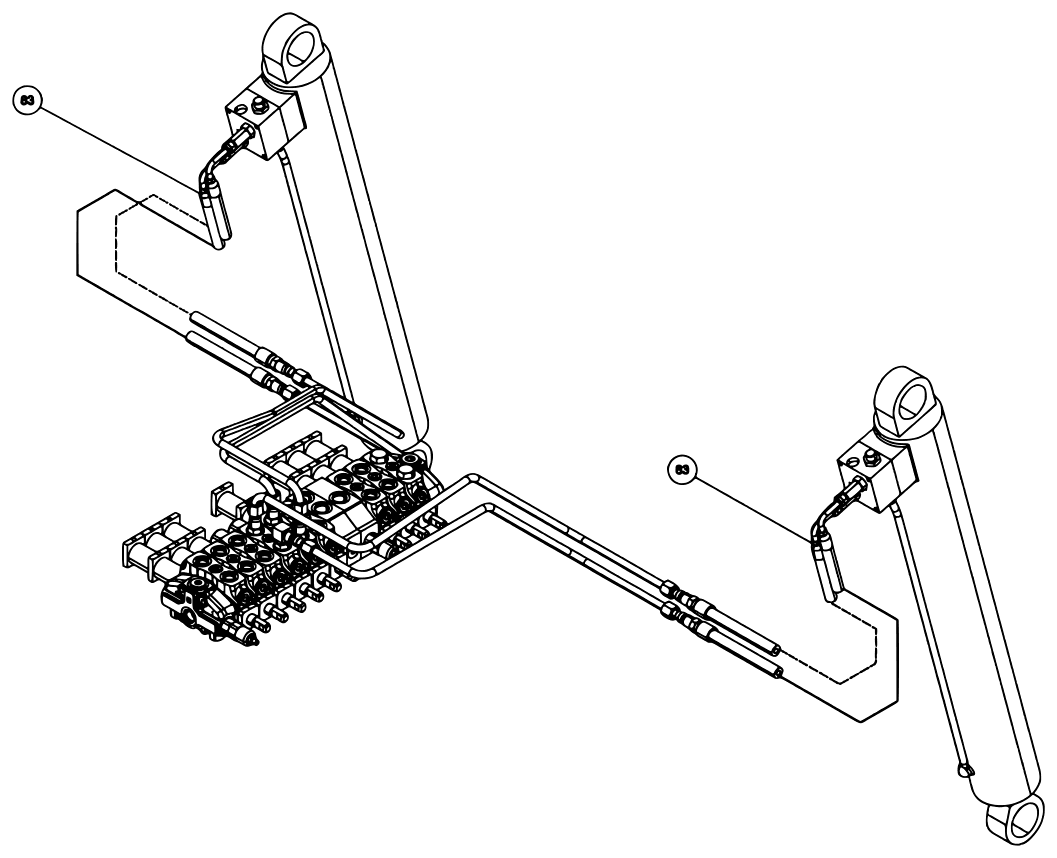

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 3 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 4 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 5 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 6 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 7 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 8 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 9 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 10 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 11 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 12 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 13 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 14 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 15 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 16 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 17 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008488, Bua V70 2-Winch Std Jack Leg diagram (view 18 of 18)

Show parts list (91 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09008488	BUA V70 2W STD JL		Call for price	—
1	0300341	KNOB, BLACK (BLANK)	12	$9.20
2	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	8	$7.00
3	0301473	HOSE HYD, 18" LG	4	$57.80
4	0301696	FITTING, ELB 90 DEG 6MJ-6FJX90	4	Call for price	—
5	0301895	GREASE FITTING, 1/8 STR PTF	2	$5.80
6	0301909	RECEPTACLE BOOT	1	Call for price	—
7	0301946	FITTING, BLKHD CONNECT	3	$93.80
8	0301947	FITTING, 45 DEG ADAPTER	1	Call for price	—
9	0301948	HD 7 WAY TRAILER CONNECT	1	$59.60
10	0301959	SNAP RING-INTERNAL 1-1/2	4	$5.80
11	0302205	GAUGE, FLUSH MNTG-6000 PSI	4	$44.80
12	0302534	FITTING, 45 DEG ELBOW	2	$33.00
13	0302698	FITTING, HOSE BARB, 1-1/4	2	$32.40
14	0302901	HOSE HYD, 120" 12C12	2	$243.60
15	0303538	FITT, ADAPTER -BRASS 8FP-6MP	1	$11.60
16	0303539	QUICK DISCONNECT 3/8 FPT	1	$37.00
17	0303948	ELBOW, 12MJ-16MB90	2	$28.00
18	0304363	QUICK DISCONNECT 1/2 FPT	2	$64.40
19	0306539	HOSE BARB 20HOSE16MB90	2	Call for price	—
20	0306983	FITT-MALE RUNTEE 1/4T-1/4NPT	1	$18.80
21	0307216	LIGHT, AMBER LED RECT 5.25X3.3	2	$75.80
22	0307538	LIGHT, MRKR-RED LED 4.5 X 1.63	4	$68.60
23	0307604	KNOB, RED LONG - SK0700-07	4	$22.40
24	0307778	PLUG, FILLER	2	$3.40
25	0310010	SUCTION HOSE, 1-1/4ID X50 100R4	1	Call for price	—
26	0311014	2010 VULC ALUM BODY 160CB LH	1	Call for price	—
27	0311015	2010 VULC ALUM BODY 160CB RH	1	Call for price	—
28	0311355	HOBBS HOURMETER	1	$87.40
29	0311502	LIGHT 6" OVAL CLEAR-AMBER LED	6	$31.80
30	0311503	GROMMET, LIGHT 6" OVAL	6	$2.80
31	0311508	LIGHT RECT CLEAR-RED LED	4	$78.80
32	0311510	LIGHT RECT REVERSE W/REFLEX	2	$18.00
33	0311511	GROMMET, TAIL LIGHT, RECTANGULAR	8	$4.00
34	0311755	WATER SEPARATOR-MONNIER	1	$254.20
35	04000381	SS BHSCS 1/4-20 X 1	16	Call for price	—
36	0400070	SCREW, 1/4-20X1 HHC GR5	6	$5.80
37	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	2	$5.80
38	0400128	SCREW, 3/8-16X1-1/4 FHS GR8 BO	24	$8.00
39	0400369	NUT, 1/4 SPR J	8	$5.80
40	0400393	NUT, 3/8-16 JAM	16	$5.80
41	0400451	WASHER, 1/4	6	$5.80
42	0400454	WASHER, 1/4 SS	22	$1.80
43	0400491	LKWASHER, 1/2	14	$5.80
44	0400498	WASHER, 1/2X2X0.125	14	$8.00
45	0400687	SCREW, 10-24X3/4 PRH SS	4	Call for price	—
46	0400776	NUT, 5/16-18 JAM LOK	2	$5.80
47	0400816	WASHER, M10 SS	4	Call for price	—
48	0401054	SCREW, 8-32X3/4 PRH SS	12	Call for price	—
49	0402002	NUT, 8-32 LOK EXT SS	12	$5.80
50	0402020	SCREW, 1/4-20X3/4 HHC SS	2	$5.80
51	0402021	SCREW, 1/4-20X1 HHC SS	2	$5.80
52	0402043	SCREW, 3/8-16X1-1/4 HHC SS	8	$5.80
53	0402111	LKWASHER, 1/4 SS	18	$5.80
54	0402113	NUT, 1/4-20 LOK SS	2	$1.80
55	0402120	WASHER, 3/8 SS	16	$5.80
56	0402121	LKWASHER, 3/8 SS	8	Call for price	—
57	0402122	NUT, 3/8-16 HEX SS	8	$4.00
58	0719585	D-RING, TOWING	2	$440.40
59	0724476	PAD - NYLATRON - BOOM GUIDE	4	$165.20
60	0724500	PIN - LOWER JACK LEG CYL	2	Call for price	—
61	0726593	APNL-DCV LWR CTL PNL, 3 WINCH	2	$172.00
62	0726594	APNL-DCV UPR LH CTL PNL, 3WNCH	1	$187.00
63	0726595	APNL-DCV UPR RH CTL PNL, 3WNCH	1	$177.00
64	0807947	LH JACK LEG WELD'T - STANDARD	1	Call for price	—
65	0807948	RH JACK LEG WELD'T - STANDARD	1	Call for price	—
66	0910787	STINGER ASSY - EURO - 144"	1	Call for price	—
67	0911010	RECOVERY BOOM INSTALL V-70	1	Call for price	—
68	0911804	AIR REGULATOR-GAUGE ASSEMBLY	2	$101.20
69	0912015	SUBFRAME ASSY V70-100 STD WINCH	1	Call for price	—
70	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
71	9011053	FITTING, BRASS 1/4 TUBE-1/4 MP	1	$8.20
72	9016815	MUNCIE PUMP TSPKS17-17-2BSSB	1	$1,633.60
73	9024041	SWITCH, ROCKER SPST RED 12V21A	11	$43.40
74	9041403	1/2 NC X 1 1/2 HHCS PL GR8	14	$5.80
75	916770001	HOSE- HYD. 3/8 - 105" 8MJ-6MFA	2	$88.40
76	920400005	MUD FLAP BRACE PLATE	2	$20.60
77	9402970	TOOLBOX MTG. PAD	14	$54.20
78	942480011	PLATE, SLOT-SS REAR WASHER TBOX	14	$25.20
79	942480300	MTG ANGLE WELD'T LH - DCV COV.	2	$150.80
80	942487300	MTG ANGLE WELD'T RH - DCV COV.	2	$167.60
81	94320052	MUD FLAP 920-940 RUBBER	2	$70.20
82	945770002	6AT2(6T90S-8MJ) HCL 48	2	$73.60
83	945770003	6AT2(6T90L-8MJ) 24 HYD	4	$43.40
84	946210500	TUBE, FRONT MTG WELD'T	1	$1,007.80
85	946770003	HOSE ASSEMBLY - 8MJ-8MJ X 45	4	Call for price	—
86	946770006	HOSE ASSEMBLY - 62	2	Call for price	—
87	946770007	HOSE ASSEMBLY - 79	2	Call for price	—
88	946770009	HOSE ASSEMBLY - 104	4	Call for price	—
89	948570000	5X5 LIFT BAR ASSEMBLY 948 XHD	1	$4,524.60
90	GA0215	PIN-"D" RING	2	$81.20

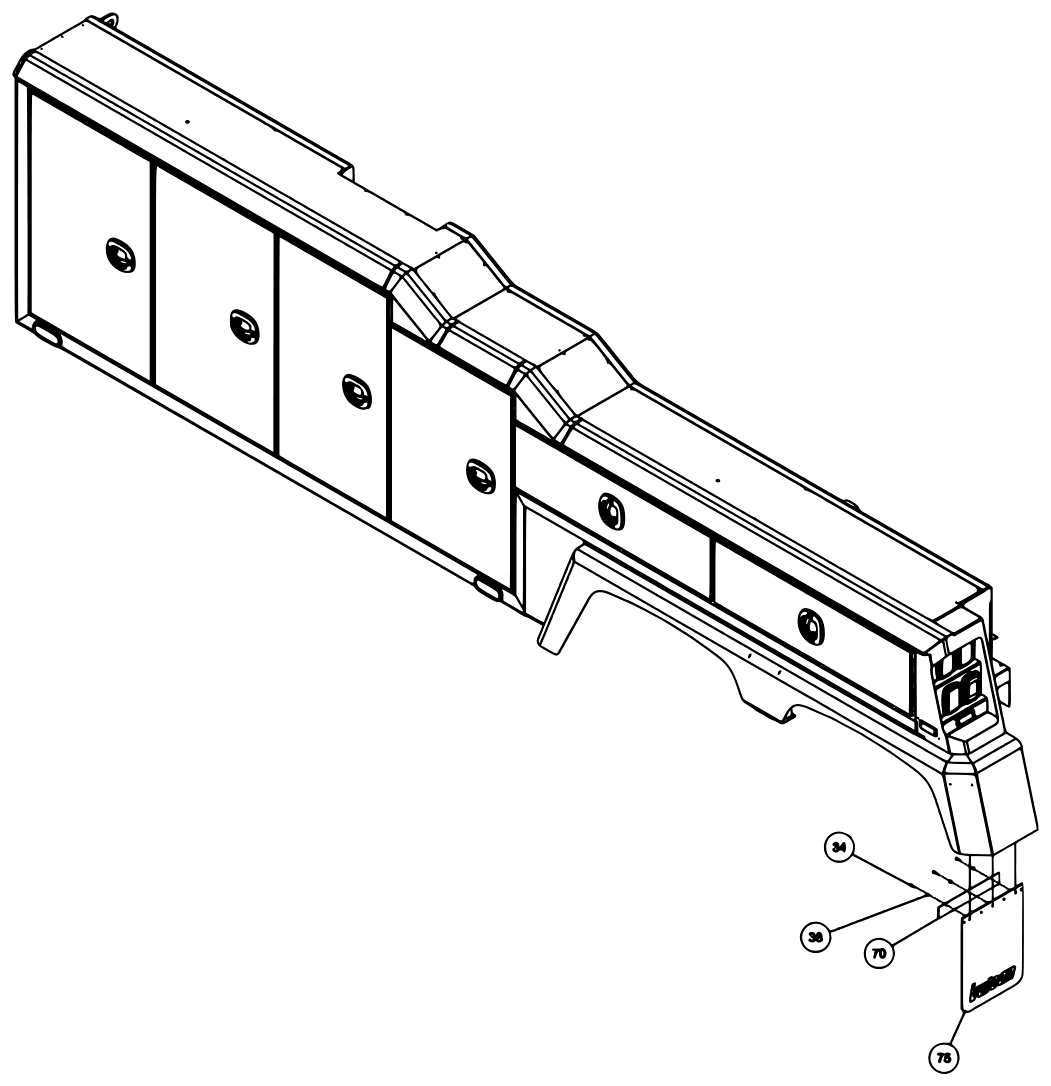

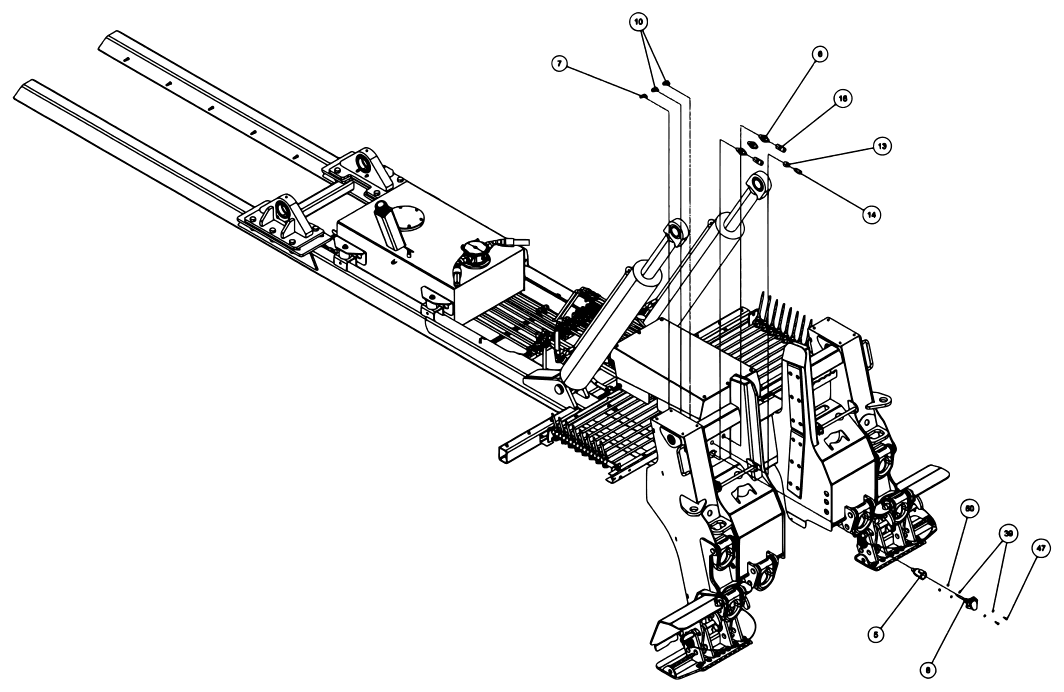

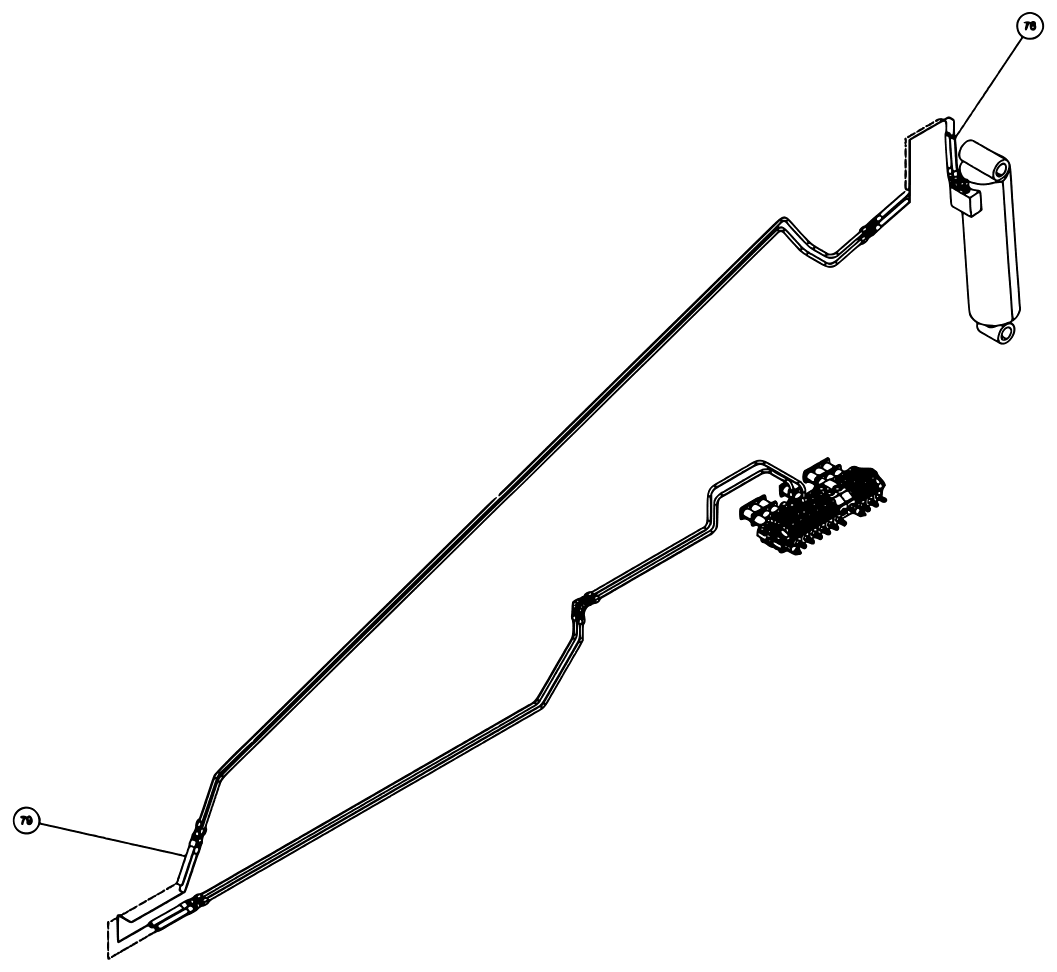

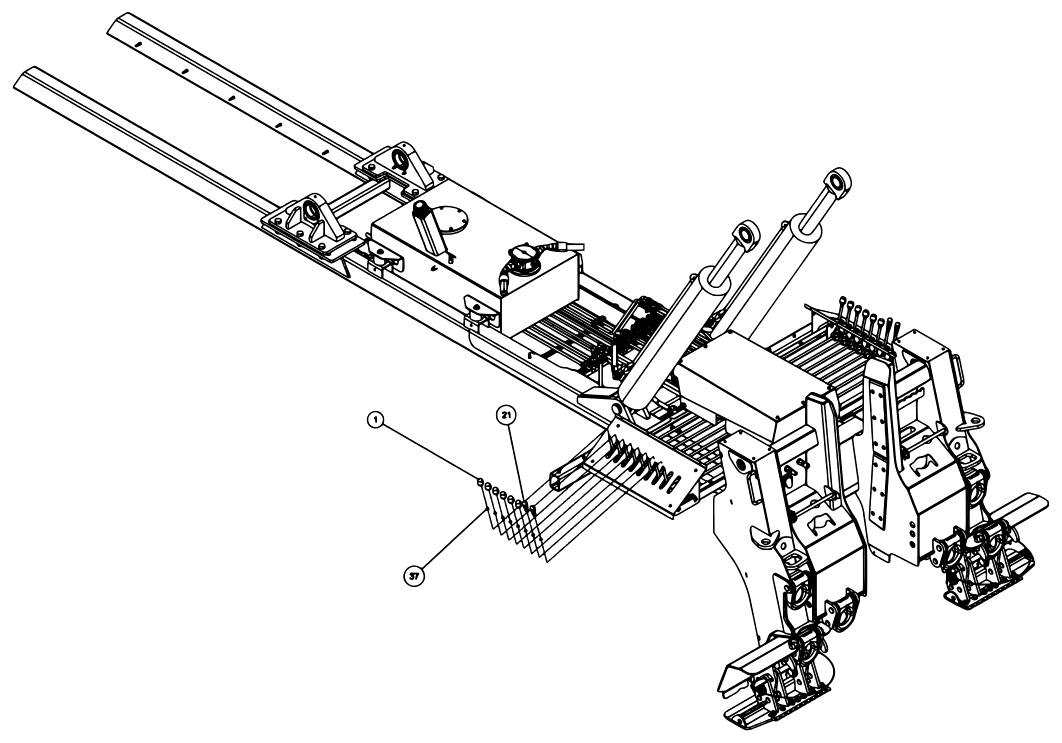

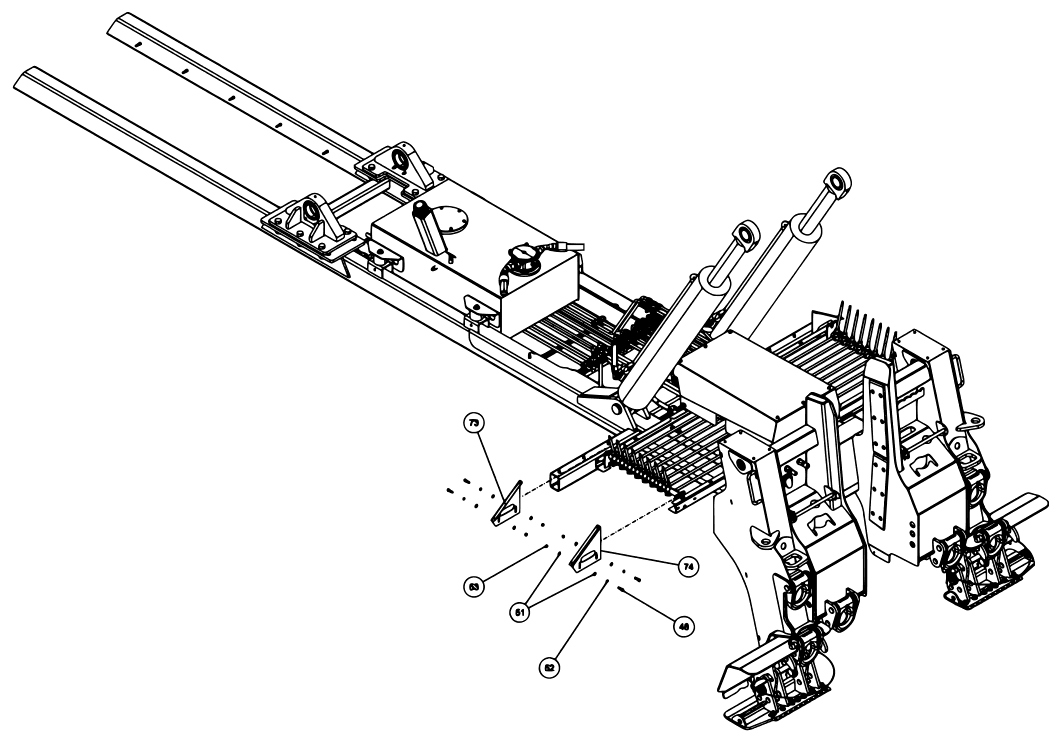

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 1 of 18)

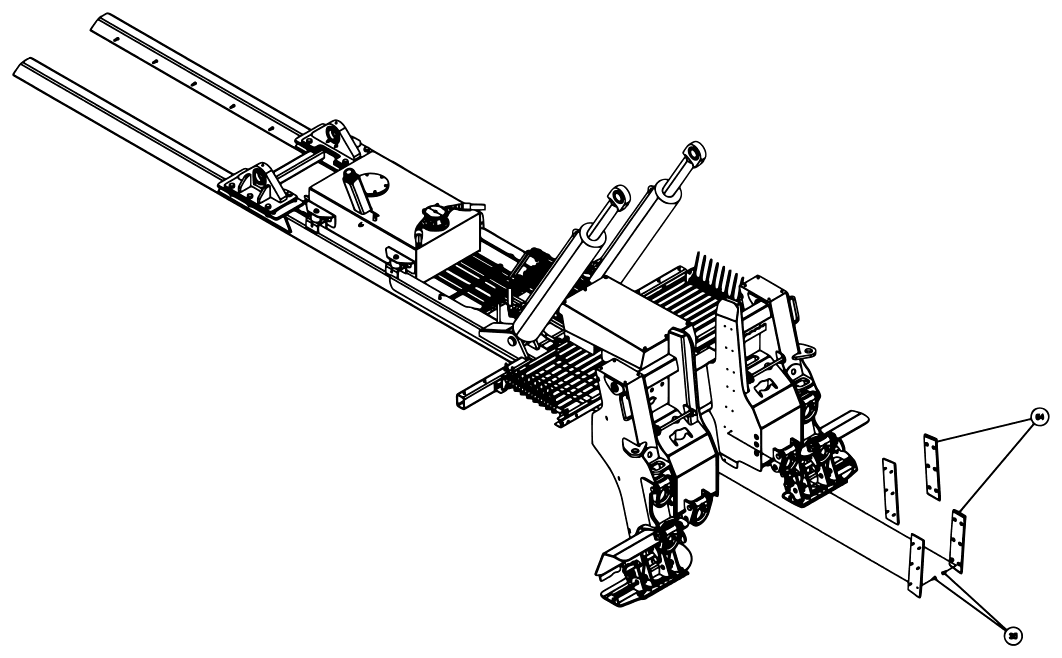

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 2 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 3 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 4 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 5 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 6 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 7 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 8 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 9 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 10 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 11 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 12 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 13 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 14 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 15 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 16 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 17 of 18)

Vulcan V-70 2-Winch (2023 manual) 09008489, Bua V70 2-Winch Jack Leg Flipper Feet diagram (view 18 of 18)

Show parts list (84 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart

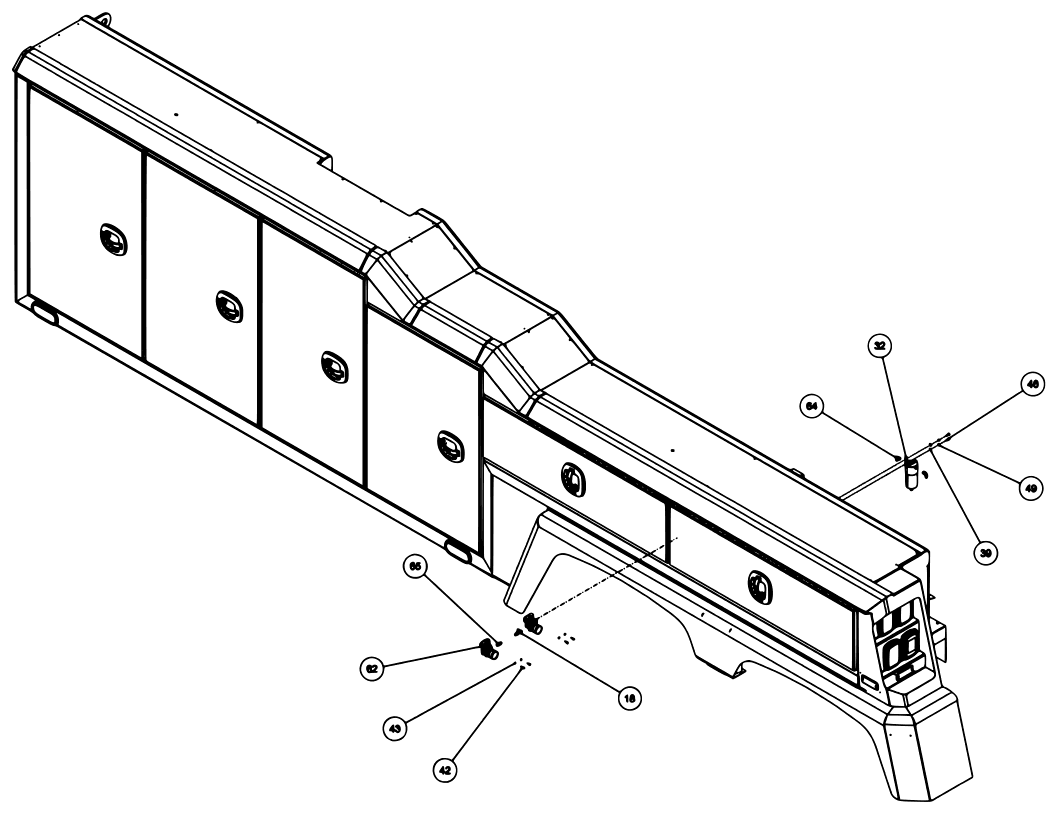

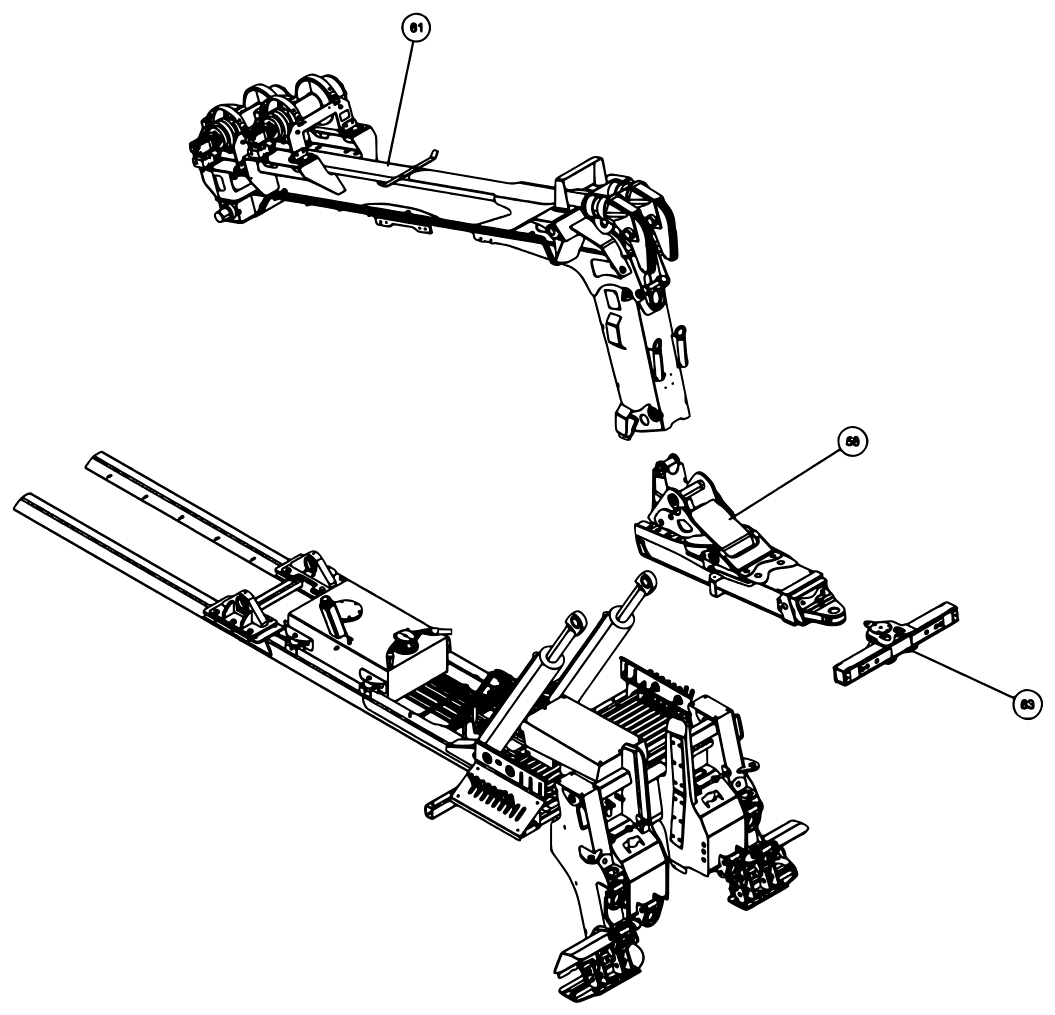

--	09008489	BUA V70 2W JL FLIPPER FEET		Call for price	—
1	0300341	KNOB, BLACK (BLANK)	12	$9.20
2	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	8	$7.00
3	0301473	HOSE HYD, 18" LG	4	$57.80
4	0301696	FITTING, ELB 90 DEG 6MJ-6FJX90	4	Call for price	—
5	0301909	RECEPTACLE BOOT	1	Call for price	—
6	0301946	FITTING, BLKHD CONNECT	3	$93.80
7	0301947	FITTING, 45 DEG ADAPTER	1	Call for price	—
8	0301948	HD 7 WAY TRAILER CONNECT	1	$59.60
9	0302205	GAUGE, FLUSH MNTG-6000 PSI	4	$44.80
10	0302534	FITTING, 45 DEG ELBOW	2	$33.00
11	0302698	FITTING, HOSE BARB, 1-1/4	2	$32.40
12	0302901	HOSE HYD, 120" 12C12	2	$243.60
13	0303538	FITT, ADAPTER -BRASS 8FP-6MP	1	$11.60
14	0303539	QUICK DISCONNECT 3/8 FPT	1	$37.00
15	0303948	ELBOW, 12MJ-16MB90	2	$28.00
16	0304363	QUICK DISCONNECT 1/2 FPT	2	$64.40
17	0306539	HOSE BARB 20HOSE16MB90	2	Call for price	—
18	0306983	FITT-MALE RUNTEE 1/4T-1/4NPT	1	$18.80
19	0307216	LIGHT, AMBER LED RECT 5.25X3.3	2	$75.80
20	0307538	LIGHT, MRKR-RED LED 4.5 X 1.63	4	$68.60
21	0307604	KNOB, RED LONG - SK0700-07	4	$22.40
22	0307778	PLUG, FILLER	2	$3.40
23	0310010	SUCTION HOSE, 1-1/4ID X50 100R4	1	Call for price	—
24	0310944	LH 200 CB TDM ALM BDY '10 VULC	1	Call for price	—
25	0310945	RH 200 CB TDM ALM BDY '10 VULC	1	Call for price	—
26	0311355	HOBBS HOURMETER	1	$87.40
27	0311502	LIGHT 6"OVAL CLEAR-AMBER LED	6	$31.80
28	0311503	GROMMET, LIGHT 6" OVAL	6	$2.80
29	0311508	LED RECT RED STOP-CLEAR-12/24V	4	$78.80
30	0311510	LIGHT RECT 12V REVERSE REFLEX	2	$18.00
31	0311511	GROMMET, TAIL LIGHT, RECTANGULAR	8	$4.00
32	0311755	WATER SEPARATOR-MONNIER	1	$254.20
33	04000381	SS BHSCS 1/4-20 X 1	16	Call for price	—
34	0400070	SCREW, 1/4-20X1 HHC GR5	6	$5.80
35	0400128	SCREW, 3/8-16X1-1/4 FHS GR8 BO	24	$8.00
36	0400369	NUT, 1/4 SPR J	8	$5.80
37	0400393	NUT, 3/8-16 JAM	16	$5.80
38	0400451	WASHER, 1/4	6	$5.80
39	0400454	WASHER, 1/4 SS	22	$1.80
40	0400491	LKWASHER, 1/2	14	$5.80
41	0400498	WASHER, 1/2X2X0.125	14	$8.00
42	0400687	SCREW, 10-24X3/4 PRH SS	4	Call for price	—
43	0400816	WASHER, M10 SS	4	Call for price	—
44	0401054	SCREW, 8-32X3/4 PRH SS	12	Call for price	—
45	0402002	NUT, 8-32 LOK EXT SS	12	$5.80
46	0402020	SCREW, 1/4-20X3/4 HHC SS	2	$5.80
47	0402021	SCREW, 1/4-20X1 HHC SS	2	$5.80
48	0402043	SCREW, 3/8-16X1-1/4 HHC SS	8	$5.80
49	0402111	LKWASHER, 1/4 SS	18	$5.80
50	0402113	NUT, 1/4-20 LOK SS	2	$1.80
51	0402120	WASHER, 3/8 SS	16	$5.80
52	0402121	LKWASHER, 3/8 SS	8	Call for price	—
53	0402122	NUT, 3/8-16 HEX SS	8	$4.00
54	0724476	PAD - NYLATRON - BOOM GUIDE	4	$165.20
55	0726593	APNL-DCV LWR CTL PNL, 3 WINCH	2	$172.00
56	0726594	APNL-DCV UPR LH CTL PNL, 3WNCH	1	$187.00
57	0726595	APNL-DCV UPR RH CTL PNL, 3WNCH	1	$177.00
58	0910787	STINGER ASSY - EURO - 144"	1	Call for price	—
59	0910973	LH JACK LEG ASSY -FLIPPER FEET	1	Call for price	—
60	0910974	RH JACK LEG ASSY -FLIPPER FEET	1	Call for price	—
61	0911010	RECOVERY BOOM INSTALL V-70	1	Call for price	—
62	0911804	AIR REGULATOR-GAUGE ASSEMBLY	2	$101.20
63	0912015	SUBFRAME ASSY V70-100 STD WINCH	1	Call for price	—
64	9010520	FITTING-ELBOW 1/4T-1/4NPT	4	$13.80
65	9011053	FITTING, BRASS 1/4 TUBE-1/4 MP	1	$8.20
66	9016815	MUNCIE PUMP TSPKS17-17-2BSSB	1	$1,633.60
67	9024041	SWITCH, ROCKER SPST RED 12V21A	9	$43.40
68	9041403	1/2 NC X 1 1/2 HHCS PL GR8	14	$5.80
69	916770001	HOSE- HYD. 3/8 - 105" 8MJ-6MFA	1	$88.40
70	920400005	MUD FLAP BRACE PLATE	1	$20.60
71	9402970	TOOLBOX MTG. PAD	14	$54.20
72	942480011	PLATE, SLOT-SS REAR WASHER TBOX	14	$25.20
73	942480300	MTG ANGLE WELD'T LH - DCV COV.	2	$150.80
74	942487300	MTG ANGLE WELD'T RH - DCV COV.	2	$167.60
75	94320052	MUD FLAP 920-940 RUBBER	2	$70.20
76	945770002	6AT2(6T90S-8MJ) HCL 48	2	$73.60
77	945770003	6AT2(6T90L-8MJ) 24 HYD	4	$43.40
78	946210500	TUBE, FRONT MTG WELD'T	1	$1,007.80
79	946770003	HOSE ASSEMBLY - 8MJ-8MJ X 45	4	Call for price	—
80	946770006	HOSE ASSEMBLY - 62	1	Call for price	—
81	946770007	HOSE ASSEMBLY - 79	1	Call for price	—
82	946770009	HOSE ASSEMBLY - 104	1	Call for price	—
83	948570000	5X5 LIFT BAR ASSEMBLY 948 XHD	1	$4,524.60

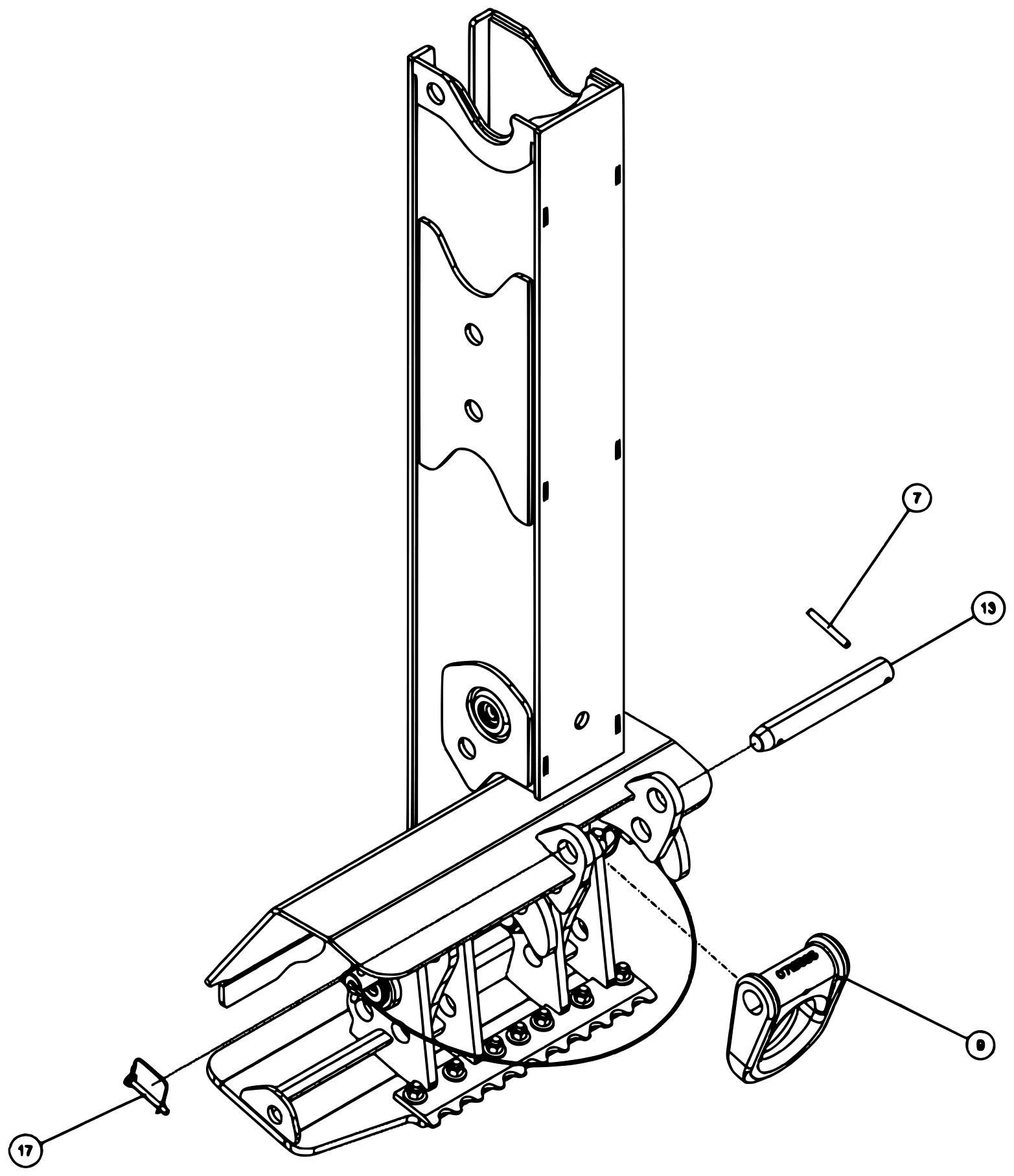

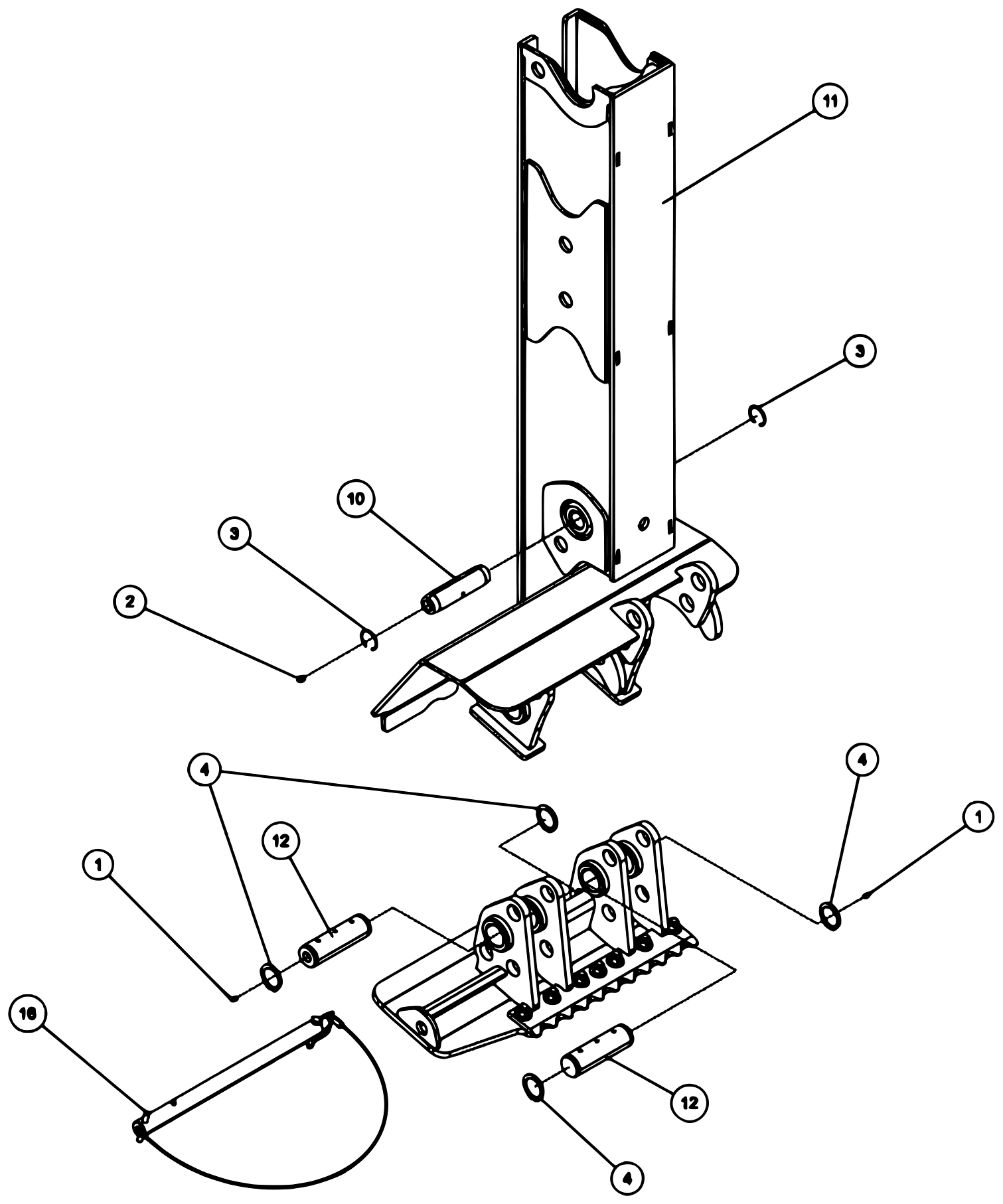

Vulcan V-70 2-Winch (2023 manual) 0910973, LH Jack Leg Assy - Flipper Feet diagram (view 1 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910973, LH Jack Leg Assy - Flipper Feet diagram (view 2 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910973, LH Jack Leg Assy - Flipper Feet diagram (view 3 of 3)

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0910973	LH JACK LEG ASSY -FLIPPER FEET		Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
3	0301959	SNAP RING-INTERNAL 1-1/2	2	$5.80
4	0310121	RETAINING RING, 1.75 HD EXT	4	$4.40
5	0400416	NUT, 1/2-13 LOK GR8	7	$5.80
6	0400497	WASHER, 1/2 GR8	7	$5.80
7	0400568	PIN, 3/8X3 SPR	1	$8.00
8	0400774	SCREW, 1/2-13X1-3/4 FHS	7	$5.60
9	0719585	D-RING, TOWING	1	$440.40
10	0724500	PIN - LOWER JACK LEG CYL	1	Call for price	—
11	0807725	LH JACK LEG WELDT-FLIPPER FEET	1	Call for price	—
12	930230101	PIN - PIVOT	2	$184.20
13	930230103	PIN - D-RING	1	Call for price	—
14	930232000	LH FLIPPER PAD WELDT	1	$1,893.80
15	930232005	BLADE - GROUND	1	$197.20
16	930233000	PIN, RETAINER ASSY	1	$279.80
17	HD1259	SAFETY SNAP PIN	1	$13.80

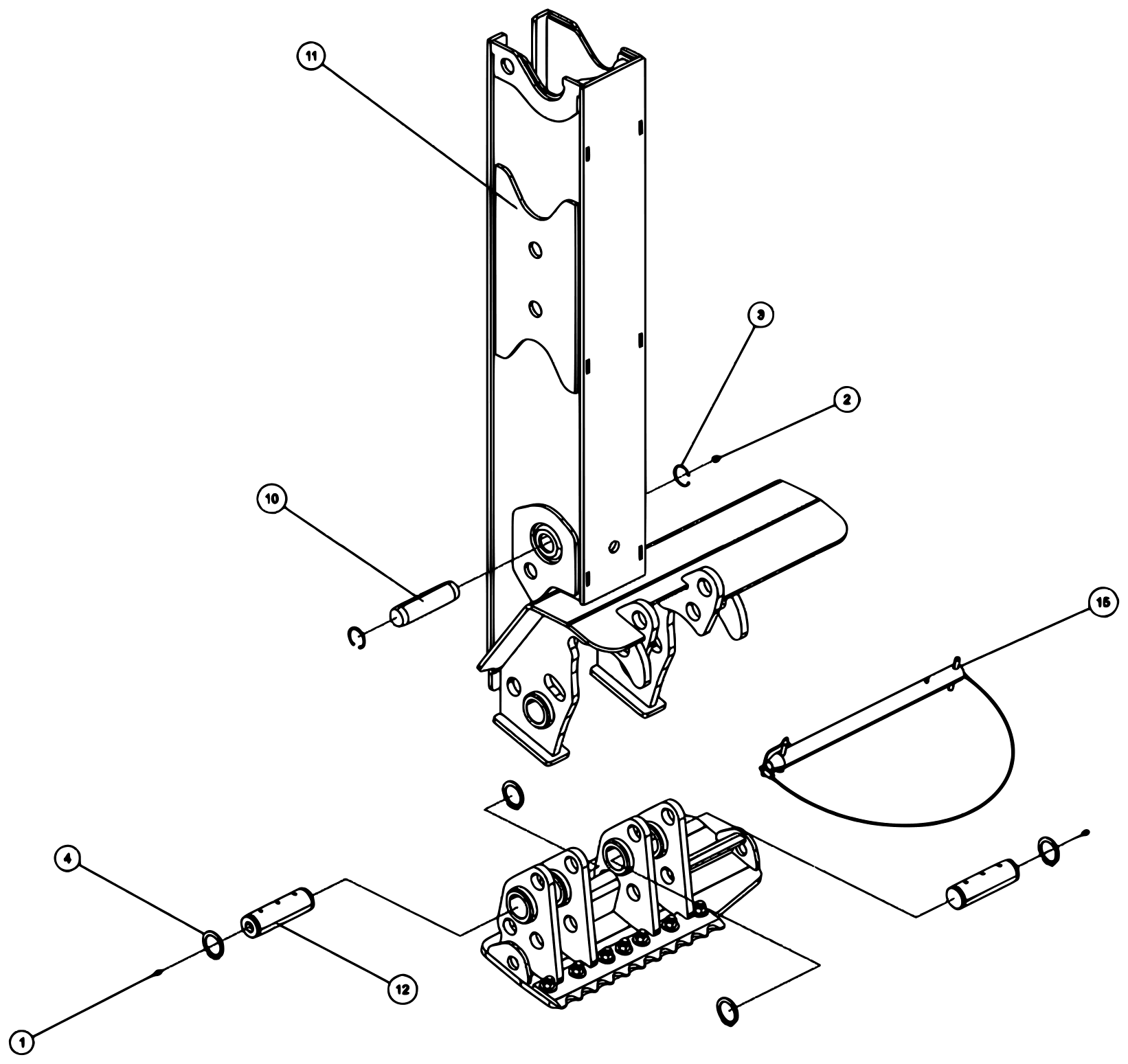

Vulcan V-70 2-Winch (2023 manual) 0910974, RH Jack Leg Assy - Flipper Feet diagram (view 1 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910974, RH Jack Leg Assy - Flipper Feet diagram (view 2 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910974, RH Jack Leg Assy - Flipper Feet diagram (view 3 of 3)

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0910974	RH JACK LEG ASSY - FLIPPER FEET		Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
3	0301959	SNAP RING-INTERNAL 1-1/2	2	$5.80
4	0310121	RETAINING RING, 1.75 HD EXT	4	$4.40
5	0400416	NUT, 1/2-13 LOK GR8	7	$5.80
6	0400497	WASHER, 1/2 GR8	7	$5.80
7	0400568	PIN, 3/8X3 SPR	1	$8.00
8	0400774	SCREW, 1/2-13X1-3/4 FHS	7	$5.60
9	0719585	D-RING, TOWING	1	$440.40
10	0724500	PIN - LOWER JACK LEG CYL	1	Call for price	—
11	0807726	RH JACK LEG WELDT-FLIPPER FEET	1	Call for price	—
12	930230101	PIN - PIVOT	2	$184.20
13	930230103	PIN - D-RING	1	Call for price	—
14	930232005	BLADE - GROUND	1	$197.20
15	930233000	PIN, RETAINER ASSY	1	$279.80
16	930239000	RH FLIPPER PAD WELDT	1	Call for price	—
17	HD1259	SAFETY SNAP PIN	1	$13.80

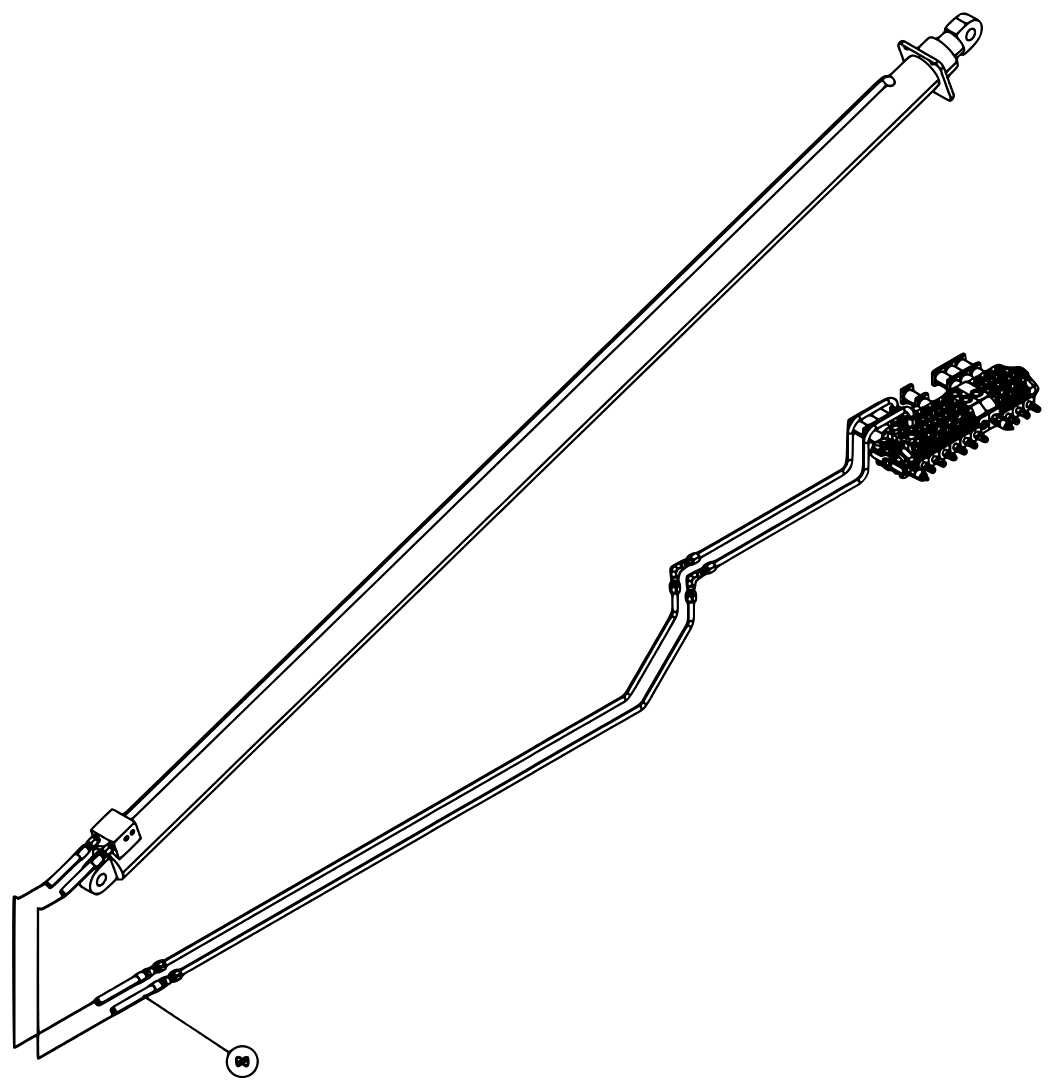

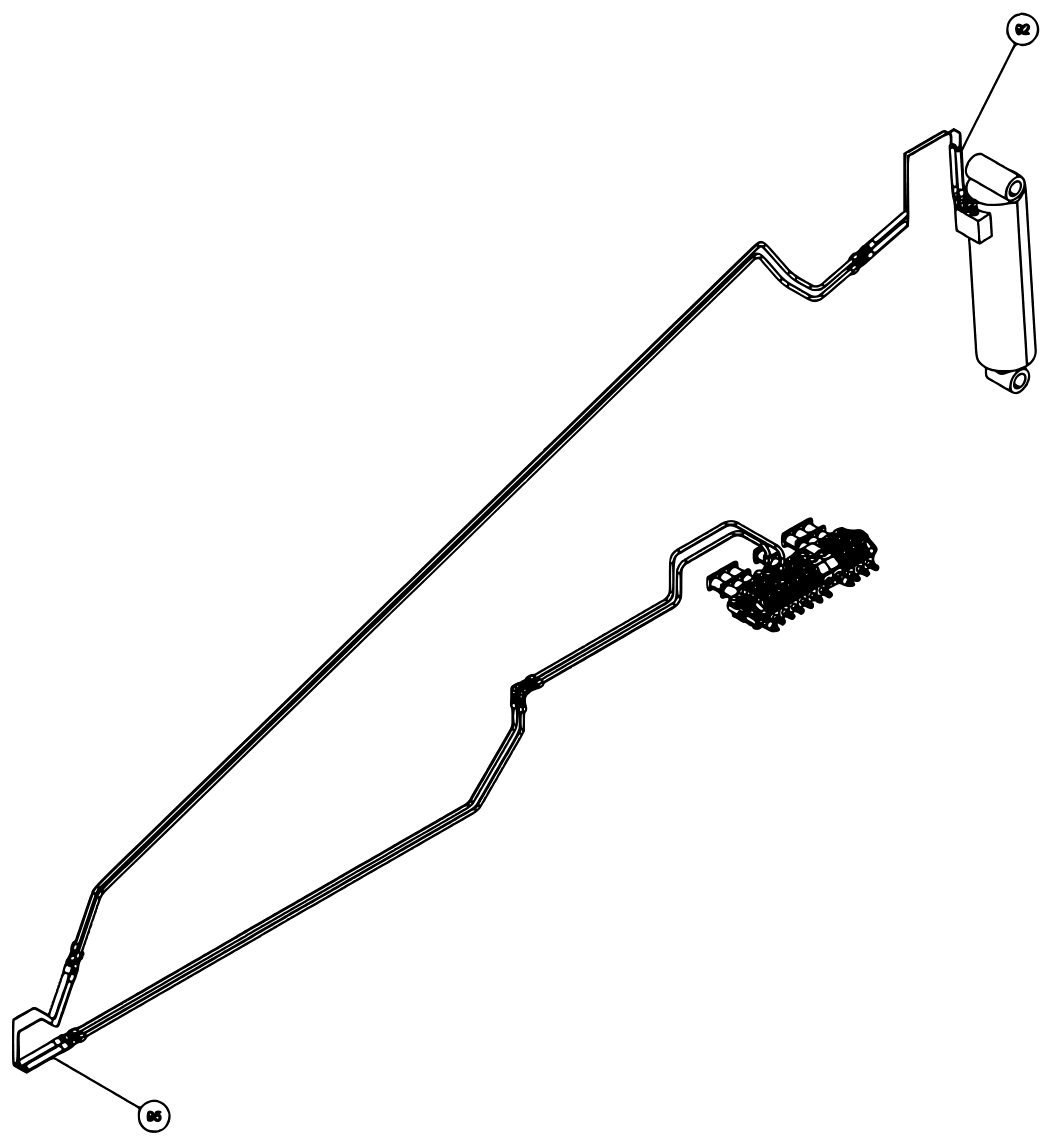

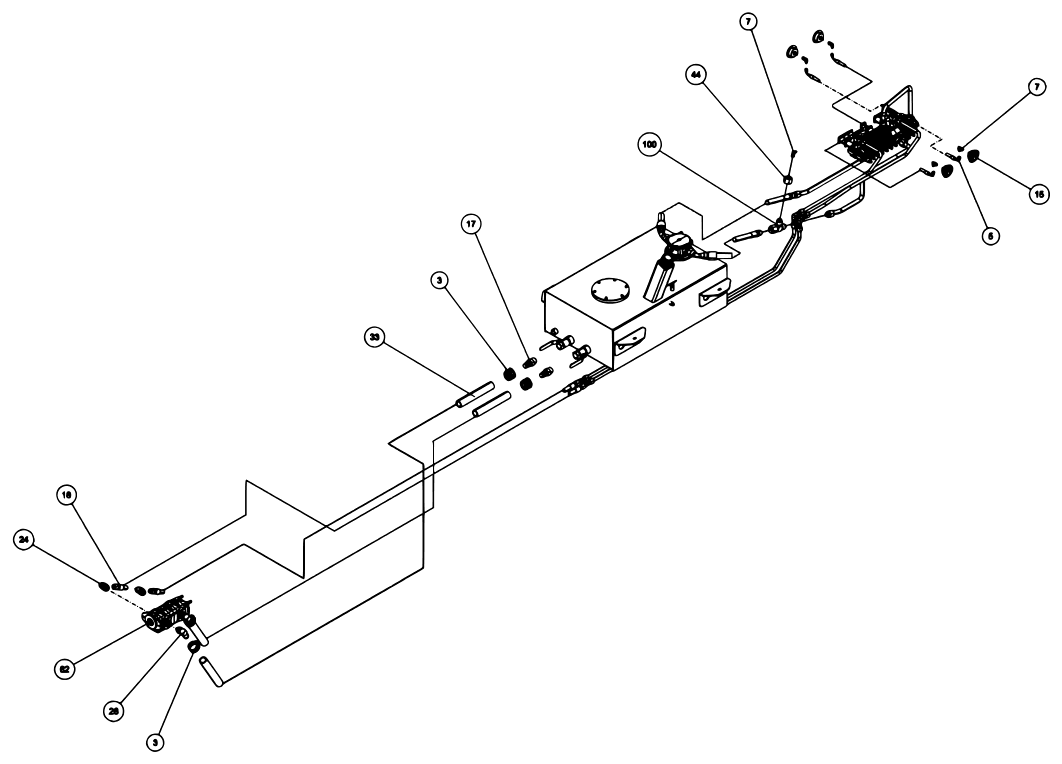

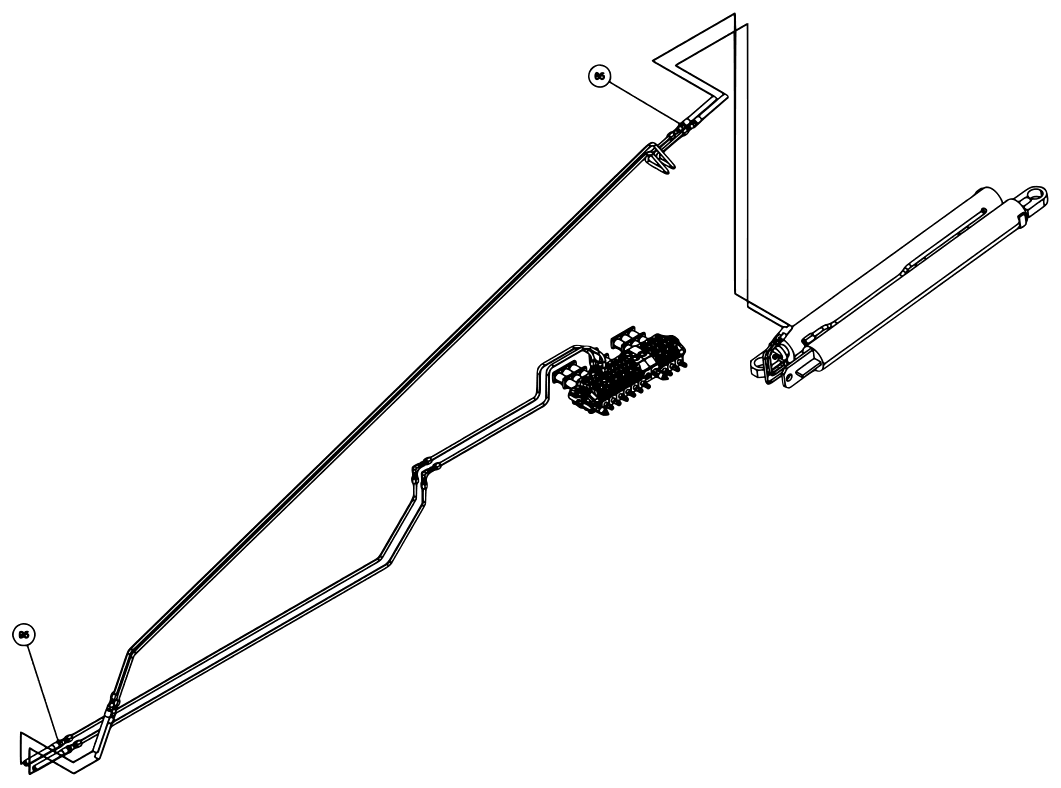

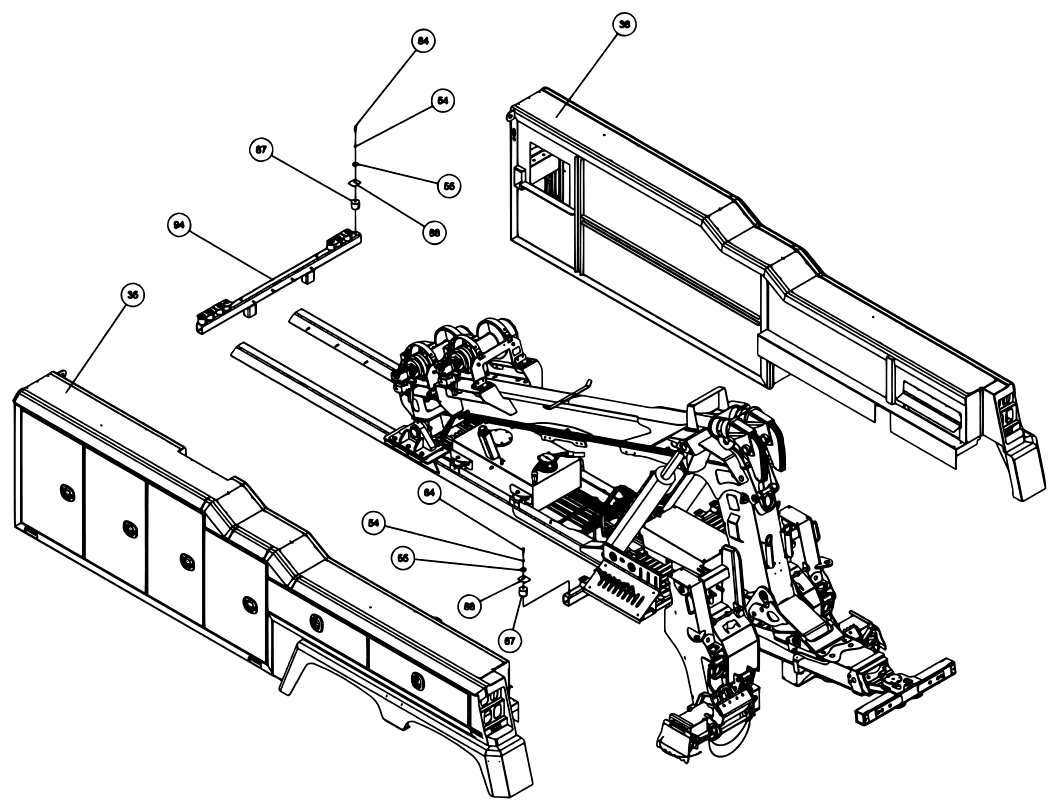

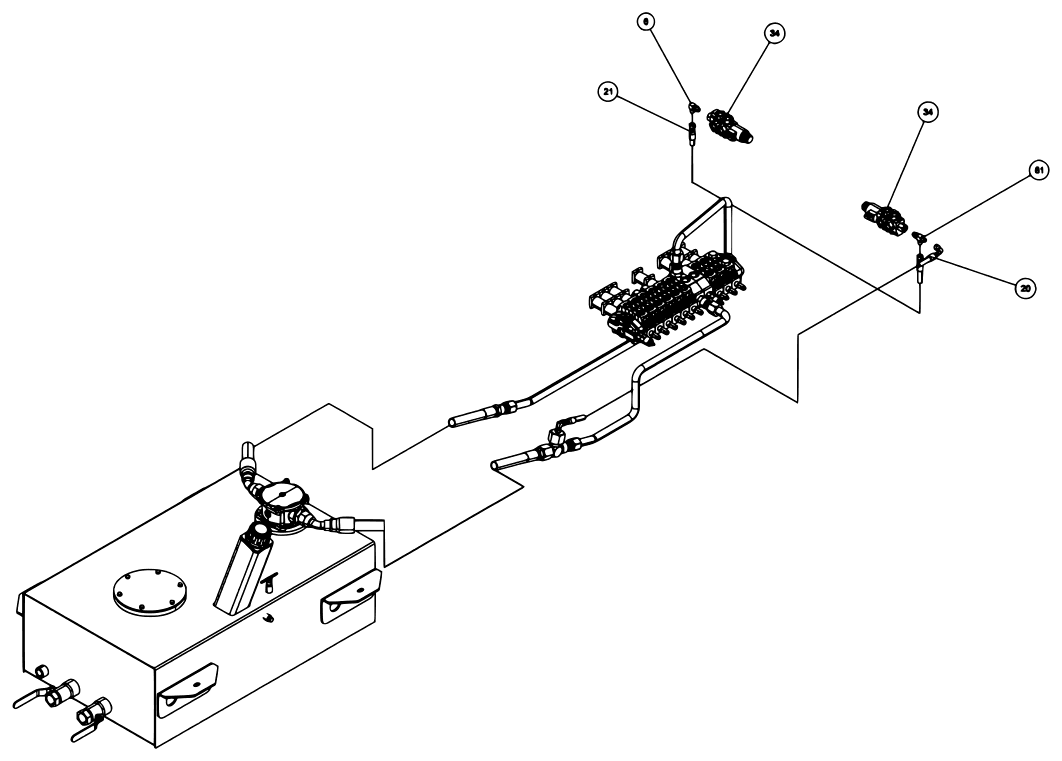

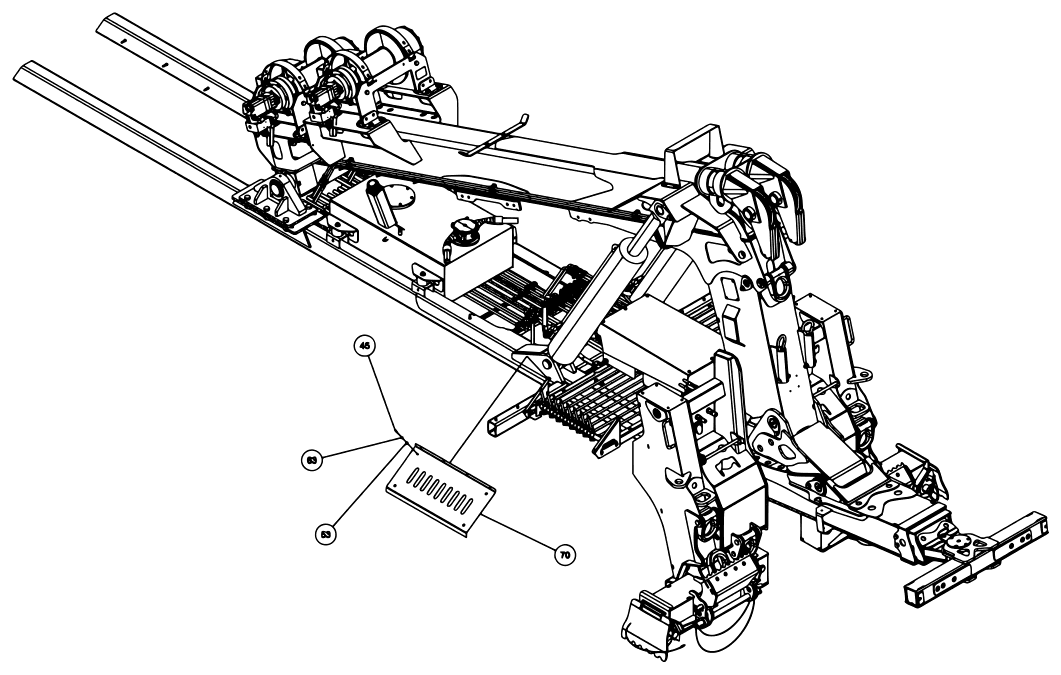

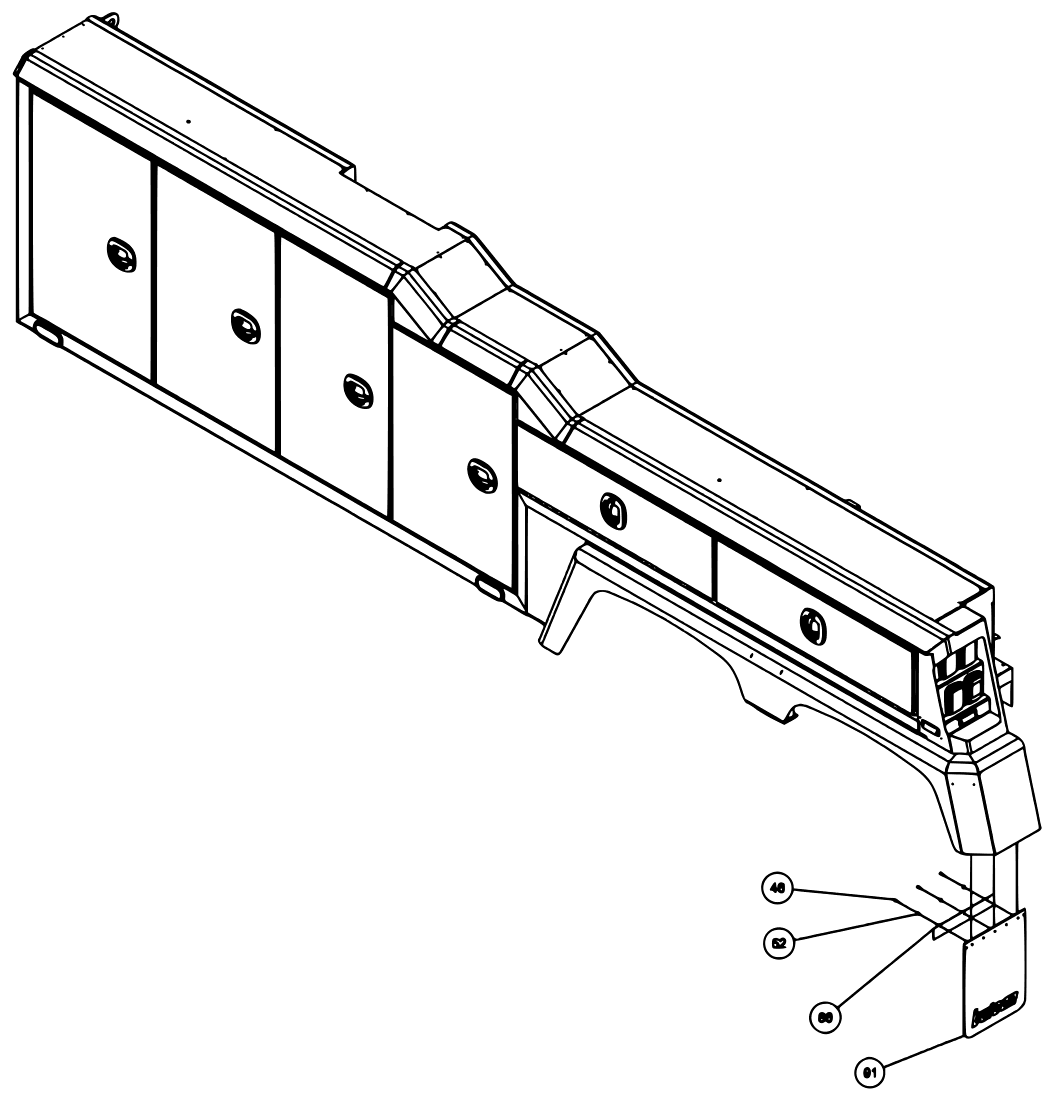

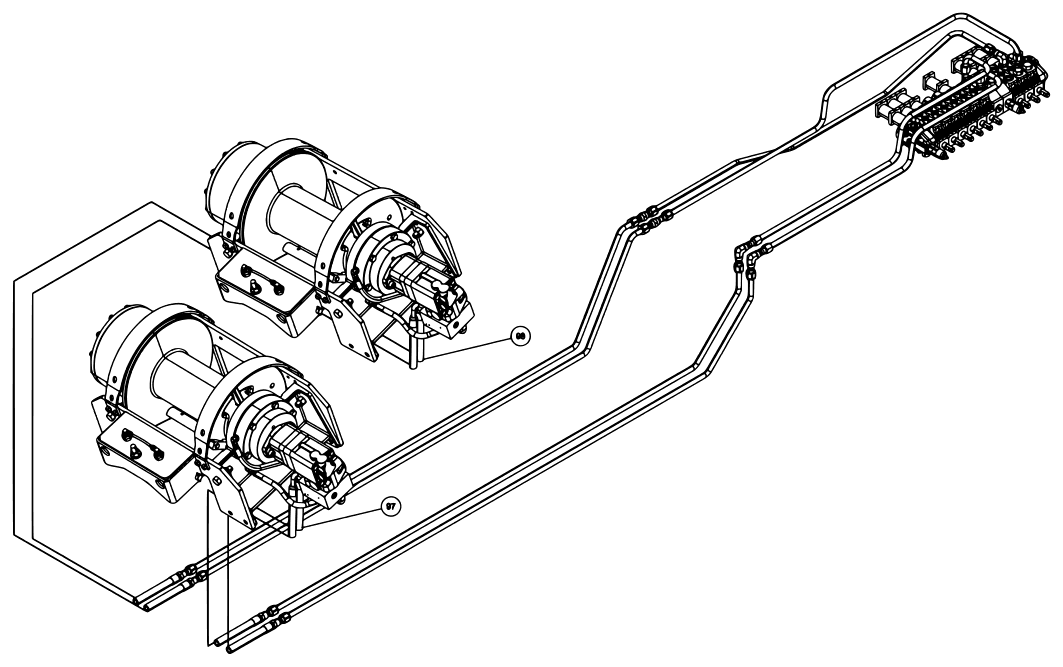

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 1 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 2 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 3 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 4 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 5 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 6 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 7 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 8 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 9 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 10 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 11 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 12 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 13 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 14 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 15 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 16 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 17 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 18 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 19 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 20 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 21 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 22 of 23)

Vulcan V-70 2-Winch (2023 manual) 09008490, Bua V70 2-Winch Rear Outrigger diagram (view 23 of 23)

Show parts list (101 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart

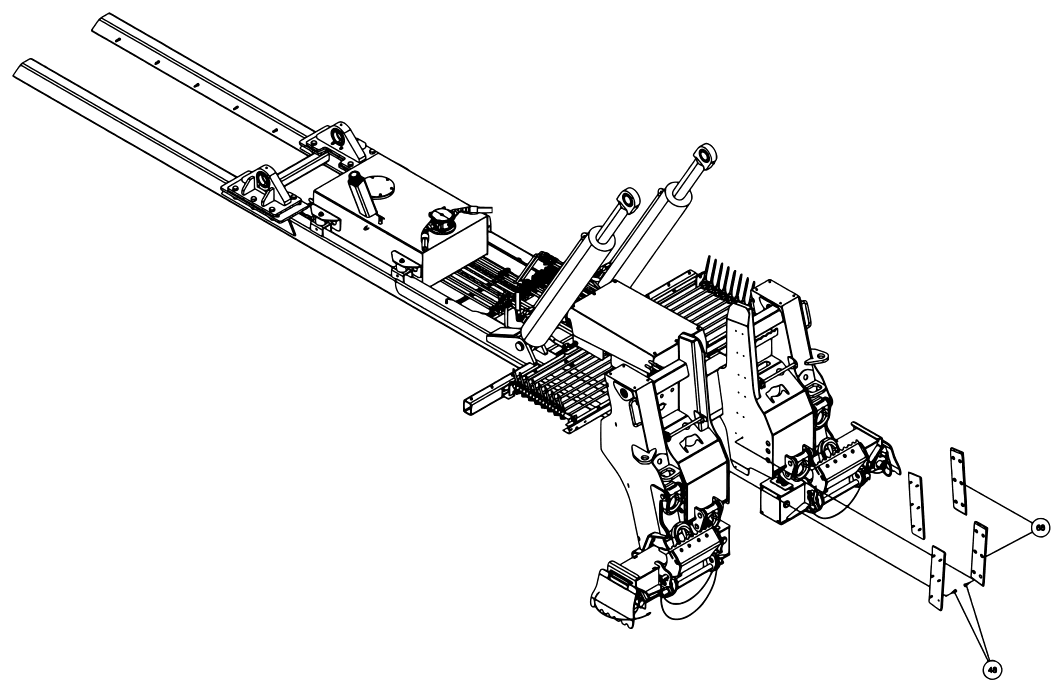

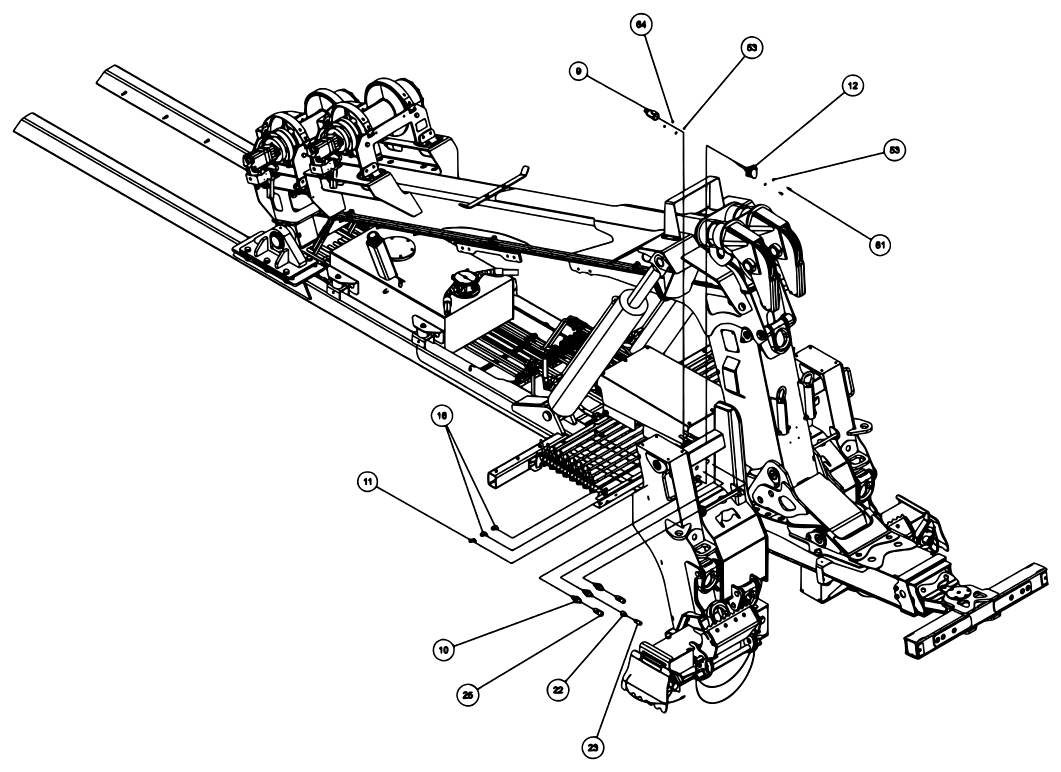

--	09008490	BUA V70 2W REAR OUTRIGGER		Call for price	—
1	0300044	FITT, HYD CONN. 6MJ-8MB	4	$3.80
2	0300341	KNOB, BLACK (BLANK)	12	$9.20
3	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	8	$7.00
4	0301470	FITTING, 90ELB 6MJ-8MB90	4	$7.60
5	0301473	HOSE HYD, 18" LG	4	$57.80
6	0301620	FITTING, HYD. 6MJ - 6MB90	5	$5.80
7	0301696	FITTING, ELB 90 DEG 6MJ-6FJX90	5	Call for price	—
8	0301895	GREASE FITTING, 1/8 STR PTF	2	$5.80
9	0301909	RECEPTACLE BOOT	1	Call for price	—
10	0301946	FITTING, BLKHD CONNECT	3	$93.80
11	0301947	FITTING, 45 DEG ADAPTER	1	Call for price	—
12	0301948	HD 7 WAY TRAILER CONNECT	1	$59.60
13	0301959	SNAP RING-INTERNAL 1-1/2	4	$5.80
14	0301998	HOSE HYD, 24" LG	4	$56.00
15	0302205	GAUGE, FLUSH MNTG-6000 PSI	4	$44.80
16	0302534	FITTING, 45 DEG ELBOW	2	$33.00
17	0302698	FITTING, HOSE BARB, 1-1/4	2	$32.40
18	0302901	HOSE HYD, 120" 12C12	2	$243.60
19	0303017	FITTING, CONNECTOR	4	$5.60
20	0303170	HOSE, HYD. 75"	1	$93.80
21	0303185	HOSE HYD, 66" LG.	1	$71.60
22	0303538	FITT, ADAPTER -BRASS 8FP-6MP	1	$11.60
23	0303539	QUICK DISCONNECT 3/8 FPT	1	$37.00
24	0303948	ELBOW, 12MJ-16MB90	2	$28.00
25	0304363	QUICK DISCONNECT 1/2 FPT	2	$64.40
26	0306539	HOSE BARB 20HOSE16MB90	2	Call for price	—
27	0306983	FITT-MALE RUNTEE 1/4T-1/4NPT	1	$18.80
28	0307216	LIGHT, AMBER LED RECT 5.25x3.3	2	$75.80
29	0307525	HOSE, HYD ASSY 120" LGTH 90L	4	$78.00
30	0307538	LIGHT, MRKR-RED LED 4.5 X 1.63	4	$68.60
31	0307604	KNOB, RED LONG - SK0700-07	4	$22.40
32	0307778	PLUG, FILLER	2	$3.40
33	0310010	SUCTION HOSE, 1-1/4ID x50 100R4	1	Call for price	—
34	0310881	6 WAY DIVERTER VALVE-12V	2	$907.40
35	0310944	LH 200 CB TDM ALM BDY '10 VULC	1	Call for price	—
36	0310945	RH 200 CB TDM ALM BDY '10 VULC	1	Call for price	—
37	0311355	HOBBS HOURMETER	1	$87.40
38	0311502	LIGHT 6"OVAL CLEAR-AMBER LED	6	$31.80
39	0311503	GROMMET, LIGHT 6" OVAL	6	$2.80
40	0311508	LED RECT RED STOP-CLEAR-12/24V	4	$78.80
41	0311510	LIGHT RECT 12V REVERSE REFLEX	2	$18.00
42	0311511	GROMMET, TAIL LIGHT, RECTANGULAR	8	$4.00
43	0311755	WATER SEPARATOR-MONNIER	1	$254.20
44	0312622	FITTING, 16FJ-6MJ	1	Call for price	—
45	04000381	SS BHSCS 1/4-20 X 1	16	Call for price	—
46	0400070	SCREW, 1/4-20X1 HHC GR5	6	$5.80
47	0400078	SCREW, 1/4-20X2 HHC GR5	4	$5.80
48	0400128	SCREW, 3/8-16X1-1/4 FHS GR8 BO	24	$8.00
49	0400367	NUT, 1/4-20 LOK	4	$5.80
50	0400369	NUT, 1/4 SPR J	8	$5.80
51	0400393	NUT, 3/8-16 JAM	16	$5.80
52	0400451	WASHER, 1/4	6	$5.80
53	0400454	WASHER, 1/4 SS	22	$1.80
54	0400491	LKWASHER, 1/2	14	$5.80
55	0400498	WASHER, 1/2X2X0.125	14	$8.00
56	0400687	SCREW, 10-24X3/4 PRH SS	4	Call for price	—
57	0400816	WASHER, M10 SS	4	Call for price	—
58	0401054	SCREW, 8-32X3/4 PRH SS	12	Call for price	—
59	0402002	NUT, 8-32 LOK EXT SS	12	$5.80
60	0402020	SCREW, 1/4-20X3/4 HHC SS	2	$5.80
61	0402021	SCREW, 1/4-20X1 HHC SS	2	$5.80
62	0402043	SCREW, 3/8-16X1-1/4 HHC SS	8	$5.80
63	0402111	LKWASHER, 1/4 SS	18	$5.80
64	0402113	NUT, 1/4-20 LOK SS	2	$1.80
65	0402120	WASHER, 3/8 SS	16	$5.80
66	0402121	LKWASHER, 3/8 SS	8	Call for price	—
67	0402122	NUT, 3/8-16 HEX SS	8	$4.00
68	0724476	PAD - NYLATRON - BOOM GUIDE	4	$165.20
69	0724500	PIN - LOWER JACK LEG CYL	2	Call for price	—
70	0726593	APNL-DCV LWR CTL PNL, 3 WINCH	2	$172.00
71	0726594	APNL-DCV UPR LH CTL PNL, 3WNCH	1	$187.00
72	0726595	APNL-DCV UPR RH CTL PNL, 3WNCH	1	$177.00
73	0910787	STINGER ASSY - EURO - 144"	1	Call for price	—
74	0911010	RECOVERY BOOM INSTALL V-70	1	Call for price	—
75	0911120	LH REAR OUTRIGGER ASSY	1	Call for price	—
76	0911121	RH REAR OUTRIGGER ASSY	1	Call for price	—
77	0911804	AIR REGULATOR-GAUGE ASSEMBLY	2	$101.20
78	0912015	SUBFRAME ASSY V70-100 STD WINCH	1	Call for price	—
79	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
80	9011053	FITTING, BRASS 1/4 TUBE-1/4 MP	1	$8.20
81	9012594	FITTING, HYD RUN TEE, 6MJx6MBx6MJ	1	$21.20
82	9016815	MUNCIE PUMP TSPKS17-17-2BSSB	1	$1,633.60
83	9024041	SWITCH, ROCKER SPST RED 12V21A	11	$43.40
84	9041403	1/2 NC X 1 1/2 HHCS PL GR8	14	$5.80
85	916770001	HOSE- HYD. 3/8 - 105" 8MJ-6MFA	2	$88.40
86	920400005	MUD FLAP BRACE PLATE	2	$20.60
87	9402970	TOOLBOX MTG. PAD	14	$54.20
88	942480011	PLATE, SLOT-SS REAR WASHER TBOX	14	$25.20
89	942480300	MTG ANGLE WELD'T LH - DCV COV.	2	$150.80
90	942487300	MTG ANGLE WELD'T RH - DCV COV.	2	$167.60
91	94320052	MUD FLAP 920-940 RUBBER	2	$70.20
92	945770002	6AT2(6T90S-8MJ) HCL 48	2	$73.60
93	945770003	6AT2(6T90L-8MJ) 24 HYD	4	$43.40
94	946210500	TUBE, FRONT MTG WELD'T	1	$1,007.80
95	946770003	HOSE ASSEMBLY - 8MJ-8MJ X 45	4	Call for price	—
96	946770006	HOSE ASSEMBLY - 62	2	Call for price	—
97	946770007	HOSE ASSEMBLY - 79	2	Call for price	—
98	946770009	HOSE ASSEMBLY - 104	2	Call for price	—
99	948570000	5x5 LIFT BAR ASSEMBLY 948 XHD	1	$4,524.60
100	HA293	FITTING-ADPTR SWV RUN	1	Call for price	—

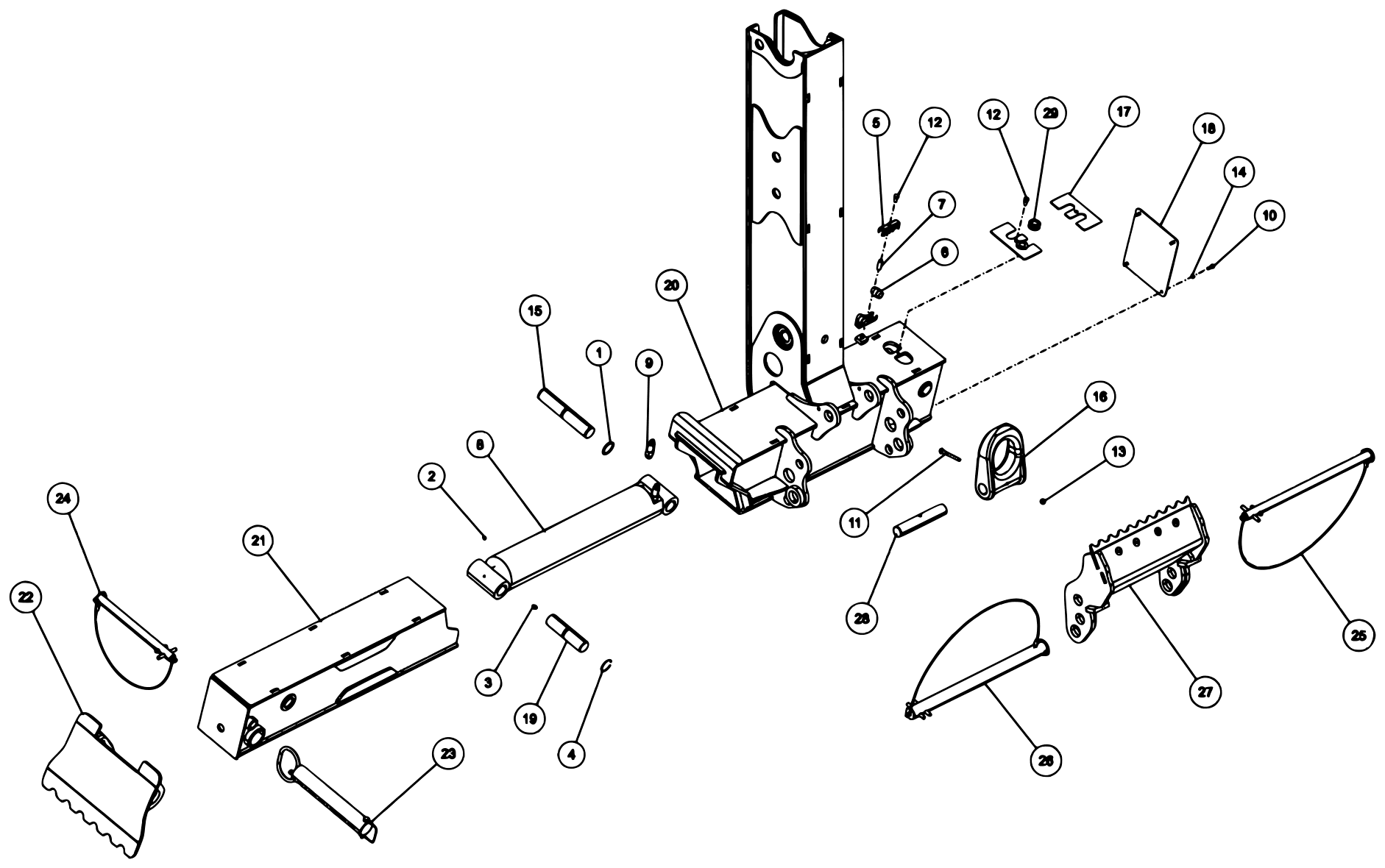

Vulcan V-70 2-Winch (2023 manual) 0911120, LH Rear Outrigger Assembly diagram

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911120	LH REAR OUTRIGGER ASSY		Call for price	—
1	0300109	SNAP RING, 1.5 5100-150	2	$1.80
2	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
3	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
4	0301959	SNAP RING-INTERNAL 1-1/2	2	$5.80
5	0302546	CLAMPING UNIT C-PH-10-2	2	$15.60
6	0302550	C-SB-10-12 3/4 SPLIT	2	$9.80
7	0302551	C-SN-10 SOCKET-HEAD	1	$11.60
8	0310145	CYLINDER - OUTRIGGER EXTENDED	1	$1,468.60
	Seal kit for 0310145 cylinder: Call for pricing and availability: 770-921-6070
9	0310289	FITTING-LONG ADAPTER 6MJ-8MBLL	2	Call for price	—
10	0400066	SCREW, 1/4-20X3/4 HHC GR5	4	$5.80
11	0400114	SCREW, 5/16-18X3 HHC GR5	1	$5.80
12	0400118	SCREW, 5/16-18X3/4 HHC GR5	2	$5.80
13	0400382	NUT, 5/16-18 LOK	1	$5.80
14	0400452	LKWASHER, 1/4	4	$5.80
15	0719540	PIN, EXTEND CYL (BASE END)	1	$76.20
16	0719585	D-RING, TOWING	1	$440.40
17	0723889	PLATE-HOSE RETAINING	2	$24.40
18	0724617	PLATE OUTRIGGER COVER	1	Call for price	—
19	0724635	PIN CYLINDER MTG	1	Call for price	—
20	0810030	LH REAR OUTRIGGER LEG	1	Call for price	—
21	0810033	INNER REAR OUTRIGGER	1	Call for price	—
22	0810035	PAD - REAR OUTRIGGER	1	Call for price	—
23	0906963	PIN - REAR OUTRIGGER PAD ASSY	1	$263.60
24	0911122	PIN ASSY - PAD LOCK	1	$305.60
25	0911123	PIN ASSY - SPADE LOCK	1	$102.80
26	0911124	PIN ASSY - SPADE PIVOT	1	$371.40
27	0911167	SPADE ASSY - REAR OUTRIGGER	1	$1,157.60
28	GA0215	PIN - "D" RING	1	$81.20
29	GH246	SPLIT RUBBER GROMMET	2	Call for price	—

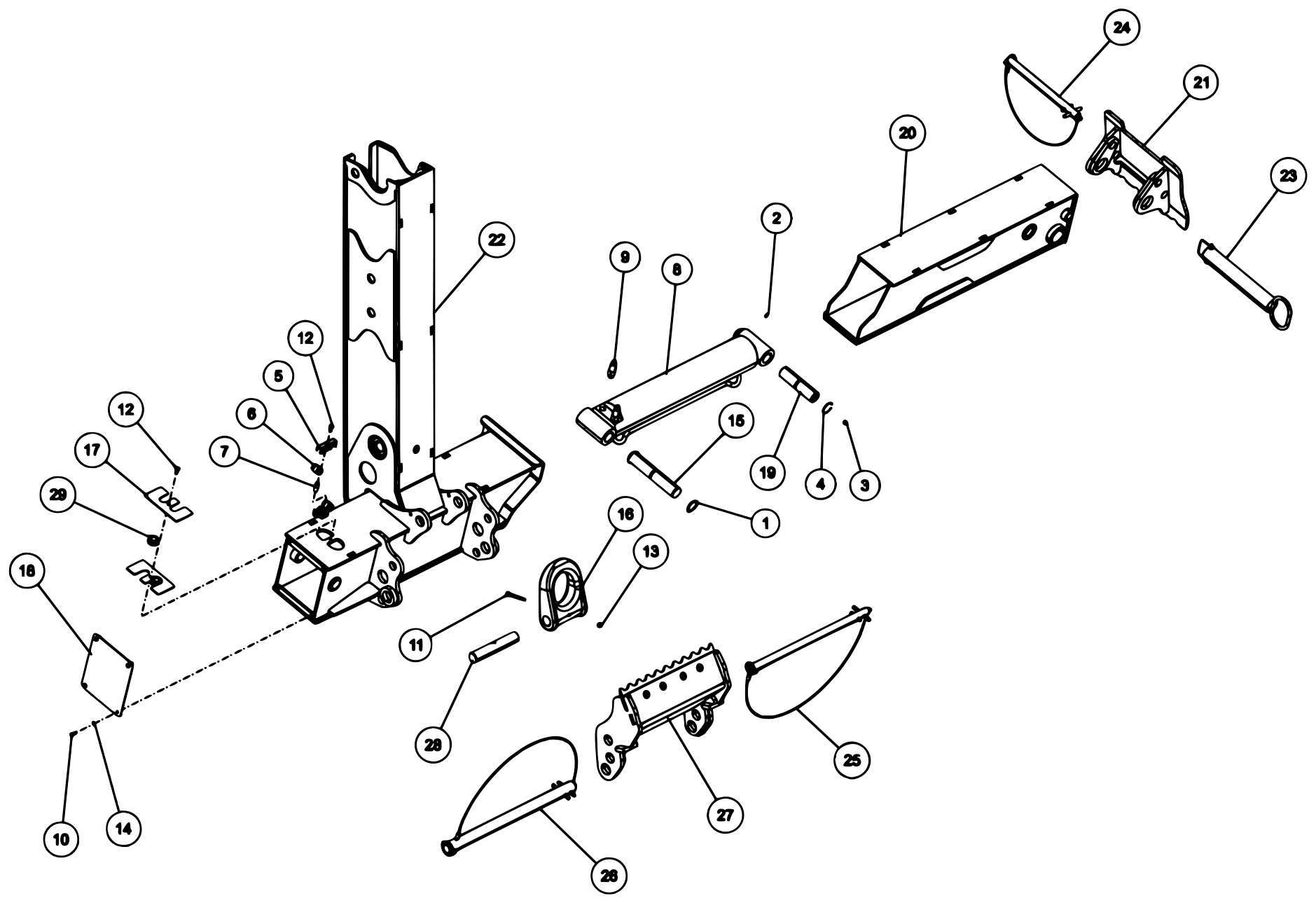

Vulcan V-70 2-Winch (2023 manual) 0911121, RH Rear Outrigger Assembly diagram

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911121	RH REAR OUTRIGGER ASSY		Call for price	—
1	0300109	SNAP RING, 1.5 5100-150	2	$1.80
2	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
3	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
4	0301959	SNAP RING-INTERNAL 1-1/2	2	$5.80
5	0302546	CLAMPING UNIT C-PH-10-2	2	$15.60
6	0302550	C-SB-10-12 3/4 SPLIT	2	$9.80
7	0302551	C-SN-10 SOCKET-HEAD	1	$11.60
8	0310145	CYLINDER - OUTRIGGER EXTENDED	1	$1,468.60
	Seal kit for 0310145 cylinder: Call for pricing and availability: 770-921-6070
9	0310289	FITTING-LONG ADAPTER 6MJ-8MBLL	2	Call for price	—
10	0400066	SCREW, 1/4-20X3/4 HHC GR5	4	$5.80
11	0400114	SCREW, 5/16-18X3 HHC GR5	1	$5.80
12	0400118	SCREW, 5/16-18X3/4 HHC GR5	2	$5.80
13	0400382	NUT, 5/16-18 LOK	1	$5.80
14	0400452	LKWASHER, 1/4	4	$5.80
15	0719540	PIN, EXTEND CYL (BASE END)	1	$76.20
16	0719585	D-RING, TOWING	1	$440.40
17	0723889	PLATE-HOSE RETAINING	2	$24.40
18	0724617	PLATE OUTRIGGER COVER	1	Call for price	—
19	0724635	PIN CYLINDER MTG	1	Call for price	—
20	0810033	INNER REAR OUTRIGGER	1	Call for price	—
21	0810035	PAD - REAR OUTRIGGER	1	Call for price	—
22	0810047	RH REAR OUTRIGGER LEG	1	Call for price	—
23	0906963	PIN - REAR OUTRIGGER PAD ASSY	1	$263.60
24	0911122	PIN ASSY - PAD LOCK	1	$305.60
25	0911123	PIN ASSY - SPADE LOCK	1	$102.80
26	0911124	PIN ASSY - SPADE PIVOT	1	$371.40
27	0911167	SPADE ASSY - REAR OUTRIGGER	1	$1,157.60
28	GA0215	PIN - "D" RING	1	$81.20
29	GH246	SPLIT RUBBER GROMMET	2	Call for price	—

Vulcan V-70 2-Winch (2023 manual) 0906963, Pin - Rear Outrigger Pad Assembly diagram

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
--	0906963	PIN - REAR OUTRIGGER PAD ASSY		$263.60
1	0311210	CABLE, PIN RETAINER ASSY .125	1	$28.60
2	0402020	SCREW, 1/4-20X3/4 HHC SS	1	$5.80
3	0805893	PIN WLDT REAR OUTRIGGER PAD	1	$229.20
4	HD1259	SAFETY SNAP PIN	1	$13.80

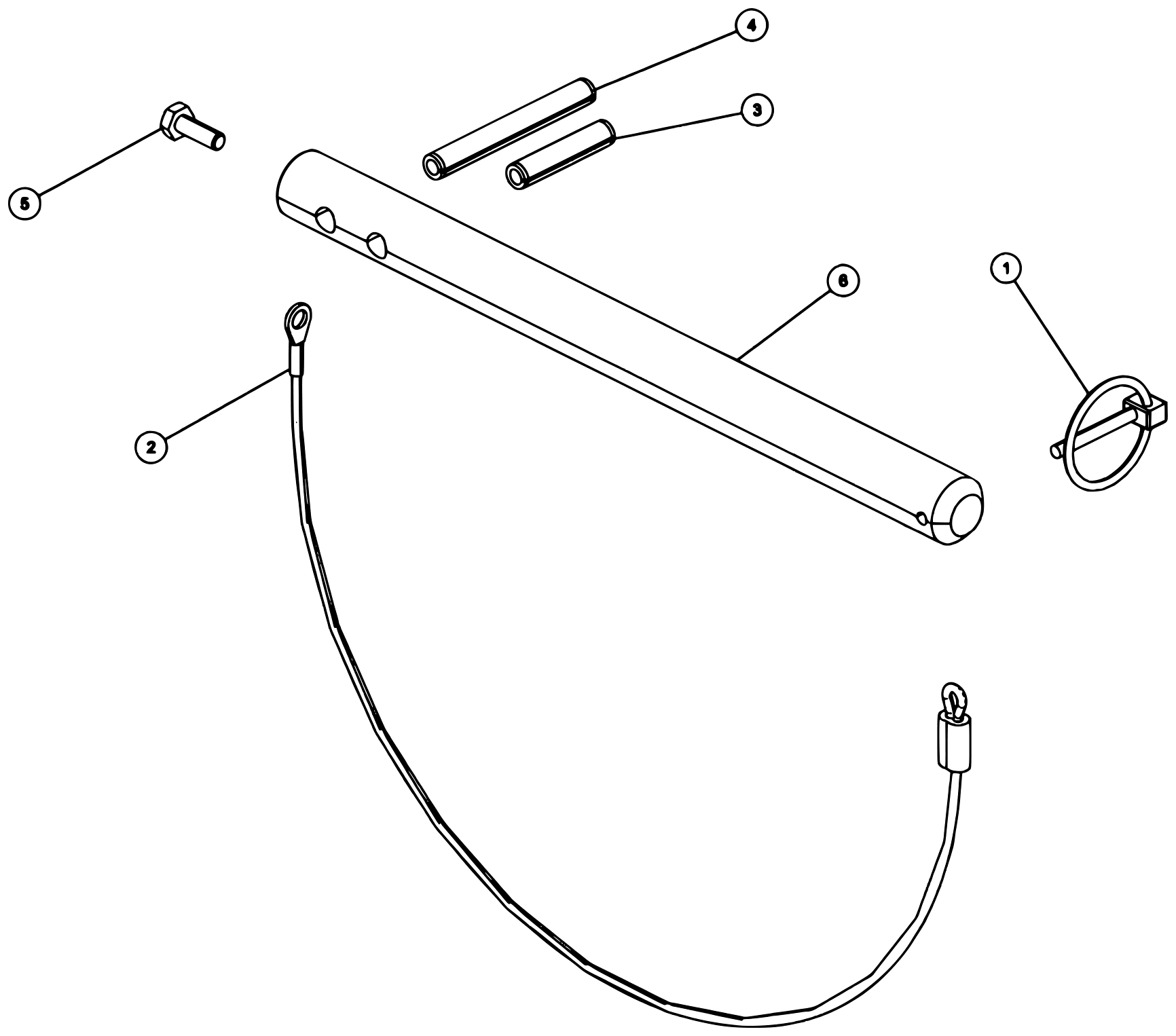

Vulcan V-70 2-Winch (2023 manual) 0911122, Pin Assembly - Pad Lock diagram

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911122	PIN ASSY - PAD LOCK		$305.60
1	0302474	PIN, LINCH 3/16	1	$3.80
2	0311210	CABLE, PIN RETAINER ASSY .125	1	$28.60
3	0400564	PIN, 3/8X1-3/4 SPR	1	$5.80
4	0400568	PIN, 3/8X3 SPR	1	$8.00
5	0402020	SCREW, 1/4-20X3/4 HHC SS	1	$5.80
6	0724632	PIN LOCK OUTRIGGER PAD	1	Call for price	—

Vulcan V-70 2-Winch (2023 manual) 0911123, Pin Assembly - Spade Lock diagram

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911123	PIN ASSY - SPADE LOCK		$102.80
1	0302474	PIN, LINCH 3/16	1	$3.80
2	0311210	CABLE, PIN RETAINER ASSY .125	1	$28.60
3	0312703	CABLE, PIN RETAINER (LONG)	1	$39.20
4	0400564	PIN, 3/8X1-3/4 SPR	1	$5.80
5	0400568	PIN, 3/8X3 SPR	1	$8.00
6	0402020	SCREW, 1/4-20X3/4 HHC SS	1	$5.80
7	0724633	PIN LOCK SPADE	1	Call for price	—

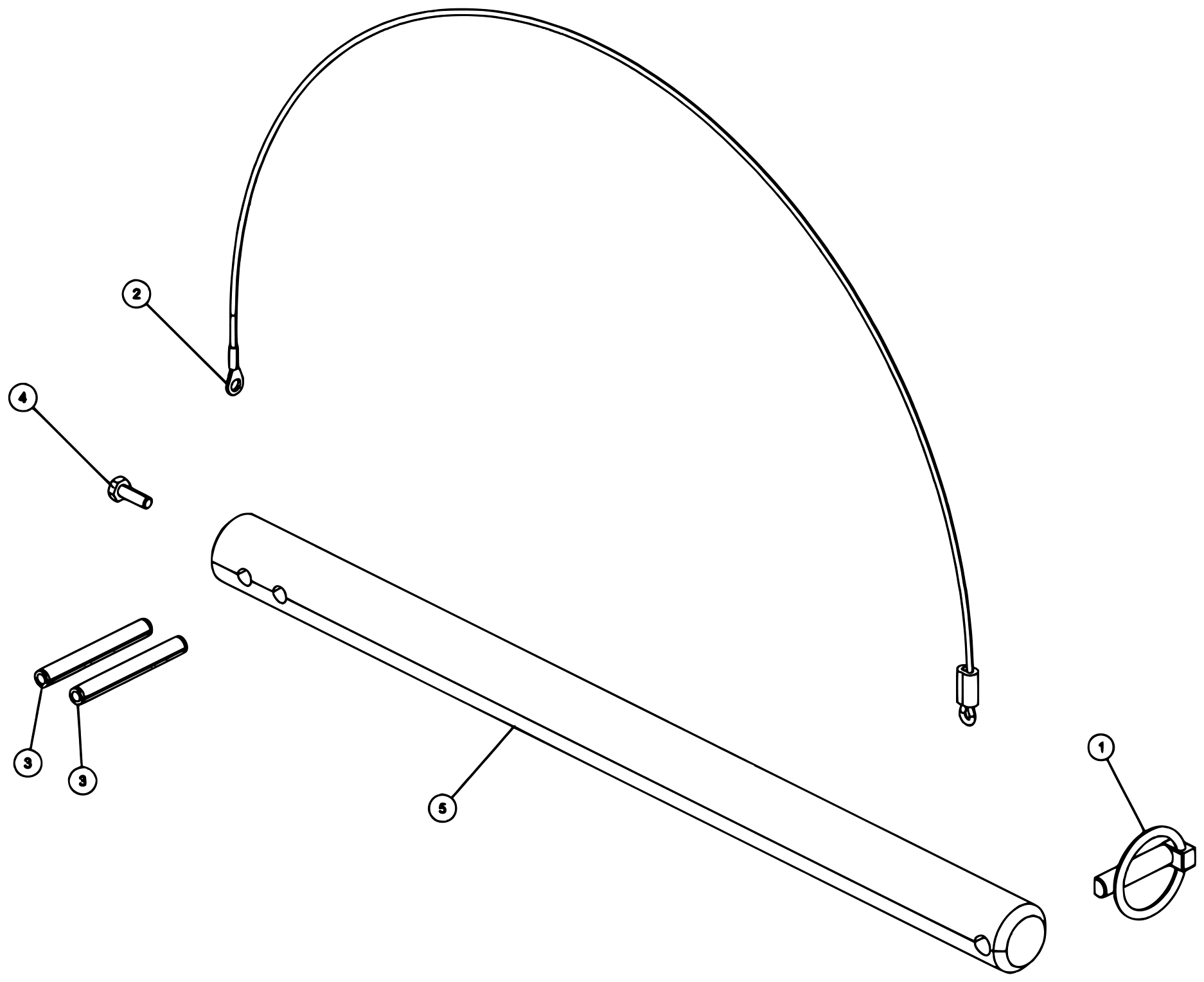

Vulcan V-70 2-Winch (2023 manual) 0911124, Pin Assembly - Spade Pivot diagram

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911124	PIN ASSY - SPADE PIVOT		$371.40
1	0301861	QUICK PIN, LINCH -B7932 PL 7/16	1	$3.80
2	0311210	CABLE, PIN RETAINER ASSY .125	1	$28.60
3	0312703	CABLE, PIN RETAINER (LONG)	1	$39.20
4	0400568	PIN, 3/8X3 SPR	1	$8.00
5	0402020	SCREW, 1/4-20X3/4 HHC SS	1	$5.80
6	0724634	PIN PIVOT SPADE	1	Call for price	—

Vulcan V-70 2-Winch (2023 manual) 0911167, Spade Assembly - Rear Outrigger diagram

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
--	0911167	SPADE ASSY - REAR OUTRIGGER		$1,157.60
1	0400193	SCREW, 1/2-13X1-1/2 FHS	4	$8.00
2	0400416	NUT, 1/2-13 LOK GR8	4	$5.80
3	0724616	PLATE BLADE SPADE	1	$417.00
4	0810034	SPADE - REAR OUTRIGGERS	1	$945.80

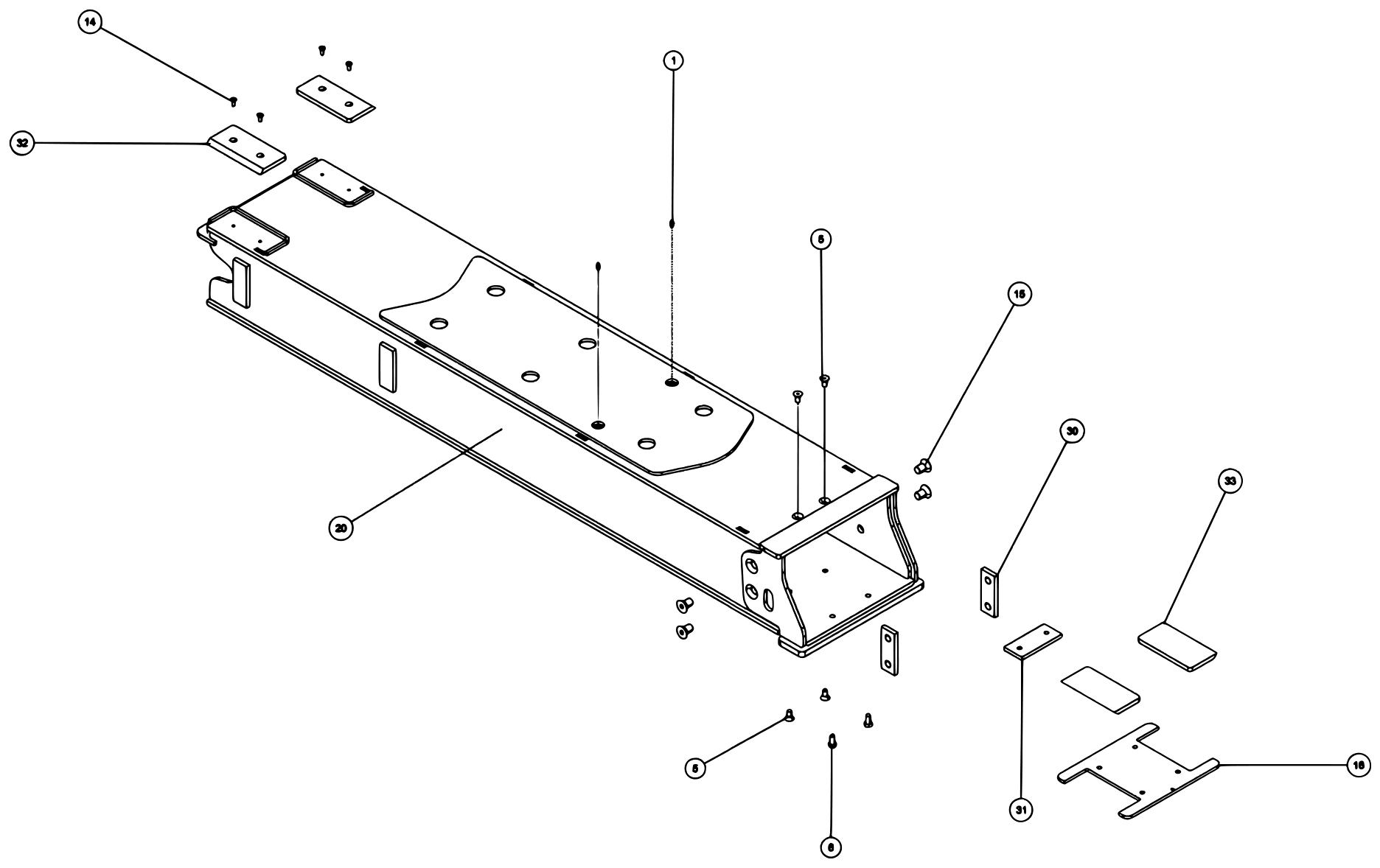

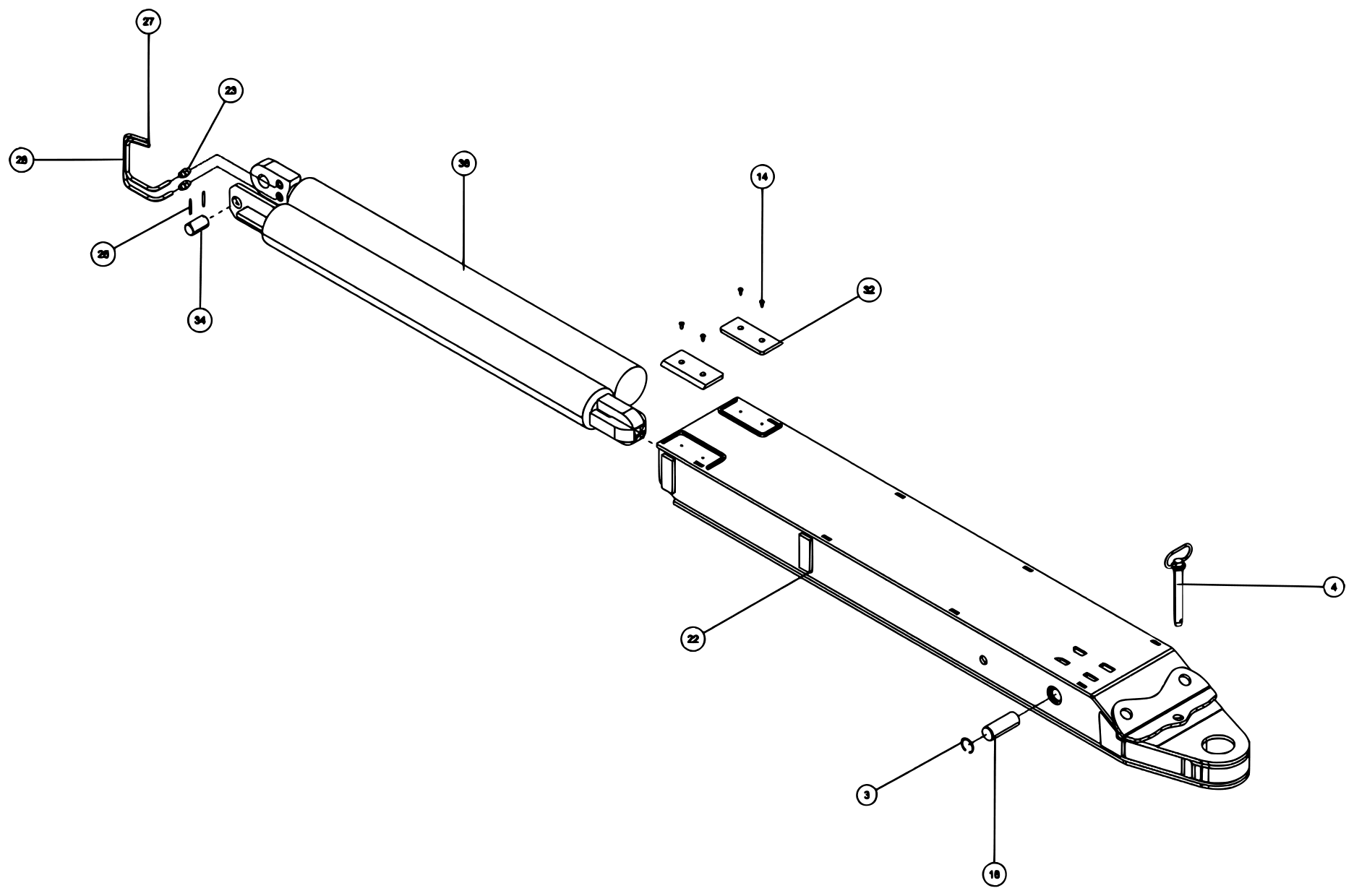

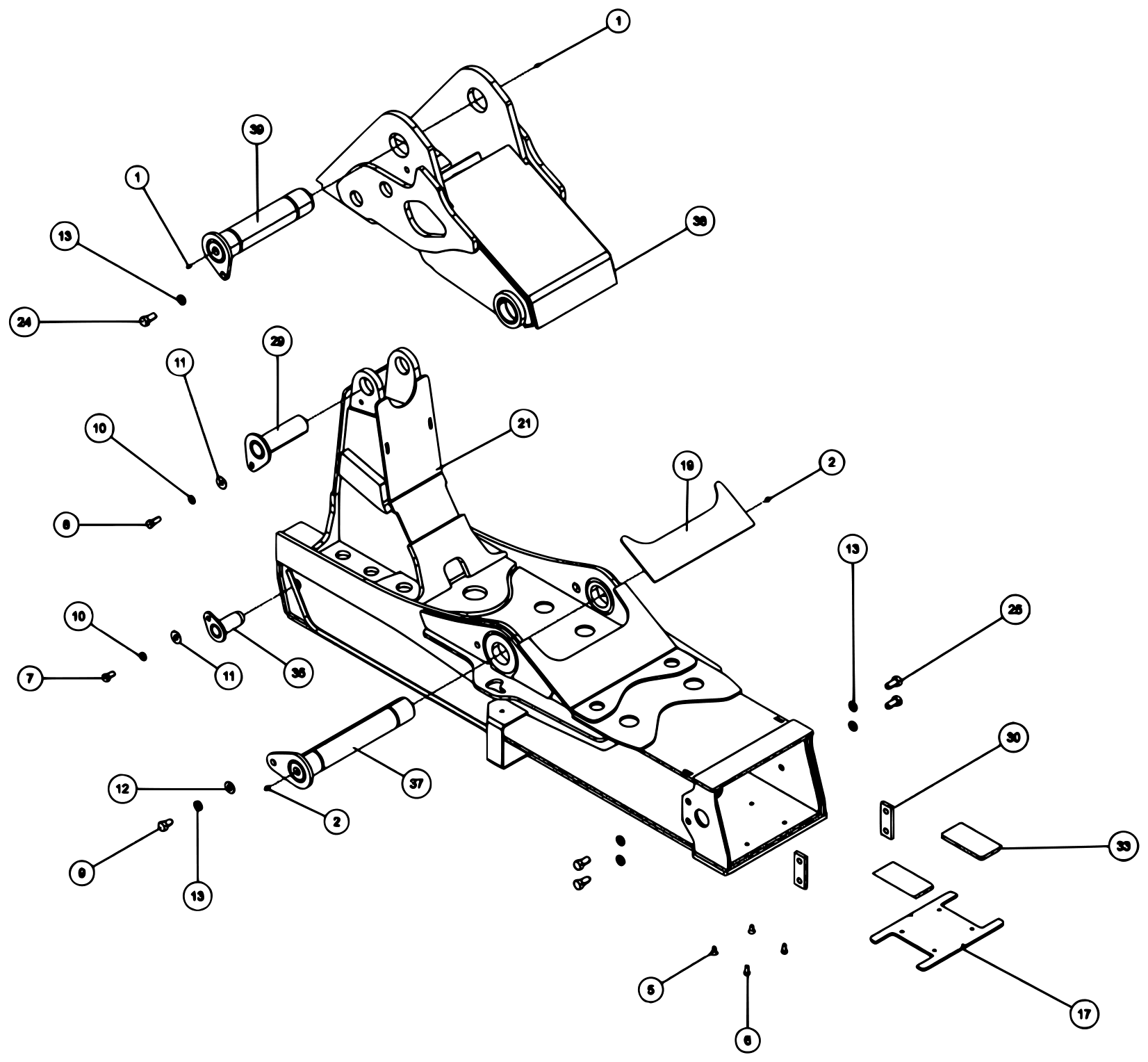

Vulcan V-70 2-Winch (2023 manual) 0910787, Stinger Assy - Euro - 144" diagram (view 1 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910787, Stinger Assy - Euro - 144" diagram (view 2 of 3)

Vulcan V-70 2-Winch (2023 manual) 0910787, Stinger Assy - Euro - 144" diagram (view 3 of 3)

Show parts list (40 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0910787	STINGER ASSY - EURO - 144"		Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	4	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	4	$5.80
3	0301959	SNAP RING-INTERNAL 1-1/2	1	$5.80
4	0313329	7/8X6 1/2 LG HITCH PIN	1	$77.60
5	0400134	SCREW, 3/8-24X3/4 FHS	6	$5.80
6	0400151	SCREW, 3/8-24X3/4 HHC GR5	4	$5.80
7	0400176	SCREW, 1/2-13X1 HHC GR5	1	$5.80
8	0400177	SCREW, 1/2-13X1-1/4 HHC GR5	1	$5.80
9	0400248	SCREW, 5/8-11X1 HHC GR8	1	$5.80
10	0400491	LKWASHER, 1/2	2	$5.80
11	0400492	USS FLAT WASHER, 1/2	2	$5.80
12	0400503	WASHER, 5/8 GR8	1	$5.80
13	0400508	LKWASHER, 5/8	6	$5.80
14	0400594	SCREW, 1/4-20X5/8 FHS	8	$5.80
15	0401009	SCREW, 5/8-18X1 FHS	4	$5.60
16	0723463	PLATE, PAD RETAINER	1	$96.40
17	0723476	PLATE, PAD RETAINER	1	$96.40
18	0724348	PIN, EXT CYL REAR MTG -STINGER	1	$259.00
19	0724694	PLATE - ALUMINUM DRESS-UP	1	Call for price	—
20	0807741	1ST STAGE STINGER WELD'T 144"	1	Call for price	—
21	0807742	FOLDING BOOM WELD'T 144"	1	$10,944.20
22	0807969	2ND STAGE STINGER WELDMENT	1	$7,740.60
23	9012510	CONNECTOR 6SAE MALE-3/8	2	$15.80
24	9040602	5/8NC X 1 1/4 HHCS GR 8	1	$5.80
25	9044471	5/8-18 X 1 1/4 HHCS PL GR8	4	$8.00
26	9046315	3/16 DIAX1 3/4LG ROLL PIN	2	$5.80
27	915760022	HYD.TUBE 3/8 STINGER EX	1	$11.20
28	915760023	HYD.TUBE 3/8 STINGER EX	1	$13.20
29	924902000	LOWER PIN WELD'T	1	$178.80
30	930150001	STOP PAD (FOLDING BOOM)	4	$68.60
31	930150002	SPACER (1ST STAGE STINGER)	1	$41.60
32	930150003	TOP PADS	4	$28.00
33	930150004	BOTTOM PADS	4	$18.40
34	930150011	PIN (CYL STIFFENER PLATE	1	$124.60
35	930152000	FRONT MTG. PIN WELD'T	1	$312.40
36	930775500	TWIN CYL. ARR'MENT-EURO.NEW	1	$7,180.80
37	930901500	SHAFT WELD'T - FOLD.BOOM PIVOT	1	$682.60
38	945300000	PIVOT FOOT WELDMENT	1	$4,327.80
39	945351000	SHAFT WELDT-FOLDING BOOM PIVOT	1	$335.80

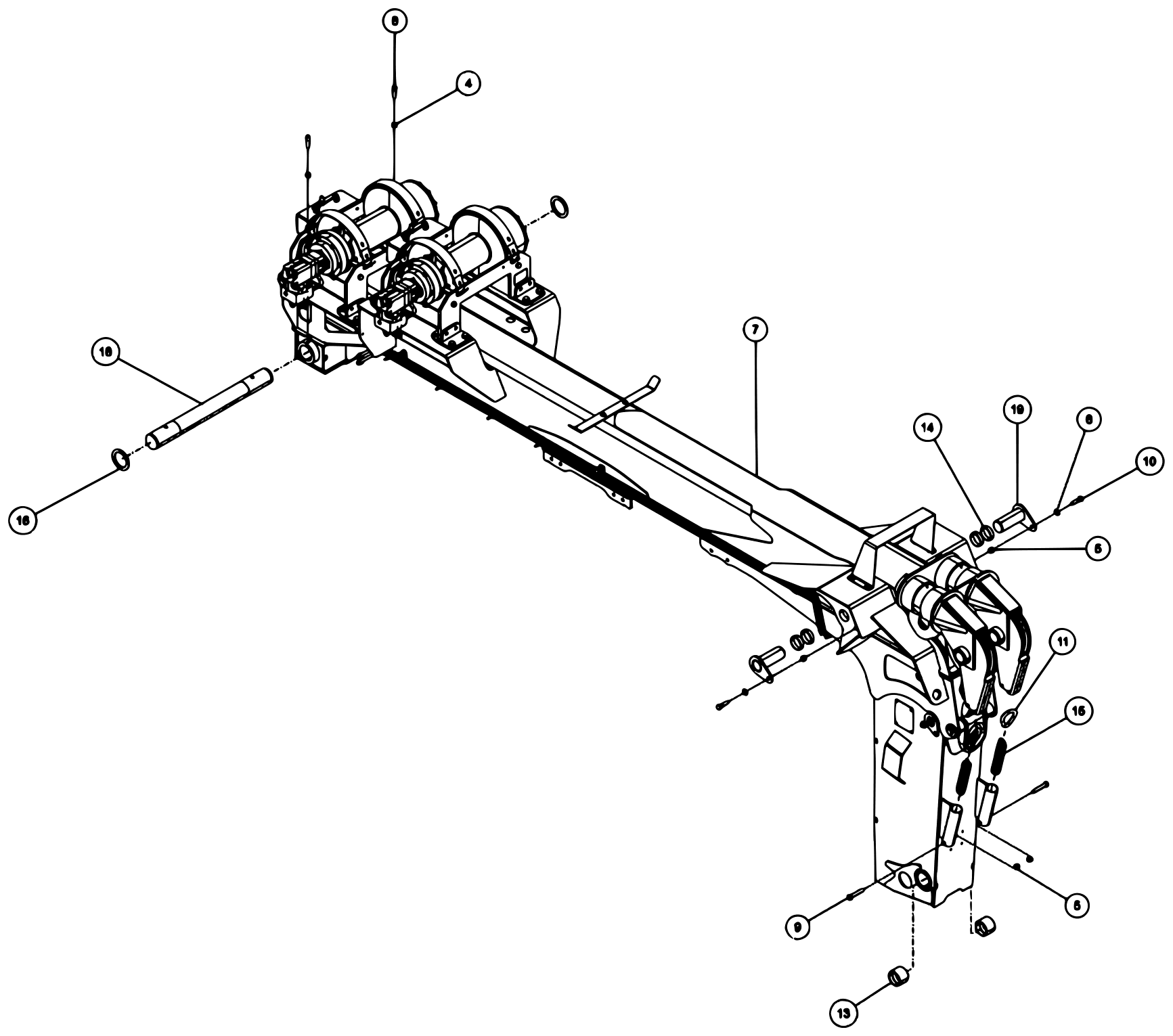

Vulcan V-70 2-Winch (2023 manual) 0911010, Recovery Boom Install V-70 diagram (view 1 of 2)

Vulcan V-70 2-Winch (2023 manual) 0911010, Recovery Boom Install V-70 diagram (view 2 of 2)

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911010	RECOVERY BOOM INSTALL V-70		Call for price	—
1	0301522	ADAPTER, 6MJ-6MB	2	$3.80
2	0301696	FITTING, ELB 90 DEG 6MJ-6FJX90	2	Call for price	—
3	0310832	CYLINDER, 6.5 BORE	1	Call for price	—
	Seal kit for 0310832 cylinder: Call for pricing and availability: 770-921-6070
4	0400424	NUT, 5/8-18 HEX	2	Call for price	—
5	0400426	NUT, 5/8-11 LOK GR8	4	$8.00
6	0400505	WASHER, 5/8 SAE	2	$5.80
7	0911033	RECOVERY BOOM ASSY V-70	1	Call for price	—
8	9043605	5/8-18 X 2 SOC HD CAP	2	Call for price	—
9	9043975	H.H.C.SCREW 5/8N.C.X3 1/2	2	$8.00
10	9044409	SCREW, 5/8-11X2-1/4 HHC GR8 YZ	2	$3.60
11	9048800	5/8 WELDLESS CHAIN LINK	2	$21.60
12	930290001	STOP BLOCK VERT BOOM WELD	2	$370.00
13	9400004	BRONZE BUSHING	2	$274.40
14	945020001	WASHER PLATE-LOWER LIFT	4	$70.40
15	945030007	CABLE TIE BACK SPRING-1	2	$28.00
16	945040001	SPACER, MAIN BOOM PIVOT	2	$23.20
17	945291500	LOWER GUIDE PAD WELD'T	2	$131.80
18	945350001	PIVOT PIN, MAIN BOOM	1	$696.80
19	945351500	PIN WELD'T LOWER LIFT CYL	2	$113.80

Vulcan V-70 2-Winch (2023 manual) 0911033, Recovery Boom Assembly V-70 diagram (view 1 of 4)

Vulcan V-70 2-Winch (2023 manual) 0911033, Recovery Boom Assembly V-70 diagram (view 2 of 4)

Vulcan V-70 2-Winch (2023 manual) 0911033, Recovery Boom Assembly V-70 diagram (view 3 of 4)

Vulcan V-70 2-Winch (2023 manual) 0911033, Recovery Boom Assembly V-70 diagram (view 4 of 4)

Show parts list (56 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911033	RECOVERY BOOM ASSEMBLY V-70		Call for price	—
1	0300041	CONNECTOR, 8MJ-8MB	4	$5.60
2	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
3	0301895	GREASE FITTING, 1/8 STR PTF	2	$5.80
4	0301959	SNAP RING-INTERNAL 1-1/2	2	$5.80
5	0302275	FITTING, CONN 8MJ-6MB W/STEP	2	$7.60
6	0307061	WINCH-35K DP 2-SP N.DRUM W/TEN	2	$15,473.40
7	0311460	1/4" GREASE TUBINGPriced per foot	14	$3.80
8	0311575	1/4X1/4 PTC SWIVEL MALE ELBOW	1	$13.80
9	0311981	TUBE, 1/2" LH BOOM LOWER	1	Call for price	—
10	0311982	TUBE, 1/2" LH BOOM UPPER	1	Call for price	—
11	0311983	TUBE, 1/2" RH BOOM LOWER	1	Call for price	—
12	0311984	TUBE, 1/2" RH BOOM UPPER	1	Call for price	—
13	0312312	STAUFF DOUBLE TUBE CLAMP 1/2	8	Call for price	—
14	0400059	SCREW, 1/4-20X5/8 HHC GR5	10	$5.80
15	0400121	SCREW, 3/8-16X3/4 HHC GR5	2	$5.80
16	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	4	$5.80
17	0400126	SCREW, 3/8-16X1 HHC GR5	2	$5.80
18	0400132	SCREW, 3/8-16X1-1/2 HHC GR5	4	$5.80
19	0400262	SCREW, 5/8-11X2-1/2 HHC GR8	32	$5.80
20	0400392	NUT, 3/8-16 LOK	6	$5.80
21	0400426	NUT, 5/8-11 LOK GR8	32	$8.00
22	0400452	LKWASHER, 1/4	10	$5.80
23	0400480	WASHER, 3/8	10	$4.00
24	0400482	LKWASHER, 3/8	4	$5.80
25	0400491	LKWASHER, 1/2	1	$5.80
26	0400492	USS FLAT WASHER, 1/2	1	$5.80
27	0400503	WASHER, 5/8 GR8	64	$5.80
28	0715517	PIN, D-RING OUT BOOM WLMT	1	$133.60
29	0719585	D-RING, TOWING	1	$440.40
30	0724343	BAR, CABLE SUPPORT	1	$32.80
31	0724344	CHANNEL, ROPE GUIDE	1	$85.00
32	0806861	INNER BOOM WELDMENT V-70	1	$7,615.60
33	0810011	WINCH MTG BRKT V-70	8	Call for price	—
34	0810326	V70 OUTER BOOM 3 WINCH	1	Call for price	—
35	0810492	CHANNEL WELD'T - HOSE GUIDE	1	Call for price	—
36	0908424	SWIVEL-BOOM ASSEMBLY	2	Call for price	—
37	3012-793001	PLATE - LUBE MTG.	1	$19.40
38	9010024	FITT, BRASS CONN 1/4T-1/8MP	1	$11.60
39	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
40	9012552	BULKHEAD ADAPTER 1/8M-1/8F NPT	1	$39.80
41	9041403	1/2 NC X 1 1/2 HHCS PL GR8	1	$5.80
42	9044434	3/8-16X1 NC FLAT SOCKET HD CAP	2	$5.80
43	9056137	RETAINING RING - 1 3/8	2	$3.80
44	9056150	RETAINING RING - 1 1/2	2	$8.00
45	915040501	CLAMP PLATE	2	$12.40
46	920255003	SPACER - LOCK PIN WELD'T	1	$3.60
47	930100002	LOWER WEAR PAD-RECOVERY	1	$70.40
48	930105000	SPIDER CLAMP - TOP WELD'T	1	$288.80
49	930290002	COVER PLATE VERT BOOM MA	2	$18.80
50	930350002	PIN MAIN BOOM EXT CYL FR	1	$173.40
51	930350003	PIN MAIN BOOM EXT CYL RE	1	$243.60
52	930720000	EXTENSION CYLINDER BOOM	1	$6,704.20
	Seal kit for 930720000 cylinder: Call for pricing and availability: 770-921-6070
53	945030001	PAD RETAINING PLATE-UPPE	1	$30.00
54	945030004	UPPER WEAR PAD-RECOVERY	1	$70.40
55	945350500	PIN WELD'T-TILT CYL UPPE	1	$211.20

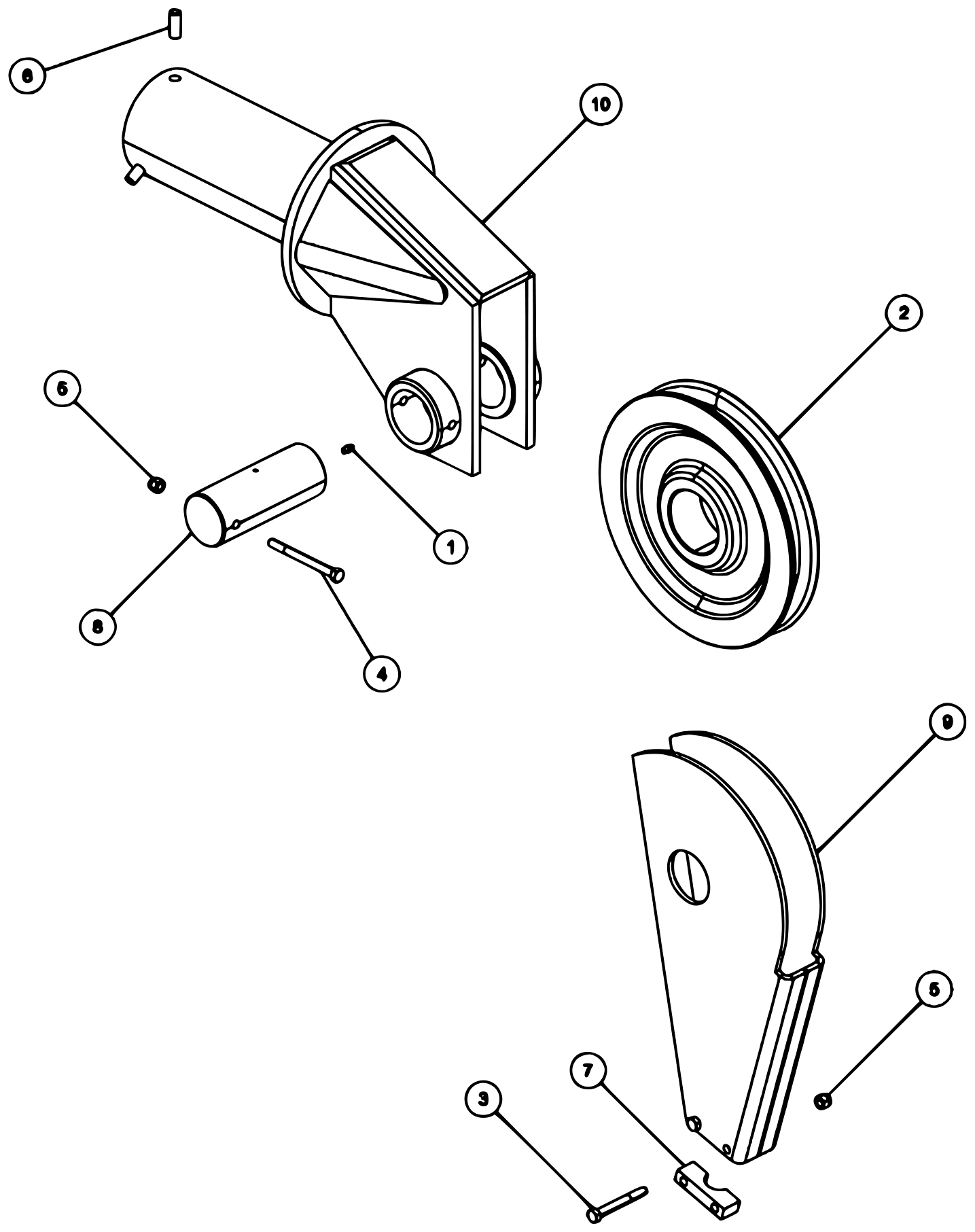

Vulcan V-70 2-Winch (2023 manual) 0908424, Swivel-Boom Assembly diagram

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0908424	SWIVEL-BOOM ASSEMBLY		Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0300311	SHEAVE, 12-10-1BB 10	1	$550.60
3	0400133	SCREW, 3/8-16X3 HHC GR5	2	$5.80
4	0400140	SCREW, 3/8-16X4 HHC GR5	1	$5.80
5	0400392	NUT, 3/8-16 LOK	3	$5.80
6	0400557	PIN, 1/2X1-1/4 SPR	3	$5.80
7	0700511	GUIDE, BOTTOM CABLE	2	$33.00
8	0700563	SHAFT, SHEAVE	1	$117.40
9	0802027	GUIDE-CABLE WELDMENT	1	$359.20
10	0806862	BOOM END SWIVEL WELDMENT V-70	1	Call for price	—

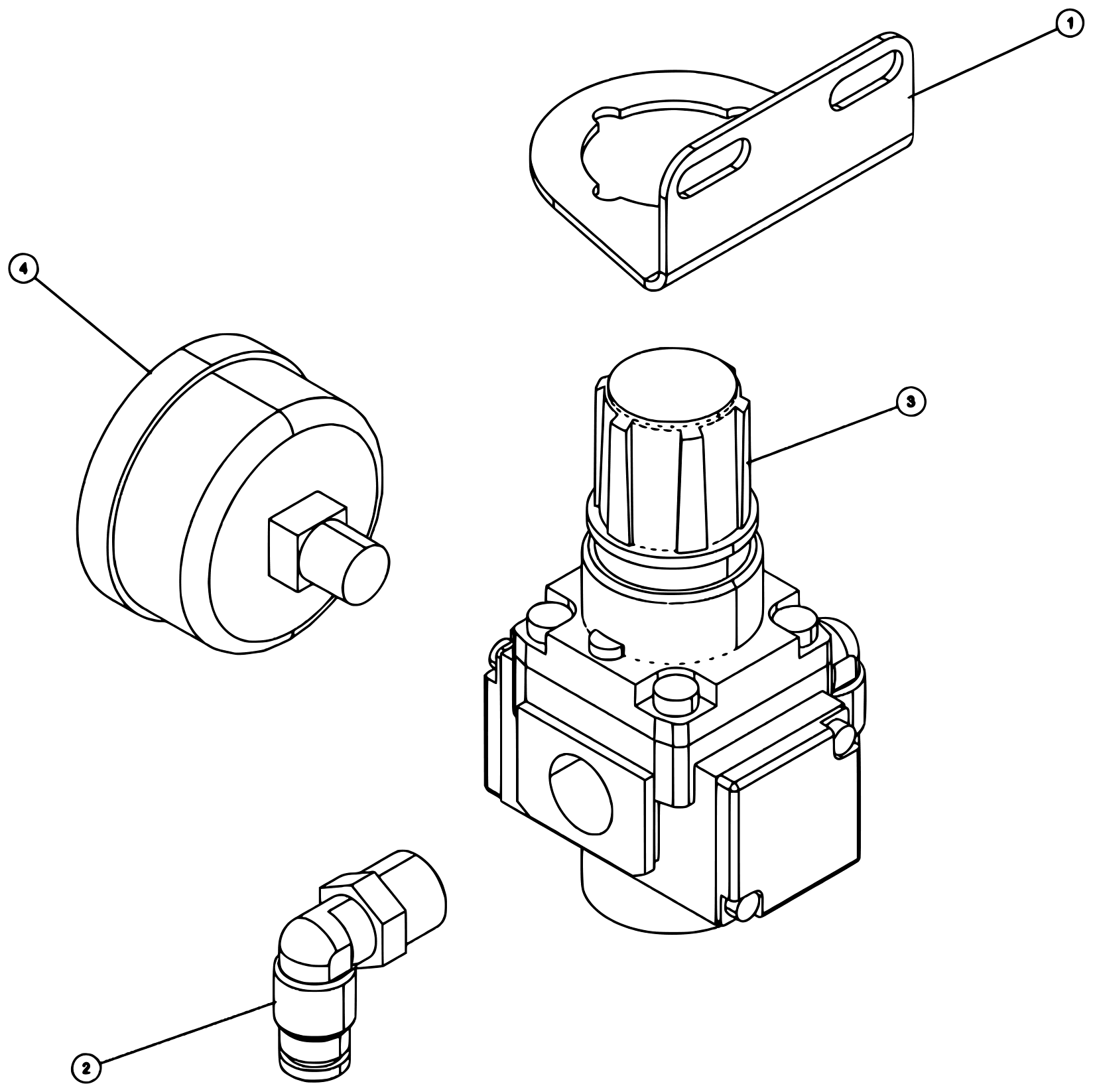

Vulcan V-70 2-Winch (2023 manual) 0911804, Air Regulator-Gauge Assembly diagram

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
--	0911804	AIR REGULATOR-GAUGE ASSEMBLY		$101.20
1	0303365	BRACKET, MOUNTING - AIR PREP	1	$7.60
2	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
3	HA0131	REGULATOR, AIR	1	$47.00
4	HA0132	GAUGE 0-160 PSI	1	$24.40

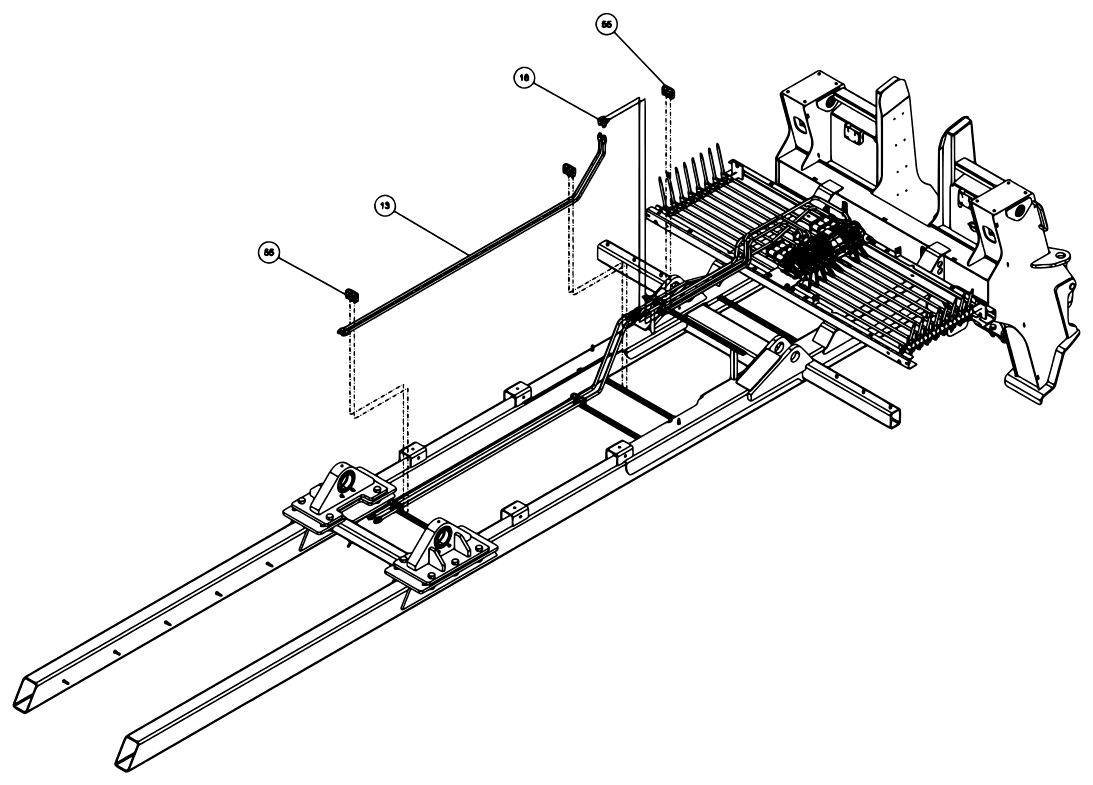

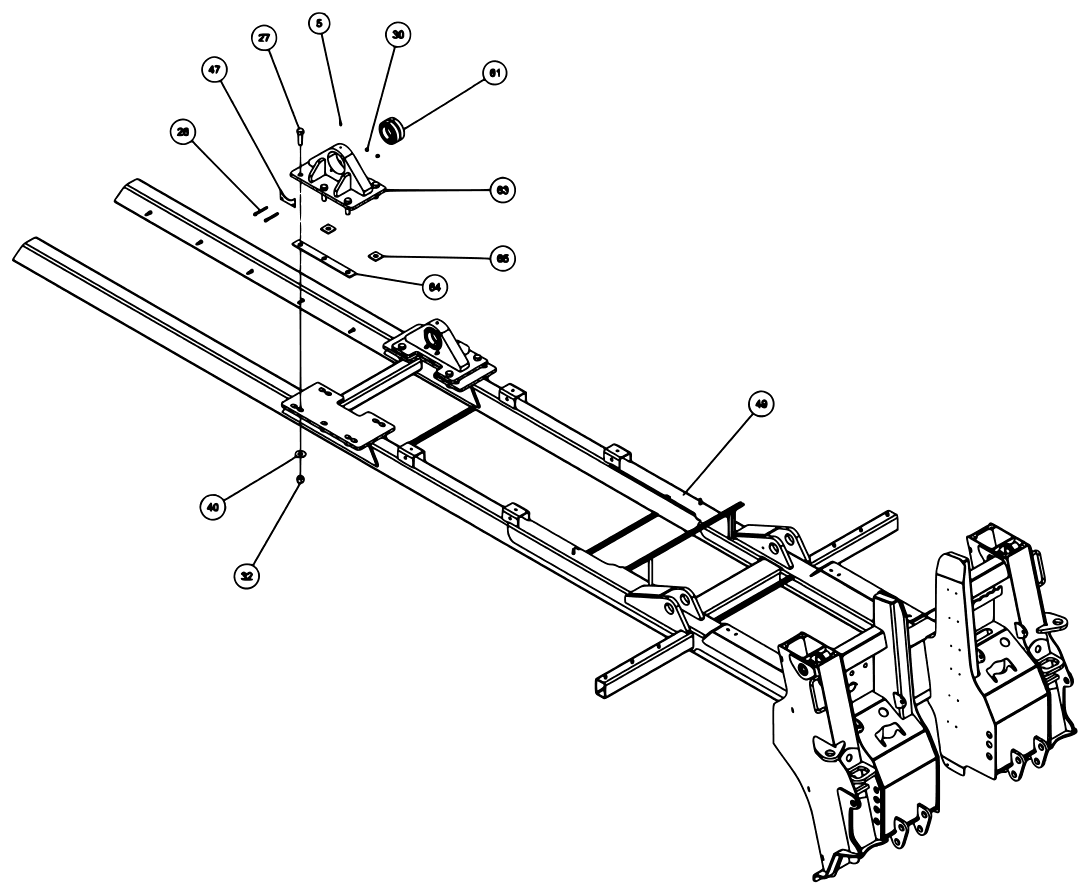

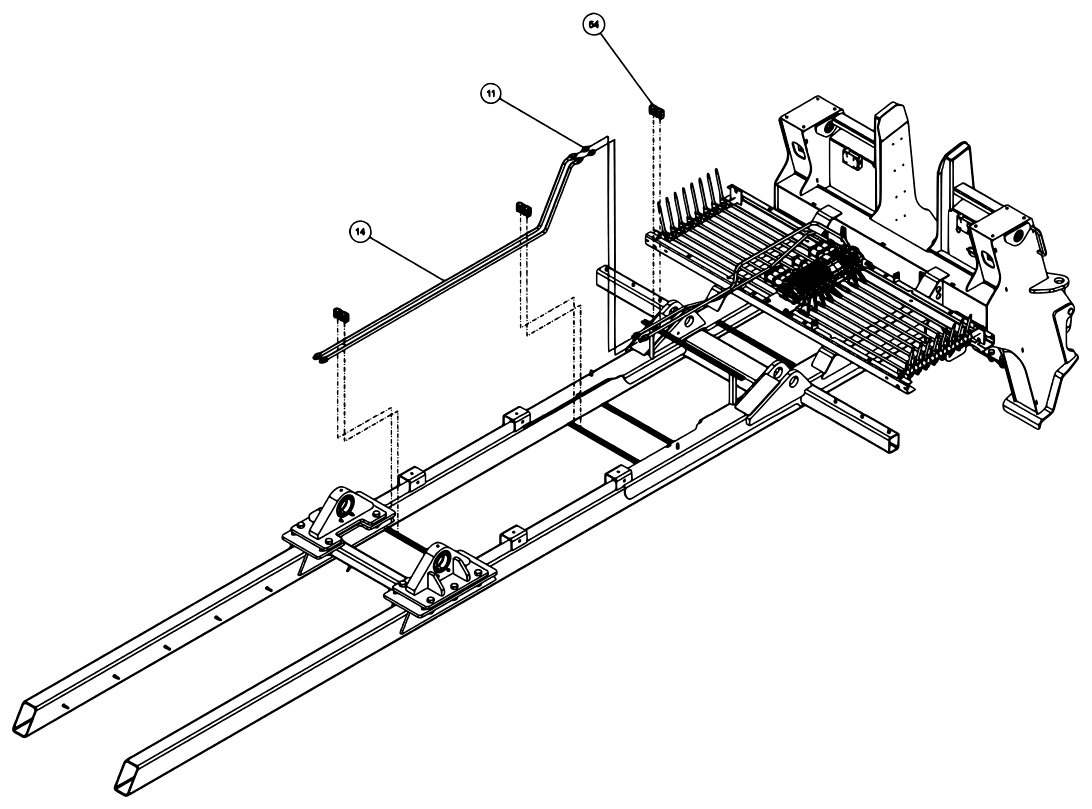

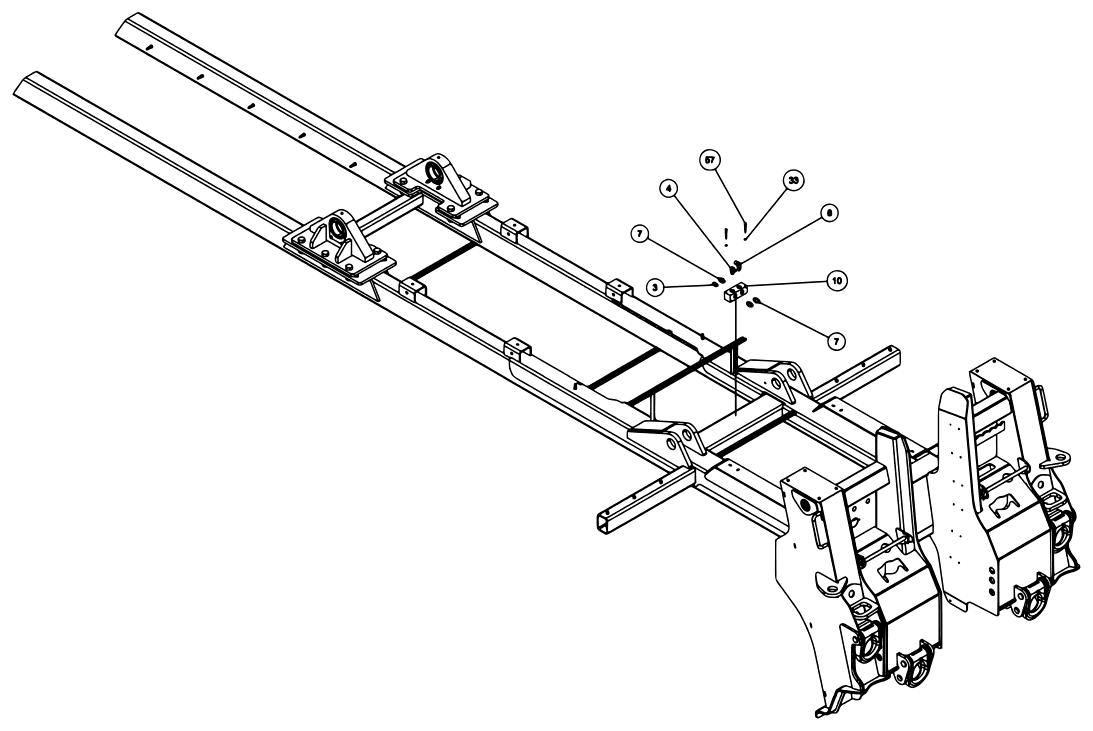

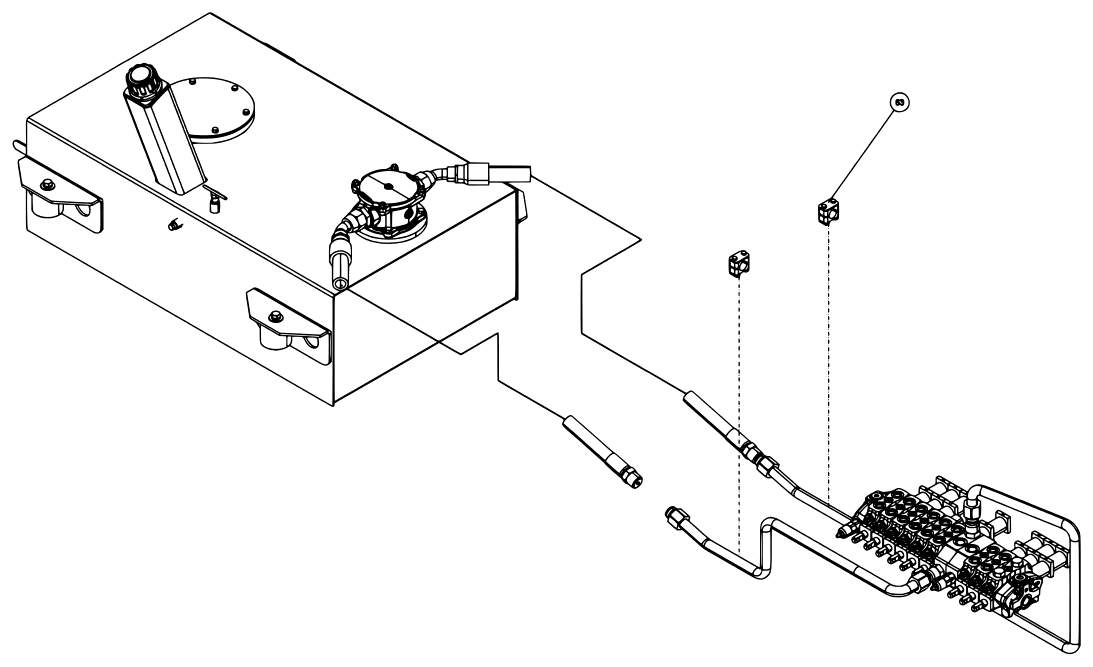

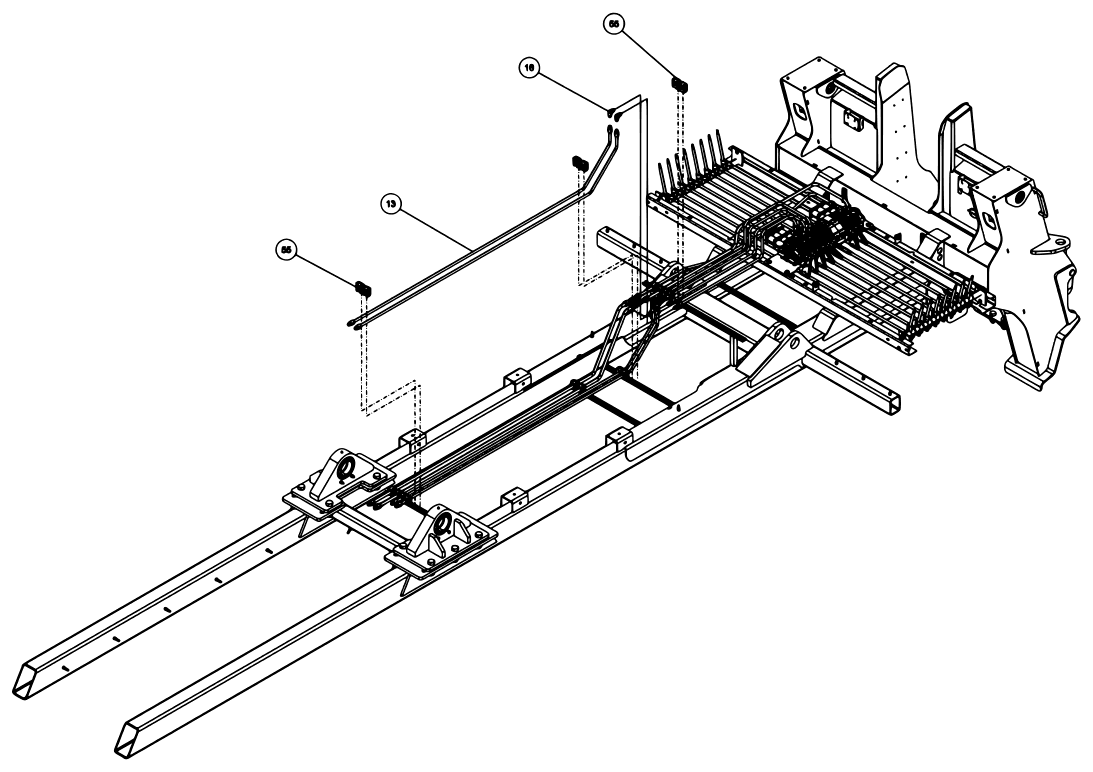

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 1 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 2 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 3 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 4 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 5 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 6 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 7 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 8 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 9 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 10 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 11 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 12 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 13 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 14 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 15 of 17)

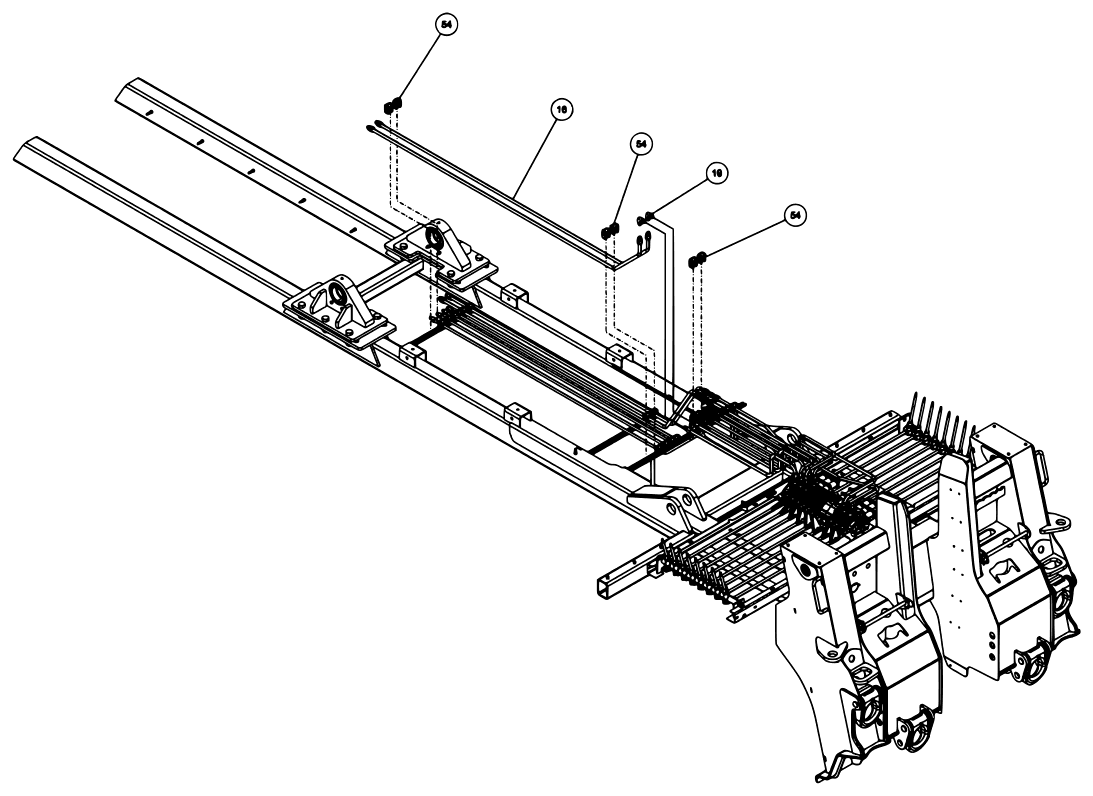

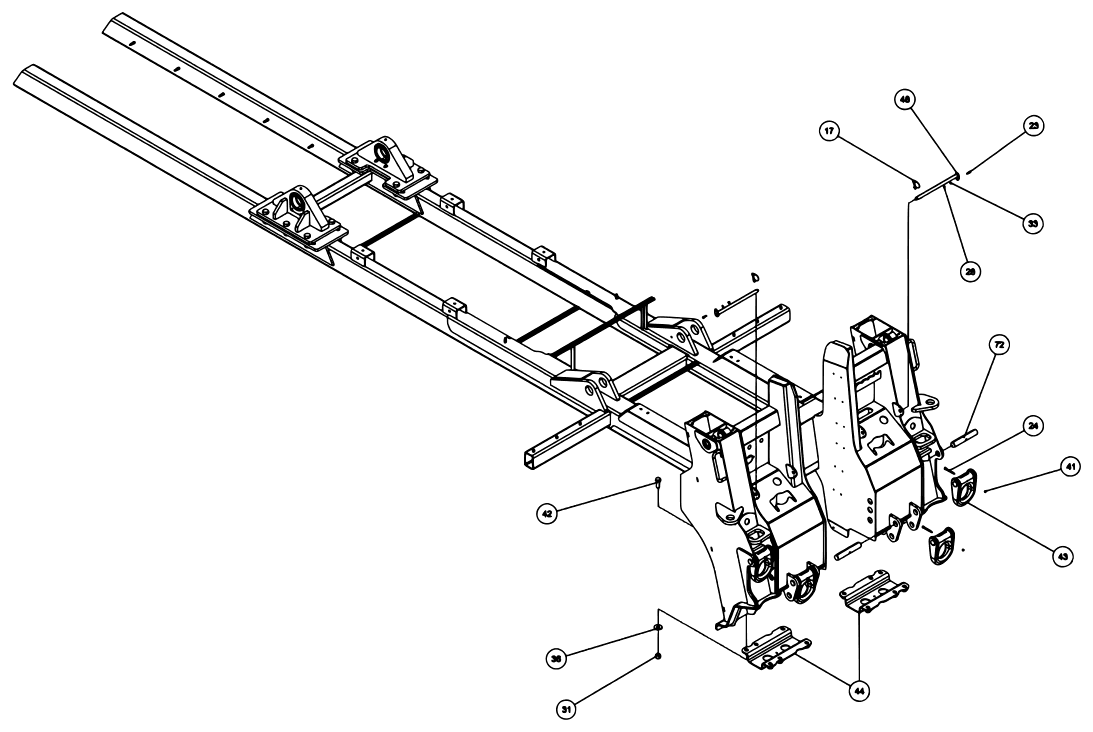

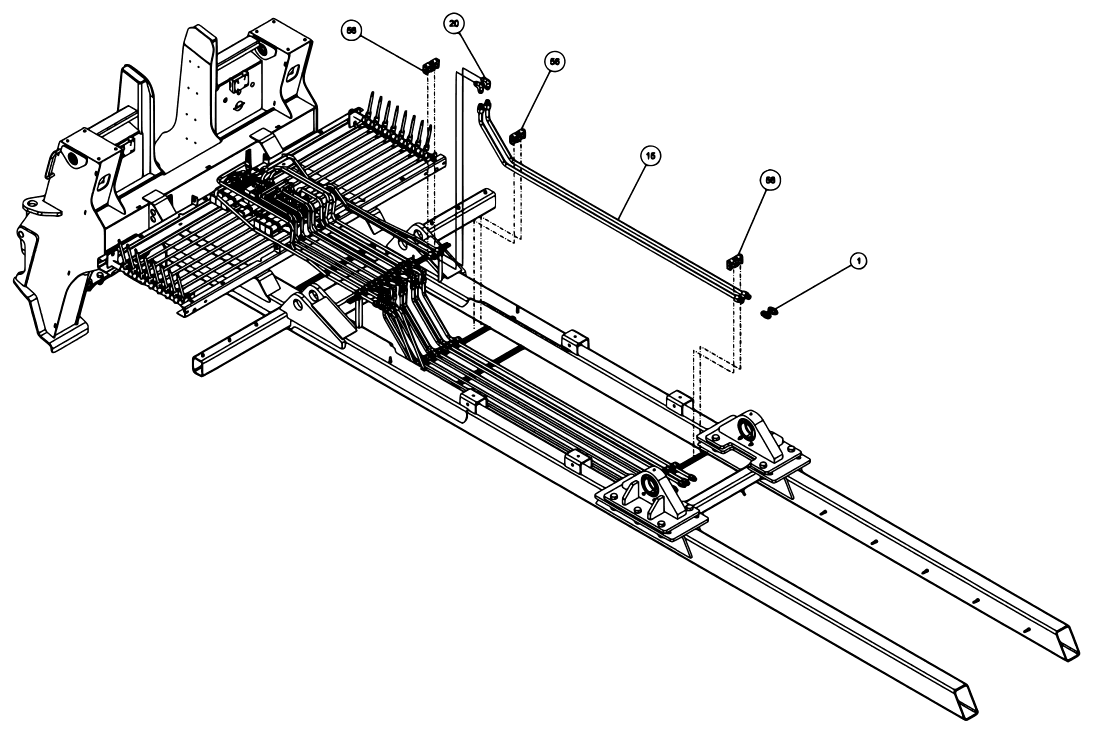

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 16 of 17)

Vulcan V-70 2-Winch (2023 manual) 0912015, Subframe Assembly V70-100 Std Winch diagram (view 17 of 17)

Show parts list (73 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0912015	SUBFRAME ASSY V70-100 STD WINCH		Call for price	—
1	0300649	UNION, STRAIGHT 12MJ - 12MJ	2	Call for price	—
2	0301445	FITTING, EXTENDED	4	$10.00
3	0301522	ADAPTER, 6MJ-6MB	3	$3.80
4	0301620	FITTING, HYD. 6MJ - 6MB90	1	$5.80
5	0301895	GREASE FITTING, 1/8 STR PTF	4	$5.80
6	0301959	SNAP RING-INTERNAL 1-1/2	4	$5.80
7	0302275	FITTING, CONN 8MJ-6MB W/STEP	5	$7.60
8	0302276	FITTING, ELB 90 DEG	1	$11.20
9	0302726	GREASE FITTING, 1/4-28 45	16	$3.80
10	0306700	MANIF. BLOCK DAMAN-AJ2700206S	1	$144.60
11	0307003	FITT, HYD UNION 10MJ-10MJ	2	$4.40
12	0310432	FITTING - ADAPTER 16MJ-20MB	2	Call for price	—
13	0311971	TUBE ASSY - 1/2	4	Call for price	—
14	0311972	TUBE ASSY - 5/8"	2	Call for price	—
15	0311973	TUBE ASSY - 3/4	2	Call for price	—
16	0311987	TUBE ASSY - 5/8	4	Call for price	—
17	0312210	SAFETY SNAP PIN - 1/4	2	$7.80
18	0312318	FITTING 8MJ - 8MJ90	4	Call for price	—
19	0312319	FITTING 10MJ - 10MJ90	4	Call for price	—
20	0312320	FITTING 12MJ - 12MJ90	2	Call for price	—
21	0312663	HOSE - 16FJX45-16GMV-16MJ X 57	2	Call for price	—
22	0400066	SCREW, 1/4-20X3/4 HHC GR5	8	$5.80
23	0400070	SCREW, 1/4-20X1 HHC GR5	2	$5.80
24	0400114	SCREW, 5/16-18X3 HHC GR5	4	$5.80
25	0400126	SCREW, 3/8-16X1 HHC GR5	8	$5.80
26	0400130	SCREW, 3/8-16X3-1/2 HHC GR5	4	$5.80
27	0400306	SCREW, 7/8-9X3 HHC GR8	10	$8.00
28	0400366	NUT, 1/4-20 HEX	2	$5.80
29	0400391	NUT, 3/8-16 HEX PL	8	Call for price	—
30	0400392	NUT, 3/8-16 LOK	4	$5.80
31	0400431	NUT, 3/4-10 LOK GR8	12	$8.00
32	0400437	NUT, 7/8-9 LOK GR8	10	$19.40
33	0400452	LKWASHER, 1/4	20	$5.80
34	0400480	WASHER, 3/8	16	$4.00
35	0400482	LKWASHER, 3/8	8	$5.80
36	0400490	WASHER, 3/4 GR8	12	$5.60
37	0400491	LKWASHER, 1/2	8	$5.80
38	0400492	USS FLAT WASHER, 1/2	8	$5.80
39	0400508	LKWASHER, 5/8	2	$5.80
40	0400513	WASHER, 7/8	10	Call for price	—
41	0400776	NUT, 5/16-18 JAM LOK	4	$5.80
42	0401021	SCREW, 3/4-10X2 HHC GR8	12	$2.00
43	0719585	D-RING, TOWING	4	$440.40
44	0723437	CHANNEL SUPPORT VULCAN	2	$107.00
45	0724349	PLATE, JACK LEG COVER	2	Call for price	—
46	0724499	PIN - UPPER JACK LEG CYL	2	$59.80
47	0725807	PLATE, BEARING KEEPER	2	Call for price	—
48	0810005	PIN - FORK RETAINING	2	$183.20
49	0810342	SUBFRAME V70V100 3 WINCH	1	$31,225.00
50	0911746	HYD TANK ASSY VULC XTRA WINCH	1	$4,189.20
51	0912023	CONTROL STATION ASSY STD WINCH	1	Call for price	—
52	9015738	HOLDING VALVE MHB-015-L	2	$786.00
53	9018241	SINGLE TUBE CLAMP-1	2	$4.00
54	9018254	5/8 TUBE CLAMP SM2160-PP	18	$15.60
55	9018255	1/2 TUBE CLAMP FM2127-PP	12	$15.60
56	9018256	3/4 TUBE CLAMP SM3190-PP	6	$6.40
57	9041010	1/4 NC X 2 1/4 HHCS GR8	2	Call for price	—
58	9041011	1/4 NC X 2 1/2 HHCS PL GR8	8	Call for price	—
59	9041402	1/2 NC X 1 1/4 HHCS PLT GR8	8	$8.00
60	9043950	5/8 NC X 1 1/2 HHCS PL GR 8	2	$8.00
61	9053041	BEARING-SPHERICAL TORRIN	2	$178.80
62	915770002	8AT2(8T90S-8T90S) HCL	2	Call for price	—
63	930202500	PIVOT BLOCK WELD'T	2	$2,332.80
64	930202504	TIE PLATE - BOOM PIVOT A	2	Call for price	—
65	930202505	WASHER PLATE - BOOM PIVOT	4	$26.80
66	9402970	TOOLBOX MTG. PAD	4	$54.20
67	945020001	WASHER PLATE-LOWER LIFT	2	$70.40
68	945351500	PIN WELD'T LOWER LIFT CYL	2	$113.80
69	945720000	JACK LEG CYLINDER - 45/	2	$1,994.60
	9018423	Seal kit for 945720000 cylinder: SEAL KIT-FOR 945720000(		$167.80
70	946700000	45/50 BOOM LIFT CYLINDER	2	$6,924.00
	0304753	Seal kit for 946700000 cylinder: SEAL KIT FOR 946700000 CYL		$341.80
71	946770001	6AT2(6T90S-6T90S) HCL	2	Call for price	—
72	GA0215	PIN-"D" RING	4	$81.20

Vulcan V-70 2-Winch (2023 manual) 0911746, Hyd Tank Assembly Vulcan Xtra Winch diagram

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0911746	HYD TANK ASSEMBLY VULCAN XTRA WINCH		$4,189.20
1	0301618	FITTING, BRASS PLUG 1/4	1	$8.00
2	03024991	GASKET- RESERVOIR	1	Call for price	—
3	0305006	FILLER CAP (GO205, FB194)	1	$63.20
4	0310636	ELEMENT, FILTER	1	$109.00
5	0312601	FILTER ASSY-ZINGA TR-1616-25-1	1	Call for price	—
6	0400121	SCREW, 3/8-16X3/4 HHC GR5	4	$5.80
7	0400233	SCREW, 5/16-18X1/2 HHC GR5	6	$5.80
8	0400464	LKWASHER, 5/16	6	$1.60
9	07026183	PIPE, STRAINER 1-1/4 X 9-1/2	2	Call for price	—
10	0810390	HYD. TANK WELDMENT	1	Call for price	—
11	9015571	BALL VALVE - 1 1/4 CV5	2	Call for price	—
12	9018139	SUCT. STRAINER LHA SEH-2	2	$189.60
13	9401408	INSPECT COVER	1	Call for price	—
14	9401418	DIPSTICK WELDMENT HYDR TANK	1	Call for price	—

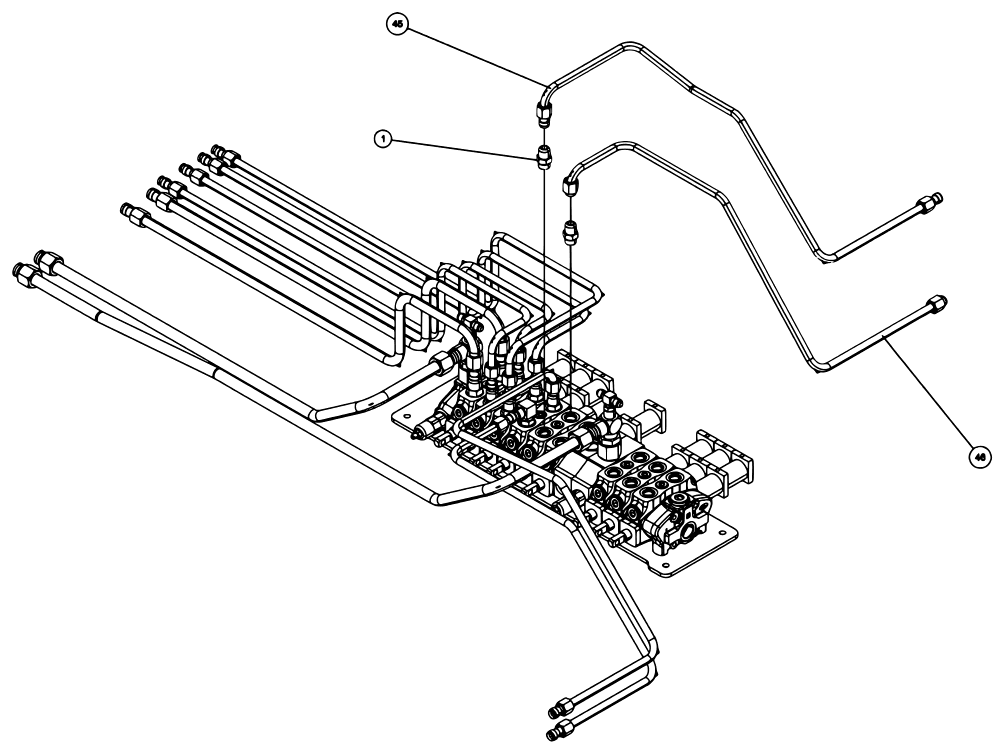

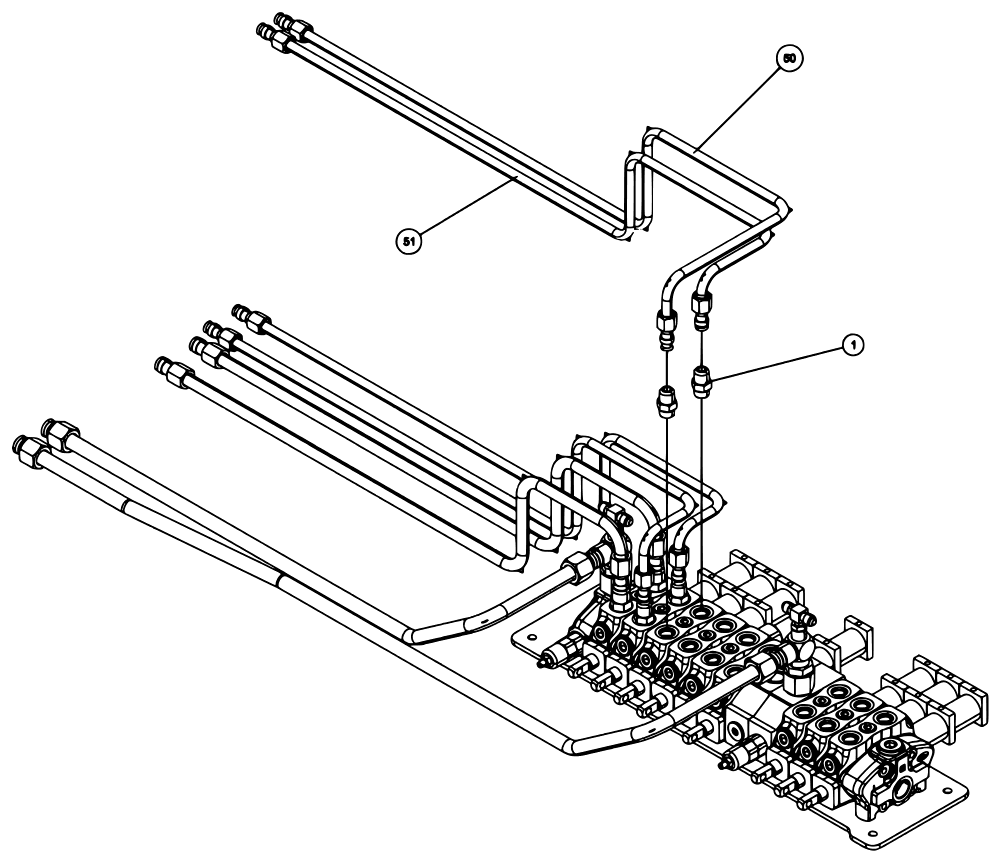

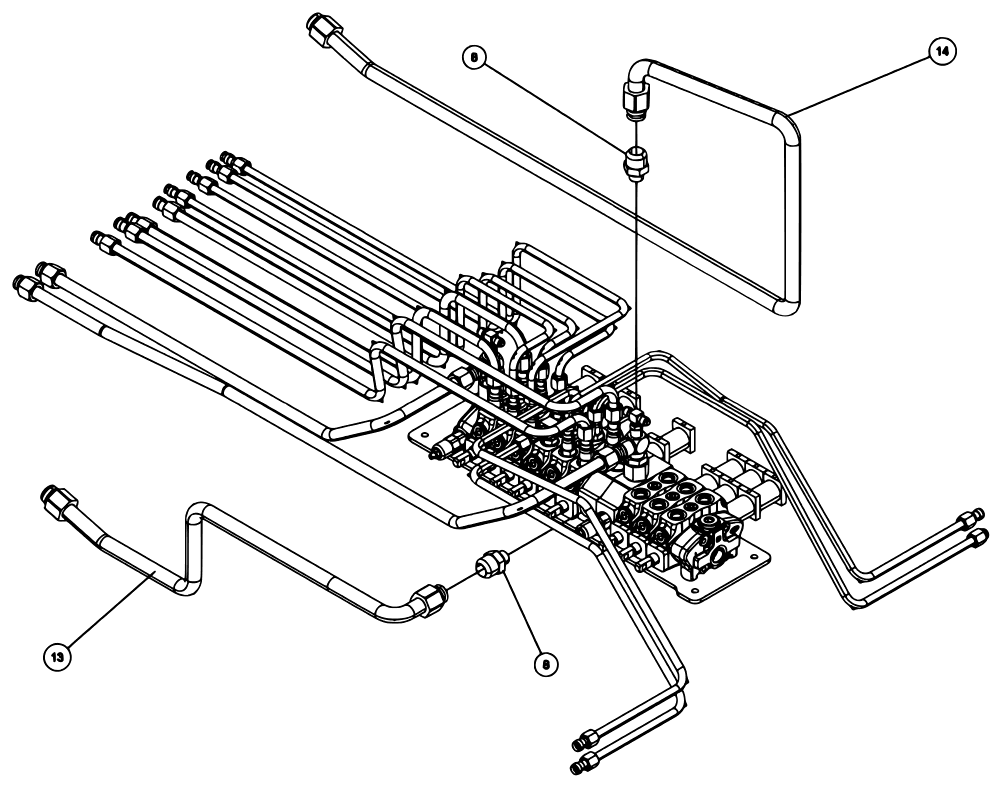

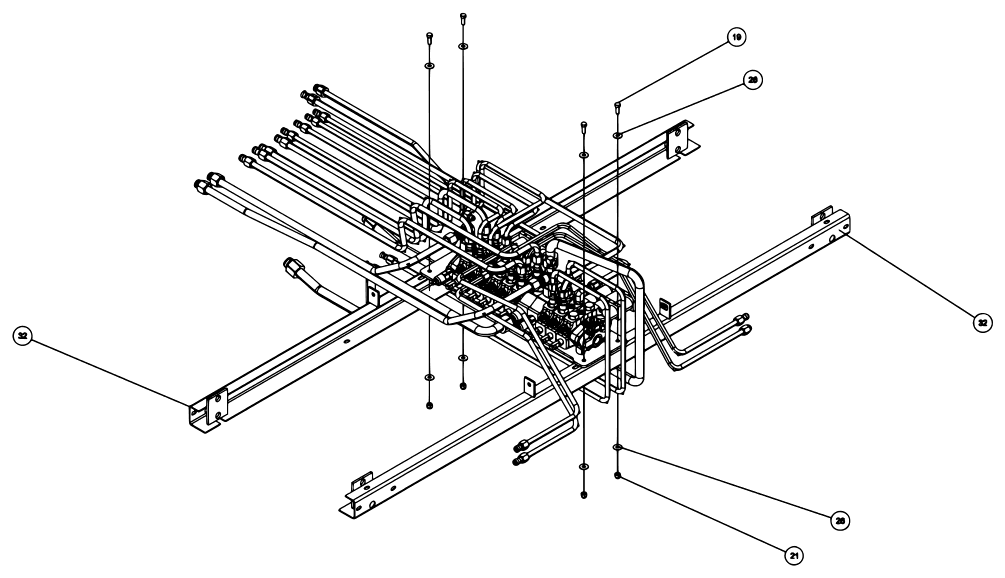

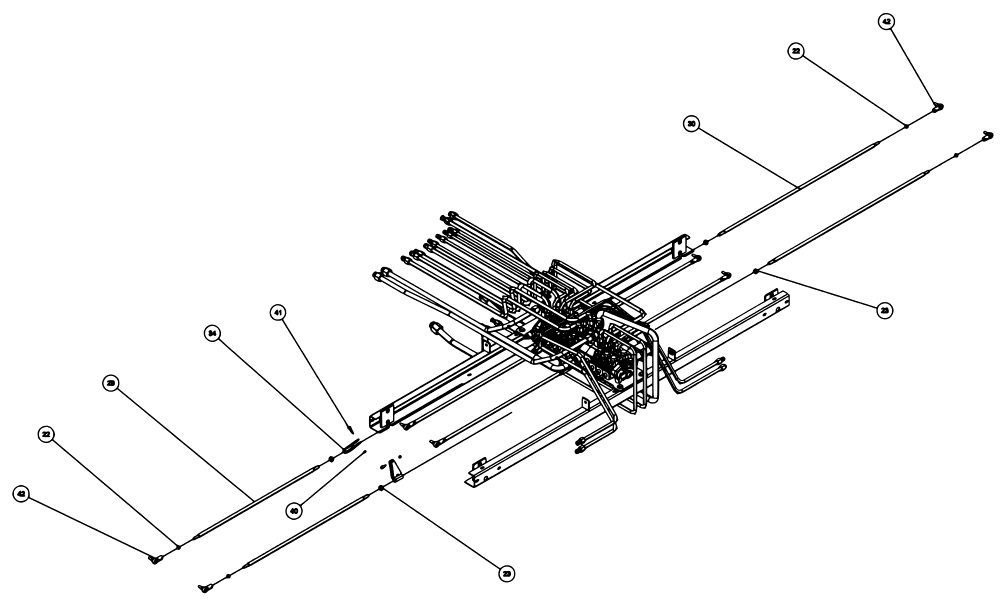

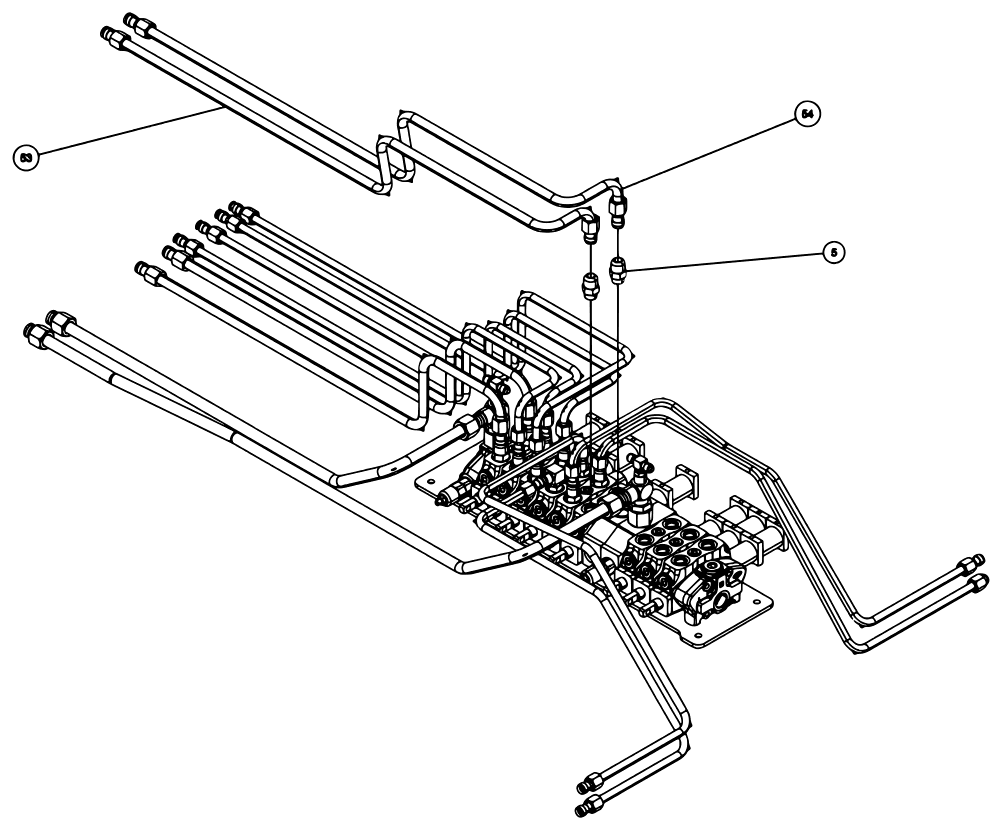

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 1 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 2 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 3 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 4 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 5 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 6 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 7 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 8 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 9 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 10 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 11 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 12 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 13 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 14 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 15 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 16 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 17 of 18)

Vulcan V-70 2-Winch (2023 manual) 0912023, Control Station Assembly Std Winch diagram (view 18 of 18)

Show parts list (55 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0912023	CONTROL STATION ASSEMBLY STD WINCH		Call for price	—
1	0300041	CONNECTOR, 8MJ-8MB	9	$5.60
2	0301388	ELBOW, 8MJ-8MB90	1	$13.20
3	0301619	FITT, 6MJ-6MJ-6MB BRANCH TEE	2	$11.20
4	0301783	FIT-STR THRD O-RING PLUG 10MB	2	Call for price	—
5	0303079	ADAPTER, 10MJ-8MB	5	$5.80
6	0303520	FITTING, ELL 90 DEG	1	Call for price	—
7	0306984	FITT, HYD ELB 12MB-12MJ90 W/HO	2	$56.00
8	0307404	FITTING, HYD 16MJ-10MB	3	Call for price	—
9	0310842	HYD TUBE ASSY, RH WINCH - A	1	Call for price	—
10	0311712	FITTING ADAPTER STR	2	Call for price	—
11	0312420	VALVE - 9 SPOOL SD8 MID-INLET	1	Call for price	—
12	0312426	TUBE - HYD 1/2 - BOOM LIFT	2	Call for price	—
13	0312427	TUBE - HYD 1 - RETURN	1	Call for price	—
14	0312428	TUBE - HYD 1 - RETURN	1	Call for price	—
15	0312429	TUBE - HYD 3/4 -PRESSURE FRONT	1	Call for price	—
16	0312430	TUBE - HYD 3/4 -PRESSURE REAR	1	Call for price	—
17	0312433	TUBE - HYD 5/8 - REAR WINCH	1	Call for price	—
18	0312434	TUBE - HYD 1/2 -LH JACK LEG	1	Call for price	—
19	0400126	SCREW, 3/8-16X1 HHC GR5	8	$5.80
20	0400382	NUT, 5/16-18 LOK	4	$5.80
21	0400392	NUT, 3/8-16 LOK	4	$5.80
22	0400393	NUT, 3/8-16 JAM	16	$5.80
23	0400412	NUT, 1/2-20 JAM	16	$5.80
24	0400463	WASHER, 5/16	18	$5.80
25	0400464	LKWASHER, 5/16	4	$1.60
26	0400480	WASHER, 3/8	12	$4.00
27	0410533	SCREW, M8-1.25X16 HHC 10.9	4	$2.00
28	0717208	HANDLE - SPACER(1 HNDL SPACER)	2	$11.40
29	0724999	LH CONTROL ROD SHORT	8	Call for price	—
30	0725000	RH CONTROL ROD SHORT	8	Call for price	—
31	0726340	PLATE - VALVE MTG -VUL 3-WINCH	1	Call for price	—
32	0810126	CHANNEL WLDMT-DCV FRMDUAL CTLS	2	Call for price	—
33	0810440	CONTROL LUG WELD'T - MED	2	Call for price	—
34	0810441	CONTROL LUG WELD'T - LONG	2	Call for price	—
35	0810442	CONTROL LUG WELD'T - SHORT	4	Call for price	—
36	09007528	COVER ASSEMBLY	1	Call for price	—
37	0911816	CONTROL HANDLE ASSY - SHORT	8	Call for price	—
38	0911817	CONTROL HANDLE ASSY - LONG	8	Call for price	—
39	9041108	5/16 NC X 1 3/4 HHCS PL GR8	4	$5.80
40	9043371	6 MM LOCKNUT FOR 9043817	8	Call for price	—
41	9043713	M8 X 20 SOC SHOULDER BOLT	8	$9.60
42	9048513	SPHERICAL ROD END REBPJH-	16	$31.00
43	930400001	PIN - CONTROL HANDLE PIV	2	$96.40
44	930400009	BOTTOM PLATE - DCV DUAL	1	Call for price	—
45	930760010	TUBE, HYD 1/2 X 17 15/16 RH ST	1	$66.80
46	930760011	TUBE, HYD 1/2 X 17 13/16 RH ST	1	$59.60
47	946760003	TUBE, HYD 5/8 X 32 9/16 MAIN B	2	Call for price	—
48	946760004	TUBE, HYD 1/2 X 34 7/16 ST.EXT	1	$108.40
49	946760005	TUBE, HYD 1/2 X 34 7/16 ST.EXT	1	$110.60
50	946760006	TUBE, HYD 1/2 X 36 1/16 ST.TIL	1	$113.80
51	946760007	TUBE, HYD 1/2 X 36 1/16 ST.TIL	1	$108.40
52	946760008	TUBE, HYD 1/2 LH STIFFLEG	1	$88.40
53	946760010	TUBE, HYD 5/8 X 40 11/16 FR.WI	1	$238.40
54	946760011	TUBE, HYD 5/8 X 40 11/16 FR.WI	1	$247.40

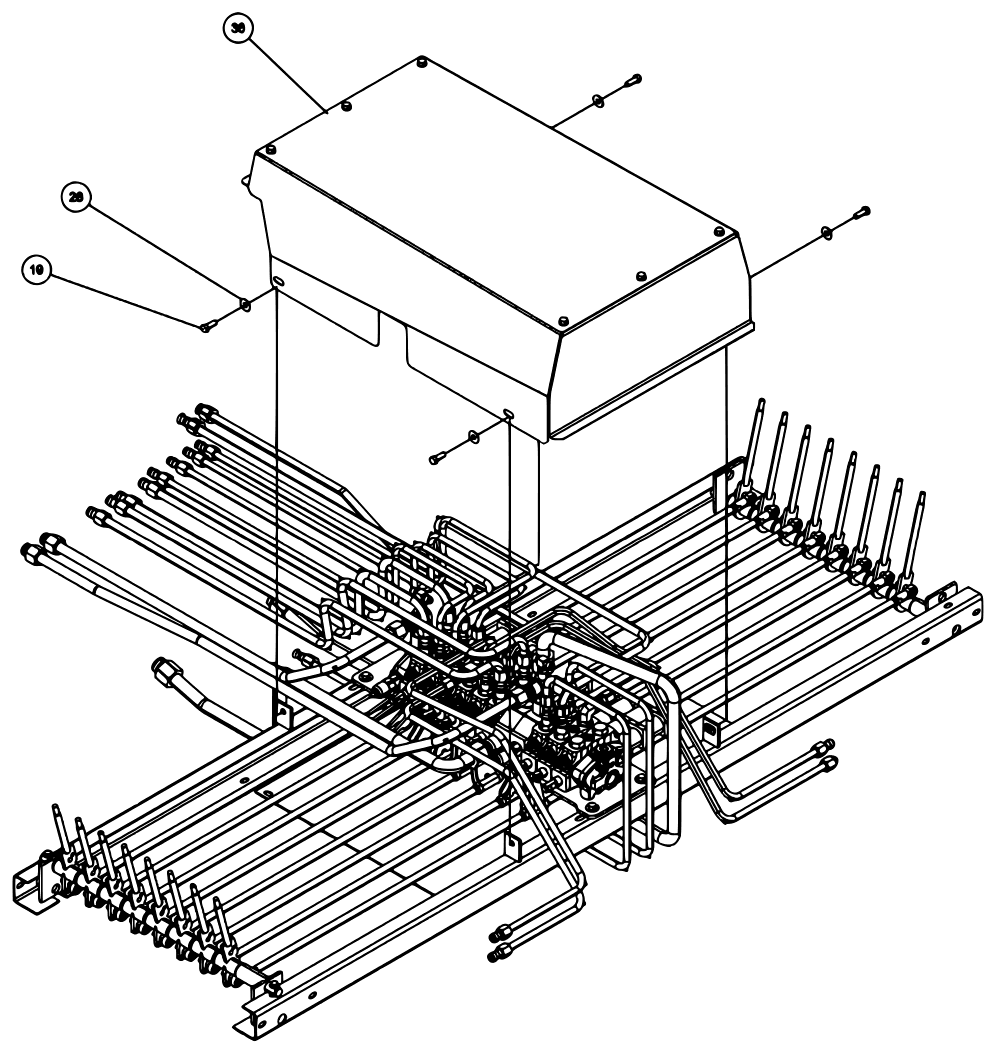

Vulcan V-70 2-Winch (2023 manual) 09007528, Cover Assembly diagram

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	09007528	COVER ASSEMBLY		Call for price	—
1	0400482	LKWASHER, 3/8	6	$5.80
2	07009624	COVER, TOP PANEL	1	Call for price	—
3	08007028	WELDMENT, FRONT PANEL	1	Call for price	—
4	9041202	3/8-16 X 5/8 HHCS PL GR8	6	$5.80
5	946402600	REAR PANEL WELD'T	1	$70.20

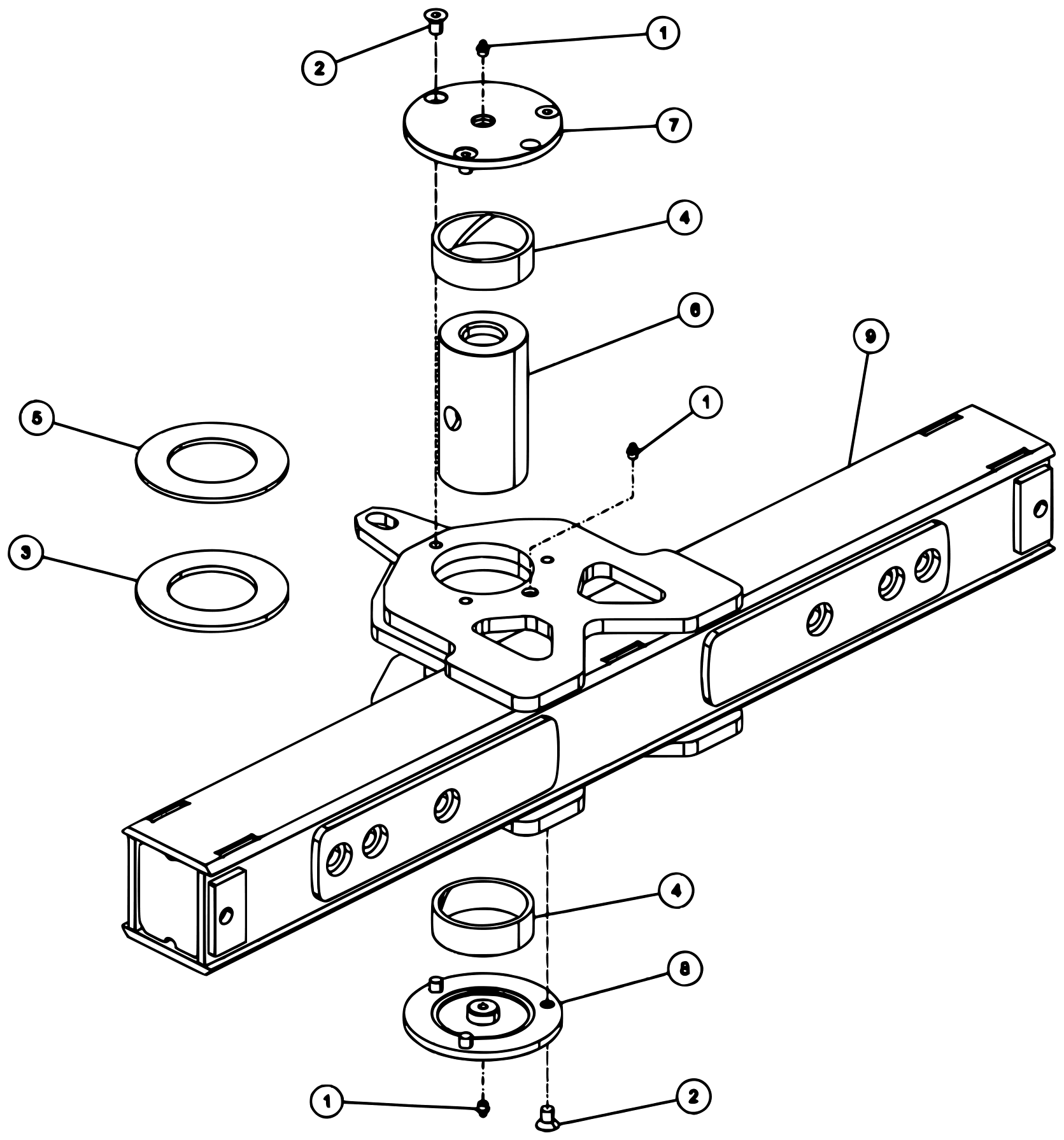

Vulcan V-70 2-Winch (2023 manual) 948570000, 5X5 Lift Bar Assembly 948 Xhd diagram

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
--	948570000	5X5 LIFT BAR ASSEMBLY 948 XHD		$4,524.60
1	0301895	GREASE FITTING, 1/8 STR PTF	3	$5.80
2	0400344	SCREW, 1/2-13X3/4 FHS GR8	6	$5.80
3	915150005	THRUST WASHER - V-40,	1	$274.40
4	945510006	BEARING - ALUM. BRONZE	2	$130.00
5	945510007	THRUST WASHER - V-60,	1	$119.20
6	946350005	PIVOT PIN - 5 CROSSBAR	1	$451.40
7	946571000	TOP COVER PLATE WELD'T	1	$511.20
8	946571100	BOTTOM COVER PLATE WELD.	1	$604.00
9	948570500	CROSSBAR - 948 HD	1	$2,490.40

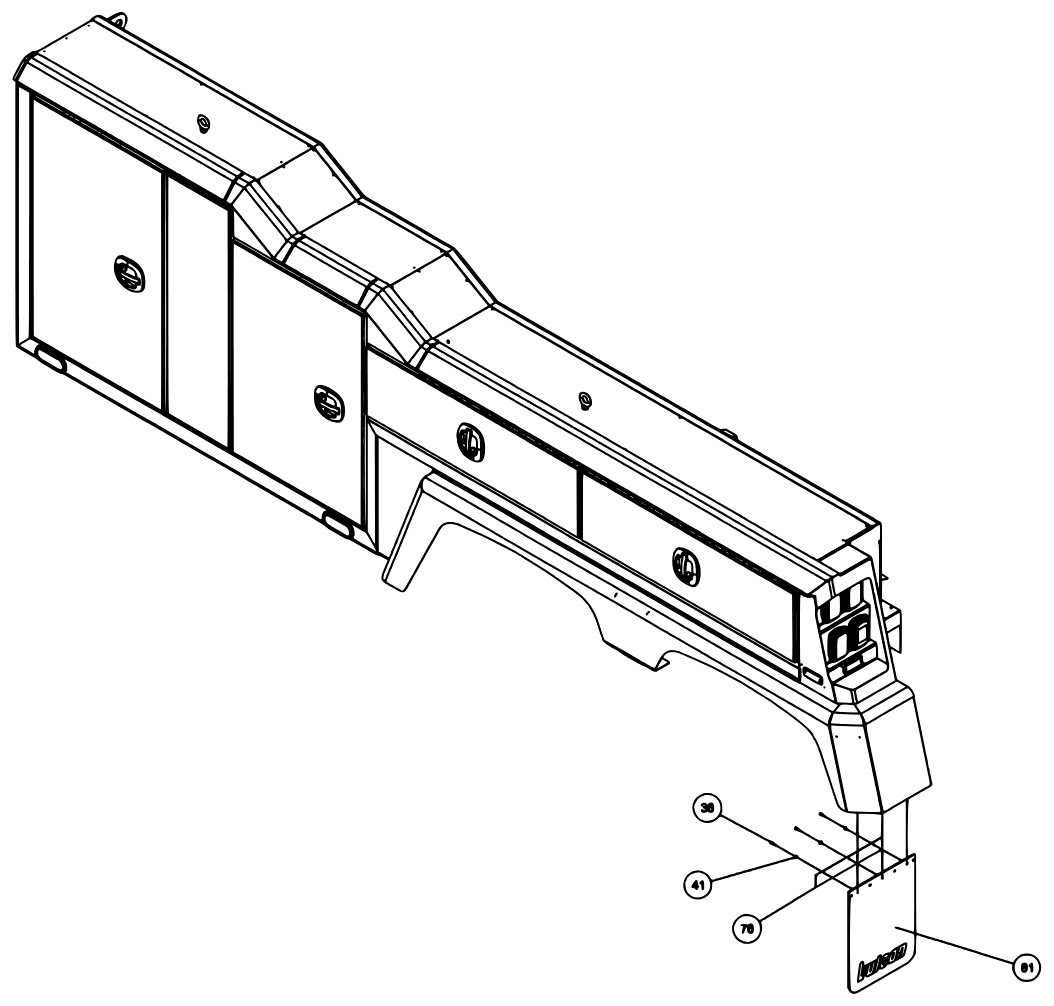

Vulcan V-70 2-Winch (2023 manual)

09008488, Bua V70 2-Winch Std Jack Leg

09008489, Bua V70 2-Winch Jack Leg Flipper Feet

0910973, LH Jack Leg Assy - Flipper Feet

0910974, RH Jack Leg Assy - Flipper Feet

09008490, Bua V70 2-Winch Rear Outrigger

0911120, LH Rear Outrigger Assembly

0911121, RH Rear Outrigger Assembly

0906963, Pin - Rear Outrigger Pad Assembly

0911122, Pin Assembly - Pad Lock

0911123, Pin Assembly - Spade Lock

0911124, Pin Assembly - Spade Pivot

0911167, Spade Assembly - Rear Outrigger

0910787, Stinger Assy - Euro - 144"

0911010, Recovery Boom Install V-70

0911033, Recovery Boom Assembly V-70

0908424, Swivel-Boom Assembly

0911804, Air Regulator-Gauge Assembly

0912015, Subframe Assembly V70-100 Std Winch

0911746, Hyd Tank Assembly Vulcan Xtra Winch

0912023, Control Station Assembly Std Winch

09007528, Cover Assembly

948570000, 5X5 Lift Bar Assembly 948 Xhd
