Vulcan V-100 Hyd Tube Assembly – OEM Part No. 946760001
Genuine replacement Hyd Tube Assembly (part no. 946760001) for the Vulcan V-100 (2013 manual), manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 946760001 |
|---|---|
| Manual description | HYD TUBE ASSEMBLY |
| Fits | Vulcan V-100 (2013 manual) |
| Assembly | Subframe Hydraulics; V-100 2-Stage W/Std Stinger Parts List; V-100 3-Stage W/Std Stinger Parts List |
| Diagram reference (item) no. | 23 (Subframe Hydraulics); 165 (V-100 2-Stage W/Std Stinger Parts List); 165 (V-100 3-Stage W/Std Stinger Parts List) |
| Quantity used per assembly | 1 (Subframe Hydraulics); 1 (V-100 2-Stage W/Std Stinger Parts List); 1 (V-100 3-Stage W/Std Stinger Parts List) |
| Source | Vulcan V-100 Parts Manual • FORM NO. 0501766 REV. A • 08/2013 |

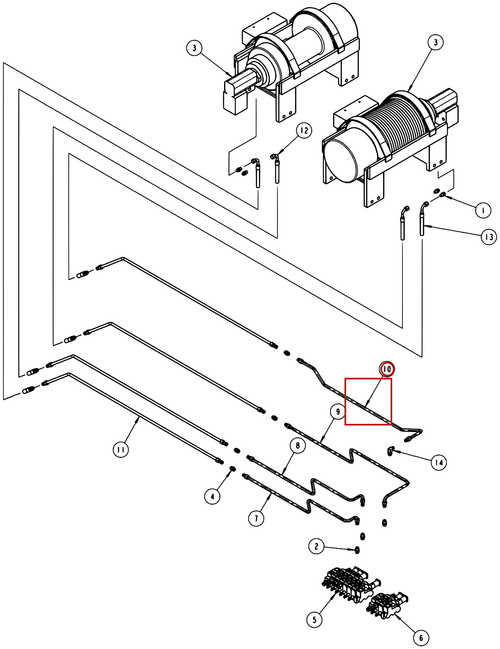

Parts diagrams:
