Chevron 408 / 410 / 512 Series (2016 manual)

Show all 15 parts sections ▼Hide parts sections ▲

Direct Mount Pump - 18 GPM
408, 408A & 512 Body Components
408, 408A & 410 Recovery Boom Components
512 Recovery Boom Components
408 & 408A Underlift Components
408 Wheel Lift Components (Standard)
408A Wheel Lift Components
512 Underlift Components
512 Wheel Lift Components and Hook-Up Attachments (Standard)
Pivot Wheel Grids and L-Arms 4 - Series

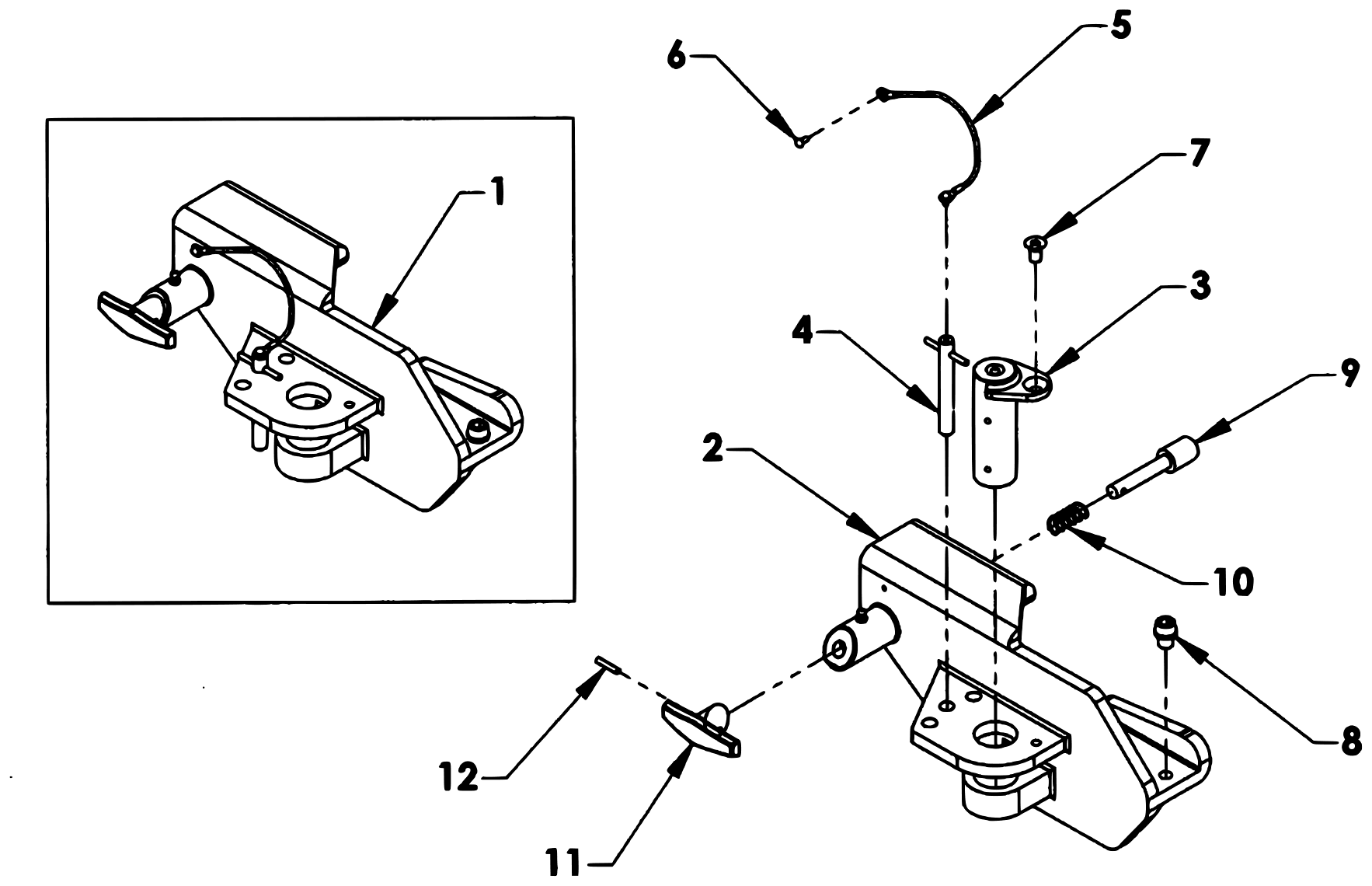

Pivot L-Arm Receiver Group 4-Series (Optional)
4 Series Boom End Swivel

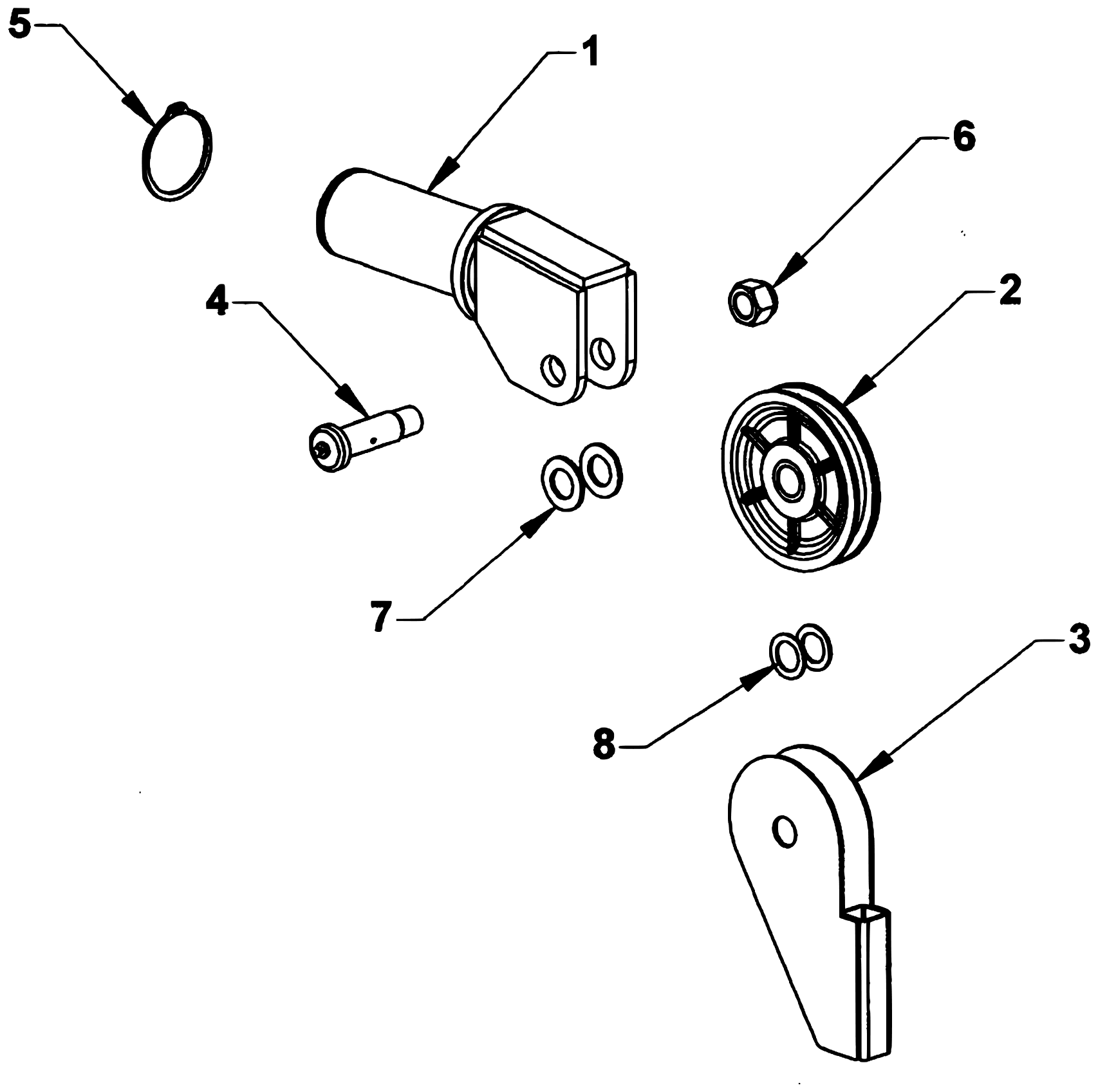

5 Series Boom End Swivel
Pintle Hitch Group
24 In. Steel Tunnel Box Group

Direct Mount Pump - 18 GPM

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320144	18 GPM, 1 IN. 15 SPLINE SHAFT, SAE 4-BOLT FLANGE	1	$1,082.00
2	SI4604-20 x 16	#16-45 M O-RING x 1-1/4 M NIPPLE	1	Call for price	—
	S14603- 20 x 26F	#16 M O-RING x 1-1/4 NIPPLE	1	Call for price	—
3	77620	1-1/4 O-RING PLUG 900598-20	2	$25.55
4	779A7	#16 M O-RING X 3/4 MJIC	1	Call for price	—
5	0909434	PRESSURE TRANSDUCER (OPTIONAL)	1	$579.86

408, 408A & 512 Body Components

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	37558	PADDLE LATCH - ROTARY	1	$111.23
2	5A221	TOOL BOX DOOR LANYARD - 21 INCH	2	$5.27
3	5A310	TOOL BOX DOOR	1	$375.63
4	5A316	TOOL BOX DOOR MOUNTING BLOCK	2	$50.56
5	50340	WRECKER BODY	1	$12,485.24
6	51141	STEEL REAR ACCESS COVER	1	Call for price	—
7	51145	ALUMINUM REAR ACCESS COVER	1	$41.94
8	53182L	MUDFLAP MOUNTING BRACKET - LEFT	1	$68.65
9	53182R	MUDFLAP MOUNTING BRACKET - RIGHT	1	$68.65
10	53250	MIDDLE MOUNTING BRACKET - 34 IN. FRAME	2	Call for price	—
11	53263	FRONT MOUNTING BRACKET - 34 IN. FRAME	2	$21.34
12	59140L	TOW SLING MOUNTING BRACKET - LEFT	1	$111.23
13	59140R	TOW SLING MOUNTING BRACKET - RIGHT	1	$111.23
14	59115	REAR REFLECTOR MOUNTING PLATE	2	$14.20
15	7A165	CONTROL HANDLE	16	$56.54
16	7A211	CONTROL KNOB	16	$9.67
17	83425	5/8 JAM NUT	16	Call for price	—
18	84716	6-1/2 TON SHACKLE W/NUT & BOLT	2	$140.39
19	92600R	TAIL LIGHT	2	$23.72
20	92650	TAIL LIGHT GROMMET	4	$7.47
21	93100R	SIDE MARKER LIGHT - RED	2	$8.59
22	93150	MARKER LIGHT GROMMET - 2-1/2 IN. ROUND	2	$7.57
23	93300R	REFLECTOR - RED	2	$7.47
24	95600	BACKUP LIGHT	2	$22.44
25	A1040	MUDFLAP - 408 & 408A	2	$71.11
	A1045	MUDFLAP - 512	2	$71.11

408, 408A & 410 Recovery Boom Components

Show parts list (34 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	60125	8-TON RECOVERY BOOM TWIN LINE	1	$12,760.57
	60115	8-TON RECOVERY BOOM SINGLE LINE	1	$12,485.24
	60145	10-TON RECOVERY BOOM TWIN LINE	1	Call for price	—
2	613A1	PIN - BOOM EXTENSION CYLINDER BASE	1	$16.80
3	613A2	PIN - BOOM EXTENSION CYLINDER ROD	1	$16.80
4	61320	LIFT CYLINDER BASE MOUNT	1	Call for price	—
5	61364	PULLEY PIN - 408 & 408A	1 OR 2	$213.19
	61368	PULLEY BOLT - 410 & 410A	2	$95.63
6	61366	SWIVEL INSERT - 408 & 408A	1 OR 2	$264.40
	61369	SWIVEL INSERT - 410 & 410A	2	$626.43
7	61370	CABLE FOLLOWER - 408 & 408A	1 OR 2	$125.80
	61379	CABLE FOLLOWER - 410 & 410A	2	$243.45
8	61383	PIN - BOOM LIFT CYLINDER ROD	1	$88.67
9	61384	PIN - BOOM LIFT CYLINDER BASE	1	$73.08
10	61410	BOOM BEARING PAD	2	$14.20
11	61412	BOOM BEARING CHANNEL	1	$218.80
12	69120	PULLEY - 6 INCH 408 & 408A	1 OR 2	$322.45
	69125	PULLEY - 6 INCH 410 & 410A	2	$237.06
13	71102L	WINCH - 408 & 408A	0 OR 1	$3,784.80
	71105L	WINCH - 410 & 410A	1	$7,895.58
14	71102R	WINCH - 408 & 408A	0 OR 1	$3,784.80
	71105R	WINCH - 410 & 410A	1	$7,895.58
15	72140	CYLINDER - BOOM LIFT	1	$2,837.10
16	72150	CYLINDER - BOOM EXTENSION	1	$1,660.10
17	81110	BOLT - 5/16 X 1	2	$0.67
18	81117	BOLT - 5/16 X 7/8	2	$0.67
19	82130	FLAT WASHER - 5/16	4	$0.48
20	82510	FLAT WASHER - 3/4 - 408 & 408A	4 OR 8	$0.67
	82717	FLAT WASHER - 1 X 1.75 - 410 & 410A	8	$1.24
21	86075E	SNAP-RING .75 INCH EXTERNAL	2 OR 4	$3.21
	83610	NUT - 7/8 NYLON LOCK - 410 & 410A	2	$6.59
22	86100I	SNAP-RING 1.00 INCH INTERNAL	4	$1.42
23	86125I	SNAP-RING 1.25 INCH INTERNAL	4	$1.42
24	86287E	SNAP-RING 2.875 INCH EXTERNAL	1 OR 2	$9.67

512 Recovery Boom Components

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	60164	TWIN LINE BOOM 12-1/2 INCH DRUM	1	Call for price	—
	60165	TWIN LINE BOOM 10 INCH DRUM	1	Call for price	—
2	613A1	PIN - BOOM EXTENSION CYLINDER BASE	1	$16.80
3	613A2	PIN - BOOM EXTENSION CYLINDER ROD	1	$16.80
4	61320	LIFT CYLINDER BASE MOUNT	1	Call for price	—
5	61368	PULLEY BOLT	2	$95.63
6	61369	SWIVEL INSERT	2	$626.43
7	61379	CABLE FOLLOWER	2	$243.45
8	61383	PIN - BOOM LIFT CYLINDER ROD	1	$88.67
9	61384	PIN - BOOM LIFT CYLINDER BASE	1	$73.08
10	61410	BOOM BEARING PAD	1	$14.20
11	61735	NYLATRON WEAR PAD	4	$23.75
12	69125	PULLEY - 6 INCH	2	$237.06
13	71105L	WINCH SERIES 12 (10 INCH DRUM)	1	$7,895.58
	71106L	WINCH SERIES 12 (12-1/2 INCH DRUM)	1	$4,678.74
14	71105R	WINCH SERIES 12 (10 INCH DRUM)	1	$7,895.58
	71106R	WINCH SERIES 12 (12-1/2 INCH DRUM)	1	$4,678.74
15	72141	CYLINDER - BOOM LIFT	1	$2,288.41
16	72150	CYLINDER - BOOM EXTENSION	1	$1,660.10
17	81117	BOLT - 5/16 X 7/8	2	$0.67
18	82130	FLAT WASHER - 5/16	2	$0.48
19	82717	FLAT WASHER - 1 X 1.75	8	$1.24
20	83610	NUT - 7/8 NYLON LOCK	2	$6.59
21	86100I	SNAP-RING 1.00 INCH INTERNAL	4	$1.42
22	86125I	SNAP-RING 1.25 INCH INTERNAL	4	$1.42
23	86287E	SNAP-RING 2.875 INCH EXTERNAL	2	$9.67

408 & 408A Underlift Components

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	657701	STANCHION - 408 & 408A	1	$2,498.15
2	65780	OUTER BOOM - 408	1	$3,052.49
	65790	OUTER BOOM - 408A	1	$3,470.03
3	72190	LIFT CYLINDER - 408 & 408A	2	$1,405.61
4	66709	PIVOT PIN - 1.480 X 22	1	$128.44
5	66701	PIVOT MOUNTING BRACKET	2	$111.23
6	65712	.980 X 7 SNAP-RING GROOVE PIN	2	$138.37
7	65714	.980 X 4-5/8 ROD PIN	2	$99.82
8	65715	1.230 X 9-1/4 SNAP-RING GROOVE ROD PIN	1	$83.43
9	65716	1.230 X 12-1/4 SNAP-RING GROOVE BASE PIN	1	$101.59
10	65753	NYLATRON WEAR PAD 1/2 X 2-1/2	1	$43.74
11	65759	SPACER SHIM PLATE - 408	1	$19.14
	65758	NYLATRON SHIM PAD - 408A	1	$41.94
12	65779	1/4 X 2-11/16 PHENOLIC WEAR STRIP	4	$96.38
13	812A5	BOLT 3/8 X .500 BUTTON HEAD ALLEN	2	$5.84
14	81710	BOLT 7/8 X 2.250	6	$18.08
15	83611	NUT 7/8 NYLON LOCK	6	$6.59
16	86100I-1	SNAP-RING 1.00 INCH INTERNAL	4	Call for price	—
17	86100E-1	SNAP-RING 1.00 INCH EXTERNAL	4	Call for price	—
18	86125E-1	SNAP-RING 1.25 INCH EXTERNAL	4	Call for price	—
19	72188	POWER TILT CYLINDER	1	$3,306.99

408 Wheel Lift Components (Standard)

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	59231	L-ARM CHANNEL BRACKET	2	$33.38
2	59232R	L-ARM MOUNTING BRACKET - RIGHT	1	$33.38
3	59232L	L-ARM MOUNTING BRACKET - LEFT	1	$33.38
4	64357	PIN - .980 X 5.875	1	$22.44
5	65816	INNER BOOM	1	$3,021.04
6	64355	WEAR PAD	1	$43.97
7	65515	CROSSBAR WELDMENT	1	$1,963.71
8	65228	YOKE SPRING	1	$71.13
9	65435	CROSSBAR PIVOT PIN	1	$134.04
10	65245	REMOVABLE PAN	2	$71.13
11	65250R	WHEEL RETAINER - RIGHT	1	$485.10
12	65250L	WHEEL RETAINER - LEFT	1	$485.10
13	65265R	WHEEL GRID - RIGHT	1	$625.44
14	65265L	WHEEL GRID - LEFT	1	$625.44
15	65280A	RATCHET	2	$78.41
16	65285	WHEEL STRAP	2	$49.20
17	812A5	BOLT 3/8 X 1/2 ROUND ALLEN HEAD	1	$5.84
18	82210	WASHER 3/8 FLAT	1	$3.21
19	84911	5/16 SAFETY SNAP PIN	2	$1.70
20	84921	T-PIN WITH LANYARD	2	$107.59
21	86100I	SNAP-RING 1.00 INCH INTERNAL	2	$1.42

408A Wheel Lift Components

Show parts list (34 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	658202	INNER TUBE	1	Call for price	—
2	72192	EXTENSION CYLINDER	1	$3,046.50
3	69726	HOSE TRACK	1	$213.34
4	65621	NYLATRON WEAR PAD	1	$21.62
5	65286	BASKET STRAP - AUTO	2	$198.75
	65287	BASKET STRAP - TRUCK	2	$207.95
6	69325	DETENT BALL	2	$14.20
7	69320	DETENT SPRING	2	$14.20
8	64304R	RUBBER GASKET	2	$3.41
9	64304C	HOSE CLAMP PLATE	2	$13.63
10	643572	PIN .980 X 5-7/8	1	$102.12
11	644002	AUTOGRIP CROSSBAR WELDMENT	1	$5,498.93
12	720152L	L-ARM CYLINDER - LEFT	1	$1,664.83
13	720152R	L-ARM CYLINDER - RIGHT	1	$1,664.83
14	727162	L-ARM CYLINDER MOUNTING BLOCK	2	$162.74
15	83520	NYLON LOCK NUT 3/4-16 UNF	4	$3.01
16	644432	L-ARM CYLINDER MOUNTING PIN	2	$22.44
17	644292	CROSSBAR GRAVEL GUARD	2	$22.44
18	697402L	WHEEL CHOCK - LEFT	1	$445.70
19	697402R	WHEEL CHOCK - RIGHT	1	$445.70
20	644452	L-ARM PIVOT PIN	2	$83.86
21	644352L	L-ARM - LEFT	1	$902.62
22	644352R	L-ARM - RIGHT	1	$902.62
23	87440	L-ARM CHAIN	4	$111.23
	81127	5/16 X 1-1/4 SHOULDER SHCS 1/4-20 UNC	4	$5.84
	83105	1/4-20 UNC NYLON LOCK NUT	4	$0.67
24	64441	L-ARM CHAIN CLEVIS	4	$83.86
	83411	NYLON LOCK NUT 5/8-11 UNC	4	$0.67
	81126	5/16 X 1 SHOULDER SHCS 1/4-20 UNC	4	$4.95
	83105	1/4-20 UNC NYLON LOCK NUT	4	$0.67
25	64327	DETENT SCREW	2	$19.52
26	644402	CROSSBAR PIVOT PIN	1	$235.03
27	86250I	RETAINING RING 2.50 INTERNAL	1	$14.90
28	84921	5/8 T-PIN	2	$107.59

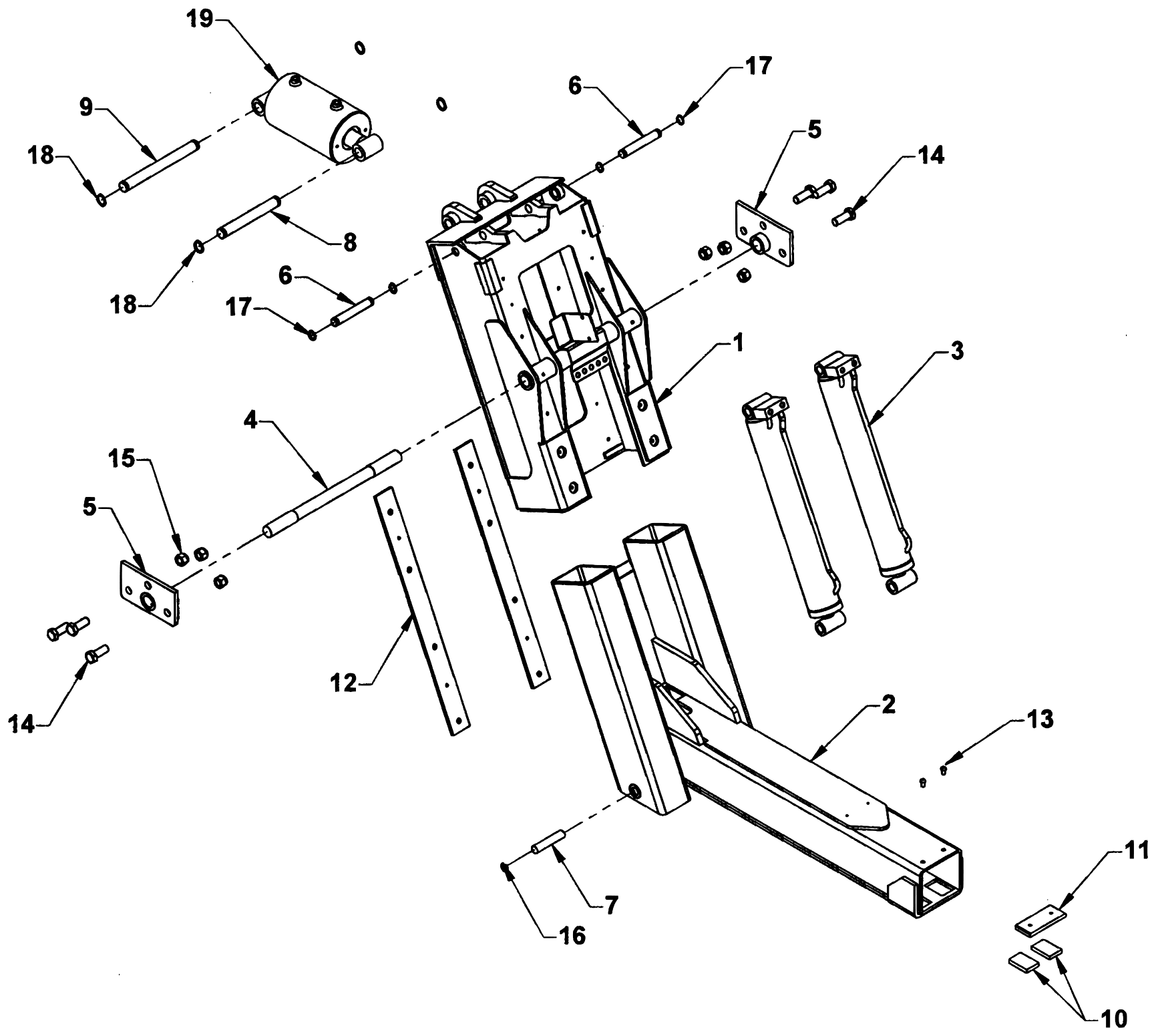

512 Underlift Components

Show parts list (19 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	667702	STANCHION	1	Call for price	—
2	66780	OUTER BOOM	1	$6,800.49
3	72105	LIFT CYLINDER	2	$2,082.40
4	66709	PIVOT PIN - 1.480 X 22	2	$128.44
5	66701	PIVOT MOUNTING BRACKETS	2	$111.23
6	65718	.980 X 6-1/4 SNAP-RING GROOVE BASE PIN	2	$67.45
7	65714	.980 X 4-5/8 ROD PIN	4	$99.82
8	65715	1.230 X 9-1/2 SNAP-RING GROOVE ROD PIN	1	$83.43
9	65716	1.230 X 12-1/4 SNAP-RING GROOVE BASE PIN	1	$101.59
10	65612	NYLATRON WEAR PAD 1/2 X 2 X 3	2	$18.08
11	65758	NYLATRON SHIM PAD	1	$41.94
12	66779N	3/8 X 2-3/4 NYLATRON NSM WEAR STRIP	4	$153.17
13	812A5	BOLT 3/8 X .500 BUTTON HEAD ALLEN	2	$5.84
14	81710	BOLT 7/8 X 2.250	6	$18.08
15	83611	NUT 7/8 NYLON LOCK	6	$6.59
16	86100I	SNAP-RING 1.00 INCH INTERNAL	4	$1.42
17	86100E-1	SNAP-RING 1.00 INCH EXTERNAL	4	Call for price	—
18	86125E-1	SNAP-RING 1.25 INCH EXTERNAL	4	Call for price	—
19	72189	POWER TILT CYLINDER	1	$3,154.27

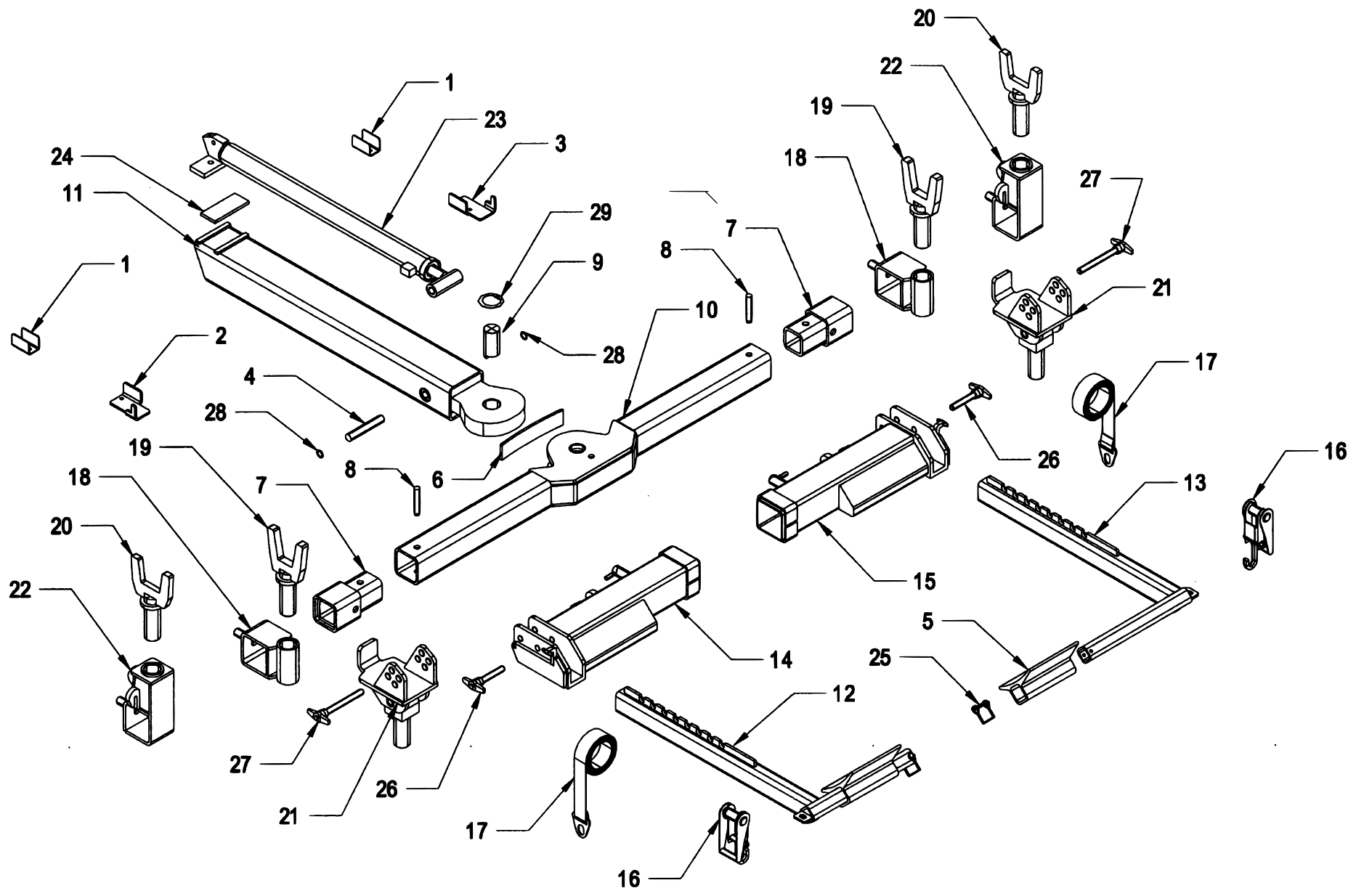

512 Wheel Lift Components and Hook-Up Attachments (Standard)

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	59235	L-ARM CHANNEL BRACKET	2	$33.38
2	59236L	L-ARM MOUNTING BRACKET - LEFT	1	$33.38
3	5926R	L-ARM MOUNTING BRACKET - RIGHT	1	Call for price	—
4	64357	.980 X 5.875 PIN	1	$22.44
5	65245	REMOVABLE PAN	2	$71.13
6	65228	YOKE SPRING	1	$71.13
7	66230	CROSSBAR EXTENSION - OPTIONAL	2	$200.54
8	66245	CROSSBAR EXTENSION PIN - OPTIONAL	2	$50.45
9	66430	CROSSBAR PIVOT PIN	1	$98.48
10	66510	CROSSBAR WELDMENT	1	$2,490.43
11	66815	INNER BOOM	1	$1,803.42
12	66250L	WHEEL RETAINER - LEFT	1	$598.10
13	66250R	WHEEL RETAINER - RIGHT	1	$598.10
14	66260L	WHEEL GRID - LEFT	1	$734.84
15	66260R	WHEEL GRID - RIGHT	1	$734.84
16	665280A	RATCHET	2	Call for price	—
17	65285	WHEEL STRAP	2	$49.20
18	66280	FRAME FORK HOLDER	2	$423.12
19	66290	TWO INCH FRAME FORK	2	$479.59
20	66300	THREE INCH FRAME FORK	2	$240.69
	66310	FOUR INCH FRAME FORK - OPTIONAL	2	$479.57
21	66320	SPRING SHACKLE ADAPTOR	2	$587.50
22	66330	ELEVATED FRAME FORK HOLDER	2	$743.81
23	72196	EXTENSION CYLINDER	2	$2,193.42
24	64355	WEAR PAD	2	$43.97
25	84911	5/16 SAFETY SNAP PIN	2	$1.70
26	84922	T-PIN WITH LANYARD - 3/4 X 3.50	2	$133.13
27	84923	T-PIN - 3/4 X 6.50	2	$158.64
28	86100I	SNAP-RING 1.00 INCH INTERNAL	2	$1.42
29	86200I	SNAP-RING 2.00 INCH INTERNAL	2	$5.78

Pivot Wheel Grids and L-Arms 4 - Series

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	659811L	PIVOT WHEEL GRID-LEFT	1	Call for price	—
2	659811R	PIVOT WHEEL GRID-RIGHT	1	Call for price	—
3	659820L	PIVOT L-ARM RECEIVER GROUP-LEFT	1	$748.15
4	659820R	PIVOT L-ARM RECEIVER GROUP-RIGHT	1	$748.15
5	659822	L-ARM RECEIVER CASTING PIVOT PIN	1	Call for price	—
6	659830L	LEFT ALUMINUM L-ARM	1	$722.05
7	659830R	RIGHT ALUMINUM L-ARM	1	$722.05
8	AA009G	RUBBER TENSION STRAP WITH S-HOOK	2	$11.87
9	65286	BASKET STRAP-CAR	2	$198.75
	65287	BASKET STRAP-TRUCK	2	$207.95

Pivot L-Arm Receiver Group 4-Series (Optional)

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	659820L	PIVOT L-ARM RECEIVER GROUP-LEFT	1	$748.15
	659820R	PIVOT L-ARM RECEIVER GROUP-RIGHT (SHOWN)	1	$748.15
2	659821L	PIVOT L-ARM RECEIVER CASTING-LEFT	1	Call for price	—
	659821R	PIVOT L-ARM RECEIVER CASTING-RIGHT (SHOWN)	1	Call for price	—
3	659822	L-ARM RECEIVER CASTING PIVOT PIN	1	Call for price	—
4	659826	PIVOT LOCK PIN	1	Call for price	—
5	659827	LANYARD	1	Call for price	—
6	85016	RIVET	1	Call for price	—
7	81225	FLAT HEAD SOCKET CAP SCREW 3/8-16 UNC X 1/2	1	Call for price	—
8	81226	TAPERED SOCKET CAP SCREW 1/2-13 UNC X 1/2	1	Call for price	—
9	659824	7/8 CAM PIN	1	Call for price	—
10	89100	CAM PIN SPRING	1	$1.80
11	659825	T-HANDLE	1	Call for price	—
12	84675	ROLL PIN 3/16 X 1	1	$4.16

4 Series Boom End Swivel

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	61366	BOOM END SWIVEL	1	$264.40
2	69120	PULLEY - 6 INCH	1	$322.45
3	61370	CABLE FOLLOWER	1	$125.80
4	61364	PIN .750 X 3-1/8	1	$213.19
5	86287E	RETAINING RING 2-7/8 EXTERNAL	1	$9.67
6	86075E	RETAINING RING 3/4 EXTERNAL	2	$3.21
7	82510	FLAT WASHER 3/4 X 1-1/2 X .120	2	$0.67
8	82511	FLAT WASHER 3/4 X 1-1/2 X .060	2	$5.68

5 Series Boom End Swivel

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	61369	BOOM END SWIVEL	1	$626.43
2	69125	PULLEY - 6 INCH	1	$237.06
3	61379	CABLE FOLLOWER	1	$243.45
4	61368	PIN .980 X 3-5/8	1	$95.63
5	86287E	RETAINING RING 2-7/8 EXTERNAL	1	$9.67
6	83611	NYLON LOCK NUT 7/8-9	1	$6.59
7	82710	FLAT WASHER 1.00 X 1-1/2 X .120	2	$2.76
8	82718	FLAT WASHER 1.00 X 1-1/2 X .060	2	Call for price	—

Pintle Hitch Group

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	66370G	PINTLE HITCH GROUP	1	$1,319.25
1	66370W	PINTLE HITCH WELDMENT	1	$511.66
2	A3020	TOW BALL PINTLE HITCH	1	$300.87
3	66378	RETAINING PIN	2	$27.01
4	812A6	3/8 X 5/8 BUTTON HEAD BOLT	4	Call for price	—
	5A220	LANYARD	2	$21.89
5	81428	BOLT 1/2-13 X 1.25 GRADE 8 SECURE WITH LOCTITE	2	$0.61
6	81449	BOLT 1/2-13 X 2.5 GRADE 8	2	$0.91
7	83312	NUT NYLOK 1/2-13	2	$0.34

24 In. Steel Tunnel Box Group

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	5484524	24 INCH STEEL TUNNEL BOX WELDMENT	1	Call for price	—
2	5484024	24 INCH TUNNEL BOX DOOR	2	$377.44
3	54658	ROTARY PADDLE LATCH	2	$111.23
4	548515	TUNNEL BOX MOUNTING BRACKET	2	Call for price	—
5	54657	GASKET - PADDLE LATCH	2	$3.67
6	54863	TUNNEL BOX DOOR HINGE MOUNT	4	$11.08
