Show all 23 parts sections ▼Hide parts sections ▲
- Subframe Assembly
- Body Assembly
- Boom Assembly
- Underlift & Tower Assembly

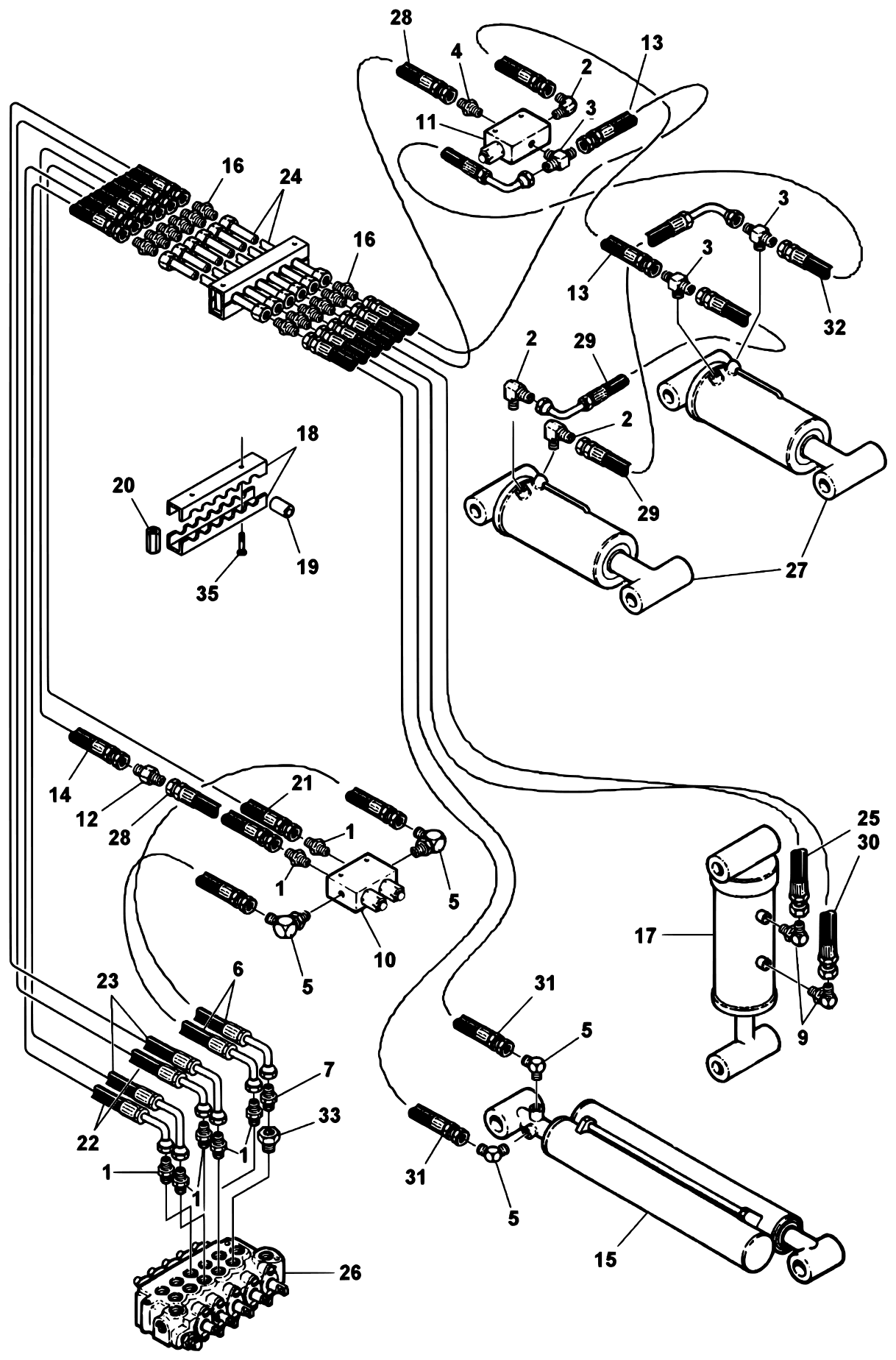

- Underlift Hydraulics

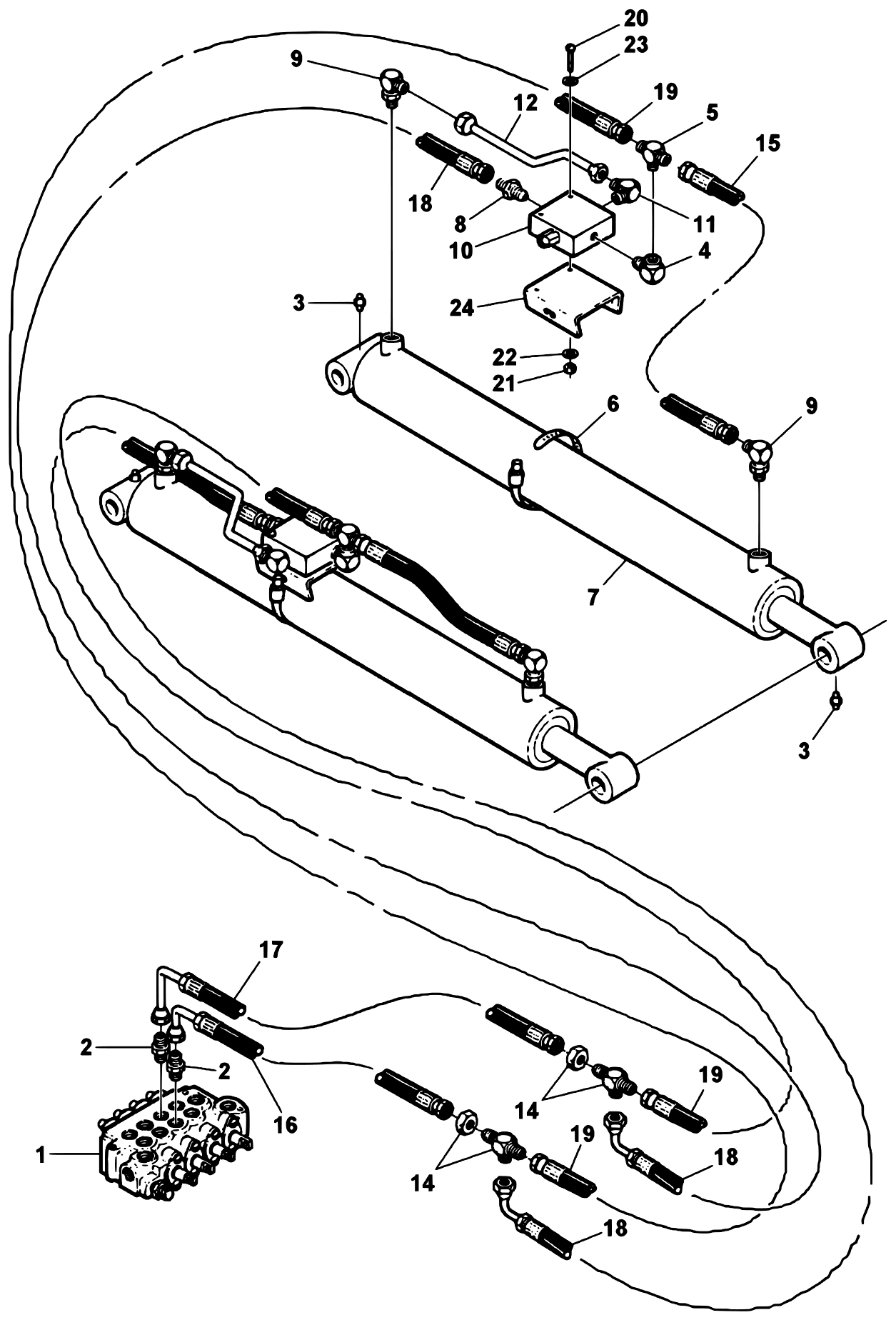

- Boom Elevation Hydraulics

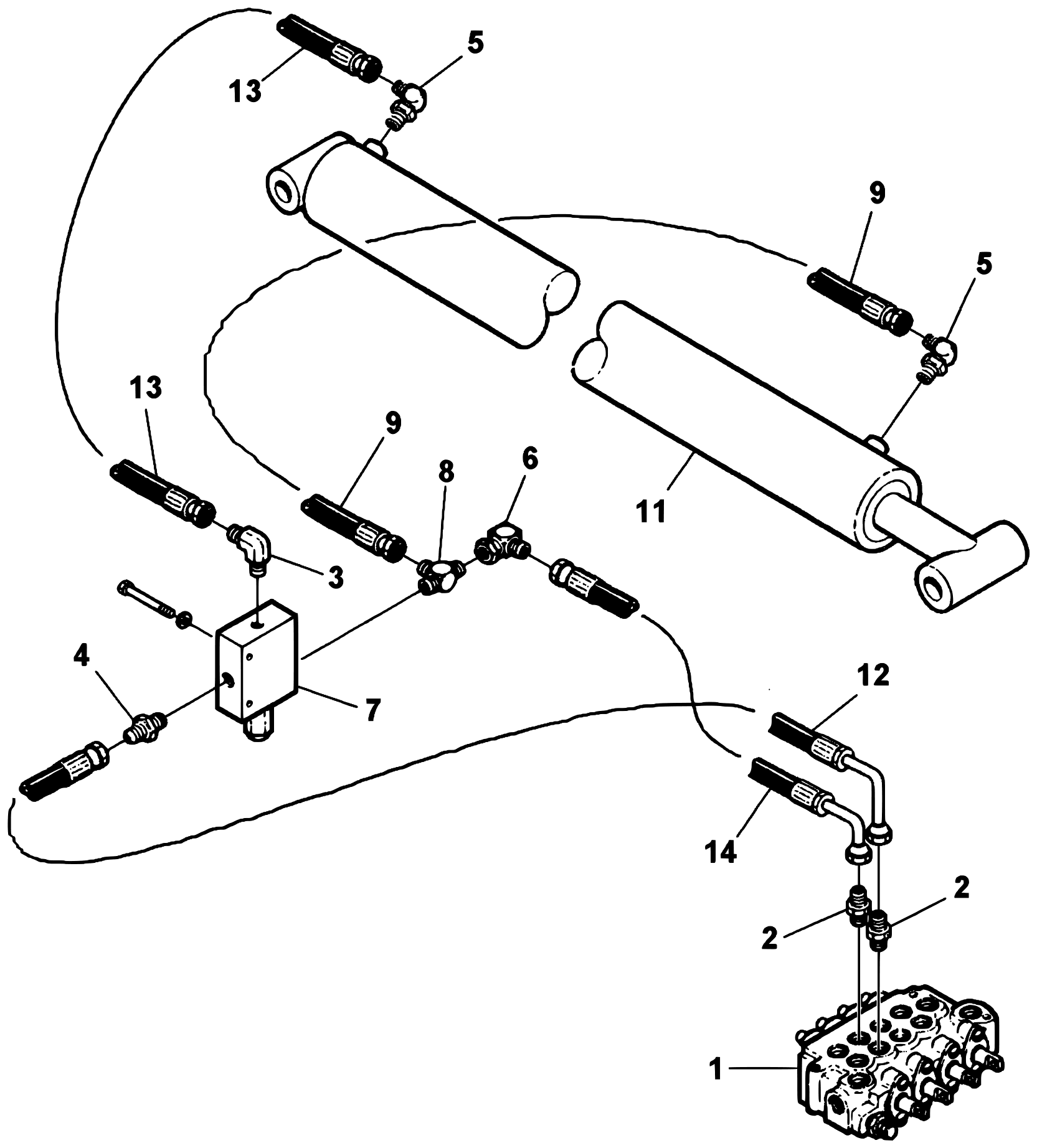

- Boom Extension Hydraulics

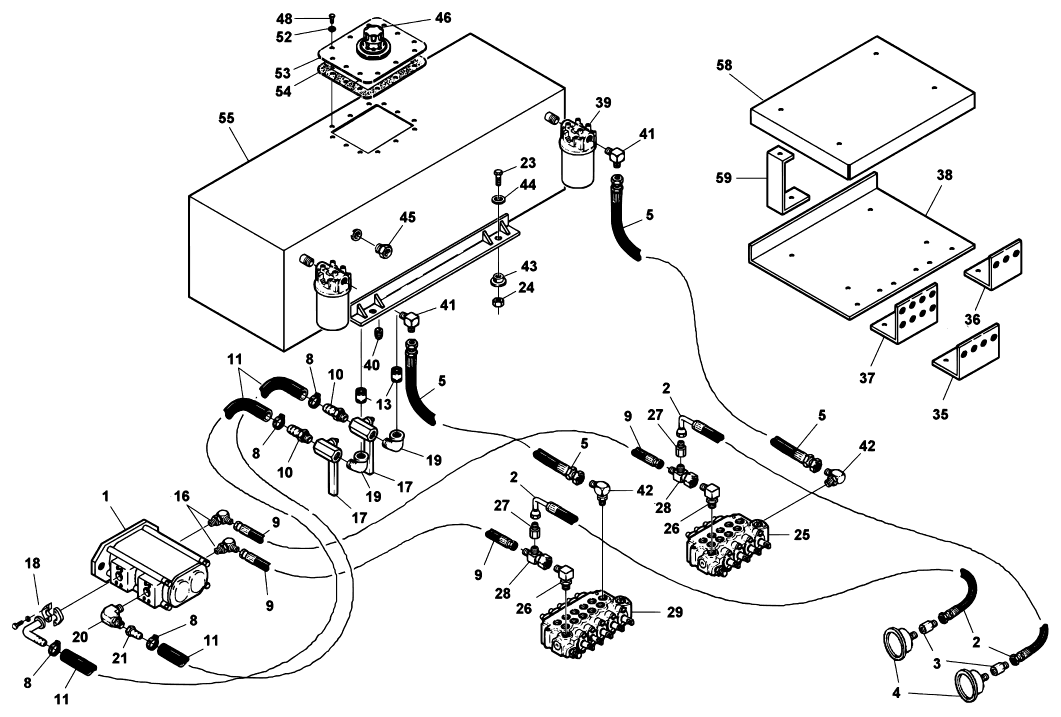

- Pump, Valve & Filter Hydraulics

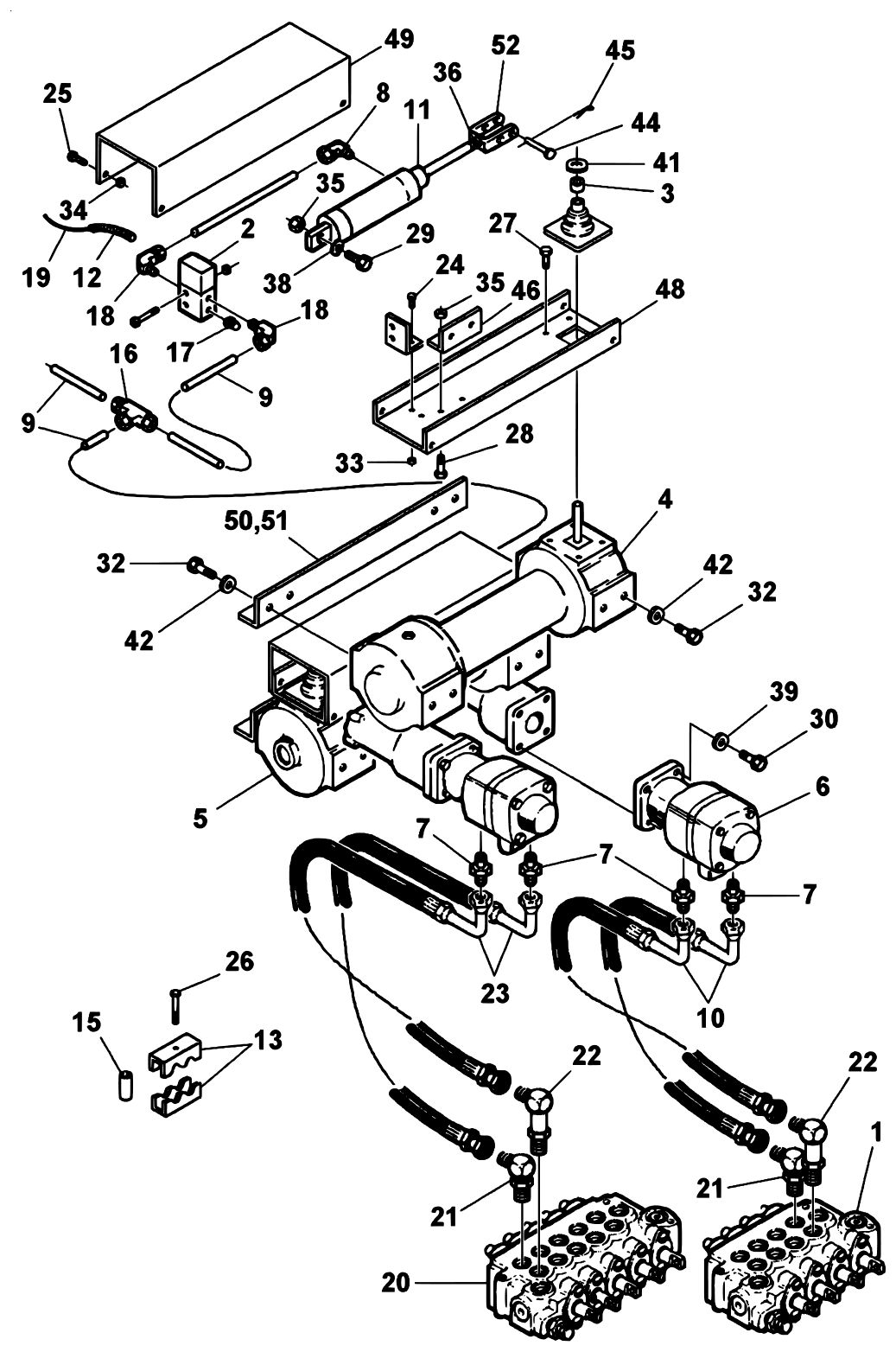

- Worm Drive Winch Hydraulics & Air Free Spool

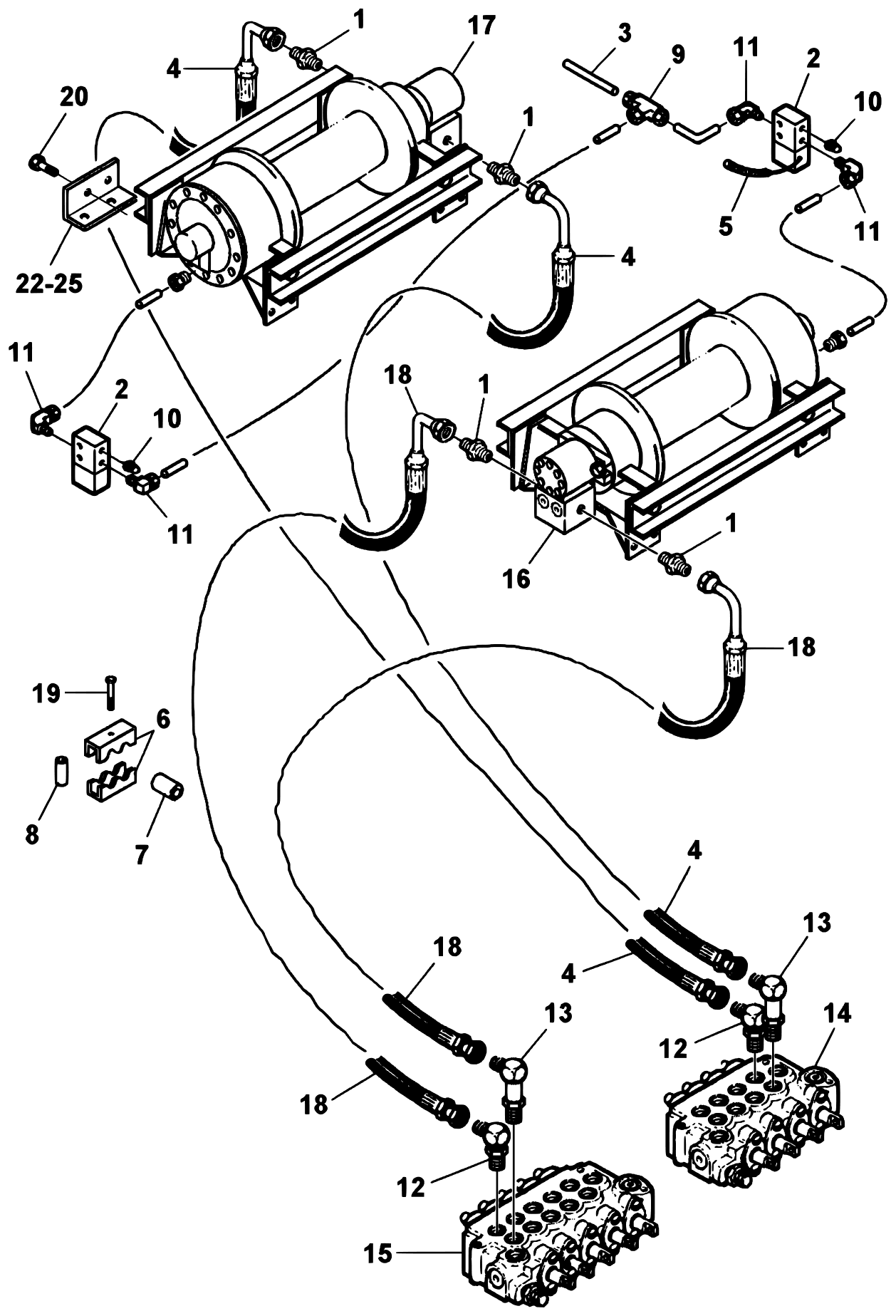

- Planetary Winch Hydraulics & Air Free Spool

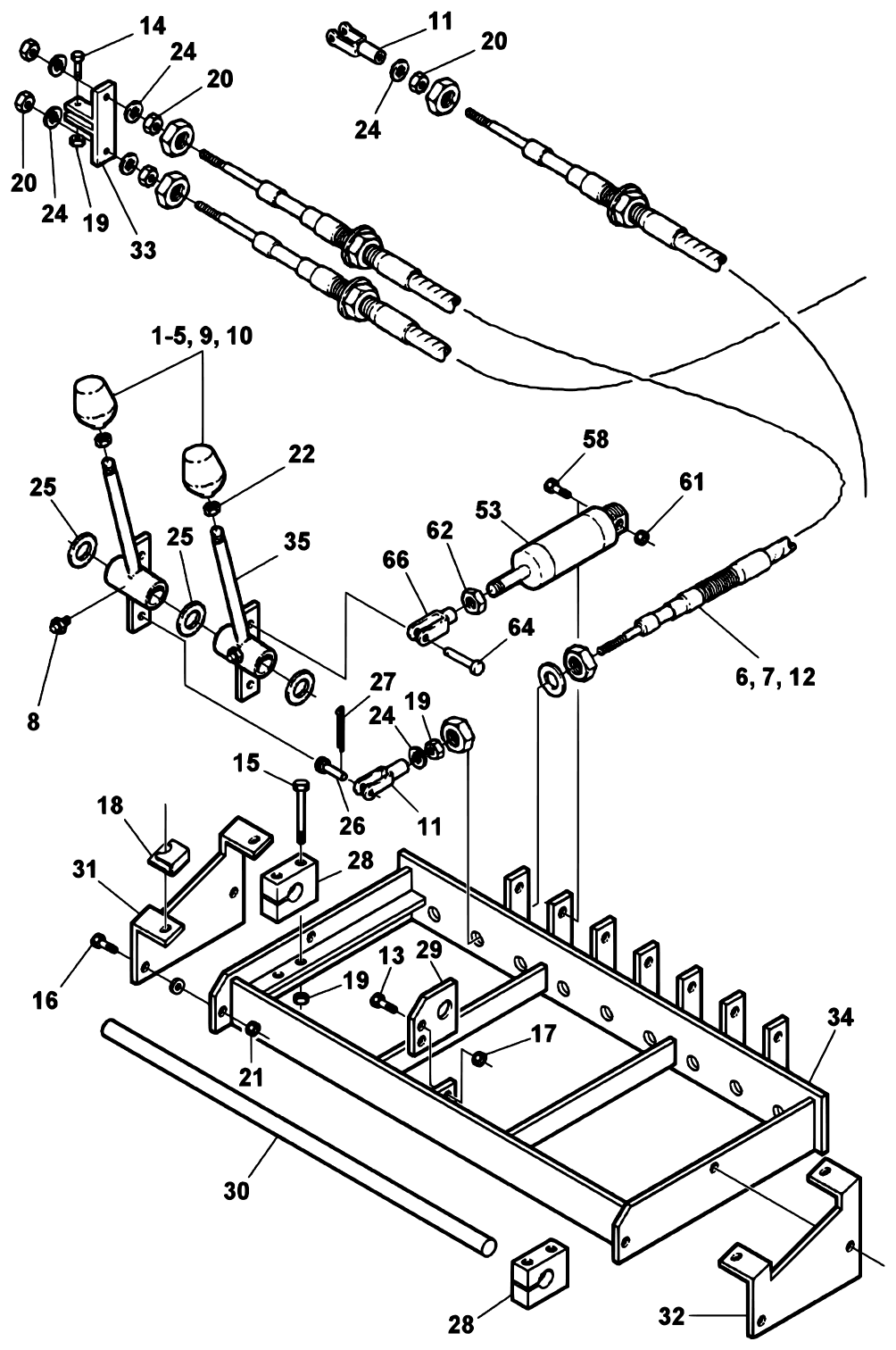

- Left Control Assembly & Remote Control Assembly

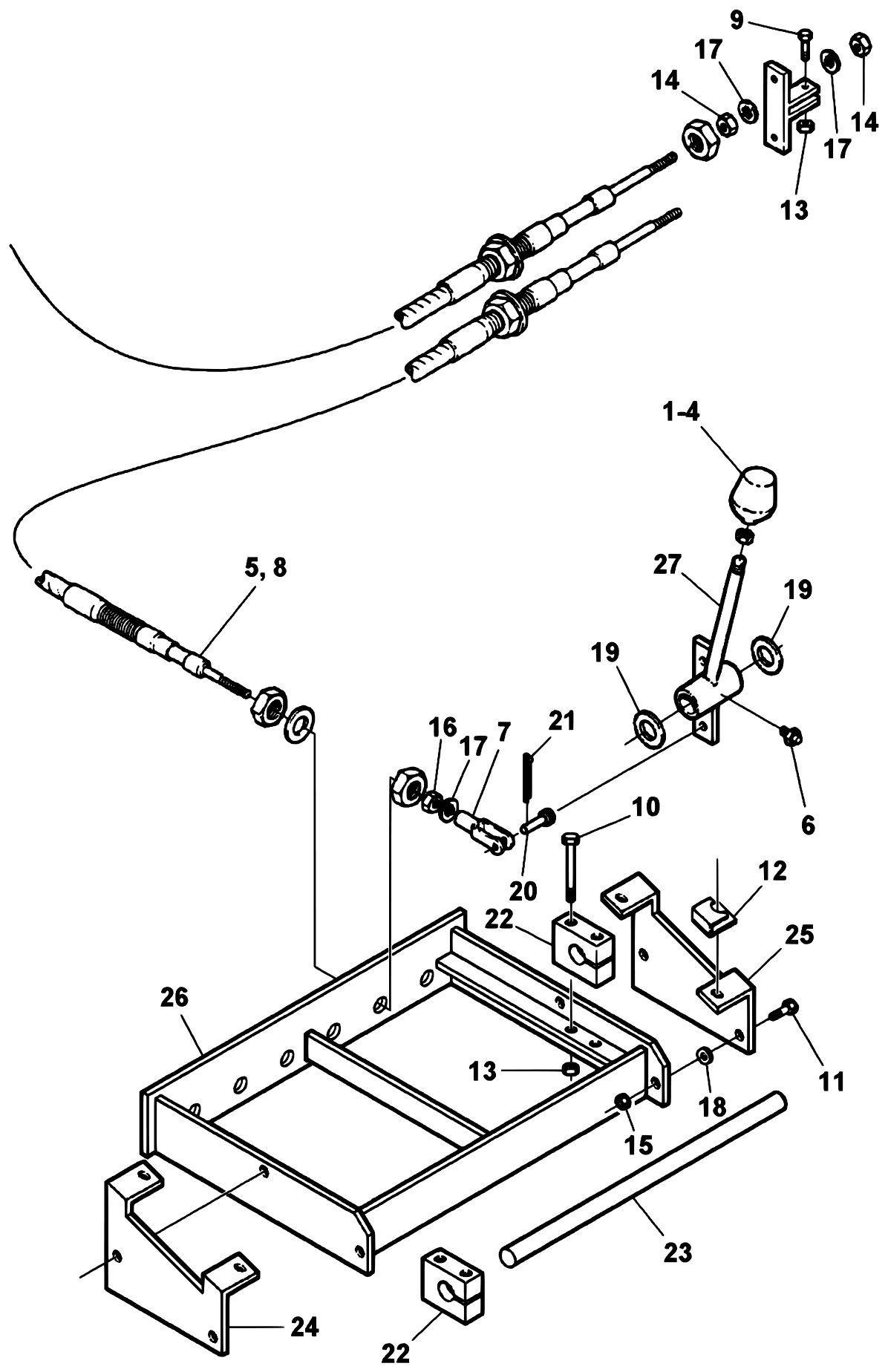

- Right Control Assembly

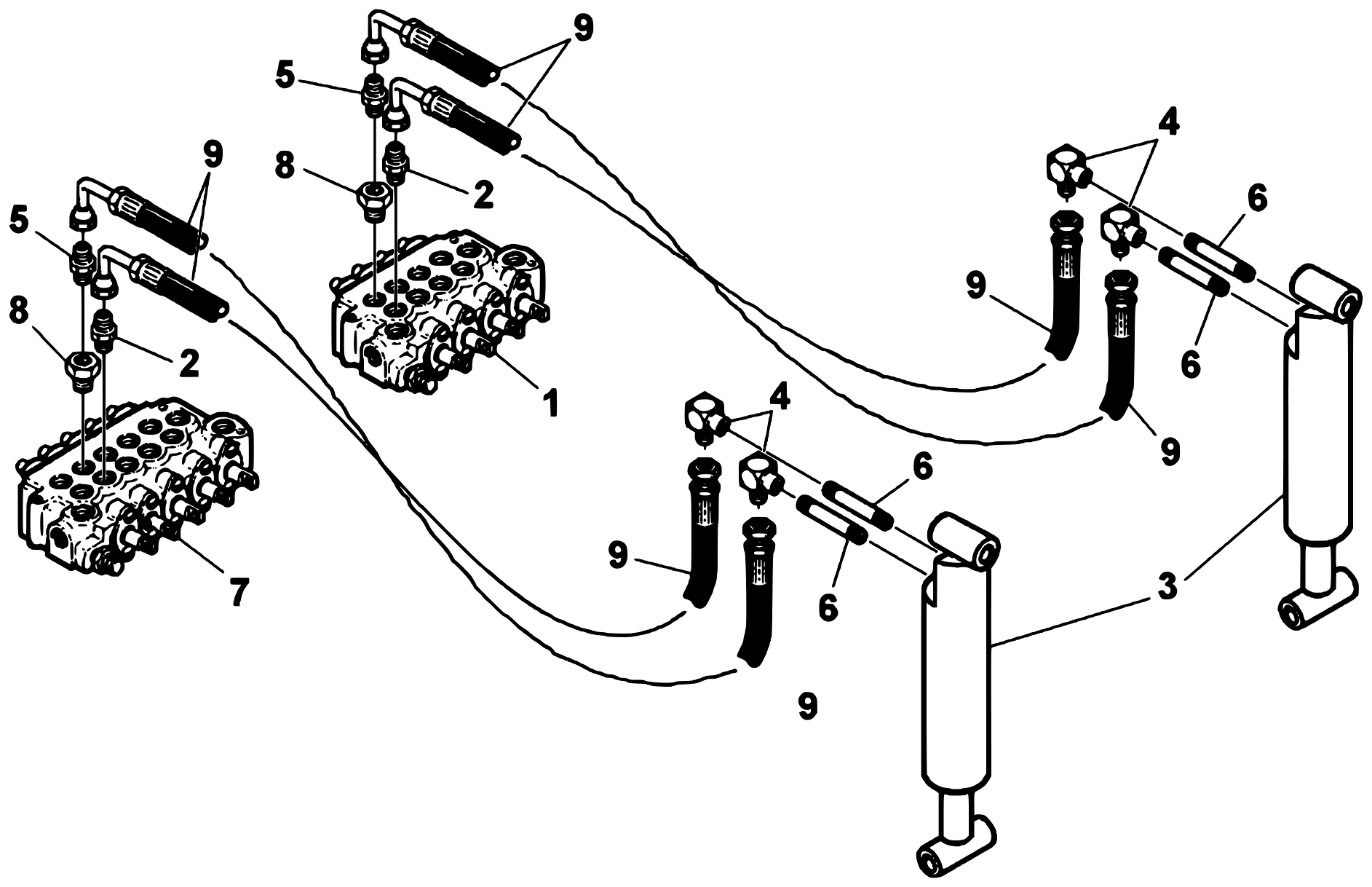

- Rear Spade Hydraulics

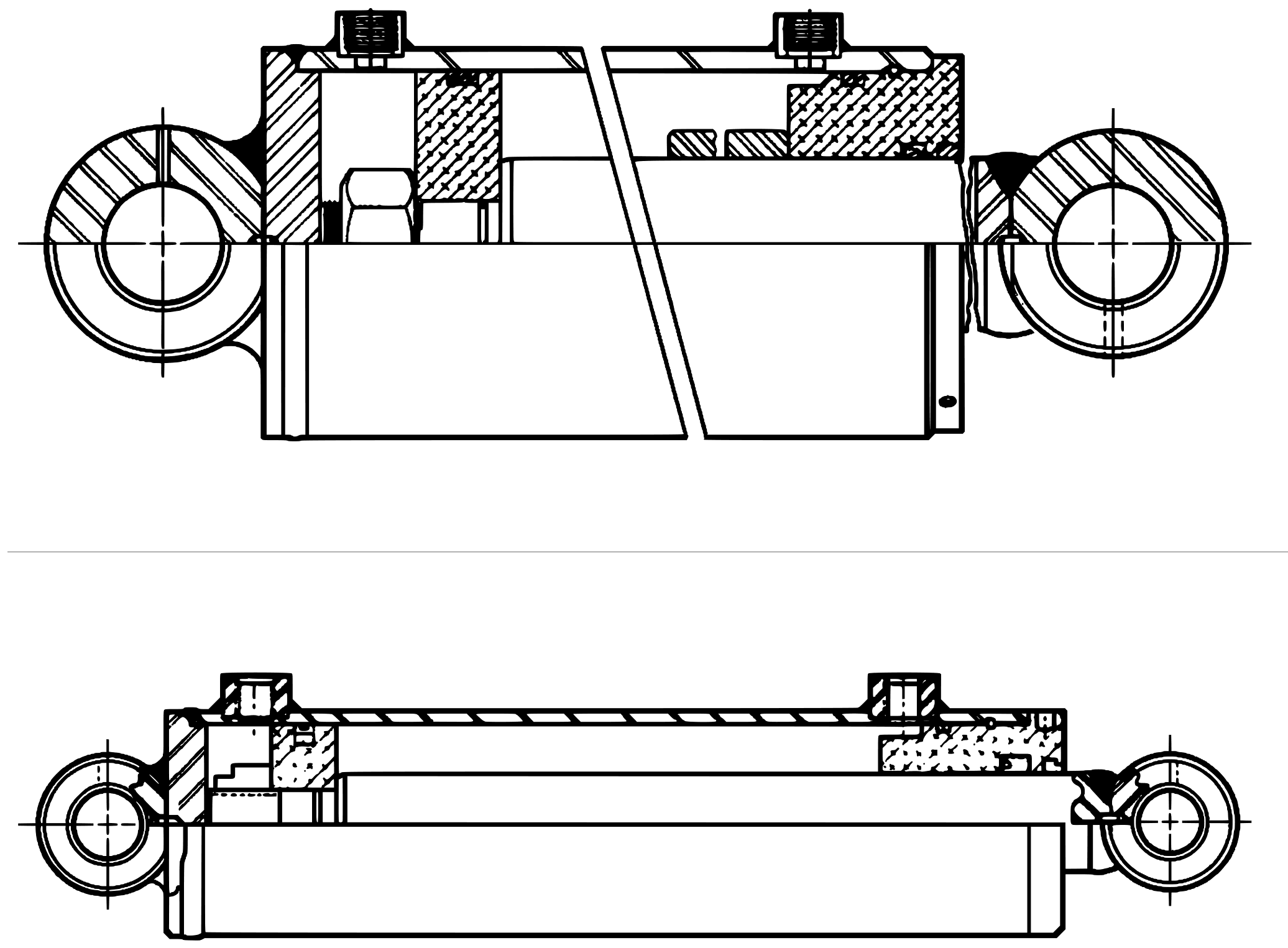

- Hydraulic Cylinders - Boom Elevation, Underlift Fold & Boom Extension

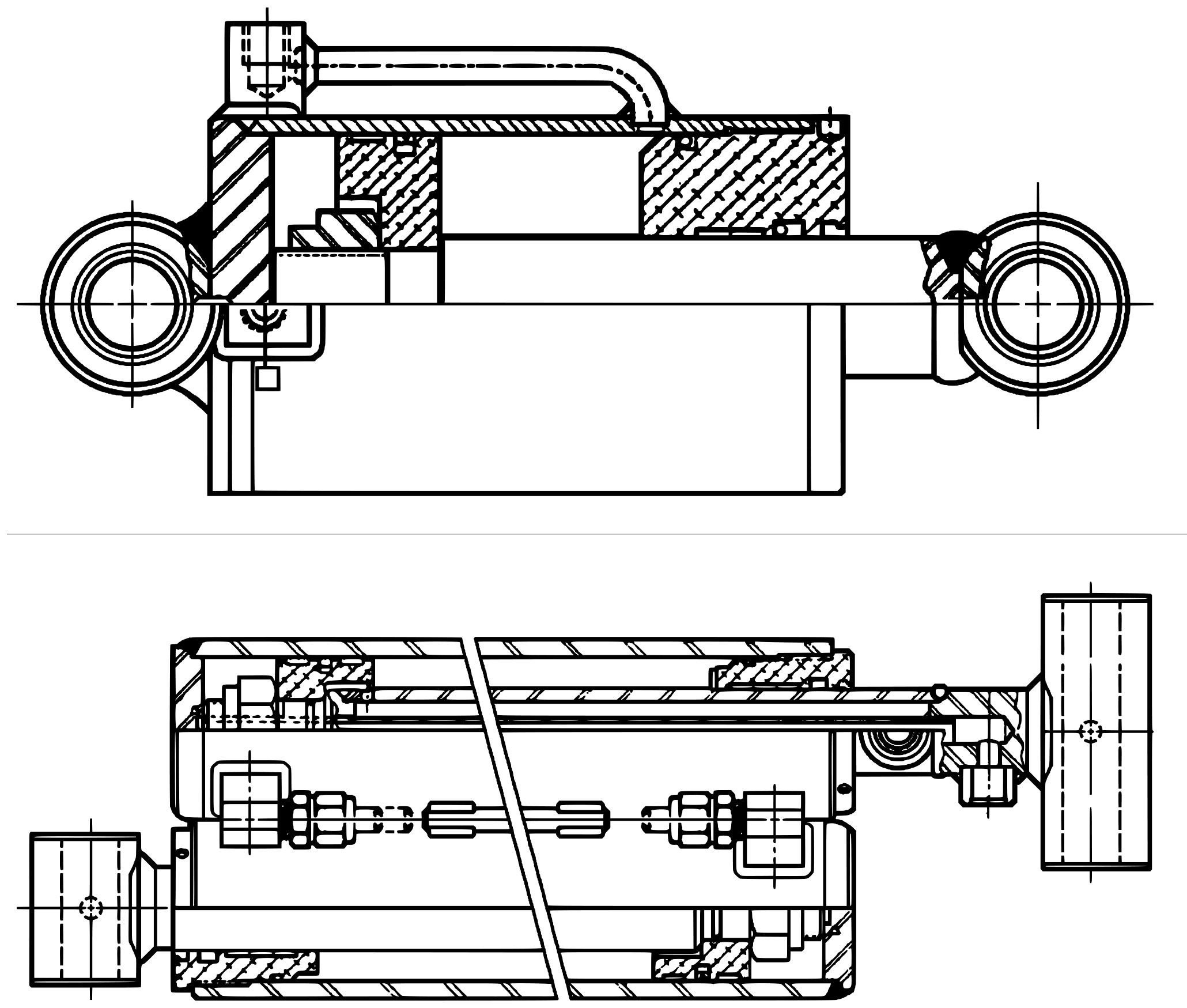

- Hydraulic Cylinders - Underlift Tilt & Underlift Extension

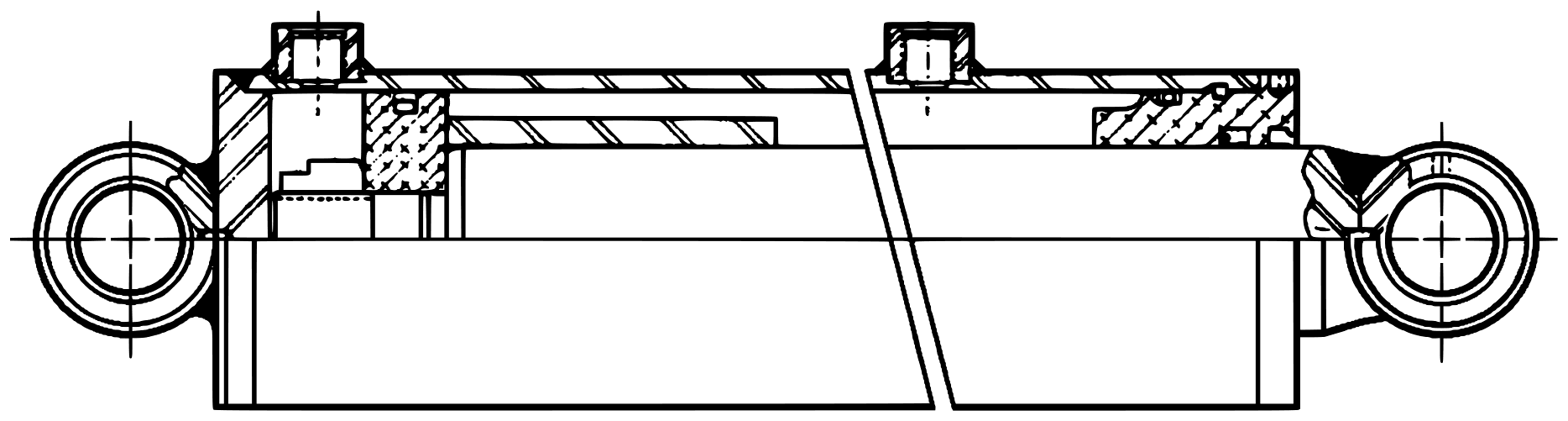

- Hydraulic Cylinders - Rear Spade

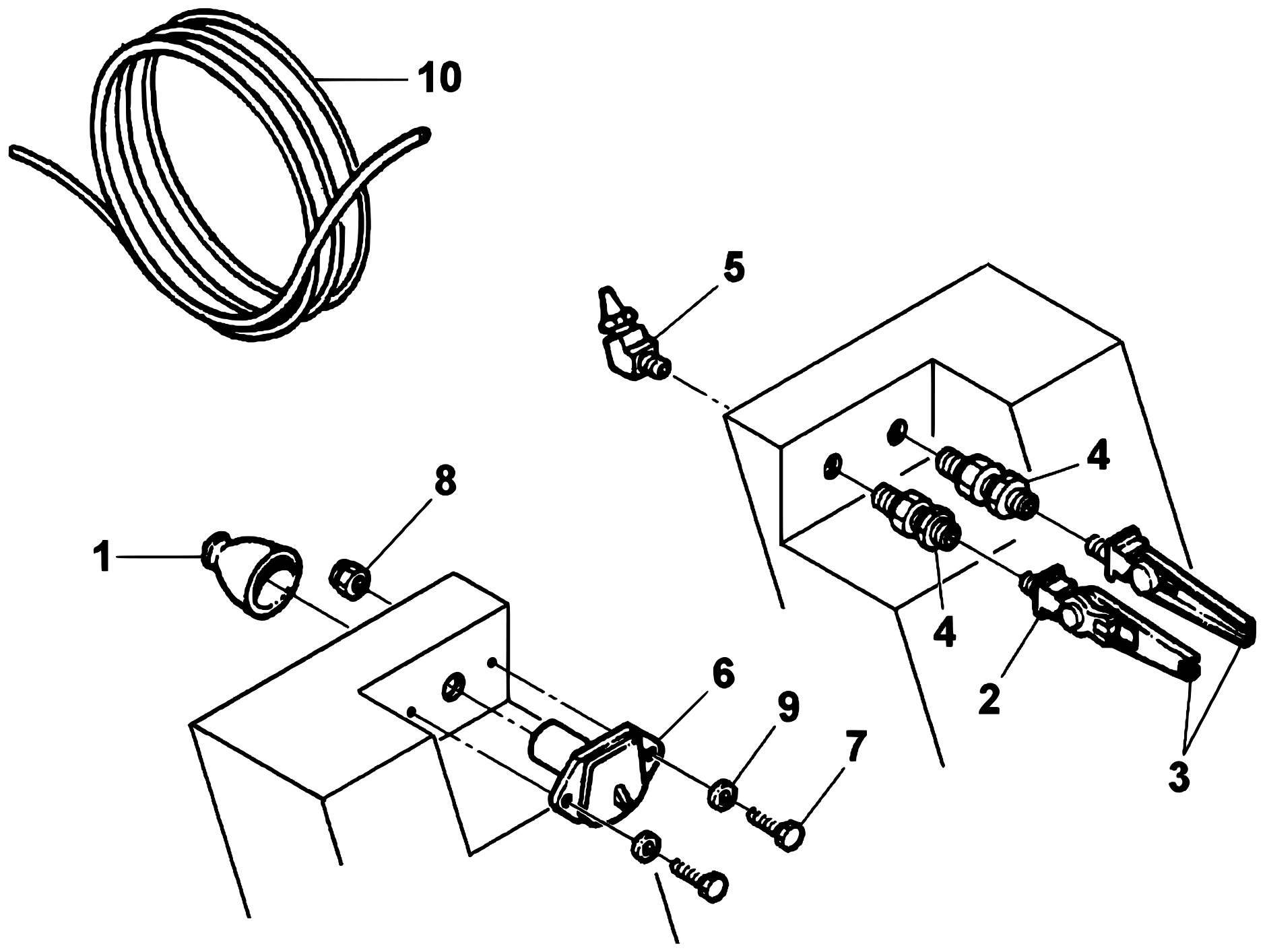

- Glad Hand Kit

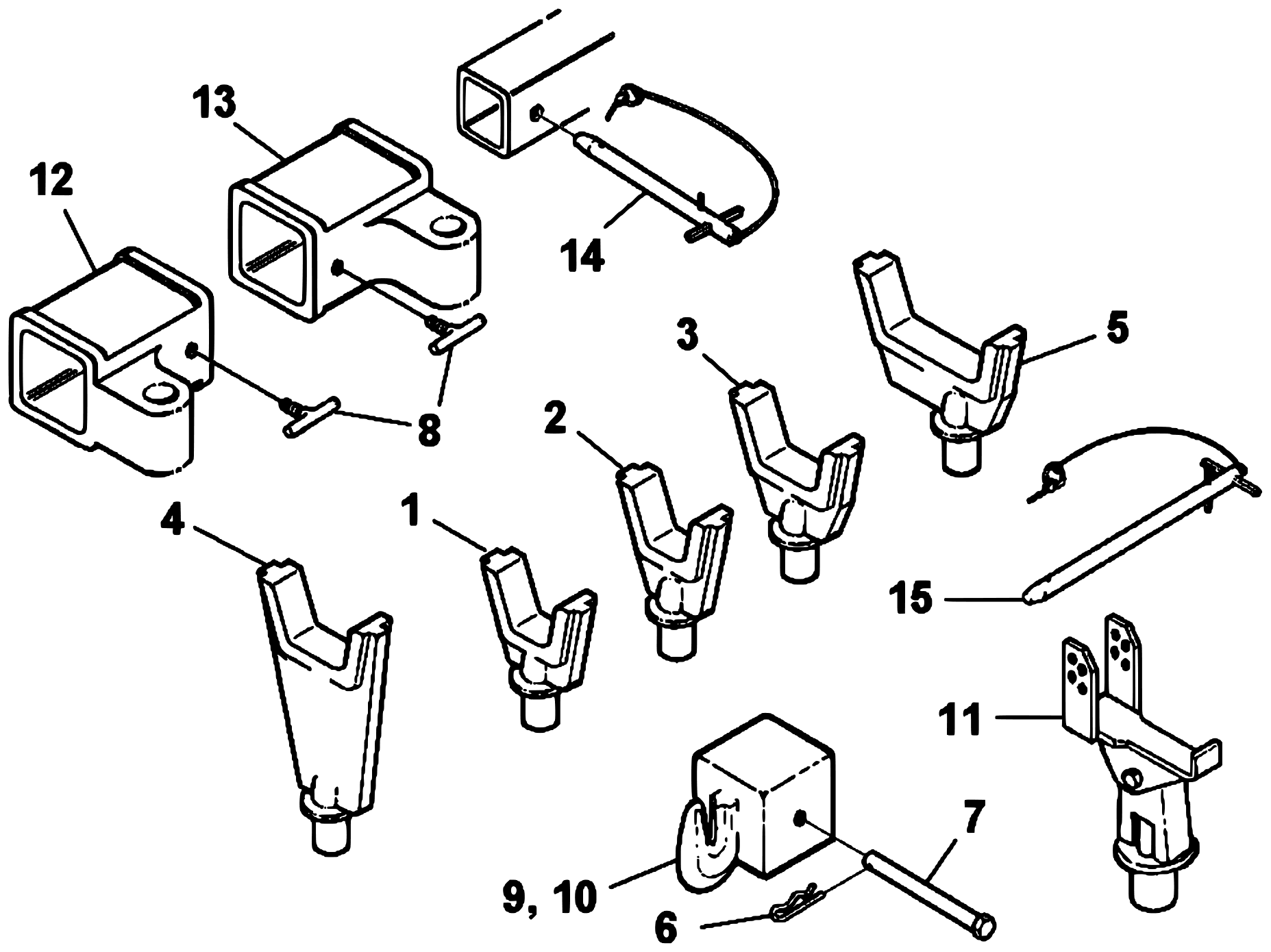

- Lift Adapters

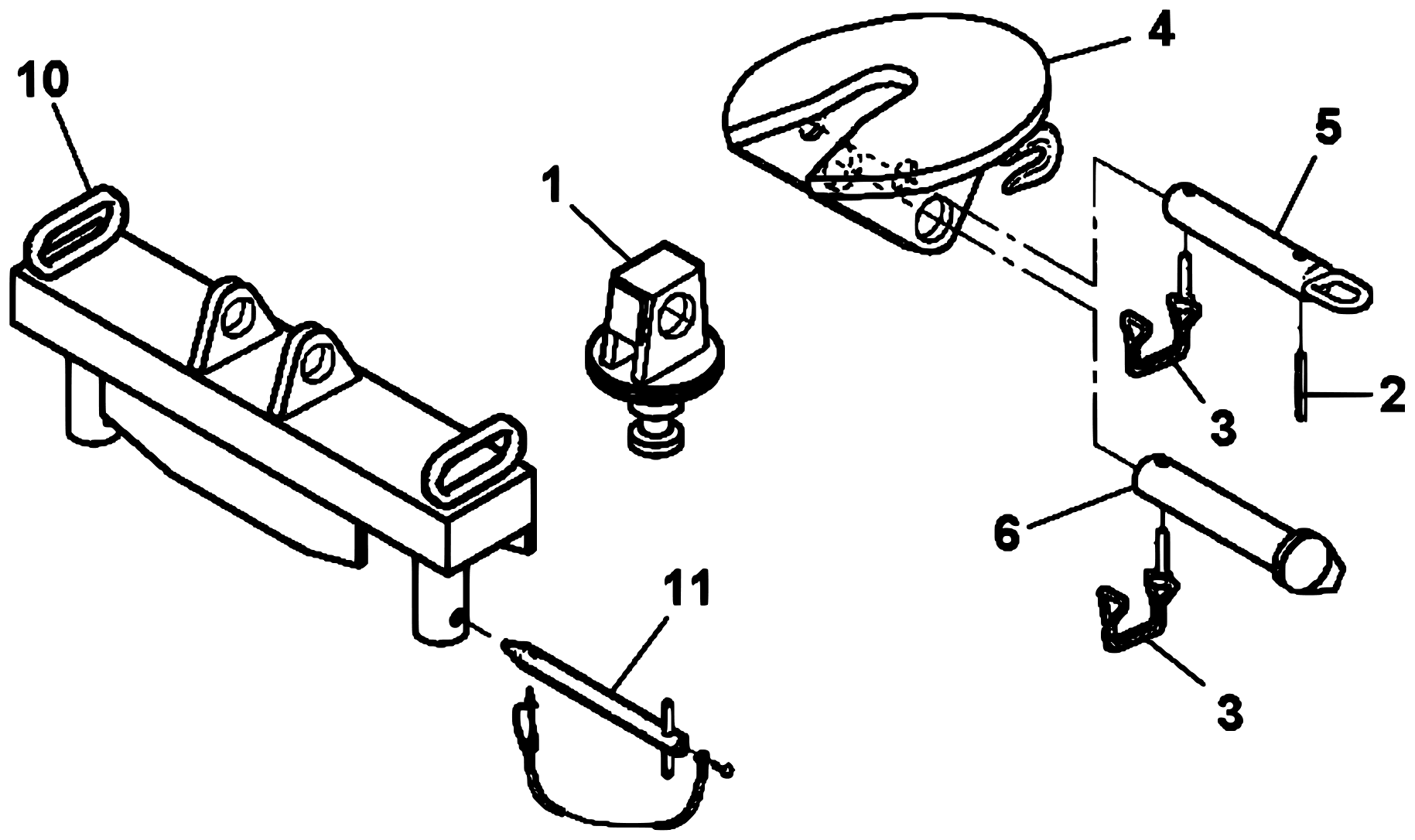

- King Pin Adapter

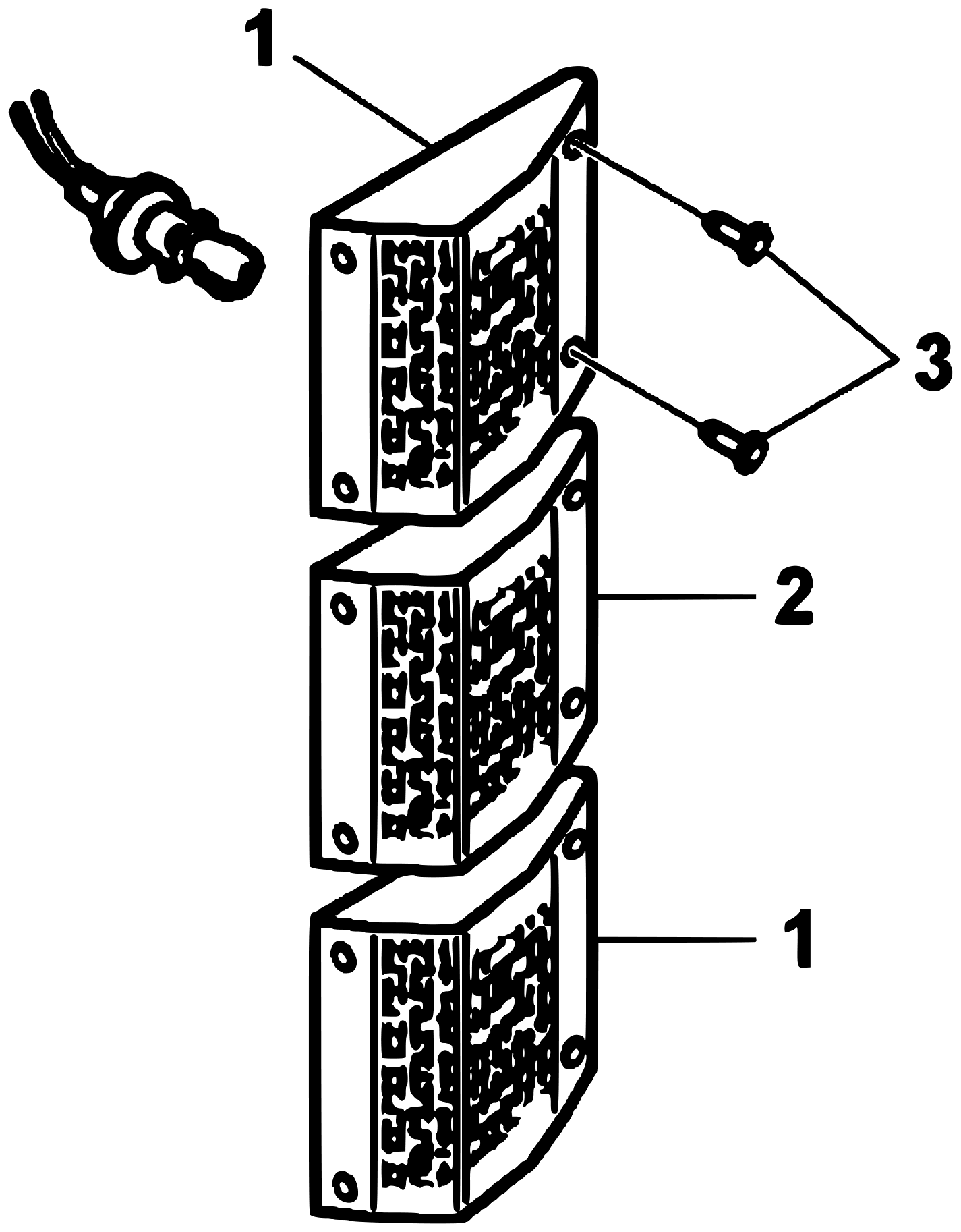

- Light Kit - Stop & Turn and Back-Up Lights

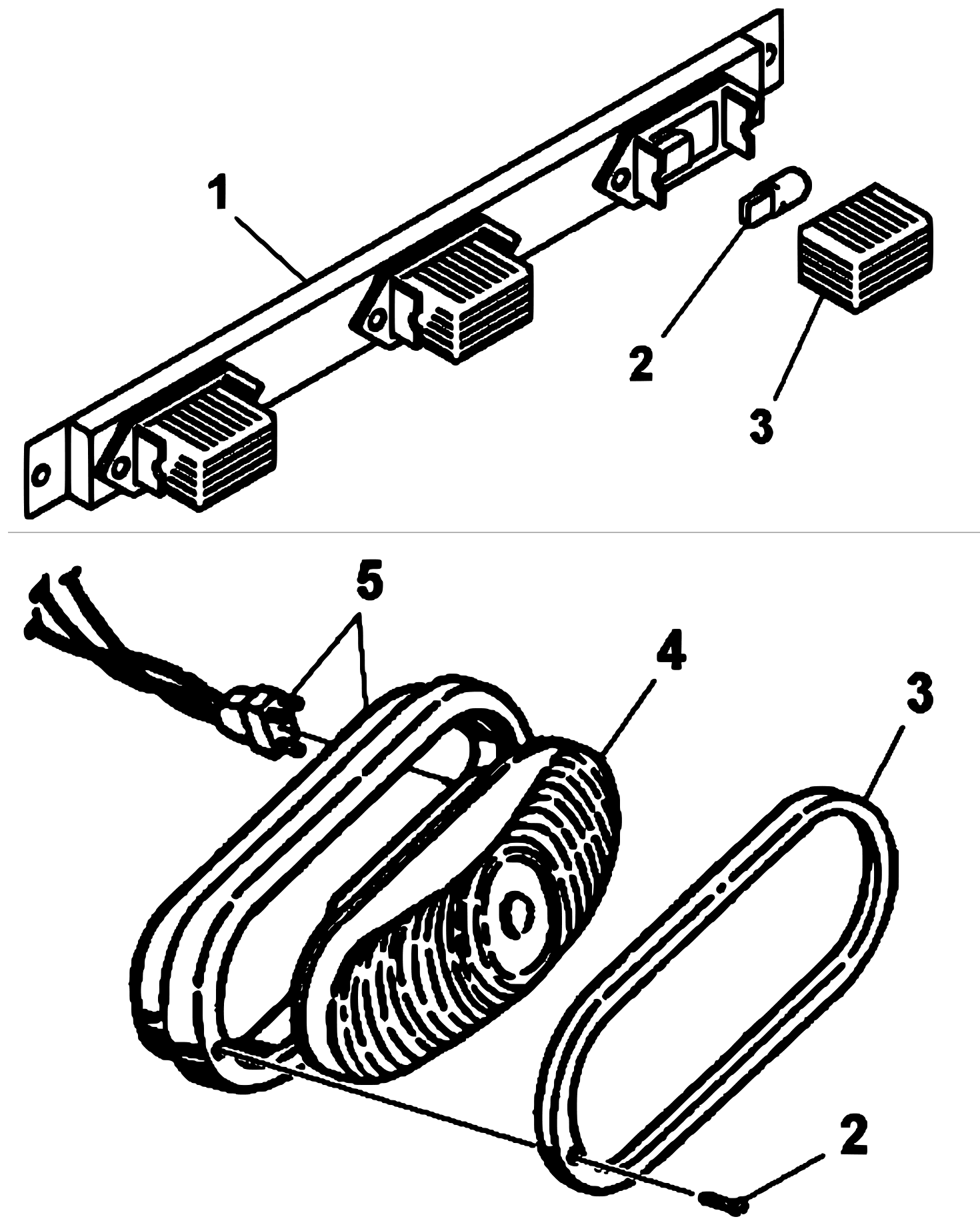

- Light Kit - 3-Light Bar & Turn Light

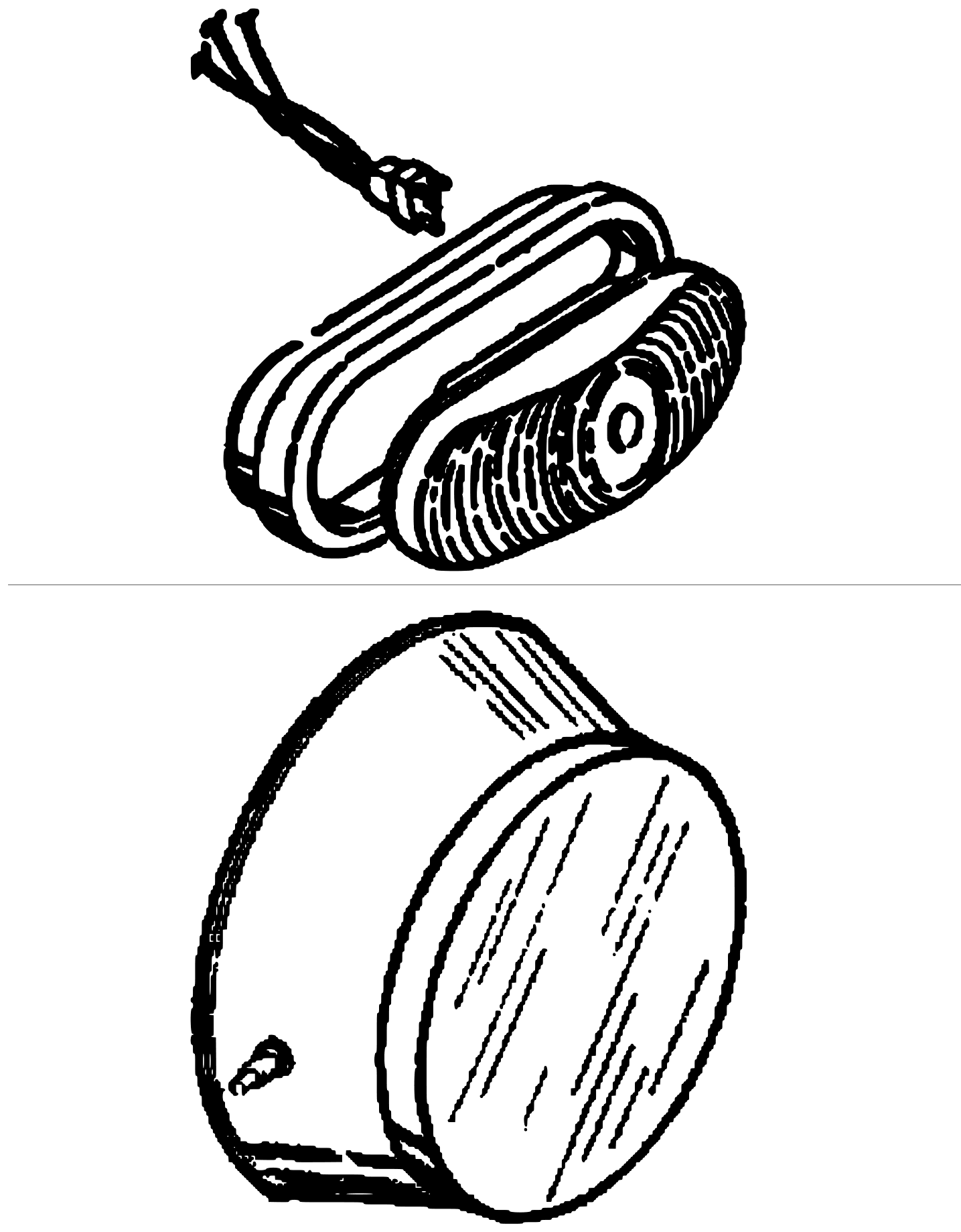

- Light Kit - Flood, Amber Marker & Dome Lights

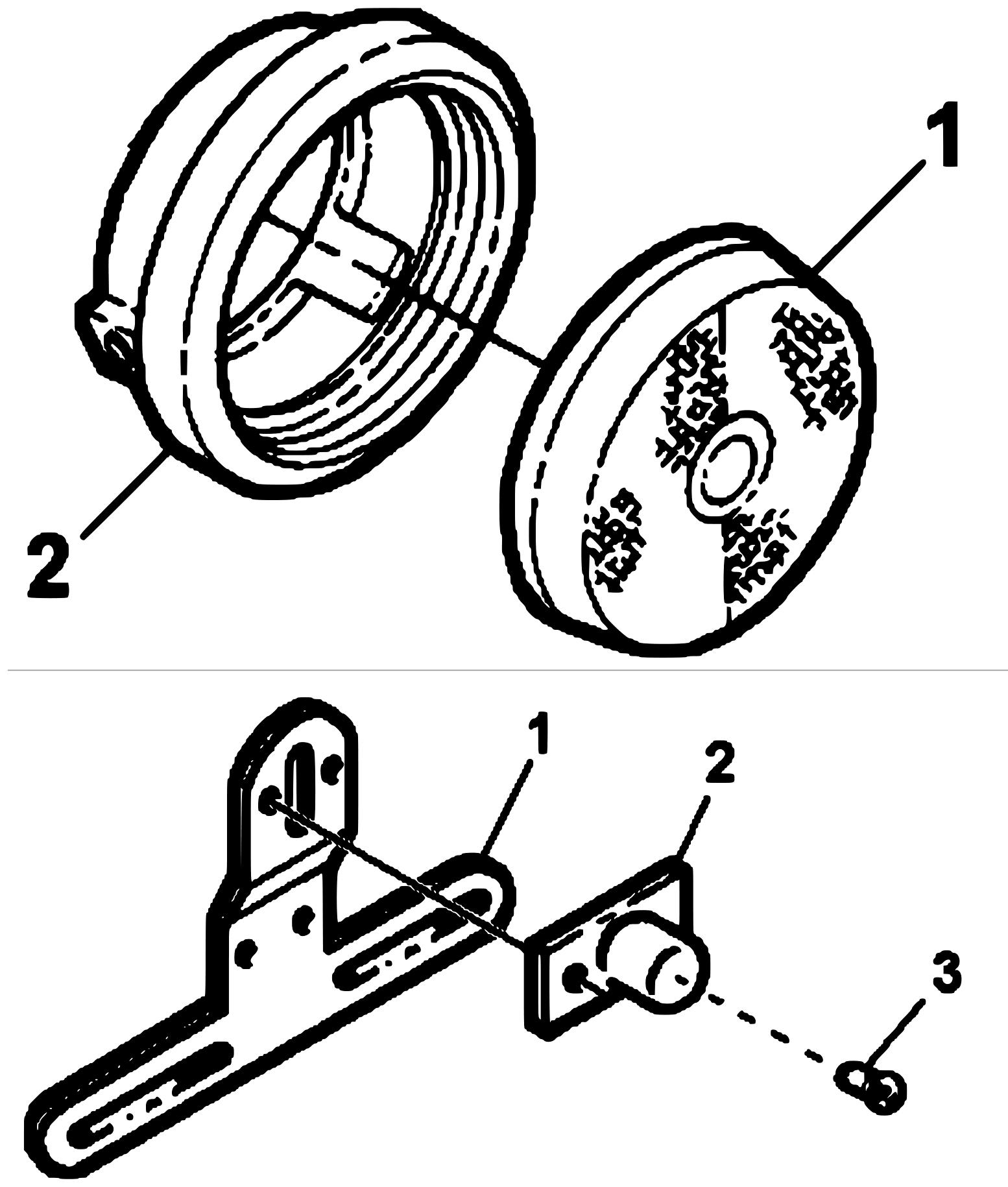

- Light Kit - Marker Lights & License Plate Illuminator

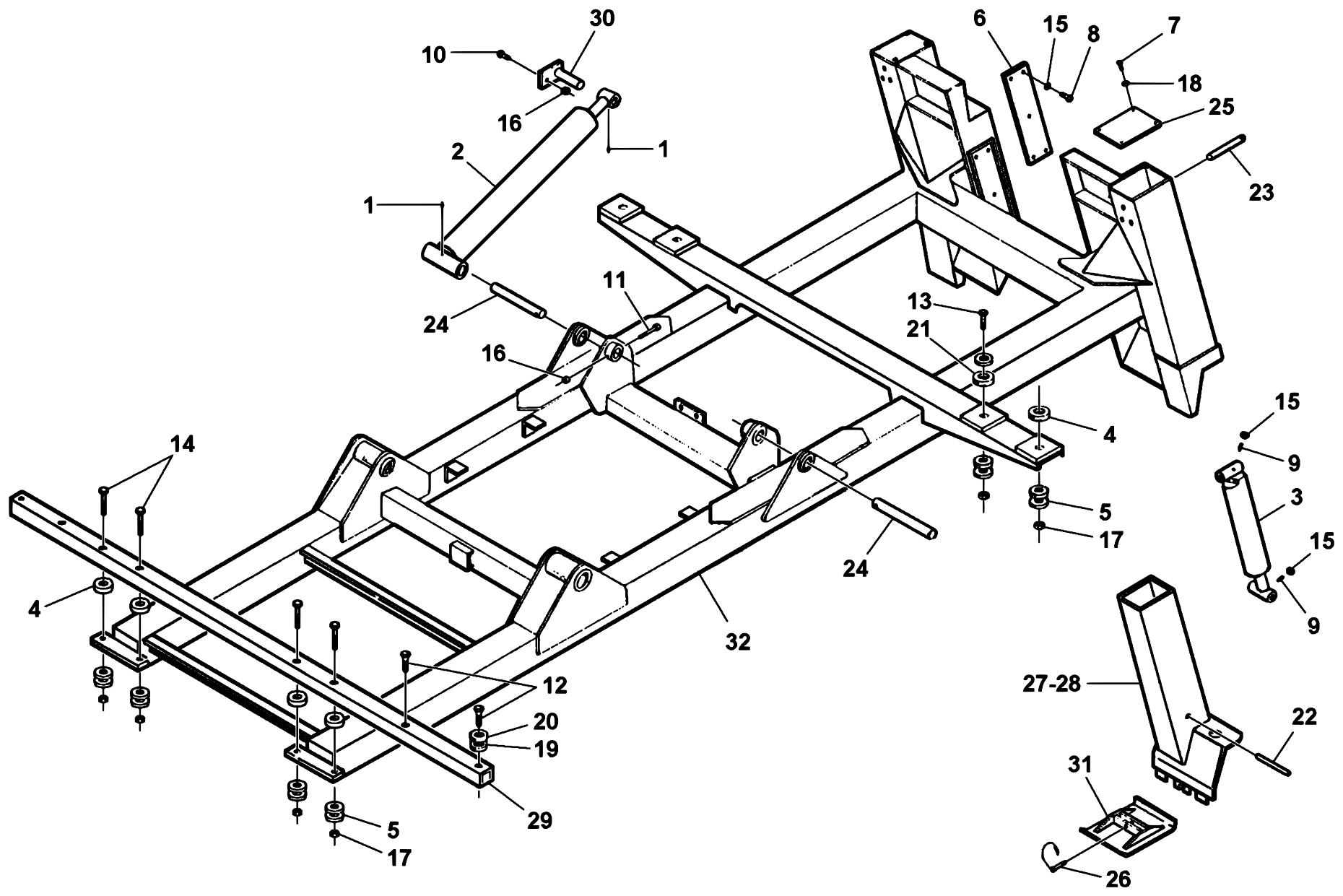

Subframe Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING | 6 | $5.84 | |
| 2 | 0300438 | LIFT CYLINDER | REF. | Call for price | — |
| 3 | 0300680 | SPADE CYLINDER | REF. | Call for price | — |
| 4 | 0302540 | CENTER BONDED MOUNT | 8 | $54.70 | |
| 5 | 0302541 | SPECIAL WASHER | 12 | $23.72 | |
| 6 | 0303089 | RAMP PAD | 2 | $85.72 | |
| 7 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 8 | $5.84 | |
| 8 | 0400128 | SCREW, 3/8"-16 X 1-1/4" FL HD SKT | 10 | $8.01 | |
| 9 | 0400139 | SCREW, 3/8"-16 X 1-1/2" HEX SKT SET | 4 | $5.84 | |
| 10 | 0400181 | SCREW, 1/2"-13 X 1-1/2" HEX HD CAP | 2 | $5.84 | |
| 11 | 0400219 | SCREW, 1/2"-13 X 4-1/2" HEX HD CAP | 2 | $8.01 | |
| 12 | 0400276 | SCREW, 5/8"-11 X 4-1/2" HEX HD CAP | 4 | $8.01 | |
| 13 | 0400281 | SCREW, 3/4"-10 X 3-1/2" HEX HD CAP | 4 | $8.01 | |
| 14 | 0400294 | SCREW, 3/4"-10 X 6-1/2" HEX HD CAP | 4 | $13.84 | |
| 15 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 21 | $5.84 | |
| 16 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 4 | $2.82 | |
| 17 | 0400430 | NUT, 3/4"-10 NYLOK HEX | 4 | $5.84 | |
| 18 | 0400452 | LOCKWASHER, 1/4" HELICAL | 8 | $5.84 | |
| 19 | 0400506 | WASHER, 5/8" FLAT | 8 | $5.84 | |
| 20 | 0400508 | LOCKWASHER, 5/8" HELICAL | 4 | $5.84 | |
| 21 | 0400510 | WASHER, 3/4" FLAT | 8 | $5.84 | |
| 22 | 0700884 | SHAFT, LOWER JACK | 2 | $61.29 | |
| 23 | 0707117 | SHAFT, UPPER SPADE | 4 | $68.75 | |
| 24 | 0707118 | PIN, LIFT CYLINDER | 2 | $213.39 | |
| 25 | 0707194 | COVER, SPADE TUBE | 2 | $54.70 | |
| 26 | 0707199 | PIN, SPADE PAD | -- | $32.11 | |
| -- | 0301551 | CABLE SLEEVE, 1/16" | 4 | $5.84 | |
| -- | 0301553 | CABLE ASSEMBLY, 1/16" X 17" | 4 | Call for price | — |
| -- | 0302474 | PIN, LYNCH | 2 | $3.78 | |
| -- | 0400044 | DRIVE SCREW, #10 X 1/2" RD HD | 4 | $5.84 | |
| -- | 0400563 | ROLL PIN, 3/16" X 1-3/4" | 2 | $5.84 | |
| -- | 0702604 | PROTECTIVE HOSE TUBE, 14" | 2 | Call for price | — |
| 27 | 0802200 | SPADE, LEFT INNER | 1 | $2,413.87 | |
| 28 | 0802201 | SPADE, RIGHT INNER | 1 | Call for price | — |
| 29 | 0802211 | FRONT BODY MTG TUBE | 1 | Call for price | — |
| 30 | 0802219 | PIVOT PIN, LIFT CYLINDER | 2 | $218.80 | |
| 31 | 0802221 | SPADE PAD | 2 | $313.64 | |
| 32 | 0803203 | 5030 SUBFRAME WELDMENT | 1 | Call for price | — |
| 33 | 0903729 | SAFETY CHAIN ASSEMBLY (NOT SHOWN) | -- | Call for price | — |
| -- | 0303445 | SAFETY CHAIN, SYSTEM 10 | 2 | $531.08 | |
| -- | 0400211 | SCREW, 1/2"-13 X 1-3/4" HEX HD CAP | 2 | $5.84 | |
| -- | 0400408 | NUT, 1/2"-13 NYLOK HEX | 2 | $2.82 | |
| -- | 0400492 | WASHER, 1/2" FLAT | 2 | $5.84 |

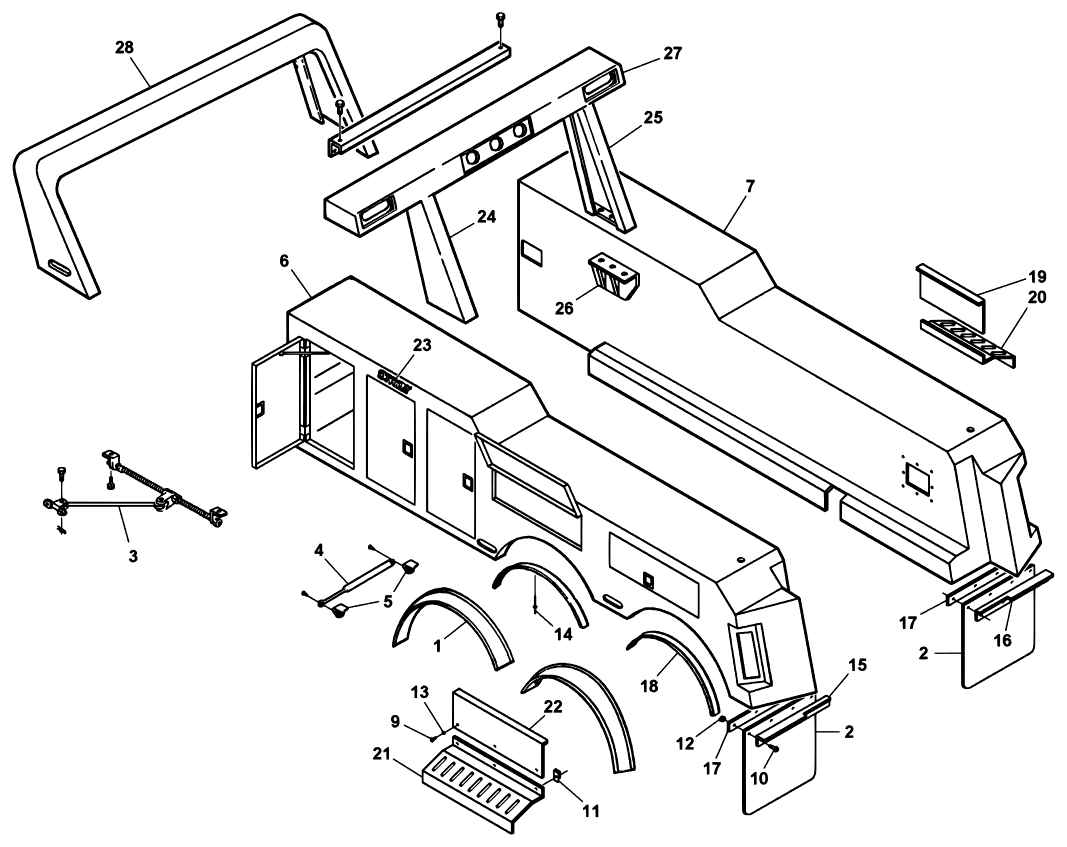

Body Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300345 | RUBBER FENDERPriced per foot | 28 FT. | $25.72 | |
| 2 | 0301223 | MUDFLAP | 2 | $31.48 | |
| 3 | 0301912 | DOOR CHECK, 11" | 6 | $51.06 | |
| 4 | 0902571 | GAS SPRING CYLINDER | 4 | Call for price | — |
| 5 | 0302572 | "L" BRACKET | 8 | Call for price | — |
| 6 | 0302978 | TOOL COMPARTMENT, 156" C.B. LEFT | 1 | Call for price | — |
| 7 | 0302979 | TOOL COMPARTMENT, 156" C.B. RIGHT | 1 | Call for price | — |
| 8 | 0303061 | BACKUP ALARM | 1 | $76.59 | |
| 9 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 6 | $5.84 | |
| 10 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 8 | $5.84 | |
| 11 | 0400369 | CLIP, 1/4" TINNERMAN | 6 | $5.84 | |
| 12 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 8 | $5.84 | |
| 13 | 0400451 | WASHER, 1/4" FLAT | 6 | $5.84 | |
| 14 | 0400566 | RIVET, 1/4" | 72 | $1.63 | |
| 15 | 0705090 | MUDFLAP MTG ANGLE, LEFT | 1 | $17.67 | |
| 16 | 0705091 | MUDFLAP MTG ANGLE, RIGHT | 1 | $29.33 | |
| 17 | 0705092 | BAR, MUDFLAP | 2 | $45.58 | |
| 18 | 0706609 | RETAINING STRIP, RUBBER FENDER | 2 | $60.17 | |
| 19 | 0711289 | PANEL, SWITCH | 1 | $160.45 | |
| 20 | 0711290 | PANEL, CONTROL | 1 | $209.72 | |
| 21 | 0711292 | PANEL, CONTROL | 1 | $233.40 | |
| 22 | 0711344 | PANEL, GAUGE | 1 | $169.03 | |
| 23 | 0901496 | CENTURY NAMEPLATE KIT | 1 | Call for price | — |
| -- | 0902328 | BODY MOUNTING KIT | -- | $1,138.06 | |
| -- | 0400288 | SCREW, 3/4"-10 X 2-1/2" HEX HD CAP | 28 | $9.85 | |
| -- | 0400431 | NUT, 3/4"-10 NYLOK HEX | 28 | $8.01 | |
| -- | 0707174 | ANGLE, TAILGATE MOUNTING | 2 | $35.22 | |
| -- | 0711256 | MOUNTING PLATE | 2 | Call for price | — |
| -- | 0711286 | SPACER, REAR FRAME BRACKET | 2 | Call for price | — |
| -- | 124001720 | LIGHT BAR, STANDARD | -- | Call for price | — |
| -- | 0301706 | GASKET, LIGHT BAR | 2 | Call for price | — |
| -- | 0400126 | SCREW, 3/8"-16 X 1" HEX HD CAP | 4 | $5.84 | |
| -- | 0400177 | SCREW, 1/2"-13 X 1-1/4" HEX HD CAP | 12 | $5.84 | |
| -- | 0400181 | SCREW, 1/2"-13 X 1-1/2" HEX HD CAP | 6 | $5.84 | |
| -- | 0400392 | NUT, 3/8"-16 NYLOK HEX | 4 | $5.84 | |
| -- | 0400408 | NUT, 1/2"-13 NYLOK HEX | 18 | $2.82 | |
| -- | 0400492 | WASHER, 1/2" FLAT | 12 | $5.84 | |
| 24 | 0802224 | SUPPORT, L.H. VERTICAL | 1 | Call for price | — |
| 25 | 0802225 | SUPPORT, R.H. VERTICAL | 1 | Call for price | — |
| 26 | 0802226 | MOUNTING BRACKET | 2 | Call for price | — |
| 27 | 0802260 | TOP CHANNEL | 1 | $4,144.74 | |
| -- | 124001708 | AERODYNAMIC LIGHT PYLON | -- | Call for price | — |
| 28 | 0302562 | LIGHT RACK, 5030 | 1 | Call for price | — |
| -- | 0400157 | SCREW, 3/8"-16 X 1-3/4" HEX HD CAP | 6 | $5.84 | |
| -- | 0400392 | NUT, 3/8"-16 NYLOK HEX | 6 | $5.84 | |
| -- | 0400480 | WASHER, 3/8" FLAT | 6 | $4.01 | |
| -- | 0706972 | LIGHT PYLON, MOUNTING RUBBER | 2 | Call for price | — |

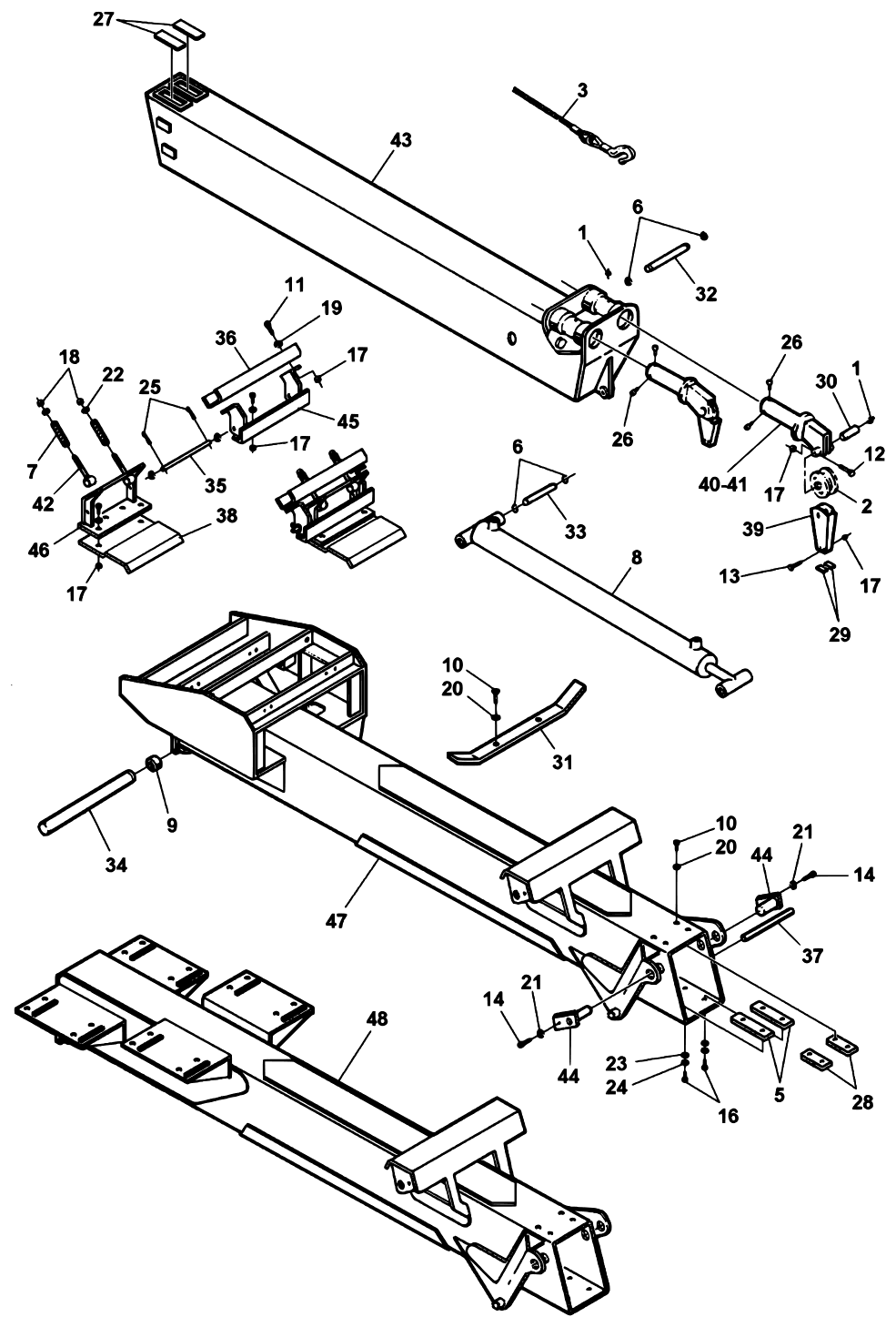

Boom Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING | 6 | $5.84 | |
| 2 | 0300626 | SHEAVE, 8" | 2 | $206.05 | |
| 3 | 0301224 | WIRE ROPE, 6 X 19 IPS, 5/8" X 200' (5030T) | 2 | Call for price | — |
| 0302880 | WIRE ROPE, 6 X 25 IWRC, 5/8" X 200' (5030T3) | 2 | Call for price | — | |
| 4 | 0301895 | GREASE FITTING, STR 1/8" | 2 | $5.84 | |
| 5 | 0301923 | SLIDE PAD, BOOM BOTTOM | 2 | $76.59 | |
| 6 | 0301959 | SNAP RING, 1-1/2" INTERNAL | 4 | $5.84 | |
| 7 | 0302378 | COMPRESSION SPRING | 4 | $73.22 | |
| 8 | 0302536 | EXTEND CYLINDER | REF. | $25,441.73 | |
| 9 | 0302538 | BUSHING, 3-1/2" X 2-1/2" INTERNAL | 2 | $191.48 | |
| 10 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 4 | $5.84 | |
| 11 | 0400132 | SCREW, 3/8"-16 X 1-1/2" HEX HD CAP | 18 | $5.84 | |
| 12 | 0400133 | SCREW, 3/8"-16 X 3" HEX HD CAP | 2 | $5.84 | |
| 13 | 0400150 | SCREW, 3/8"-16 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 14 | 0400176 | SCREW, 1/2"-13 X 1" HEX HD CAP | 2 | $5.84 | |
| 15 | 0400220 | SCREW, 1/2"-13 X 5-1/2" HEX HD CAP | 1 | $8.01 | |
| 16 | 0400248 | SCREW, 5/8"-11 X 1" HEX HD CAP | 4 | $5.84 | |
| 17 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 24 | $5.84 | |
| 18 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 4 | $2.82 | |
| 19 | 0400480 | WASHER, 3/8" FLAT | 16 | $4.01 | |
| 20 | 0400482 | LOCKWASHER, 3/8" HELICAL | 4 | $5.84 | |
| 21 | 0400491 | LOCKWASHER, 1/2" HELICAL | 2 | $5.84 | |
| 22 | 0400492 | WASHER, 1/2" FLAT | 8 | $5.84 | |
| 23 | 0400506 | WASHER, 5/8" FLAT | 4 | $5.84 | |
| 24 | 0400508 | LOCKWASHER, 5/8" HELICAL | 4 | $5.84 | |
| 25 | 0400543 | COTTER PIN, 1/8" X 3/4" | 4 | $5.84 | |
| 26 | 0400554 | ROLL PIN, 3/8" X 1" | 6 | $9.74 | |
| 27 | 0700776 | SLIDE PAD, SIDE, OUTER BOOM | 2 | $65.64 | |
| 28 | 0700778 | TOP SPACER, OUTER BOOM | 2 | $59.81 | |
| 29 | 0700801 | CABLE GUIDE, BOTTOM | 4 | $23.53 | |
| 30 | 0700888 | SHAFT, SHEAVE | 2 | $105.75 | |
| 31 | 0705104 | PLATE, WINCH CABLE GUIDE | 1 | $96.61 | |
| 32 | 0707119 | PIN, EXTEND CYLINDER | 1 | $80.23 | |
| 33 | 0707158 | PIN | 1 | $129.48 | |
| 34 | 0707176 | PIVOT PIN, BOOM | 1 | $985.61 | |
| 35 | 0707190 | PIVOT ROD | 2 | $49.20 | |
| 36 | 0707235 | SPRING CHANNEL | 2 | $45.58 | |
| 37 | 0707792 | PIN, TILT CYLINDER BASE END | 1 | $147.69 | |
| 38 | 0708645 | PLATE, FLAPPER (5030T) | 1 | $162.32 | |
| 0710122 | PLATE, FLAPPER (5030T3) | 1 | $83.86 | ||
| 39 | 0800286 | CABLE GUIDE | 2 | $288.12 | |
| 40 | 0800509 | SWIVEL WELDMENT, LEFT | 1 | Call for price | — |
| 41 | 0800510 | SWIVEL WELDMENT, RIGHT | 1 | Call for price | — |
| 42 | 0802218 | SPRING PIN | 4 | $91.19 | |
| 43 | 0802362 | INNER BOOM WELDMENT | 1 | $11,024.62 | |
| 44 | 0802365 | PIN, TOWER PIVOT | 2 | $178.69 | |
| 45 | 0802438 | TENSIONER, MOUNTING BRACKET | 2 | $488.67 | |
| 46 | 0802499 | TENSIONER, BRACKET | 2 | $204.27 | |
| 47 | 0802752 | OUTER BOOM WELDMENT (5030T) | 1 | Call for price | — |
| 48 | 0802900 | OUTER BOOM WELDMENT (5030T3) | 1 | $31,097.29 |

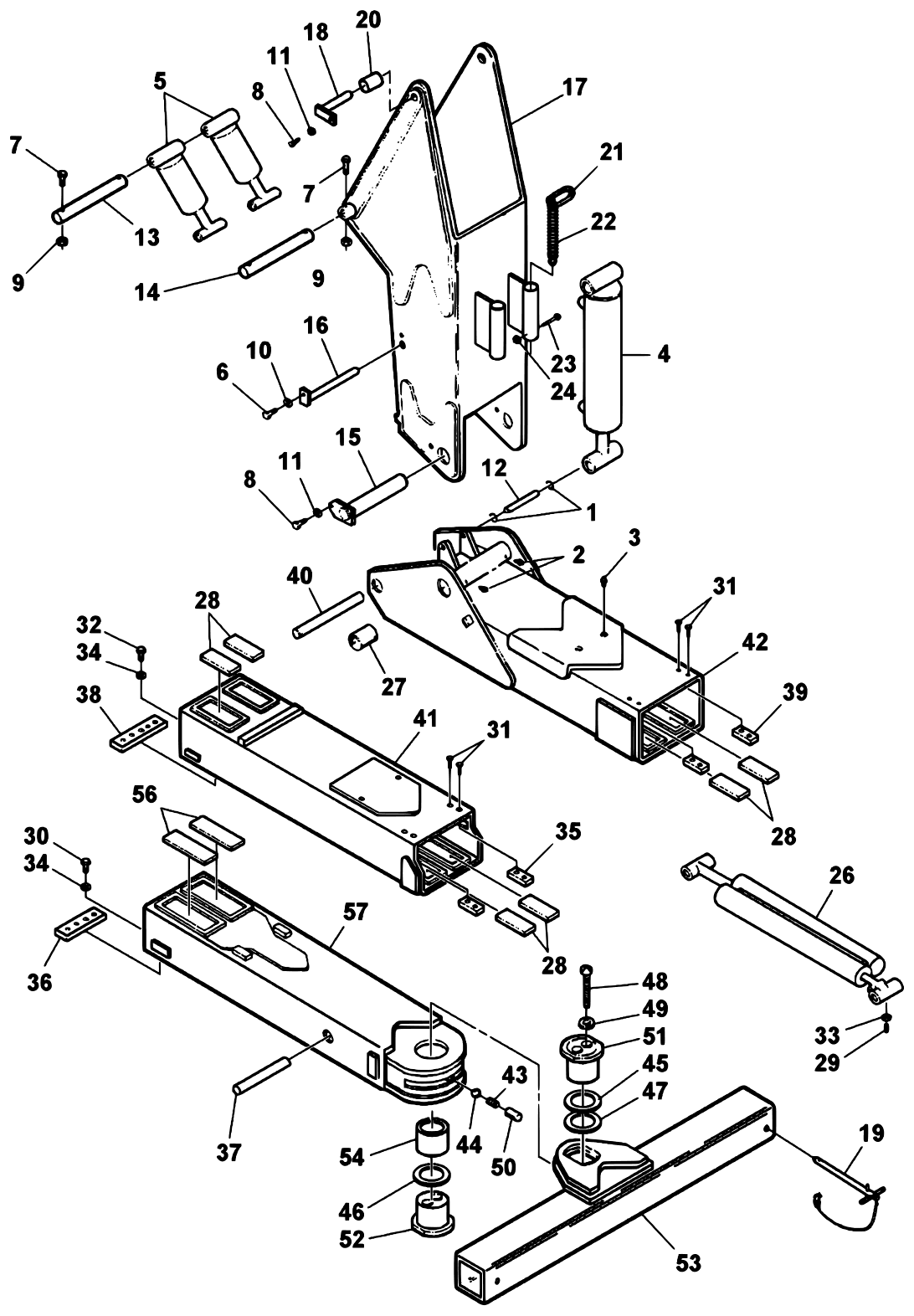

Underlift & Tower Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300110 | SNAP RING 1" | 2 | $5.84 | |
| 2 | 0300113 | GREASE FITTING | 10 | $5.84 | |
| 3 | 0301895 | GREASE FITTING, 1/8" STR | 2 | $5.84 | |
| 4 | 0302537 | FOLD CYLINDER | REF. | Call for price | — |
| 5 | 0302785 | TILT CYLINDER | REF. | $5,603.49 | |
| 6 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 1 | $5.84 | |
| 7 | 0400133 | SCREW, 3/8"-16 X 3" HEX HD CAP | 4 | $5.84 | |
| 8 | 0400176 | SCREW, 1/2"-13 X 1" HEX HD CAP | 2 | $5.84 | |
| 9 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 6 | $5.84 | |
| 10 | 0400482 | LOCKWASHER, 3/8" HELICAL | 1 | $5.84 | |
| 11 | 0400491 | LOCKWASHER, 1/2" HELICAL | 2 | $5.84 | |
| 12 | 0707179 | PIN | 1 | $219.10 | |
| 13 | 0707792 | PIN, TILT CYLINDER BASE END | 1 | $147.69 | |
| 14 | 0707793 | PIN, TILT CYLINDER ROD END | 1 | $152.11 | |
| 15 | 0802214 | PIVOT PIN, UNDERLIFT | 1 | $643.66 | |
| 16 | 0802220 | PIN WELDMENT, FOLD CYLINDER | 1 | Call for price | — |
| 17 | 0802364 | TOWER WELDMENT 5030 | 1 | $7,834.19 | |
| 18 | 0802365 | WELDMENT, TOWER PIVOT PIN | 2 | $178.69 | |
| 19 | 0900900 | RETAINING PIN ASSEMBLY | 2 | $33.12 | |
| 20 | RB0205 | SPLIT BUSHING | 2 | $103.97 | |
| -- | 0901716 | STOW KIT, WINCH CABLE | -- | $227.95 | |
| 21 | 0301691 | MASTER LINK, OBLONG | 2 | $37.76 | |
| 22 | 0302273 | SPRING, WINCH CABLE TIE-BACK | 2 | $67.45 | |
| 23 | 0400205 | SCREW, 1/2"-13 X 3" HEX HD CAP | 2 | $5.84 | |
| 24 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 2 | $2.82 | |
| -- | 0903059 | BOOM ASSEMBLY, UNDERLIFT 5030 | -- | $22,891.25 | |
| 25 | 0301895 | GREASE FITTING, 1/8" STR | 2 | $5.84 | |
| 26 | 0302206 | EXTEND CYLINDER | 1 | $8,079.76 | |
| 27 | 0302538 | SPRING BUSHING | 2 | $191.48 | |
| 28 | 0302561 | SLIDE PAD | 8 | $18.95 | |
| 29 | 0400139 | SCREW, 3/8"-16 X 1-1/2" HEX SKT SET | 2 | $5.84 | |
| -- | 0903059 | UNDER LIFT BOOM ASSEMBLY, 5030 | -- | $22,891.25 | |
| 30 | 0400147 | SCREW, 3/8"-24 X 5/8" HEX HD CAP | 4 | $5.84 | |
| 31 | 0400228 | SCREW, 3/8"-24 X 5/8" BUTTON HD SKT | 8 | $9.85 | |
| 32 | 0400347 | SCREW, 1/2"-24 X 7/8" HEX HD CAP | 5 | $9.85 | — |
| 33 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 2 | $5.84 | |
| 34 | 0400481 | LOCKWASHER, 3/8" EXTERNAL TOOTH | 9 | $5.84 | |
| 35 | 0706995 | STOP BLOCK, 2ND STAGE | 5 | $29.33 | |
| 36 | 0706996 | SPACER PAD | 1 | $47.42 | |
| 37 | 0707019 | EXTEND CYLINDER SHAFT | 1 | $98.48 | |
| 38 | 0707028 | BOLT-ON BEARING PAD | 1 | $52.88 | |
| 39 | 0707034 | STOP PLATE | 2 | $25.55 | |
| 40 | 0707116 | EXTEND CYLINDER SHAFT | 1 | $125.79 | |
| 41 | 0802795 | 2ND STAGE BOOM WELDMENT | 1 | Call for price | — |
| 42 | 0802840 | OUTER BOOM WELDMENT | 1 | Call for price | — |
| -- | 0903156 | CROSSBAR ASSEMBLY, 5" | -- | $4,389.06 | |
| 43 | 0301197 | COMPRESSION SPRING, CROSS BAR | 1 | $9.33 | |
| 44 | 0301398 | DETENT BALL, 1-3/16" | 1 | $15.67 | |
| 45 | 0301822 | "O" RING, PIVOT PIN | 1 | $3.78 | |
| 46 | 0303097 | THRUST WASHER, 1/8" | 2 | $91.19 | |
| 47 | 0303098 | THRUST WASHER, 1/16" | 2 | $54.70 | |
| 48 | 0400271 | SCREW, 5/8"-11 X 4-1/2" SKT HD CAP | 2 | $13.84 | |
| 49 | 0400508 | LOCKWASHER, 5/8" HELICAL | 2 | $5.84 | |
| 50 | 0708470 | SPACER, DETENT BALL SPRING | 1 | $17.67 | |
| 51 | 0710051 | PIVOT PIN, TOP HALF | 1 | $302.66 | |
| 52 | 0710052 | PIVOT PIN, BOTTOM HALF | 1 | $302.66 | |
| 53 | 0802914 | CROSSBAR WELDMENT | 1 | $3,132.72 | |
| -- | 0903157 | 3RD STAGE BOOM ASSEMBLY | -- | Call for price | — |
| 54 | 0303088 | BUSHING, PIVOT PIN | 1 | $397.53 | |
| 55 | 0400044 | DRIVE SCREW, #10 X 1/2" RD HD | 8 | $5.84 | |
| 56 | 0703277 | SLIDER PAD | 2 | $11.66 | |
| 57 | 0802919 | 3RD STAGE BOOM WELDMENT | 1 | Call for price | — |
Underlift Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300044 | CONNECTOR, 6MJ-8MB | 7 | $3.78 | |
| 2 | 0300142 | ELBOW, 6MJ-4MP90 | 3 | $5.17 | |
| 3 | 0300206 | BRANCH TEE, 6MJ-6MJ-4MP | 3 | $6.80 | |
| 4 | 0301424 | CONNECTOR, 6MJ-4MP | 1 | $3.78 | |
| 5 | 0301470 | ELBOW, 6MJ-8MP90 | 5 | $7.68 | |
| 6 | 0301473 | HOSE ASSEMBLY, 18" | 2 | $58.36 | |
| 7 | 0301522 | CONNECTOR, 6MJ-6MB | 1 | $3.78 | |
| 8 | 0301601 | HOSE CLAMP, INSULATED 5/8" | 4 | $3.78 | |
| 9 | 0301620 | ELBOW, 6MJ-6MB90 | 2 | $5.76 | |
| 10 | 0301730 | DOUBLE HOLDING VALVE | 1 | $565.26 | |
| 11 | 0301731 | HOLDING VALVE | 1 | $331.88 | |
| 12 | 0301837 | IN-LINE ORIFICE | 1 | Call for price | — |
| 13 | 0302035 | HOSE ASSEMBLY, 18" | 2 | $37.76 | |
| 14 | 0302036 | HOSE ASSEMBLY, 26" | 1 | Call for price | — |
| 15 | 0302206 | EXTEND CYLINDER | 1 | $8,079.76 | |
| 16 | 0302514 | ADAPTER, 8MJ-6MJ | 12 | $5.67 | |
| 17 | 0302537 | FOLD CYLINDER | 1 | Call for price | — |
| 18 | 0302548 | CLAMPING UNIT | 8 | $28.28 | |
| 19 | 0302549 | SPLIT BUSHING, 1/2" | 24 | $5.67 | |
| 20 | 0302551 | STACKING NUT, SKT HD | 8 | $11.66 | |
| 21 | 0302596 | HOSE ASSEMBLY, 34" | 1 | $47.42 | |
| 22 | 0302604 | HOSE ASSEMBLY, 44" | 2 | $47.42 | |
| 23 | 0302605 | HOSE ASSEMBLY, 44" | 2 | $67.45 | |
| 24 | 0302624 | TUBE ASSEMBLY | 6 | $153.17 | |
| 25 | 0302637 | HOSE ASSEMBLY, 78" | 1 | $54.70 | |
| 26 | REF. | CONTROL VALVE | REF. | Call for price | — |
| 27 | 0302785 | TILT CYLINDER | 2 | $5,603.49 | |
| 28 | 0302805 | HOSE ASSEMBLY, 10" | 2 | $30.11 | |
| 29 | 0302808 | HOSE ASSEMBLY, 18" | 2 | $52.88 | |
| 30 | 0302812 | HOSE ASSEMBLY, 108" | 1 | $56.19 | |
| 31 | 0302813 | HOSE ASSEMBLY, 72" | 2 | $103.94 | |
| 32 | 0302815 | HOSE ASSEMBLY, 32" | 1 | $60.17 | |
| 33 | 0303017 | CONNECTOR, 8MB-6FB | 1 | $5.67 | |
| 34 | 0400078 | SCREW, 1/4"-20 X 2" HEX HD CAP | 2 | $5.84 | |
| 35 | 0400118 | SCREW, 5/16"-18 X 3/4" HEX HD CAP | 6 | $5.84 | |
| 36 | 0400367 | NUT, 1/4"-20 NYLOK HEX | 2 | $5.84 |
Boom Elevation Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | REF | CONTROL VALVE | REF. | Call for price | — |
| 2 | 0300044 | CONNECTOR, 6MJ-8MB | 2 | $3.78 | |
| 3 | 0300113 | GREASE FITTING | 4 | $5.84 | |
| 4 | 0300147 | ELBOW, STREET 4MP-4FP90 | 2 | $5.53 | |
| 5 | 0300206 | BRANCH TEE, 6MJ-6MJ-4MP | 2 | $6.80 | |
| 6 | 0300365 | CLAMP, CHECK VALVE RETAINING, 7" | 2 | $12.43 | |
| 7 | 0300438 | CYLINDER, BOOM LIFT | 2 | Call for price | — |
| 8 | 0301425 | CONNECTOR, 6MJ-6MB | 2 | $3.78 | |
| 9 | 0301388 | ELBOW, 8MJ-8MB90 | 4 | $13.32 | |
| 10 | 0301731 | HOLDING VALVE | 2 | $331.88 | |
| 11 | 0302051 | ELBOW, 8MJ-6MP90 | 2 | $8.46 | |
| 12 | 0302568 | TUBING, HYDRAULIC | 2 | Call for price | — |
| 13 | 0302569 | WIRE TIE, 29-3/4" | 4 | Call for price | — |
| 14 | 0302575 | BULKHEAD RUN TEE W/NUT | 2 | $18.95 | |
| 15 | 0302583 | HOSE ASSEMBLY, 35-1/2" | 2 | Call for price | — |
| 16 | 0302604 | HOSE ASSEMBLY, 44" | 1 | $47.42 | |
| 17 | 0302605 | HOSE ASSEMBLY, 44" | 1 | $67.45 | |
| 18 | 0303389 | HOSE ASSEMBLY, 46" | 2 | $54.77 | |
| 19 | 0303394 | HOSE ASSEMBLY, 46" | 2 | $42.15 | |
| 20 | 0400064 | SCREW, 1/4"-20 X 2-1/4" RD HD SLOTTED | 4 | Call for price | — |
| 21 | 0400366 | NUT, 1/4"-20 HEX | 4 | $5.84 | |
| 22 | 0400408 | WASHER, 1/4" FLAT | 4 | $2.82 | |
| 23 | 0400452 | LOCKWASHER, 1/4" HELICAL | 4 | $5.84 | |
| 24 | 0703001 | BRACKET, CHECK VALVE MOUNTING | 2 | $24.66 |
Boom Extension Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | REF | CONTROL VALVE | 1 | Call for price | — |
| 2 | 0300044 | CONNECTOR, 6MJ-8MB | 2 | $3.78 | |
| 3 | 0300209 | ELBOW, 6MJ-6MP90 | 1 | $8.04 | |
| 4 | 0301425 | CONNECTOR, 6MJ-6MB | 1 | $3.78 | |
| 5 | 0301470 | ELBOW, 6MJ-8MB90 | 2 | $7.68 | |
| 6 | 0301696 | ELBOW, 6MJ-6FJX90 | 1 | Call for price | — |
| 7 | 0301731 | HOLDING VALVE | 1 | $331.88 | |
| 8 | 0301782 | MALE RUN TEE, 6MJ-4MP-6MJ | 1 | $8.92 | |
| 9 | 0301875 | HOSE ASSEMBLY, 159" | 1 | Call for price | — |
| 10 | 0302062 | WIRE TIE, 21" (NOT SHOWN) | 5 | Call for price | — |
| 11 | 0302051 | EXTEND CYLINDER | 1 | $8.46 | |
| 12 | 0302586 | HOSE ASSEMBLY, 54" | 1 | $45.62 | |
| 13 | 0302596 | HOSE ASSEMBLY, 34" | 1 | $47.42 | |
| 14 | 0302604 | HOSE ASSEMBLY, 44" | 1 | $47.42 |
Pump, Valve & Filter Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301507 | PUMP, OPPOSITE ENGINE | 1 | $4,478.42 | |
| 2 | 0301965 | HOSE ASSEMBLY, 131" | 2 | $118.53 | |
| 3 | 0302205 | GAUGE, FLUSH MOUNT 6000 PSI | 2 | $45.17 | |
| 4 | 0302577 | CONNECTOR, 6MJ-4FP | 2 | $4.23 | |
| 5 | 0303392 | HOSE ASSEMBLY, 73" | 2 | $118.53 | |
| 6 | 0400021 | SCREW, #8-32 X 1/2" RD HD PHIL MACH | 6 | $5.84 | |
| 7 | 0400351 | HEX NUT & STAR WASHER, #8-32 | 6 | $5.84 | |
| -- | 0903017 | PUMP KIT | -- | $2,847.63 | |
| 8 | 0300364 | CLAMP HOSE, 1" - 2-1/4" | 4 | $7.07 | |
| 9 | 0300660 | HOSE ASSEMBLY, 120" | 2 | $113.04 | |
| 10 | 0300666 | BARB, 24C4-24MP | 2 | Call for price | — |
| 11 | 0300671 | SUCTION HOSE, 1-1/2"Priced per foot | 24 FT. | $30.11 | |
| 12 | 0300865 | CONNECTOR, 8MJ-8MJ (NOT SHOWN) | 2 | $5.67 | |
| 13 | 0300891 | PIPE NIPPLE, 1-1/2" X 3" | 2 | Call for price | — |
| 14 | 0301373 | PIPE BUSHING, 2" NPT TO 1-1/2" NPT | 2 | Call for price | — |
| 15 | 0301529 | HOSE ASSEMBLY, 58" (NOT SHOWN) | 2 | $76.59 | |
| 16 | 0301547 | ELBOW, 8MJ-12MB90 | 2 | $18.95 | |
| 17 | 0302088 | BALL VALVE, BRONZE | 2 | $91.83 | |
| 18 | 0302242 | FLANGE FITTING, 24FL-24 HOSE 90 | 1 | $377.44 | |
| 19 | 0302983 | STREET ELBOW, 45° 1-1/2" | 2 | $38.00 | |
| 20 | 0303032 | ELBOW, 24MJ-20MB90 | 1 | Call for price | — |
| 21 | 0303033 | HOSE BARB, 24C4-24FJX | 1 | Call for price | — |
| 22 | 0303290 | CLAMP, 2-1/2" INSULATED | 6 | $19.68 | |
| 23 | 0400188 | SCREW, 1/2"-13 X 2" HEX HD CAP | 2 | $5.84 | |
| 24 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 2 | $2.82 | |
| -- | 0903535 | VALVE PAN ASSEMBLY | -- | $4,173.20 | |
| 25 | REF. | CONTROL VALVE | REF. | Call for price | — |
| 26 | 0300052 | ELBOW, 8MJ-10MB90 | 2 | $11.32 | |
| 27 | 0301995 | STRAIGHT ADAPTER, 8FJ-6MJ | 2 | $5.67 | |
| 28 | 0302052 | RUN TEE, 8MJ-8FJX-8MJ | 2 | $15.14 | |
| 29 | REF. | CONTROL VALVE | REF. | Call for price | — |
| 30 | 0400135 | SCREW, 3/8"-16 X 4-1/2" HEX HD CAP | 6 | Call for price | — |
| 31 | 0400157 | SCREW, 3/8"-16 X 1-3/4" HEX HD CAP | 4 | $5.84 | |
| 32 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 10 | $5.84 | |
| 33 | 0400480 | WASHER, 3/8" FLAT | 4 | $4.01 | |
| 34 | 0704045 | SPACER, CONTROL VALVE | 6 | Call for price | — |
| 35 | 0711249 | PLATE, CONTROL BULKHEAD (L.&R.S.C.) | 2 | $21.91 | |
| 36 | 0711250 | PLATE, CONTROL BULKHEAD (L.&R.S.C.) | 1 | $16.49 | |
| 37 | 0711251 | PLATE, CONTROL BULKHEAD (L.&R.S.C.) | 2 | $50.59 | |
| 38 | 0711561 | PLATE, VALVE MOUNTING | 1 | Call for price | — |
| -- | 0903680 | TANK KIT | -- | $2,707.83 | |
| 39 | 0300136 | RETURN LINE FILTER ASSEMBLY | 2 | $64.70 | |
| 40 | 0300446 | PIPE PLUG, 3/4" NPT MALE | 1 | $5.67 | |
| 41 | 0300615 | ELL, 12MJ-12MP90 | 2 | $14.88 | |
| 42 | 0301545 | ELBOW, 12MJ-12MP90 | 2 | $18.95 | |
| 43 | 0302227 | CENTER BONDED MOUNT | 4 | $24.66 | |
| 44 | 0302228 | SPECIAL WASHER | 4 | $21.89 | |
| 45 | 0302570 | SIGHT GAUGE | 1 | $15.75 | |
| 46 | 0305006 | FILLER CAP | 1 | $63.82 | |
| 47 | 0400036 | SCREW, #10-32 X 1" RD HD MACH | 2 | Call for price | — |
| 48 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 12 | $5.84 | |
| 49 | 0400150 | SCREW, 3/8"-16 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 50 | 0400357 | NUT, #10-32 NYLOK HEX | 6 | $5.68 | |
| 51 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 4 | $5.84 | |
| 52 | 0400482 | LOCKWASHER, 3/8" HELICAL | 12 | $5.84 | |
| 53 | 0705910 | COVER PLATE | 1 | Call for price | — |
| 54 | 0706114 | GASKET, CLEAN OUT & FILLER COVER | 1 | $42.55 | |
| 55 | 0803291 | RESERVOIR WELDMENT | 1 | $1,950.91 | |
| -- | 0903696 | COVER KIT | -- | Call for price | — |
| 56 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 4 | $5.84 | |
| 57 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 4 | $5.84 | |
| 58 | 0711322 | COVER, VALVE | 1 | $256.09 | |
| 59 | 0711575 | SUPPORT, COVER | 4 | $45.44 |
Worm Drive Winch Hydraulics & Air Free Spool
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300011 | CONTROL VALVE | 1 | $1,225.36 | |
| 2 | 0300324 | SOLENOID VALVE, AIR CONTROL | 2 | $164.65 | |
| 3 | 0300897 | RUBBER GROMMET | 2 | $3.78 | |
| 4 | 0301110 | WINCH, H-800, LEFT | 1 | $12,149.70 | |
| 5 | 0301111 | WINCH, H-800, RIGHT | 1 | $12,149.70 | |
| 6 | 0301112 | HYDRAULIC MOTOR | 2 | $3,068.87 | |
| 7 | 0301228 | CONNECTOR, 10MJ-10MB | 4 | Call for price | — |
| 8 | 0301574 | ELBOW, 4TB-4MP90 | 2 | Call for price | — |
| 9 | 0301577 | AIR HOSE, 1/4" O.D.Priced per foot | 18 FT. | $5.84 | |
| 10 | 0301893 | HOSE ASSEMBLY, 84" | 2 | $113.04 | |
| 11 | 0302055 | AIR CYLINDER | 2 | $275.35 | |
| 12 | 0302431 | CONVOLUTED LOOM, 3/8"Priced per foot | 7 FT. | $0.30 | |
| 13 | 0302546 | CLAMPING UNIT | 4 | $15.67 | |
| 14 | 0302550 | SPLIT BUSHING, 3/4" | 4 | $9.85 | |
| 15 | 0302551 | STACKING NUT, SKT HD | 2 | $11.66 | |
| 16 | 0302607 | TEE UNION, 4TB-4TB-4TB | 1 | $15.14 | |
| 17 | 0302677 | BREATHER VENT, 1/8" MP | 2 | $7.68 | |
| 18 | 0302678 | ELBOW, 4TB-2MP90 | 4 | $5.67 | |
| 19 | 0302744 | AIR FREE SPOOL HARNESS | 1 | Call for price | — |
| 20 | 0302782 | CONTROL VALVE | 1 | $1,548.10 | |
| 21 | 0302827 | CONNECTOR, 10MJ-10MB | 2 | $7.68 | |
| 22 | 0302828 | CONNECTOR, 10MJ-10MBL | 2 | $23.53 | |
| 23 | 0303040 | HOSE ASSEMBLY, 115" | 2 | $142.21 | |
| 24 | 0400034 | SCREW, #10-32 X 1/2" RD HD PHIL | 4 | Call for price | — |
| 25 | 0400059 | SCREW, 1/4"-20 X 5/8" HEX HD | 8 | $5.84 | |
| 26 | 0400118 | SCREW, 5/16"-18 X 3/4" HEX HD CAP | 2 | $5.84 | |
| 27 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 2 | $5.84 | |
| 28 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 29 | 0400132 | SCREW, 3/8"-16 X 1-1/2" HEX HD CAP | 2 | $5.84 | |
| 30 | 0400188 | SCREW, 1/2"-13 X 2" HEX HD CAP | 8 | $5.84 | |
| 31 | 0400260 | SCREW, 5/8"-11 X 2" HEX HD CAP | 8 | $8.01 | |
| 32 | 0400283 | SCREW, 3/4"-10 X 2" HEX HD CAP | 16 | Call for price | — |
| 33 | 0400356 | NUT, #10-32 HEX | 4 | Call for price | — |
| 34 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 8 | $5.84 | |
| 35 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 8 | $5.84 | |
| 36 | 0400412 | NUT, 1/2"-20 HEX JAM | 2 | $5.84 | |
| 37 | 0400421 | NUT, 5/8"-11 HEX NYLOK | 8 | $5.84 | |
| 38 | 0400480 | WASHER, 3/8" FLAT | 8 | $4.01 | |
| 39 | 0400491 | LOCKWASHER, 1/2" HELICAL | 8 | $5.84 | |
| 40 | 0400504 | WASHER, 5/8" SAE | 16 | Call for price | — |
| 41 | 0400510 | WASHER, 3/4" FLAT | 2 | $5.84 | |
| 42 | 0400511 | LOCKWASHER, 3/4" HELICAL | 16 | $5.84 | |
| 43 | 0400520 | LOCKWASHER, #10 HELICAL | 4 | Call for price | — |
| 44 | 0400530 | CLEVIS PIN, 5/16" X 1-1/4" | 2 | $5.84 | |
| 45 | 0400543 | COTTER PIN, 1/8" X 3/4" | 2 | $5.84 | |
| 46 | 0702382 | MOUNTING ANGLE | 2 | Call for price | — |
| 47 | 0706668 | SHIM, WINCH MOUNTING | 4 | Call for price | — |
| 48 | 0706859 | CHANNEL, CYLINDER MOUNTING | 2 | Call for price | — |
| 49 | 0706860 | CHANNEL, CYLINDER COVER | 2 | Call for price | — |
| 50 | 0707750 | WINCH MOUNTING ANGLE, REAR | 1 | Call for price | — |
| 51 | 0707751 | WINCH MOUNTING ANGLE, FRONT | 1 | Call for price | — |
| 52 | 0800772 | ADJUSTMENT YOKE | 2 | $87.51 |
Planetary Winch Hydraulics & Air Free Spool
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300041 | CONNECTOR, 8MJ-8MB | 4 | $5.67 | |
| 2 | 0300324 | SOLENOID VALVE, AIR CONTROL | 2 | $164.65 | |
| 3 | 0301577 | AIR HOSE, 1/4" O.D.Priced per foot | 18 FT. | $5.84 | |
| 4 | 0301893 | HOSE ASSEMBLY, 84" | 2 | $113.04 | |
| 5 | 0302431 | CONVOLUTED LOOM, 3/8"Priced per foot | 7 FT. | $0.30 | |
| 6 | 0302546 | CLAMPING UNIT | 4 | $15.67 | |
| 7 | 0302550 | SPLIT BUSHING, 3/4" | 4 | $9.85 | |
| 8 | 0302551 | STACKING NUT, SKT HD | 2 | $11.66 | |
| 9 | 0302607 | TEE UNION, 4TB-4TB-4TB | 1 | $15.14 | |
| 10 | 0302677 | BREATHER VENT, 1/8" MP | 2 | $7.68 | |
| 11 | 0302678 | ELBOW, 4TB-2MP90 | 4 | $5.67 | |
| 12 | 0302827 | CONNECTOR, 10MJ-10MB | 2 | $7.68 | |
| 13 | 0302828 | CONNECTOR, 10MJ-10MBL | 2 | $23.53 | |
| 14 | 0303093 | CONTROL VALVE | 1 | $1,453.30 | |
| 15 | 0303094 | CONTROL VALVE | 1 | $1,644.76 | |
| 16 | 0303095 | WINCH, LEFT | 1 | $17,560.34 | |
| 17 | 0303096 | WINCH, RIGHT | 1 | Call for price | — |
| 18 | 0303391 | HOSE ASSEMBLY, 110" | 2 | $76.71 | |
| 19 | 0400118 | SCREW, 5/16"-18 x 3/4" HEX HD CAP | 2 | $5.84 | |
| 20 | 0400264 | SCREW, 5/8"-11 x 2-1/4" HEX HD CAP | 16 | $5.84 | |
| 21 | 0400421 | NUT, 5/8"-11 HEX NYLOK | 16 | $5.84 | |
| 22 | 0710086 | ANGLE - WINCH MOUNTING | 2 | Call for price | — |
| 23 | 0710087 | ANGLE - WINCH MOUNTING | 2 | Call for price | — |
| 24 | 0710088 | ANGLE - WINCH MOUNTING | 2 | Call for price | — |
| 25 | 0710089 | ANGLE - WINCH MOUNTING | 2 | Call for price | — |
Left Control Assembly & Remote Control Assembly
Left Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300341 | CONTROL KNOB, W/L (UP/DOWN) | 1 | $9.25 | |
| 2 | 0300834 | CONTROL KNOB, (IN/OUT) | 2 | $21.51 | |
| 3 | 0300835 | CONTROL KNOB, BOOM (UP/DOWN) | 1 | $13.32 | |
| 4 | 0300836 | CONTROL KNOB, JACK (UP/DOWN) | 2 | $18.95 | |
| 5 | 0300837 | CONTROL KNOB, BOOM (IN/OUT) | 1 | $15.14 | |
| 6 | 0301884 | CONTROL CABLE, 96" | 1 | $169.59 | |
| 7 | 0302457 | CONTROL CABLE, 104" | 4 | $169.59 | |
| 8 | 0302726 | GREASE FITTING, 1/4"-28 X 45° | 9 | $3.78 | |
| 9 | 0302856 | CONTROL KNOB, TILT (UP/DOWN) | 1 | $24.66 | |
| 10 | 0302917 | CONTROL KNOB, W/L EXTEND (IN/OUT) | 1 | $31.37 | |
| 11 | 0303008 | ADJUSTABLE CLEVIS | 12 | $9.50 | |
| 12 | 0303427 | CONTROL CABLE, 114" | 4 | $169.59 | |
| 13 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 2 | $5.84 | |
| 14 | 0400103 | SCREW, 5/16"-18 X 1-1/4" HEX HD CAP | 9 | $5.84 | |
| 15 | 0400107 | SCREW, 5/16"-18 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 16 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 17 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 2 | $5.84 | |
| 18 | 0400379 | NUT, 5/16"-18 "J" TINNERMAN | 4 | $8.01 | |
| 19 | 0400382 | NUT, 5/16"-18 HEX NYLOK | 9 | $5.84 | |
| 20 | 0400383 | NUT, 5/16"-24 HEX | 36 | $5.84 | |
| 21 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 10 | $5.84 | |
| 22 | 0400393 | NUT, 3/8"-16 HEX JAM | 9 | $5.84 | |
| 23 | 0400451 | WASHER, 1/4" FLAT | 4 | $5.84 | |
| 24 | 0400466 | WASHER, 5/16" INTERNAL TOOTH | 24 | $5.84 | |
| 25 | 0400512 | WASHER, 3/4" FLAT (SPECIAL) | 10 | Call for price | — |
| 26 | 0400532 | CLEVIS PIN, 5/16" X 1" | 9 | $5.84 | |
| 27 | 0400540 | COTTER PIN, 3/32" X 1" | 9 | $5.84 | |
| 28 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 29 | 0711245 | PLATE, SHAFT SUPPORT | 1 | $21.49 | |
| 30 | 0711246 | PIN, CONTROL BOX | 1 | $33.78 | |
| 31 | 0711284 | SUPPORT, CONTROL (LEFT) | 1 | $51.06 | |
| 32 | 0711285 | SUPPORT, CONTROL (RIGHT) | 1 | $40.10 | |
| 33 | 0801054 | CONTROL CABLE CONNECTOR | 6 | Call for price | — |
| 34 | 0804060 | CONTROL FRAME WELDMENT | 1 | $790.47 | |
| 35 | 0803294 | CONTROL HANDLE WELDMENT | 9 | $133.19 |
Remote Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | REMOTE CONTROL ASSEMBLY | -- | Call for price | — | |
| 36 | 0300166 | WIRE CONNECTOR, SPADE | 10 / 16 | Call for price | — |
| 37 | 0301574 | ELBOW, 4TB-4MP90 | 1 | Call for price | — |
| 38 | 0301577 | AIR HOSE, 1/4" O.D. (FT.)Priced per foot | 15 / 25 | $5.84 | |
| 39 | 0301610 | CONNECTOR, 4TB-4MP | 2 / 4 | $10.57 | |
| 40 | 0301618 | BRASS PLUG, 4MP | 2 / 3 | $8.01 | |
| 41 | 0302048 | CABLE SEALING GRIP | 2 | Call for price | — |
| 42 | 0302340 | HEX PIPE BUSHING | 2 | $6.64 | |
| 43 | 0302431 | CONVOLUTED LOOM, 3/8" X 8"Priced per foot | 1 | $0.30 | |
| 44 | 0302434 | CABLE TIE, 4" 18 LB. | 35 / 65 | Call for price | — |
| 45 | 0302677 | BREATHER VENT, 2MP | 1 / 2 | $7.68 | |
| 46 | 0302678 | ELBOW, 4TB-2MP | 16 / 28 | $5.67 | |
| 47 | 0302844 | AIR SOLENOID VALVE (8) | 1 | Call for price | — |
| -- | 0303479 | AIR SOLENOID VALVE (14) | 1 | Call for price | — |
| 48 | 0303226 | CIRCUIT BREAKER, HI-AMP WATERPROOF | 1 | $120.33 | |
| 49 | 0303235 | TERMINAL BLOCK | 1 / 2 | Call for price | — |
| 50 | 0303250 | POWER PAL, 15 POSITION | 1 | Call for price | — |
| 51 | 0303251 | POWER PAL, 8 POSITION | 1 | Call for price | — |
| 52 | 0303322 | ELECTRICAL CABLE, 16/10 SO (FT.) | 8 / 20 | Call for price | — |
| 53 | 0303335 | AIR CYLINDER | 4 / 7 | Call for price | — |
| 54 | 0303363 | AIR FILTER/REGULATOR | 1 | $144.04 | |
| 55 | 0303364 | AIR LUBRICATOR | 1 | $133.13 | |
| 56 | 0303365 | MOUNTING BRACKET | 1 | $7.68 | |
| 57 | 0400025 | SCREW, #8-32 X 3/4" RD HD SLOTTED | 2 / 4 | $5.84 | |
| 58 | 0400057 | SCREW, 1/4"-20 X 1-1/4" HEX HD CAP | 4 / 7 | $5.84 | |
| 59 | 0400078 | SCREW, 1/4"-20 X 2" HEX HD CAP | 2 / 4 | $5.84 | |
| 60 | 0400351 | HEX NUT & STAR WASHER, #8-32 | 2 / 4 | $5.84 | |
| 61 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 6 / 11 | $5.84 | |
| 62 | 0400401 | NUT, 7/16"-20 HEX JAM | 4 / 7 | $5.84 | |
| 63 | 0400451 | WASHER, 1/4" FLAT | 2 / 4 | $5.84 | |
| 64 | 0400527 | CLEVIS PIN, 5/16" X 5/8" COTTERLESS | 4 / 7 | $8.01 | |
| 65 | 0711277 | SUPPORT, SOLENOID VALVE (8) | 1 | Call for price | — |
| -- | 0711836 | SUPPORT, SOLENOID VALVE (14) | 1 | Call for price | — |
| 66 | 0803181 | CLEVIS WELDMENT | 4 / 7 | $9.55 | |
| 67 | HA0132 | GAUGE, 0-160 PSI | 1 | $24.66 |
Right Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300834 | CONTROL KNOB, (IN/OUT) | 2 | $21.51 | |
| 2 | 0300835 | CONTROL KNOB, BOOM (UP/DOWN) | 1 | $13.32 | |
| 3 | 0300836 | CONTROL KNOB, JACK (UP/DOWN) | 2 | $18.95 | |
| 4 | 0300837 | CONTROL KNOB, BOOM (IN/OUT) | 1 | $15.14 | |
| 5 | 0302457 | CONTROL CABLE, 104" | 3 | $169.59 | |
| 6 | 0302726 | GREASE FITTING, 1/4"-28 X 45° | 2 | $3.78 | |
| 7 | 0303008 | ADJUSTABLE CLEVIS | 6 | $9.50 | |
| 8 | 0303427 | CONTROL CABLE, 114" | 3 | $169.59 | |
| 9 | 0400103 | SCREW, 5/16"-18 X 1-1/4" HEX HD CAP | 6 | $5.84 | |
| 10 | 0400107 | SCREW, 5/16"-18 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 11 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 12 | 0400379 | NUT, 5/16"-18 "J" TINNERMAN | 4 | $8.01 | |
| 13 | 0400382 | NUT, 5/16"-18 HEX NYLOK | 10 | $5.84 | |
| 14 | 0400383 | NUT, 5/16"-24 HEX | 18 | $5.84 | |
| 15 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 4 | $5.84 | |
| 16 | 0400393 | NUT, 3/8"-16 HEX JAM | 6 | $5.84 | |
| 17 | 0400466 | WASHER, 5/16" INTERNAL TOOTH | 18 | $5.84 | |
| 18 | 0400480 | WASHER, 3/8" FLAT | 4 | $4.01 | |
| 19 | 0400512 | WASHER, 3/4" FLAT (SPECIAL) | 7 | Call for price | — |
| 20 | 0400532 | CLEVIS PIN, 5/16" X 1" | 6 | $5.84 | |
| 21 | 0400540 | COTTER PIN, 3/32" X 1" | 6 | $5.84 | |
| 22 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 23 | 0711247 | PIN, CONTROL BOX | 1 | $47.42 | |
| 24 | 0711284 | SUPPORT, CONTROL (LEFT) | 1 | $51.06 | |
| 25 | 0711285 | SUPPORT, CONTROL (RIGHT) | 1 | $40.10 | |
| 26 | 0803183 | CONTROL FRAME WELDMENT | 1 | Call for price | — |
| 27 | 0804061 | CONTROL HANDLE WELDMENT | 6 | $435.09 |
Rear Spade Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | REF. | CONTROL VALVE | REF. | Call for price | — |
| 2 | 0300044 | CONNECTOR, 6MJ-6MB | 2 | $3.78 | |
| 3 | 0300689 | STREET ELBOW, STEEL, 8MJ-8FP90 | 4 | $18.95 | |
| 4 | 0301522 | CONNECTOR, 6MJ-6MB | 2 | $3.78 | |
| 5 | 0301819 | NIPPLE, BLACK PIPE, 1/2" X 4-1/2" | 4 | $9.42 | |
| 6 | 0302616 | HYDRAULIC CYLINDER | 2 | Call for price | — |
| 7 | REF. | CONTROL VALVE | REF. | Call for price | — |
| 8 | 0303017 | CONNECTOR, 8MB-6FB | 2 | $5.67 | |
| 9 | 0303175 | HOSE ASSEMBLY, 102" | 2 | $56.53 |
Hydraulic Cylinders - Boom Elevation, Underlift Fold & Boom Extension
Boom Elevation Cylinder
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300438 | BOOM ELEVATION CYLINDER (COMPLETE) | 2 | Call for price | — |
| 2 | 0300801 | SEAL KIT, BOOM ELEVATION CYLINDER | 1 | $76.59 |
Underlift Fold Cylinder
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302537 | CYLINDER, UNDERLIFT FOLD (COMPLETE) | 1 | Call for price | — |
| 2 | 0304459 | SEAL KIT, UNDERLIFT FOLD CYLINDER | 1 | $56.54 |
Boom Extension Cylinder
Hydraulic Cylinders - Underlift Tilt & Underlift Extension
Underlift Tilt Cylinder
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302785 | CYLINDER, UNDERLIFT TILT (COMPLETE) | 2 | $5,603.49 | |
| 2 | 0304461 | SEAL KIT, UNDERLIFT TILT CYLINDER | 1 | Call for price | — |
Underlift Extension Cylinder
Hydraulic Cylinders - Rear Spade
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300680 | CYLINDER, REAR SPADE (COMPLETE) | 2 | Call for price | — |
| 2 | 0301353 | SEAL KIT, REAR SPADE CYLINDER | 1 | $103.94 |
Glad Hand Kit
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301909 | RECEPTACLE BOOT | 1 | Call for price | — |
| 2 | 0301944 | GLAD HAND COUPLING | 2 | Call for price | — |
| 3 | 0301945 | GLAD HAND PLUG | 2 | $39.10 | |
| 4 | 0301946 | BULKHEAD CONNECTOR | 2 | $94.80 | |
| 5 | 0301947 | ADAPTER, 1/4" NPM X 3/8" SYN. HOSE | 2 | Call for price | — |
| 6 | 0301948 | HD 7-WAY TRAILER CONNECTOR | 1 | $60.17 | |
| 7 | 0400070 | SCREW, 1/4"-20 X 1" HEX HD CAP | 2 | $5.84 | |
| 8 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 2 | $5.84 | |
| 9 | 0400451 | WASHER, 1/4" FLAT | 2 | $5.84 | |
| 10 | 0703795 | AIR HOSE, 3/8" X 48" SYNFLEX | 2 | Call for price | — |
Lift Adapters
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0200018 | FORK, SHORT (3" OPENING) | 2 | $160.45 | |
| 2 | 0200020 | FORK, MEDIUM (3" OPENING) | 2 | $218.80 | |
| 3 | 0200021 | FORK, MEDIUM (4-1/2" OPENING) | 2 | $253.45 | |
| 4 | 0200023 | FORK, LONG (4-1/2" OPENING) | 2 | $342.83 | |
| 5 | 0200024 | FORK, OFFSET REAR AXLE | 2 | $253.45 | |
| 6 | 0400585 | HAIR PIN COTTER, 1-1/4" | 2 | $5.84 | |
| 7 | 0711002 | BOLT, MODIFIED 5/8"-11 X 6" WITH HOLE | 2 | Call for price | — |
| 8 | 0800590 | TEE HANDLE, FORK ADAPTER | 2 | $29.33 | |
| 9 | 0801186 | CHAIN HOOK ADAPTER, RT | 1 | $377.33 | |
| 10 | 0801187 | CHAIN HOOK ADAPTER, LT | 1 | Call for price | — |
| 11 | 0802810 | PIVOT PIN LIFT BRACKET | 2 | Call for price | — |
| 12 | 0803591 | FORK ADAPTER, LT | 1 | $911.39 | |
| 13 | 0803592 | FORK ADAPTER, RT | 1 | $911.39 | |
| 14 | 0900900 | RETAINER PIN ASSEMBLY | 2 | $33.12 | |
| 15 | 0902321 | RETAINING PIN, SPRING LIFT BRACKET | 2 | Call for price | — |
King Pin Adapter
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0803605 | KING PIN ADAPTER WELDMENT | 1 | $1,490.35 | |
| 0902782 | FIFTH WHEEL ADAPTER (COMPLETE) | -- | Call for price | — | |
| 2 | 0400555 | ROLL PIN, 3/8" X 1-1/2" | 1 | $5.84 | |
| 3 | HD1259 | SNAPPER PIN | 2 | $13.84 | |
| 4 | VA0660 | FIFTH WHEEL PIVOT PLATE WELDMENT | 1 | Call for price | — |
| 5 | VA0661 | PULL PIN WELDMENT | 1 | $136.75 | |
| 6 | VA0662 | PIVOT PIN WELDMENT | 1 | $129.48 | |
| 124002211 | PINTLE HOOK KIT (COMPLETE) | -- | $1,319.25 | ||
| 7 | 0302198 | PINTLE HOOK (NOT SHOWN) | 1 | $251.63 | |
| 8 | 0400176 | SCREW, 1/2"-13 X 1" HEX HD CAP | 4 | $5.84 | |
| 9 | 0400491 | LOCKWASHER, 1/2" HELICAL | 4 | $5.84 | |
| 10 | 0803604 | 5TH WHEEL, KING PIN ADAPTER & PINTLE HOOK BRACKET WELDMENT | 1 | Call for price | — |
| 11 | 0902378 | RETAINING PIN ASSEMBLY | 2 | $63.72 |
Light Kit - Stop & Turn and Back-Up Lights
Light Kit - 3-Light Bar & Turn Light
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300442 | 3-LIGHT BAR ASSEMBLY (COMPLETE) | $33.38 | ||
| 2 | 0300507 | BULB, MARKER LIGHT | Call for price | — | |
| 3 | 0200511 | LENS, 3-LIGHT BAR | Call for price | — | |
| 1 | 0301390 | LIGHT, TURN (COMPLETE) | $29.33 | ||
| 2 | 0304123 | BEZEL MOUNTING SCREW | Call for price | — | |
| 3 | 0304124 | CHROME BEZEL | $13.32 | ||
| 4 | 0304125 | LENS & BULB ASSEMBLY | Call for price | — | |
| 5 | 0304126 | GROMMET & PLUG KIT | Call for price | — |
Light Kit - Flood, Amber Marker & Dome Lights
Flood Light
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302201 | LIGHT, FLOOD (COMPLETE) | $37.76 |
Amber Marker Light
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302611 | LIGHT, AMBER MARKER (COMPLETE) | $45.58 |
Light Kit - Flood, Amber Marker & Dome Lights
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302544 | LIGHT, DOME (COMPLETE) | $22.62 |
Light Kit - Marker Lights & License Plate Illuminator
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301740 | GROMMET & PLUG, MARKER LIGHT | $18.95 | ||
| 2 | 0301741 | SEALED MARKER LIGHT, RED | $9.50 | ||
| 3 | 0301742 | SEALED MARKER LIGHT, AMBER | $23.53 | ||
| 1 | 0300076 | BRACKET, LICENSE PLATE | $7.32 | ||
| 2 | 0300273 | LICENSE PLATE ILLUMINATOR (COMPLETE) | $25.52 | ||
| 3 | 0300512 | BULB, LICENSE PLATE ILLUMINATOR | Call for price | — |
