Challenger CH-35 (2001 manual)

Show parts list (44 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0300113

GREASE FITTING

6

$5.80

2

0301861

QUICK PIN

2

$3.80

3

0302538

BUSHING, 3-1/2" X 2-1/2" INTERNAL

2

$189.60

4

0302540

CENTER BONDED MOUNT

8

$54.20

5

0302541

SPECIAL WASHER

12

$23.40

6

0303089

RAMP PAD

2

$84.80

7

0303445

SAFETY CHAIN, SYSTEM 10

2

$509.80

8 0303691 SPADE CYLINDER REF. Call for price —

Seal kit for 0303691 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304627	Southern (SHCI) cylinder: SEAL KIT FOR 0303691	$101.00
0301353	Texas (THI) cylinder: SEALKIT, JACK, 4x23	$103.00

9

0306747

LIFT CYLINDER

REF.

$6,139.40

Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601A	Ashun (MTC) cylinder: SEAL KIT 0306747 MTC	$550.60
0304572	Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC	$276.20
0304601	Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER	$229.20
0304601RMT	Rosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOM	Call for price	770-921-6070

10

0400066

SCREW, 1/4"-20 X 3/4" HEX HD CAP

8

$5.80

11

0400128

SCREW, 3/8"-16 X 1-1/4" FL HD SKT

10

$8.00

12

0400139

SCREW, 3/8"-16 X 1-1/2" HEX SKT SET

4

$5.80

13

0400181

SCREW, 1/2"-13 X 1-1/2" HEX HD CAP

10

$5.80

14

0400211

SCREW, 1/2"-13 X 1-3/4" HEX HD CAP

2

$5.80

15

0400219

SCREW, 1/2"-13 X 4-1/2" HEX HD CAP

2

$8.00

16

0400276

SCREW, 5/8"-11 X 4-1/2" HEX HD CAP

4

$8.00

17

0400281

SCREW, 3/4"-10 X 3-1/2" HEX HD CAP

4

$8.00

18

0400286

SCREW, 3/4"-10 X 2-3/4" HEX HD CAP

12

$8.00

19

0400294

SCREW, 3/4"-10 X 6-1/2" HEX HD CAP

4

$13.80

20

0400392

NUT, 3/8"-16 NYLOK HEX

20

$5.80

21

0400408

NUT, 1/2"-13 NYLOK HEX

14

$2.80

22

0400430

NUT, 3/4"-10 NYLOK HEX

4

$5.80

23

0400431

NUT, 3/4"-10 NYLOK HEX

12

$8.00

24

0400452

LOCKWASHER, 1/4" HELICAL

8

$5.80

25

0400492

WASHER, 1/2" FLAT

4

$5.80

26

0400506

WASHER, 5/8" FLAT

8

$5.80

27

0400508

LOCKWASHER, 5/8" HELICAL

4

$5.80

28

0400510

WASHER, 3/4" FLAT

8

$5.80

29

0400563

ROLL PIN, 5/32" X 2-1/2"

2

$5.80

30

0705485

SPADE BLADE

2

$115.60

31

0708094

PIN, LIFT CYLINDER

2

$314.20

32

0713128

SHAFT, LOWER SPADE

2

$56.00

33

0713129

SHAFT, UPPER SPADE

2

$59.60

34

0714581

BOLTING PLATE

4

$13.00

35

0715584

COVER PLATE, REAR SPADE

2

$19.40

36

0715694

PIN, SPADE PIVOT

2

$125.60

37 0802201 RIGHT INNER SPADE WELDMENT 1 Call for price —

38 0802211 FRONT BODY MOUNTING TUBE 1 Call for price —

39

0802463

PIVOT PIN, LIFT CYLINDER

2

$252.80

40

0804286

LOWER SPADE PAD WELDMENT

2

$1,067.00

41

0804305

SUBFRAME WELDMENT

1

$22,391.20

42

0804334

PIN, MULTI-POSITION

2

$252.80

43 0804335 LEFT INNER SPADE WELDMENT 1 Call for price —

44

0804405

BRACKET, BOOM PIVOT

2

$884.00

Challenger CH-35 (2001 manual) Body Assembly diagram

Show parts list (48 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300345	RUBBER FENDERPriced per foot	14 FT.	$25.40
2	VA0588	MUDFLAP	2	$47.00
3	0301912	DOOR CHECK, 11"	6	$50.60
4	0303061	BACKUP ALARM	1	$75.80
5	0302978	TOOL BOX, 156" C.A. LEFT	1	Call for price	—
6	0302979	TOOL BOX, 156" C.A. RIGHT	1	Call for price	—
7	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	6	$5.80
8	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	8	$5.80
9	0400369	CLIP, 1/4" TINNERMAN	6	$5.80
10	0400392	NUT, 3/8"-16 NYLOK HEX	8	$5.80
11	0400451	WASHER, 1/4" FLAT	6	$5.80
12	0400566	RIVET, 1/4"	40	$1.60
13	0705090	MUDFLAP MTG ANGLE, LEFT	1	$17.40
14	0705091	MUDFLAP MTG ANGLE, RIGHT	1	$29.00
15	0705092	BAR, MUDFLAP	2	$45.20
16	0706609	RETAINING STRIP, RUBBER FENDER	2	$59.60
17	0711289	PANEL, SWITCH	1	$158.80
18	0711290	PANEL, CONTROL	1	$207.60
19	0711292	PANEL, CONTROL	1	$231.00
20	0711344	PANEL, GAUGE	1	$167.40
21	0803036	CROSSMEMBER, ALUMINUM BODY	1	Call for price	—
22	0902286	CHALLENGER NAMEPLATE KIT	1	$189.60
--	0400035	SCREW, #10-24 X 1/2" OVAL HD SS	6	$5.80
--	DE0186	CHALLENGER NAMEPLATE	2	$88.40
23	0902328	BODY MOUNTING KIT (NOT SHOWN)	--	$1,047.00
--	0400288	SCREW, 3/4"-10 X 2-1/2" HEX HD CAP	28	$9.80
--	0400431	NUT, 3/4"-10 NYLOK HEX	28	$8.00
--	0707174	ANGLE, TAILGATE MOUNTING	2	$34.80
--	0711256	MOUNTING PLATE	2	Call for price	—
--	0711286	SPACER, REAR FRAME BRACKET	2	Call for price	—
--	124001720	LIGHT BAR, STANDARD	--	Call for price	—
24	0301706	GASKET, LIGHT BAR	2	Call for price	—
25	0400126	SCREW, 3/8"-16 X 1" HEX HD CAP	4	$5.80
26	0400177	SCREW, 1/2"-13 X 1-1/4" HEX HD CAP	12	$5.80
27	0400181	SCREW, 1/2"-13 X 1-1/2" HEX HD CAP	6	$5.80
28	0400392	NUT, 3/8"-16 NYLOK HEX	4	$5.80
29	0400408	NUT, 1/2"-13 NYLOK HEX	18	$2.80
30	0400492	WASHER, 1/2" FLAT	12	$5.80
31	0802224	SUPPORT, L.H. VERTICAL	1	Call for price	—
32	0802225	SUPPORT, R.H. VERTICAL	1	Call for price	—
33	0802226	MOUNTING BRACKET	2	Call for price	—
34	0802260	TOP CHANNEL	1	$3,647.40
--	124001708	AERODYNAMIC LIGHT PYLON	--	Call for price	—
35	0302562	LIGHT RACK	1	Call for price	—
36	0400157	SCREW, 3/8"-16 X 1-3/4" HEX HD CAP	6	$5.80	—
37	0400392	NUT, 3/8"-16 NYLOK HEX	6	$5.80
38	0400480	WASHER, 3/8" FLAT	6	$4.00
39	0706972	LIGHT PYLON, MOUNTING RUBBER	2	Call for price	—

Challenger CH-35 (2001 manual) Recovery Boom Assembly diagram

Show parts list (34 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING	6	$5.80
2	0302880	WIRE ROPE, 6 X 37 IWRC, 3/4" X 200'	2	Call for price	—
3	0301895	GREASE FITTING, STR 1/8"	2	$5.80
4	0303441	SHEAVE, 10"	2	$429.60
5	0303490	WEAR PAD	2	$49.60
6	0306585	SCREW	4	$3.80
7	0306743	EXTEND CYLINDER	REF.	$6,643.20
	0304625	Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103		$157.00
8	0400121	SCREW, 3/8"-16 X 3/4" HEX HD CAP	2	$5.80
9	0400126	SCREW	1	$5.80
10	0400133	SCREW, 3/8"-16 X 3" HEX HD CAP	3	$5.80
11	0400150	SCREW, 3/8"-16 X 2-1/2" HEX HD CAP	4	$5.80
12	0400176	SCREW, 1/2"-13 X 1" HEX HD CAP	2	$5.80
13	0400220	SCREW, 1/2"-13 X 5-1/2" HEX HD CAP	1	$8.00
14	0400392	NUT, 3/8"-16 NYLOK HEX	3	$5.80
15	0400408	NUT, 1/2"-13 NYLOK HEX	1	$2.80
16	0400482	LOCKWASHER, 3/8" HELICAL	2	$5.80
17	0400491	LOCKWASHER, 1/2" HELICAL	2	$5.80
18	0700801	CABLE GUIDE, BOTTOM	4	$23.20
19	0705104	PLATE, WINCH CABLE SUPPORT	1	$95.60
20	0707793	PIN, TILT CYLINDER BASE	1	$150.60
21	0715951	PIN	1	$93.80
22	0715952	PIN	1	$90.20
23	0715953	PIVOT PIN, BOOM	1	$635.40
24	0716134	SHAFT, SHEAVE	2	$68.60
25	0802365	PIN, TOWER PIVOT	2	$177.00
26	0803313	CABLE GUIDE	2	$283.40
27	0804402	OUTER BOOM WELDMENT	1	Call for price	—
28	0804403	INNER BOOM WELDMENT	1	$7,878.40
29	0804449	SWIVEL WELDMENT	1	$1,129.00
30	9044434	SCREW	1	$5.80
31	930100002	SLIDE PAD	1	$70.40
32	945030004	SLIDE PAD	1	$70.40
33	945030001	SLIDE PAD RETAINER	1	$30.00
34	HD0151	SNAP RING	4	$5.80

Challenger CH-35 (2001 manual) Underlift & Tower Assembly diagram

Show parts list (54 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0300110

SNAP RING 1"

2

$5.80

2

0300113

GREASE FITTING

10

$5.80

3

0301197

COMPRESSION SPRING, CROSS BAR

1

$9.20

4

0301398

DETENT BALL, 1-3/16"

1

$15.60

5

0301822

"O" RING, PIVOT PIN

1

$3.80

6

0301895

GREASE FITTING, 1/8" STR

4

$5.80

7

0302538

SPRING BUSHING

2

$189.60

8

0302561

SLIDE PAD

8

$18.80

9

0303088

BUSHING, PIVOT PIN

1

$393.60

10

0303097

THRUST WASHER, 1/8"

2

$90.20

11

0303098

THRUST WASHER, 1/16"

2

$54.20

12

0306585

PIPE PLUG, 4 AL PLUG

8

$3.80

13

0306744

EXTEND CYLINDER

1

$5,359.40

Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670	Southern (SHCI) cylinder: SEAL KIT FOR 0302206	$223.80
0311141	Texas (THI) cylinder: SEAL KIT 0306744	$220.80

14

0306745

TILT CYLINDER

2

$2,954.20

0304668

Seal kit for 0306745 cylinder: SEAL KIT FOR 0307040, 0302785

$157.00

15

0306746

FOLD CYLINDER

1

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

16

0306825

WEAR PAD

4

$19.40

17

0400121

SCREW, 3/8"-16 X 3/4" HEX HD CAP

1

$5.80

18

0400133

SCREW, 3/8"-16 X 3" HEX HD CAP

2

$5.80

19

0400139

SCREW, 3/8"-16 X 1-1/2" HEX SKT SET

2

$5.80

20

0400147

SCREW, 3/8"-24 X 5/8" HEX HD CAP

9

$5.80

21

0400176

SCREW, 1/2"-13 X 1" HEX HD CAP

2

$5.80

22

0400228

SCREW, 3/8"-24 X 5/8" BUTTON HD SKT

8

$9.80

23

0400271

SCREW, 5/8"-11 X 4-1/2" SKT HD CAP

2

$13.80

24

0400392

NUT, 3/8"-16 NYLOK HEX

10

$5.80

25

0400481

LOCKWASHER, 3/8" EXTERNAL TOOTH

9

$5.80

26

0400482

LOCKWASHER, 3/8" HELICAL

1

$5.80

27

0400491

LOCKWASHER, 1/2" HELICAL

2

$5.80

28

0400508

LOCKWASHER, 5/8" HELICAL

2

$5.80

29

0706995

BOLT-ON SPACER PAD

1

$29.00

30

0706996

BOLT-ON SPACER PAD

1

$47.00

31

0707019

EXTEND CYLINDER SHAFT

1

$97.40

32

0707028

BOLT-ON BEARING PAD

1

$52.40

33

0707034

STOP BLOCK

2

$25.20

34

0707179

PIN, FOLD CYLINDER ROD END

1

$217.00

35

0707792

PIN, TILT CYLINDER BASE END

1

$146.20

36

0707793

PIN, TILT CYLINDER ROD END

1

$150.60

37

0708470

SPACER, DETENT BALL SPRING

1

$17.40

38

0710051

PIVOT PIN, TOP HALF

1

$299.60

39

0710052

PIVOT PIN, BOTTOM HALF

1

$299.60

40

0716033

EXTEND CYLINDER SHAFT

1

$124.60

41

0802365

TOWER PIVOT PIN WELDMENT

2

$177.00

42

0802459

PIN, FOLD CYLINDER BASE

1

$144.40

43

0802461

PIN, UNDERLIFT PIVOT

1

$399.00

44

0802914

CROSSBAR WELDMENT

1

$2,756.80

45

0804421

TOWER WELDMENT

1

$10,314.60

46

0804422

OUTER BOOM WELDMENT

1

$5,852.20

47

0804423

2ND STAGE BOOM WELDMENT

1

$4,156.00

48

0804424

3RD STAGE BOOM WELDMENT

1

$3,324.60

49

RB0205

SPLIT, BUSHING

2

$103.00

--

0901716

STOW KIT, WINCH CABLE

--

$225.60

50

0301691

MASTER LINK, OBLONG

2

$37.40

51

0302273

SPRING, WINCH CABLE TIE-BACK

2

$66.80

52

0400205

SCREW, 1/2"-13 X 3" HEX HD CAP

2

$5.80

53

0400408

NUT, 1/2"-13 NYLOK HEX

2

$2.80

Challenger CH-35 (2001 manual) Underlift Hydraulics diagram

Show parts list (36 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0300044

CONNECTOR, 6MJ-8MB

7

$3.80

2

0300142

ELBOW, 6MJ-4MP90

3

$5.20

3

0300206

BRANCH TEE, 6MJ-6MJ-4MP

3

$6.80

4

0301424

CONNECTOR, 6MJ-4MP

1

$3.80

5

0301470

ELBOW, 6MJ-8MP90

5

$7.60

6

0301473

HOSE ASSEMBLY, 18"

2

$57.80

7

0301522

CONNECTOR, 6MJ-6MB

1

$3.80

8

0301601

HOSE CLAMP, INSULATED 5/8"

4

$3.80

9

0301620

ELBOW, 6MJ-6MB90

2

$5.80

10

0301730

DOUBLE HOLDING VALVE

1

$542.60

11

0301731

HOLDING VALVE

1

$328.60

12 0301837 IN-LINE ORIFICE 1 Call for price —

13

0302035

HOSE ASSEMBLY, 18"

2

$37.40

14 0302036 HOSE ASSEMBLY, 26" 1 Call for price —

15

0306744

EXTEND CYLINDER

1

$5,359.40

Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670	Southern (SHCI) cylinder: SEAL KIT FOR 0302206	$223.80
0311141	Texas (THI) cylinder: SEAL KIT 0306744	$220.80

16

0302514

ADAPTER, 8MJ-6MJ

12

$5.60

17

0306746

FOLD CYLINDER

1

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

18

0302548

CLAMPING UNIT

8

$28.00

19

0302549

SPLIT BUSHING, 1/2"

24

$5.60

20

0302551

STACKING NUT, SKT HD

8

$11.60

21

0302596

HOSE ASSEMBLY, 34"

1

$47.00

22

0302604

HOSE ASSEMBLY, 44"

2

$47.00

23

0302605

HOSE ASSEMBLY, 44"

2

$66.80

24

0302624

TUBE ASSEMBLY

6

$151.60

25

0302637

HOSE ASSEMBLY, 78"

1

$54.20

26

0303094

CONTROL VALVE, VDP11CDDDC53

1

$1,447.40

27

0306745

TILT CYLINDER

2

$2,954.20

0304668

Seal kit for 0306745 cylinder: SEAL KIT FOR 0307040, 0302785

$157.00

28

0302805

HOSE ASSEMBLY, 10"

2

$29.80

29

0302808

HOSE ASSEMBLY, 18"

2

$52.40

30

0302812

HOSE ASSEMBLY, 108"

1

$55.60

31

0302813

HOSE ASSEMBLY, 72"

2

$103.00

32

0302815

HOSE ASSEMBLY, 32"

1

$59.60

33

0303017

CONNECTOR, 8MB-6FB

1

$5.60

34

0400078

SCREW, 1/4"-20 X 2" HEX HD CAP

2

$5.80

35

0400118

SCREW, 5/16-18 X 3/4 HEX HD CAP

6

$5.80

36

0400367

NUT, 1/4"-20 NYLOK HEX

2

$5.80

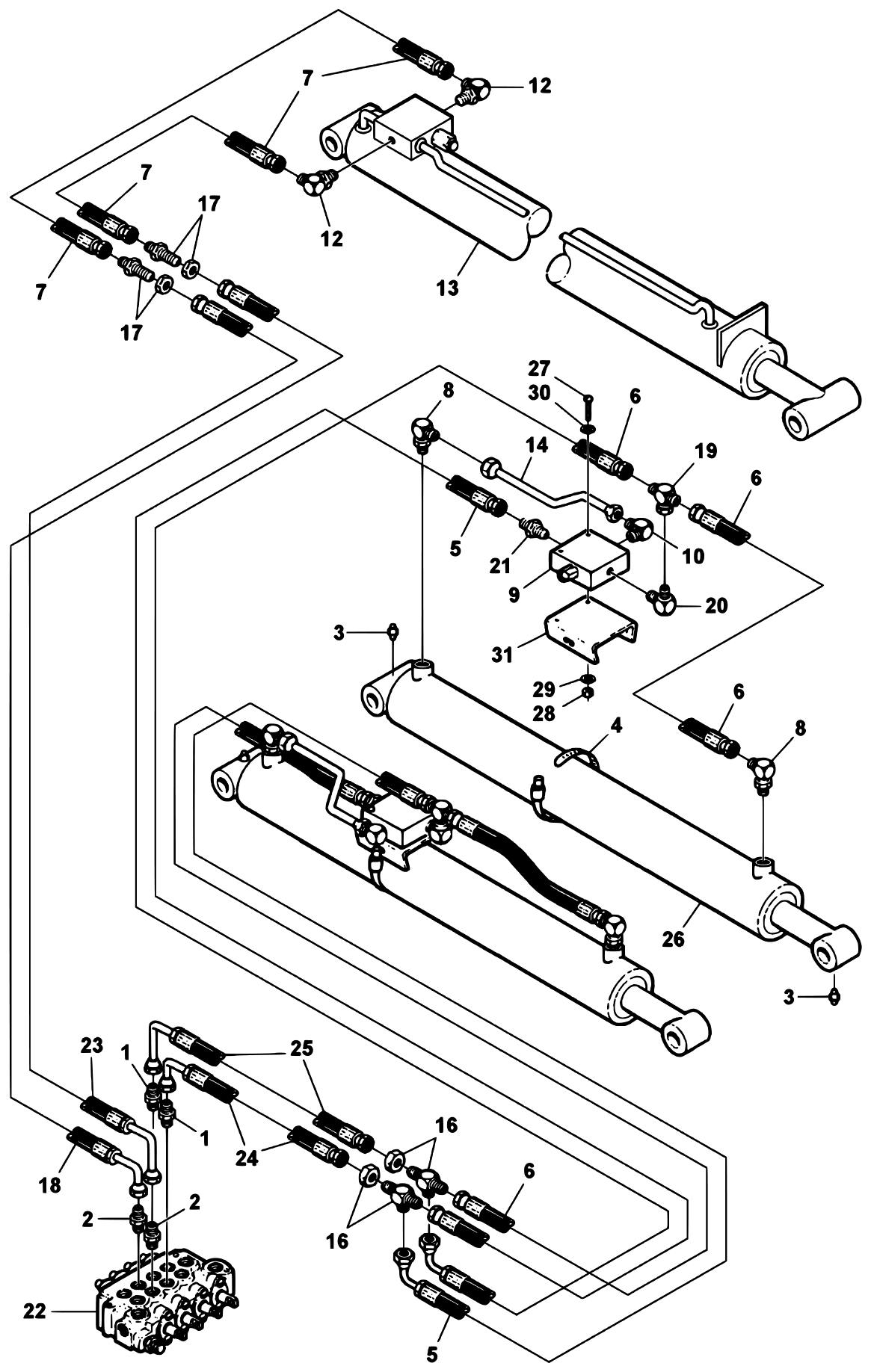

Challenger CH-35 (2001 manual) Recovery Boom Hydraulics diagram

Show parts list (31 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0300041

CONNECTOR, 8MJ-8MB

2

$5.60

2

0300044

CONNECTOR, 6MJ-8MB

2

$3.80

3

0300113

GREASE FITTING

4

$5.80

4

0300365

CLAMP, CHECK VALVE RETAINING, 7"

2

$12.40

5

0300657

HOSE ASSEMBLY, 46"

2

$84.80

6

0300659

HOSE ASSEMBLY, 45"

4

$61.40

7

0301529

HOSE ASSEMBLY, 58"

2

$75.80

8

0301547

ELBOW, 8MJ-12MB90

4

$18.80

9

0301731

HOLDING VALVE

2

$328.60

10

0302051

ELBOW, 8MJ-6MP90

2

$8.40

11 0302062 WIRE TIE, 21" (NOT SHOWN) 5 Call for price —

12

0302276

ELBOW, 8MJ-6MB90

2

$11.20

13

0306743

CYLINDER, EXTEND

1

$6,643.20

0304625

Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103

$157.00

14 0302568 TUBING, HYDRAULIC 2 Call for price —

15 0302569 WIRE TIE, 29-3/4" (NOT SHOWN) 4 Call for price —

16

0302575

BULKHEAD RUN TEE W/NUT

2

$18.80

17

0302576

BULKHEAD UNION

2

$12.40

18

0302584

HOSE ASSEMBLY, 50"

1

$63.20

19 0302796 BRANCH TEE, 8MJ-8MJ-8FJX 2 Call for price —

20 0302797 ELBOW, 8MJ-4MP90 2 Call for price —

21 0302930 CONNECTOR, 8MJ-6MP 2 Call for price —

22

0303093

CONTROL VALVE, VDP11DDDC110

1

$1,337.00

23 0303343 HOSE ASSEMBLY, 45" 1 Call for price —

24

0303354

HOSE ASSEMBLY, 33"

1

$70.00

25

0303355

HOSE ASSEMBLY, 33"

1

$74.80

26

0306747

CYLINDER, BOOM LIFT

2

$6,139.40

Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601A	Ashun (MTC) cylinder: SEAL KIT 0306747 MTC	$550.60
0304572	Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC	$276.20
0304601	Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER	$229.20
0304601RMT	Rosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOM	Call for price	770-921-6070

27 0400064 SCREW, 1/4"-20 X 2-1/4" RD HD SLOTTED 6 Call for price —

28

0400366

NUT, 1/4"-20 HEX

6

$5.80

29

0400408

WASHER, 1/4" FLAT

6

$2.80

30

0400452

LOCKWASHER, 1/4" HELICAL

6

$5.80

31

0703001

BRACKET, CHECK VALVE MOUNTING

2

$24.40

Challenger CH-35 (2001 manual) Pump, Valve & Filter Hydraulics diagram

Show parts list (66 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301696	ELBOW, 6MJ-6FJX90	2	Call for price	—
2	0301965	HOSE ASSEMBLY, 131"	2	$117.40
3	0302205	GAUGE, FLUSH MOUNT 6000 PSI	2	$44.80
4	0302577	CONNECTOR, 6MJ-4FP	2	$4.20
5	0303392	HOSE ASSEMBLY 73"	2	$117.40
6	0303867	PUMP, BI-ROTATIONAL	1	$2,046.00
--	0903017	PUMP KIT	--	$2,506.00
7	0300348	PIPE NIPPLE, 1-1/2" X 5"	2	$7.80
8	0300364	CLAMP HOSE, 1" - 2-1/4"	8	$7.00
9	0300660	HOSE ASSEMBLY, 120"	2	$112.00
10	0300865	CONNECTOR, 8MJ-8MJ (NOT SHOWN)	2	$5.60
11	0301529	HOSE ASSEMBLY 58" (NOT SHOWN)	2	$75.80
12	0301547	ELBOW, 8MJ-12MB90	2	$18.80
13	0302088	BALL VALVE, BRONZE	2	$91.00
14	0302698	HOSE BARB, 20HOSE-20MP	2	$32.40
15	0302756	SUCTION HOSE, 1-1/4"Priced per foot	24 FT.	$21.20
16	0302906	ADAPTER, 16MB-12FB (NOT SHOWN)	2	$15.20
17	0302983	STREET ELBOW, 45° 1-1/2" (NOT SHOWN)	2	$37.60
18	0303290	CLAMP, 2-1/2" INSULATED (NOT SHOWN)	12	$19.40
19	0303463	BUSHING, 24MP-20FP (NOT SHOWN)	2	$6.80
20	0306539	HOSE BARB, 20HOSE-16MB90	2	Call for price	—
21	0400181	SCREW, 1/2"-13 X 1-1/2" HEX HD CAP	4	$5.80
22	0400491	LOCKWASHER, 1/2" HELICAL	4	$5.80
23	0711438	HOSE BRACKET (NOT SHOWN)	6	Call for price	—
--	0903535	VALVE PAN ASSEMBLY	--	$3,672.40
24	0303093	CONTROL VALVE, VDP11DDDC110	1	$1,337.00
25	0300052	ELBOW, 8MJ-10MB90	2	$11.20
26	0301545	ELBOW, 12MJ-12MB90	2	$18.80
27	0301995	STRAIGHT ADAPTER, 8FJ-6MJ	2	$5.60
28	0302052	RUN TEE, 8MJ-8FJX-8MJ	2	$15.00
29	0303094	CONTROL VALVE, VDP11CDDDC53	1	$1,447.40
30	0400135	SCREW, 3/8"-16 X 4-1/2" HEX HD CAP	6	Call for price	—
31	0400157	SCREW, 3/8"-16 X 1-3/4" HEX HD CAP	4	$5.80	—
32	0400392	NUT, 3/8"-16 NYLOK HEX	10	$5.80
33	0400480	WASHER, 3/8" FLAT	4	$4.00
34	0704045	SPACER, CONTROL VALVE	6	Call for price	—
35	0711250	PLATE, CONTROL BULKHEAD	1	$16.40
36	0711251	PLATE, CONTROL BULKHEAD	2	$50.00
37	0711561	PLATE VALVE MOUNTING	1	Call for price	—
38	0711696	PLATE VALVE MOUNTING	1	Call for price	—
--	0904199	RESERVOIR ASSEMBLY	--	Call for price	—
39	0300136	RETURN LINE FILTER ASSEMBLY	2	$64.00
40	0300364	CLAMP HOSE, 1" - 2-1/4"	2	$7.00
41	0300446	PIPE PLUG, 3/4" NPT MALE	2	$5.60
42	0300615	ELL, 12MJ-12MP90	2	$14.80
43	0302227	CENTER BONDED MOUNT	4	$24.40
44	0302228	SPECIAL WASHER	4	$21.60
45	0302570	SIGHT GAUGE	2	$15.60
46	0302756	SUCTION HOSE, 1-1/4"Priced per foot	2.25 FT.	$21.20
47	0305006	FILLER CAP	2	$63.20
48	0400036	SCREW, #10-32 X 1" RD HD MACH	12	Call for price	—
49	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	32	$5.80
50	0400150	SCREW, 3/8"-16 X 2-1/2" HEX HD CAP	4	$5.80
51	0400357	NUT, #10-32 NYLOK HEX	12	$5.60
52	0400392	NUT, 3/8"-16 NYLOK HEX	12	$5.80
53	0400482	LOCKWASHER, 3/8" HELICAL	24	$5.80
54	0706114	GASKET, CLEAN OUT & FILLER COVER	2	$42.20
55	0802747	FILLER PIPE WELDMENT	2	Call for price	—
56	0803193	RESERVOIR SUPPORT WELDMENT	2	Call for price	—
57	0803662	RESERVOIR WELDMENT, LEFT	1	Call for price	—
58	0804109	RESERVOIR WELDMENT, RIGHT	1	Call for price	—
--	0903696	COVER KIT	--	Call for price	—
59	0400121	SCREW, 3/8"-16 X 3/4" HEX HD CAP	4	$5.80
60	0400392	NUT, 3/8"-16 NYLOK HEX	4	$5.80
61	0711322	COVER, VALVE	1	$253.60
62	0711575	SUPPORT, COVER	4	$45.00

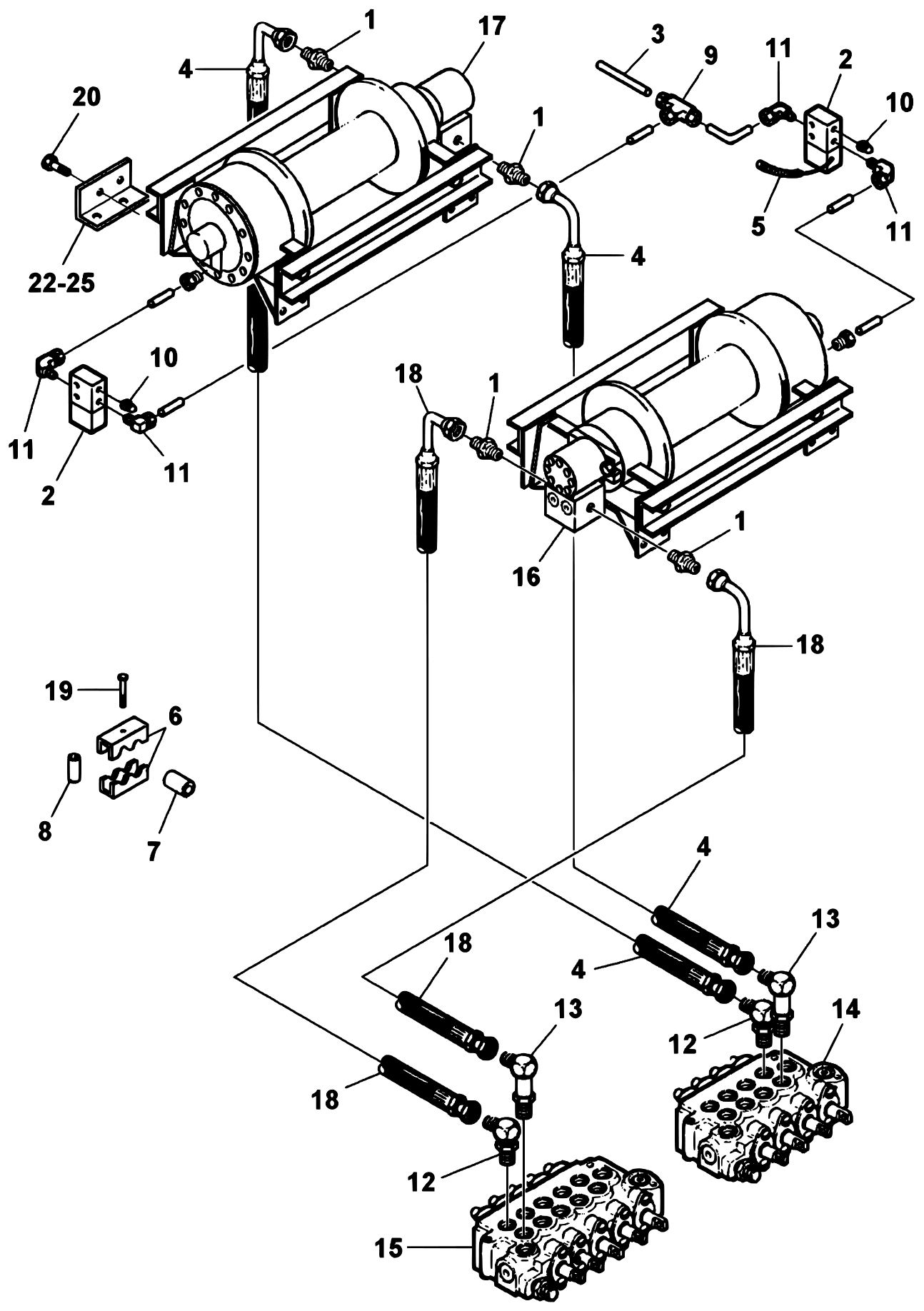

Challenger CH-35 (2001 manual) Planetary Winch Hydraulics & Air Free Spool diagram

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300041	CONNECTOR, 8MJ-8MB	4	$5.60
2	0300324	SOLENOID VALVE, AIR CONTROL	2	$163.00
3	0301577	AIR HOSE, 1/4" O.D.Priced per foot	18 FT.	$5.80
4	0301893	HOSE ASSEMBLY, 84"	2	$112.00
5	0302431	CONVOLUTED LOOM, 3/8"Priced per foot	7 FT.	$0.20
6	0302546	CLAMPING UNIT	4	$15.60
7	0302550	SPLIT BUSHING, 3/4"	4	$9.80
8	0302551	STACKING NUT, SKT HD	2	$11.60
9	0302607	TEE UNION, 4TB-4TB-4TB	1	$15.00
10	0302677	BREATHER VENT, 1/8" MP	2	$7.60
11	0302678	ELBOW, 4TB-2MP90	4	$5.60
12	0302827	CONNECTOR, 10MJ-10MB	2	$7.60
13	0302828	CONNECTOR, 10MJ-10MBL	2	$23.20
14	0303093	CONTROL VALVE, VDP11DDDC110	1	$1,337.00
15	0303094	CONTROL VALVE, VDP11CDDDC53	1	$1,447.40
16	0303095	WINCH, LEFT	1	$15,453.00
17	0303096	WINCH, RIGHT	1	Call for price	—
18	0303391	HOSE ASSEMBLY, 110"	2	$76.00
19	0400118	SCREW, 5/16"-18 X 3/4" HEX HD CAP	2	$5.80
20	0400264	SCREW, 5/8"-11 X 2-1/4" HEX HD CAP	16	$5.80
21	0400421	NUT, 5/8"-11 HEX NYLOK	16	$5.80
22	0710086	ANGLE - WINCH MOUNTING	2	Call for price	—
23	0710087	ANGLE - WINCH MOUNTING	2	Call for price	—
24	0710088	ANGLE - WINCH MOUNTING	2	Call for price	—
25	0710089	ANGLE - WINCH MOUNTING	2	Call for price	—

Challenger CH-35 (2001 manual) Left Control Assembly diagram

Show parts list (31 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300341	CONTROL KNOB, W/L (UP/DOWN)	1	$9.20
2	0300834	CONTROL KNOB, (IN/OUT)	2	$21.20
3	0300835	CONTROL KNOB, BOOM (UP/DOWN)	1	$13.20
4	0300836	CONTROL KNOB, JACK (UP/DOWN)	2	$18.80
5	0300837	CONTROL KNOB, BOOM (IN/OUT)	1	$15.00
6	0301884	CONTROL CABLE, 96"	1	$167.80
7	0302457	CONTROL CABLE, 104"	4	$167.80
8	0302726	GREASE FITTING, 1/4"-28 X 45°	9	$3.80
9	0302856	CONTROL KNOB, TILT (UP/DOWN)	1	$24.40
10	0302917	CONTROL KNOB, W/L EXTEND (IN/OUT)	1	$31.00
11	0303008	ADJUSTABLE CLEVIS	12	$9.40
12	0303427	CONTROL CABLE, 114"	4	$167.80
13	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	2	$5.80
14	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	9	$5.80
15	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	4	$5.80
16	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.80
17	0400379	NUT, 5/16"-18 "J" TINNERMAN	4	$8.00
18	0400382	NUT, 5/16"-18 HEX NYLOK	9	$5.80
19	0400383	NUT, 5/16"-24 HEX	36	$5.80
20	0400392	NUT, 3/8"-16 HEX NYLOK	6	$5.80
21	0400393	NUT, 3/8"-16 HEX JAM	9	$5.80
22	0400466	WASHER, 5/16" INTERNAL TOOTH	24	$5.80
23	0400512	WASHER, 3/4" FLAT (SPECIAL)	10	Call for price	—
24	0400532	CLEVIS PIN, 5/16" X 1"	9	$5.80
25	0400540	COTTER PIN, 3/32" X 1"	9	$5.80
26	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.40
27	0711245	PLATE, SHAFT SUPPORT	1	$21.20
28	0711246	PIN, CONTROL BOX	1	$33.40
29	0801054	CONTROL CABLE CONNECTOR	6	Call for price	—
30	0803294	CONTROL HANDLE WELDMENT	9	$131.80
31	0804060	LEFT CONTROL FRAME WELDMENT	1	$758.80

Challenger CH-35 (2001 manual) Remote Control Assembly diagram

Show parts list (35 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--		REMOTE CONTROL ASSEMBLY	--	Call for price	—
32	0300166	WIRE CONNECTOR, SPADE	10/16	Call for price	—
33	0301574	ELBOW, 4TB-4MP90	1	Call for price	—
34	0301577	AIR HOSE, 1/4" O.D. (FT.)Priced per foot	15/25	$5.80
35	0301610	CONNECTOR, 4TB-4MP	2/4	$10.40
36	0301618	BRASS PLUG, 4MP	2/3	$8.00
37	0302048	CABLE SEALING GRIP	2	Call for price	—
38	0302340	HEX PIPE BUSHING	2	$6.60
39	0302431	CONVOLUTED LOOM, 3/8" X 8"Priced per foot	1	$0.20
40	0302434	CABLE TIE, 4" 18 LB.	35/65	Call for price	—
41	0302677	BREATHER VENT, 2MP	1/2	$7.60
42	0302678	ELBOW, 4TB-2MP	16/28	$5.60
43	0302844	AIR SOLENOID VALVE (8)	1	Call for price	—
--	0303479	AIR SOLENOID VALVE (14)	1	Call for price	—
44	0303226	CIRCUIT BREAKER, HI-AMP WATERPROOF	1	$119.20
45	0303235	TERMINAL BLOCK	1/2	Call for price	—
--	0303250	POWER PAL, 15 POSITION	1	Call for price	—
46	0303251	POWER PAL, 8 POSITION	1	Call for price	—
47	0303322	ELECTRICAL CABLE, 16/10 SO (FT.)	8/20	Call for price	—
48	0303335	AIR CYLINDER	4/7	Call for price	—
49	0303363	AIR FILTER/REGULATOR	1	$142.60
50	0303364	AIR LUBRICATOR	1	$131.80
51	0303365	MOUNTING BRACKET	1	$7.60
52	0400025	SCREW, #8-32 X 3/4" RD HD SLOTTED	2/4	$5.80
53	0400057	SCREW, 1/4"-20 X 1-1/4" HEX HD CAP	4/7	$5.80
54	0400078	SCREW, 1/4"-20 X 2" HEX HD CAP	2/4	$5.80
55	0400351	HEX NUT & STAR WASHER, #8-32	2/4	$5.80
56	0400367	NUT, 1/4"-20 HEX NYLOK	6/11	$5.80
57	0400401	NUT, 7/16"-20 HEX JAM	4/7	$5.80
58	0400451	WASHER, 1/4" FLAT	2/4	$5.80
59	0400527	CLEVIS PIN, 5/16" X 5/8" COTTERLESS	4/7	$8.00
60	0711277	SUPPORT, SOLENOID VALVE (8)	1	Call for price	—
--	0711836	SUPPORT, SOLENOID VALVE (14)	1	Call for price	—
61	0803181	CLEVIS WELDMENT	4/7	$9.40
62	HA0132	GAUGE, 0-160 PSI	1	$24.40

Challenger CH-35 (2001 manual) Right Control Assembly diagram

Show parts list (22 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300834	CONTROL KNOB, (IN/OUT)	2	$21.20
2	0300835	CONTROL KNOB, BOOM (UP/DOWN)	1	$13.20
3	0300836	CONTROL KNOB, JACK (UP/DOWN)	2	$18.80
4	0300837	CONTROL KNOB, BOOM (IN/OUT)	1	$15.00
5	0302457	CONTROL CABLE, 104"	3	$167.80
6	0302726	GREASE FITTING, 1/4"-28 X 45°	2	$3.80
7	0303008	ADJUSTABLE CLEVIS	6	$9.40
8	0303427	CONTROL CABLE, 114"	3	$167.80
9	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	6	$5.80
10	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	4	$5.80
11	0400379	NUT, 5/16"-18 "J" TINNERMAN	4	$8.00
12	0400382	NUT, 5/16"-18 HEX NYLOK	10	$5.80
13	0400383	NUT, 5/16"-24 HEX	18	$5.80
14	0400393	NUT, 3/8"-16 HEX JAM	6	$5.80
15	0400466	WASHER, 5/16" INTERNAL TOOTH	18	$5.80
16	0400512	WASHER, 3/4" FLAT (SPECIAL)	7	Call for price	—
17	0400532	CLEVIS PIN, 5/16" X 1"	6	$5.80
18	0400540	COTTER PIN, 3/32" X 1"	6	$5.80
19	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.40
20	0711247	PIN, CONTROL BOX	1	$47.00
21	0803294	CONTROL HANDLE WELDMENT	6	$131.80
22	0804061	RIGHT CONTROL FRAME WELDMENT	1	$430.80

Challenger CH-35 (2001 manual) Rear Spade Hydraulics diagram

Show parts list (7 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0300044

CONNECTOR, 6MJ-8MB

6

$3.80

2

0301522

CONNECTOR, 6MJ-6MB

2

$3.80

3

0303017

CONNECTOR, 8MB-6FB

2

$5.60

4

0303093

CONTROL VALVE, VDP11DDDC110

REF.

$1,337.00

5

0303094

CONTROL VALVE, VDP11CDDDC53

REF.

$1,447.40

6 0303691 HYDRAULIC CYLINDER 2 Call for price —

Seal kit for 0303691 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304627	Southern (SHCI) cylinder: SEAL KIT FOR 0303691	$101.00
0301353	Texas (THI) cylinder: SEALKIT, JACK, 4x23	$103.00

7

0303748

HOSE ASSEMBLY, 136"

4

$106.60

Show parts list (12 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

1

0306747

BOOM LIFT CYLINDER (COMPLETE)

2

$6,139.40

Seal kit for 0306747 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304601A	Ashun (MTC) cylinder: SEAL KIT 0306747 MTC	$550.60
0304572	Southern (SHCI) cylinder: SEAL KIT FOR 0303665 SHC	$276.20
0304601	Texas (THI) cylinder: SEAL KIT, BOOM LIFT CYLINDER	$229.20
0304601RMT	Rosenboom (RMT) cylinder: SEAL KIT FOR 0306747 ROSENBOOM	Call for price	770-921-6070

SEAL KIT, BOOM LIFT CYLINDER Call for price —

2

0306743

BOOM EXTEND CYLINDER (COMPLETE)

1

$6,643.20

0304625

Seal kit for 0306743 cylinder: SEAL KIT FOR 0303102/0303103

$157.00

SEAL KIT, BOOM EXTEND CYLINDER Call for price —

3

0306745

UNDERLIFT TILT CYLINDER (COMPLETE)

2

$2,954.20

0304668

Seal kit for 0306745 cylinder: SEAL KIT FOR 0307040, 0302785

$157.00

SEAL KIT, UNDERLIFT TILT CYLINDER Call for price —

4

0306744

UNDERLIFT EXTEND CYLINDER (COMPLETE)

1

$5,359.40

Seal kit for 0306744 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304670	Southern (SHCI) cylinder: SEAL KIT FOR 0302206	$223.80
0311141	Texas (THI) cylinder: SEAL KIT 0306744	$220.80

SEAL KIT, UNDERLIFT EXTEND CYLINDER Call for price —

5

0306746

UNDERLIFT FOLD CYLINDER (COMPLETE)

1

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

SEAL KIT, UNDERLIFT FOLD CYLINDER Call for price —

6 0303691 REAR SPADE CYLINDER (COMPLETE) 2 Call for price —

Seal kit for 0303691 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304627	Southern (SHCI) cylinder: SEAL KIT FOR 0303691	$101.00
0301353	Texas (THI) cylinder: SEALKIT, JACK, 4x23	$103.00

SEAL KIT, REAR SPADE CYLINDER Call for price —

Challenger CH-35 (2001 manual) Glad Hand Kit diagram

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301909	RECEPTACLE BOOT	1	Call for price	—
2	0301944	GLAD HAND COUPLING	2	Call for price	—
3	0301945	GLAD HAND PLUG	2	$38.80
4	0301946	BULKHEAD CONNECTOR	2	$93.80
5	0301947	ADAPTER, 1/4" NPM X 3/8" SYN. HOSE	2	Call for price	—
6	0301948	HD 7-WAY TRAILER CONNECTOR	1	$59.60
7	0400070	SCREW, 1/4"-20 X 1" HEX HD CAP	2	$5.80
8	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.80
9	0400451	WASHER, 1/4" FLAT	2	$5.80
10	0703795	AIR HOSE, 3/8" X 48" SYNFLEX	2	Call for price	—

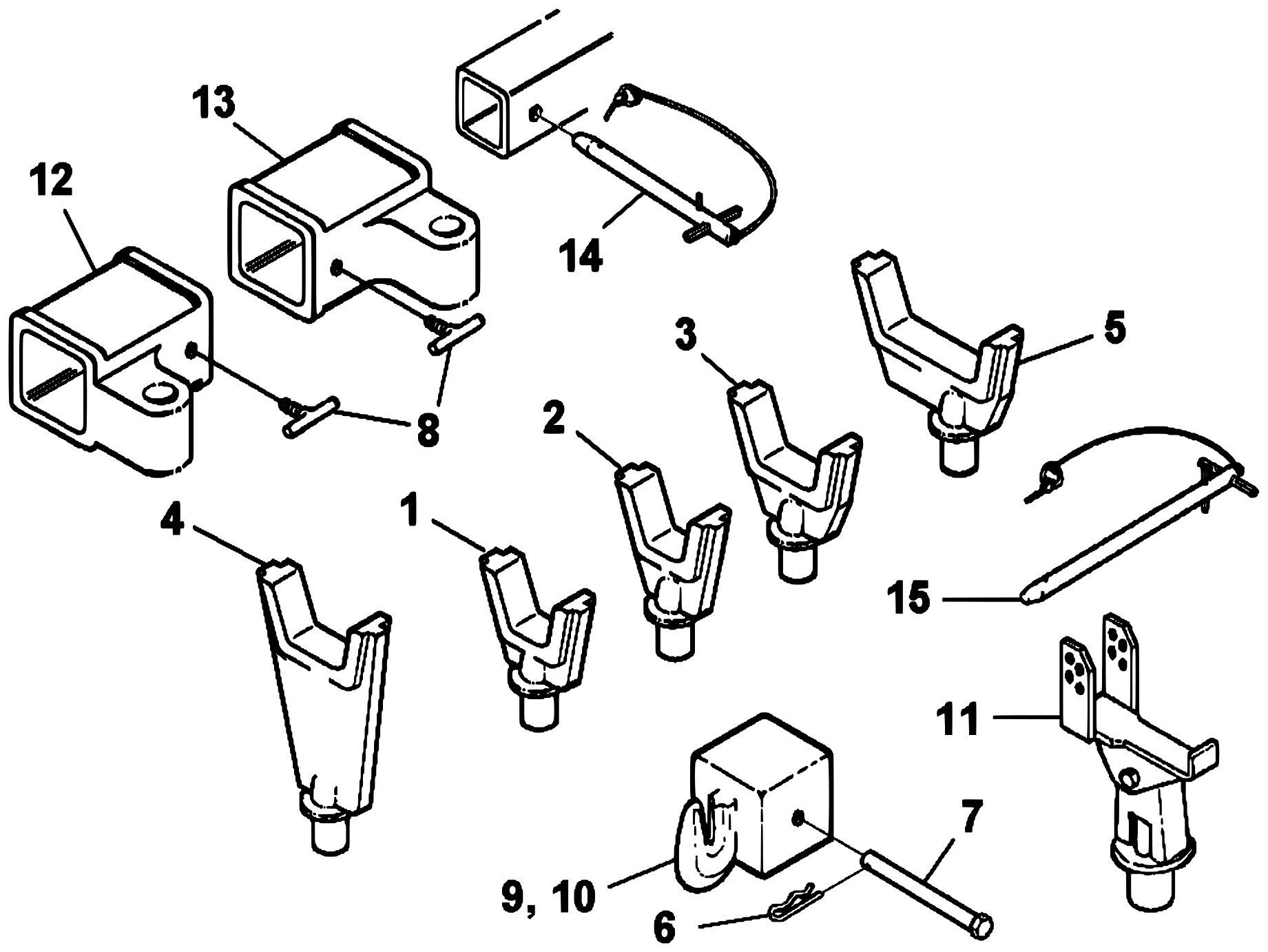

Challenger CH-35 (2001 manual) Lift Adapters diagram

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0200018	FORK, SHORT (3" OPENING)	2	$158.80
2	0200020	FORK, MEDIUM (3" OPENING)	2	$216.60
3	0200021	FORK, MEDIUM (4-1/2" OPENING)	2	$251.00
4	0200023	FORK, LONG (4-1/2" OPENING)	2	$339.40
5	0200024	FORK, OFFSET REAR AXLE	2	$251.00
6	0400585	HAIR PIN COTTER, 1-1/4"	2	$5.80
7	0711002	BOLT, MODIFIED 5/8"-11 X 6" WITH HOLE	2	Call for price	—
8	0800590	TEE HANDLE, FORK ADAPTER	2	$29.00
9	0801186	CHAIN HOOK ADAPTER, RT	1	$373.60
10	0801187	CHAIN HOOK ADAPTER, LT	1	Call for price	—
11	0802810	PIVOT PIN LIFT BRACKET	2	Call for price	—
12	0803591	FORK ADAPTER, LT	1	$875.00
13	0803592	FORK ADAPTER, RT	1	$875.00
14	0900900	RETAINER PIN ASSEMBLY	2	$32.80
15	0902321	RETAINING PIN, SPRING LIFT BRACKET	2	Call for price	—

Challenger CH-35 (2001 manual) King Pin Adapter diagram

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0803605	KING PIN ADAPTER WELDMENT	1	$1,371.20
	0902782	FIFTH WHEEL ADAPTER (COMPLETE)	--	Call for price	—
2	0400555	ROLL PIN, 3/8" X 1-1/2"	1	$5.80
3	HD1259	SNAPPER PIN	2	$13.80
4	VA0660	FIFTH WHEEL PIVOT PLATE WELDMENT	1	Call for price	—
5	VA0661	PULL PIN WELDMENT	1	$135.40
6	VA0662	PIVOT PIN WELDMENT	1	$128.20
	124002211	PINTLE HOOK KIT (COMPLETE)	--	$1,213.80
7	0302198	PINTLE HOOK (NOT SHOWN)	1	$249.20
8	0400176	SCREW, 1/2"-13 X 1" HEX HD CAP	4	$5.80
9	0400491	LOCKWASHER, 1/2" HELICAL	4	$5.80
10	0803604	5TH WHEEL, KING PIN ADAPTER & PINTLE HOOK BRACKET WELDMENT	1	Call for price	—
11	0902378	RETAINING PIN ASSEMBLY	2	$63.00

Challenger CH-35 (2001 manual) Light Kit diagram

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0302542	LIGHT, STOP & TURN (COMPLETE)	4	$75.80
2	0302543	LIGHT, BACK-UP (COMPLETE)	2	$75.80
3	0400025	SCREW, #8-32 X 3/4" RD HD SLOTTED	24	$5.80

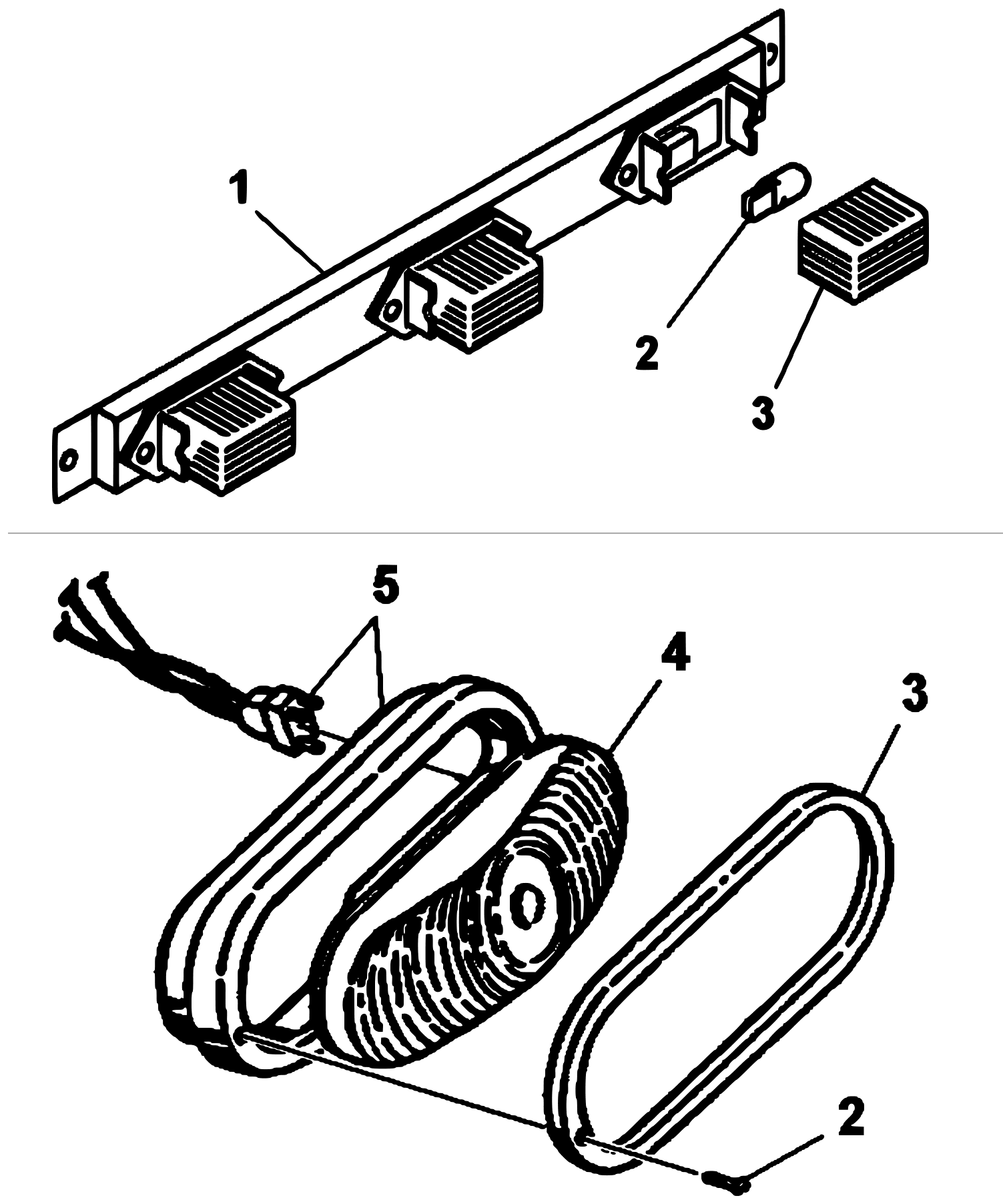

Challenger CH-35 (2001 manual) Light Kit (Cont'd) (1 of 3) diagram

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price	Quick Add to Cart
1	0300442	3-LIGHT BAR ASSEMBLY (COMPLETE)	$33.00
2	0300507	BULB, MARKER LIGHT	Call for price	—
3	0200511	LENS, 3-LIGHT BAR	Call for price	—
1	0301390	LIGHT, TURN (COMPLETE)	$29.00
2	0304123	BEZEL MOUNTING SCREW	Call for price	—
3	0304124	CHROME BEZEL	$13.20
4	0304125	LENS & BULB ASSEMBLY	Call for price	—
5	0304126	GROMMET & PLUG KIT	Call for price	—

Challenger CH-35 (2001 manual) Light Kit (Cont'd) (2 of 3) diagram

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price
1	0302201	LIGHT, FLOOD (COMPLETE)	$37.40
1	0302611	LIGHT, AMBER MARKER (COMPLETE)	$45.20
1	0302544	LIGHT, DOME (COMPLETE)	$22.40

Challenger CH-35 (2001 manual) Light Kit (Cont'd) (3 of 3) diagram

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price	Quick Add to Cart
1	0301740	GROMMET & PLUG, MARKER LIGHT	$18.80
2	0301741	SEALED MARKER LIGHT, RED	$9.40
3	0301742	SEALED MARKER LIGHT, AMBER	$23.20
1	0300076	BRACKET, LICENSE PLATE	$7.20
2	0300273	LICENSE PLATE ILLUMINATOR (COMPLETE)	$25.20
3	0300512	BULB, LICENSE PLATE ILLUMINATOR	Call for price	—

Challenger CH-35 (2001 manual)

Subframe Assembly

Body Assembly

Recovery Boom Assembly

Underlift & Tower Assembly

Underlift Hydraulics

Recovery Boom Hydraulics

Pump, Valve & Filter Hydraulics

Planetary Winch Hydraulics & Air Free Spool

Left Control Assembly

Remote Control Assembly

Right Control Assembly

Rear Spade Hydraulics

Hydraulic Cylinders

Glad Hand Kit

Lift Adapters

King Pin Adapter

Light Kit

Light Kit (Cont'd) (1 of 3)

Light Kit (Cont'd) (2 of 3)

Light Kit (Cont'd) (3 of 3)
