Century 1060S SDU2 (2000 manual)

Show parts list (62 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0301851	TRIM-LOK, 1/8"Priced per foot	3 FT.	$3.53
2	0302540	CENTER BONDED MOUNT	8	$54.70
3	0302541	SPECIAL WASHER	16	$23.72
4	0303056	"D" GASKET (NOT SHOWN)Priced per foot	7 FT.	$7.68
5	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	20	$5.84
6	0400276	SCREW, 5/8"-11 X 4-1/2" HEX HD CAP	4	$8.01
7	0400281	SCREW, 3/4"-10 X 3-1/2" HEX HD CAP	8	$8.01
8	0400294	SCREW, 3/4"-10 X 6-1/2" HEX HD CAP	8	$13.84
9	0400430	NUT, 3/4"-10 HEX NYLOK	16	$5.84
10	0400452	LOCKWASHER, 1/4" HELICAL	15	$5.84
11	0400506	WASHER, 5/8" FLAT	8	$5.84
12	0400508	LOCKWASHER, 5/8" HELICAL	4	$5.84
13	0707194	COVER, SPADE TUBE	2	$54.70
14	0710537	PLATE, VALVE COVER	1	Call for price	—
15	0712204	REINFORCEMENT, OUTER TUBE	2	$133.13
16	0714342	COVER, LT CHAIN BOX	1	Call for price	—
17	0714343	COVER, RT CHAIN BOX	1	Call for price	—
18	0804114	CYLINDER COVER WELDMENT	1	Call for price	—
19	0804240	1060S - SDU/2 SUBFRAME WELDMENT	1	Call for price	—
--	0902553	"D" RING KIT (NOT SHOWN)	--	$406.55
20	0400564	ROLL PIN, 3/8" X 1-3/4" (NOT SHOWN)	2	$5.84
21	0708452	"D" RING, TOWING (NOT SHOWN)	2	$268.06
22	GA0215	PIN, "D" RING (NOT SHOWN)	2	$82.07
--	0903729	SAFETY CHAIN ASSEMBLY	--	Call for price	—
23	0303445	SAFETY CHAIN - SYSTEM 10	2	$531.08
24	0400211	SCREW, 1/2"-13 X 1-3/4" HEX HD CAP	2	$5.84
25	0400408	NUT, 1/2"-13 HEX NYLOK	2	$2.82
26	0400492	WASHER, 1/2" FLAT	4	$5.84
--	0903793	HOUSE LOCK KIT (NOT SHOWN)	--	Call for price	—
28	0300341	KNOB, BLACK	1	$9.25
29	0302230	ADJUSTABLE CLEVIS, AC-210	1	$10.18
30	0302231	ADJUSTABLE CLEVIS, AC-218	1	$13.84
31	0302641	SPRING, PLUNGER PIN	1	$9.50
32	0303229	CONTROL CABLE, 90"	1	$344.64
33	0400070	SCREW, 1/4"-20 X 1" HEX HD CAP	1	$5.84
34	0400095	SCREW, 5/16"-18 X 1/2" SHOULDER	1	$9.85
35	0400118	SCREW, 5/16"-18 X 3/4" HEX HD CAP	4	$5.84
36	0400148	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	6	$5.12
37	0400150	SCREW, 3/8"-16 X 2-1/2" HEX HD CAP	1	$5.84
38	0400365	NUT, 1/4"-28 HEX	2	$4.01
39	0400367	NUT, 1/4"-20 HEX NYLOK	1	$5.84
40	0400382	NUT, 5/16"-18 HEX NYLOK	4	$5.84
41	0400388	NUT, 3/8"-24 HEX NYLOK	2	$5.78
42	0400392	NUT, 3/8"-16 HEX NYLOK	7	$5.84
43	0400393	NUT, 3/8"-16 HEX JAM	1	$5.84
44	0400463	WASHER, 5/16" FLAT	1	$5.84
45	0400480	WASHER, 3/8" FLAT	5	$4.01
46	0400492	WASHER, 1/2" FLAT	1	$5.84
47	0705698	CONNECTOR, ALLTHREAD	1	$6.64
48	0709331	RETAINING PIN, HOUSE LOCK	1	$337.06
49	0709380	BELL CRANK, HOUSE LOCK	1	Call for price	—
50	0709655	PLATE, CONTROL CABLE MOUNTING	1	$19.68
51	0711970	BRACKET, HOUSE LOCK CONTROL	1	$103.94
52	0712230	BOSS, TURNTABLE LOCK	2	$275.40
53	0712741	COVER PLATE, HOUSE LOCK	1	$40.12
54	0715717	SPRING, SPACER	1	Call for price	—
55	0802859	CONTROL HANDLE, WELDMENT	1	Call for price	—
56	0803056	COVER, HOUSE LOCK WELDMENT	1	Call for price	—
57	HD0900	BEARING, ROD END 1/4"-28	1	$22.62
--	0904049	BOOM/TAILGATE BUMPER KIT	--	Call for price	—
58	0303481	SLIDE PAD, BUMPER	2	$18.95
59	0400223	SCREW, 3/8"-16 X 3/4" FL HD SKT	4	$5.84

Century 1060S SDU2 (2000 manual) Body Assembly diagram

Show parts list (36 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300345	FENDER, RUBBERPriced per foot	35 FT.	$25.72
2	0301223	MUDFLAP	2	$31.48
3	0303728	TOOL COMPARTMENT, LEFT 180" C.B.	1	Call for price	—
4	0303729	TOOL COMPARTMENT, RIGHT 180" C.B.	1	Call for price	—
5	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	6	$5.84
6	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	8	$5.84
7	0400303	SCREW, 7/8"-9 X 2-1/2" HEX HD CAP	76	$5.84
8	0400369	CLIP, 1/4" "J" TINNERMAN	6	$5.84
9	0400392	NUT, 3/8"-16 HEX NYLOK	8	$5.84
10	0400436	NUT, 7/8"-9 HEX NYLOK	76	$5.84
11	0400451	WASHER, 1/4" FLAT	6	$5.84
12	0400566	RIVET, 1/4"	108	$1.63
13	0705090	ANGLE, MUDFLAP MOUNTING LEFT	1	$17.67
14	0705091	ANGLE, MUDFLAP MOUNTING RIGHT	1	$29.33
15	0705092	BAR, MUDFLAP	2	$45.58
16	0706609	RETAINING STRIP, RUBBER FENDER	6	$60.17
17	0712761	PANEL, CONTROL	1	Call for price	—
18	0712155	PANEL, CONTROL, 12 SLOT	1	Call for price	—
19	0712156	PANEL, GAUGE	1	Call for price	—
20	0712157	PANEL, WINCH FREE SPOOL	1	Call for price	—
21	0712159	PANEL, CONTROL	1	Call for price	—
22	0801175	FORK STORAGE BRACKET	2	$289.92
--	0901496	CENTURY NAMEPLATE KIT	--	Call for price	—
24	0400035	SCREW, #10-24 X 1/2" OVAL HD SELF TAP	6	$5.84
25	0500406	CENTURY NAMEPLATE	2	$102.10	—
--	0902113	BOARDING STEP KIT	--	Call for price	—
26	0300097	FOLDING STEP	2	Call for price	—
27	0400101	SCREW, 5/16"-18 X 1" RD HD SLOTTED	4	$5.84
28	0400382	NUT, 5/16"-18 HEX NYLOK	4	$5.84
--	0903069	BACKUP ALARM KIT (NOT SHOWN)	--	Call for price	—
29	0303061	BACK UP ALARM	1	$76.59
30	0400057	SCREW, 1/4"-20 X 1-1/4" HEX HD CAP	2	$5.84
31	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.84
--	0903999	DOOR BUMPER KIT (NOT SHOWN)	--	Call for price	—
32	0301934	DOOR STOP	16	$5.67
33	0400016	SCREW, #8-32 X 1" FL PHL HD MACH	16	Call for price	—

Century 1060S SDU2 (2000 manual) SDU/2 Assembly diagram

Show parts list (68 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300110	SNAP RING, 1"	4	$5.84
2	0300113	GREASE FITTING	15	$5.84
3	0300329	SNAP RING, 2" EXTERNAL	4	$1.79
4	0301197	COMPRESSION SPRING	1	$9.33
5	0301397	GREASE FITTING, 90°	2	$3.78
6	0301398	STEEL BALL,1-3/16"	1	$15.67
7	0301817	SLIDE PAD	3	$49.20
8	0301818	SLIDE PAD	3	$49.20
9	0301822	O-RING, PIVOT PIN	1	$3.78
10	0302537	FOLD CYLINDER	1	Call for price	—
11	0303088	BUSHING, PIVOT PIN	1	$397.53
12	0303097	THRUST WASHER, 1/8"	2	$91.19
13	0303098	THRUST WASHER, 1/16"	2	$54.70
14	0303501	EXTEND CYLINDER	1	$6,945.56
15	0303902	TILT CYLINDER	2	$3,610.45
16	0400044	DRIVE SCREW, #10 X 1/2" RD HD	8	$5.84
17	0400139	SCREW, 3/8"-16 X 1-1/2" HEX SKT SET	2	$5.84
18	0400151	SCREW, 3/8"-24 X 3/4" HEX HD CAP	6	$5.84
19	0400196	SCREW, 1/2"-13 X 1-1/4" SKT HD CAP	4	$8.01
20	0400219	SCREW, 1/2"-13 X 4-1/2" HEX HD CAP	1	$8.01
21	0400228	SCREW, 3/8"-24 X 5/8" BUTTON HD SKT	4	$9.85
22	0400271	SCREW, 5/8"-11 X 4-1/2" SKT HD CAP	2	$13.84
23	0400288	SCREW, 3/4"-10 X 2-1/2" HEX HD CAP GR8	8	$9.85
24	0400306	SCREW, 7/8"-9 X 3" HEX HD CAP GR8	8	$8.01
25	0400392	NUT, 3/8"-16 NYLOK HEX	2	$5.84
26	0400408	NUT, 1/2"-13 NYLOK HEX	1	$2.82
27	0400430	NUT, 3/4"-10 NYLOK HEX	8	$5.84
28	0400437	NUT, 7/8"-9 NYLOK HEX	8	$19.68
29	0400481	LOCKWASHER, 3/8" EXTERNAL TOOTH	6	$5.84
30	0400508	LOCKWASHER, 5/8" HELICAL	2	$5.84
31	0703233	STOP PLATE	1	$35.75
32	0703277	SLIDER PAD	2	$11.66
33	0707179	PIN	1	$219.10
34	0708470	SPACER, DETENT BALL	1	$17.67
35	0709242	PIN, MAIN PIVOT	1	$1,532.03
36	0710051	PIVOT PIN, TOP HALF	1	$302.66
37	0710052	PIVOT PIN, BOTTOM HALF	1	$302.66
38	0710450	RETRACT BAR	2	$41.94
39	0712174	SHAFT, EXTEND CYLINDER INNER BOOM	1	$119.16
40	0712195	SHAFT, EXTEND CYLINDER OUTER BOOM	1	$87.51
41	0712213	STOP PLATE	2	$76.59
42	0714209	PIVOT PIN	1	$1,221.71
43	0714218	PIN, TILT CYLINDER ROD END	1	$215.18
44	0714219	PIN, LIFT CYLINDER ROD END	1	$273.52
45	0714240	PIN, FOLD CYLINDER	1	$69.32
46	0802914	CROSSBAR WELDMENT	1	$3,132.72
47	0803441	2ND STAGE BOOM WELDMENT	1	$4,230.44
48	0803442	INNER BOOM WELDMENT	1	$5,627.93
49	0804029	OUTER BOOM WELDMENT	1	$12,147.89
50	0804030	OUTER MAST WELDMENT	1	$14,268.55
51	0804032	INNER MAST WELDMENT	1	$10,774.84
52	0804034	TILT CYLINDER MOUNTING BRACKET	1	$1,712.25
53	0804035	LEFT PIVOT SUPPORT WELDMENT	1	Call for price	—
54	0804036	RIGHT PIVOT SUPPORT WELDMENT	1	Call for price	—
55	HC0159	LIFT CYLINDER	1	$3,368.10
56	HD0152	SNAP RING, 3" EXTERNAL	2	$3.78
57	UK0126	PIN, TILT CYLINDER BASE END	1	$187.81
--	0904785	HOSE TENSION KIT (NOT SHOWN)	--	$771.34
58	0400082	EYEBOLT, 1/4"-20 X 1-1/8"	2	$5.84
59	0400191	SCREW, 1/2"-13 X 3-3/4" HEX HD CAP	4	$5.84
60	0400366	NUT, 1/4"-20 HEX	2	$5.84
61	0400367	NUT, 1/4"-20 NYLOK HEX	1	$5.84
62	0400413	NUT, 1/2"-20 NYLOK HEX	4	Call for price	—
63	0703484	PULLEY, HOSE TENSIONER	4	$67.45
64	0703487	BRACKET, HOSE TENSIONER PULLEY	2	$22.62
65	0703488	WASHER, HOSE TENSIONER PULLEY	8	$8.01
66	0714388	ANGLE, NYLON SHEAVE	4	$19.83
67	AWS-1011-A	CLAW SPRING	2	$27.53

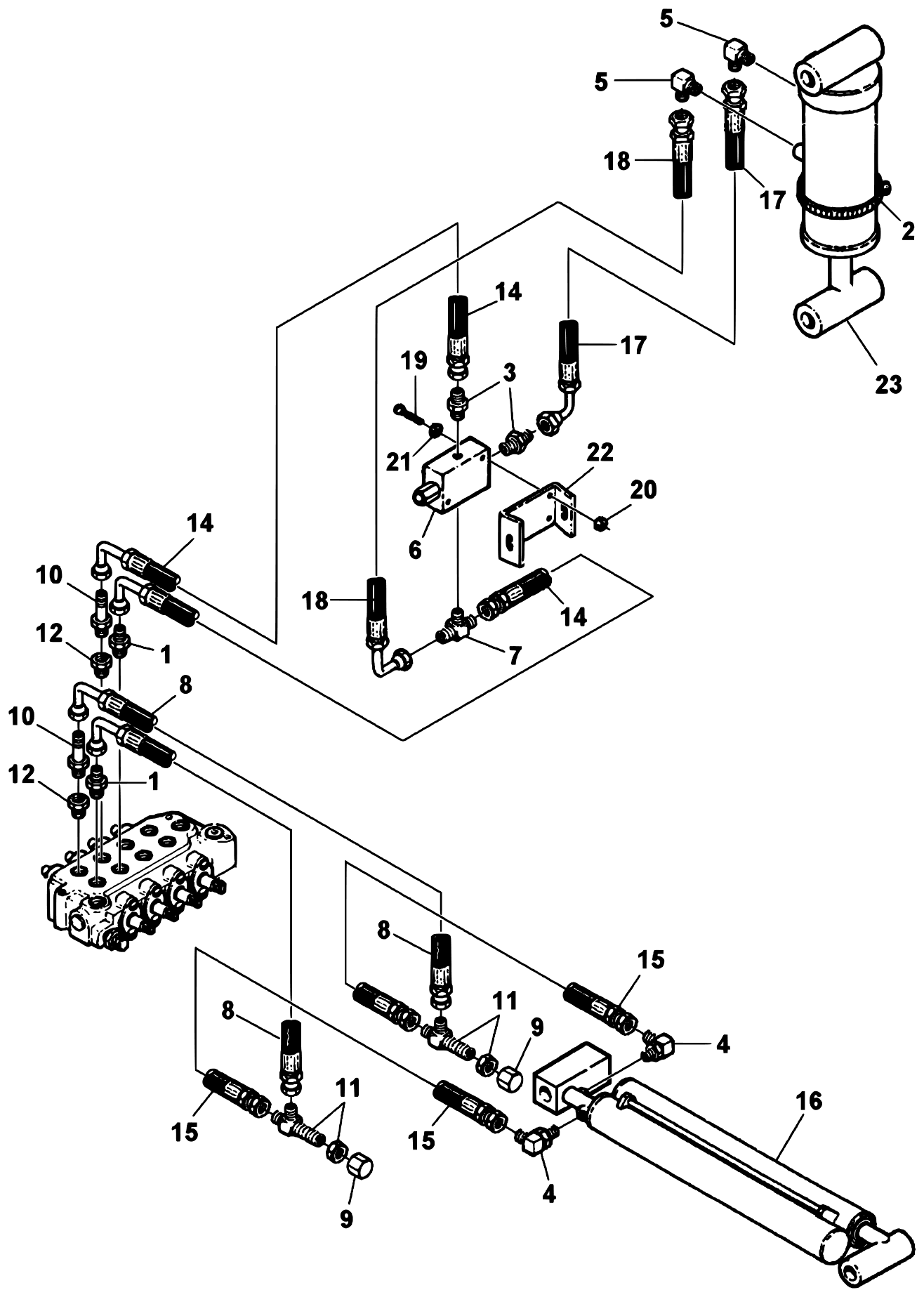

Century 1060S SDU2 (2000 manual) SDU/2 Lift & Extend Hydraulics diagram

Show parts list (23 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300044	CONNECTOR, 6MJ-8MB	2	$3.78
2	0300644	HOSE CLAMP, 8"	1	$19.68
3	0301425	CONNECTOR, 6MJ-6MP	2	$3.78
4	0301470	ELBOW, 6MJ-8MB90	2	$7.68
5	0301620	ELBOW, 6MJ-6MB90	2	$5.76
6	0301731	HOLDING VALVE	1	$331.88
7	0301782	MALE RUN TEE, 6MJ-4MP-6MJ	1	$8.92
8	0301998	HOSE ASSEMBLY, 24"	2	$56.54
9	0302065	CAP, 6MJ	2	Call for price	—
10	0302510	ADAPTER, 6MJ-6MBL	2	Call for price	—
11	0302575	BULKHEAD RUN TEE, 6MJ	2	$18.95
12	0303017	CONNECTOR, 8MB-6FB	2	$5.67
13	0303093	CONTROL VALVE, VDP11DDDC110	REF.	$1,453.30
14	0303170	HOSE ASSEMBLY, 75"	2	$94.80
15	0303187	HOSE ASSEMBLY, 141"	2	$103.94
16	0303501	EXTEND CYLINDER	1	$6,945.56
17	0303967	HOSE ASSEMBLY, 7"	1	Call for price	—
18	0303968	HOSE ASSEMBLY, 10"	1	Call for price	—
19	0400078	SCREW, 1/4"-20 X 2" HEX HD CAP	2	$5.84
20	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.84
21	0400451	WASHER, 1/4" FLAT	2	$5.84
22	0703001	BRACKET, CHECK VALVE MOUNTING	1	$24.66
23	HC0159	LIFT CYLINDER	1	$3,368.10

Century 1060S SDU2 (2000 manual) SDU/2 Tilt & Fold Hydraulics diagram

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300044	CONNECTOR, 6MJ-8MB	2	$3.78
2	0300365	CLAMP, CHECK VALVE RETAINING, 7"	1	$12.43
3	0301388	ELBOW, 8MJ-8MB90	3	$13.32
4	0301425	CONNECTOR, 6MJ-6MP	2	$3.78
5	0301619	BRANCH TEE, 6MJ-6MJ-6MB	2	$11.32
6	0301620	ELBOW, 6MJ-6MB90	2	$5.76
7	0301730	DOUBLE HOLDING VALVE	1	$565.26
8	0301731	HOLDING VALVE	1	$331.88
9	0301782	MALE RUN TEE, 6MJ-4MP-6MJ	1	$8.92
10	0301837	INLINE ORIFICE	2	Call for price	—
11	0301997	HOSE ASSEMBLY, 18"	2	$37.76
12	0301998	HOSE ASSEMBLY, 24"	1	$56.54
13	0302510	ADAPTER, 6MJ-6MBL	2	Call for price	—
14	0302808	HOSE ASSEMBLY, 18"	5	$52.88
15	0302813	HOSE ASSEMBLY, 108"	2	$103.94
16	0302886	HOSE ASSEMBLY, 45"	2	Call for price	—
17	0303017	CONNECTOR, 8MB-6FB	2	$5.67
18	0303093	CONTROL VALVE, VDP11DDDC110	REF.	$1,453.30
19	0303902	TILT CYLINDER	2	$3,610.45
20	0306508	FOLD CYLINDER	1	$1,319.27
21	0400078	SCREW, 1/4"-20 X 2" HEX HD CAP	6	$5.84
22	0400367	NUT, 1/4"-20 HEX NYLOK	6	$5.84
23	0400451	WASHER, 1/4" FLAT	2	$5.84
24	0703001	BRACKET, CHECK VALVE MOUNTING	2	$24.66

Century 1060S SDU2 (2000 manual) SDU/2 Lift Adapters diagram

SDU Lift Adapters

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0200018	FORK, SHORT 3" OPENING	2	$160.45
2	0200019	FORK, SHORT 4-1/2" OPENING	2	$178.69
3	0200020	FORK, MEDIUM 3" OPENING	2	$218.80
4	0200021	FORK, MEDIUM 4-1/2" OPENING	2	$253.45
5	0200022	FORK, LONG 3" OPENING	2	$264.40
6	0200023	FORK, LONG 4-1/2" OPENING	2	$342.83
7	0200024	FORK, OFFSET REAR AXLE 6" OPENING	2	$253.45
8	0306564	TEE HANDLE, ALUMINUM 5/8" X 1-1/4"	4	$18.95
9	0400585	HAIR PIN COTTER, 1-1/4"	2	$5.84
10	0711002	BOLT, MODIFIED 5/8"-11 X 6" w/HOLE	2	Call for price	—
11	0801186	CHAIN HOOK ADAPTER, RT	1	$377.33
12	0801187	CHAIN HOOK ADAPTER, LT	1	Call for price	—
13	0801459	RISER BRACKET	2	$902.62
14	0803591	OFFSET FORK ADAPTER, LT	1	$911.39
15	0803592	OFFSET FORK ADAPTER, RT	1	$911.39
16	0802810	SPRING LIFT BRACKET	2	Call for price	—
17	0900900	RETAINING PIN ASSEMBLY	2	$33.12
18	0902321	RETAINER PIN, SPRING LIFT BRACKET	2	Call for price	—

King Pin & Fifth Wheel Adapters

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0803605	KING PIN ADAPTER WELDMENT	1	$1,490.35
--	0902782	FIFTH WHEEL ADAPTER (COMPLETE)	--	Call for price	—
2	0400555	ROLL PIN, 3/8" X 1-1/2"	1	$5.84
3	HD1259	PIN, SNAPPER	2	$13.84
4	VA0660	5TH WHEEL PIVOT PLATE WELDMENT	1	Call for price	—
5	VA0661	PULL PIN WELDMENT	1	$136.75
6	VA0662	PIVOT PIN WELDMENT	1	$129.48
--	124002211	PINTLE HOOK KIT (COMPLETE)	--	$1,319.25
7	0302198	PINTLE HOOK (Not Shown)	1	$251.63
8	0400176	SCREW, 1/2"-13 X 1" HEX HD CAP	4	$5.84
9	0400491	LOCKWASHER, 1/2" HELICAL	4	$5.84
10	0803604	5TH WHEEL, KING PIN ADAPTER & PINTLE HOOK BRACKET	1	Call for price	—
11	0902378	RETAINING PIN ASSEMBLY	2	$63.72

Century 1060S SDU2 (2000 manual) Recovery Boom Assembly diagram

Show parts list (58 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300113	GREASE FITTING	6	$5.84
2	0301691	MASTER LINK, OBLONG	2	$37.76
3	0301923	SLIDE PAD, BOOM BOTTOM	2	$76.59
4	0301924	SLIDE PAD, BOOM SIDE	6	$47.42
5	0301989	WIRE ROPE, 6 X 25 IWRC, 3/4" X 250 FT.	2	Call for price	—
6	0302060	ANCHOR SHACKLE, 1-1/2"	1	Call for price	—
7	0302061	SAFETY CHAIN, 5/8" ALLOY	2	Call for price	—
8	0302273	SPRING, WINCH CABLE TIE-BACK	2	$67.45
9	0302830	BOOM EXTEND CYLINDER	1	$18,799.86
10	0303026	SLEW RING	1	Call for price	—
11	0303092	BOOM LIFT CYLINDER	2	$9,468.91
12	0303504	WINCH, DP S50-50K (Not Shown)	2	Call for price	—
13	0305023	SNAP RING	4	$3.01
14	0305031	SLIDE PAD, INNER BOOM	2	$47.42
15	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	2	$5.84
16	0400126	SCREW, 3/8"-16 X 1" HEX HD CAP	8	$5.84
17	0400130	SCREW, 3/8"-16 X 3-1/2" HEX HD CAP	2	$5.84
18	0400141	SCREW, 3/8"-16 X 7/8" HEX HD CAP	8	$5.84
19	0400172	SCREW, 3/8"-16 X 4-1/2" HEX HD CAP	2	Call for price	—
20	0400205	SCREW, 1/2"-13 X 3" HEX HD CAP	2	$5.84
21	0400206	SCREW, 1/2"-13 X 5" HEX HD CAP	1	$9.85
22	0400248	SCREW, 5/8"-11 X 1" HEX HD CAP	4	$5.84
23	0400298	SCREW, 3/4"-10 X 5" HEX HD CAP	16	Call for price	—
24	0400318	SCREW, 1"-8 X 3" SKT HD CAP	1	$19.68
25	0400336	SCREW, 1"-8 X 3" HEX HD CAP	35	$11.66
26	0400338	SCREW, 1"-8 X 6-1/2" HEX HD CAP	36	$11.66
27	0400392	NUT, 3/8"-16 HEX NYLOK	4	$5.84
28	0400408	NUT, 1/2"-13 HEX NYLOK	3	$2.82
29	0400430	NUT, 3/4"-10 NYLOK HEX	16	$5.84
30	0400482	LOCKWASHER, 3/8" HELICAL	20	$5.84
31	0400508	LOCKWASHER, 5/8" HELICAL	4	$5.84
32	0400522	WASHER, 1-1/16 X 2 X 1/8" HARDENED	36	$5.84
33	0400523	WASHER, 1-1/16 X 2-1/2 X 1/8" HARDENED	36	$5.84
34	0400557	ROLL PIN, 1/2" X 1-1/4"	6	$5.84
35	0700778	TOP SPACER, OUTER BOOM	2	$59.81
36	0703734	SHIM, SIDE PLATE, OUTER BOOM	6	$7.68
37	0703736	SHAFT, CYLINDER PIVOT	2	$147.69
38	0703737	SHAFT, LIFT CYLINDER PIVOT	1	$100.30
39	0703738	SHAFT, BOOM PIVOT	1	$826.03
40	0703739	SHAFT, EXTEND CYLINDER, ROD END	1	$305.72
41	0703740	SHAFT, EXTEND CYLINDER, BASE END	1	$213.34
42	0705902	ROLL PIN, 3/8" X 1-3/4"	4	Call for price	—
43	0705907	PLATE, ACCESS COVER	1	Call for price	—
44	0706042	CABLE WING, LONG	1	$207.86
45	0706043	CABLE WING, MEDIUM	1	$96.61
46	0710638	"D" RING PIN, INNER BOOM	1	$116.73
47	0710643	"D" RING PIN, OUTER BOOM	1	$131.29
48	0711998	ANGLE, WINCH MOUNTING (Not Shown)	4	Call for price	—
49	0801085	OUTER BOOM WELDMENT	1	Call for price	—
50	0803721	LOCK WELDMENT	2	$218.34
51	0804025	INNER BOOM WELDMENT	1	Call for price	—
52	0804308	RECOVERY FRAME WELDMENT, 1060S	1	Call for price	—
53	0903776	BOOM SWIVEL ASSEMBLY, LEFT	1	Call for price	—
54	0903777	BOOM SWIVEL ASSEMBLY, RIGHT	1	Call for price	—
55	MM12B	RING, TOWING	4	$246.16
--	0904612	BOOM ANGLE KIT (Not Shown)	--	$849.74
56	0303887	INCLINOMETER KIT	1	Call for price	—
57	0400045	SCREW, #10-32 X 1/2" THRD CUT RD HD	4	$0.71

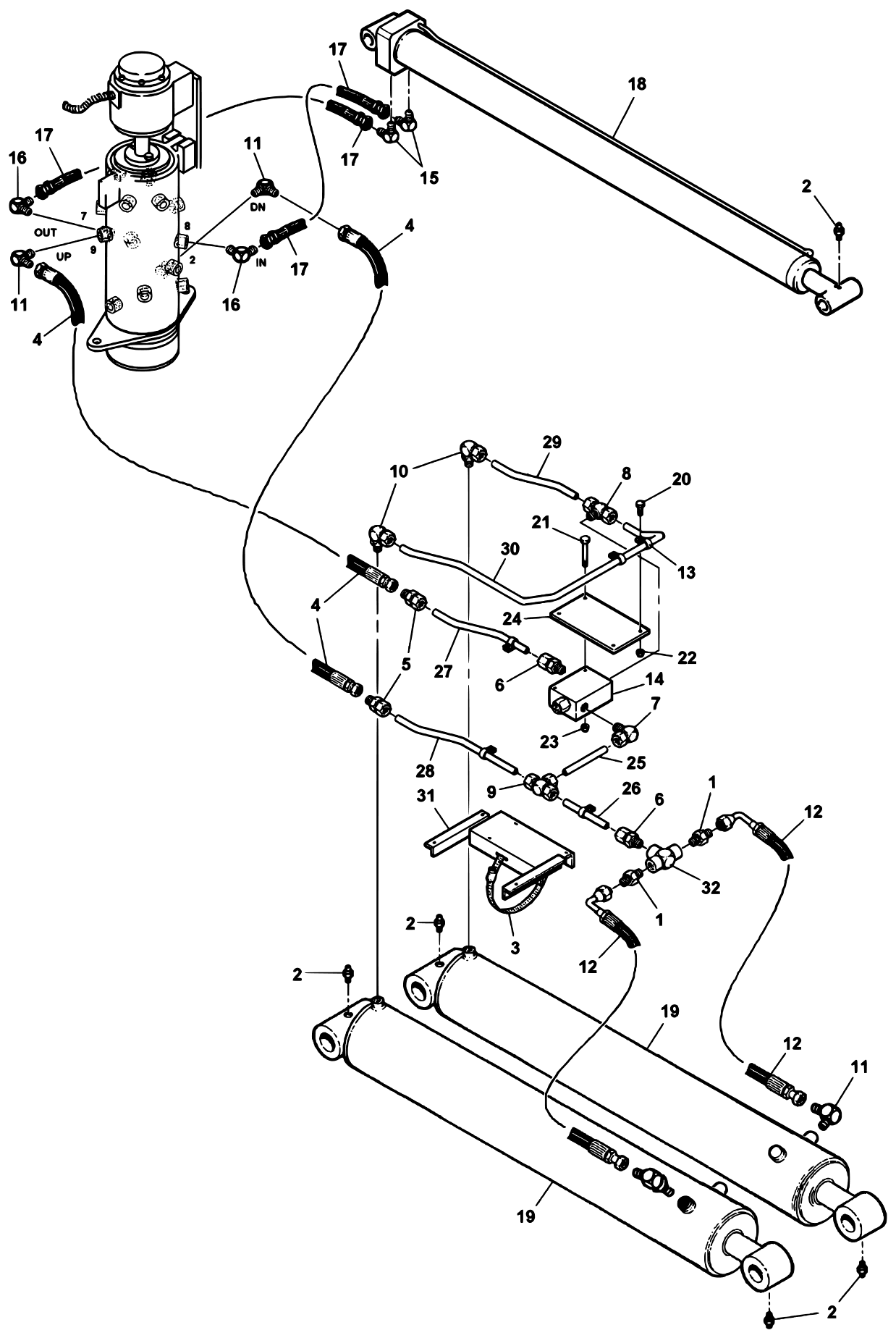

Century 1060S SDU2 (2000 manual) Boom Hydraulics diagram

Show parts list (32 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300040	CONNECTOR, 8MJ-8MP	2	$9.85
2	0300113	GREASE FITTING	6	$5.84
3	0300644	HOSE CLAMP, 8"	1	$19.68
4	0300659	HOSE ASSEMBLY, 45"	2	$61.95
5	0300761	STRAIGHT ADAPTER	2	Call for price	—
6	0300762	MALE CONNECTOR	2	Call for price	—
7	0300763	MALE ELBOW	1	Call for price	—
8	0300766	MALE BRANCH TEE	1	Call for price	—
9	0300767	TEE UNION	1	Call for price	—
10	0300901	ELBOW	2	$40.12
11	0301388	ELL, 8MJ-8MB90	4	$13.32
12	0301471	HOSE ASSEMBLY, 30"	2	$76.59
13	0301487	HOSE CLAMP, 1/2" INSULATED	5	Call for price	—
14	0301906	HOLDING VALVE, ACTIVATION	1	Call for price	—
15	0301983	ELBOW, 10MJ-8MB45	2	Call for price	—
16	0302321	ELBOW, 8MJ-8MB45	2	$11.57
17	0302631	HOSE ASSEMBLY, 68"	2	Call for price	—
18	0302830	CYLINDER, EXTEND	1	$18,799.86
19	0303092	CYLINDER, BOOM LIFT	2	$9,468.91
20	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	5	$5.84
21	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	2	$5.84
22	0400367	NUT, 1/4"-20 NYLOK HEX	5	$5.84
23	0400382	NUT, 5/16"-18 NYLOK HEX	2	$5.84
24	0701680	CLAMP BRACKET, HYD TUBE	1	Call for price	—
25	0709708	TUBE, LIFT CYLINDER HYDRAULIC	1	Call for price	—
26	0709709	TUBE, LIFT CYLINDER HYDRAULIC	1	Call for price	—
27	0709710	TUBE, LIFT CYLINDER HYDRAULIC	1	Call for price	—
28	0709711	TUBE, LIFT CYLINDER HYDRAULIC	1	Call for price	—
29	0709712	TUBE, LIFT CYLINDER HYDRAULIC	1	Call for price	—
30	0709713	TUBE, HYD PIPE, ELEV CYLINDER	1	$153.17
31	0802883	BRACKET, HOLDING VALVE	1	Call for price	—
32	HC1413	TEE FITTING	1	Call for price	—

Century 1060S SDU2 (2000 manual) Pump, Valve & Filter Hydraulics diagram

Show parts list (66 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300052	ELBOW, 8MJ-10MB90	2	$11.32
2	0300055	HOSE BARB, 12C4-12MP	2	$11.66	—
3	0300056	BARB, 16C4-16MP	2	$27.19
4	0300071	CLAMP, HOSE, 1"	6	$5.31
5	0300136	RETURN LINE FILTER ASSEMBLY	1	$64.70
6	0300212	HOSE ASSEMBLY, 115"	1	$114.88
7	0300288	STREET ELBOW, 90°, 3/4"	1	$13.79	—
8	0300364	CLAMP, HOSE, 1" - 2-1/4"	4	$7.07
9	0300434	HOSE BARB, 2"	1	Call for price	—
10	0300446	PIPE PLUG, 3/4" NPT MALE	1	$5.67
11	0300558	SUCTION HOSE, 2"Priced per foot	15 FT.	$23.42
12	0300660	HOSE ASSEMBLY, 120"	1	$113.04
13	0300666	BARB, 24C4-24MP	1	Call for price	—
14	0300671	SUCTION HOSE, 1-1/2"Priced per foot	15 FT.	$30.11
15	0300692	STREET ELBOW, 90°, 1"	2	$11.32
16	0301373	PIPE BUSHING, 2" NPT-1-1/2" NPT	1	Call for price	—
17	0301541	SIGHT GAGE, TYPE S-1	1	$56.54
18	0301545	ELBOW, 12MJ-12MB90	2	$18.95
19	0301547	ELBOW, 8MJ-12MB90	1	$18.95
20	0301695	HOSE ASSEMBLY, 91"	1	$103.28
21	0301762	CONTROL VALVE, VDP12DDDDDD10	1	$2,100.62
22	0301763	H.P.C.O. ADAPTER	1	$297.26
23	0301792	ELBOW, 16MB-12FR90	1	Call for price	—
24	0301836	HYDRAULIC PUMP, OPPOSITE ENGINE	1	$9,777.37
25	0301880	HOSE ASSEMBLY, 107"	1	$85.72
26	0301894	SPIN-ON FILTER ASSEMBLY	2	$278.98
27	0301904	ELBOW, 8MJ-12FL90	1	Call for price	—
28	0301905	"O" RING FLANGE KIT, 12FH	1	Call for price	—
29	0301961	BALL VALVE, BRONZE	2	Call for price	—
30	0301965	HOSE ASSEMBLY, 106"	1	$118.53
31	0302010	STREET ELL, 2" 45 DEG.	2	Call for price	—
32	0302108	REDUCER BUSHING, 20MP-16FP	2	$8.92
33	0302169	"O"-RING CONNECTOR, 16MJ-12MB	2	$13.32
34	0302170	BENT TUBE, SWIVEL 16C2-16FJX90	2	$308.15
35	0302205	GAUGE, FLUSH MOUNT, 6000 PSI	3	$45.17
36	0302227	CENTER BONDED MOUNT (Not Shown)	4	$24.66
37	0302228	SPECIAL WASHER (Not Shown)	4	$21.89
38	0302242	FLANGE FITTING, 24FL-24HOSE90	1	$377.44
39	0302277	HOSE ASSEMBLY, 106"	1	Call for price	—
40	0302296	CONTROL VALVE, VDP12CDD118	1	$1,513.42
41	0302334	CONTROL VALVE, VDP12CDCD10	1	$1,568.18
42	0302367	PIPE NIPPLE, 2" X 4"	2	Call for price	—
43	0302577	CONNECTOR, 6MJ-4FP	3	$4.23
44	0302826	TEE, 12MJ-12FJX-12MJ	2	$37.76
45	0302829	ADAPTER, 12FJ-6MJ	2	Call for price	—
46	0302901	HOSE ASSEMBLY, 120"	4	$246.16
47	0302931	ELBOW, FLANGE 24-32FL90 W/ FLANGE KIT	1	Call for price	—
48	0302932	ELBOW, 12MJ-20FL90 W/ FLANGE KIT	2	$153.17
49	0303093	CONTROL VALVE	1	$1,453.30
50	0303290	CLAMP, 2-1/2" INSULATED (Not Shown)	12	$19.68
51	0305006	FILLER CAP	1	$63.82
52	0400036	SCREW, #10-32 X 1" RD HD MACH	6	Call for price	—
53	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP (N.S.)	12	$5.84
54	0400135	SCREW, 3/8"-16 X 4-1/2" HEX HD CAP (N.S.)	6	Call for price	—
55	0400140	SCREW, 3/8"-16 X 4" HEX HD CAP (N.S.)	3	$5.84
56	0400150	SCREW, 3/8"-16 X 2-1/2" HEX HD CAP (N.S.)	2	$5.84
57	0400177	SCREW, 1/2"-13 X 1-1/4" HEX HD CAP	4	$5.84
58	0400357	NUT, #10-32 NYLOK HEX	6	$5.68
59	0400392	NUT, 3/8"-16 NYLOK HEX	13	$5.84
60	0400482	LOCKWASHER, 3/8" HELICAL	12	$5.84
61	0400491	LOCKWASHER, 1/2" HELICAL	4	$5.84
62	0704045	SPACER, CONTROL VALVE	6	Call for price	—
63	0705910	COVER PLATE	1	Call for price	—
64	0706114	GASKET, CLEANOUT & FILLER COVER	1	$42.55
65	0802787	SDU VALVE BRACKET WELDMENT	1	Call for price	—
66	0802799	RESERVOIR WELDMENT	1	Call for price	—

Century 1060S SDU2 (2000 manual) Frame Hydraulics diagram

Show parts list (56 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300787	HOSE ASSEMBLY, 53"	2	$94.80
2	0301370	HOSE ASSEMBLY, 65"	3	Call for price	—
3	0301376	CONNECTOR, 8MJ-10MB	3	Call for price	—
4	0301445	EXTENDED CONNECTOR, 8MJ-8MBL	3	$10.05
5	0301471	HOSE ASSEMBLY, 30"	4	$76.59
6	0301999	HOSE ASSEMBLY, 9"	4	Call for price	—
7	0302296	CONTROL VALVE, VDP12CDD118	REF.	$1,513.42
8	0302304	HOSE ASSEMBLY, 42"	2	$67.45
9	0302334	CONTROL VALVE, VDP12CDCD10	REF.	$1,568.18
10	0302634	HOSE ASSEMBLY, 20"	1	Call for price	—
11	0302827	CONNECTOR, 10MJ-10MB	2	$7.68
12	0302828	CONNECTOR, 10MJ-10MBL	2	$23.53
13	0303176	CONNECTOR, 10MB-8FB	3	$7.68
14	0303182	HOSE ASSEMBLY, 41"	1	Call for price	—
15	0303183	HOSE ASSEMBLY, 50"	4	Call for price	—
--	0901477	DOUBLE HOLDING VAVLE ASSEMBLY	--	Call for price	—
16	0301388	ELBOW, 8MJ-8MB90	4	$13.32
17	0302472	DOUBLE HOLDING VALVE	1	Call for price	—
18	0400130	SCREW, 3/8"-16 X 3-1/2" HEX HD CAP	2	$5.84
19	0400482	LOCKWASHER, 3/8" HELICAL	2	$5.84
--	0901480	RESTRICTOR VALVE ASSEMBLY	--	Call for price	—
20	0301425	CONNECTOR, 6MJ-6MP	4	$3.78
21	0303489	RESTRICTOR VALVE	2	$111.23
--	0903196	SHUTTLE VALVE ASSEMBLY	--	Call for price	—
22	0300142	ELBOW, 6MJ-4MP90	3	$5.17
23	0301868	MALE RUN TEE, 4FP-4FP-4MP	2	Call for price	—
24	0302053	REDUCER, 8MJ-4MP	2	Call for price	—
25	0302226	SHUTTLE VALVE	1	$273.52	—
26	0400090	SCREW, 1/4"-20 X 1-3/4" RD HD	2	Call for price	—
27	0400452	LOCKWASHER, 1/4" HELICAL	2	$5.84
--	0903030	PLANETARY GEAR REDUCER & HYDRAULIC MOTOR ASSEMBLY	--	Call for price	—
28	0301376	CONNECTOR, 8MJ-10MB	2	Call for price	—
29	0303030	PLANETARY GEAR BOX	1	$19,270.31
30	0303031	PINION GEAR (Not Shown)	1	Call for price	—
31	0303045	GEARBOX BRAKE (Not Shown)	1	Call for price	—
32	0303817	HYDRAULIC MOTOR	1	Call for price	—
33	0400177	SCREW, 1/2"-13 X 1-1/4" HEX HD CAP	4	$5.84
34	0400192	SCREW, 1/2"-20 X 1-3/4" SKT HD CAP (N.S.)	2	$1.63
35	0400254	SCREW, 5/8"-11 X 2-1/2" HEX HD CAP	16	$1.24
36	0400491	LOCKWASHER, 1/2" HELICAL	6	$5.84
37	0400508	LOCKWASHER, 5/8" HELICAL	16	$5.84
38	0709366	PINION RETAINER (Not Shown)	1	Call for price	—
39	IC209	ADAPTER, 6MJ-4MB90	1	$8.87
--	0903031	ROTARY SWIVEL ASSEMBLY	--	Call for price	—
40	0300041	CONNECTOR, 8MJ-8MB	5	$5.67
41	0301388	ELL, 8MJ-8MB90	7	$13.32
42	0301470	ELBOW, 6MJ-8MB90	2	$7.68
43	0302031	PLUG, 8MB HEX SKT	4	Call for price	—
44	0303028	HYDRAULIC SWIVEL	2	Call for price	—
45	0400272	SCREW, 5/8"-11 X 2-3/4" HEX HD CAP	2	Call for price	—
46	0400421	NUT, 5/8"-11 NYLOK HEX	2	$5.84
--	0903344	CROSSOVER RELIEF VALVE ASSEMBLY	--	Call for price	—
47	0301388	ELBOW, 8MJ-8MB90	4	$13.32
48	0303194	CROSSOVER RELIEF VALVE	1	Call for price	—
49	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP (N.S.)	2	$5.84
50	0400382	NUT, 5/16"-18 NYLOK HEX (Not Shown)	2	$5.84

Century 1060S SDU2 (2000 manual) Winch Hydraulics & Air Free Spool diagram

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300041	CONNECTOR, 8MJ-8MB	4	$5.67
2	0300324	SOLENOID VAVLE, AIR CONTROL	2	$164.65
3	0301388	ELBOW, 8MJ-8MB90	2	$13.32
4	0301574	ELBOW, 4TB-4MP90	2	Call for price	—
5	0301577	AIR HOSE, 1/4" O.D.Priced per foot	15 FT.	$5.84
6	0301610	ELBOW, 4TB-4MP	2	$10.57
7	0302320	REDUCER, 8MB-4FP	4	Call for price	—
8	0302321	ELBOW, 8MJ-8MB45	2	$11.57
9	0302335	CONNECTOR, 4TB-2MP	2	Call for price	—
10	0302431	CONVOLUTED LOOM, 3/8"Priced per foot	15 FT.	$0.30
11	0302434	CABLE TIE, 4"	5	Call for price	—
12	0302607	TEE UNION, 4TB-4TB-4TB	1	$15.14
13	0302677	BREATHER VENT, 2MP	2	$7.68
14	0302678	ELBOW, 4TB-2MP90	4	$5.67
15	0303028	HYDRAULIC SWIVEL	REF.	Call for price	—
16	0303079	CONNECTOR, 10MJ-8MB	4	$5.88
17	0303189	HOSE ASSEMBLY, 105"	4	Call for price	—
18	0303504	WINCH, DP S50-50K	2	Call for price	—
19	0400021	SCREW, #8-32 X 1/2" RD HD PHIL MACH	4	$5.84
20	0400351	NUT, #8-32 HEX & STAR WASHER	4	$5.84

Left Control Assembly

Show parts list (38 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300834	CONTROL KNOB, IN-OUT	2	$21.51
2	0300835	CONTROL KNOB, BOOM UP-DOWN	1	$13.32
3	0300836	CONTROL KNOB, JACK UP-DOWN	2	$18.95
4	0300837	CONTROL KNOB, BOOM IN-OUT	1	$15.14
5	0301884	CONTROL CABLE, 96"	2	$169.59
6	0301969	CONTROL CABLE, 84"	1	$160.45
7	0302437	CONTROL CABLE, 168"	2	Call for price	—
8	0302449	CONTROL CABLE, 148"	3	$189.63
9	0302455	CONTROL CABLE, 79"	3	$160.45
10	0302457	CONTROL CABLE, 104"	1	$169.59
11	0302726	GREASE FITTING, 1/4"-28 X 45°	12	$3.78
12	0303008	ADJUSTABLE CLEVIS	12	$9.50
13	0303379	CONTROL KNOB, SWING CW-CCW	1	$33.38
14	0303380	CONTROL KNOB, UNDERLIFT IN-OUT	1	$15.67
15	0303381	CONTROL KNOB, UNDERLIFT UP-DOWN	1	$15.67
16	0303382	CONTROL KNOB, FOLD UP-DOWN	1	$17.67
17	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	2	$5.84
18	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	12	$5.84
19	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	4	$5.84
20	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	4	$5.84
21	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.84
22	0400379	NUT, 5/16"-18 "J" TINNERMAN	4	$8.01
23	0400382	NUT, 5/16"-18 HEX NYLOK	13	$5.84
24	0400383	NUT, 5/16"-24 HEX NYLOK	12	$5.84
25	0400392	NUT, 3/8"-16 HEX NYLOK	4	$5.84
26	0400393	NUT, 3/8"-16 HEX JAM	12	$5.84
27	0400451	WASHER, 1/4" FLAT	4	$5.84
28	0400512	WASHER, 3/4" FLAT (SPECIAL)	12	Call for price	—
29	0400532	CLEVIS PIN, 5/16" X 1"	12	$5.84
30	0400541	COTTER PIN, 1/16" X 3/4"	12	$5.84
31	0500225	DECAL, AIR FREE SPOOL (NOT)	1	Call for price	—
32	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.67
33	0711245	PLATE, SHAFT SUPPORT	1	$21.49
34	0711285	SUPPORT, CONTROL (RIGHT)	1	$40.10
35	0711984	PIN, CONTROL BOX	1	Call for price	—
36	0712006	SUPPORT, CONTROL (LEFT)	1	Call for price	—
37	0803294	CONTROL HANDLE WELDMENT	12	$133.19
38	0803404	CONTROL FRAME WELDMENT	1	Call for price	—

SDU Remote Control Assembly

Show parts list (40 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
--	0903804	SDU REMOTE CONTROL ASSEMBLY	--	Call for price	—
39	0300166	WIRE CONNECTOR, SPADE	10	Call for price	—
40	0301574	ELBOW, 4TB-4MP90	1	Call for price	—
41	0301577	AIR HOSE, 1/4" O.D.Priced per foot	15 FT.	$5.84
42	0301610	CONNECTOR, 4TB-4MP	2	$10.57
43	0301618	BRASS PLUG, 4MP	2	$8.01
44	0302048	CABLE SEALING GRIP	2	Call for price	—
45	0302340	HEX PIPE BUSHING	2	$6.64
46	0302431	CONVOLUTED LOOM, 3/8" X 8"Priced per foot	1	$0.30
47	0302434	CABLE TIE, 4" 18 LB.	35	Call for price	—
48	0302677	BREATHER VENT, 2MP	1	$7.68
49	0302678	ELBOW, 4TB-2MP	12	$5.67
50	0302844	AIR SOLENOID VALVE (6)	1	Call for price	—
51	0303226	CIRCUIT BREAKER, HI-AMP WATERPROOF	1	$120.33
52	0303235	TERMINAL BLOCK	1	Call for price	—
53	0303322	ELECTRICAL CABLE, 16/10 SO	8 FT.	Call for price	—
54	0303363	AIR FILTER/REGULATOR	1	$144.04
55	0303364	AIR LUBRICATOR	1	$133.13
56	0303365	MOUNTING BRACKET	1	$7.68
57	0303735	BREATHER VENT	1	Call for price	—
58	0303781	POWER PAL, 8 POSITION	1	Call for price	—
59	0306698	AIR CYLINDER	3	$162.32
60	0400025	SCREW, #8-32 X 3/4" RD HD SLOTTED	2	$5.84
61	0400057	SCREW, 1/4"-20 X 1-1/4" HEX HD CAP	3	$5.84
62	0400078	SCREW, 1/4"-20 X 2" HEX HD CAP	2	$5.84
63	0400351	HEX NUT & STAR WASHER, #8-32	2	$5.84
64	0400367	NUT, 1/4"-20 HEX NYLOK	5	$5.84
65	0400401	NUT, 7/16"-20 HEX JAM	3	$5.84
66	0400451	WASHER, 1/4" FLAT	2	$5.84
67	0400527	CLEVIS PIN, 5/16" X 5/8" COTTERLESS	3	$8.01
68	0711277	SUPPORT, SOLENOID VALVE	1	Call for price	—
69	0803181	CLEVIS WELDMENT	3	$9.55
70	HA0132	GAUGE, 0-160 PSI	1	$24.66
--	0903836	LEFT & RIGHT CONTROL LINK KIT	--	Call for price	—
71	0303008	ADJUSTABLE CLEVIS	3	$9.50
72	0400112	SCREW, 5/16"-24 X 1-1/4" HEX HD CAP	11	$5.84
73	0400383	NUT, 5/16"-24 HEX	35	$5.84
74	0400384	NUT, 5/16"-24 HEX NYLOK	11	$5.84
75	0400466	LOCKWASHER, 5/16" INT. TOOTH	32	$5.84
76	0801054	CONTROL CABLE CONNECTOR	8	Call for price	—

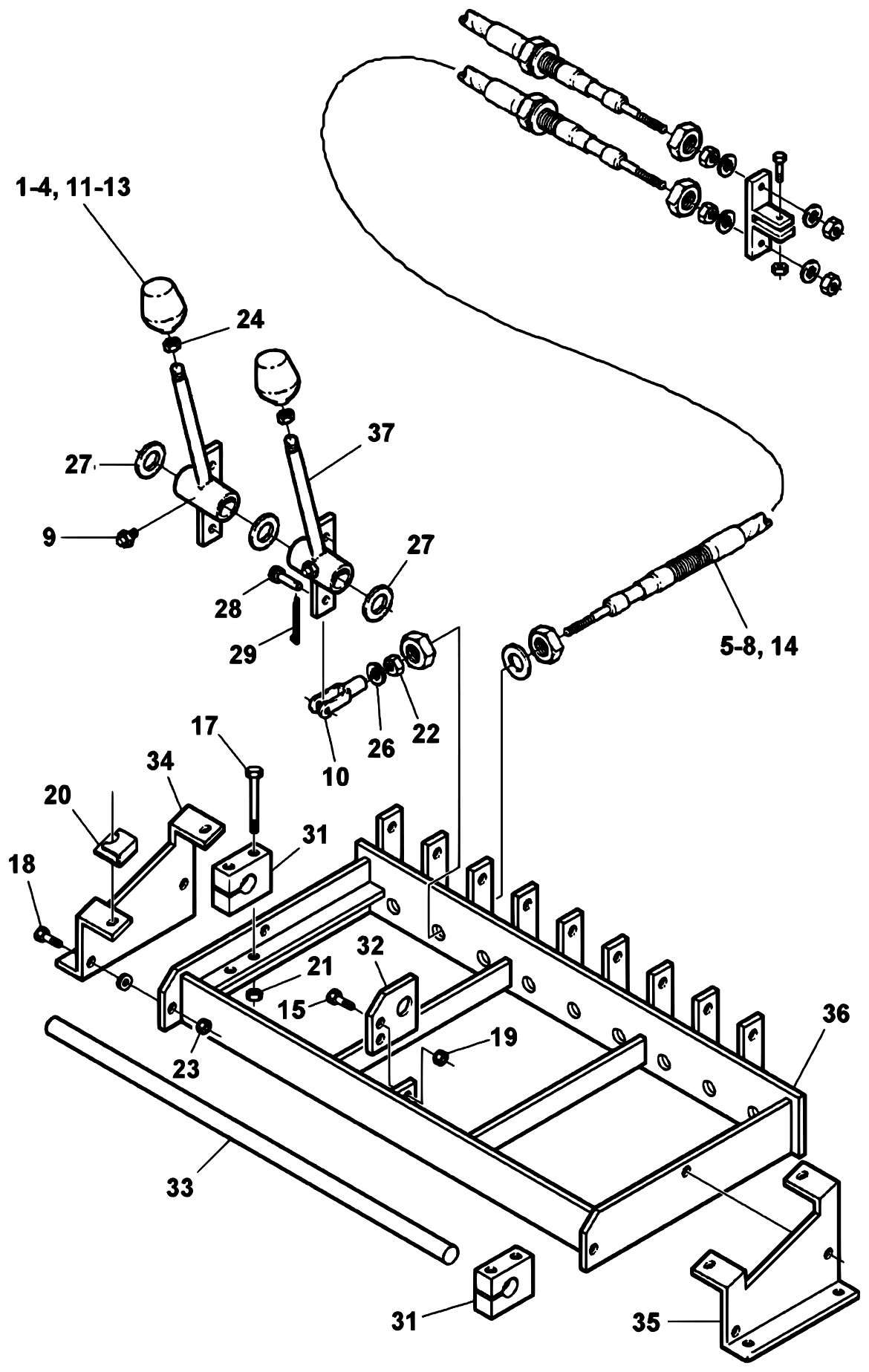

Century 1060S SDU2 (2000 manual) Right Control Assembly diagram

Show parts list (37 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300834	CONTROL KNOB, IN-OUT	2	$21.51
2	0300835	CONTROL KNOB, BOOM UP-DOWN	1	$13.32
3	0300836	CONTROL KNOB, JACK UP-DOWN	2	$18.95
4	0300837	CONTROL KNOB, BOOM IN-OUT	1	$15.14
5	0301884	CONTROL CABLE, 96"	3	$169.59
6	0301969	CONTROL CABLE, 84"	1	$160.45
7	0302437	CONTROL CABLE, 168"	2	Call for price	—
8	0302457	CONTROL CABLE, 104"	1	$169.59
9	0302726	GREASE FITTING, 1/4"-28 X 45°	9	$3.78
10	0303008	ADJUSTABLE CLEVIS	9	$9.50
11	0303379	CONTROL KNOB, SWING CW-CCW	1	$33.38
12	0303380	CONTROL KNOB, UNDERLIFT IN-OUT	1	$15.67
13	0303381	CONTROL KNOB, UNDERLIFT UP-DOWN	1	$15.67
14	0303427	CONTROL CABLE, 114"	2	$169.59
15	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	2	$5.84
16	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	9	$5.84
17	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	4	$5.84
18	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	4	$5.84
19	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.84
20	0400379	NUT, 5/16"-18 "J" TINNERMAN	4	$8.01
21	0400382	NUT, 5/16"-18 HEX NYLOK	4	$5.84
22	0400383	NUT, 5/16"-24 HEX	9	$5.84
23	0400392	NUT, 3/8"-16 HEX NYLOK	4	$5.84
24	0400393	NUT, 3/8"-16 HEX JAM	9	$5.84
25	0400451	WASHER, 1/4" FLAT	4	$5.84
26	0400466	LOCKWASHER, 5/16" INTERNAL TOOTH	9	$5.84
27	0400512	WASHER, 3/4" FLAT (SPECIAL)	9	Call for price	—
28	0400532	CLEVIS PIN, 5/16" X 1"	9	$5.84
29	0400541	COTTER PIN, 1/16" X 3/4"	9	$5.84
30	0500225	DECAL, AIR FREE SPOOL (NOT)	1	Call for price	—
31	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.67
32	0711245	PLATE, SHAFT SUPPORT	1	$21.49
33	0711246	PIN, CONTROL BOX	1	$33.78
34	0711284	SUPPORT, CONTROL (LEFT)	1	$51.06
35	0711285	SUPPORT, CONTROL (RIGHT)	1	$40.10
36	0803182	CONTROL FRAME WELDMENT	1	$709.00
37	0803294	CONTROL HANDLE WELDMENT	9	$133.19

Century 1060S SDU2 (2000 manual) Control Assembly (2 Req'd) diagram

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300341	CONTROL KNOB	2	$9.25
2	0302449	CONTROL CABLE, 148"	2	$189.63
3	0302726	GREASE FITTING, 1/4"-28 X 45°	2	$3.78
4	0303008	ADJUSTABLE CLEVIS	2	$9.50
5	0400107	SCREW, 5/16"-18 X 2-1/2" HEX HD CAP	4	$5.84
6	0400112	SCREW, 5/16"-24 X 1-1/4" HEX HD CAP	2	$5.84
7	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	4	$5.84
8	0400379	NUT, 5/16"-18 "J" TINNERMAN	4	$8.01
9	0400382	NUT, 5/16"-18 HEX NYLOK	4	$5.84
10	0400383	NUT, 5/16"-24 HEX	6	$5.84
11	0400384	NUT, 5/16"-24 HEX NYLOK	2	$5.84
12	0400392	NUT, 3/8"-16 HEX NYLOK	4	$5.84
13	0400393	NUT, 3/8"-16 HEX JAM	2	$5.84
14	0400466	LOCKWASHER, 5/16" INT. TOOTH	6	$5.84
15	0400512	WASHER, 3/4" FLAT (SPECIAL)	4	Call for price	—
16	0400532	CLEVIS PIN, 5/16" X 1"	2	$5.84
17	0400541	COTTER PIN, 1/16" X 3/4"	2	$5.84
18	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.67
19	0711284	SUPPORT, CONTROL (LEFT)	1	$51.06
20	0711285	SUPPORT, CONTROL (RIGHT)	1	$40.10
21	0711574	SPACER TUBE	1	Call for price	—
22	0712005	PIN, CONTROL BOX	1	Call for price	—
23	0801054	CONTROL CABLE CONNECTOR	2	Call for price	—
24	0803294	CONTROL HANDLE WELDMENT	2	$133.19
25	0803407	CONTROL FRAME WELDMENT	1	Call for price	—

Century 1060S SDU2 (2000 manual) Front Outrigger Assembly diagram

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300109	SNAP RING, 1-1/2"	8	$1.79
2	0300113	GREASE FITTING	4	$5.84
3	0300329	SNAP RING, 2" EXTERNAL	4	$1.79
4	0303386	OUTRIGGER BEAM WELDMENT	2	Call for price	—
5	0303490	WEAR PAD	12	$50.14
6	0400039	SCREW, #10-32 X 3/4" FL HD PHIL SELF TAP	8	$9.85
7	0400118	SCREW, 5/16"-18 X 3/4" HEX HD CAP	4	$5.84
8	0400140	SCREW, 3/8"-16 X 4" HEX HD CAP	3	$5.84
9	0400222	SCREW, 3/8"-16 X 1-1/2" SKT HD SET	8	Call for price	—
10	0400392	NUT, 3/8"-16 NYLOK HEX	3	$5.84
11	0400393	NUT, 3/8"-16 HEX JAM	8	$5.84
12	0705722	SHAFT, OUTRIGGER ARM TO PAD	2	Call for price	—
13	0709326	PIN, VERTICAL CYLINDER TO BASE	2	Call for price	—
14	0709327	PIN, EXTEND CYLINDER, ROD END	2	Call for price	—
15	0709328	PIN, EXTEND CYLINDER, BASE END	2	Call for price	—
16	0711913	SHIM, WEAR PAD	4	$4.89
17	0802779	VERTICAL TUBE WELDMENT	2	Call for price	—
18	0802780	FRONT OUTRIGGER PAD WELDMENT	2	Call for price	—
19	BK2003	WEAR PAD	4	$21.59
20	EA0174	PIN, IN/OUT 2ND STAGE, ROD END	2	Call for price	—
21	HC0124	VERTICAL CYLINDER	REF.	Call for price	—
22	HC0164	EXTEND CYLINDER	REF.	$6,245.10
23	HE0239	LIMIT SWITCH, DOOR (NOT SHOWN)	2	$390.22
24	HE0240	ARM, LIMIT SWITCH (NOT SHOWN)	2	$35.75

Century 1060S SDU2 (2000 manual) Front Outrigger Hydraulics diagram

Show parts list (22 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300134	HOSE CLAMP, INSULATED 1" (NOT SHOWN)	4	$8.87
2	0301487	HOSE CLAMP, 1/2"	12	Call for price	—
3	0301522	CONNECTOR, 6MJ-6MB	2	$3.78
4	0301620	ELBOW, 6MJ-6MB90	2	$5.76
5	0301762	CONTROL VALVE, VDP12DDDDDD10	1	$2,100.62
6	0301778	CONNECTOR, 6MJ-10MB	8	Call for price	—
7	0302547	CLAMPING UNIT (Not Shown)	2	Call for price	—
8	0302551	NUT, SKT HD STACKING (Not Shown)	4	$11.66
9	0302569	WIRE TIE, 29-3/4" (Not Shown)	6	Call for price	—
10	0302635	HOSE ASSEMBLY, 131"	1	$118.53
11	0302727	CONNECTOR, 6MJ-8MP	4	$5.67
12	0303054	TUBE ASSEMBLY	4	Call for price	—
13	0303055	SADDLE CLAMP, 4"	4	Call for price	—
14	0303184	HOSE ASSEMBLY, 73"	2	Call for price	—
15	0303185	HOSE ASSEMBLY, 66"	1	$72.35
16	0303186	HOSE ASSEMBLY, 82"	2	$54.75
17	0303187	HOSE ASSEMBLY, 141"	1	$103.94
18	0303188	HOSE ASSEMBLY, 75"	1	Call for price	—
19	0303191	HOSE ASSEMBLY, 96"	4	$57.50
20	0303193	BLACK SKUFF JACKETPriced per foot	32 FT.	$3.78
21	HC0124	VERTICAL CYLINDER	2	Call for price	—
22	HC0164	EXTEND CYLINDER	2	$6,245.10

Century 1060S SDU2 (2000 manual) Rear Outrigger Assembly diagram

Show parts list (23 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300110	SNAP RING, 1"	4	$5.84
2	0300113	GREASE FITTING	2	$5.84
3	0300680	VERTICAL CYLINDER	REF.	Call for price	—
4	0303486	HORIZONTAL CYLINDER	REF.	$6,052.83
5	0400066	SCREW, 1/4"-20 X 3/4" HEX HD CAP	16	$5.84
6	0400129	SCREW, 3/8"-16 X 3/4" ALLEN HD SET	2	$5.84	—
7	0400392	NUT, 3/8"-16 NYLOK HEX	4	$5.84
8	0400452	LOCKWASHER, 1/4" HELICAL	16	$5.84
9	0703457	SHAFT, JACK CYLINDER, UPPER	2	$60.17
10	0703458	SHAFT, JACK CYLINDER, LOWER	2	$177.26
11	0711973	SHAFT, EXTEND CYLINDER, BASE END	2	$100.30
12	0711975	SHAFT, EXTEND CYLINDER, ROD END	2	$100.30
13	0712154	COVER, REAR OUTRIGGER, END	2	Call for price	—
14	0712158	COVER, REAR OUTRIGGER	2	Call for price	—
15	0712196	PLATE, WRAPPER TIE	2	$54.70
16	0712197	PLATE, WRAPPER SIDE	4	$98.48
17	0801039	PIN-ON JACK PAD	2	Call for price	—
18	0802780	OUTRIGGER PAD WELDMENT	2	Call for price	—
19	0803377	OUTRIGGER WELDMENT, LEFT REAR	1	Call for price	—
20	0803378	OUTRIGGER WELDMENT, RIGHT REAR	1	Call for price	—
21	0803379	INNER BOOM, REAR HORIZONTAL	2	Call for price	—
22	0803475	OUTRIGGER PAD, INTERMEDIATE	2	Call for price	—
23	0903803	SHAFT, REAR OUTRIGGER PAD	2	$255.28

Century 1060S SDU2 (2000 manual) Rear Outrigger Hydraulics diagram

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300040	CONNECTOR, 8MJ-8MP	4	$9.85
2	0300680	VERTICAL CYLINDER	2	Call for price	—
3	0301696	ELBOW, 6MJ-6FJX90	4	Call for price	—
4	0301762	CONTROL VALVE, VDP12DDDDDD10	REF.	$2,100.62
5	0301778	CONNECTOR, 10MB-6MJ	4	Call for price	—
6	0301816	FITTING, 8FP-8FP45	8	$21.49
7	0301819	BLACK PIPE NIPPLE, 1/2" X 4-1/2"	8	$9.42
8	0302296	CONTROL VALVE, VDP12CDD118	REF.	$1,513.42
9	0302334	CONTROL VALVE, VDP12CDCD10	REF.	$1,568.18
10	0302372	HOSE ASSEMBLY, 240"	4	$216.82
11	0302510	ADAPTER, 6MJ-6MBL	4	Call for price	—
12	0302727	CONNECTOR, 6MJ-8MP	4	$5.67
13	0303174	CONNECTOR, 10MB-6FB	4	Call for price	—
14	0303175	HOSE ASSEMBLY, 102"	4	$56.53
15	0303486	HORIZONTAL CYLINDER	2	$6,052.83

Century 1060S SDU2 (2000 manual) Hydraulic Cylinders - Underlift diagram

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0302352	CYLINDER, UNDERLIFT LIFT	1	Call for price	—
2		SEAL KIT, UNDERLIFT LIFT CYLINDER	--	Call for price	—
1	0301811	CYLINDER, UNDERLIFT EXTEND	1	$8,854.72
2		SEAL KIT, UNDERLIFT EXTEND CYLINDER	--	Call for price	—

Century 1060S SDU2 (2000 manual) Hydraulic Cylinders - Underlift (Cont'd) diagram

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0303042	CYLINDER, UNDERLIFT FOLD	1	$3,165.40
2		SEAL KIT, UNDERLIFT FOLD CYLINDER	--	Call for price	—

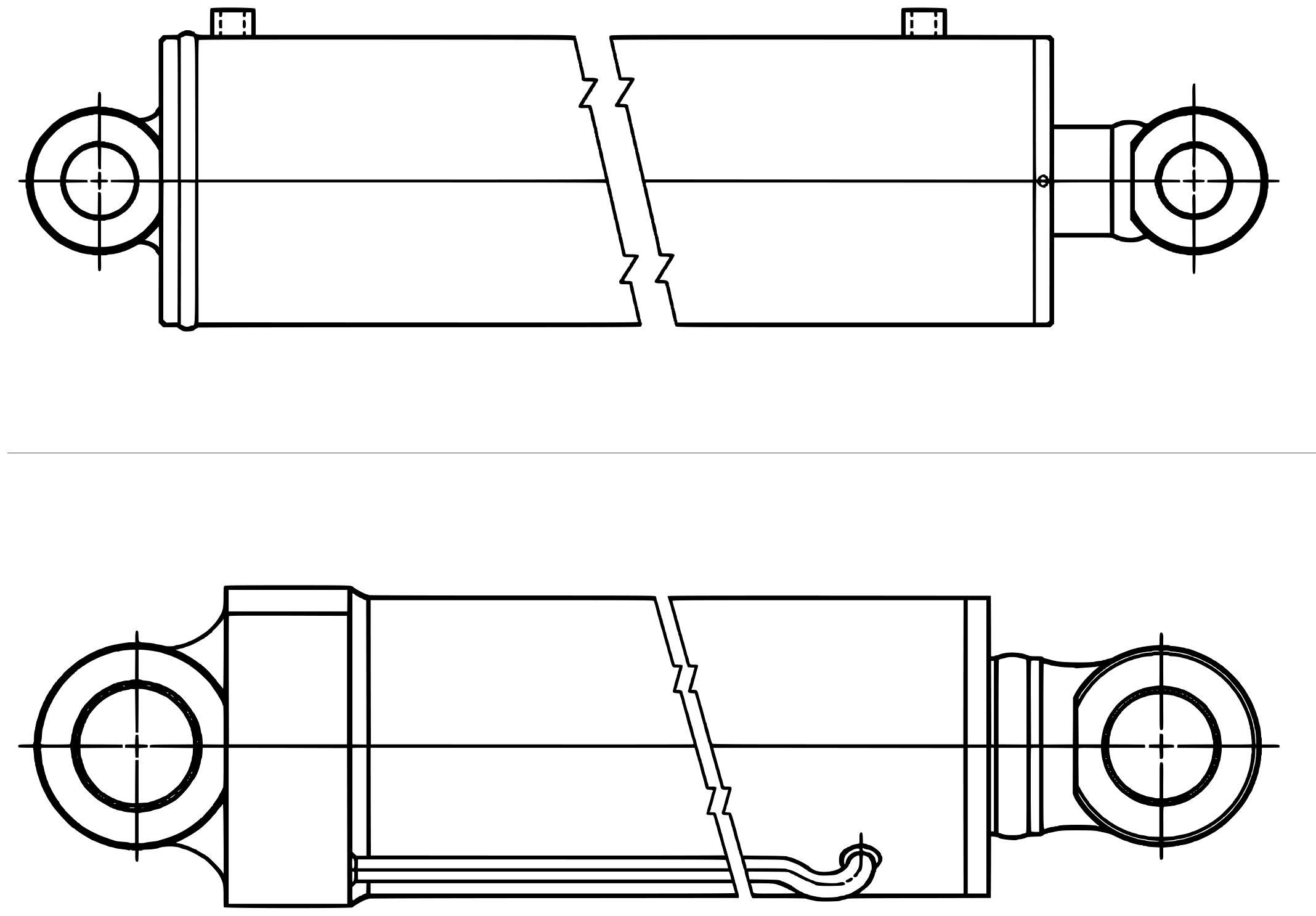

Century 1060S SDU2 (2000 manual) Hydraulic Cylinders - Wrecker diagram

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0303092	CYLINDER, BOOM LIFT	2	$9,468.91
2	0304434	SEAL KIT, BOOM LIFT CYLINDER	--	Call for price	—
1	0302830	CYLINDER, BOOM EXTEND	1	$18,799.86
2	0304333	SEAL KIT, BOOM EXTEND CYLINDER	--	Call for price	—

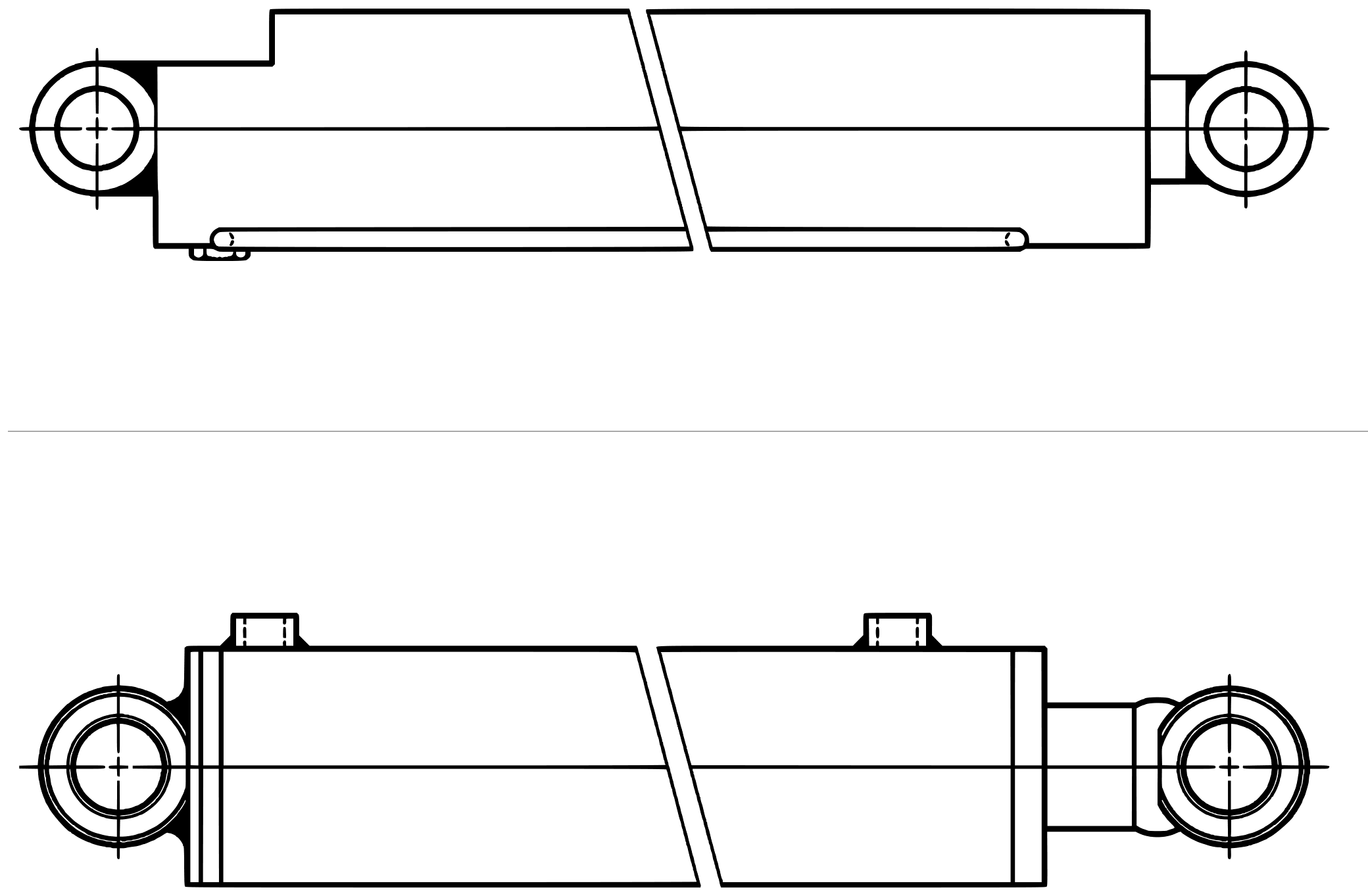

Century 1060S SDU2 (2000 manual) Hydraulic Cylinders - Front Outriggers diagram

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	HC0124	CYLINDER, FRONT OUTRIGGER VERTICAL	2	Call for price	—
2		SEAL KIT, CYLINDER	--	Call for price	—
1	HC0164	CYLINDER, FRONT OUTRIGGER EXTEND	2	$6,245.10
2		SEAL KIT, CYLINDER	--	Call for price	—

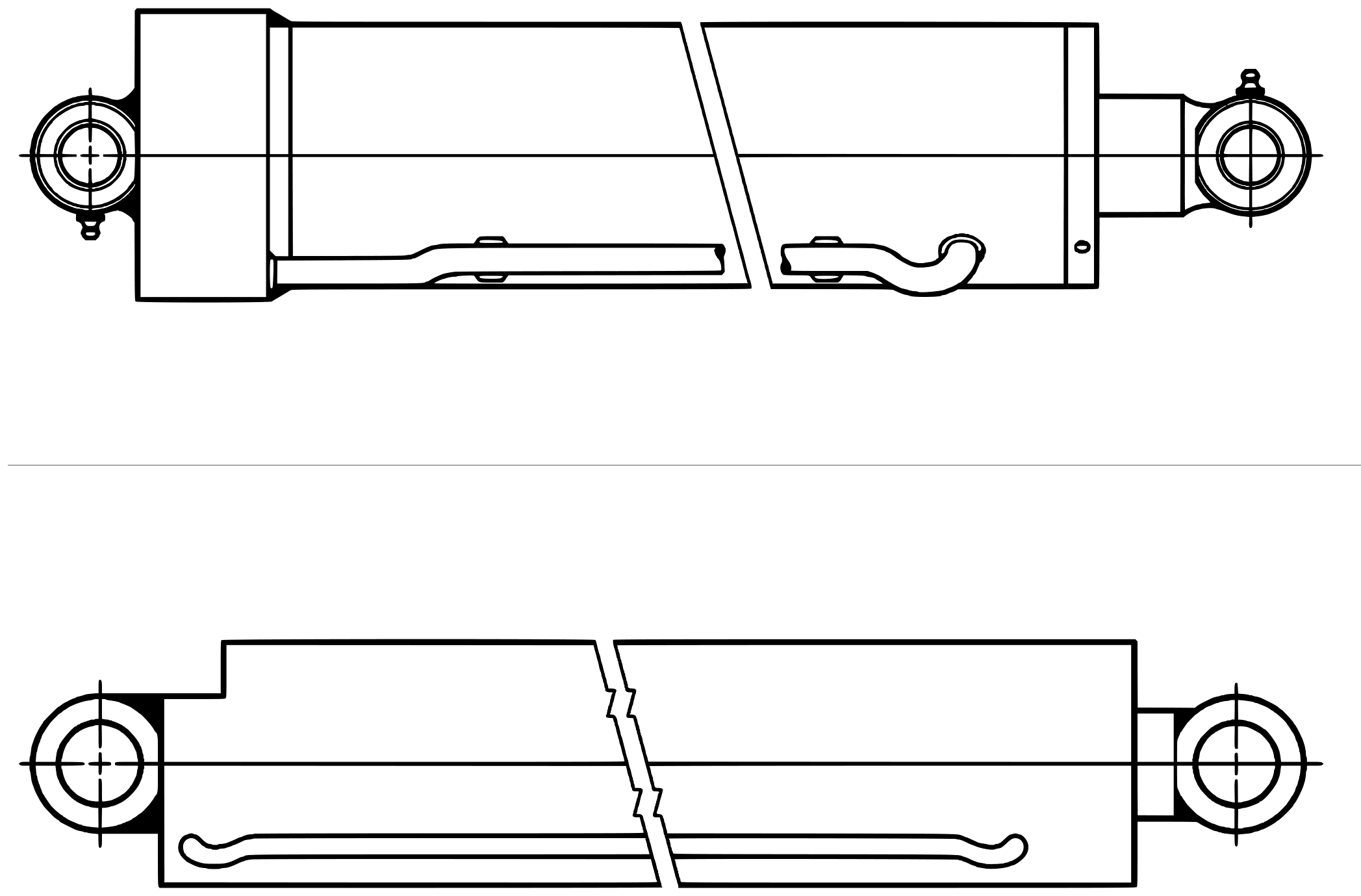

Century 1060S SDU2 (2000 manual) Hydraulic Cylinders - Rear Outriggers diagram

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300680	CYLINDER, REAR OUTRIGGER VERTICAL	2	Call for price	—
2		SEAL KIT, CYLINDER	--	Call for price	—
1	0303486	CYLINDER, REAR OUTRIGGER EXTEND	2	$6,052.83
2		SEAL KIT, CYLINDER	--	Call for price	—

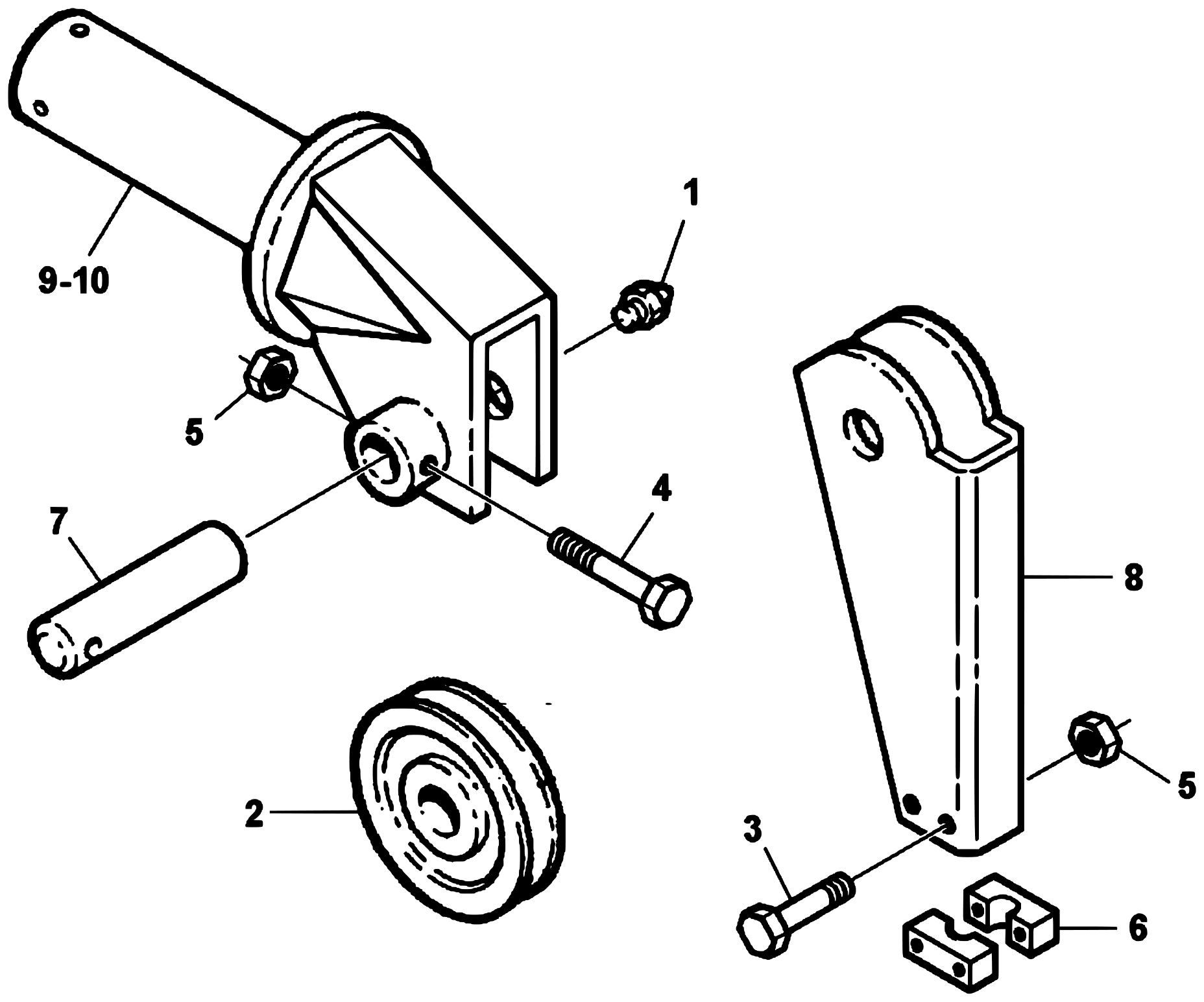

Century 1060S SDU2 (2000 manual) Boom Swivel Assembly diagram

Show parts list (12 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
--	0903776	BOOM SWIVEL ASSEMBLY, LEFT (COMPLETE)	1	Call for price	—
--	0903777	BOOM SWIVEL ASSEMBLY, RIGHT (COMPLETE)	1	Call for price	—
1	0300113	GREASE FITTING	1	$5.84
2	0300311	SHEAVE, 10"	1	$573.63
3	0400133	SCREW, 3/8"-16 X 3" HEX HD CAP	2	$5.84
4	0400140	SCREW, 3/8"-16 X 4" HEX HD CAP	1	$5.84
5	0400392	NUT, 3/8"-16 NYLOK HEX	3	$5.84
6	0700511	CABLE GUIDE, BOTTOMS	2	$33.38
7	0700563	SHAFT, SHEAVE	1	$118.53
8	0802027	CABLE GUIDE WELDMENT	1	$362.89
9	0803573	SWIVEL WELDMENT, LEFT	1	Call for price	—
10	0803574	SWIVEL WELDMENT, RIGHT	1	Call for price	—

Century 1060S SDU2 (2000 manual) Modular Light Kit diagram

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	0302542	LIGHT, STOP & TURN	4	$76.59
2	0302543	LIGHT, BACKUP	2	$76.59
3	0400025	SCREW, #8-32 X 3/4" RD HD SLOTTED	24	$5.84

Century 1060S SDU2 (2000 manual) Modular Light Kit (Cont'd) (1 of 3) diagram

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price	Quick Add to Cart
1	0300442	3-LIGHT BAR ASSEMBLY (COMPLETE)	$33.38
2	0300507	BULB, MARKER LIGHT	Call for price	—
3	0300511	LENS, 3-LIGHT BAR	Call for price	—
1	0302201	LIGHT, FLOOD (COMPLETE)	$37.76
2	0302611	LIGHT, AMBER OVAL (COMPLETE)	$45.58

Century 1060S SDU2 (2000 manual) Modular Light Kit (Cont'd) (2 of 3) diagram

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0302544	LIGHT, DOME (COMPLETE)	18	$22.62
1	0301742	MARKER LIGHT, SEALED AMBER	2	$23.53

Century 1060S SDU2 (2000 manual) Modular Light Kit (Cont'd) (3 of 3) diagram

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300076	LICENSE PLATE BRACKET	1	$7.32
2	0300273	LICENSE PLATE ILLUMINATOR	1	$25.52
3	0300512	BULB, LICENSE PLATE ILLUMINATOR	1	Call for price	—

Century 1060S SDU2 (2000 manual) Glad Hand Assembly diagram

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0301862	CATERPILLAR GROMMET	1	Call for price	—
2	0301909	RECEPTACLE BOOT	1	Call for price	—
3	0301944	GLAD HAND COUPLING	2	Call for price	—
4	0301945	GLAD HAND PLUG	2	$39.10
5	0301946	BULKHEAD CONNECTOR	2	$94.80
6	0301947	ADAPTER, 1/4" NPM X 3/8" 45° SYN. HOSE	1	Call for price	—
7	0301948	HD 7-WAY TRAILER CONNECTOR	1	$60.17
8	0302534	ELBOW, 1/4" NPTM X 1/2" 45° SYN. HOSE	1	$33.38
9	0400062	SCREW, 1/4"-20 X 3/4" HEX HD SELF-TAP	9	$8.01
10	0400070	SCREW, 1/4"-20 X 1" HEX HEAD CAP	2	$5.84
11	0400367	NUT, 1/4"-20 NYLOK HEX	2	$5.84
12	0400451	FLATWASHER, 1/4"	6	$5.84
13	0400463	FLATWASHER, 5/16"	2	$5.84
14	0703795	HOSE, 3/8" X 4 FT. SYNTHETIC	1	Call for price	—
15	0706925	HOSE, 1/2" X 4 FT. SYNTHETIC	1	Call for price	—
16	0710003	SUPPORT, GLAD HAND BOX (Not Shown)	1	Call for price	—
17	0710444	LID, GLAD HAND HOUSING	1	Call for price	—
18	0802151	GLAD HAND HOUSING	1	Call for price	—

Century 1060S SDU2 (2000 manual) Truck Wheel Lift diagram

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0301932	5/16" X 12' H.T. CHAIN ASSEMBLY (N.S.)	2	$227.95	—
2	0303150	RATCHET W/ HOOK (N.S.)	2	Call for price	—
3	0303680	TIE-DOWN STRAP, ADJUSTABLE (N.S.)	2	$193.29
4	0802839	TIRE SUPPORT RIGHT	1	Call for price	—
5	0802841	OUTER CROSSTUBE LEFT	1	Call for price	—
6	0802842	OUTER CROSSTUBE RIGHT	1	Call for price	—
7	0802877	TIRE SUPPORT LEFT	1	Call for price	—
8	0902947	CROSSTUBE RETAINER PIN	2	$134.96
9	0903089	RETAINER PIN	4	$43.74
10	0903480	ADJUSTMENT TUBE	2	$497.80
11	CH0100	5/16" HOOK W/ PIN (N.S.)	2	Call for price	—

Century 1060S SDU2 (2000 manual)

Subframe Assembly

Body Assembly

SDU/2 Assembly

SDU/2 Lift & Extend Hydraulics

SDU/2 Tilt & Fold Hydraulics

SDU/2 Lift Adapters

SDU Lift Adapters

King Pin & Fifth Wheel Adapters

Recovery Boom Assembly

Boom Hydraulics

Pump, Valve & Filter Hydraulics

Frame Hydraulics

Winch Hydraulics & Air Free Spool

Left Control Assembly & SDU Remote Control Assembly

Left Control Assembly

SDU Remote Control Assembly

Right Control Assembly

Control Assembly (2 Req'd)

Front Outrigger Assembly

Front Outrigger Hydraulics

Rear Outrigger Assembly

Rear Outrigger Hydraulics

Hydraulic Cylinders - Underlift

Hydraulic Cylinders - Underlift (Cont'd)

Hydraulic Cylinders - Wrecker

Hydraulic Cylinders - Front Outriggers

Hydraulic Cylinders - Rear Outriggers

Boom Swivel Assembly

Modular Light Kit

Modular Light Kit (Cont'd) (1 of 3)

Modular Light Kit (Cont'd) (2 of 3)

Modular Light Kit (Cont'd) (3 of 3)

Glad Hand Assembly

Truck Wheel Lift
