Chevron Series 20 LCG Gen 2 (2025 manual)

Show all 50 parts sections ▼Hide parts sections ▲

Removable Tube Rail Sides
GEN2 Series 20 LCG Steel Bed Assembly - Removable Rail
DP 20K Planetary Winch
Warn 20XL Planetary Winch
Series 20 LCG GEN2 Subframe Assembly
Igus Track and Bolt Kit - 09020735 - 120" Slideback Cylinder Stroke
Igus Track and Bolt Kit - 09020734 - 120" Slideback Cylinder Stroke
4,000 Lb. Wheel Lift - 09005828
Dock Stabilizer - Dual Rear Wheels
4,000 Lb. Wheel Lift Crossbar Attachments

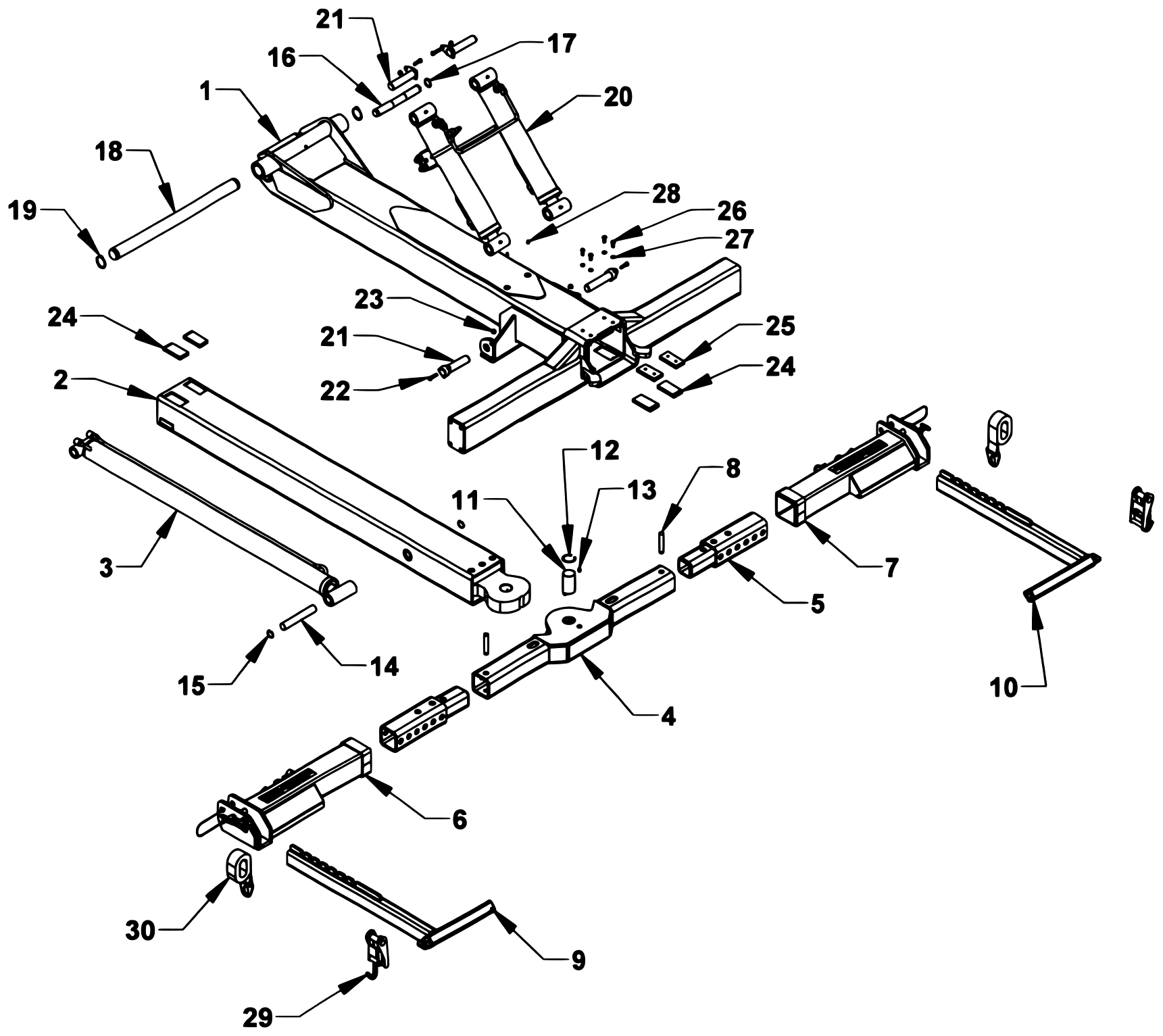

20 LCG 6,000 Lb. Wheel Lift - 10260605G

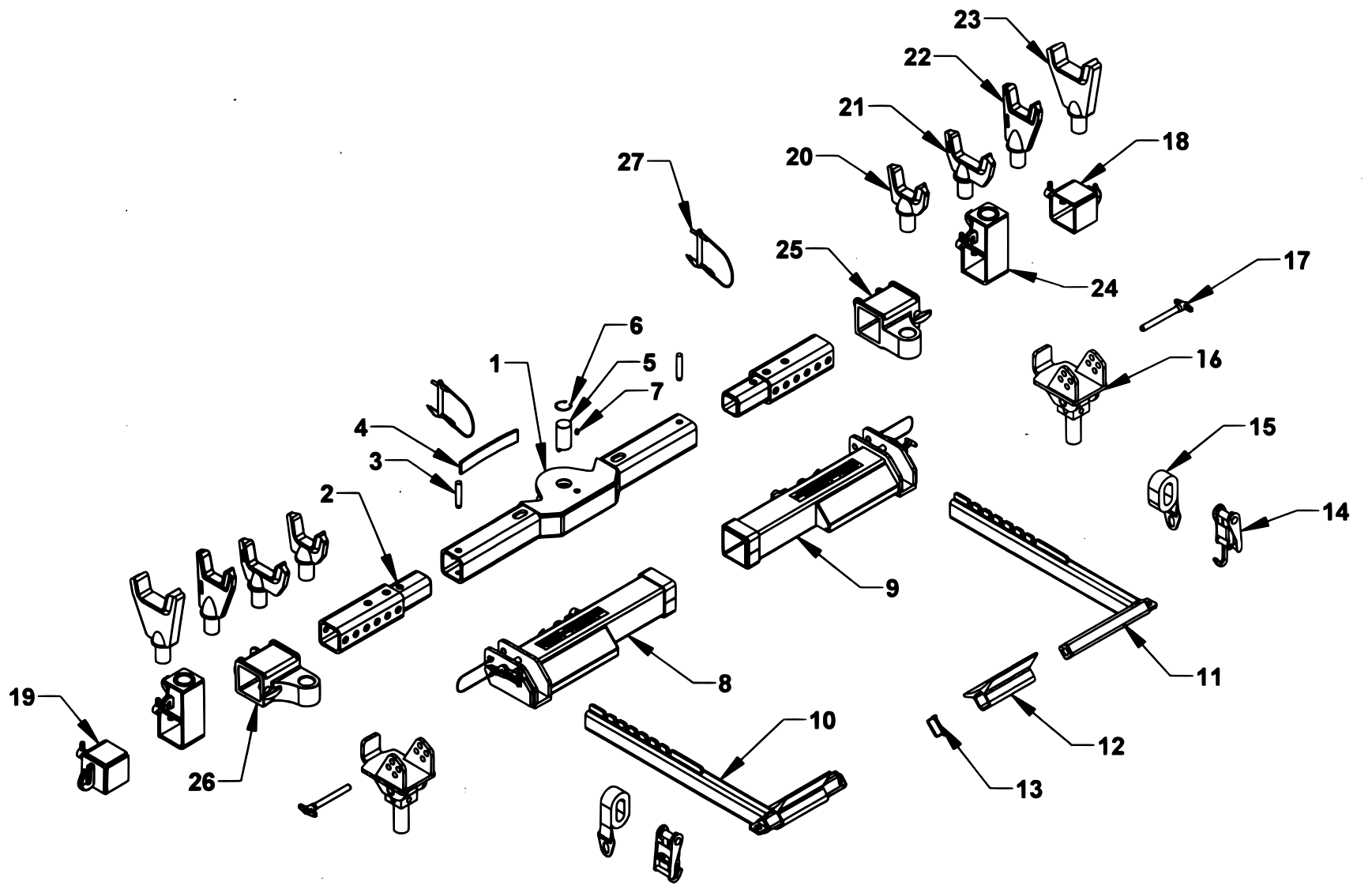

6K/10K Carrier Underlift Attachments

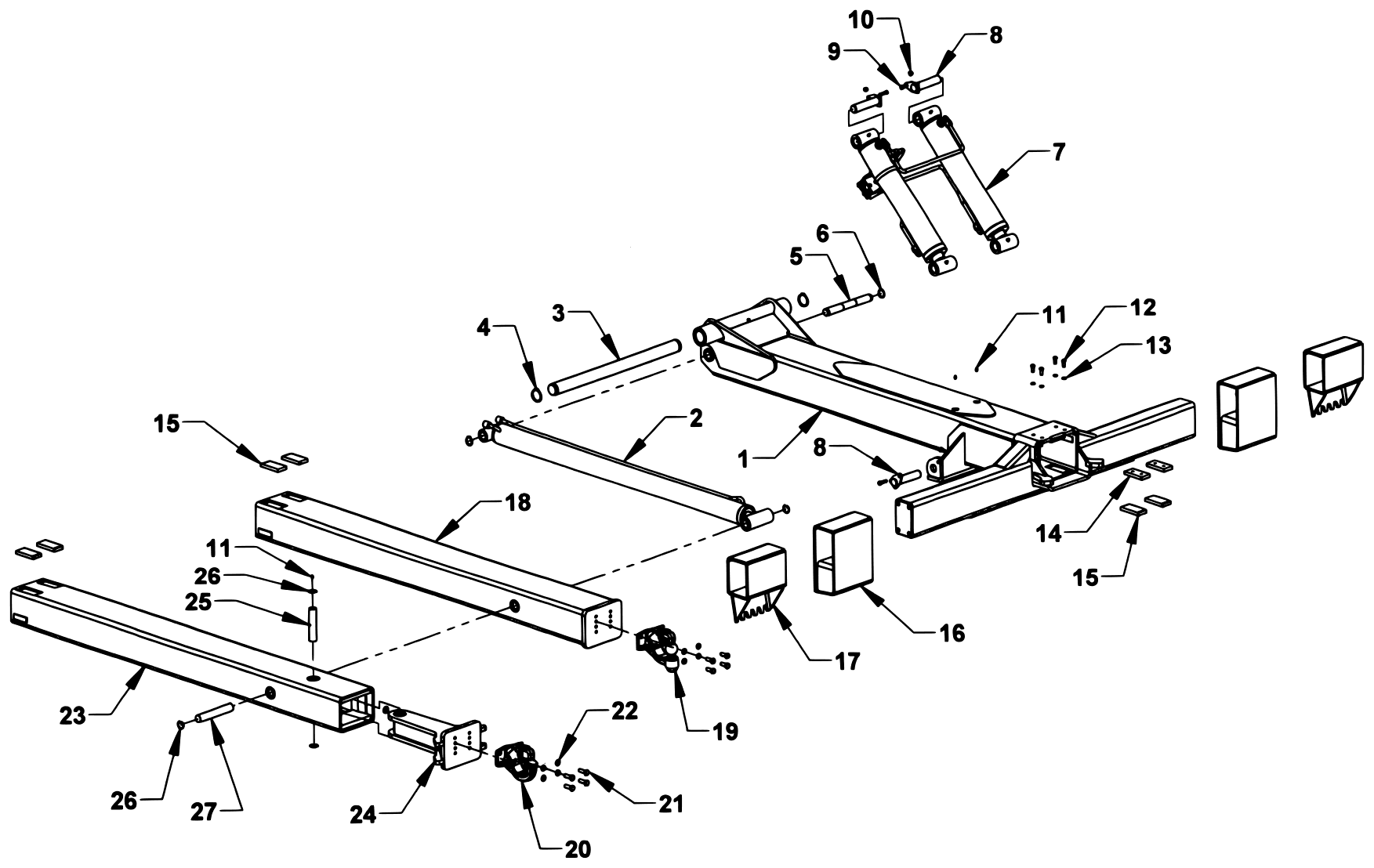

6,000 Lb. Telescoping Pintle Underlift

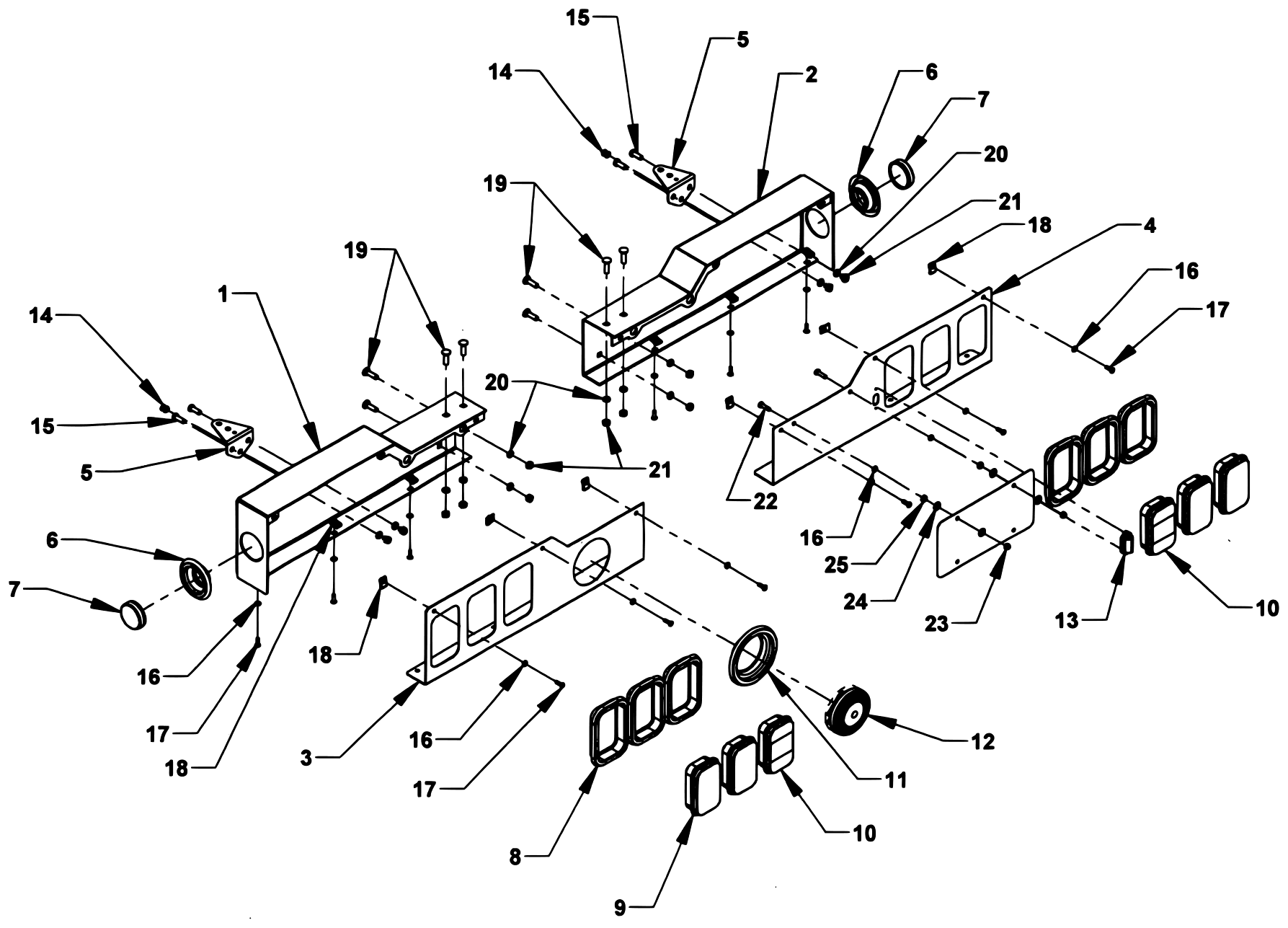

Tail Light Components

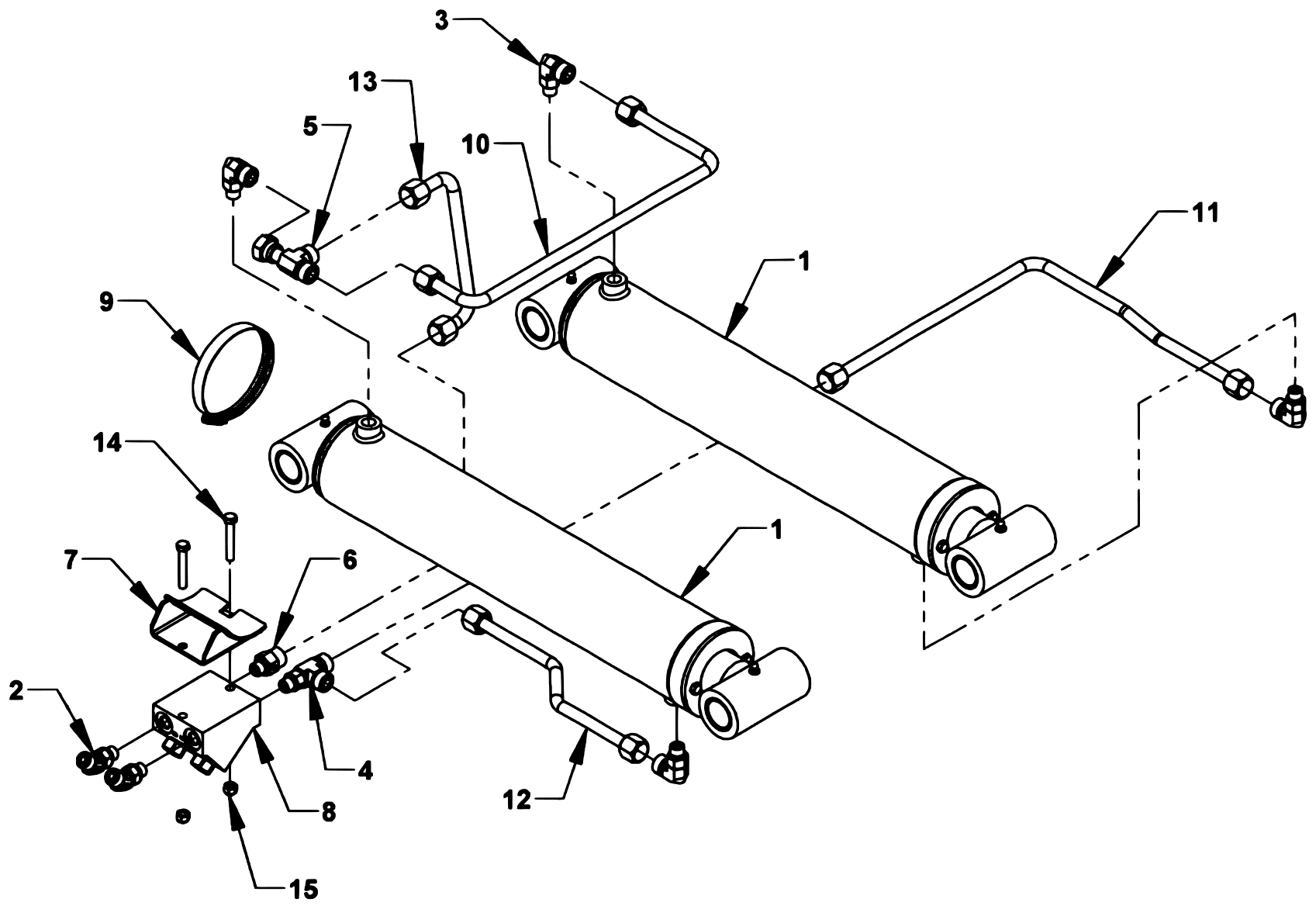

6K Underlift Cylinder Fluid Tube Group

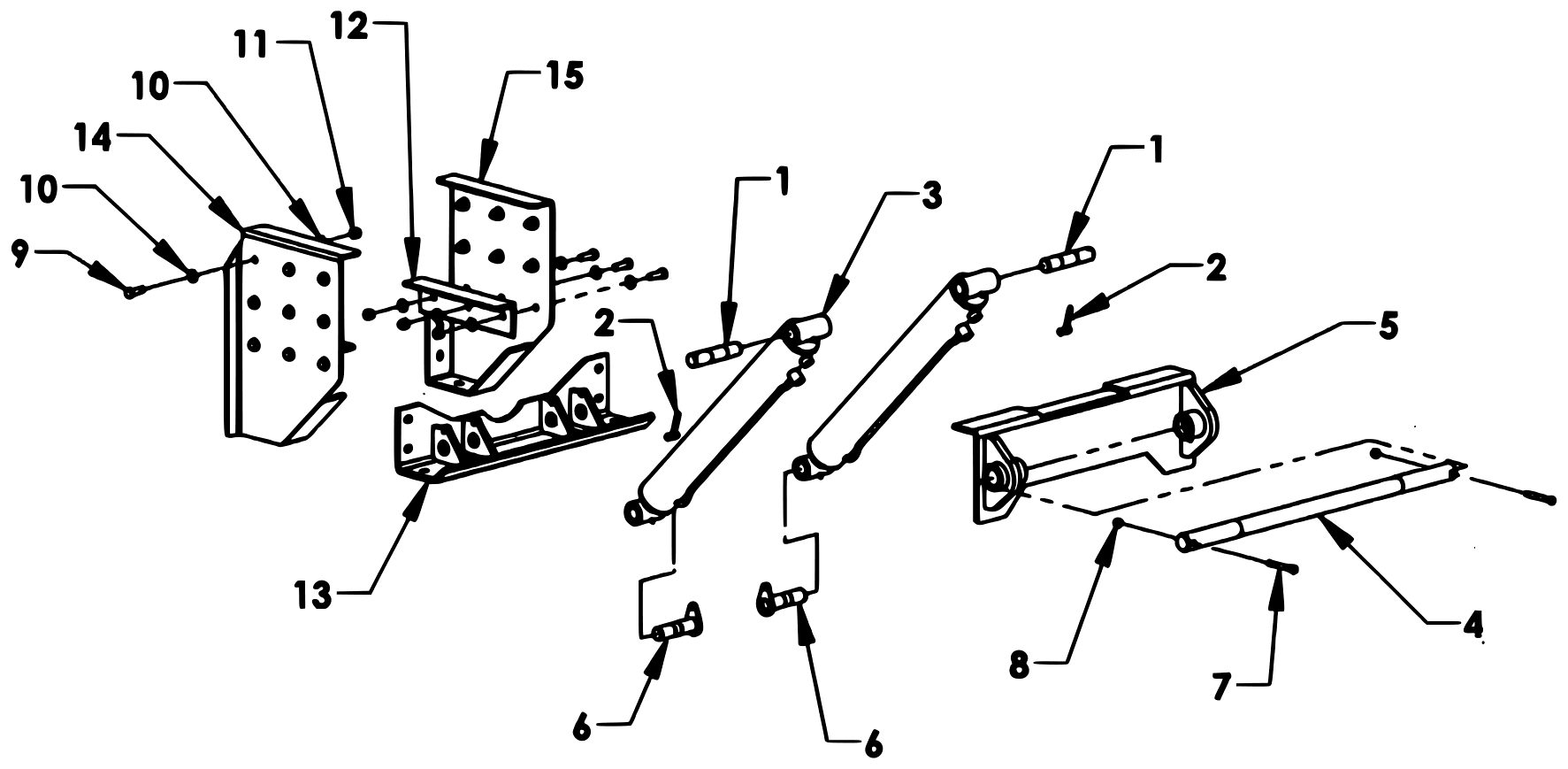

20 LCG 24" Outboard Saddle and Hinge Angle

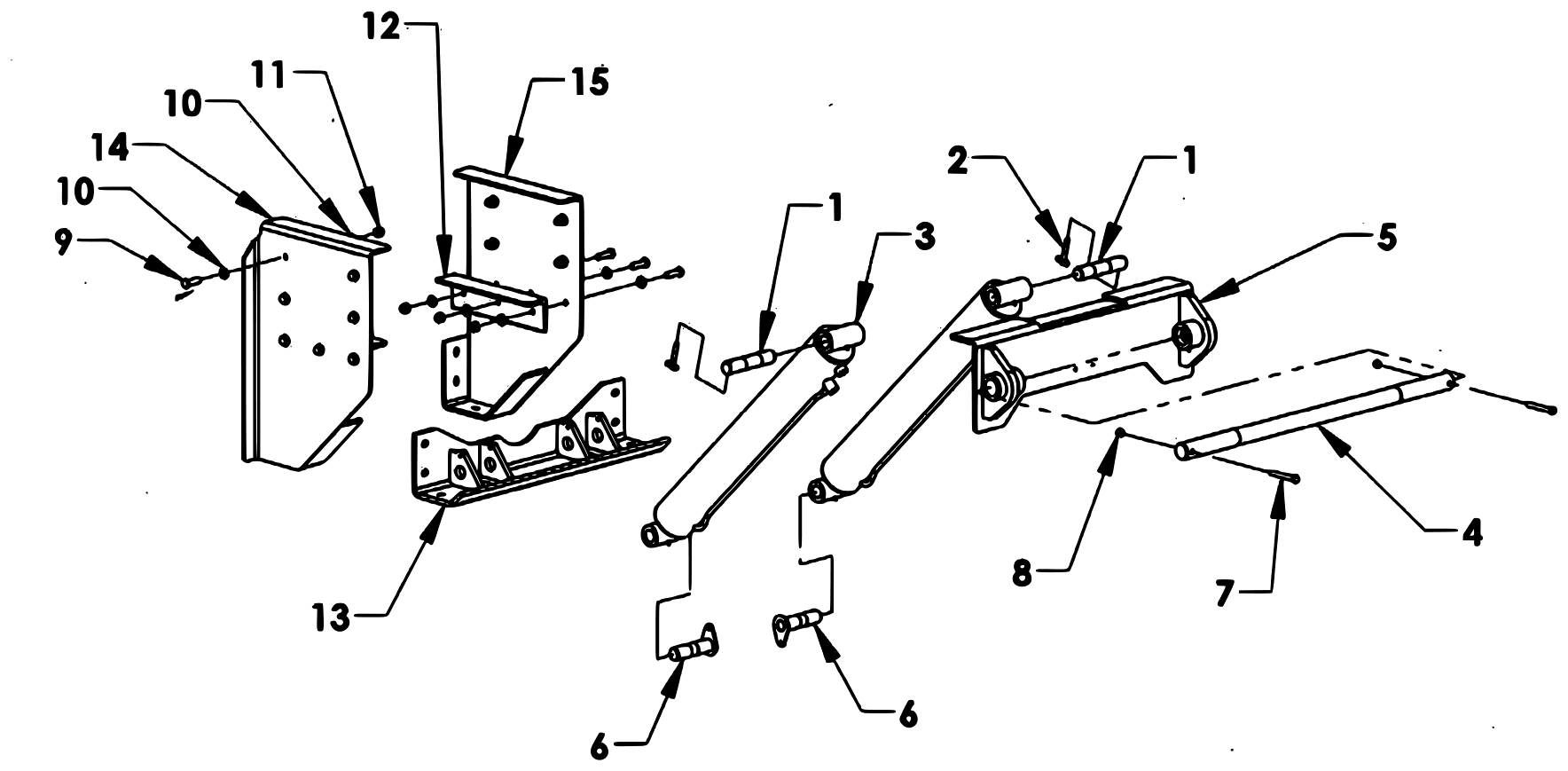

20 LCG 28" Outboard Saddle and Hinge Angle

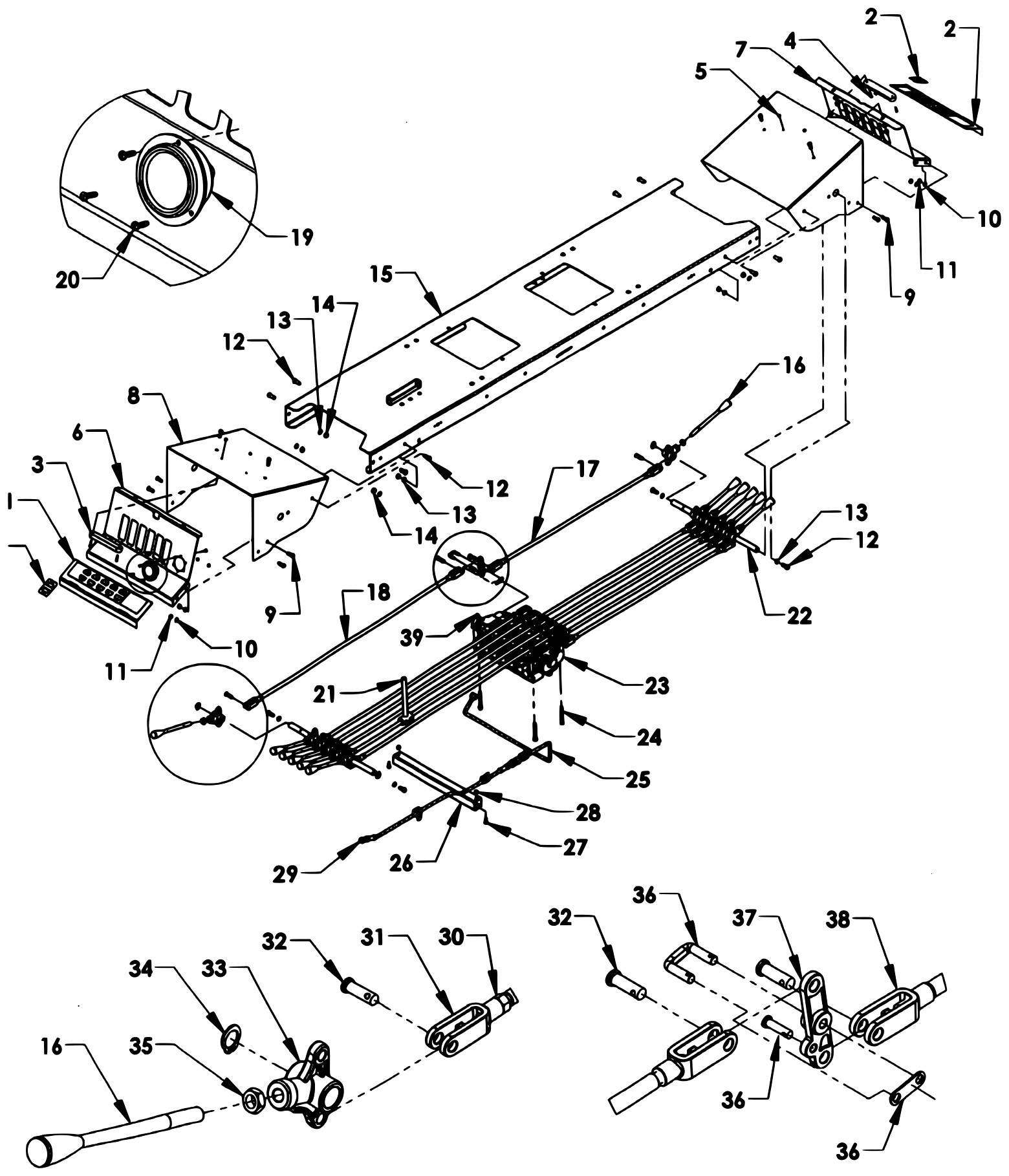

6-Spool Control Station

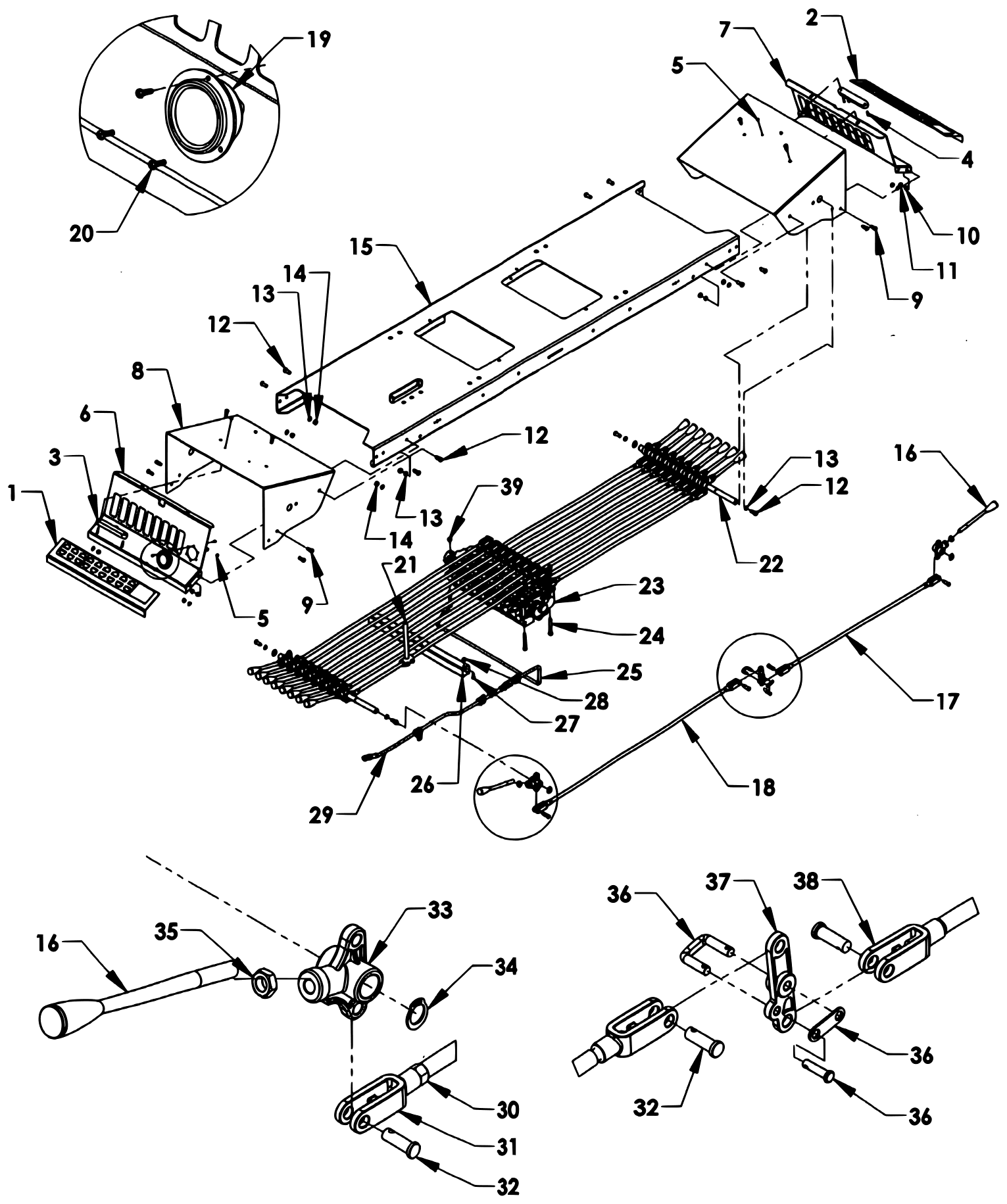

9-Spool Control Station

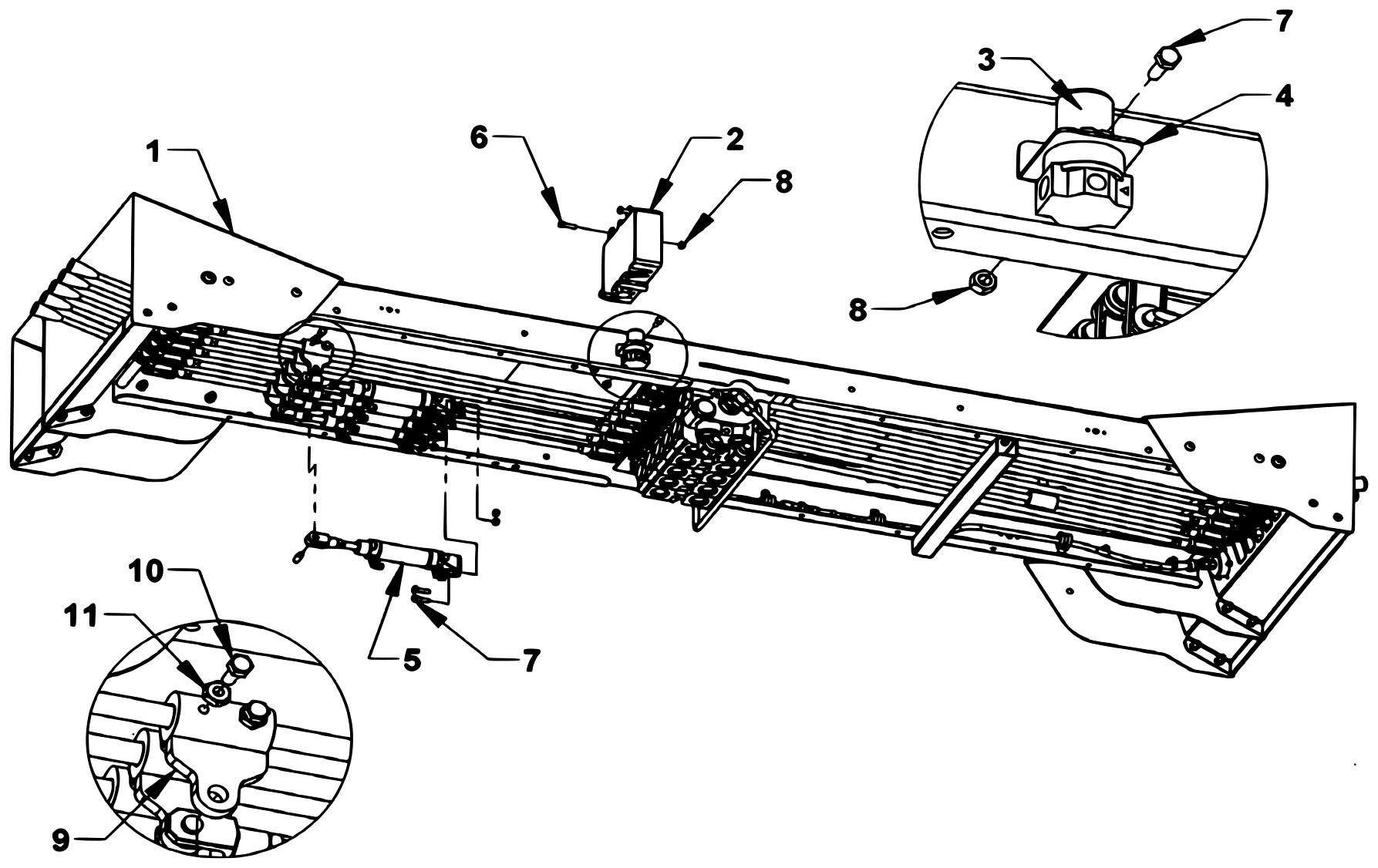

Remote Air Cylinders 6-Spool

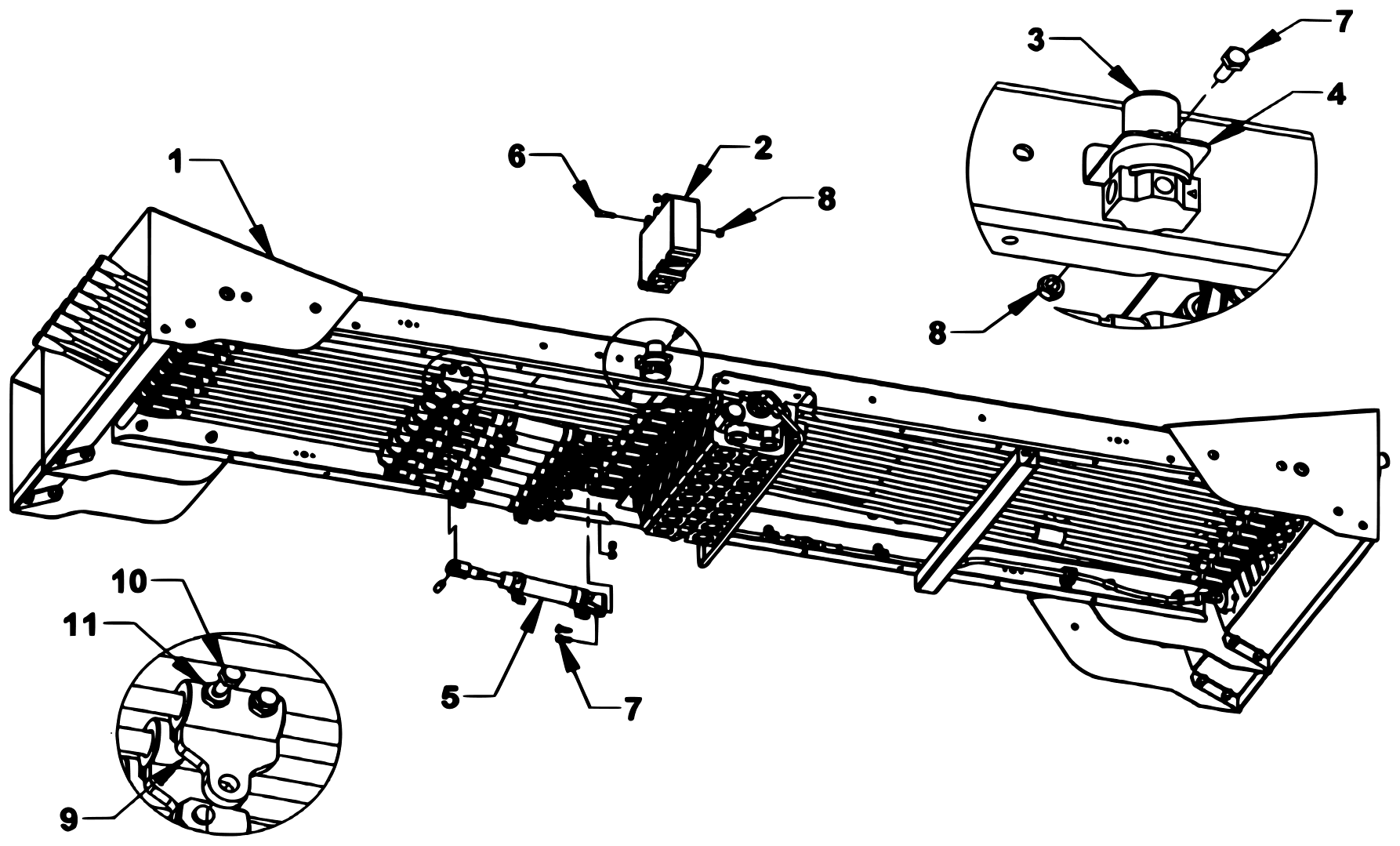

Remote Air Cylinders 9-Spool

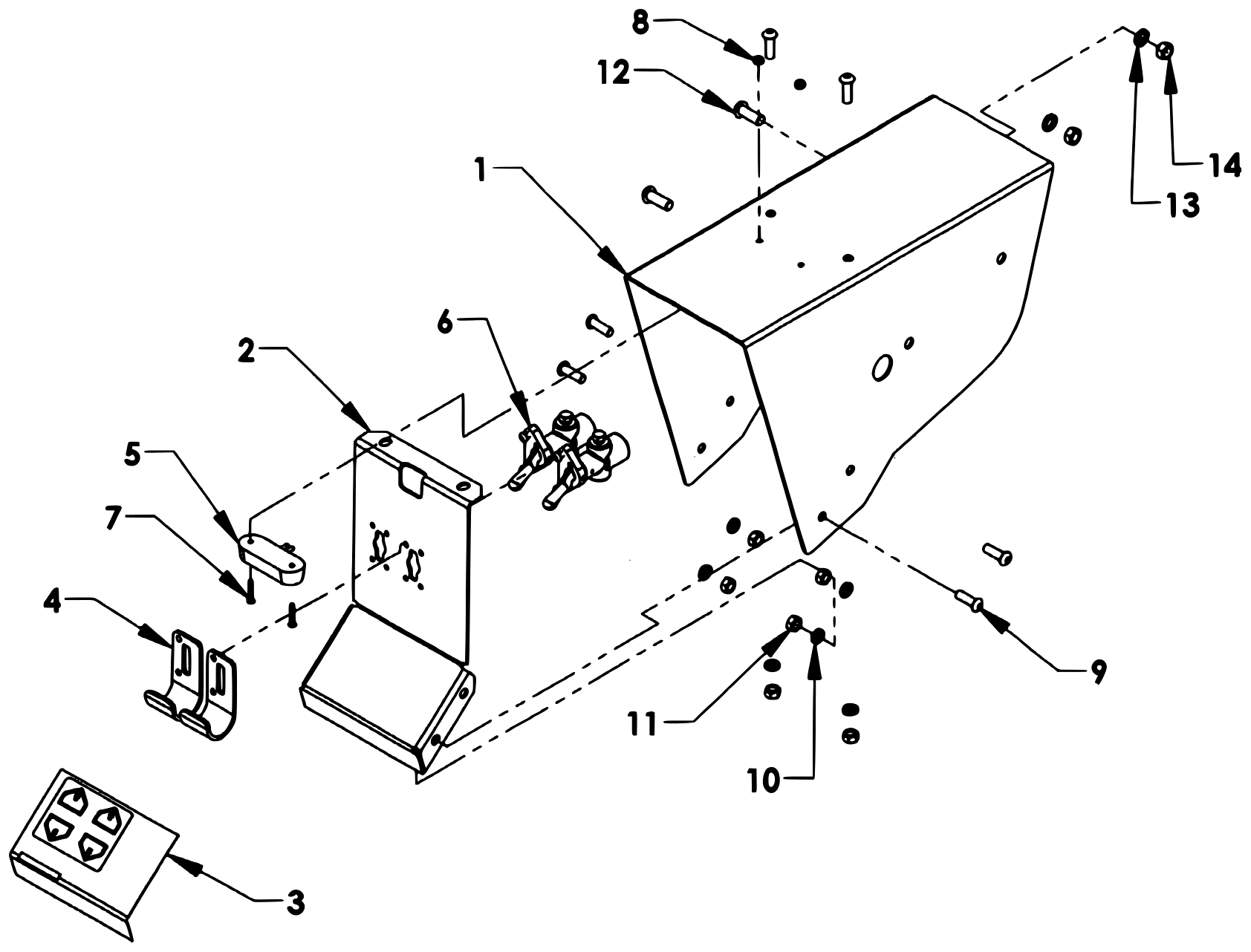

2 Air Valve Control Station

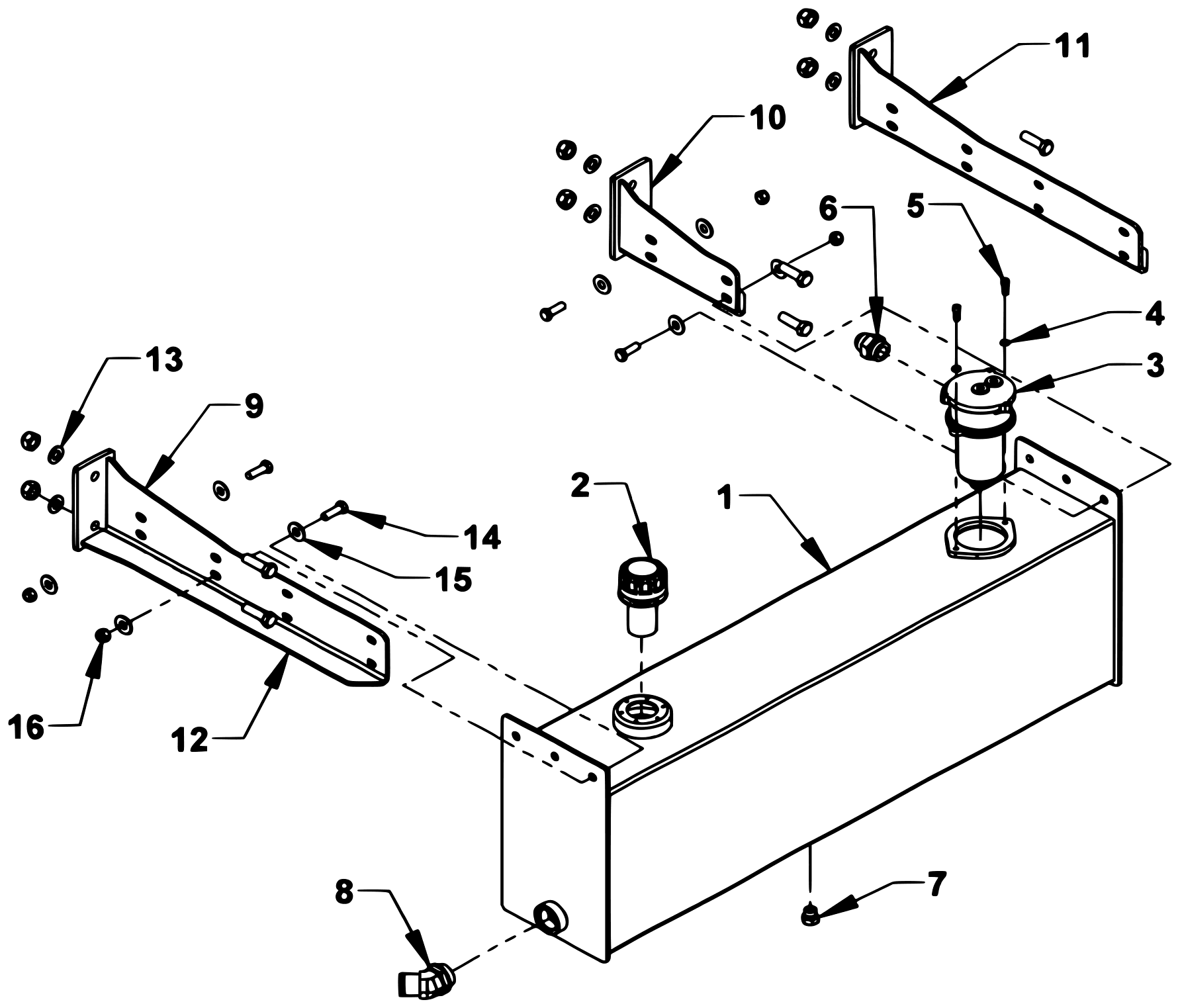

24 Gallon Oil Reservoir Group

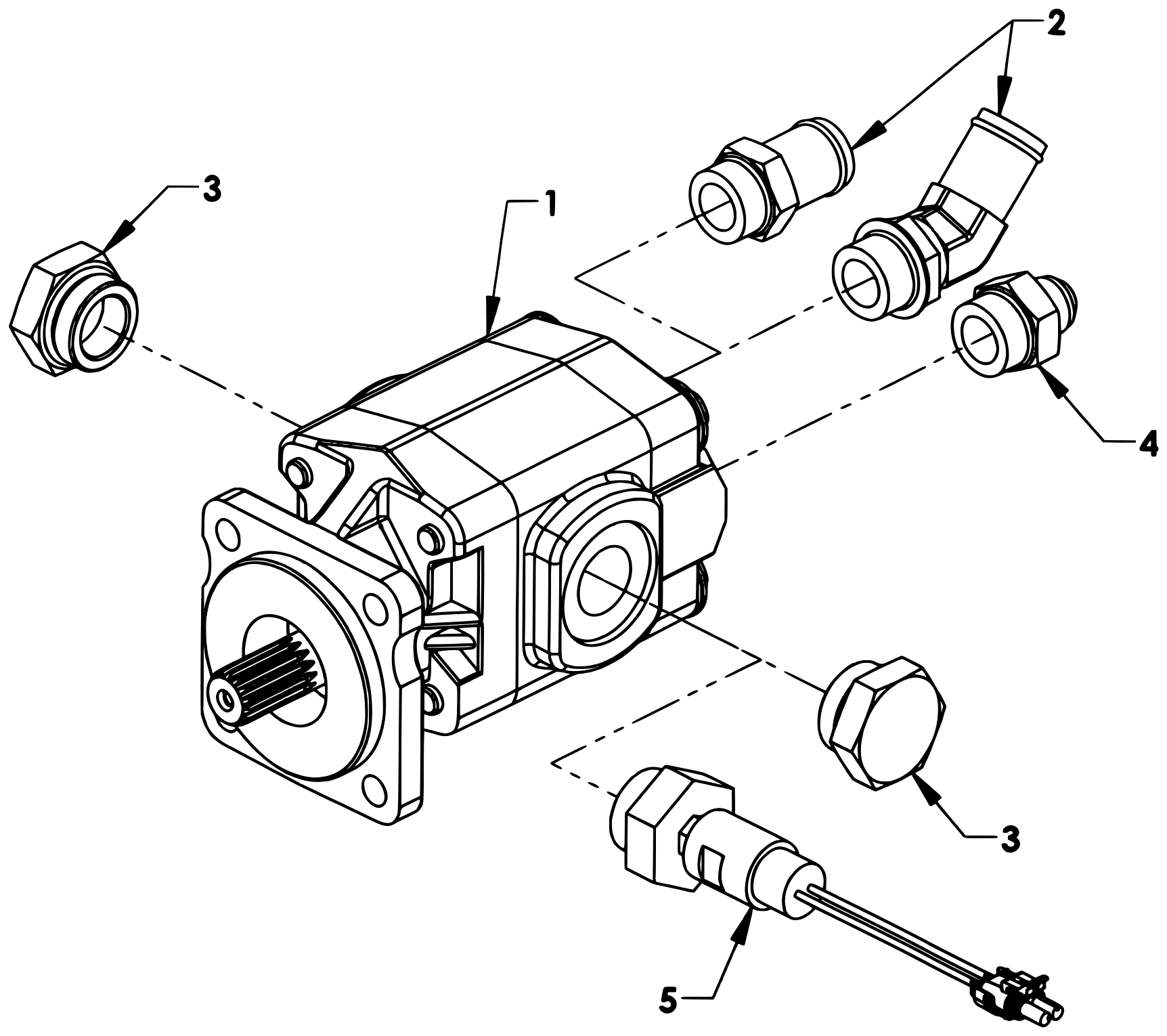

Direct Mount Pump - 18 GPM

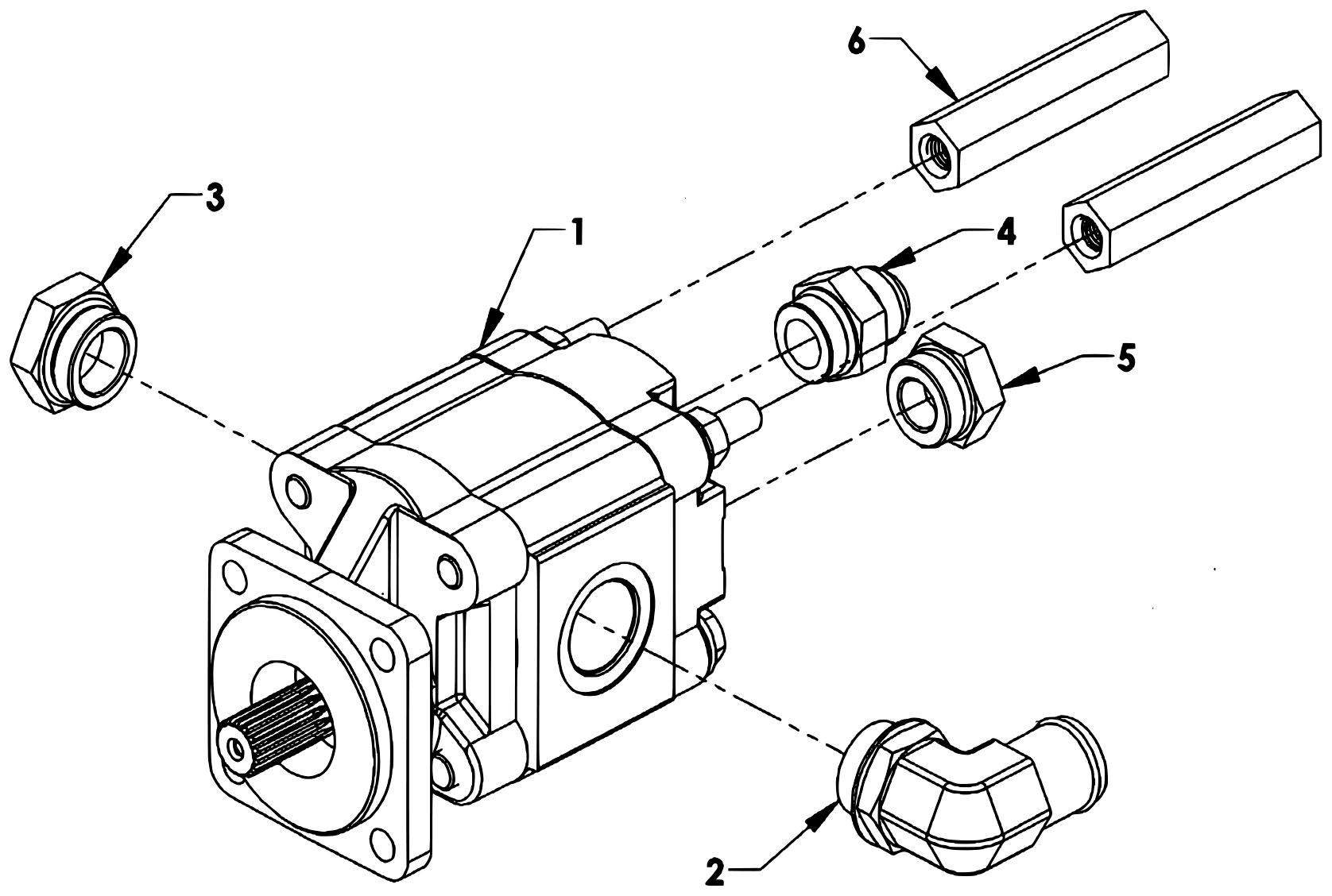

Direct Mount Pump - 24 GPM

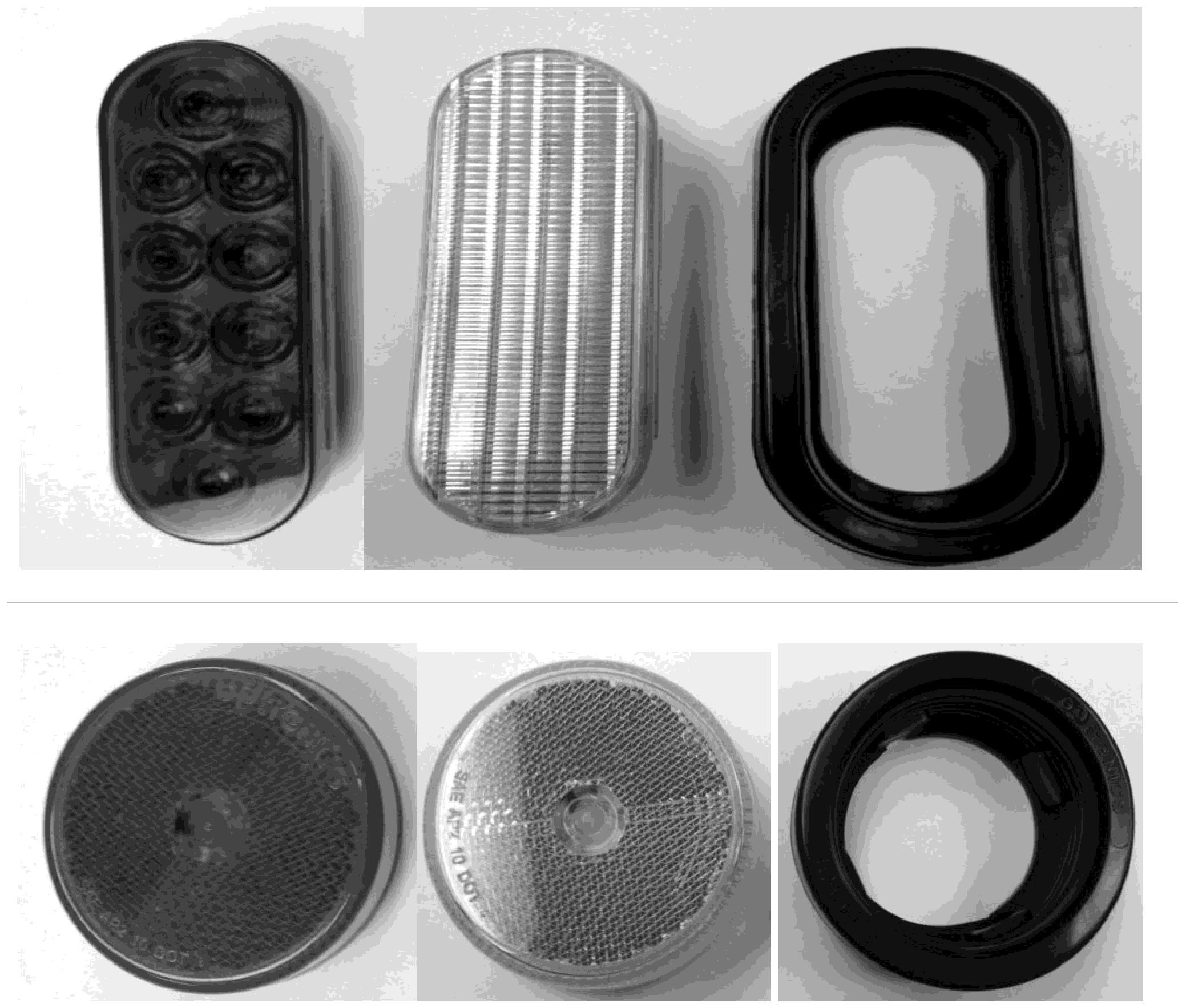

Light Kit (1 of 9)

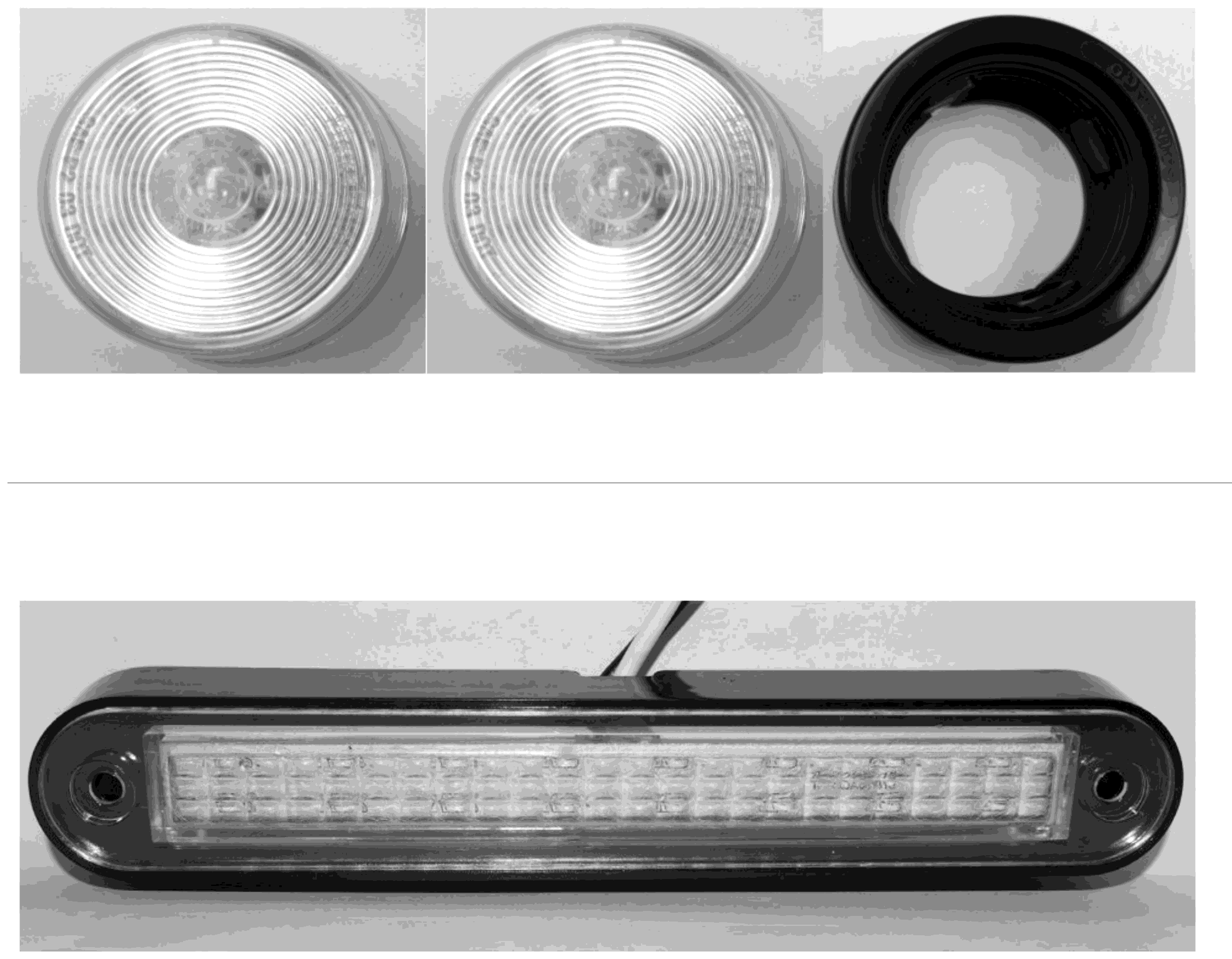

Light Kit (2 of 9)

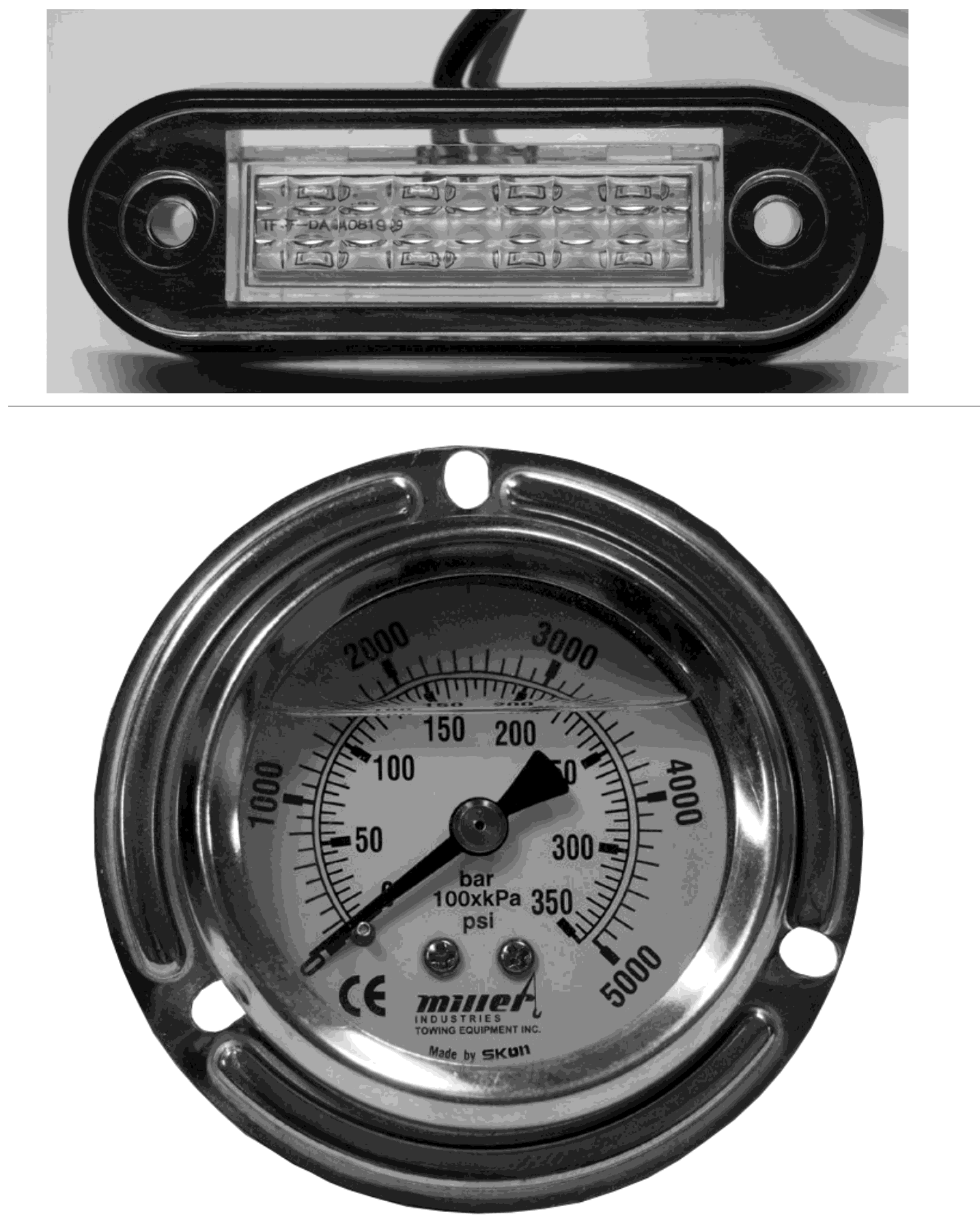

Light Kit & Pressure Gauge

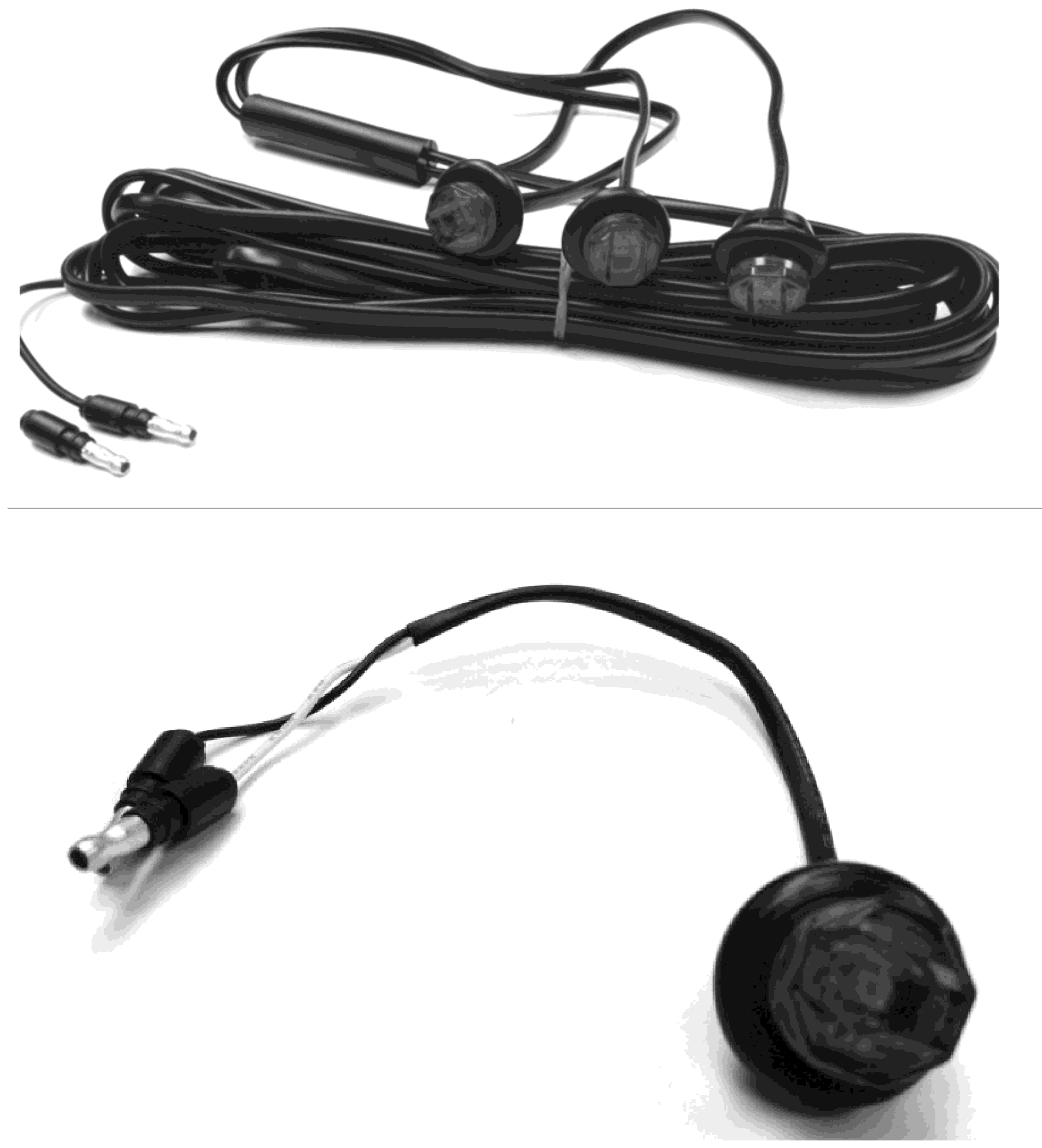

Light Kit (3 of 9)

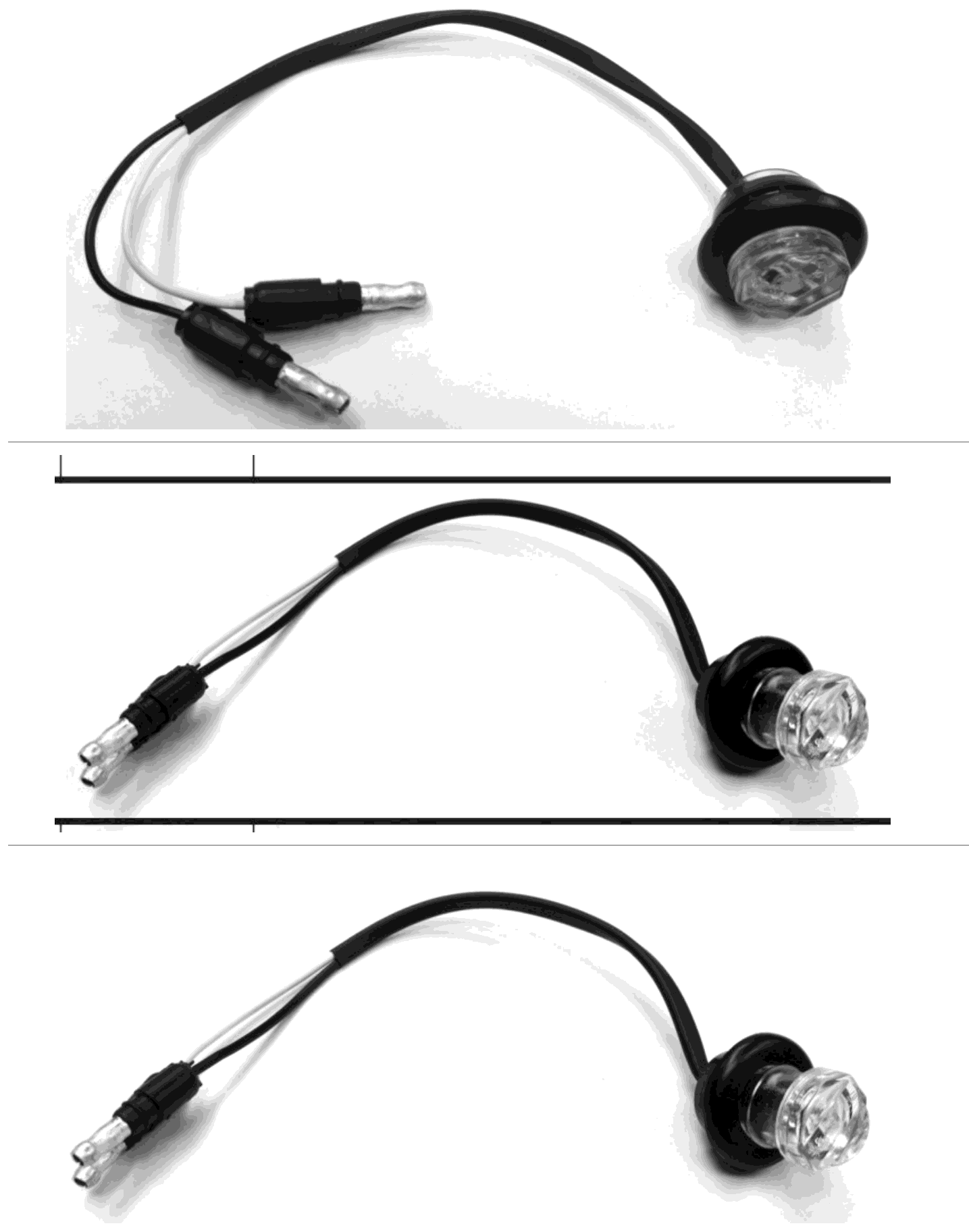

Light Kit (4 of 9)

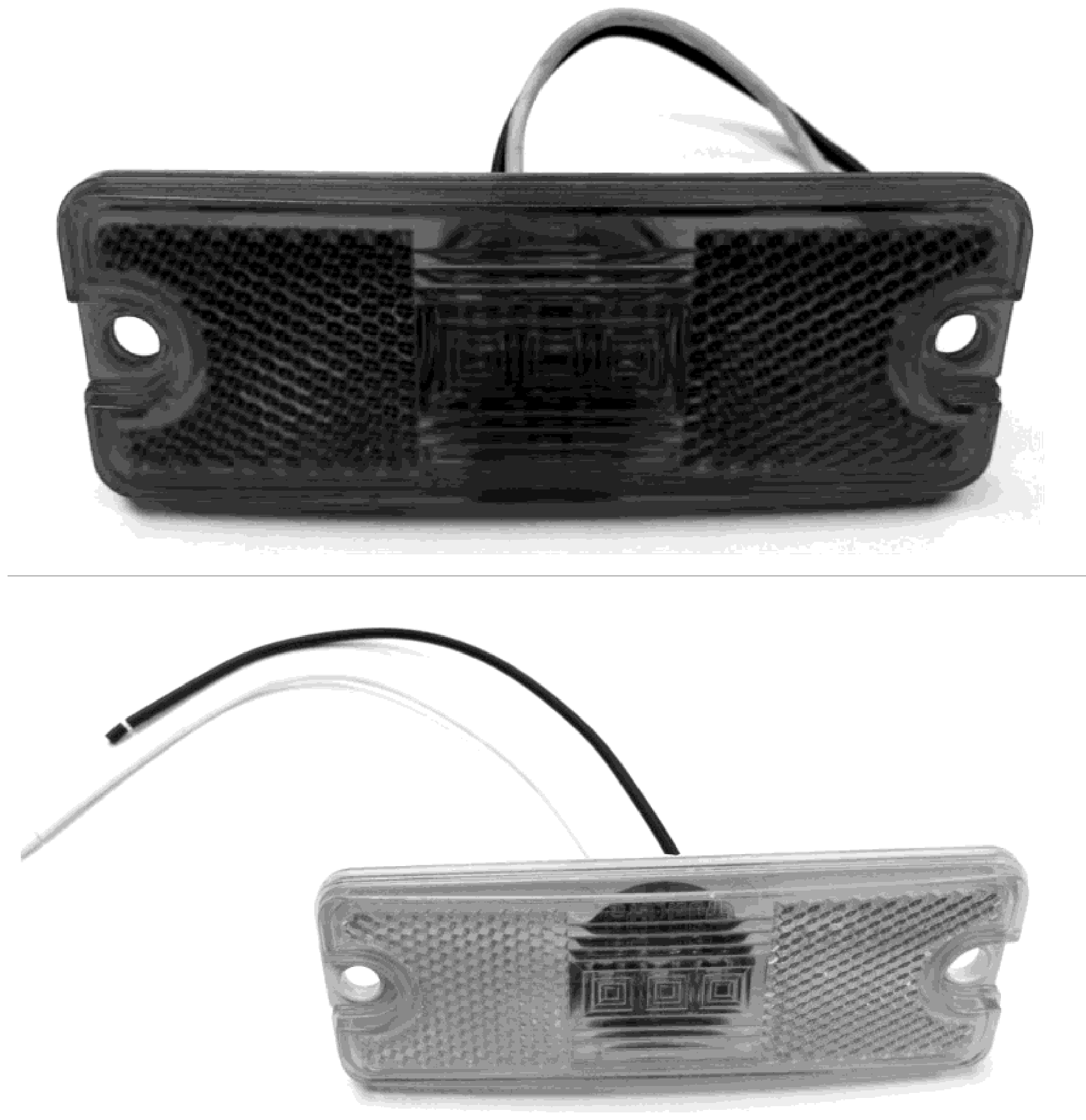

Light Kit (5 of 9)

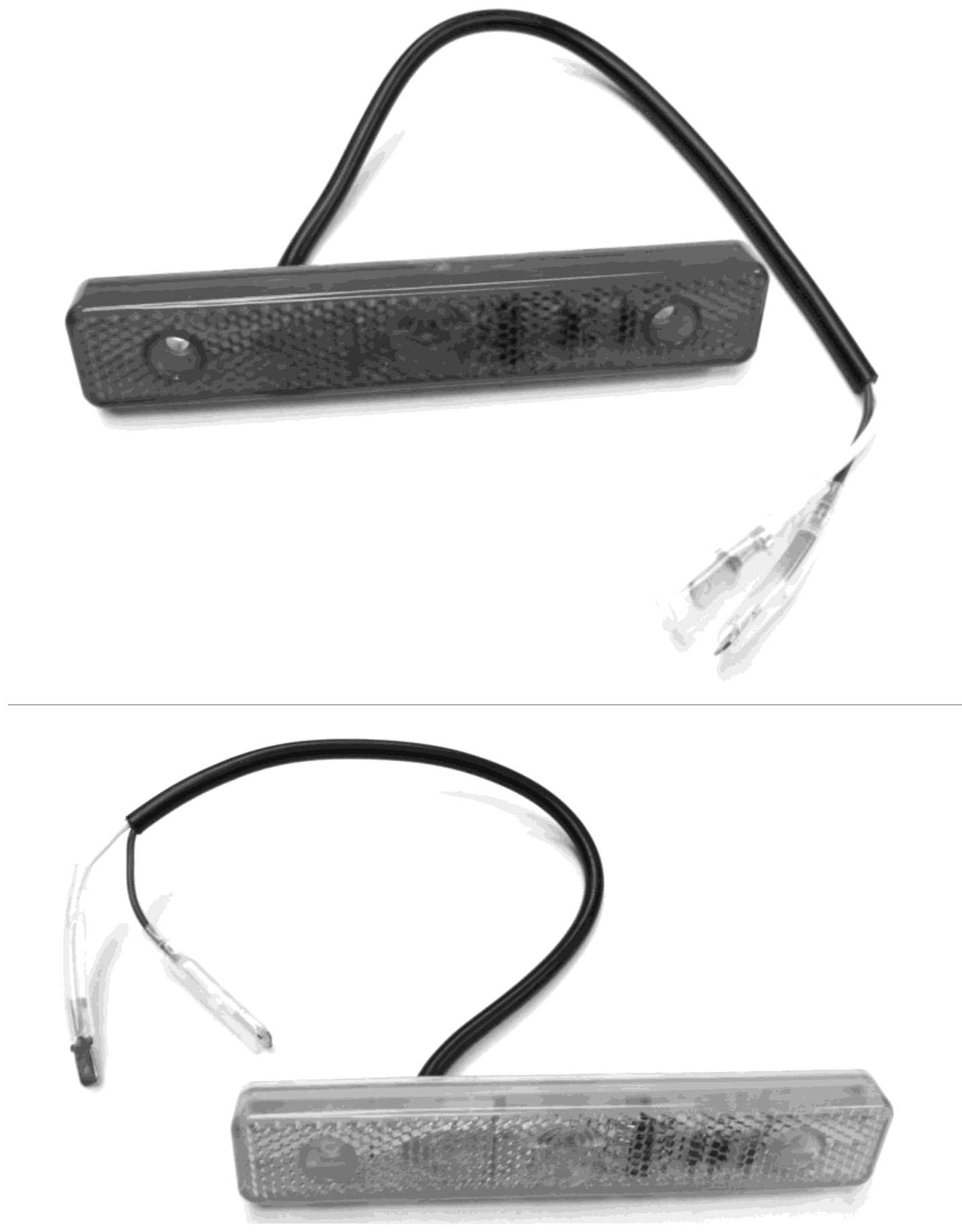

Light Kit (6 of 9)

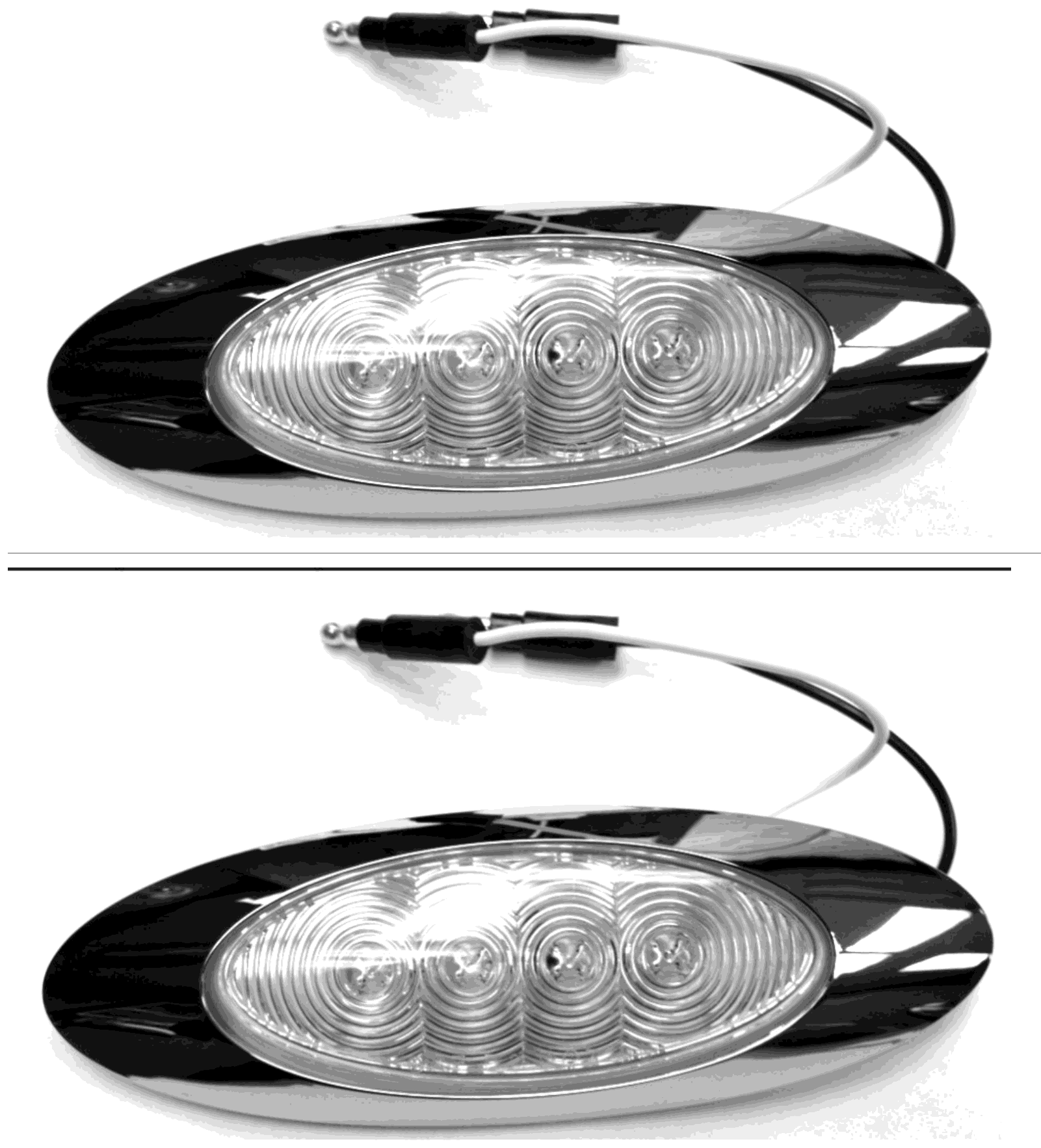

Light Kit (7 of 9)

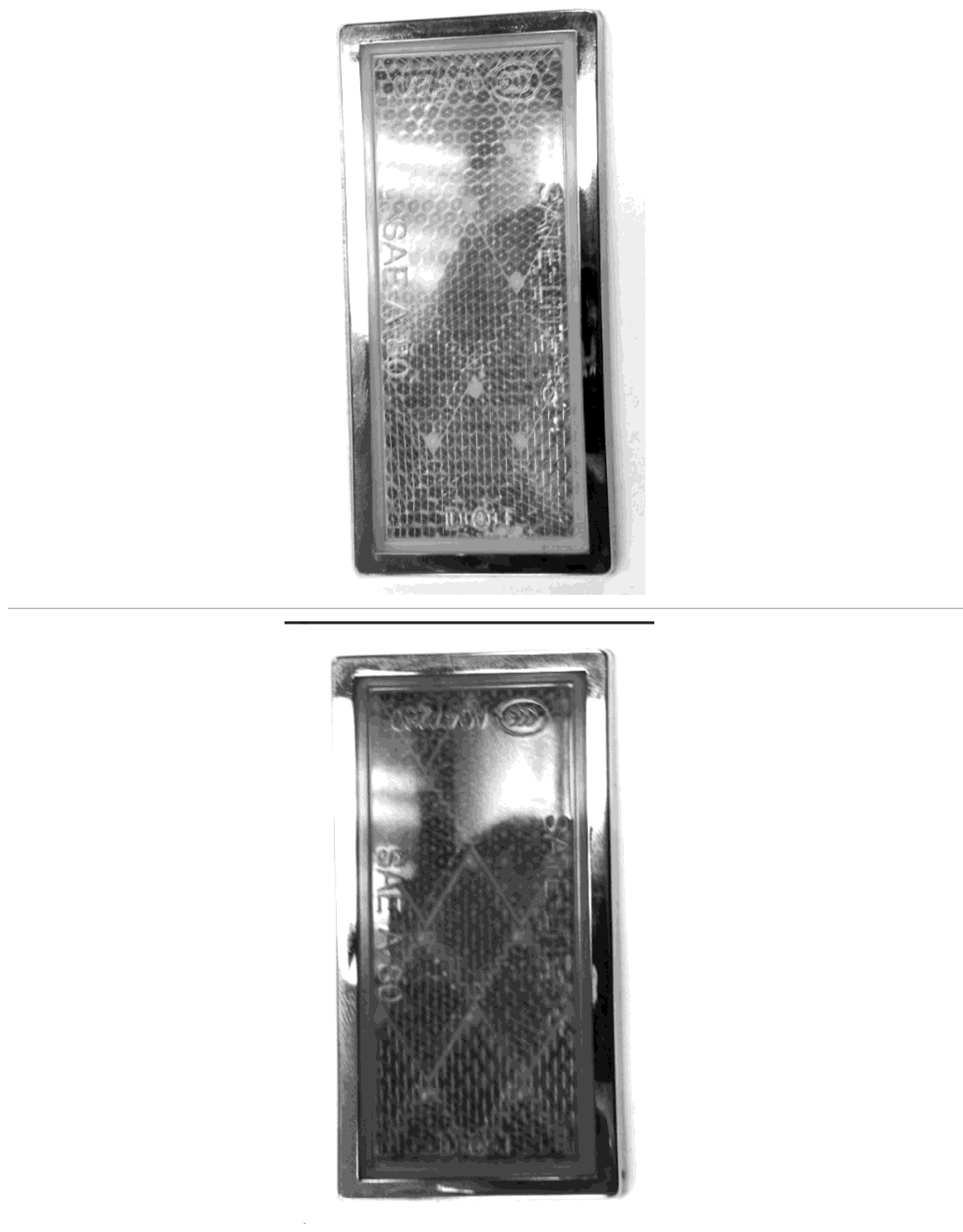

Light Kit (8 of 9)

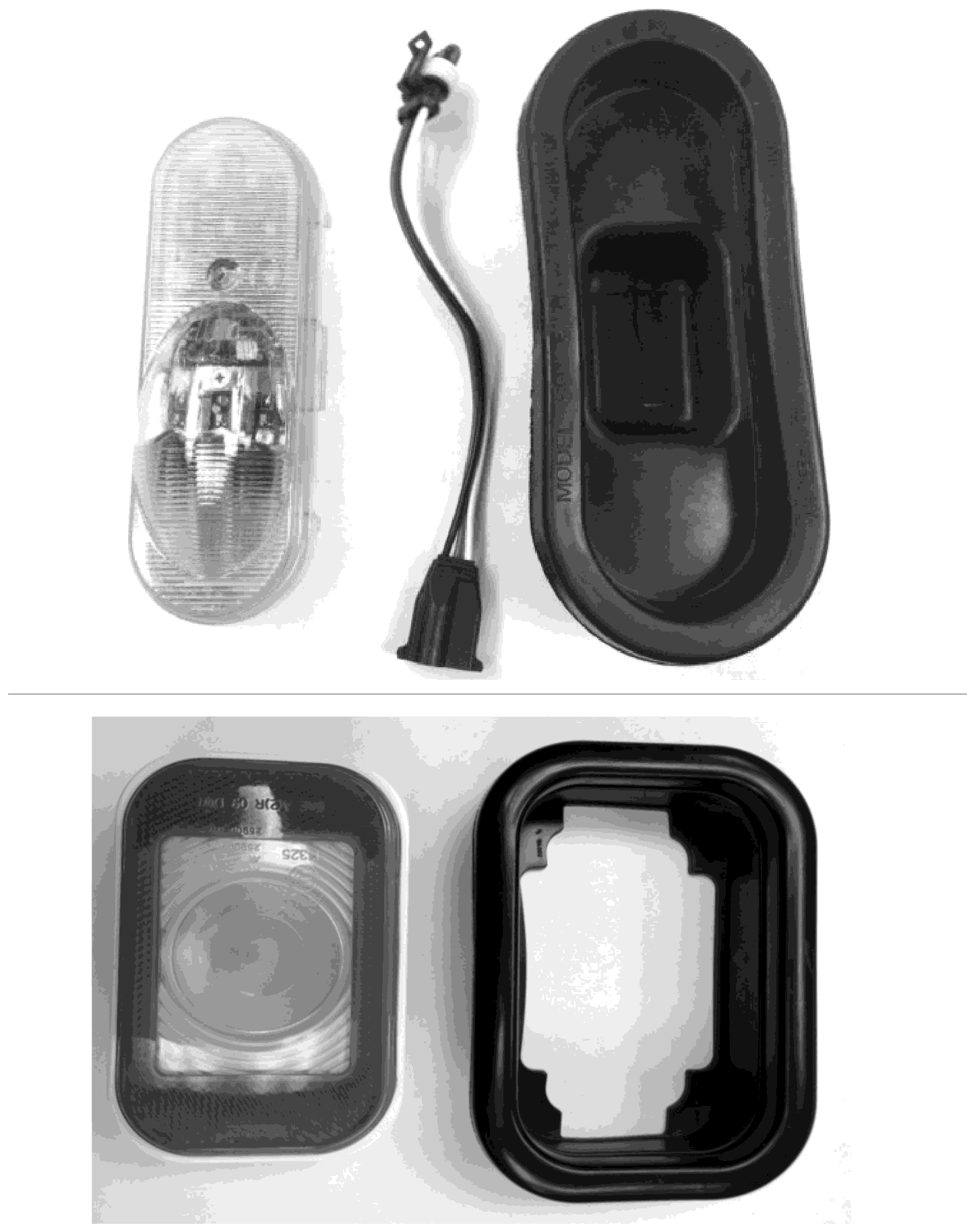

Light Kit (9 of 9)

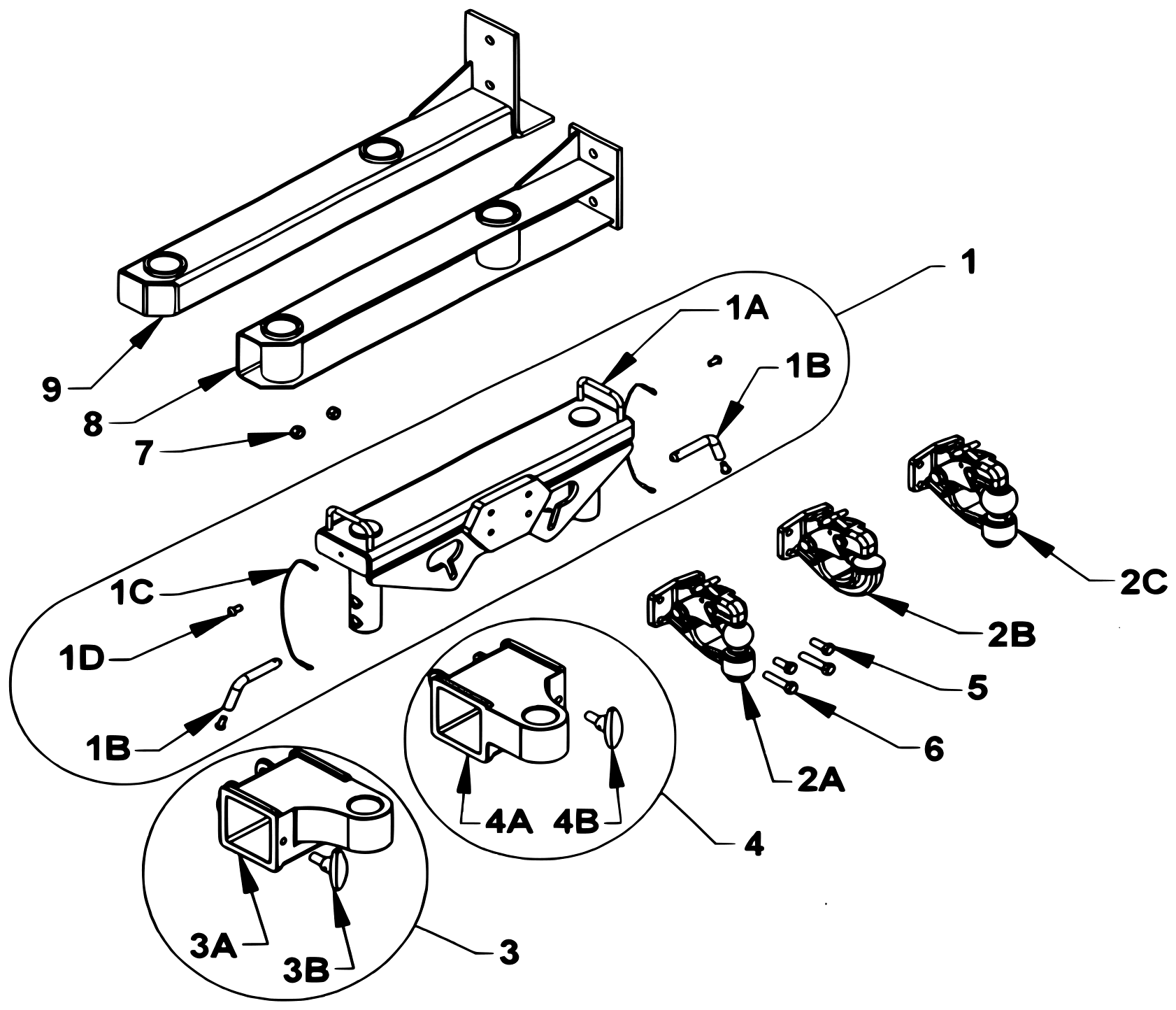

Pintle Attachment Group

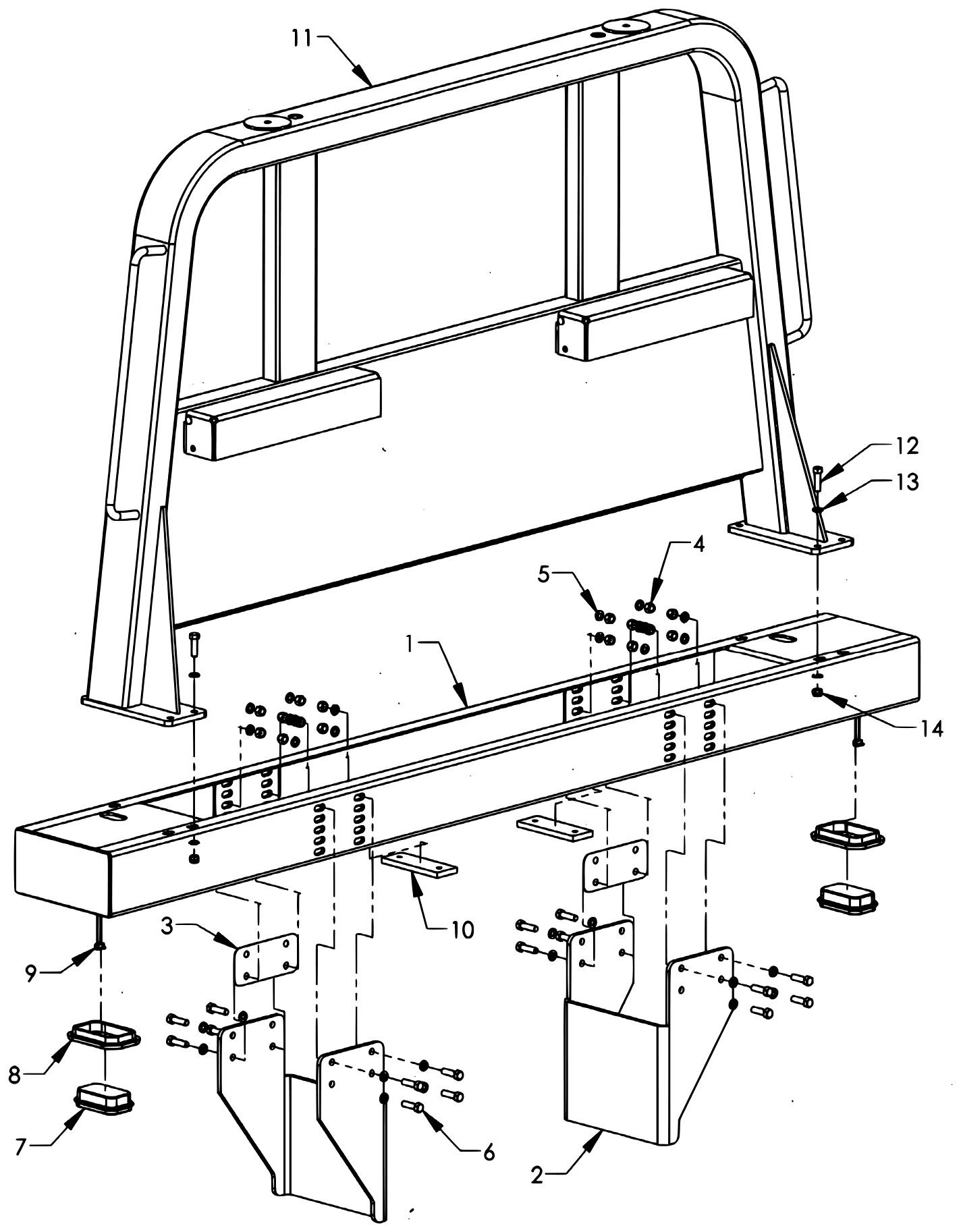

Frame Mounted Pylon - 0940455-102 - LCG Base Assembly

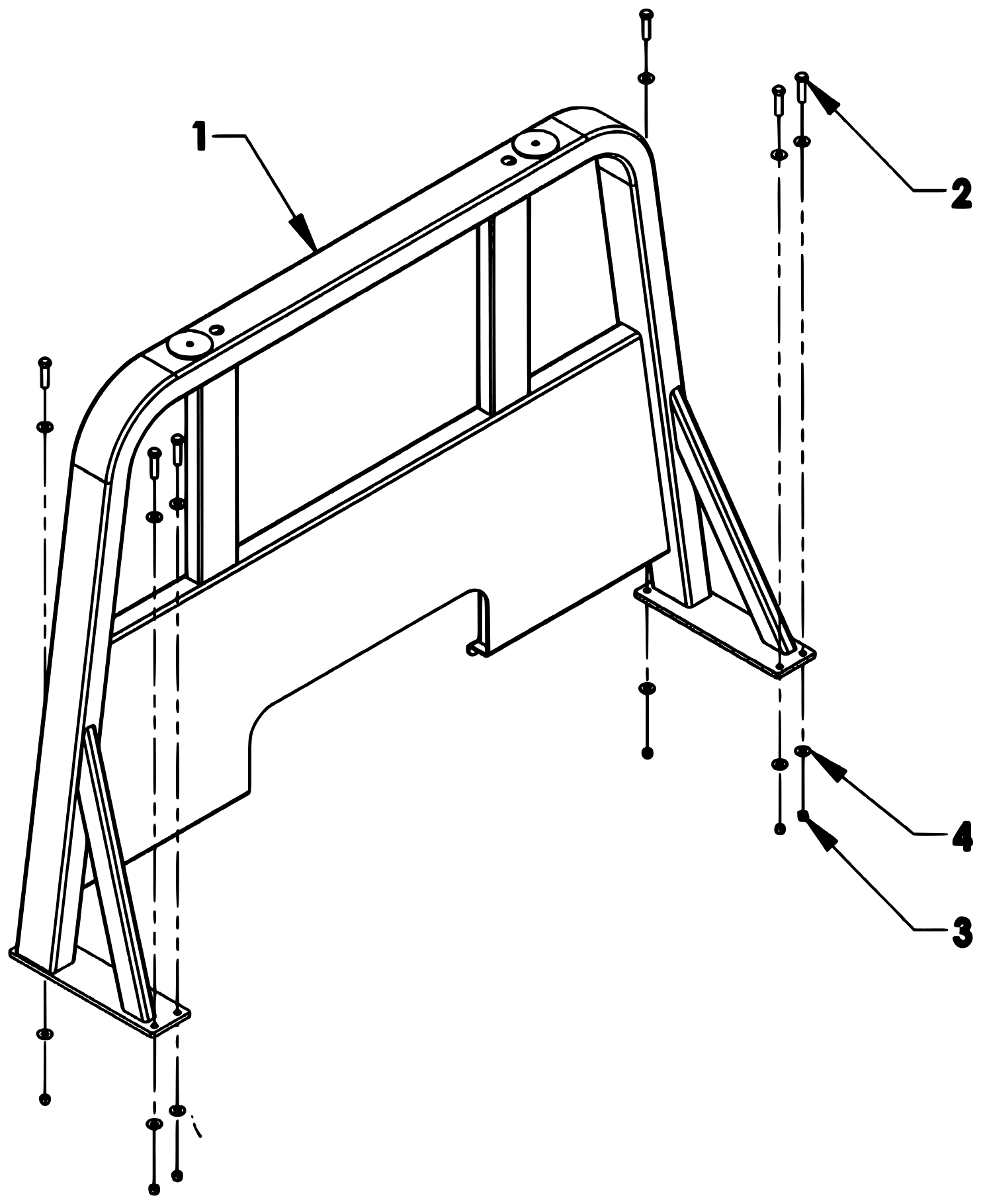

Bed Mounted Cab Protector

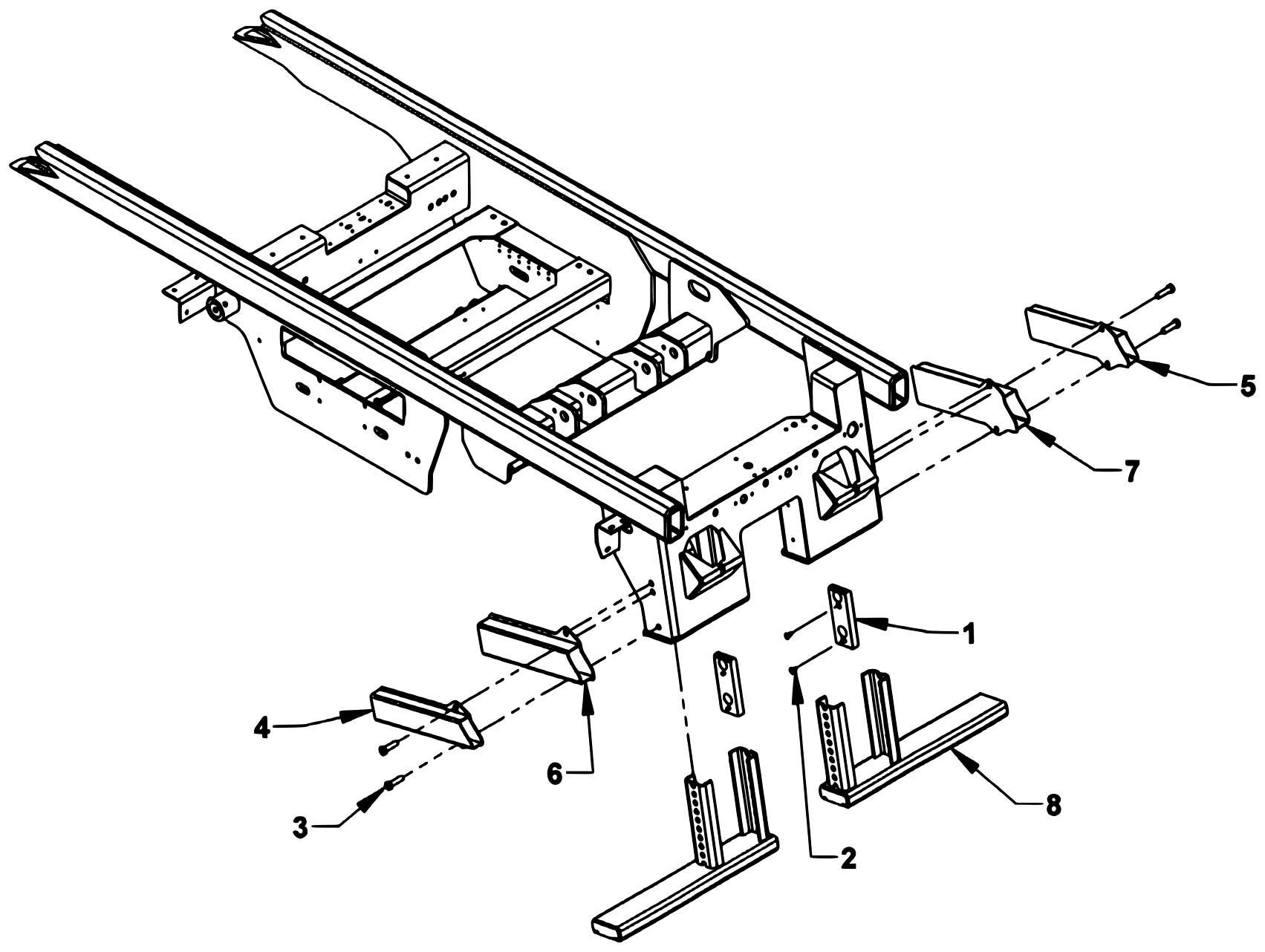

Stabilizer Components

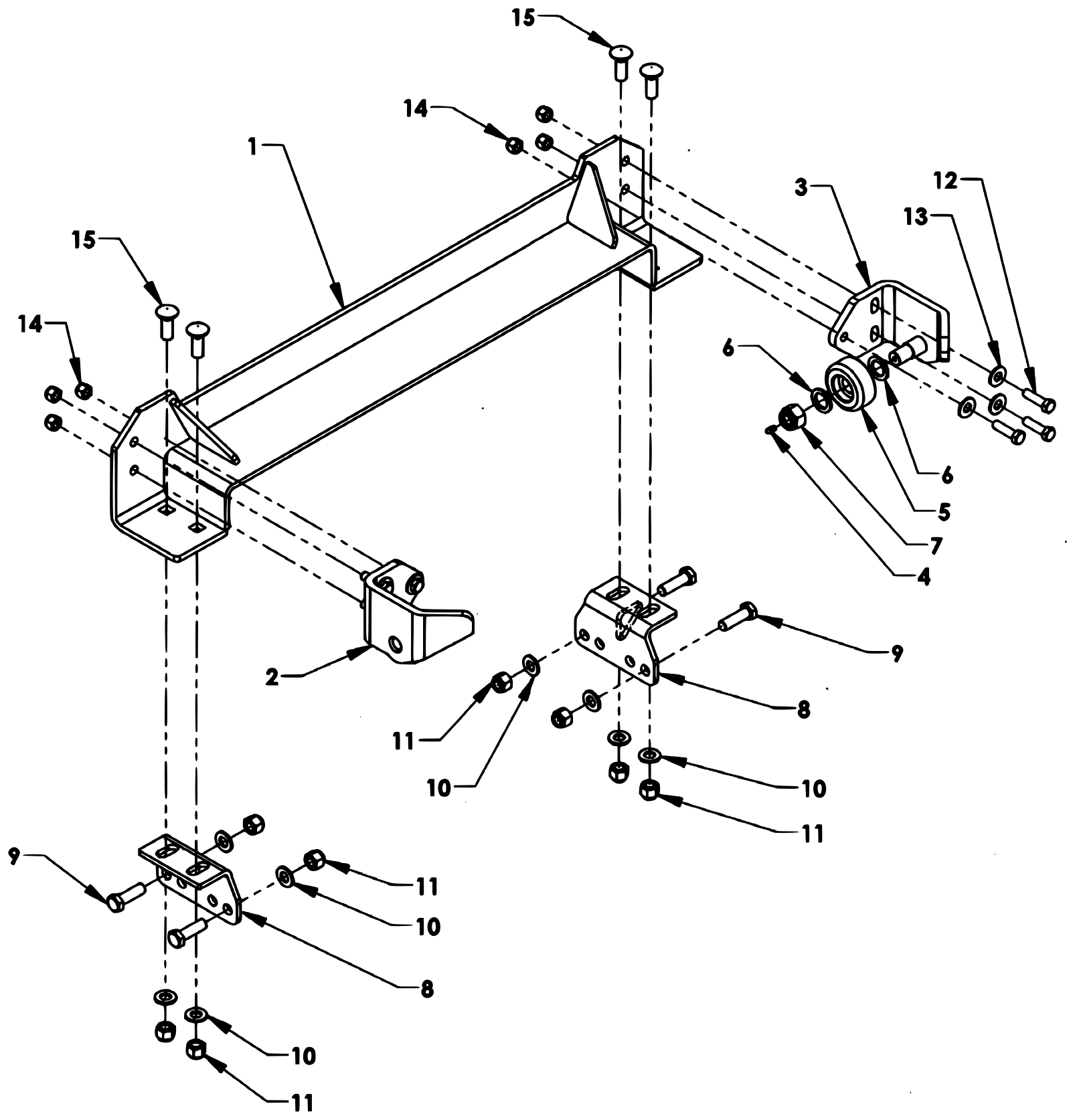

Body Lock Assembly - 364220K

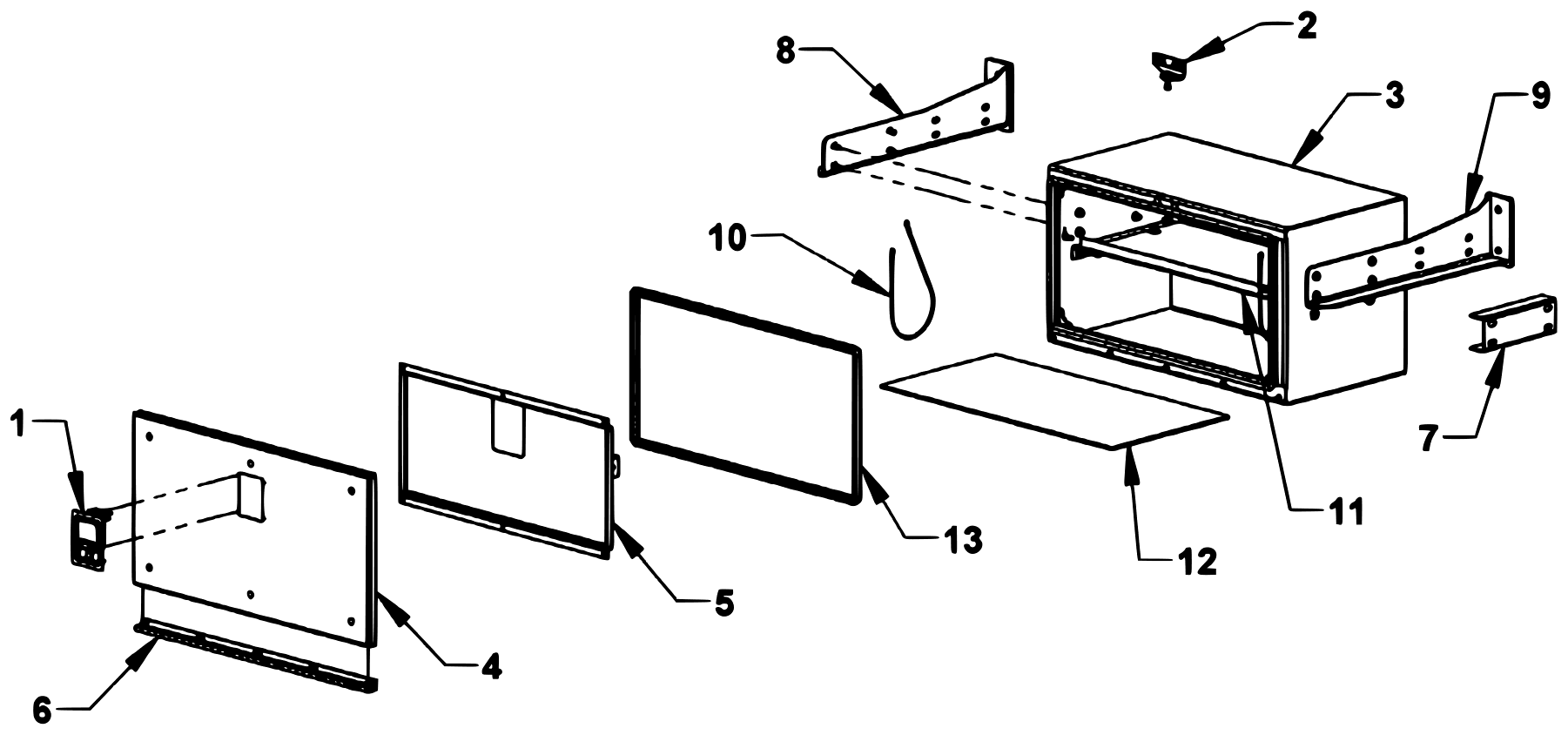

33" Aluminum Toolbox - 377000

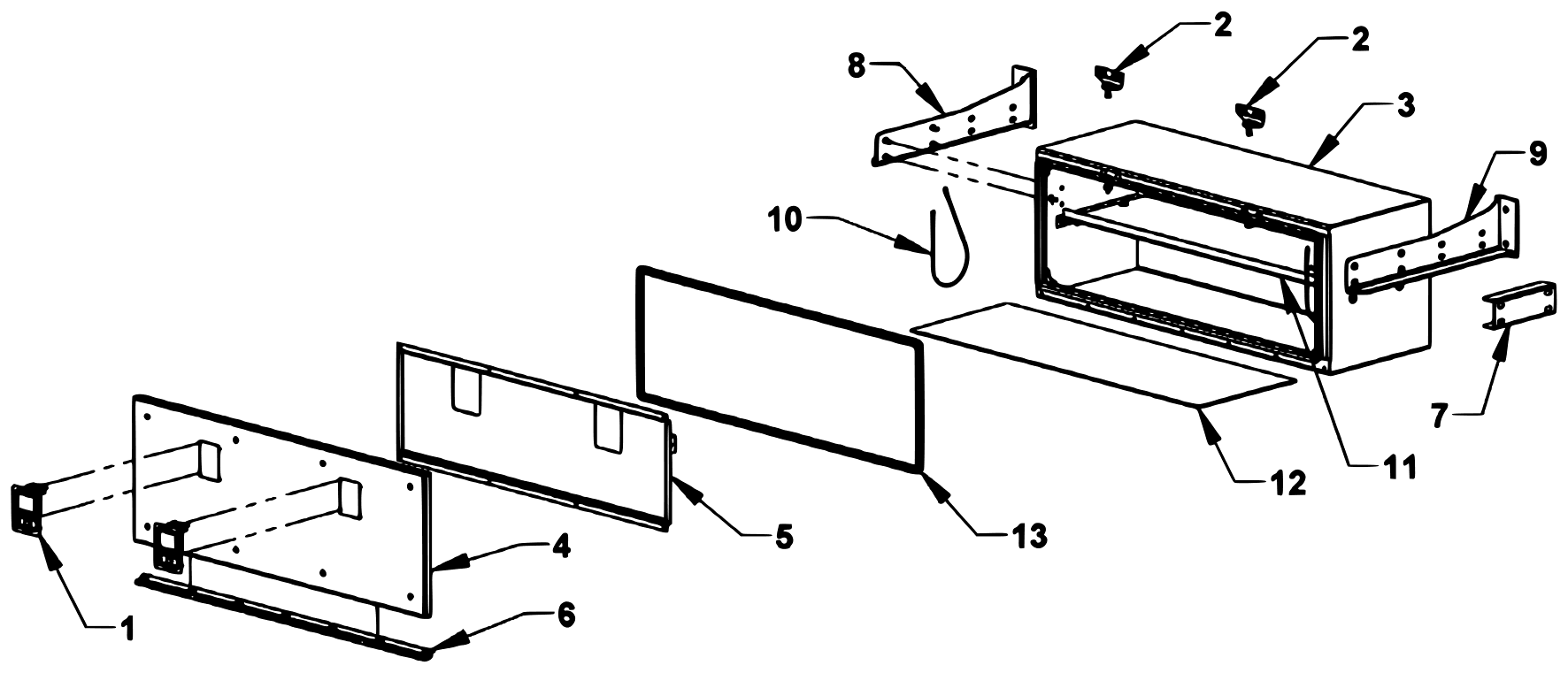

49" Aluminum Toolbox - 378000

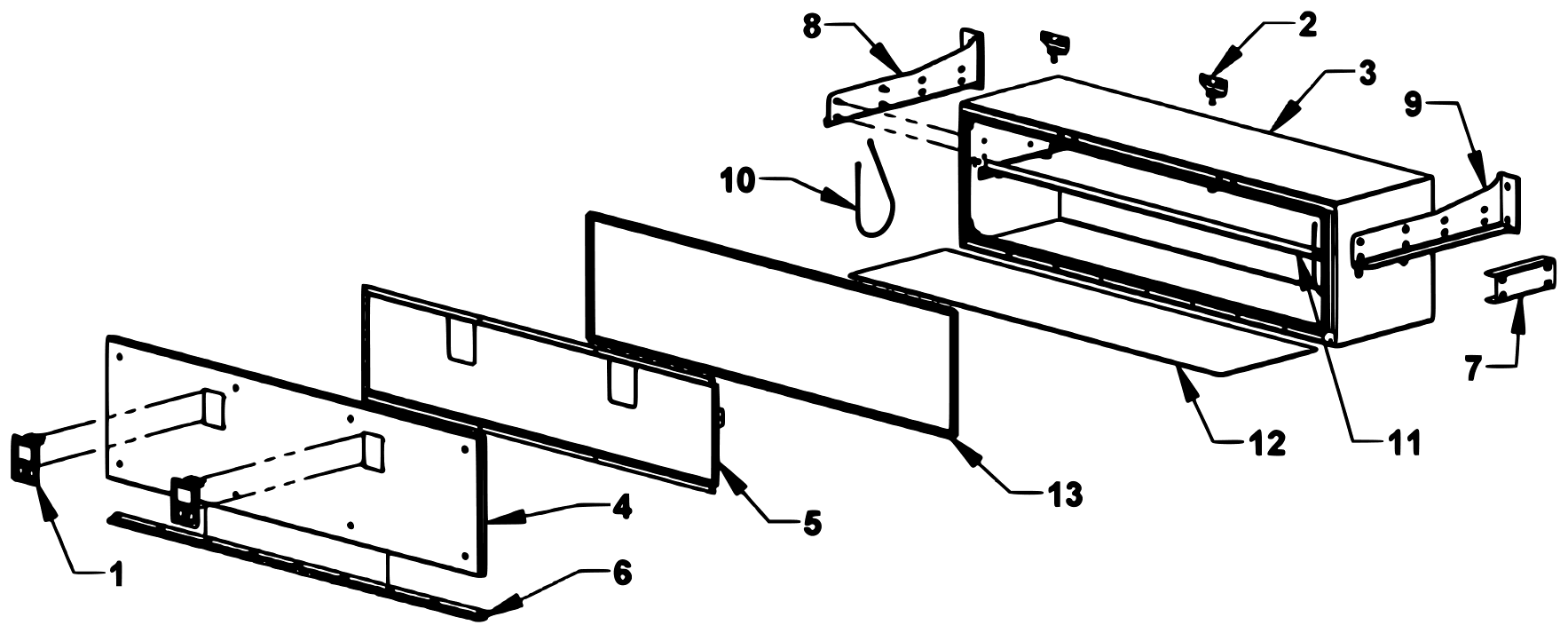

65" Aluminum Toolbox - 379000

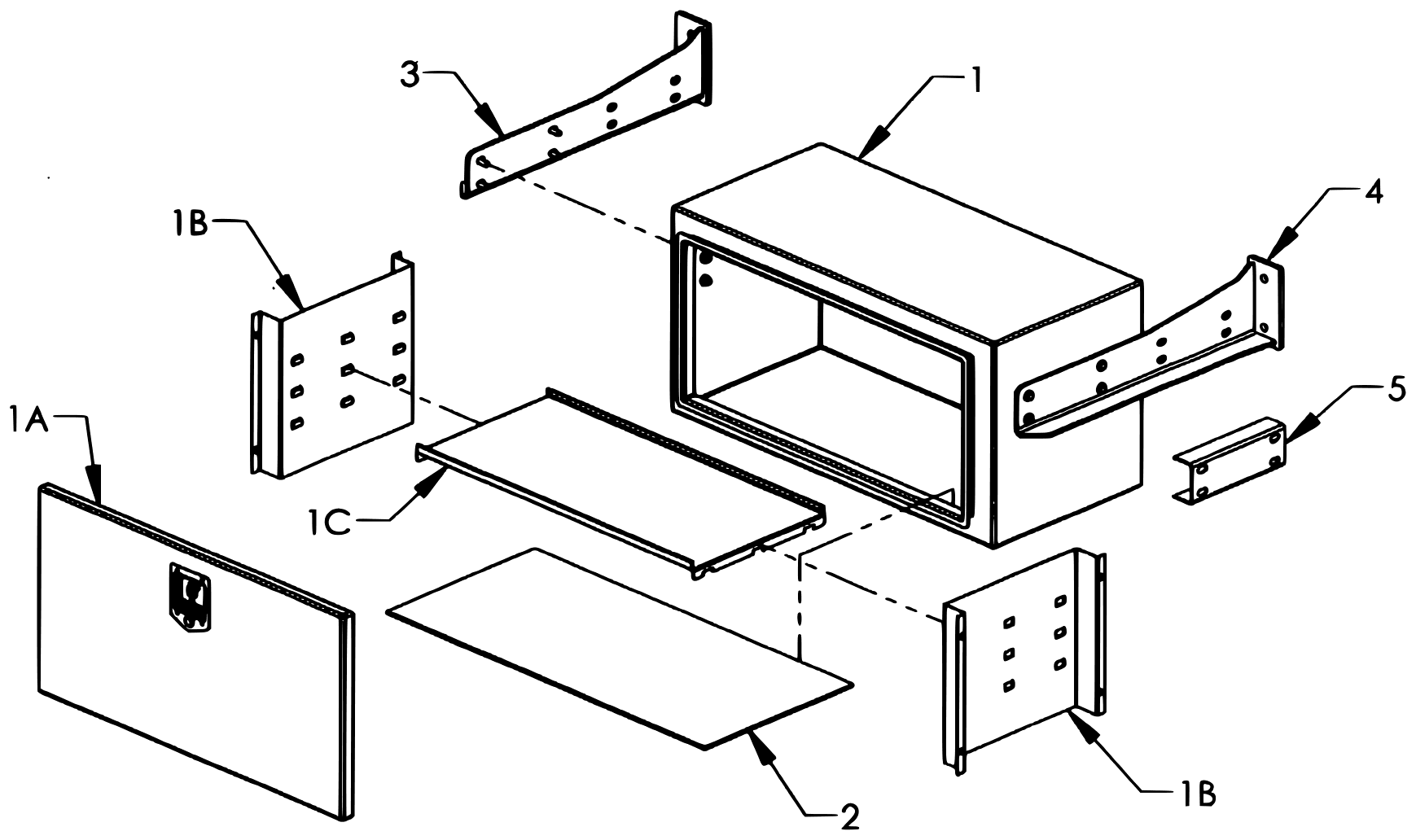

36" Steel Toolbox LCG - 174016021

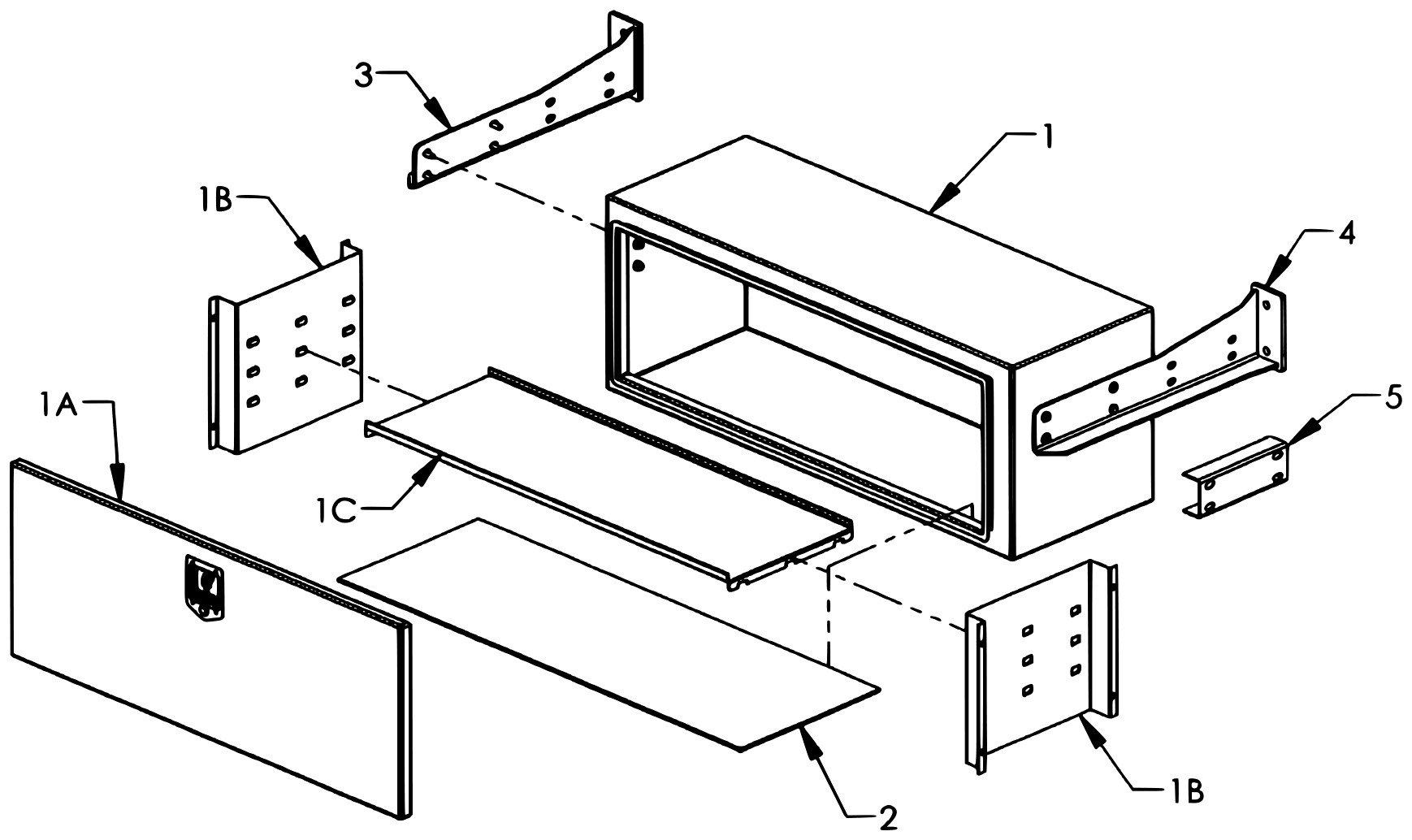

48" Steel Toolbox LCG - 174016022

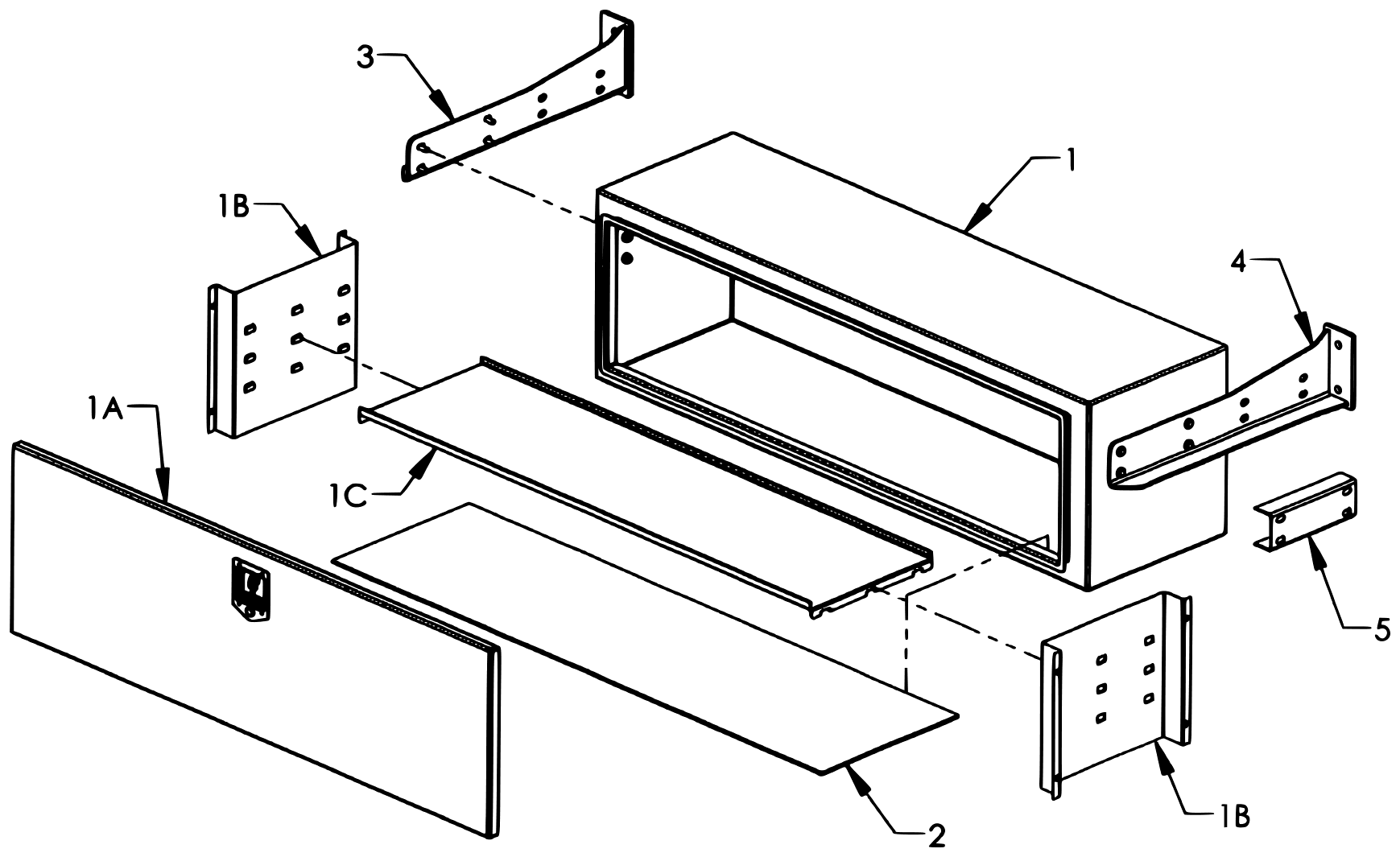

60" Steel Toolbox LCG - 174016023

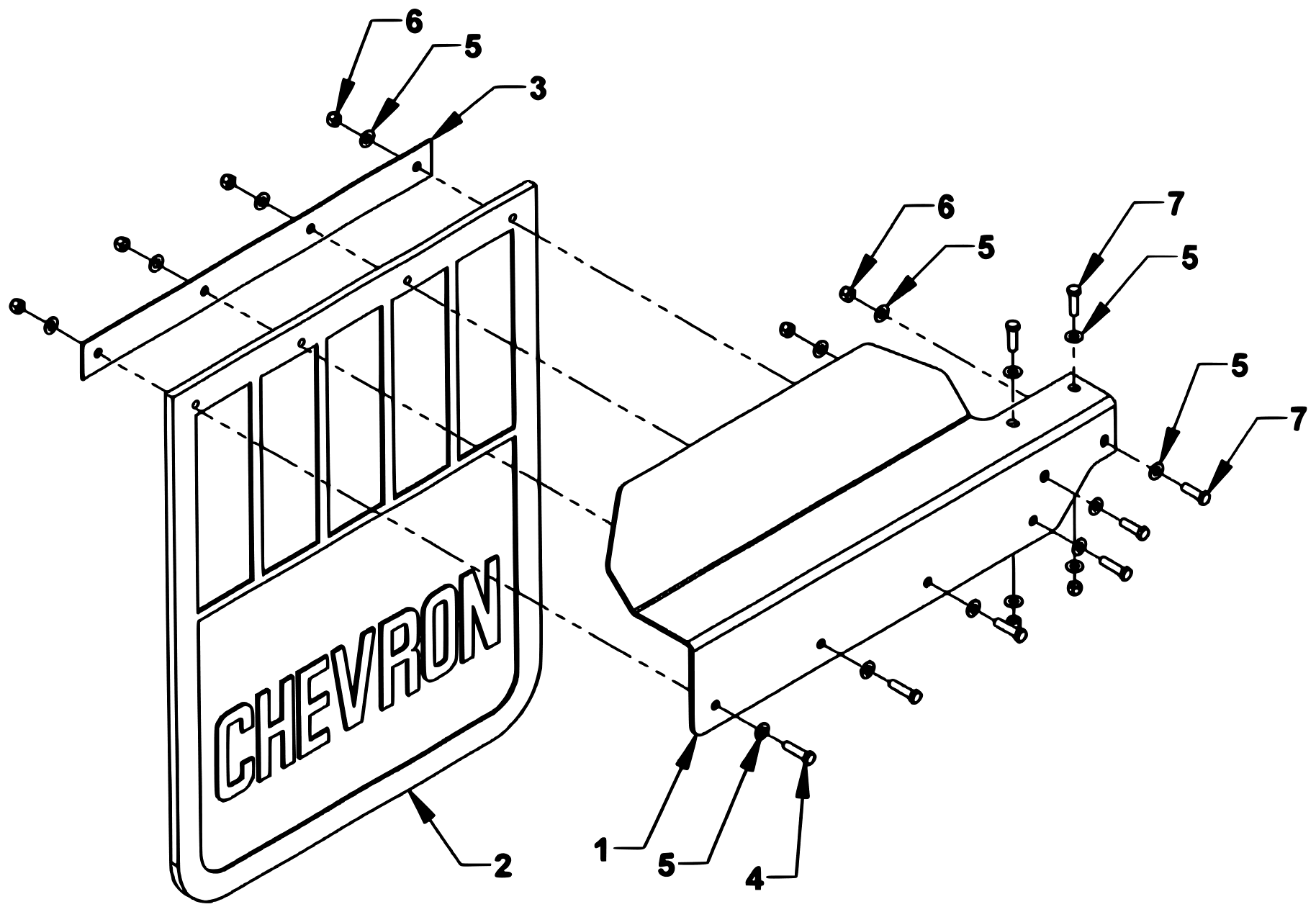

Mudflap Components

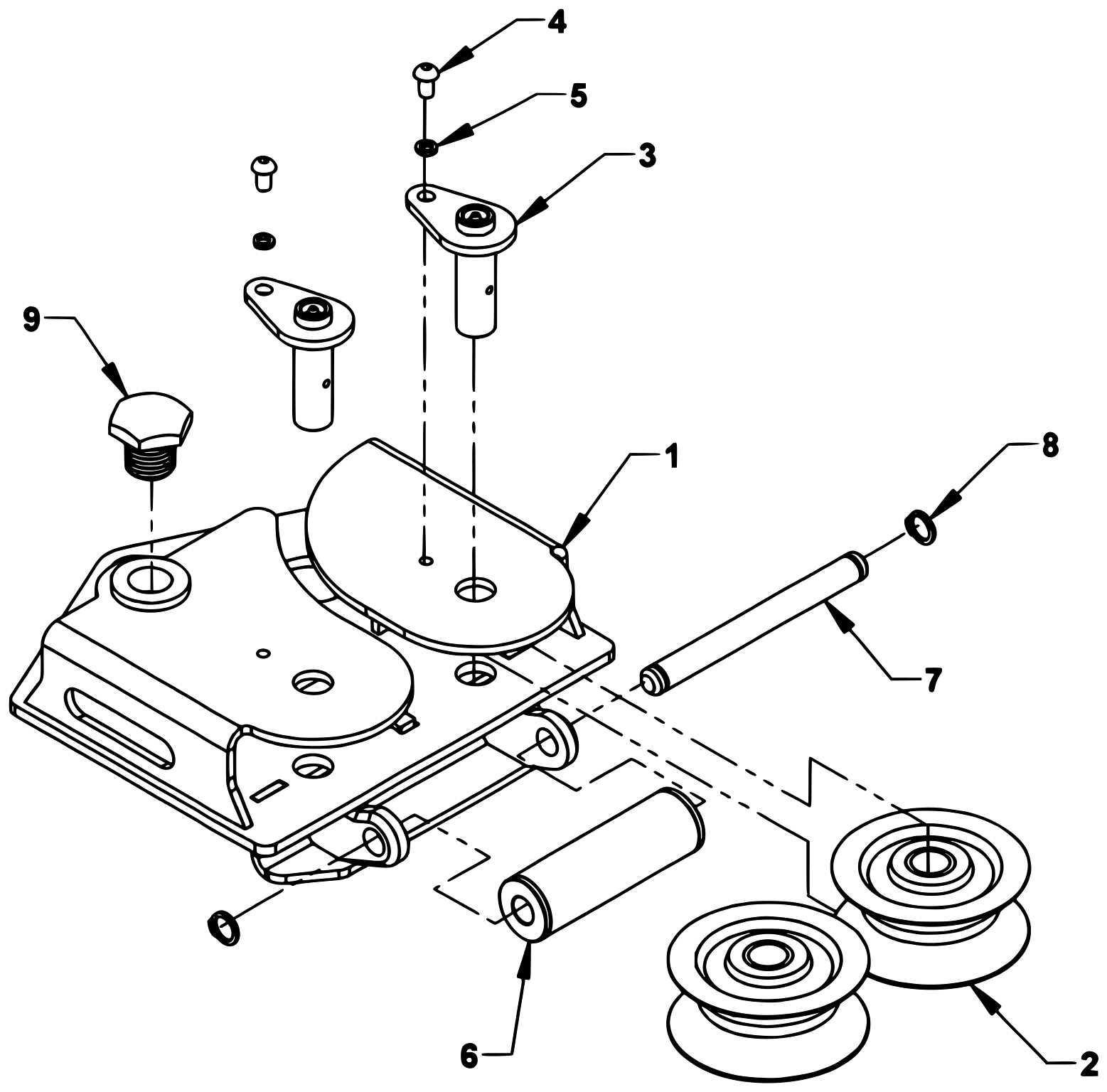

Recovery Roller Guide Attachment - 09019852

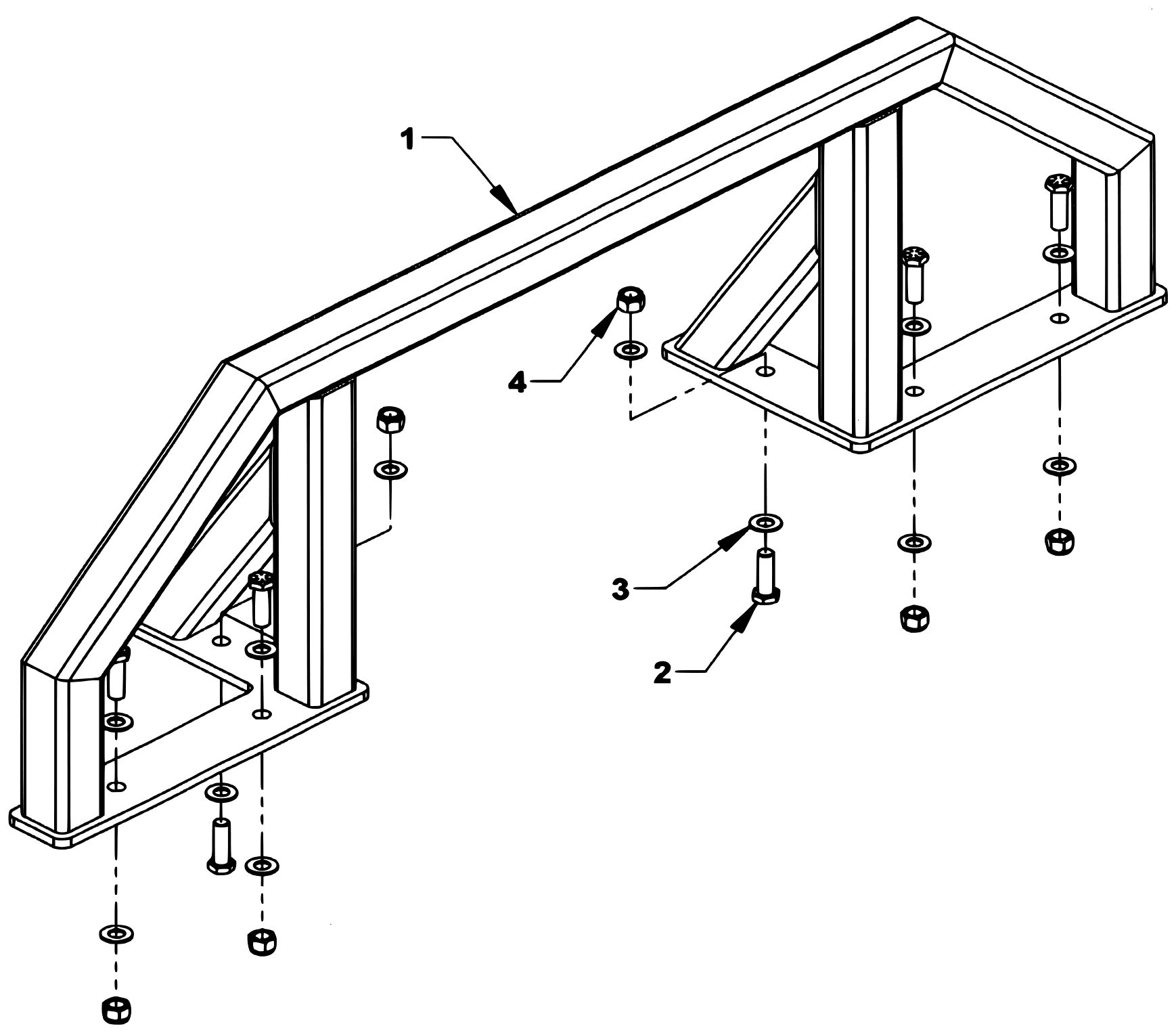

Bolt-On Winch Guard (Optional)

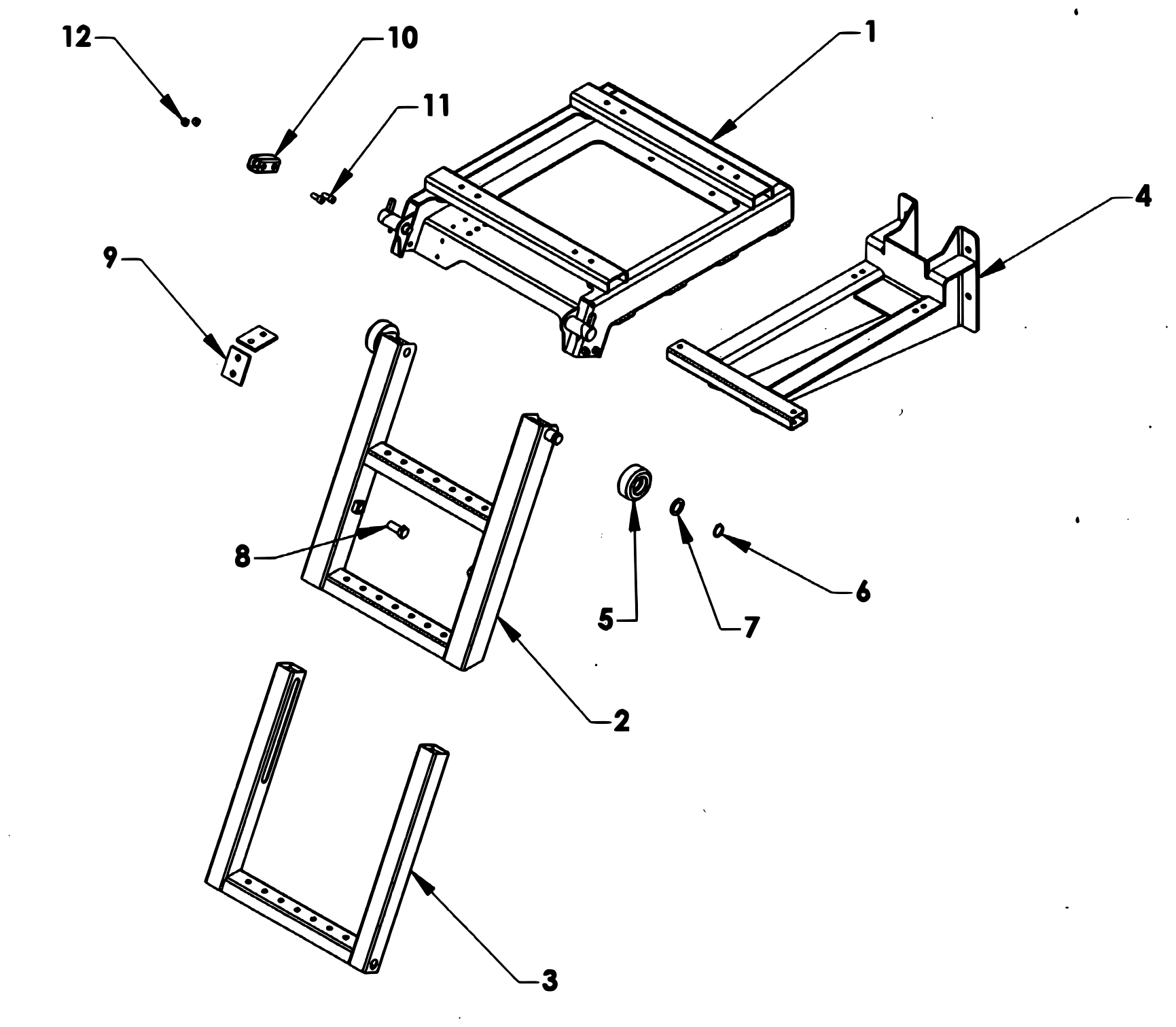

Retractable Ladder

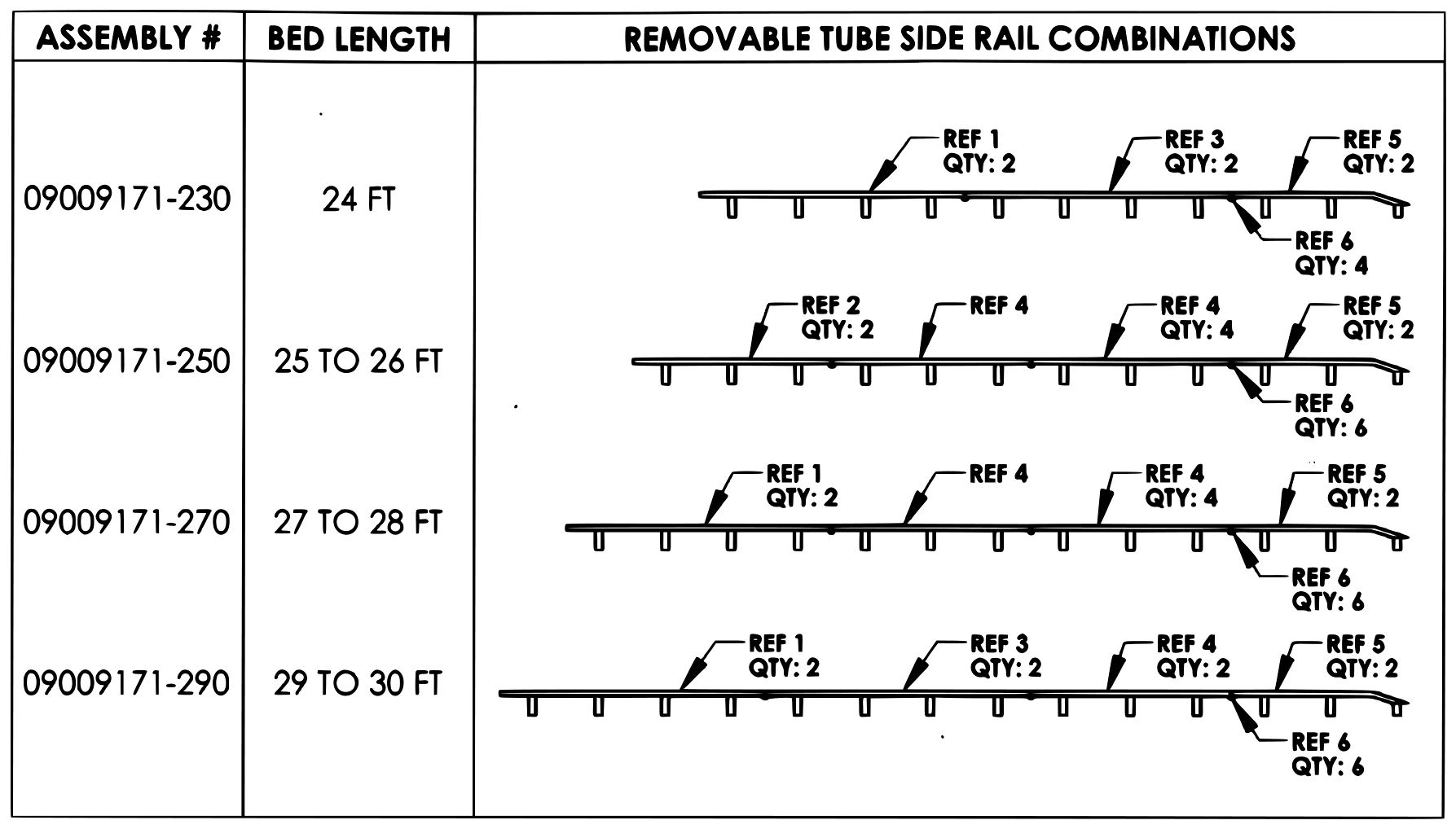

Removable Tube Rail Sides

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	346095F	FRONT REMOVABLE TUBE RAIL - 4 POST	SEE CHART	$375.63
2	346071F	FRONT REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$333.70
3	346095M	MIDDLE REMOVABLE TUBE RAIL - 4 POST	SEE CHART	$375.63
4	346071M	MIDDLE REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$333.70
5	346064	REAR REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$291.76
6	0306070	LYNCH PIN - 7/16 x 1-3/4	SEE CHART	$5.62

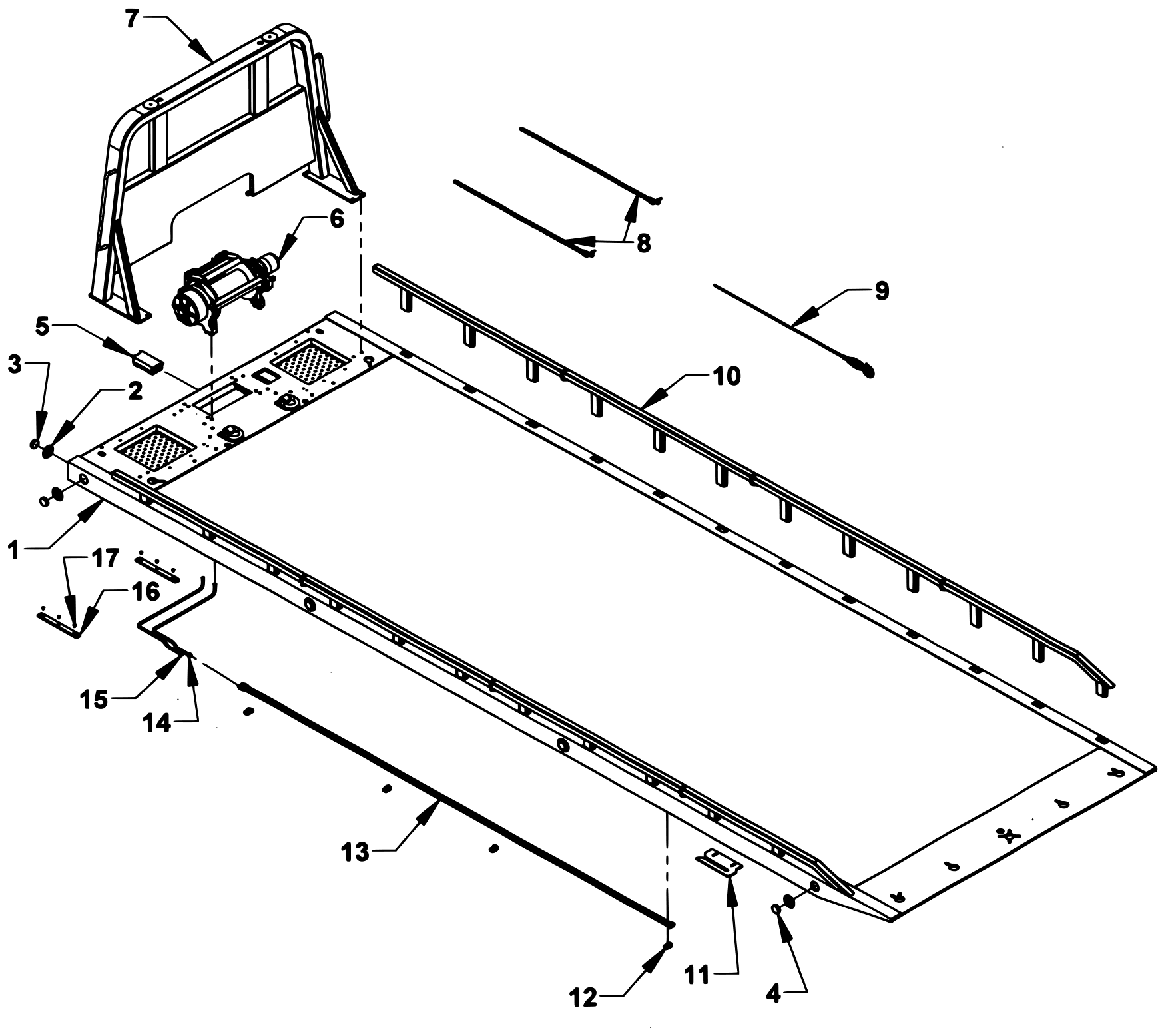

GEN2 Series 20 LCG Steel Bed Assembly - Removable Rail

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	3028420XXX	SERIES 20 G2 STEEL BED XXX = 240, 250, 260, 270, 280, 290, 300	1	Call for price	—
2	0311516	2-1/2 IN. MARKER LIGHT GROMMET	10	$1.72
3	0311513	2-1/2 IN. AMBER MARKER LIGHT	8	$14.60
4	0311512	2-1/2 IN. RED MARKER LIGHT	2	$14.60
5	0303385	10 POST JUNCTION BOX	1	$100.30
6	03015100-2015AA	DP 20K PLANETARY WINCH	1	$12,793.10
7	35FL0XX	CAB PROTECTOR XXX = 48, 50, 52, 60, 63, 66, 68	1	Call for price	—
8	0302493	FRONT SAFETY CHAIN ASSEMBLY 5/16 x 8 FT.	2	$111.23
9	0306034	WINCH CABLE ASSEMBLY 9/16 x 100 FT.	1	$477.73
10	09009171-XXX	REMOVABLE TUBE RAIL (SEE CHART)	1	Call for price	—
11	33813	ANTI-TILT PLATE	1	$41.94
	338/15	ANTI-TILT PLATE - 24 IN.		Call for price	—
12	0751188	FLUID TUBE MOUNTING BLOCK - LOWER	4	$8.81
13	383S2-XXX	SERIES 20/30/40 UNDER BODY FLUID TUBE XXX = 240, 250, 260, 270, 280, 290, 300	2	Call for price	—
14	343046-DP20	IND LCG WINCH FLUID TUBE INNER	1	Call for price	—
15	343050-DP20	IND LCG WINCH FLUID TUBE OUTER	1	Call for price	—
16	03013520	I-BEAM WEAR PAD	2	Call for price	—
17	04000844	FHSCS 5/16-18 x 5/8 ZP	6	Call for price	—

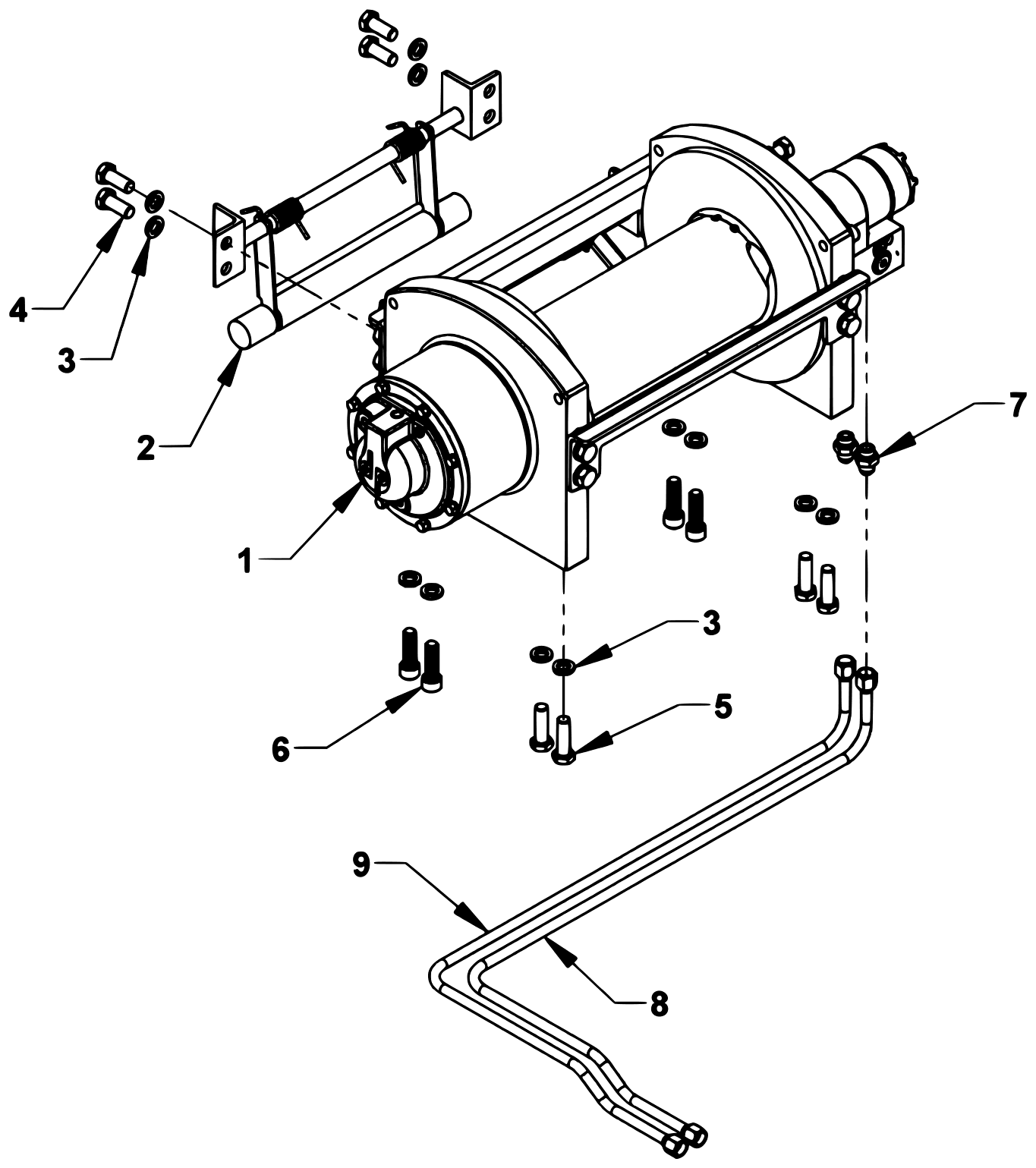

DP 20K Planetary Winch

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03015100-2015AA	DP 20K 15" DRUM PLANETARY WINCH	1	$12,793.10
2	03033728	DP 20K SPRING TENSIONER	1	$911.41
3	0400508	LOCK WASHER 5/8	12	$5.84
4	0400252	BOLT HHCS 5/8-11 UNC x 1-1/2 GR8 YZ	4	Call for price	—
5	0400274	BOLT HHCS 5/8-11 UNC x 2 GR8 YZ	4	$5.84
6	04005308	BOLT SHCS 5/8-11 UNC x 2 GR8 BLACK OXIDE	4	Call for price	—
7	ADPTR202702-08X08	ADAPTER 8JICM x 8MORB	2	Call for price	—
	ADPTR202713-08X08	ADAPTER EXTENDED 8JICM x 8MORB (WOOD DECK)		Call for price	—
8	343046-DP20	IND LCG WINCH FLUID TUBE INNER	1	Call for price	—
9	343050-DP20	IND LCG WINCH FLUID TUBE OUTER	1	Call for price	—

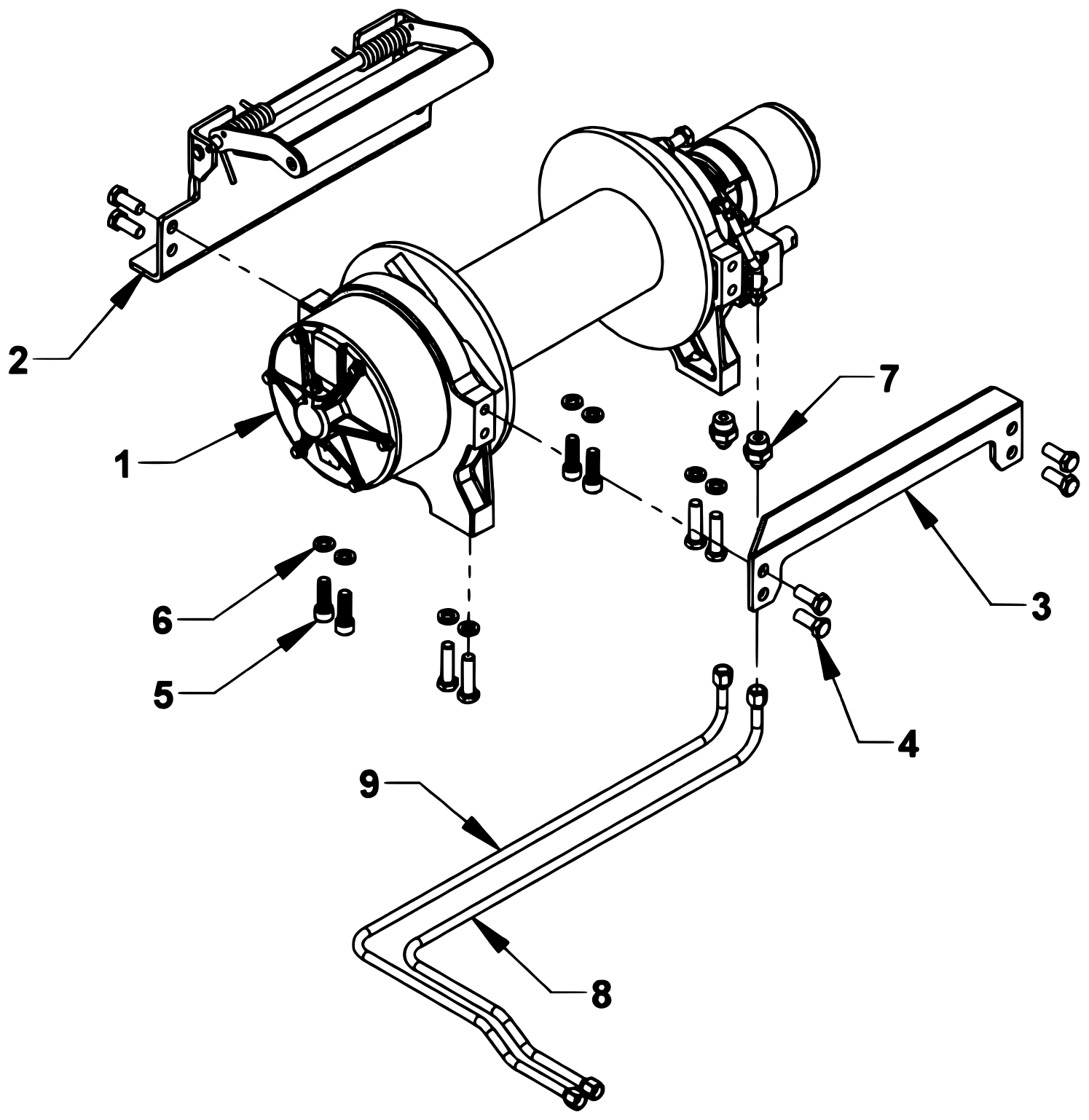

Warn 20XL Planetary Winch

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03015100-2015AA	WARN SERIES 20XL PLANETARY WINCH (replaces 7112014 per Miller)	1	$12,793.10
2	03025572	WARN 20XL TENSIONER	1	Call for price	—
3	0750984	DRUM SUPPORT CROSSBAR	1	Call for price	—
4	0400252	BOLT HHCS 5/8-11 UNC x 1-1/2 GR5	8	Call for price	—
5	0403141	BOLT HHCS 5/8-11 UNC x 2-1/4 GR8	14	Call for price	—
6	0400508	LOCK WASHER 5/8	8	$5.84
7	ADPTR202702 12X08	ADAPTER STRAIGHT MORB/JICM 12 x 8	2	Call for price	—
8	343046	LCG IND WINCH FLUID TUBE 20XL - SHORT	1	$71.27
9	343050	LCG IND WINCH FLUID TUBE 20XL - LONG	1	$74.66

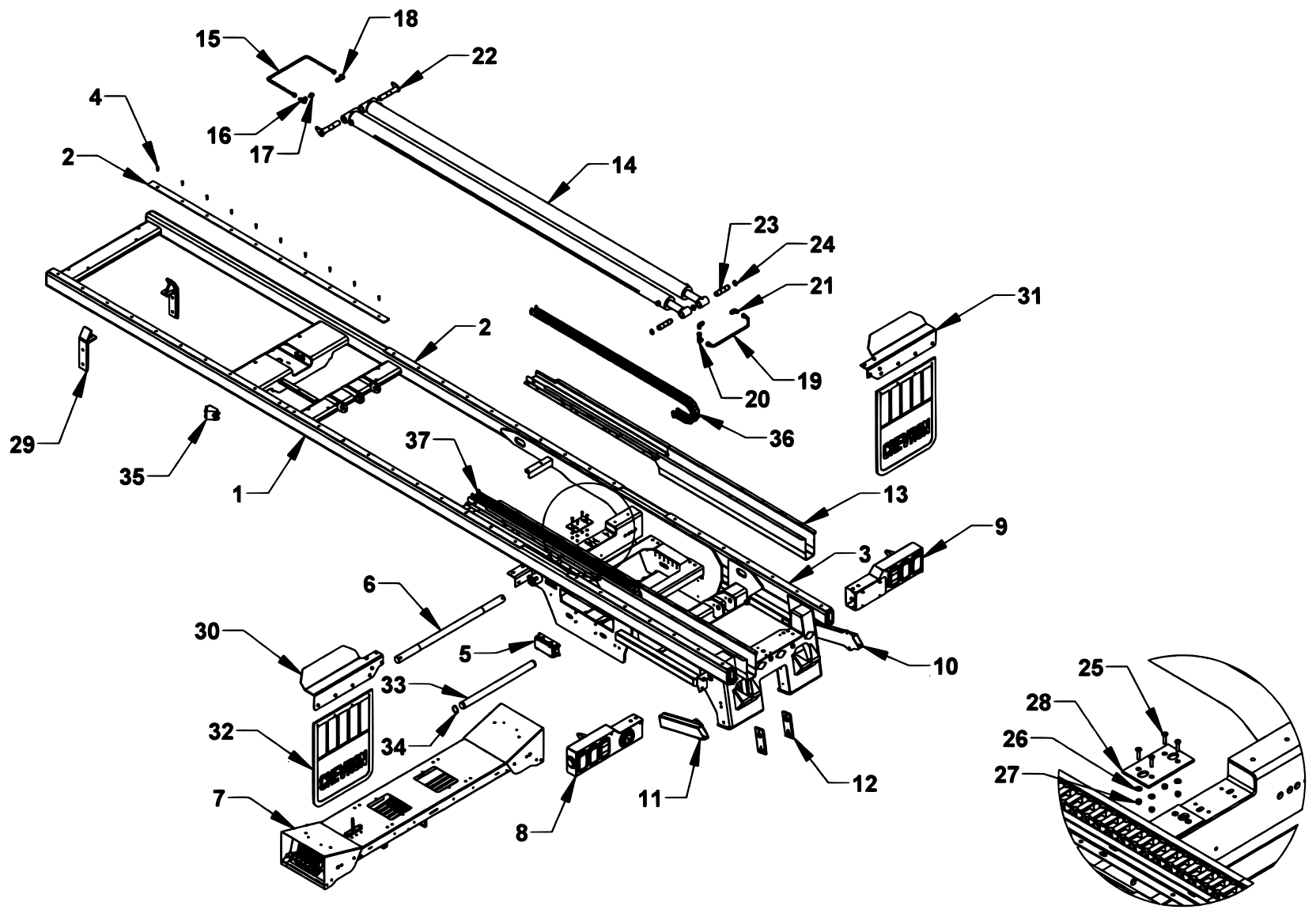

Series 20 LCG GEN2 Subframe Assembly

Show parts list (46 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809661-XX	S20 LCG SUBFRAME XX = 24, 25, 26, 27, 28, 29, 30	1	Call for price	—
2	0308927-96	SUBFRAME BEARING PAD 5/16 x 2-1/4 x 96	4	$207.12
	0308927-66	SUBFRAME BEARING PAD 5/16 x 2-1/4 x 66		$154.02
	0308927-56	SUBFRAME BEARING PAD 5/16 x 2-1/4 x 56		$130.73
3	0308927-96N	SUBFRAME BEARING PAD NYLATRON 5/16 x 2-1/4 x 96	2	Call for price	—
4	04000321	BOLT, 5/16-18 x 1-1/4 COUNTERSUNK TORX ST	60	$0.85
5	0303385	JUNCTION BOX	1	$100.30
6	0751264	20 GEN2 LCG HINGE PIN	1	$754.90
7	183126	6 SPOOL CONTROL STATION	1	Call for price	—
	183129	9 SPOOL CONTROL STATION		Call for price	—
8	0940327L	CHEVRON TAIL LIGHT HOUSING GROUP - LH	1	$918.73
9	0940327R	CHEVRON TAIL LIGHT HOUSING GROUP - RH	1	$819.81
10	0809287R	L-ARM STORAGE TUBE SLIDE-IN 4K RT (STANDARD)	1	$105.75
	160540R	L-ARM STORAGE TUBE SCOOP 4K RT (OPTIONAL)		$242.53
	160535R	L-ARM STORAGE TUBE DROP-IN 4K RT (OPTIONAL)		$121.94
	1605610R	L-ARM STORAGE TUBE DROP-IN 6K RT (OPTIONAL)		$148.76
11	0809287L	L-ARM STORAGE TUBE SLIDE-IN 4K LEFT (STANDARD)	1	$105.75
	160540L	L-ARM STORAGE TUBE SCOOP 4K LEFT (OPTIONAL)		$242.53
	160535L	L-ARM STORAGE TUBE DROP-IN 4K LEFT (OPTIONAL)		$121.94
	1605610L	L-ARM STORAGE TUBE DROP-IN 6K LEFT (OPTIONAL)		$148.76
12	0750409	STABILIZER WHEEL LIFT GUIDE PAD	2	$21.89
13	08024972	SINGLE BAY HOSE TRAY	2	Call for price	—
14	72A35120	SLIDEBACK CYLINDER 3.5 BORE x 120 STROKE	2	$2,981.36
15	72H20FT	SERIES 20 LCG SLIDEBACK CYL FLUID PIPE ASSEM.	1	$71.64
16	ADPTR203101-08X08	ADAPTER - 203101 - 08 x 08	1	Call for price	—
17	ADPTR202702-08X08	ADAPTER - 202702 - 08 x 08	1	Call for price	—
18	ADPTR206209-08X08	ADAPTER - 206209 - 08 x 08	1	Call for price	—
19	03003661	SLIDEBACK CYLINDER REAR FLUID TUBE-LCG 20	1	$62.78
20	ADPTR-FF2114T0808	ADAPTER - FF2114T - 08 x 08	1	Call for price	—
21	ADPTR FF1868T0808	ADAPTER - FF1868T - 08 x 08	2	Call for price	—
22	1302720A	SLIDEBACK CYLINDER MOUNTING/TILT SADDLE PIN	2	$53.54
23	32117	SLIDEBACK CYLINDER MOUNTING PIN	2	$56.54
24	86125E	1-1/4 SNAP RING - EXTERNAL	4	$1.42
25	0403162	BOLT 5/16-18 x 1-1/4 UNC ALLEN COUNTERSUNK	8	Call for price	—
26	0400465	FLAT WASHER 5/16	8	$5.84
27	0400382	NYLON LOCK NUT 5/16-18 UNC	8	$5.84
28	0751223	LCG G2 SLIDEBACK CYLINDER SUPPORT PAD	2	$26.06
29	0809975	SUBFRAME ALIGNMENT GUIDE	2	Call for price	—
30	0751024L	MUDFLAP SPLASH GUARD - 28 IN. LEFT	1	$207.86
31	0751024R	MUDFLAP SPLASH GUARD - 28 IN. RIGHT	1	$207.86
32	A1030	CHEVRON MUDFLAP 24 IN. x 30 IN.	2	$109.09
33	143122	UNDERLIFT HINGE PIN	1	$416.48
34	86200E	SNAP RING - 2 IN. EXTERNAL	2	$11.91
35	74345	COUNTERBALANCE VALVE CBCG-XVN-XEI	1	$556.17
36	09020735	IGUS 200.03.055 41 LINK TRACK AND BOLT KIT	1	$190.48
37	09020734	IGUS 200.05.055 41 LINK TRACK AND BOLT KIT	1	$202.72

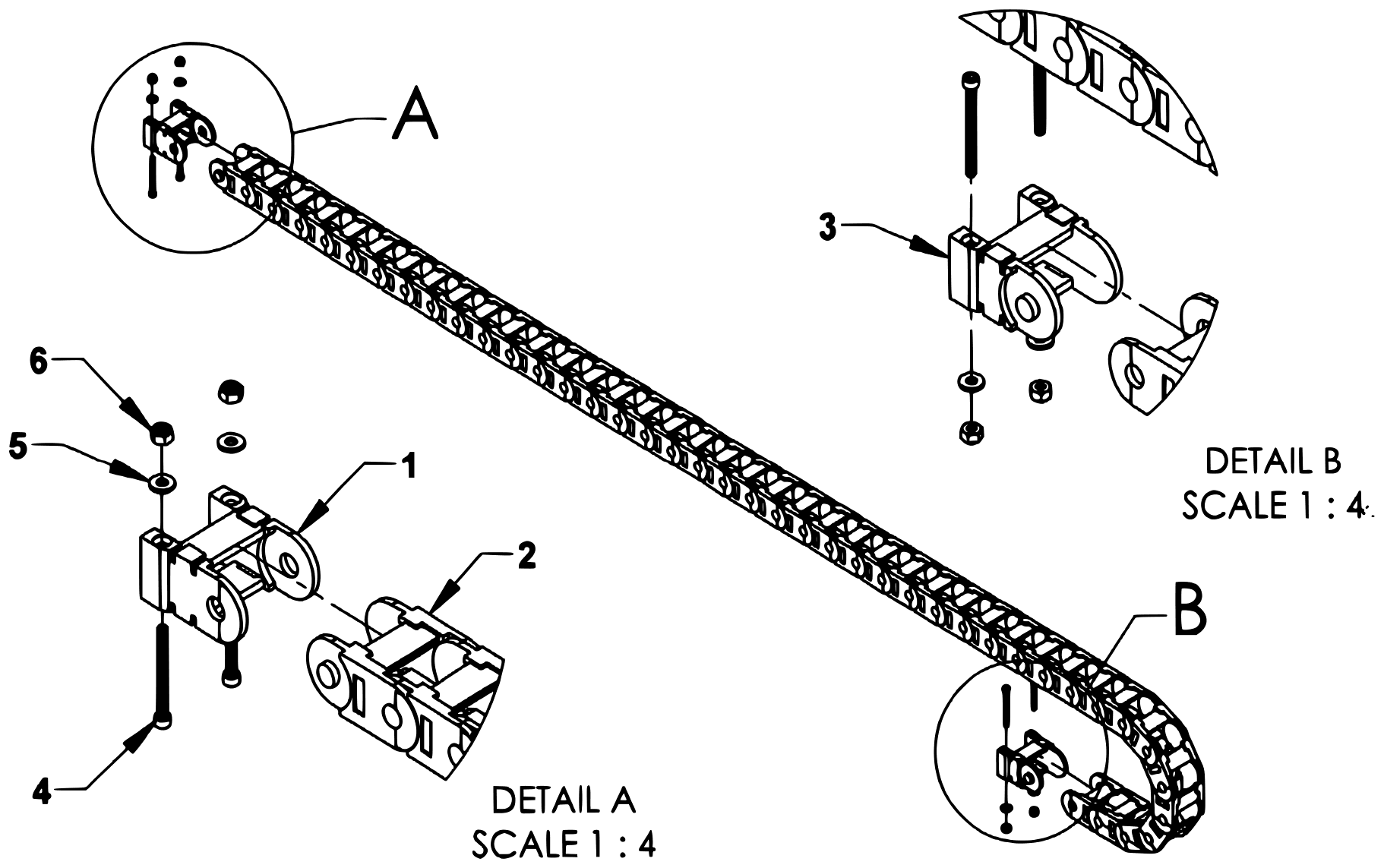

Igus Track and Bolt Kit - 09020735 - 120" Slideback Cylinder Stroke

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	09020735	IGUS 200.03.055 41 LINK TRACK & BOLT KIT	1	$190.48
1	03017004	IGUS 2000.03.1 END LINK - FEMALE	1	$12.03
2	03005615	IGUS 200.03.055 LINK	45	Call for price	—
3	03017005	IGUS 2100.03.2 END LINK - MALE	1	$12.03
4	0403165	BOLT SHCS #10-24 UNC x 2 ZP	4	Call for price	—
5	0400450	FLAT WASHER #10 SAE ZP	4	Call for price	—
6	0400358	NUT NYLOK #10-24 UNC ZP	4	Call for price	—

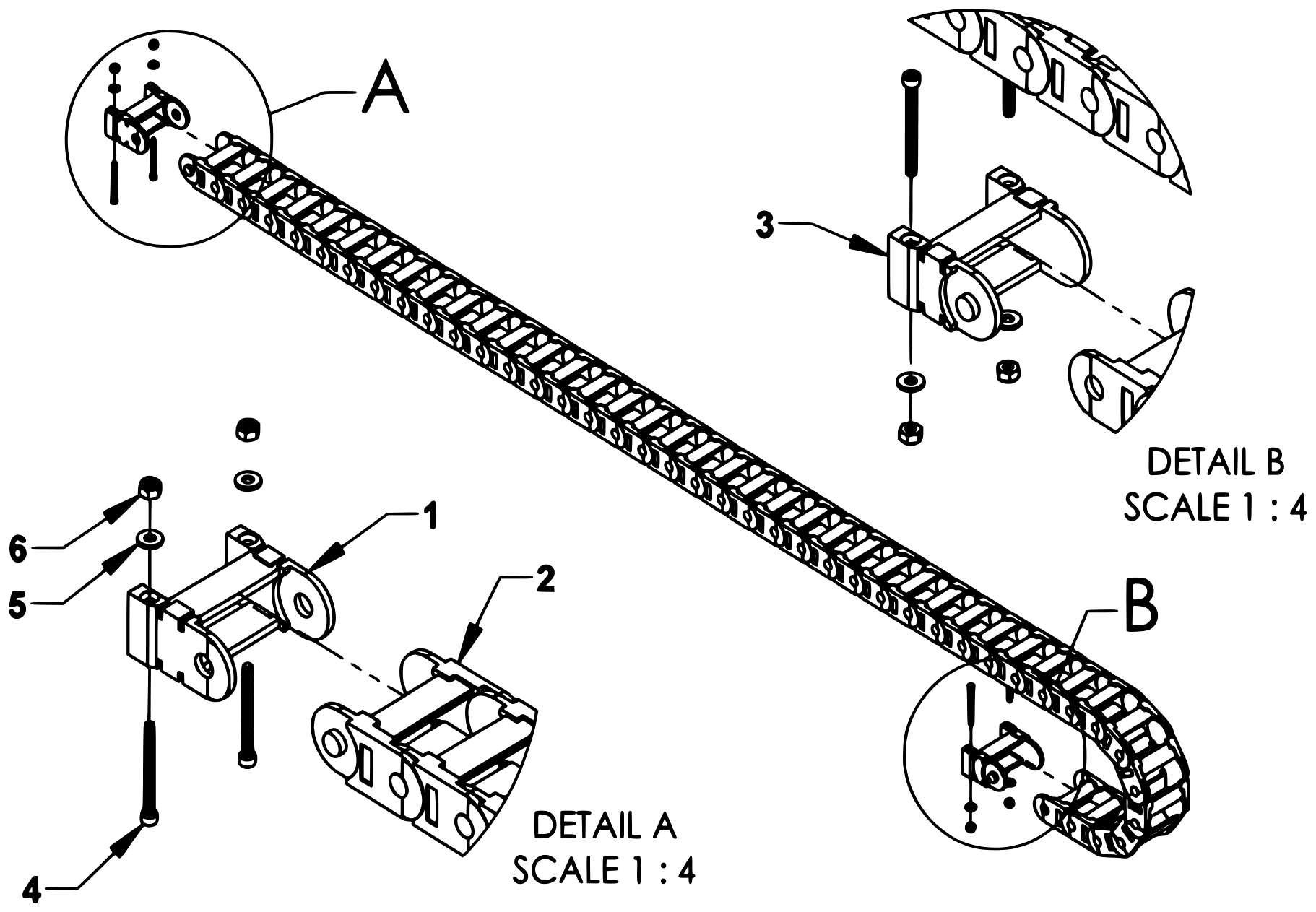

Igus Track and Bolt Kit - 09020734 - 120" Slideback Cylinder Stroke

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	09020734	IGUS 200.05.055 41 LINK TRACK & BOLT KIT	1	$202.72
1	03017002	IGUS 2000.05.1 END LINK - FEMALE	1	Call for price	—
2	03011188	IGUS 200.05.055 LINK	41	Call for price	—
3	03017003	IGUS 2100.05.2 END LINK - MALE	1	Call for price	—
4	0403165	BOLT SHCS #10-24 UNC x 2 ZP	4	Call for price	—
5	0400450	FLAT WASHER #10 SAE ZP	4	Call for price	—
6	0400358	NUT NYLOK #10-24 UNC ZP	4	Call for price	—

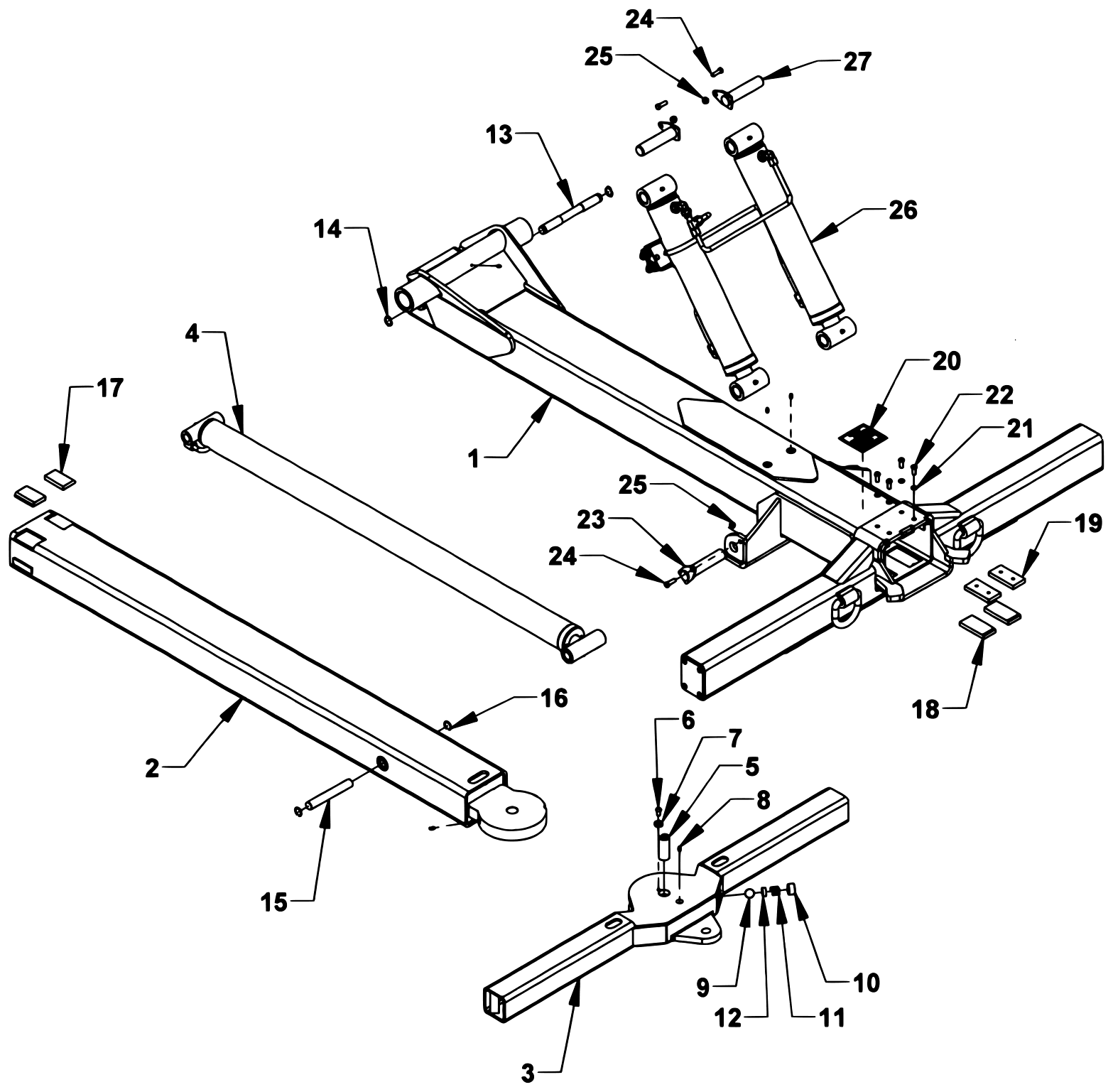

4,000 Lb. Wheel Lift - 09005828

Show parts list (28 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	08005467	UNDERLIFT OUTER BOOM TUBE - 4K	1	Call for price	—
2	0811159	UNDERLIFT INNER BOOM TUBE - 4K	1	$1,654.59
3	0811160	CROSSBAR 4K	1	$1,265.60
4	72A30054	UNDERLIFT EXTEND CYLINDER 3 x 54	1	$1,416.01
5	0940433	CROSSBAR PIVOT PIN	1	$52.09
6	0403004	CAP SCREW BUTTON HD 3/8-16 x 3/4	1	$5.84
7	0720463	WASHER	1	$5.84
8	7B130	GREASE FITTING 1/4-28	1	$4.16
9	0308129	DETENT BALL	1	$8.01
10	0308130	DETENT PLUG	1	$9.85
11	1308131	DETENT SPRING	1	Call for price	—
12	07003396	SPACER, CROSSBAR DETENT	1	$9.99
13	729352	EXTEND CYLINDER MOUNTING PIN-BASE	1	$51.06
14	86100E	SNAP-RING 1.00 EXTERNAL HD	2	$1.79
15	72940	EXTEND CYLINDER MOUNTING PIN-ROD	1	$14.20
16	86100I	SNAP-RING 1.00 INTERNAL	2	$1.42
17	65613	WEAR PAD 1/2 x 2 x 3	2	$18.00
18	63595	WEAR PAD 1/2 x 2 x 4	2	$16.62
19	63595H	SPACER PAD 1/2 x 2 x 4	2	$27.37
20	0540041	UNDERLIFT RATING PLATE 4K	1	$22.33
21	0400482	3/8 LOCK WASHER	4	$5.84
22	0403139	CAP SCREW BUTTON HEAD 3/8-16 x 1	4	$2.06
23	0809665	LIFT CYLINDER MTG PIN 1.25 x 11.062	2	$116.33
24	0400122	HHCS 3/8-16 x 1-1/4	2	$5.84
25	0400392	NYLON LOCK NUT 3/8-16	2	$5.84
26	72A350154	UNDERLIFT CYLINDER 3.5 x 15.25	2	$1,338.39
	75FT350154	FLUID TUBE KIT	1	$384.18
27	0809660	LIFT CYLINDER MTG PIN 1.25 x 5.500	2	$36.30

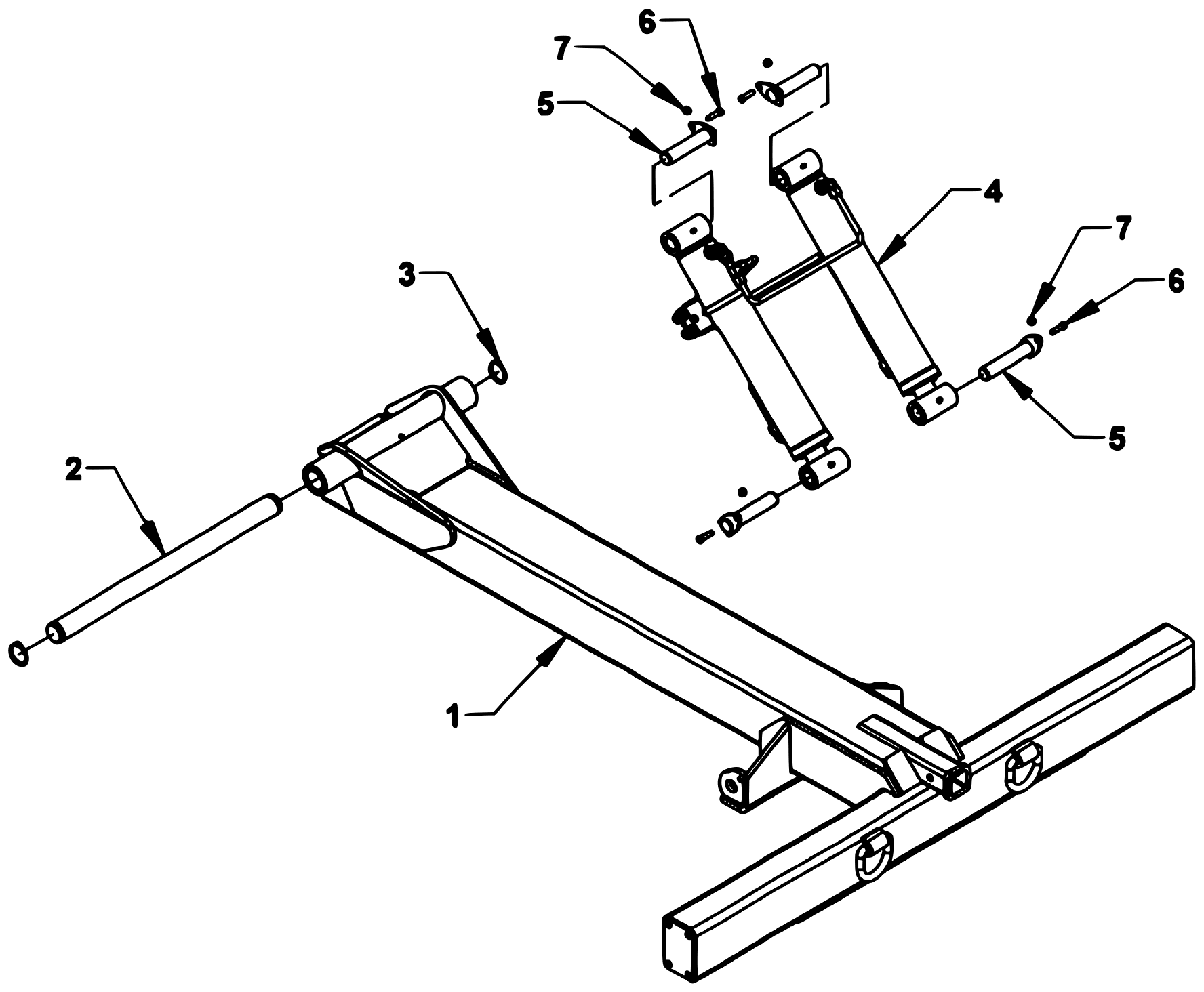

Dock Stabilizer - Dual Rear Wheels

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809673	DOCK STABILIZER OUTER TUBE WELDMT	1	Call for price	—
2	143122	4K/6K LB. UNDERLIFT HINGE PIN	1	$416.48
3	86200E	2 INCH EXTERNAL SNAP-RING	2	$11.91
4	72A350154	6K UNDERLIFT CYL. 3.50 BORE x 15.25 STROKE	2	$1,338.39
	75FT350154	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$384.18
5	0809660	KEEPER PIN 1.250 x 5.500	4	$36.30
6	0400132	BOLT HHCS 3/8-16 UNC x 1-1/2 ZP	4	$5.84
7	0400392	NUT 3/8-16 UNC NYLON LOCK ZP	4	$5.84

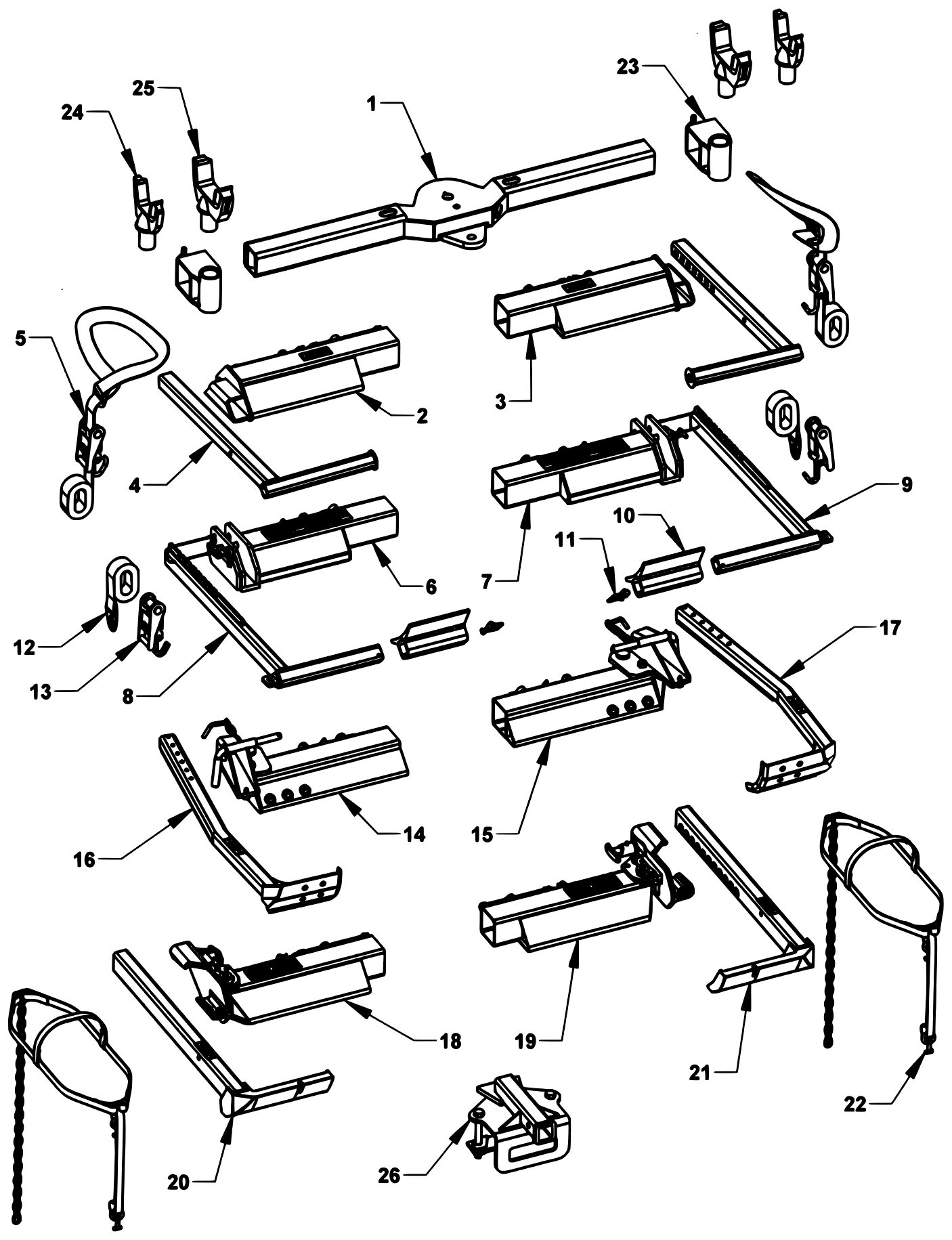

4,000 Lb. Wheel Lift Crossbar Attachments

Show parts list (27 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	0811160	CROSSBAR 4K (3.5 x 3.5)	1	$1,265.60
2	0909498L	4-INCH WHEEL GRID - LH	1	$499.65
3	0909498R	4-INCH WHEEL GRID - RH	1	$499.65
4	08006748	STEEL L-ARM 4000 LB	2	$278.98
5	0308664	STRAP AND RATCHET PIVOT ASSEMBLY	2	$71.85
6	0940434L	WHEEL GRID (DROP-IN L-ARM) - LH	1	$625.44
7	0940434R	WHEEL GRID (DROP-IN L-ARM) - RH	1	$625.44
8	65250L	4000 LB L-ARM - LH	1	$485.10
9	65250R	4000 LB L-ARM - RH	1	$485.10
10	65245	REMOVABLE PAN (CHEVRON)	2	$71.13
11	84911	SAFETY PIN, 5/16 (CHEVRON)	2	$1.70
12	65285	WHEEL STRAP WITH D-RING	2	$49.20
13	65280A	RATCHET AND HOOK	2	$78.41
14	8800800	LH WHEEL GRID	1	$937.28
15	8800900	RH WHEEL GRID	1	$937.28
16	8700190	LH WHEEL RETAINER	1	$297.26
17	8700180	RH WHEEL RETAINER	1	$297.26
18	0909499L	WHEEL GRID 3WP - LH	1	$1,053.95
19	0909499R	WHEEL GRID 3WP - RH	1	$1,053.95
20	0904156	3-WAY PIVOT L-ARM - LH	1	$698.39
21	0904157	3-WAY PIVOT L-ARM - RH	1	$698.39
22	0902382	1 INCH NYLON POLY COAT BASKET STRAP	2	$140.39
	65287	BASKET TIRE STRAP - MEDIUM-LARGE, BLUE	2	$207.95
23	65460	3-1/2 INCH FORK HOLDER	2	$505.44
24	663530	FRAME FORK, 3 INCH CAST	2	$195.11
25	663545	FRAME FORK SHORT, 4-1/2 INCH CAST	2	$240.71
26	0940458	REESE HITCH RECEIVER, COMMON GEN2	1	$581.68

20 LCG 6,000 Lb. Wheel Lift - 10260605G

Show parts list (31 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	10260605	UNDERLIFT OUTER STABILIZER T-BOOM - 6K	1	$5,654.90
2	10262	UNDERLIFT INNER BOOM TUBE - 6K	1	$1,890.55
3	72A33052	UNDERLIFT EXTEND CYL. 3.25 BORE x 52.00 STROKE	1	$1,797.91
4	6I6090	CROSSBAR 6K - 4.00 x 4.00 x 44.625	1	$2,328.51
5	6I60950	CROSSBAR EXTENSION	2	$348.27
6	68260L	WHEEL GRID ASSEMBLY - LEFT	1	$743.97
7	68260R	WHEEL GRID ASSEMBLY - RIGHT	1	$743.97
8	68545	CROSSBAR EXTENSION PIN	2	$37.76
9	66250L	WHEEL RETAINER - 6K - LEFT	1	$598.10
10	66250R	WHEEL RETAINER - 6K - RIGHT	1	$598.10
11	66430	CROSSBAR PIVOT PIN - 6K	1	$98.48
12	HD0151	SNAP RING 2.00 INTERNAL (replaces 86200I per Miller)	1	$5.84
13	0301895	GREASE FITTING 1/8-27	1	$5.84
14	14314	UNDERLIFT EXTENSION CYLINDER ROD PIN	1	$9.83
15	86125I	SNAP RING 1.25 INTERNAL	2	$1.42
16	14313	UNDERLIFT EXTENSION CYLINDER BASE PIN	1	$12.50
17	86125E	SNAP RING 1.25 EXTERNAL	2	$1.42
18	143122	6K/10K UNDERLIFT BOOM HINGE PIN	1	$416.48
19	86200E	SNAP RING 2.00 EXTERNAL	2	$11.91
20	72A350154	6K UNDERLIFT LIFT CYL. 3.50 BORE x 15.25 STROKE	2	$1,338.39
	75FT350154	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$384.18
21	0809660	KEEPER PIN 1.25 x 5	4	$36.30
22	0400132	BOLT BHCS 3/8-16 UNC x 1-1/2	4	$5.84
23	0400392	NUT NYLOK 3/8-16 ZP	4	$5.84
24	63595	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	4	$16.62
25	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 - HOLES	2	$27.37
26	0400364	BOLT BHCS 3/8-16 UNC x 1	4	Call for price	—
27	0400482	LOCK WASHER 3/8	4	$5.84
28	0300113	GREASE FITTING 1/4-28	2	$5.84
29	65280A	W/L RATCHET AND HOOK ASSEMBLY	2	$78.41
30	65285	WHEEL STRAP WITH D-RING - YELLOW	2	$49.20

6K/10K Carrier Underlift Attachments

Show parts list (27 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	616090	CROSSBAR 6K 4 x 4 x 44.625	1	Call for price	—
2	6160950	CROSSBAR EXTENSION	2	Call for price	—
3	68545	CROSSBAR EXTENSION PIN	2	$37.76
4	65228	YOKE SPRING	1	$71.13
5	66430	CROSSBAR PIVOT PIN	1	$98.48
6	HD0151	SNAP RING 2.00 INTERNAL (replaces 86200I per Miller)	1	$5.84
7	0301895	GREASE FITTING 1/8-27	1	$5.84
8	68260L	WHEEL GRID ASSEMBLY-LH	1	$743.97
9	68260R	WHEEL GRID ASSEMBLY - RH	1	$743.97
10	66250L	WHEEL RETAINER 6K - LH	1	$598.10
11	66250R	WHEEL RETAINER 6K - RH	1	$598.10
12	85245	REMOVABLE PAN	2	Call for price	—
13	84911	5/16 SAFETY SNAP PIN	2	$1.70
14	65280A	WHEEL LIFT RATCHET & HOOK ASSEMBLY	2	$78.41
15	65285	WHEEL STRAP WITH D-RING	2	$49.20
16	66320	SPRING SHACKLE ADAPTOR (OPTIONAL)	2	$587.50
17	84923	T-PIN .75 x 6	2	$158.64
18	66A210R	CROSSBAR END HOOK - RH	1	$282.64
19	66A210L	CROSSBAR END HOOK - LH	1	$282.72
20	0200018	FRAME FORK SHORT 3 IN. CAST	1	$160.45
21	0200019	FRAME FORK SHORT - 4.5 INCH CAST	2	$178.69
22	0200020	FRAME FORK MEDIUM 3 IN. CAST	2	$218.80
23	0200021	FRAME FORK MEDIUM - 4.5 INCH CAST	2	$253.45
24	66330	ELEVATED FORK HOLDER	2	$743.81
25	66285R (0803580)	OFFSET FORK HOLDER - CAST - RH	1	Call for price	—
26	66285L (0803581)	OFFSET FORK HOLDER - CAST - LH	1	Call for price	—
27	0902378	RETAINER PIN (USE W/OFFSET FORK HOLDERS)	2	$63.72

6,000 Lb. Telescoping Pintle Underlift

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	10260605	6K UNDERLIFT OUTER T-BOOM	1	$5,654.90
2	72A30052	UNDERLIFT EXT CYL 3.0" BORE x 52" STROKE	1	$1,576.66
	72A33052	UNDERLIFT EXT CYL 3.25" BORE x 52" STROKE		$1,797.91
3	143122	UNDERLIFT HINGE PIN	1	$416.48
4	86200E	SNAP RING 2" EXTERNAL	2	$11.91
5	14313	UNDERLIFT EXTENSION CYLINDER BASE PIN	1	$12.50
6	86125E	SNAP RING 1.25" EXTERNAL	2	$1.42
7	72A350154	6K UNDERLIFT LIFT CYL 3.50 BORE x 15.25 STROKE	2	$1,338.39
	75FT350154	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$384.18
8	0809660	KEEPER PIN 1.25" x 5.50"	4	$36.30
9	0400132	BOLT HHCS 3/8-16 UNC x 1-1/2	4	$5.84
10	0400392	NUT NYLOK 3/8-16 ZP	4	$5.84
11	7B130	GREASE FITTING 1/4-28	3	$4.16
12	0403139	BOLT BHCS 3/8-18 UNC x 1	4	$2.06
13	0400482	LOCK WASHER 3/8	4	$5.84
14	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 WITH HOLES	2	$27.37
15	63595	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	4	$16.62
16	0809898-64	DOCK STABILIZER EXTENSION STAND 6 x 4	2	Call for price	—
17	0809646	DOCK STABILIZER SPADE 6 x 4	2	$260.78
18	10262P	6K INNER PINTLE BOOM	1	Call for price	—
19	174017159	PINTLE BALL HITCH	1	$220.68
20	174017156	PINTLE HOOK HITCH	1	$213.34
21	0400177	BOLT HHCS 1/2-13 UNC x 1-1/4 GR8	4	$5.84
22	0400491	LOCK WASHER 1/2 ZP	4	$5.84
23	10262-PP	6K INNER PIVOTING PINTLE BOOM	1	Call for price	—
24	143350	6K PIVOTING PINTLE HEAD	1	$784.10
25	14314PP	PIVOTING PINTLE HEAD PIN	1	$107.10
26	86125I	SNAP RING 1.25 INTERNAL	4	$1.42
27	14314	UNDERLIFT EXTENSION CYLINDER ROD PIN	1	$9.83

Tail Light Components

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809517L	TAIL LIGHT HOUSING WELDMENT - LH	1	$233.40
2	0809517R	TAIL LIGHT HOUSING WELDMENT - RH	1	$233.40
3	196152L	12/16/20 LCG TAIL LIGHT HOUSING BEZEL - LH G2	1	$129.39
4	196152R	12/16/20 LCG TAIL LIGHT HOUSING BEZEL - RH G2	1	Call for price	—
5	0750672	WORK LIGHT MOUNTING BRACKET	2	$29.33
6	0311516	2-1/2 IN. MARKER LIGHT GROMMET	2	$1.72
7	0311512	2-1/2 IN. RED MARKER LIGHT	2	$14.60
8	0311511	CARRIER TAIL LIGHT GROMMET	6	$4.09
9	0311507	RECTANGULAR RED LIGHT	4	$61.95
10	0311510	CARRIER BACK UP LIGHT	2	$18.28
11	0311528	BACK UP ALARM GROMMET	1	$3.64
12	0306385	BACK UP ALARM	1	$118.53
13	0311525	LICENSE PLATE LIGHT	1	$23.24
14	0306113	TAIL LIGHT WIRE GROMMET	2	Call for price	—
15	0400126	BOLT, HHCS 3/8-16 UNC x 1	4	$5.84
16	0402111	LOCK WASHER - 1/4 SAE SS	14	$5.84
17	0400071	SCREW 1/4-20 UNC x 3/4 RD HD PHIL SS	12	$5.84
18	0400371	"U" NUT 1/4-20 UNC	14	$8.01
19	0403053	BOLT, CARRIAGE 3/8-16 UNC x 1-1/4 SS	8	$5.68
20	0402121	LOCK WASHER - 3/8 SAE SS	8	Call for price	—
21	0402122	HEX NUT 3/8-16 UNC SS	12	$4.01
22	0402021	BOLT, HHCS 1/4-20 UNC x 1 SS	2	$5.84
23	0403052	NYLON LOCK NUT 1/4-20 UNC SS	2	Call for price	—
24	0402110	FLAT WASHER 1/4 SAE SS	4	$5.84
25	0400366	JAM NUT 1/4-20 UNC	2	$5.84

6K Underlift Cylinder Fluid Tube Group

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	72A350154	LIFT CYLINDER 3.50 x 2.00 x 15.25	2	$1,338.39
	75FT350154	FLUID TUBE KIT		$384.18
2	ADPTR-FF2068T0606S	ADAPTOR 45 ORS/ORB 6 x 6	2	Call for price	—
3	ADPTR-FF1868T0806S	ADAPTOR 90 ORS/ORB 8 x 6	2	Call for price	—
4	ADPTR-FF1865T0806S	ADAPTOR TEE ORS/ORS/ORB 8 x 8 x 6	1	Call for price	—
5	ADPTR-FF2114T0808S	ADAPTOR TEE ORS 8 x 8	1	Call for price	—
6	ADPTR-FF1852T0806S	ADAPTOR STRAIGHT ORS/ORB 8 x 6	1	Call for price	—
7	0809875-325	UNDERLIFT VALVE MOUNTING BRACKET	1	$7.02
8	74345	DUAL COUNTERBALANCE VALVE CBCG-XVN	1	$556.17
9	03017026	BAND CLAMP #64 4.5 x 9/16 SS	1	Call for price	—
10	72H350154-1	UNDERLIFT FLUID TUBE ASSEMBLY - LEFT	1	Call for price	—
11	72H350154-2	UNDERLIFT FLUID TUBE ASSEMBLY - LEFT	1	Call for price	—
12	72H350154-3	UNDERLIFT FLUID TUBE ASSEMBLY - RIGHT	1	Call for price	—
13	72H350154-4	UNDERLIFT FLUID TUBE ASSEMBLY - RIGHT	1	Call for price	—
14	0400111	BOLT HHCS 5/16-18 UNC x 2 GR5 ZINC	2	Call for price	—
15	0400382	NYLON LOCK NUT 5/16-18 UNC GR5 ZINC	2	$5.84

20 LCG 24" Outboard Saddle and Hinge Angle

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	13070	PIN - TILT CYLINDER BASE	2	$46.02
2	84680	PIN-ROD END EYE KEEPER GROUP	2	$32.29
3	72A450265	TILT CYLINDER - 4.5 BORE x 26.5 STROKE	2	$2,205.53
4	0751264	S20 LCG SUBFRAME HINGE PIN 1.975 x 43.375 IN.	1	$754.90
5	0809642	S20 LCG TRUCK FRAME HINGE ANGLE	1	$749.65
6	1A555	TILT CYLINDER ROD PIN	2	$37.49
7	0400237	HEX BOLT 1/2-13 UNC x 4	2	$5.84
8	0400408	NYLON NUT 1/2-13 UNC	2	$2.82
9	0400260	HEX BOLT 5/8-11 UNC x 2 GR5	18	$8.01
10	0400505	FLAT WASHER 5/8	36	$5.84
11	0400421	NUT 5/8-11 UNC NYLON LOCK	18	$5.84
12	1A514	SADDLE MOUNTING ANGLE	2	$49.67
13	1A550	LCG SADDLE CONNECTING ANGLE 20/30/40	1	$619.62
14	1A510L	TILT CYLINDER SADDLE - LH	1	$339.17
15	1A510R	TILT CYLINDER SADDLE - RH	1	$339.17

20 LCG 28" Outboard Saddle and Hinge Angle

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	13070	PIN - TILT CYLINDER BASE	2	$46.02
2	84680	PIN-ROD END EYE KEEPER GROUP	2	$32.29
3	72A450305	TILT CYLINDER - 4.5 BORE x 30.5 STROKE	2	$3,668.95
4	0751264	S20 LCG SUBFRAME HINGE PIN 1.975 x 43.375 IN.	1	$754.90
5	0809642	S20 LCG TRUCK FRAME HINGE ANGLE	1	$749.65
6	1A555	TILT CYLINDER ROD PIN	2	$37.49
7	0400237	HEX BOLT 1/2-13 UNC x 4	2	$5.84
8	0400408	NYLON NUT 1/2-13 UNC	2	$2.82
9	0400260	HEX BOLT 5/8-11 UNC x 2 GR5	18	$8.01
10	0400505	FLAT WASHER 5/8	36	$5.84
11	0400421	NUT 5/8-11 UNC NYLON LOCK	8	$5.84
12	1A514	SADDLE MOUNTING ANGLE	2	$49.67
13	1A550	LCG SADDLE CONNECTING ANGLE 20/30/40	1	$619.62
14	1A510L	TILT CYLINDER SADDLE - LH	1	$339.17
15	1A510R	TILT CYLINDER SADDLE - RH	1	$339.17

6-Spool Control Station

Show parts list (45 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	18212L	5 SPOOL/6 SPOOL CONTROL PLACARD-LH	1	$67.45
	18237	CONTROL PLACARD AUTOGRIP OVERLAY	1	Call for price	—
2	18212R	5 SPOOL/6 SPOOL CONTROL PLACARD-RH	1	$67.45
	18237	CONTROL PLACARD AUTOGRIP OVERLAY	1	Call for price	—
3	0320162	LED CONTROL STATION LIGHT - 6 IN.	2	$13.09
4	04000281	SCREW, PHILLIPS #6-32 UNC x 7/8	4	Call for price	—
5	04000262	NYLON LOCK NUT #6-32 SS	7	Call for price	—
6	0752652L	CONTROL PANEL - LH	1	$86.28
7	0752652R	CONTROL PANEL - RH	1	$86.28
8	0752651	CONTROL HOOD	2	$172.55
9	0403079	BHCS 5/16-18 UNC x 5/8	12	$1.72
10	0402118	LOCK WASHER 5/16 SS	12	Call for price	—
11	0403074	HEX NUT 5/16-18 UNC	12	Call for price	—
12	04001085	BHCS 3/8-16 UNC x 1 SS	12	Call for price	—
13	0402121	LOCK WASHER 3/8 SS	12	Call for price	—
14	0402122	NYLON LOCK NUT 3/8-16 UNC	8	$4.01
15	181286W	CONTROL BOX ARM WELDMENT - 79.5 IN	1	$686.17
16	0320048-GY	CONTROL HANDLE 8" - GRAY	6	$37.00
	0320048-RD	CONTROL HANDLE 8" - RED	2	$37.00
	0320048-BL	CONTROL HANDLE 8" - BLUE	4	$37.00
17	7A528W	CONTROL ROD 28-1/2	6	$47.42
18	7A538W	CONTROL ROD 37-3/4	6	$52.88
19	0320157	PRESSURE GAUGE HYDRAULIC - 2 IN.	1	$34.00
20	04000282	SCREW PHILLIPS #6-32 x 1/2	6	Call for price	—
21	0809904	ANTI-TILT CONTROL ROD WELDMENT	1	$65.38
22	7A5753-17	CONTROL HANDLE CROSS ROD 3/4 x 17	2	$72.94
23	74116	VALVE BODY GRESEN 6 SPOOL	1	$2,427.02
	74115	VALVE BODY GRESEN 5 SPOOL (COMMON)	1	$2,021.74
24	0403169	HHCS 5/16-18 UNC x 2-3/4	3	Call for price	—
25	0752718-5	CONTROL STATION GAUGE FLUID TUBE - 5 SP	1	$44.31
	0752718-6	CONTROL STATION GAUGE FLUID TUBE - 6 SP	1	$48.38
26	18335	CONTROL STATION WIRE TUBE - 6 SP	1	$13.39
27	04009172	JAM NUT 1/4-20 UNC	2	Call for price	—
28	04009171	HHCS 1/4-20 UNC x 1/2	2	Call for price	—
29	0320169	PRESSURE GAUGE HOSE	1	$52.81
30	0403115	NUT 3/8-24 UNF RH	12	Call for price	—
31	84530	CLEVIS - RH THREAD 3/8-24	12	$8.00
32	84620	CLEVIS PIN 3/8 x 1-1/8	24	$2.30
33	7A1155	CONTROL HANDLE PIVOT BASE	12	$16.00
34	86075E	SNAP RING 3/4 EXTERNAL	4	$3.21
35	0400410	1/2-13 UNC JAM NUT ZP	12	$4.13
36	7A010	CLEVIS PIN AND LINK ASSEMBLY	6	$34.00
37	7A121	BELL CRANK	6	$13.00
38	84540	CLEVIS - LH THREAD 3/8-24	12	$8.00
39	0400382	NYLON LOCK NUT 5/16-18 UNC	3	$5.84

9-Spool Control Station

Show parts list (52 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	18219L	CONTROL PLACARD 4-CAR AUTOGRIP-LH	1	$81.79
	18218L	CONTROL PLACARD 4-CARRIER - LH	1	$78.41
	18224L	CONTROL PLACARD SIDEPULLER OVERLAY-LH	1	$28.16
	18235L	CONTROL PLACARD MULTI-DECK CARRIER-LH	1	Call for price	—
	18236L	CONTROL PLACARD MULTI-DECK AG OVERLAY-LH	1	Call for price	—
2	18219R	CONTROL PLACARD 4-CAR AUTOGRIP-RH	1	$81.82
	18218R	CONTROL PLACARD 4-CARRIER-RH	1	$78.41
	18224R	CONTROL PLACARD SIDEPULLER OVERLAY-RH		$28.16
	18235R	CONTROL PLACARD MULTI-DECK CARRIER-RH	1	Call for price	—
	18236R	CONTROL PLACARD MULTI-DECK AG OVERLAY-RH	1	Call for price	—
3	0320162	LED CONTROL STATION LIGHT - 6 IN.	2	$13.09
4	04000281	SCREW, PHILLIPS #6-32 UNC x 7/8	4	Call for price	—
5	04000262	NYLON LOCK NUT #6-32 SS	7	Call for price	—
6	0752654L	CONTROL PANEL - LH	1	$104.19
7	0752654R	CONTROL PANEL - RH	1	$104.19
8	0752653	CONTROL HOOD	2	$202.23
9	0403079	BHCS 5/16-18 UNC x 5/8	1	$1.72
10	0402118	LOCK WASHER 5/16 SS	12	Call for price	—
11	0403074	HEX NUT 5/16-18 UNC	12	Call for price	—
12	04001085	BHCS 3/8-16 UNC x 1 SS	12	Call for price	—
13	0402121	LOCK WASHER 3/8 SS	12	Call for price	—
14	0402122	NYLON LOCK NUT 3/8-16 UNC	8	$4.01
15	181286W	CONTROL BOX ARM WELDMENT - 79.5 IN	1	$686.17
16	0320048-GY	CONTROL HANDLE 8" - GRAY	6	$37.00
	0320048-RD	CONTROL HANDLE 8" - RED	4	$37.00
	0320048-BL	CONTROL HANDLE 8" - BLUE	6	$37.00
	0320048-GR	CONTROL HANDLE 8" - GREEN	2	$38.21
17	7A528W	CONTROL ROD 28-1/2	9	$47.42
18	7A538W	CONTROL ROD 37-3/4	9	$52.88
19	0320157	PRESSURE GAUGE HYDRAULIC - 2 IN.	1	$34.00
20	04000282	SCREW PHILLIPS #6-32 x 1/2	3	Call for price	—
21	0809904	ANTI-TILT CONTROL ROD WELDMENT	1	$65.38
22	7A5753-20	CONTROL HANDLE CROSS ROD 3/4 x 17	2	$79.34
23	74118	VALVE BODY GRESEN 8 SPOOL	1	$3,191.33
	74119	VALVE BODY GRESEN 9 SPOOL	1	Call for price	—
24	0403169	HHCS 5/16-18 UNC x 2-3/4	3	Call for price	—
25	0752718-8	CONTROL STATION GAUGE FLUID TUBE - 8 SP	1	$50.80
	0752718-9	CONTROL STATION GAUGE FLUID TUBE - 9 SP	1	Call for price	—
26	18336	CONTROL STATION WIRE TUBE - 6 SP	1	$20.88
27	04009172	JAM NUT 1/4-20	2	Call for price	—
28	04009171	HHCS 1/4-20 UNC x 1/4	2	Call for price	—
29	0320169	PRESSURE GAUGE HOSE	1	$52.81
30	0403115	NUT 3/8-24 UNF RH	18	Call for price	—
31	84530	CLEVIS - RH THREAD 3/8-24	18	$8.00
32	84620	CLEVIS PIN 3/8 x 1-1/8	36	$2.30
33	7A1155	CONTROL HANDLE PIVOT BASE	18	$16.00
34	86075E	SNAP RING 3/4 EXTERNAL	4	$3.21
35	0400410	1/2-13 UNC JAM NUT ZP	18	$4.13
36	7A010	CLEVIS PIN AND LINK ASSEMBLY	9	$34.00
37	7A121	BELL CRANK	9	$13.00
38	84540	CLEVIS - LH THREAD 3/8-24	18	$8.00
39	0400382	NYLON LOCK NUT 5/16-18 UNC	3	$5.84

Remote Air Cylinders 6-Spool

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	183126	6-SPOOL CONTROL STATION	1	Call for price	—
2	0308726-2	RADIO CONTROL RECEIVER BOX 2-FUNCTION	1	$1,681.24
	0308726-4	RADIO CONTROL RECEIVER BOX 4-FUNCTION		$3,183.06
	0308726-6	RADIO CONTROL RECEIVER BOX 6-FUNCTION		$3,438.89
	0308726-8	RADIO CONTROL RECEIVER BOX 8-FUNCTION		Call for price	—
	0308726-10	RADIO CONTROL RECEIVER BOX 10-FUNCTION		$4,645.96
	0308726-12	RADIO CONTROL RECEIVER BOX 12-FUNCTION		$6,604.09
	0308726-16	RADIO CONTROL RECEIVER BOX 16-FUNCTION		Call for price	—
3	71713	AIR PRESSURE REGULATOR	1	$76.36
4	0752351	AIR PRESSURE REGULATOR MTG BRACKET	1	$34.22
5	0308711	AIR CYLINDER 2 INCH STROKE	X	$317.28
6	0403043	BOLT HHCS 1/4-20 UNC x 1 GR5	X	Call for price	—
7	0400066	BOLT HHCS 1/4-20 UNC x 3/4 GR5	X	$5.84
8	0400367	NUT NYLOK 1/4-20 UNC	X	$5.84
9	0809905	BOLT-ON AIR CYLINDER PLATE WELDMENT	X	$57.19
10	0400059	BOLT HHCS 1/4-20 UNC x 5/8 GR5	X	$5.84
11	0400366	NUT HEX 1/4-20 UNC	X	$5.84

Remote Air Cylinders 9-Spool

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	183129	9-SPOOL CONTROL STATION	1	Call for price	—
2	0308726-2	RADIO CONTROL RECEIVER BOX 2-FUNCTION	1	$1,681.24
	0308726-4	RADIO CONTROL RECEIVER BOX 4-FUNCTION		$3,183.06
	0308726-6	RADIO CONTROL RECEIVER BOX 6-FUNCTION		$3,438.89
	0308726-8	RADIO CONTROL RECEIVER BOX 8-FUNCTION		Call for price	—
	0308726-10	RADIO CONTROL RECEIVER BOX 10-FUNCTION		$4,645.96
	0308726-12	RADIO CONTROL RECEIVER BOX 12-FUNCTION		$6,604.09
	0308726-16	RADIO CONTROL RECEIVER BOX 16-FUNCTION		Call for price	—
3	71713	AIR PRESSURE REGULATOR	1	$76.36
4	0752351	AIR PRESSURE REGULATOR MTG BRACKET	1	$34.22
5	0308711	AIR CYLINDER 2 INCH STROKE	X	$317.28
6	0403043	BOLT HHCS 1/4-20 UNC x 1 GR5	X	Call for price	—
7	0400066	BOLT HHCS 1/4-20 UNC x 3/4 GR5	X	$5.84
8	0400367	NUT NYLOK 1/4-20 UNC	X	$5.84
9	0809905	BOLT-ON AIR CYLINDER PLATE WELDMENT	X	$57.19
10	0400059	BOLT HHCS 1/4-20 UNC x 5/8 GR5	X	$5.84
11	0400366	NUT HEX 1/4-20 UNC	X	$5.84

2 Air Valve Control Station

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0752655	2-TOGGLE AIR VALVE CONTROL HOOD	1	$116.02
2	0752656L	2-TOGGLE AIR VALVE CONTROL PANEL - LEFT	1	$62.47
	0752656R	2-TOGGLE AIR VALVE CONTROL PANEL - RIGHT	1	$64.35
3	18221L	2-TOGGLE AIR VALVE CONTROL PLACARD - LEFT	1	$37.76
	18221R	2-TOGGLE AIR VALVE CONTROL PLACARD - RIGHT	1	$37.76
	18238L	2-TOGGLE AIR DUAL WINCH CONTROL PLACARD - LEFT		Call for price	—
	18238R	2-TOGGLE AIR DUAL WINCH CONTROL PLACARD - RIGHT		Call for price	—
4	18145	TOGGLE AIR GUARD	2	$19.32
5	0320161	CONTROL LIGHT	1	$10.12
6	71716	TOGGLE AIR VALVE	2	$189.63
7	04000281	SCREW PRH #6-32 UNC x 7/8 SS	2	Call for price	—
8	04000262	NUT, NYLON #6-32 UNC SS	2	Call for price	—
9	0403079	BOLT BHCS 5/16-18 UNC x 1 SS	6	$1.72
10	0402118	LOCK WASHER 5/16 SS	6	Call for price	—
11	0403074	NUT, NYLON 5/16-18 UNC SS	6	Call for price	—
12	04001085	BOLT HHCS 3/8-16 UNC x 1 SS	2	Call for price	—
13	0402121	LOCK WASHER 3/8-16 SS	2	Call for price	—
14	0402122	NUT, NYLON 3/8-16 UNC	2	$4.01

24 Gallon Oil Reservoir Group

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809490	OUTBOARD 24 GALLON OIL RESERVOIR	1	$1,249.42
2	76213G	FILLER/BREATHER CAP ASSEMBLY	1	Call for price	—
3	76270	FILTER ASSEMBLY	1	$122.18
	76271	REPLACEMENT FILTER ELEMENT	1	$36.00
4	0400464	LOCK WASHER 5/16 SS	2	$1.70
5	04001427	BOLT SHCS 5/16-18 UNC x 7/8 SS	2	Call for price	—
6	0301368	ADAPTOR 202702 16 x 12	1	Call for price	—
7	03006085	ADAPTOR 900598-8 (MAGNETIC DRAIN PLUG)	1	$26.07
8	03006341	20 x 24 SUCTION HOSE FITTING 45 DEGREES	1	Call for price	—
9	37855R	TANK MOUNTING BRACKET - RH	1	$136.75
	37858R	TANK MOUNTING BRACKET (SHORT) - RH	1	$90.88
10	37858L	TANK MOUNTING BRACKET (SHORT) - LH	1	$90.88
11	37855L	TANK MOUNTING BRACKET - LH	1	$136.75
12	0400274	BOLT 5/8-11 x 2 UNC GR8	6	$5.84
13	0400426	NYLON LOCK NUT 5/8-11 UNC ZINC PLATED	6	$8.01
14	0400181	BOLT 1/2-13 UNC x 1-1/2 GR5	6	$5.84
15	0400492	FLAT WASHER 1/2 ZINC PLATED	8	$5.84
16	0403100	NYLON LOCK NUT 1/2-13 UNC ZINC PLATED	4	Call for price	—

Direct Mount Pump - 18 GPM

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320144	18 GPM, 1 IN. 15 SPLINE SHAFT, SAE 4-BOLT FLANGE	1	$1,082.00
2	03006339	#16-45 M O-RING x 1-1/4 M NIPPLE	1	Call for price	—
	77C82	#16 M O-RING x 1-1/4 M NIPPLE	1	Call for price	—
3	77620	1-1/4 O-RING PLUG 900598-20	2	$25.55
4	0301368	#16 M O-RING x 3/4 MJIC	1	Call for price	—
5	0909434	PRESSURE TRANSDUCER (OPTIONAL)	1	$579.86

Direct Mount Pump - 24 GPM

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	78006	PUMP - 24 GPM, 1 IN. 15 SPLINE SHAFT, SAE 4-BOLT FLANGE	1	$1,269.15
2	77C92	1-1/4 x 90 M-M O-RING x 1-1/2 NIPPLE	1	Call for price	—
3	77620	1-1/4 O-RING PLUG 900598-20	1	$25.55
4	03006344	1 O-RING x 1 JICF 202702 - 16 x 16	1	Call for price	—
5	77616	1 O-RING PLUG 900598-16	1	Call for price	—
6	04000561	NUT, 9/16 & 5/8 UNC COUPLING	1	$58.03

Light Kit (1 of 9)

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price
1	0311498	LIGHT 6" OVAL RED LED - STOP/TURN	$37.46
2	0311498	LIGHT 6" OVAL REVERSE LED	$37.46
3	0311503	LIGHT 6" GROMMET	$2.74
1	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	$14.60
2	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	$14.60
3	0311516	LIGHT 2.5" GROMMET	$1.72

Light Kit (2 of 9)

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price	Quick Add to Cart
1	0311514	LIGHT 2.5" ROUND CLEAR/RED LED MARKER LIGHT	$13.32
2	0311515	LIGHT 2.5" ROUND CLEAR/AMBER LED MARKER LIGHT	$17.20
3	3011516	LIGHT 2.5" GROMMET	Call for price	—
1	0320162	6 IN. CONTROL STATION LED LIGHT	$13.09

Light Kit & Pressure Gauge

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320161	3 IN. CONTROL STATION LED LIGHT		$10.12
1	0320157	2 IN. HYDRAULIC PRESSURE GAUGE		$34.00

Light Kit (3 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0311519	RED 3/4 LED ICC LIGHT		$90.21
1	0311520	RED 3/4 LED LIGHT		$16.51

Light Kit (4 of 9)

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price
1	0311521	AMBER 3/4 ROUND LED LIGHT	$17.85
1	0311522	CLEAR/RED 3/4 ROUND LED LIGHT	$12.46
1	0311523	CLEAR/AMBER 3/4 ROUND LED LIGHT	$15.17

Light Kit (5 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308359	MARKER LIGHT RED REFLEX LED		$87.51
1	0308360	MARKER LIGHT AMBER REFLEX LED		$87.51

Light Kit (6 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308969R	MARKER LIGHT RED REFLEX LED		$21.89
1	0308969A	MARKER LIGHT AMBER REFLEX LED		$21.89

Light Kit (7 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0312578	MILLENNIUM MARKER LIGHT CLEAR/AMBER		$20.42
1	0312579	MILLENNIUM MARKER LIGHT CLEAR/RED		$19.61

Light Kit (8 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308491	REFLECTOR - AMBER		$8.01
1	0308490	REFLECTOR - RED		$8.01

Light Kit (9 of 9)

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price
1	0308420	OVAL MID BODY TURN LED	$225.43
1	0311513	OVAL MID BODY TURN GROMMET	$14.60
1	0311510	RECTANGULAR REFLEX BACK UP	$18.28
1	0311511	RECTANGULAR REFLEX BACK UP GROMMET	$4.09

Pintle Attachment Group

Show parts list (19 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	66370G	PINTLE ATTACHMENT	1	$1,319.25
1A	66370W	PINTLE ATTACHMENT WELDMENT	1	$511.66
1B	66378	RETAINING PIN	2	$27.01
1C	65292	LANYARD	2	$13.48
1D	0403004	BOLT BHCS 3/8-16 x 3/4	4	$5.84
2A	174017159	TOW BALL PINTLE HITCH - 2 IN. BALL	1	$220.68
2B	174017156	PINTLE HOOK	1	$213.34
2C	174017172	TOW BALL PINTLE HITCH - 2-5/16 IN. BALL	1	$247.42
3	09013890	FORK HOLDER - OFFSET - ASSEMBLY - RH	1	$1,461.36
3A	0803581	FORK HOLDER - OFFSET - RH	1	$1,442.41
3B	0306564	MILLER T-BOLT	1	$18.95
4	0901389	FORK HOLDER - OFFSET - ASSEMBLY - LH	1	Call for price	—
4A	0803580	FORK HOLDER - OFFSET - LH	1	$1,439.97
4B	0306564	MILLER T-BOLT	1	$18.95
5	04000005	BOLT HHCS 1/2-13 x 1.25 GRADE 8 SECURE WITH LOCTITE	2	$5.68
6	0403056	BOLT HHCS 1/2-13 x 2-1/2 GRADE 8	2	Call for price	—
7	0400408	NUT, NYLOK 1/2-13	2	$2.82
8	66385	PINTLE ATTACH. STORAGE BRACKET-DUAL REAR WHEELS	1	$330.04
9	66395	PINTLE ATTACHMENT STORAGE BRACKET - SUPER SINGLE	1	Call for price	—

Frame Mounted Pylon - 0940455-102 - LCG Base Assembly

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0811186-102	FMP CONVENTIONAL CHAIN TRAY BASE - 102	1	$2,625.61
2	0752751	PYLON MTG BRACKET, FMP LCG	2	Call for price	—
3	0752730	SHIM, 16 GAGE, FMP BASE	2	Call for price	—
4	0400408	NYLON LOCK NUT 1/2-13 UNC	16	$2.82
5	0403040	FLAT WASHER 1/2 SAE ZP	32	$5.84
6	0403058	BOLT HHCS 1/2-13 x 1-3/4 GR8 PLAIN	16	Call for price	—
7	0311511	CARRIER TAIL LIGHT GROMMET	2	$4.09
8	0311509	LIGHT RECT REVERSE LED	2	$97.62
9	0311506	LIGHT PIGTAIL 2 PRONG 18 IN. LEAD	2	$2.58
10	354614-050	FMP 1/2 IN. SPACER SERIES 12 LCG	2	Call for price	—
	354614-100	FMP 1 IN. SPACER SERIES 16 LCG		Call for price	—
	354614-150	FMP 1-1/2 IN. SPACER SERIES 20 LCG		Call for price	—
	354614-075/175	FMP 2-1/2 IN. SPACER SERIES 20 LCG WOOD		Call for price	—
	354614-050/175	FMP 2-1/4 IN. SPACER SERIES 30 LCG		Call for price	—
	354614-150/175	FMP 3-1/4 IN. SPACER SERIES 30 LCG WOOD		Call for price	—
11	0811185-48	FMP 12 PYLON-48	1	$1,269.15
	0811185-50	FMP 12 PYLON-50		$1,269.15
	0811185-52	FMP 12 PYLON-52		$1,269.15
	0811185-56	FMP 12 PYLON-56		$1,269.15
	0811185-60	FMP 12 PYLON-60		$1,269.15
	0811185-63	FMP 12 PYLON-63		$1,269.15
	0811185-68	FMP 12 PYLON-68		$1,269.15
12	0403058	BOLT HHCS 1/2-13 x 1-3/4 GR8 PLAIN	6	Call for price	—
13	0403040	FLAT WASHER 1/2 SAE ZP	12	$5.84
14	0400408	NYLON LOCK NUT 1/2-13 UNC	6	$2.82

Bed Mounted Cab Protector

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	35FL048	2 x 5 PERIMETER TUBE CAB PROTECTOR - 48"	1	$1,777.87
	35FL050	2 x 5 PERIMETER TUBE CAB PROTECTOR - 50"		$1,777.87
	35FL052	2 x 5 PERIMETER TUBE CAB PROTECTOR - 52"		$1,777.87
	35FL056	2 x 5 PERIMETER TUBE CAB PROTECTOR - 56"		$1,777.87
	35FL060	2 x 5 PERIMETER TUBE CAB PROTECTOR - 60"		$1,777.87
	35FL063	2 x 5 PERIMETER TUBE CAB PROTECTOR - 63"		$1,777.87
	35FL066	2 x 5 PERIMETER TUBE CAB PROTECTOR - 66"		$1,777.87
	35FL068	2 x 5 PERIMETER TUBE CAB PROTECTOR - 68"		$1,777.87
2	0400343	HHCS 1/2-13 UNC x GR 8	6	$5.84
3	0400408	NUT NYLOK 1/2-13 UNC	6	$2.82
4	0400492	WASHER 1/2	12	$5.84

Stabilizer Components

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	160526	STABILIZER WHEEL LIFT GUIDE PAD	2	Call for price	—
2	0403093	BOLT 3/8-16 UNC x 3/4 FLAT SOCKET HEAD COUNTERSUNK	4	Call for price	—
3	0403141	BOLT 5/8-11 UNC x 2-1/4	4	Call for price	—
4	160533L	4K L-ARM STABILIZER STORAGE TUBE - LH	1	$121.94
5	160533R	4K L-ARM STABILIZER STORAGE TUBE - RH	1	$121.94
6	160537L	6K L-ARM STABILIZER STORAGE TUBE - LH	1	Call for price	—
7	160537R	6K L-ARM STABILIZER STORAGE TUBE - RH	1	Call for price	—
8	08018311	EXTENSION STAND 5 x 2 x 28.5	2	Call for price	—

Body Lock Assembly - 364220K

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	364220	LCG BODY LOCK WELDMENT-SETBACK CAPABLE	1	$534.51
2	36215L	BODY LOCK HOLD-DOWN - LEFT	1	Call for price	—
3	36315R	BODY LOCK HOLD-DOWN - RIGHT	1	$72.00
4	0306382	GREASE FITTING 1/4-28	2	$9.85
5	36310	ROLLER WHEEL	2	$56.00
6	0400470	FLAT WASHER 1	4	Call for price	—
7	04001225	NYLON LOCK NUT, 7/8-14 UNF	2	$6.59
8	0809183	MOUNTING BRACKET	2	$37.39
9	0400260	BOLT, 5/8-11 HHCS UNC x 2 GRADE 5	4	$8.01
10	0400505	FLAT WASHER 5/8	8	$5.84
11	0400421	NYLON LOCK NUT, 5/8-11 UNC	8	$5.84
12	0400218	BOLT, HHCS 1/2-20 UNF x 1-1/4	6	$1.14
13	0400492	FLAT WASHER, 1/2 IN.	6	$5.84
14	0400413	NYLON LOCK NUT, 1/2-20 UNF	6	Call for price	—
15	0403068	CARRIAGE BOLT 5/8-11 x 1-3/4	4	$3.21

33" Aluminum Toolbox - 377000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	1	$111.23
	54657	GASKET FOR PADDLE LATCH	1	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	4	$5.68
	83111	#8-32 STAINLESS KEPT NUT	4	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	1	$20.04
	54659	STRIKER PIN	1	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	2	Call for price	—
	0400465	FLAT WASHER 5/16	4	$5.84
	0400464	LOCK WASHER 5/16	2	$1.70
	0403151	NUT 5/16-18	2	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	1	$5.84
3	377100W	BOX WELDMENT	1	Call for price	—
4	37741	DOOR WELDMENT	1	Call for price	—
	37740	DOOR ASSEMBLY	1	$583.48
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	6	$0.67
	0400367	NYLON LOCK NUT 1/4-20	6	$5.84
5	37744	DOOR REINFORCEMENT	1	Call for price	—
6	37735	HINGE	1	$56.54
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	3	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	5	$1.82
	0400367	NYLON LOCK NUT 1/4-20	10	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37770	SHELF	1	$107.59
12	030002300	TOOLBOX MAT 33"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 96 IN.Priced per foot	8 FT	$5.88

49" Aluminum Toolbox - 378000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	2	$111.23
	54657	GASKET FOR PADDLE LATCH	2	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	8	$5.68
	83111	#8-32 STAINLESS KEPT NUT	8	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	2	$20.04
	54659	STRIKER PIN	2	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	4	Call for price	—
	0400465	FLAT WASHER 5/16	8	$5.84
	0400464	LOCK WASHER 5/16	4	$1.70
	0403151	NUT 5/16-18	4	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	2	$5.84
3	378100W	BOX WELDMENT	1	Call for price	—
4	37841	DOOR WELDMENT	1	Call for price	—
	37840	DOOR ASSEMBLY	1	$902.62
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	8	$0.67
	0400367	NYLON LOCK NUT 1/4-20	8	$5.84
5	37844	DOOR REINFORCEMENT	1	Call for price	—
6	37835	HINGE	1	$60.02
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	5	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	7	$1.82
	0400367	NYLON LOCK NUT 1/4-20	14	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37670	SHELF	1	$98.48
12	030002301	TOOLBOX MAT 49"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 132 IN.Priced per foot	11 FT.	$5.88

65" Aluminum Toolbox - 379000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	2	$111.23
	54657	GASKET FOR PADDLE LATCH	2	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	8	$5.68
	83111	#8-32 STAINLESS KEPT NUT	8	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	2	$20.04
	54659	STRIKER PIN	2	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	4	Call for price	—
	0400465	FLAT WASHER 5/16	8	$5.84
	0400464	LOCK WASHER 5/16	4	$1.70
	0403151	NUT 5/16-18	4	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	2	$5.84
3	379100W	BOX WELDMENT	1	Call for price	—
4	37941	DOOR WELDMENT	1	$548.03
	37940	DOOR ASSEMBLY	1	$1,024.77
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	8	$0.67
	0400367	NYLON LOCK NUT 1/4-20	8	$5.84
5	37944	DOOR REINFORCEMENT	1	$536.59
6	37935	HINGE	1	$82.07
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	7	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	7	$1.82
	0400367	NYLON LOCK NUT 1/4-20	18	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37970	SHELF	1	Call for price	—
12	030002302	TOOLBOX MAT 65"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 162 IN.Priced per foot	13.5 FT	$5.88

36" Steel Toolbox LCG - 174016021

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016021	STEEL TOOLBOX 36" WITH STAINLESS STEEL DOOR	1	$1,016.21
1A	174016021D	SS DOOR ASSEMBLY	1	Call for price	—
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-36	STEEL TOOLBOX 36" SHELF	1	Call for price	—
2	0308801	TOOLBOX MAT 36"	1	Call for price	—
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

48" Steel Toolbox LCG - 174016022

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016022	STEEL TOOLBOX 48" WITH STAINLESS STEEL DOOR	1	$1,091.08
1A	174016022D	SS DOOR ASSEMBLY	1	$578.04
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-48	STEEL TOOLBOX 48" SHELF	1	Call for price	—
2	0308758	TOOLBOX MAT 48"	1	Call for price	—
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

60" Steel Toolbox LCG - 174016023

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016023	STEEL TOOLBOX 60" WITH STAINLESS STEEL DOOR	1	$1,537.70
1A	174016023D	SS DOOR ASSEMBLY	1	$925.51
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-60	STEEL TOOLBOX 60" SHELF	1	Call for price	—
2	0308837	TOOLBOX MAT 60"	1	$51.08
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

Mudflap Components

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0751024-32L	MUDFLAP MOUNTING BRACKET (LH)	1	Call for price	—
	0751024-32R	MUDFLAP MOUNTING BRACKET (RH)	1	Call for price	—
2	A1030	MUDFLAP 24 x 30	1	$109.09
3	0750340	MUDFLAP SUPPORT BAR	1	$37.39
4	0400132	BOLT HHCS 3/8-16 UNC x 1-1/2 GR5	4	$5.84
5	0400480	WASHER 3/8	16	$4.01
6	0400392	3/8-16 NYLON LOCK NUT	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4 GR5	4	$5.84

Recovery Roller Guide Attachment - 09019852

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	08017571	RECOVERY ROLLER GUIDE ATTACHMENT INDUSTRIAL	1	Call for price	—
2	09018753	PULLEY, CABLE ROLLER GUIDE	2	Call for price	—
3	08008889	KEEPER PIN, CABLE ROLLER GUIDE	2	Call for price	—
4	0403161	BOLT, BHCS, 3/8-16 UNC x 5/8	2	Call for price	—
5	0400464	LOCK WASHER 5/16	2	$1.70
6	0809640	ROLLER ASSEMBLY 1.75 INCH DIAMETER	1	$47.59
7	07013385	PIN, CABLE ROLLER GUIDE	1	Call for price	—
8	03012289	RETAINING RING 3/4 SHAFT OD	2	Call for price	—
9	07027072	BOLT, HHCS, 1-1/4-78 UNC x 1-1/4	1	Call for price	—

Bolt-On Winch Guard (Optional)

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	357230	BOLT-ON WINCH GUARD 20.5 INCH	1	$1,194.73
	357240	BOLT-ON WINCH GUARD 30.5 INCH		Call for price	—
2	0403141	BOLT, HHCS, 5/8-11 UNC x 2-1/4 ZP GR5	6	Call for price	—
3	0400505	FLAT WASHER 5/8 SAE ZP	12	$5.84
4	0400421	NUT, NYLOK 5/8-11 UNC ZP	8	$5.84

Retractable Ladder

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	391000	LADDER ASSEMBLY	1	$968.40
1	391010	LADDER CARRIAGE	1	Call for price	—
2	391020	UPPER RUNG ASSEMBLY	1	Call for price	—
3	391030	LOWER RUNG ASSEMBLY	1	Call for price	—
4	391050	FRAME MOUNTING BRACKET - OPTIONAL	1	$239.01
5	36310	WHEEL	2	$56.00
6	86100E	RETAINING RING 1.00 EXTERNAL	2	$1.79
7	0400470	FLAT WASHER 1 x 1.50	2	Call for price	—
8	0403063	RETAINING BOLT 5/8-11 x 1-1/2	2	Call for price	—
9	391018	WEAR PAD	4	Call for price	—
10	391015	RETAINING TUBE	2	Call for price	—
11	0403109	ALLEN HEAD BOLT 3/8-16 x 1	4	Call for price	—
12	0400392	NYLON LOCK NUT 3/8-16	4	$5.84
