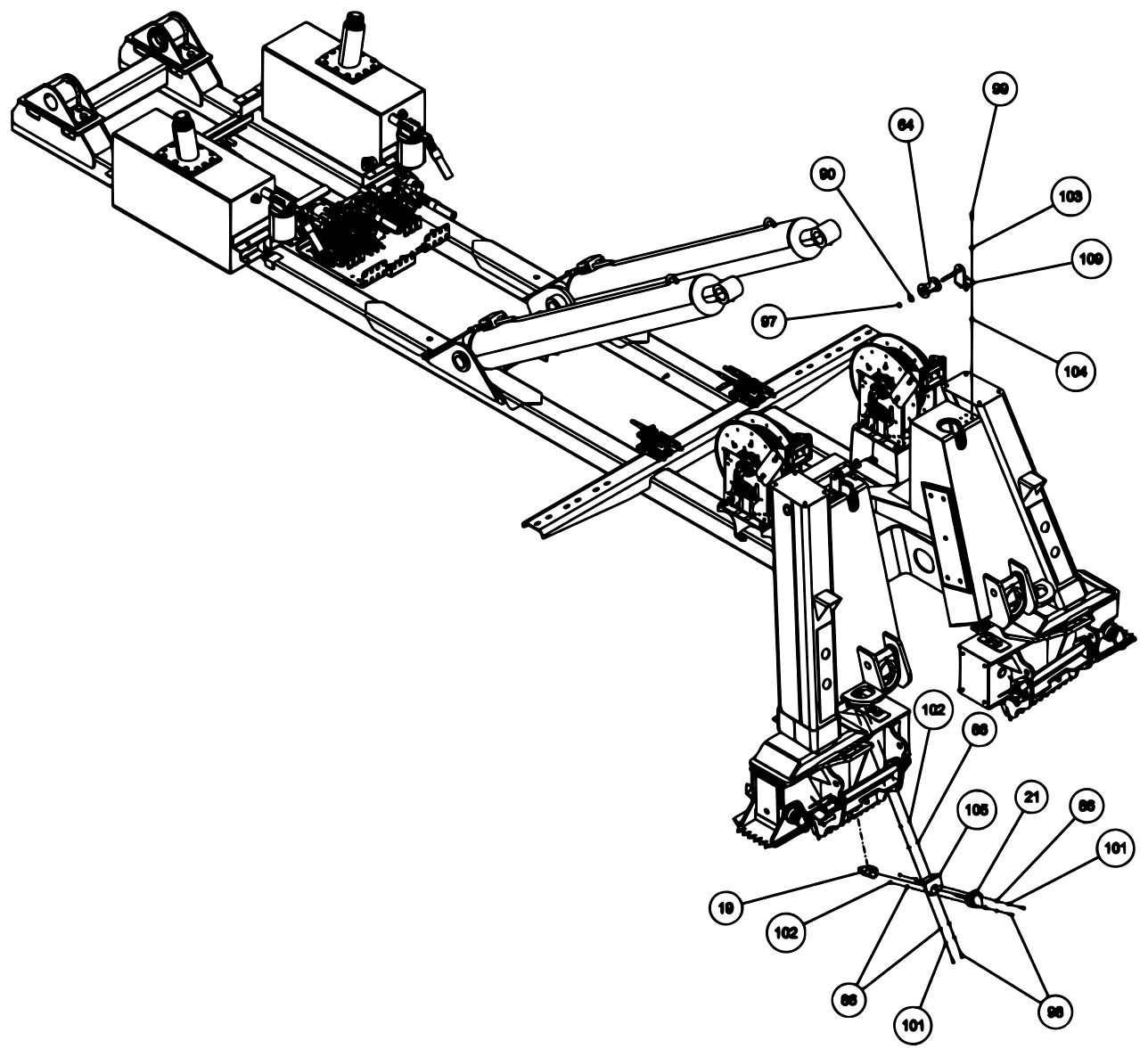

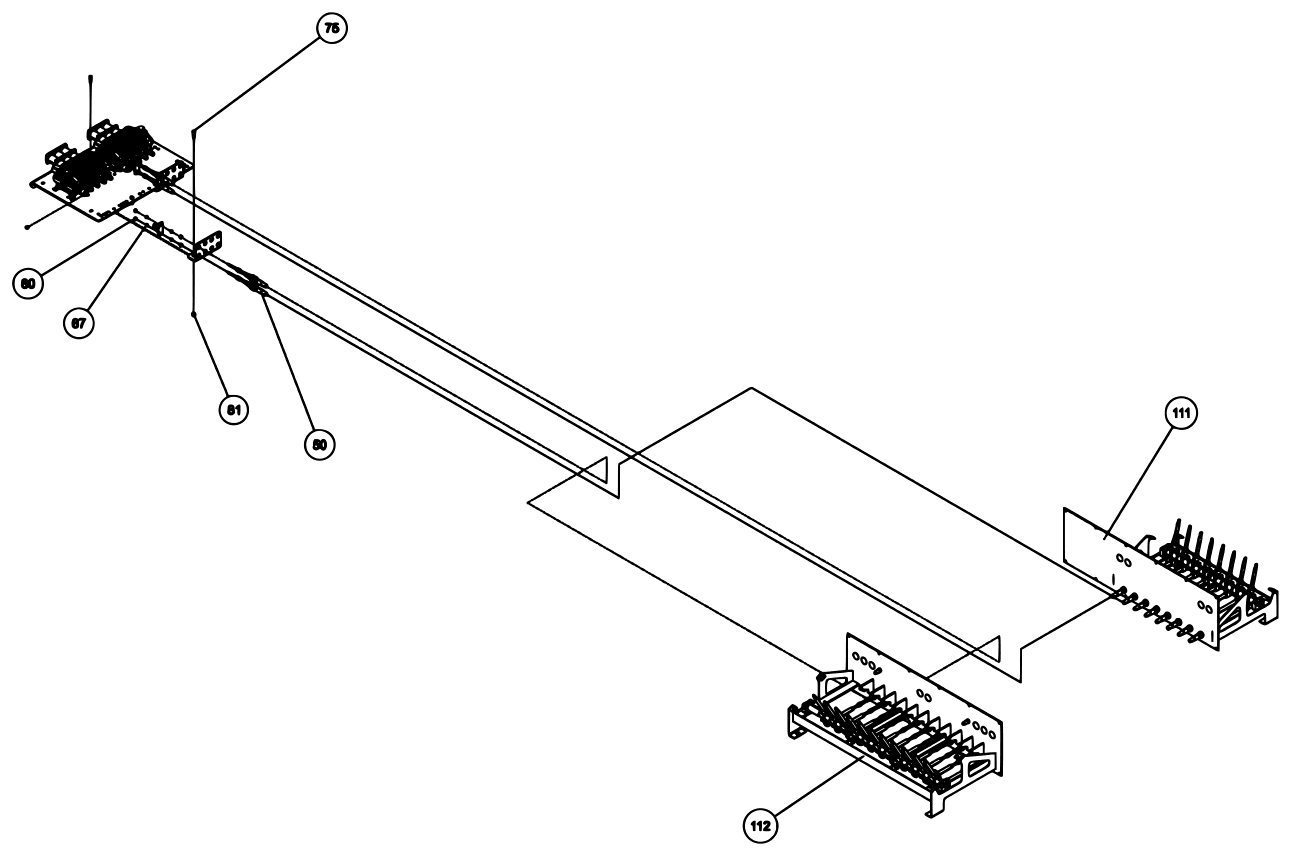

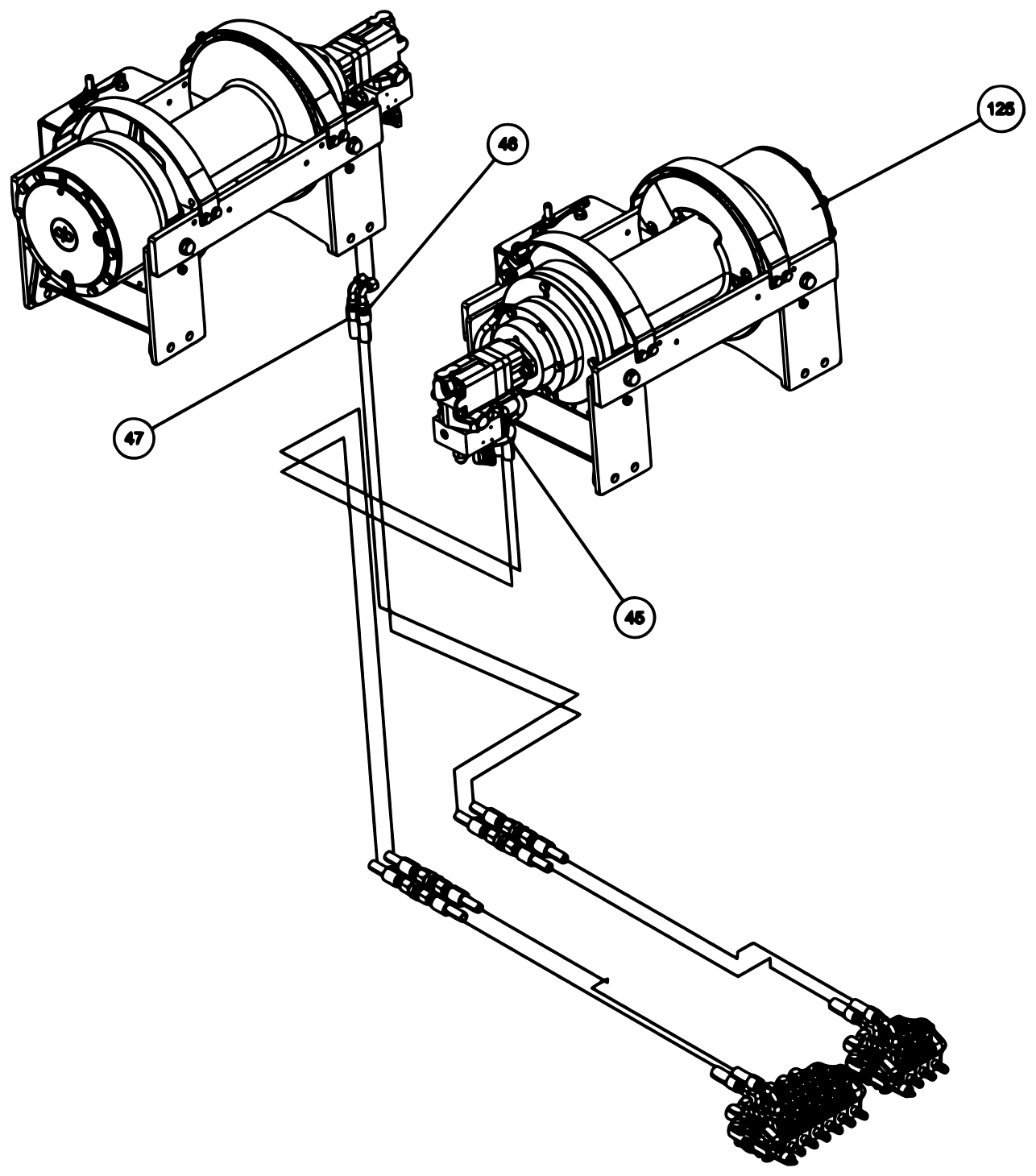

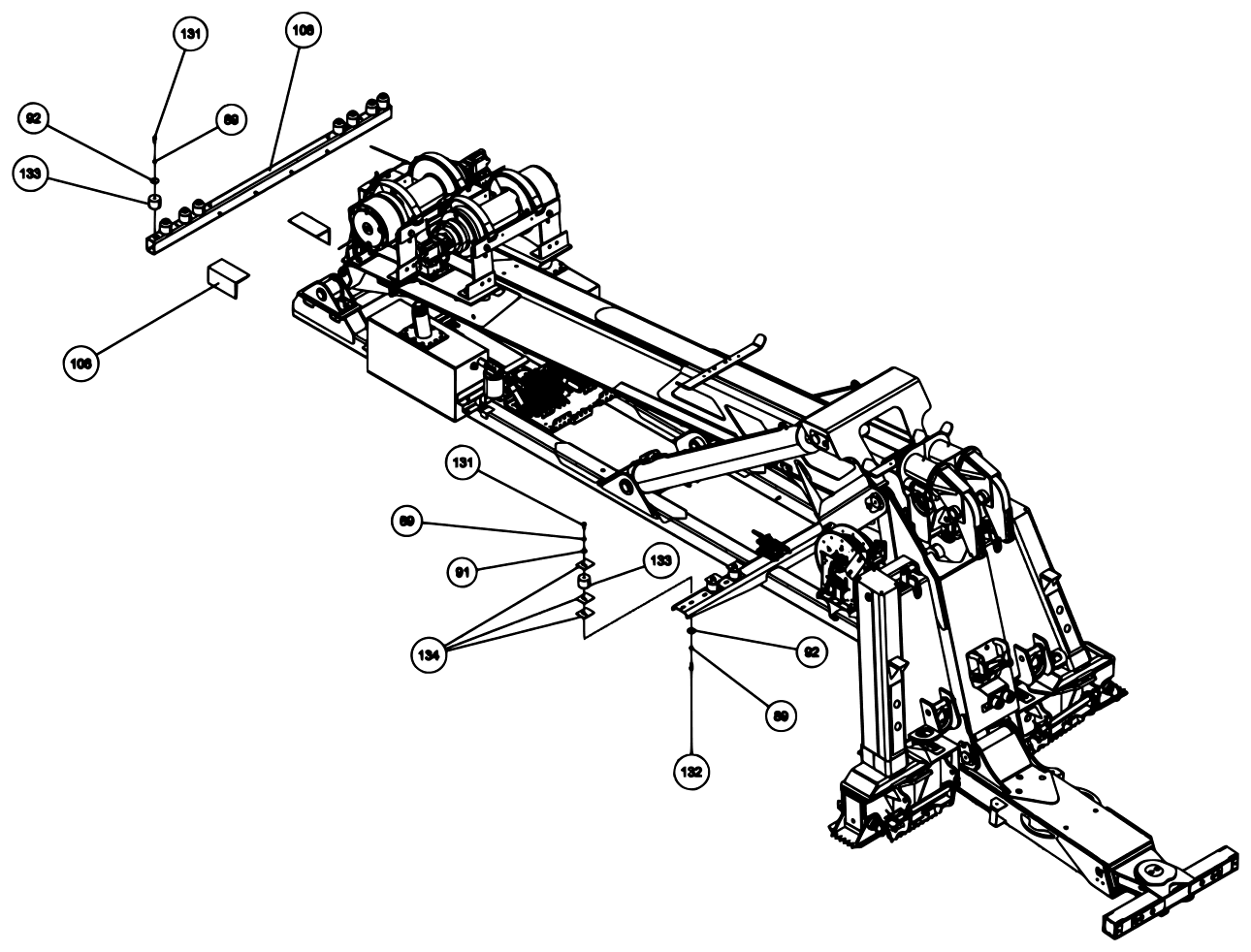

Century 9055XL / XP850 (2021 manual)

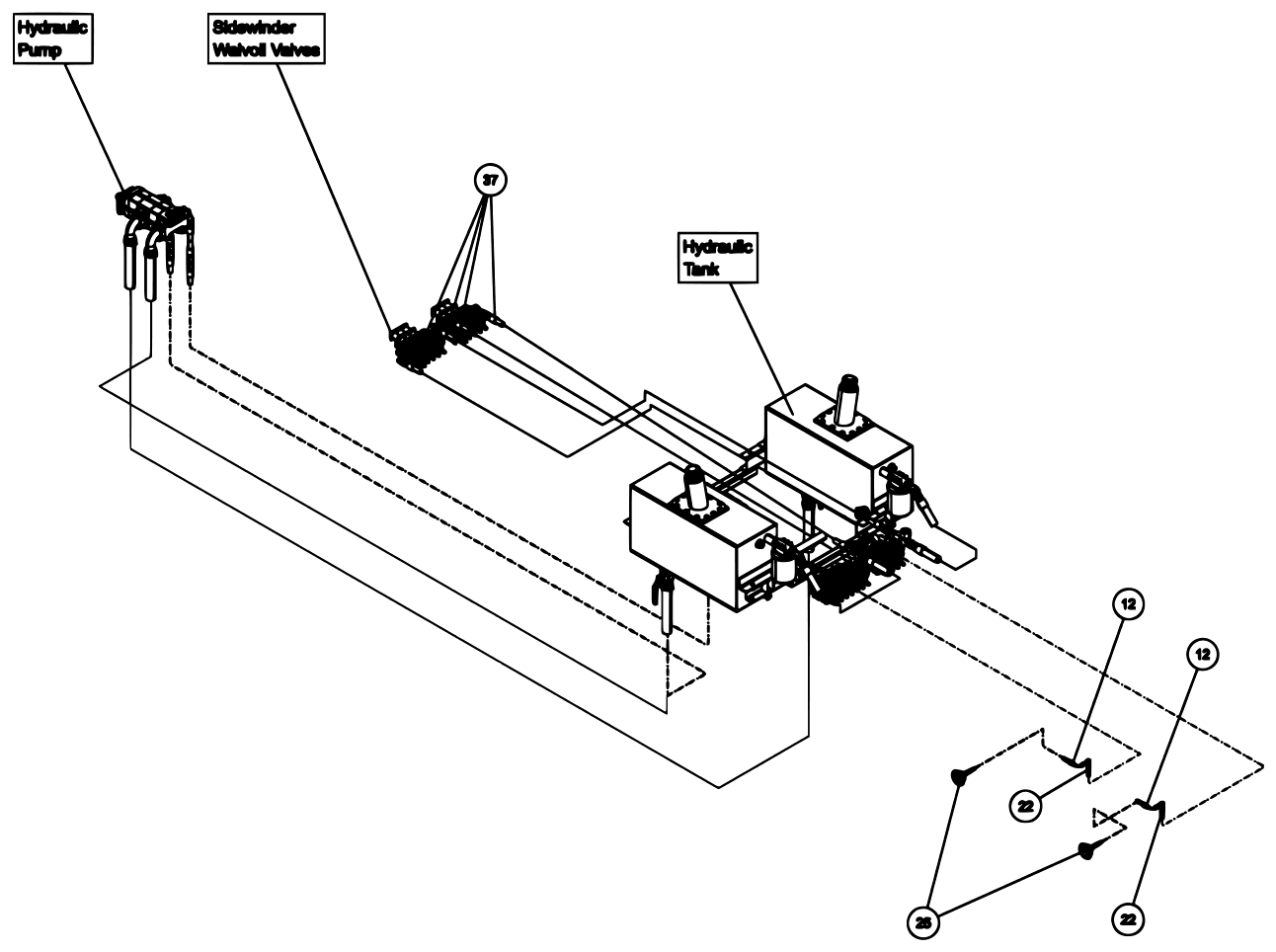

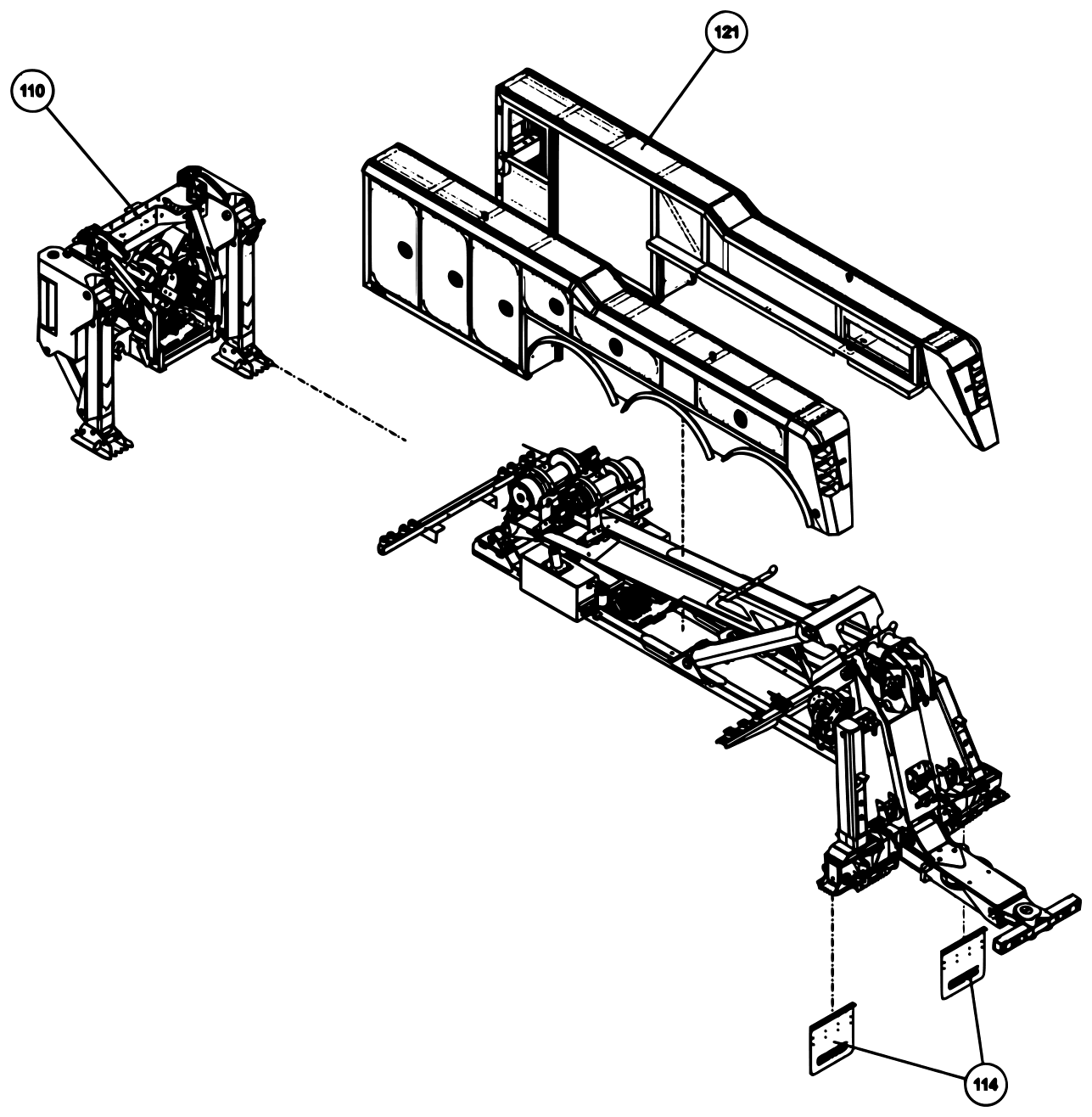

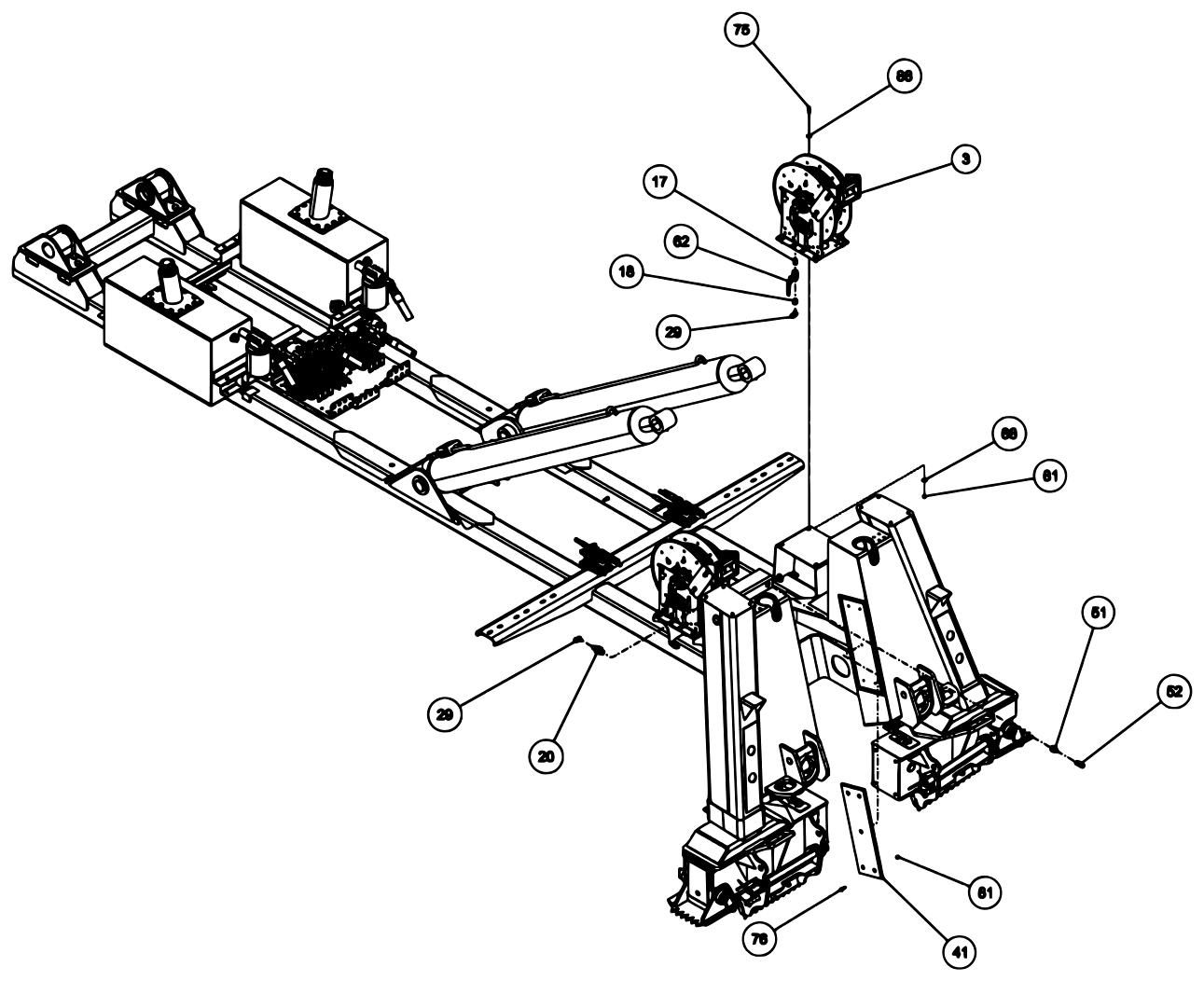

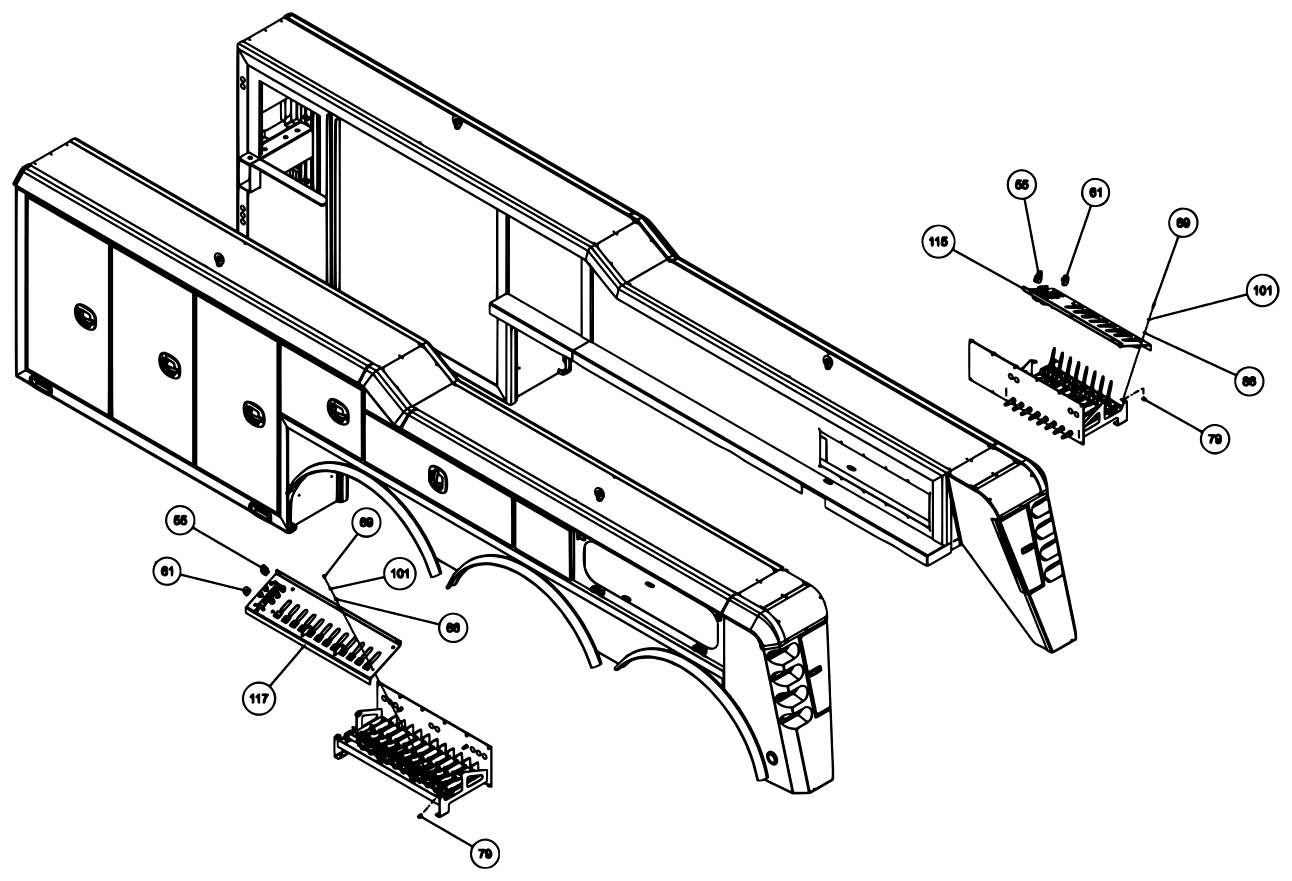

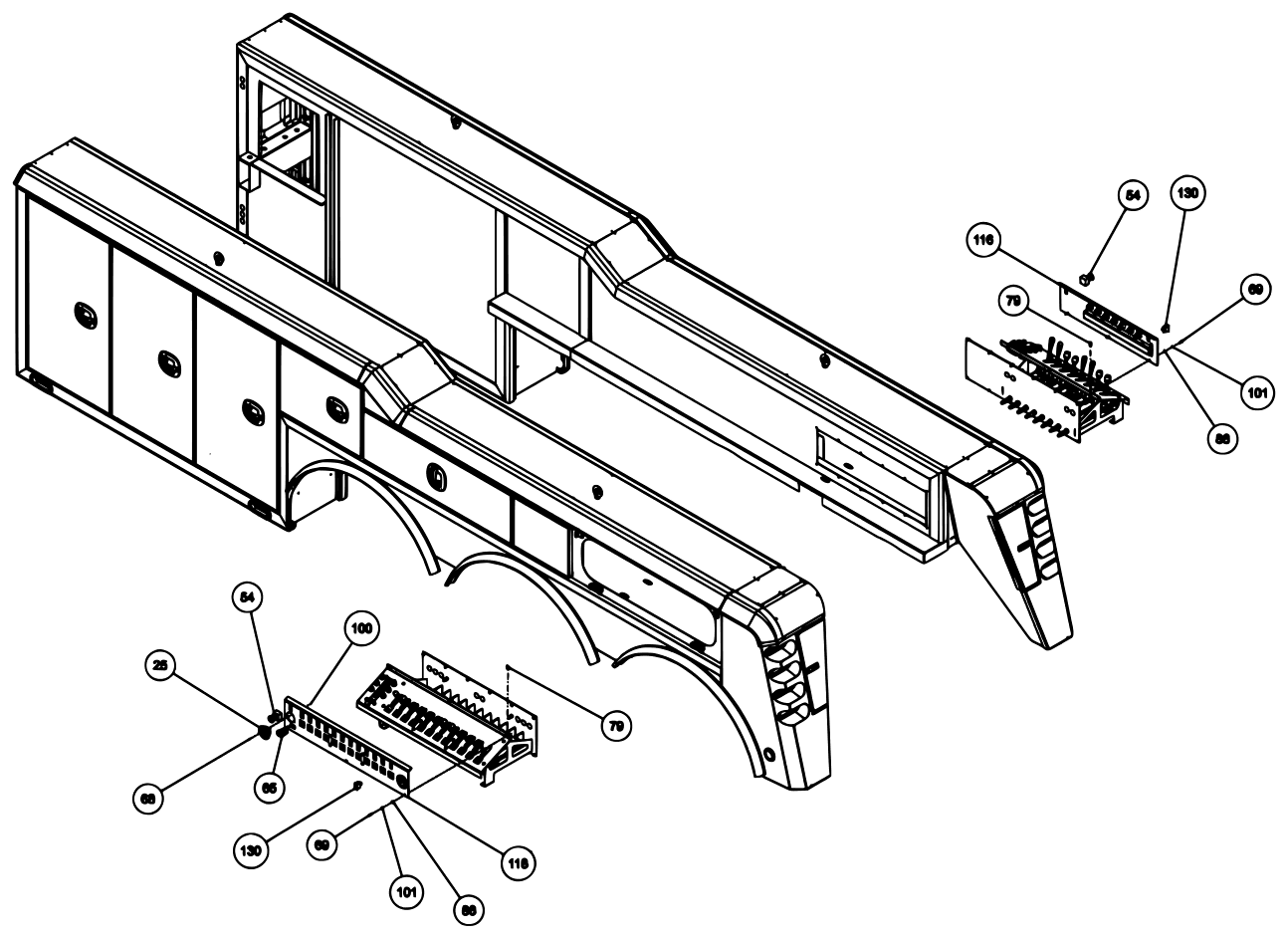

09011768, Basic Unit Assembly, 9055XL XP850

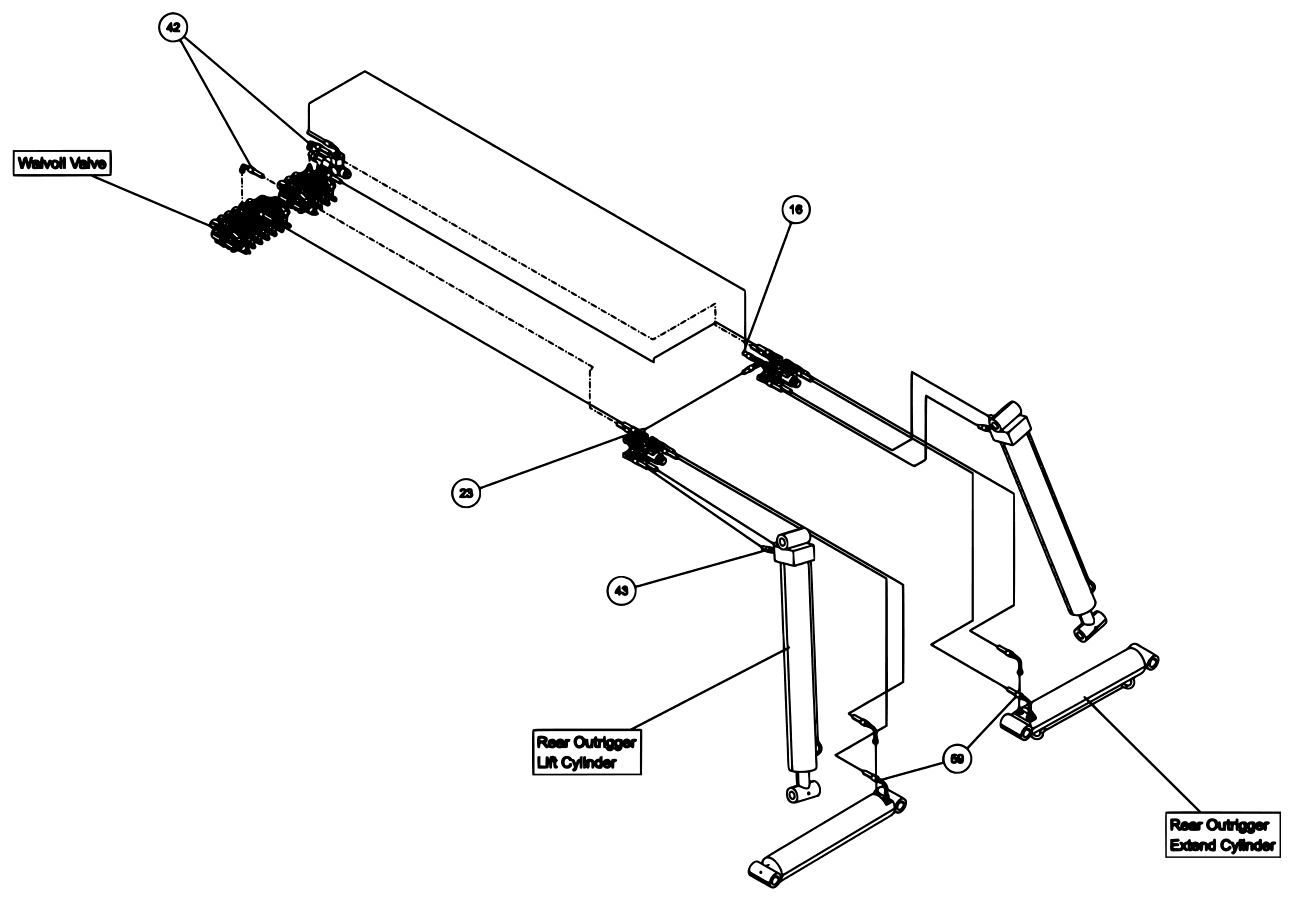

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 3 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 4 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 5 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 6 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 7 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 8 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 9 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 10 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 11 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 12 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 13 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 14 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 15 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 16 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 17 of 19)

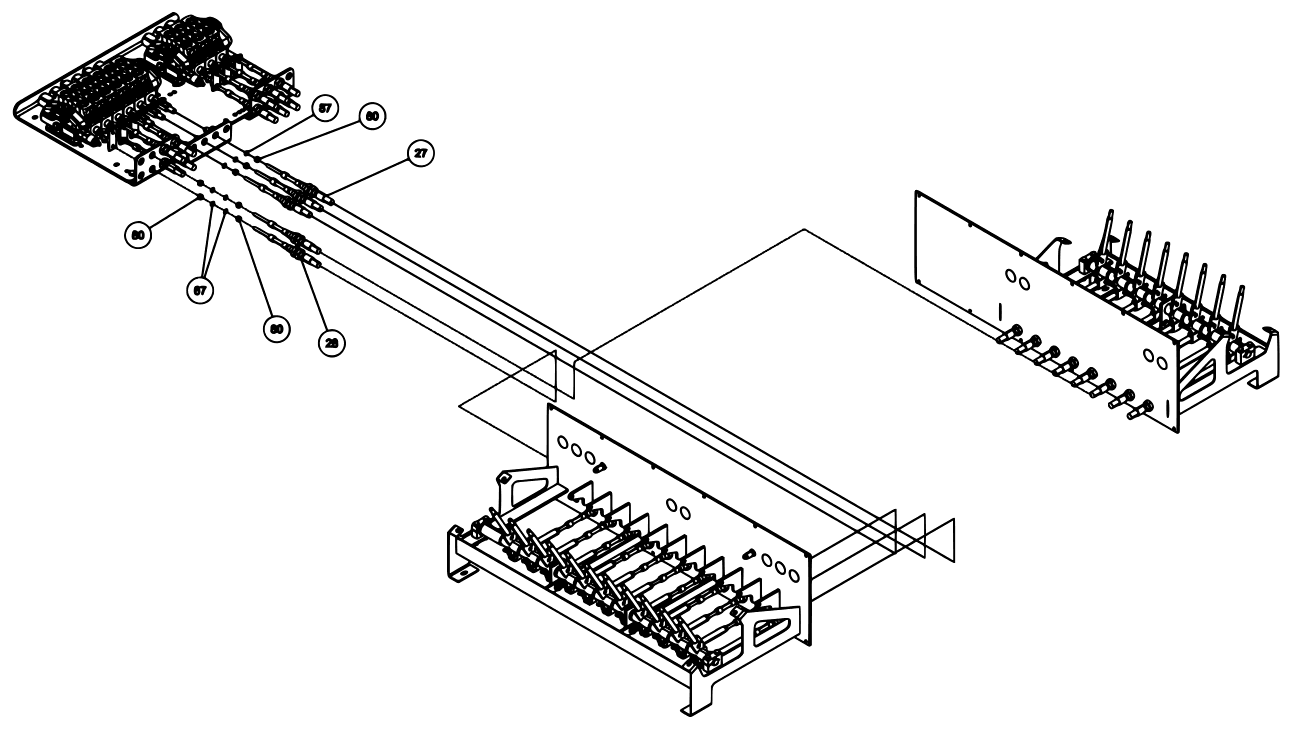

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 18 of 19)

Century 9055XL / XP850 (2021 manual) 09011768, Basic Unit Assembly, 9055XL XP850 diagram (view 19 of 19)

Show parts list (135 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09011768	9055 XL-XP850	-	Call for price	—
1	0200052	CLEVIS LINK	11	$12.40
2	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	4	$7.00
3	03005008	3/8" X 50' HD AIR HOSE REEL	2	$1,388.80
4	0300649	UNION, STRAIGHT 12MJ - 12MJ	2	Call for price	—
5	0300666	FITTING, BARB 24C4-24MP	2	Call for price	—
6	0300671	HOSE, SUCTION 1-1/2 IDPriced per foot	38	$29.80
7	0300835	KNOB-BOOM (UP-DOWN)	2	$13.20
8	0300836	KNOB-CTRL-JACK (UP-DOWN)	4	$18.80
9	0300837	KNOB-BOOM (IN-OUT)	2	$15.00
10	0300891	PIPE NIPPLE, 1-1/2 X 3	2	Call for price	—
11	0301470	FITTING, 90ELB 6MJ-8MB90	6	$7.60
12	0301473	HOSE HYD, 18" LG	2	$57.80
13	0301529	HOSE HYD, 58	2	$75.80
14	0301577	1/4 OD PLASTIC AIRLINE, BLACKPriced per foot	43	$5.80
15	0301620	FITTING, HYD. 6MJ - 6MB90	7	$5.80
16	0301695	HOSE HYD, 91"	1	$102.20
17	03017764	FITTING, 1/2" CLOSE NIPPLE	2	Call for price	—
18	03017861	FITTING, 1/2X1/4 HEX BUSHING	2	Call for price	—
19	0301909	RECEPTACLE BOOT	1	Call for price	—
20	0301946	FITTING, BLKHD CONNECT	1	$93.80
21	0301948	HD 7 WAY TRAILER CONNECT	1	$59.60
22	0301965	HOSE HYD, 131"	2	$117.40
23	0302000	HOSE HYD, 24"	1	$39.80
24	0302088	BALL VALVE	2	$91.00
25	0302205	GAUGE, FLUSH MNTG-6000 PSI	2	$44.80
26	0302242	FITT, FLANGE 24 HOSE-24FL90	2	$373.60
27	0302256	CABLE, CTRL 136	5	Call for price	—
28	0302449	CABLE, CONTROL 148	10	$187.80
29	0302534	FITTING, 45 DEG ELBOW	3	$33.00
30	0302546	CLAMPING UNIT C-PH-10-2	2	$15.60
31	0302550	C-SB-10-12 3/4 SPLIT	4	$9.80
32	0302551	C-SN-10 SOCKET-HEAD	2	$11.60
33	0302835	C-WA-10 WELD ADAPTER	4	Call for price	—
34	0302836	SOCKET-HD STACKING NUTS	2	$7.60
35	0302837	SPLIT BUSHING 1"	4	$5.60
36	0302856	KNOB-TILT, 3/8-16 THREAD	1	$24.40
37	0302901	HOSE HYD, 120" 12C12	8	$243.60
38	0302911	HOSE HYD, 88"	1	$72.60
39	0302932	ELBOW, 12MJ-20FL90	2	$151.60
40	0303017	FITTING, CONNECTOR	6	$5.60
41	0303089	RAMP PAD - 9055/5030	2	$84.80
42	0303170	HOSE, HYD. 75"	4	$93.80
43	0303185	HOSE HYD, 66" LG.	4	$71.60
44	0303342	HOSE HYD, 30" LG 8FJX-6M3K-8MJ	6	$47.00
45	0303350	HOSE HYD, 89" LG	2	$170.80
46	0303351	HOSE HYD, 105" LG	1	$121.80
47	0303352	HOSE HYD, 117" LG	1	$200.80
48	0303380	KNOB-UNDERLIFT (IN-OUT)	1	$15.60
49	0303382	KNOB - FOLD (UP-DN)	1	$17.40
50	0303427	CABLE, CONTROL 114"	4	$167.80
51	0303538	FITT, ADAPTER -BRASS 8FP-6MP	1	$11.60
52	0303539	QUICK DISCONNECT 3/8 FPT	1	$37.00
53	0303563	HOSE HYD, 27"	2	$42.00
54	0306537	EMERGENCY SWITCH(RAMSEY)	2	$382.80
55	0306540	ROTARY SELECT SWITCH OPERATOR	12	$157.00
56	0306698	AIR CYLINDER-1.5BORE/1.71STROK	11	$160.60
57	0306870	HOSE HYDR - 96"	1	$77.00
58	0307119	PUMP - HYDRAULIC	1	$6,543.80
59	0307525	HOSE, HYD ASSY 120" LGTH 90L	4	$78.00
60	0307604	KNOB, RED LONG - SK0700-07	8	$22.40
61	0310456	PUSH BUTTN OPER W/MTG(RED) N/C	2	$122.40
62	0310645	BALL VALVE, 1/2 NPT	2	$31.60
63	0310881	6 WAY DIVERTER VALVE-12V	2	$907.40
64	0311191	ROLLER, POLY, 4" X 5/8"	2	$46.40
65	0311355	HOBBS HOURMETER	1	$87.40
66	0311755	WATER SEPARATOR-MONNIER	1	$254.20
67	0312349	HOSE HYD 141" 6M2T 6FJX-6FJX45	2	$123.80
68	0400005	SCREW, 6-32X1/2 PRH SS	6	$5.80
69	04000381	SS BHSCS 1/4-20 X 1	14	Call for price	—
70	0400057	SCREW, 1/4-20X1-1/4 HHC	11	$5.80
71	0400062	SCREW, 1/4-20X3/4 THC	32	$8.00
72	0400066	SCREW, 1/4-20X3/4 HHC GR5	10	$5.80
73	0400078	SCREW, 1/4-20X2 HHC GR5	4	$5.80
74	0400118	SCREW, 5/16-18X3/4 HHC GR5	4	$5.80
75	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	8	$5.80
76	0400128	SCREW, 3/8-16X1-1/4 FHS GR8 BO	10	$8.00
77	0400177	SCREW, 1/2-13X1-1/4 HHC GR5	4	$5.80
78	0400367	NUT, 1/4-20 LOK	15	$5.80
79	0400369	NUT, 1/4 SPR J	14	$5.80
80	0400383	NUT, 5/16-24 HEX	35	$5.80
81	0400392	NUT, 3/8-16 LOK	18	$5.80
82	0400393	NUT, 3/8-16 JAM	19	$5.80
83	0400401	NUT, 7/16-20 JAM PL	11	$5.80
84	0400451	WASHER, 1/4	2	$5.80
85	0400452	LKWASHER, 1/4	10	$5.80
86	0400454	WASHER, 1/4 SS	22	$1.80
87	0400466	LKWASHER, 5/16 INT	35	$5.80
88	0400480	WASHER, 3/8	16	$4.00
89	0400491	LKWASHER, 1/2	24	$5.80
90	0400492	WASHER, 1/2	2	$5.80
91	0400497	WASHER, 1/2 GR8	6	$5.80
92	0400498	WASHER, 1/2X2X0.125	14	$8.00
93	0400527	PIN, 5/16X1X5/8 CLEVIS	11	$8.00
94	0400687	SCREW, 10-24X3/4 PRH SS	8	Call for price	—
95	0400752	NUT, 10-24 LOK EXT	8	Call for price	—
96	0400816	WASHER, M10 SS	8	Call for price	—
97	0400900	NUT, 1/2-13 LOK JAM	2	Call for price	—
98	0402021	SCREW, 1/4-20X1 HHC SS	4	$5.80
99	0402043	SCREW, 3/8-16X1-1/4 HHC SS	8	$5.80
100	0402094	NUT, HEX 6-32 SS	6	Call for price	—
101	0402111	LKWASHER, 1/4 SS	16	$5.80
102	0402113	NUT, 1/4-20 LOK SS	4	$1.80
103	0402120	WASHER, 3/8 SS	8	$5.80
104	0402123	NUT, 3/8-16 LOK SS	8	$5.80
105	07016003	7 WAY MOUNTING BRKT	1	Call for price	—
106	0710545	ANGLE, MTG	2	$69.60
107	0715584	PLATE, REAR SPADE COVER	2	$19.40
108	08000546	FRONT BODY MOUNT	1	$822.40
109	0810629	BRACKET WLDMT CHAIN ROLLER	2	$94.40
110	09006272	SIDEWINDER ASSY-2SPEED WALVOIL	1	Call for price	—
111	09006274	RT CTRL ASSY 8 HNDL 9055XL XP	1	Call for price	—

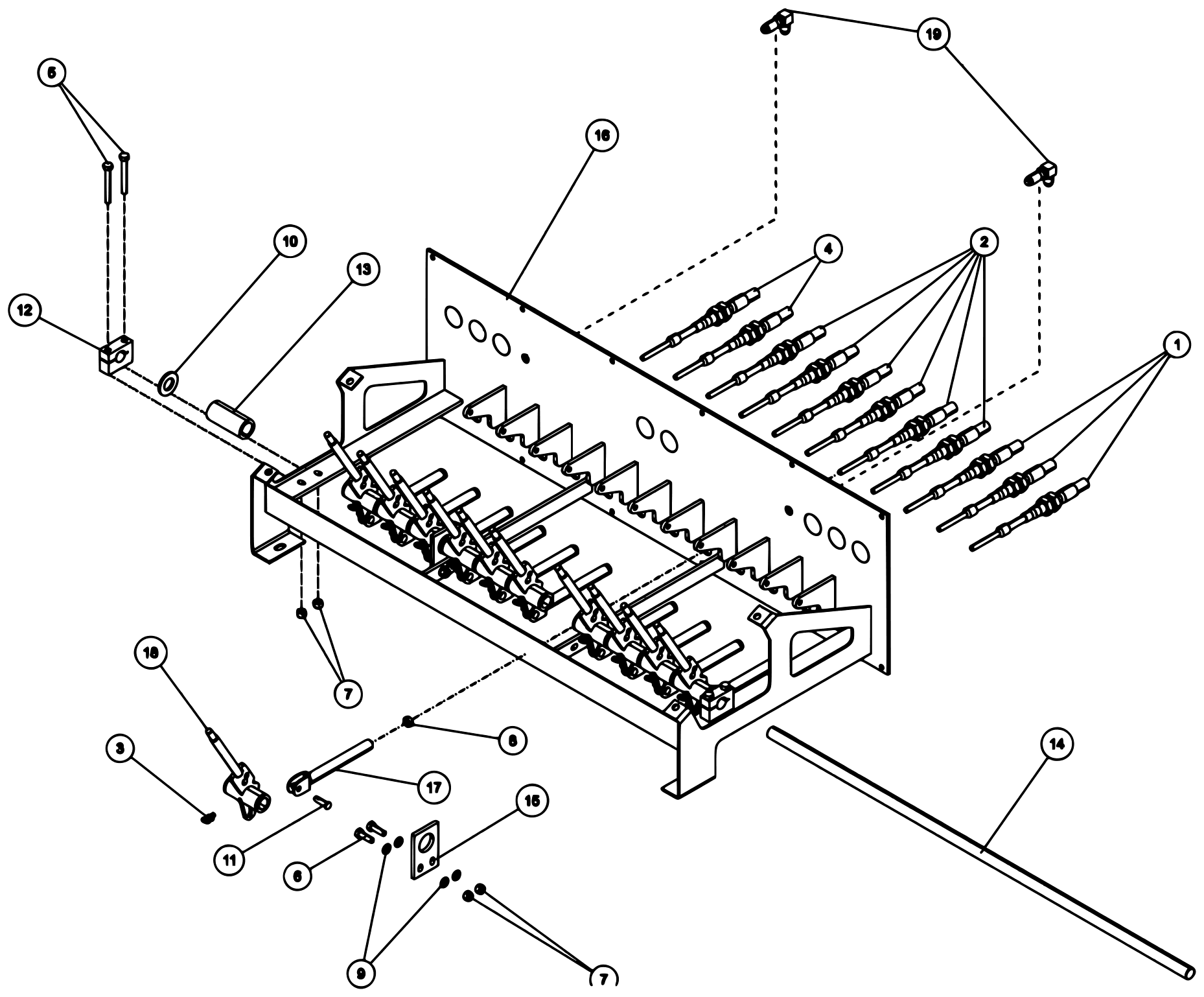

112	09006275	CTRL ASSY 11 HNDL 9055XL-XP	1	Call for price	—

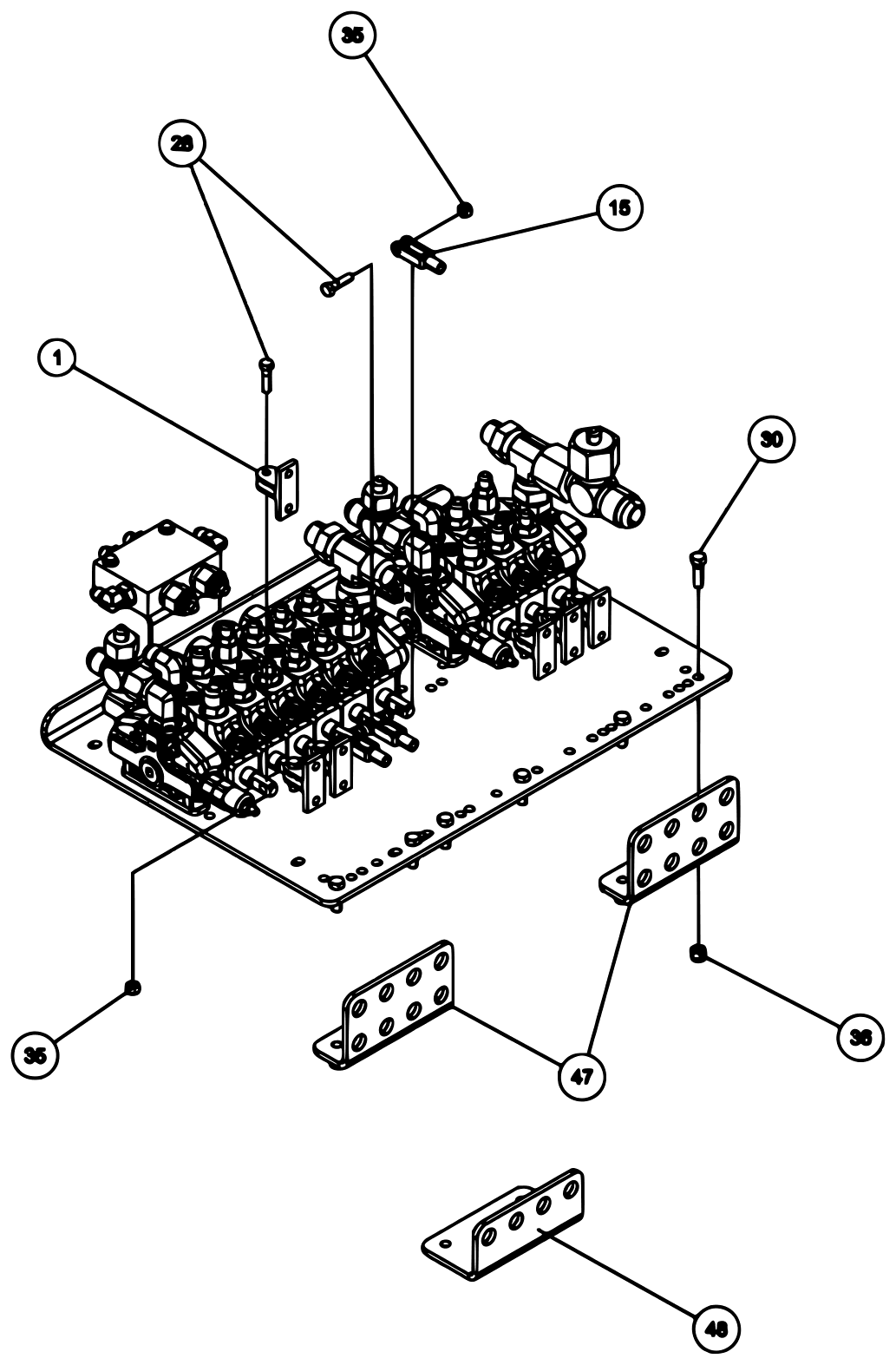

113	09006276	9055 XL-XP850 SUBFRM ASSY	1	Call for price	—

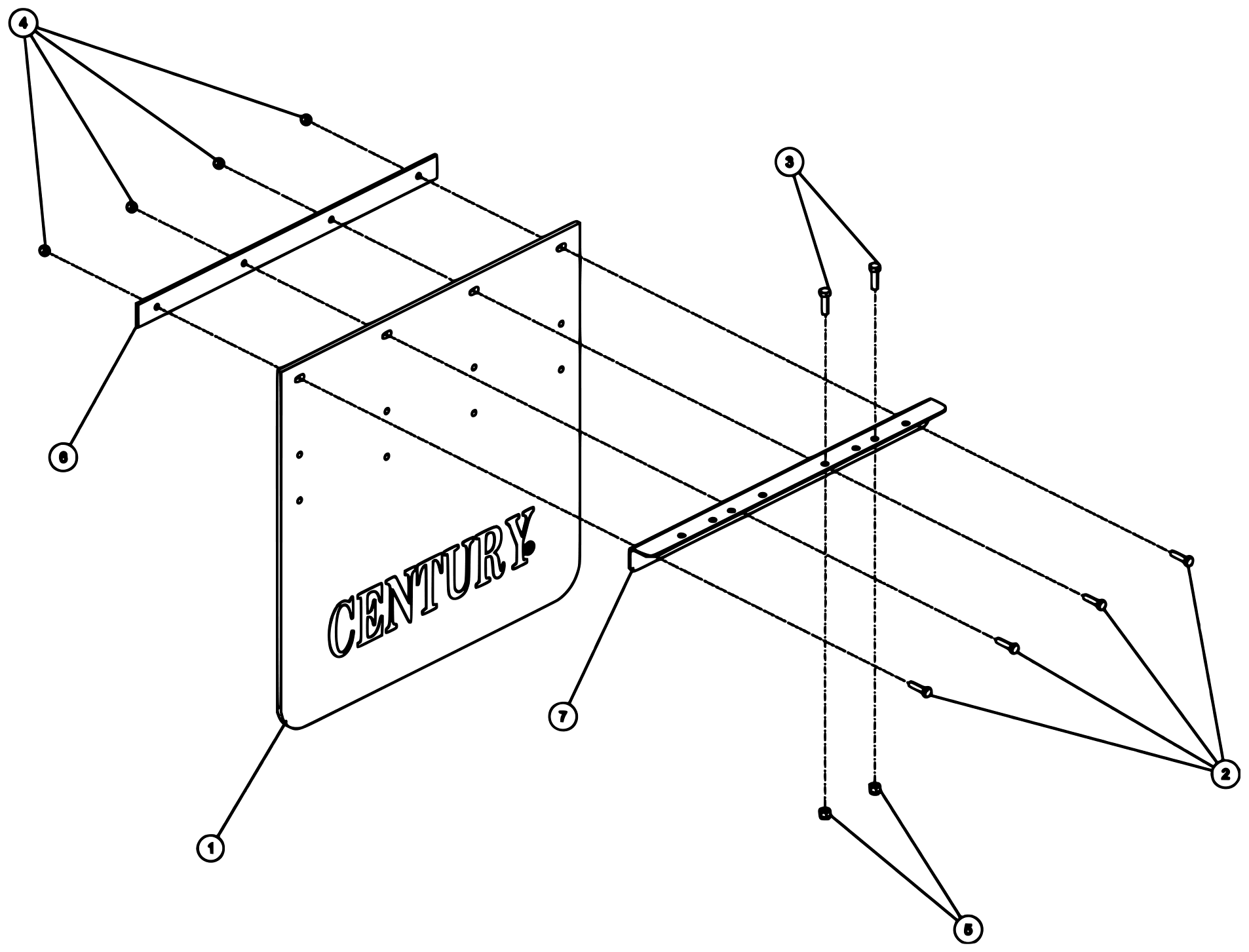

114	0908382	KIT - MUDFLAP LRG CENTURY WKR	2	$249.80
115	0908853	ILLUMINATED LEGEND ASSY-RT LWR	1	$1,097.20

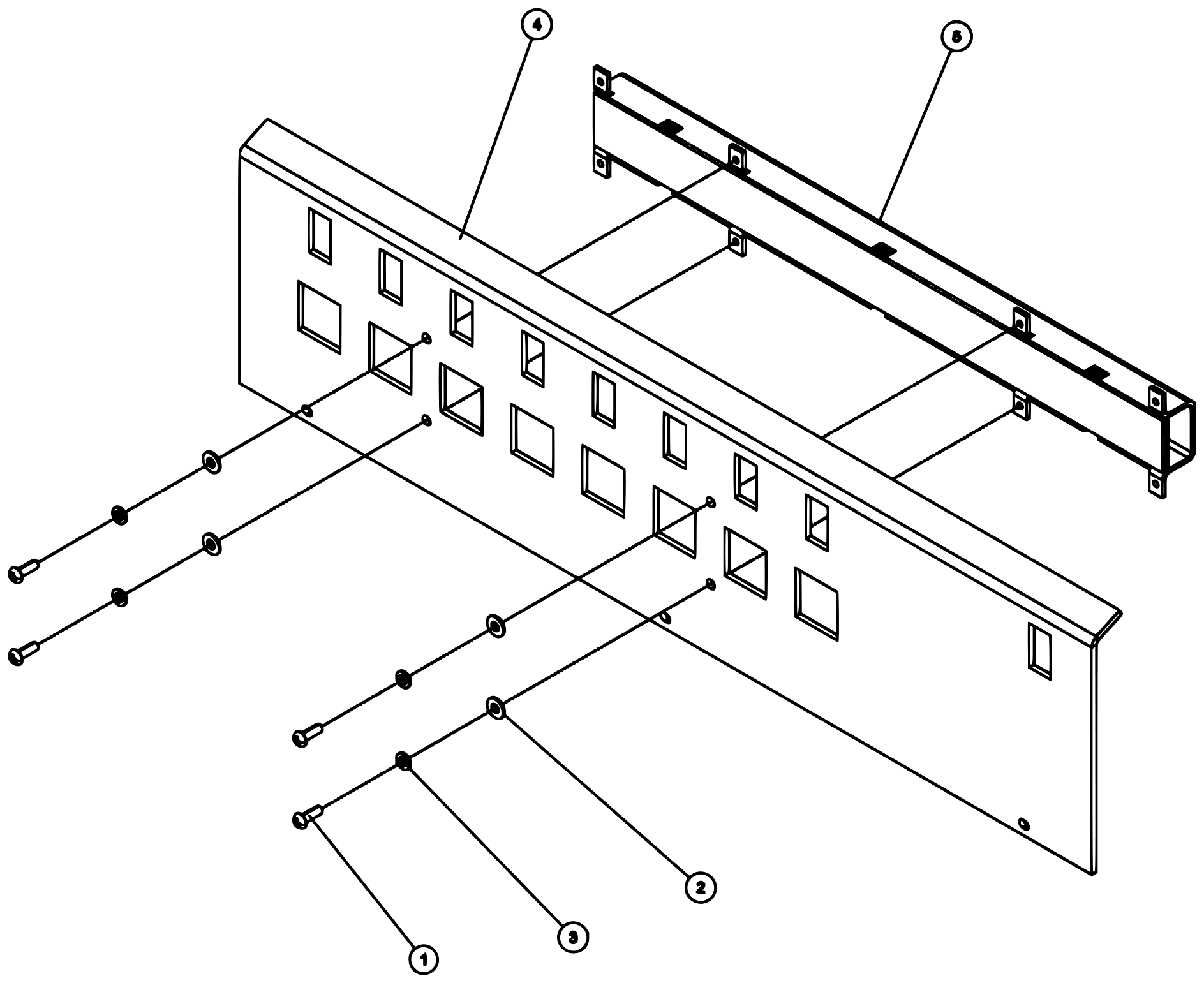

116	0908854	ILLUMINATED LEGEND ASSY-RT UPP	1	$751.00
117	0910048	ILLUMINATED LEGEND ASSY-LT LWR	1	$1,276.60
118	0910049	ILLUMINATED LEGEND ASSY-LT UPP	1	$1,092.00

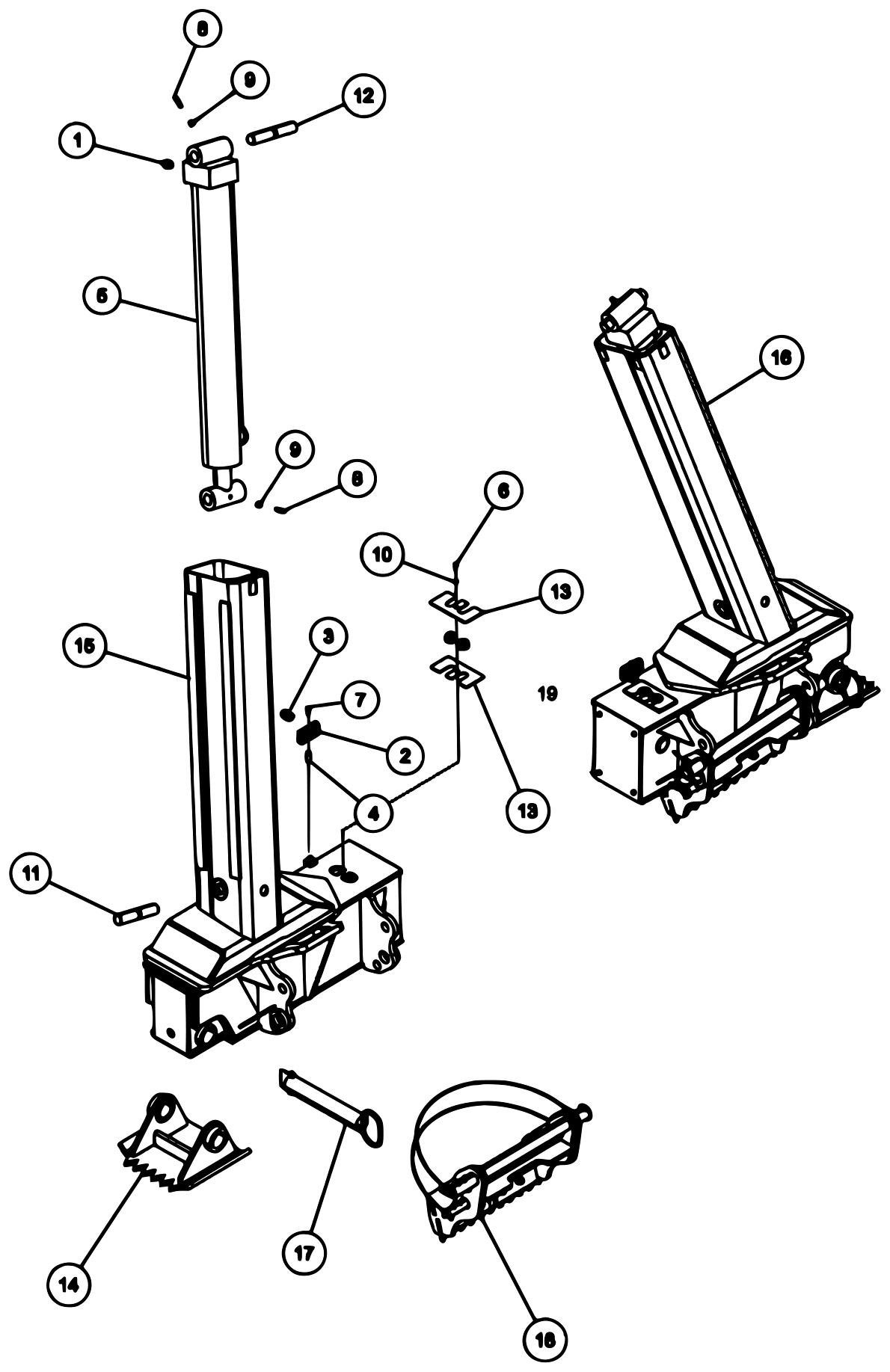

119	0910353	BUA-9055 OUTRIGER SYST-FACT12V	1	$32,083.00

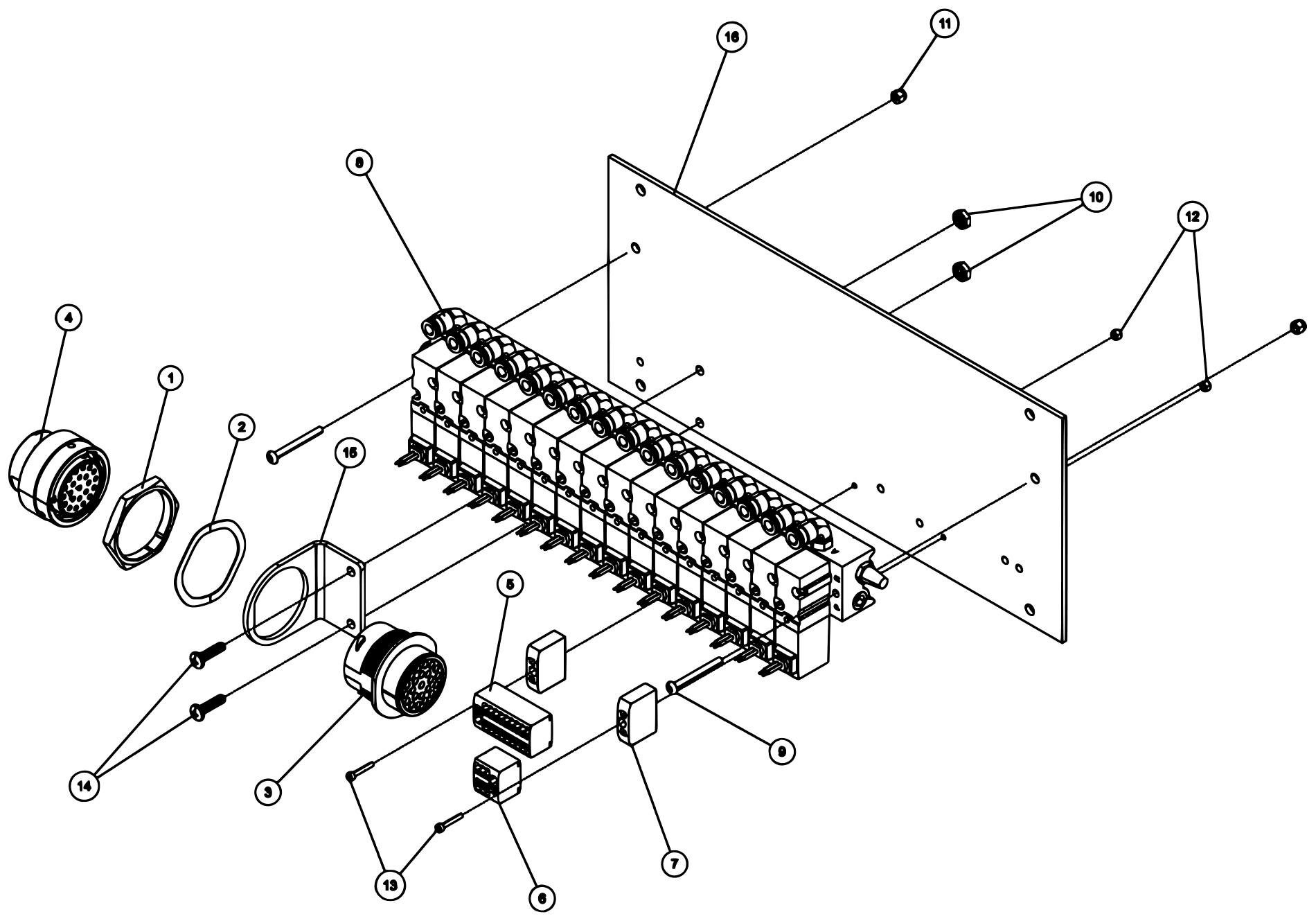

120	0910535	MNFLD PKG 16 VLV 12VDC W/O HNS	2	$4,124.00

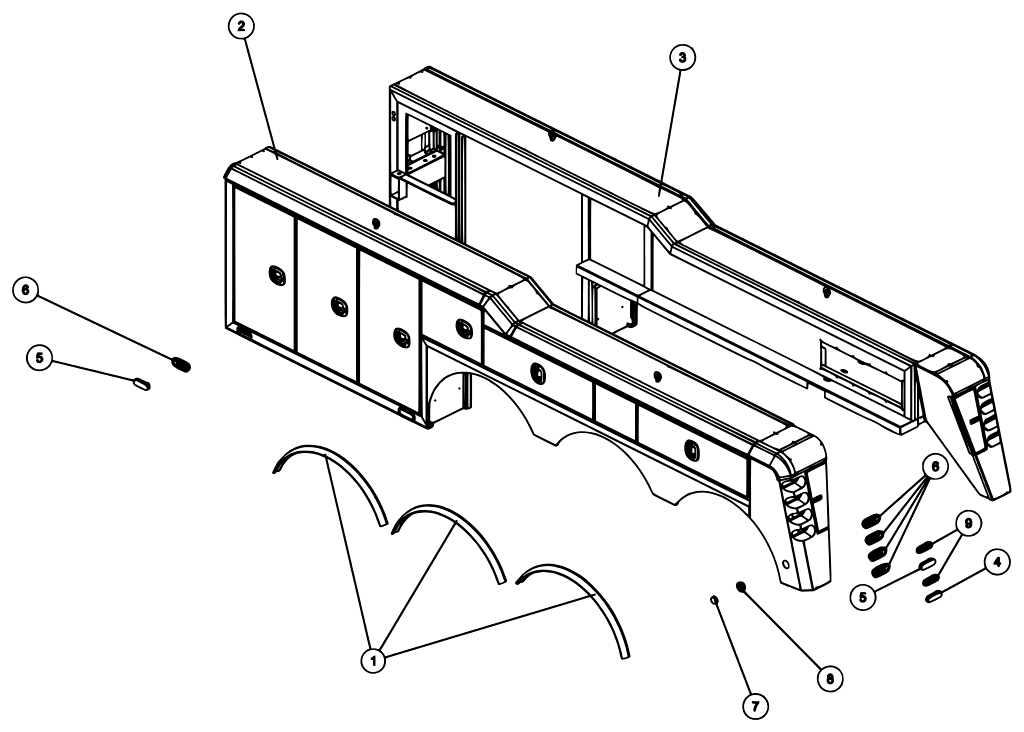

121	0910837	TOOLBX, BUA 204TRI 2010	1	Call for price	—
122	0910935	XBAR ASY HRDWR-XHD 5X5 CENTURY	1	$3,308.40
123	0911804	AIR REGULATOR-GAUGE ASSEMBLY	4	$101.20
124	0912121	BOOM INSTALLATION 9055 3STG GE	1	Call for price	—
125	0912126	WINCH ASSY 9055	1	Call for price	—

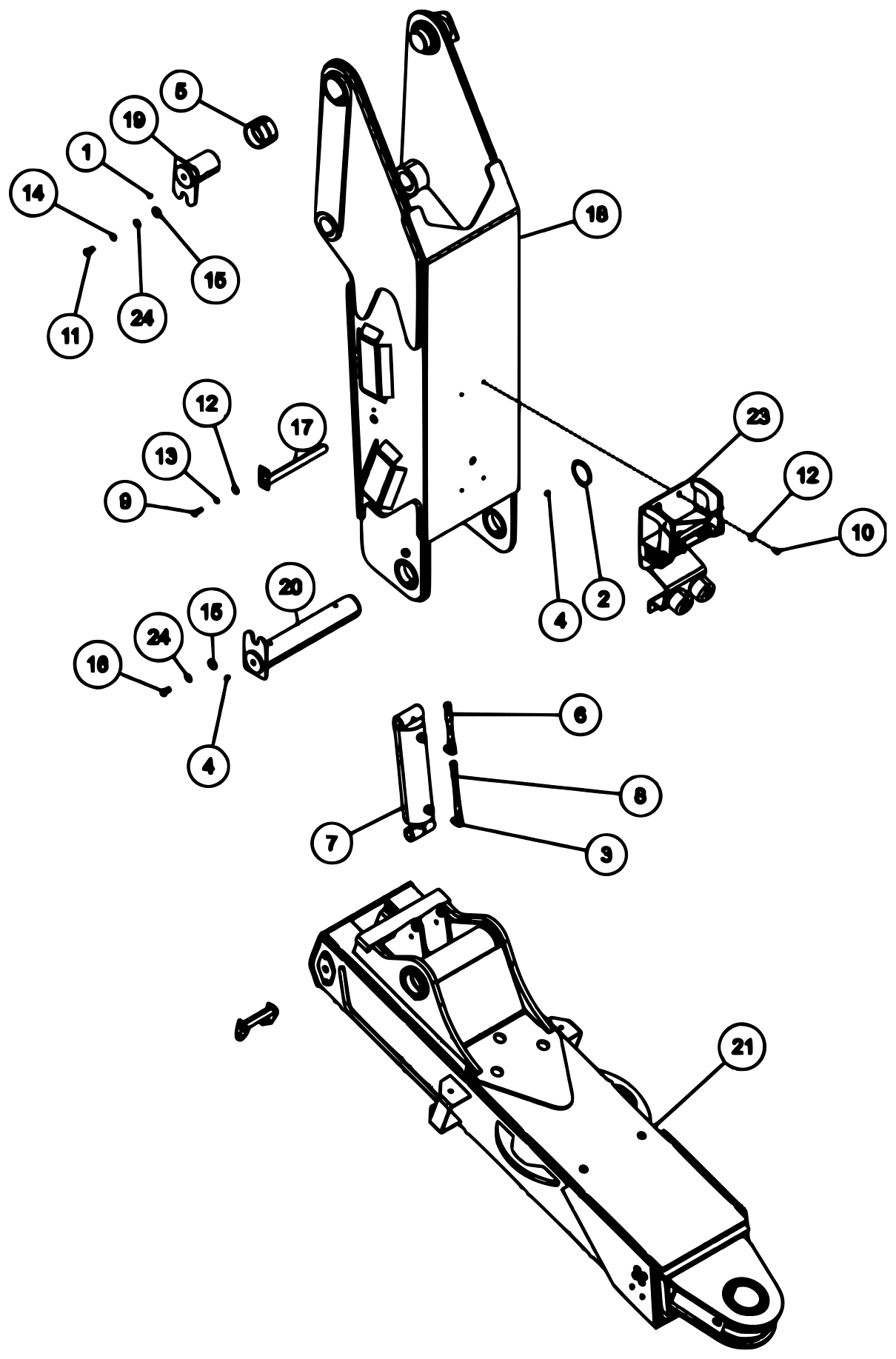

126	0912164	U/L AND TWR 9055XL COACH LWRDR	1	Call for price	—
127	9010030	FITT, BRASS ELBOW 1/4T-1/8MPX	22	$13.80
128	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
129	9012594	FITT, HYD RUN TEE, 6MJx6MBx6MJ	1	$21.20
130	9024041	SWITCH-ROCKER, LIGHTED 12V	20	$43.40
131	9041402	1/2 NC X 1 1/4 HHCS PLT GR8	14	$8.00
132	9041403	1/2 NC X 1 1/2 HHCS PL GR8	6	$5.80
133	9402970	TOOLBOX MTG. PAD	14	$54.20
134	942480011	PLATE, SLOT-SS REAR WASHER TBOX	18	$25.20

Back to Manual Navigation Menu

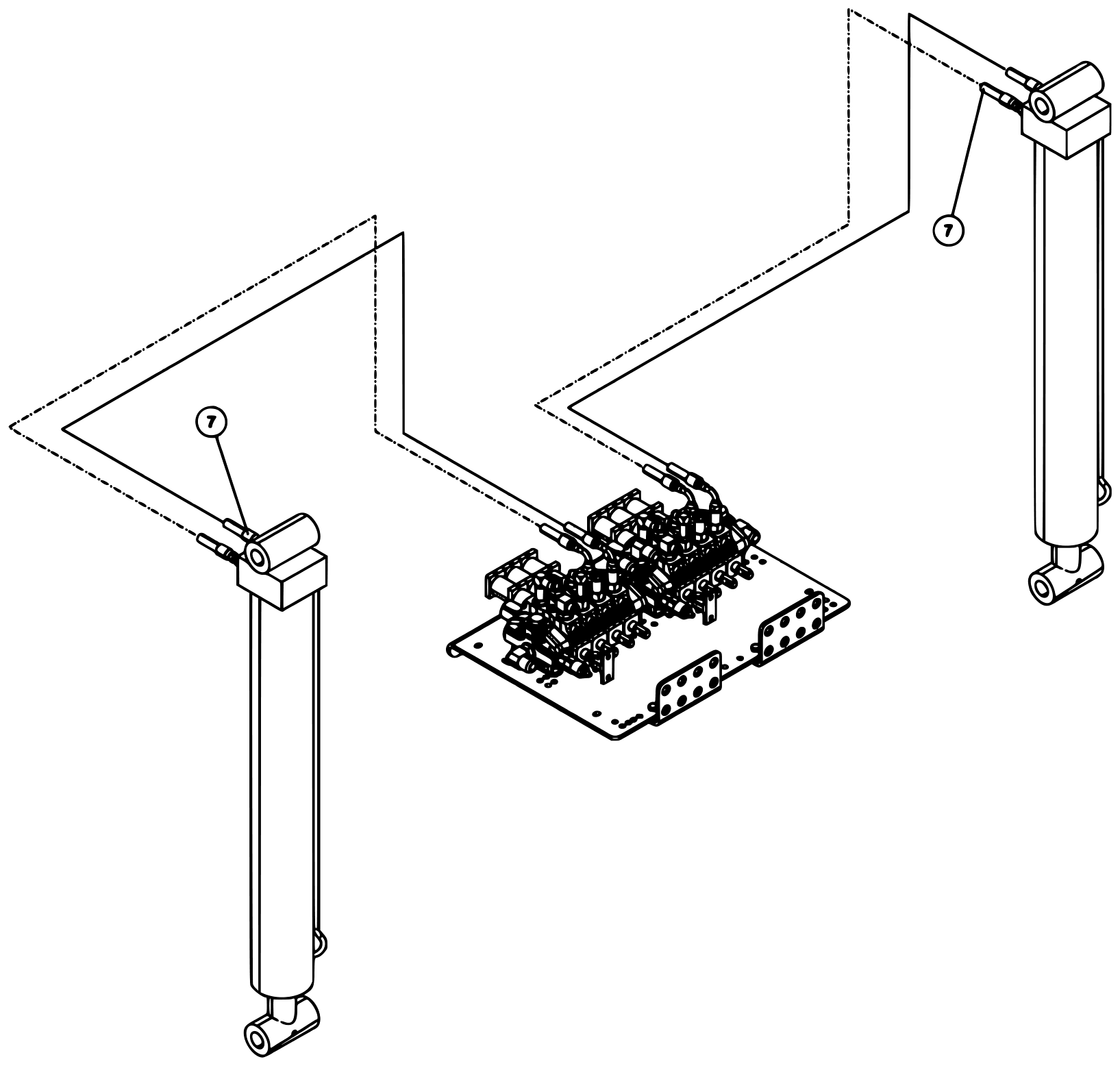

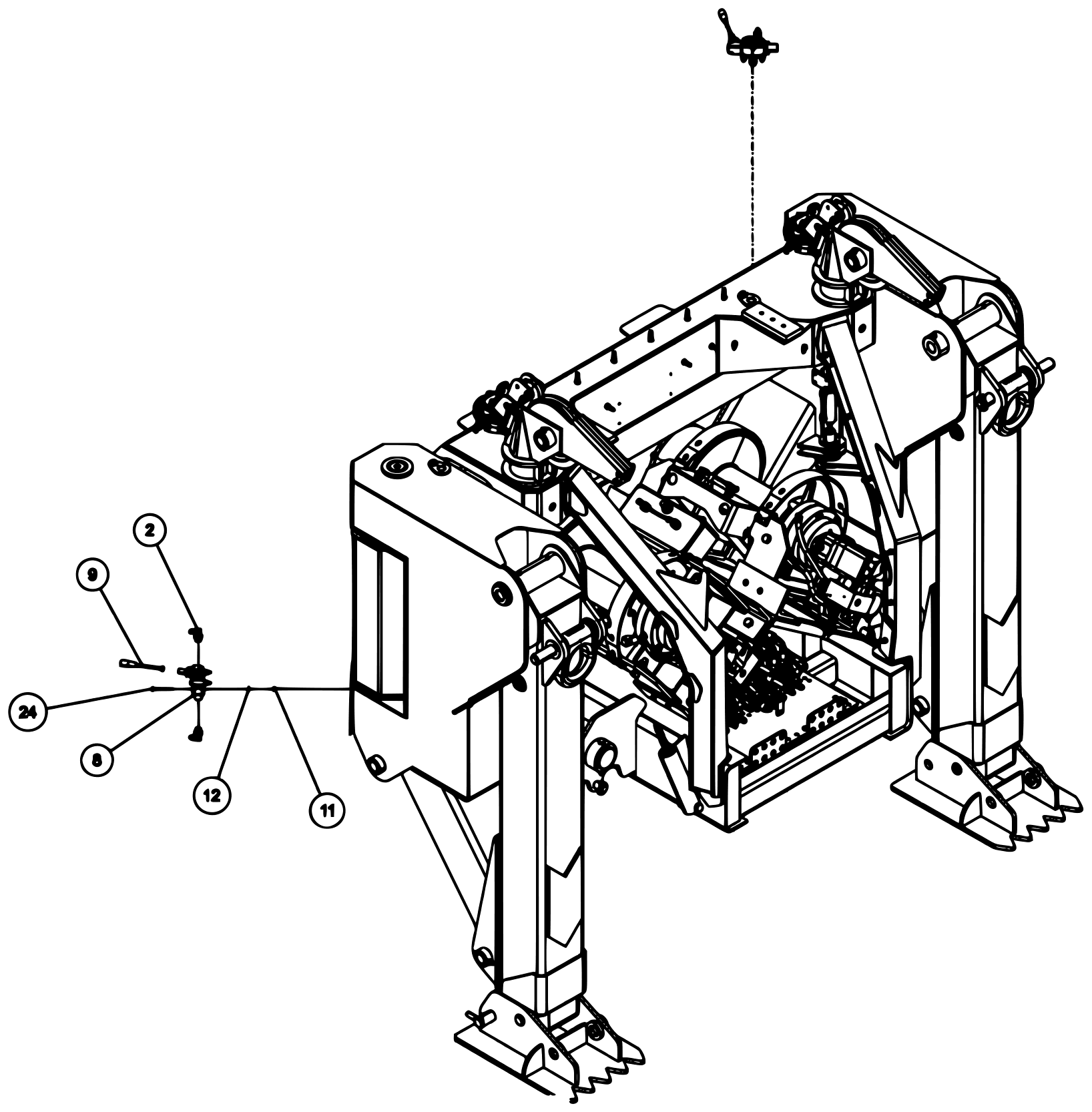

09006272, Sidewinder Assembly - 2SPEED Walvoil

Century 9055XL / XP850 (2021 manual) 09006272, Sidewinder Assembly - 2SPEED Walvoil diagram (view 3 of 5)

Century 9055XL / XP850 (2021 manual) 09006272, Sidewinder Assembly - 2SPEED Walvoil diagram (view 4 of 5)

Century 9055XL / XP850 (2021 manual) 09006272, Sidewinder Assembly - 2SPEED Walvoil diagram (view 5 of 5)

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006272	SIDEWINDER ASSY-2SPEED WALVOIL	-	Call for price	—
1	0300108	SNAP RING, 2.5 5100-250	2	$3.40
2	0301470	FITTING, 90ELB 6MJ-8MB90	4	$7.60
3	0301861	QUICK PIN, LINCH -B7932 PL 7/16	2	$3.80
4	0301895	GREASE FITTING, 1/8 STR PTF	4	$5.80
5	0302000	HOSE HYD, 24"	2	$39.80
6	0303866	HOSE HYD, 68	4	$47.20
7	0307452	HOSE, HYD 146" LG	4	$122.80
8	0310397	VALVE, DIVERTER WALVOIL	2	$413.40
9	0310398	HANDLE, DIVERTER VALVE	2	$11.60
10	0400126	SCREW, 3/8-16X1 HHC GR5	2	$5.80
11	0400367	NUT, 1/4-20 LOK	6	$5.80
12	0400451	WASHER, 1/4	6	$5.80
13	0400480	WASHER, 3/8	2	$4.00
14	0400482	LKWASHER, 3/8	2	$5.80
15	0719585	D-RING, TOWING	2	$440.40
16	0803923	PIN WLDT - D RING	2	$225.60
17	0806727	PIN - PIVOT WLD'T	2	$1,303.00
18	09000229	PIVOT MTG HOUSE LOCK ASSY	2	Call for price	—
19	09006278	FRAME ASSEMBLY XP850- 2 SPD	1	Call for price	—
20	0906572	KIT-WINCH CABLE STOW	2	$55.80

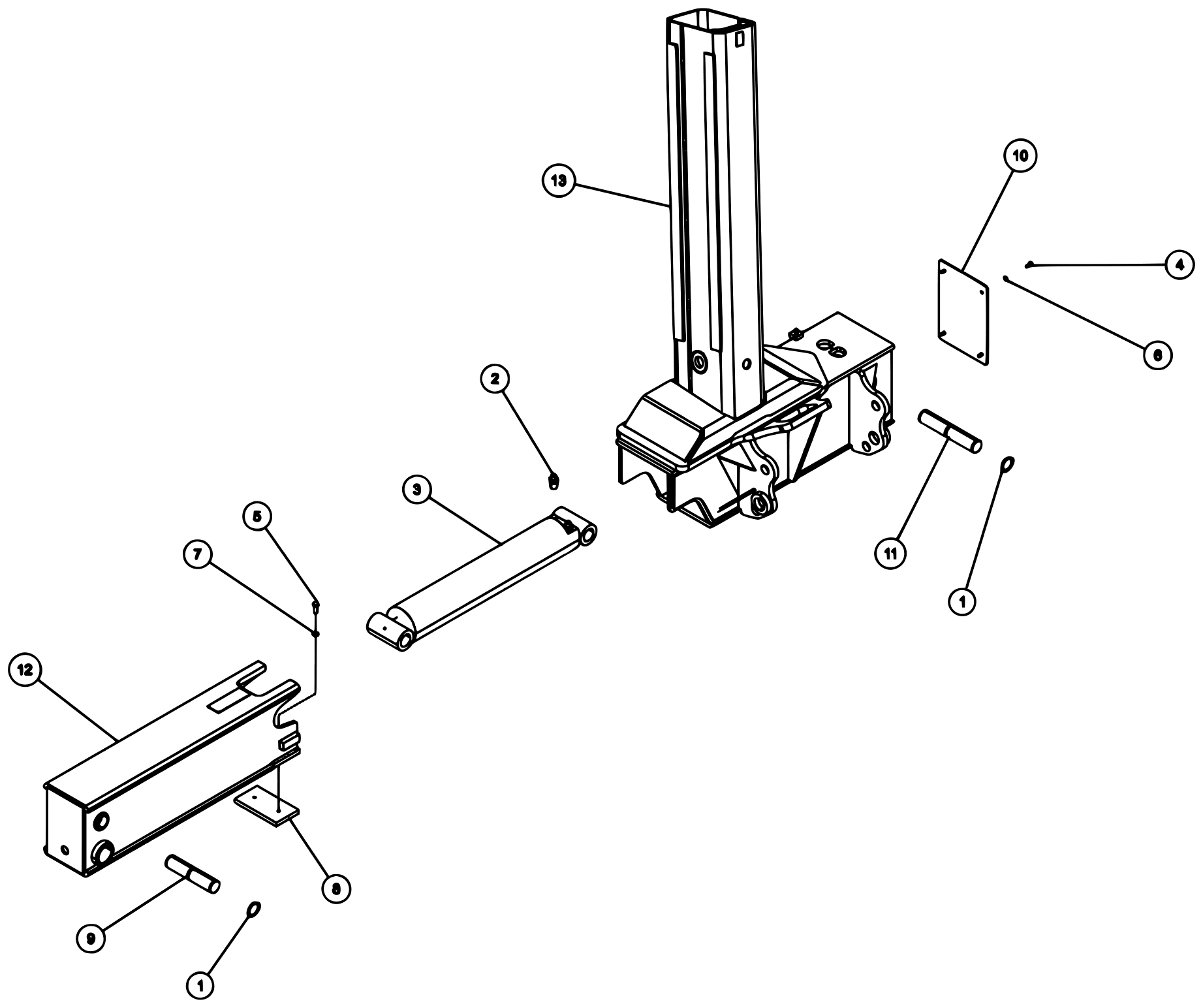

21	0908052	LH LEG ASSEMBLY	1	$12,164.20
22	0908053	RH LEG ASSEMBLY	1	$11,840.00
23	805352500	PIN WELD'T UPPER TILT CY	2	$79.40
24	9041011	1/4 NC X 2 1/2 HHCS PL GR8	6	Call for price	—

Back to Manual Navigation Menu

09000229, Pivot Mtg House Lock Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09000229	PIVOT MTG HOUSE LOCK ASSY	-	Call for price	—
1	0306698	AIR CYLINDER-1.5BORE/1.71STROK	2	$160.60
2	0400084	SCREW, 1/4-20X1-1/2 HHC GR5	2	$1.80
3	0400367	NUT, 1/4-20 LOK	2	$5.80
4	0400401	NUT, 7/16-20 JAM PL	2	$5.80
5	0719679	PIN, RETAINER	2	$279.80
6	9010030	FITT, BRASS ELBOW 1/4T-1/8MPX	4	$13.80

Back to Manual Navigation Menu

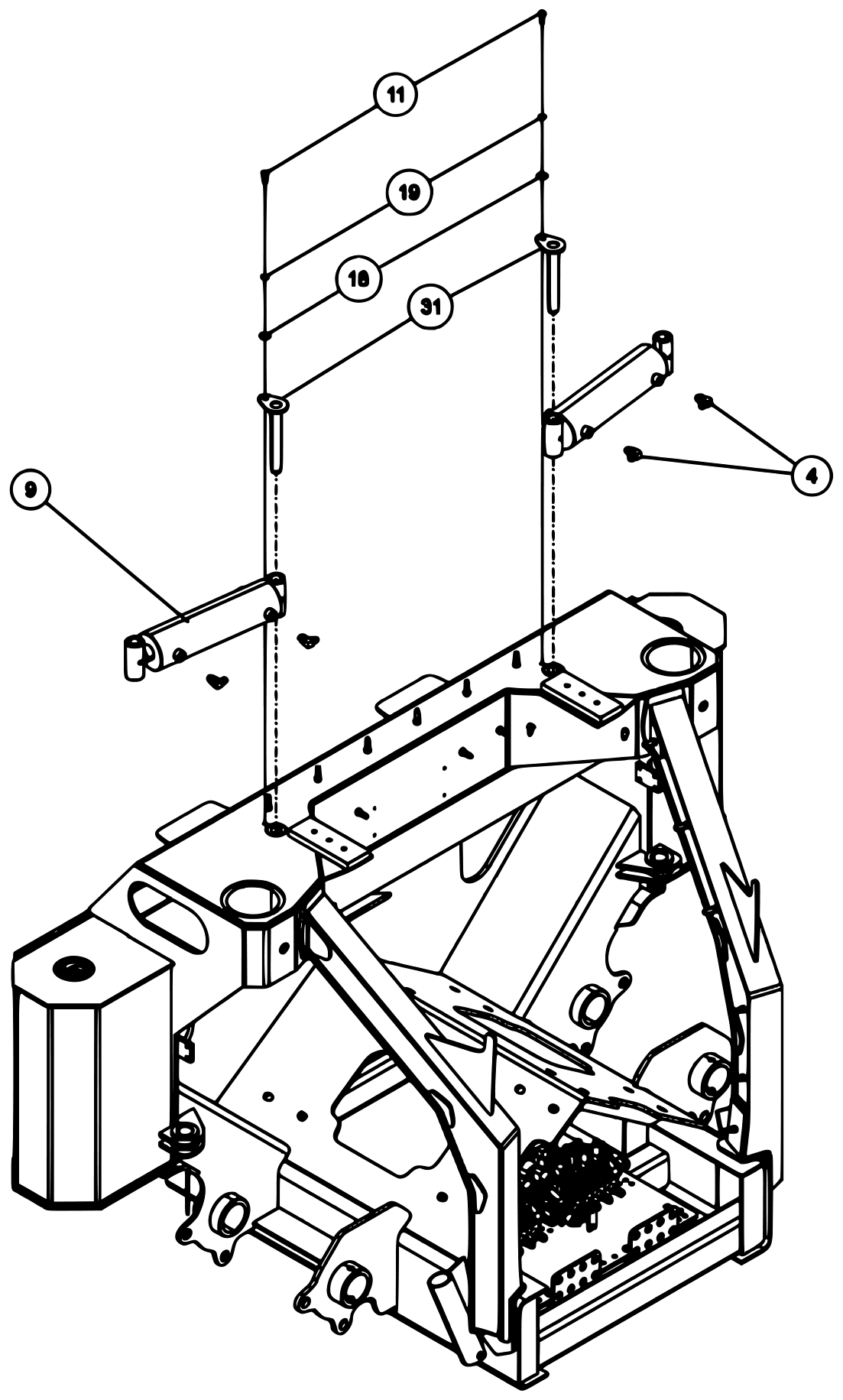

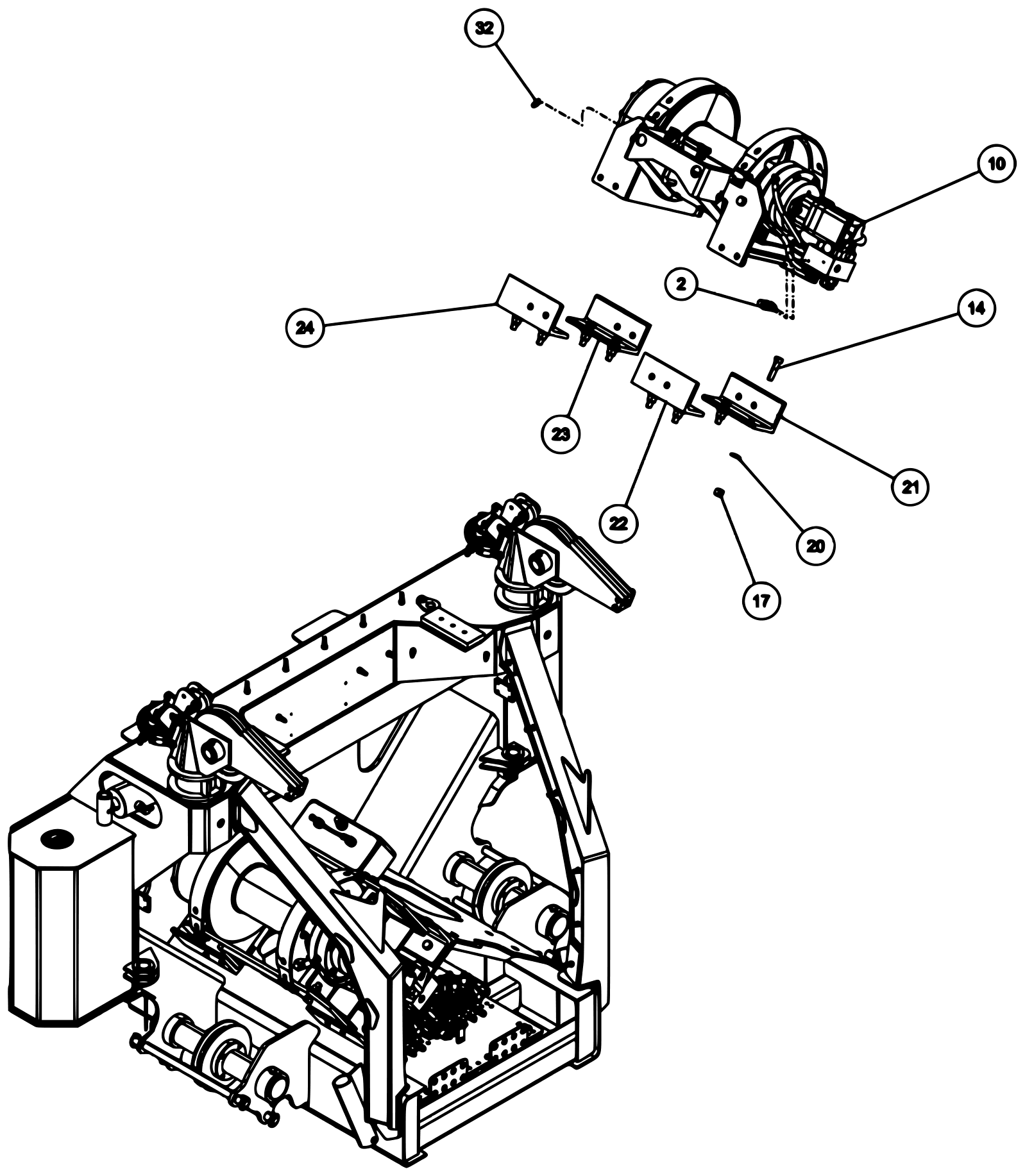

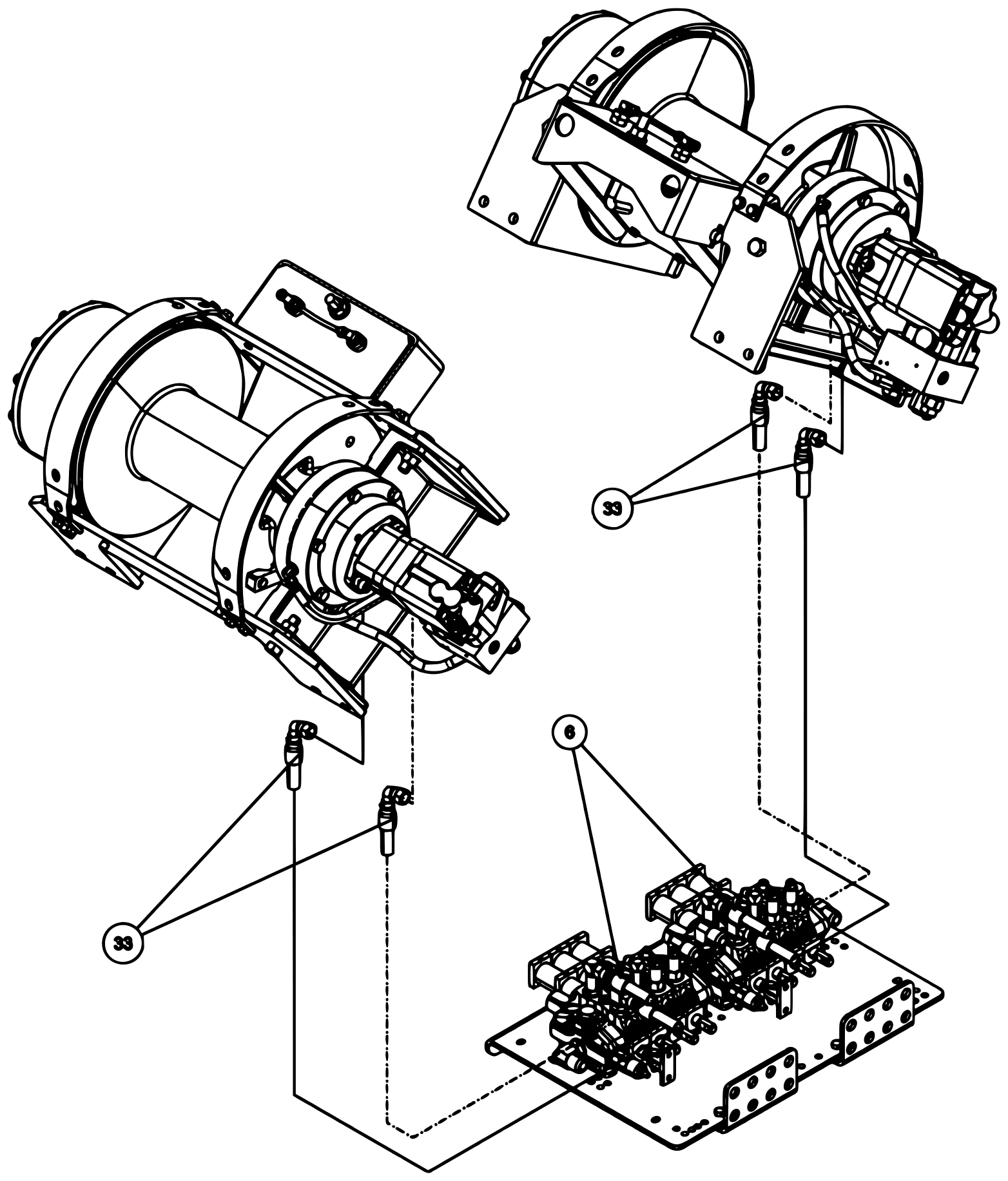

09006278, Frame Assembly XP850 2-Speed

Century 9055XL / XP850 (2021 manual) 09006278, Frame Assembly XP850 2-Speed diagram (view 3 of 7)

Century 9055XL / XP850 (2021 manual) 09006278, Frame Assembly XP850 2-Speed diagram (view 4 of 7)

Century 9055XL / XP850 (2021 manual) 09006278, Frame Assembly XP850 2-Speed diagram (view 5 of 7)

Century 9055XL / XP850 (2021 manual) 09006278, Frame Assembly XP850 2-Speed diagram (view 6 of 7)

Century 9055XL / XP850 (2021 manual) 09006278, Frame Assembly XP850 2-Speed diagram (view 7 of 7)

Show parts list (33 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

09006278 FRAME ASSEMBLY XP850- 2 SPD - Call for price —

03000005

HOSE HYD, 80.5"

$66.80

0300041

CONNECTOR, 8MJ-8MB

$5.60

0300113

GREASE FITTING, 1/4-28 STR

$5.80

0301620

FITTING, HYD. 6MJ - 6MB90

$5.80

5 0301837 INLINE ORIFICE 4 Call for price —

0302313

HOSE HYD, 25"

$59.60

0302474

PIN, LINCH 3/16

$3.80

0302805

HOSE HYD, 10"

$29.80

0306746

CYL HYD - FOLD

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

0307061

WINCH-35K dp 2-SP N.DRUM W/TEN

$15,473.40

0400126

SCREW, 3/8-16X1 HHC GR5

$5.80

0400157

SCREW, 3/8-16X1-3/4 HHC GR5

$5.80

0400206

SCREW, 1/2-13X5 HHC GR5

$9.80

0400262

SCREW, 5/8-11X2-1/2 HHC GR8

$5.80

0400392

NUT, 3/8-16 LOK

$5.80

0400408

NUT, 1/2-13 LOK

$2.80

0400426

NUT, 5/8-11 LOK GR8

$8.00

0400480

WASHER, 3/8

$4.00

0400482

LKWASHER, 3/8

$5.80

0400503

WASHER, 5/8 GR8

$5.80

21 0715947 ANGLE, WINCH MTG 2 Call for price —

22 0715948 ANGLE, WINCH MTG 2 Call for price —

23 0715949 ANGLE, WINCH MTG 2 Call for price —

24 0715950 ANGLE, WINCH MTG 2 Call for price —

0717763

PIN, FLEET SHEAVE

$677.00

0717843

PIN, CABLE RETAINER

$126.40

27 0806728 FRAME WELDMENT 1 Call for price —

28 09006277 VALVE PAN ASSY WALVOIL XP850 1 Call for price —

0908055

REVERSING SHEAVE SUB-ASSEMBLY

$1,295.20

30 0908062 CABLE SHEAVE & TENSIONER ASSY 2 Call for price —

805352500

PIN WELD'T UPPER TILT CY

$79.40

9011053

FITTING, BRASS 1/4 TUBE-1/4 MP

$8.20

Back to Manual Navigation Menu

09006277, Valve Pan Assembly XP850

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006277	VALVE PAN ASSY WALVOIL XP850	-	Call for price	—
1	0200054	CONNECTOR, CONTROL CABLE	2	$10.00
2	0300044	FITT, HYD CONN. 6MJ-8MB	4	$3.80
3	0301388	ELBOW, 8MJ-8MB90	2	$13.20
4	0301470	FITTING, 90ELB 6MJ-8MB90	2	$7.60
5	0301783	FIT-STR THRD O-RING PLUG 10MB	4	Call for price	—
6	0302085	FITTING, 90 DEG ADPTR	4	Call for price	—
7	0302508	FITTING, ELL 8MJ-8MB 90LL	2	$13.80
8	0303017	FITTING, CONNECTOR	2	$5.60
9	0307460	FITTING, HYD 6MJ-6MB90LL	2	Call for price	—
10	0310289	FITTING-LONG ADAPTER 6MJ-8MBLL	4	Call for price	—
11	0312445	VALVE - CONTROL 4-SPOOL	2	Call for price	—
12	0400103	SCREW, 5/16-18X1-1/4 HHC GR5	2	$5.80
13	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	4	$5.80
14	0400382	NUT, 5/16-18 LOK	2	$5.80
15	0400392	NUT, 3/8-16 LOK	4	$5.80
16	0400464	LKWASHER, 5/16	8	$1.60
17	0400841	SCREW, M8-1.25X20 HHC 10.9	8	$1.00
18	0726586	PLATE - VALVE MOUNTING	1	Call for price	—
19	0726587	PLATE - VALVE SPACER	4	Call for price	—
20	0726588	ANGLE - CABLE BULKHEAD DOUBLE	2	Call for price	—

Back to Manual Navigation Menu

0908055, Reversing Sheave Assembly

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908055	REVERSING SHEAVE SUB-ASSEMBLY	-	$1,295.20
1	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
2	0400079	SCREW, 1/4-20X3/4 FHS GR5	8	$5.80
3	0717748	PLATE, SHEAVE COVER	2	Call for price	—
4	0718059	BUSHING, WITH HOLE (0306748)	1	Call for price	—
5	0806736	FLEET SHEAVE WLD'T/MACH DRW	1	$951.80

Back to Manual Navigation Menu

09008062, Cable Sheave & Tensioner Assembly

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908062	CABLE SHEAVE & TENSIONER ASSY	-	Call for price	—
1	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	4	$5.80
2	0400392	NUT, 3/8-16 LOK	4	$5.80
3	0400557	PIN, 1/2X1-1/4 SPR	3	$5.80
4	0908054	CABLE SHEAVE SWIVEL ASSEMBLY	1	Call for price	—
5	0908063	TENSIONER ASSEMBLY	1	Call for price	—

Back to Manual Navigation Menu

0908054, Cable Sheave Swivel Assembly

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908054	CABLE SHEAVE SWIVEL ASSEMBLY	-	Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0303441	SHEAVE-10" DIA X 1.5 BORE	1	$429.60
3	0400133	SCREW, 3/8-16X3 HHC GR5	1	$5.80
4	0400150	SCREW, 3/8-16X2-1/2 HHC GR5	2	$5.80
5	0400392	NUT, 3/8-16 LOK	3	$5.80
6	0700801	GUIDE, BTM CABLE	2	$23.20
7	0716134	SHEAVE SHAFT	1	$68.60
8	0803313	GUIDE-CABLE WELDMENT	1	$283.40
9	0810088	SHEAVE WLDMT	1	Call for price	—

Back to Manual Navigation Menu

0908063, Tensioner Assembly

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908063	TENSIONER ASSEMBLY	-	Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0400126	SCREW, 3/8-16X1 HHC GR5	1	$5.80
3	0400392	NUT, 3/8-16 LOK	1	$5.80
4	0717832	PIN, TENSI0NER PIVOT	1	Call for price	—
5	0806740	TENSIONER ARM WLD'T	1	Call for price	—
6	0806741	TENSIONER MOUNTING BRACKET	1	Call for price	—
7	0806742	PIN - TENSIONER ROLLER	1	$170.20
8	0908064	TENSIONER ROLLER	1	Call for price	—
9	9012553	BRASS ELBOW LEGRIS 3109-	1	$18.40
10	9018141	DIAPHRAGM CYL. KN36090	1	$440.40
11	9048450	YOKE-GREEN BAY B-371 1/	1	$37.60
12	9053524	BEARING BR. FLG.752 X .879x.75	2	$6.00
13	HD0160	SNAP RING, 3/4EXTERNAL	2	$5.40

Back to Manual Navigation Menu

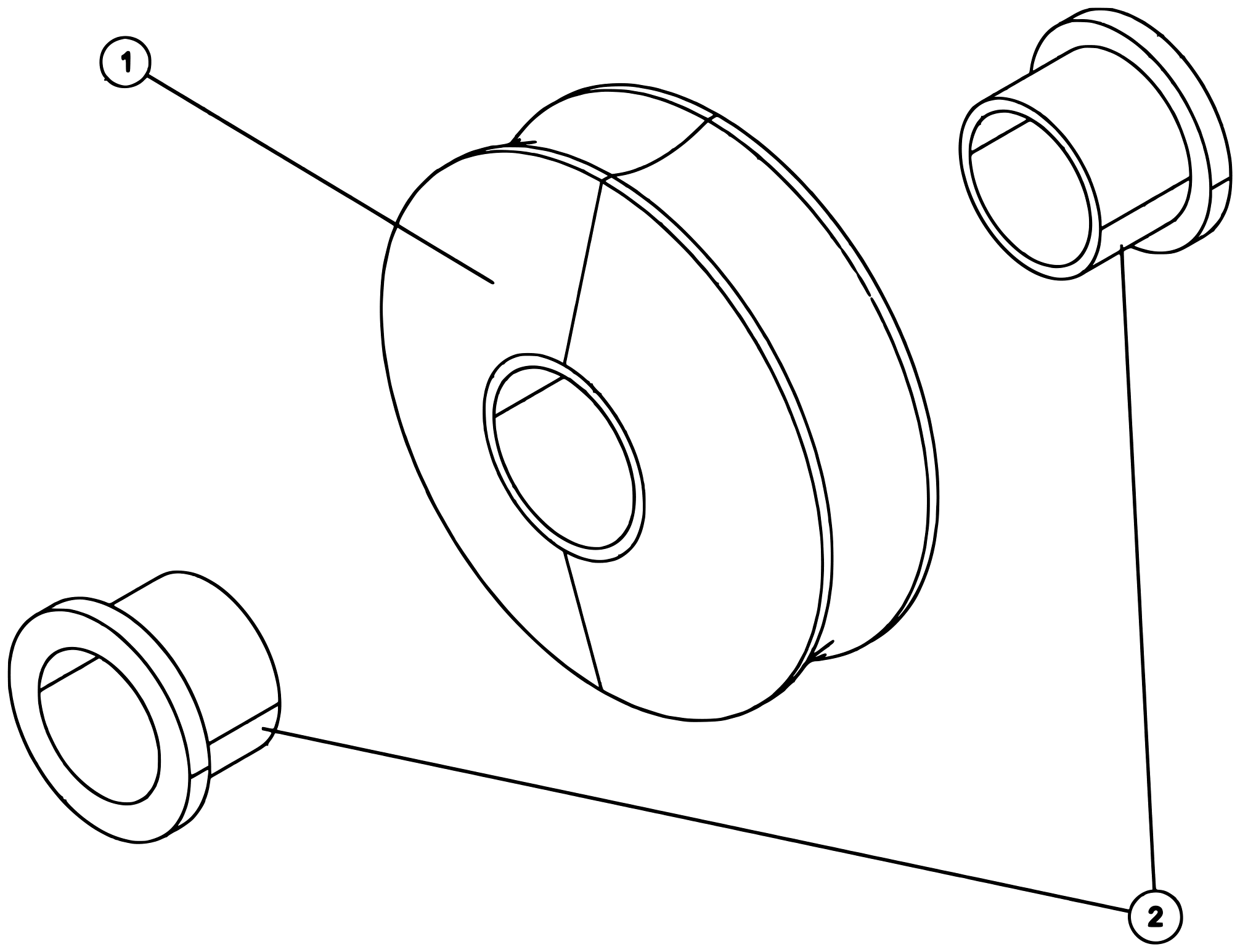

0908064, Tensioner Roller

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908064	TENSIONER ROLLER	-	Call for price	—
1	0717831	ROLLER, TENSIONER	1	Call for price	—
2	0717833	BUSHING-FLANGED	2	Call for price	—

Back to Manual Navigation Menu

0908052, Left Hand Leg Assembly

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908052	LH LEG ASSEMBLY -		$12,164.20
1	0300113	GREASE FITTING, 1/4-28 STR	3	$5.80
2	0301425	FITTING, CONNECTOR	2	$3.80
3	0302357	CYL HYD BOOM LIFT 500SER	1	$2,090.80
	0304508	Seal kit for 0302357 cylinder: SEAL KIT		$175.20
4	0400079	SCREW, 1/4-20X3/4 FHS GR5	8	$5.80
5	0400130	SCREW, 3/8-16X3-1/2 HHC GR5	1	$5.80
6	0400133	SCREW, 3/8-16X3 HHC GR5	2	$5.80
7	0400392	NUT, 3/8-16 LOK	3	$5.80
8	0705488	SHAFT, LIFT CYL	2	$66.80
9	0713510	PIN, CYL SIDEWNDR	1	$86.80
10	0717796	PIN, LEG FOLD CYLINDER (ROD)	1	$73.60
11	0717797	PAD, THRUST SIDEWINDER LEG	2	Call for price	—
12	0806729	LEG FRAME WLD'T (LH)	1	Call for price	—
13	0908056	LEG ASSEMBLY	1	Call for price	—
14	0908440	FOOT ASSEMBLY, LH - SIDEWINDER	1	$1,307.60
15	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80

Back to Manual Navigation Menu

0908056, Leg Assembly

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908056	LEG ASSEMBLY	-	Call for price	—
1	0300044	FITT, HYD CONN. 6MJ-8MB	2	$3.80
2	0300113	GREASE FITTING, 1/4-28 STR	4	$5.80
3	0307843	CYL, HYD TI-S40030032PPBZ	1	$2,233.60
	0310275	Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843		$58.80
4	0400139	SET SCREW, 3/8-16X1-1/2 SOC	1	$5.80
5	0400176	SCREW, 1/2-13X1 HHC GR5	2	$5.80
6	0400392	NUT, 3/8-16 LOK	1	$5.80
7	0400491	LKWASHER, 1/2	2	$5.80
8	0713129	SHAFT, UPPER SPADE	1	$59.60
9	0713510	PIN, CYL SIDEWNDR	1	$86.80
10	0806731	OUTER LEG TUBE WLD'T	1	$2,256.20
11	0806732	INNER LEG TUBE WLD'T	1	Call for price	—
12	9053713	FLG BEARING 1.5"ID OILITE	2	$45.20
13	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80
14	930020001	SPACER PLATE STIFFLEG SU	1	Call for price	—

Back to Manual Navigation Menu

0908440, Foot Left Hand Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908440	FOOT ASSEMBLY, LH - SIDEWINDER	-	$1,307.60
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0304653	1" CAM LOCK SPRING	1	$13.80
3	0304654	1" CAM LOCK PLUNGER PIN	1	$39.80
4	0304658	1/2" VINYL HANDLE GRIP	1	$3.80
5	0304659	1/2" CAM LOCK HANDLE PIN	1	$15.60
6	0307618	CAMLOCK BARREL CAP 1"	1	$50.60
7	0807269	FOOT WLD'T (LH)	1	Call for price	—

Back to Manual Navigation Menu

0908053, Right Hand Leg Assembly

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908053	RH LEG ASSEMBLY	-	$11,840.00
1	0300113	GREASE FITTING, 1/4-28 STR	3	$5.80
2	0301425	FITTING, CONNECTOR	2	$3.80
3	0302357	CYL HYD BOOM LIFT 500SER	1	$2,090.80
	0304508	Seal kit for 0302357 cylinder: SEAL KIT		$175.20
4	0400079	SCREW, 1/4-20X3/4 FHS GR5	8	$5.80
5	0400130	SCREW, 3/8-16X3-1/2 HHC GR5	1	$5.80
6	0400133	SCREW, 3/8-16X3 HHC GR5	2	$5.80
7	0400392	NUT, 3/8-16 LOK	3	$5.80
8	0705488	SHAFT, LIFT CYL	2	$66.80
9	0713510	PIN, CYL SIDEWNDR	1	$86.80
10	0717796	PIN, LEG FOLD CYLINDER (ROD)	1	$73.60
11	0717797	PAD, THRUST SIDEWINDER LEG	2	Call for price	—
12	0806730	LEG FRAME WLD'T (RH)	1	Call for price	—
13	0908056	LEG ASSEMBLY	1	Call for price	—
14	0908441	FOOT ASSEMBLY, RH - SIDEWINDER	1	$1,307.60
15	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80

Back to Manual Navigation Menu

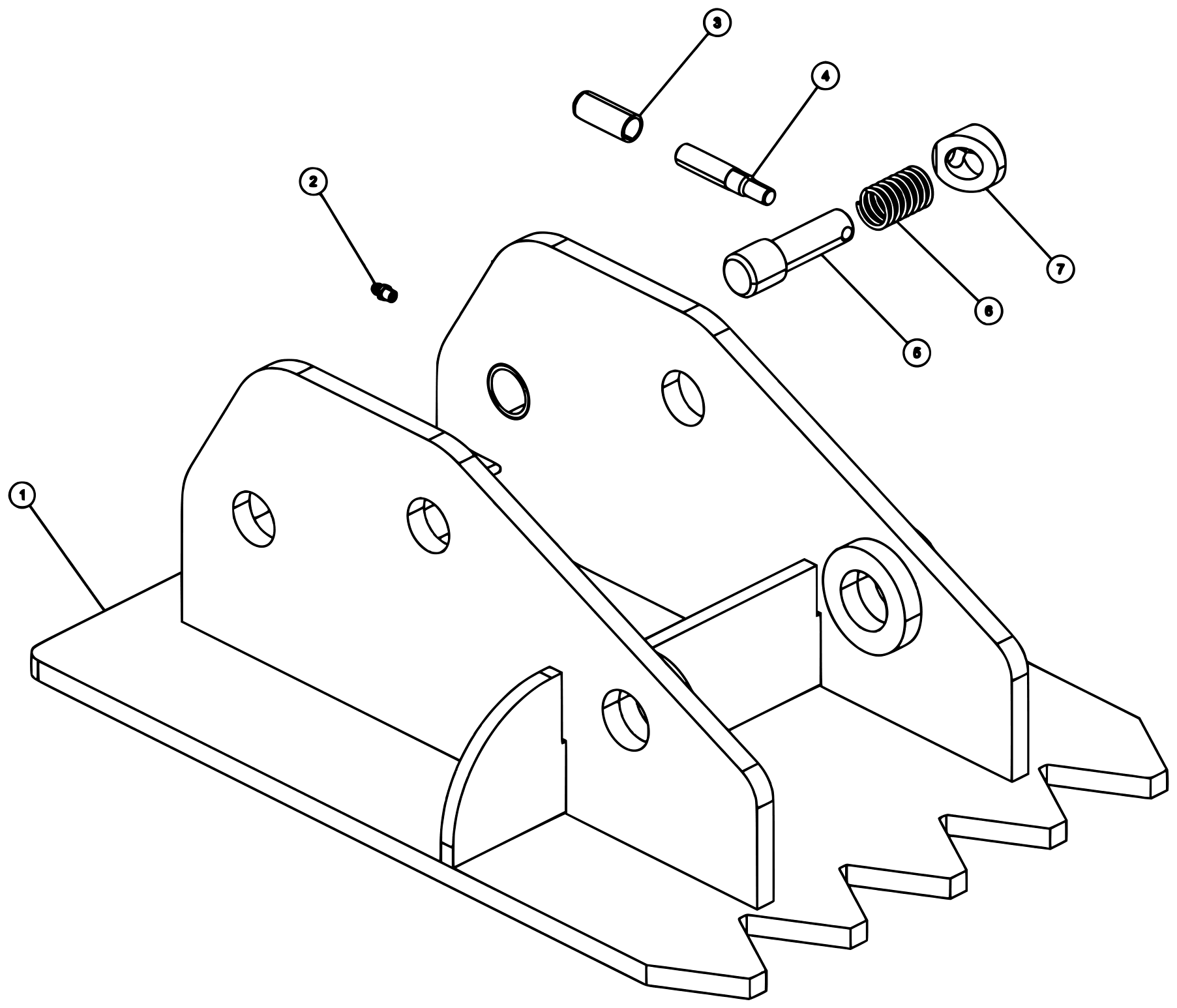

0908441, Foot Right Hand Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908441	FOOT ASSEMBLY, RH - SIDEWINDER	-	$1,307.60
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0304653	1" CAM LOCK SPRING	1	$13.80
3	0304654	1" CAM LOCK PLUNGER PIN	1	$39.80
4	0304658	1/2" VINYL HANDLE GRIP	1	$3.80
5	0304659	1/2" CAM LOCK HANDLE PIN	1	$15.60
6	0307618	CAMLOCK BARREL CAP 1"	1	$50.60
7	0807270	FOOT WLD'T (RH)	1	Call for price	—

Back to Manual Navigation Menu

09006274, Right Hand Control Assembly

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006274	RT CTRL ASSY 8 HNDL 9055XL XP	-	Call for price	—
1	0302256	CABLE, CTRL 136	2	Call for price	—
2	0302449	CABLE, CONTROL 148	4	$187.80
3	0302726	GREASE FITTING, 1/4-28 45	8	$3.80
4	0307507	CONTROL CABLE, 226" LG	2	$796.00
5	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	4	$5.80
6	0400109	SCREW, 5/16-18X1 HHC GR5	2	$5.80
7	0400382	NUT, 5/16-18 LOK	6	$5.80
8	0400393	NUT, 3/8-16 JAM	8	$5.80
9	0400451	WASHER, 1/4	4	$5.80
10	0400512	WASHER, 3/4	2	Call for price	—
11	0400527	PIN, 5/16X1X5/8 CLEVIS	8	$8.00
12	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.40
13	0717203	PIN - CONTROL HANDLE (6)	1	$42.00
14	0723378	PLATE-PIN SUPPORT	1	$18.00
15	08000847	CONTROL FRAME 6, 7, 8 HANDLE	1	$702.80
16	0810644	CLEVIS WELD'T	8	$9.80
17	0907441	CONTROL HANDLE ASSY - SHORT	8	$92.00

Back to Manual Navigation Menu

09006275, Control Assembly 11 Handle

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006275	CTRL ASSY 11 HNDL 9055XL-XP	-	Call for price	—
1	0302256	CABLE, CTRL 136	3	Call for price	—
2	0302449	CABLE, CONTROL 148	6	$187.80
3	0302726	GREASE FITTING, 1/4-28 45	11	$3.80
4	0307507	CONTROL CABLE, 226" LG	2	$796.00
5	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	4	$5.80
6	0400109	SCREW, 5/16-18X1 HHC GR5	4	$5.80
7	0400382	NUT, 5/16-18 LOK	8	$5.80
8	0400393	NUT, 3/8-16 JAM	11	$5.80
9	0400451	WASHER, 1/4	8	$5.80
10	0400512	WASHER, 3/4	2	Call for price	—
11	0400527	PIN, 5/16X1X5/8 CLEVIS	11	$8.00
12	0711235	CLAMP, SHAFT CONTROL BOX	2	$17.40
13	0717208	HANDLE - SPACER(1 HNDL SPACER)	1	$11.40
14	0717270	PIN -CONTROL HANDLE (10, 11, 12)	1	Call for price	—
15	0723378	PLATE-PIN SUPPORT	2	$18.00
16	08000867	CNTRL FRM WLD'T-(10, 11, 12 HND)	1	Call for price	—
17	0810644	CLEVIS WELD'T	11	$9.80
18	0907441	CONTROL HANDLE ASSY - SHORT	11	$92.00
19	FC41	FITTING-90DEG BLKHD ELB W/ NUT	2	$15.60

Back to Manual Navigation Menu

09006276, 9055XL XP850 Subframe Assembly

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 3 of 8)

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 4 of 8)

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 5 of 8)

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 6 of 8)

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 7 of 8)

Century 9055XL / XP850 (2021 manual) 09006276, 9055XL XP850 Subframe Assembly diagram (view 8 of 8)

Show parts list (54 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006276	9055 XL-XP850 SUBFRM ASSY	-	Call for price	—
1	0200054	CONNECTOR, CONTROL CABLE	6	$10.00
2	0300113	GREASE FITTING, 1/4-28 STR	6	$5.80
3	0300657	HOSE HYD, 46" LG	2	$84.80
4	0300659	HOSE HYD, 45"	2	$61.40
5	0300787	HOSE HYD, 53" LG	2	$93.80
6	0301093	BULKHEAD UNION, 3/4" JIC	6	Call for price	—
7	0301473	HOSE HYD, 18" LG	2	$57.80
8	0301837	INLINE ORIFICE	1	Call for price	—
9	0302276	FITTING, ELB 90 DEG	4	$11.20
10	0302538	BUSHING - U/L	2	$189.60
11	0302574	FITTING-BULKHEAD RUN TEE	2	Call for price	—
12	0302576	FITTING, BULKHEAD UNION	8	$12.40
13	0302584	HOSE HYD, 50"	2	$63.20
14	0302805	HOSE HYD, 10"	1	$29.80
15	0303008	ADJUSTABLE CLEVIS	3	$9.40
16	0303339	HOSE HYD, 45" LG	2	Call for price	—
17	0303341	HOSE HYD, 36" LG16FJX-16-16FJX	2	$155.00
18	0303344	HOSE HYD, 46"LG 12FJX-10-10FJX	2	Call for price	—
19	0303345	HOSE HYD, 48"LG 12FJX-10-10FJX	2	Call for price	—
20	0303346	HOSE HYD, 48" LG	1	Call for price	—
21	0303347	HOSE HYD, 50" LG	1	Call for price	—
22	0303348	HOSE HYD, 48" LG	2	$76.60
23	0303562	HOSE HYD, 37"	1	$47.60
24	0303563	HOSE HYD, 27"	1	$42.00
25	0312575	BOOM PIVOT BRKT-MACHINED	2	$884.00
26	0313096	CYL, 9055 GEN X BOOM LIFT	2	Call for price	—
	Seal kit for 0313096 cylinder: Call for pricing and availability: 770-921-6070
27	0400070	SCREW, 1/4-20X1 HHC GR5	2	$5.80
28	0400103	SCREW, 5/16-18X1-1/4 HHC GR5	9	$5.80
29	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	2	$5.80
30	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	6	$5.80
31	0400126	SCREW, 3/8-16X1 HHC GR5	8	$5.80
32	0400206	SCREW, 1/2-13X5 HHC GR5	2	$9.80
33	0400286	SCREW, 3/4-10X2-3/4 HHC GR8	1	$8.00
34	0400367	NUT, 1/4-20 LOK	2	$5.80
35	0400382	NUT, 5/16-18 LOK	9	$5.80
36	0400392	NUT, 3/8-16 LOK	1	$5.80
37	0400408	NUT, 1/2-13 LOK	2	$2.80
38	0400431	NUT, 3/4-10 LOK GR8	1	$8.00
39	0400480	WASHER, 3/8	1	$4.00
40	0400776	NUT, 5/16-18 JAM LOK	2	$5.80
41	07007925	BRACKET, RH AIR REEL	1	Call for price	—
42	07007926	BRACKET, LH AIR REEL	1	Call for price	—
43	0708094	PIN, LIFT CYL	2	$314.20
44	0711287	PLATE, BULKHEAD	1	Call for price	—
45	0714581	PLATE, BOLTING	4	$13.00
46	0719585	D-RING, TOWING	2	$440.40
47	0726588	ANGLE - CABLE BULKHEAD DOUBLE	2	Call for price	—
48	0726589	ANGLE - CABLE BULKHEAD SINGLE	1	Call for price	—
49	0810618	SUBFRAME WELD'T - 9055 XL	1	Call for price	—
50	09006273	PAN-VALVE ASSY 9055 XL-XP	1	Call for price	—
51	0907140	KIT-VALVE COVER 9055	1	Call for price	—
52	0907802	KIT - RESERVOIR 5130-9055	1	$3,943.00
53	GA0215	PIN-"D" RING	2	$81.20

Back to Manual Navigation Menu

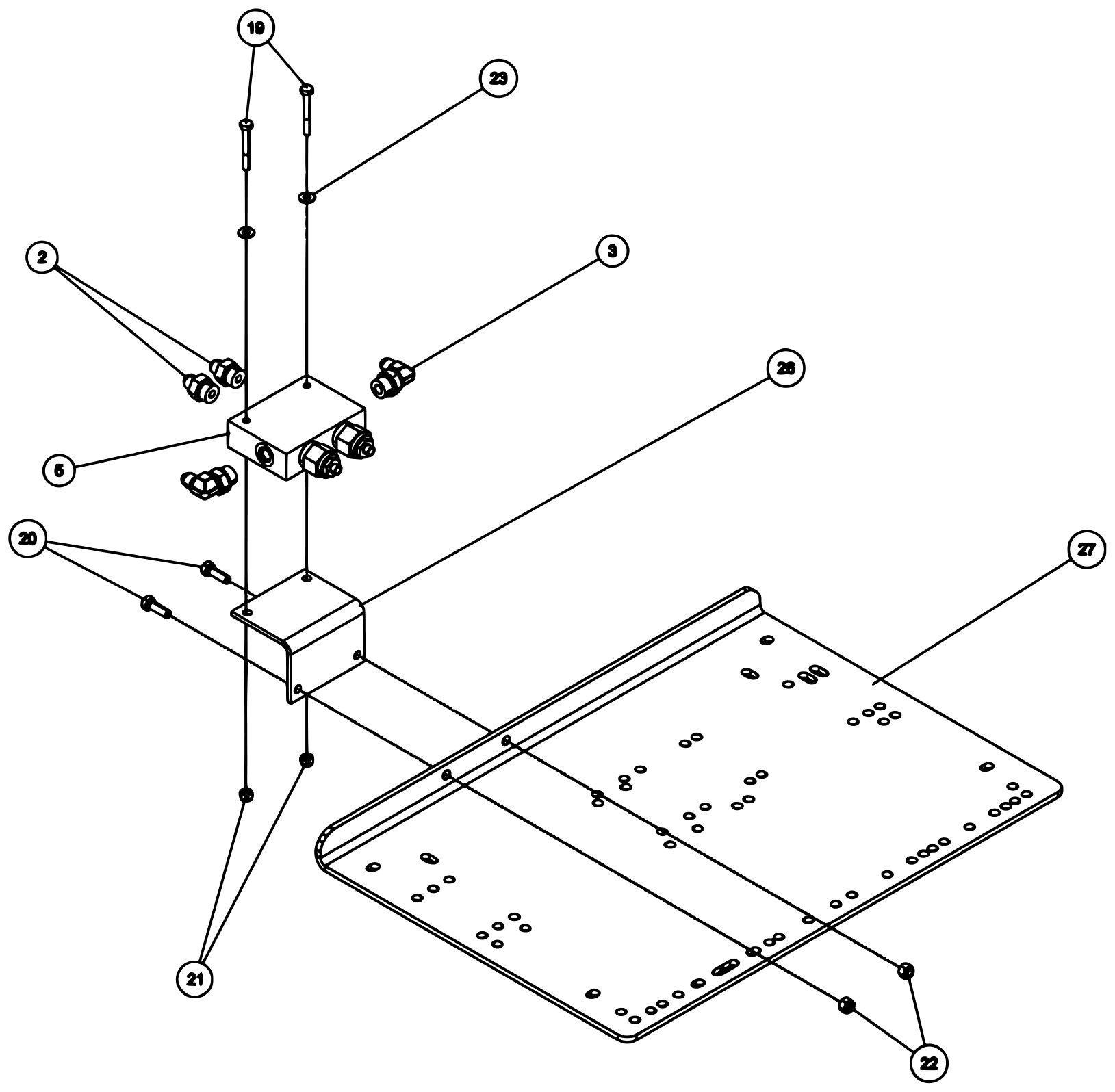

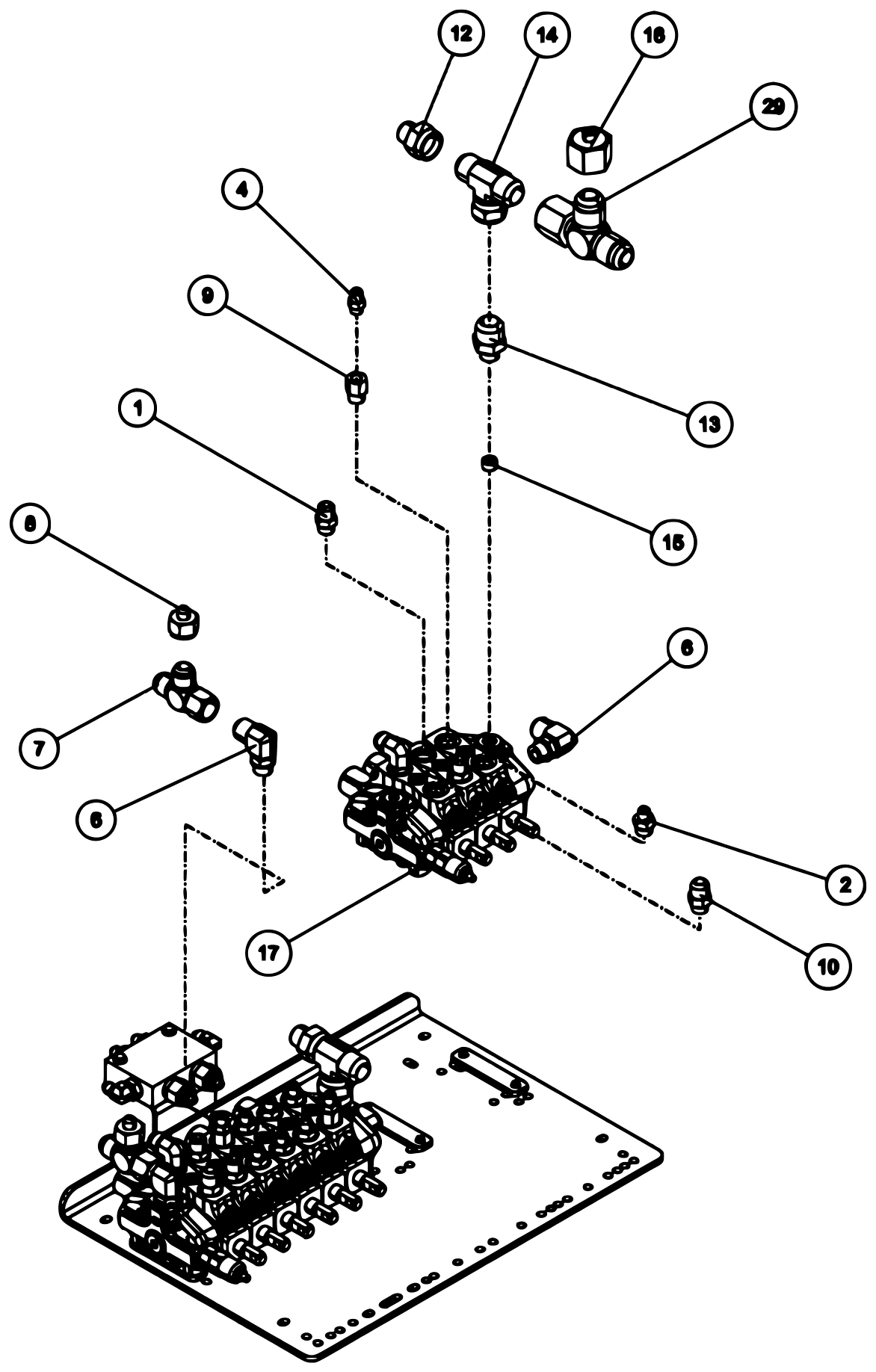

09006273, Valve Pan Assembly 9055XL XP850

Century 9055XL / XP850 (2021 manual) 09006273, Valve Pan Assembly 9055XL XP850 diagram (view 3 of 3)

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09006273	PAN-VALVE ASSY 9055 XL-XP	-	Call for price	—
1	0300041	CONNECTOR, 8MJ-8MB	4	$5.60
2	0300044	FITT, HYD CONN. 6MJ-8MB	9	$3.80
3	0301470	FITTING, 90ELB 6MJ-8MB90	2	$7.60
4	0301522	ADAPTER, 6MJ-6MB	3	$3.80
5	0301730	VALVE, DOUBLE HOLDING	1	$542.60
6	0302085	FITTING, 90 DEG ADPTR	4	Call for price	—
7	0302826	FITTING, TEE	2	$37.40
8	0302829	FITTING, ADAPTOR	4	Call for price	—
9	0303017	FITTING, CONNECTOR	3	$5.60
10	0303079	ADAPTER, 10MJ-8MB	2	$5.80
11	0303520	FITTING, ELL 90 DEG	2	Call for price	—
12	0307345	CONNECTOR, 16MJ-12MJ	2	$14.80
13	0307404	FITTING, HYD 16MJ-10MB	2	Call for price	—
14	0307424	FITITNG, TEE 16MJ-16MJ-16FJX	2	Call for price	—
15	0311573	POWER BEYONDPLUG-WV 4TAP318010	2	$6.80
16	0312421	VALVE - CONTROL 6-SPOOL MCCCCM	1	$2,278.60
17	0312422	VALVE - CONTROL 3-SPOOL MCC	1	Call for price	—
18	0312622	FITTING, 16FJ-6MJ	1	Call for price	—
19	0400078	SCREW, 1/4-20X2 HHC GR5	2	$5.80
20	0400109	SCREW, 5/16-18X1 HHC GR5	2	$5.80
21	0400367	NUT, 1/4-20 LOK	2	$5.80
22	0400382	NUT, 5/16-18 LOK	2	$5.80
23	0400451	WASHER, 1/4	2	$5.80
24	0400464	LKWASHER, 5/16	8	$1.60
25	0400841	SCREW, M8-1.25X20 HHC 10.9	8	$1.00
26	0719122	PLATE - VALVE MTG	1	$13.20
27	0726586	PLATE - VALVE MOUNTING	1	Call for price	—
28	0726587	PLATE - VALVE SPACER	4	Call for price	—
29	HA293	FITTING-ADPTR SWV RUN	1	Call for price	—

Back to Manual Navigation Menu

0907140, Valve Cover Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0907140	KIT-VALVE COVER 9055	-	Call for price	—
1	0400121	SCREW, 3/8-16X3/4 HHC GR5	4	$5.80
2	0400132	SCREW, 3/8-16X1-1/2 HHC GR5	4	$5.80
3	0400392	NUT, 3/8-16 LOK	4	$5.80
4	0400482	LKWASHER, 3/8	4	$5.80
5	0717066	COVER - VALVE	1	$126.20
6	0807181	COVER, SUPPORT WELDMENT	4	$44.20

Back to Manual Navigation Menu

0907802, Hydraulic Tank Assembly

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0907802	KIT - RESERVOIR 5130-9055	-	$3,943.00
1	0300287	FITTING, PIPE BUSHING, 1.25x1	2	Call for price	—
2	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	2	$7.00
3	0301350	PIPE, 1-1/2 CLOSE NIPPLE	2	Call for price	—
4	0301894	SPIN-ON FLTR ASSY	2	$276.20
5	0302227	CENTER BONDED MOUNT	4	$24.40
6	0302228	SPECIAL WASHER (LORD	4	$21.60
7	0302570	SIGHT GAUGE 3/4 NPT (SVM-12)	2	$15.60
8	0302756	SUCTION HOSE, 1-1/4IDx100 100R4Priced per foot	1	$21.20
9	0303155	PIPE PLUG 3/4 NPT MAGNETIC	2	$11.60
10	0303338	FITTING, ELBOW	2	$26.40
11	0305006	FILLER CAP (GO205, FB194)	2	$63.20
12	0307344	SUCTION STRAINER	2	$131.80
13	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	8	$5.80
14	0400149	SCREW, 3/8-16X5/8 HHC GR5	24	$4.00
15	0400150	SCREW, 3/8-16X2-1/2 HHC GR5	4	$5.80
16	0400392	NUT, 3/8-16 LOK	12	$5.80
17	0400480	WASHER, 3/8	24	$4.00
18	0402011	SCREW, 10-32X5/8 PRH SS	12	Call for price	—
19	0706114	GSKT, CLEANOUT & FILLER COVER	2	$42.20
20	0802747	PIPE-FILLER WLMT	2	Call for price	—
21	0803193	SUPPORT-RESERVOIR WLDMT.	2	Call for price	—
22	0806653	RESERVOIR-LEFT WELDMENT	1	$1,673.20
23	0806654	RESERVOIR-RIGHT WELDMENT	1	$1,673.20

Back to Manual Navigation Menu

0908382, Century Mudflap Kit

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0908382	KIT - MUDFLAP LRG CENTURY WKR	-	$249.80
1	0310631	MUD FLAP, CENTURY	2	$45.20
2	0400103	SCREW, 5/16-18X1-1/4 HHC GR5	8	$5.80
3	0400148	SCREW, 3/8-16X1-1/4 HHC GR5	4	$5.00
4	0400382	NUT, 5/16-18 LOK	8	$5.80
5	0400392	NUT, 3/8-16 LOK	4	$5.80
6	0717386	BAR - MUDFLAP	2	$45.20
7	0718139	ANGLE - MUD FLAP MOUNT	2	$50.60

Back to Manual Navigation Menu

0908853, Illuminated Legend RH Lower Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908853	ILLUMINATED LEGEND ASSY-RT LWR	-	$1,097.20
1	0400071	SCREW, 1/4-20X3/4 PRH SS	8	$5.80
2	0402110	WASHER, 1/4 SS	8	$5.80
3	0402111	LKWASHER, 1/4 SS	8	$5.80
4	0727003	APANEL, CONTROL 8 HANDLE	1	$575.20
5	0908858	ILLUMINATED LEGEND ASSY 22	1	Call for price	—
6	0908916	ILLUMINATED LEGEND ASSY 8	1	Call for price	—

Back to Manual Navigation Menu

0908858, Illuminated Legend Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908858	ILLUMINATED LEGEND ASSY 22	-	Call for price	—
1	0307973	PLASTIC, DUST COVER-CLEAR 22	1	Call for price	—
2	0307977	PLASTIC, COLOR LENS - RED 22	1	Call for price	—
3	0501584	LEGEND, PANEL-BOOM/CABLE	1	$69.00
4	0501595	LEGEND, PANEL-SPADE	1	Call for price	—
5	0501619	LEGEND, PANEL- CABLE	2	$90.80
6	0807048	CHANNEL, LIGHT&LEGENDS WLMT 22	1	Call for price	—

Back to Manual Navigation Menu

0908916, Illuminated Legend Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908916	ILLUMINATED LEGEND ASSY 8	-	Call for price	—
1	0310093	PLASTIC, DUST COVER-CLEAR 8	1	Call for price	—
2	0310095	PLASTIC, COLOR LENS -RED 8	1	Call for price	—
3	0501580	LEGEND, PANEL-FRONT OUTRIGGER	1	Call for price	—
4	0501608	LEGEND, PANEL-EXTEND OUTRIGGER	1	Call for price	—
5	0501609	LEGEND, PANEL- SWING OUTRIGGER	1	Call for price	—
6	0501620	LEGEND, PANEL- POWER	1	Call for price	—
7	0807114	CHANNEL, LIGHT&LEGEND WLMT 8	1	Call for price	—

Back to Manual Navigation Menu

0908854, Illuminated Legend Right Hand Upper Assembly

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908854	ILLUMINATED LEGEND ASSY-RT UPP	-	$751.00
1	0400071	SCREW, 1/4-20X3/4 PRH SS	4	$5.80
2	0402110	WASHER, 1/4 SS	4	$5.80
3	0402111	LKWASHER, 1/4 SS	4	$5.80
4	0727021	APANEL, SWITCH 8	1	Call for price	—
5	0908747	ILLUMINATED LEGEND ASSY 22	1	Call for price	—

Back to Manual Navigation Menu

0908747, Illuminated Legend Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908747	ILLUMINATED LEGEND ASSY 22	-	Call for price	—
1	0307973	PLASTIC, DUST COVER-CLEAR 22	1	Call for price	—
2	0307977	PLASTIC, COLOR LENS - RED 22	1	Call for price	—
3	0501589	LEGEND, PANEL-CABLE ON/OFF	1	$29.20
4	0501590	LEGEND, PANEL-CABLE HIGH/LOW	1	$29.40
5	0501591	LEGEND, PANEL-CABLE SPEED	2	Call for price	—
6	0501593	LEGEND, PANEL-CABLE FREE SPOOL	2	Call for price	—
7	0807048	CHANNEL, LIGHT&LEGENDS WLMT 22	1	Call for price	—

Back to Manual Navigation Menu

0910048, Illuminated Legend Left Hand Lower Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910048	ILLUMINATED LEGEND ASSY-LT LWR	-	$1,276.60
1	0400071	SCREW, 1/4-20X3/4 PRH SS	8	$5.80
2	0402110	WASHER, 1/4 SS	8	$5.80
3	0402111	LKWASHER, 1/4 SS	8	$5.80
4	0727000	APANEL, CONTROL 12 HANDLE	1	$569.40
5	0910050	ILLUMINATED LEGEND ASSY 33	1	Call for price	—
6	0910051	ILLUMINATED LEGEND ASSY 8	1	Call for price	—

Back to Manual Navigation Menu

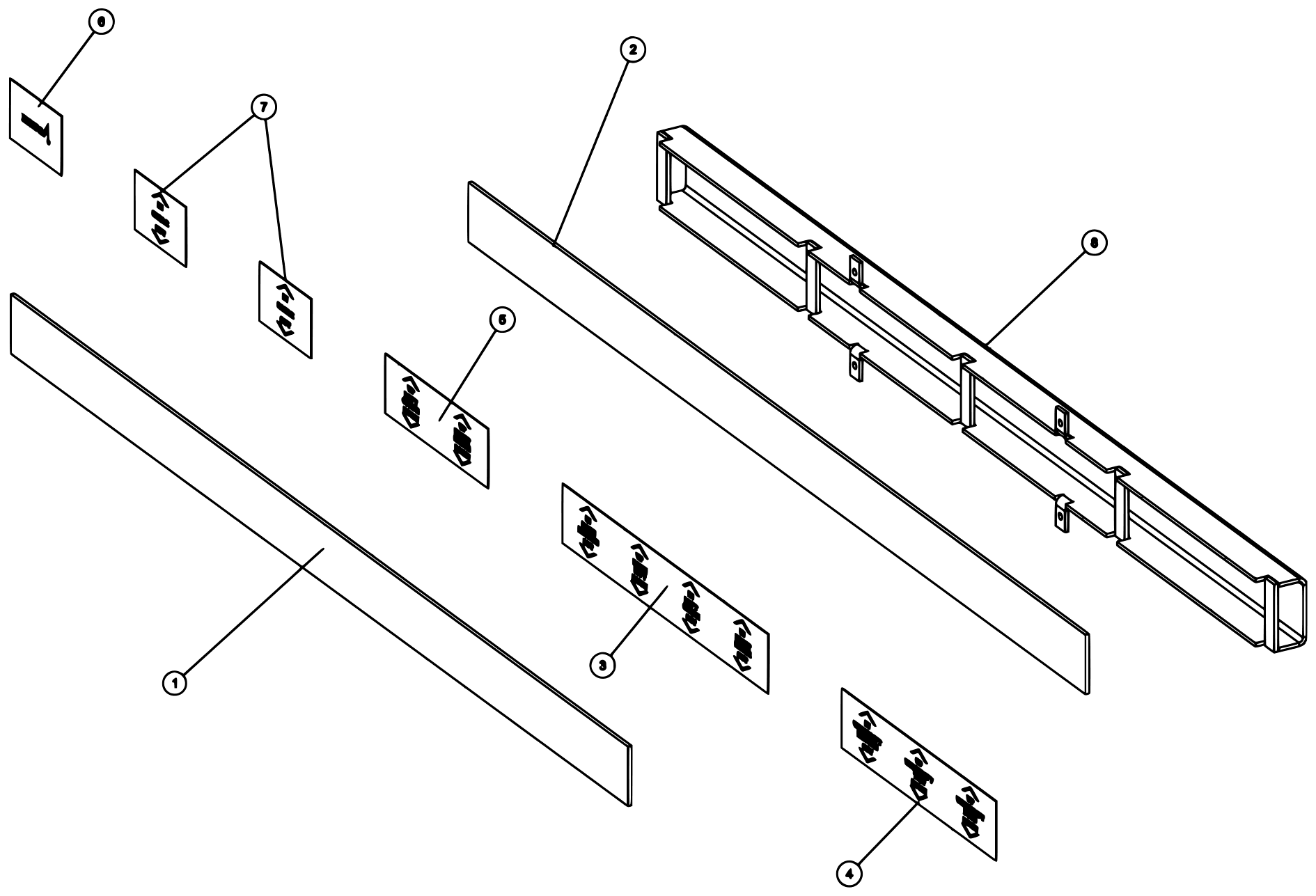

0910050, Illuminated Legend Assembly

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910050	ILLUMINATED LEGEND ASSY 33	-	Call for price	—
1	0307970	PLASTIC, DUST COVER-CLEAR 33	1	Call for price	—
2	0307974	PLASTIC, COLOR LENS - RED 33	1	Call for price	—
3	0501584	LEGEND, PANEL-BOOM/CABLE	1	$69.00
4	0501594	LEGEND, PANEL-UNDERLIFT	1	Call for price	—
5	0501595	LEGEND, PANEL-SPADE	1	Call for price	—
6	0501597	LEGEND, PANEL-BLANK MILLER LGO	1	$31.00
7	0501619	LEGEND, PANEL- CABLE	2	$90.80
8	0807045	CHANNEL, LIGHT&LEGENDS WLMT 33	1	Call for price	—

Back to Manual Navigation Menu

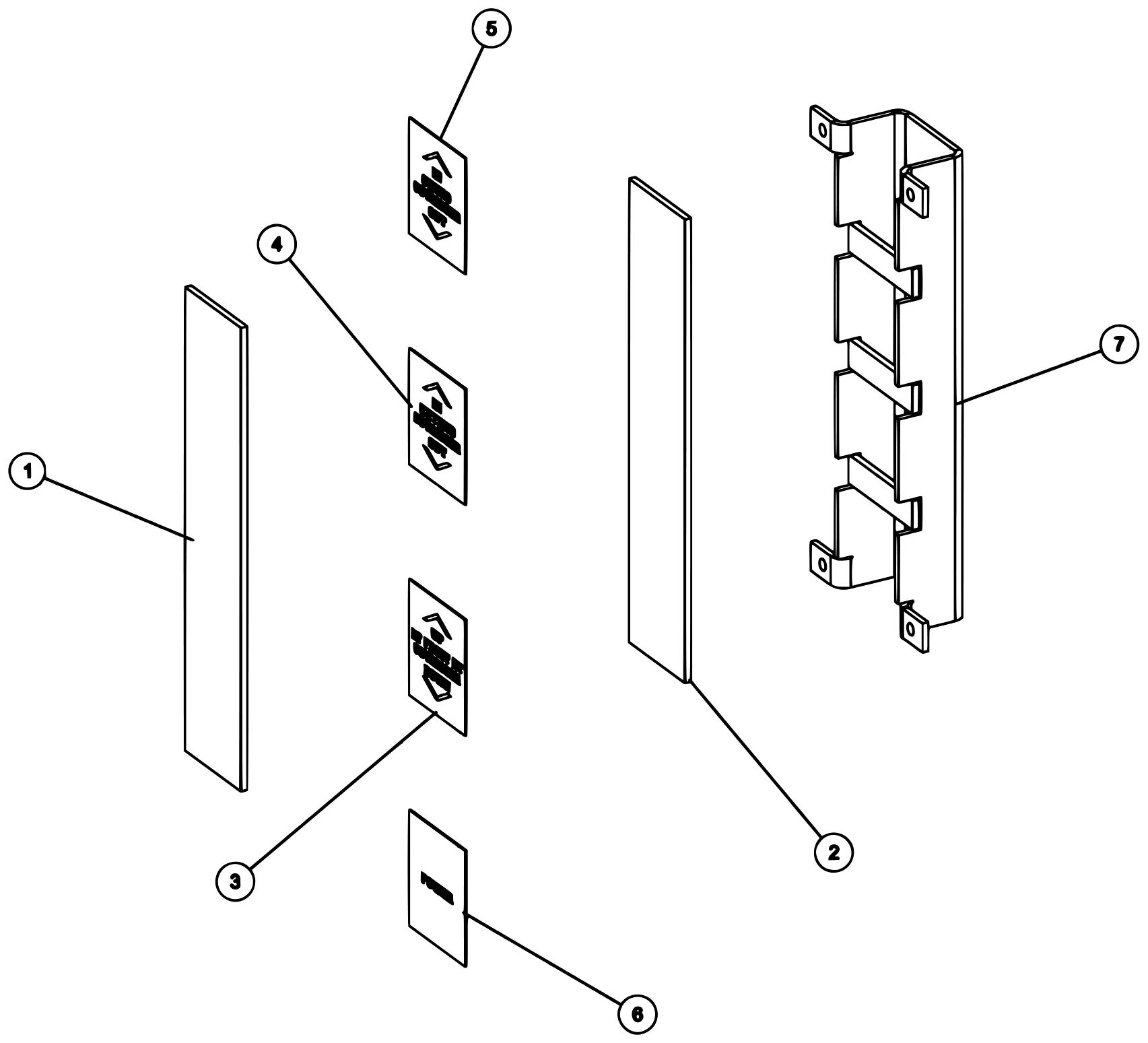

0910051, Illuminated Legend Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910051	ILLUMINATED LEGEND ASSY 8	-	Call for price	—
1	0310093	PLASTIC, DUST COVER-CLEAR 8	1	Call for price	—
2	0310095	PLASTIC, COLOR LENS -RED 8	1	Call for price	—
3	0501580	LEGEND, PANEL-FRONT OUTRIGGER	1	Call for price	—
4	0501608	LEGEND, PANEL-EXTEND OUTRIGGER	1	Call for price	—
5	0501609	LEGEND, PANEL- SWING OUTRIGGER	1	Call for price	—
6	0501620	LEGEND, PANEL- POWER	1	Call for price	—
7	0807114	CHANNEL, LIGHT&LEGEND WLMT 8	1	Call for price	—

Back to Manual Navigation Menu

0910049, Illuminated Legend Left Hand Upper Assembly

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910049	ILLUMINATED LEGEND ASSY-LT UPP	-	$1,092.00
1	0400071	SCREW, 1/4-20X3/4 PRH SS	4	$5.80
2	0402110	WASHER, 1/4 SS	4	$5.80
3	0402111	LKWASHER, 1/4 SS	4	$5.80
4	0727036	APANEL, CONTROL 10-12 HANDLE	1	$232.20
5	0910052	ILLUMINATED LEGEND ASSY 33	1	Call for price	—

Back to Manual Navigation Menu

0910052, Illuminated Legend Assembly

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910052	ILLUMINATED LEGEND ASSY 33	-	Call for price	—
1	0307970	PLASTIC, DUST COVER-CLEAR 33	1	Call for price	—
2	0307974	PLASTIC, COLOR LENS - RED 33	1	Call for price	—
3	0501588	LEGEND, PANEL-THROTTLE	1	$31.00
4	0501589	LEGEND, PANEL-CABLE ON/OFF	1	$29.20
5	0501590	LEGEND, PANEL-CABLE HIGH/LOW	1	$29.40
6	0501591	LEGEND, PANEL-CABLE SPEED	2	Call for price	—
7	0501593	LEGEND, PANEL-CABLE FREE SPOOL	2	Call for price	—
8	0501597	LEGEND, PANEL-BLANK MILLER LGO	2	$31.00
9	0501610	LEGEND, PANEL- SWIVEL TENSIONER	1	Call for price	—
10	0807045	CHANNEL, LIGHT&LEGENDS WLMT 33	1	Call for price	—

Back to Manual Navigation Menu

0910353, Basic Unit Assembly 9055 Outrigger

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910353	BUA-9055 OUTRIGER SYST-FACT12V	-	$32,083.00
1	0300044	FITT, HYD CONN. 6MJ-8MB	4	$3.80
2	0302546	CLAMPING UNIT C-PH-10-2	2	$15.60
3	0302550	C-SB-10-12 3/4 SPLIT	4	$9.80
4	0302551	C-SN-10 SOCKET-HEAD	2	$11.60
5	0307843	CYL, HYD TI-S40030032PPBZ	2	$2,233.60
	0310275	Seal kit for 0307843 cylinder: SEAL KIT FOR 0307843		$58.80
6	0400066	SCREW, 1/4-20X3/4 HHC GR5	2	$5.80
7	0400118	SCREW, 5/16-18X3/4 HHC GR5	2	$5.80
8	0400139	SET SCREW, 3/8-16X1-1/2 SOC	4	$5.80
9	0400392	NUT, 3/8-16 LOK	4	$5.80
10	0400452	LKWASHER, 1/4	2	$5.80
11	0713128	SHAFT, LOWER SPADE	2	$56.00
12	0713129	SHAFT, UPPER SPADE	2	$59.60
13	0723889	PLATE-HOSE RETAINING	4	$24.40
14	0807635	PAD REAR OUTRIGGER PAD	2	$1,248.20
15	09000068	LH OUTRIGGER LEG ASSY	1	Call for price	—
16	09000070	RH OUTRIGGER LEG ASSY	1	Call for price	—
17	0906963	PIN - REAR OUTRIGGER PAD ASSY	2	$263.60
18	0912051	CENTURY SPADE KIT	1	$3,100.40
19	GH246	SPLIT RUBBER GROMMET	4	Call for price	—

Back to Manual Navigation Menu

09000068, Left Hand Outrigger Leg Assembly

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09000068	LH OUTRIGGER LEG ASSY	-	Call for price	—
1	0300109	SNAP RING, 1.5 5100-150	4	$1.80
2	0302727	FITTING, HYD CONN	2	$5.60
3	0310145	CYLINDER - OUTRIGGER EXTENDED	1	$1,468.60
	Seal kit for 0310145 cylinder: Call for pricing and availability: 770-921-6070
4	0400059	SCREW, 1/4-20X5/8 HHC GR5	4	$5.80
5	0400126	SCREW, 3/8-16X1 HHC GR5	2	$5.80
6	0400452	LKWASHER, 1/4	4	$5.80
7	0400482	LKWASHER, 3/8	2	$5.80
8	0716645	SPACER, BTM	1	$38.60
9	0719535	PIN, EXTEND CYL (ROD END)	1	$54.00
10	0719539	COVER, END REAR HORIZ OUTRIG	1	Call for price	—
11	0719540	PIN, EXTEND CYL (BASE END)	1	$76.20
12	0807201	BOOM, 2ND STAGE OUTRIGGER 9055	1	Call for price	—
13	0810586	OUTRIGGER WLDMT, 15 SPADE LH	1	$4,896.00

Back to Manual Navigation Menu

09000070, Right Hand Outrigger Leg Assembly

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	09000070	RH OUTRIGGER LEG ASSY	-	Call for price	—
1	0300109	SNAP RING, 1.5 5100-150	4	$1.80
2	0302727	FITTING, HYD CONN	2	$5.60
3	0310145	CYLINDER - OUTRIGGER EXTENDED	1	$1,468.60
	Seal kit for 0310145 cylinder: Call for pricing and availability: 770-921-6070
4	0400059	SCREW, 1/4-20X5/8 HHC GR5	4	$5.80
5	0400126	SCREW, 3/8-16X1 HHC GR5	2	$5.80
6	0400452	LKWASHER, 1/4	4	$5.80
7	0400482	LKWASHER, 3/8	2	$5.80
8	0716645	SPACER, BTM	1	$38.60
9	0719535	PIN, EXTEND CYL (ROD END)	1	$54.00
10	0719539	COVER, END REAR HORIZ OUTRIG	1	Call for price	—
11	0719540	PIN, EXTEND CYL (BASE END)	1	$76.20
12	0807201	BOOM, 2ND STAGE OUTRIGGER 9055	1	Call for price	—
13	0810588	OUTRIGGER WLDMT, 15 SPADE RH	1	Call for price	—

Back to Manual Navigation Menu

0912051, Century Spade Assembly

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0912051	CENTURY SPADE KIT	-	$3,100.40
1	0911123	PIN ASSY - SPADE LOCK	2	$102.80
2	0911124	PIN ASSY - SPADE PIVOT	2	$371.40
3	0911167	SPADE ASSY - REAR OUTRIGGER	2	$1,157.60

Back to Manual Navigation Menu

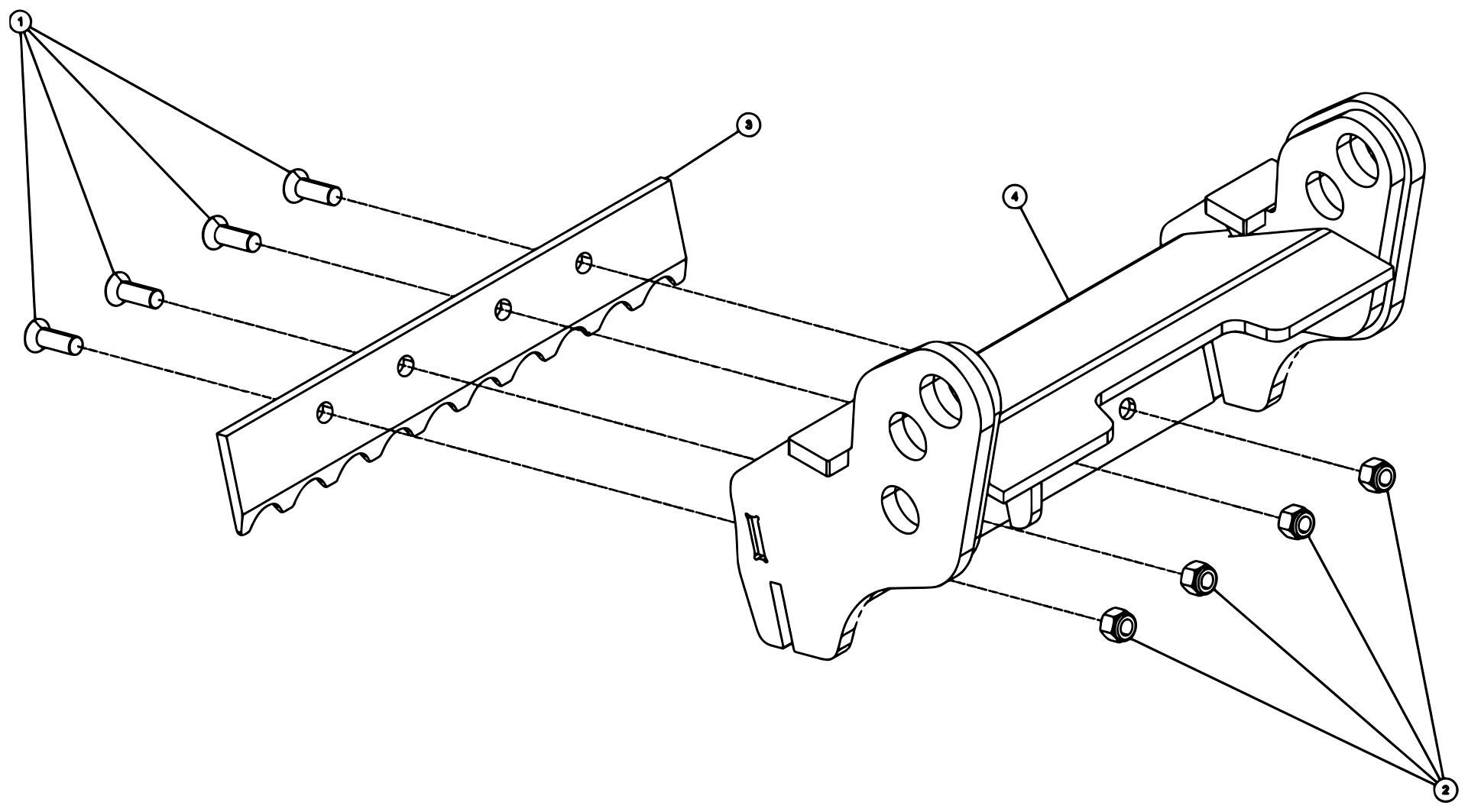

0911167, Spade Assembly

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0911167	SPADE ASSY - REAR OUTRIGGER	-	$1,157.60
1	0400193	SCREW, 1/2-13X1-1/2 FHS	4	$8.00
2	0400416	NUT, 1/2-13 LOK GR8	4	$5.80
3	0724616	PLATE BLADE SPADE	1	$417.00
4	0810034	SPADE - REAR OUTRIGGERS	1	$945.80

Back to Manual Navigation Menu

0910535, Manifold Assembly

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910535	MNFLD PKG 16 VLV 12VDC W/O HNS	-	$4,124.00
1	03002200	PNUT HDP20 24, 2411-001-2405	1	Call for price	—
2	03002201	LKWR HDP20 24, 2414-001-2486	1	Call for price	—
3	03015444	CONN HDP20, HDP24-24-23PE	1	Call for price	—
4	03015445	CONN HDP20, HDP26-24-23SE	1	Call for price	—
5	03015481	DIST BLOCK, 18+1 BK, 1047436	1	Call for price	—
6	03015482	DIST BLOCK, 6+1 RED, 1047480	1	Call for price	—
7	03015483	FLANGE, PTFIX-F, 3274060	2	Call for price	—
8	0311596	AIR BANK-16 POS 12V	1	$1,804.40
9	0400009	SCREW, 8-32X1-1/2 PRH SS	2	$5.80
10	04000361	10-24 SS KEP NUT	2	Call for price	—
11	0400352	NUT, 8-32 LOK	2	$5.80
12	04003628	NUT, LOK, M2.5 985-A2	2	Call for price	—
13	04003629	SCREW, SHC, M2.5 X 16MM, A-2	2	Call for price	—
14	0400687	SCREW, 10-24X3/4 PRH SS	2	Call for price	—
15	07018065	BRACKET, HDP20 90 DEG. D	1	Call for price	—
16	0725047	PLATE-AIR BANK BACKING	1	$56.00

Back to Manual Navigation Menu

0910837, Toolbox Assembly

Show parts list (58 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910837	TOOLBX, BUA 204TRI 2010	-	Call for price	—
1	0300132	14" UV BLK CABLE TIE	75	$1.00
2	03005838	5/8" DOOR SEALPriced per foot	165 FT	$5.80	—
3	0300844	3/4 X 1/8 CLOSED CELLPriced per foot	16	$2.80
4	0301454	TOGGLE BOOT SEAL 5168	1	$22.20	—
5	0301941	WIRE, 16 GA BROWN	5	Call for price	—
6	0302095	WIRE, 12 GA WHITE	5	Call for price	—
7	0302495	CONVOLUTED LOOM 1/4Priced per foot	5	$2.80
8	0303677	BACK UP ALARM - 12 / 24 VOLT	1	$75.80
9	0307151	RUBBER FENDERPriced per foot	6	$18.80
10	0307268	WIRING HARNESS-6" LG SPLITTER	2	Call for price	—
11	0307554	JUNCTION BOX, KEYLESS ENTRY PWR	1	$1,125.60
12	0310183	SWITCH-TOGGLE MOM SPDT SEALED	1	Call for price	—
13	0310630	CIRCUIT BRKR-30A REPL ATO FUSE	1	Call for price	—
14	0310979	TOOLBOX LH AL 204 TRI 2010	1	Call for price	—
15	0310980	TOOLBOX RH AL 204 TRI 2010	1	Call for price	—
16	0311394	12V LED 47" TOOLBOX STRIP LMP	12	$54.20
17	0311500	LIGHT 6"OVAL REVERSE LED	2	$126.20
18	0311502	LIGHT 6"OVAL CLEAR-AMBER LED	6	$31.80
19	0311503	GROMMET, LIGHT 6" OVAL	12	$2.80
20	0311514	LIGHT 2.5" CLEAR LENS-RED LED	2	$13.20
21	0311516	GROMMET, LIGHT 2.5" ROUND	2	$1.80
22	0311520	LIGHT 3/4"RED SGL LED W/ GRMT	2	$16.40
23	0311786	HARNESS LH TOOLBOX WIRING 2012	1	Call for price	—
24	0311787	HARNESS RH TOOLBOX WIRING 2012	1	$721.40
25	0311792	HARNESS 2SP/FREE OUTPUT	1	Call for price	—
26	0311794	HARNESS TOOLBOX LAMPS	2	Call for price	—
27	0311796	HARNESS MARKER DOCK M6	2	$115.40
28	0311797	HARNESS MARKER TURN	2	Call for price	—
29	0311800	HARNESS REAR TAILLAMP	2	$210.80
30	0311809	HARNESS, INTEGRATD 2SP/FREE LH	1	Call for price	—
31	0311810	HARNESS, INTEGRATD 2SP/FREE RH	1	Call for price	—
32	0312309	LIGHT 6" OVAL GLO-LT STT CLR/R	4	$59.60
33	0312328	POWER LOCK HARNESS	2	Call for price	—
34	0312409	JXN BOX, 2012 INTEGRATED LW	1	$1,927.40
35	0312578	MILLENNIUM MKR AMBR/CLR 12/24LED	2	$20.20
36	0313265	BRAIN-RF RECEIVER KEYLESS 2015	1	$491.00
37	0400021	SCREW, 8-32X1/2 PRH SS	4	$5.80
38	0400062	SCREW, 1/4-20X3/4 THC	24	$8.00
39	0400351	NUT, 8-32 HEX	4	$5.80
40	0400451	WASHER, 1/4	2	$5.80
41	0400607	RIVET, 1/4X5/8 AL	108	$5.80
42	0401023	SCREW, 8-32X3/4 SRH AL	2	$5.80
43	0402020	SCREW, 1/4-20X3/4 HHC SS	2	$5.80
44	0402021	SCREW, 1/4-20X1 HHC SS	4	$5.80
45	0402111	LKWASHER, 1/4 SS	6	$5.80
46	0402112	NUT, 1/4-20 HEX SS	4	$5.80
47	0717691	PLATE, WIRE RETAINER ALUMINUM	24	$13.80
48	0726049	BRACKET, JXN BOX MTG	2	Call for price	—
49	28993005	KEYLESS POWER PIGTAIL	1	Call for price	—
50	522-0612002	RELAY, - 12V KEYLESS REMOTE	3	$19.20
51	523-1005300	TERMINAL, 10/12GA 10 RING/SHRNK	5	Call for price	—
52	523-1402300	TERMINAL, 14GA BUTT/SHRINK BL	1	$0.40
53	523-1405300	TERMINAL, 14GA 10 RING/SHRINK	27	$0.40
54	523-1407300	TERMINAL, 14ga MALE BULLET+S&A	10	Call for price	—
55	523-1407301	TERMINAL, 14g FEMALE BULLET+S&A	6	Call for price	—
56	9032049	RUBBER GROMMET 5/8ID X 1-1/8OD	1	$2.00
57	GV57	RUBBER GROMMET, ATLANTIC	6	$1.80

Back to Manual Navigation Menu

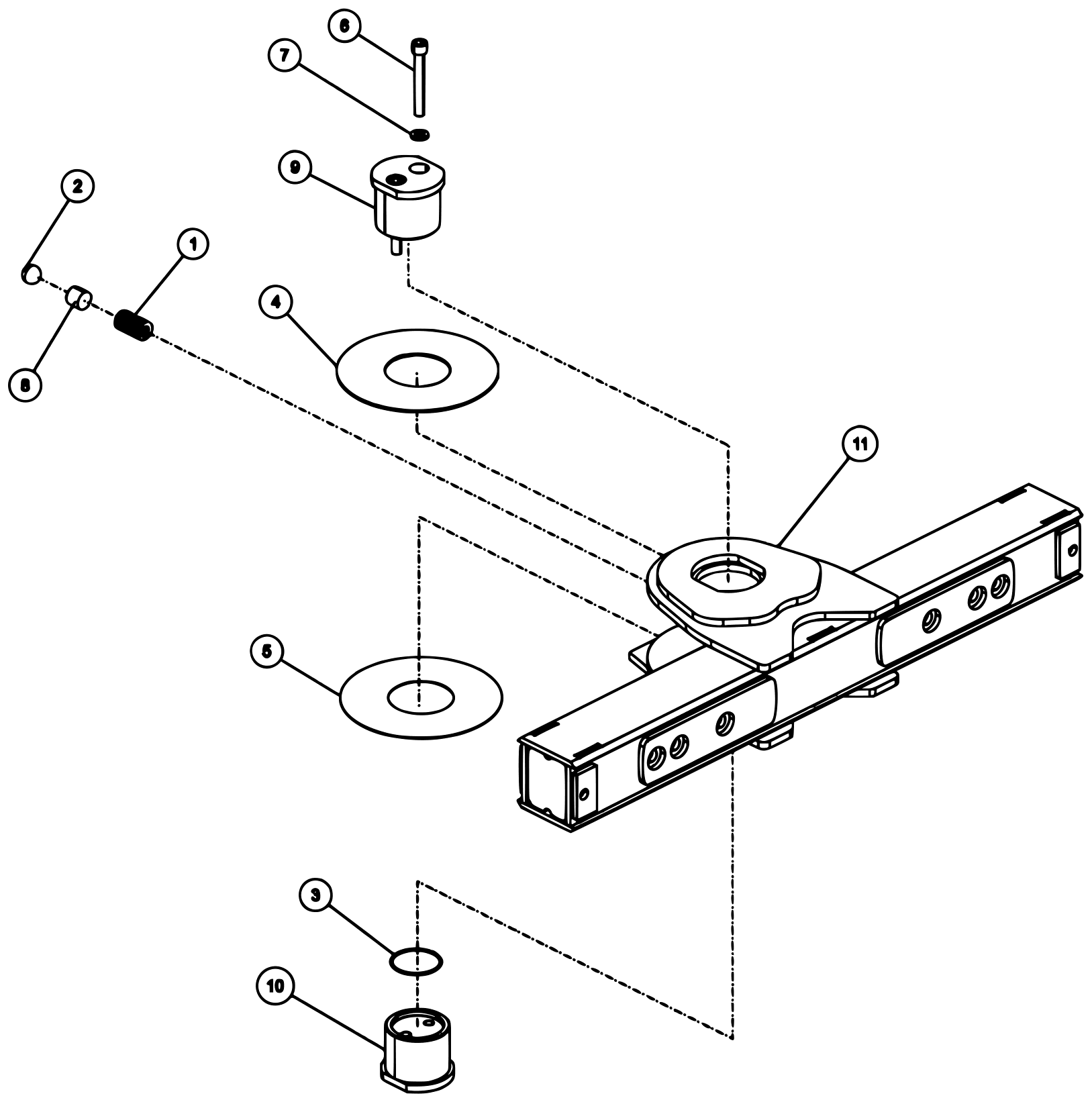

0910935, Crossbar Xhd 5X5 Assembly

Show parts list (12 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0910935	XBAR ASY HRDWR-XHD 5X5 CENTURY	-	$3,308.40
1	0301197	COMP.SPRING, CROSS BAR, FI	1	$9.20
2	0301398	STEEL BALL, 1-3/16 DIA	1	$15.60
3	0301822	O-RING - PIVOT PIN	1	$3.80
4	0303097	THRUST WASHER - 1/8 THK	1	$90.20
5	0303098	THRUST WASHER - 1/16 THK	1	$54.20
6	0400271	SCREW, 5/8-11X4-1/2 HHC	2	$13.80
7	0400508	LKWASHER, 5/8	2	$5.80
8	07011109	SPACER, DETENT BALL SPRING	1	$37.00
9	0724980	PIN-TOP HALF PIVOT	1	$375.00
10	0724981	PIN-BOTTOM HALF PIVOT	1	$387.40
11	0807124	CROSSBAR WELDMENT 25K, CENTURY	1	$2,490.60

Back to Manual Navigation Menu

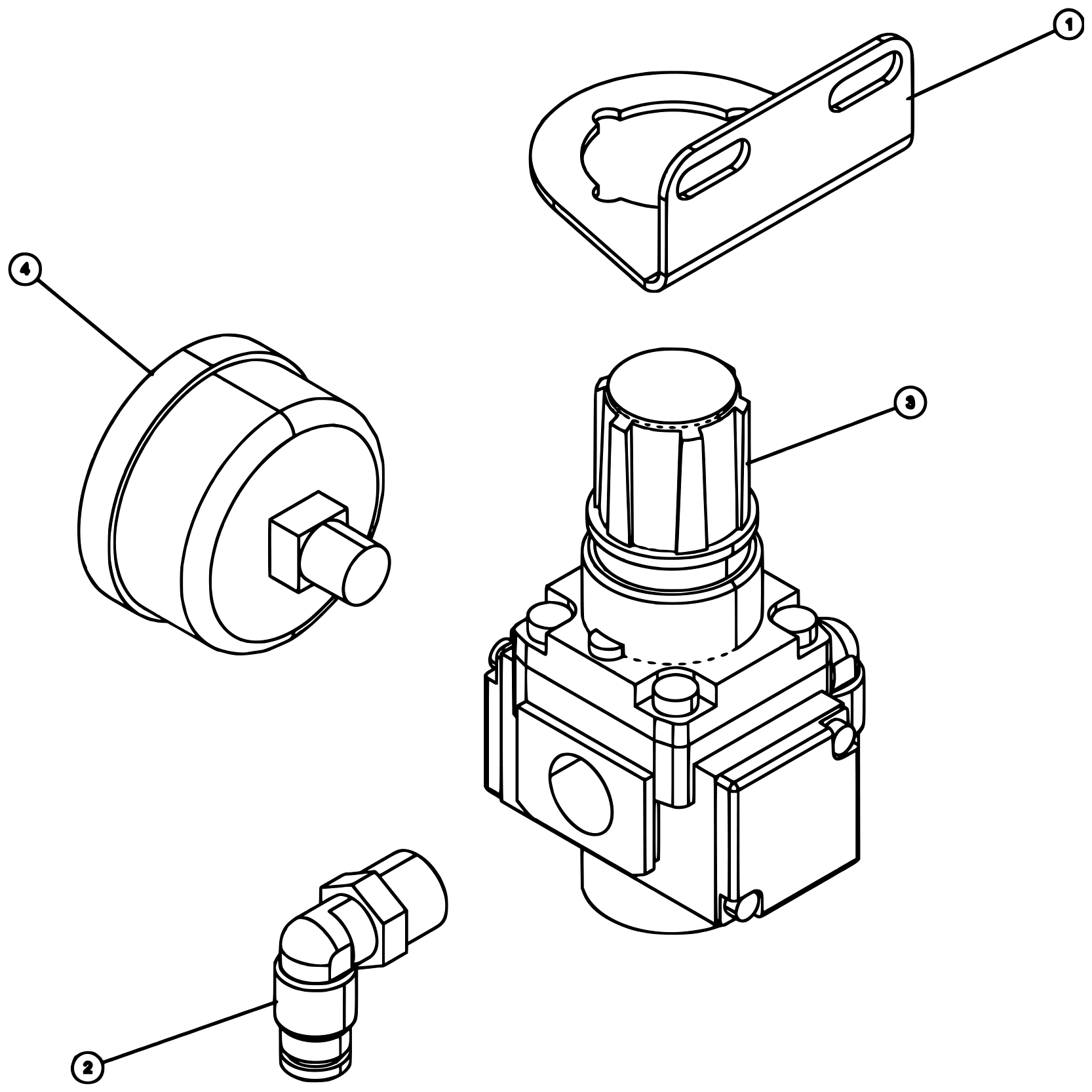

0911804, Air Regulator-Gauge Assembly

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0911804	AIR REGULATOR-GAUGE ASSEMBLY	-	$101.20
1	0303365	BRACKET, MOUNTING - AIR PREP	1	$7.60
2	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
3	HA0131	REGULATOR , AIR	1	$47.00
4	HA0132	GAUGE 0-160 PSI	1	$24.40

Back to Manual Navigation Menu

0912121, Main Boom Installation

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0912121	BOOM INSTALLATION 9055 3STG GE	-	Call for price	—
1	0302514	ADAPTER 8MJ-6MJ	6	$5.60
2	0302548	CLAMPING UNIT(set) HC-10-6	4	$28.00
3	0302549	SPLIT BUSH.RUBBER C-SB10-8 1/2	2	$5.60
4	0302551	C-SN-10 SOCKET-HEAD	8	$11.60
5	0302835	C-WA-10 WELD ADAPTER	6	Call for price	—
6	0302836	SOCKET-HD STACKING NUTS	3	$7.60
7	0302837	SPLIT BUSHING 1"	6	$5.60
8	0303563	HOSE HYD, 27"	2	$42.00
9	0313228	HYD TUBE	6	Call for price	—
10	0400118	SCREW, 5/16-18X3/4 HHC GR5	1	$5.80
11	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	6	$5.80
12	0400176	SCREW, 1/2-13X1 HHC GR5	2	$5.80
13	0400220	SCREW, 1/2-13X5-1/2 HHC GR5	1	$8.00
14	0400392	NUT, 3/8-16 LOK	4	$5.80
15	0400408	NUT, 1/2-13 LOK	1	$2.80
16	0400482	LKWASHER, 3/8	6	$5.80
17	0400492	WASHER, 1/2	2	$5.80
18	0705104	PLATE, WINCH CABLE SPPT	2	$95.60
19	0715953	PIN, BOOM PIVOT	1	$635.40
20	0810639	PIN WELDMENT	2	Call for price	—
21	0906535	SWIVEL-BOOM ASSEMBLY	2	$2,974.20
22	0912095	BOOM INSTALL 9055 3STG 2015	1	Call for price	—
23	0912120	KIT 9055 GENX TILT CYL	1	Call for price	—
24	DE1381	1/2 WASHER SAE 17/32 ID	2	$5.60

Back to Manual Navigation Menu

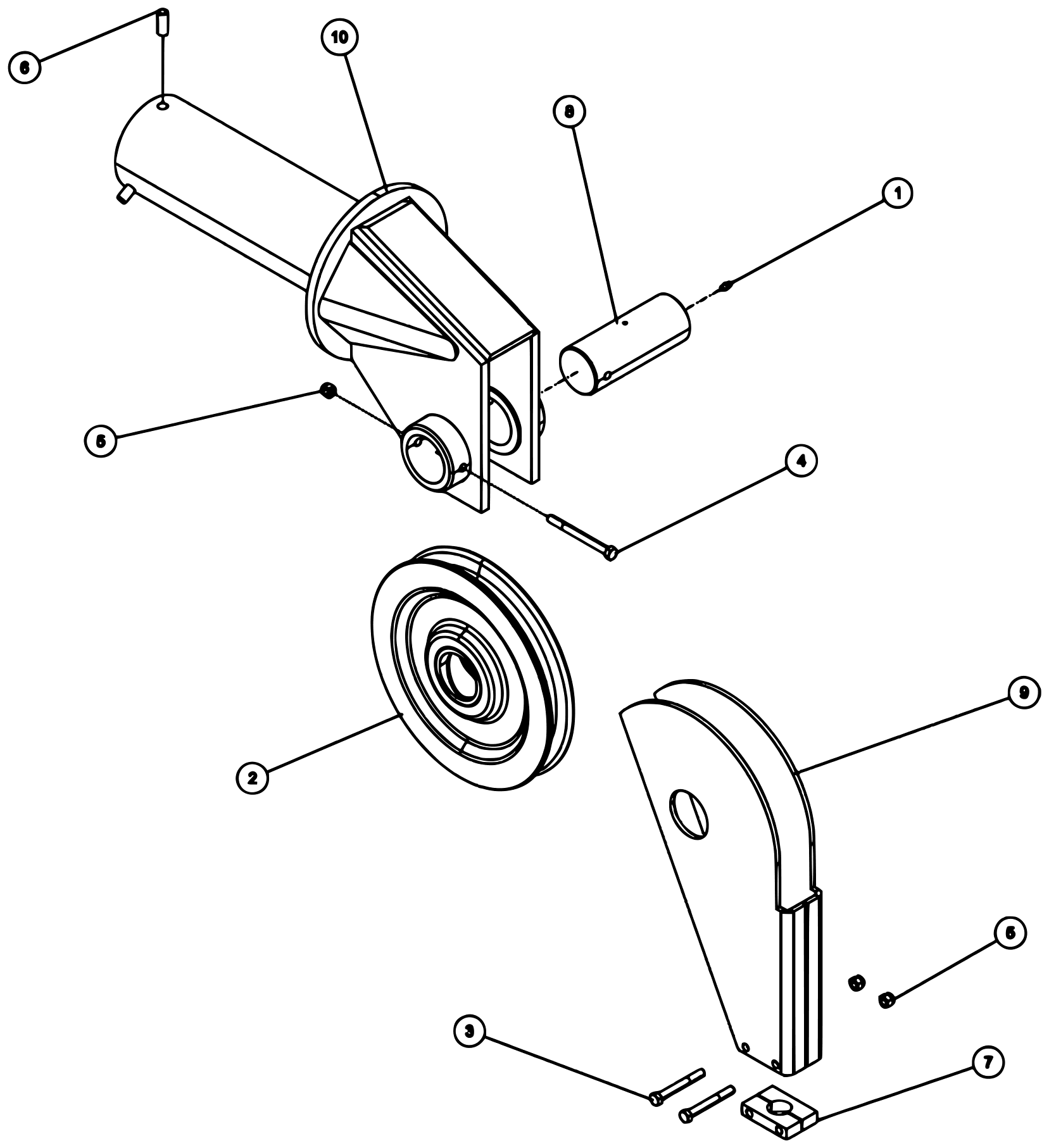

0906535, Boom Swivel Assembly

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0906535	SWIVEL-BOOM ASSEMBLY	-	$2,974.20
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0300311	SHEAVE, 12-10-1BB 10	1	$550.60
3	0400133	SCREW, 3/8-16X3 HHC GR5	2	$5.80
4	0400140	SCREW, 3/8-16X4 HHC GR5	1	$5.80
5	0400392	NUT, 3/8-16 LOK	3	$5.80
6	0400557	PIN, 1/2X1-1/4 SPR	3	$5.80
7	0700511	GUIDE, BOTTOM CABLE	2	$33.00
8	0700563	SHAFT, SHEAVE	1	$117.40
9	0802027	GUIDE-CABLE WELDMENT	1	$359.20
10	0804450	BOOM END SWIVEL WLDT-FIXED9055	1	$1,979.60

Back to Manual Navigation Menu

0912095, Boom Install 9055 3-Stage

Century 9055XL / XP850 (2021 manual) 0912095, Boom Install 9055 3-Stage diagram (view 3 of 4)

Century 9055XL / XP850 (2021 manual) 0912095, Boom Install 9055 3-Stage diagram (view 4 of 4)

Show parts list (48 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0912095	BOOM INSTALL 9055 3STG 2015	-	Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	8	$5.80
2	03007973	PAD, SLIDE OUTER 9055XL	1	Call for price	—
3	0301529	HOSE HYD, 58	2	$75.80
4	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
5	0303892	SLIDE PAD-BOOM-SIDE	4	$37.40
6	0305023	SNAP RING 5100-0225PP	2	$3.00
7	0311460	1/4" GREASE TUBINGPriced per foot	1	$3.80
8	0311575	1/4x1/4 PTC SWIVEL MALE ELBOW	1	$13.80
9	0313134	CABLE ASSY RETRACT 3STG BOOM	2	$544.60
10	0400059	SCREW, 1/4-20X5/8 HHC GR5	2	$5.80
11	0400121	SCREW, 3/8-16X3/4 HHC GR5	1	$5.80
12	0400146	SCREW, 3/8-16X2-1/4 HHC GR5	1	$4.00
13	0400349	SCREW, 3/8-16X3/4 FHS	8	$11.60
14	0400392	NUT, 3/8-16 LOK	1	$5.80
15	0400452	LKWASHER, 1/4	2	$5.80
16	0400471	NUT, 7/8-14 HEX GR8	2	$6.40
17	0400472	NUT, 7/8-14 JAM GR8	2	$9.80
18	0400473	WASHER, 7/8 PL GR8	4	$4.80
19	0400480	WASHER, 3/8	2	$4.00
20	0400482	LKWASHER, 3/8	1	$5.80
21	0400491	LKWASHER, 1/2	2	$5.80
22	0400587	PIN, 1/4X1-1/2 SPR	2	$3.60
23	0400930	NUT, 1-1/2X12 HEX GR8	2	Call for price	—
24	0400931	NUT, 1-1/2X12 HEX JAM GR8	2	Call for price	—
25	0400935	WASHER, 1-1/12 SAE	2	Call for price	—
26	0717744	PIN, EXTEND CYL. BASE	1	$232.00
27	0717747	PIN, RETRACT CABLE	1	$55.80
28	0726426	PLATE-PIN KEEPER	2	Call for price	—
29	0806752	SHAFT-RETRACT SHEAVE WELD'T	4	$118.20
30	0810609	BOOM OUTER WELDT	1	Call for price	—
31	0810612	BOOM MID STAGE WELDT	1	Call for price	—
32	0810614	INNER BOOM TUBE WLMT 9055	1	Call for price	—
33	0810633	RETRACT SHEAVE SUPPORT WELDT	1	Call for price	—
34	0908028	SLIDE PAD ASSY (9055 3 STAGE)	4	$81.60
35	0908118	SHEAVE ASSY 5" DIA	4	$115.60
36	0908356	SLIDE PAD ASSY (9055 3 STAGE)	2	$155.20
37	0908430	KIT-D RING BOOM	1	$507.60
38	0910284	SIDE D-RING PARTS 1130/1140	2	Call for price	—
39	0912092	BOOM EXTEND SYSTEM 9055 2015	1	Call for price	—
40	3012-793001	PLATE - LUBE MTG.	1	$19.40
41	9010024	FITT, BRASS CONN 1/4T-1/8MP	1	$11.60
42	9012552	BULKHEAD ADAPTER 1/8M-1/8F NPT	1	$39.80
43	9041402	1/2 NC X 1 1/4 HHCS PLT GR8	2	$8.00
44	9044434	3/8-16X1 NC FLAT SOCKET HD CAP	4	$5.80
45	916040004	WEAR PAD - LOWER	1	$39.80
46	946030004	UPPER WEAR PAD-RECOVERY	2	$92.00
47	GA0215	PIN-"D" RING	1	$81.20

Back to Manual Navigation Menu

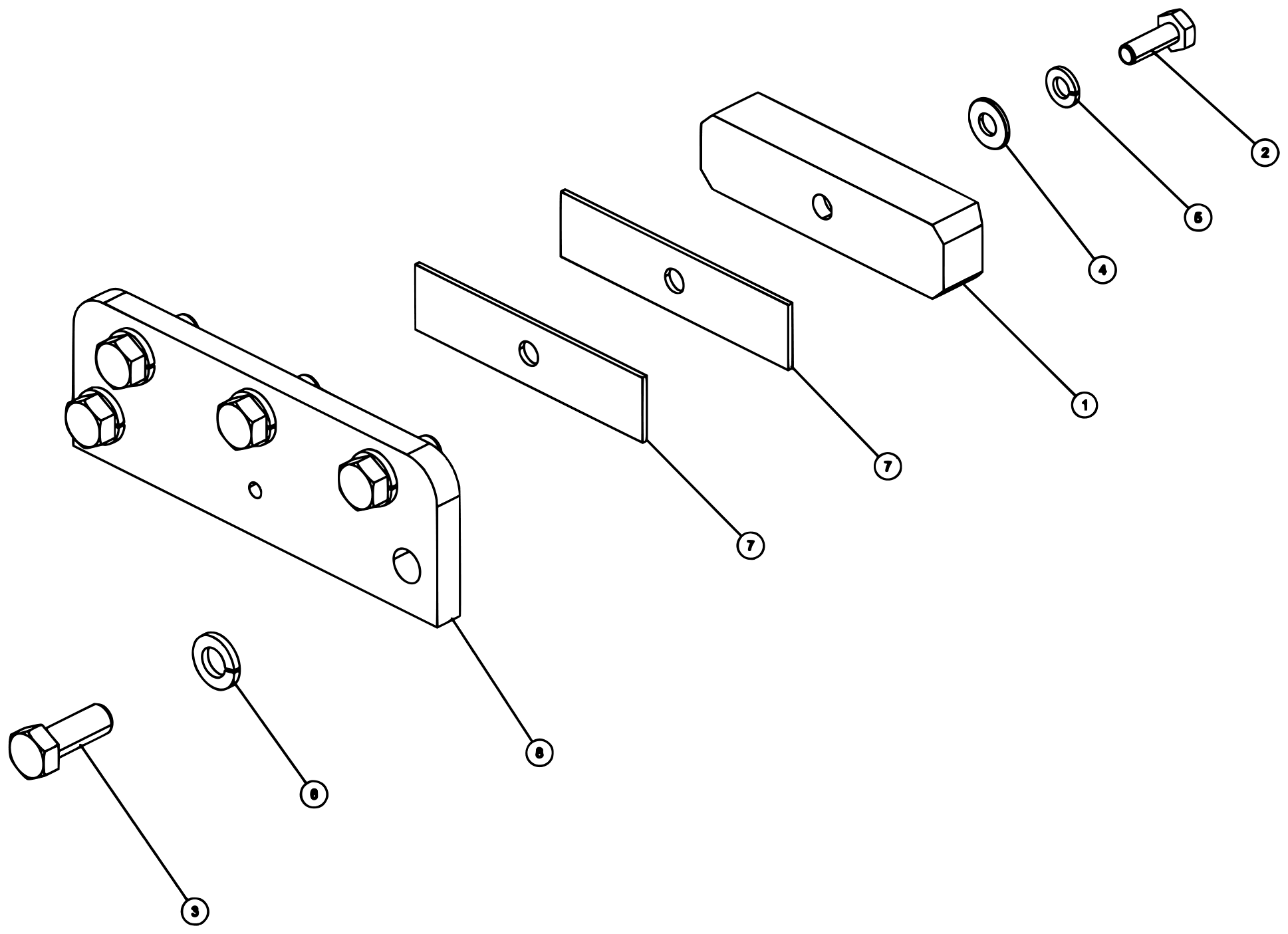

0908028, Slide Pad Assembly 9055

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0908028	SLIDE PAD ASSY (9055 3 STAGE)	-	$81.60
1	0306825	SLIDE PAD - 3/4 X 1 X 4	1	$19.40
2	0400066	SCREW, 1/4-20X3/4 HHC GR5	1	$5.80
3	0400126	SCREW, 3/8-16X1 HHC GR5	5	$5.80
4	0400451	WASHER, 1/4	1	$5.80
5	0400452	LKWASHER, 1/4	1	$5.80
6	0400482	LKWASHER, 3/8	5	$5.80
7	0717262	SHIM - SLIDE PAD	2	$8.00
8	0717746	PLATE, SLIDE PAD SUPPORT	1	$37.80

Back to Manual Navigation Menu

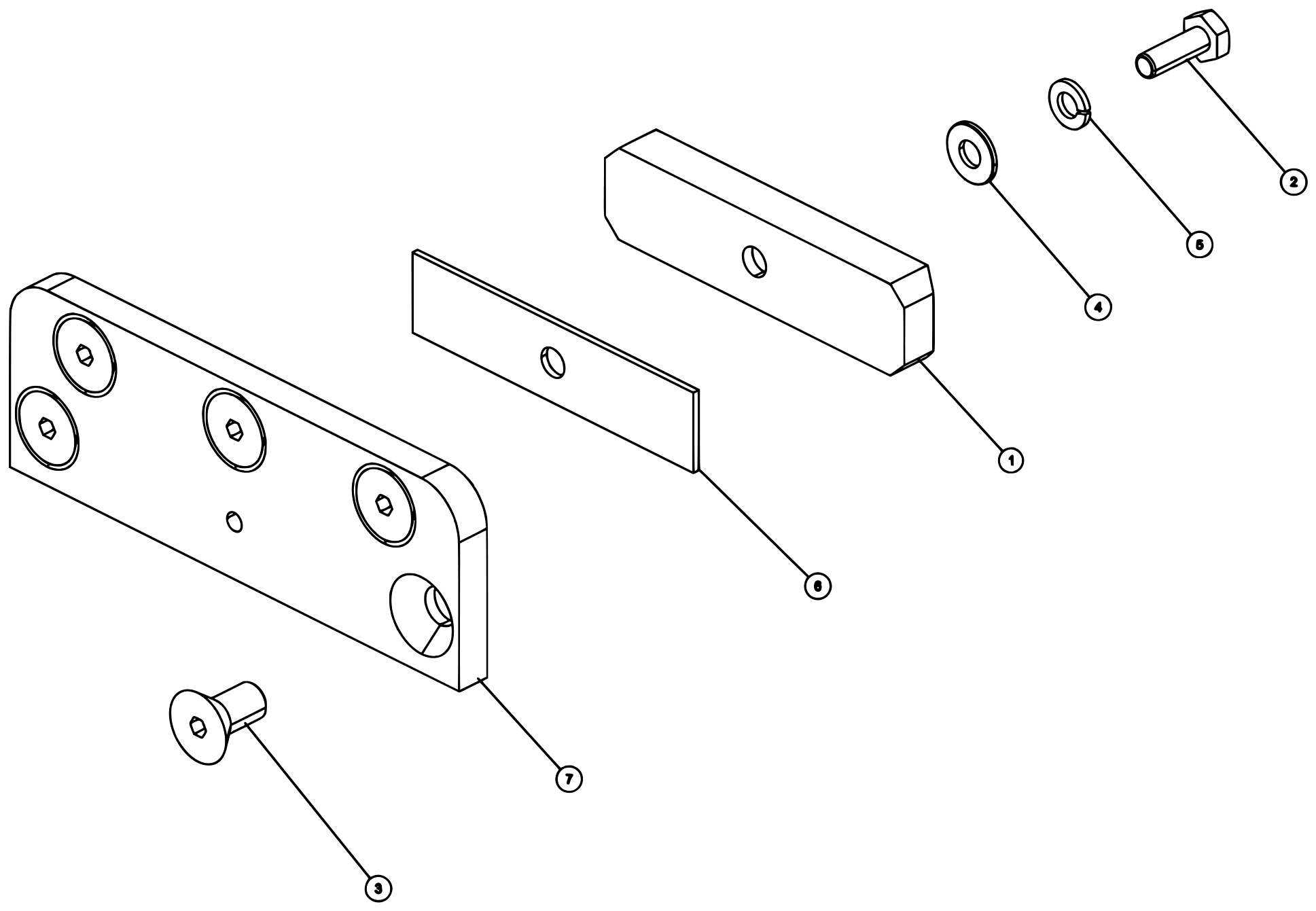

0908356, Slide Pad Assembly 9055

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0908356	SLIDE PAD ASSY (9055 3 STAGE)	-	$155.20
1	0303490	PAD-WEAR 1/2" X 1" X 4"	1	$49.60
2	0400066	SCREW, 1/4-20X3/4 HHC GR5	1	$5.80
3	0400349	SCREW, 3/8-16X3/4 FHS	5	$11.60
4	0400451	WASHER, 1/4	1	$5.80
5	0400452	LKWASHER, 1/4	1	$5.80
6	0717262	SHIM - SLIDE PAD	1	$8.00
7	0718134	PLATE - SLIDE PAD SUPPORT	1	$74.60

Back to Manual Navigation Menu

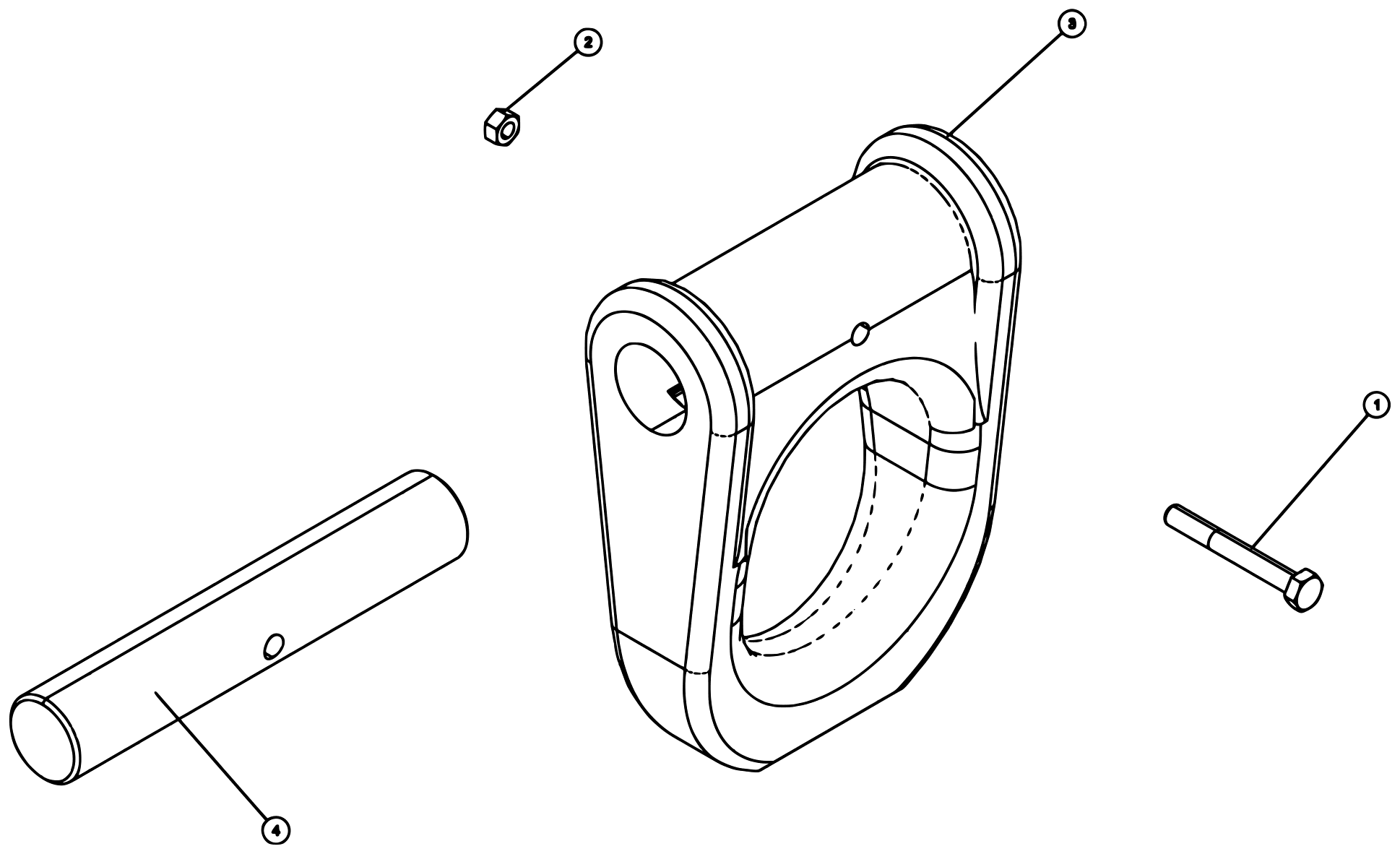

0908430, D-Ring, Boom Kit

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0908430	KIT-D RING BOOM	-	$507.60
1	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	1	$5.80
2	0400776	NUT, 5/16-18 JAM LOK	1	$5.80
3	0719585	D-RING, TOWING	1	$440.40
4	GA0215	PIN-"D" RING	1	$81.20

Back to Manual Navigation Menu

0910284, Side D-Ring Kit

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0910284	SIDE D-RING PARTS 1130/1140	-	Call for price	—
1	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	1	$5.80
2	0400776	NUT, 5/16-18 JAM LOK	1	$5.80
3	0719585	D-RING, TOWING	1	$440.40
4	0722067	PIN, D-RING	1	$69.20

Back to Manual Navigation Menu

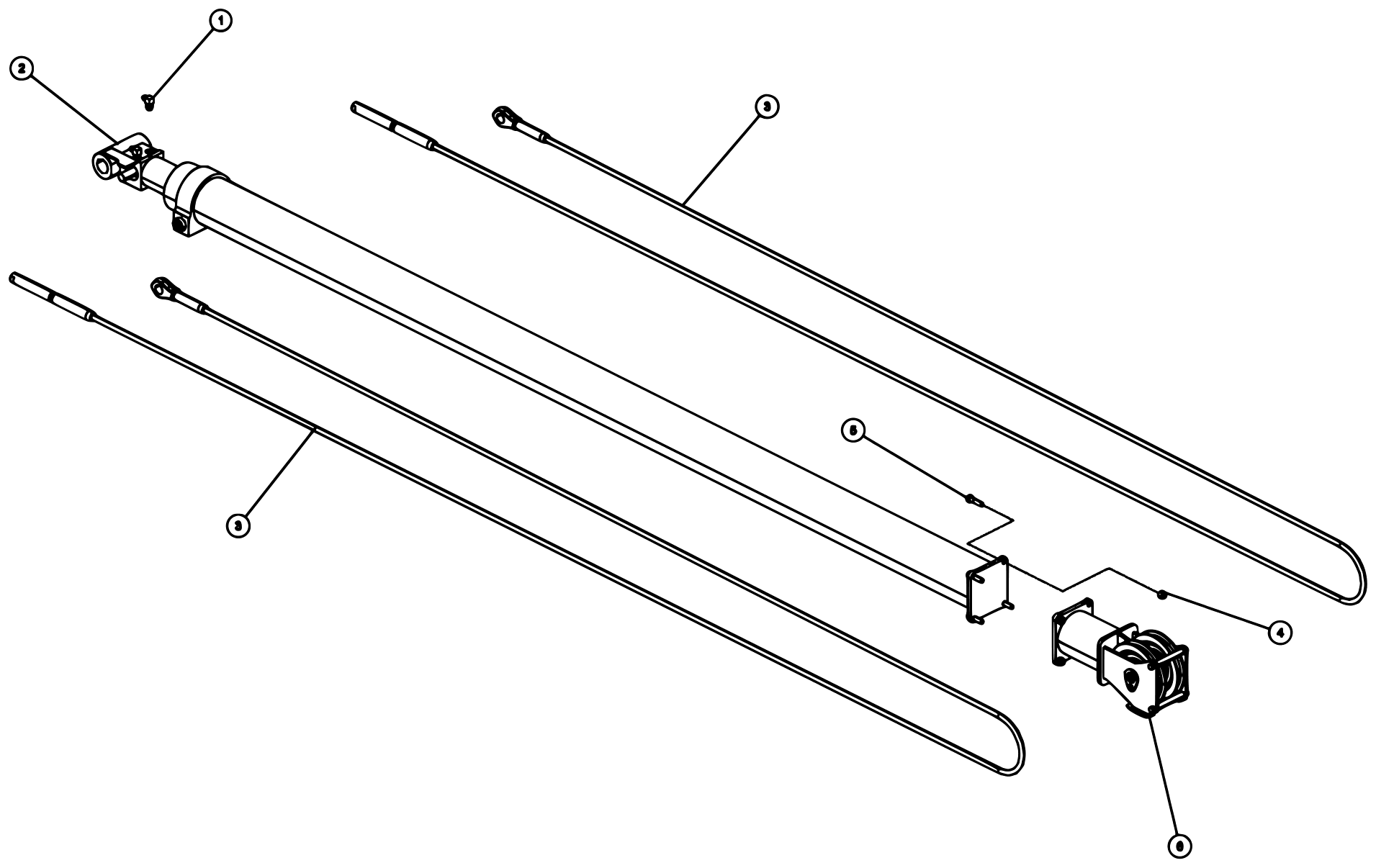

0912092, Boom Extend System 9055

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0912092	BOOM EXTEND SYSTEM 9055 2015	-	Call for price	—
1	0301388	ELBOW, 8MJ-8MB90	2	$13.20
2	0313097	CYL, 9055 GEN X BOOM EXTEND	1	Call for price	—
	Seal kit for 0313097 cylinder: Call for pricing and availability: 770-921-6070
3	0313133	CABLE EXTEND ASSY 3-STG BOOM	2	$1,356.00
4	0400264	SCREW, 5/8-11X2-1/4 HHC GR5	4	$5.80
5	0400421	NUT, 5/8-11 LOK	4	$5.80
6	0912091	EXTEND SHEAVE ASSY 9055 2015	1	Call for price	—

Back to Manual Navigation Menu

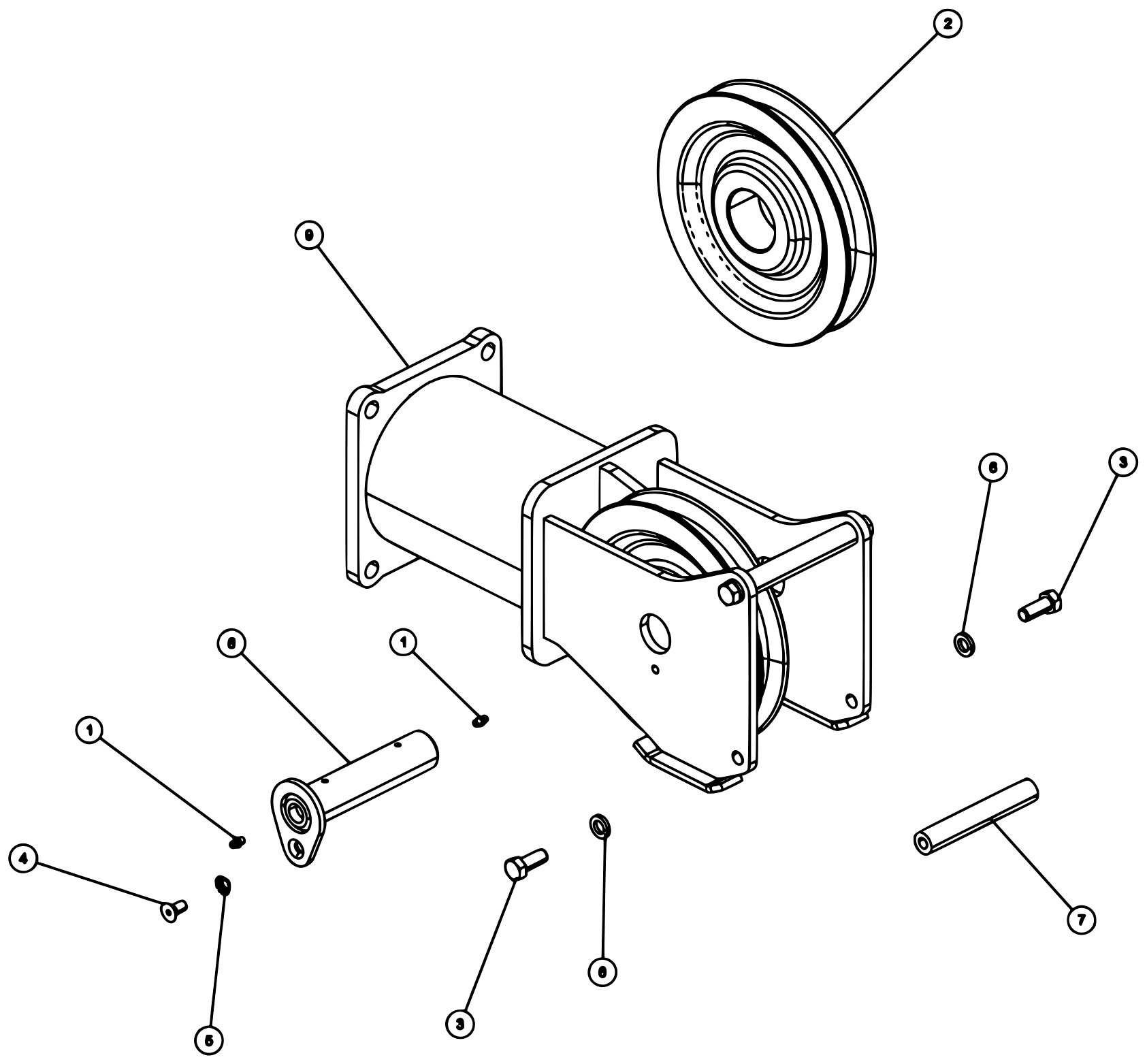

0912091, Extend Sheave Assembly 9055

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0912091	EXTEND SHEAVE ASSY 9055 2015	-	Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0303441	SHEAVE-10" DIA X 1.5 BORE	2	$429.60
3	0400177	SCREW, 1/2-13X1-1/4 HHC GR5	4	$5.80
4	0400223	SCREW, 3/8-16X3/4 SHC	1	$5.80
5	0400483	LKWASHER, 3/8 CET	1	$5.80
6	0400491	LKWASHER, 1/2	4	$5.80
7	0717743	ROD, EXTEND SHEAVE SPACER	2	$31.00
8	0806722	SHAFT - EXTEND SHEAVE WELD'T	1	$112.80
9	0810620	EXTEND SHEAVE BRACKET WLDMT	1	Call for price	—

Back to Manual Navigation Menu

0912126, Winch Assembly 9055

Show parts list (12 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0912126	WINCH ASSY 9055	-	Call for price	—
1	0301577	1/4 OD PLASTIC AIRLINE, BLACKPriced per foot	70 FT	$5.80
2	0303079	ADAPTER, 10MJ-8MB	4	$5.80
3	0303505	WINCH-dp MODEL S50-50K (2)SPD	2	$20,549.40
4	0400284	SCREW, 3/4-10X2-1/4 HHC GR5	16	$5.60
5	0400430	NUT, 3/4-10 LOK	16	$5.80
6	0400510	WASHER, 3/4	16	$5.80
7	0709703	ANGLE, WINCH MTG 9055	4	$112.00
8	0709704	ANGLE, WINCH MTG 9055	2	$112.00
9	0709705	ANGLE, WINCH MTG 9055	2	$112.00
10	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
11	9011071	FITT, BRASS TEE 1/4T-1/4T-1/4T	1	$15.60

Back to Manual Navigation Menu

0912164, Underlift and Tower 9055XL Assembly

Show parts list (25 parts) ▼Hide parts list ▲

Ref # Part Number Description Qty Used Price Quick Add to Cart

0912164 U/L AND TWR 9055XL COACH LWRDR - Call for price —

0300113

GREASE FITTING, 1/4-28 STR

$5.80

2 03007628 SNAP RING, 3" EXT 1 Call for price —

0301620

FITTING, HYD. 6MJ - 6MB90

$5.80

0301895

GREASE FITTING, 1/8 STR PTF

$5.80

0302538

BUSHING - U/L

$189.60

0302911

HOSE HYD, 88"

$72.60

0306746

CYL HYD - FOLD

$812.20

Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185	Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC	$144.80
0304609A	Ashun (MTC) cylinder: SEAL KIT FOR 0306746 MTC	$113.80
0304609S	Southern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN	$174.80
0304609T	Texas (THI) cylinder: SEAL KIT FOR 0306746 THI	$123.00

0306870

HOSE HYDR - 96"

$77.00

0400122

SCREW, 3/8-16X1-1/4 HHC GR5

$5.80

0400149

SCREW, 3/8-16X5/8 HHC GR5

$4.00

0400176

SCREW, 1/2-13X1 HHC GR5

$5.80

0400480

WASHER, 3/8

$4.00

0400482

LKWASHER, 3/8

$5.80

0400491

LKWASHER, 1/2

$5.80

0400503

WASHER, 5/8 GR8

$5.80

0701956

SCREW, OUT CR TUBE RET FI

$7.60

0802459

PIN-FOLD CYL. WLDMT

$144.40

0810619

TOWER WELDT 9055

$7,372.40

19 0810621 PIN TOWER PIVOT WLDMT 2 Call for price —

0810634

PIN UNDERLIFT PIVOT WLMT

$578.60

0911338

LOWRIDER ASSY - 9055 COACH

$46,295.60

0911362

PIN ASSY-FOLD

$182.20

0911607

HOOK RETAINER ASY, W/ LOWRIDER

$1,320.60

DE1381

1/2 WASHER SAE 17/32 ID

$5.60

Back to Manual Navigation Menu

0911338, Lowrider Assembly 9055 Coach

Century 9055XL / XP850 (2021 manual) 0911338, Lowrider Assembly 9055 Coach diagram (view 3 of 4)

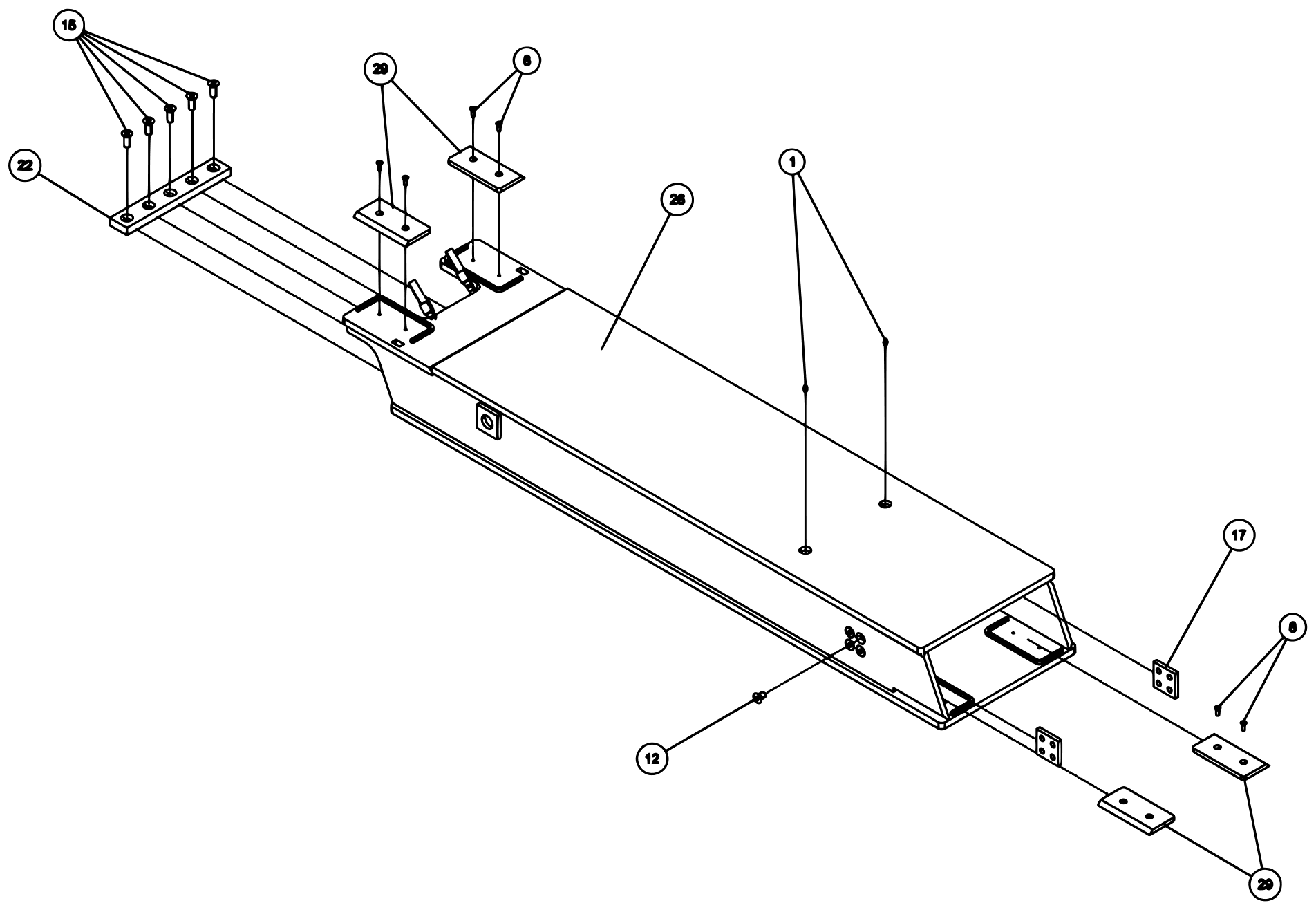

Century 9055XL / XP850 (2021 manual) 0911338, Lowrider Assembly 9055 Coach diagram (view 4 of 4)

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0911338	LOWRIDER ASSY - 9055 COACH	-	$46,295.60
1	0300113	GREASE FITTING, 1/4-28 STR	4	$5.80
2	0302538	BUSHING - U/L	2	$189.60
3	0303968	HOSE HYD, 10" LG	2	Call for price	—
4	0307425	CYL, HYD - U/L BOOM EXTEND	2	$5,285.60
	Seal kit for 0307425 cylinder: Call for pricing and availability: 770-921-6070
5	0307460	FITTING, HYD 6MJ-6MB90LL	2	Call for price	—
6	0311442	WEAR PAD (15/16 X 1 X 4)	2	$52.00
7	0312349	HOSE HYD 141" 6M2T 6FJX-6FJX45	2	$123.80
8	0400079	SCREW, 1/4-20X3/4 FHS GR5	8	$5.80
9	0400086	SCREW, 1/4-20X1-1/4 FHS	4	$5.80
10	0400139	SET SCREW, 3/8-16X1-1/2 SOC	1	$5.80
11	0400249	SCREW, 5/8-11X1-1/4 SHC	2	$9.80
12	0400344	SCREW, 1/2-13X3/4 FHS GR8	8	$5.80
13	0400392	NUT, 3/8-16 LOK	1	$5.80
14	0400594	SCREW, 1/4-20X5/8 FHS	4	$5.80
15	0400749	SCREW, 1/2-13X1-1/4 FHS	1	$5.60
16	0400990	SET SCREW, 1/2-13X1/2 SOC	4	$9.80
17	0717869	PLATE, SPACER (BOLT-ON)	4	$45.20
18	0717871	PIN, CYLINDER ROD	1	$312.40
19	0717872	PIN, EXTEND CYLINDER BASE	1	$122.80
20	0717873	PIN, SHEAR OUTER BOOM	2	$117.40
21	0718087	PLATE - PAD SPACER	2	$12.40
22	0718096	BLOCK, STOP	2	$114.60
23	0724419	PLATE-PLUG RETAINER	2	$54.00
24	0806812	BRACKET - EXTEND CYLINDER	1	$1,568.60
25	0810105	OUTER BOOM WLMT	1	Call for price	—
26	0810106	2nd STAGE BOOM WLMT	1	$7,242.80
27	0908282	INNER BOOM ASSY	1	Call for price	—
28	9012594	FITT, HYD RUN TEE, 6MJx6MBx6MJ	2	$21.20
29	930150003	TOP PADS	6	$28.00

Back to Manual Navigation Menu

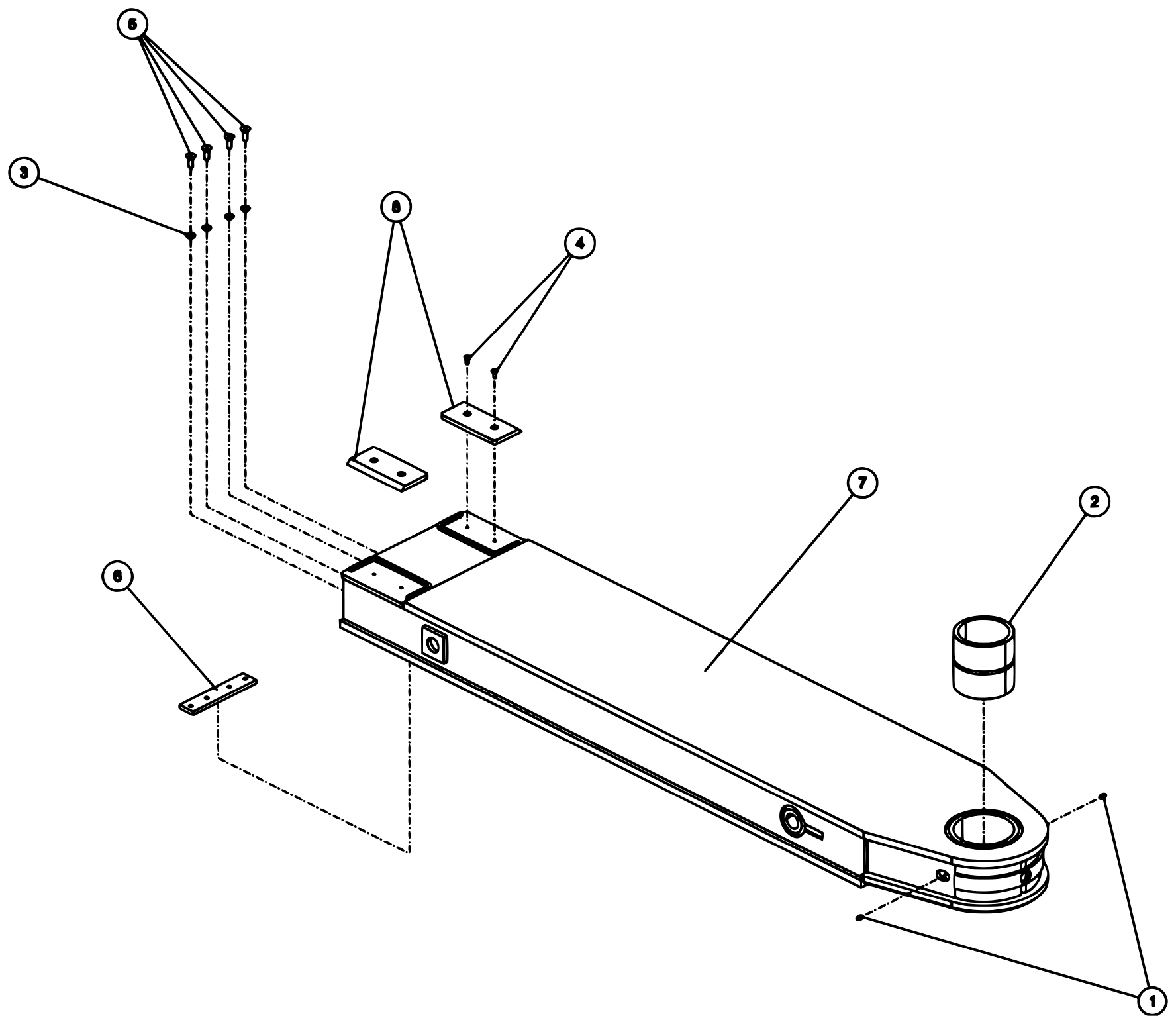

0908282, Inner Boom Assembly

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0908282	INNER BOOM ASSY	-	Call for price	—
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0303088	BUSHING - PIVOT PIN	1	$393.60
3	0400483	LKWASHER, 3/8 CET	4	$5.80
4	0400594	SCREW, 1/4-20X5/8 FHS	4	$5.80
5	0400653	SCREW, 3/8-24X1 FHS	4	Call for price	—
6	0706996	PAD, SPACER	1	$47.00
7	0806813	BOOM - 3rd STAGE WLMT U/L	1	$8,090.60
8	930150003	TOP PADS	2	$28.00

Back to Manual Navigation Menu

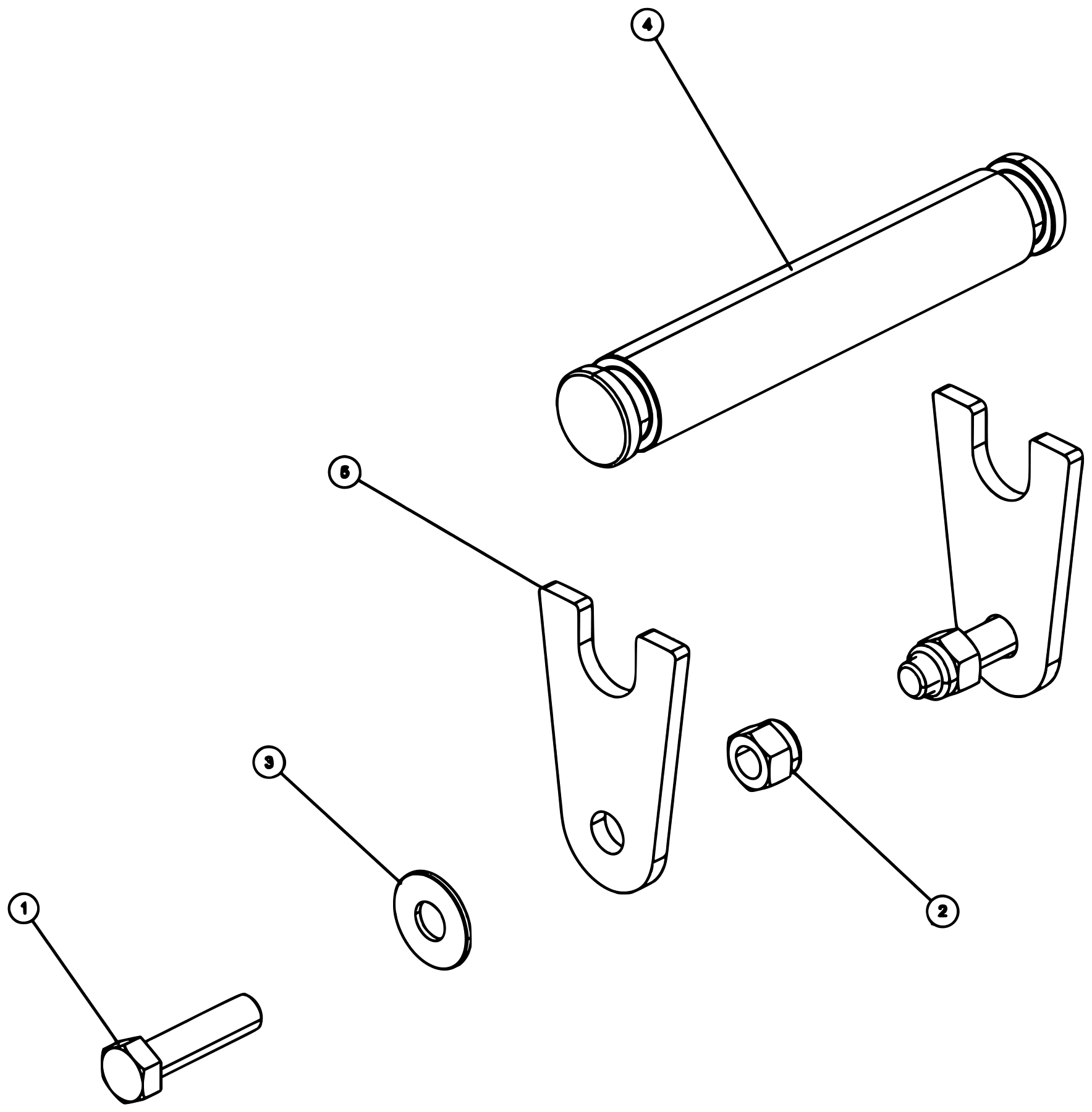

0911362, Fold Pin Assembly

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
	0911362	PIN ASSY-FOLD	-	$182.20
1	0400132	SCREW, 3/8-16X1-1/2 HHC GR5	2	$5.80
2	0400392	NUT, 3/8-16 LOK	2	$5.80
3	0400480	WASHER, 3/8	2	$4.00
4	0724977	PIN	1	$114.00
5	0724978	KEEPER PLATE	2	$25.40

Back to Manual Navigation Menu

0911607, Hook Retainer Assembly

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	0911607	HOOK RETAINER ASY, W/ LOWRIDER	-	$1,320.60
1	0306688	TIMBREN SPRING 180 AEON 2 7/8"	2	$42.40
2	0306819	PAD - SLIDE (2 1/4 DIA UHMW)	2	$9.80
3	0311909	SPRING, CABLE RETAINER, LH	1	$58.00
4	0311910	SPRING, CABLE RETAINER, RH	1	$58.00
5	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	2	$5.80
6	0400149	SCREW, 3/8-16X5/8 HHC GR5	1	$4.00
7	0400480	WASHER, 3/8	1	$4.00
8	0400482	LKWASHER, 3/8	2	$5.80
9	0410400	GREASE FITTING, 1/4-28 STR SS	2	Call for price	—
10	0802459	PIN-FOLD CYL. WLDMT	1	$144.40
11	0810272	HOOK RETAINER WLDMT	2	Call for price	—
12	0810307	HOOK RETAINER FRAME WLDMT	1	$511.60

Back to Manual Navigation Menu
