Subframe Assembly

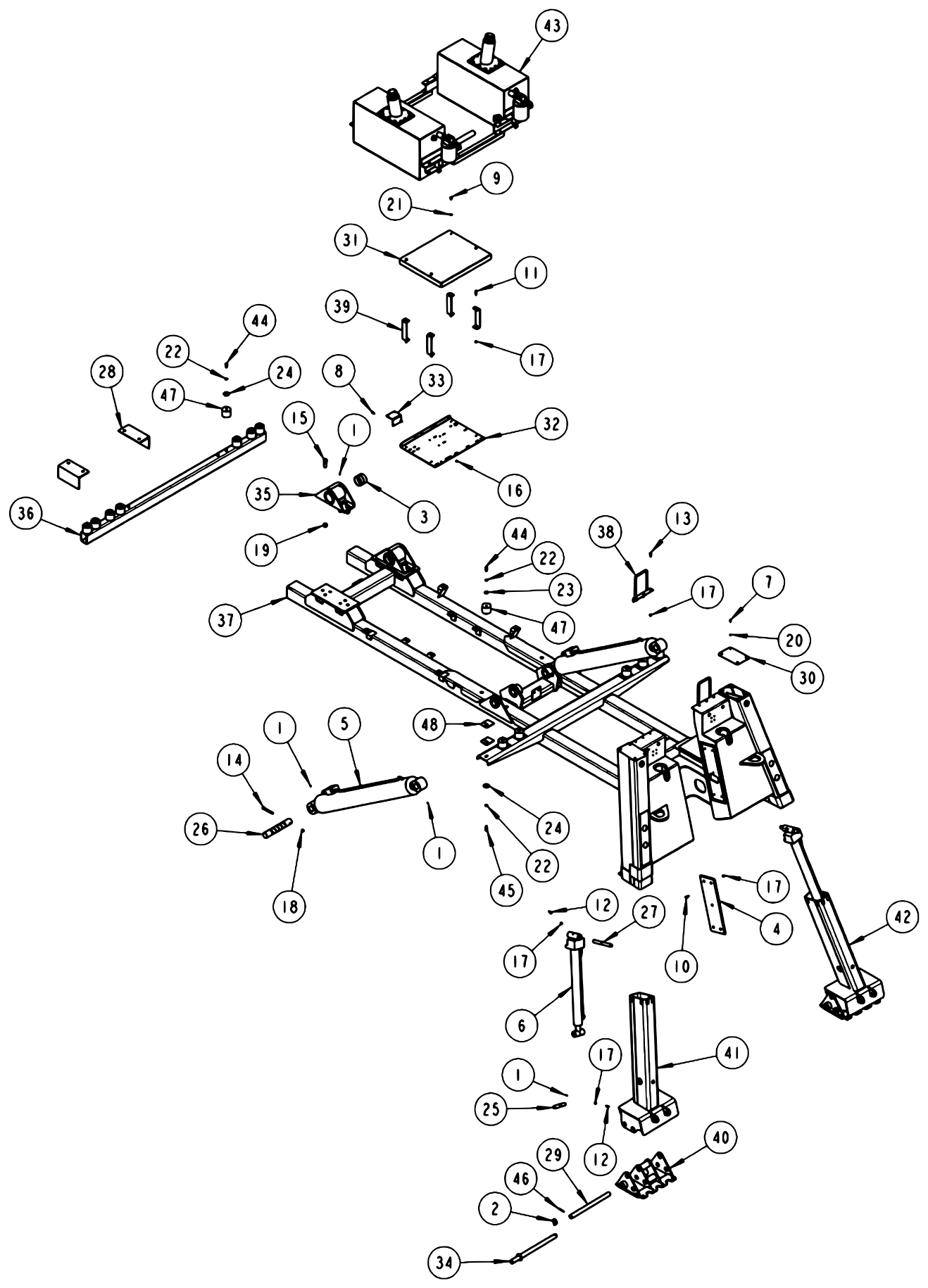

Century 5130 & 5230 (2011 manual) Subframe Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
20301861QUICK PIN2$3.80
30302538SPRING BUSHING, 3.5OD X 3ID X 2.52$189.60
40303089RAMP PAD2$84.80
50307012CYLINDER, BOOM LIFT (5035)2$5,380.20
Seal kit for 0307012 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304672Texas (THI) cylinder: SEAL KIT FOR 0307012 TEXAS$258.20
0304672HHolmac cylinder: SEAL KIT FOR 0307012 HOLMAC$538.80
0304672SSouthern (SHCI) cylinder: SEAL KIT FOR 0307012 SHC$207.20
60310013CYLINDER, HYDRAULIC TI S24023424PPBZ2$2,158.20
0310274Seal kit for 0310013 cylinder: SEAL KIT 0310013/0307639 CYL.$117.80
704000661/4-20 X 3/4 HHCS GR.5, ZP8$5.80
804001095/16-18 X 1 HHCS GR.5, ZP2$5.80
904001213/8-16NC X 3/4 HHCS GR. 84$5.80
1004001283/8-16X1.25 FLAT HD SOC10$8.00
1104001323/8-16 X 1 1/2 HHCS GR.5, ZP4$5.80
120400139SCREW, 3/8"-16 X 1-1/2" HEX SKT SET4$5.80
1304001483/8-16 X 1-1/4 HHCS GR5 ZP6$5.00
1404002191/2-13 X 4-1/2 HHCS GR.5 ZP2$8.00
1504002883/4-10 X 2-1/2 HHCS GR.8 GOLD12$9.80
1604003825/16-18 NYLOCK HEX NUT ZP2$5.80
1704003923/8-16 NYLOCK HEX NUT ZP24$5.80
1804004081/2-13 NYLOCK HEX NUT ZP2$2.80
1904004313/4-10 NYLOCK HEX NUT GR.8, ZP12$8.00
2004004521/4 HELICAL LOCK WASHER ZP8$5.80
2104004823/8 HELICAL LOCK WASHER ZP4$5.80
2204004911/2 HELICAL LOCK WASHER ZP20$5.80
2304004971/2 FLAT WASHER GR.8, YZ PLATED6$5.80
240400498WASHER, 1/2" ID X 2" OD X .15014$8.00
250705500SHAFT - LOWER SPADE2$31.00
260707118PIN - LIFT CYLINDER2$211.20
270707394SHAFT - UPPER SPADE2$65.00
280710545HR ANGLE2$69.60
290715694PIN - SPADE PIVOT2$125.60
300715796COVER PLATE2Call for price—
310717066COVER - VALVE1$126.20
320717827PLATE - VALVE MOUNTING1Call for price—
330719122PLATE - VALVE MTG.1$13.20
340804334PIN, MULTI-POSITION2$252.80
350804405BOOM PIVOT BRKT2$884.00
360806004FRONT TOOLBOX MOUNT1$808.80
370806508SUBFRAME WELDMENT (5130 / 5230)1$18,137.40
380806521HAND RAIL WLMT2Call for price—
390807181COVER SUPPORT WLMT4$44.20
400807630LOWER SPADE PAD WELDMENT2$1,020.00
410807664INNER SPADE WLMT (LH)1$2,564.20
420807665INNER SPADE WLMT (RH)1$2,564.20
430907802KIT - RESERVOIR1$3,943.00
4490414021/2-13NC X 1 1/4 HHCS, ZP, GR.814$8.00
4590414031/2-13 X 1-1/2 HHCS GR 8 ZP6$5.80
4690463541/4 X 2-1/2 ROLL PIN ZP2$5.80
479402970TOOLBOX MTG. PAD14$54.20
48942480011REAR WASHER PLATE12$25.20
Back to Manual Navigation Menu

5130 Body Assembly

Century 5130 & 5230 (2011 manual) 5130 Body Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10303127GROMMET, MARKER LIGHT1$3.80
20303128GROMMET, TAIL LIGHT6$3.80
30306958STOP/TURN LGHT-RED LED CLR LEN4$48.80
40307151RUBBER FENDERPriced per foot1$18.80
50307220LIGHT OVAL AMBER 60 LED2$47.00
60310496MARKER LAMP, RED 2-1/2" ROUND1$23.20
70310631MUD FLAP2$45.20
80310981TOOLBOX LH AL 206CA 20101Call for price—
90310982TOOLBOX RH AL 206CA 20101Call for price—
1004001035/16-18 X 1 1/4 HHCS GR.5, ZP16$5.80
1104001483/8-16 X 1-1/4 HHCS GR5 ZP8$5.00
1204003825/16-18 NYLOCK HEX NUT ZP16$5.80
1304003923/8-16 NYLOCK HEX NUT ZP8$5.80
140717386BAR - MUDFLAP2$45.20
150718139ANGLE - MUD FLAP MOUNT2$50.60
Back to Manual Navigation Menu

5230 Body Assembly

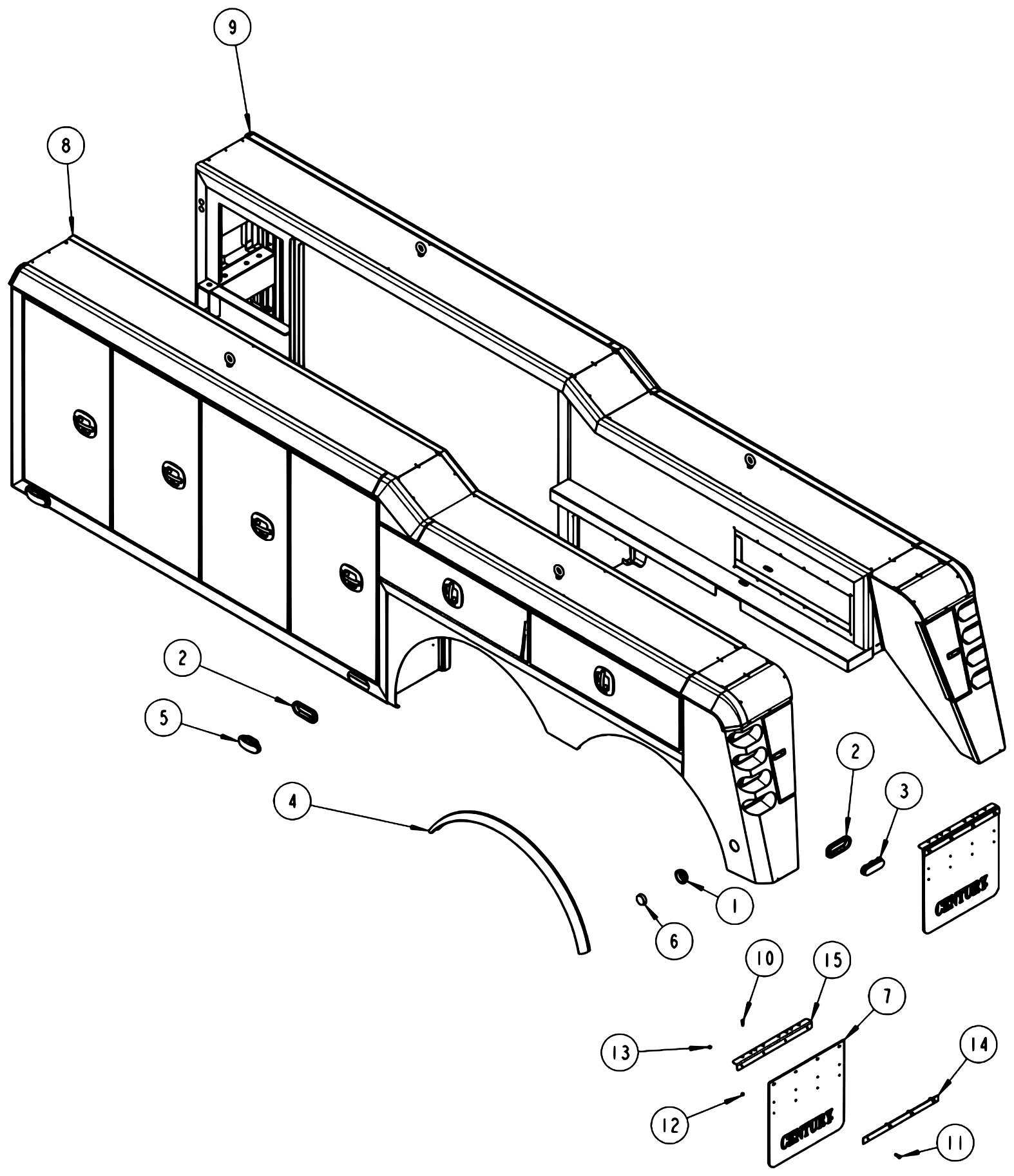

Century 5130 & 5230 (2011 manual) 5230 Body Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10303127GROMMET, MARKER LIGHT1$3.80
20303128GROMMET, TAIL LIGHT6$3.80
30306958STOP/TURN LGHT-RED LED CLR LEN4$48.80
40307151RUBBER FENDERPriced per foot1$18.80
50307220LIGHT OVAL AMBER 60 LED2$47.00
60310496MARKER LAMP, RED 2-1/2" ROUND1$23.20
70310631MUD FLAP2$45.20
80310942LH 180 CB TANDEM AL. BODY1Call for price—
90310943RH 180 CB TANDEM AL. BODY1Call for price—
1004001035/16-18 X 1 1/4 HHCS GR.5, ZP16$5.80
1104001483/8-16 X 1-1/4 HHCS GR5 ZP8$5.00
1204003825/16-18 NYLOCK HEX NUT ZP16$5.80
1304003923/8-16 NYLOCK HEX NUT ZP8$5.80
140717386BAR - MUDFLAP2$45.20
150718139ANGLE - MUD FLAP MOUNT2$50.60
Back to Manual Navigation Menu

Recovery Boom Assembly

Century 5130 & 5230 (2011 manual) Recovery Boom Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
13012-793001PLATE - LUBE MTG1$19.40
20300113GREASE FITTING, 1/4-28 STRAIGHT6$5.80
30301895GREASE FITTING, 1/8 NPT STRAIGHT1$5.80
40301959SNAP RING - 1.5 INTERNAL2$5.80
50303490WEAR PAD (1/2 X 1 X 4)2$49.60
60307082CYLINDER - BOOM EXTEND1$5,964.40
Seal kit for 0307082 cylinder: Call for pricing and availability: 770-921-6070
704000591/4-20 X 5/8 HHCS GR 5 ZP2$5.80
804001213/8-16NC X 3/4 HHCS GR. 84$5.80
904001323/8-16 X 1 1/2 HHCS GR.5, ZP2$5.80
1004001333/8-16 X 3 HHCS GR.5, ZP4$5.80
1104001761/2-13 X 1 HHCS GR.5, ZP2$5.80
1204001811/2-13 X 1-1/2 HHCS GR 5 ZP2$5.80
1304002201/2-13 X 5-1/2 HHCS GR5 ZP2$8.00
1404002625/8-11 X 2 1/2 HHCS GR.8, ZP16$5.80
1504003923/8-16 NYLOCK HEX NUT ZP10$5.80
1604004081/2-13 NYLOCK HEX NUT ZP4$2.80
1704004265/8-11 NYLOCK NUT GR.8 ZP16$8.00
1804004521/4 HELICAL LOCK WASHER ZP2$5.80
1904004823/8 HELICAL LOCK WASHER ZP6$5.80
2004004911/2 HELICAL LOCK WASHER ZP2$5.80
2104004921/2 FLAT WASHER ZP2$5.80
2204009901/2-13 X 1/2 SKT HD SET SCREW ZP4$9.80
230705104PLATE - SUPPORT1$95.60
240707580PIN - SPADE CYLINDER - ROD CH-501$83.00
250711164BLOCK - SHEAR8$5.60
260712380"D" RING1$119.20
270715947ANGLE - WINCH MOUNTING2Call for price—
280715948ANGLE - WINCH MOUNTING2Call for price—
290715949ANGLE - WINCH MOUNTING2Call for price—
300715950ANGLE - WINCH MOUNTING2Call for price—
310715953PIN - BOOM PIVOT1$635.40
320716763SHAFT1$159.40
330802219PIN - LIFT CYLINDER PIVOT2$216.60
340802365PIN-TOWER PIVOT WLMT2$177.00
350805876OUTER BOOM WLMT - 5130/52301$25,032.40
360906530BOOM SWIVEL ASSEMBLY2$1,672.00
379012549CONNECTOR, 3/8 TUBE X 1/8 NPT2$15.60
389012552BULKHEAD COUPLING, 1/81$39.80
399012584ELBOW, 1/4 NPT X 3/8 TUBE 901$21.20
4090444343/8-16X1 NC FLAT2$5.80
419048248WINCH DP 2-SPD 25K NARROW DRUM1$13,804.80
429056150RETAINING RING, 1-1/2"2$8.00
43915030004WEAR PAD1$101.00
44915040001PAD RETAINING PLATE1$47.20
45915040400TOP SPIDER CLAMP ASSY ~ BOOM ASSY1$330.40
46915040501BOTTOM CLAMP ANGLE - EXT. CYL. ASSY2$12.40
47916040004WEAR PAD - LOWER1$39.80
48916350001PIN - BOOM EXT. CYL. FR.1$89.40
49BA0259PIN, 'D' RING1$23.20
50HD01061/4 X 1-3/4 ROLL PIN ZP1$1.80
5103019493/8" OD AIRLINE, SYNFLEXPriced per foot1$8.00
Back to Manual Navigation Menu

Underlift & Tower Assembly

Century 5130 & 5230 (2011 manual) Underlift & Tower Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
20301197DETENT SPRING1$9.20
30301398DETENT BALL1$15.60
40301822O-RING, PIVOT PIN1$3.80
50302538SPRING BUSHING, 3.5OD X 3ID X 2.52$189.60
60302561SLIDE PAD8$18.80
70303088BUSHING, PIVOT PIN1$393.60
80303097THRUST WASHER, 1/8" THICK1$90.20
90303098THRUST WASHER, 1/16" THICK1$54.20
100306746CYLINDER - HYDRAULIC FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
110307013PAD - WEAR2$23.40
120307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
130307041U/L EXTEND CYLINDER1$5,733.40
Seal kit for 0307041 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304669Texas (THI) cylinder: SEAL KIT FOR 0307041$205.80
03009988Southern (SHCI) cylinder: SEAL KIT, UL EXT CYL$265.00
1404001223/8-16 X 1 1/4 HHCS GR.5, ZP1$5.80
1504001323/8-16 X 1 1/2 HHCS GR.5, ZP1$5.80
160400139SCREW, 3/8"-16 X 1-1/2" HEX SKT SET2$5.80
1704001473/8-24X 5/8 HHCS GR5 ZP4$5.80
1804001513/8-24 X 3/4 HHCS GR5 ZP5$5.80
1904001761/2-13 X 1 HHCS GR.5, ZP1$5.80
200400228SCREW, 3/8"-24 X 5/8" BUTTON HEAD SKT8$9.80
2104002575/8-11 X 3-1/4 HHCS GR5 ZP2$3.40
220400271SCREW, 5/8"-11 X 4-1/2" SKT HD CAP2$13.80
2304003923/8-16 NYLOCK HEX NUT ZP3$5.80
2404004215/8-11 NYLOCK HEX NUT ZP2$5.80
2504004803/8 FLAT WASHER ZP1$4.00
260400481LOCKWASHER, 3/8" EXT TOOTH9$5.80
2704004823/8 HELICAL LOCK WASHER ZP1$5.80
2804004911/2 HELICAL LOCK WASHER ZP1$5.80
2904005085/8 HELICAL LOCK WASHER ZP2$5.80
3004009901/2-13 X 1/2 SKT HD SET SCREW ZP8$9.80
310706996SPACER PAD1$47.00
320707028PAD, BEARING1$52.40
330707034STOP PLATE4$25.20
340708470SPACER - DETENT BALL1$17.40
350710051PIVOT PIN, TOP HALF1$299.60
360710052PIVOT PIN, BOTTOM HALF1$299.60
370716745EXTEND CYLINDER SHAFT1$81.20
380716746EXTEND CYLINDER SHAFT1$90.20
390716870SHAFT1$106.60
400717657PLATE - STOP BLOCK SUPPORT2$24.40
410802214PIN-UNDERLIFT PIVOT1$618.00
420802459PIN-FOLD CYL. WLDMT1$144.40
430802914CROSSBAR WELDMENT1$2,756.80
440804483CABLE TIE BACK WLMT2$166.20
450805884TOWER WLMT1$8,109.80
4608058853rd STAGE BOOM WLMT1$3,471.40
470805894OUTER U/L BOOM WLMT1$5,468.60
4808058952nd STAGE U/L BOOM WLMT1$3,109.80
490806756PIN WELDMENT - FOLD CYLINDER1$57.80
5090488005/8 WELDLESS CHAIN LINK2$21.60
519056125SNAP RING - 1-1/4" HEAVY DUTY2$3.80
52945030007SPRING - HOSE TENSIONER2$28.00
53BK2003PAD-WEAR2$21.40
54RB0205SPLIT BUSHING2$103.00
Back to Manual Navigation Menu

Underlift Hydraulics

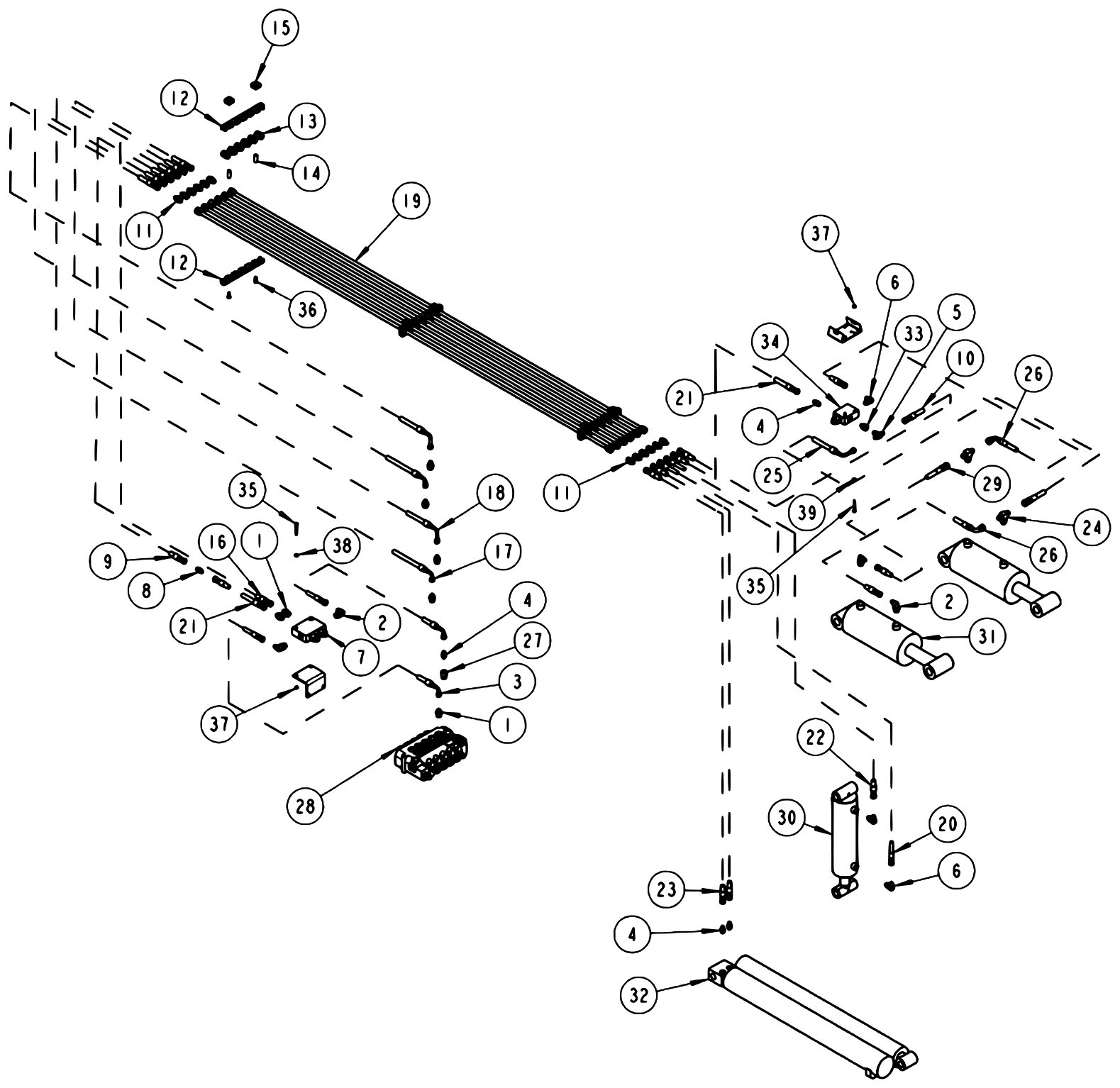

Century 5130 & 5230 (2011 manual) Underlift Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300044CONNECTOR 6MJX8MB7$3.80
20301470FITTING - HYDRAULIC ELBOW 6MJ-8MB904$7.60
30301473HOSE ASSEMBLY, 18" LG2$57.80
40301522CONNECTOR 6MJ-6MB4$3.80
50301619BRANCH TEE, 6MJ-6MJ-6MB1$11.20
60301620FITTING, ELBOW, 6MJ-6MB903$5.80
70301730DOUBLE HOLDING VALVE1$542.60
80301837INLINE ORIFICE1Call for price—
90302000HOSE ASSY - 24" LG1$39.80
100302035HOSE ASSEMBLY, 18" LG1$37.40
110302514ADAPTER, 8MJ-6MJ12$5.60
120302548CLAMPING UNIT (SET) HC-10-66$28.00
130302549SPLIT BUSH RUBBER C-SB10-8 1/218$5.60
140302551SOCKET HEAD C-SN-106$11.60
150302552WELD ADAPTER, C-WA-106$15.60
160302596HOSE ASSY - 34" LG1$47.00
170302604HOSE ASSY - 44" LG2$47.00
180302605HOSE ASSEMBLY - 44" LG2$66.80
190302624TUBE ASSEMBLY6$151.60
200302637HOSE ASSEMBLY - 72" LG1$54.20
210302805HOSE ASSY - 10" LG2$29.80
220302812HOSE ASSY - 78" LG.1$55.60
230302813HOSE ASSY - 108" LG2$103.00
240302842ELBOW, 8MJ-8MB902Call for price—
250302914HOSE ASSEMBLY, 35" LG1$70.20
260302915HOSE ASSEMBLY, 12" LG2$56.00
270303017CONNECTOR 8MBX6FB1$5.60
280303094VALVE, 5 SPOOL PARKER1$1,447.40
290303563HOSE ASSEMBLY, 27" LG1$42.00
300306746CYLINDER - HYDRAULIC FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
310307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
320307041U/L EXTEND CYLINDER1$5,733.40
Seal kit for 0307041 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304669Texas (THI) cylinder: SEAL KIT FOR 0307041$205.80
03009988Southern (SHCI) cylinder: SEAL KIT, UL EXT CYL$265.00
330307106CONNECTOR 4MBX6FB1$9.40
340307107VALVE HOLDING 4000 PSI SAE1$310.60
3504000781/4-20 X 2 HHCS GR5 ZP4$5.80
3604001185/16-18 X 3/4 HHCS GR.5 ZP6$5.80
3704003671/4-20 NYLOCK HEX NUT ZP4$5.80
3804004511/4 FLAT WASHER ZP2$5.80
3904021101/4 FLATWASHER 316 STAINLESS2$5.80
Back to Manual Navigation Menu

Recovery Boom Hydraulics

Century 5130 & 5230 (2011 manual) Recovery Boom Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300044CONNECTOR 6MJX8MB2$3.80
20300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
30301522CONNECTOR 6MJ-6MB4$3.80
40301620FITTING, ELBOW, 6MJ-6MB904$5.80
50302575BLKHD RUN TEE, 6MJ-6BLKHD-6MJ W/NUT2$18.80
60302585HOSE ASSEMBLY - 54" LG2$70.40
70303017CONNECTOR 8MBX6FB2$5.60
80303093CONTROL VALVE, VDP11DDDC1101$1,337.00
90303170HOSE ASSY - 75" LG.2$93.80
100303389HOSE ASSY - 46" LG.2$54.20
110303394HOSE ASSEMBLY - 46" LG2$41.80
120307012CYLINDER, BOOM LIFT (5035)2$5,380.20
Seal kit for 0307012 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304672Texas (THI) cylinder: SEAL KIT FOR 0307012 TEXAS$258.20
0304672HHolmac cylinder: SEAL KIT FOR 0307012 HOLMAC$538.80
0304672SSouthern (SHCI) cylinder: SEAL KIT FOR 0307012 SHC$207.20
130307082CYLINDER - BOOM LIFT1$5,964.40
Seal kit for 0307082 cylinder: Call for pricing and availability: 770-921-6070
Back to Manual Navigation Menu

Winch Hydraulics & Air Free Spool

Century 5130 & 5230 (2011 manual) Winch Hydraulics & Air Free Spool diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300041CONNECTOR 8MJX8MB4$5.60
20301388ELBOW, 8MJ-8MB902$13.20
30301577TUBING- PLASTIC 1/4 OD X 5" AIR LINEPriced per foot2$5.80
40301893HOSE ASSEMBLY - 84" LG2$112.00
50302508ELBOW, 8MJ-8MB90LL2$13.80
60302546CLAMPING UNIT (SET) HC-10-210$15.60
70302550SPLIT BUSH RUBBER C-SB10-12 3/410$9.80
80302551SOCKET HEAD C-SN-105$11.60
90302552WELD ADAPTER, C-WA-105$15.60
100302955HOSE ASSY - 48 1/4"4$63.00
110303093CONTROL VALVE, VDP11DDDC1101$1,337.00
120303094VALVE, 5 SPOOL PARKER1$1,447.40
130303391HOSE ASSY - 110"2$76.00
1404001185/16-18 X 3/4 HHCS GR.5 ZP5$5.80
1504001353/8-16 X 4-1/2 HHCS GR 5 ZP6Call for price—
1604003923/8-16 NYLOCK HEX NUT ZP6$5.80
170704045SPACER, CONTROL VALVE6Call for price—
180717827PLATE - VALVE MOUNTING1Call for price—
199010520FITTING - ELBOW, 1/4T-1/4NPT MALE2$13.80
209011071FITTING, BRASS TEE 1/4T-1/4T-1/4T1$15.60
219048248WINCH DP 2-SPD 25K NARROW DRUM1$13,804.80
Back to Manual Navigation Menu

Pump, Valve & Filter Hydraulics

Century 5130 & 5230 (2011 manual) Pump, Valve & Filter Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300052ELBOW, 8MJ-10MB902$11.20
20300287PIPE BUSHING, 1 1/4" TO 1" NPT REDUCER2Call for price—
30300348NIPPLE - 1-1/2 X 52$7.80
40300364HOSE CLAMP, 7/8" TO 2-3/4"6$7.00
50300660HOSE ASSEMBLY - 120" LG2$112.00
60300865ADAPTER, 8MJ-6MJ2$5.60—
70301350PIPE, 1-1/2" CLOSE NIPPLE2Call for price—
80301473HOSE ASSEMBLY, 18" LG2$57.80
90301529HOSE ASSEMBLY - 58 LG.2$75.80
100301545ELBOW, 12MJ-12MB902$18.80
110301547ELBOW, 8MJ-12MB902$18.80
120301894FILTER ASSEMBLY, SPIN ON2$276.20
130301965HOSE ASSEMBLY, 131" LG.2$117.40
140301995ADAPTER, 8FJ-6MJ STRAIGHT2$5.60
150302052RUN TEE, 8MJ-8MJ-8FJX2$15.00
160302088BALL VALVE - 1 1/2 BRONZE2$91.00
170302205GAUGE, FLUSH MOUNT 6000 PSI2$44.80
180302227CENTER BONDED MOUNT4$24.40
190302228SPECIAL WASHER4$21.60
200302570SIGHT GAUGE2$15.60
210302698HOSE BARB, 1-1/4"4$32.40
220302756SUCTION HOSE, 1-1/4" ID (100R4)Priced per foot1$21.20
230302906ADAPTER, 16MB-12FB2$15.20
240303093CONTROL VALVE, VDP11DDDC1101$1,337.00
250303094VALVE, 5 SPOOL PARKER1$1,447.40
260303155PIPE PLUG - 3/4 NPT (MAGNETIC)2$11.60
270303338ELBOW, 16MJ-16MP452$26.40
280303392HOSE ASSEMBLY - 73" LG2$117.40
290303867PUMP, BI-ROTATIONAL1$2,046.00
300305006FILLER CAP2$63.20
310306539HOSE BARB, 20HOSE-16MB902Call for price—
320307344SUCTION STRAINERS2$131.80
330307345CONNECTOR, 16MJ-20MP2$14.80
340310010SUCTION HOSE, 1-1/2" I.D. 100R42Call for price—
3504001223/8-16 X 1 1/4 HHCS GR.5, ZP8$5.80
3604001493/8-16 X 5/8 HHCS GR5 ZP24$4.00
3704001503/8-16 X 2-1/2 HHCS GR5 ZP4$5.80
3804001811/2-13 X 1-1/2 HHCS GR 5 ZP2$5.80
3904003923/8-16 NYLOCK HEX NUT ZP12$5.80
4004004803/8 FLAT WASHER ZP24$4.00
4104004911/2 HELICAL LOCK WASHER ZP2$5.80
420706114GASKET - CLEANOUT & FILLER COVER2$42.20
430802747FILLER PIPE WELD'T2Call for price—
440803193SUPPORT - RESERVOIR WELDMENT2Call for price—
450806653RESERVOIR LEFT WELDMENT1$1,673.20
460806654RESERVOIR RIGHT WELDMENT1$1,673.20
47FC41ELBOW - BULKHEAD2$15.60
Back to Manual Navigation Menu

Left & Right Control Assembly

Century 5130 & 5230 (2011 manual) Left & Right Control Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
109072885230 CONTROL ASSEMBLY 9 HANDLES1$3,612.00
209072895230 CONTROL ASSEMBLY RH 6H1$2,615.00
30302457CONTROL CABLE5$167.80
40303008CLEVIS - ADJUSTABLE3$9.40
50303093CONTROL VALVE, VDP11DDDC1101$1,337.00
60303094VALVE, 5 SPOOL PARKER1$1,447.40
70303427CONTROL CABLE10$167.80
804001035/16-18 X 1 1/4 HHCS GR.5, ZP9$5.80
904001223/8-16 X 1 1/4 HHCS GR.5, ZP6$5.80
1004003825/16-18 NYLOCK HEX NUT ZP11$5.80
1104003835/16-24 HEX NUT ZP27$5.80
1204003923/8-16 NYLOCK HEX NUT ZP12$5.80
130400466LOCKWASHER, 5/16" INTERNAL TOOTH27$5.80
140711249PLATE - CONTROL BOX2$21.60
150711250PLATE - CONTROL BOX1$16.40
160717827PLATE - VALVE MOUNTING1Call for price—
170801054CONNECTOR - CONTROL CABLE6Call for price—
Back to Manual Navigation Menu

Left Control Assembly

Century 5130 & 5230 (2011 manual) Left Control Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300835KNOB, BOOM (UP-DN)1$13.20
20300836KNOB, JACK (UP-DN)2$18.80
30300837KNOB, BOOM (IN-OUT)1$15.00
40302205GAUGE, FLUSH MOUNT 6000 PSI2$44.80
50302457CONTROL CABLE3$167.80
60302726GREASE FITTING, 1/4"-28 X 45°17$3.80
70302856KNOB, TILT (UP-DN)1$24.40
80302917KNOB, WHL LIFT EXT (IN-OUT)1$31.00
90303382KNOB, FOLD (UP-DN)1$17.40
100303427CONTROL CABLE6$167.80
110307604KNOB - RED LONG2$22.40
120307778PLUG, FILLER2$3.40
130400005#6-32 X .5 FLAT HEAD PHILLIPS6$5.80—
1404000661/4-20 X 3/4 HHCS GR.5, ZP5$5.80
150400101SCREW, 5/16"-18 X 1" RD HD SLOTTED SS4$5.80
1604001075/16-2.5 X 2-1/2 HHCS6$5.80
1704001095/16-18 X 1 HHCS GR.5, ZP4$5.80
1804003671/4-20 NYLOCK HEX NUT ZP5$5.80
1904003691/4 "J" TYPE TINNERMAN3$5.80
200400379CLIP, 5/16" "J" TYPE TINNERMAN4$8.00
2104003825/16-18 NYLOCK HEX NUT ZP10$5.80
2204003835/16-24 HEX NUT ZP9$5.80
2304003933/8"-16 HEX JAM NUT17$5.80
240400466LOCKWASHER, 5/16" INTERNAL TOOTH9$5.80
2504005123/4 FLAT WASHER (SPECIAL)2Call for price—
260400527CLEVIS PIN, 5/16" X 5/8" COTTERLESS9$8.00
270402094HEX NUT & STAR WASHER, #8-32 ZP6Call for price—
280500914DECAL- CONTROL PANEL WRECKER1$47.00
290500915DECAL - CONTROL PANEL SPADE1$47.00
300500916DECAL - CONTROL PANEL UNDERLIFT1$45.20
310711235CLAMP - SHAFT2$17.40
320717198PIN - CONTROL HANDLE (9)1$42.00
330717461PLATE - SHAFT SUPPORT3$16.00
340723230PANEL - CONTROL (9)1$313.00
350723233PANEL - GAUGE (9 HDL, STD)1$177.00
360806006CLEVIS WELDMENT9$9.80
370806007CONTROL FRAME WELDMENT (9) HANDLE1Call for price—
380806515CONTROL HANDLE WELDMENT9Call for price—
399024041MCGILL SWITCH3$43.40
409053524BRONZE BUSHING (.752 X .879 X .750)18$6.00
Back to Manual Navigation Menu

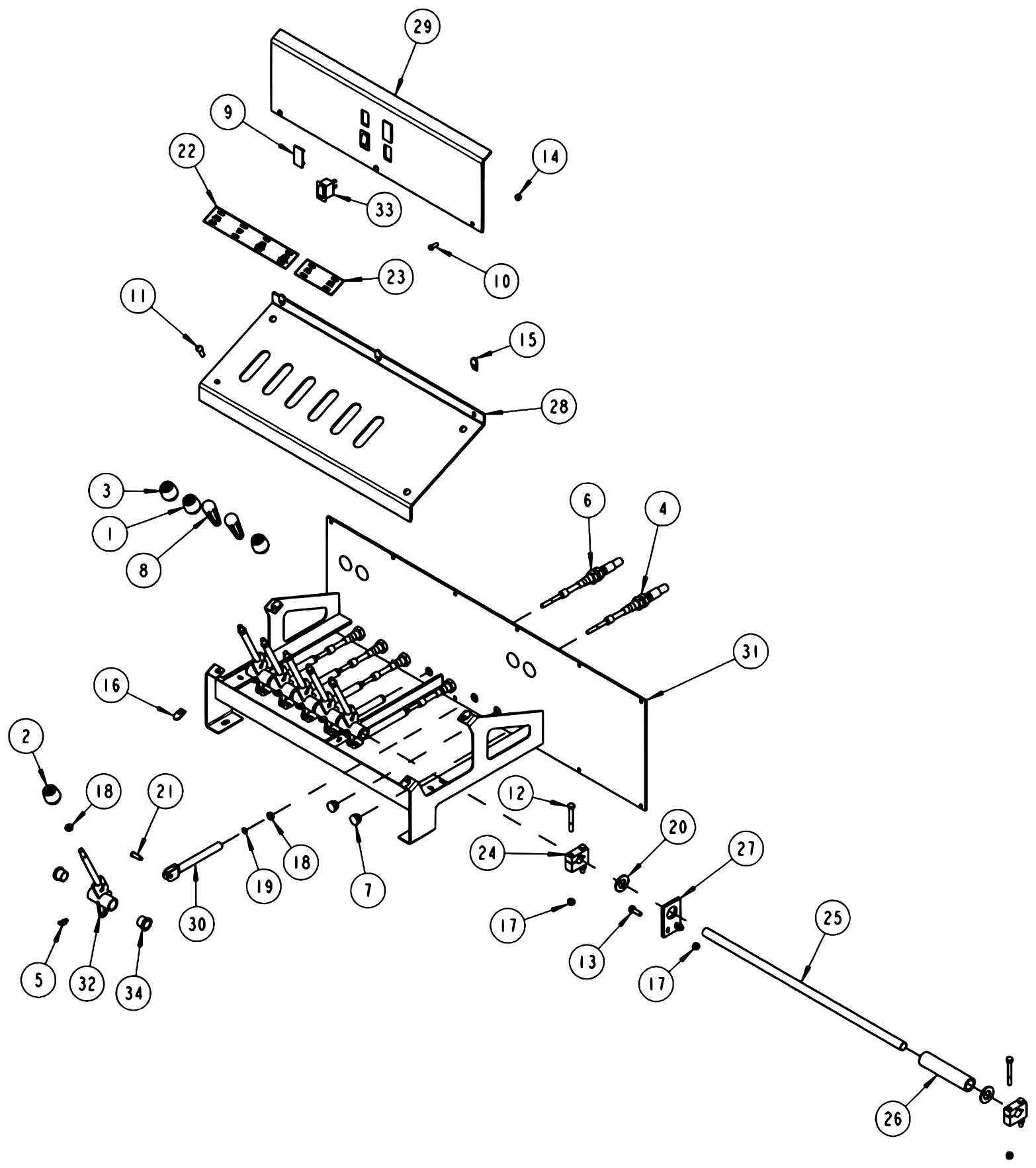

Right Control Assembly (Optional)

Century 5130 & 5230 (2011 manual) Right Control Assembly (Optional) diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300835KNOB, BOOM (UP-DN)1$13.20
20300836KNOB, JACK (UP-DN)2$18.80
30300837KNOB, BOOM (IN-OUT)1$15.00
40302457CONTROL CABLE2$167.80
50302726GREASE FITTING, 1/4"-28 X 45°6$3.80
60303427CONTROL CABLE4$167.80
70307166PLUG 7/82$2.00
80307604KNOB - RED LONG2$22.40
90307778PLUG, FILLER2$3.40
100400061SCREW, 1/4"-20 X 2 1/4" RD HD PHIL SS3Call for price—
110400101SCREW, 5/16"-18 X 1" RD HD SLOTTED SS4$5.80
1204001075/16-2.5 X 2-1/2 HHCS4$5.80
1304001095/16-18 X 1 HHCS GR.5, ZP2$5.80
1404003671/4-20 NYLOCK HEX NUT ZP3$5.80
1504003691/4 "J" TYPE TINNERMAN3$5.80
160400379CLIP, 5/16" "J" TYPE TINNERMAN4$8.00
1704003825/16-18 NYLOCK HEX NUT ZP6$5.80
1804003933/8"-16 HEX JAM NUT12$5.80
190400466LOCKWASHER, 5/16" INTERNAL TOOTH6$5.80
2004005123/4 FLAT WASHER (SPECIAL)2Call for price—
210400527CLEVIS PIN, 5/16" X 5/8" COTTERLESS6$8.00
220500914DECAL- CONTROL PANEL WRECKER1$47.00
230500915DECAL - CONTROL PANEL SPADE1$47.00
240711235CLAMP - SHAFT2$17.40
250717203PIN - CONTROL HANDLE (6)1$42.00
260717206SPACER1$16.80
270717461PLATE - SHAFT SUPPORT1$16.00
280723231PANEL - CONTROL (6 HANDLE)1$169.60
290723232PANEL - SWITCH1$142.60
300806006CLEVIS WELDMENT6$9.80
310806008CONTROL FRAME WELDMENT (6 HANDLE)1$835.00
320806515CONTROL HANDLE WELDMENT6Call for price—
339024041MCGILL SWITCH2$43.40
349053524BRONZE BUSHING (.752 X .879 X .750)12$6.00
Back to Manual Navigation Menu

Rear Spade Hydraulics

Century 5130 & 5230 (2011 manual) Rear Spade Hydraulics diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300044CONNECTOR 6MJX8MB2$3.80
20301522CONNECTOR 6MJ-6MB2$3.80
30302980PIPE NIPPLE, 1/2" NPT X 5"4$9.20
40303017CONNECTOR 8MBX6FB2$5.60
50303093CONTROL VALVE, VDP11DDDC1101$1,337.00
60303094VALVE, 5 SPOOL PARKER1$1,447.40
70303748HOSE ASSEMBLY, 32"4$106.60
80307045ELBOW, 6MJ-8MP904$16.80
90310013CYLINDER, HYDRAULIC TI S24023424PPBZ2$2,158.20
0310274Seal kit for 0310013 cylinder: SEAL KIT 0310013/0307639 CYL.$117.80
Back to Manual Navigation Menu

Boom Swivel Assembly

Century 5130 & 5230 (2011 manual) Boom Swivel Assembly diagram
Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
10300113GREASE FITTING, 1/4-28 STRAIGHT1$5.80
20300626SHEAVE - 8"1$204.00
304001333/8-16 X 3 HHCS GR.5, ZP1$5.80
404001503/8-16 X 2-1/2 HHCS GR5 ZP2$5.80
504003923/8-16 NYLOCK HEX NUT ZP3$5.80
604005543/8 X 1 ROLL PIN ZP3$9.60
70700801BOTTOM CABLE GUIDE2$23.20
80716134SHEAVE SHAFT1$68.60
90800286CABLE GUIDE WELDMENT1$285.20
100804448BOOM END SWIVEL WELDMENT1$1,070.40
Back to Manual Navigation Menu

5130 Parts

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--125514021CENTURY 5130 W/2-SP WINCHESCall for price—
104000024X1/4 DRIVE SCREW RD HD4$4.00
20501220PLATE - SERIAL & DATA GENERIC1$53.00
30907152SHIP KIT 51301Call for price—
409085595130/5230 UNIT ASSY GREENVILLE1Call for price—
50911135INTEGRATED NON-LIGHTED CONTROL1$1,170.40
--0907152SHIP KIT 5130Call for price—
603008443/4 X 1/8 CLOSED CELLPriced per foot15$2.80
70303867PUMP, BI-ROTATIONAL1$2,046.00
80306899WIRE ROPE 5/8X6X37 IWRC XIPS2$1,486.60
90310599CRC HD CORROSION INHIBIT SPRAY1Call for price—
100902328KIT-BODY MOUNTING - 50301$1,047.00
110903223KIT-TOWER RAMP 32241Call for price—
120903729CHAIN-SAFETY ASSY1Call for price—
130904217HARDWARE-BODY MOUNTING1$236.60
140904366KIT-FORK (9) PAIRS1Call for price—
150908275KIT, FENDER SKIRT-AL TBOX LWRK1$54.20
160910479PURCHASED SHIP KIT 51301Call for price—
--0902328KIT-BODY MOUNTING - 5030$1,047.00
170707174ANG TAILGATE MTG2$34.80
180707175PLATE, MOUNTING 50302$117.40
190711286SPACER - REAR FRAME BRKT2Call for price—
200717507PLATE - MOUNTING2$561.60
--0903223KIT-TOWER RAMP 3224Call for price—
210303140RAMP PAD - 32242$75.80
2204001283/8-16X1.25 FLAT HD SOC10$8.00
2304003923/8-16 NYLOK HEX NUT ZINC10$5.80
--0903729CHAIN-SAFETY ASSYCall for price—
240307626SAFETY CHAIN ASY, 1/2X14' GR1002$758.00
0904217HARDWARE-BODY MOUNTING$236.60
2504002863/4-10X2.75" HHCSGR 8GOLD44$8.00
2604003017/8-9X3HHCS GR5 ZP4Call for price—
2704004313/4-10 NYLOK HEX GR 8 ZP44$8.00
2804004367/8-9 NYLOK HEX NUT ZP4$5.80
0904366KIT-FORK (9) PAIRSCall for price—
290200018FORK-SHORT, 3IN OPNG2$158.80
300200019FORK-SHORT, 4-1/2IN OPNG2$177.00
310200020FORK-MED, 3IN OPNG2$216.60
320200021FORK-MED, 4-1/2IN OPNG2$251.00
330200022FORK-LONG, 3IN OPNG2$261.80
340200023FORK-LONG, 4-1/2IN OPNG2$339.40
350200024FORK-OFFSET REAR AXLE2$251.00
360200042FORK-MEDIUM ROUND AXLE2$184.00
370306564ALUM T HANDLE 5/8" X 1-1/4"2$18.80
--0904366KIT-FORK (9) PAIRS (cont'd)Call for price—
380310230CLEVIS PIN, 5/8 X 6 ZINC PLT2$13.80
390400886HITCH PIN CLIP, 1/8 DIAX2.6 OAL2$2.40
400801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
410801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
420803591ADAPTER-LEFT FORK1$875.00
430803592ADAPTER-RIGHT FORK1$875.00
440807023BRKT-PIVOT SPRING LIFT2$586.40
450900900PIN-ASSY, RETAINER2$32.80
460908672PIN-RET.-SPRING LIFT2$43.40
--0900900PIN-ASSY, RETAINER$32.80
470302474PIN, LINCH 3/161$3.80
4803111673/16 SWAGE FOR 1/8 COATED CABL1$3.00
490311210CABLE, PIN RETAINER ASSY .1251$28.60
5004005683/8X3" ROLL PIN ZP1$8.00
5104005733/16X1-1/4ROLL PIN ZP1$5.80
5204020201/4-20NC X 3/4 HEX HD SS1$5.80
530703426PIN, RETAINER1Call for price—
--0908672PIN-RET.-SPRING LIFT$43.40
540302474PIN, LINCH 3/161$3.80
5503111673/16 SWAGE FOR 1/8 COATED CABL1$3.00
560311210CABLE, PIN RETAINER ASSY .1251$28.60
5704005683/8X3" ROLL PIN ZP1$8.00
5804005733/16X1-1/4ROLL PIN ZP1$5.80
5904020201/4-20NC X 3/4 HEX HD SS1$5.80
600718917PIN, RETAINER1Call for price—
--0908275KIT, FENDER SKIRT-AL TBOX LWRK$54.20
610307270SIKAFLEX-GRAY 221-G SEALANT1$34.80
629025068REFLECTOR-PETERSON B489R DECAL4$8.00
--0910479PURCHASED SHIP KIT 5130Call for price—
63030013214" UV BLK CABLE TIE100$1.00
640500241DECAL-SAFETY CHAIN WARN3$8.00
650500554FLAG, AMERICAN LT2$19.40
660500686DECAL - RETRACT CAUTION2$3.80
6705011405130/5230 OWNERS MANUAL1$59.60
680501167PLATE, CENTURY, NAME, PLASTIC2$52.40
690501763CENTURY LARGE INT INSTL MANUAL1Call for price—
700711438BRACKET - HOSE8Call for price—
710902333KIT-GLAD HAND1Call for price—
720904183KIT-AIR TENSIONER1$1,729.80
730906838GROUND KIT MTG.HARNESS CENTURY1$26.80
740907043KIT, HOLE PLUG TOOL BOX1$98.60
750907883KIT- PUMP 5130-70351$1,310.00
760908382KIT - MUDFLAP LRG CENTURY WKR1$249.80
770908446KIT, SWITCH/DECALS 2-SPD WINCH1Call for price—
780911090KIT-SAFETY TREAD-INTEGRATED1$143.80
--0902333KIT-GLAD HANDCall for price—
790301909RECEPTACLE BOOT1Call for price—
800301946FITTING, BLKHD CONNECT2$93.80
810301948HD 7 WAY TRAILER CONNECT1$59.60
820304363QUICK DISCONNECT 1/2 FPT2$64.40
8304000701/4-20X1 HHCS GR5 ZP2$5.80
8404003671/4-20 NYLOK HEX NUT ZP2$5.80
8504004511/4 FLATWASHER ZP2$5.80
--0904183KIT-AIR TENSIONER$1,729.80
8603015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot25$5.80
870302495CONVOLUTED LOOM 1/4Priced per foot25$2.80
8803111936" CABLE TIE25Call for price—
8904000621/4-20X3/4 THRD CUT HEX2$8.00
900700188BRKT, BULKHEAD2$13.80
910909085KIT, AIR FLR/REG/LUBE COMBO 1/41$233.40
92HA0132GAUGE 0-160 PSIG1$24.40
--0909085KIT, AIR FLR/REG/LUBE COMBO 1/4$233.40
930306983FITT-MALE RUNTEE 1/4T-1/4NPT1$18.80
940311367INTERFACE ADAPTER1Call for price—
950911210ASSEMBLY-FILTER/REGULATOR COMB1Call for price—
969010520FITTING-ELBOW 1/4T-1/4NPT1$13.80
--0911210ASSEMBLY-FILTER/REGULATOR COMBCall for price—
970311363FILTER/REGULATOR COMBINATION1Call for price—
980311365BRACKET1$24.80
99HA0132GAUGE 0-160 PSIG1$24.40
--0906838GROUND KIT MTG.HARNESS CENTURY$26.80
10004001263/8-16X1 HHCS GR5 ZP1$5.80
10104003923/8-16 NYLOK HEX NUT ZINC1$5.80
10204004813/8" EXT.TOOTH LOCKWASHER1$5.80
10304004993/4" EXT.TOOTH LOCKWASHER1Call for price—
10404021223/8-16NC HEX NUT 316 SS1$4.00
1050716468LUG - GROUNDING1Call for price—
--0907043KIT, HOLE PLUG TOOL BOX$98.60
1060307052WASHER, RUBBER 7/16X1 1/4X1/48$3.80
10704002011/2-13X1.5 CRGBLT GR5 ZP4Call for price—
10804004071/2-13 HEX NUT ZP4$5.80
10904004911/2" HCL LKWSHR ZP4$5.80
11004004921/2" FLATWASHER ZP4$5.80
11104005065/8 FLATWASHER ZP4$5.80
--0907883KIT- PUMP 5130-7035$1,310.00
1120300348NIPPLE, 1-1/2 X 52$7.80
1130300364CLAMP-HOSE, 0.875"-2.75" 50"LBS8$7.00
1140300660HOSE HYD, 120"2$112.00
1150300865FITTING, CONNECTOR 8MJ-8MJ2$5.60—
--0907883KIT- PUMP 5130-7035 (cont'd)$1,310.00
1160301529HOSE HYD, 582$75.80
1170301547FITTING, ELB 8MJ-12MB 902$18.80
1180302088BALL VALVE2$91.00
1190302698FITTING, HOSE BARB, 1-1/42$32.40
1200302906FITTING, ADAPTER2$15.20
1210303290INSULATED CLAMP 2 1/212$19.40
1220303463BUSHING 1 1/2MP-1 1/4FP2$6.80
1230306539HOSE BARB 20HOSE16MB902Call for price—
1240310010SUCTION HOSE, 1-1/4ID X50 100R41Call for price—
12504001811/2-13X1.5 HHCS GR5 ZP2$5.80
12604004911/2" HCL LKWSHR ZP2$5.80
--0908382KIT - MUDFLAP LRG CENTURY WKR$249.80
1270310631MUD FLAP, CENTURY2$45.20
12804001035/16-18X1.25 HHCS GR5 ZP8$5.80
12904001483/8-16X1.25 HHCS GR5 ZP4$5.00
13004003825/16-18 NYLOK HEX NUT ZP8$5.80
13104003923/8-16 NYLOK HEX NUT ZINC4$5.80
1320717386BAR - MUDFLAP2$45.20
1330718139ANGLE - MUD FLAP MOUNT2$50.60
--0908446KIT, SWITCH/DECALS 2-SPD WINCHCall for price—
1340501647DECAL, 2-SPEED2$17.40
1359024041SWITCH-ROCKER, LIGHTED 12V4$43.40
--09085595130/5230 UNIT ASSY GREENVILLECall for price—
1360906529KIT - BOOM SWIVEL1$3,451.60
1370906911UNDERLIFT & TOWER ASSY 51/52301$44,217.60
1380907317SUBFRAME ASSY - 5130/52301Call for price—
1390908047BOOM INSTALLATION - 5035 2-SP1Call for price—
--0906529KIT - BOOM SWIVEL$3,451.60
14004005543/8X1 ROLL PIN ZP6$9.60
1410906530SWIVEL - BOOM ASSEMBLY2$1,672.00
--0906530SWIVEL - BOOM ASSEMBLY$1,672.00
1420300113GREASE FITTING, 1/4-28 STRAIGHT1$5.80
1430300626SHEAVE, 8" 58SHVBBAY 1.51$204.00
14404001333/8-16X3 HHCS GR5 ZP1$5.80
14504001503/8-16X2.5 HHCS GR5 ZP2$5.80
14604003923/8-16 NYLOK HEX NUT ZINC3$5.80
1470700801GUIDE, BOTTOM CABLE2$23.20
1480716134SHAFT - SHEAVE1$68.60
1490800286GUIDE-CABLE1$285.20
1500804448BOOM END SWIVEL WLDT-FIII/40241$1,070.40
--0906911UNDERLIFT & TOWER ASSY 51/5230$44,217.60
1510300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
1520301601CLAMP, HOSE, INSUL, 5/84$3.80
--0906911UNDERLIFT & TOWER ASSY 51/5230 (cont'd)$44,217.60
1530301620FITTING, HYD. 6MJ - 6MB902$5.80
1540302637HOSE HYD, 72"1$54.20
1550302812HOSE HYD, 78"1$55.60
1560302813HOSE HYD, 108" LG2$103.00
1570306746CYL HYD - FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
1580307420SLEEVE, NYLON PROTECTIVE-24HGPriced per foot2$2.60
15904001223/8-16X1.25 HHCS GR5 ZP1$5.80
16004001323/8-16X1.5 HHCS GR5 ZP1$5.80
16104001513/8-24X3/4 HHCS GR5 ZP5$5.80
16204001761/2-13X1 HHCS GR5 ZP1$5.80
16304003923/8-16 NYLOK HEX NUT ZINC5$5.80
16404004803/8 FLATWASHER ZP1$4.00
16504004813/8" EXT.TOOTH LOCKWASHER9$5.80
16604004823/8" HELICAL LCKWSHR - ZP1$5.80
16704004911/2" HCL LKWSHR ZP2$5.80
1680706432BLOCK - STOP2$11.60
1690707099BLOCK, STOP2$29.80
1700717657PLATE, STOP BLOCK SUPRT2$24.40
1710802214PIN-UNDERLIFT PIVOT1$618.00
1720802365PIN-TOWER PIVOT WLMT2$177.00
1730802459PIN-FOLD CYL. WLDMT1$144.40
1740804483CABLE TIE BACK WLMT2$166.20
1750805884TOWER WELD'T (5130, 5230)1$8,109.80
1760806756PIN WELD'T - FOLD CYLINDER1$57.80
1770903156CROSSBAR-5" ASSY1$3,862.40
1780906572KIT-WINCH CABLE STOW2$55.80
1790906883U/L BOOM ASSY (5035)1$21,767.00
180RB0205SPLIT BUSHING2$103.00
--0903156CROSSBAR-5" ASSY$3,862.40
1810301197COMP.SPRING, CROSS BAR, FI1$9.20
1820301398STEEL BALL, 1-3/16 DIA1$15.60
1830301822O-RING - PIVOT PIN1$3.80
1840303097THRUST WASHER - 1/8 THK1$90.20
1850303098THRUST WASHER - 1/16 THK1$54.20
18604002715/8-11X4.5SKTHDCAPSCREW2$13.80
18704005085/8" HELICAL LCKWSHR ZP2$5.80
1880708470SPACER - DETENT BALL SPRG1$17.40
1890710051PIN - TOP HALF PIVOT1$299.60
1900710052PIN - BOTTOM HALF PIVOT1$299.60
1910802914CROSSBAR WELDMENT1$2,756.80
--0906572KIT-WINCH CABLE STOW$55.80
19204002575/8-11X3.25 HHCS GR5 ZP1$3.40
19304004215/8-11 NYLOK HEX NUT ZP1$5.80
1940804483CABLE TIE BACK WLMT1$166.20
19590488005/8 WELDLESS CHAIN LINK1$21.60
196945030007CABLE TIE BACK SPRING-11$28.00
--0906883U/L BOOM ASSY (5035)$21,767.00
1970301522FITTING, CONN. 6MJ-6MB2$3.80
1980302538BUSHING - U/L2$189.60
1990302561SLIDE PAD8$18.80
2000307013PAD - WEAR2$23.40
2010307041U/L EXTEND CYL.1$5,733.40
Seal kit for 0307041 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304669Texas (THI) cylinder: SEAL KIT FOR 0307041$205.80
03009988Southern (SHCI) cylinder: SEAL KIT, UL EXT CYL$265.00
20204001393/8-16X1.5 HEX SKT SET2$5.80
20304001473/8-24X5/8 HHCS GR5 ZP4$5.80
20404001513/8-24X3/4 HHCS GR5 ZP5$5.80
20504002283/8-24X5/8 BUTTON HEAD8$9.80
20604003923/8-16 NYLOK HEX NUT ZINC2$5.80
20704004813/8" EXT.TOOTH LOCKWASHER9$5.80
2080400990SET SCRW, 1/2-13X1/2 SKT, CUP PT8$9.80
2090706996PAD, SPACER1$47.00
2100707028PAD, BOLT-ON BEARING1$52.40
2110707034PLATE, STOP4$25.20
2120716745SHAFT - EXTEND CYL(ROD) PL1$81.20
2130716746SHAFT - EXTEND CYL(BASE) PL1$90.20
2140805894OUTER U/L BOOM (5130, 5230)1$5,468.60
21508058952ND STAGE U/L BOOM (5130, 5230)1$3,109.80
21609069623RD STAGE BOOM ASSY - 50351$4,329.60
217124004465ALUM HEEL PLATE 9.5" 40241$497.20
218BK2003PAD-WEAR2$21.40
--09069623RD STAGE BOOM ASSY - 5035$4,329.60
2190303088BUSHING - PIVOT PIN1$393.60
22008058853RD STAGE U/L BOOM (5130, 5230)1$3,471.40
--124004465ALUM HEEL PLATE 9.5" 4024$497.20
22104009803/8-16X1" FLAT HD SOC CAP SCRW6$5.60
2220724684U/L HEEL PLATE-40241$141.80
--0907317SUBFRAME ASSY - 5130/5230Call for price—
2230302538BUSHING - U/L2$189.60
22404000701/4-20X1 HHCS GR5 ZP2$5.80
22504002883/4-10X2.5HHCS GR 8GOLD12$9.80
22604003671/4-20 NYLOK HEX NUT ZP2$5.80
22704004313/4-10 NYLOK HEX GR 8 ZP12$8.00
2280711164BLOCK - SHEAR4$5.60
2290712522BAR4$6.60
2300714581PLATE - BOLTING4$13.00
2310804405BRACKET - BOOM PIVOT2$884.00
2320806508SUBFRAME WELD'T - 5130/52301$18,137.40
2330903528LINK-LT.&RT. SIDE CONT.1$145.00
2340906983KIT - LIFT CYLINDER 50351Call for price—
2350907020KIT-FRAME HYDRAULIC1Call for price—
2360907021REAR SPADE ASSY1Call for price—
2370907139PAN-VALVE ASSY1Call for price—
2380907140KIT-VALVE COVER 90551Call for price—
2390907288CONTROL ASSY (9) HANDLES1$3,612.00
--0907317SUBFRAME ASSY - 5130/5230 (cont'd)Call for price—
2400907289RIGHT CONTROL ASSY-(6 HANDLE)1$2,615.00
2410907347KIT - REAR HANDRAIL1Call for price—
2420907802KIT - RESERVOIR 5130-90551$3,943.00
--0903528LINK-LT.&RT. SIDE CONT.$145.00
2430303008ADJUSTABLE CLEVIS3$9.40
24404001035/16-18X1.25 HHCS GR5 ZP9$5.80
24504001223/8-16X1.25 HHCS GR5 ZP6$5.80
24604003825/16-18 NYLOK HEX NUT ZP9$5.80
24704003835/16-24 HEX NUT ZP12$5.80
24804003923/8-16 NYLOK HEX NUT ZINC6$5.80
24904004665/16 INT.TOOTH LOCKWSHR47$5.80
2500711249PLATE - CONTROL BULKHEAD2$21.60
2510711250PLATE - CONTROL BULKHEAD1$16.40
2520801054CONNECTOR-CONTROL CABLE6Call for price—
--0906983KIT - LIFT CYLINDER 5035Call for price—
2530300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
2540301620FITTING, HYD. 6MJ - 6MB904$5.80
2550303389HOSE HYD, 46" LG2$54.20
2560303394HOSE HYD, 46"2$41.80
2570307012CYL - BOOM LIFT (5035)2$5,380.20
Seal kit for 0307012 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304672Texas (THI) cylinder: SEAL KIT FOR 0307012 TEXAS$258.20
0304672HHolmac cylinder: SEAL KIT FOR 0307012 HOLMAC$538.80
0304672SSouthern (SHCI) cylinder: SEAL KIT FOR 0307012 SHC$207.20
25804002191/2-13X4.5HHCS GR5 ZP2$8.00
25904004081/2-13 NYLOK HEX NUT ZP2$2.80
2600707118PIN, LIFT CYL.2$211.20

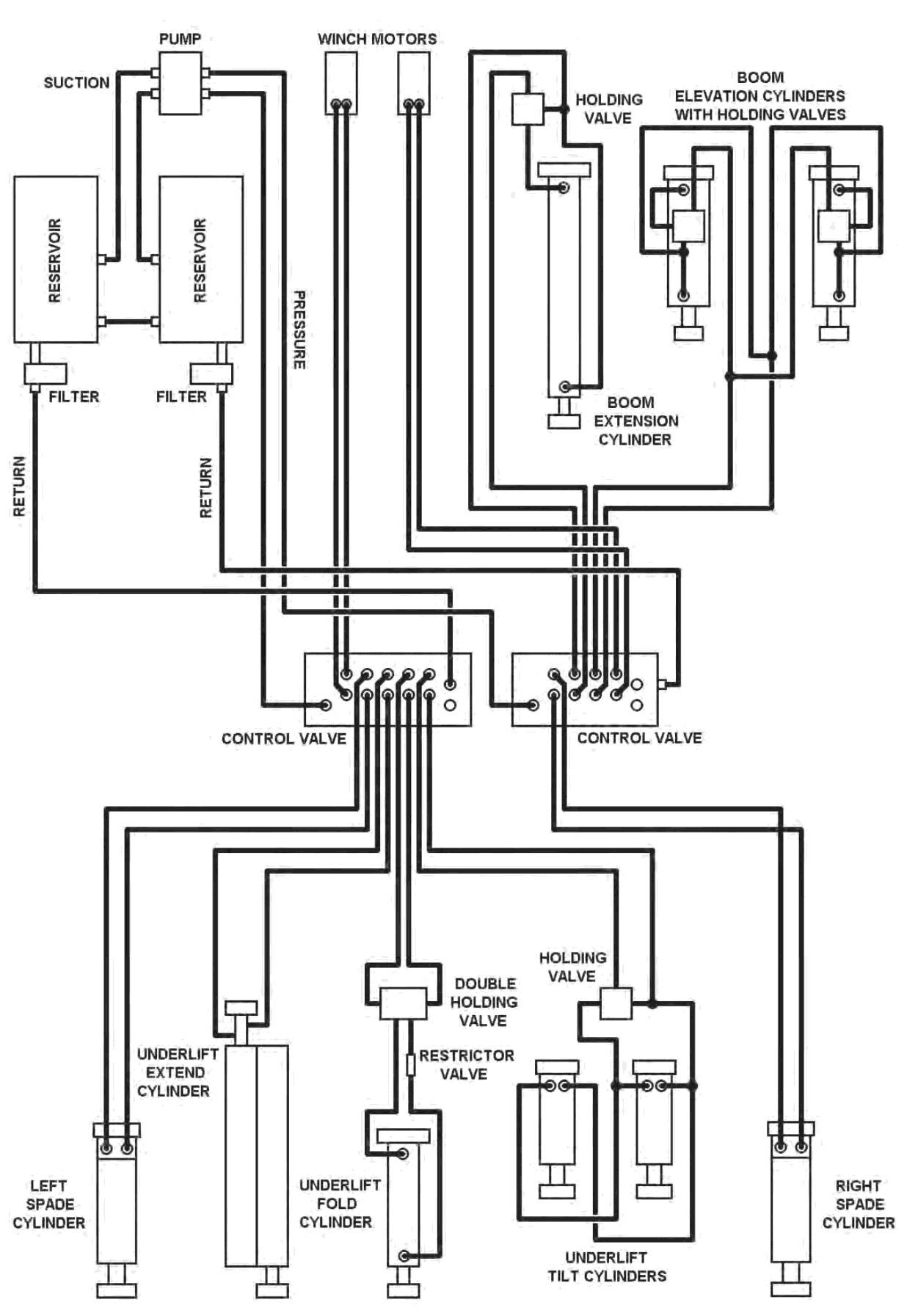

--0907020KIT-FRAME HYDRAULICCall for price—
2610300660HOSE HYD, 120"2$112.00
2620301372FITTING, ST.CONN. 12FJ-8MJ1$9.40
2630301837INLINE ORIFICE1Call for price—
2640301965HOSE HYD, 131"2$117.40
2650302000HOSE HYD, 24"1$39.80
2660302551C-SN-10 SOCKET-HEAD2$11.60
2670302552C-WA-10 WELD ADAPTER2$15.60
2680302575FITTING-BULKHEAD RUN TEE2$18.80
2690302585HOSE HYD, 54"2$70.40
2700302596HOSE HYD, 34"1$47.00
2710302604HOSE HYD, 44"2$47.00
2720302605HOSE HYD, 44"2$66.80
2730302805HOSE HYD, 10"1$29.80
2740303170HOSE, HYD. 75"2$93.80
2750303389HOSE HYD, 46" LG2$54.20
2760303392HOSE HYD, 73"2$117.40
2770307345FITTING, ADAPTER 16FJ-12MJ2$14.80
27804001185/16-18X3/4 HHCS GR5 ZP2$5.80
--0907021REAR SPADE ASSYCall for price—
2790300113GREASE FITTING, 1/4-28 STRAIGHT2$5.80
2800300134CLAMP, 1" HOSE INSULATED4$8.80
--0907021REAR SPADE ASSY (cont'd)Call for price—
2810301861QUICK PIN, LINCH -B7932 PL 7/162$3.80
2820302980NIPPLE, 1/2X5 S80 BLK PIPE4$9.20
2830303748HOSE HYD, 1364$106.60
2840307045FITT. 90 DEG EL 6MJ-8FP904$16.80
2850310013CYL, HYD TI-S24023424PPBZ2$2,158.20
0310274Seal kit for 0310013 cylinder: SEAL KIT 0310013/0307639 CYL.$117.80
28604000661/4-20X3/4 HHCS GR5 ZP8$5.80
28704001393/8-16X1.5 HEX SKT SET4$5.80
28804003923/8-16 NYLOK HEX NUT ZINC7$5.80
28904004521/4" HELICAL LCKWASHR ZP8$5.80
2900705500SHAFT - LOWER SPADE2$31.00
2910707394SHAFT, UPPER SPADE2$65.00
2920715694PIN - SPADE PIVOT2$125.60
2930715796PLATE - COVER SPADES (4024)2Call for price—
2940804334PIN - MULTI-POSITION2$252.80
2950807630LOWER SPADE PAD WLMT2$1,020.00
2960807664INNER SPADE WELD'T L.H.(4024)1$2,564.20
2970807665INNER SPADE WELD'T R.H.(4024)1$2,564.20
2989046354SPRING PIN 1/4 X 2-1/22$5.80
--0907139PAN-VALVE ASSYCall for price—
2990300044FITT, HYD CONN. 6MJ-8MB2$3.80
3000301470FITTING, 90ELB 6MJ-8MB902$7.60
3010301730VALVE, DOUBLE HOLDING1$542.60
30204000781/4-20X2 HHCS GR5 ZP2$5.80
30304001095/16-18X1 HHCS GR5 ZP9$5.80
30404001353/8-16X4.5 HHCS GR5 ZP6Call for price—
30504001573/8-16X1.75 HHCS GR5 ZP8$5.80
30604003671/4-20 NYLOK HEX NUT ZP2$5.80
30704003825/16-18 NYLOK HEX NUT ZP2$5.80
30804003845/16-24 NYLOK HEX NUT ZP2$5.80
30904003923/8-16 NYLOK HEX NUT ZINC12$5.80
31004004511/4 FLATWASHER ZP2$5.80
3110704045SPACER-CONTROL VALVE6Call for price—
3120717827PLATE, VALVE MOUNTING1Call for price—
3130719122PLATE - VALVE MTG1$13.20
3140906494VALVE ASSY, PARKER 4 SPL W/FTGS1Call for price—
3150906495VALVE ASSY, PARKER 5 SPL W/FTGS1Call for price—
--0906494VALVE ASSY, PARKER 4 SPL W/FTGSCall for price—
3160300044FITT, HYD CONN. 6MJ-8MB3$3.80
3170300052FITTING, ELB 8MJ-10MB 901$11.20
3180301388FITTING, 90ELL, 8MJ-8MB901$13.20
3190301522FITTING, CONN. 6MJ-6MB3$3.80
3200301545FITTING, ELB 12MJ-12MB 901$18.80
3210301995FITTING, ADAPTER STR1$5.60
3220302052FITTING, RUN TEE1$15.00
3230302508FITTING, ELL 8MJ-8MB 90LL1$13.80
3240303017FITTING, CONNECTOR3$5.60
3250303093VALVE, 4 SPOOL PARKER1$1,337.00
--0906495VALVE ASSY, PARKER 5 SPL W/FTGSCall for price—
3260300044FITT, HYD CONN. 6MJ-8MB6$3.80
3270300052FITTING, ELB 8MJ-10MB 901$11.20
3280301388FITTING, 90ELL, 8MJ-8MB901$13.20
3290301522FITTING, CONN. 6MJ-6MB2$3.80
3300301545FITTING, ELB 12MJ-12MB 901$18.80
3310301995FITTING, ADAPTER STR1$5.60
3320302052FITTING, RUN TEE1$15.00
3330302508FITTING, ELL 8MJ-8MB 90LL1$13.80
3340303017FITTING, CONNECTOR2$5.60
3350303094VALVE, 5 SPOOL PARKER1$1,447.40
--0907140KIT-VALVE COVER 9055Call for price—
33604001213/8-16X3/4 HHCS GR5 ZP4$5.80
33704004823/8" HELICAL LCKWSHR - ZP4$5.80
3380717066COVER - VALVE1$126.20
3390807181COVER, SUPPORT WELDMENT4$44.20
--0907288CONTROL ASSY (9) HANDLES$3,612.00
3400301473HOSE HYD, 18" LG2$57.80
3410302205GAUGE, FLUSH MNTG-6000 PSI2$44.80
3420302457CABLE, CONTROL 1043$167.80
3430302726GREASE FITTING, 1/4-28 X 45DEG9$3.80
3440303427CABLE, CONTROL 114"6$167.80
34504001075/16-18X2.5 HHCS GR5 ZP4$5.80
34604001095/16-18X1 HHCS GR5 ZP4$5.80
34704003825/16-18 NYLOK HEX NUT ZP8$5.80
34804003933/8-16 HEX NUT JAM ZP9$5.80
34904004511/4 FLATWASHER ZP8$5.80
35004005123/4 FLAT WASHER(SPECIAL)2Call for price—
3510400527CLEVIS PIN, 5/16X1"X5/8"GRIP9$8.00
3520711235CLAMP - SHAFT CONTROL BOX2$17.40
3530717198PIN - CONTROL HANDLE (9)1$42.00
3540717461PLATE - SUPPORT SHAFT2$16.00
3550806006CLEVIS WELD'T9$9.80
3560806007CONTROL FRAME WELD'T-(9) HANDL1Call for price—
3570907441CONTROL HANDLE ASSY - SHORT9$92.00
358FC41FITTING-90DEG BLKHD ELB2$15.60
--0907441CONTROL HANDLE ASSY - SHORT$92.00
3590806515CONTROL HANDLE WELD'T1Call for price—
3609053524BEARING BR. FLG.752 X .879X.752$6.00
--0907289RIGHT CONTROL ASSY-(6 HANDLE)$2,615.00
3610302457CABLE, CONTROL 1042$167.80
3620302726GREASE FITTING, 1/4-28 X 45DEG6$3.80
3630303427CABLE, CONTROL 114"4$167.80
36404001075/16-18X2.5 HHCS GR5 ZP4$5.80
36504001095/16-18X1 HHCS GR5 ZP2$5.80
36604003825/16-18 NYLOK HEX NUT ZP6$5.80
--0907289RIGHT CONTROL ASSY-(6 HANDLE) (cont'd)$2,615.00
36704004511/4 FLATWASHER ZP6$5.80
36804005123/4 FLAT WASHER(SPECIAL)2Call for price—
3690400527CLEVIS PIN, 5/16X1"X5/8"GRIP6$8.00
3700711235CLAMP - SHAFT CONTROL BOX2$17.40
3710717203PIN - CONTROL HANDLE (6)1$42.00
3720717206TUBE - 1.25 OD SPACER1$16.80
3730723378PLATE-PIN SUPPORT1$18.00
3740806006CLEVIS WELD'T6$9.80
3750806008CNTRL FRAME WELD'T-(6, 7, 8 HND)1$835.00
3760907441CONTROL HANDLE ASSY - SHORT6$92.00
--0907441CONTROL HANDLE ASSY - SHORT$92.00
3770806515CONTROL HANDLE WELD'T1Call for price—
3789053524BEARING BR. FLG.752 X .879X.752$6.00
--0907347KIT - REAR HANDRAILCall for price—
37904001483/8-16X1.25 HHCS GR5 ZP6$5.00
38004003923/8-16 NYLOK HEX NUT ZINC6$5.80
3810806521HAND RAIL WELD'T2Call for price—
--0907802KIT - RESERVOIR 5130-9055$3,943.00
3820300287FITTING, PIPE BUSHING, 1.25X12Call for price—
3830300364CLAMP-HOSE, 0.875"-2.75" 50"LBS2$7.00
3840301350PIPE, 1-1/2 CLOSE NIPPLE2Call for price—
3850301894SPIN-ON FLTR ASSY2$276.20
3860302227CENTER BONDED MOUNT4$24.40
3870302228SPECIAL WASHER (LORD)4$21.60
3880302570SIGHT GAUGE 3/4 NPT (SVM-12)2$15.60
3890302756SUCTION HOSE, 1-1/4IDX100 100R4Priced per foot2.25$21.20
3900303155PIPE PLUG 3/4 NPT MAGNETIC2$11.60
3910303338FITTING, ELBOW2$26.40
3920305006FILLER CAP (GO205, FB194)2$63.20
3930307344SUCTION STRAINER2$131.80
39404001223/8-16X1.25 HHCS GR5 ZP8$5.80
39504001493/8-16 X 5/8 HHCS GR5 ZP24$4.00
39604001503/8-16X2.5 HHCS GR5 ZP4$5.80
39704003923/8-16 NYLOK HEX NUT ZINC12$5.80
39804004803/8 FLATWASHER ZP24$4.00
3990706114GSKT-CLEANOUT&FLLR COVER2$42.20
4000802747PIPE-FILLER WLMT2Call for price—
4010803193SUPPORT-RESERVOIR WLDMT.2Call for price—
4020806653RESERVOIR-LEFT WELDMENT1$1,673.20
4030806654RESERVOIR-RIGHT WELDMENT1$1,673.20
--0908047BOOM INSTALLATION - 5035 2-SPCall for price—
4040301893HOSE HYD, 842$112.00
4050301895GREASE FITTING, STR 1/8 PTF2$5.80
4060302514ADAPTER 8MJ-6MJ12$5.60
4070302546CLAMPING UNIT C-PH-10-26$15.60
--0908047BOOM INSTALLATION - 5035 2-SP (cont'd)Call for price—
4080302548CLAMPING UNIT(SET) HC-10-63$28.00
4090302549SPLIT BUSH.RUBBER C-SB10-8 1/219$5.60
4100302550C-SB-10-12 3/4 SPLIT10$9.80
4110302551C-SN-10 SOCKET-HEAD7$11.60
4120302624HYD TUBING6$151.60
4130302955HOSE HYD, 48-1/4"2$63.00
4140303391HOSE 8AT2(8FJX-8FJ90) 110"2$76.00
41504001185/16-18X3/4 HHCS GR5 ZP14$5.80
41604001323/8-16X1.5 HHCS GR5 ZP2$5.80
41704001811/2-13X1.5 HHCS GR5 ZP2$5.80
41804002201/2-13X5.5" HHCS GR5 ZP1$8.00
41904003923/8-16 NYLOK HEX NUT ZINC4$5.80
42004004081/2-13 NYLOK HEX NUT ZP3$2.80
42104004921/2" FLATWASHER ZP2$5.80
4220705104PLATE-WINCH CABLE SPPT.1$95.60
4230713217BAR6Call for price—
4240715953PIN - BOOM PIVOT1$635.40
4250802219PIN-LIFT CYL. PIVOT2$216.60
4260906985KIT - TILT CYLINDER 5130/52301$2,409.80
4270908048BOOM ASSEMBLY - 5035 2-SPD W1Call for price—
428DE13811/2 WASHER SAE 17/32 ID2$5.60
--0906985KIT - TILT CYLINDER 5130/5230$2,409.80
4290300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
4300301470FITTING, 90ELB 6MJ-8MB902$7.60
4310301522FITTING, CONN. 6MJ-6MB1$3.80
4320301619FITT, 6MJ-6MJ-6MB BRANCH TEE1$11.20
4330301620FITTING, HYD. 6MJ - 6MB901$5.80
4340302035HOSE HYD, 18" 6FJX-6FJX -6M1T1$37.40
4350302805HOSE HYD, 10"1$29.80
4360302842FITTING, TEE2Call for price—
4370302914HOSE HYD, 35"1$70.20
4380302915HOSE HYD, 12"2$56.00
4390303563HOSE HYD, 27"1$42.00
4400307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
4410307106FITT, CONNECTOR 4MB-6FB1$9.40
4420307107VALVE, HOLDING 4000 PSI SAE1$310.60
44304000781/4-20X2 HHCS GR5 ZP2$5.80
44404001333/8-16X3 HHCS GR5 ZP4$5.80
44504003671/4-20 NYLOK HEX NUT ZP2$5.80
44604003923/8-16 NYLOK HEX NUT ZINC4$5.80
44704021101/4 SS FLAT WASHER2$5.80
4480703001BRKT, MTG, CHECK VALVE1$24.40
4490716763SHAFT1$159.40
4500716870SHAFT1$106.60
45190561251.25 NOM HVY DUTY RET RING EXT2$3.80
--0908048BOOM ASSEMBLY - 5035 2-SPD WCall for price—
4520300113GREASE FITTING, 1/4-28 STRAIGHT2$5.80
--0908048BOOM ASSEMBLY - 5035 2-SPD W (cont'd)Call for price—
4530301895GREASE FITTING, STR 1/8 PTF1$5.80
45403019493/8" OD AIRLINE, SYNFLEX HOSEPriced per foot14$8.00
4550302552C-WA-10 WELD ADAPTER7$15.60
4560303490PAD-WEAR 1/2" X 1" X 4"2$49.60
45704000591/4-20X5/8 HHCS GR5 ZP2$5.80
45804001213/8-16X3/4 HHCS GR5 ZP5$5.80
45904004521/4" HELICAL LCKWASHR ZP2$5.80
4600400990SET SCRW, 1/2-13X1/2 SKT, CUP PT4$9.80
4610805876OUTER BOOM WLD'T1$25,032.40
4620807929INNER BOOM WELDMENT1$7,609.20
4630906987KIT - EXT. CYLINDER (5035)1Call for price—
4640908049WINCH ASSEMBLY - 5035 2-SP W1Call for price—
4650908431KIT - "D" RING BOOM1$124.60
4663012-793001PLATE - LUBE MTG.1$19.40
4679012549CONNECTOR-MALE 3/8TUBEX11$15.60
4689012552BULKHEAD ADAPTER 1/8M-1/8F NPT1$39.80
4699012584ELBOW-1/4NPT X 3/8TUBE 91$21.20
47090444343/8-16X1 NC FLAT SOCKET HD CAP2$5.80
471915030004WEAR PAD (UPPER)1$101.00
472915040001PAD RETAINING PLATE1$47.20
473916040004WEAR PAD - LOWER1$39.80
--0906987KIT - EXT. CYLINDER (5035)Call for price—
4740301522FITTING, CONN. 6MJ-6MB2$3.80
4750301959SNAP RING-INTERNAL 1-1/22$5.80
4760307082CYLINDER, BOOM EXT.(W/SUN VALV1$5,964.40
Seal kit for 0307082 cylinder: Call for pricing and availability: 770-921-6070
47704001323/8-16X1.5 HHCS GR5 ZP2$5.80
47804003923/8-16 NYLOK HEX NUT ZINC2$5.80
47904004823/8" HELICAL LCKWSHR - ZP2$5.80
4800707580PIN-SPADE CYL-ROD CH-501$83.00
4819056150RETAINING RING - 1 1/22$8.00
482915040400SPIDER CLAMP WLDM'T, TOP1$330.40
483915040501CLAMP PLATE2$12.40
484916350001PIN, BOOM EXT CYL 1.5 X 9 5/81$89.40
--0908049WINCH ASSEMBLY - 5035 2-SP WCall for price—
4850300041FITTING, CONNECTOR 8MJ-8MB2$5.60
4860301445FITTING, EXTENDED2$10.00
48703015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot80$5.80
4880302495CONVOLUTED LOOM 1/4Priced per foot80$2.80
4890310194HARNESS, WIRING 2-SPEED1$154.00
49003111936" CABLE TIE35Call for price—
49104002625/8-11X2.5" HHCS GR 8 ZP16$5.80
49204004265/8-11 GR 8 NYLOK NUT YZ PLT16$8.00
4930711164BLOCK - SHEAR8$5.60
4940715947ANGLE - WINCH MOUNTING2Call for price—
4950715948ANGLE - WINCH MOUNTING2Call for price—
4960715949ANGLE - WINCH MOUNTING2Call for price—
4970715950ANGLE - WINCH MOUNTING2Call for price—
--0908049WINCH ASSEMBLY - 5035 2-SP W (cont'd)Call for price—
4989010520FITTING-ELBOW 1/4T-1/4NPT2$13.80
4999011071FITT, BRASS TEE 1/4T-1/4T-1/4T1$15.60
5009048248WINCH DP 2-SPD 25K NARROW DRUM2$13,804.80
--0908431KIT - "D" RING BOOM$124.60
5010712380RING - D1$119.20
502BA0259PIN - "D" RING1$23.20
503HD01061/4X1.75SPRING PIN ZP1$1.80

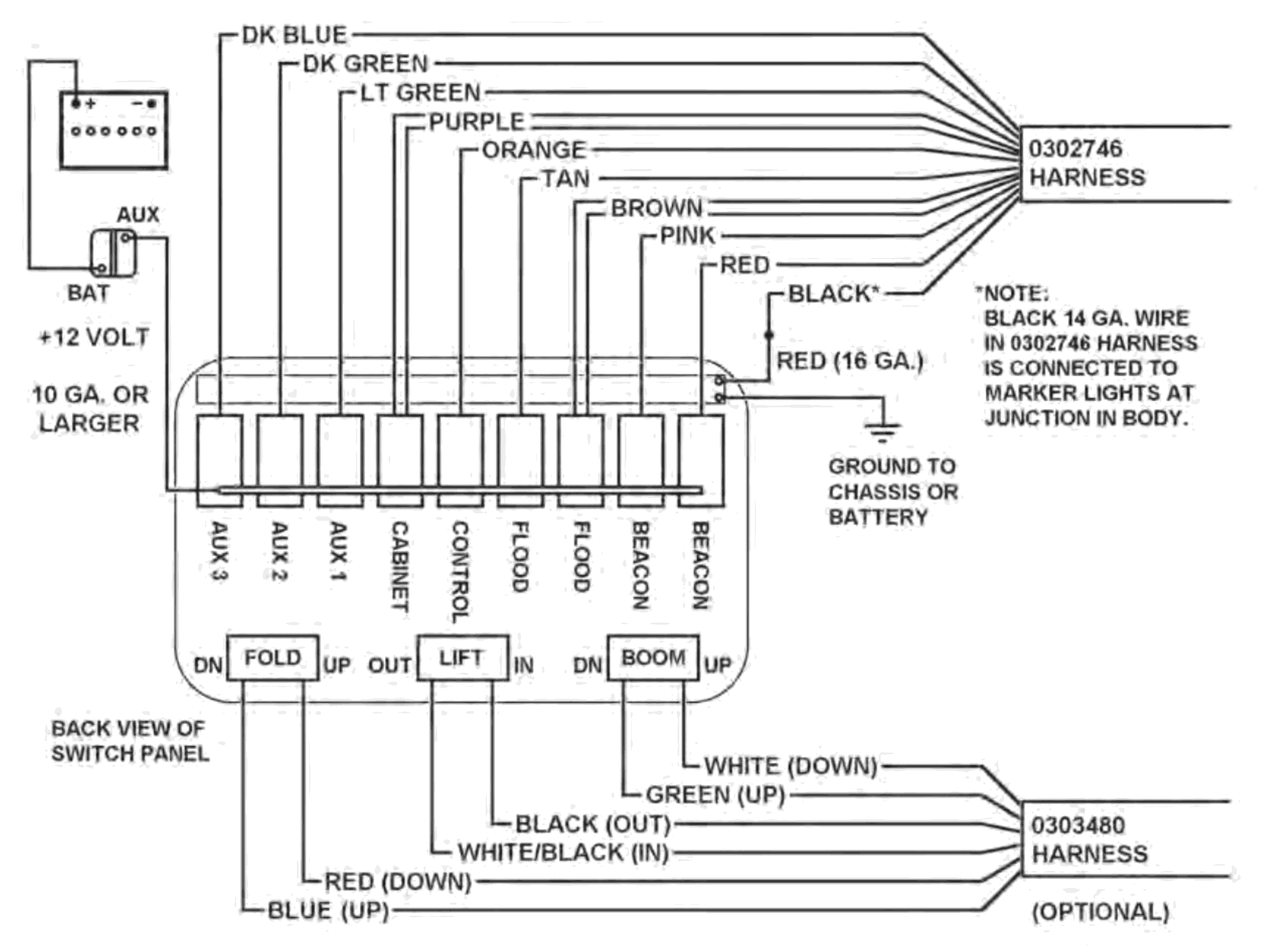

--0911135INTEGRATED NON-LIGHTED CONTROL$1,170.40
5040907708CNTRL KIT RT (KNOB, DECAL, PL)1$686.20
5050907757CNTRL KIT LEFT (KNOB, DECAL, PL)1$717.80
--0907708CNTRL KIT RT (KNOB, DECAL, PL)$686.20
5060300835KNOB-BOOM (UP-DOWN)1$13.20
5070300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5080300837KNOB-BOOM (IN-OUT)1$15.00
5090307166PLUG 7/82$2.00
5100307604KNOB, RED LONG - SK0700-072$22.40
5110310021PIGTAIL, PWR - SWITCH1Call for price—
5120310022PIGTAIL, GND - SWITCH1Call for price—
51304000611/4-20X3/4 MACH SCREW3Call for price—
51404000621/4-20X3/4 THRD CUT HEX12$8.00
51504000701/4-20X1 HHCS GR5 ZP4$5.80
51604001015/16-18X1 RD MACH HD SS4$5.80
51704001075/16-18X2.5 HHCS GR5 ZP4$5.80
51804003671/4-20 NYLOK HEX NUT ZP4$5.80
51904003691/4 "J" TYPE TINNERMAN3$5.80
52004003795/16-18 "J" NUT TINNERMAN4$8.00
52104003933/8-16 HEX NUT JAM ZP4$5.80
52204004511/4 FLATWASHER ZP6$5.80
5230500914DECAL-CTRL PANEL WRECKER1$47.00
5240500915DECAL-CTRL PANEL SPADE1$47.00
5250501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
5260723231PANEL-CONTROL 6 HANDLE1$169.60
5270723232PANEL-SWITCH1$142.60
5280724648BRACE1$36.00
5299024041SWITCH-ROCKER, LIGHTED 12V2$43.40
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL)$717.80
5300300835KNOB-BOOM (UP-DOWN)1$13.20
5310300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5320300837KNOB-BOOM (IN-OUT)1$15.00
5330302856KNOB-TILT, 3/8-16 THREAD1$24.40
5340302917KNOB-WHL LIFT EXT IN-OUT1$31.00
5350303382KNOB - FOLD (UP-DN)1$17.40
5360307604KNOB, RED LONG - SK0700-072$22.40
5370307778PLUG, FILLER4$3.40
5380310021PIGTAIL, PWR - SWITCH1Call for price—
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL) (cont'd)$717.80
5390310022PIGTAIL, GND - SWITCH1Call for price—
5400311355HOBBS HOURMETER1$87.40
5410400005SCREW, ROUND PH 6-32 X 1/2 SS6$5.80—
54204000621/4-20X3/4 THRD CUT HEX12$8.00
54304000661/4-20X3/4 HHCS GR5 ZP3$5.80
54404000701/4-20X1 HHCS GR5 ZP4$5.80
54504001015/16-18X1 RD MACH HD SS4$5.80
54604001075/16-18X2.5 HHCS GR5 ZP4$5.80
54704003671/4-20 NYLOK HEX NUT ZP3$5.80
54804003671/4-20 NYLOK HEX NUT ZP4$5.80
54904003691/4 "J" TYPE TINNERMAN3$5.80
55004003795/16-18 "J" NUT TINNERMAN4$8.00
55104003933/8-16 HEX NUT JAM ZP9$5.80
55204004511/4 FLATWASHER ZP6$5.80
5530402094NUT, HEX 6-32 SS6Call for price—
5540500773DECAL PLATE-THROTTLE1$31.00
5550500914DECAL-CTRL PANEL WRECKER1$47.00
5560500915DECAL-CTRL PANEL SPADE1$47.00
5570500916DECAL-CTRL PNL UNDERLIFT1$45.20
5580501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
5590723230PANEL, CONTROL 91$313.00
5600723233PANEL, GAUGE 91$177.00
5610724648BRACE1$36.00
5629024041SWITCH-ROCKER, LIGHTED 12V3$43.40
Back to Manual Navigation Menu

5230 Parts

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--125524021CENTURY 5230 W/2-SP WINCHESCall for price—
10907154SHIP KIT - 52301Call for price—
209085595130/5230 UNIT ASSY GREENVILLE1Call for price—
30911135INTEGRATED NON-LIGHTED CONTROL1$1,170.40
--0907154SHIP KIT - 5230Call for price—
403008443/4 X 1/8 CLOSED CELLPriced per foot15$2.80
50303867PUMP, BI-ROTATIONAL1$2,046.00
60306899WIRE ROPE 5/8x6x37 IWRC XIPS2$1,486.60
70310599CRC HD CORROSION INHIBIT SPRAY1Call for price—
80902328KIT-BODY MOUNTING - 50301$1,047.00
90903137KIT-TOWER RAMP 9055/50301$187.00
100903729CHAIN-SAFETY ASSY1Call for price—
110904217HARDWARE-BODY MOUNTING1$236.60
120904366KIT-FORK (9) PAIRS1Call for price—
130908275KIT, FENDER SKIRT-AL TBOX LWRK1$54.20
140910479PURCHASED SHIP KIT 51301Call for price—
--0902328KIT-BODY MOUNTING - 5030$1,047.00
150707174ANG TAILGATE MTG2$34.80
160707175PLATE, MOUNTING 50302$117.40
170711286SPACER - REAR FRAME BRKT2Call for price—
180717507PLATE - MOUNTING2$561.60
--0903137KIT-TOWER RAMP 9055/5030$187.00
190303089RAMP PAD - 9055/50302$84.80
2004001283/8-16X1.25 FLAT HD SOC10$8.00
2104003923/8-16 NYLOK HEX NUT ZINC10$5.80
--0903729CHAIN-SAFETY ASSYCall for price—
220307626SAFETY CHAIN ASY, 1/2X14' GR1002$758.00
0904217HARDWARE-BODY MOUNTING$236.60
2304002863/4-10X2.75" HHCSGR 8GOLD44$8.00
2404003017/8-9X3HHCS GR5 ZP4Call for price—
2504004313/4-10 NYLOK HEX GR 8 ZP44$8.00
2604004367/8-9 NYLOK HEX NUT ZP4$5.80
--0904366KIT-FORK (9) PAIRSCall for price—
270200018FORK-SHORT, 3IN OPNG2$158.80
280200019FORK-SHORT, 4-1/2IN OPNG2$177.00
290200020FORK-MED, 3IN OPNG2$216.60
300200021FORK-MED, 4-1/2IN OPNG2$251.00
310200022FORK-LONG, 3IN OPNG2$261.80
320200023FORK-LONG, 4-1/2IN OPNG2$339.40
330200024FORK-OFFSET REAR AXLE2$251.00
340200042FORK-MEDIUM ROUND AXLE2$184.00
350306564ALUM T HANDLE 5/8" X 1-1/4"2$18.80
360310230CLEVIS PIN, 5/8 X 6 ZINC PLT2$13.80
370400886HITCH PIN CLIP, 1/8 DIAx2.6 OAL2$2.40
--0904366KIT-FORK (9) PAIRS (cont'd)Call for price—
380801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
390801186ADAPTER-HDU CHAIN (LH OR RH)1$373.60
400803591ADAPTER-LEFT FORK1$875.00
410803592ADAPTER-RIGHT FORK1$875.00
420807023BRKT-PIVOT SPRING LIFT2$586.40
430900900PIN-ASSY, RETAINER2$32.80
440908672PIN-RET.-SPRING LIFT2$43.40
--0900900PIN-ASSY, RETAINER$32.80
450302474PIN, LINCH 3/161$3.80
4603111673/16 SWAGE FOR 1/8 COATED CABL1$3.00
470311210CABLE, PIN RETAINER ASSY .1251$28.60
4804005683/8X3" ROLL PIN ZP1$8.00
4904005733/16X1-1/4ROLL PIN ZP1$5.80
5004020201/4-20NC X 3/4 HEX HD SS1$5.80
510703426PIN, RETAINER1Call for price—
--0908672PIN-RET.-SPRING LIFT$43.40
520302474PIN, LINCH 3/161$3.80
5303111673/16 SWAGE FOR 1/8 COATED CABL1$3.00
540311210CABLE, PIN RETAINER ASSY .1251$28.60
5504005683/8X3" ROLL PIN ZP1$8.00
5604005733/16X1-1/4ROLL PIN ZP1$5.80
5704020201/4-20NC X 3/4 HEX HD SS1$5.80
580718917PIN, RETAINER1Call for price—
--0908275KIT, FENDER SKIRT-AL TBOX LWRK$54.20
590307270SIKAFLEX-GRAY 221-G SEALANT1$34.80
609025068REFLECTOR-PETERSON B489R DECAL4$8.00
--0910479PURCHASED SHIP KIT 5130Call for price—
61030013214" UV BLK CABLE TIE100$1.00
620500241DECAL-SAFETY CHAIN WARN3$8.00
630500554FLAG, AMERICAN LT2$19.40
640500686DECAL - RETRACT CAUTION2$3.80
6505011405130/5230 OWNERS MANUAL1$59.60
660501167PLATE, CENTURY, NAME, PLASTIC2$52.40
670501763CENTURY LARGE INT INSTL MANUAL1Call for price—
680711438BRACKET - HOSE8Call for price—
690902333KIT-GLAD HAND1Call for price—
700904183KIT-AIR TENSIONER1$1,729.80
710906838GROUND KIT MTG.HARNESS CENTURY1$26.80
720907043KIT, HOLE PLUG TOOL BOX1$98.60
730907883KIT- PUMP 5130-70351$1,310.00
740908382KIT - MUDFLAP LRG CENTURY WKR1$249.80
750908446KIT, SWITCH/DECALS 2-SPD WINCH1Call for price—
760911090KIT-SAFETY TREAD-INTEGRATED1$143.80
--0902333KIT-GLAD HANDCall for price—
770301909RECEPTACLE BOOT1Call for price—
780301946FITTING, BLKHD CONNECT2$93.80
790301948HD 7 WAY TRAILER CONNECT1$59.60
800304363QUICK DISCONNECT 1/2 FPT2$64.40
8104000701/4-20X1 HHCS GR5 ZP2$5.80
8204003671/4-20 NYLOK HEX NUT ZP2$5.80
8304004511/4 FLATWASHER ZP2$5.80
--0904183KIT-AIR TENSIONER$1,729.80
8403015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot25$5.80
850302495CONVOLUTED LOOM 1/4Priced per foot25$2.80
8603111936" CABLE TIE25Call for price—
8704000621/4-20X3/4 THRD CUT HEX2$8.00
880700188BRKT, BULKHEAD2$13.80
890909085KIT, AIR FLR/REG/LUBE COMBO 1/41$233.40
90HA0132GAUGE 0-160 PSIG1$24.40
--0909085KIT, AIR FLR/REG/LUBE COMBO 1/4$233.40
910306983FITT-MALE RUNTEE 1/4T-1/4NPT1$18.80
920311367INTERFACE ADAPTER1Call for price—
930911210ASSEMBLY-FILTER/REGULATOR COMB1Call for price—
949010520FITTING-ELBOW 1/4T-1/4NPT1$13.80
--0911210ASSEMBLY-FILTER/REGULATOR COMBCall for price—
950311363FILTER/REGULATOR COMBINATION1Call for price—
960311365BRACKET1$24.80
97HA0132GAUGE 0-160 PSIG1$24.40
--0906838GROUND KIT MTG.HARNESS CENTURY$26.80
9804001263/8-16X1 HHCS GR5 ZP1$5.80
9904003923/8-16 NYLOK HEX NUT ZINC1$5.80
10004004813/8" EXT.TOOTH LOCKWASHER1$5.80
10104004993/4" EXT.TOOTH LOCKWASHER1Call for price—
10204021223/8-16NC HEX NUT 316 SS1$4.00
1030716468LUG - GROUNDING1Call for price—
--0907043KIT, HOLE PLUG TOOL BOX$98.60
1040307052WASHER, RUBBER 7/16X1 1/4X1/48$3.80
10504002011/2-13X1.5 CRGBLT GR5 ZP4Call for price—
10604004071/2-13 HEX NUT ZP4$5.80
10704004911/2" HCL LKWSHR ZP4$5.80
10804004921/2" FLATWASHER ZP4$5.80
10904005065/8 FLATWASHER ZP4$5.80
--0907883KIT- PUMP 5130-7035$1,310.00
1100300348NIPPLE, 1-1/2 X 52$7.80
1110300364CLAMP-HOSE, 0.875"-2.75" 50"LBS8$7.00
1120300660HOSE HYD, 120"2$112.00
1130300865FITTING, CONNECTOR 8MJ-8MJ2$5.60—
--0907883KIT- PUMP 5130-7035 (cont'd)$1,310.00
1140301529HOSE HYD, 582$75.80
1150301547FITTING, ELB 8MJ-12MB 902$18.80
1160302088BALL VALVE2$91.00
1170302698FITTING, HOSE BARB, 1-1/42$32.40
1180302906FITTING, ADAPTER2$15.20
1190303290INSULATED CLAMP 2 1/212$19.40
1200303463BUSHING 1 1/2MP-1 1/4FP2$6.80
1210306539HOSE BARB 20HOSE16MB902Call for price—
1220310010SUCTION HOSE, 1-1/4ID X50 100R41Call for price—
12304001811/2-13X1.5 HHCS GR5 ZP2$5.80
12404004911/2" HCL LKWSHR ZP2$5.80
--0908382KIT - MUDFLAP LRG CENTURY WKR$249.80
1250310631MUD FLAP, CENTURY2$45.20
12604001035/16-18X1.25 HHCS GR5 ZP8$5.80
12704001483/8-16X1.25 HHCS GR5 ZP4$5.00
12804003825/16-18 NYLOK HEX NUT ZP8$5.80
12904003923/8-16 NYLOK HEX NUT ZINC4$5.80
1300717386BAR - MUDFLAP2$45.20
1310718139ANGLE - MUD FLAP MOUNT2$50.60
--0908446KIT, SWITCH/DECALS 2-SPD WINCHCall for price—
1320501647DECAL, 2-SPEED2$17.40
1339024041SWITCH-ROCKER, LIGHTED 12V4$43.40
--09085595130/5230 UNIT ASSY GREENVILLECall for price—
1340906529KIT - BOOM SWIVEL1$3,451.60
1350906911UNDERLIFT & TOWER ASSY 51/52301$44,217.60
1360907317SUBFRAME ASSY - 5130/52301Call for price—
1370908047BOOM INSTALLATION - 5035 2-SP1Call for price—
--0906529KIT - BOOM SWIVEL$3,451.60
13804005543/8X1 ROLL PIN ZP6$9.60
1390906530SWIVEL - BOOM ASSEMBLY2$1,672.00
--0906530SWIVEL - BOOM ASSEMBLY$1,672.00
1400300113GREASE FITTING, 1/4-28 STRAIGHT1$5.80
1410300626SHEAVE, 8" 58SHVBBAY 1.51$204.00
14204001333/8-16X3 HHCS GR5 ZP1$5.80
14304001503/8-16X2.5 HHCS GR5 ZP2$5.80
14404003923/8-16 NYLOK HEX NUT ZINC3$5.80
1450700801GUIDE, BOTTOM CABLE2$23.20
1460716134SHAFT - SHEAVE1$68.60
1470800286GUIDE-CABLE1$285.20
1480804448BOOM END SWIVEL WLDT-FIII/40241$1,070.40
--0906911UNDERLIFT & TOWER ASSY 51/5230$44,217.60
1490300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
1500301601CLAMP, HOSE, INSUL, 5/84$3.80
--0906911UNDERLIFT & TOWER ASSY 51/5230 (cont'd)$44,217.60
1510301620FITTING, HYD. 6MJ - 6MB902$5.80
1520302637HOSE HYD, 72"1$54.20
1530302812HOSE HYD, 78"1$55.60
1540302813HOSE HYD, 108" LG2$103.00
1550306746CYL HYD - FOLD1$812.20
Seal kit for 0306746 cylinder: 4 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03004185Holmac cylinder: SEAL KIT FOR 0306746 HOLMAC$144.80
0304609AAshun (MTC) cylinder: SEAL KIT FOR 0306746 MTC$113.80
0304609SSouthern (SHCI) cylinder: SEAL KIT FOR 0306746 SOUTHERN$174.80
0304609TTexas (THI) cylinder: SEAL KIT FOR 0306746 THI$123.00
1560307420SLEEVE, NYLON PROTECTIVE-24HGPriced per foot2$2.60
15704001223/8-16X1.25 HHCS GR5 ZP1$5.80
15804001323/8-16X1.5 HHCS GR5 ZP1$5.80
15904001513/8-24X3/4 HHCS GR5 ZP5$5.80
16004001761/2-13X1 HHCS GR5 ZP1$5.80
16104003923/8-16 NYLOK HEX NUT ZINC5$5.80
16204004803/8 FLATWASHER ZP1$4.00
16304004813/8" EXT.TOOTH LOCKWASHER9$5.80
16404004823/8" HELICAL LCKWSHR - ZP1$5.80
16504004911/2" HCL LKWSHR ZP2$5.80
1660706432BLOCK - STOP2$11.60
1670707099BLOCK, STOP2$29.80
1680717657PLATE, STOP BLOCK SUPRT2$24.40
1690802214PIN-UNDERLIFT PIVOT1$618.00
1700802365PIN-TOWER PIVOT WLMT2$177.00
1710802459PIN-FOLD CYL. WLDMT1$144.40
1720804483CABLE TIE BACK WLMT2$166.20
1730805884TOWER WELD'T (5130, 5230)1$8,109.80
1740806756PIN WELD'T - FOLD CYLINDER1$57.80
1750903156CROSSBAR-5" ASSY1$3,862.40
1760906572KIT-WINCH CABLE STOW2$55.80
1770906883U/L BOOM ASSY (5035)1$21,767.00
178RB0205SPLIT BUSHING2$103.00
--0903156CROSSBAR-5" ASSY$3,862.40
1790301197COMP.SPRING, CROSS BAR, FI1$9.20
1800301398STEEL BALL, 1-3/16 DIA1$15.60
1810301822O-RING - PIVOT PIN1$3.80
1820303097THRUST WASHER - 1/8 THK1$90.20
1830303098THRUST WASHER - 1/16 THK1$54.20
18404002715/8-11X4.5SKTHDCAPSCREW2$13.80
18504005085/8" HELICAL LCKWSHR ZP2$5.80
1860708470SPACER - DETENT BALL SPRG1$17.40
1870710051PIN - TOP HALF PIVOT1$299.60
1880710052PIN - BOTTOM HALF PIVOT1$299.60
1890802914CROSSBAR WELDMENT1$2,756.80
--0906572KIT-WINCH CABLE STOW$55.80
19004002575/8-11X3.25 HHCS GR5 ZP1$3.40
19104004215/8-11 NYLOK HEX NUT ZP1$5.80
1920804483CABLE TIE BACK WLMT1$166.20
19390488005/8 WELDLESS CHAIN LINK1$21.60
194945030007CABLE TIE BACK SPRING-11$28.00
--0906883U/L BOOM ASSY (5035)$21,767.00
1950301522FITTING, CONN. 6MJ-6MB2$3.80
1960302538BUSHING - U/L2$189.60
1970302561SLIDE PAD8$18.80
1980307013PAD - WEAR2$23.40
1990307041U/L EXTEND CYL.1$5,733.40
Seal kit for 0307041 cylinder: 2 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304669Texas (THI) cylinder: SEAL KIT FOR 0307041$205.80
03009988Southern (SHCI) cylinder: SEAL KIT, UL EXT CYL$265.00
20004001393/8-16X1.5 HEX SKT SET2$5.80
20104001473/8-24X5/8 HHCS GR5 ZP4$5.80
20204001513/8-24X3/4 HHCS GR5 ZP5$5.80
20304002283/8-24X5/8 BUTTON HEAD8$9.80
20404003923/8-16 NYLOK HEX NUT ZINC2$5.80
20504004813/8" EXT.TOOTH LOCKWASHER9$5.80
2060400990SET SCRW, 1/2-13X1/2 SKT, CUP PT8$9.80
2070706996PAD, SPACER1$47.00
2080707028PAD, BOLT-ON BEARING1$52.40
2090707034PLATE, STOP4$25.20
2100716745SHAFT - EXTEND CYL(ROD) PL1$81.20
2110716746SHAFT - EXTEND CYL(BASE) PL1$90.20
2120805894OUTER U/L BOOM (5130, 5230)1$5,468.60
21308058952ND STAGE U/L BOOM (5130, 5230)1$3,109.80
21409069623RD STAGE BOOM ASSY - 50351$4,329.60
215124004465ALUM HEEL PLATE 9.5" 40241$497.20
216BK2003PAD-WEAR2$21.40
--09069623RD STAGE BOOM ASSY - 5035$4,329.60
2170303088BUSHING - PIVOT PIN1$393.60
21808058853RD STAGE U/L BOOM (5130, 5230)1$3,471.40
--124004465ALUM HEEL PLATE 9.5" 4024$497.20
21904009803/8-16X1" FLAT HD SOC CAP SCRW6$5.60
2200724684U/L HEEL PLATE-40241$141.80
--0907317SUBFRAME ASSY - 5130/5230Call for price—
2210302538BUSHING - U/L2$189.60
22204000701/4-20X1 HHCS GR5 ZP2$5.80
22304002883/4-10X2.5HHCS GR 8GOLD12$9.80
22404003671/4-20 NYLOK HEX NUT ZP2$5.80
22504004313/4-10 NYLOK HEX GR 8 ZP12$8.00
2260711164BLOCK - SHEAR4$5.60
2270712522BAR4$6.60
2280714581PLATE - BOLTING4$13.00
2290804405BRACKET - BOOM PIVOT2$884.00
2300806508SUBFRAME WELD'T - 5130/52301$18,137.40
2310903528LINK-LT.&RT. SIDE CONT.1$145.00
2320906983KIT - LIFT CYLINDER 50351Call for price—
2330907020KIT-FRAME HYDRAULIC1Call for price—
2340907021REAR SPADE ASSY1Call for price—
2350907139PAN-VALVE ASSY1Call for price—
2360907140KIT-VALVE COVER 90551Call for price—
2370907288CONTROL ASSY (9) HANDLES1$3,612.00
--0907317SUBFRAME ASSY - 5130/5230 (cont'd)Call for price—
2380907289RIGHT CONTROL ASSY-(6 HANDLE)1$2,615.00
2390907347KIT - REAR HANDRAIL1Call for price—
2400907802KIT - RESERVOIR 5130-90551$3,943.00
--0903528LINK-LT.&RT. SIDE CONT.$145.00
2410303008ADJUSTABLE CLEVIS3$9.40
24204001035/16-18X1.25 HHCS GR5 ZP9$5.80
24304001223/8-16X1.25 HHCS GR5 ZP6$5.80
24404003825/16-18 NYLOK HEX NUT ZP9$5.80
24504003835/16-24 HEX NUT ZP12$5.80
24604003923/8-16 NYLOK HEX NUT ZINC6$5.80
24704004665/16 INT.TOOTH LOCKWSHR47$5.80
2480711249PLATE - CONTROL BULKHEAD2$21.60
2490711250PLATE - CONTROL BULKHEAD1$16.40
2500801054CONNECTOR-CONTROL CABLE6Call for price—
--0906983KIT - LIFT CYLINDER 5035Call for price—
2510300113GREASE FITTING, 1/4-28 STRAIGHT4$5.80
2520301620FITTING, HYD. 6MJ - 6MB904$5.80
2530303389HOSE HYD, 46" LG2$54.20
2540303394HOSE HYD, 46"2$41.80
2550307012CYL - BOOM LIFT (5035)2$5,380.20
Seal kit for 0307012 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

0304672Texas (THI) cylinder: SEAL KIT FOR 0307012 TEXAS$258.20
0304672HHolmac cylinder: SEAL KIT FOR 0307012 HOLMAC$538.80
0304672SSouthern (SHCI) cylinder: SEAL KIT FOR 0307012 SHC$207.20
25604002191/2-13X4.5HHCS GR5 ZP2$8.00
25704004081/2-13 NYLOK HEX NUT ZP2$2.80
2580707118PIN, LIFT CYL.2$211.20
--0907020KIT-FRAME HYDRAULICCall for price—
2590300660HOSE HYD, 120"2$112.00
2600301372FITTING, ST.CONN. 12FJ-8MJ1$9.40
2610301837INLINE ORIFICE1Call for price—
2620301965HOSE HYD, 131"2$117.40
2630302000HOSE HYD, 24"1$39.80
2640302551C-SN-10 SOCKET-HEAD2$11.60
2650302552C-WA-10 WELD ADAPTER2$15.60
2660302575FITTING-BULKHEAD RUN TEE2$18.80
2670302585HOSE HYD, 54"2$70.40
2680302596HOSE HYD, 34"1$47.00
2690302604HOSE HYD, 44"2$47.00
2700302605HOSE HYD, 44"2$66.80
2710302805HOSE HYD, 10"1$29.80
2720303170HOSE, HYD. 75"2$93.80
2730303389HOSE HYD, 46" LG2$54.20
2740303392HOSE HYD, 73"2$117.40
2750307345FITTING, ADAPTER 16FJ-12MJ2$14.80
27604001185/16-18X3/4 HHCS GR5 ZP2$5.80
--0907021REAR SPADE ASSYCall for price—
2770300113GREASE FITTING, 1/4-28 STRAIGHT2$5.80
2780300134CLAMP, 1" HOSE INSULATED4$8.80
--0907021REAR SPADE ASSY (cont'd)Call for price—
2790301861QUICK PIN, LINCH -B7932 PL 7/162$3.80
2800302980NIPPLE, 1/2X5 S80 BLK PIPE4$9.20
2810303748HOSE HYD, 1364$106.60
2820307045FITT. 90 DEG EL 6MJ-8FP904$16.80
2830310013CYL, HYD TI-S24023424PPBZ2$2,158.20
0310274Seal kit for 0310013 cylinder: SEAL KIT 0310013/0307639 CYL.$117.80
28404000661/4-20X3/4 HHCS GR5 ZP8$5.80
28504001393/8-16X1.5 HEX SKT SET4$5.80
28604003923/8-16 NYLOK HEX NUT ZINC7$5.80
28704004521/4" HELICAL LCKWASHR ZP8$5.80
2880705500SHAFT - LOWER SPADE2$31.00
2890707394SHAFT, UPPER SPADE2$65.00
2900715694PIN - SPADE PIVOT2$125.60
2910715796PLATE - COVER SPADES (4024)2Call for price—
2920804334PIN - MULTI-POSITION2$252.80
2930807630LOWER SPADE PAD WLMT2$1,020.00
2940807664INNER SPADE WELD'T L.H.(4024)1$2,564.20
2950807665INNER SPADE WELD'T R.H.(4024)1$2,564.20
2969046354SPRING PIN 1/4 X 2-1/22$5.80
--0907139PAN-VALVE ASSYCall for price—
2970300044FITT, HYD CONN. 6MJ-8MB2$3.80
2980301470FITTING, 90ELB 6MJ-8MB902$7.60
2990301730VALVE, DOUBLE HOLDING1$542.60
30004000781/4-20X2 HHCS GR5 ZP2$5.80
30104001095/16-18X1 HHCS GR5 ZP9$5.80
30204001353/8-16X4.5 HHCS GR5 ZP6Call for price—
30304001573/8-16X1.75 HHCS GR5 ZP8$5.80
30404003671/4-20 NYLOK HEX NUT ZP2$5.80
30504003825/16-18 NYLOK HEX NUT ZP2$5.80
30604003845/16-24 NYLOK HEX NUT ZP2$5.80
30704003923/8-16 NYLOK HEX NUT ZINC12$5.80
30804004511/4 FLATWASHER ZP2$5.80
3090704045SPACER-CONTROL VALVE6Call for price—
3100717827PLATE, VALVE MOUNTING1Call for price—
3110719122PLATE - VALVE MTG1$13.20
3120906494VALVE ASSY, PARKER 4 SPL W/FTGS1Call for price—
3130906495VALVE ASSY, PARKER 5 SPL W/FTGS1Call for price—
--0906494VALVE ASSY, PARKER 4 SPL W/FTGSCall for price—
3140300044FITT, HYD CONN. 6MJ-8MB3$3.80
3150300052FITTING, ELB 8MJ-10MB 901$11.20
3160301388FITTING, 90ELL, 8MJ-8MB901$13.20
3170301522FITTING, CONN. 6MJ-6MB3$3.80
3180301545FITTING, ELB 12MJ-12MB 901$18.80
3190301995FITTING, ADAPTER STR1$5.60
3200302052FITTING, RUN TEE1$15.00
3210302508FITTING, ELL 8MJ-8MB 90LL1$13.80
3220303017FITTING, CONNECTOR3$5.60
3230303093VALVE, 4 SPOOL PARKER1$1,337.00
--0906495VALVE ASSY, PARKER 5 SPL W/FTGSCall for price—
3240300044FITT, HYD CONN. 6MJ-8MB6$3.80
3250300052FITTING, ELB 8MJ-10MB 901$11.20
3260301388FITTING, 90ELL, 8MJ-8MB901$13.20
3270301522FITTING, CONN. 6MJ-6MB2$3.80
3280301545FITTING, ELB 12MJ-12MB 901$18.80
3290301995FITTING, ADAPTER STR1$5.60
3300302052FITTING, RUN TEE1$15.00
3310302508FITTING, ELL 8MJ-8MB 90LL1$13.80
3320303017FITTING, CONNECTOR2$5.60
3330303094VALVE, 5 SPOOL PARKER1$1,447.40
--0907140KIT-VALVE COVER 9055Call for price—
33404001213/8-16X3/4 HHCS GR5 ZP4$5.80
33504004823/8" HELICAL LCKWSHR - ZP4$5.80
3360717066COVER - VALVE1$126.20
3370807181COVER, SUPPORT WELDMENT4$44.20
--0907288CONTROL ASSY (9) HANDLES$3,612.00
3380301473HOSE HYD, 18" LG2$57.80
3390302205GAUGE, FLUSH MNTG-6000 PSI2$44.80
3400302457CABLE, CONTROL 1043$167.80
3410302726GREASE FITTING, 1/4-28 X 45DEG9$3.80
3420303427CABLE, CONTROL 114"6$167.80
34304001075/16-18X2.5 HHCS GR5 ZP4$5.80
34404001095/16-18X1 HHCS GR5 ZP4$5.80
34504003825/16-18 NYLOK HEX NUT ZP8$5.80
34604003933/8-16 HEX NUT JAM ZP9$5.80
34704004511/4 FLATWASHER ZP8$5.80
34804005123/4 FLAT WASHER(SPECIAL)2Call for price—
3490400527CLEVIS PIN, 5/16X1"X5/8"GRIP9$8.00
3500711235CLAMP - SHAFT CONTROL BOX2$17.40
3510717198PIN - CONTROL HANDLE (9)1$42.00
3520717461PLATE - SUPPORT SHAFT2$16.00
3530806006CLEVIS WELD'T9$9.80
3540806007CONTROL FRAME WELD'T-(9) HANDL1Call for price—
3550907441CONTROL HANDLE ASSY - SHORT9$92.00
356FC41FITTING-90DEG BLKHD ELB2$15.60
--0907441CONTROL HANDLE ASSY - SHORT$92.00
3570806515CONTROL HANDLE WELD'T1Call for price—
3589053524BEARING BR. FLG.752 X .879X.752$6.00
--0907289RIGHT CONTROL ASSY-(6 HANDLE)$2,615.00
3590302457CABLE, CONTROL 1042$167.80
3600302726GREASE FITTING, 1/4-28 X 45DEG6$3.80
3610303427CABLE, CONTROL 114"4$167.80
36204001075/16-18X2.5 HHCS GR5 ZP4$5.80
36304001095/16-18X1 HHCS GR5 ZP2$5.80
36404003825/16-18 NYLOK HEX NUT ZP6$5.80
--0907289RIGHT CONTROL ASSY-(6 HANDLE) (cont'd)$2,615.00
36504004511/4 FLATWASHER ZP6$5.80
36604005123/4 FLAT WASHER(SPECIAL)2Call for price—
3670400527CLEVIS PIN, 5/16X1"X5/8"GRIP6$8.00
3680711235CLAMP - SHAFT CONTROL BOX2$17.40
3690717203PIN - CONTROL HANDLE (6)1$42.00
3700717206TUBE - 1.25 OD SPACER1$16.80
3710723378PLATE-PIN SUPPORT1$18.00
3720806006CLEVIS WELD'T6$9.80
3730806008CNTRL FRAME WELD'T-(6, 7, 8 HND)1$835.00
3740907441CONTROL HANDLE ASSY - SHORT6$92.00
--0907441CONTROL HANDLE ASSY - SHORT$92.00
3750806515CONTROL HANDLE WELD'T1Call for price—
3769053524BEARING BR. FLG.752 X .879X.752$6.00
--0907347KIT - REAR HANDRAILCall for price—
37704001483/8-16X1.25 HHCS GR5 ZP6$5.00
37804003923/8-16 NYLOK HEX NUT ZINC6$5.80
3790806521HAND RAIL WELD'T2Call for price—
--0907802KIT - RESERVOIR 5130-9055$3,943.00
3800300287FITTING, PIPE BUSHING, 1.25X12Call for price—
3810300364CLAMP-HOSE, 0.875"-2.75" 50"LBS2$7.00
3820301350PIPE, 1-1/2 CLOSE NIPPLE2Call for price—
3830301894SPIN-ON FLTR ASSY2$276.20
3840302227CENTER BONDED MOUNT4$24.40
3850302228SPECIAL WASHER (LORD)4$21.60
3860302570SIGHT GAUGE 3/4 NPT (SVM-12)2$15.60
3870302756SUCTION HOSE, 1-1/4IDX100 100R4Priced per foot2.25$21.20
3880303155PIPE PLUG 3/4 NPT MAGNETIC2$11.60
3890303338FITTING, ELBOW2$26.40
3900305006FILLER CAP (GO205, FB194)2$63.20
3910307344SUCTION STRAINER2$131.80
39204001223/8-16X1.25 HHCS GR5 ZP8$5.80
39304001493/8-16 X 5/8 HHCS GR5 ZP24$4.00
39404001503/8-16X2.5 HHCS GR5 ZP4$5.80
39504003923/8-16 NYLOK HEX NUT ZINC12$5.80
39604004803/8 FLATWASHER ZP24$4.00
3970706114GSKT-CLEANOUT&FLLR COVER2$42.20
3980802747PIPE-FILLER WLMT2Call for price—
3990803193SUPPORT-RESERVOIR WLDMT.2Call for price—
4000806653RESERVOIR-LEFT WELDMENT1$1,673.20
4010806654RESERVOIR-RIGHT WELDMENT1$1,673.20
--0908047BOOM INSTALLATION - 5035 2-SPCall for price—
4020301893HOSE HYD, 842$112.00
4030301895GREASE FITTING, STR 1/8 PTF2$5.80
4040302514ADAPTER 8MJ-6MJ12$5.60
4050302546CLAMPING UNIT C-PH-10-26$15.60
--0908047BOOM INSTALLATION - 5035 2-SP (cont'd)Call for price—
4060302548CLAMPING UNIT(SET) HC-10-63$28.00
4070302549SPLIT BUSH.RUBBER C-SB10-8 1/219$5.60
4080302550C-SB-10-12 3/4 SPLIT10$9.80
4090302551C-SN-10 SOCKET-HEAD7$11.60
4100302624HYD TUBING6$151.60
4110302955HOSE HYD, 48-1/4"2$63.00
4120303391HOSE 8AT2(8FJX-8FJ90) 110"2$76.00
41304001185/16-18X3/4 HHCS GR5 ZP14$5.80
41404001323/8-16X1.5 HHCS GR5 ZP2$5.80
41504001811/2-13X1.5 HHCS GR5 ZP2$5.80
41604002201/2-13X5.5" HHCS GR5 ZP1$8.00
41704003923/8-16 NYLOK HEX NUT ZINC4$5.80
41804004081/2-13 NYLOK HEX NUT ZP3$2.80
41904004921/2" FLATWASHER ZP2$5.80
4200705104PLATE-WINCH CABLE SPPT.1$95.60
4210713217BAR6Call for price—
4220715953PIN - BOOM PIVOT1$635.40
4230802219PIN-LIFT CYL. PIVOT2$216.60
4240906985KIT - TILT CYLINDER 5130/52301$2,409.80
4250908048BOOM ASSEMBLY - 5035 2-SPD W1Call for price—
426DE13811/2 WASHER SAE 17/32 ID2$5.60
--0906985KIT - TILT CYLINDER 5130/5230$2,409.80
4270300113GREASE FITTING, 1/4-28 STRAIGHT8$5.80
4280301470FITTING, 90ELB 6MJ-8MB902$7.60
4290301522FITTING, CONN. 6MJ-6MB1$3.80
4300301619FITT, 6MJ-6MJ-6MB BRANCH TEE1$11.20
4310301620FITTING, HYD. 6MJ - 6MB901$5.80
4320302035HOSE HYD, 18" 6FJX-6FJX -6M1T1$37.40
4330302805HOSE HYD, 10"1$29.80
4340302842FITTING, TEE2Call for price—
4350302914HOSE HYD, 35"1$70.20
4360302915HOSE HYD, 12"2$56.00
4370303563HOSE HYD, 27"1$42.00
4380307040CYL - U/L TILT2$1,546.80
Seal kit for 0307040 cylinder: 3 options (depends on who made the cylinder)

The cylinder manufacturer needs to be identified to know which seal kit is needed. How to identify your cylinder manufacturer. Need help? Call 770-921-6070.

03005009Holmac cylinder: SEAL KIT, CYL 0307040 HOLMAC$317.40
0304668Southern (SHCI) cylinder: SEAL KIT FOR 0307040, 0302785$157.00
03023730Ashun (MTC) cylinder: SEAL KIT FOR 0307040 ASHUN$326.40
4390307106FITT, CONNECTOR 4MB-6FB1$9.40
4400307107VALVE, HOLDING 4000 PSI SAE1$310.60
44104000781/4-20X2 HHCS GR5 ZP2$5.80
44204001333/8-16X3 HHCS GR5 ZP4$5.80
44304003671/4-20 NYLOK HEX NUT ZP2$5.80
44404003923/8-16 NYLOK HEX NUT ZINC4$5.80
44504021101/4 SS FLAT WASHER2$5.80
4460703001BRKT, MTG, CHECK VALVE1$24.40
4470716763SHAFT1$159.40
4480716870SHAFT1$106.60
44990561251.25 NOM HVY DUTY RET RING EXT2$3.80
--0908048BOOM ASSEMBLY - 5035 2-SPD WCall for price—
4500300113GREASE FITTING, 1/4-28 STRAIGHT2$5.80
--0908048BOOM ASSEMBLY - 5035 2-SPD W (cont'd)Call for price—
4510301895GREASE FITTING, STR 1/8 PTF1$5.80
45203019493/8" OD AIRLINE, SYNFLEX HOSEPriced per foot14$8.00
4530302552C-WA-10 WELD ADAPTER7$15.60
4540303490PAD-WEAR 1/2" X 1" X 4"2$49.60
45504000591/4-20X5/8 HHCS GR5 ZP2$5.80
45604001213/8-16X3/4 HHCS GR5 ZP5$5.80
45704004521/4" HELICAL LCKWASHR ZP2$5.80
4580400990SET SCRW, 1/2-13X1/2 SKT, CUP PT4$9.80
4590805876OUTER BOOM WLD'T1$25,032.40
4600807929INNER BOOM WELDMENT1$7,609.20
4610906987KIT - EXT. CYLINDER (5035)1Call for price—
4620908049WINCH ASSEMBLY - 5035 2-SP W1Call for price—
4630908431KIT - "D" RING BOOM1$124.60
4643012-793001PLATE - LUBE MTG.1$19.40
4659012549CONNECTOR-MALE 3/8TUBEX11$15.60
4669012552BULKHEAD ADAPTER 1/8M-1/8F NPT1$39.80
4679012584ELBOW-1/4NPT X 3/8TUBE 91$21.20
46890444343/8-16X1 NC FLAT SOCKET HD CAP2$5.80
469915030004WEAR PAD (UPPER)1$101.00
470915040001PAD RETAINING PLATE1$47.20
471916040004WEAR PAD - LOWER1$39.80
--0906987KIT - EXT. CYLINDER (5035)Call for price—
4720301522FITTING, CONN. 6MJ-6MB2$3.80
4730301959SNAP RING-INTERNAL 1-1/22$5.80
4740307082CYLINDER, BOOM EXT.(W/SUN VALV1$5,964.40
Seal kit for 0307082 cylinder: Call for pricing and availability: 770-921-6070
47504001323/8-16X1.5 HHCS GR5 ZP2$5.80
47604003923/8-16 NYLOK HEX NUT ZINC2$5.80
47704004823/8" HELICAL LCKWSHR - ZP2$5.80
4780707580PIN-SPADE CYL-ROD CH-501$83.00
4799056150RETAINING RING - 1 1/22$8.00
480915040400SPIDER CLAMP WLDM'T, TOP1$330.40
481915040501CLAMP PLATE2$12.40
482916350001PIN, BOOM EXT CYL 1.5 X 9 5/81$89.40
--0908049WINCH ASSEMBLY - 5035 2-SP WCall for price—
4830300041FITTING, CONNECTOR 8MJ-8MB2$5.60
4840301445FITTING, EXTENDED2$10.00
48503015771/4 OD PLASTIC AIRLINE, BLACKPriced per foot80$5.80
4860302495CONVOLUTED LOOM 1/4Priced per foot80$2.80
4870310194HARNESS, WIRING 2-SPEED1$154.00
48803111936" CABLE TIE35Call for price—
48904002625/8-11X2.5" HHCS GR 8 ZP16$5.80
49004004265/8-11 GR 8 NYLOK NUT YZ PLT16$8.00
4910711164BLOCK - SHEAR8$5.60
4920715947ANGLE - WINCH MOUNTING2Call for price—
4930715948ANGLE - WINCH MOUNTING2Call for price—
4940715949ANGLE - WINCH MOUNTING2Call for price—
4950715950ANGLE - WINCH MOUNTING2Call for price—
--0908049WINCH ASSEMBLY - 5035 2-SP W (cont'd)Call for price—
4969010520FITTING-ELBOW 1/4T-1/4NPT2$13.80
4979011071FITT, BRASS TEE 1/4T-1/4T-1/4T1$15.60
4989048248WINCH DP 2-SPD 25K NARROW DRUM2$13,804.80
--0908431KIT - "D" RING BOOM$124.60
4990712380RING - D1$119.20
500BA0259PIN - "D" RING1$23.20
501HD01061/4X1.75SPRING PIN ZP1$1.80
--0911135INTEGRATED NON-LIGHTED CONTROL$1,170.40
5020907708CNTRL KIT RT (KNOB, DECAL, PL)1$686.20
5030907757CNTRL KIT LEFT (KNOB, DECAL, PL)1$717.80
--0907708CNTRL KIT RT (KNOB, DECAL, PL)$686.20
5040300835KNOB-BOOM (UP-DOWN)1$13.20
5050300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5060300837KNOB-BOOM (IN-OUT)1$15.00
5070307166PLUG 7/82$2.00
5080307604KNOB, RED LONG - SK0700-072$22.40
5090310021PIGTAIL, PWR - SWITCH1Call for price—
5100310022PIGTAIL, GND - SWITCH1Call for price—
51104000611/4-20X3/4 MACH SCREW3Call for price—
51204000621/4-20X3/4 THRD CUT HEX12$8.00
51304000701/4-20X1 HHCS GR5 ZP4$5.80
51404001015/16-18X1 RD MACH HD SS4$5.80
51504001075/16-18X2.5 HHCS GR5 ZP4$5.80
51604003671/4-20 NYLOK HEX NUT ZP4$5.80
51704003691/4 "J" TYPE TINNERMAN3$5.80
51804003795/16-18 "J" NUT TINNERMAN4$8.00
51904003933/8-16 HEX NUT JAM ZP4$5.80
52004004511/4 FLATWASHER ZP6$5.80
5210500914DECAL-CTRL PANEL WRECKER1$47.00
5220500915DECAL-CTRL PANEL SPADE1$47.00
5230501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
5240723231PANEL-CONTROL 6 HANDLE1$169.60
5250723232PANEL-SWITCH1$142.60
5260724648BRACE1$36.00
5279024041SWITCH-ROCKER, LIGHTED 12V2$43.40
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL)$717.80
5280300835KNOB-BOOM (UP-DOWN)1$13.20
5290300836KNOB-CTRL-JACK (UP-DOWN)2$18.80
5300300837KNOB-BOOM (IN-OUT)1$15.00
5310302856KNOB-TILT, 3/8-16 THREAD1$24.40
5320302917KNOB-WHL LIFT EXT IN-OUT1$31.00
5330303382KNOB - FOLD (UP-DN)1$17.40
5340307604KNOB, RED LONG - SK0700-072$22.40
5350307778PLUG, FILLER4$3.40
5360310021PIGTAIL, PWR - SWITCH1Call for price—
--0907757CNTRL KIT LEFT (KNOB, DECAL, PL) (cont'd)$717.80
5370310022PIGTAIL, GND - SWITCH1Call for price—
5380311355HOBBS HOURMETER1$87.40
5390400005SCREW, ROUND PH 6-32 X 1/2 SS6$5.80—
54004000621/4-20X3/4 THRD CUT HEX12$8.00
54104000661/4-20X3/4 HHCS GR5 ZP3$5.80
54204000701/4-20X1 HHCS GR5 ZP4$5.80
54304001015/16-18X1 RD MACH HD SS4$5.80
54404001075/16-18X2.5 HHCS GR5 ZP4$5.80
54504003671/4-20 NYLOK HEX NUT ZP3$5.80
54604003671/4-20 NYLOK HEX NUT ZP4$5.80
54704003691/4 "J" TYPE TINNERMAN3$5.80
54804003795/16-18 "J" NUT TINNERMAN4$8.00
54904003933/8-16 HEX NUT JAM ZP9$5.80
55004004511/4 FLATWASHER ZP6$5.80
5510402094NUT, HEX 6-32 SS6Call for price—
5520500773DECAL PLATE-THROTTLE1$31.00
5530500914DECAL-CTRL PANEL WRECKER1$47.00
5540500915DECAL-CTRL PANEL SPADE1$47.00
5550500916DECAL-CTRL PNL UNDERLIFT1$45.20
5560501157TAG-CAUTION WINCH CABLE DAMAGE2$7.20
5570723230PANEL, CONTROL 91$313.00
5580723233PANEL, GAUGE 91$177.00
5590724648BRACE1$36.00
5609024041SWITCH-ROCKER, LIGHTED 12V3$43.40
Back to Manual Navigation Menu

2010 Aluminum Body Option 206 C.a. (5130)

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--1250512062010 AL BODY OPT 206 CA - 5130$31,449.00
10910839TOOLBX, BUA 206CA 20101Call for price—
20910943SHIP KIT, TOOL BOX INTGRTED1Call for price—
--0910839TOOLBX, BUA 206CA 20101Call for price—
30310981TOOLBOX LH AL 206CA 20101Call for price—
40310982TOOLBOX RH AL 206CA 20101Call for price—
50311140DOOR SEALPriced per foot130$5.60
604000621/4-20X3/4 THRD CUT HEX20$8.00
70717691PLATE, WIRE RETAINER ALUMINUM20$13.80
80907310KIT-RUBBER FENDER- ALUM TANDEM1$390.60
90908610KIT-MODULAR LIGHT 180" 20061Call for price—
100910875KIT, WIRING WITH KEYLESS ENTRY1$2,799.60
110910942KIT, MODULAR WIRE1Call for price—
--0907310KIT-RUBBER FENDER- ALUM TANDEM$390.60
120307151RUBBER FENDER -GRIFFITH 37042Priced per foot28$18.80
1304006071/4" AL. RIVET X 5/8"80$5.80
--0908610KIT-MODULAR LIGHT 180" 2006Call for price—
140303127GROMMET-MARKER FOR 2.5" ROUND2$3.80
150303128GROMMET, OVAL -FOR TAILLIGHT28$3.80
160306958STOP/TURN LGHT-RED LED CLR LEN4$48.80
170307220LIGHT, OVAL AMBER LED8$47.00
180307495LAMP, MINI-MARKER LED2$28.00
190307710LIGHT, LED TOOLBOX P4606 RED14$47.00
200307981PIGTAIL, 3-WIRE LAMP W/BULLET14$11.60
210310369LAMP, BACKUP LED CLEAR LENS2$133.60
220310496MARKER SEALED-RED LED CLR LENS2$23.20
23040004310-24X1 OVAL PHILHD MCH54Call for price—
24040004510-32X1/2 THRD CUT RD S/S66$0.80
250401024MACH SC.8-32X1 1/2 RND SL ALUM24Call for price—
--0910875KIT, WIRING WITH KEYLESS ENTRY$2,799.60
260300117GROMMET, RUBBER 31612$1.00
270307513CABLE WIRE 2/18GA SOOWPriced per foot15$1.60
280307537WIRING HARNESS, VUL SS LWRK TBX2$57.80
290307554JUNCTION BOX, KEYLESS ENTRY PWR1$1,125.60
300310465SWITCH, SPDT MOMENTARY TOGGLE1Call for price—
310310562PLUG, FML BULLET, WHT/BLK2Call for price—
320310630CIRCUIT BRKR-30A REPL ATO FUSE1Call for price—
3321473015FUSE HOLDER1$22.80
34522-0612001BRAIN, (RF RECEIVER)- KEYLESS1$352.00
35522-0612002RELAY, 12V KEYLESS REMOTE3$19.20
--0910942KIT, MODULAR WIRECall for price—
36030013214" UV BLK CABLE TIE75$1.00
370307177HARNESS-EXT. L.H. "A" CIRCUIT2$94.60
380307178HARNESS-EXT. L.H. "B" CIRCUIT2$121.00
390307179HARNESS-EXT. R.H. "A" CIRCUIT1$67.40
--0910942KIT, MODULAR WIRE (cont'd)Call for price—
400307180HARNESS-EXT. R.H. "B" CIRCUIT1$122.80
410307181CROSS-OVER HARNESS "A" CIRCUIT1$24.60
420307182CROSS-OVER HARNESS "B" CIRCUIT1$83.40
430307265HARNESS - H.D. MAIN2$330.60
440307266WIRING HARNESS - TAIL "A"2$54.20
450307267WIRING HARNESS - TAIL "B"2$90.20
460903069KIT-BACK UP ALARM1Call for price—
47523-1005300TERMINAL, 10/12GA 10 RING/SHRNK4Call for price—
48GV57RUBBER GROMMET, ATLANTIC7$1.80
--0903069KIT-BACK UP ALARMCall for price—
490300153CONNECTOR, WIRE6Call for price—
500303061BACK UP ALARM ECCO 5101$75.80
5104000571/4-20X1.25 HHCS2$5.80
5204003671/4-20 NYLOK HEX NUT ZP2$5.80
--0910943SHIP KIT, TOOL BOX INTGRTEDCall for price—
530303056D GASKET- H2 ADHESIVEPriced per foot16$7.60
540807435CHAIN RACK WELD'T, 081$357.40
550907325KIT - MODULAR MOUNTS1$1,999.40
560907506KIT-TOOL BOX SUPPORT (ALUM)1$177.60
579025068REFLECTOR-PETERSON B489R DECAL4$8.00
--0907325KIT - MODULAR MOUNTS$1,999.40
5804004911/2" HCL LKWSHR ZP20$5.80
5904004971/2" FLAT WASHER GR 8 YZ PLT6$5.80
600400498FLAT WASHER -1/2ID X 2OD X.12514$8.00
610710545ANGLE - MOUNTING2$69.60
620806004FRONT BODY MOUNT1$808.80
6390414021/2 NC X 1 1/4 HHCS PLT GR86$8.00
6490414031/2 NC X 1 1/2 HHCS PL GR814$5.80
659402970TOOLBOX MTG. PAD14$54.20
66942480011PLATE, SLOT-SS REAR WASHER TBOX20$25.20
--0907506KIT-TOOL BOX SUPPORT (ALUM)$177.60
6704001253/8-16X3.75 HHCS GR5 ZP4$4.00
6804003923/8-16 NYLOK HEX NUT ZINC4$5.80
6904021203/8 FLATWASHER 316 SS8$5.80
700806543TOOL BOX SUPPORT WELDMENT1$343.00
Back to Manual Navigation Menu

2010 Aluminum Body Option 180 Tandem (5230)

Ref #Part NumberDescriptionQty UsedPriceQuick Add to Cart
--125052180ALUM BODY 180 TANDEM '10Call for price—
10910804BUA-180 TANDEM 2010 ALUM BODY1Call for price—
20910943SHIP KIT, TOOL BOX INTGRTED1Call for price—
--0910804BUA-180 TANDEM 2010 ALUM BODYCall for price—
30310942LH 180 CB TANDEM ALUM BODY '101Call for price—
40310943RH 180 CB TANDEM ALUM BODY '101Call for price—
50311140DOOR SEALPriced per foot155$5.60
604000621/4-20X3/4 THRD CUT HEX20$8.00
70717691PLATE, WIRE RETAINER ALUMINUM20$13.80
80907310KIT-RUBBER FENDER- ALUM TANDEM1$390.60
90907816KIT-MODULAR WIRE1$4,066.20
100908610KIT-MODULAR LIGHT 180" 20061Call for price—
110910875KIT, WIRING WITH KEYLESS ENTRY1$2,799.60
--0907310KIT-RUBBER FENDER- ALUM TANDEM$390.60
120307151RUBBER FENDER -GRIFFITH 37042Priced per foot28$18.80
1304006071/4" AL. RIVET X 5/8"80$5.80
--0907816KIT-MODULAR WIRE$4,066.20
14030013214" UV BLK CABLE TIE75$1.00
150307177HARNESS-EXT. L.H. "A" CIRCUIT2$94.60
160307178HARNESS-EXT. L.H. "B" CIRCUIT2$121.00
170307179HARNESS-EXT. R.H. "A" CIRCUIT2$67.40
180307180HARNESS-EXT. R.H. "B" CIRCUIT2$122.80
190307181CROSS-OVER HARNESS "A" CIRCUIT1$24.60
200307182CROSS-OVER HARNESS "B" CIRCUIT1$83.40
210307183HARNESS-WORK LIGHT JUMPER-TAND2$27.80
220307184HARNESS-SIDE MARK-TURN TANDEMS4$37.00
230307265HARNESS - H.D. MAIN2$330.60
240307266WIRING HARNESS - TAIL "A"2$54.20
250307267WIRING HARNESS - TAIL "B"2$90.20
260307366HARNESS EXTENSION - 24" LONG2$29.40
270903069KIT-BACK UP ALARM1Call for price—
28523-1005300TERMINAL, 10/12GA 10 RING/SHRNK4Call for price—
29946803002MAIN HARNESS EXTENSION2$22.80
30GV57RUBBER GROMMET, ATLANTIC7$1.80
--0903069KIT-BACK UP ALARMCall for price—
310300153CONNECTOR, WIRE6Call for price—
320303061BACK UP ALARM ECCO 5101$75.80
3304000571/4-20X1.25 HHCS2$5.80
3404003671/4-20 NYLOK HEX NUT ZP2$5.80
--0908610KIT-MODULAR LIGHT 180" 2006Call for price—
350303127GROMMET-MARKER FOR 2.5" ROUND2$3.80
360303128GROMMET, OVAL -FOR TAILLIGHT28$3.80
370306958STOP/TURN LGHT-RED LED CLR LEN4$48.80
380307220LIGHT, OVAL AMBER LED8$47.00
390307495LAMP, MINI-MARKER LED2$28.00
--0908610KIT-MODULAR LIGHT 180" 2006 (cont'd)Call for price—
400307710LIGHT, LED TOOLBOX P4606 RED14$47.00
410307981PIGTAIL, 3-WIRE LAMP W/BULLET14$11.60
420310369LAMP, BACKUP LED CLEAR LENS2$133.60
430310496MARKER SEALED-RED LED CLR LENS2$23.20
44040004310-24X1 OVAL PHILHD MCH54Call for price—
45040004510-32X1/2 THRD CUT RD S/S66$0.80
460401024MACH SC.8-32X1 1/2 RND SL ALUM24Call for price—
--0910875KIT, WIRING WITH KEYLESS ENTRY$2,799.60
470300117GROMMET, RUBBER 31612$1.00
480307513CABLE WIRE 2/18GA SOOWPriced per foot15$1.60
490307537WIRING HARNESS, VUL SS LWRK TBX2$57.80
500307554JUNCTION BOX, KEYLESS ENTRY PWR1$1,125.60
510310465SWITCH, SPDT MOMENTARY TOGGLE1Call for price—
520310562PLUG, FML BULLET, WHT/BLK2Call for price—
530310630CIRCUIT BRKR-30A REPL ATO FUSE1Call for price—
5421473015FUSE HOLDER1$22.80
55522-0612001BRAIN, (RF RECEIVER)- KEYLESS1$352.00
56522-0612002RELAY, 12V KEYLESS REMOTE3$19.20
--0910943SHIP KIT, TOOL BOX INTGRTEDCall for price—
570303056D GASKET- H2 ADHESIVEPriced per foot16$7.60
580807435CHAIN RACK WELD'T, 081$357.40
590907325KIT - MODULAR MOUNTS1$1,999.40
600907506KIT-TOOL BOX SUPPORT (ALUM)1$177.60
619025068REFLECTOR-PETERSON B489R DECAL4$8.00
--0907325KIT - MODULAR MOUNTS$1,999.40
6204004911/2" HCL LKWSHR ZP20$5.80
6304004971/2" FLAT WASHER GR 8 YZ PLT6$5.80
640400498FLAT WASHER -1/2ID X 2OD X.12514$8.00
650710545ANGLE - MOUNTING2$69.60
660806004FRONT BODY MOUNT1$808.80
6790414021/2 NC X 1 1/4 HHCS PLT GR86$8.00
6890414031/2 NC X 1 1/2 HHCS PL GR814$5.80
699402970TOOLBOX MTG. PAD14$54.20
70942480011PLATE, SLOT-SS REAR WASHER TBOX20$25.20
--0907506KIT-TOOL BOX SUPPORT (ALUM)$177.60
7104001253/8-16X3.75 HHCS GR5 ZP4$4.00
7204003923/8-16 NYLOK HEX NUT ZINC4$5.80
7304021203/8 FLATWASHER 316 SS8$5.80
740806543TOOL BOX SUPPORT WELDMENT1$343.00
Back to Manual Navigation Menu

Electrical Schematic

Century 5130 & 5230 (2011 manual) Electrical Schematic diagram
Back to Manual Navigation Menu

Electrical Schematic - Switch Panel Wiring

Century 5130 & 5230 (2011 manual) Electrical Schematic - Switch Panel Wiring diagram
Back to Manual Navigation Menu

Electrical Schematic - Remote Control Electrical

Century 5130 & 5230 (2011 manual) Electrical Schematic - Remote Control Electrical diagram
Back to Manual Navigation Menu

Hydraulic Schematic

Century 5130 & 5230 (2011 manual) Hydraulic Schematic diagram
Back to Manual Navigation Menu
