Show all 19 parts sections ▼Hide parts sections ▲
- Direct Mount Pump - 17 GPM
- 4 Series Steel Integrated Body Components
- 4 Series Modular Subframe
- 4 Series Control Rods and Valves
- 4 Series Hydraulic Stabilizer Subframe
- 4 Series Hydraulic Stabilizers Control Rods and Valves
- 4 Series Aluminum Integrated Modular Boxes
- 4 Series Modular Box Door Group
- 4 Series Aluminum Tunnel Box Group (24 X 92)
- 4 Series Aluminum Tunnel Box Door
- 4 Series Steel Tunnel Box Group (36 X 86)

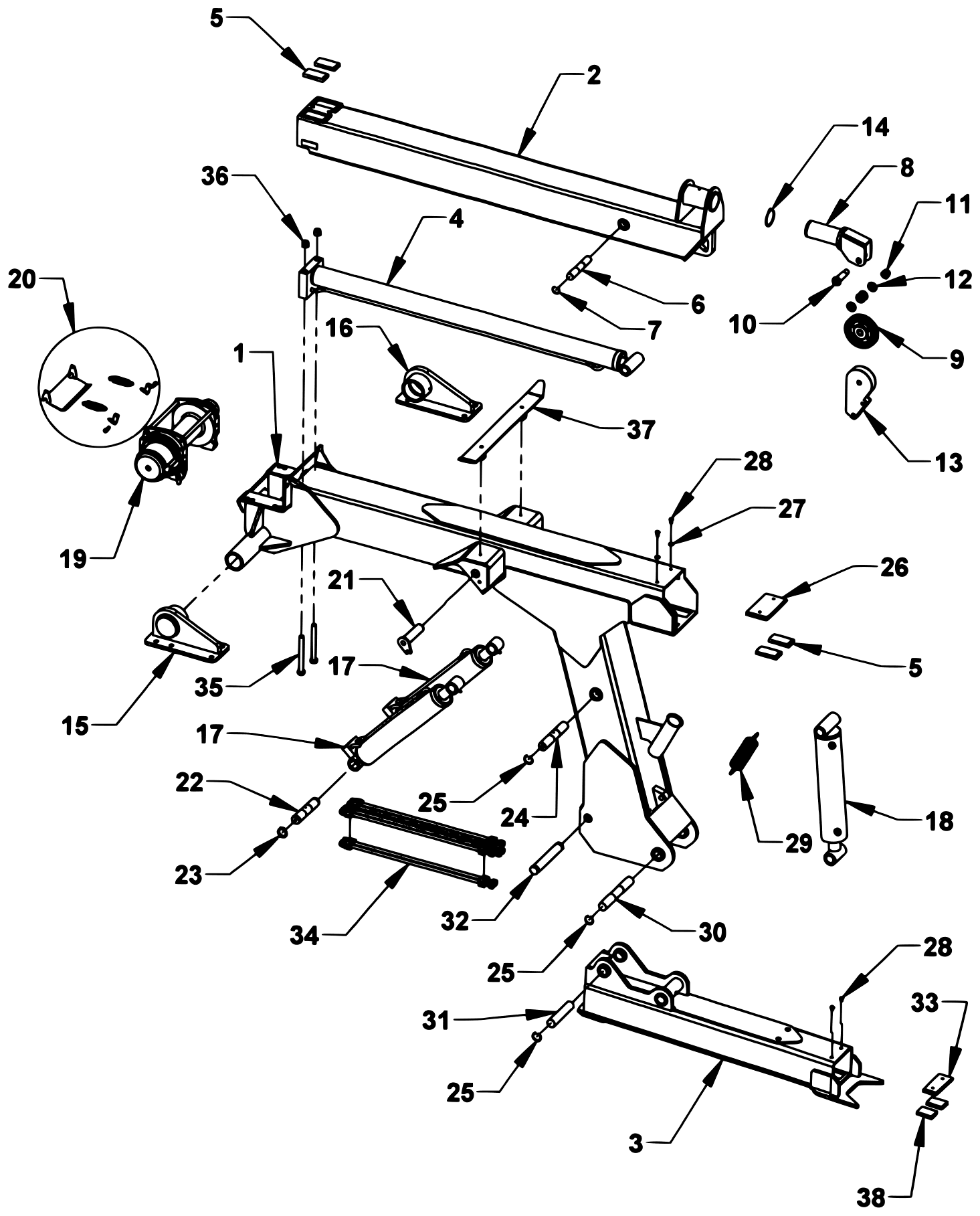

- 4 Series Integrated Boom Assembly Single Line
- 4 Series Integrated Boom Assembly Twin Line
- 4 Series Wheel Lift Components (Standard)

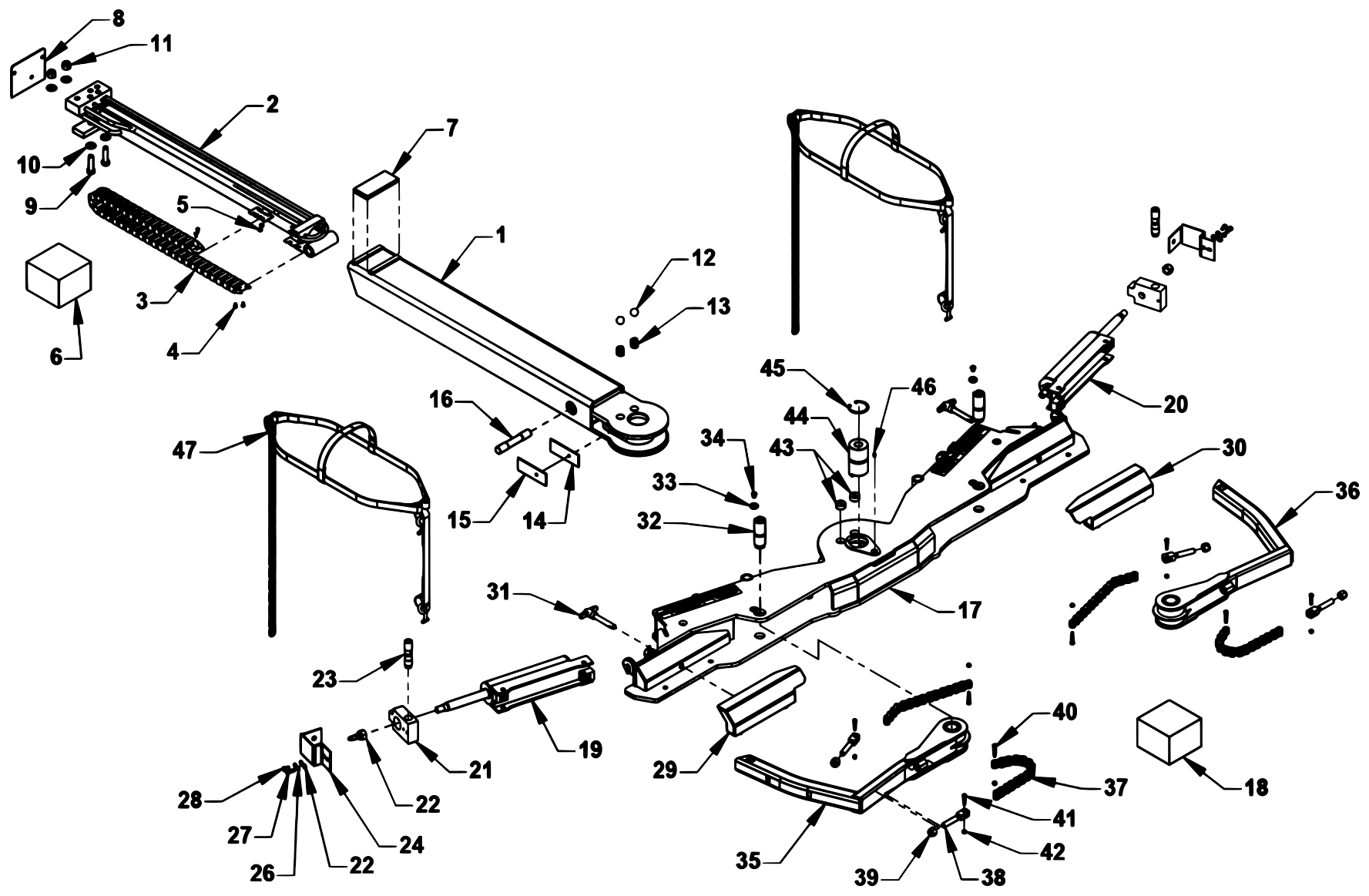

- Wheel Lift Components (Autogrip)
- Pivot L-Arm Receiver Group
- Pivot Wheel Grids and L-Arms (Optional)
- 4 Series Boom End Swivel
- 4 Series Autogrip Attachments
Direct Mount Pump - 17 GPM
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0320144 | 17 GPM,1 IN.15 SPLINE SHAFT, SAE 4-BOLT FLANGE | 1 | $1,082.00 | |
| 2 | 03006339 | #16-45 M O-RING x 1-1/4 M NIPPLE | 1 | Call for price | — |
| - | 77C82 | #16 M O-RING x 1-1/4 M NIPPLE | 1 | Call for price | — |
| 3 | 77620 | 1-1/4 O-RING PLUG 900598-20 | 2 | $25.55 | |
| 4 | 0301368 | #16 M O-RING x 3/4 MJIC | 1 | Call for price | — |
| 5 | 0909434 | PRESSURE TRANSDUCER (OPTIONAL) | 1 | $579.86 |
4 Series Steel Integrated Body Components
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 5033V | INTEGRATED WRECKER BODY | 1 | $13,316.72 | |
| 2 | 5A300 | TOOL BOX DOOR | 2 | $382.90 | |
| 3 | 5A316 | TOOL BOX DOOR MOUNTING BLOCK | 4 | $50.56 | |
| 4 | 54658 | ROTARY PADDLE LATCH #3 | 2 | $111.23 | |
| 5 | 53263 | FRONT MOUNTING BRACKET | 2 | $21.34 | |
| 6 | 532501 | MIDDLE BODY MOUNTING BRACKET | 2 | Call for price | — |
| 7 | 53182L | MUDFLAP MOUNTING BRACKET - LEFT | 1 | $68.65 | |
| 8 | 53182R | MUDFLAP MOUNTING BRACKET - RIGHT | 1 | $68.65 | |
| 9 | A1040 | MUDFLAP | 2 | $71.11 | |
| 10 | 59115 | REAR REFLECTOR MOUNTING PLATE | 2 | $14.20 | |
| 11 | 93300R | REFLECTOR - RED | 2 | $7.47 | |
| 12 | 59320 | UHMW WEAR PAD | 2 | $64.57 | |
| 13 | 59319 | UHMW WEAR PAD | 2 | $56.54 | |
| 14 | 84716 | 6-1/2 TON SHACKLE W/NUT & BOLT | 2 | $140.39 | |
| 15 | 5431250 | ACCESS COVER | 1 | $413.41 | |
| 16 | 7A211 | CONTROL KNOB | 14 | $9.67 | |
| 17 | 7A168 | CONTROL HANDLE | 14 | $45.58 | |
| 18 | 83320 | NUT 1/2-20 UNF | 14 | $5.84 | |
| 19 | 92650 | TAILLIGHT GROMMET | 4 | $7.47 | |
| 20 | 92600R | TAILLIGHT | 2 | $23.72 | |
| 21 | 95600 | BACKUP LIGHT | 2 | $22.44 | |
| 22 | 93150 | MARKER LIGHT GROMMET | 2 | $7.57 | |
| 23 | 93100R | RED MARKER LIGHT | 2 | $8.59 | |
| 24 | 98400 | TOW LIGHT PLUG | 1 | $33.38 |
4 Series Modular Subframe
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 264010 | SUBFRAME | 1 | Call for price | — |
| 2 | 2640751 | MODULAR 4 SERIES SERVICE COVER PANEL-FRONT | 1 | $228.10 | |
| 3 | 2640752 | MODULAR 4 SERIES SERVICE COVER PANEL-REAR | 1 | $204.28 | |
| 4 | 7A211 | CONTROL KNOB | 12 | $9.67 | |
| 5 | 7A168 | CONTROL HANDLE | 12 | $45.58 | |
| 6 | 83321 | 1/2-20 JAM NUT | 12 | $0.41 | |
| 7 | 84716 | 6-1/2 TON SHACKLE AND SCREW PIN | 2 | $140.39 | |
| 8 | 26403A | TRAILER PLUG HOLE COVER | 1 | $17.03 | |
| 9 | 98400 | 4 PRONG TRAILER PLUG SOCKET | 1 | $33.38 | |
| 10 | 59319 | UHMW WEAR PAD | 2 | $56.54 | |
| 11 | 59320 | UHMW WEAR PAD | 2 | $64.57 | |
| 12 | 265091 | FRONT BODY MOUNTING BRACKET | 2 | $143.78 | |
| 13 | 532501 | 408/512 MIDDLE BODY MOUNTING BRACKET | 2 | Call for price | — |
| 14 | 37851R | TOOLBOX MOUNTING BRACKET - RIGHT | 1 | $142.29 | |
| 15 | 37851L | TOOLBOX MOUNTING BRACKET - LEFT | 1 | $142.51 | |
| 16 | 54M4190 | SIDE BODY MOUNTING GASKET | 2 | $67.77 |

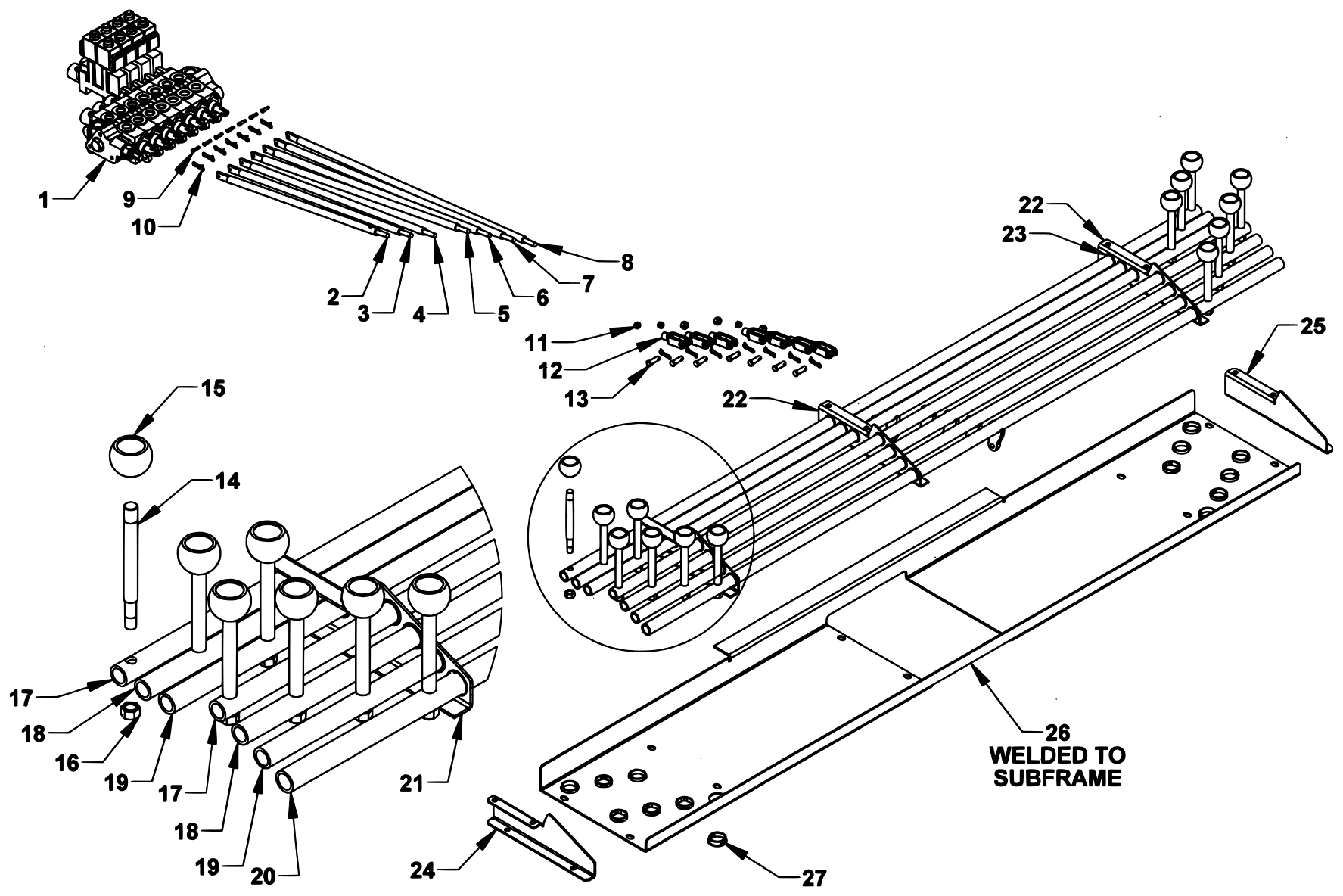

4 Series Control Rods and Valves
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 74227S | PRINCE CONTROL VALVE, 7 SPOOL, 4 SOLENOID | 1 | $8,778.87 | |
| 2 | 7A61862 | CONTROL ROD 18-5/8 | 1 | $54.53 | |
| 3 | 7A62012 | CONTROL ROD 20-1/8 | 1 | $59.49 | |
| 4 | 7A62162 | CONTROL ROD 21-5/8 | 1 | $59.49 | |
| 5 | 7A62425 | CONTROL ROD 24-1/2 | 1 | $66.10 | |
| 6 | 7A62550 | CONTROL ROD 25-5/8 | 1 | $66.10 | |
| 7 | 7A62688 | CONTROL ROD 27-1/8 | 1 | $72.73 | |
| 8 | 7A62825 | CONTROL ROD 28-1/4 | 1 | Call for price | — |
| 9 | 0307456 | PIN, CLEVIS 3/16 DIA x 3/4 ZP | 7 | $3.78 | |
| 10 | 0403067 | BOWTIE COTTER PIN | 14 | $6.20 | |
| 11 | 0403115 | HEX NUT, 3/8-24 UNF ZP | 7 | Call for price | — |
| 12 | 84530 | CLEVIS-RH-GFN 3/8-24 UNF | 7 | $8.00 | |
| 13 | 84620 | PIN, CLEVIS 3/8 DIA X 7/8 ZP | 7 | $2.30 | |
| 14 | 7A168 | WRECKER CONTROL HANDLE | 14 | $45.58 | |
| 15 | 7A211 | WRECKER CONTROL HANDLE KNOB | 14 | $9.67 | |
| 16 | 0400411 | HEX NUT 1/2-20 UNF ZP | 14 | $1.63 | |
| 17 | 56334A | WRECKER CONTROL ROD | 2 | Call for price | — |
| 18 | 56334B | WRECKER CONTROL ROD | 2 | Call for price | — |
| 19 | 56334C | WRECKER CONTROL ROD | 2 | Call for price | — |
| 20 | 56334D | WRECKER CONTROL ROD | 1 | Call for price | — |
| 21 | 56350L | CONTROL ROD PIVOT PLATE-LH | 1 | Call for price | — |
| 22 | 56350R | CONTROL ROD PIVOT PLATE-RH | 2 | Call for price | — |
| 23 | NMC557-16C | BUSHING 1 IN. ID NYLON SPLIT | 14 | Call for price | — |
| 24 | 56352L | CONTROL ROD END PLATE -LH | 1 | Call for price | — |
| 25 | 56352R | CONTROL ROD END PLATE-RH | 1 | Call for price | — |
| 26 | 264041 | WRECKER CONTROL ROD TRAY | 1 | Call for price | — |
| 27 | 03004099 | WRECKER CONTROL TRAY PLUG | 14 | Call for price | — |
4 Series Hydraulic Stabilizer Subframe
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 264010H | 4 SERIES HYDRAULIC STABILIZER SUBFRAME | 1 | Call for price | — |
| 2 | 2640751 | MODULAR 4/5 SERIES SERVICE COVER PANEL-FRNT | 1 | $228.10 | |
| 3 | 2640752 | MODULAR 4/5 SERIES SERVICE COVER PANEL-REAR | 1 | $204.28 | |
| 4 | 266058 | STABILIZER ACCESS COVER | 2 | Call for price | — |
| 5 | 7A211 | CONTROL KNOB | 18 | $9.67 | |
| 6 | 7A168 | CONTROL HANDLE | 18 | $45.58 | |
| 7 | 83321 | 1/2 - 20 JAM NUT | 18 | $0.41 | |
| 8 | 262617 | PIN .980 x 6.00 | 2 | Call for price | — |
| 9 | 86100I | RETAINING RING 1.00 INTERNAL | 8 | $1.42 | |
| 10 | 26605D | AIR VALVE MOUNTING PLATE | 1 | $52.78 | |
| 11 | 266062 | UHMW WEAR PAD | 2 | $133.87 | |
| 12 | 266061 | UHMW WEAR PAD | 2 | $95.86 | |
| 13 | 262620-34 | INNER STABILIZER TUBE | 2 | Call for price | — |
| 14 | 72A300144 | STABILIZER CYLINDER | 2 | $1,212.00 | |
| 15 | 65714 | PIN .980 x 4.625 | 2 | $99.82 | |
| 16 | 86125E | RETAINING RING 1.25 EXTERNAL | 4 | $1.42 | |
| 17 | 262637 | STABILIZER PAD PIVOT PIN | 2 | $80.01 | |
| 18 | 262630 | STABILIZER PAD | 2 | $249.80 | |
| 19 | 262638 | STABILIZER PAD POSITION PIN | 2 | $106.40 | |
| 20 | 84712 | LYNCH PIN | 2 | $11.13 | |
| 21 | 6961413 | CLEAT | 2 | $51.06 | |
| 22 | 53263 | FRONT BODY MOUNTING BRACKET | 2 | $21.34 | |
| 23 | 532501 | MIDDLE BODY MOUNTING BRACKET | 2 | Call for price | — |
| 24 | 37851R | TOOL BOX MOUNTING BRACKET-RIGHT | 1 | $142.29 | |
| 25 | 37851L | TOOL BOX MOUNTING BRACKET-LEFT | 1 | $142.51 | |
| 26 | 54M4190H | SIDE BODY MOUNTING GASKET | 2 | Call for price | — |
| 27 | 54M4191L | REAR BODY MOUNTING GASKET - LEFT | 1 | $120.64 | |
| 28 | 54M4191R | REAR BODY MOUNTING GASKET - RIGHT | 1 | $120.41 | |
| 29 | 84716 | 6-1/2 TON SHACKLE AND SCREW PIN | 4 | $140.39 | |
| 30 | 265034 | COUNTERBALANCE MOUNTING BRACKET | 1 | $155.33 | |
| 31 | 03004099 | WRECKER CONTROL TRAY PLUG | 18 | Call for price | — |
4 Series Hydraulic Stabilizers Control Rods and Valves
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 74227S | PRINCE CONTROL VALVE, 7 SPOOL, 4 SOLENOID | 1 | $8,778.87 | |
| 2 | 74232 | PRINCE CONTROL VALVE 2-SPOOL | 1 | $1,522.10 | |
| 3 | 7A62162 | CONTROL ROD 21-5/8 | 1 | $59.49 | |
| 4 | 7A62012 | CONTROL ROD 20-1/8 | 1 | $59.49 | |
| 5 | 7A61862 | CONTROL ROD 18-5/8 | 1 | $54.53 | |
| 6 | 7A61738 | CONTROL ROD 17-3/8 | 1 | Call for price | — |
| 7 | 7A62425 | CONTROL ROD 24-1/2 | 1 | $66.10 | |
| 8 | 7A62550 | CONTROL ROD 25-5/8 | 1 | $66.10 | |
| 9 | 7A62688 | CONTROL ROD 27-1/8 | 1 | $72.73 | |
| 10 | 7A62600 | CONTROL ROD 26 | 1 | Call for price | — |
| 11 | 7A62551 | CONTROL ROD 24-5/8 | 1 | Call for price | — |
| 12 | 0307456 | PIN, CLEVIS 3/16 DIA x 3/4 ZP | 9 | $3.78 | |
| 13 | 0403067 | BOWTIE COTTER PIN | 18 | $6.20 | |
| 14 | 0403115 | HEX NUT, 3/8-24 UNF ZP | 9 | Call for price | — |
| 15 | 84530 | CLEVIS-RH-GFN 3/8-24 UNF | 9 | $8.00 | |
| 16 | 84620 | PIN, CLEVIS 3/8 DIA X 7/8 ZP | 9 | $2.30 | |
| 17 | 7A168 | WRECKER CONTROL HANDLE | 18 | $45.58 | |
| 18 | 7A211 | WRECKER CONTROL HANDLE KNOB | 18 | $9.67 | |
| 19 | 0400411 | HEX NUT 1/2-20 UNF ZP | 18 | $1.63 | |
| 20 | 56334A | WRECKER CONTROL ROD | 3 | Call for price | — |
| 21 | 56334B | WRECKER CONTROL ROD | 2 | Call for price | — |
| 22 | 56334C | WRECKER CONTROL ROD | 2 | Call for price | — |
| 23 | 56334D | WRECKER CONTROL ROD | 1 | Call for price | — |
| 24 | 264044HL | CONTROL ROD PIVOT PLATE-LH | 1 | Call for price | — |
| 25 | 264044HR | CONTROL ROD PIVOT PLATE-RH | 2 | Call for price | — |
| 26 | NMC557-16C | BUSHING 1 IN. ID NYLON SPLIT | 18 | Call for price | — |
| 27 | 264043HL | CONTROL ROD END PLATE -LH | 1 | Call for price | — |
| 28 | 264043HR | CONTROL ROD END PLATE-RH | 1 | Call for price | — |
| 29 | 264042H | WRECKER CONTROL ROD TRAY | 1 | Call for price | — |
| 30 | 03004099 | WRECKER CONTROL TRAY PLUG | 18 | Call for price | — |

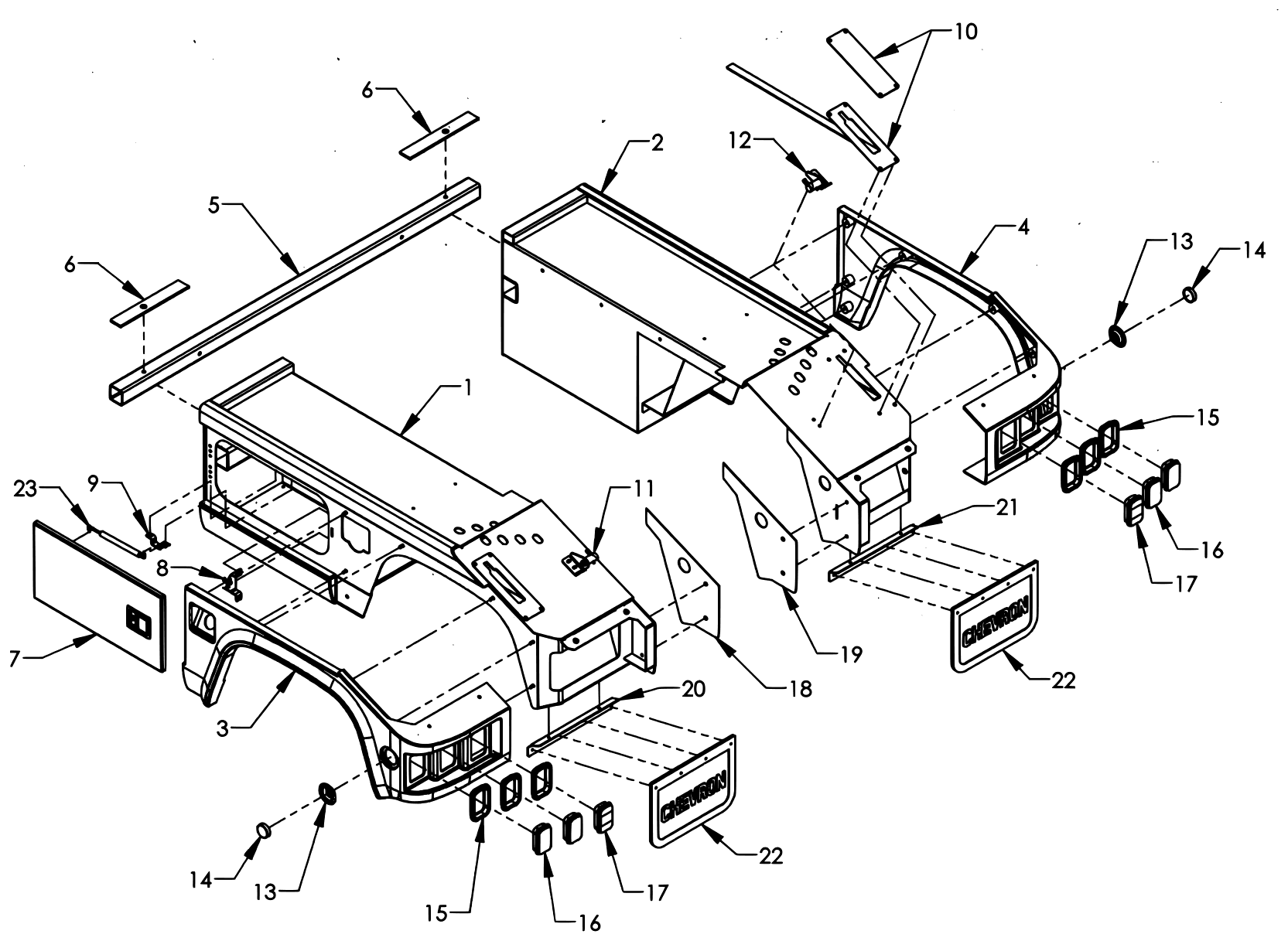

4 Series Aluminum Integrated Modular Boxes
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 54M40060L | MODULAR BOX DRIVER SIDE | 1 | $10,413.53 | |
| 2 | 54M4060R | MODULAR BOX PASSENGER SIDE | 1 | Call for price | — |
| 3 | 54M4150L | FIBERGLASS REAR CORNER PANEL - LEFT | 1 | $1,936.20 | |
| 4 | 54M4150R | FIBERGLASS REAR CORNER PANEL - RIGHT | 1 | $1,936.20 | |
| 5 | 54M4195 | MODULAR BOX MOUNTING TUBE | 1 | Call for price | — |
| 6 | 54601 | MOUNTING TUBE RUBBER GASKET | 2 | $72.73 | |
| 7 | 54M4160G | MODULAR SIDE DOOR GROUP | 2 | Call for price | — |
| 8 | 54M4145 | DOOR LATCH BRACKET | 2 | $22.90 | |
| 9 | 54M4166 | DOOR CYLINDER MOUNTING BRACKET | 2 | $19.13 | |
| 10 | 5462B0 | WHEEL RETAINER STORAGE GUARD, CONVT’L. | 2 | $184.44 | |
| - | 5462B3 | L-ARM POCKET HOLE COVER, AUTOGRIP | 2 | $75.27 | |
| 11 | 59240L | WHEEL RETAINER LOCK PIN - LEFT | 1 | $146.33 | |
| 12 | 59240R | WHEEL RETAINER LOCK PIN - RIGHT | 1 | $146.33 | |
| 13 | 93150 | MARKER LIGHT GROMMET | 2 | $7.57 | |
| 14 | 93100R | RED REFLECTIVE MARKER LIGHT | 2 | $8.59 | |
| 15 | 96650 | TAIL LIGHT GROMMET | 6 | Call for price | — |
| 16 | 95600 | TAIL LIGHT | 4 | $22.44 | |
| 17 | 95500 | BACK UP LIGHT | 2 | $17.24 | |
| 18 | 54M4191L | MODULAR BOX DRIVER SIDE RUBBER GASKET | 1 | $120.64 | |
| 19 | 54M4191R | MODULAR BOX PASS. SIDE RUBBER GASKET | 1 | $120.41 | |
| 20 | 54M413AL | MUDFLAP MOUNTING BRACKET - LEFT | 1 | $35.75 | |
| 21 | 54M413AR | MUDFLAP MOUNTING BRACKET - RIGHT | 1 | $34.40 | |
| 22 | A1040 | MUDFLAP 20 x 14 | 2 | $71.11 | |
| 23 | 5AGS087-0675MD10-020 | GAS CYLINDER | 2 | Call for price | — |

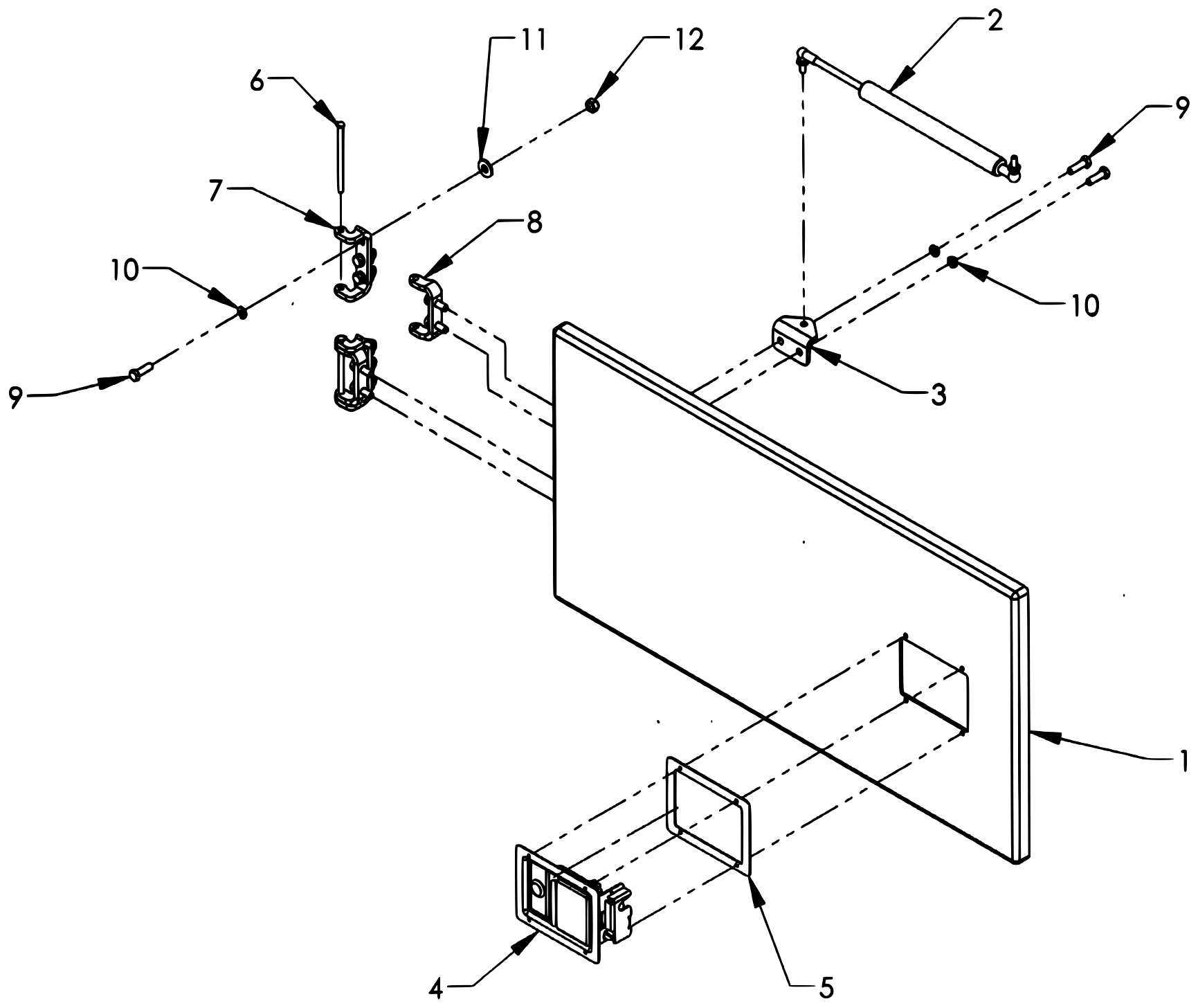

4 Series Modular Box Door Group
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 54M4160 | ALUMINUM WRECKER DOOR WELDMENT | 1 | $683.79 | |
| 2 | 5AGS08-0675MD10-020 | GAS SPRING CYLINDER | 1 | $63.82 | |
| 3 | 54M4165 | DOOR CYLINDER MOUNTING BRACKET | 1 | Call for price | — |
| 4 | 54658 | ROTARY PADDLE LATCH | 1 | $111.23 | |
| 5 | 54657 | GASKET - PADDLE LATCH | 1 | $3.67 | |
| 6 | 54M4183 | DOOR HINGE PIN | 2 | Call for price | — |
| 7 | 54M4181 | DOOR HINGE OUTER | 2 | Call for price | — |
| 8 | 54M4182 | DOOR HINGE INNER | 2 | Call for price | — |
| 9 | 81110 | BOLT, 5/16-18 UNC x 1 | 2 | $0.67 | |
| 10 | 82130 | LOCK WASHER 5/16 | 2 | $0.48 | |
| 11 | 82110 | FLAT WASHER 5/16 | 2 | $0.48 | |
| 12 | 83125 | NYLON LOCK NUT 5/16-18 UNC | 1 | $0.48 |
4 Series Aluminum Tunnel Box Group (24 X 92)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 54M41024 | ALUMINUM WRECKER TUNNEL BOX | 1 | Call for price | — |
| 2 | 54M4170G | TUNNEL BOX DOOR GROUP - 24 IN. | 2 | Call for price | — |
| 3 | 54M4166 | DOOR CYLINDER MOUNTING BRACKET | 2 | $19.13 | |
| 4 | 54M4145 | DOOR LATCH BRACKET | 2 | $22.90 | |
| 5 | 54598 | TUNNEL BOX MOUNTING BRACKET | 2 | $147.07 | |
| 6 | 93100A | AMBER REFLECTIVE MARKER LIGHT | 2 | $8.59 | |
| 7 | 93150 | MARKER LIGHT GROMMET | 2 | $7.57 |
4 Series Aluminum Tunnel Box Door
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 54M4170 | ALUMINUM WRECKER DOOR WELDMENT | 1 | Call for price | — |
| 2 | 5AGS08-0675MD10-020 | GAS SPRING CYLINDER | 1 | $63.82 | |
| 3 | 54M4165 | DOOR CYLINDER MOUNTING BRACKET | 1 | Call for price | — |
| 4 | 54658 | ROTARY PADDLE LATCH | 1 | $111.23 | |
| 5 | 54657 | GASKET - PADDLE LATCH | 1 | $3.67 | |
| 6 | 54M4183 | DOOR HINGE PIN | 2 | Call for price | — |
| 7 | 54M4181 | DOOR HINGE OUTER | 2 | Call for price | — |
| 8 | 54M4182 | DOOR HINGE INNER | 2 | Call for price | — |
| 9 | 0400109 | BOLT, 5/16-18 UNC x 1 | 12 | $5.84 | |
| 10 | 0400464 | LOCK WASHER 5/16 | 12 | $1.70 | |
| 11 | 0400465 | FLAT WASHER 5/16 | 6 | $5.84 | |
| 12 | 0400382 | NYLON LOCK NUT 5/16-18 UNC | 6 | $5.84 |
4 Series Steel Tunnel Box Group (36 X 86)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 548236 | 36 INCH STEEL TUNNEL BOX WELDMENT | 1 | Call for price | — |
| 2 | 548515 | TUNNEL BOX MOUNTING BRACKET | 2 | Call for price | — |
| 3 | 5484036 | 36 INCH TUNNEL BOX DOOR | 2 | $517.87 | |
| 4 | 54658 | ROTARY PADDLE LATCH | 2 | $111.23 | |
| 5 | 54657 | GASKET - PADDLE LATCH | 2 | $3.67 | |
| 6 | 54863 | TUNNEL BOX DOOR HINGE MOUNT | 4 | $11.08 |
4 Series Integrated Boom Assembly Single Line
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 6I1033 | 408T L-BOOM | 1 | $5,982.77 | |
| 2 | 6I1053 | 408T INNER BOOM TUBE | 1 | $1,745.06 | |
| 3 | 6I1071 | UNDERLIFT OUTER TUBE - AUTOGRIP | 1 | $1,994.85 | |
| - | 6I1072 | UNDERLIFT OUTER TUBE - CONVENTIONAL | 1 | $1,994.85 | |
| 4 | 720133 | 408T BOOM EXTENSION CYLINDER | 1 | $1,997.10 | |
| 5 | 63595 | NYLATRON WEAR PAD 1/2 x 2 x 4 | 4 | $16.62 | |
| 6 | 6I1339 | 4 SERIES BOOM EXTENSION CYL. ROD MTG. PIN | 1 | $120.87 | |
| 7 | 86125I | SNAP RING 1-1/8 INTERNAL | 2 | $1.42 | |
| 8 | 61336 | BOOM END SWIVEL - 408/512 | 1 | Call for price | — |
| 9 | 69120 | PULLEY 6 INCH | 1 | $322.45 | |
| 10 | 61368 | PULLEY BOLT | 1 | $95.63 | |
| 11 | 83610 | HEX NUT 7/8 x 14 UNF | 1 | $6.59 | |
| 12 | 82510 | FLAT WASHER 3/4 | 4 | $0.67 | |
| 13 | 61370 | CABLE FOLLOWER | 1 | $125.80 | |
| 14 | 86287E | SNAP RING 2-7/8 EXTERNAL | 2 | $9.67 | |
| 15 | 6I1330L | TRUNNION BRACKET - LEFT | 1 | $348.27 | |
| 16 | 6I1330R | TRUNNION BRACKET - RIGHT | 1 | $348.27 | |
| 17 | 72A35016 | 4 SERIES BOOM LIFT CYLINDER | 2 | $1,276.43 | |
| 18 | 720122 | 408VT VERTICAL FOLD CYLINDER | 1 | $1,354.80 | |
| 19 | 71102L | WINCH 9000 LB. PLANETARY | 1 | $3,784.80 | |
| 20 | A9016 | CABLE TENSIONER KIT | 1 | $348.36 | |
| 21 | 6I1240 | LIFT CYLINDER PIN - ROD END | 2 | $209.38 | |
| 22 | 6I4245 | BOOM LIFT CYLINDER BASE PIN | 2 | $173.56 | |
| 23 | 86150E | SNAP RING 1-1/2 EXTERNAL | 2 | $6.42 | |
| 24 | 6I1545 | POWER TILT BASE PIN | 1 | $182.16 | |
| 25 | 86150I | SNAP RING 1-1/2 INTERNAL | 4 | $4.91 | |
| 26 | 63431 | BOOM SHIM PAD | 1 | $51.06 | |
| 27 | 82210 | FLAT WASHER 3/8 | 2 | $3.21 | |
| 28 | 812A8 | BOLT 3/8-16 UNC BUTTON HEAD | 4 | $2.33 | |
| 29 | 86910 | CABLE TENSION SPRING | 1 | $88.51 | |
| 30 | 6I16202 | PIN - OUTER BOOM PIVOT | 1 | $154.90 | |
| 31 | 6I1740 | PIN - POWER TILT ROD | 1 | $122.56 | |
| 32 | 6I1625 | POWER TILT RESTRICTOR PIN | 1 | $168.51 | |
| 33 | 65621H | BEARING PAD - STINGER | 1 | Call for price | — |
| 34 | 6I50110G | 408-512 BOOM PIPE ASSEMBLY GROUP | 4 | Call for price | — |
| 35 | 81670 | BOLT 3/4 x 7 GRADE 8 COARSE THREAD | 2 | $11.87 | |
| 36 | 83521 | 3/4 COARSE THREAD NYLON LOCK NUT | 2 | Call for price | — |
| 37 | 6I1470 | RENEGADE BOOM ANTLER | 1 | $85.72 | |
| 38 | 65612 | NYLATRON WEAR PAD 1/2 x 2 x 3 | 2 | $18.08 |
4 Series Integrated Boom Assembly Twin Line
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 6I1034 | INTEGRATED BOOM - OUTER 408T2 | 1 | $11,129.13 | |
| 2 | 6I1054 | INNER BOOM TUBE - 408T2 | 1 | $2,449.59 | |
| 3 | 6I1071 | UNDERLIFT OUTER TUBE - AUTOGRIP | 1 | $1,994.85 | |
| - | 6I1072 | UNDERLIFT OUTER TUBE - CONVENTIONAL | 1 | $1,994.85 | |
| 4 | 720133 | BOOM EXTENSION CYLINDER | 1 | $1,997.10 | |
| 5 | 72A35016 | BOOM LIFT CYLINDER | 2 | $1,276.43 | |
| 6 | 720122 | 408VT BOOM TILT/FOLD CYLINDER | 1 | $1,354.80 | |
| 7 | 6I501106 | 408/512 BOOM PIPE ASSEMBLY GROUP | 4 | Call for price | — |
| 8A | 71102L | 9000 LB. PLANETARY WINCH - LEFT | 1 | $3,784.80 | |
| 8B | 71102R | 9000 LB. PLANETARY WINCH - RIGHT | 1 | $3,784.80 | |
| 9 | 6I1330L | TRUNNION BRACKET - LEFT | 1 | $348.27 | |
| 10 | 6I1330R | TRUNNION BRACKET - RIGHT | 1 | $348.27 | |
| 11 | 63595 | NYLATRON WEAR PAD 1/2 x 2 x 4 | 4 | $16.62 | |
| 12 | 63431 | UHMW WEAR PAD 1/2 x 4 x 8 | 1 | $51.06 | |
| 13 | 65612 | NYLATRON WEAR PAD 1/2 x 2 x 3 | 2 | $18.08 | |
| 14 | 65621H | UHMW WEAR PAD 1/2 x 2-1/2 x 6 | 1 | Call for price | — |
| 15 | 6I16202 | UNDERLIFT PIVOT PIN 1480 x 10 | 1 | $154.90 | |
| 16 | 86150I | SNAP RING 1-1/2 INTERNAL | 2 | $4.91 | |
| 17 | 6I1740 | UNDERLIFT TILT PIN 1.480 x 7 | 1 | $122.56 | |
| 18 | 6I1625 | POWER TILT RESTRICTOR PIN | 1 | $168.51 | |
| 19 | 6I1545 | POWER TILT BASE PIN 1.480 x 8-1/4 | 1 | $182.16 | |
| 20 | 6I4245 | UNDERLIFT TILT PIN 1.480 x 8-1/8 | 1 | $173.56 | |
| 21 | 86150E | SNAP RING 1-1/2 EXTERNAL | 2 | $6.42 | |
| 22 | 6I1240 | BOOM LIFT CYLINDER PIN | 1 | $209.38 | |
| 23 | 6I1339 | PIN - BOOM EXTENSION CYLINDER | 2 | $120.87 | |
| 24 | 86125I | SNAP RING 1-1/4 INTERNAL | 2 | $1.42 | |
| 25 | 81670 | BOLT 3/4 x 7 GRADE 8 COARSE THREAD | 1 | $11.87 | |
| 26 | 83521 | NYLON LOCK NUT 3/4 COARSE THREAD | 2 | Call for price | — |
| 27 | 812A5 | BUTTON HEAD BOLT 3/8-16 UNC x 3/4 | 4 | $5.84 | |
| 28 | 82210 | 3/8 FLAT WASHER | 2 | $3.21 | |
| 29 | A9016 | CABLE TENSIONER KIT | 2 | $348.36 | |
| 30 | 86287E | SNAP RING 2-7/8 EXTERNAL | 2 | $9.67 | |
| 31 | 61366 | BOOM END SWIVEL - 408/512 | 2 | $264.40 | |
| 32 | 61368 | PULLEY BOLT | 2 | $95.63 | |
| 33 | 83610 | HEX NUT 7/8 x 14 UNF | 2 | $6.59 | |
| 34 | 82510 | FLAT WASHER 3/4 | 8 | $0.67 | |
| 35 | 69120 | PULLEY 6 INCH | 2 | $322.45 | |
| 36 | 61370 | CABLE FOLLOWER | 2 | $125.80 | |
| 37 | 6I1470 | RENEGADE BOOM ANTLER | 1 | $85.72 | |
| 38 | 6I60280 | TWIN LINE CABLE TENSION SPRING BRACKET | 1 | $486.85 | |
| 39 | 86910 | CABLE TENSION SPRING | 2 | $88.51 |
4 Series Wheel Lift Components (Standard)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 6I1088 | INNER BOOM | 1 | $1,621.09 | |
| 2 | 720163 | EXTENSION CYLINDER | 1 | $2,446.37 | |
| 3 | 643572 | PIN - .980 x 5.812 | 1 | $102.12 | |
| 4 | 65621 | NYLATRON WEAR PAD | 1 | $21.62 | |
| 5 | 65435 | CROSSBAR PIVOT PIN | 1 | $134.04 | |
| 6 | 65228 | DETENT LEAF SPRING | 1 | $71.13 | |
| 7 | 65515 | CROSSBAR | 1 | $1,963.71 | |
| 8 | 82210 | 3/8 FLAT WASHER - HEAVY DUTY | 1 | $3.21 | |
| 9 | 812A5 | BOLT 3/8 x 5/8 BUTTON HEAD | 1 | $5.84 | |
| 10 | 65265L | WHEEL GRID - LEFT | 1 | $625.44 | |
| 11 | 65265R | WHEEL GRID - RIGHT | 1 | $625.44 | |
| 12 | 84921 | T-PIN WITH LANYARD | 2 | $107.59 | |
| 13 | 65250L | L-ARM - LEFT | 1 | $485.10 | |
| 14 | 65250R | L-ARM - RIGHT | 1 | $485.10 | |
| 15 | 65245 | WHEEL PAN | 2 | $71.13 | |
| 16 | 84911 | 5/16 SAFETY SNAP PIN | 2 | $1.70 | |
| 17 | 65280A | RATCHET | 2 | $78.41 | |
| 18 | 65285 | STRAP | 2 | $49.20 | |
| 19 | 86100I | SNAP-RING 1.00 INCH INTERNAL | 2 | $1.42 |
Wheel Lift Components (Autogrip)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 6I1086 | 408T AUTOGRIP INNER UNDERLIFT TUBE | 1 | $1,943.80 | |
| 2 | 720144 | EXTENSION CYLINDER 2.50 BORE x 31.24 STROKE | 1 | $2,164.45 | |
| 3 | 69726 | HOSE TRACK | 1 | $213.34 | |
| 4 | 0400596 | BOLT, BHCS - 1/4-20 UNC x 1/2 | 4 | $5.84 | |
| 5 | 0400367 | NYLON LOCK NUT, 1/4-20 UNC | 4 | $5.84 | |
| 6 | 75091 | HOSE KIT IGUS TRACK | 1 | $417.57 | |
| 7 | 65621 | NYLATRON WEAR PAD | 1 | $21.62 | |
| 8 | 69335 | GRAVEL GUARD | 1 | $38.79 | |
| 9 | 0403141 | BOLT, HHCS, 5/8-11 UNC x 2-1/4 | 2 | Call for price | — |
| 10 | 0400505 | FLAT WASHER, 5/8 | 4 | $5.84 | |
| 11 | 0400421 | NYLON LOCK NUT, 5/8-11 UNC | 2 | $5.84 | |
| 12 | 0308129 | DETENT BALL | 2 | $8.01 | |
| 13 | 03000066 | DETENT SPRING | 2 | $14.28 | |
| 14 | 64304R | RUBBER GASKET | 2 | $3.41 | |
| 15 | 64304C | HOSE CLAMP PLATE | 2 | $13.63 | |
| 16 | 643572 | PIN .980 x 5-7/8 | 1 | $102.12 | |
| 17 | 644002 | AUTOGRIP CROSSBAR WELDMENT | 1 | $5,498.93 | |
| 18 | 75048C | HOSE KIT ARM CYLINDERS | 1 | $411.95 | |
| 19 | 720152L | L-ARM CYLINDER - LEFT | 1 | $1,664.83 | |
| 20 | 720152R | L-ARM CYLINDER - RIGHT | 1 | $1,664.83 | |
| 21 | 727162 | L-ARM CYLINDER MOUNTING BLOCK | 2 | $162.74 | |
| 22 | 0400441 | NYLON LOCK NUT 3/4-16 UNF | 2 | Call for price | — |
| 23 | 644432 | L-ARM CYLINDER MOUNTING PIN | 2 | $22.44 | |
| 24 | 644292 | CROSSBAR GRAVEL GUARD | 2 | $22.44 | |
| 25 | 0400465 | FLAT WASHER, 5/16 | 4 | $5.84 | |
| 26 | 0400464 | LOCK WASHER, 5/16 | 4 | $1.70 | |
| 27 | 0400109 | BOLT, HHCS, 5/16-18 UNC x 1 | 2 | $5.84 | |
| 28 | 04012132 | BOLT, HHCS, 5/16-18 UNC x 5/8 | 2 | Call for price | — |
| 29 | 697402L | WHEEL CHOCK - LEFT | 1 | $445.70 | |
| 30 | 697402R | WHEEL CHOCK - RIGHT | 1 | $445.70 | |
| 31 | 84921 | 5/8” T-PIN | 2 | $107.59 | |
| 32 | 644452 | L-ARM PIVOT PIN | 2 | $83.86 | |
| 33 | 0720463 | WASHER, PIVOT PIN RETAINER - 3/8” | 2 | $5.84 | |
| 34 | 0403140 | BOLT, BHCS, 3/8-16 UNC x 1/2 | 2 | Call for price | — |
| 35 | 644352L | L-ARM - LEFT | 1 | $902.62 | |
| 36 | 644352R | L-ARM - RIGHT | 1 | $902.62 | |
| 37 | 87440 | L-ARM CHAIN | 4 | $111.23 | |
| 38 | 64441 | L-ARM CHAIN CLEVIS | 4 | $83.86 | |
| 39 | 0400421 | NYLON LOCK NUT 5/8-11 | 4 | $5.84 | |
| 40 | 0403163 | 5/16 x 1-1/4 SHOULDER SHCS 1/4-20 UNC | 4 | Call for price | — |
| 41 | 0403164 | 5/16 x 1 SHOULDER SHCS 1/4-20 UNC | 4 | Call for price | — |
| 42 | 0400367 | NYLON LOCK NUT 1/4-20 UNC | 8 | $5.84 | |
| 43 | 643272 | DETENT SCREW | 2 | $4.93 | |
| 44 | 644402 | CROSSBAR PIVOT PIN | 1 | $235.03 | |
| 45 | 86250I | SNAP RING - 2-1/2” INTERNAL | 1 | $14.90 | |
| 46 | 7B130 | GREASE FITTING 1/4-28” UNF | 1 | $4.16 | |
| 47 | 0902382 | 1 INCH NYLON POLY-COAT BASKET STRAP | 2 | $140.39 | |
| - | 65287 | BASKET TIRE STRAP - MEDIUM-LARGE BLUE | 2 | $207.95 |
Pivot L-Arm Receiver Group
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 09007328L | PIVOT L-ARM RECEIVER GROUP - LH | 1 | Call for price | — |
| - | 09007328R | PIVOT L-ARM RECEIVER GROUP - RH | - | Call for price | — |
| 2 | 0719079 | PIVOT L-ARM RECEIVER CASTING - LH | 1 | $242.53 | |
| - | 0719080 | PIVOT L-ARM RECEIVER CASTING - RH | - | $242.53 | |
| 3 | 0802187 | L-ARM RECEIVER CASTING PIVOT PIN | 1 | $167.78 | |
| 4 | 0904744 | PIN ASSEMBLY | 1 | $15.89 | |
| - | 0714415 | PIVOT LOCK PIN | 1 | Call for price | — |
| - | 0303918 | LANYARD | 1 | $15.67 | |
| - | 0400044 | DRIVE SCREW #10-24 x 1/2 ROUND HEAD | 1 | $5.84 | |
| 5 | 0400044 | DRIVE SCREW #10-24 x 1/2 ROUND HEAD | 1 | $5.84 | |
| 6 | 0400349 | SCREW 3/8-16 x 1/2 FHSC | 1 | $11.00 | |
| 7 | 0400481 | LOCK WASHER 3/8 EXTERNAL TOOTH | 1 | $5.84 | |
| 8 | 0707505 | 7/8 CAM PIN | 1 | $109.44 | |
| 9 | 0302641 | CAM PIN SPRING | 1 | $9.50 | |
| 10 | 0712933 | SCREW 1/2-13x1/2 TAPERED SOCKET CAP | 1 | $39.16 | |
| 11 | 0302648 | T-HANDLE | 1 | $13.40 | |
| 12 | 0400559 | ROLL PIN 3/16 -1 | 1 | $5.84 |
Pivot Wheel Grids and L-Arms (Optional)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0809290L | PIVOT WHEEL GRID-LEFT | 1 | Call for price | — |
| 2 | 0809290R | PIVOT WHEEL GRID-RIGHT | 1 | $733.41 | |
| 3 | 09007328L | PIVOT L-ARM RECEIVER GROUP-LEFT | 1 | Call for price | — |
| 4 | 09007328R | PIVOT L-ARM RECEIVER GROUP-RIGHT | 1 | Call for price | — |
| 5 | 0802187 | L-ARM RECEIVER CASTING PIVOT PIN | 2 | $167.78 | |
| 6 | 0803648 | LEFT ALUMINUM L-ARM | 1 | $678.33 | |
| 7 | 0803649 | RIGHT ALUMINUM L-ARM | 1 | $678.33 | |
| 8 | 03000010 | RUBBER TENSION STRAP WITH S-HOOK | 2 | $5.67 | |
| 9 | 0902382 | BASKET STRAP, SMALL - MEDIUM, YELLOW | 2 | $140.39 | |
| - | 65287 | BASKET STRAP, TRUCK - MEDIUM, BLUE | 2 | $207.95 |
4 Series Boom End Swivel
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 61369 | BOOM END SWIVEL | 1 | $626.43 | |
| 2 | 69125 | PULLEY - 6 INCH | 1 | $237.06 | |
| 3 | 61379 | CABLE FOLLOWER | 1 | $243.45 | |
| 4 | 61368 | PIN .980 x 3-5/8 | 1 | $95.63 | |
| 5 | 86287E | RETAINING RING 2-7/8 EXTERNAL | 1 | $9.67 | |
| 6 | 83610 | NYLON LOCK NUT 7/8-14 | 1 | $6.59 | |
| 7 | 82710 | FLAT WASHER 1.00 x 1-1/2 x .120 | 2 | $2.76 | |
| 8 | 82718 | FLAT WASHER 1.00 x 1-1/2 x .060 | 2 | Call for price | — |
4 Series Autogrip Attachments
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 694510G | TOW BALL ATTACHMENT GROUP (BALL EXCLUDED) | 1 | $386.57 | |
| 1A | 694510 | TOW BALL BRACKET WELDMENT | 1 | $392.65 | |
| 1B | 816665 | BOLT 3/4-10 UNC x 6.5 | 2 | Call for price | — |
| 2 | 649002G | TOW BAR ATTACHMENT GROUP | 2 | Call for price | — |
| 2A | 649002 | TOW BAR WELDMENT | 1 | Call for price | — |
| 2B | 64910 | RUBBER RING | 2 | $83.92 | |
| 2C | 86350E | RETAINING RING 3.5 EXTERNAL | 2 | $8.74 | |
| 2D | 81815 | BOLT 1.00-8 UNC x 6.5 | 1 | $36.12 | |
| 3 | 694540G | MOTORCYCLE FRONT TIRE SADDLE GROUP | 1 | $357.41 | |
| 3A | 6954540 | MOTORCYCLE FRONT TIRE SADDLE | 1 | Call for price | — |
| 3B | 84922 | T-PIN 3/4 x 4 | 1 | $133.13 | |
| 4 | 694550 | MOTORCYCLE REAR TIRE SADDLE | 1 | $246.16 | |
| - | 694560 | STRAP TIE-DOWN KIT (NOT SHOWN) | 1 | $176.89 |
