Vulcan V-30 (2004 manual)

Show parts list (84 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	0902842	KIT, 'D' RING	--	$260.00
1	0712380	'D' RING	2	$119.20
2	BA0259	PIN, 'D' RING	2	$23.20
3	HD0106	SPRING PIN, 1/4" X 1-3/4"	2	$1.80
4	3014-810000	SUBFRAME WELDMENT	1	$12,935.00
--	3104-980011	BODY INSTALLATION KIT	--	Call for price	—
5	0400177	SCREW, 1/2"-13 X 1-1/4" HEX HD CAP GR5	12	$5.80
6	0400237	SCREW, 1/2"-13 X 4" HEX HD CAP GR5	8	$5.80
7	0400408	NUT, 1/2"-13 HEX NYLOK	8	$2.80
8	0400467	WASHER, 1/2" SAE HARDENED	16	$1.60
9	0400491	LOCKWASHER, 1/2" HELICAL	8	$5.80
10	9043830	SCREW, 1/2"-13 X 4-1/2" HEX HD CAP	4	Call for price	—
11	9402970	TOOLBOX MOUNTING PAD	8	$54.20
12	3012-791005	TUBE, BOX MOUNTING	2	$494.20
13	3012-810300	BRACKET, BODY TUBE	4	$55.40
14	0400498	WASHER, 1/2" ID X 2" OD X .150 FLAT	8	$8.00
--	3014-991001	BOOM PIVOT ASSEMBLY	--	Call for price	—
15	0301397	GREASE FITTING, 90°	2	$3.80
16	9041108	SCREW, 5/16" NC X 1-3/4" HEX HD CAP GR8	6	$5.80
17	0400262	SCREW, 5/8"-11 X 2-1/2" HEX HD CAP GR8	12	$5.80
18	0400382	NUT, 5/16"-18 HEX NYLOK	6	$5.80
19	0400421	NUT, 5/8"-11 HEX NYLOK	12	$5.80
20	0400463	WASHER, 5/16" FLAT	6	$5.80
21	0400506	WASHER, 5/8" FLAT	24	$5.80
22	3012-710107	PLATE, WASHER	4	Call for price	—
23	3012-780001	RETAINING RING PLATE	2	$25.20
24	3012-810400	PIVOT BLOCK WELDMENT, LH	1	$807.00
25	3012-810500	PIVOT BLOCK WELDMENT, RH	1	$807.00
26	561-2502001	BEARING, 2-1/2" SPHERICAL PLAIN	2	$31.80
--	3014-991004	LIFT CYLINDER ASSEMBLY	--	Call for price	—
	Seal kit for 3014-991004 cylinder: Call for pricing and availability: 770-921-6070
27	0300113	GREASE FITTING, 1/4"-28 STRAIGHT	2	$5.80
28	0400141	SCREW, 3/8"-16 X 7/8" HEX HD CAP GR5	2	$5.80
29	0400479	SHIM, 1-1/2" ID X 2-1/8" OD X 1/8"	8	$9.80
30	0400480	WASHER, 3/8" FLAT	2	$4.00
31	0400482	LOCKWASHER, 3/8" HELICAL	2	$5.80
32	3012-801000	PIN WELDMENT, LIFT CYLINDER	2	$106.60
33	511-4000001	CYLINDER, BOOM LIFT	2	$2,472.80
	0304507	Seal kit for 511-4000001 cylinder: SEAL KIT TEXAS 14551		$104.60
--	3014-991005	JACK ASSEMBLY	--	Call for price	—
34	HD0106	SPRING PIN, 1/4" X 1-3/4"	2	$1.80
35	0300113	GREASE FITTING, 1/4"-28 STRAIGHT	2	$5.80
36	0302474	LYNCH PIN	2	$3.80
37	0400109	SCREW, 5/16"-18 X 1" HEX HD CAP GR5	4	$5.80
38	0400463	WASHER, 5/16" FLAT	4	$5.80
39	0400464	LOCKWASHER, 5/16" HELICAL	4	$1.60
40	0400568	ROLL PIN, 3/8" X 3"	2	$8.00
41	0712504	PIN, RETAINING	2	$52.40
42	9056125	RETAINING RING, 1-1/4" NOM HEAVY DUTY	8	$3.80
43	9057125	SNAP RING, 1-1/4" NOM INTERNAL	4	$1.80
44	810350002	PIN, UPPER TILT CYLINDER	2	$66.80
45	1616030001	PIN, EXTENSION CYLINDER	2	$108.40
46	3014-700001	PIN, SPADE EXTENSION CYLINDER (ROD)	2	$110.60
47	3014-791003	COVER, JACK	2	$50.80
48	3014-810600	INNER SPADE WELDMENT	2	$1,022.60
49	3014-810700	FLIPPER WELDMENT, SPADE	2	$328.80
50	511-2500001	CYLINDER, JACK LEG	2	$1,627.20
	534-2502001	Seal kit for 511-2500001 cylinder: SEAL KIT FOR 511-2500001		$73.60
--	3014-991006	BOOM WEAR PAD ASSEMBLY	--	Call for price	—
51	0400382	NUT, 5/16"-18 HEX NYLOK	24	$5.80
52	9043973	SCREW, 5/16"-18 X 1-1/2" FL HD SKT	24	$5.80
53	806030005	BOOM GUIDE PAD, BODY ASSY LH	2	$86.60
54	806030006	BOOM GUIDE PAD, BODY ASSY RH	2	$72.20
55	3014-991007	REAR TRAY ASSEMBLY	--	Call for price	—
--	0400004	NUT, #8-32 HEX NYLOK SS	24	Call for price	—
--	0400015	SCREW, #8-32 X 1/2" FL HD PH MACH	24	Call for price	—
56	0400109	SCREW, 5/16"-18 X 1" HEX HD CAP GR5	4	$5.80
--	0400446	WELDNUT, 5/16"-18	4	Call for price	—
--	0400450	WASHER, 10 SAE FLAT	24	Call for price	—
57	0400451	WASHER, 1/4" FLAT	4	$5.80
58	0400464	LOCKWASHER, 5/16" HELICAL	4	$1.60
--	3012-791601	PLATE, BOX DOOR	2	Call for price	—
--	3012-810600	REAR TRAY WELDMENT	1	Call for price	—
--	3014-791005	PIANO HINGE, 12" LONG	2	Call for price	—
--	3014-991009	CHAIN BOX ASSEMBLY	--	Call for price	—
59	3012-791010	PANEL, CHAIN BOX LH	1	Call for price	—
60	3012-791011	PANEL, CHAIN BOX RH	1	Call for price	—
--	0903275	SAFETY CHAIN KIT	--	$152.20
61	0307383	CHAIN ASSEMBLY, 5/16" G7 X 12'	2	$64.80
62	0400122	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP	8	$5.80
63	0400392	NUT, 3/8"-16 HEX NYLOK	8	$5.80
64	0400480	WASHER, 3/8" FLAT	8	$4.00
--	3014-991010	COVER PLATE ASSEMBLY	--	Call for price	—
65	0402021	SCREW, 1/4"-20 X 1" HEX HD CAP SS	8	$5.80
66	0402110	WASHER, 1/4" FLAT SS	8	$5.80
67	0402111	LOCKWASHER, 1/4" HELICAL SS	8	$5.80
68	3014-791004	COVER PLATE	2	$58.00

Vulcan V-30 (2004 manual) Body Assembly diagram

Show parts list (65 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	3014-974000	LH BODY ASSEMBLY, SS	1	Call for price	—
--	3014-974400	SPLASH GUARD ASSEMBLY, LH	--	$564.20
2	0402043	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP SS	6	$5.80
3	0402053	SCREW, 3/8"-16 X 4-1/2" HEX HD CAP SS	1	Call for price	—
4	0402120	WASHER, 3/8" FLAT 316 SS	14	$5.80
5	0402123	NUT, 3/8"-16 HEX NYLOK SS	7	$5.80
6	3014-874400	SPLASH GUARD WELDMENT, LH	1	Call for price	—
--	3014-974800	FENDER KIT, LH	--	$1,455.20
7	0402021	SCREW, 1/4"-20 X 1" HEX HD CAP SS	12	$5.80
8	0402110	WASHER, 1/4" FLAT SS	24	$5.80
9	0402113	NUT, 1/4"-20 HEX NYLOK SS	12	$1.80
10	3014-874800	FENDERETTE PANEL WELDMENT, LH	1	$3,091.80
--	3014-974900	FENDER KIT, RH	--	Call for price	—
11	0402021	SCREW, 1/4"-20 X 1" HEX HD CAP SS	12	$5.80
12	0402110	WASHER, 1/4" FLAT SS	24	$5.80
13	0402113	NUT, 1/4"-20 HEX NYLOK SS	12	$1.80
14	3014-874900	FENDERETTE PANEL WELDMENT, RH	1	$3,091.80
15	3014-975000	RH BODY ASSEMBLY, SS	1	Call for price	—
--	3014-975400	SPLASH GUARD ASSEMBLY, RH	--	Call for price	—
16	0402043	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP SS	6	$5.80
17	0402053	SCREW, 3/8"-16 X 4-1/2" HEX HD CAP SS	1	Call for price	—
18	0402120	WASHER, 3/8" FLAT 316 SS	14	$5.80
19	0402123	NUT, 3/8"-16 HEX NYLOK SS	7	$5.80
20	3014-875400	SPLASH GUARD WELDMENT, RH	1	Call for price	—
--	3014-980006	LIGHT KIT, VULCAN V30	--	$483.80
21	0307215	LIGHT, RED 45 STT LED	4	$47.00
22	0307216	LIGHT, AMBER 45 TURN LED	2	$75.80
23	0307217	LIGHT, RED LED RECTANGULAR 4" X 1"	2	$37.00
24	0307218	BASE MOUNT FOR LIGHT, BLACK	6	$11.60
25	0307219	LIGHT, RED LED RECTANGULAR 2" X 6"	2	$39.80
26	0307365	LIGHT, AMBER LED RECTANGULAR 4" X 1.18"	4	$33.00
27	9025049	INTERIOR & COMPARTMENT LIGHT W/SWITCH	6	$41.60
--	3014-980016	BODY RUBBER KIT, V30	--	Call for price	—
28	9032096	DECORATIVE TRIMPriced per foot	16 FT.	$9.80
29	9032157	RUBBER SEALPriced per foot	60 FT.	$9.80
30	9061802	RUBBER STRIP	16 FT.	Call for price	—
--	3014-980017	MUD FLAP KIT, V30	--	Call for price	—
31	0402043	SCREW, 3/8"-16 X 1-1/4" HEX HD CAP SS	4	$5.80
32	0402044	SCREW, 3/8"-16 X 1-1/2" HEX HD CAP SS	14	$1.60
33	0402120	WASHER, 3/8" FLAT 316 SS	40	$5.80
34	0402123	NUT, 3/8"-16 HEX NYLOK SS	22	$5.80
35	891000001	MUD FLAP, RUBBER	2	$29.80
36	3014-797020	MUD GUARD, LH	1	$202.60
37	3014-797021	MUD GUARD, RH	1	Call for price	—
38	3014-797022	MUD FLAP BRACKET, LH	1	$142.20
39	3014-797023	MUD FLAP BRACKET, RH	1	Call for price	—
40	3014-797024	BACK UP STRIP, MUD FLAP	2	$41.60
--	6012-070000	24" SS TUNNEL BOX ASSEMBLY	--	Call for price	—
41	0302433	CABLE TIE	20	$1.00
42	0303385	JUNCTION BOX, 10 POLE	1	$99.20
43	8909024	880 BOX KIT FOR SS TUNNEL BOX	1	Call for price	—
44	9025049	INTERIOR & COMPARTMENT LIGHT W/SWITCH	2	$41.60
45	9032157	RUBBER SEALPriced per foot	20 FT.	$9.80
46	526-3014010	WIRING HARNESS, TUNNEL BOX LIGHT	2	Call for price	—
47	6012-970000	24" SS TUNNEL BOX	1	Call for price	—
48	GV57	RUBBER GROMMET	4	$1.80
--	6012-071000	36" SS TUNNEL BOX ASSEMBLY	--	Call for price	—
49	0302433	CABLE TIE	20	$1.00
50	0303385	JUNCTION BOX, 10 POLE	1	$99.20
51	8969025	896 SS SPACER BOX KIT, 36" TUNNEL	1	Call for price	—
52	9025049	INTERIOR & COMPARTMENT LIGHT W/SWITCH	2	$41.60
53	9032157	RUBBER SEALPriced per foot	24 FT.	$9.80
54	526-3014010	WIRING HARNESS, TUNNEL BOX LIGHT	2	Call for price	—
55	6012-971000	36" SS TUNNEL BOX	1	Call for price	—
56	GV57	RUBBER GROMMET	4	$1.80

Vulcan V-30 (2004 manual) Recovery Boom Assembly diagram

Show parts list (55 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4"-28 STR	5	$5.80
2	0300626	SHEAVE, 8"	2	$204.00
3	0301533	TIE DOWN STRAP, 15"	2	$28.20
4	0301642	SNAP RING, 1-1/4"	2	$5.80
5	0301814	RETAINING RING, 3-1/2" EXTERNAL	2	$11.20
6	0301895	GREASE FITTING, 1/8" STR	1	$5.80
7	0301949	SYNFLEX HOSE, 3/8"Priced per foot	9.2 FT.	$8.00
8	0302848	WIRE ROPE, 1/2" X 150'	2	Call for price	—
9	0400059	SCREW, 1/4"-20 X 5/8" HEX HD CAP	2	$5.80
10	0400078	SCREW, 1/4"-20 X 2" HEX HD CAP	2	$5.80
11	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	4	$5.80
12	0400126	SCREW, 3/8"-16 X 1" HEX HD CAP	2	$5.80
13	0400147	SCREW, 3/8"-16 X 5/8" HEX HD CAP	2	$5.80
14	0400149	SCREW, 3/8"-24 X 5/8" HEX HD CAP	4	$4.00
15	0400181	SCREW, 1/2"-13 X 1-1/2" HEX HD CAP	12	$5.80
16	0400184	SCREW, 1/2"-13 X 2-1/4" HEX HD CAP	2	$8.00
17	0400260	SCREW, 5/8"-11 X 2" HEX HD CAP	4	$8.00
18	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.80
19	0400407	NUT, 1/2"-13 HEX	2	$5.80
20	0400408	NUT, 1/2"-13 HEX NYLOK	2	$2.80
21	0400421	NUT, 5/8"-11 HEX NYLOK	4	$5.80
22	0400451	WASHER, 1/4" FLAT	4	$5.80
23	0400452	LOCKWASHER, 1/4" HELICAL	2	$5.80
24	0400463	WASHER, 5/16" FLAT	4	$5.80
25	0400479	WASHER, 1.510 I.D. X 2.125 O.D. X .125	8	$9.80
26	0400480	WASHER, 3/8" FLAT	2	$4.00
27	0400482	LOCKWASHER, 3/8" HELICAL	8	$5.80
28	0400491	LOCKWASHER, 1/2" HELICAL	12	$5.80
29	0400506	WASHER, 1/2" FLAT	8	$5.80
30	9012549	CONNECTOR, 3/8" TUBE X 1/8" NPT	1	$15.60
31	9012552	BULKHEAD COUPLING, 1/8"	1	$39.80
32	9012584	ELBOW, 1/4" NPT X 3/8" TUBE 90	1	$21.20
33	9056125	RETAINING RING, 1-1/4" NOM HEAVY DUTY	2	$3.80
34	806510001	FLANGE BEARING	2	$66.80
35	880060002	NYLATRON PAD	2	$16.20
36	897400001	FRONT PIN	1	$232.80
37	897400002	REAR PIN	1	$72.00
38	3012-700001	PIN, MAIN BOOM PIVOT	1	$336.80
39	3012-792001	PLATE, PAD CAGE	1	$60.20
40	3012-792002	PLATE, PAD CAGE	1	$164.60
41	3012-793001	LUBRICATOR MOUNTING PLATE	1	$19.40
42	3014-791001	WASHER PLATE, 14K	4	Call for price	—
43	3014-792001	CABLE WING	2	$21.80
44	3014-801000	PIN WELDMENT	2	$99.20
45	3014-802000	PIN WELDMENT	2	$162.40
46	3014-820000	BOOM WELDMENT, MAIN RECOVERY	1	$11,059.20
47	3014-821000	BRACKET WELDMENT	1	$446.00
48	3014-830000	INNER BOOM WELDMENT	1	$3,412.80
49	3014-831000	SHEAVE WELDMENT, 3014	2	Call for price	—
50	3014-831100	SWIVEL GUIDE WELDMENT	2	$317.80
51	511-3000001	BOOM EXTENSION CYLINDER	1	$3,316.00
	534-3002001	Seal kit for 511-3000001 cylinder: SEAL KIT FOR 511-3000001		$62.00
52	511-4000001	CYLINDER, BOOM LIFT	2	$2,472.80
	0304507	Seal kit for 511-4000001 cylinder: SEAL KIT TEXAS 14551		$104.60
53	514-1501101	WINCH, 15K DP	2	$7,309.00
54	535-0500001	NYLATRON PAD	1	$78.20
55	541-5050219	SCREW, 1/2"-13 X 3" HEX HD CAP FULL THRD	2	$4.20

Vulcan V-30 (2004 manual) Underlift Assembly diagram

Show parts list (66 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4"-28 STRAIGHT	5	$5.80
2	0400126	SCREW, 3/8"-16 X 1" HEX HD CAP GR5	1	$5.80
3	0400133	SCREW, 3/8"-16 X 3" HEX HD CAP GR5	1	$5.80
4	0400392	NUT, 3/8"-16 HEX NYLOK	1	$5.80
5	0400480	WASHER, 3/8" FLAT	1	$4.00
6	0400482	LOCKWASHER, 3/8" HELICAL	1	$5.80
7	9056150	RETAINING RING, 1-1/2" HEAVY DUTY	2	$8.00
8	3012-700002	PIN, STINGER	1	$456.80
9	3014-700002	PIN, FOLD CYLINDER BASE	1	$225.60
10	3014-801000	PIN WELDMENT	1	$99.20
11	511-5000001	CYLINDER, UNDERLIFT FOLD	1	$2,790.40
	534-5002001	Seal kit for 511-5000001 cylinder: SEAL KIT, 18316 (511-500001)		$180.60
--	3014-940000	UNDERLIFT BOOM ASSEMBLY	--	$13,384.60
12	0300113	GREASE FITTING, 1/4"-28 STRAIGHT	5	$5.80
13	0400121	SCREW, 3/8"-16 X 3/4" HEX HD CAP GR5	4	$5.80
14	0400218	SCREW, 1/2"-20 X 1-1/4" HEX HD CAP GR5	4	$1.20
15	0400482	LOCKWASHER, 3/8" HELICAL	4	$5.80
16	0400491	LOCKWASHER, 1/2" HELICAL	4	$5.80
17	0400492	WASHER, 1/2" FLAT	4	$5.80
18	9056125	RETAINING RING, 1-1/4" NOM HEAVY DUTY	2	$3.80
19	9057125	RETAINING RING, 1-1/4" NOM INT.	2	$1.80
20	896040002	NYLATRON PAD	4	$11.20
21	897400001	FRONT PIN	1	$232.80
22	3012-700003	PIN, UNDERLIFT EXT (ROD)	1	$29.00
23	3012-794002	PLATE, CROSSBAR POSITIONING	2	$54.20
24	3012-794003	BAR, SPACER	1	$24.40
25	3012-794004	PLATE, U/L PAD CAGE	1	$43.40
26	3014-840000	U/L OUTER BOOM WELDMENT	1	$4,042.00
27	3014-850000	U/L INNER BOOM WELDMENT	1	$4,448.00
28	511-3000002	CYLINDER, UNDERLIFT EXTEND	1	$2,012.80
	534-3002002	Seal kit for 511-3000002 cylinder: SEAL KIT, 14214 (511-3000002)		$124.80
--	3014-960000	CROSSBAR ASSEMBLY	--	$2,587.20
29	0400139	SCREW, 3/8"-16 X 1-1/2" HEX SKT SET	1	$5.80
30	0400392	NUT, 3/8"-16 HEX NYLOK	1	$5.80
31	0400480	WASHER, 3/8" FLAT	1	$4.00
32	0400482	LOCKWASHER, 3/8" HELICAL	1	$5.80
--	3014-960000	CROSSBAR ASSEMBLY (cont'd)	--	$2,587.20
33	0907875	CROSSBAR END ASSEMBLY, LH	1	$514.60
34	0907876	CROSSBAR END ASSEMBLY, RH	1	$514.60
35	9041205	SCREW, 3/8"-16 X 1" HEX HD CAP GR8	1	$5.80
36	9047057	DIE SPRING	1	$25.20
37	9052013	BALL, 1" CHROME	1	$15.60
38	9056150	RETAINING RING, 1-1/2" HEAVY DUTY	1	$8.00
39	3012-801100	PIN WELDMENT, CROSSBAR PIVOT	1	$294.20
40	3012-860000	CROSSBAR WELDMENT	1	$2,285.00
41	3014-796005	SPACER, CROSSBAR DIE SPRING	1	$11.20
--	3014-960200	CROSSBAR KIT, V30	--	$1,305.20
42	0300113	GREASE FITTING, 1/4"-28 STRAIGHT	2	$5.80
43	0400505	WASHER, 5/8" FLAT	2	$5.80
44	0400559	ROLL PIN, 3/16" X 1"	2	$5.80
45	8601900	SLIDE LOCK HANDLE KNOB ASSEMBLY	2	$39.80
46	9032158	RUBBER HAND GRIP	2	$9.80
47	9043950	SCREW, 5/8"-11 X 1-1/2" HEX HD CAP GR8	2	$8.00
48	880411600	FRONT STOP PIN ASSEMBLY	2	$39.80
49	896380001	SCOOP RETAINING PIN	2	$18.80
50	896380002	SCOOP WASHER	2	$9.40
51	896380500	SCOOP BRACKET WELDMENT, LH	1	$726.40
52	896387500	SCOOP BRACKET WELDMENT, RH	1	$726.40
53	3014-860200	OUTER CROSSTUBE, LT	1	Call for price	—
54	3014-860300	OUTER CROSSTUBE, RT	1	Call for price	—
--	896001000	CAR RETAINER KIT	--	$1,184.40
55	0400180	SCREW, 1/2"-13 X 6" HEX HD CAP	4	$2.20
56	0400492	WASHER, 1/2" FLAT	4	$5.80
57	896395100	WHEEL SPACER WELDMENT	2	Call for price	—
58	896610000	LIGHT WHEEL RETAINER, LH	1	$618.00
59	896617000	LIGHT WHEEL RETAINER, RH	1	$618.00
60	896390000	WHEEL RETAINER, LH	1	$502.40
61	896397000	WHEEL RETAINER, RH	1	$502.40

Vulcan V-30 (2004 manual) Recovery Boom Hydraulics diagram

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	3014-920000	RECOVERY BOOM ASSEMBLY	--	Call for price	—
1	0301522	CONNECTOR, 6MJ-6MB	2	$3.80
2	0302605	HOSE ASSEMBLY, 44"	2	$66.80
3	511-3000001	BOOM EXTENSION CYLINDER	1	$3,316.00
	534-3002001	Seal kit for 511-3000001 cylinder: SEAL KIT FOR 511-3000001		$62.00
--	3014-991004	LIFT CYLINDER	--	Call for price	—
	Seal kit for 3014-991004 cylinder: Call for pricing and availability: 770-921-6070
4	0301522	CONNECTOR, 6MJ-6MB	4	$3.80
5	0301998	HOSE ASSEMBLY, 24"	2	$56.00
6	0302000	HOSE ASSEMBLY, 24"	2	$39.80
7	0302575	BULKHEAD RUN TEE, 6MJ-6BLKHD-6MJ W/NUT	2	$18.80
8	511-4000001	CYLINDER, BOOM LIFT	2	$2,472.80
	0304507	Seal kit for 511-4000001 cylinder: SEAL KIT TEXAS 14551		$104.60
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
9	0301778	CONNECTOR, 6MJ-10MB	4	Call for price	—
10	0302604	HOSE ASSEMBLY, 44"	1	$47.00
11	0302926	HOSE ASSEMBLY, 29"	1	$66.80
12	3012-810700	BULKHEAD BRACKET WELDMENT (N.S.)	1	Call for price	—
13	512-0883000	VALVE, P70	1	$8,756.60

Vulcan V-30 (2004 manual) Underlift Hydraulics diagram

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	3014-920000	RECOVERY BOOM ASSEMBLY	--	Call for price	—
1	0301522	CONNECTOR, 6MJ-6MB	2	$3.80
2	0302035	HOSE ASSEMBLY, 18"	2	$37.40
3	0302514	ADAPTER, 8MJ-6MJ	8	$5.60
4	0303170	HOSE ASSEMBLY, 75"	2	$93.80
5	511-5000001	CYLINDER, UNDERLIFT TILT	1	$2,790.40
	534-5002001	Seal kit for 511-5000001 cylinder: SEAL KIT, 18316 (511-500001)		$180.60
6	516-0807801	TUBE ASSEMBLY, UNDER BOOM	4	$182.00
7	566-0840000	CLAMP SET, 4-TUBE	2	$48.00
--	3014-940000	UNDERLIFT BOOM ASSEMBLY	--	$13,384.60
8	0301522	CONNECTOR, 6MJ-6MB	2	$3.80
9	511-3000002	CYLINDER, UNDERLIFT EXTEND	1	$2,012.80
	534-3002002	Seal kit for 511-3000002 cylinder: SEAL KIT, 14214 (511-3000002)		$124.80
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
10	0301778	CONNECTOR, 6MJ-10MB	4	Call for price	—
11	0302604	HOSE ASSEMBLY, 44"	4	$47.00
12	512-0883000	VALVE, P70	1	$8,756.60

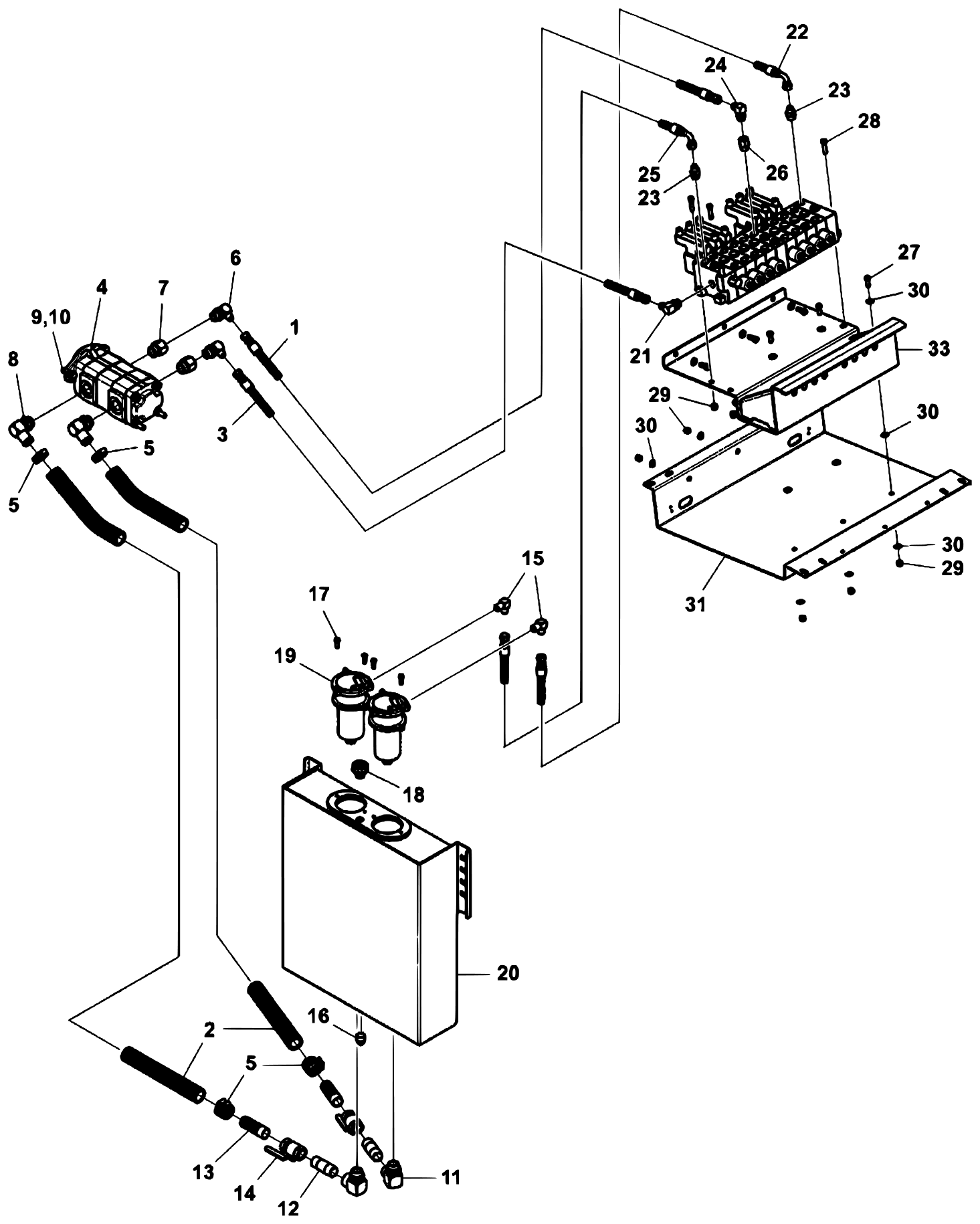

Vulcan V-30 (2004 manual) Pump, Valve & Filter Hydraulics diagram

Show parts list (38 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301659	HOSE ASSEMBLY, 150"	1	$117.40
2	0302756	SUCTION HOSE, 1-1/4" ID 100R4Priced per foot	28 FT.	$21.20
3	0303762	HOSE ASSEMBLY, 120"	1	Call for price	—
4	0303867	PUMP, BI-ROTATIONAL	1	$2,046.00
--	0904545	KIT, PUMP FITTINGS	--	Call for price	—
5	0300364	HOSE CLAMP, 7/8" TO 2-3/4"	4	$7.00
6	0301547	ELBOW, 8MJ-12MB90	2	$18.80
7	0302906	ADAPTER, 16MB-12FB	2	$15.20
8	0306539	HOSE BARB, 20HOSE-16MB90	2	Call for price	—
9	0400181	SCREW, 1/2"-13 X 1-1/2" HEX HD CAP GR5	2	$5.80
10	0400491	LOCKWASHER, 1/2" HELICAL	2	$5.80
--	3014-991008	KIT - HYD. TANK PARTS		$537.00
11	0300692	ELBOW, 1 90 DEG STREET	2	$11.20
12	0302959	NIPPLE, 1" NPT X 3" LG	2	$13.00
13	9012927	NIPPLE, COMBINATION 1" NPT X 1-1/4" BARB	2	$46.60
14	HC1338	BALL VALVE, 1" BRASS	2	$65.80
--	3012-991011	HYD. TANK ASSEMBLY		Call for price	—
15	0301371	ELBOW, 8MJ-12MP90	2	$8.80
16	0303155	PIPE PLUG, 3/4" MAGNETIC	1	$11.60
17	0400109	SCREW, 5/16"-18 X 1" HEX HD CAP	4	$5.80
18	9018131	BREATHER CAP	1	$65.80
19	9018399	IMMERSION FILTER ASSEMBLY	2	$142.60
20	3012-880100	HYD. TANK WELDMENT	1	Call for price	—
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
21	0300052	ELBOW, 8MJ-10MB90	1	$11.20
22	0300787	HOSE ASSEMBLY, 53"	1	$93.80
23	0301376	CONNECTOR, 8MJ-10MB	2	Call for price	—
24	0301388	ELBOW, 8MJ-8MB90	1	$13.20
25	0302313	HOSE ASSEMBLY, 25"	1	$59.60
26	0303176	CONNECTOR, 10MB-8FB	1	$7.60
27	0400126	SCREW, 3/8"-16 X 1" HEX HD CAP GR5	6	$5.80
28	0400132	SCREW, 3/8"-16 X 1-1/2" HEX HD CAP GR5	3	$5.80
29	0400392	NUT, 3/8"-16 NYLOK HEX	6	$5.80
30	0400480	WASHER, 3/8" FLAT	15	$4.00
31	3014-791010	PANEL - VALVE MOUNTING	1	$200.40
32	3014-791011	PANEL - VALVE COVER (NOT SHOWN)	1	$175.20
33	3014-810200	VALVE BRACKET WELDMENT	1	$485.60
34	512-0883000	VALVE, P70	1	$8,756.60

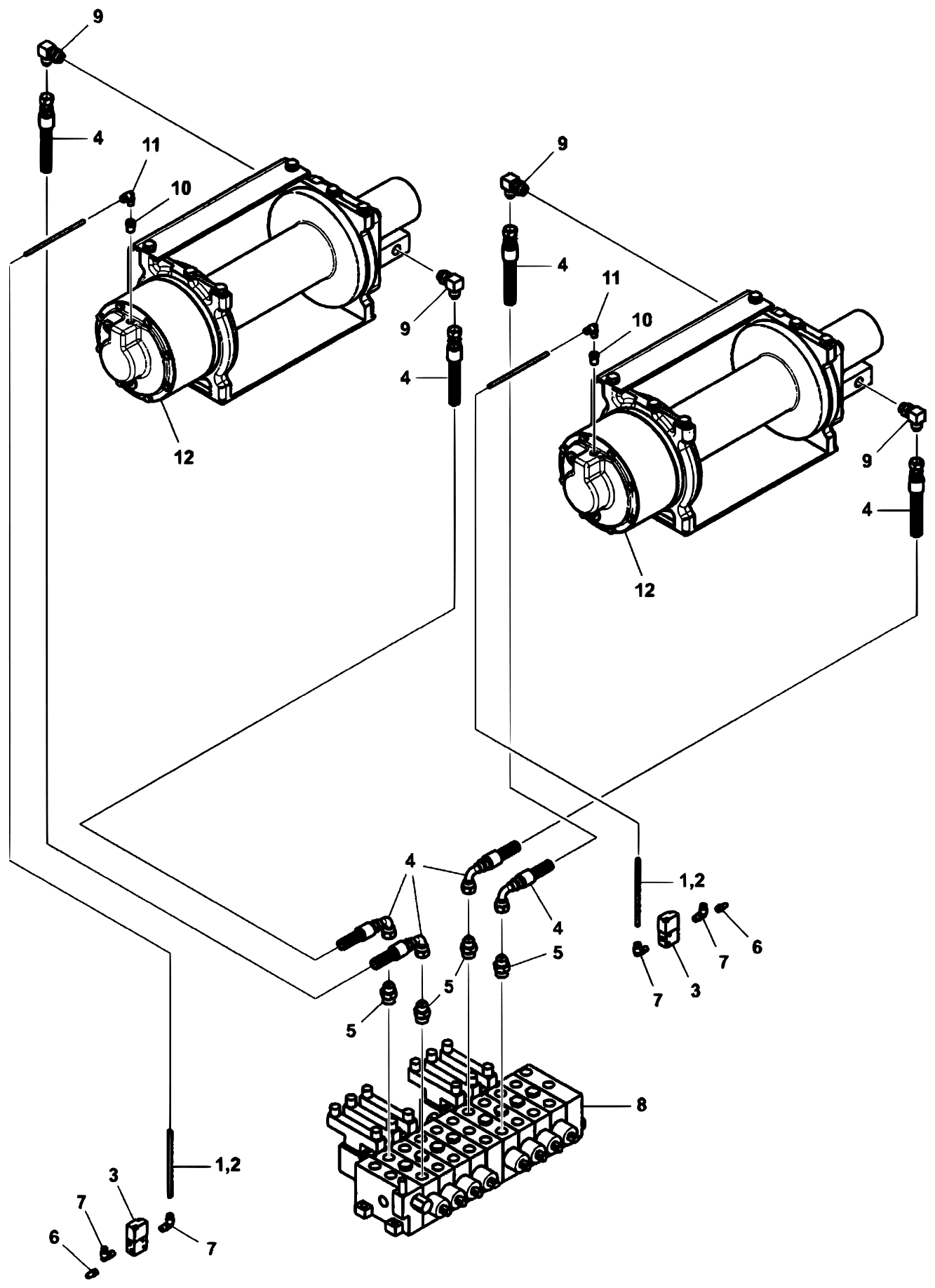

Vulcan V-30 (2004 manual) Winch Hydraulics diagram

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301577	PLASTIC TUBING, 1/4" O.D.Priced per foot	20 FT.	$5.80
2	0302495	CONVOLUTED LOOM, 1/4"Priced per foot	20 FT.	$2.80
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
3	0300324	VALVE, SOLENOID AIR CONTROL	2	$163.00
4	0301207	HOSE ASSEMBLY, 72"	4	$84.80
5	0301376	CONNECTOR, 8MJ-10MB	4	Call for price	—
6	0302677	BREATHER VENT, 1/8 MP	2	$7.60
7	9010030	ELBOW, 1/4T-1/8MPX	4	$13.80
8	512-0883000	VALVE, P70	1	$8,756.60
--	3014-920000	RECOVERY BOOM ASSEMBLY 3014	--	Call for price	—
9	0301388	ELBOW, 8MJ-8MB90	4	$13.20
10	0302340	BUSHING, HEX (BRASS) 4MP-2FP	2	$6.60
11	9010030	ELBOW, 1/4T-1/8MPX	2	$13.80
12	514-1501101	WINCH, 15K DP 15J	2	$7,309.00

Vulcan V-30 (2004 manual) Spade Hydraulics diagram

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	3014-991003	HYDRAULIC TUBING ASSEMBLY	--	Call for price	—
1	0302514	ADAPTER, 8MJ-6MJ	8	$5.60
2	0400070	SCREW, 1/4"-20 X 1" HEX HD CAP (N.S.)	3	$5.80
3	0400367	NUT, 1/4"-20 HEX NYLOK (N.S.)	3	$5.80
4	0400451	WASHER, 1/4" FLAT (N.S.)	3	$5.80
5	516-0806700	HYDRAULIC TUBE ASSEMBLY	4	$158.80
6	566-0820000	2-TUBE CLAMP SET, 1/2"	2	$16.40
7	566-0840000	4-TUBE CLAMP SET, 1/2"	2	$48.00
8	3012-810700	BULKHEAD BRACKET WELDMENT (N.S.)	1	Call for price	—
--	3014-991005	JACK ASSEMBLY	--	Call for price	—
9	0302510	ADAPTER, 6MJ-6MBL	4	Call for price	—
10	511-2500001	CYL, HYD - JACKLEG	2	$1,627.20
	534-2502001	Seal kit for 511-2500001 cylinder: SEAL KIT FOR 511-2500001		$73.60
11	513-0601200	HYD HOSE, 12"	4	$32.80
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
12	0301620	ELBOW, 6MJ-6MB90	2	$5.80
13	0301778	CONNECTOR, 6MJ-10MB	2	Call for price	—
14	0302604	HOSE ASSEMBLY, 44"	1	$47.00
15	0302926	HOSE ASSEMBLY, 29"	3	$66.80
16	0303174	CONNECTOR, 10MB-6FB	1	Call for price	—
17	512-0883000	VALVE, P70	1	$8,756.60

Vulcan V-30 (2004 manual) Manual Control Assembly diagram

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300834	CONTROL KNOB, (IN/OUT)	2	$21.20
2	0300835	CONTROL KNOB, BOOM (UP/DOWN)	1	$13.20
3	0300836	CONTROL KNOB, JACK (UP/DOWN)	2	$18.80
4	0300837	CONTROL KNOB, BOOM (IN/OUT)	1	$15.00
5	0302726	GREASE FITTING, 1/4"-28 X 45°	8	$3.80
6	0302856	CONTROL KNOB, TILT (UP/DOWN)	1	$24.40
7	0302917	CONTROL KNOB, W/L EXTEND (IN/OUT)	1	$31.00
8	0303382	CONTROL KNOB, FOLD (UP/DOWN)	1	$17.40
9	0400103	SCREW, 5/16"-18 X 1-1/4" HEX HD CAP	8	$5.80
10	0400157	SCREW, 3/8"-16 X 1-3/4" HEX HD CAP	8	$5.80	—
11	0400382	NUT, 5/16"-18 HEX	8	$5.80
12	0400393	NUT, 3/8"-16 HEX JAM	8	$5.80
13	0400482	LOCKWASHER, 3/8" HELICAL	8	$5.80
--	3014-991016	CONTROL ASSEMBLY, LH MANUAL	--	Call for price	—
14	0400070	SCREW, 1/4"-20 X 1" HEX HD CAP	8	$5.80
15	0400367	NUT, 1/4"-20 HEX NYLOK	8	$5.80
16	9024041	SWITCH, MCGILL	3	$43.40
17	518-0107200	CONTROL CABLE, 6 FT.	3	Call for price	—
18	518-0108400	CONTROL CABLE, 7 FT.	5	Call for price	—
19	3014-700003	CONTROLS PIN, 12-3/4"	1	$54.20
20	3014-700004	CONTROLS PIN, 8-3/4"	1	$43.40
21	3014-798701	RETAINING BLOCK	4	$66.80
22	3014-887100	FRONT CONTROL BRACKET	1	$406.20
23	3014-887200	REAR CONTROL BRACKET	1	$397.20
24	HD0900	BEARING ROD END, 1/4"-28	8	$22.40
--	3014-987300	CONTROL HANDLE ASSEMBLY	8	$83.00
25	9053524	FLANGED BEARING	2	$6.00
26	3014-887300	CONTROL HANDLE WELDMENT	1	Call for price	—
--	3014-991015	MANUAL VALVE ASSEMBLY	--	Call for price	—
27	3014-791012	CLEVIS, DUAL CONTROL CABLE	8	$13.20

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	3014-980400	CONTROL PANEL ASSEMBLY	--	Call for price	—
1	0400071	SCREW, 1/4"-20 X 3/4" RD HD PH SS	8	$5.80
2	0400367	NUT, 1/4"-20 HEX NYLOK	4	$5.80
3	0402021	SCREW, 1/4"-20 X 1" HEX HD CAP SS	4	$5.80
4	0402110	WASHER, 1/4" FLAT SS	8	$5.80
5	0402112	NUT, 1/4"-20 HEX SS	8	$5.80
6	9024041	SWITCH, MCGILL	2	$43.40
7	9033575	DECAL, REMOTE	1	$35.40
8	3014-791015	PANEL, INTERFACE BOX	1	Call for price	—
9	3014-797008	CONTROL PANEL	1	Call for price	—
10	3014-797011	JOYSTICK MOUNTING PLATE	2	Call for price	—
11	3014-797502	ANGLE, RH SWITCH	1	Call for price	—
12	522-0112000	SWITCH ASSEMBLY (12)	1	Call for price	—
13	522-0712000	JOYSTICK CONTROL, 3014	2	Call for price	—
14	536-0200000	DECAL, UP-OUT	1	Call for price	—
15	536-0200001	DECAL, IN-DOWN	1	Call for price	—
16	536-0200003	DECAL, FRONT WINCH	1	Call for price	—
17	536-0200004	DECAL, REAR WINCH	1	Call for price	—
--	3014-980020	KIT, CONTROL WIRING ASSEMBLY	--	Call for price	—
18	0302380	RELAY, SEALED & SKIRTED	4	Call for price	—
19	0307221	JUNCTION BOX, 18 PIN	2	Call for price	—
20	0400072	SCREW, 1/4"-20 X 1" RD HD PH	8	$0.80
21	0400367	NUT, 1/4"-20 HEX NYLOK	8	$5.80
22	0400481	LOCKWASHER, 3/8" EXT TOOTH	8	$5.80

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	511-2500001	CYLINDER, JACK LEG	2	$1,627.20
	534-2502001	Seal kit for 511-2500001 cylinder: SEAL KIT FOR 511-2500001		$73.60
		SEAL KIT, JACK LEG CYLINDER		Call for price	—
2	511-3000001	CYLINDER, BOOM EXTENSION	1	$3,316.00
	534-3002001	Seal kit for 511-3000001 cylinder: SEAL KIT FOR 511-3000001		$62.00
		SEAL KIT, BOOM EXTENSION CYLINDER		Call for price	—
3	511-3000002	CYLINDER, UNDERLIFT EXTEND	1	$2,012.80
	534-3002002	Seal kit for 511-3000002 cylinder: SEAL KIT, 14214 (511-3000002)		$124.80
		SEAL KIT, UNDERLIFT EXTEND CYLINDER		Call for price	—
4	511-4000001	CYLINDER, BOOM LIFT	2	$2,472.80
	0304507	Seal kit for 511-4000001 cylinder: SEAL KIT TEXAS 14551		$104.60
		SEAL KIT, BOOM LIFT CYLINDER		Call for price	—
5	511-5000001	CYLINDER, UNDERLIFT FOLD	1	$2,790.40
	534-5002001	Seal kit for 511-5000001 cylinder: SEAL KIT, 18316 (511-500001)		$180.60
		SEAL KIT, UNDERLIFT FOLD CYLINDER		Call for price	—

Vulcan V-30 (2004 manual) Lift Forks & Holders diagram

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0200018	FORK, SHORT (3" OPENING)	2	$158.80
2	0200020	FORK, MEDIUM (3" OPENING)	2	$216.60
3	0200022	FORK, LONG (3" OPENING)	2	$261.80
4	896410500	FORK HOLDER WELDMENT, LH	1	$789.40
5	896417500	FORK HOLDER WELDMENT, RH	1	$789.40

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0307146	SAFETY WALK, 18" X 20'	1	$350.20
1	9033212	NAME PLATE, VULCAN	2	$28.80
--	3014-980010	BODY WIRING KIT, V30 SS	--	Call for price	—
1	0302433	CABLE TIE	25	$1.00
2	0303385	JUNCTION BOX, 10 POLE	1	$99.20
3	0307315	BULLET CONNECTOR, 16-14 VINYL	20	$0.40
4	526-3014001	WIRING HARNESS, BODY	2	Call for price	—
6	526-3014002	WIRING HARNESS, FRONT MARKER	2	Call for price	—
5	526-3014003	WIRING HARNESS, BODY EXTENSION	2	Call for price	—
7	526-3014004	WIRING HARNESS, STOP & TURN	2	Call for price	—
6	526-3014005	WIRING HARNESS, MARKER	2	Call for price	—
8	526-3014011	SCHEMATIC, TOOLBOX WIRING	1	Call for price	—
8	526-3014012	SCHEMATIC, TOOLBOX WIRING	1	Call for price	—
9	GV57	RUBBER GROMMET	6	$1.80
--	3014-980041	CONTROL PANEL KIT, V30 MANUAL	--	Call for price	—
	0301577	PLASTIC TUBING, 1/4 O.D. BLACKPriced per foot	10 FT.	$5.80
	0302123	NIPPLE, 4MP-4MP HEX	1	$8.00
	0303363	AIR FILTER/REGULATOR COMBO	1	$142.60
	0303364	AIR LUBRICATOR	1	$131.80
	0303365	MOUNTING BRACKET	1	$7.60
	0307401	UNION, CONVERSION 1/4" X 6MM	1	$13.80
	9011053	CONNECTOR, 1/4" TUBE X 1/4" MP	2	$8.20
11	3014-798702	PANEL, LH CONTROL	1	Call for price	—
12	526-3014013	SCHEMATIC, LH CONTROL WIRING	1	Call for price	—
13	536-0200010	DECAL, LH REAR LOWER	1	$43.40
14	536-0200011	DECAL, LH REAR UPPER	1	$41.60
14	536-0200012	DECAL, LH FRONT LOWER	1	$39.80
14	536-0200013	DECAL, LH FRONT UPPER	1	$35.40
14	539-6000001	PLASTIC TUBING, AIR LINE 6 MMPriced per foot	1	$3.00
	HA0132	GAUGE, 0-160 PSI	1	$24.40

Show parts list (56 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
--	3014-980014	SHIP KIT, 3014 COMMON PARTS	--	Call for price	—
1	0300076	LICENSE PLATE BRACKET	1	$7.20
2	0300132	CABLE TIE, 15-1/4" BLACK	3	$1.00
3	0300273	LICENSE PLATE ILLUMINATOR	1	$25.20
4	0300442	LIGHT, 3 BAR	1	$33.00
5	0301533	TIE DOWN STRAP, 15"	2	$28.20
6	0301958	SCUFF PAD, SAFETY CHAIN	2	$9.40
7	0302433	CABLE TIE	25	$1.00
8	0500241	DECAL, SAFETY CHAIN WARNING	2	$8.00
9	0500686	DECAL, RETRACT CAUTION	1	$3.80
1	0501155	DECAL, DANGER WHEEL LIFT ASSEMBLY	1	$9.80
--	0900082	HOSE MOUNTING HARDWARE KIT	--	Call for price	—
11	0300132	CABLE TIE, 15-1/4" BLACK	6	$1.00
12	0300134	CLAMP, 1" HOSE INSULATED	2	$8.80
13	0300188	CLAMP, 1-1/2" HOSE	3	Call for price	—
14	0400063	SCREW, 1/4"-20 X 1-1/2" RD HD SLOTTED	5	Call for price	—
15	0400366	NUT, 1/4"-20 HEX	5	$5.80
16	0400451	WASHER, 1/4" FLAT	10	$5.80
17	0400452	LOCKWASHER, 1/4" HELICAL	5	$5.80
--	0900174	DASH MOUNT CABLECN HARDWARE KIT	--	Call for price	—
18	0400061	SCREW, 1/4"-20 X 3/4" MACH	2	Call for price	—
19	0400366	NUT, 1/4"-20 HEX	2	$5.80
20	0400452	LOCKWASHER, 1/4" HELICAL	2	$5.80
21	0702227	SWITCH PANEL, MASTER ON/OFF	1	Call for price	—
--	0903069	BACK UP ALARM KIT	--	Call for price	—
22	0300077	WIRE, 16 GA REDPriced per foot	2 FT.	$5.60
23	0300153	CONNECTOR, WIRE	6	Call for price	—
24	0301812	HEAT SHRINK TUBE, 1/4"	.25	Call for price	—
25	0303061	BACK UP ALARM	1	$75.80
26	0400057	SCREW, 1/4"-20 X 1-1/4" HEX HD CAP	2	$5.80
27	0400367	NUT, 1/4"-20 HEX NYLOK	2	$5.80
28	0500676	INSTALL. INSTRUCTION, BACK UP ALARM	1	Call for price	—
29	9035037	PLASTIC PLUG, 2-3/4"	2	$8.00
--	3014-980009	CHASSIS INSTALLATION KIT	--	Call for price	—
30	0400274	SCREW, 5/8"-11 X 2" HEX HD CAP	22	$5.80
31	0400416	NUT, 1/2"-13 HEX NYLOK	20	$5.80
32	0400426	NUT, 5/8"-11 HEX NYLOK	22	$8.00
33	0400497	WASHER, 1/2" FLAT	40	$5.80
34	0400502	WASHER, 5/8" EX THK FLAT	44	$1.00
35	0501421	CHASSIS INSTALLATION SHEET	1	Call for price	—
36	3012-780005	MOUNTING ANGLE, CENTER BODY	2	Call for price	—
37	3012-880200	FRONT MOUNT	2	$184.20
38	3012-880300	REAR MOUNTING BRACKET, FORD	2	Call for price	—
39	3012-880400	REAR MOUNTING BRACKET, STERLING	2	Call for price	—
40	541-5080016	SCREW, 1/2"-13 X 2-1/4" HEX HD CAP	20	Call for price	—
--	3014-980011	BODY INSTALLATION KIT	--	$1,170.80
41	0400177	SCREW, 1/2"-13 X 1-1/4" HEX HD CAP	8	$5.80
42	0400237	SCREW, 1/2"-13 X 4" HEX HD CAP	8	$5.80
43	0400408	NUT, 1/2"-13 HEX NYLOK	12	$2.80
44	0400467	WASHER, 1/2" FLAT	16	$1.60
45	0400491	LOCKWASHER, 1/2" HELICAL	20	$5.80
46	0400497	WASHER, 1/2" ID X 2" OD X .150	8	$5.80
47	9043830	SCREW, 1/2"-13 X 4-1/2" HEX HD CAP	4	Call for price	—
48	9402970	TOOLBOX MOUNTING PAD	8	$54.20
49	3012-791005	BOX MOUNTING TUBE	2	$494.20
50	3012-810300	BRACKET, BODY TUBE	4	$55.40

Vulcan V-30 (2004 manual)

Subframe Assembly

Body Assembly

Recovery Boom Assembly

Underlift Assembly

Recovery Boom Hydraulics

Underlift Hydraulics

Pump, Valve & Filter Hydraulics

Winch Hydraulics

Spade Hydraulics

Manual Control Assembly

Electric Control Assembly

Hydraulic Cylinders

Lift Forks & Holders

V30 Parts Ship Kit

3016 Common Parts Ship Kit
