Century Series 12 Gen II

Show all 72 parts sections ▼Hide parts sections ▲

Aluminum Bed Assembly Gen II - Removable Rail
Removable Tube Rail Sides
Steel Bed Assembly Gen II - Removable Tube Rail
Removable Blade Rail Sides
Steel Bed Assembly - Blade Sides - Gen 2 Series 12 Right Approach
Right Approach Removable Blade Rail Sides
Steel Bed Assembly - Gen 2 Series 12 Right Approach Tube Sides
Steel Bed Assembly - Gen 2 Series 12 SST Blade Rail Sides

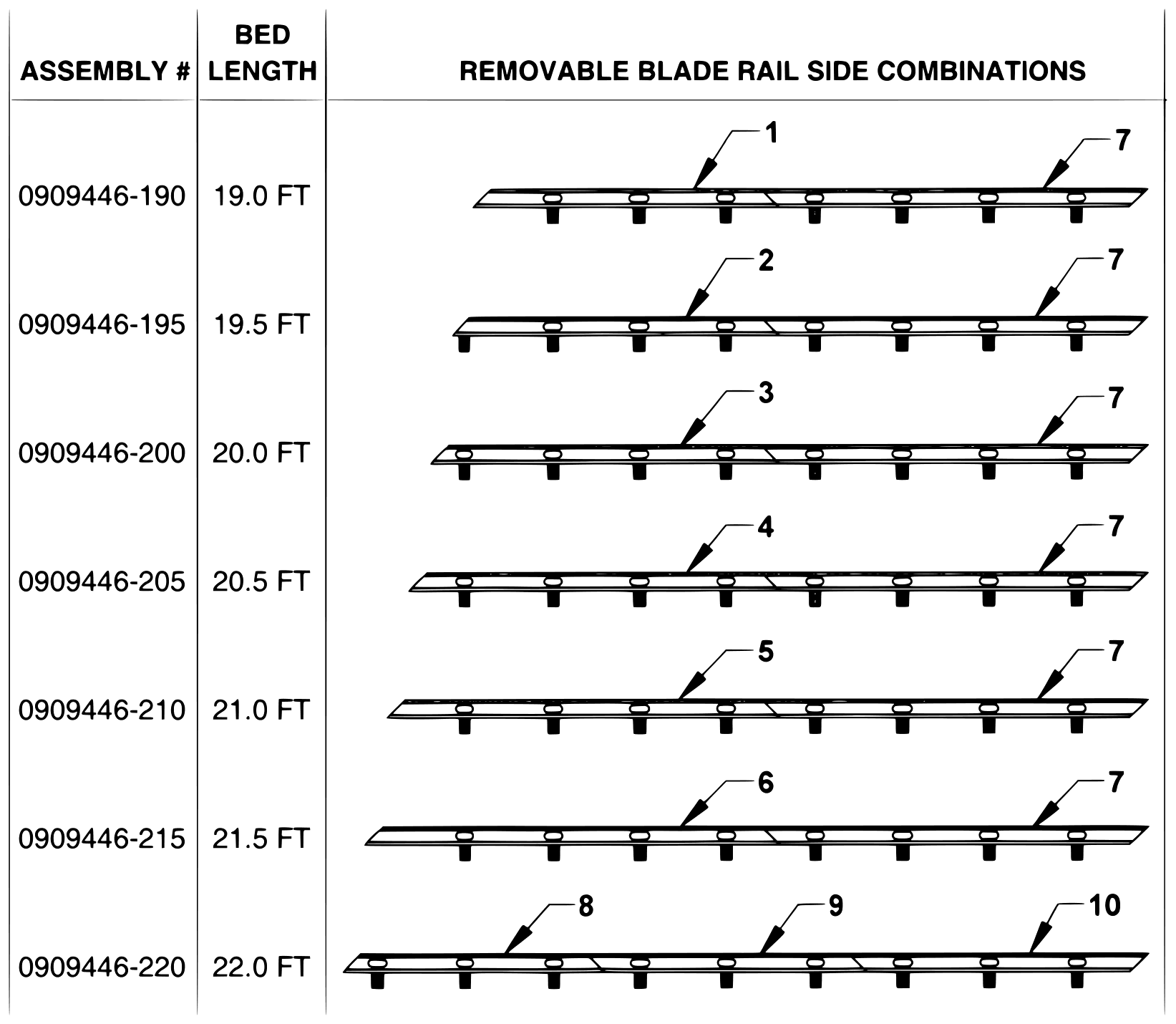

SST Removable Blade Rail Sides
Steel Bed Assembly - Gen 2 Series 12 SST Tube Sides
12 Series Gen 2 LCG Subframe Assembly

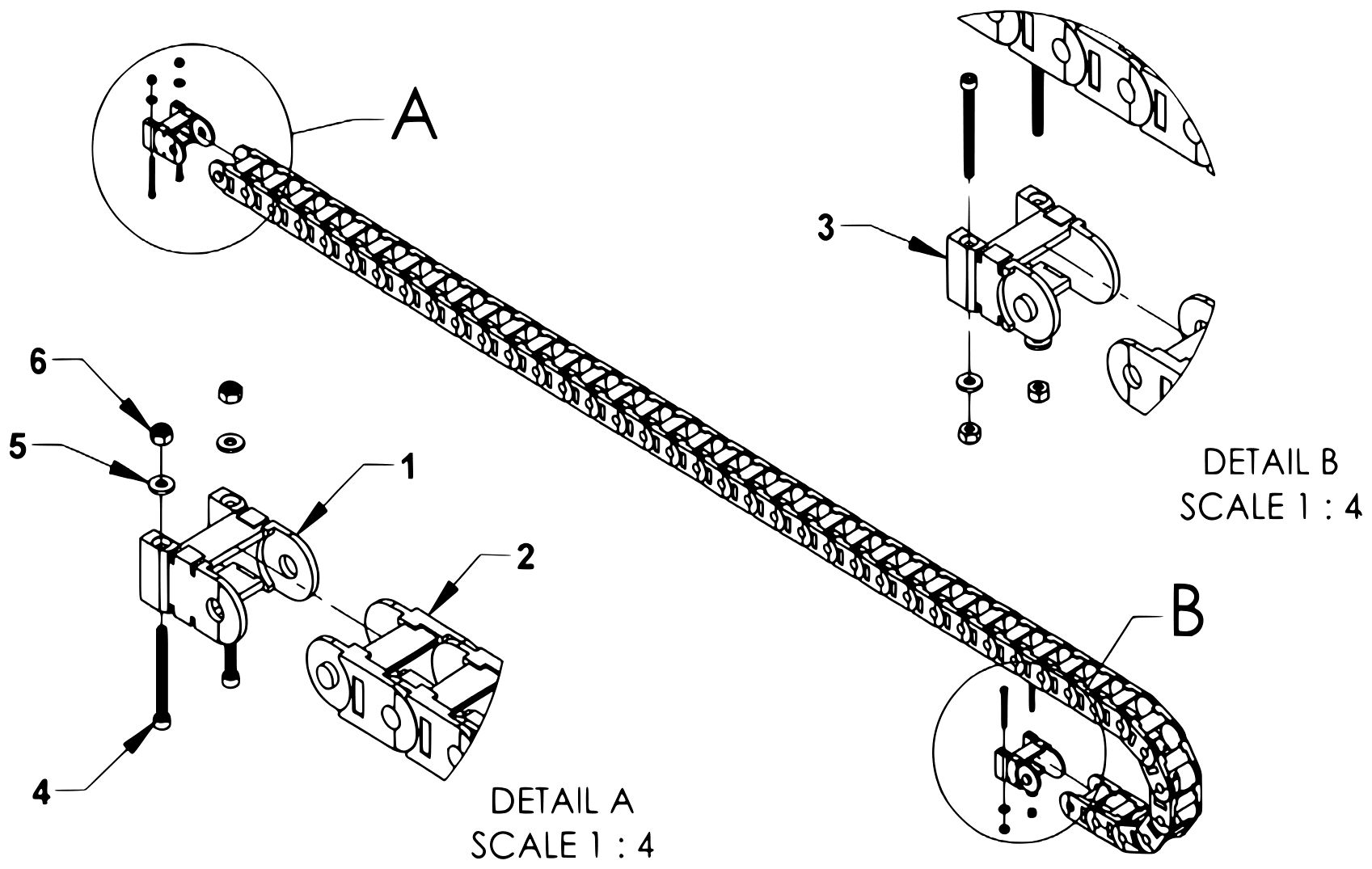

Igus Track and Bolt Kit - 09020735 - 120" Slideback Cylinder Stroke
Igus Track and Bolt Kit - 09020734 - 120" Slideback Cylinder Stroke

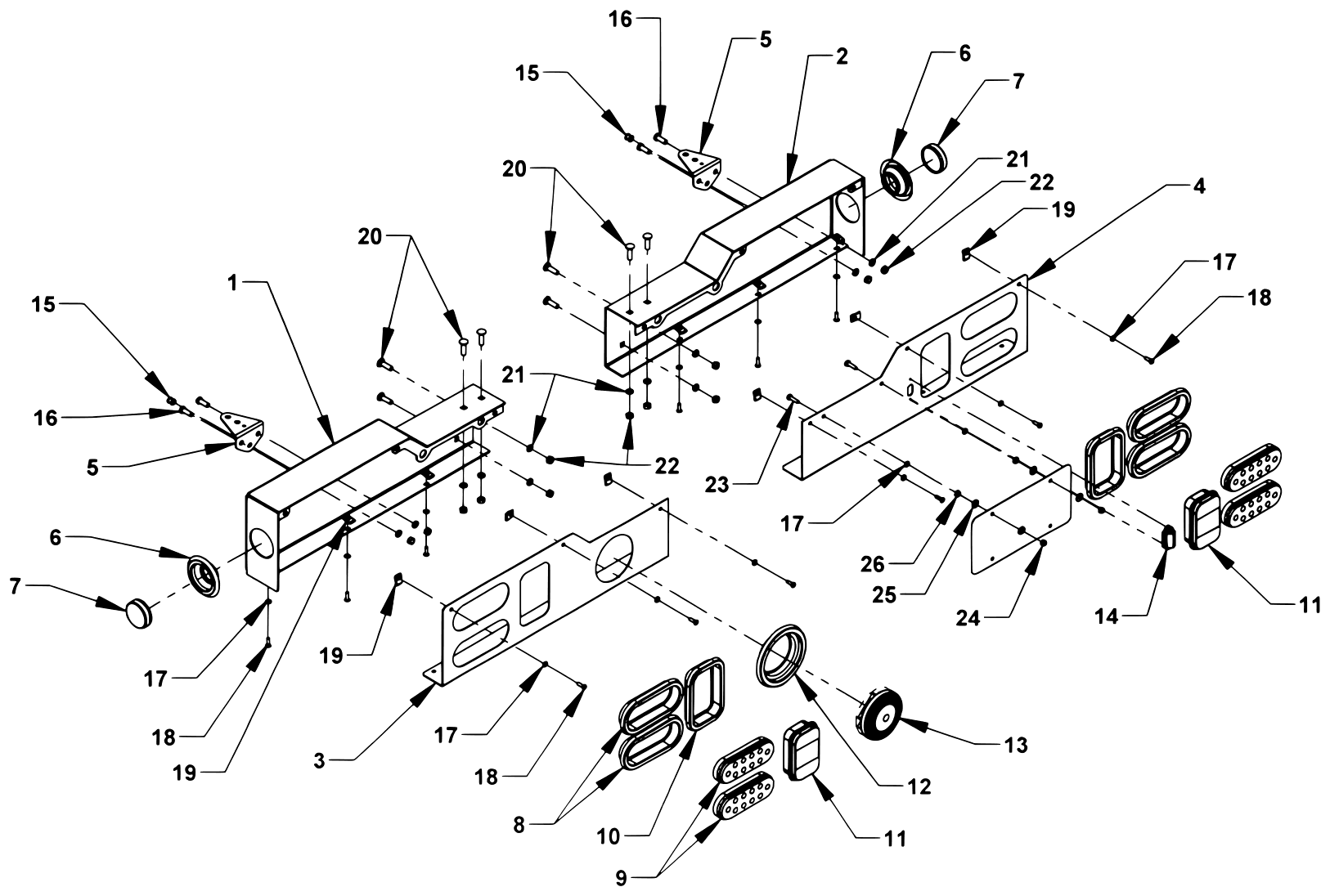

12 Series LCG Tail Light Components
4,000 Lb. Wheel Lift - Gen 2 LCG
Wheel Lift Crossbar Attachments
4,000 Lb. Underlift - Gen 2 LCG
Underlift Cylinder Fluid Tube Group
Pivot L-Arm Receiver Group
Autogrip Wheel Lift
Autogrip Dock Stabilizer Wheel Lift
Dock Stabilizer
Autogrip II Components
Inboard Tilt Cylinders
12 LCG Inboard Tilt Cylinders - Outboard Saddles (Optional)
12 Gal. Inboard Oil Reservoir Group - 763100G
14 Gal. Outboard Oil Tank Group
Direct Mount Pump - 18 GPM

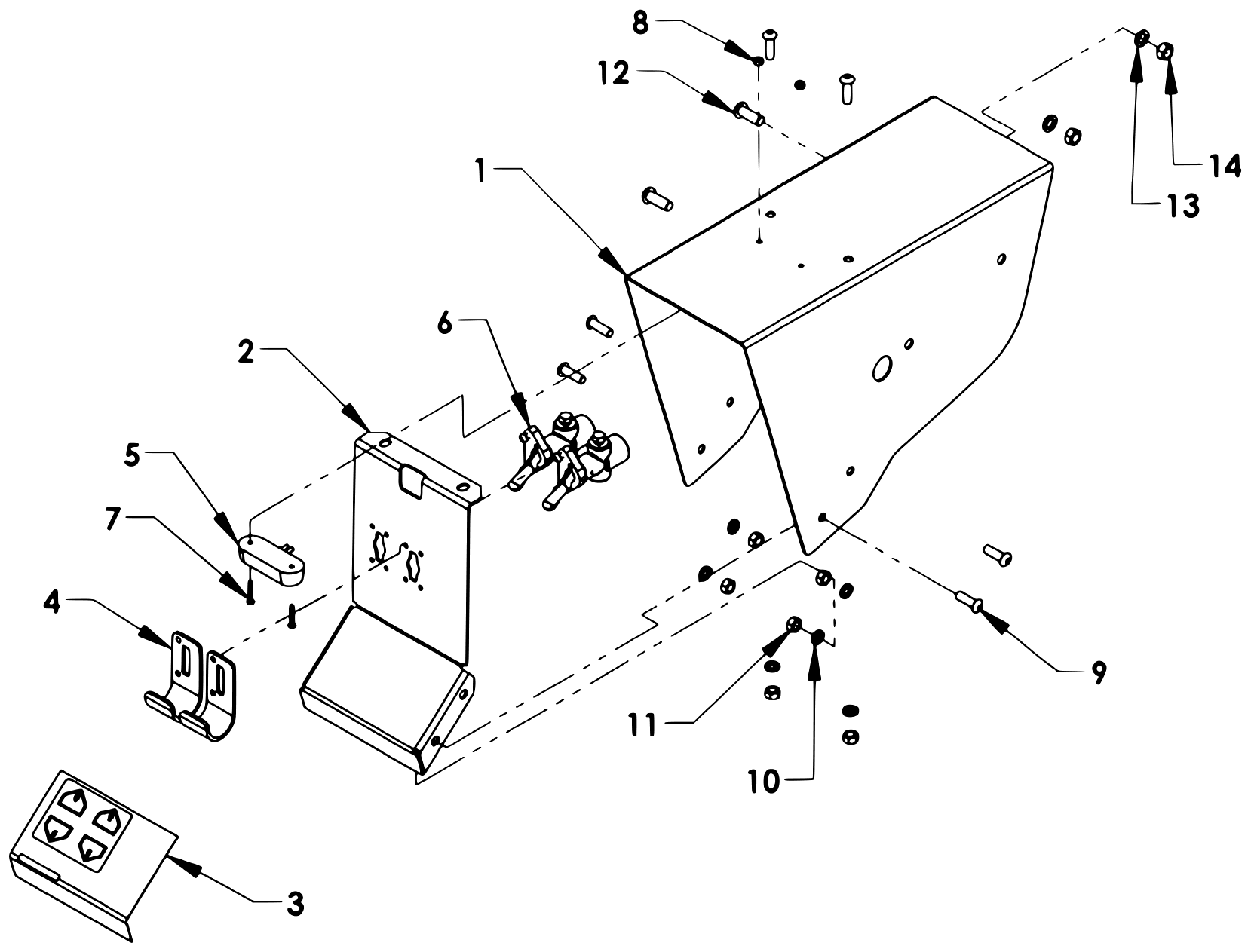

2 Air Valve Control Station
6-Spool Control Station

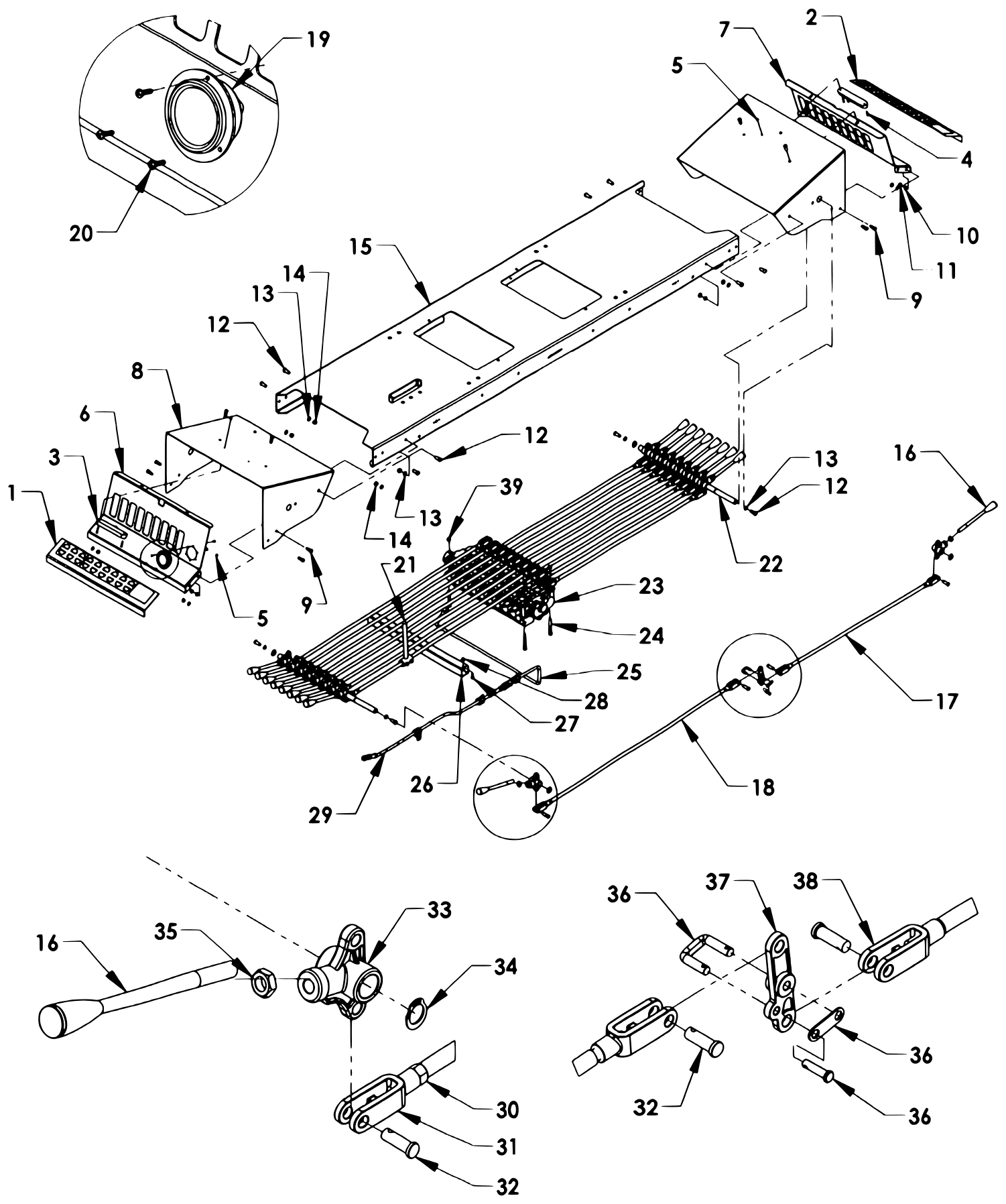

9-Spool Control Station

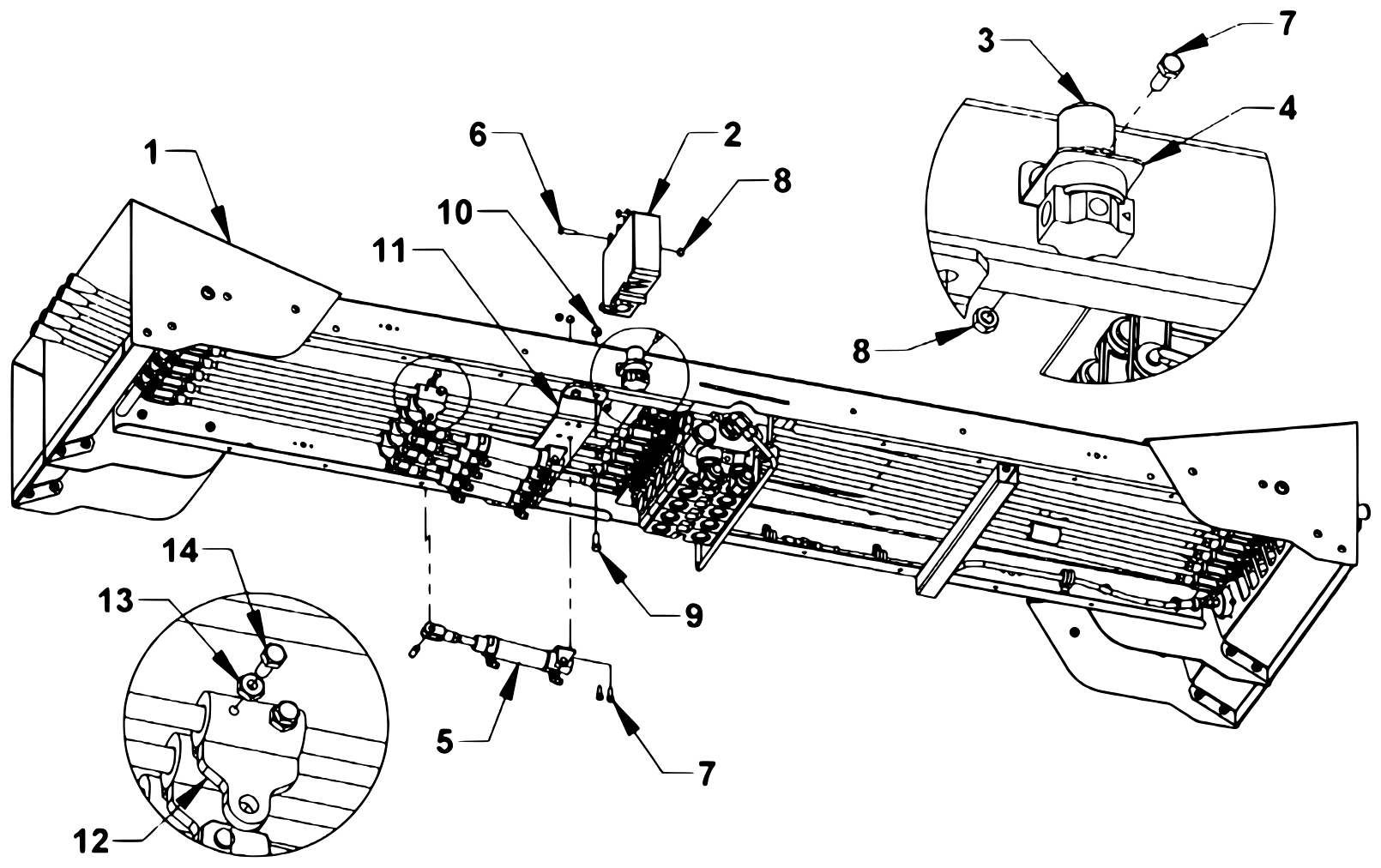

Remote Air Cylinders 6-Spool
Remote Air Cylinders 9-Spool

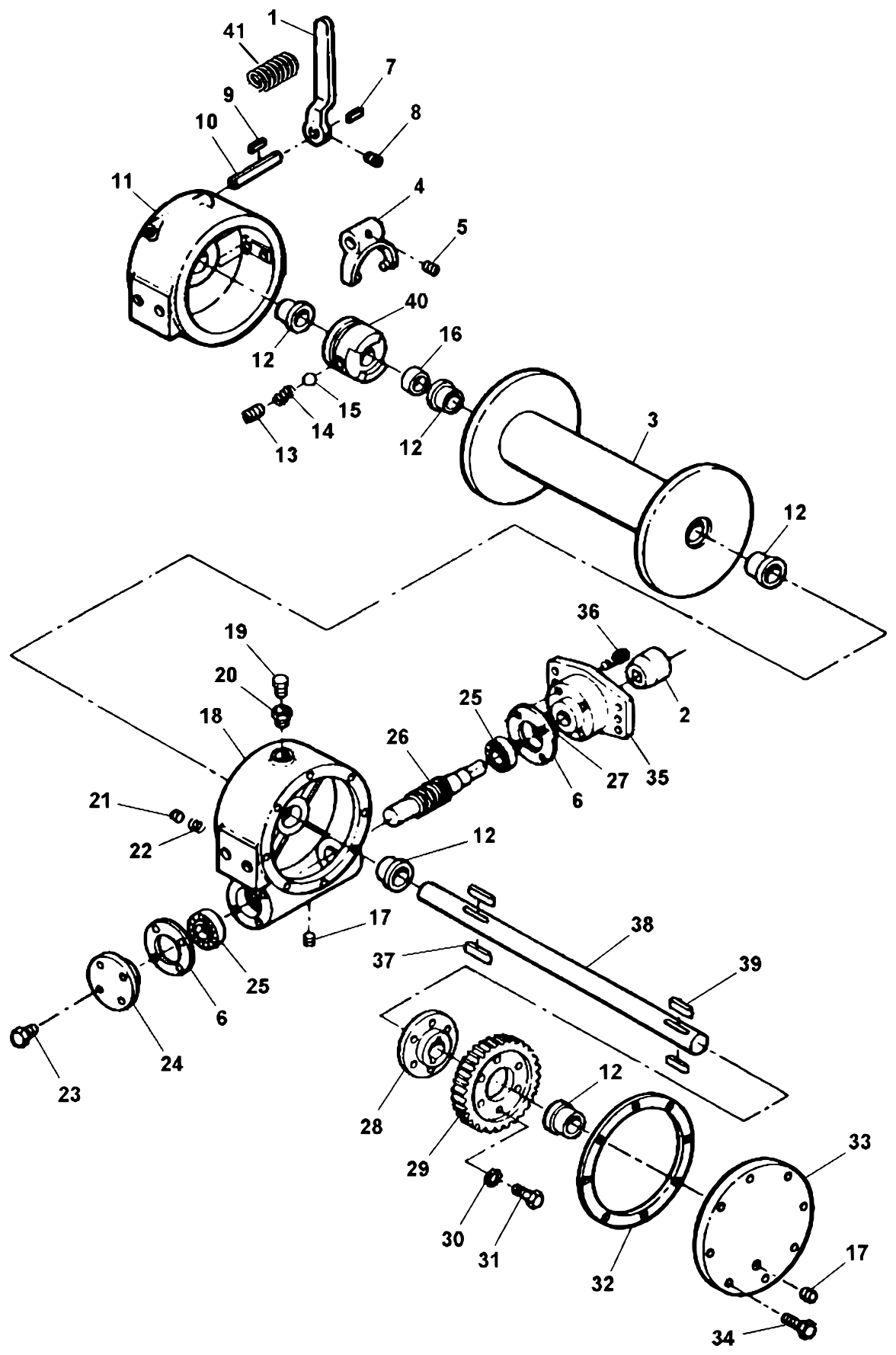

Ramsey 234 Hydraulic Winch
Ramsey HD234 Manual-Shift Winch Group W/Single Clutch Control Rod Assembly (Underwind)
Ramsey HD234 Manual-Shift Winch Group with Dual Clutch Control Rod Assembly

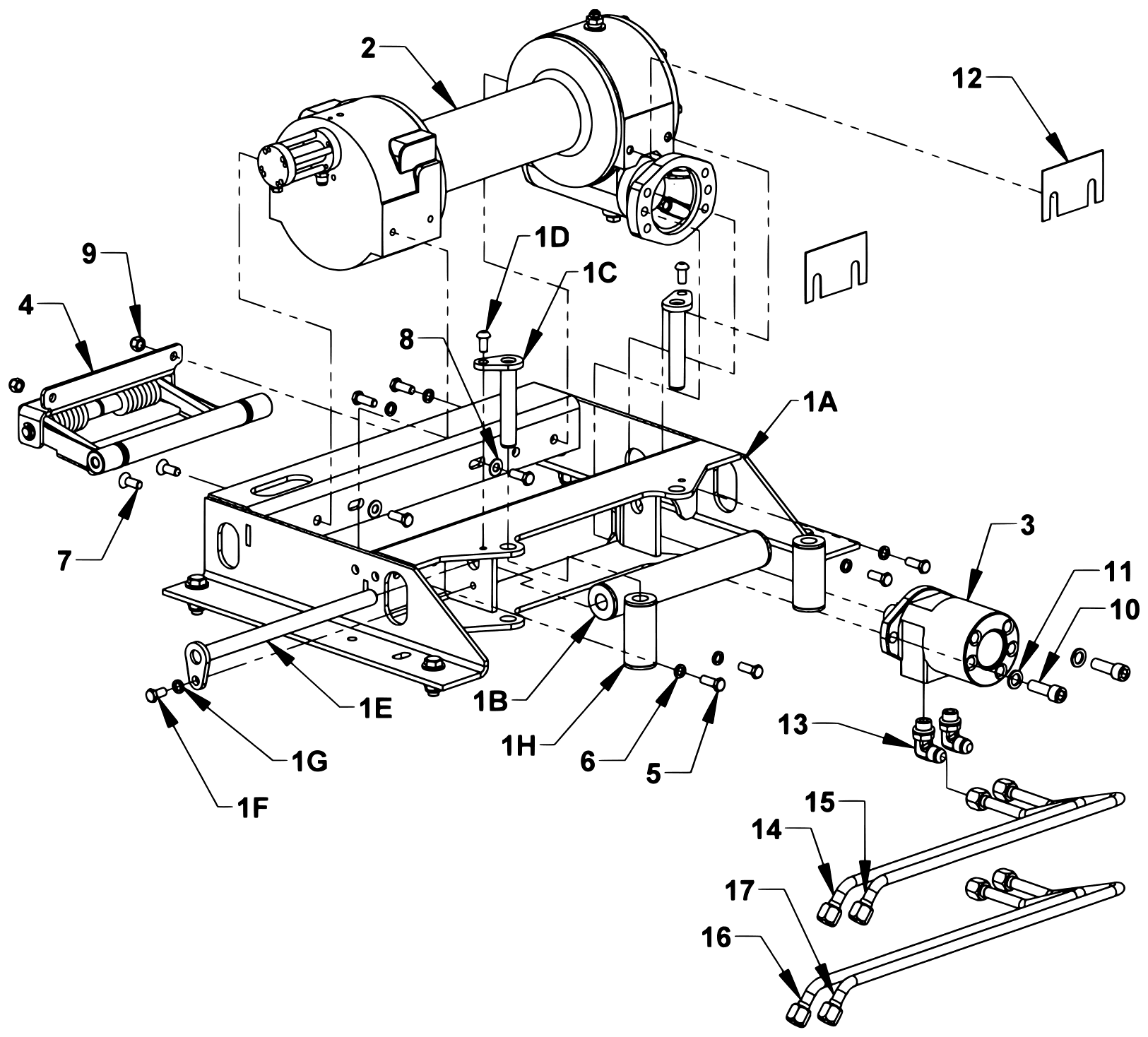

Ramsey HD234 Air-Shift Winch Group
Ramsey Winch - 09023899-0810AM - 8K Omega Planetary Manual Shift

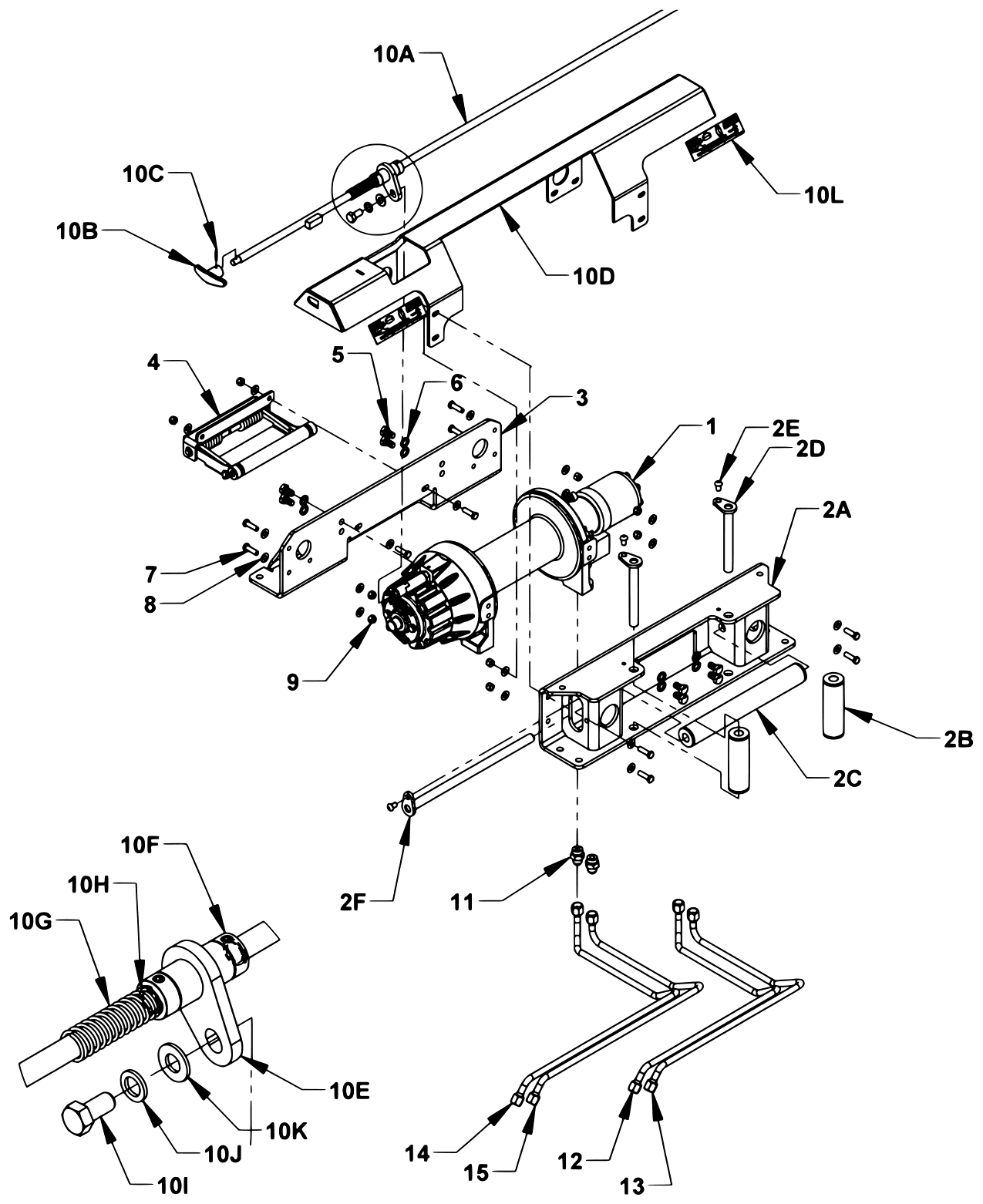

Ramsey Winch - 09023899-0810AM - 8K Omega Planetary Manual Shift - Dual Handle Clutch Control Rod Assembly
Ramsey Winch - 09023899-0810AA - 8K Omega Planetary Air Shift
DP Winch - 09013369-0810AM - 8K DP Planetary Manual Shift
DP Winch - 09013369-0810AA - 8K DP Planetary Air Shift
Warn Winch - Manual Free Spool
Warn Winch - Air Free Spool

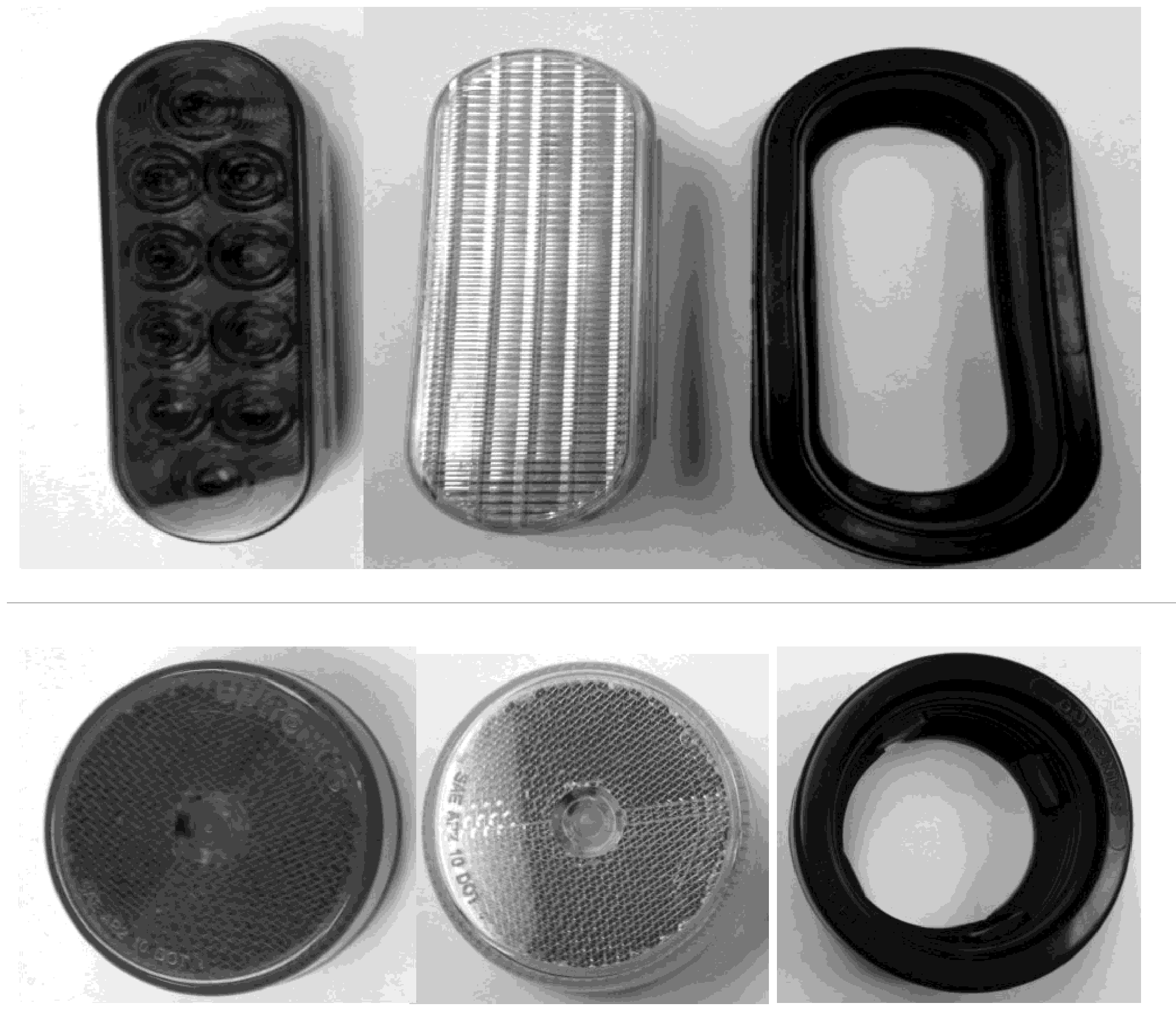

Light Kit (1 of 9)
Light Kit (2 of 9)
Light Kit & Pressure Gauge
Light Kit (3 of 9)
Light Kit (4 of 9)
Light Kit (5 of 9)

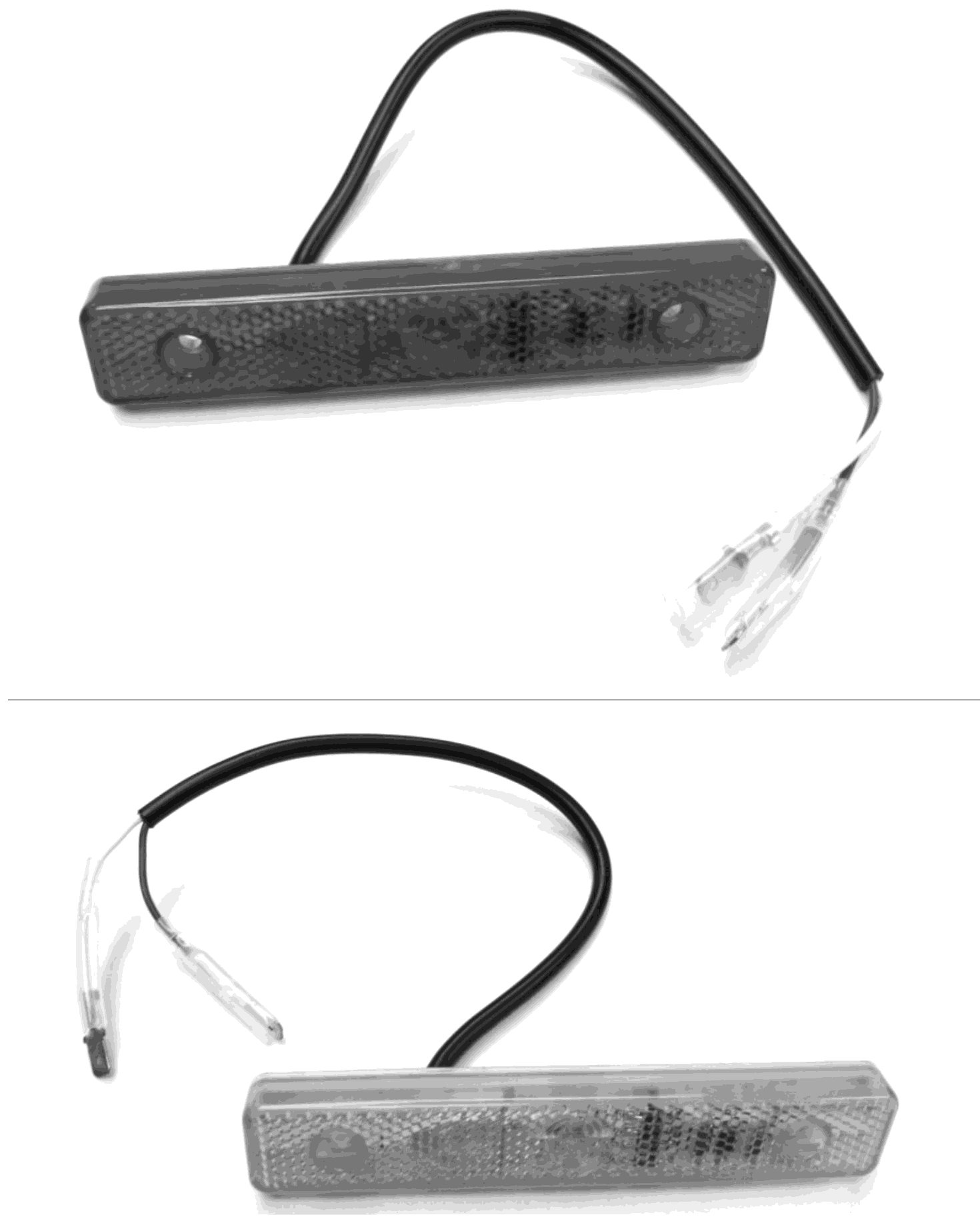

Light Kit (6 of 9)
Light Kit (7 of 9)
Light Kit (8 of 9)
Light Kit (9 of 9)
Manual Slidewinder (Short Track)
Manual Slidewinder (Long Track)

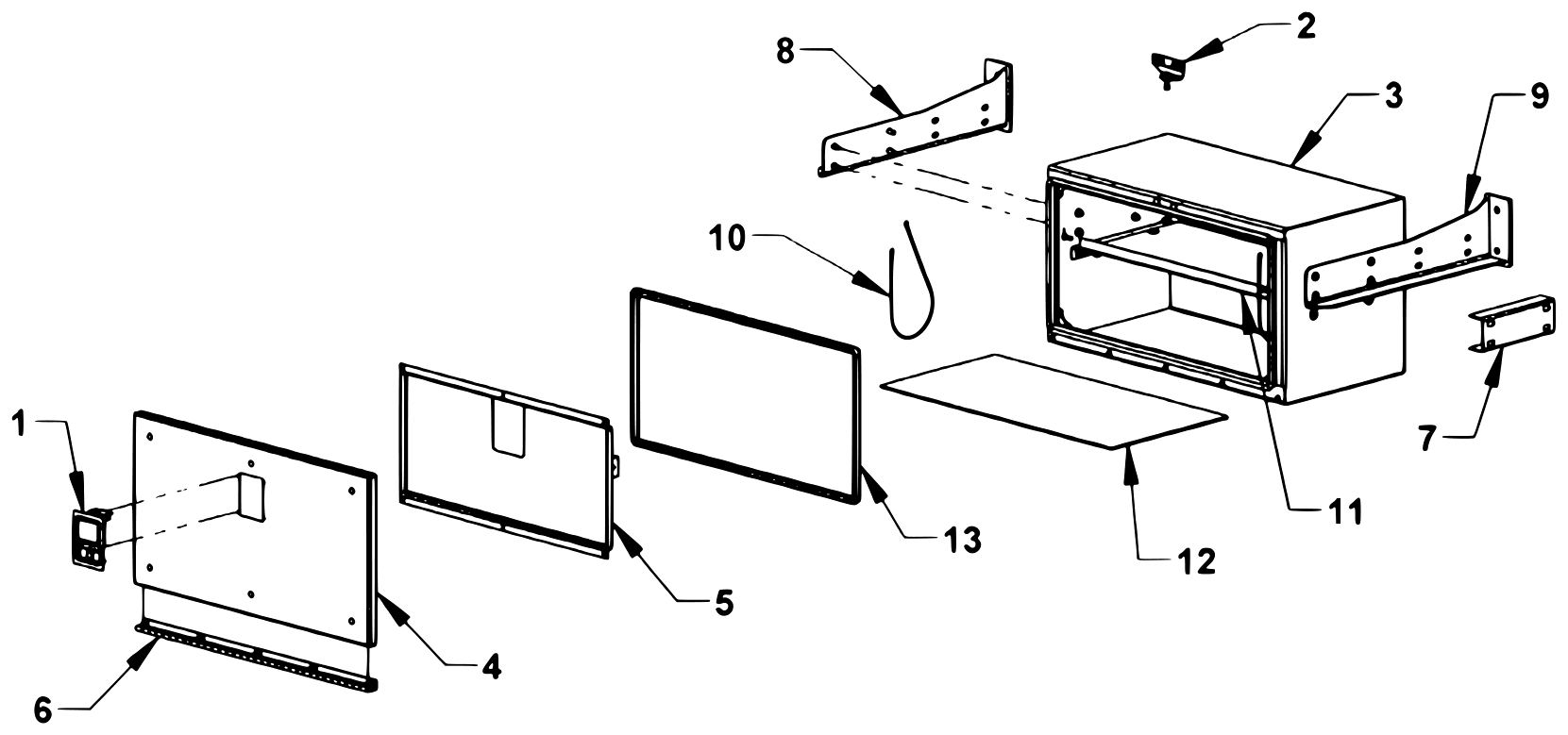

33" Aluminum Toolbox - 377000
49" Aluminum Toolbox - 378000
65" Aluminum Toolbox - 379000
36" Steel Toolbox LCG - 174016021
48" Steel Toolbox LCG - 174016022

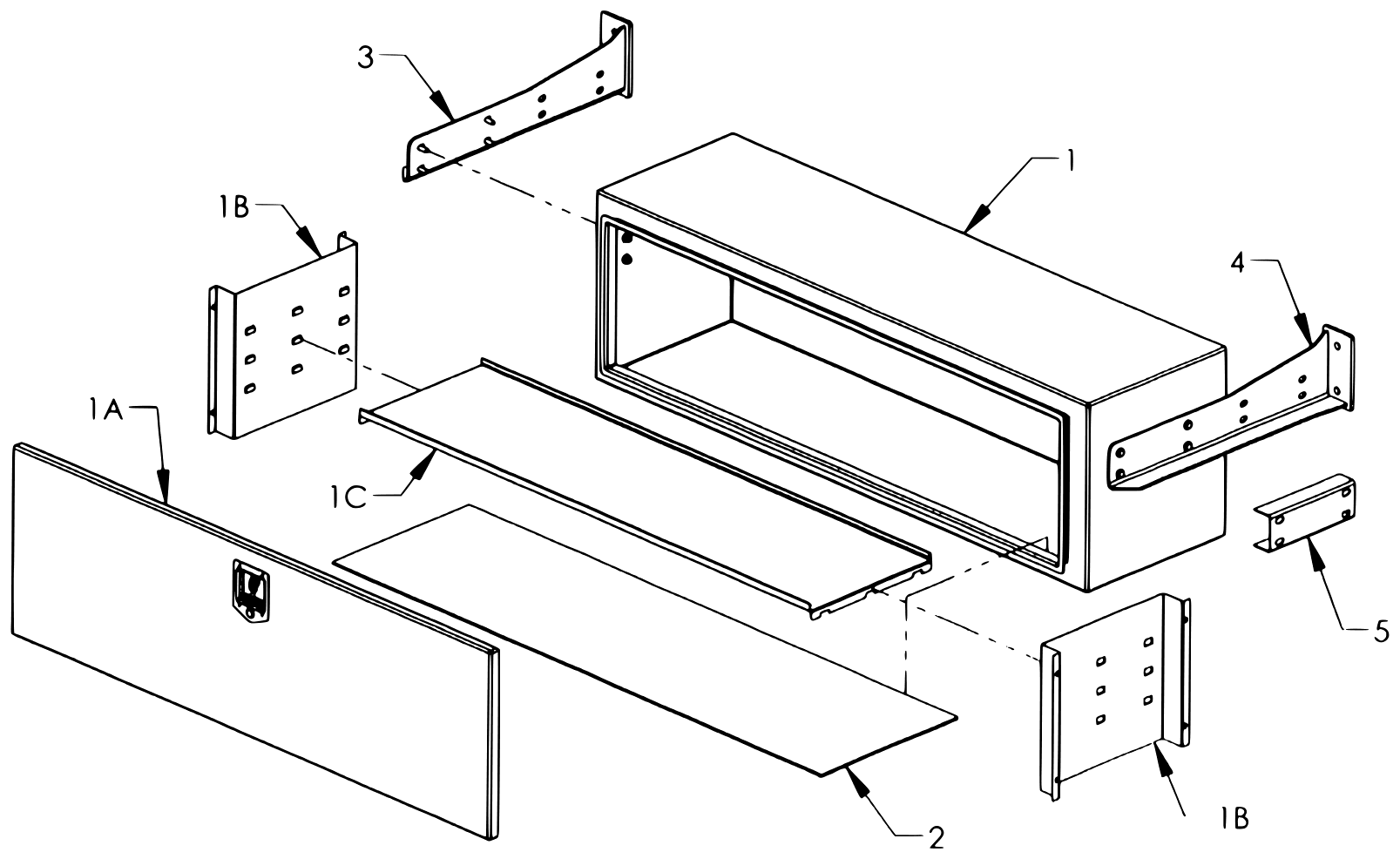

60" Steel Toolbox LCG - 174016023
Bed Mounted Cab Protector
Frame Mounted Pylon - 0940455-102 - LCG Base Assembly
Adjustable Cab Protector 09012828-XX (Frame Mounted 5-Inch Base)

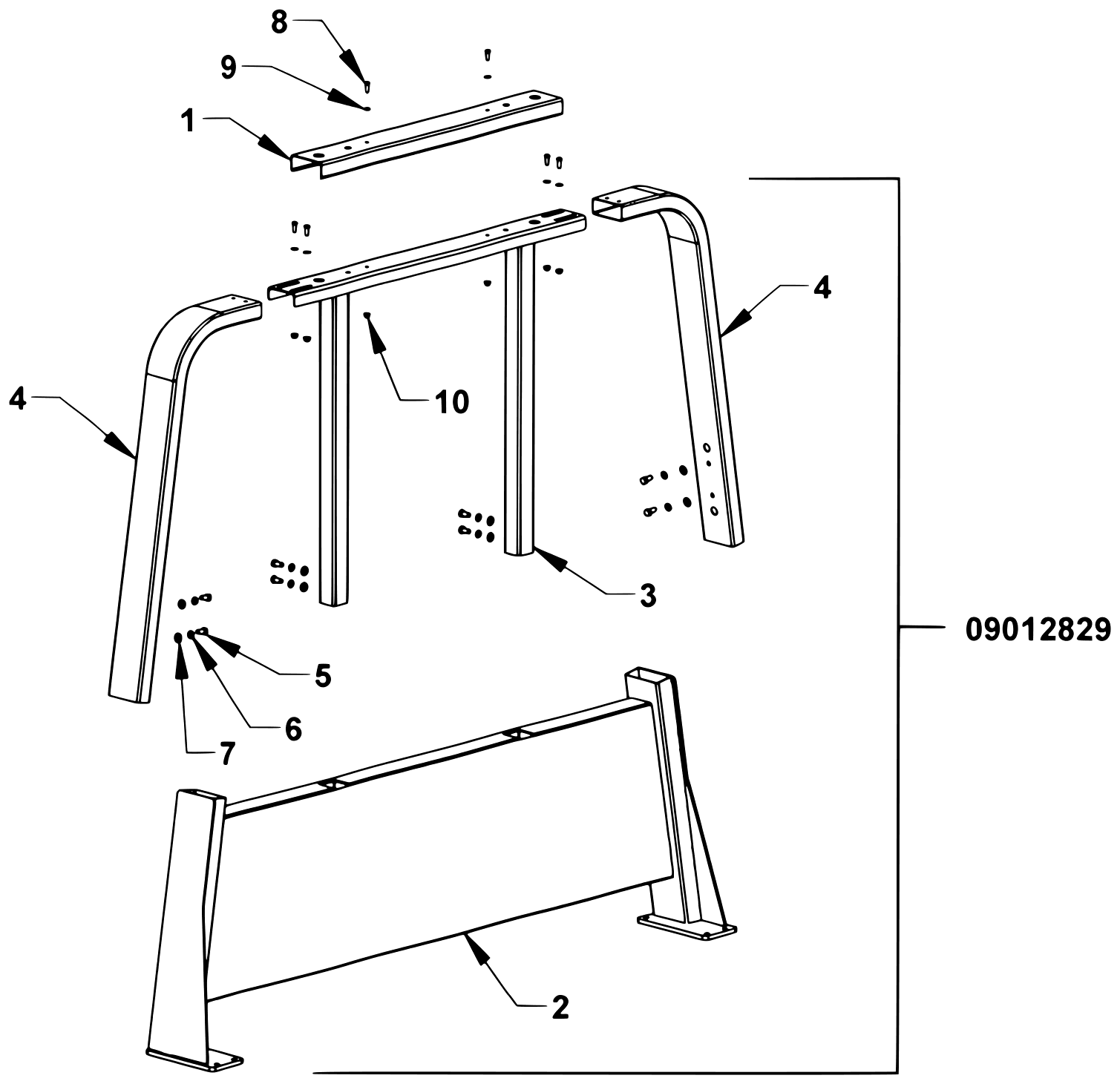

Adjustable Cab Protector 09012829-XX (Frame Mounted 12-Inch Base)

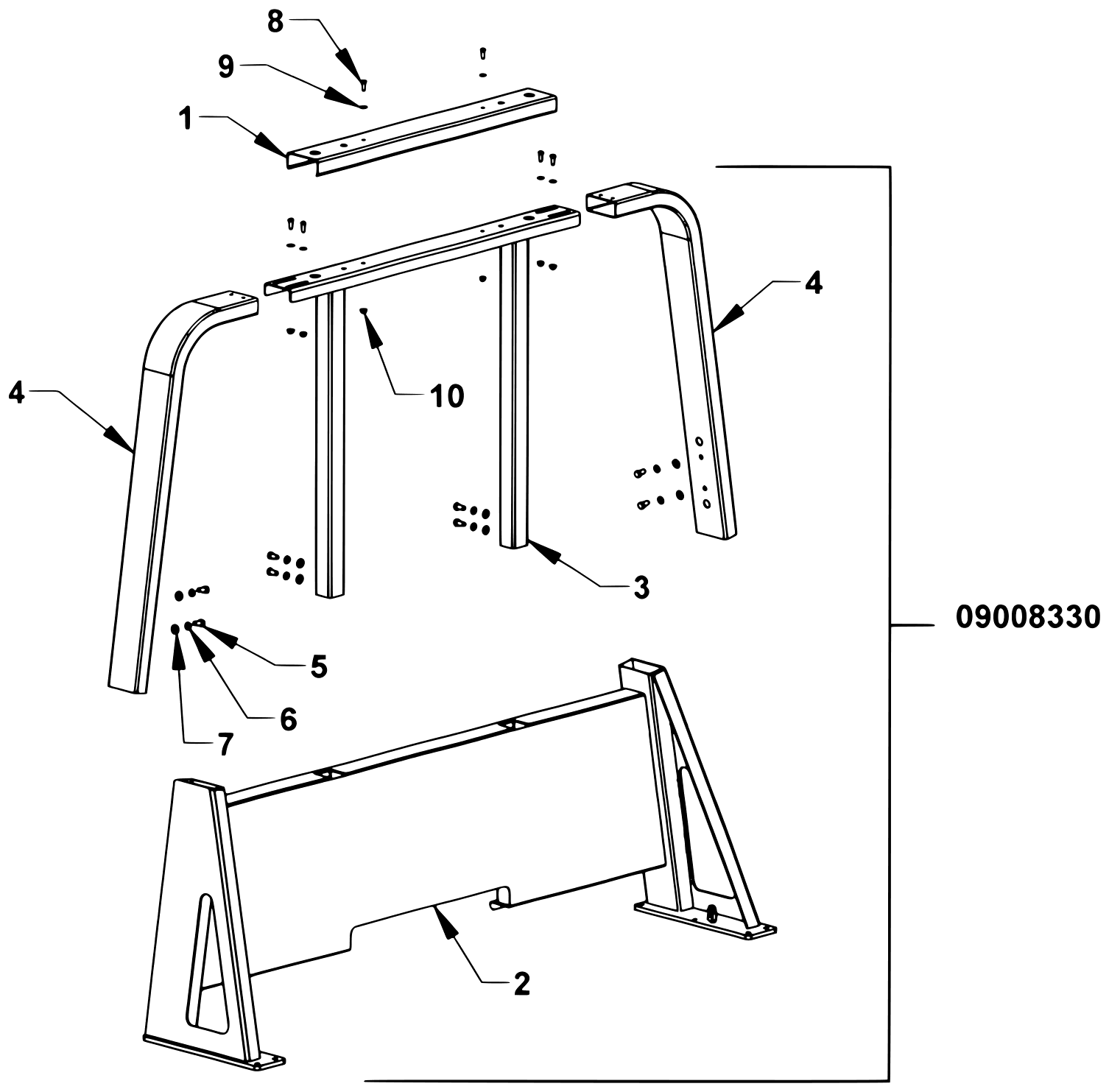

Adjustable Cab Protector 09008330-XX (Bed Mounted)

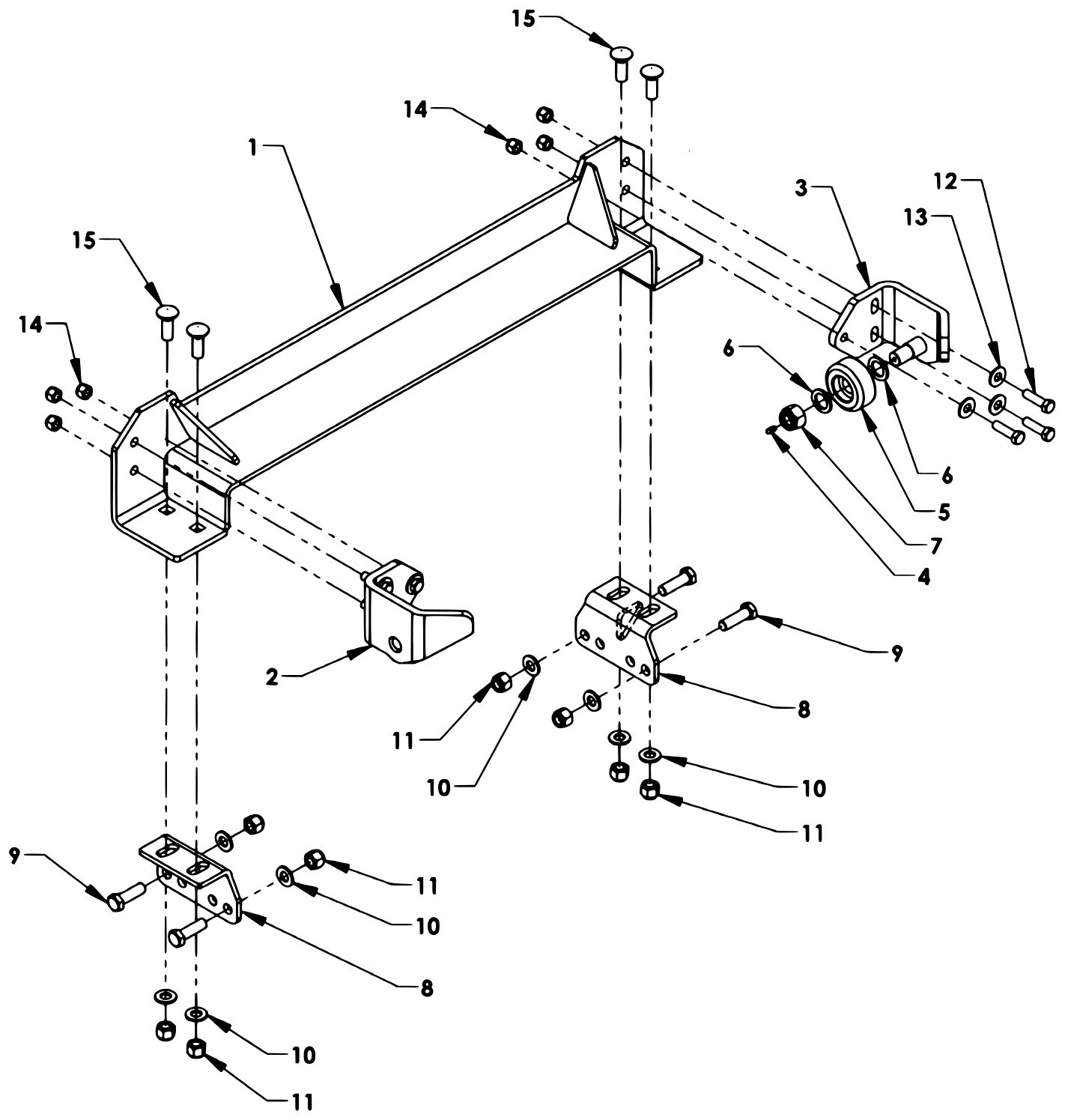

Body Lock Assembly - 364220K
Mudflap Components
Pintle Attachment Group
Recovery Roller Guide Attachment - 09018752 (For Use on Steel Beds Only)
Retractable Ladder

Aluminum Bed Assembly Gen II - Removable Rail

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	301812L3CCT102-XXX	SERIES 12 G3 AL BED WELDMENT XXX= 205, 210, 215, 220	1	Call for price	—
2	0311516	2-1/2" MARKER LIGHT GROMMET	6	$1.72
3	0311513	2-1/2" AMBER MARKER LIGHT	4	$14.60
4	0311512	2-1/2" RED MARKER LIGHT	2	$14.60
5	0303385	10 POST JUNCTION BOX	1	$100.30
6	0308698	RAMSEY 8000 LB WORM GEAR WINCH	1	$1,641.44
7	0320147	RAMSEY WINCH MOTOR 5 CUBIC INCH	1	$738.22
8	0701172	SPACER WINCH BRACKET	2	$52.88
9	0940425	WINCH MOUNTING FRAME	1	$672.40
10	0809558-XX	CAB PROTECTOR XX= 38, 45, 48, 50, 52, 54, 57, 60, 62, 64, 68	1	Call for price	—
11	0302493	FRONT SAFETY CHAIN ASSEMBLY 5/16 x 8'	2	$111.23
12	0301669	WINCH CABLE ASSEMBLY	1	$142.21
13	09009171-XXX	REMOVABLE TUBE RAIL (SEE CHART)	1	Call for price	—
14	07004889	APPROACH SKID PLATE	2	Call for price	—
15	34521	ALUM APPROACH PLATE CHAINLOCK	2	$54.70
16	07007442	ALUM APPROACH PLATE CHAINLOCK - 2 WAY	2	Call for price	—
17	08001669	CHAINLOCK - SIDE CHAIN BINDER	X	$92.23
18	33813	ANTI-TILT PLATE	1	$41.94
19	0751188	FLUID TUBE MOUNTING BLOCK - LOWER	2	$8.81
20	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX= 205, 210, 215, 220	2	Call for price	—
21	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
22	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
23	08004844L	CHAINLOCK-FRONT CHAIN BINDER - LH	1	$72.86
24	08004844R	CHAINLOCK-FRONT CHAIN BINDER - RH	1	$72.86

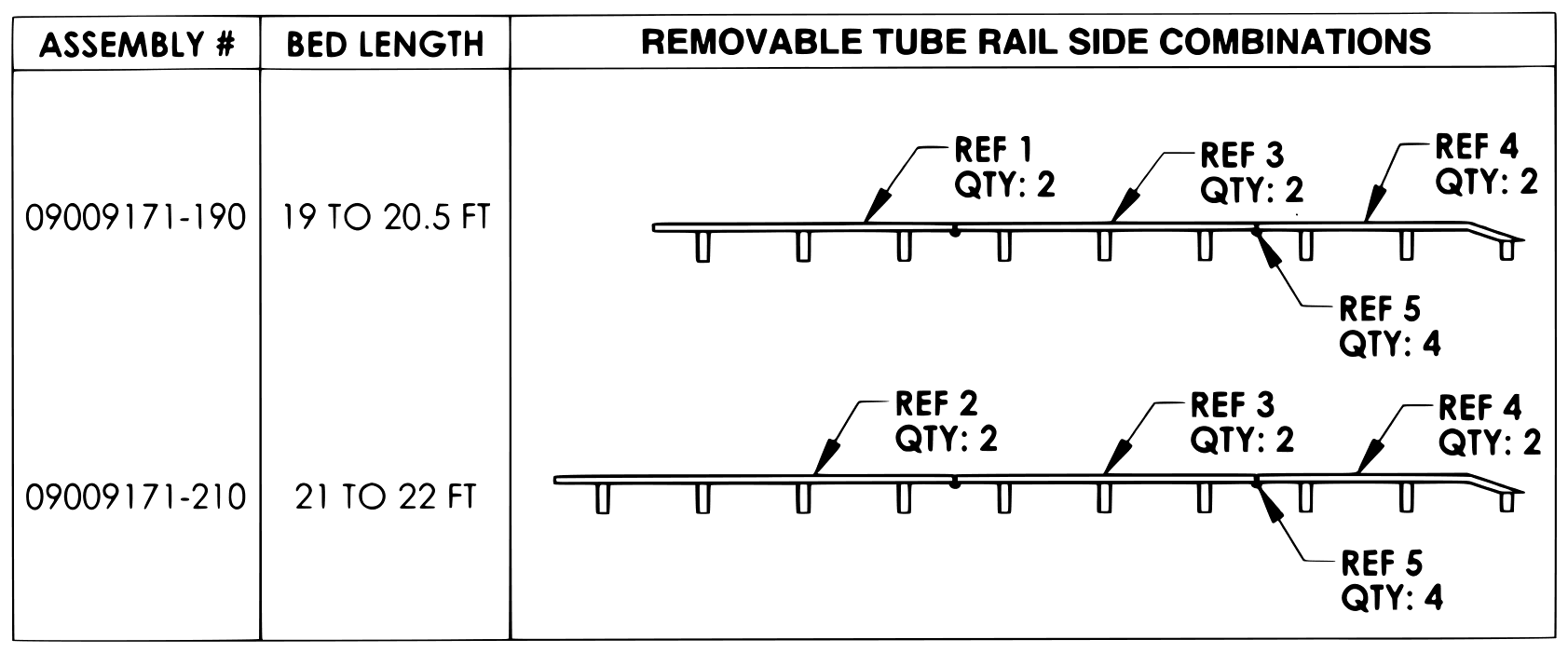

Removable Tube Rail Sides

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	346071F	FRONT REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$333.70
2	346095F	FRONT REMOVABLE TUBE RAIL - 4 POST	SEE CHART	$375.63
3	346071M	MIDDLE REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$333.70
4	346064	REAR REMOVABLE TUBE RAIL - 3 POST	SEE CHART	$291.76
5	0306070	LYNCH PIN - 7/16 x 1-3/4 IN.	SEE CHART	$5.62

Steel Bed Assembly Gen II - Removable Tube Rail

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	30284122XXX	SERIES 12 G2 ST BED WELDMENT XXX= 205, 210, 215, 220	1	Call for price	—
2	0311516	2-1/2" MARKER LIGHT GROMMET	6	$1.72
3	0311513	2-1/2" AMBER MARKER LIGHT	4	$14.60
4	0311512	2-1/2" RED MARKER LIGHT	2	$14.60
5	0303385	10 POST JUNCTION BOX	1	$100.30
6	0308698	RAMSEY 8000 LB WORM GEAR WINCH	1	$1,641.44
7	0320147	RAMSEY WINCH MOTOR 5 CUBIC INCH	1	$738.22
8	0701172	SPACER WINCH BRACKET	2	$52.88
9	0940425	WINCH MOUNTING FRAME	1	$672.40
10	0809558-XX	CAB PROTECTOR XX= 38, 45, 48, 50, 52, 54, 57, 60, 62, 64, 68	1	Call for price	—
11	0302493	FRONT SAFETY CHAIN ASSEMBLY 5/16 x 8'	2	$111.23
12	0301669	WINCH CABLE ASSEMBLY	1	$142.21
13	09009171-XXX	REMOVABLE TUBE RAIL (SEE CHART)	1	Call for price	—
14	33813	ANTI-TILT PLATE	1	$41.94
15	0751188	FLUID TUBE MOUNTING BLOCK - LOWER	3	$8.81
16	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX=205, 210, 215, 220	2	Call for price	—
17	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
18	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
19	07005597	I-BEAM WEAR PAD	2	Call for price	—
20	04000844	FHSCS 5/16-18 x 5/8 ZP	10	Call for price	—

Removable Blade Rail Sides

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	34B060FL & R	FRONT REMOVABLE BLADE RAIL - 2 POST	SEE CHART	Call for price	—
2	34B066FL & R	FRONT REMOVABLE BLADE RAIL - 2 POST	SEE CHART	Call for price	—
3	34B072FL & R	FRONT REMOVABLE BLADE RAIL - 2 POST	SEE CHART	Call for price	—
4	34B078FL & R	FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
5	34B084FL & R	FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
6	34B090FL & R	FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
7	34B096FL & R	FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
8	34B072ML & R	MIDDLE REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
9	34B096ML & R	MIDDLE REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
10	34B064RL & R	REAR REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—

Steel Bed Assembly - Blade Sides - Gen 2 Series 12 Right Approach

Show parts list (22 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	3028122RXXX	S12 G2 RA ST BED BLADE SIDES WELDMENT XXX = 205, 210, 215, 220	1	Call for price	—
2	0311521	3/4" AMBER MARKER LIGHT W/GROMMET	10	$17.85
3	0311522	3/4" RED MARKER LIGHT W/GROMMET	2	$12.46
4	0303385	10 POST JUNCTION BOX	1	$100.30
5	0308698	RAMSEY 8000 LB WORM GEAR	1	$1,641.44
6	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
7	0701172	SPACER, WINCH BRACKET	2	$52.88
8	0940425	WINCH MOUNTING FRAME	1	$672.40
9	0809558-XX	CAB PROTECTOR XX = 38, 45, 48, 50, 52, 54, 57, 60, 62, 64	1	Call for price	—
10	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16 x 8'	2	$111.23
11	0301669	WINCH CABLE ASSEMBLY	1	$142.21
12	09001210-XXX	RIGHT APPROACH BLADE RAIL SIDES XXX= 205, 210, 215, 220	1	Call for price	—
13	0805324	CABLE GUIDE WELDMENT (HOOK STYLE)	1	$235.23
14	0750465	ANTI-TILT PLATE RA	1	$53.54
15	0806252	ROLLER TIP WHEEL KEEPER PIN	2	$54.70
16	0721483	ROLLER	2	$41.94
17	0751188	FLUID TUBE MOUNTING BLOCK-LOWER	3	$8.81
18	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX = 205, 210, 215, 220	2	Call for price	—
19	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
20	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
21	07005597	I-BEAM WEAR PAD	2	Call for price	—
22	04000844	FHSCS 5/16-18 x 5/8 ZP	10	Call for price	—

Right Approach Removable Blade Rail Sides

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	08001089-190L & R	RA FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
2	08001089-195L & R	RA FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
3	08001089-200L & R	RA FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
4	08001089-205L & R	RA FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
5	08001089-210L & R	RA FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
6	08001089-215L & R	RA FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
7	08001089-220L & R	RA FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
8	0809192L & R	RA MIDDLE REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
9	0751006L & R	RA REAR REMOVABLE BLADE RAIL	SEE CHART	Call for price	—

Steel Bed Assembly - Gen 2 Series 12 Right Approach Tube Sides

Show parts list (23 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	3028122RXXX-TX	S12 G2 ST SST TUBE SIDE BED WELDMENT XXX = 205, 210, 215, 220	1	Call for price	—
2	0311516	2-1/2" AMBER MARKER GROMMET	4	$1.72
3	0311513	2-1/2" AMBER MARKER LIGHT	2	$14.60
4	0311512	2-1/2" RED MARKER LIGHT	2	$14.60
5	0308360	RECTANGULAR AMBER REFLECTIVE LIGHT 4.375 x 1.5	2	$87.51
6	0303385	10 POST JUNCTION BOX	1	$100.30
7	0308698	RAMSEY 8000 LB WORM GEAR	1	$1,641.44
8	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
9	0701172	SPACER, WINCH BRACKET	2	$52.88
10	0940425	WINCH MOUNTING FRAME	1	$672.40
11	0809558-XX	CAB PROTECTOR XX = 48, 50, 52, 54, 57, 60, 62, 64, 68	1	Call for price	—
12	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16 x 8'	2	$111.23
13	0301669	WINCH CABLE ASSEMBLY	1	$142.21
14	0805324	CABLE GUIDE WELDMENT (HOOK STYLE)	1	$235.23
15	0750465	ANTI-TILT PLATE	1	$53.54
16	0806252	ROLLER TIP WHEEL KEEPER PIN	2	$54.70
17	0721483	ROLLER	2	$41.94
18	0751188	FLUID TUBE MOUNTING BLOCK-LOWER	3	$8.81
19	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX = 205, 210, 215, 220	2	Call for price	—
20	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
21	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
22	07005597	I-BEAM WEAR PAD	2	Call for price	—
23	04000844	FHSCS 5/16-18 x 5/8 ZP	10	Call for price	—

Steel Bed Assembly - Gen 2 Series 12 SST Blade Rail Sides

Show parts list (19 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	3028412LSXXX	S12 G2 SST BLADE RAIL SIDE BED WELDMENT XXX = 205, 210, 215, 220	1	Call for price	—
2	0311521	3/4" AMBER MARKER LIGHT W/GROMMET	4	$17.85
3	0311522	3/4" RED MARKER LIGHT W/GROMMET	2	$12.46
4	0303385	10 POST JUNCTION BOX	1	$100.30
5	0308698	RAMSEY 8000 LB WORM GEAR	1	$1,641.44
6	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
7	0701172	SPACER, WINCH BRACKET	1	$52.88
8	0940425	WINCH MOUNTING FRAME	1	$672.40
9	0809558-XX	CAB PROTECTOR XX = 38, 45, 48, 50, 52, 54, 57, 60, 62, 64	1	Call for price	—
10	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16 x 8'	2	$111.23
11	0301669	WINCH CABLE ASSEMBLY	1	$142.21
12	0909446-XXX	SST BLADE RAIL SIDES XXX = 205, 210, 215, 220	1	Call for price	—
13	33813	ANTI-TILT PLATE	1	$41.94
14	0751188	FLUID TUBE MOUNTING BLOCK-LOWER	3	$8.81
15	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX = 205, 210, 215, 220	2	Call for price	—
16	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
17	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
18	07005597	I-BEAM WEAR PAD	2	Call for price	—
19	04000844	FHSCS 5/16-18 x 5/8 ZP	10	Call for price	—

SST Removable Blade Rail Sides

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809846-190L & R	SST FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
2	0809846-195L & R	SST FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
3	0809846-200L & R	SST FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
4	0809846-205L & R	SST FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
5	0809846-210L & R	SST FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
6	0809846-215L & R	SST FRONT REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
7	0809686L & R	SST REAR REMOVABLE BLADE RAIL - 4 POST	SEE CHART	Call for price	—
8	0809846-220L & R	SST FRONT REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
9	0809195L & R	SST MIDDLE REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—
10	0809770L & R	SST REAR REMOVABLE BLADE RAIL - 3 POST	SEE CHART	Call for price	—

Steel Bed Assembly - Gen 2 Series 12 SST Tube Sides

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	30284122LSXXX-TX	S12 G2 ST SST TUBE SIDE BED WELDMENT XXX = 205, 210, 215, 220	1	Call for price	—
2	0311516	2-1/2" AMBER MARKER GROMMET	4	$1.72
3	0311513	2-1/2" AMBER MARKER LIGHT	2	$14.60
4	0311512	2-1/2" RED MARKER LIGHT	2	$14.60
5	0308360	RECTANGULAR AMBER REFLECTIVE LIGHT 4.375 x 1.5	2	$87.51
6	0303385	10 POST JUNCTION BOX	1	$100.30
7	0308698	RAMSEY 8000 LB WORM GEAR	1	$1,641.44
8	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
9	0701172	SPACER, WINCH BRACKET	1	$52.88
10	0940425	WINCH MOUNTING FRAME	1	$672.40
11	0809558-XX	CAB PROTECTOR XX = 48, 50, 52, 54, 57, 60, 62, 64, 68	1	Call for price	—
12	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16 x 8'	2	$111.23
13	0301669	WINCH CABLE ASSEMBLY	1	$142.21
14	33813	ANTI-TILT PLATE	1	$41.94
15	0751188	FLUID TUBE MOUNTING BLOCK-LOWER	3	$8.81
16	383S1-XXX	SERIES 10/12/16 UNDER BODY FLUID TUBE XXX = 205, 210, 215, 220	2	Call for price	—
17	0751975-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-LONG	1	$56.62
18	0751974-R	WINCH MOTOR FLUID TUBE-S12 G2-RAMSEY-SHORT	1	$55.75
19	07005597	I-BEAM WEAR PAD	2	Call for price	—
20	04000844	FHSCS 5/16-18 x 5/8 ZP	10	Call for price	—

12 Series Gen 2 LCG Subframe Assembly

Show parts list (42 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809839	SERIES 12 G2 SUBFRAME WELDMENT	1	$9,196.96
2	0308928-96	SUBFRAME BEARING PAD 5/16 x 1-1/2 x 96	2	$143.40
3	0308928-36	SUBFRAME BEARING PAD 5/16 x 1-1/2 x 36	2	$61.64
4	0308928-66N	NYLATRON SUBFRAME BEARING PAD 5/16 x 1-1/2 x 66	2	Call for price	—
5	04000321	BOLT 5/16-18 x 1-1/4 COUNTERSUNK TORX ST	42	$0.85
6	0751024L	ALUM SPLASH GUARD LEFT REAR RIGHT FRONT	1	$207.86
7	0751024R	ALUM SPLASH GUARD RIGHT REAR LEFT FRONT	1	$207.86
8	0303385	10 POST JUNCTION BOX	1	$100.30
9	0750952	S12 LCG HINGE PIN	1	$158.54
10	183126	6-SPOOL CONTROL STATION	1	Call for price	—
11	0940325L	CENTURY TAIL LIGHT HOUSING GROUP - LH	1	$696.58
12	0940325R	CENTURY TAIL LIGHT HOUSING GROUP - RH	1	$591.44
13	0809287R	L-ARM STORAGE TUBE SLIDE-IN 4K RH (STANDARD)	1	$105.75
	160540R	L-ARM STORAGE TUBE SCOOP 4K RH (OPTIONAL)	1	$242.53
	160535R	L-ARM STORAGE TUBE DROP-IN 4K RH (OPTIONAL)	1	$121.94
14	0809287L	L-ARM STORAGE TUBE SLIDE-IN 4K LH (STANDARD)	1	$105.75
	160540L	L-ARM STORAGE TUBE SCOOP 4K LH (OPTIONAL)	1	$242.53
	160535L	L-ARM STORAGE TUBE DROP-IN 4K LH (OPTIONAL)	1	$121.94
15	0750409	STABILIZER WHEEL LIFT GUIDE PAD	2	$21.89
16	160525	STABILIZER EXTENSION STAND-LOW PROFILE	2	$359.19
17	08098242	LCG DUAL BAY HOSE TRAY	1	Call for price	—
18	72A35120	SLIDEBACK CYLINDER 3.5 BORE x 120 STROKE	1	$2,981.36
19	03016119	FLUID TUBE MOUNT, ALUM,	2	Call for price	—
20	07012910	TILT CIRCUIT FLUID TUBE - LONG	1	Call for price	—
21	07012911	TILT CIRCUIT FLUID TUBE - SHORT	1	Call for price	—
22	03011928	BAND CLAMP, WORM #72 5 x 9/16 SS	2	Call for price	—
23	32117	SLIDEBACK CYLINDER MOUNTING PIN 1.230	1	$56.54
24	86125E	1-1/4 SNAP RING - EXTERNAL	4	$1.42
25	13302010	S12 LCG SLIDEBACK CYLINDER MOUNTING PIN	1	$37.49
26	0751223	LCG 12/16/20 S/B CYLINDER SUPPORT PAD	1	$26.06
27	81286	U-BOLT 3/8-16 UNC	1	$3.94
28	0400394	3/8-16 HEX NUT	2	$5.84
29	0400480	3/8 FLAT WASHER	4	$4.01
30	0400392	NYLON LOCK NUT 3/8-16 UNC	2	$5.84
31	0403162	BOLT 5/16-18 UNC - ALLEN COUNTERSUNK	4	Call for price	—
32	0400465	5/16 FLAT WASHER	4	$5.84
33	0400382	NYLON LOCK NUT 5/16-18 UNC	4	$5.84
34	0308748	5 x 3 x 5/16 SUBFRAME TUBE PLUG	2	$3.83
35	09020735	IGUS 200.03.005 41 LINK TRACK AND BOLT KIT	1	$190.48
36	09020734	IGUS 200.05.005 41 LINK TRACK AND BOLT KIT	1	$202.72
37	0809759L	RIGHT APPROACH REAR BED-LOCK - LH	1	$593.48
38	0809759R	RIGHT APPROACH REAR BED-LOCK - RH	1	$593.48

Igus Track and Bolt Kit - 09020735 - 120" Slideback Cylinder Stroke

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	09020735	IGUS 200.03.055 41 LINK TRACK & BOLT KIT	1	$190.48
1	03017004	IGUS 2000.03.1 END LINK - FEMALE	1	$12.03
2	03005615	IGUS 200.03.055 LINK	45	Call for price	—
3	03017005	IGUS 2100.03.2 END LINK - MALE	1	$12.03
4	0403165	BOLT SHCS #10-24 UNC x 2 ZP	4	Call for price	—
5	0400450	FLAT WASHER #10 SAE ZP	4	Call for price	—
6	0400358	NUT NYLOK #10-24 UNC ZP	4	Call for price	—

Igus Track and Bolt Kit - 09020734 - 120" Slideback Cylinder Stroke

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	09020734	IGUS 200.05.055 41 LINK TRACK & BOLT KIT	1	$202.72
1	03017002	IGUS 2000.05.1 END LINK - FEMALE	1	Call for price	—
2	03011188	IGUS 200.05.055 LINK	41	Call for price	—
3	03017003	IGUS 2100.05.2 END LINK - MALE	1	Call for price	—
4	0403165	BOLT SHCS #10-24 UNC x 2 ZP	4	Call for price	—
5	0400450	FLAT WASHER #10 SAE ZP	4	Call for price	—
6	0400358	NUT NYLOK #10-24 UNC ZP	4	Call for price	—

12 Series LCG Tail Light Components

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809517L	TAIL LIGHT HOUSING WELDMENT - LH	1	$233.40
2	0809517R	TAIL LIGHT HOUSING WELDMENT - RH	1	$233.40
3	0751892L	12/16/20 LCG TAIL LIGHT HOUSING BEZEL - LH G2	1	$154.36
4	0751892R	12/16/20 LCG TAIL LIGHT HOUSING BEZEL - RH G2	1	$154.36
5	0750672	WORK LIGHT MOUNTING BRACKET	2	$29.33
6	0311516	2-1/2 IN. MARKER LIGHT GROMMET	2	$1.72
7	0311512	2-1/2 IN. RED MARKER LIGHT	2	$14.60
8	0311503	6 IN. OVAL GROMMET	4	$2.74
9	0311498	6 IN. OVAL RED LIGHT	4	$37.46
10	0311511	CARRIER TAIL LIGHT GROMMET	2	$4.09
11	0311510	CARRIER BACK UP LIGHT	2	$18.28
12	0311528	BACK UP ALARM GROMMET	1	$3.64
13	0306385	BACK UP ALARM	1	$118.53
14	0311525	LICENSE PLATE LIGHT	1	$23.24
15	0306113	TAIL LIGHT WIRE GROMMET	2	Call for price	—
16	0400126	BOLT, HHCS 3/8-16 UNC x 1	4	$5.84
17	0402111	LOCK WASHER - 1/4 SAE SS	14	$5.84
18	0400071	SCREW 1/4-20 UNC x 3/4 RD HD PHIL SS	12	$5.84
19	0400371	"U" NUT 1/4-20 UNC	12	$8.01
20	0403053	BOLT, CARRIAGE 3/8-16 UNC x 1-1/4 SS	8	$5.68
21	0402121	LOCK WASHER - 3/8 SAE SS	12	Call for price	—
22	0402122	HEX NUT 3/8-16 UNC SS	12	$4.01
23	0402021	BOLT, HHCS 1/4-20 UNC x 1 SS	2	$5.84
24	0403052	NYLON LOCK NUT 1/4-20 UNC SS	2	Call for price	—
25	0402110	FLAT WASHER 1/4 SAE SS	4	$5.84
26	0400366	JAM NUT 1/4-20 UNC	2	$5.84

4,000 Lb. Wheel Lift - Gen 2 LCG

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	10270408	UNDERLIFT OUTER BOOM TUBE - 4K	1	$3,087.73
2	72A30054	UNDERLIFT EXTEND CYLINDER 3.0 BORE x 54 STROKE	1	$1,416.01
3	0811159	UNDERLIFT INNER BOOM TUBE 4K	1	$1,654.59
4	65613	WEAR PAD 1/2 x 2 x 3	2	$18.00
5	0809411U	WHEEL LIFT BOOM HINGE PIN	1	$121.73
6	729352	PIN-CARRIER W/L EXTEND CYLINDER BASE	1	$51.06
7	86100E	SNAP RING 1" EXTERNAL	2	$1.79
8	14710	KEEPER PIN 1.23 x 5.50	4	$23.75
9	72A33013	UNDERLIFT CYLINDER 3.25 BORE x 13 STROKE	2	$1,149.05
	75FT33013	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$255.38
10	7B130	GREASE FITTING 1/4-28	4	$4.16
11	0540041	UNDERLIFT RATING PLATE 4K	1	$22.33
12	0403139	BOLT BHCS 3/8-16 UNC x 1	4	$2.06
13	0400482	LOCK WASHER 3/8	4	$5.84
14	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 W/HOLES	2	$27.37
15	63959	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	2	Call for price	—
16	0811160	CROSSBAR 4K (3.5 x 3.5)	1	$1,265.60
17	72940	CYLINDER PIN 0.980 x 6.625	1	$14.20
18	86100I	SNAP RING 1" INTERNAL	2	$1.42
19	0940433	CROSSBAR PIVOT PIN	1	$52.09
20	0720463	WASHER PIVOT PIN RETAINER 3/8	1	$5.84
21	0403004	BOLT BHSC 3/8-16 UNC x 3/4	1	$5.84
22	0308129	DETENT BALL 1"	1	$8.01
23	07003396	SPACER CROSSBAR DETENT	1	$9.99
24	0308131	SPRING CROSSBAR DETENT	1	$21.51
25	0308130	PLUG CROSSBAR DETENT	1	$9.85

Wheel Lift Crossbar Attachments

Show parts list (27 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0811160	CROSSBAR 4K (3.5 x 3.5)	1	$1,265.60
2	0909498L	4-INCH WHEEL GRID - LH	1	$499.65	—
3	0909498R	4-INCH WHEEL GRID - RH	1	$499.65	—
4	08006748	STEEL L-ARM 4000 LB	2	$278.98
5	0308664	STRAP AND RATCHET PIVOT ASSEMBLY	2	$71.85
6	0940434L	WHEEL GRID (DROP-IN L-ARM) - LH	1	$625.44
7	0940434R	WHEEL GRID (DROP-IN L-ARM) - RH	1	$625.44
8	65250L	4000 LB L-ARM - LH	1	$485.10
9	65250R	4000 LB L-ARM - RH	1	$485.10
10	65245	REMOVABLE PAN (CHEVRON)	2	$71.13
11	84911	SAFETY PIN, 5/16 (CHEVRON)	2	$1.70
12	65285	WHEEL STRAP WITH D-RING	2	$49.20
13	65280A	RATCHET AND HOOK	2	$78.41
14	8800800	LH WHEEL GRID	1	$937.28
15	8800900	RH WHEEL GRID	1	$937.28
16	8700190	LH WHEEL RETAINER	1	$297.26
17	8700180	RH WHEEL RETAINER	1	$297.26
18	0909499L	WHEEL GRID 3WP - LH	1	$1,053.95
19	0909499R	WHEEL GRID 3WP - RH	1	$1,053.95
20	0904156	3-WAY PIVOT L-ARM - LH	1	$698.39
21	0904157	3-WAY PIVOT L-ARM - RH	1	$698.39
22	0902382	1 INCH NYLON POLY COAT BASKET STRAP	2	$140.39
	65287	BASKET TIRE STRAP - MEDIUM-LARGE, BLUE	2	$207.95
23	65460	3-1/2 INCH FORK HOLDER	2	$505.44
24	663530	FRAME FORK, 3 INCH CAST	2	$195.11
25	663545	FRAME FORK SHORT, 4-1/2 INCH CAST	2	$240.71
26	0940458	REESE HITCH RECEIVER, COMMON GEN2	1	$581.68

4,000 Lb. Underlift - Gen 2 LCG

Show parts list (33 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	10270408DS	UNDERLIFT OUTER BOOM TUBE	1	$3,558.90
2	72A30054	UNDERLIFT EXTEND CYLINDER 3.0 BORE x 54 STROKE	1	$1,416.01
3	0809411U	WHEEL LIFT BOOM HINGE PIN	1	$121.73
4	729352	PIN - WHEEL LIFT EXTEND CYLINDER BASE	1	$51.06
5	86100E	SNAP RING 1" EXTERNAL	2	$1.79
6	72A33013	UNDERLIFT CYLINDER 3.25 BORE x 13 STROKE	2	$1,149.05
	75FT33013	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$255.38
7	14710	KEEPER PIN 1.23 x 5.50	2	$23.75
8	0400392	NYLON LOCK NUT 3/8-16 UNC	4	$5.84
9	0403154	BOLT, HHCS 3/8-16 UNC x 1-1/4	4	Call for price	—
10	13068	PIN - TILT CYLINDER BASE	2	$40.15
11	84680	KEEPER PIN 3/8 ROD END	2	$32.29
12	7B130	GREASE FITTING 1/4-28	3	$4.16
13	0403139	BOLT, BHCS 3/8-16 UNC x 1	4	$2.06
14	0400482	LOCK WASHER 3/8	4	$5.84
15	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 W/HOLES	2	$27.37
16	63595	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	2	$16.62
17	0809898-54	DOCK STABILIZER EXTENSION STAND (OPTIONAL)	2	Call for price	—
18	0809646-54	DOCK STABILIZER SPADE (OPTIONAL)	2	$260.78
19	0811159	4K INNER BOOM TUBE	1	$1,654.59
20	10244P	4K INNER PINTLE BOOM TUBE	1	$1,005.31
21	65613	WEAR PAD 1/2 x 2 x 3 NSM BEVELED	2	$18.00
22	174017156	PINTLE HOOK ATTACHMENT	1	$213.34
23	174017159	PINTLE BALL ATTACHMENT	1	$220.68
24	0400177	BOLT, HEX 1/2-13 UNC x 1-1/4	4	$5.84
25	0400491	WASHER 1/2 LOCK	4	$5.84
26	102404-PP	4K INNER BOOM-PIVOTING PINTLE	1	$1,020.79
27	143355	PIVOTING PINTLE HEAD WELDMENT - 4K	1	Call for price	—
28	143142PP	PIN - PIVOTING PINTLE HEAD 4K	1	Call for price	—
29	86125I	SNAP RING 1-1/4 INTERNAL	2	$1.42
30	10244R	4K INNER BOOM - REESE RECEIVER	1	Call for price	—
31	86100I	SNAP RING 1" INTERNAL	2	$1.42
32	72940	CYLINDER PIN	1	$14.20

Underlift Cylinder Fluid Tube Group

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	72A33013	LIFT CYLINDER 3.25 x 1.75 x 13.00	2	$1,149.05
	75FT33013	FLUID TUBE KIT		$255.38
2	ADPTR-FF1868T0606S	ADAPTER 90 ORS/ORB 6 x 6	2	Call for price	—
3	ADPTR-FF1868T0806S	ADAPTER 90 ORS/ORB 8 x 6	4	Call for price	—
4	ADPTR-FF1865T0806S	ADAPTER TEE ORS/ORS/ORB 8 x 8 x 6	1	Call for price	—
5	ADPTR-FF2114T0808S	ADAPTER TEE ORS 8 x 8	1	Call for price	—
6	ADPTR-FF1852T0806	ADAPTER STRAIGHT ORS/ORB 8 x 6	1	Call for price	—
7	0809875-325	UNDERLIFT VALVE MOUNTING BRACKET	1	$7.02
8	74345	DUAL COUNTERBALANCE VALVE CBCG-XVN	1	$556.17
9	030317065	BAND CLAMP #56 4 x 9/16 SS	1	Call for price	—
10	72H33013L2	UNDERLIFT FLUID TUBE ASSEMBLY - LH	1	$195.39
11	72H33013L1	UNDERLIFT FLUID TUBE ASSEMBLY - LH	1	$197.70
12	72H33013R2	UNDERLIFT FLUID TUBE ASSEMBLY - RH	1	Call for price	—
13	72H33013R1	UNDERLIFT FLUID TUBE ASSEMBLY - RH	1	$187.82
14	0400824	BOLT HHCS 5/16-18 UNC x 1-3/4 GR5 ZINC	2	Call for price	—
15	0400382	NYLON LOCK NUT 5/16-18 UNC GR5 ZINC	2	$5.84

Pivot L-Arm Receiver Group

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	09007328L	PIVOT L-ARM RECEIVER GROUP-LH	1	Call for price	—
	09007328R	PIVOT L-ARM RECEIVER GROUP-RH		Call for price	—
2	0719079	PIVOT L-ARM RECEIVER CASTING-LH	1	$242.53
	0719080	PIVOT L-ARM RECEIVER CASTING-RH		$242.53
3	0802187	L-ARM RECEIVER CASTING PIVOT PIN	1	$167.78
4	0904744	PIN ASSEMBLY	1	$15.89
	0714415	PIVOT LOCK PIN	1	Call for price	—
	0303918	LANYARD	1	$15.67
	0400044	DRIVE SCREW #10-24 x 1/2 ROUND HEAD	1	$5.84
5	0400044	DRIVE SCREW #10-24 x 1/2 ROUND HEAD	1	$5.84
6	0400349	SCREW 3/8-16 x 1/2 FHSC	1	$11.00
7	0400481	LOCK WASHER 3/8 EXTERNAL TOOTH	1	$5.84
8	0707505	7/8 CAM PIN	1	$109.44
9	0302641	CAM PIN SPRING	1	$9.50
10	0712933	SCREW 1/2-13 x 1/2 TAPERED SOCKET CAP	1	$39.16
11	0302648	T-HANDLE	1	$13.40
12	0400559	ROLL PIN 3/16 -1	1	$5.84

Autogrip Wheel Lift

Show parts list (34 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	10270410	AUTOGRIP OUTER BOOM TUBE - GEN2 LCG 4K	1	$1,526.24
2	08021745	AUTOGRIP INNER TUBE GEN3	1	Call for price	—
3	72136	AUTOGRIP EXTEND CYLINDER - CARRIER	1	$1,955.10
4	74341	FLOW DIVIDER COUNTER BALANCE VALVE	1	$1,072.19
5	65613	WEAR PAD 1/2 x 2 x 3 NSM BEVELED	2	$18.00
6	0403141	BOLT HHCS 5/8-11 UNC x 2-1/4	2	Call for price	—
7	0400505	FLAT WASHER 5/8	4	$5.84
8	0400421	NYLON LOCK NUT 5/8-11 UNC	2	$5.84
9	0809411U	WHEEL LIFT BOOM HINGE PIN	1	$121.73
10	0400122	BOLT, HHCS 3/8-16 UNC x 1-1/4	5	$5.84
11	0400392	NYLON LOCK NUT 3/8-16 UNC	5	$5.84
12	72A33013	LIFT CYLINDER 3.25 x 1.75 x 13.00	2	$1,149.05
	75FT33013	LIFT CYLINDER FLUID TUBE KIT	1	$255.38
13	14710	KEEPER PIN 1.23 x 5.50	4	$23.75
14	7B130	GREASE FITTING 1/4-28 UNF	3	$4.16
15	0403139	BOLT, BHCS 3/8-16 UNC x 1	4	$2.06
16	0400482	LOCK WASHER 3/8"	4	$5.84
17	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 WITH HOLES	2	$27.37
18	63595	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	2	$16.62
19	69757	AUTOGRIP HOSE TRACK 58 LINKS	1	$249.80
20	75048	HOSE KIT IGUS TRACK	1	$764.04
21	0308129	BALL CHROME 1" (GRADE 16/25)	2	$8.01
22	0300066	AUTOGRIP DETENT SPRING GEN2	2	Call for price	—
23	643272	AUTOGRIP DETENT SCREW GEN2	2	$4.93
24	86250I	SNAP RING 2-1/2" INTERNAL	1	$14.90
25	644402	AUTOGRIP CROSSBAR PIVOT PIN GEN2	1	$235.03
26	644002CA	AUTOGRIP CROSSBAR GEN2	1	$13,911.70
27	75048C	HOSE KIT ARM CYLINDERS	1	$411.95
28	64304R	RUBBER GASKET FOR 64304C	2	$3.41
29	64304C	HOSE CLAMP FOR SIDE OF AUTOGRIP II YOKE	2	$13.63
30	0400452	LOCK WASHER 1/4"	2	$5.84
31	0403142	BOLT, BUTTON HEAD 1/4-20 x 3/4	2	Call for price	—
32	86100I	SNAP RING 1" INTERNAL	2	$1.42
33	72940	CYLINDER PIN 0.980 x 6-5/8	1	$14.20

Autogrip Dock Stabilizer Wheel Lift

Show parts list (34 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	08017311	DOCK STABILIZER AUTOGRIP OUTER BOOM TUBE - 4K	1	Call for price	—
2	08021745	AUTOGRIP INNER TUBE GEN3	1	Call for price	—
3	72136	AUTOGRIP EXTEND CYLINDER - CARRIER	1	$1,955.10
4	74341	FLOW DIVIDER COUNTER BALANCE VALVE	1	$1,072.19
5	65612	WEAR PAD 1/2 x 2 x 3 NSM	2	$18.08
6	0403141	BOLT, HHCS 5/8-11 UNC x 2-1/4	2	Call for price	—
7	0400505	FLAT WASHER 5/8	4	$5.84
8	0400421	NYLON LOCK NUT 5/8-11 UNC	2	$5.84
9	0809411U	WHEEL LIFT BOOM HINGE PIN	1	$121.73
10	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	5	$5.84
11	0400392	NYLON LOCK NUT 3/8-16 UNC	5	$5.84
12	72A33013	LIFT CYLINDER 3.25 x 1.75 x 13.00	2	$1,149.05
	75FT33013	LIFT CYLINDER FLUID TUBE KIT	1	$255.38
13	14710	KEEPER PIN 1.23 x 4.50	4	$23.75
14	7B130	GREASE FITTING 1/4-28 UNF	3	$4.16
15	0403139	BOLT BHCS 3/8-16 UNC x 1	4	$2.06
16	0400482	LOCK WASHER 3/8	4	$5.84
17	63595H	WEAR PAD NYLATRON NSM 1/2 x 2 x 4 W/HOLES	2	$27.37
18	63595	WEAR PAD NYLATRON NSM 1/2 x 2 x 4	2	$16.62
19	69757	AUTOGRIP HOSE TRACK 58 LINKS	1	$249.80
20	75048	HOSE KIT IGUS TRACK	1	$764.04
21	0308129	BALL CHROME 1 IN. (GRADE 16/25)	2	$8.01
22	0300066	AUTOGRIP DETENT SPRING GEN2	2	Call for price	—
23	643272	AUTOGRIP DETENT SCREW GEN2	2	$4.93
24	86250I	SNAP RING 2-1/2 INTERNAL	1	$14.90
25	644402	AUTOGRIP CROSSBAR PIVOT PIN GEN2	1	$235.03
26	644002CA	AUTOGRIP CROSSBAR GEN2	1	$13,911.70
27	75048C	HOSE KIT ARM CYLINDERS	1	$411.95
28	64304R	RUBBER GASKET FOR 64304C	2	$3.41
29	64304C	HOSE CLAMP FOR SIDE OF AUTOGRIP II YOKE	2	$13.63
30	0400452	LOCK WASHER 1/4	2	$5.84
31	0403142	BOLT BHCS 1/4-20 x 3/4	2	Call for price	—
32	86100I	SNAP RING 1" INTERNAL	2	$1.42
33	72940	CYLINDER PIN 0.980 x 6-5/8	1	$14.20

Dock Stabilizer

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0810010-12	DOCK STABILIZER WELDMENT	1	Call for price	—
2	0809411U	WHEEL LIFT BOOM HINGE PIN	1	$121.73
3	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	5	$5.84
4	0400392	NYLON LOCK NUT 3/8-16 UNC	5	$5.84
5	14710	KEEPER PIN 1.23 x 4.50	4	$23.75
6	72A33013	UNDERLIFT CYLINDER 3.25 BORE x 13 STROKE	2	$1,149.05
	75FT33013	UNDERLIFT CYLINDER FLUID TUBE KIT	1	$255.38

Autogrip II Components

Show parts list (46 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	644002	CROSSBAR WELDMENT	1	$5,498.93
2	644352CL	WHEEL RETAINER - LH	1	$971.90
3	644352CR	WHEEL RETAINER - RH	1	$971.90
4	644452	ARM PIVOT PIN	2	$83.86
5	0720463	WASHER PIVOT PIN RETAINER - 3/8	2	$5.84
6	0403140	BOLT BHCS 3/8-16 UNC x 1/2	2	Call for price	—
7	644402	CROSSBAR PIN	1	$235.03
8	86250I	SNAP RING 2.500 INCH INTERNAL	2	$14.90
9	643272	SCREW-PLUG CROSSBAR DETENT	2	$4.93
10	0308129	BALL, CHROME 1" (GRADE 16/25)	2	$8.01
11	03000066	AUTOGRIP GEN2 DETENT SPRING	2	$14.28
12	7B130	GREASE FITTING 1/4-28	5	$4.16
13	697402L	WHEEL SPACER - LH	1	$445.70
14	697402R	WHEEL SPACER - RH	1	$445.70
15	84291	T-PIN 5/8 x 3	2	Call for price	—
16	720152L	WHEEL RETAINER CYLINDER - LH	1	$1,664.83
17	720152R	WHEEL RETAINER CYLINDER - RH	1	$1,664.83
18	727162	L-ARM CYLINDER END BLOCK	2	$162.74
19	644432	WHEEL RETAINER CYLINDER PIN	2	$22.44
20	644292	HOSE GUARD	2	$22.44
21	0400181	BOLT, HHCS 1/2-13 x 1-1/2 GR5	2	$5.84
22	0400491	LOCK WASHER 1/2	6	$5.84
23	0400467	FLAT WASHER 1/2	2	$1.70
24	04012132	BOLT HHCS 5/16-18 x 5/8 GR5	2	Call for price	—
25	0400109	BOLT HHCS 5/16-18 x 1 GR5	2	$5.84
26	0400464	LOCK WASHER 5/16	4	$1.70
27	0400465	FLAT WASHER 5/16	4	$5.84
28	0400430	NYLON LOCK NUT 3/4-10	4	$5.84
29	0403163	BOLT SHCS 5/16 x 1-1/4 SHOULDER 1/4-20	4	Call for price	—
30	0403164	BOLT SHCS 5/16 x 1 SHOULDER 1/4-20	4	Call for price	—
31	0400367	NYLON LOCK NUT 1/4-20	8	$5.84
32	87440	AUTOGRIP ARM CHAIN	4	$111.23
33	64441	CHAIN CLEVIS	4	$83.86
34	0400421	NYLON LOCK NUT 5/8-11	4	$5.84
35	0902382	1 INCH NYLON POLY-COAT BASKET STRAP	2	$140.39
	65287	BLUE BASKET TIRE STRAP - TRUCK (OPTIONAL)		$207.95
36	694520	AUTOGRIP PINTLE ADAPTOR (OPTIONAL)	1	$750.14
37	174017159	PINTLE BALL ATTACHMENT (OPTIONAL)	1	$220.68
38	174017156	PINTLE HOOK ATTACHMENT (OPTIONAL)	1	$213.34
39	0403058	BOLT, HHCS 1/2-13 x 1-3/4 GR8	4	Call for price	—
40	0400407	HEX NUT 1/2-13 UNC	4	$5.84
41	0403092	BOLT, HHCS 3/4-10 x 7 GR8	2	Call for price	—
42	0403082	LOCK WASHER 3/4	2	Call for price	—
43	08011929	AUTOGRIP TOWBALL ADAPTOR (OPTIONAL)	1	Call for price	—
44	03004649	TOWBALL	1	Call for price	—
45	83711	NUT 1.000" RAMCO LOCK	1	$13.13

Inboard Tilt Cylinders

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	1A8002	INBOARD SADDLE	1	$993.54
2	1A821S	SADDLE SHIM	2	$18.60
3	1A925	FRAME MOUNTING BRACKET	2	$82.07
4	1A828A	INBOARD SADDLE TILT PIN	2	$65.46
5	13068	PIN - TILT CYLINDER BASE	2	$40.15
6	0750952	HINGE PIN - 1-1/2 x 41-3/8	1	$158.54
7	0809533	HINGE ANGLE	1	$654.45
8	721092	CYLINDER - CARRIER TILT	2	$999.26
9	0403159	BOLT 1/2-20 UNF x 3 GRADE 5	2	Call for price	—
10	0403160	NYLON LOCK NUT 1/2-20 UNF	2	Call for price	—
11	84680	PIN EYE	2	$32.29

12 LCG Inboard Tilt Cylinders - Outboard Saddles (Optional)

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	1A560	SADDLE CONNECTING ANGLE	1	$571.33
2	1A540L	OUTBOARD SADDLE, LH	1	$226.58
3	1A540R	OUTBOARD SADDLE, RH	1	$226.58
4	0400274	BOLT, HHCS 5/8-11 UNC x 2	20	$5.84
5	0400505	FLAT WASHER 5/8	40	$5.84
6	1A743	SADDLE MOUNTING ANGLE	2	Call for price	—
7	1A525	OUTBOARD SADDLE TILT PIN	2	Call for price	—
8	0400421	5/8-11 NYLOCK NUT Z	20	$5.84
9	0400392	NYLON LOCK NUT 3/8-16 UNC	4	$5.84
10	721092	TILT CYLINDER 3 BORE x 23 STROKE	2	$999.26
11	13068	PIN - TILT CYLINDER BASE	2	$40.15
12	84680	PIN EYE	2	$32.29
13	0400132	BOLT, HHCS 3/8-16 UNC x 1-1/2	4	$5.84
14	0809533	HINGE ANGLE	1	$654.45
15	0750952	HINGE PIN - 1-1/2 x 41-3/8	1	$158.54
16	0403159	BOLT, HHCS 1/2-20 x 3 Z	2	Call for price	—
17	0403160	NYLON LOCK NUT 1/2-20 UNC	2	Call for price	—

12 Gal. Inboard Oil Reservoir Group - 763100G

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	763100	INBOARD OIL RESERVOIR WELDMENT	1	$840.25
2	76213	FILLER BREATHER CAP	1	$71.13
3	76270	FILTER ASSEMBLY	1	$122.18
4	76271	REPLACEMENT FILTER ELEMENT	1	$36.00
5	0402118	LOCK WASHER 5/16 SS	2	Call for price	—
6	04001427	BH CAP SCREW 5/16-18 UNC x 7/8 SS	2	Call for price	—
7	0301368	ADAPTOR 202702-16 x 12	1	Call for price	—
8	03006085	ADAPTOR 900598-8 (DRAIN PLUG)	1	$26.07
9	77C92	20 x 24 SUCTION HOSE FITTING 90 °	1	Call for price	—
10	77620	ADAPTOR 900598-20 (DRAIN PLUG)	1	$25.55
11	763106	FRAME WIDTH SHIM	2	Call for price	—

14 Gal. Outboard Oil Tank Group

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	762110G	14 GAL. OUTBOARD OIL TANK WELDMENT	1	Call for price	—
2	76213G	FILLER BREATHER CAP ASSEMBLY	1	Call for price	—
3	76270	FILTER ASSEMBLY	1	$122.18
	76271	REPLACEMENT FILTER ELEMENT	1	$36.00
4	0402118	LOCK WASHER 5/16 SS	2	Call for price	—
5	04001427	BHCS SCHS 5/16-18 UNC x 7/8 SS	2	Call for price	—
6	0301368	ADAPTOR 202702 16 x 12	1	Call for price	—
7	03006085	ADAPTOR 900598-8 (MAGNETIC DRAIN PLUG)	1	$26.07
8	03006341	20 x 24 SUCTION HOSE FITTING 45°	1	Call for price	—
9	37855R	TANK MTG. BRACKET - RH	1	$136.75
	37858R	TANK MTG. BRACKET (SHORT) - RH	1	$90.88
10	37858L	TANK MTG. BRACKET (SHORT) - LH	1	$90.88
11	37855L	TANK MTG. BRACKET - LH	1	$136.75
12	0400274	BOLT 5/8-11 x 2 UNC GR8	6	$5.84
13	0400426	NYLON LOCK NUT 5/8-11 UNC ZINC PLATED	6	$8.01
14	0400181	BOLT 1/2-13 UNC x 1-1/2 GR5	6	$5.84
15	0400492	FLAT WASHER 1/2 ZINC PLATED	8	$5.84
16	0403100	NYLON LOCK NUT 1/2-13 UNC ZINC PLATED	4	Call for price	—

Direct Mount Pump - 18 GPM

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320144	18 GPM , 1 IN.15 SPLINE SHAFT, SAE 4-BOLT FLANGE	1	$1,082.00
2	03006339	#16-45 M O-RING x 1-1/4 M NIPPLE	1	Call for price	—
	77C82	#16 M O-RING x 1-1/4 M NIPPLE	1	Call for price	—
3	77620	1-1/4 O-RING PLUG 900598-20	2	$25.55
4	0301368	#16 M O-RING x 3/4 MJIC	1	Call for price	—
5	0909434	PRESSURE TRANSDUCER (OPTIONAL)	1	$579.86

2 Air Valve Control Station

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0752655	2-TOGGLE AIR VALVE CONTROL HOOD	1	$116.02
2	0752656L	2-TOGGLE AIR VALVE CONTROL PANEL - LEFT	1	$62.47
	0752656R	2-TOGGLE AIR VALVE CONTROL PANEL - RIGHT	1	$64.35
3	18221L	2-TOGGLE AIR VALVE CONTROL PLACARD - LEFT	1	$37.76
	18221R	2-TOGGLE AIR VALVE CONTROL PLACARD - RIGHT	1	$37.76
4	18145	TOGGLE AIR GUARD	2	$19.32
5	0320161	CONTROL LIGHT	1	$10.12
6	71716	TOGGLE AIR VALVE	2	$189.63
7	04000281	SCREW PRH #6-32 UNC x 7/8 SS	2	Call for price	—
8	0403147	NUT, NYLON #6-32 UNC SS	2	Call for price	—
9	0403079	BOLT BHCS 5/16-18 UNC x 1 SS	6	$1.72	—
10	0402118	LOCK WASHER 5/16 SS	6	Call for price	—
11	0403074	NUT, NYLON 5/16-18 UNC SS	6	Call for price	—
12	04001085	BOLT HHCS 3/8-16 UNC x 1 SS	2	Call for price	—
13	0402121	LOCK WASHER 3/8-16 SS	2	Call for price	—
14	0402122	NUT, NYLON 3/8-16 UNC	2	$4.01

6-Spool Control Station

Show parts list (45 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	18212L	5 SPOOL/6 SPOOL CONTROL PLACARD-LH	1	$67.45
	18237	CONTROL PLACARD AUTOGRIP OVERLAY	1	Call for price	—
2	18212R	5 SPOOL/6 SPOOL CONTROL PLACARD-RH	1	$67.45
	18237	CONTROL PLACARD AUTOGRIP OVERLAY	1	Call for price	—
3	0320162	LED CONTROL STATION LIGHT - 6 IN.	2	$13.09
4	04000281	SCREW, PHILLIPS #6-32 UNC x 7/8	4	Call for price	—
5	04000262	NYLON LOCK NUT #6-32 SS	7	Call for price	—
6	0752652L	CONTROL PANEL - LH	1	$86.28
7	0752652R	CONTROL PANEL - RH	1	$86.28
8	0752651	CONTROL HOOD	2	$172.55
9	0403079	BHCS 5/16-18 UNC x 5/8	12	$1.72	—
10	0402118	LOCK WASHER 5/16 SS	12	Call for price	—
11	0403074	HEX NUT 5/16-18 UNC	12	Call for price	—
12	04001085	BHCS 3/8-16 UNC x1 SS	12	Call for price	—
13	0402121	LOCK WASHER 3/8 SS	12	Call for price	—
14	0402122	NYLON LOCK NUT 3/8-16 UNC	8	$4.01
15	181286W	CONTROL BOX ARM WELDMENT - 79.5 IN	1	$686.17
16	0320048-GY	CONTROL HANDLE 8" - GRAY	6	$37.00
	0320048-RD	CONTROL HANDLE 8" - RED	2	$37.00
	0320048-BL	CONTROL HANDLE 8" - BLUE	4	$37.00
17	7A528W	CONTROL ROD 28-1/2	6	$47.42
18	7A538W	CONTROL ROD 37-3/4	6	$52.88
19	0320157	PRESSURE GAUGE HYDRAULIC - 2 IN.	1	$34.00
20	04000282	SCREW PHILLIPS #6-32 x 1/2	6	Call for price	—
21	0809904	ANTI-TILT CONTROL ROD WELDMENT	1	$65.38
22	7A5753-17	CONTROL HANDLE CROSS ROD 3/4 x 17	2	$72.94
23	74116	VALVE BODY GRESEN 6 SPOOL	1	$2,427.02
	74115	VALVE BODY GRESEN 5 SPOOL (COMMON)	1	$2,021.74
24	0403169	HHCS 5/16-18 UNC x 2-3/4	3	Call for price	—
25	0752718-5	CONTROL STATION GAUGE FLUID TUBE - 5 SP	1	$44.31
	0752718-6	CONTROL STATION GAUGE FLUID TUBE - 6 SP	1	$48.38
26	18335	CONTROL STATION WIRE TUBE - 6 SP	1	$13.39
27	0400066	HHCS 1/4-20 UNC x 3/4	2	$5.84
28	0400367	NYLON LOCK NUT 1/4-40 UNC	2	$5.84
29	0320169	PRESSURE GAUGE HOSE	1	$52.81
30	0403115	NUT 3/8-24 UNF RH	12	Call for price	—
31	84530	CLEVIS - RH THREAD 3/8-24	12	$8.00
32	84620	CLEVIS PIN 3/8 x 1-1/8	24	$2.30
33	7A1155	CONTROL HANDLE PIVOT BASE	12	$16.00
34	86075E	SNAP RING 3/4 EXTERNAL	4	$3.21
35	0400410	1/2-13 UNC JAM NUT ZP	12	$4.13
36	7A010	CLEVIS PIN AND LINK ASSEMBLY	6	$34.00
37	7A121	BELL CRANK	6	$13.00
38	84540	CLEVIS - LH THREAD 3/8-24	12	$8.00
39	0400382	NYLON LOCK NUT 5/16-18 UNC	3	$5.84

9-Spool Control Station

Show parts list (52 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	18219L	CONTROL PLACARD 4-CAR AUTOGRIP - LH	1	$81.79
	18218L	CONTROL PLACARD 4-CAR CARRIER - LH	1	$78.41
	18224L	CONTROL PLACARD SIDEPULLER OVERLAY - LH	1	$28.16
	18235L	CONTROL PLACARD DUAL DECK - LH	1	Call for price	—
	18236L	CONTROL PLACARD DUAL DECK AG OVERLAY-LH	1	Call for price	—
2	18219R	CONTROL PLACARD 4-CAR AUTOGRIP - RH	1	$81.82
	18218R	CONTROL PLACARD 4-CAR CARRIER - RH	1	$78.41
	18224R	CONTROL PLACARD SIDEPULLER OVERLAY-RH	1	$28.16
	18235R	CONTROL PLACARD DUAL DECK - RH	1	Call for price	—
	18236R	CONTROL PLACARD DUAL DECK AG OVERLAY-RH	1	Call for price	—
3	0320162	LED CONTROL STATION LIGHT - 6 IN.	2	$13.09
4	04000281	SCREW, PHILLIPS #6-32 UNC x 7/8	4	Call for price	—
5	04000262	NYLON LOCK NUT #6-32 SS	7	Call for price	—
6	0752654L	CONTROL PANEL - LH	1	$104.19
7	0752654R	CONTROL PANEL - RH	1	$104.19
8	0752653	CONTROL HOOD	2	$202.23
9	0403079	BHCS 5/16-18 UNC x 5/8	12	$1.72	—
10	0402118	LOCK WASHER 5/16, SS	12	Call for price	—
11	0403074	HEX NUT 5/16-18 UNC	12	Call for price	—
12	04001085	BHCS 3/8-16 UNC x 1, SS	12	Call for price	—
13	0402121	LOCK WASHER 3/8 SS	12	Call for price	—
14	0402122	NYLON LOCK NUT 3/8-16 UNC	8	$4.01
15	181289W	CONTROL BOX ARM WELDMENT - 79.5 IN	1	$809.82
16	0320048-GY	CONTROL HANDLE 8" - GRAY	6	$37.00
	0320048-RD	CONTROL HANDLE 8" - RED	4	$37.00
	0320048-BL	CONTROL HANDLE 8" - BLUE	6	$37.00
	0320048-GR	CONTROL HANDLE 8" - GREEN	2	$38.21
17	7A528W	CONTROL ROD 28-1/2	9	$47.42
18	7A538W	CONTROL ROD 37-3/4	9	$52.88
19	0320157	PRESSURE GAUGE HYDRAULIC - 2 IN.	1	$34.00
20	04000282	SCREW PHILLIPS #6-32 x 1/2	3	Call for price	—
21	0809904	ANTI-TILT CONTROL ROD WELDMENT	1	$65.38
22	7A5753-20	CONTROL HANDLE CROSS ROD 3/4 x 20-3/4	2	$79.34
23	74118	VALVE BODY GRESEN 8-SPOOL	1	$3,191.33
	74119	VALVE BODY GRESEN 9 SPOOL	1	Call for price	—
24	0403169	HHCS 5/16-18 UNC x 2-3/4	3	Call for price	—
25	0752718-8	CONTROL STATION GAUGE FLUID TUBE - 8 SP	1	$50.80
	0752718-9	CONTROL STATION GAUGE FLUID TUBE - 9 SP	1	Call for price	—
26	18336	CONTROL STATION WIRE TUBE - 9 SPOOL	1	$20.88
27	0400366	HHCS 1/4-20 UNC x 3/4	2	$5.84
28	0400367	NYLON LOCK NUT 1/4-20 UNC	2	$5.84
29	0320169	PRESSURE GAUGE HOSE	1	$52.81
30	0403115	NUT 3/8-24 UNF RH	18	Call for price	—
31	84530	CLEVIS - RH THREAD 3/8-24	18	$8.00
32	84620	CLEVIS PIN 3/8 x 1-1/8	36	$2.30
33	7A1155	CONTROL HANDLE PIVOT BASE	18	$16.00
34	86075E	SNAP RING 3/4 EXTERNAL	4	$3.21
35	0400410	1/2-13 UNC JAM NUT ZP	18	$4.13
36	7A010	CLEVIS PIN AND LINK ASSEMBLY	9	$34.00
37	7A121	BELL CRANK	9	$13.00
38	84540	CLEVIS - LH THREAD 3/8-24	18	$8.00
39	0400382	NYLON LOCK NUT 5/16-18 UNC	3	$5.84

Remote Air Cylinders 6-Spool

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	183126	6-SPOOL CONTROL STATION	1	Call for price	—
2	0308726-2	RADIO CONTROL RECEIVER BOX 2-FUNCTION	1	$1,681.24
	0308726-4	RADIO CONTROL RECEIVER BOX 4-FUNCTION		$3,183.06
	0308726-6	RADIO CONTROL RECEIVER BOX 6-FUNCTION		$3,438.89
	0308726-8	RADIO CONTROL RECEIVER BOX 8-FUNCTION		Call for price	—
	0308726-10	RADIO CONTROL RECEIVER BOX 10-FUNCTION		$4,645.96
	0308726-12	RADIO CONTROL RECEIVER BOX 12-FUNCTION		$6,604.09
	0308726-16	RADIO CONTROL RECEIVER BOX 16-FUNCTION		Call for price	—
3	71713	AIR PRESSURE REGULATOR	1	$76.36
4	0752351	AIR PRESSURE REGULATOR MTG BRACKET	1	$34.22
5	0308711	AIR CYLINDER 2 INCH STROKE	X	$317.28
6	0403043	BOLT HHCS 1/4-20 UNC x 1 GR5	3	Call for price	—
7	0400066	BOLT HHCS 1/4-20 UNC x 3/4 GR5	X	$5.84
8	0400367	NUT NYLOK 1/4-20 UNC	X	$5.84
9	0400126	BOLT HHCS 3/8-18 UNC x 1 GR5	4	$5.84
10	0400392	NUT NYLOC 3/8-16 UNC	4	$5.84
11	181381	AIR CYLINDER MTG BRKT 6-SPOOL GEN2	1	$65.73
12	0809905	BOLT-ON AIR CYLINDER PLATE WELDMENT	X	$57.19
13	0400366	NUT HEX 1/4-20 UNC	X	$5.84
14	0400059	BOLT HHCS 1/4-20 UNC x 5/8 GR5	X	$5.84

Remote Air Cylinders 9-Spool

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	183129	9-SPOOL CONTROL STATION	1	Call for price	—
2	0308726-2	RADIO CONTROL RECEIVER BOX 2-FUNCTION	1	$1,681.24
	0308726-4	RADIO CONTROL RECEIVER BOX 4-FUNCTION		$3,183.06
	0308726-6	RADIO CONTROL RECEIVER BOX 6-FUNCTION		$3,438.89
	0308726-8	RADIO CONTROL RECEIVER BOX 8-FUNCTION		Call for price	—
	0308726-10	RADIO CONTROL RECEIVER BOX 10-FUNCTION		$4,645.96
	0308726-12	RADIO CONTROL RECEIVER BOX 12-FUNCTION		$6,604.09
	0308726-16	RADIO CONTROL RECEIVER BOX 16-FUNCTION		Call for price	—
3	71713	AIR PRESSURE REGULATOR	1	$76.36
4	0752351	AIR PRESSURE REGULATOR MTG BRACKET	1	$34.22
5	0308711	AIR CYLINDER 2 INCH STROKE	X	$317.28
6	0403043	BOLT HHCS 1/4-20 UNC x 1 GR5	3	Call for price	—
7	0400066	BOLT HHCS 1/4-20 UNC x 3/4 GR5	X	$5.84
8	0400367	NUT NYLOK 1/4-20 UNC	X	$5.84
9	0400126	BOLT HHCS 3/8-18 UNC x 1 GR5	4	$5.84
10	0400392	NUT NYLOK 3/8-16 UNC	4	$5.84
11	181391	AIR CYLINDER MTG BRKT 9-SPOOL GEN2	1	$86.56
12	0809905	BOLT-ON AIR CYLINDER PLATE WELDMENT	X	$57.19
13	0400366	NUT HEX 1/4-20 UNC	X	$5.84
14	0400059	BOLT HHCS 1/4-20 UNC x 5/8 GR5	X	$5.84

Ramsey 234 Hydraulic Winch

Show parts list (42 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0300261	LEVER	1	$108.96
2	0300290	COUPLING	1	$43.74
3	0300381	DRUM	1	Call for price	—
4	0300398	YOKE	1	$329.27
5	0300399	SCREW	1	$8.26
6	0300447	GASKET	2	$5.31
7	0300448	KEY	1	$14.36
8	0300449	SCREW	1	$3.78
9	0300450	KEY	1	$5.67
10	0300451	SHAFT	1	$113.04
11	0300452	CLUTCH HOUSING	1	$1,411.17
12	0300453	BUSHING	5	$56.54
13	0300454	SCREW	1	$5.67
14	0300455	SPRING	1	$5.67
15	0300456	BALL	1	$9.85
16	0300458	SPACER	1	Call for price	—
17	0300459	PLUG	2	Call for price	—
18	0300460	HOUSING	1	$630.25
19	0300461	PLUG	1	$13.84
20	0300462	REDUCER	1	$13.84
21	0300463	DRAG BRAKE	1	$33.38
22	0300464	SPRING	1	$15.67
23	0300465	SCREW	16	$3.78
24	0300466	CAP	1	$65.64
25	0300467	BEARING	2	$47.42
26	0300468	WORM	1	$957.31
27	0300471	SEAL	1	$29.33
28	0300472	HUB	1	$1,154.26
29	0300473	GEAR	1	$1,260.01
30	0300474	WASHER	6	Call for price	—
31	0300475	SCREW	6	Call for price	—
32	0300476	GASKET	1	$15.67
33	0600477	COVER	1	Call for price	—
34	0300569	SCREW	4	Call for price	—
35	0300694	CAP ADAPTOR	1	Call for price	—
36	0300695	SCREW	1	$9.50
37		KEY	2	Call for price	—
38		SHAFT	1	Call for price	—
39		KEY	2	Call for price	—
40		CLUTCH	1	Call for price	—
41	0308608	TORSION SPRING	1	Call for price	—
	0308698	4 TON WORM WINCH ASSEMBLY	1	$1,641.44

Ramsey HD234 Manual-Shift Winch Group W/Single Clutch Control Rod Assembly (Underwind)

Show parts list (36 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0940425	RAMSEY HD234 WINCH MTG FRAME-GEN2	1	$672.40
1A	0811139	RAMSEY HD234 WINCH MOUNTING FRAME	1	$460.68
1B	0940428	ROLLER ASSEMBLY - 1-3/4 DIAMETER	1	$98.19
1C	0811142	VERTICAL ROLLER KEEPER PIN - RAMSEY 8K	1	Call for price	—
1D	0403004	BOLT - BHCS 3/8-16 UNC x 3/4 ZP	2	$5.84
1E	0811145	ROLLER GUIDE KEEPER PIN - RAMSEY 8K WORM	2	Call for price	—
1F	0400121	BOLT - HHCS 3/8-16 UNC x 3/4 ZP	1	$5.84
1G	0400482	LOCK WASHER 3/8 ZP	1	$5.84
1H	0709877G	RAMSEY HD234 VERTICAL ROLLER W/BUSHINGS	2	$22.66
2	0308698	RAMSEY WINCH HD234 LEVER LOCK MANUAL SHIFT	1	$1,641.44
3	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
4	03020146	RAMSEY ROLLER TENSIONER-HD234	1	$309.67
5	0400126	BOLT - HHCS 3/8-16 UNC x 1 ZP	8	$5.84
6	0400482	LOCK WASHER 3/8 ZP	6	$5.84
7	0403137	BOLT FHSCS 3/8-16 x 1 GR8	2	Call for price	—
8	0400480	FLAT WASHER 3/8 ZP	2	$4.01
9	0400392	NUT NYLOCK 3/8-16 ZP	2	$5.84
10	0400238	BOLT SHCS 1/2-13 x 1-1/2 GR8	2	$8.01
11	0400491	LOCK WASHER 1/2 ZP	2	$5.84
12	0400116	SET SCREW SQHD 5/16-18 x 1/2 ZP	1	$5.84
13	0805170	RAMSEY WINCH CLUTCH CONTROL ROD	1	$71.11
14	0301532	MILLER T-HANDLE	1	$9.50
15	0400560	ROLL PIN 5/32 x 1	1	$5.84
16	0301588	ADJUSTABLE YOKE	1	$17.67
17	0400537	CLEVIS PIN 1/2 x 1-1/2 ZP	1	$2.30
18	0400492	WASHER 1/2 FLAT	3	$5.84
19	0400540	COTTER PIN 3/32 x 1	1	$5.84
20	0710918	RAMSEY CLUTCH HANDLE MOUNTING ANGLE	1	$40.12
21	0805151	BELL CRANK ARM	1	$102.10
22	0701172-18	SHIM-RAMSEY HD234	2	$3.33
23	0500815	WINCH SAFETY DECAL	1	$13.84
24	ADPTR2062-08X08	ADAPTER 90° ELBOW 8MORB x 8JICM	2	Call for price	—
25	0752167-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-SHORT	1	$44.08
26	0752168-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-LONG	1	$44.08
27	0751974-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-SHORT	1	$55.75
28	0751975-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-LONG	1	$56.62

Ramsey HD234 Manual-Shift Winch Group with Dual Clutch Control Rod Assembly

Show parts list (44 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0940425	RAMSEY HD234 WINCH MTG FRAME-GEN2	1	$672.40
1A	0811139	RAMSEY HD234 WINCH MOUNTING FRAME	1	$460.68
1B	0940428	ROLLER ASSEMBLY - 1-3/4 DIAMETER	1	$98.19
1C	0811142	VERTICAL ROLLER KEEPER PIN - RAMSEY 8K	2	Call for price	—
1D	0403004	BOLT - BHCS 3/8-16 UNC x 3/4 ZP	2	$5.84
1E	0811145	ROLLER GUIDE KEEPER PIN - RAMSEY 8K WORM	1	Call for price	—
1F	0400121	BOLT - HHCS 3/8-16 UNC x 3/4 ZP	1	$5.84
1G	0400482	LOCK WASHER 3/8 ZP	1	$5.84
1H	0709877G	RAMSEY HD234 VERTICAL ROLLER W/BUSHINGS	2	$22.66
2	0308698	RAMSEY WINCH HD234 LEVER LOCK MANUAL SHIFT	1	$1,641.44
3	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
4	03020146	RAMSEY ROLLER TENSIONER-HD234	1	$309.67
5	0400126	BOLT - HHCS 3/8-16 UNC x 1 ZP	8	$5.84
6	0400482	LOCK WASHER 3/8 ZP	6	$5.84
7	0403137	BOLT FHSCS 3/8-16 x 1 GR8	2	Call for price	—
8	0400480	FLAT WASHER 3/8 ZP	2	$4.01
9	0400392	NUT NYLOC 3/8-16 ZP	2	$5.84
10	0400238	BOLT SHCS 1/2-13 x 1-1/2 GR8	2	$8.01
11	0400491	LOCK WASHER 1/2 ZP	2	$5.84
12	0400116	SET SCREW SQHD 5/16-18 x 1/2 ZP	1	$5.84
13	08002469	DUAL CLUTCH HANDLE ROD - 45"	1	Call for price	—
14	07004181	DUAL CLUTCH HANDLE ROD - 19"	1	Call for price	—
15	0301532	MILLER T-HANDLE	2	$9.50
16	0403170	BOLT SSB #10 x 1 #8-32 SS	2	Call for price	—
17	0403005	FLAT WASHER #10 SS	4	Call for price	—
18	04003908	NUT #8-32 HEX NYLOK SS	2	Call for price	—
19	0400560	ROLL PIN 5/32 x 1	2	$5.84
20	07004182	DUAL CLUTCH CONTROL ROD COUPLING	1	Call for price	—
21	08002489	DUAL CLUTCH CONTROL ROD BUSHING	1	Call for price	—
22	86062E	SNAP RING 5/8 EXTERNAL	2	$1.42
23	04000341	CLEVIS PIN 1/2 x 1 ZP	1	Call for price	—
24	0400540	COTTER PIN 3/32 x 1	1	$5.84
25	07004164	DUAL CLUTCH HANDLE MTG ANGLE - LH	1	Call for price	—
26	07004165	DUAL CLUTCH HANDLE MTG ANGLE - RH	1	Call for price	—
27	08002468	DUAL HANDLE CLUTCH CRANK ARM	1	Call for price	—
28	0701172-18	SHIM-RAMSEY HD234	2	$3.33
29	05000522L	WINCH SAFETY DECAL - LH	1	Call for price	—
30	0500522R	WINCH SAFETY DECAL - RH	1	Call for price	—
31	ADPTR2062-08X08	ADAPTER 90° ELBOW 8MORB x 8JICM	2	Call for price	—
32	0752167-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-SHORT	1	$44.08
33	0752168-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-LONG	1	$44.08
34	0751974-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-SHORT	1	$55.75
35	0751975-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-LONG	1	$56.62
36	03012489	SET SCREW COLLAR 5/8 SHAFT	2	Call for price	—

Ramsey HD234 Air-Shift Winch Group

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0940425	RAMSEY HD234 WINCH MTG FRAME-GEN2	1	$672.40
1A	0811139	RAMSEY HD234 WINCH MOUNTING FRAME	1	$460.68
1B	0940428	ROLLER ASSEMBLY - 1-3/4 DIAMETER	1	$98.19
1C	0811142	VERTICAL ROLLER KEEPER PIN - RAMSEY 8K	2	Call for price	—
1D	0403004	BOLT - BHCS 3/8-16 UNC x 3/4 ZP	2	$5.84
1E	0811145	ROLLER GUIDE KEEPER PIN - RAMSEY 8K WORM	1	Call for price	—
1F	0400121	BOLT - HHCS 3/8-16 UNC x 3/4 ZP	1	$5.84
1G	0400482	LOCK WASHER 3/8 ZP	1	$5.84
1H	0709877G	RAMSEY HD234 VERTICAL ROLLER W/BUSHINGS	2	$22.66
2	0308535	RAMSEY WINCH HD234 SHIFT	1	$3,381.37
3	0320147	WINCH MOTOR 5 CUBIC INCH	1	$738.22
4	03020146	RAMSEY ROLLER TENSIONER-HD234	1	$309.67
5	0400126	BOLT - HHCS 3/8-16 UNC x 1 ZP	8	$5.84
6	0400482	LOCK WASHER 3/8 ZP	6	$5.84
7	0403137	BOLT FHSCS 3/8-16 x 1 GR8	2	Call for price	—
8	0400480	FLAT WASHER 3/8 ZP	2	$4.01
9	0400392	NUT NYLOCK 3/8-16 ZP	2	$5.84
10	0400238	BOLT SHCS 1/2-13 x 1-1/2 GR8	2	$8.01
11	0400491	LOCK WASHER 1/2 ZP	2	$5.84
12	0701172-18	SHIM-RAMSEY HD234	2	$3.33
13	ADPTR2062-08X08	ADAPTER 90° ELBOW 8MORB x 8JICM	2	Call for price	—
14	0752167-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-SHORT	1	$44.08
15	0752168-R	S10-16 CNV RAMSEY HD234 FLUID TUBE-LONG	1	$44.08
16	0751974-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-SHORT	1	$55.75
17	0751975-R	S12-16 LCG RAMSEY HD234 FLUID TUBE-LONG	1	$56.62

Ramsey Winch - 09023899-0810AM - 8K Omega Planetary Manual Shift

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03026291-0810AM	RAMSEY OMEGA 8K PLANETARY WINCH	1	$3,738.68
2	0940422	RAMSEY OMEGA ROLLER GUIDE ASSEMBLY	1	$531.02
2A	0811127	RAMSEY OMEGA ROLLER GUIDE	1	Call for price	—
2B	0809640	ROLLER ASSEMBLY - 1.75 DIAMETER	2	$47.59
2C	A901520	ROLLER ASSEMBLY - 1.75 DIAMETER	1	$95.16
2D	0809641	ROLLER GUIDE KEEPER PIN	2	$29.76
2E	0403161	BOLT 3/8-16 UNC x 5/8 BUTTON HEAD	3	Call for price	—
2F	A901525	ROLLER GUIDE KEEPER PIN	1	Call for price	—
3	0811128	RAMSEY OMEGA FRONT MTG CHANNEL	1	$232.15
4	03025735	OMEGA CABLE TENSIONER GEN 2	1	Call for price	—
5	04008448	BOLT HHCS M12-1.75X22mm 8.8	8	Call for price	—
6	0400491	WASHER 1/2 LOCK	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	7	$5.84
8	0400480	FLAT WASHER 3/8 SAE ZP	14	$4.01
9	0400392	NYLON LOCK NUT 3/8-16 UNC	7	$5.84
10	08011591	RAMSEY OMEGA T-HANDLE SUPPORT BRKT	1	Call for price	—
11	0752684	RAMSEY OMEGA REMOTE CLUTCH ROD	1	Call for price	—
12	0301532	MILLER T-HANDLE	1	$9.50
13	0400560	ROLL PIN 5/32 x 1	1	$5.84
14	0400407	NUT HEX 1/2	1	$5.84
15	05002123	FREE SPOOL DECAL RAMSEY OMEGA	1	Call for price	—
16	ADPTR020702-10X08	ADAPTER 10MORB x 8JICM	2	Call for price	—
17	0752167-RS12	S10-16 CNV OMEGA FLUID TUBE-SHORT	1	$139.99
18	0752168-RS12	S10-16 CNV OMEGA FLUID TUBE-LONG	1	$146.46
19	0751974-RS12	S12-16 LCG OMEGA FLUID TUBE-SHORT	1	$134.56
20	0751975-RS12	S12-16 LCG OMEGA FLUID TUBE-LONG	1	$141.05

Ramsey Winch - 09023899-0810AM - 8K Omega Planetary Manual Shift - Dual Handle Clutch Control Rod Assembly

Show parts list (33 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320127-0810AM	RAMSEY OMEGA 8K PLANETARY WINCH	1	$3,421.07
2	0940422	RAMSEY ROLLER GUIDE ASSEMBLY	1	$531.02
2A	0811127	RAMSEY ROLLER GUIDE	1	Call for price	—
2B	0809640	ROLLER ASSEMBLY - 1.75 DIAMETER	2	$47.59
2C	A901520	ROLLER ASSEMBLY - 1.75 DIAMETER	1	$95.16
2D	0809641	ROLLER GUIDE KEEPER PIN	2	$29.76
2E	0403161	BOLT 3/8-16 UNC x 5/8 BUTTON HEAD	3	Call for price	—
2F	A901525	ROLLER GUIDE KEEPER PIN	1	Call for price	—
3	0811128	RAMSEY FRONT MTG CHANNEL	1	$232.15
4	03025735	OMEGA CABLE TENSIONER	1	Call for price	—
5	04008448	BOLT HHCS M12-1.75X22mm 8.8	8	Call for price	—
6	0400491	WASHER 1/2 LOCK	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	10	$5.84
8	0400480	FLAT WASHER 3/8 SAE ZP	20	$4.01
9	0400392	NYLON LOCK NUT 3/8-16 UNC	10	$5.84
10	09022538	OMEGA DUAL HANDLE FREE SPOOL ASSEMBLY	1	$514.95
10A	08009068	OMEGA DUAL HANDLE CONTROL ROD - 64"	1	Call for price	—
10B	0301532	MILLER T-HANDLE	2	$9.50
10C	0400560	ROLL PIN 5/32 x 1	2	$5.84
10D	08019903	OMEGA T-HANDLE SUPPORT BRACKET	1	Call for price	—
10E	08019921	DUAL HANDLE KEEPER BUSHING	1	Call for price	—
10F	03012489	SET SCREW COLLAR 5/8 SHAFT, 5/16-18 x 1/4 SET SCREW	2	Call for price	—
10G	03012928	SPRING COMPRESSION 3 x .875 OD x .091" WIRE DIA.	1	Call for price	—
10H	86062E	SNAP RING 5/8 EXTERNAL	2	$1.42
10I	0400176	BOLT HHS 1/2-13 UNC x 1	1	$5.84
10J	0400491	WASHER 1/2 LOCK	2	$5.84
10K	0403040	FLAT WASHER 1/2 SAE ZP	1	$5.84
10L	05001603	FREE SPOOL DECAL RAMSEY DUAL HANDLE	2	Call for price	—
11	ADPTR020702-10X08	ADAPTER 10MORB x 8JICM	1	Call for price	—
12	0752167-RS12	S10-16 CNV OMEGA FLUID TUBE-SHORT	1	$139.99
13	0752168-RS12	S10-16 CNV OMEGA FLUID TUBE-LONG	1	$146.46
14	0751974-RS12	S12-16 LCG OMEGA FLUID TUBE-SHORT	1	$134.56
15	0751975-RS12	S12-16 LCG OMEGA FLUID TUBE-LONG	1	$141.05

Ramsey Winch - 09023899-0810AA - 8K Omega Planetary Air Shift

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03026291-0810AA	RAMSEY OMEGA 8K PLANETARY WINCH	1	$4,134.42
2	0940422	RAMSEY ROLLER GUIDE ASSEMBLY	1	$531.02
2A	0811127	RAMSEY ROLLER GUIDE	1	Call for price	—
2B	0809640	ROLLER ASSEMBLY - 1.75 DIAMETER	2	$47.59
2C	A901520	ROLLER ASSEMBLY - 1.75 DIAMETER	1	$95.16
2D	0809641	ROLLER GUIDE KEEPER PIN	2	$29.76
2E	0403161	BOLT 3/8-16 UNC x 5/8 BUTTON HEAD	3	Call for price	—
2F	A901525	ROLLER GUIDE KEEPER PIN	1	Call for price	—
3	0811128	RAMSEY FRONT MTG CHANNEL	1	$232.15
4	03025735	OMEGA CABLE TENSIONER GEN 2	1	Call for price	—
5	04008448	BOLT HHCS M12-1.75X22mm 8.8	8	Call for price	—
6	0400491	WASHER 1/2 LOCK	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	7	$5.84
8	0400480	FLAT WASHER 3/8 SAE ZP	14	$4.01
9	0400392	NYLON LOCK NUT 3/8-16 UNC	7	$5.84
10	07005433	RAMSEY AIR CYLINDER GUARD	1	Call for price	—
11	ADPTR020702-10X08	ADAPTER 10MORB x 8 JICM	2	Call for price	—
12	0752167-RS12	S10-16 CNV OMEGA FLUID TUBE-SHORT	1	$139.99
13	0752168-RS12	S10-16 CNV OMEGA FLUID TUBE-LONG	1	$146.46
14	0751974-RS12	S12-16 LCG OMEGA FLUID TUBE-SHORT	1	$134.56
15	0751975-RS12	S12-16 LCG OMEGA FLUID TUBE-LONG	1	$141.05

DP Winch - 09013369-0810AM - 8K DP Planetary Manual Shift

Show parts list (33 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03015100-0810AM	DP 8K PLANETARY WINCH MANUAL SHIFT	1	Call for price	—
	03015100-1210AM	DP 12K PLANETARY WINCH MANUAL SHIFT		$5,785.98
	03015100-1510AM	DP 15K PLANETARY WINCH MANUAL SHIFT		Call for price	—
2	09011914	DP 8K-15K ROLLER GUIDE FRAME ASSEMBLY	1	$499.65
2A	08010128	DP 8K-15K ROLLER GUIDE FRAME	1	Call for price	—
2B	0809640	ROLLER ASSEMBLY 1.75 DIAMETER x 5.625	2	$47.59
2C	A901520	ROLLER ASSEMBLY 1.75 DIAMETER x 13.500	1	$95.16
2D	0809641	ROLLER GUIDE KEEPER PIN 6.348	2	$29.76
2E	0403161	BOLT 3/8-16 UNC x 5/8 BUTTON HEAD	3	Call for price	—
2F	A901525	ROLLER GUIDE KEEPER PIN 14.535	1	Call for price	—
3	08010129	DP FRONT MOUNTING FRAME	1	Call for price	—
4	03015381	DP WINCH TENSIONER	1	$273.10
5	0400177	BOLT HHCS 1/2-13 UNC x 1-1/4	8	$5.84
6	0400491	LOCK WASHER 1/2	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC 1-1/4	6	$5.84
8	0400480	FLAT WASHER 3/8	12	$4.01
9	1400392	NYLON LOCK NUT 3/8-16 UNC	6	Call for price	—
10	08011569	DP T-HANDLE SUPPORT BRACKET	1	Call for price	—
11	08011568	DP T-HANDLE CLUTCH ROD	1	Call for price	—
12	0301532	MILLER T-HANDLE	1	$9.50
13	0400560	ROLL PIN 5/32 x 1	1	$5.84
14	0400407	NUT HEX 1/2	1	$5.84
15	0301588	CLUTCH CONTROL ADJUSTABLE YOKE	1	$17.67
16	0400537	CLEVIS PIN 1/2 x 1-1/2	1	$2.30
17	0403040	FLAT WASHER 1/2	1	$5.84
18	0400540	COTTER PIN 3/32 x 1	1	$5.84
19	03017221	DP WINCH LEVER	1	Call for price	—
20	0500815	WINCH SAFETY DECAL	1	$13.84
21	ADPTR2062-08X08	ADAPTER 90° ELBOW 8MORB x 8JICM	2	Call for price	—
22	0752167-DP08	S10-16 CNV DP FLUID TUBE-SHORT	1	Call for price	—
23	0752168-DP08	S10-16 CNV DP FLUID TUBE-LONG	1	Call for price	—
24	0751974-DP08	S12-16 LCG DP FLUID TUBE-SHORT	1	$127.45
25	0751975-DP08	S12-16 LCG DP FLUID TUBE-LONG	1	$131.46

DP Winch - 09013369-0810AA - 8K DP Planetary Air Shift

Show parts list (22 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	03015100-0810AA	DP 8K PLANETARY WINCH AIR SHIFT	1	$3,547.68
	03015100-1210AA	DP 12K PLANETARY WINCH AIR SHIFT		$6,158.68
	03015100-1510AA	DP 15K PLANETARY WINCH AIR SHIFT		Call for price	—
2	09011914	DP 8K-15K ROLLER GUIDE FRAME ASSEMBLY	1	$499.65
2A	08010128	DP 8K-15K ROLLER GUIDE FRAME	1	Call for price	—
2B	0809640	ROLLER ASSEMBLY 1.75 DIAMETER x 5.625	2	$47.59
2C	A901520	ROLLER ASSEMBLY 1.75 DIAMETER x 13.500	1	$95.16
2D	0809641	ROLLER GUIDE KEEPER PIN 6.348	2	$29.76
2E	0403161	BOLT 3/8-16 UNC x 5/8 BUTTON HEAD	3	Call for price	—
2F	A901525	ROLLER GUIDE KEEPER PIN 14.535	1	Call for price	—
3	08010129	DP FRONT MOUNTING FRAME	1	Call for price	—
4	03015381	DP WINCH TENSIONER	1	$273.10
5	0400177	BOLT HHCS 1/2-13 UNC x 1-1/4	8	$5.84
6	0400491	LOCK WASHER 1/2	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	2	$5.84
8	0400480	FLAT WASHER 3/8	4	$4.01
9	1400392	NYLON LOCK NUT 3/8-16 UNC	2	Call for price	—
10	ADPTR2062-08X08	ADAPTER 90° ELBOW 8MORB x 8JICM	2	Call for price	—
11	0752167-DP08	S10-16 CNV DP FLUID TUBE-SHORT	1	Call for price	—
12	0752168-DP08	S10-16 CNV DP FLUID TUBE-LONG	1	Call for price	—
13	0751974-DP08	S12-16 LCG DP FLUID TUBE-SHORT	1	$127.45
14	0751975-DP08	S12-16 LCG DP FLUID TUBE-LONG	1	$131.46

Warn Winch - Manual Free Spool

Show parts list (38 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809644	MTG FRAME WELDMENT - FRONT	1	$277.15
2	0940240	WARN MTG FRAME REAR ASSEMBLY	1	$587.15
2A	0809639	MTG FRAME WLDMNT - ROLLER GUIDE REAR	1	Call for price	—
2B	0809640	ROLLER GUIDE BUSHING 1.75 x 5.625	2	$47.59
2C	0809641	ROLLER GUIDE KEEPER PIN	2	$29.76
2D	A9R281	ROLLER GUIDE BUSHING 1.75 x 7.875	1	$74.36
2E	A902095	ROLLER GUIDE KEEPER PIN	1	$35.70
2F	0403161	BOLT, BHCS 3/8-16 UNC x 5/8	3	Call for price	—
3	0308936-0908AM	WINCH 9K, 8 IN. DRUM MANUAL SHIFT	1	$5,288.59
	0308936-1208AM	WINCH 12K, 8 IN. DRUM MANUAL SHIFT		$5,827.78
	0308936-1508AM	WINCH 15K, 8 IN. DRUM MANUAL SHIFT		$6,422.18
4	0403109	BOLT, SHCS 3/8-16 UNC x 7/8	2	Call for price	—
5	0751337	TENSION PLATE PIVOT ROD	1	$113.04
6	0308935R	TENSION SPRING	1	$41.27
7	0308935L	TENSION SPRING	1	$41.27
8	0751268	TENSION PLATE	1	$76.59
9	0400177	BOLT HHCS 1/2-13 UNC x 1-1/4	8	$5.84
10	0400491	LOCK WASHER 1/2	8	$5.84
11	0400122	BOLT HHCS 3/8-16 UNC x 1-1/4	5	$5.84
12	0400480	FLAT WASHER 3/8	10	$4.01
13	0400392	NYLON LOCK NUT 3/8-16 UNC	5	$5.84
14	09013709	CLUTCH CONTROL ASSEMBLY WARN WINCH	1	$214.01
14A	718732	ROD END BEARING	1	$65.28
14B	71875	WINCH SPRING	1	$34.28
14C	71873	WINCH CLUTCH ROD	1	$89.52
14D	718731	WINCH CLUTCH ROD KNOB	1	$4.51
14E	08011592	WINCH-MANUAL FREE SPOOL BRACKET	1	Call for price	—
14F	05002124	FREE SPOOL DECAL WARN WINCH	1	Call for price	—
14G	0405559	SPLIT PIN 3/16 x 1	1	Call for price	—
14H	0400492	FLAT WASHER 1/2	1	$5.84
14I	0400407	HEX NUT 1/2-13 UNC	2	$5.84
14J	0402122	HEX NUT 3/8-16 UNC	1	$4.01
14K	0400392	NYLON LOCK NUT 3/8-16 UNC	1	$5.84
15	ADPTR202702-10X08	ADAPTER 10MORB x 8JICM	2	Call for price	—
16	0752167-W	S10-16 CNV WARN FLUID TUBE-SHORT	1	Call for price	—
17	0752168-W	S10-16 CNV WARN FLUID TUBE-LONG	1	Call for price	—
18	0751974-W	S12-16 LCG WARN FLUID TUBE-SHORT	1	$79.11
19	0751975-W	S12-16 LCG WARN FLUID TUBE-LONG	1	$81.45

Warn Winch - Air Free Spool

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0809644	MTG FRAME WELDMENT - FRONT	1	$277.15
2	0940240	WARN MTG FRAME REAR ASSEMBLY	1	$587.15
2A	0809639	MTG FRAME WLDMNT - ROLLER GUIDE REAR	1	Call for price	—
2B	0809640	ROLLER GUIDE BUSHING 1.75 x 5.625	2	$47.59
2C	0809641	ROLLER GUIDE KEEPER PIN	2	$29.76
2D	A9R281	ROLLER GUIDE BUSHING 1.75 x 7.875	1	$74.36
2E	A902095	ROLLER GUIDE KEEPER PIN	1	$35.70
2F	0403161	BOLT, BHCS 3/8-16 UNC x 5/8	3	Call for price	—
3	0308936-0908AA	WINCH 9K, 8 IN. DRUM AIR SHIFT	1	$5,922.86
	0308936-1208AA	WINCH 12K, 8 IN. DRUM AIR SHIFT	1	$6,579.05
	0308936-1508AA	WINCH 15K, 8 IN. DRUM AIR SHIFT	1	$7,358.33
4	0403109	BOLT, SHCS 3/8-16 UNC x 7/8	2	Call for price	—
5	0751337	TENSION PLATE PIVOT ROD	1	$113.04
6	0308935R	TENSION SPRING	1	$41.27
7	0308935L	TENSION SPRING	1	$41.27
8	0751268	TENSION PLATES	1	$76.59
9	ADPTR202702-10X08	ADAPTER 10MORB x 8JICM	2	Call for price	—
10	0752167-W	S10-16 CNV WARN FLUID TUBE-SHORT	1	Call for price	—
11	0752168-W	S10-16 CNV WARN FLUID TUBE-LONG	1	Call for price	—
12	0751974-W	S12-16 LCG WARN FLUID TUBE-SHORT	1	$79.11
13	0751975-W	S12-16 LCG WARN FLUID TUBE-LONG	1	$81.45

Light Kit (1 of 9)

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price	Quick Add to Cart
1	0311498	LIGHT 6" OVAL RED LED - STOP/TURN	$37.46
2	0311500	LIGHT 6" OVAL REVERSE LED	$127.45
3	3011503	LIGHT 6" GROMMET	Call for price	—
1	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	$14.60
2	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	$14.60
3	0311516	LIGHT 2.5" GROMMET	$1.72

Light Kit (2 of 9)

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price	Quick Add to Cart
1	0311514	LIGHT 2.5" ROUND CLEAR/RED LED MARKER LIGHT	$13.32
2	0311515	LIGHT 2.5" ROUND CLEAR/AMBER LED MARKER LIGHT	$17.20
3	3011516	LIGHT 2.5" GROMMET	Call for price	—
1	0320162	6 IN. CONTROL STATION LED LIGHT	$13.09

Light Kit & Pressure Gauge

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0320161	3 IN. CONTROL STATION LED LIGHT		$10.12
1	0320157	2 IN. HYDRAULIC PRESSURE GAUGE		$34.00

Light Kit (3 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0311519	RED 3/4 LED ICC LIGHT		$90.21
1	0311520	RED 3/4 LED LIGHT		$16.51

Light Kit (4 of 9)

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	List Price
1	0311521	AMBER 3/4 ROUND LED LIGHT	$17.85
1	0311522	CLEAR/RED 3/4 ROUND LED LIGHT	$12.46
1	0311523	CLEAR/AMBER 3/4 ROUND LED LIGHT	$15.17

Light Kit (5 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308359	MARKER LIGHT RED REFLEX LED		$87.51
1	0308360	MARKER LIGHT AMBER REFLEX LED		$87.51

Light Kit (6 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308969R	MARKER LIGHT RED REFLEX LED		$21.89
1	0308969A	MARKER LIGHT AMBER REFLEX LED		$21.89

Light Kit (7 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0312578	MILLENNIUM MARKER LIGHT CLEAR/AMBER		$20.42
1	0312579	MILLENNIUM MARKER LIGHT CLEAR/RED		$19.61

Light Kit (8 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0308491	REFLECTOR - AMBER		$8.01
1	0308490	REFLECTOR - RED		$8.01

Light Kit (9 of 9)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0311510	RECTANGULAR REFLEX BACK UP		$18.28
1	0311511	RECTANGULAR REFLEX BACK UP GROMMET		$4.09

Manual Slidewinder (Short Track)

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	315210	SLIDE TRACK - SHORT	1	Call for price	—
2	711096	SERIES 9 WINCH - 6.5 INCH DRUM	1	$3,858.22
	711126	SERIES 12 WINCH - 6.5 INCH DRUM	1	$5,602.71
3	7189065	AIR LINE TRANSFER BRACKET	1	$194.73
4	A90065	CABLE TENSIONER PLATE	1	$53.13
5	A9018S	TENSION SPRING 40 LB/INCH	2	$9.00
6	0400733	BOLT M12-1.75 MM x 35 HHC 8.8	14	$3.96
7	0403040	FLAT WASHER 1/2 SAE	20	$5.84
8	0400181	BOLT 1/2-13 UNC x 1-1/2 HHC GR5	14	$5.84
9	0403100	NUT NYLOCK 1/2-13 UNC	14	Call for price	—
10	69125	6 x 1 PULLEY	2	$237.06
11	315225	CABLE GUIDE	1	Call for price	—
12	0400878	BOLT 3/8-16 UNJC x 3/4 BHC	4	Call for price	—
13	0400482	LOCK WASHER 3/8	5	$5.84
14	315230	PULLEY PIN	1	$61.95
15	315310	SLIDE CARRIAGE	1	Call for price	—
16	315330	PULLEY PIN	1	$56.53
17	0403161	BOLT 3/8-16 UNC x 5/8 BHC	1	Call for price	—
18	315325	CABLE GUIDE	1	Call for price	—
19	0403158	BOLT 5/16-18 UNC x 5/8 BHC	2	Call for price	—
20	0400464	LOCK WASHER 5/16	2	$1.70
21	315320	SLIDE PAD	1	Call for price	—
22	315323	FRONT SLIDE PAD	2	Call for price	—
23	04000321	SCREW 5/16-18 UNC x 1-1/4 FH TORX	12	$0.85
24	0400382	NUT NYLOCK 5/16-18 UNC	12	$5.84
25	ADPTR202702-10X08	ADAPTER 10MORB x 8JICM	2	Call for price	—
26	383SW0944	ST SLIDEWINDER FLUID TUBE-LONG	1	Call for price	—
27	383SW0940	ST SLIDEWINDER FLUID TUBE-SHORT	1	Call for price	—
28	07005356	G2 SHORT TRACK SLIDEWINDER FLUID TUBE-LONG	1	Call for price	—
29	07005355	G2 SHORT TRACK SLIDEWINDER FLUID TUBE-SHORT	1	Call for price	—

Manual Slidewinder (Long Track)

Show parts list (30 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	315214	SLIDE TRACK - LONG	1	Call for price	—
2	711096	SERIES 9 WINCH - 6.5 INCH DRUM	1	$3,858.22
	711126	SERIES 12 WINCH - 6.5 INCH DRUM	1	$5,602.71
3	7189065	AIR LINE TRANSFER BRACKET	1	$194.73
4	A90065	CABLE TENSIONER PLATE	1	$53.13
5	A9018S	TENSION SPRING 40 LB/INCH	2	$9.00
6	0400733	BOLT M12-1.75 MM x 35 HHC 8.8	14	$3.96
7	0403040	FLAT WASHER 1/2 SAE	22	$5.84
8	0400181	BOLT 1/2-13 UNC x 1-1/2 HHC GR5	16	$5.84
9	0403100	NUT NYLOCK 1/2-13 UNC	16	Call for price	—
10	69125	6 x 1 PULLEY	2	$237.06
11	315225	CABLE GUIDE	1	Call for price	—
12	0400878	BOLT 3/8-16 UNJC x 3/4 BHC	4	Call for price	—
13	0400482	LOCK WASHER 3/8	5	$5.84
14	315230	PULLEY PIN	1	$61.95
15	315310	SLIDE CARRIAGE	1	Call for price	—
16	315330	PULLEY PIN	1	$56.53
17	0403161	BOLT 3/8-16 UNC x 5/8 BHC	1	Call for price	—
18	315325	CABLE GUIDE	1	Call for price	—
19	0403158	BOLT 5/16-18 UNC x 5/8 BHC	2	Call for price	—
20	0400464	LOCK WASHER 5/16	2	$1.70
21	315320	SLIDE PAD	1	Call for price	—
22	315323	FRONT SLIDE PAD	2	Call for price	—
23	04000321	SCREW 5/16-18 UNC x 1-1/4 FH TORX	12	$0.85
24	0400382	NUT NYLOCK 5/16-18 UNC	12	$5.84
25	ADPTR202702-10X08	ADAPTER 10MORB x 8JICM	2	Call for price	—
26	0751932	G2 LONG TRACK LCG FLUID TUBE-LONG	1	$76.72
27	0751933	G2 LONG TRACK LCG FLUID TUBE--SHORT	1	$73.42
28	0752598	G2 LONG TRACK CNV FLUID TUBE-LONG	1	Call for price	—
29	0752599	G2 LONG TRACK CNV FLUID TUBE-SHORT	1	Call for price	—

33" Aluminum Toolbox - 377000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	1	$111.23
	54657	GASKET FOR PADDLE LATCH	1	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	4	$5.68
	83111	#8-32 STAINLESS KEPT NUT	4	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	1	$20.04
	54659	STRIKER PIN	1	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	2	Call for price	—
	0400465	FLAT WASHER 5/16	4	$5.84
	0400464	LOCK WASHER 5/16	2	$1.70
	0403151	NUT 5/16-18	2	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	1	$5.84
3	377100W	BOX WELDMENT	1	Call for price	—
4	37741	DOOR WELDMENT	1	Call for price	—
	37740	DOOR ASSEMBLY	1	$583.48
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	6	$0.67
	0400367	NYLON LOCK NUT 1/4-20	6	$5.84
5	37744	DOOR REINFORCEMENT	1	Call for price	—
6	37735	HINGE	1	$56.54
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	3	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	5	$1.82
	0400367	NYLON LOCK NUT 1/4-20	10	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37770	SHELF	1	$107.59
12	030002300	TOOLBOX MAT 33"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 96 IN.Priced per foot	8 FT	$5.88

49" Aluminum Toolbox - 378000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	2	$111.23
	54657	GASKET FOR PADDLE LATCH	2	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	8	$5.68
	83111	#8-32 STAINLESS KEPT NUT	8	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	2	$20.04
	54659	STRIKER PIN	2	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	4	Call for price	—
	0400465	FLAT WASHER 5/16	8	$5.84
	0400464	LOCK WASHER 5/16	4	$1.70
	0403151	NUT 5/16-18	4	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	2	$5.84
3	378100W	BOX WELDMENT	1	Call for price	—
4	37841	DOOR WELDMENT	1	Call for price	—
	37840	DOOR ASSEMBLY	1	$902.62
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	8	$0.67
	0400367	NYLON LOCK NUT 1/4-20	8	$5.84
5	37844	DOOR REINFORCEMENT	1	Call for price	—
6	37835	HINGE	1	$60.02
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	5	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	7	$1.82
	0400367	NYLON LOCK NUT 1/4-20	14	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37670	SHELF	1	$98.48
12	030002301	TOOLBOX MAT 49"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 132 IN.Priced per foot	11 FT.	$5.88

65" Aluminum Toolbox - 379000

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	54658	ROTARY PADDLE LATCH	2	$111.23
	54657	GASKET FOR PADDLE LATCH	2	$3.67
	81111	#8-32 x 1/2 STAINLESS ONE WAY SCREW	8	$5.68
	83111	#8-32 STAINLESS KEPT NUT	8	$5.68
2	376182	STRIKER PIN MOUNTING PLATE	2	$20.04
	54659	STRIKER PIN	2	$14.20
	0403072	STAINLESS CARRIAGE BOLT 5/16-18 x 3/4	4	Call for price	—
	0400465	FLAT WASHER 5/16	8	$5.84
	0400464	LOCK WASHER 5/16	4	$1.70
	0403151	NUT 5/16-18	4	Call for price	—
	0400382	NYLON LOCK NUT 5/16-18	2	$5.84
3	379100W	BOX WELDMENT	1	Call for price	—
4	37941	DOOR WELDMENT	1	$548.03
	37940	DOOR ASSEMBLY	1	$1,024.77
	81100	STAINLESS CARRIAGE BOLT 1/4-20 x 3/4	8	$0.67
	0400367	NYLON LOCK NUT 1/4-20	8	$5.84
5	37944	DOOR REINFORCEMENT	1	$536.59
6	37935	HINGE	1	$82.07
	811014	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 7/8	2	$1.82
	811012	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 3/4	7	$1.82
	811010	SS SOCKET BUTTON HEAD BOLT 1/4-20 x 5/8	7	$1.82
	0400367	NYLON LOCK NUT 1/4-20	18	$5.84
7	37760	TANDEM BOX SPACER CHANNEL (OPTIONAL)	1	$39.57
8	37855R	TANK AND TOOLBOX MTG BRACKET-RH	1	$136.75
9	37855L	TANK AND TOOLBOX MTG BRACKET-LH	1	$136.75
10	5A221	LANYARD-21 INCH	2	$5.27
11	37970	SHELF	1	Call for price	—
12	030002302	TOOLBOX MAT 65"	1	Call for price	—
13	18151S	TRIM SEAL - 3/8 WITH 5/8 BULB - 162 IN.Priced per foot	13.5 FT	$5.88

36" Steel Toolbox LCG - 174016021

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016021	STEEL TOOLBOX 36" WITH STAINLESS STEEL DOOR	1	$1,016.21
1A	174016021D	SS DOOR ASSEMBLY	1	Call for price	—
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-36	STEEL TOOLBOX 36" SHELF	1	Call for price	—
2	0308801	TOOLBOX MAT 36"	1	Call for price	—
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

48" Steel Toolbox LCG - 174016022

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016022	STEEL TOOLBOX 48" WITH STAINLESS STEEL DOOR	1	$1,091.08
1A	174016022D	SS DOOR ASSEMBLY	1	$578.04
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-48	STEEL TOOLBOX 48" SHELF	1	Call for price	—
2	0308758	TOOLBOX MAT 48"	1	Call for price	—
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

60" Steel Toolbox LCG - 174016023

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	174016023	STEEL TOOLBOX 60" WITH STAINLESS STEEL DOOR	1	$1,537.70
1A	174016023D	SS DOOR ASSEMBLY	1	$925.51
1B	07002918	STEEL TOOLBOX INSIDE PANEL	2	Call for price	—
1C	07002919-60	STEEL TOOLBOX 60" SHELF	1	Call for price	—
2	0308837	TOOLBOX MAT 60"	1	$51.08
3	37855R	TOOLBOX AND OIL TANK MTG BRACKET-RH	1	$136.75
4	37855L	TOOLBOX AND OIL TANK MTG BRACKET-LH	1	$136.75
5	37760	TANDEM BOX SPACER CHANNEL (OPT)	1	$39.57

Bed Mounted Cab Protector

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price
1	0809558-38	2 x 5 PERIMETER TUBE CAB PROTECTOR - 38"	1	$1,269.15
	0809558-42	2 x 5 PERIMETER TUBE CAB PROTECTOR - 42"		$1,269.15
	0809558-45	2 x 5 PERIMETER TUBE CAB PROTECTOR - 45"		$1,232.20
	0809558-48	2 x 5 PERIMETER TUBE CAB PROTECTOR - 48"		$1,269.15
	0809558-50	2 x 5 PERIMETER TUBE CAB PROTECTOR - 50"		$1,269.15
	0809558-52	2 x 5 PERIMETER TUBE CAB PROTECTOR - 52"		$1,269.15
	0809558-54	2 x 5 PERIMETER TUBE CAB PROTECTOR - 54"		$1,269.15
	0809558-57	2 x 5 PERIMETER TUBE CAB PROTECTOR - 57"		$1,269.15
	0809558-60	2 x 5 PERIMETER TUBE CAB PROTECTOR - 60"		$1,269.15
	0809558-64	2 x 5 PERIMETER TUBE CAB PROTECTOR - 64"		$1,269.15
2	0400211	1/2-13 x 1-3/4 HHCS GR 5 Z	2	$5.84
3	0400188	1/2-13 x 2 HHCS	4	$5.84
4	0400408	1/2-13 NYLON LOCK NUT ZINC	6	$2.82
5	0400492	1/2 USS FLAT WASHER ZINC	12	$5.84
6	0400132	3/8-16 x 1-1/2 HHCS GR 5 Z	2	$5.84
7	0400392	3/8-16 NYLON LOCK NUT ZINC	2	$5.84
8	0400480	3/8 USS FLAT WASHER ZINC	4	$4.01

Frame Mounted Pylon - 0940455-102 - LCG Base Assembly

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0811186-102	FMP CONVENTIONAL CHAIN TRAY BASE - 102	1	$2,625.61
2	0752751	PYLON MTG BRACKET, FMP LCG	2	Call for price	—
3	0752730	SHIM, 16 GAGE, FMP BASE	2	Call for price	—
4	0400408	NYLON LOCK NUT 1/2-13 UNC	16	$2.82
5	0403040	FLAT WASHER 1/2 SAE ZP	32	$5.84
6	0403058	BOLT HHCS 1/2-13 x 1-3/4 GR8 PLAIN	16	Call for price	—
7	0311511	CARRIER TAIL LIGHT GROMMET (OPTIONAL)	2	$4.09
8	0311509	LIGHT RECEPTACLE REVERSE LED (OPTIONAL)	2	$97.62
9	0311506	LIGHT PIGTAIL 2 PRONG 18 IN. LEAD	2	$2.58
10	354614-050	FMP 1/2 IN. SPACER SERIES 12 LCG	2	Call for price	—
	354614-100	FMP 1 IN. SPACER SERIES 16 LCG		Call for price	—
	354614-150	FMP 1-1/2 IN. SPACER SERIES 20 LCG		Call for price	—
	354614-075/175	FMP 2-1/2 IN. SPACER SERIES 20 LCG WOOD		Call for price	—
	354614-050/175	FMP 2-1/4 IN. SPACER SERIES 30 LCG		Call for price	—
	354614-150/175	FMP 3-1/4 IN. SPACER SERIES 30 LCG WOOD		Call for price	—
11	0811185-48	FMP 12 PYLON-48	1	$1,269.15
	0811185-50	FMP 12 PYLON-50		$1,269.15
	0811185-52	FMP 12 PYLON-52		$1,269.15
	0811185-56	FMP 12 PYLON-56		$1,269.15
	0811185-60	FMP 12 PYLON-60		$1,269.15
	0811185-63	FMP 12 PYLON-63		$1,269.15
	0811185-68	FMP 12 PYLON-68		$1,269.15
12	0403058	BOLT HHCS 1/2-13 x 1-3/4 GR8 PLAIN	6	Call for price	—
13	0403040	FLAT WASHER 1/2 SAE ZP	12	$5.84
14	0400408	NYLON LOCK NUT 1/2-13 UNC	6	$2.82

Adjustable Cab Protector 09012828-XX (Frame Mounted 5-Inch Base)

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	07011335-46	CAB PROTECTOR TRIM CHANNEL	1	Call for price	—
2	08011111	ADJUSTABLE CAB PROTECTOR BASE FMP 5" LCG	1	Call for price	—
3	08007570	CAB PROTECTOR CENTER SUPPORT	1	Call for price	—
4	08007571	ADJUSTABLE SIDE TUBE	2	Call for price	—
5	0400176	BOLT HHCS 1/2-13 UNC x GR5	8	$5.84
6	0400491	LOCK WASHER 1/2-ZP	8	$5.84
7	0403128	FLAT WASHER 1/2-ZP	8	Call for price	—
8	0400126	BOLT HHCS 3/8-16 UNC x 1 GR5	6	$5.84
9	0400480	FLAT WASHER 3/8 P	6	$4.01
10	04002907	NUT, FLANGED NYLOK 3/8-16 UNC ZP	6	Call for price	—

Adjustable Cab Protector 09012829-XX (Frame Mounted 12-Inch Base)

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	07011335-46	CAB PROTECTOR TRIM CHANNEL	1	Call for price	—
2	08011110	ADJUSTABLE CAB PROTECTOR BASE FMP 12"	1	Call for price	—
3	08007570	CAB PROTECTOR CENTER SUPPORT	1	Call for price	—
4	08007571	ADJUSTABLE SIDE TUBE	2	Call for price	—
5	0400176	BOLT HHCS 1/2-13 UNC x GR5	8	$5.84
6	0400491	LOCK WASHER 1/2-ZP	8	$5.84
7	0403128	FLAT WASHER 1/2-ZP	8	Call for price	—
8	0400126	BOLT HHCS 3/8-16 UNC x 1 GR5	6	$5.84
9	0400480	FLAT WASHER 3/8 ZP	6	$4.01
10	04002907	NUT, FLANGED NYLOK 3/8-16 UNC ZP	6	Call for price	—

Adjustable Cab Protector 09008330-XX (Bed Mounted)

Show parts list (10 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	07011335-46	CAB PROTECTOR TRIM CHANNEL	1	Call for price	—
2	08017569	ADJUSTABLE CAB PROTECTOR BASE	1	Call for price	—
3	08007570	CAB PROTECTOR CENTER SUPPORT	1	Call for price	—
4	08007571	ADJUSTABLE SIDE TUBE	2	Call for price	—
5	0400176	BOLT HHCS 1/2-13 UNC x GR5	8	$5.84
6	0400491	LOCK WASHER 1/2-ZP	8	$5.84
7	0403128	FLAT WASHER 1/2-ZP	8	Call for price	—
8	0400126	BOLT HHCS 3/8-16 UNC x 1 GR5	6	$5.84
9	0400480	FLAT WASHER 3/8 ZP	6	$4.01
10	04002907	NUT, FLANGED NYLOK 3/8-16 UNC ZP	6	Call for price	—

Body Lock Assembly - 364220K

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	364220	LCG BODY LOCK WELDMENT-SETBACK CAPABLE	1	$534.51
2	36215L	BODY LOCK HOLD-DOWN - LEFT	1	Call for price	—
3	36315R	BODY LOCK HOLD-DOWN - RIGHT	1	$72.00
4	0306382	GREASE FITTING 1/4-28	2	$9.85
5	36310	ROLLER WHEEL	2	$56.00
6	0400470	FLAT WASHER 1	4	Call for price	—
7	04001225	NYLON LOCK NUT, 7/8-14 UNF	2	$6.59
8	0809183	MOUNTING BRACKET	2	$37.39
9	0400260	BOLT, 5/8-11 HHCS UNC x 2 GRADE 5	4	$8.01
10	0400505	FLAT WASHER 5/8	8	$5.84
11	0400421	NYLON LOCK NUT, 5/8-11 UNC	8	$5.84
12	0400218	BOLT, HHCS 1/2-20 UNF x 1-1/4	6	$1.14
13	0400492	FLAT WASHER, 1/2 IN.	6	$5.84
14	0400413	NYLON LOCK NUT, 1/2-20 UNF	6	Call for price	—
15	0403068	CARRIAGE BOLT 5/8-11 x 1-3/4	4	$3.21

Mudflap Components

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	0751024-32L	MUDFLAP MOUNTING BRACKET (LH)	1	Call for price	—
	0751024-32R	MUDFLAP MOUNTING BRACKET (RH)	1	Call for price	—
2	03014584	MUDFLAP 24 x 30	1	Call for price	—
3	0750340	MUDFLAP SUPPORT BAR	1	$37.39
4	0400132	BOLT HHCS 3/8-16 UNC x 1-1/2 GR5	4	$5.84
5	0400480	WASHER 3/8	16	$4.01
6	0400392	3/8-16 NYLOK LOCK NUT	8	$5.84
7	0400122	BOLT HHCS 3/8-16 UNC x 1-1/.4 GR5	4	$5.84

Pintle Attachment Group

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	66370G	PINTLE ATTACHMENT	1	$1,319.25
1A	66370	PINTLE ATTACHMENT WELDMENT	1	Call for price	—
1B	66378	RETAINING PIN	2	$27.01
1C	65292	LANYARD	2	$13.48
1D	0403004	BOLT BHCS 3/8-16 x 3/4	4	$5.84
2A	174017159	TOW BALL PINTLE HITCH - 2 IN. BALL	1	$220.68
2B	174017156	PINTLE HOOK	1	$213.34
2C	174017172	TOW BALL PINTLE HITCH - 2-5/16 IN. BALL	1	$247.42
3	65460	FORK HOLDER - 3.5 x 3.5	1	$505.44
4	04000005	BOLT HHCS 1/2-13 x 1.25 GRADE 8 SECURE WITH LOCTITE	2	$5.68
5	0403056	BOLT HHCS 1/2-13 x 2-1/2 GRADE 8	2	Call for price	—
6	0400408	NUT, NYLOK 1/2-13	2	$2.82
7	66385	PINTLE ATTACHMENT STORAGE BRACKET	1	$330.04

Recovery Roller Guide Attachment - 09018752 (For Use on Steel Beds Only)

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
1	08016353	RECOVERY ROLLER GUIDE ATTACHMENT	1	Call for price	—
2	09018753	PULLEY, CABLE ROLLER GUIDE	2	Call for price	—
3	08008889	KEEPER PIN, CABLE ROLLER GUIDE	2	Call for price	—
4	0403161	BOLT, BHCS, 3/8-16 UNC x 5/8	2	Call for price	—
5	0400464	LOCK WASHER 5/16	2	$1.70
6	0809640	ROLLER ASSEMBLY 1.75 INCH DIAMETER	1	$47.59
7	07013385	PIN, CABLE ROLLER GUIDE	1	Call for price	—
8	03012289	RETAINING RING 3/4 SHAFT OD	2	Call for price	—
9	07013420	BOLT, HHCS, 1-8 UNC x 1-1/2	1	Call for price	—

Retractable Ladder

Show parts list (13 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	List Price	Quick Add to Cart
	391000	LADDER ASSEMBLY	1	$968.40
1	391010	LADDER CARRIAGE	1	Call for price	—
2	391020	UPPER RUNG ASSEMBLY	1	Call for price	—
3	391030	LOWER RUNG ASSEMBLY	1	Call for price	—
4	391050	FRAME MOUNTING BRACKET - OPTIONAL	1	$239.01
5	36310	WHEEL	2	$56.00
6	86100E	RETAINING RING 1.00 EXTERNAL	2	$1.79
7	0400470	FLAT WASHER 1 x 1.50	2	Call for price	—
8	0403063	RETAINING BOLT 5/8-11 x 1-1/2	2	Call for price	—
9	391018	WEAR PAD	4	Call for price	—
10	391015	RETAINING TUBE	2	Call for price	—
11	0403109	ALLEN HEAD BOLT 3/8-16 x 1	4	Call for price	—
12	0400392	NYLON LOCK NUT 3/8-16	4	$5.84
