Vulcan V-70 2-Winch Hyd Tank Assembly Vulc Xtra Winch – OEM Part No. 0911746
Genuine replacement Hyd Tank Assembly Vulc Xtra Winch (part no. 0911746) for the Vulcan V-70 2-Winch (2023 manual), manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 0911746 |
|---|---|
| Manual description | HYD TANK ASSY VULC XTRA WINCH |
| Fits | Vulcan V-70 2-Winch (2023 manual) |
| Assembly | 0912015, Subframe Assembly V70-100 Std Winch; 0911746, Hyd Tank Assembly Vulcan Xtra Winch |
| Diagram reference (item) no. | 50 (0912015, Subframe Assembly V70-100 Std Winch); -- (0911746, Hyd Tank Assembly Vulcan Xtra Winch) |
| Quantity used per assembly | 1 (0912015, Subframe Assembly V70-100 Std Winch); (0911746, Hyd Tank Assembly Vulcan Xtra Winch) |
| Source | Vulcan V-70 2-Winch Parts Manual, Form No. 05004926 (03/2023) |

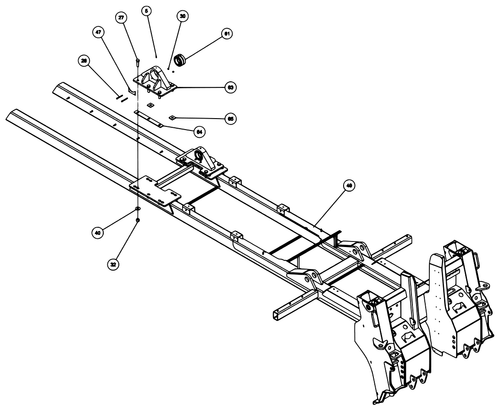

Parts diagrams:
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 0301618 | FITTING, BRASS PLUG 1/4 | 1 |
| 2 | 03024991 | GASKET- RESERVOIR | 1 |
| 3 | 0305006 | FILLER CAP (GO205, FB194) | 1 |
| 4 | 0310636 | ELEMENT, FILTER | 1 |
| 5 | 0312601 | FILTER ASSY-ZINGA TR-1616-25-1 | 1 |
| 6 | 0400121 | SCREW, 3/8-16X3/4 HHC GR5 | 4 |
| 7 | 0400233 | SCREW, 5/16-18X1/2 HHC GR5 | 6 |
| 8 | 0400464 | LKWASHER, 5/16 | 6 |
| 9 | 07026183 | PIPE, STRAINER 1-1/4 X 9-1/2 | 2 |
| 10 | 0810390 | HYD. TANK WELDMENT | 1 |
| 11 | 9015571 | BALL VALVE - 1 1/4 CV5 | 2 |
| 12 | 9018139 | SUCT. STRAINER LHA SEH-2 | 2 |
| 13 | 9401408 | INSPECT COVER | 1 |
| 14 | 9401418 | DIPSTICK WELDMENT HYDR TANK | 1 |
0911746 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Vulcan V-70 2-Winch Parts Manual, Form No. 05004926 (03/2023), page 103. The list has 14 parts. Ref numbers match the diagram below.
Manual diagram
0911746, HYD TANK ASSEMBLY VULCAN XTRA WINCH. You can also view this assembly with live prices and Quick Add on the Vulcan V-70 2-Winch Parts Manual parts page.
