Century Series 10 Gen 1 (2005 manual)

Aluminum Bed Assembly - Full Side

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	*	CARRIER BED WELDMENT	1	Call for price	—
2	0308698	WINCH - 4 TON WORM	1	$1,700.00
3	0701172	SPACER, WINCH BRACKET	2	$52.40
4	0801482	WINCH FRAME - 4 TON WORM	1	$625.00
5	0301669	WINCH CABLE ASSEMBLY	1	$140.80
6	*	CAB PROTECTOR WELDMENT - SPECIFY CHASSIS	1	Call for price	—
7	0708913	ANTI-TILT PLATE	1	$47.00
8	0720283	HOSE TRAY - 19’	2	$77.60
	0710777	HOSE TRAY - 21’	2	$143.80
9	0905059	BEARING PAD KIT - 17’ THRU 19’6	1	$491.00
	0905060	BEARING PAD KIT - 21’ THRU 22’2	1	$1,014.00
10	0311513	LED 2.5" AMBER REFLEX (MCL59AB)	2	$14.40
11	0311512	LED 2.5" RED REFLEX (MCL59RB)	2	$14.40
12	0311516	LIGHT 2.5" GROMMET	4	$1.80
13	030896A	MARKER LIGHT, AMBER	2	Call for price	—
14	0710915	BED FILLER PLATE	2	$9.80
15	0403006	10-24 x 5/8" BHSCS SS	4	$0.80
16	0750842	J BAR	2	$103.00
17	0306054	TRAY MAT	2	$25.20
18	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16" X 8’	2	$110.20
19	0707239	KEY HOLE PLATE	4	$37.00
	0403053	3/8 - 16 x 1-1/4" CARRIAGE HEAD BOLT SS	16	$5.60
	0402122	3/8 - 16 HEX NUT SS	16	$4.00
	0402121	3/8 LOCK WASHER SS	16	Call for price	—
24	0806252	ROLLER PIN WELDMENT	2	$54.20
25	0721483	ROLLER	2	$41.60

Back to Manual Navigation Menu

Aluminum Bed Assembly - Removable Rail

Show parts list (29 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	*	CARRIER BED WELDMENT	1	Call for price	—
2	0308698	WINCH - 4 TON WORM	1	$1,700.00
3	0701172	SPACER, WINCH BRACKET	2	$52.40
4	0801482	WINCH FRAME - 4 TON WORM	1	$625.00
5	0301669	WINCH CABLE ASSEMBLY	1	$140.80
6	*	CAB PROTECTOR WELDMENT - SPECIFY CHASSIS	1	Call for price	—
7	0708913	ANTI-TILT PLATE	1	$47.00
8	0720283	HOSE TRAY - 19’	2	$77.60
	0710777	HOSE TRAY - 21’	2	$143.80
9	0809393	REAR REMOVABLE RAIL - STEEL (19’ THRU 21’6)	2	$395.40
10	0802661	MID REMOVABLE RAIL - STEEL (19’ THRU 21’6)	2	$427.80
11	*	FRONT REMOVABLE RAIL - STEEL	2	Call for price	—
12	0306070	LYNCH PIN	4	$5.60
13	0905059	BEARING PAD KIT - 17’ THRU 19’6	1	$491.00
	0905060	BEARING PAD KIT - 21’ THRU 22’2	1	$1,014.00
14	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	2	$14.40
15	0306054	TRAY MATS	2	$25.20
16	0311516	LIGHT 2.5" GROMMET	4	$1.80
17	0308360	LED MARKER LIGHT, AMBER (RECT)	2	$86.60
18	0308359	LED MARKER LIGHT, RED (RECT)	2	$86.60
19	0750842	J BAR	2	$103.00
20	0751155	J BAR MOUNTING BRACKET (RR ONLY)	2	Call for price	—
21	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16" X 8’	2	$110.20
22	0707239	KEY HOLE PLATE	4	$37.00
	0403053	3/8 - 16 x 1-1/4" CARRIAGE HEAD BOLT SS	16	$5.60
	0402122	3/8 - 16 HEX NUT SS	16	$4.00
	0402121	3/8 LOCK WASHER SS	16	Call for price	—
24	0806252	ROLLER PIN WELDMENT	2	$54.20
25	0721483	ROLLER	2	$41.60

Back to Manual Navigation Menu

Steel Bed Assembly - Tube Side

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	*	CARRIER BED WELDMENT	1	Call for price	—
2	0308698	4 TON WINCH ASSEMBLY	1	$1,700.00
3	0701172	SPACER, WINCH BRACKET	2	$52.40
4	0801482	WINCH FRAME - 4 TON WORM	1	$625.00
5	0301669	WINCH CABLE ASSEMBLY	1	$140.80
6	*	CAB PROTECTOR WELDMENT - SPECIFY CHASSIS	1	Call for price	—
7	0303385	JUNCTION BOX	1	$99.20
8	0708913	ANTI-TILT PLATE	1	$47.00
9	0720283	HOSE TRAY - 19’	2	$77.60
	0710777	HOSE TRAY - 21’	2	$143.80
10	*	REFER TO SUBFRAME SECTION		Call for price	—
11	0311513	LED 2.5" AMBER REFLEX (MCL59AB)	2	$14.40
12	0311512	LED 2.5" RED REFLEX (MCL59RB)	2	$14.40
13	0311516	LIGHT 2.5" GROMMET	4	$1.80
14	0308360	LED MARKER LIGHT, AMBER (RECT.)	2	$86.60
15	0306054	STORAGE TRAY MAT - ALL STEEL BODIES	2	$25.20
16	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16" X 8’	2	$110.20

Back to Manual Navigation Menu

Steel Bed Assembly - Right Approach

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	*	CARRIER BED WELDMENT	1	Call for price	—
1A	0805682	BED WELDMENT, R/A, REAR	1	Call for price	—
2	0308698	WINCH - 4 TON WORM	1	$1,700.00
3	0701172	SPACER, WINCH BRACKET	2	$52.40
4	0801482	WINCH FRAME - 4 TON WORM	1	$625.00
5	0301669	WINCH CABLE ASSEMBLY	1	$140.80
6	*	CAB PROTECTOR WELDMENT - SPECIFY CHASSIS	1	Call for price	—
7	0303385	JUNCTION BOX	1	$99.20
8	0720283	HOSE TRAY - 19’	2	$77.60
	0710777	HOSE TRAY - 21’	2	$143.80
9	*	REFER TO SUBFRAME SECTION		Call for price	—
10	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	2	$14.40
11	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	2	$14.40
12	0311516	LIGHT 2.5" GROMMET	4	$1.80
13	0308360	LED MARKER LIGHT, AMBER (RECT)	2	$86.60
14	0306054	STORAGE TRAY MAT - ALL STEEL BODIES	2	$25.20
15	0805324	CABLE GUIDE WELDMENT (HOOK STYLE)	1	$232.80
16	0720023	HINGE PIN, RIGHT APPROACH	5	$45.20
17	0806252	ROLLER PIN WELDMENT, RIGHT APPROACH	2	$54.20
18	0721483	ROLLER	2	$41.60
19	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16" X 8’	2	$110.20

Back to Manual Navigation Menu

Steel Bed Assembly - Removable Rail

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	*	CARRIER BED WELDMENT	1	Call for price	—
2	0308698	4 TON WINCH ASSEMBLY	1	$1,700.00
3	0701172	SPACER, WINCH BRACKET	2	$52.40
4	0801482	WINCH FRAME - 4 TON WORM	1	$625.00
5	0301669	WINCH CABLE ASSEMBLY	1	$140.80
6	*	CAB PROTECTOR WELDMENT - SPECIFY CHASSIS	1	Call for price	—
7	0303385	JUNCTION BOX	1	$99.20
8	0708913	ANTI-TILT PLATE	1	$47.00
9	0720283	HOSE TRAY - 19’	2	$77.60
	0710777	HOSE TRAY - 21’	2	$143.80
10	0809393	REAR REMOVABLE RAIL - STEEL (19’ THRU 21’6)	2	$395.40
11	0802661	MID REMOVABLE RAIL - STEEL (19’ THRU 21’6)	2	$427.80
12	*	FRONT REMOVABLE RAIL - STEEL	2	Call for price	—
13	0306070	LYNCH PIN	4	$5.60
14	*	REFER TO SUBFRAME SECTION		Call for price	—
15	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	4	$14.40
16	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	2	$14.40
17	0311516	LIGHT 2.5" GROMMET	6	$1.80
18	0306054	STORAGE TRAY MAT - ALL STEEL BODIES	2	$25.20
19	0302493	FRONT SAFETY CHAIN ASSEMBLY - 5/16" X 8’	2	$110.20

Back to Manual Navigation Menu

Tilt Frame Assembly

Show parts list (52 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809294	SUBFRAME (HIGH TILT)	1	$8,775.80
	0809293	SUBFRAME (CONVENTIONAL TILT)		$8,775.80
2	0809092	TAIL LIGHT HOUSING (RH)	1	$175.20
3	0301970	BED EXTENSION CYLINDER	1	$2,856.20
	0308385	Seal kit for 0301970 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
4	0809093	TAIL LIGHT HOUSING (LH)	1	$175.20
5	0302867	TILT CYLINDER	2	$854.20
	0308385	Seal kit for 0302867 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
6	0809142	L-ARM STORAGE TUBE BRACKET (OPTIONAL)	2	$251.00
	0805022	L-ARM STORAGE TUBE BRACKET (OPTIONAL)	2	$177.00
7	0721761	PLATE, STAINLESS ST LIGHT MOUNTING (RH)	1	$184.20
8	0751769L	PLATE, STAINLESS ST LIGHT MOUNTING (LH)	1	$242.00
9	0311498	LIGHT 6" OVAL RED LED	2	$37.00
10	0311500	LIGHT 6" OVAL REVERSE LED	2	$126.20
11	0311503	LIGHT 6" OVAL GROMMET	4	$2.80
12	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	4	$14.40
13	0311516	MARKER LIGHT GROMMET	4	$1.80
14	0308313	LED LICENSE PLATE ILLUMINATOR	1	$151.60
15	0311527	LIGHT CONTROL BOX W/BASE & WIRE	2	$22.20
16	0308210	TOW LIGHT SOCKET	1	$66.80
17	0306385	BACK-UP ALARM	1	$117.40
18	0311528	BACK-UP ALARM GROMMET MODEL 40	1	$3.60
19	0303385	JUNCTION BOX	1	$99.20
20	0500425	CONTROL STA. DECAL, 5 SPOOL (LH)	1	$50.60
21	0500426	CONTROL STA. DECAL, 5 SPOOL (RH)	1	$50.60
22	0750562	PIN, W/L CYLINDER	1	$52.60
23	84680	ROD END	1	$32.00
24	0306052	CYLINDER PAD	1	$25.20
25	0809511L	CONTROL BOX HOOD WELDMENT (LH)	1	$256.40
26	0809511R	CONTROL BOX HOOD WELDMENT (RH)	1	$247.40
27	0809510	CONTROL BOX SUPP. CHANNEL (LONG)	1	$640.80
	0940125	ITEMS #25, 26, 27 COMPLETE		$1,226.40
28	0720080	MUD FLAP MTG. BRACKET, STD. LONG (RH)	1	$103.00
29	0720081	MUD FLAP MTG. BRACKET, STD. LONG (LH)	1	$103.00
30	0750340	BAR, MUD FLAP SUPPORTS (S.S.)	2	$37.00
31	0308419	MUDFLAP 24" x 24"	2	$38.80
32	0809410	MOUNTING FRAME (HIGH TILT)	1	Call for price	—
	0809409	MOUNTING FRAME (CONVENTIONAL TILT)		$3,035.40
33	0704792	PIN, PIVOT (HINGE)	1	$86.60
34	0702434	PIN, BED EXTENDED	1	$75.40
35	0301642	SNAP RING 1-1/4"	2	$5.80
36	0809408	CYLINDER MTG. CROSSMEMBER-MTG. FRAME	1	$1,372.40
37	0308093	SUBFRAME END CAP	2	$17.40
38	0809188	EXTENSION STAND - WHEN NEEDED	2	$276.20
39	0750531	REAR HOSE TRAY	2	$176.80
40	0750415	FRONT HOSE TRAY	2	$64.80
41	0809395	PIN, LIFT CYLINDER	4	$48.80
42	0750409	W/L WEAR PAD	2	$21.60
43	0809286L	ALUM. L-ARM STORAGE TUBE BRKT - LEFT	2	$110.20
	0809286R	ALUM. L-ARM STORAGE TUBE BRKT - RIGHT	2	$110.20
	0809287L	STEEL L-ARM STORAGE TUBE BRKT - LEFT	2	$104.60
	0809287R	STEEL L-ARM STORAGE TUBE BRKT - RIGHT	2	$104.60
44	0302493	SAFETY CHAIN	2	$110.20
	0940278	BEARING PAD KIT (10S) - 1 PIECE		$765.60

Tail Light Bezel Chart

Show parts list (8 parts) ▼Hide parts list ▲

Part Number	Description	Price
0721760	TAIL LIGHT BEZEL - HORIZONTAL S.S. (LH)	$184.20
0721761	TAIL LIGHT BEZEL - HORIZONTAL S.S. (RH)	$184.20
0721339	TAIL LIGHT BEZEL - VERTICAL S.S. (LH)	$184.20
0721340	TAIL LIGHT BEZEL - VERTICAL S.S. (RH)	$184.20
0705253	TAIL LIGHT BEZEL - HORIZONTAL BLK. (LH)	$285.20
0705254	TAIL LIGHT BEZEL - HORIZONTAL BLK. (RH)	$276.20
0720030	TAIL LIGHT BEZEL - VERTICAL BLK. (LH)	$81.20
0720031	TAIL LIGHT BEZEL - VERTICAL BLK. (RH)	$81.20

Tail Light Housing Fastener Kit (One Side)

Show parts list (3 parts) ▼Hide parts list ▲

Part Number	Description	Qty Used	Price
0403053	3/8-16 x 1-1/4 CARR. HD. BOLT SS	4	$5.60
0402122	3/8-16 HEX NUT SS	4	$4.00
0403053	3/8 LOCK WASHER SS	4	$5.60

Bezel Fastener Kit (One Side)

Show parts list (3 parts) ▼Hide parts list ▲

Part Number	Description	Qty Used	Price	Quick Add to Cart
0400071	1/4-20 x 3/4 RHMS SS	6	$5.80
0400371	1/4-20 LUG NUT Z	6	$8.00	—
0402111	1/4 LOCK WASHER SS	6	$5.80

Back to Manual Navigation Menu

Tilt Frame Assembly - Outboard Tilt Cylinders

Show parts list (49 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809293-OBT	SUBFRAME WELDMENT	1	$8,797.60
2	0301970	BED EXTENSION CYLINDER	1	$2,856.20
	0308385	Seal kit for 0301970 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
3	0809092	TAIL LIGHT HOUSING (RH)	1	$175.20
4	0809093	TAIL LIGHT HOUSING (LH)	1	$175.20
5	721092	TILT CYLINDER	2	$959.20
	73630	Seal kit for 721092 cylinder: SEAL KIT (3" CYLINDER)		$124.60
6	0805022	L-ARM STORAGE TUBE BRACKET (OPTIONAL)	2	$177.00
	0809142	L-ARM STORAGE TUBE BRACKET (OPTIONAL)	2	$251.00
7	0721761	TAIL LIGHT BEZEL (RH)	1	$184.20
8	0721760	TAIL LIGHT BEZEL (LH)	1	$184.20
9	0311498	LIGHT 6" OVAL RED LED	2	$37.00
10	0311500	LIGHT 6" OVAL REVERSE LED	2	$126.20
11	0311503	LIGHT 6" OVAL GROMMET	4	$2.80
12	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	4	$14.40
13	0311516	LIGHT 2.5" GROMMET	4	$1.80
14	0308313	LED LICENSE PLATE ILLUMINATOR	1	$151.60
15	0809286L	ALUM. L-ARM STORAGE TUBE BRKT - LEFT	2	$110.20
	0809286R	ALUM. L-ARM STORAGE TUBE BRKT - RIGHT	2	$110.20
	0809287L	STEEL L-ARM STORAGE TUBE BRKT - LEFT	2	$104.60
	0809287R	STEEL L-ARM STORAGE TUBE BRKT - RIGHT	2	$104.60
16	0308210	TOW LIGHT SOCKET	1	$66.80
17	0306385	BACK-UP ALARM	1	$117.40
18	0311528	BACK-UP ALARM GROMMET MODEL 40	1	$3.60
19	0303385	JUNCTION BOX	1	$99.20
20	0500425	CONTROL STA. DECAL, 5 SPOOL (LH)	1	$50.60
21	0500426	CONTROL STA. DECAL, 5 SPOOL (RH)	1	$50.60
22	0750562	PIN, W/L CYLINDER	1	$52.60
23	84680	ROD END	1	$32.00
24	0306052	CYLINDER PAD	1	$25.20
25	0809511L	CONTROL BOX HOOD WELDMENT (LH)	1	$256.40
26	0809511R	CONTROL BOX HOOD WELDMENT (RH)	1	$247.40
27	0809510	CONTROL BOX SUPPORT CHANNEL WLDMT	1	$640.80
	0940125	ITEMS #25, 26, 27 COMPLETE		$1,226.40
28	0720080	MUD FLAP MTG. BRACKET, STD. LONG (RH)	1	$103.00
29	0720081	MUD FLAP MTG. BRACKET, STD. LONG (LH)	1	$103.00
30	0750340	BAR, MUD FLAP SUPPORTS (S.S.)	2	$37.00
31	0308419	MUDFLAP 24" x 24"	2	$38.80
32	0801450	HINGE WELDMENT	1	$535.20
33	0704792	PIN, PIVOT (HINGE)	1	$86.60
34	0702434	PIN, BED EXTENDED	1	$75.40
35	0301642	SNAP RING 1-1/4"	2	$5.80
36	0308093	SUBFRAME END CAP	2	$17.40
37	0809188	EXTENSION STAND - WHEN NEEDED	2	$276.20
38	1A730L	OUTBOARD SADDLE (LH)	1	$306.80
39	1A730R	OUTBOARD SADDLE (RH)	1	$306.80
40	1A735	TILT CYLINDER PIN	4	$70.40
41	0750409	WHEEL LIFT WEAR PAD	2	$21.60
42	0940215	CENTER MOUNT OIL TANK ASSEMBLY	1	Call for price	—
	0809607	CENTER MOUNT OIL TANK WELDMENT		Call for price	—
43	0302493	SAFETY CHAIN	2	$110.20

Back to Manual Navigation Menu

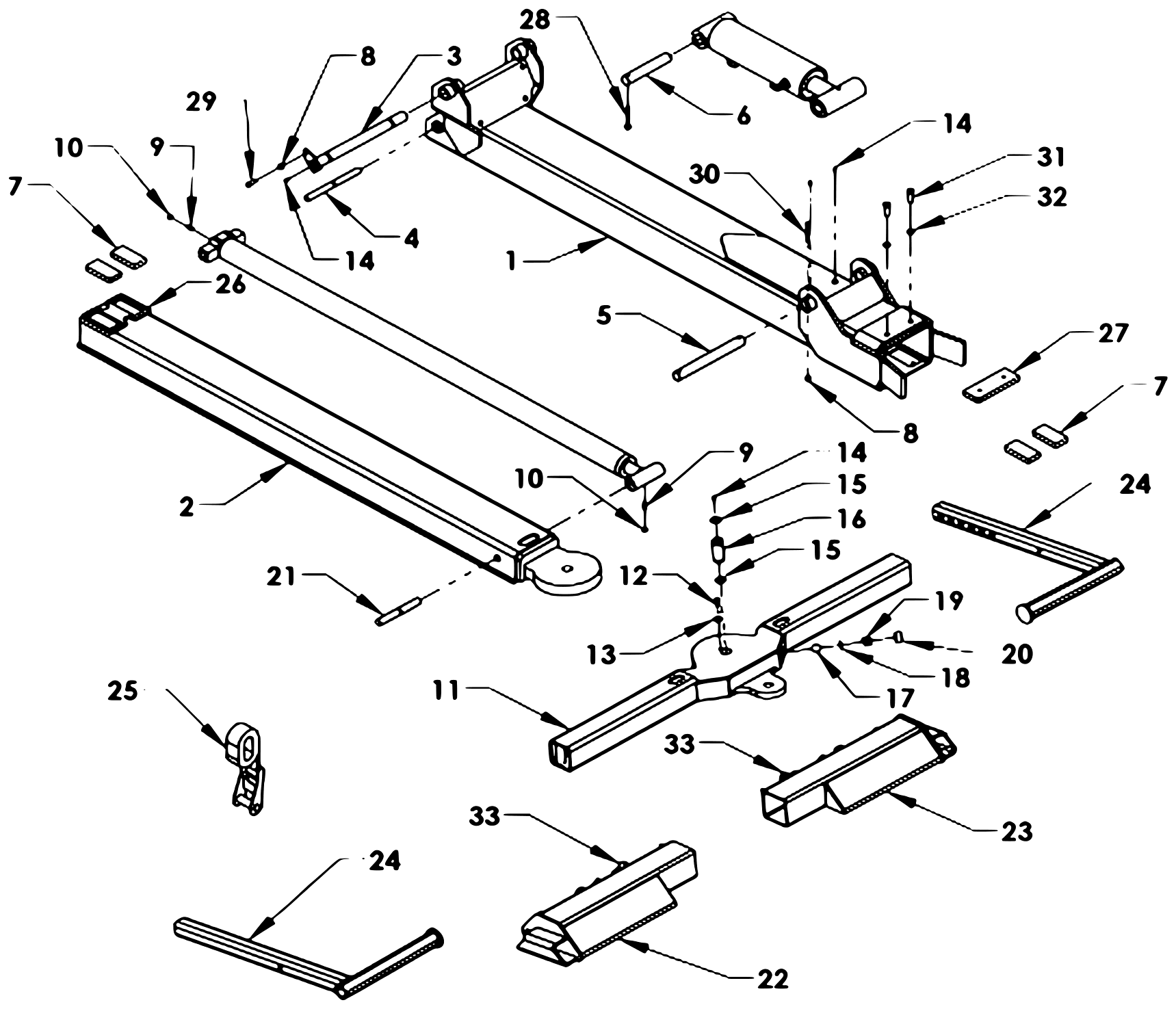

Wheel Lift & Slide-In Tire Restraint Assembly

Show parts list (33 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809187	OUTER BOOM WELDMENT	1	$1,912.80
2	0809186	INNER BOOM WELDMENT	1	$1,762.00
3	0809411	WHEEL LIFT HINGE PIN	1	$128.00
4	0750524	EXTEND CYLINDER MOUNTING PIN 3/4" x 8-3/4"	1	$27.00
5	0750523	LOWER LIFT CYLINDER PIN, (W/L)	1	$63.20
6	0750562	UPPER LIFT CYLINDER PIN (W/L)	1	$52.60
7	0750505	BEARING PAD, NYLATRON	4	$19.60
8	0400392	NUT, 3/8"-16 HEX NYLOK	2	$5.80
9	0400221	3/8-16 x 1" ALLEN HD SET SCREW Z	2	$5.80
10	0400393	3/8-16 HEX JAM NUT Z	2	$5.80
11	0808506	CROSSBAR WELDMENT, 3-1/2" SQUARE	1	$1,098.80
12	0403004	3/8-16 x 3/4" BUTTON HEAD CAP SCREW	1	$5.80
13	0720463	WASHER, PIVOT PIN RETAINER	1	$5.80
14	0300113	GREASE FITTING, STRAIGHT	4	$5.80
15	0308132	O-RING 1" ID x 1-1/4" OD x 1/8"	2	$3.40
16	0720460	PIVOT PIN, W/L CROSSBAR	1	$70.40
17	0308129	BALL, CHROME 1" (GRADE 16)	1	$8.00
18	0721632	SPACER, CROSSBAR DETENT	1	$9.80
19	0308131	SPRING, DIE	1	$21.20
20	0308130	PIPE PLUG	1	$9.80
21	0750525	EXTEND CYLINDER MTG PIN, 7/8" x 6-3/4"	1	$41.40
22	0909498L	OUTER XTUBE ASSEMBLY (LH)	1	$494.60
23	0909498R	OUTER XTUBE ASSEMBLY (RH)	1	$494.60
24	08006748	L-ARM (replaces 0801332 per Miller)	2	$276.20
25	0308664	STRAP, RATCHET PIVOT ASSEMBLY	2	$71.20
26	0750383	ENCAPSULATING CAGE TOP	1	Call for price	—
27	0750506	SPACER PAD	1	$21.40
28	84680	ROD END KEEPER PIN	1	$32.00
29	0400148	SCREW, 3/8"-16 x 1-1/4" HEX HD CAP	1	$5.00
30	0400150	SCREW, 3/8"-16 x 2-1/2" HEX HD CAP	1	$5.80
31	0400181	1/2" x 1-1/2" HEX HD BOLT	2	$5.80
32	0400491	1/2" LOCK WASHER	2	$5.80
33	0306424	CAMLOCK PIN	2	$90.00

Back to Manual Navigation Menu

Hydraulics

Show parts list (41 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0806594	OIL TANK W/FILTER (CENT. IN-BOARD)	1	$875.20
2	0306157	WINCH MOTOR, 4 TON	1	$705.40
3	*	PTO	1	Call for price	—
4	0306031	PUMP - 15 GPM	1	$1,062.00
5	0308638	DOUBLE CHECK VALVE	1	$595.40
6	0302867	BED TILT CYLINDER	2	$854.20
	0308385	Seal kit for 0302867 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
7	0302178	WHEEL LIFT EXTEND CYLINDER	1	$1,226.40
	0308387	Seal kit for 0302178 cylinder: SEAL KIT,CYL.(W/L EXT.)20S		$147.60
8	0301970	BED EXTEND CYLINDER	1	$2,856.20
	0308385	Seal kit for 0301970 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
9	0308372	WHEEL LIFT CYLINDER	1	$1,747.40
	0308389	Seal kit for 0308372-1175 cylinder: SEAL KIT SK17668 FOR CYL		$159.00
10	0302179	5 SPOOL VALVE BODY	1	$1,457.00
11	0306182	HEAT SHRINK, BLACK 2" x 72" LG. - 17’6, 18’2	1	$79.40
12	*	WINCH HOSES	1	Call for price	—
13	0301403	HOSE ASSEMBLY 86"	2	$73.80
14	0301478	HOSE ASSEMBLY 60"	2	$50.60
15	0301524	HOSE ASSEMBLY 14"	2	$31.80
16	0301660	HOSE ASSEMBLY 21"	2	$43.40
17	0301878	HOSE ASSEMBLY 137"	2	$103.00
18	0306071	HOSE ASSEMBLY 58"	1	$70.40
19	0301658	HOSE ASSEMBLY 128"	1	$115.60
20	*	HOSE ASSEMBLY	1	Call for price	—
21	*	HOSE ASSEMBLY	1	Call for price	—
22	0704802	HOSE, RETURN 3/4" x 192"	1	$240.00
23	0306080	HOSE, SUCTION 1" x 11’	1	$238.40
24	0308296	LOCK ON STEM 3/4" MALE NPT	2	$19.60
25	0300056	HYDRAULIC FITTING 1" HOSE BARB	1	$27.00
26	0300041	HYDRAULIC FITTING 8MJ-8MB	4	$5.60
27	0300065	HYDRAULIC FITTING 12FPX-12MB	1	$21.20
28	0300044	HYDRAULIC FITTING 6MJ-8MB	8	$3.80
29	0300865	HYDRAULIC COUPLING 8MJ-8MJ	1	$5.60	—
30	0302757	HYDRAULIC FITTING 8MJ-16MB	1	$21.20
31	0300492	HYDRAULIC FITTING 1" HOSE BARB (16MB)	1	Call for price	—
32	0306143	HYDRAULIC FITTING 6MJ-6MB 90 DEG.	4	$17.40
33	0302488	HYDRAULIC FITTING 8MJ-8FJX 90 DEG.	2	$11.20
34	0301470	HYDRAULIC FITTING 6MJ-8MB 90 DEG.	2	$7.60	—
35	0301522	HYDRAULIC FITTING 6MJ-6MB	4	$3.80
36	0300206	HYDRAULIC FITTING 6MJ-6MBP BRANCH TEE	1	$6.80
37	0301694	HYDRAULIC FITTING (ORIFICE TEE)	1	$33.00
38	0301424	HYDRAULIC FITTING 6MJ-4MP	2	$3.80
39	0300789	HYDRAULIC FITTING 8MJ-10MB	1	$6.20
40	9018399	IMMERSION FILTER ASSEMBLY	1	$142.60
	9018309	IMMERSION FILTER ELEMENT	1	$47.00

Back to Manual Navigation Menu

Control & Crossrod Assembly

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0311699	CONTROL KNOB, BLUE (SB/B-TILT, SP)	4	$16.20
2	0311700	CONTROL KNOB, RED (PRIMARY WINCH)	2	$16.20
3	0301638	BRACKET, CONTROL HANDLE	10	$22.40
4	0311702	CONTROL KNOB, GRAY (W/L EXT/UP-DW)	4	$16.20
5	0302179	5-SPOOL CONTROL VALVE	1	$1,457.00
6	0306006	SPRING, ANTI-RATTLE	10	$1.80
7	0306122	END CAP, CONTROL HANDLE ROD	4	$6.40
8	0400121	3/8-16 x 3/4" HHCS GR5 Z	12	$5.80
9	0400140	3/8-16 x 4" HHCS GR5 Z	3	$5.80
10	0400243	3/8-16, J-NUT TINNERMAN	5	$8.00
11	0400392	3/8-16 NYLON LOCK NUT Z	10	$5.80
12	0400393	3/8-16 HEX JAM NUT Z	10	$5.80
13	0400465	5/16" SAE FLAT WASHER Z	15	$5.80
14	0400482	3/8" LOCK WASHER Z	5	$5.80
15	0400532	5/16" x 1" CLEVIS PIN Z	10	$5.80
16	0403067	BOWTIE - Z	10	$6.20
17	0705242	ROD, CONT. HANDLE 5 SPOOL	2	$43.40
18	0720456	UHMW ANGLE	1	$18.00
19	0809135	CONTROL HANDLE (FWD. INNER) LONG	2	$63.80
20	0809138	CONTROL HANDLE (FWD. OUTER) LONG	2	$63.80
21	0809136	CONTROL HANDLE (REAR INNER) LONG	2	$63.80
22	0809137	CONTROL HANDLE (REAR OUTER) LONG	2	$63.80
23	0806111	CONTROL ROD WELDMENT	4	$77.60
24	0800800	CONTROL ROD LINK	5	$39.60
25	0806112	CONTROL ROD WELDMENT (ANTI-TILT)	1	$103.00
26	0809134	CONTROL HANDLE WELDMENT (CTR) LONG	2	$63.80

Back to Manual Navigation Menu

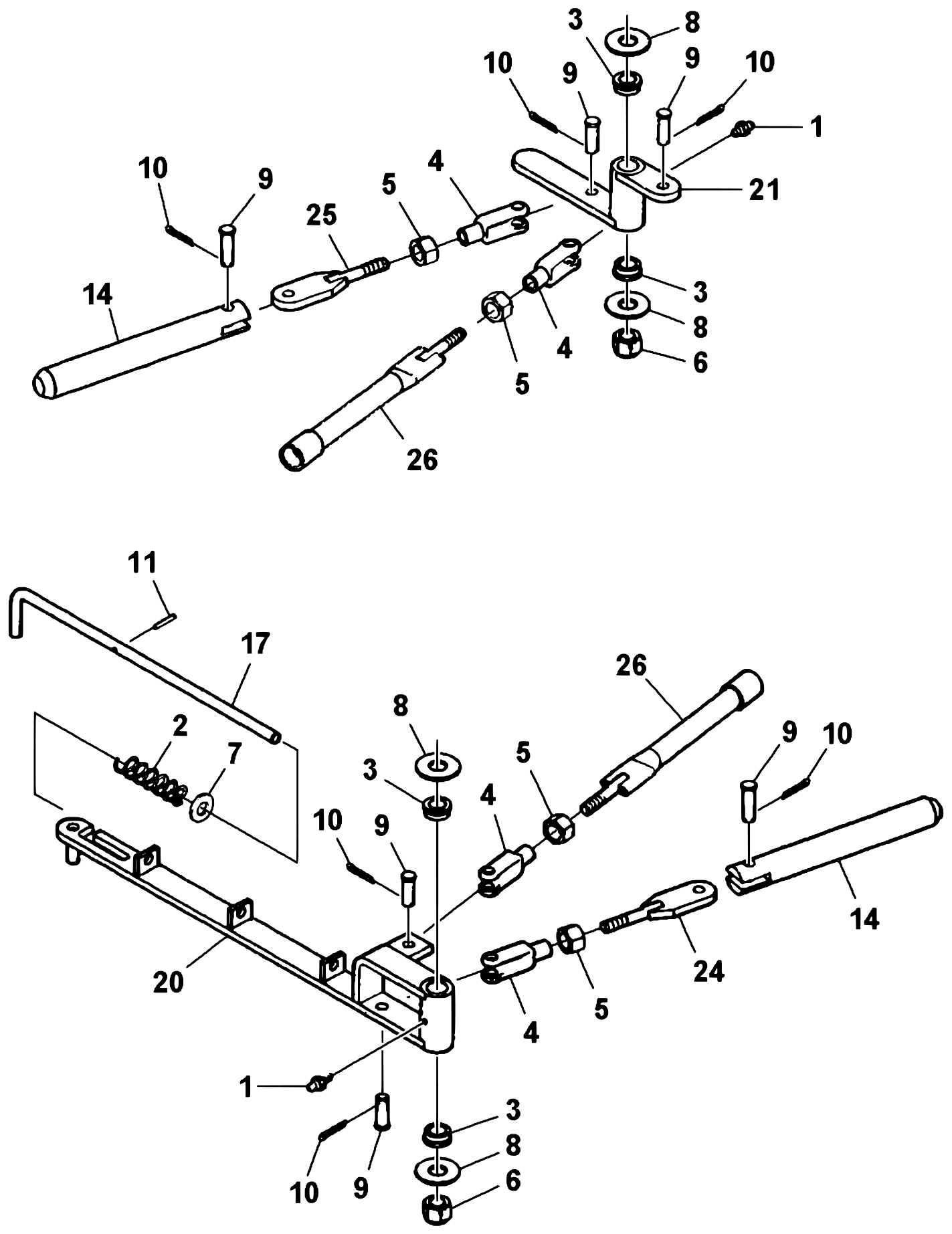

Right Approach Lock Mechanism

Show parts list (26 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, STRAIGHT	6	$5.80
2	0300845	COMPRESSION SPRING	1	$5.60
3	0301670	BRONZE BUSHING	4	$9.80
4	0301588	CLEVIS, 1/2"-13 THREADS	4	$17.40
5	0400410	NUT, 1/2"-13 HEX JAM	4	$5.80
6	0400430	NUT, 3/4"-10 HEX NYLOK	2	$5.80
7	0400492	WASHER, 1/2" FLAT	5	$5.80
8	0400510	WASHER, 3/4" FLAT	4	$5.80
9	0400537	CLEVIS PIN, 1/2" x 1-1/2"	6	$5.80
10	0400549	COTTER PIN, 1/8" x 1"	6	$5.60
11	0400560	ROLL PIN, 5/32" x 1"	1	$5.80
12*	0720083	LOCK HOUSING BRACKET (DRIVER SIDE)	1	Call for price	—
13*	0720084	LOCK HOUSING BRACKET (PASSENGER SIDE)	1	Call for price	—
14	0720120	LOCK PIN	2	$108.40
15*	0720121	LOCK PIN HOUSING	1	$101.00
16*	0720122	LOCK PIN HOUSING GUSSET	2	Call for price	—
17	0720132	POSITION PIN, LOCK / UNLOCK	1	$41.60
18*	0805213	LOCK PLATE WELDMENT (DRIVER SIDE)	1	Call for price	—
19*	0805214	LOCK PLATE WELDMENT (PASSENGER SIDE)	1	Call for price	—
20	0805247	LINKAGE CONTROL ARM (DRIVER SIDE)	1	$236.40
21	0805248	LINKAGE CONTROL ARM (PASSENGER SIDE)	1	Call for price	—
22*	0805249	PIVOT PIN MOUNTING PLATE (DRIVER SIDE)	1	Call for price	—
23*	0805250	PIVOT PIN MOUNTING PLATE (PASS. SIDE)	1	Call for price	—
24	0805251	LOCK PIN LINKAGE (DRIVER SIDE)	1	$48.80
25	0805252	LOCK PIN LINKAGE (PASSENGER SIDE)	1	$47.00
26	0805253	CENTER LINKAGE	2	$126.40

Back to Manual Navigation Menu

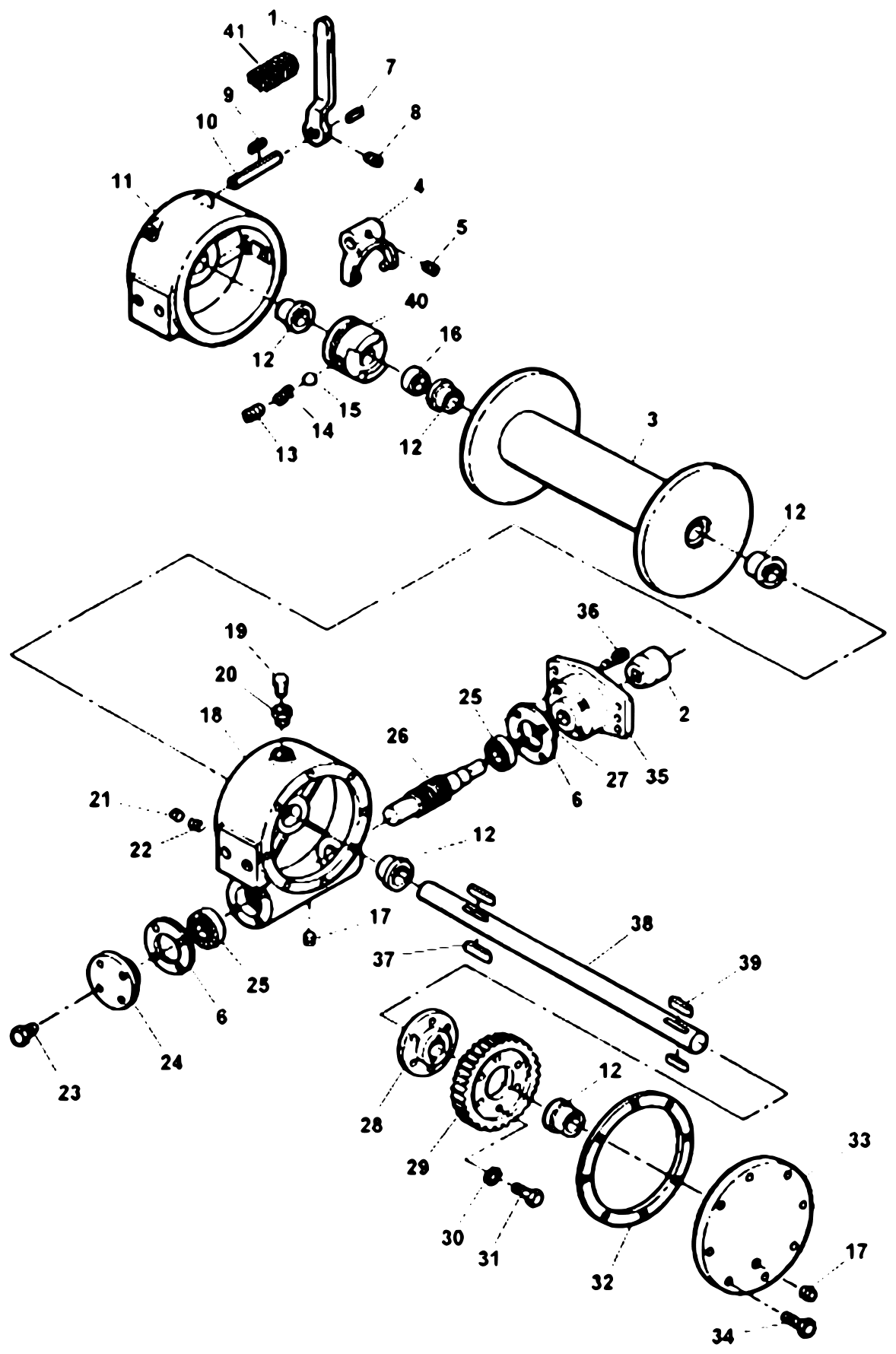

4-Ton Hydraulic Winch

Show parts list (42 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300261	LEVER	1	$107.80
2	0300290	COUPLING	1	$43.40
3	0300381	DRUM	1	Call for price	—
4	0300398	YOKE	1	$326.00
5	0300399	SCREW	1	$8.20
6	0300447	GASKET	2	$5.20
7	0300448	KEY	1	$14.20
8	0300449	SCREW	1	$3.80
9	0300450	KEY	1	$5.60
10	0300451	SHAFT	1	$112.00
11	0300452	CLUTCH HOUSING	1	$1,298.20
12	0300453	BUSHING	5	$56.00
13	0300454	SCREW	1	$5.60
14	0300455	SPRING	1	$5.60
15	0300456	BALL	1	$9.80
16	0300458	SPACER	1	Call for price	—
17	0300459	PLUG	2	Call for price	—
18	0300460	HOUSING	1	$605.00
19	0300461	PLUG	1	$13.80
20	0300462	REDUCER	1	$13.80
21	0300463	DRAG BRAKE	1	$33.00
22	0300464	SPRING	1	$15.60
23	0300465	SCREW	16	$3.80
24	0300466	CAP	1	$65.00
25	0300467	BEARING	2	$47.00
26	0300468	WORM	1	$919.00
27	0300471	SEAL	1	$29.00
28	0300472	HUB	1	$1,062.00
29	0300473	GEAR	1	$1,159.20
30	0300474	WASHER	6	Call for price	—
31	0300475	SCREW	6	Call for price	—
32	0300476	GASKET	1	$15.60
33	0600477	COVER	1	Call for price	—
34	0300569	SCREW	4	Call for price	—
35	0300694	CAP ADAPTER	1	Call for price	—
36	0300695	SCREW	1	$9.40
37		KEY	2	Call for price	—
38		SHAFT	1	Call for price	—
39		KEY	2	Call for price	—
40		CLUTCH	1	Call for price	—
41	0308608	TORSION SPRING	1	Call for price	—
*	0308698	4 TON WORM WINCH ASSEMBLY	1	$1,700.00

Back to Manual Navigation Menu

Winch Clutch Control

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0301397	GREASE FITTING, 90°	1	$3.80
2	0301532	"T" HANDLE	1	$9.40
3	0301588	ADJUSTING YOKE	1	$17.40
4	0400116	SCREW, 5/16"-18 x 1/2" SQ HD SET	1	$5.80
5	0400126	SCREW, 3/8"-16 x 1" HEX HD CAP	2	$5.80
6	0400392	NUT, 3/8"-16 NYLOK	2	$5.80
7	0400410	NUT, 1/2"-13 JAM	1	$5.80
8	0400492	WASHER, 1/2" FLAT	4	$5.80
9	0400537	PIN, 1/2" x 1-1/2" CLEVIS	1	$5.80
10	0400546	PIN, 1/8" x 1-1/4" COTTER	1	$5.80
11	0400560	PIN, 5/32" x 1" ROLL	2	$5.80
12	0710918	MOUNTING ANGLE	1	$39.80
13	0805170	CONTROL ROD	1	$70.40
14	0805151	BELL CRANK	1	$101.00

Back to Manual Navigation Menu

Cable Tensioner Assembly (Standard 4-Ton Winch)

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0301729	TENSIONING SPRING	2	$22.00
2	0400126	SCREW, 3/8"-16 x 1" HEX HD CAP	2	$5.80
3	0400130	SCREW, 3/8"-16 x 3-1/2" HEX HD CAP	2	$5.80
4	0400480	WASHER, 3/8" FLAT	2	$4.00
5	0400392	NUT, 3/8"-16 HEX NYLOK	4	$5.80
6	0400554	ROLL PIN, 3/8" x 1"	2	$9.60
7	0800908	TENSIONING PLATE	1	$148.60
8	0800909	CABLE TENSIONER BRACKET	1	$108.40
	124001329	CABLE TENSIONER ASSEMBLY	1	$178.80

Back to Manual Navigation Menu

Cable Roller Assembly & Dock Stabilizer

Cable Roller Assembly

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0805037	CABLE ROLLER ASSEMBLY (replaces 0900892 per Miller)	--	$251.00
2	0400177	SCREW, 1/2"-13 x 1-1/4" HEX HD	2	$5.80
3	0400408	NUT, 1/2"-13 NYLOK	2	$2.80
4	0805037	CABLE ROLLER GUIDE WELDMENT	1	$251.00

Dock Stabilizer

Show parts list (1 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0805273	DOCK STABILIZER WELDMENT		Call for price	—

Back to Manual Navigation Menu

Warn Winch - Manual Free Spool

Show parts list (24 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809644	MTG FRAME WELDMENT - FRONT	1	$274.40
2	0809639	MTG FRAME WLDMNT - ROLLER GUIDE REAR	1	Call for price	—
3	0308936-0908AM	WINCH 9K, 8 IN. DRUM MANUAL SHIFT	1	$4,654.00
	0308936-1208AM	WINCH 12K, 8 IN. DRUM MANUAL SHIFT	1	$5,128.40
4		NYLON LOCK NUT 3/8-16 UNC	1	Call for price	—
5	718732	ROD END BEARING	1	$64.60
6		HEX NUT 3/8-16 UNC	1	Call for price	—
7		HEX NUT 1/2-13 UNC	2	Call for price	—
8		FLAT WASHER 1/2	1	Call for price	—
9	71875	WINCH SPRING	1	$34.00
10		SPLIT PIN 3/16 x 1	1	Call for price	—
11	71873	WINCH CLUTCH ROD	1	$88.60
12	718731	WINCH CLUTCH ROD KNOB	1	$4.40
13	0751267	WINCH - MANUAL FREE SPOOL BRACKET	1	$98.60
14		BOLT, SHCS 3/8-16 UNC x 1	2	Call for price	—
15	0751337	TENSION PLATE PIVOT ROD	1	$112.00
16	71W73827	TENSION SPRING	1	$37.00
17	71W73826	TENSION SPRING	1	$37.00
18	0751268	TENSION PLATE	1	$75.80
19		BOLT, BHCS 3/8-16 UNC x 5/8	3	Call for price	—
20	0809641	ROLLER GUIDE KEEPER PIN	2	$29.40
21	0809640	ROLLER GUIDE BUSHING 1.75 x 7.875	2	$47.20
22	A9R281	ROLLER GUIDE BUSHING 1.75 x 5.625	1	$73.60
23	A902095	ROLLER GUIDE KEEPER PIN	1	$35.40

Back to Manual Navigation Menu

Warn Winch - Air Free Spool

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809644	MTG FRAME WELDMENT - FRONT	1	$274.40
2	0809639	MTG FRAME WLDMNT - ROLLER GUIDE REAR	1	Call for price	—
3	0308936-0908AA	WARN WINCH, 9K, 8 IN. DRUM, AIR SHIFT	1	$5,212.20
	0308936-1208AA	WARN WINCH - 12K, 8 IN. DRUM, AIR SHIFT	1	$5,789.60
4		BOLT, SHCS 3/8-16 UNC x 1	1	Call for price	—
5	0751337	WARN TENSION PLATE PIVOT ROD	1	$112.00
6	71W73827	WARN TENSION SPRING	1	$37.00
7	71W73826	WARN TENSION SPRING	2	$37.00
8	0751268	WARN TENSION PLATE	1	$75.80
9	0809640	ROLLER GUIDE BUSHING 1.75 x 7.875	1	$47.20
10	0809641	ROLLER GUIDE KEEPER PIN	1	$29.40
11	A9R281	ROLLER GUIDE BUSHING 1.75 x 5.625	1	$73.60
12	A902095	ROLLER GUIDE KEEPER PIN	1	$35.40
13		BOLT, BHCS 3/8-16 UNC x 5/8	1	Call for price	—

Back to Manual Navigation Menu

Ramsey H400 Winch Group

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0940349	RAMSEY H400 MOUNTING FRAME	1	$799.60
2	0701272-H400	SHIM	2	Call for price	—
3	0752151	RAMSEY MOTOR GUARD-VERTICAL CHANNEL	1	Call for price	—
4	0752152	MOTOR GUARD COVER PLATE	1	$35.40
5		WASHER 3/8 LOCK	2	Call for price	—
6		BOLT - HEX 3/8-16 x 3/4	2	Call for price	—
7	0302149	RAMSEY H400 WINCH	1	$5,067.40
8		BOLT - HEX 7/16-14 UNC x 1-1/4	2	Call for price	—
9		WASHER 7/16 LOCK	10	Call for price	—
10		BOLT - FSCS 7/16-14 UNC x 3/4	2	Call for price	—
11		BOLT - HEX 7/16-14 UNC x 1-3/4	4	Call for price	—
12	0302148	RAMSEY H400 WINCH MOTOR	1	$1,006.60
13		BOLT - HEX 1/2-13 UNC x 1-1/4	2	Call for price	—
14	ADPTR2062-08X08	HYDRAULIC ADAPTER FITTING	2	Call for price	—
15	0901196	CABLE TENSIONER ASSEMBLY	1	$319.60
16	0809705	BELL CRANK WELDMENT - RAMSEY H400	1	$87.40

Back to Manual Navigation Menu

Bed Lock Assembly

Show parts list (11 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0809181	BED LOCK WELDMENT	1	$509.40
2	0809182	BED LOCK HOLD-DOWN	2	$41.60
3	0809183	MOUNTING BRACKET	2	$37.00
4	0400181	BOLT, 1/2-13 x 1-1/2 HHCS ZP GRADE 5	8	$5.80
5	0400408	NYLON LOCK NUT, 1/2-13 ZP	8	$2.80
6	0403040	FLAT WASHER, 1/2 ZP	8	$5.80
7	0400260	BOLT, HHCS 5/8-11 x 2 ZP GRADE 5	4	$8.00
8	0400421	NUT, 5/8-11 NYLON LOCK ZP	8	$5.80
9	0400505	FLAT WASHER 5/8 ZP	8	$5.80
10	0403068	CARRIAGE BOLT 5/8-11 x 1-3/4 ZP GRADE 5	4	$3.20
	0905078	BED LOCK ASSEMBLY	1	$735.20

Back to Manual Navigation Menu

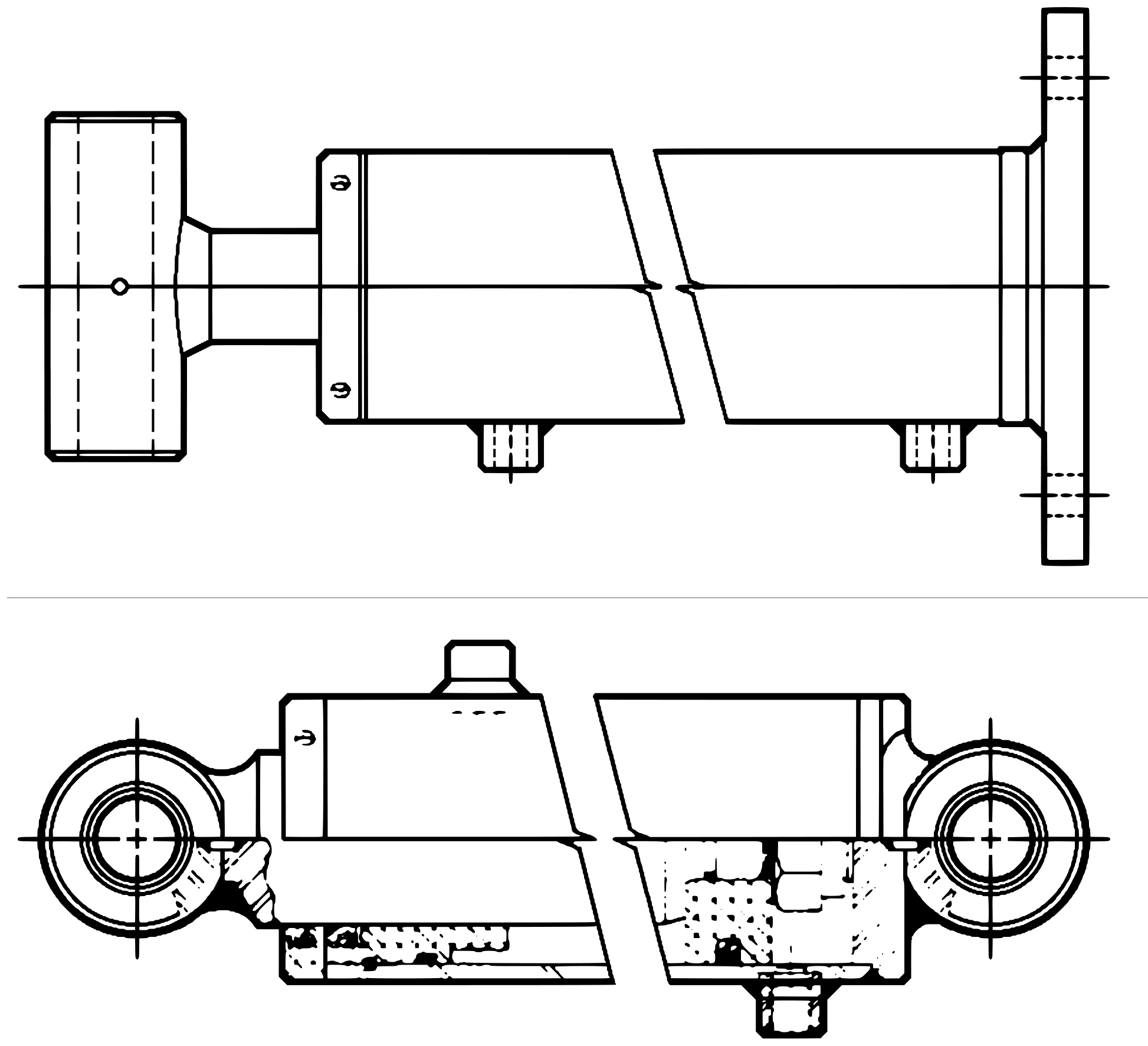

Hydraulic Cylinders - Bed Extend & Bed Tilt

Bed Extend Cylinder

Show parts list (1 part) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301970	CYLINDER, BED EXTEND	1	$2,856.20
	0308385	Seal kit for 0301970 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60

Bed Tilt Cylinder

Show parts list (1 part) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0302867	CYLINDER, BED TILT	2	$854.20
	0308385	Seal kit for 0302867 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60

Back to Manual Navigation Menu

Hydraulic Cylinders - Wheel Lift Extend & Wheel Lift Up/Down

Wheel Lift Extend Cylinder

Show parts list (1 part) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0302178	CYLINDER, WHEEL LIFT EXTEND	1	$1,226.40
	0308387	Seal kit for 0302178 cylinder: SEAL KIT,CYL.(W/L EXT.)20S		$147.60

Wheel Lift Up/Down Cylinder

Show parts list (1 part) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0308372	CYLINDER, WHEEL LIFT UP/DOWN	1	$1,747.40
	0308389	Seal kit for 0308372-1175 cylinder: SEAL KIT SK17668 FOR CYL		$159.00

Back to Manual Navigation Menu

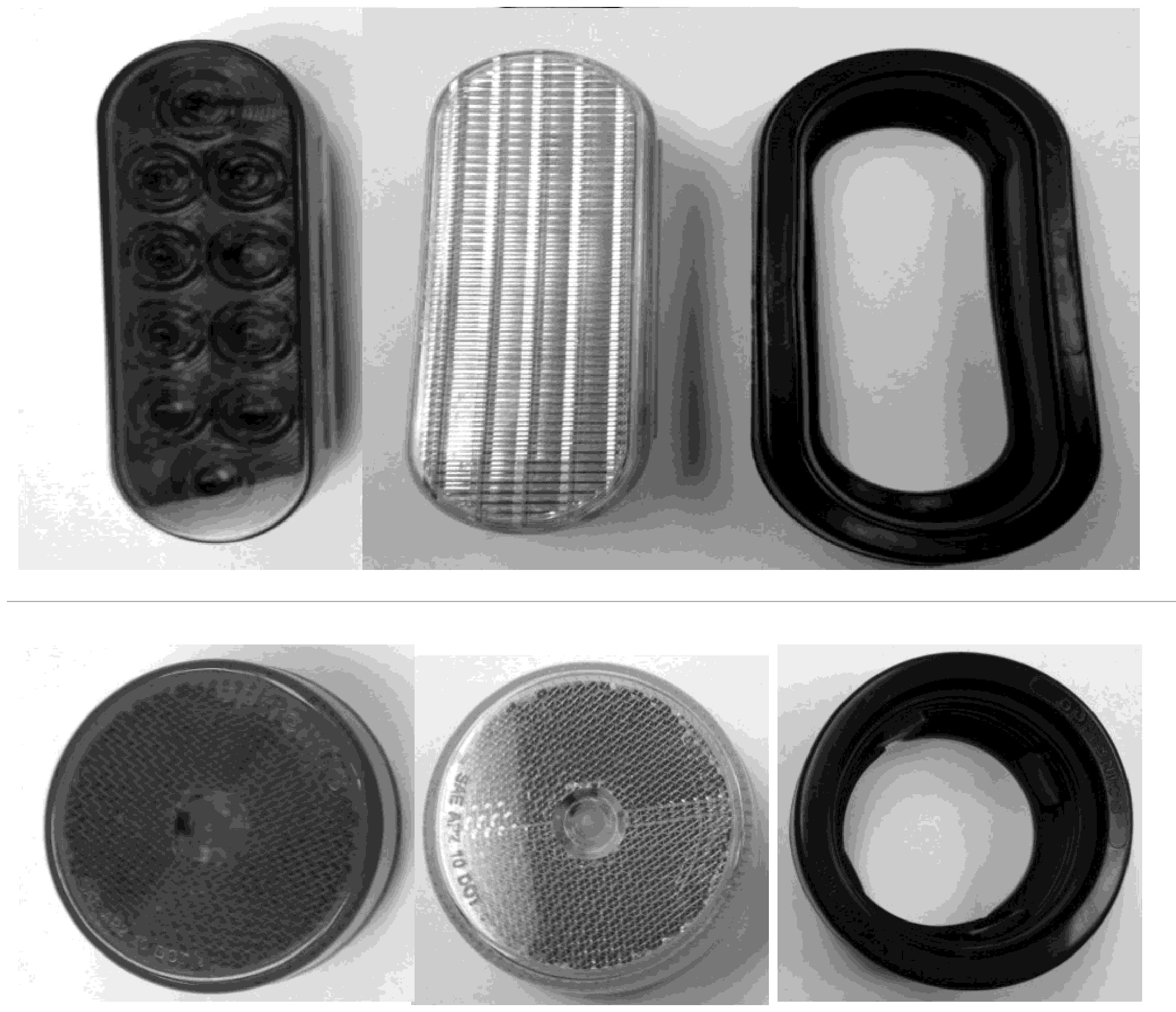

Light Kit (1 of 8)

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price	Quick Add to Cart
1	0311498	LIGHT 6" OVAL RED LED - STOP/TURN	$37.00
2	0311500	LIGHT 6" OVAL CLEAR LED - REVERSE	$126.20
3	3011503	LIGHT 6" GROMMET	Call for price	—
1	0311512	LIGHT 2.5" RED REFLEX LED (MCL59RB)	$14.40
2	0311513	LIGHT 2.5" AMBER REFLEX LED (MCL59AB)	$14.40
3	0311516	LIGHT 2.5" GROMMET	$1.80

Back to Manual Navigation Menu

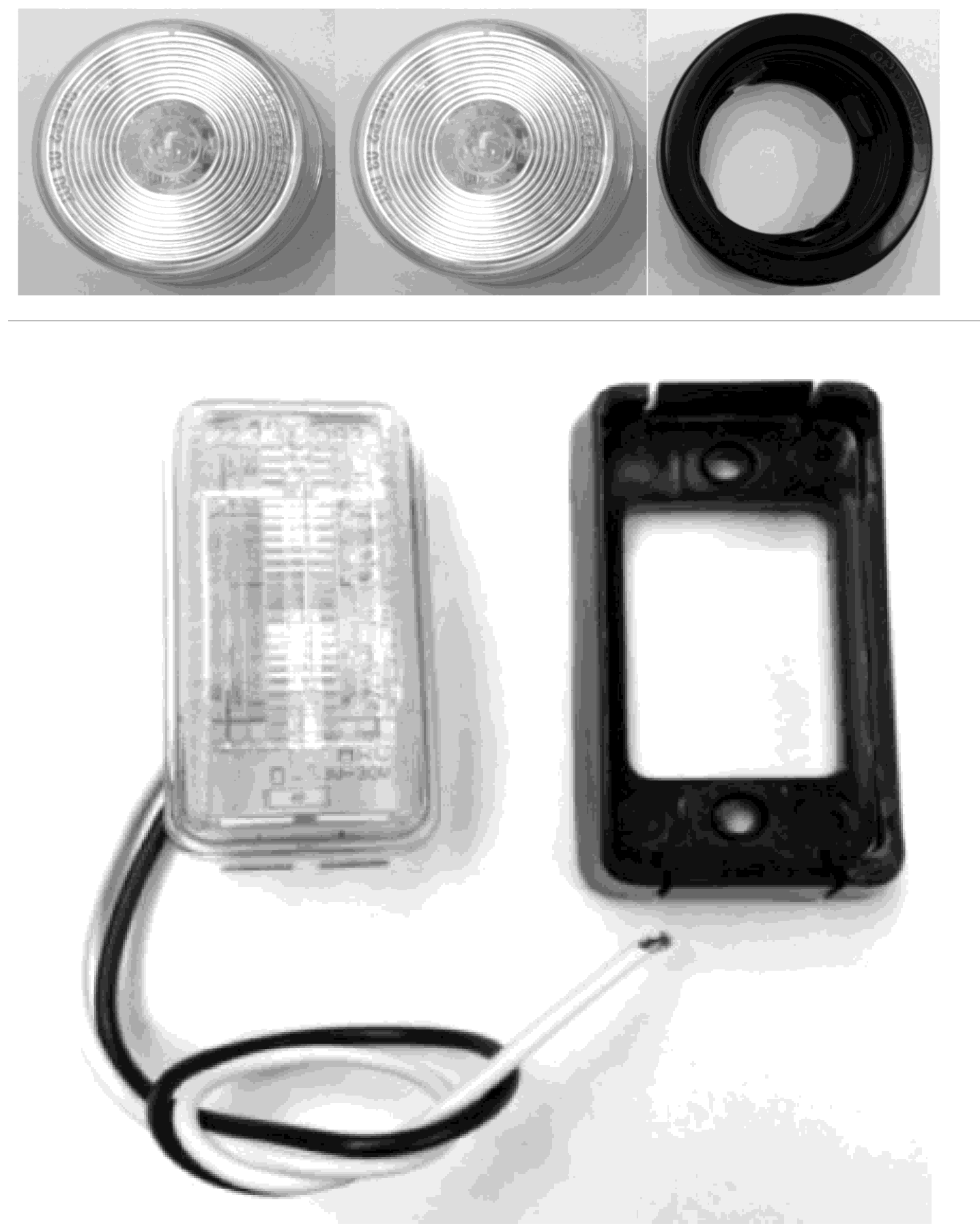

Light Kit (2 of 8)

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price	Quick Add to Cart
1	0311514	LIGHT 2.5" ROUND CLEAR/RED LED MARKER LIGHT	$13.20
2	0311515	LIGHT 2.5" ROUND CLEAR/AMBER LED MARKER LIGHT	$17.00
3	3011516	LIGHT 2.5" GROMMET	Call for price	—
1	0311527	RECTANGULAR LED CONTROL STATION LIGHT	$22.20

Back to Manual Navigation Menu

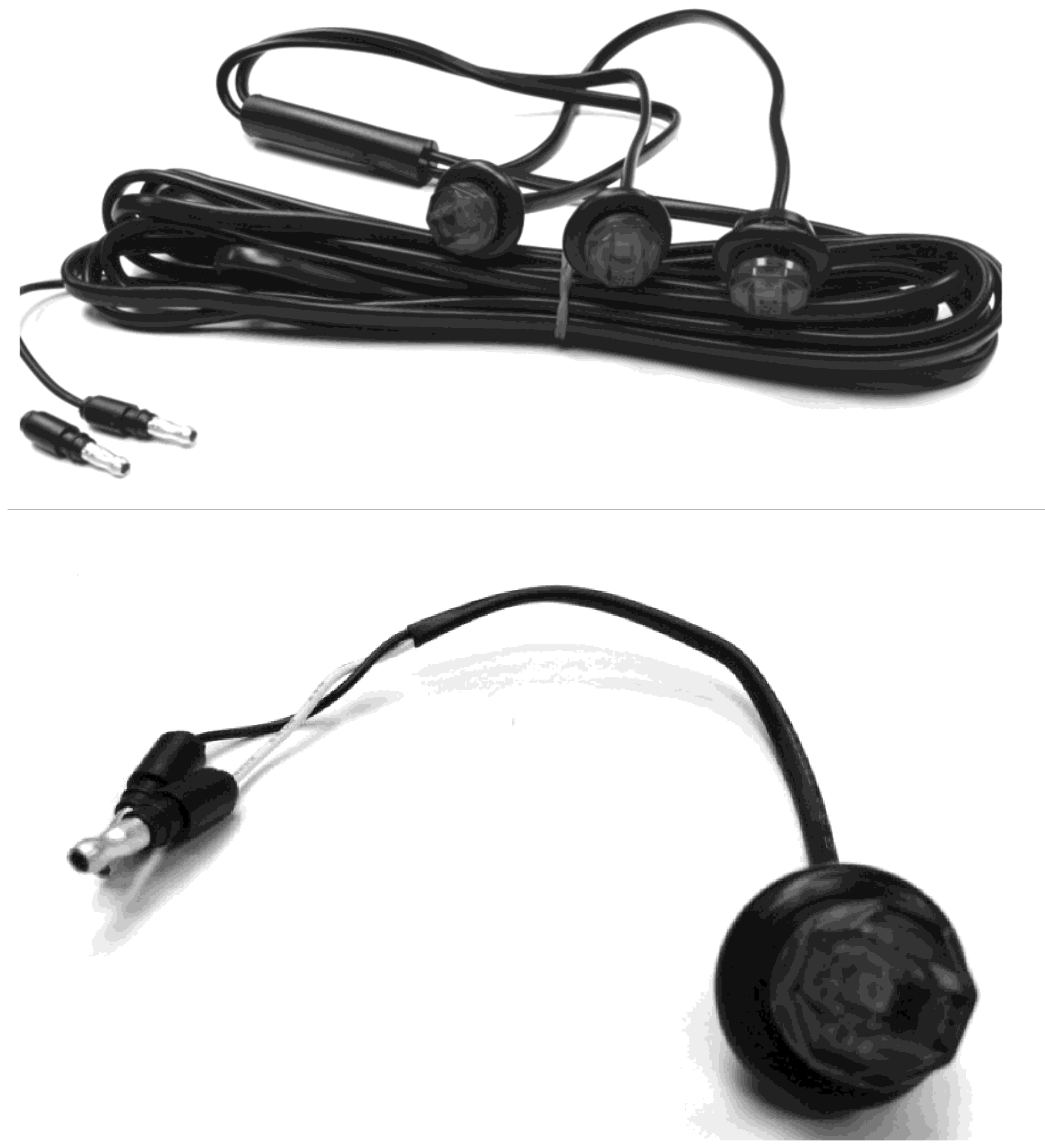

Light Kit (3 of 8)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0311519	RED 3/4 LED ICC LIGHT		$89.40
1	0311520	RED 3/4 LED LIGHT		$16.40

Back to Manual Navigation Menu

Light Kit (4 of 8)

Show parts list (3 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Price
1	0311521	AMBER 3/4 ROUND LED LIGHT	$17.60
1	0311522	CLEAR/RED 3/4 ROUND LED LIGHT	$12.40
1	0311523	CLEAR/AMBER 3/4 ROUND LED LIGHT	$15.00

Back to Manual Navigation Menu

Light Kit (5 of 8)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0308359	MARKER LIGHT RED REFLEX LED		$86.60
1	0308360	MARKER LIGHT AMBER REFLEX LED		$86.60

Back to Manual Navigation Menu

Light Kit (6 of 8)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0308969R	MARKER LIGHT RED REFLEX LED		$21.60
1	0308969A	MARKER LIGHT AMBER REFLEX LED		$21.60

Back to Manual Navigation Menu

Light Kit (7 of 8)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	074027041ACL	MILLENNIUM MARKER LIGHT CLEAR/AMBER		Call for price	—
1	174027041RCL	MILLENNIUM MARKER LIGHT CLEAR/RED		$19.80

Back to Manual Navigation Menu

Light Kit (8 of 8)

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0308491	REFLECTOR - AMBER		$8.00
1	0308490	REFLECTOR - RED		$8.00

Back to Manual Navigation Menu

Optional Lighting Accessories

Show parts list (6 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	124001001	SPOT LIGHT W/GASKET	2	$310.20
2	0300897	GROMMET, RUBBER	2	$3.80
3	0400043	#10-24 x 1" MACHINE SCREW	8	Call for price	—
4	0400392	NUT, 3/8"-16 HEX NYLOK	2	$5.80
5	0709872	RUBBER CUSHION	2	Call for price	—
6	0801777	"T" BOLT ADAPTER	2	$37.60

Back to Manual Navigation Menu

Optional Equipment - Independent Towbar Assembly

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	*	INDEPENDENT TOW BAR ASSEMBLY (COMP.)		Call for price	—
1	0300113	GREASE FITTING	3	$5.80
2	0301381	SNAP RING, 3/4"	2	$5.60
3	0301642	SNAP RING, 1-1/4"	5	$5.80
4	0301723	GUARD, TOW BAR BUMPER	2	$47.00
5	0301798	CYLINDER, TOW BAR EXTEND	1	$1,130.60
	0308386	Seal kit for 0301798 cylinder: SEAL KIT, TOWBAR CYLINDER		Call for price	770-921-6070
6	0302368	CYLINDER, TOW BAR	2	$1,330.20
	0308385	Seal kit for 0302368 cylinder: SEAL KIT, CYL.TILT/EXT./SPACER		$133.60
7	0400436	NUT	1	$5.80
8	0500241	DECAL, SAFETY CHAIN WARNING	1	$8.00
9	0702418	SHAFT, EXTEND CYLINDER	1	$63.20
10	0702434	PIN, CYLINDER	2	$75.40
11	0800777	TUBE, TOW BAR INNER	1	$449.60
12	0800784	PIN, TOW BAR PIVOT	1	$59.60
13	0800924	CROSSTUBE, TOW BAR	1	$328.60
14	0805030	SHAFT, TOW BAR PIVOT, PIN WITH KEEPER	1	$79.40
15	0805150	TUBE, TOW BAR OUTER	1	Call for price	—

Back to Manual Navigation Menu

Optional Equipment - Fixed Towbar Assembly

Show parts list (15 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
	*	FIXED TOW BAR ASSEMBLY (COMPLETE)		Call for price	—
1	0300110	SNAP RING, 1"	2	$5.80
2	0300113	GREASE FITTING	1	$5.80
3	0301381	SNAP RING, 3/4"	2	$5.60
4	0301642	SNAP RING, 1-1/4"	1	$5.80
5	0301723	GUARD, TOW BAR BUMPER	2	$47.00
6	0301798	CYLINDER, TOW BAR EXTEND	1	$1,130.60
	0308386	Seal kit for 0301798 cylinder: SEAL KIT, TOWBAR CYLINDER		Call for price	770-921-6070
7	0400436	NUT	1	$5.80
8	0500241	DECAL, SAFETY CHAIN WARNING	1	$8.00
9	0700058	SHAFT, TOW BAR PIVOT	1	Call for price	—
10	0702418	SHAFT, EXTEND CYLINDER	1	$63.20
11	0800777	TUBE, TOW BAR INNER	1	$449.60
12	0800784	PIN, TOW BAR PIVOT	1	$59.60
13	0800924	CROSSTUBE, TOW BAR	1	$328.60
14	0801403	TUBE, TOW BAR OUTER	1	$612.80

Back to Manual Navigation Menu

Optional Equipment - Towbar Cylinder

Show parts list (1 part) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301798	CYLINDER, TOWBAR (COMPLETE)	1	$1,130.60
	0308386	Seal kit for 0301798 cylinder: SEAL KIT, TOWBAR CYLINDER		Call for price	770-921-6070

Back to Manual Navigation Menu

Optional Equipment - Towing Sling

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300176	"J" HOOK ASSEMBLY	2	Call for price	—
2	0400105	SCREW, 5/16"-18 x 1-1/4" SELF-TAPPING	8	$5.80
3	0400156	CARRIAGE BOLT, 3/8"-16 x 1-1/4"	8	$5.60
4	0400392	NUT, 3/8"-16 HEX NYLOK	8	$5.80
5	0701919	TOW SLING BELT	2	$97.20
6	0701920	GRIP PLATE	2	Call for price	—
7	0800608	CHAIN KEEPER, LEFT	1	Call for price	—
8	0800609	CHAIN KEEPER, RIGHT	1	Call for price	—
9	0800873	BELT RETAINER	2	Call for price	—

Back to Manual Navigation Menu

Optional Outer Crosstube & 3-Way Pivot Tire Restraint Assembly

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0909499L	OUTER XTUBE ASSY. LH (PIVOT) (COMPLETE)	1	$969.60
2	0909499R	OUTER XTUBE ASSY. RH (PIVOT) (COMPLETE)	1	$969.60
3	0803648	RESTRAINT TIRE, LH (PIVOT)	1	$651.20
4	0803649	RESTRAINT TIRE, RH (PIVOT)	1	$651.20
5	0902382	NYLON POLY-COAT STRAP (PIVOT)	2	$139.00
6	0719079	END PL, LH (CSTG) PIVOT	1	$240.20
7	0719080	END PL, RH (CSTG) PIVOT	1	$240.20
8	0904744	PIN ASSEMBLY	2	$15.80
9	0802187	PIN, PIVOT	2	$166.20
10	0400483	3/8" INTERNAL TOOTH L/W Z	2	$5.80	—
11	0400349	3/8-16 x 3/4" FLAT HD. CAP SCREW	2	$11.60
12	0302640	PLUG, DRY-OUT HOLE	2	$3.80
13	0300113	GREASE FITTING STRAIGHT	4	$5.80
14	0712933	ALIGNMENT PIN	2	$38.80
15	0302648	T HANDLE (ALUMINUM) ANGLE STYLE	2	$13.20
16	0302641	SPRING, PIVOT	2	$9.40
17	0707505	PIN, PLUNGER	2	$108.40
18	0400560	5/32 x 1" TENSION PIN Z	2	$5.80
19	0301956	TARP STRAP	2	$9.40
-	0805022C	L-ARM STORAGE TUBE (BLACK) - NOT SHOWN	2	$223.80
	0809148C	L-ARM STORAGE TUBE (GALV) - NOT SHOWN	2	Call for price	—

Back to Manual Navigation Menu

Autogrip Components

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809187	OUTER BOOM WELDMENT	1	$1,912.80
2	0809186	INNER BOOM WELDMENT	1	$1,762.00
3	0801009	WHEEL LIFT HINGE PIN	1	Call for price	—
4	65612	BEARING PAD, NYLATRON	2	$17.80
5	0750523	LOWER LIFT CYLINDER PIN (W/L)	1	$63.20
6	0750562	UPPER LIFT CYLINDER PIN (W/L)	1	$52.60
7	63595	BEARING PAD, NYLATRON	2	$16.40
8	0400392	NUT, 3/8"-16 HEX NYLOK	2	$5.80
9	0400274	5/8-11" x 2" HEX HD BOLT	2	$5.80
10	0400421	NUT, 5/8-11" HEX NYLOCK	2	$5.80
11	0300113	GREASE FITTING, STRAIGHT	3	$5.80
12	72940	EXTEND CYLINDER MTG. PIN, 0.980" x 6-11/16"	1	$14.00
13	63595H	BEARING PAD, NYLATRON	2	$27.00
14	85680	ROD END KEEPER PIN	1	Call for price	—
15	0400148	SCREW, 3/8"-16 x 1-1/4" HEX HD CAP	1	$5.00
16	0400150	SCREW, 3/8"-16 x 2-1/2" HEX HD CAP	1	$5.80
17	812A9	3/8" x 1 ROUND HEAD BOLT	4	$1.20
18	0721632	3/8" FLAT WASHER	4	$9.80

Back to Manual Navigation Menu

Autogrip II Crossbar Components

Show parts list (28 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	644002	CROSSBAR WELDMENT	1	$4,839.00
2	644352CL	WHEEL RETAINER - LEFT	1	$933.00
3	644352CR	WHEEL RETAINER - RIGHT	1	$933.00
4	644432	WHEEL RETAINER CYLINDER PIN	2	$22.20
5	644452	ARM PIVOT PIN	2	$83.00
6	697402L	WHEEL SPACER - LEFT	1	$441.20
7	697402R	WHEEL SPACER - RIGHT	1	$441.20
8	644292	HOSE GUARD	2	$22.20
9	64327	SCREW-PLUG CROSSBAR DETENT	2	$19.40
10	644402	CROSSBAR PIN	1	$232.60
11	862501	SNAP RING 2.500 INCH INTERNAL	1	Call for price	—
12	720152L	WHEEL RETAINER CYLINDER - LEFT	1	$1,465.00
	73626	Seal kit for 720152L cylinder: SEAL KIT - 2-1/2" BORE		$122.80
13	720152R	WHEEL RETAINER CYLINDER - RIGHT	1	$1,465.00
	73626	Seal kit for 720152R cylinder: SEAL KIT - 2-1/2" BORE		$122.80
14	727162	L-ARM CYLINDER END BLOCK	2	$161.20
15	84291	T-PIN 5/8 x 3	2	Call for price	—
16	87440	AUTOGRIP ARM CHAIN	4	$110.20
	81127	5/16 x 1-1/4 SHOULDER SHCS 1/4-20 UNC	4	$5.80
	83105	1/4-20 UNC NYLON LOCK NUT	4	$0.60
17	812A5	3/8 ALLEN BOLT	2	$5.80
18	83411	5/8 NYLON LOCK NUT	4	$0.60
19	83520	3/4 NYLON LOCK NUT	2	$3.00
20	64441	CHAIN CLEVIS	4	$83.00
	81126	5/16 x 1 SHOULDER SHCS 1/4-20 UNC	4	$5.00
	83105	1/4-20 UNC NYLON LOCK NUT	4	$0.60
21	82110	5/16 FLAT WASHER	2	$0.40
22	86100I	SNAP-RING 1.000 INCH INTERNAL	2	$1.40
23	65286	BASKET TIRE STRAP - AUTO	2	$196.80
	66287	BASKET TIRE STRAP - TRUCK	2	Call for price	—

Back to Manual Navigation Menu

Manual Slidewinder

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	315214	SLIDE TRACK - LONG	1	Call for price	—
2	315225	CABLE GUIDE	1	Call for price	—
3	69125	6 x 1 PULLEY	2	$234.60
4	315310	SLIDE CARRIAGE	1	$562.47
5	315325	CABLE GUIDE	1	Call for price	—
6	315330	PULLEY PIN	1	$56.00
7	315323	FRONT SLIDE PAD	1	Call for price	—
8	711096	SERIES 9 WINCH - 6.5 INCH DRUM	1	$3,395.20
	711126	SERIES 12 WINCH - 6.5 INCH DRUM	1	$4,930.40
9	A90065	CABLE TENSIONER PLATE	1	$52.60
10	315320	SLIDE PAD	2	Call for price	—
11	315230	PULLEY PIN	1	$61.40
12	A90185	CABLE TENSIONER SPRING	2	Call for price	—
13	7189065	AIR LINE TRANSFER BRACKET	1	$192.80

Back to Manual Navigation Menu

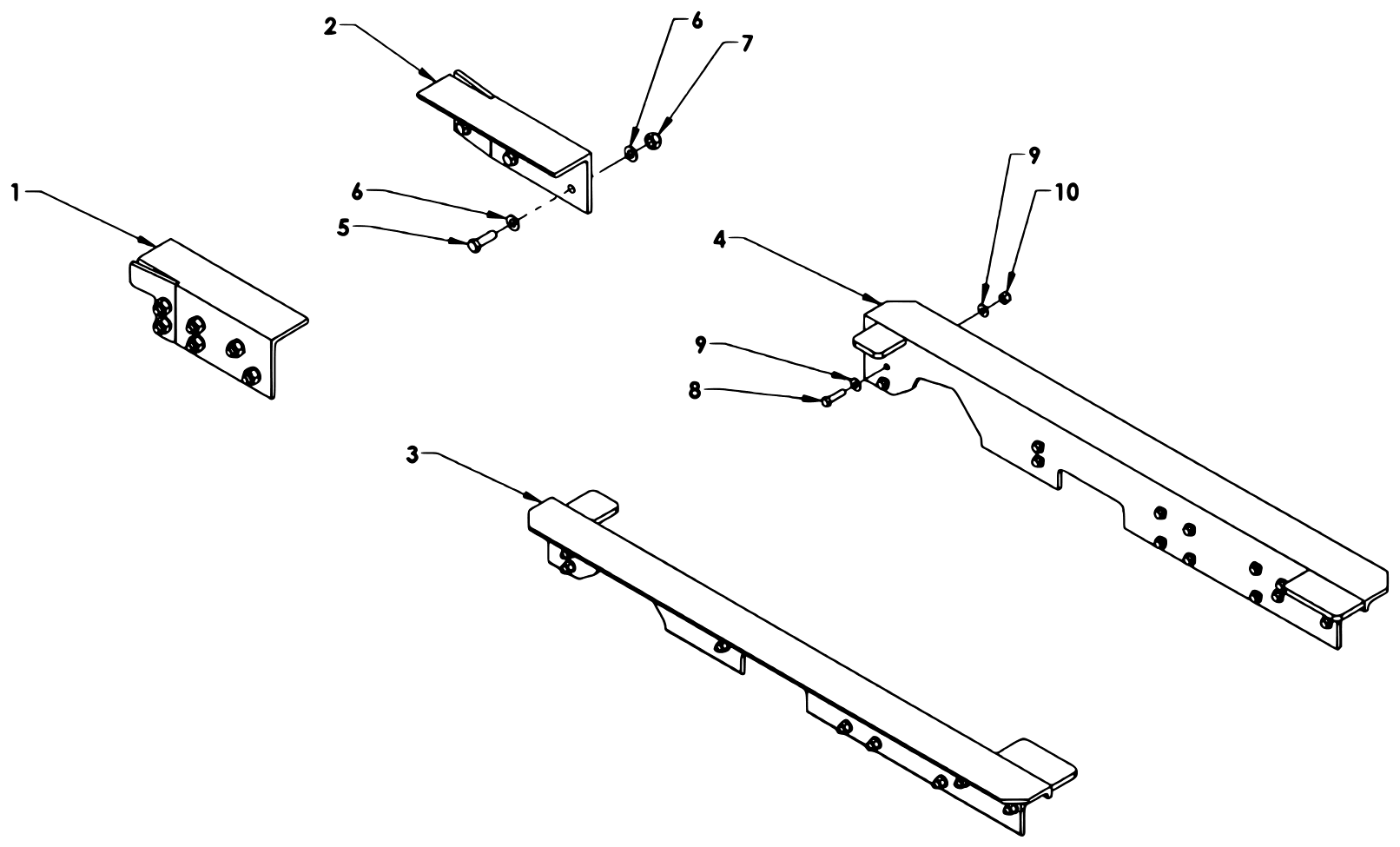

2013 Dodge Frame Reinforcements & Frame Mounted Pylon Brackets

Show parts list (12 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0751301L-2013	DODGE FRAME MOUNTING ANGLE - LEFT	1	Call for price	—
2	0751301R	DODGE FRAME MOUNTING ANGLE - RIGHT	1	$170.20
3	0809869L	DODGE REINFORCEMENT ANGLE WLDMT - LEFT	1	$747.40
4	0809569R	DODGE REINFORCEMENT ANGLE WLDMT - RIGHT	1	Call for price	—
		BOLT KIT, DODGE FRAME MOUNTING ANGLE		Call for price	—
5		BOLT, HHCS 5/8-11 UNC x 2	12	Call for price	—
6		FLAT WASHER 5/8	24	Call for price	—
7		NYLON LOCK NUT 5/8-11 UNC	12	Call for price	—
	0940321	BOLT KIT, DODGE FRAME REINFORCEMENT		$96.60
8		BOLT, HHCS 7/16-14 UNC x 1-3/4	26	Call for price	—
9		FLAT WASHER 7/16	52	Call for price	—
10		NYLON LOCK NUT 7/16-14 UNC	26	Call for price	—

Back to Manual Navigation Menu

38 Inch Frame Mounted Pylon - Dodge/Ford

Show parts list (5 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0809619-38D	FRAME MOUNTED PYLON-DODGE	1	$1,892.00
2	0752169L	FORD F550 FMP MOUNTING ANGLE - LEFT	1	$51.80
3	0752169R	FORD F550 FMP MOUNTING ANGLE - RIGHT	1	$63.40
4	0751301L-2013	2013 DODGE FRAME MOUNTING ANGLE - LEFT	1	Call for price	—
5	0751301R	2011 DODGE FRAME MOUNTING ANGLE - RIGHT	1	$170.20

Back to Manual Navigation Menu
