Vulcan V-70 2-Winch 5X5 Lift Bar Assembly 948 Xhd – OEM Part No. 948570000
Genuine replacement 5X5 Lift Bar Assembly 948 Xhd (part no. 948570000) for the Vulcan V-70 2-Winch (2023 manual), manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 948570000 |
|---|---|
| Manual description | 5X5 LIFT BAR ASSEMBLY 948 XHD |
| Fits | Vulcan V-70 2-Winch (2023 manual) |
| Assembly | 09008488, Bua V70 2-Winch Std Jack Leg; 09008489, Bua V70 2-Winch Jack Leg Flipper Feet; 09008490, Bua V70 2-Winch Rear Outrigger; 948570000, 5X5 Lift Bar Assembly 948 Xhd |
| Diagram reference (item) no. | 89 (09008488, Bua V70 2-Winch Std Jack Leg); 83 (09008489, Bua V70 2-Winch Jack Leg Flipper Feet); 99 (09008490, Bua V70 2-Winch Rear Outrigger); -- (948570000, 5X5 Lift Bar Assembly 948 Xhd) |
| Quantity used per assembly | 1 (09008488, Bua V70 2-Winch Std Jack Leg); 1 (09008489, Bua V70 2-Winch Jack Leg Flipper Feet); 1 (09008490, Bua V70 2-Winch Rear Outrigger); (948570000, 5X5 Lift Bar Assembly 948 Xhd) |
| Source | Vulcan V-70 2-Winch Parts Manual, Form No. 05004926 (03/2023) |
Parts diagrams:
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 0301895 | GREASE FITTING, 1/8 STR PTF | 3 |
| 2 | 0400344 | SCREW, 1/2-13X3/4 FHS GR8 | 6 |
| 3 | 915150005 | THRUST WASHER - V-40, | 1 |
| 4 | 945510006 | BEARING - ALUM. BRONZE | 2 |
| 5 | 945510007 | THRUST WASHER - V-60, | 1 |
| 6 | 946350005 | PIVOT PIN - 5 CROSSBAR | 1 |
| 7 | 946571000 | TOP COVER PLATE WELD'T | 1 |
| 8 | 946571100 | BOTTOM COVER PLATE WELD. | 1 |
| 9 | 948570500 | CROSSBAR - 948 HD | 1 |
948570000 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Vulcan V-70 2-Winch Parts Manual, Form No. 05004926 (03/2023), page 123. The list has 9 parts. Ref numbers match the diagram below.

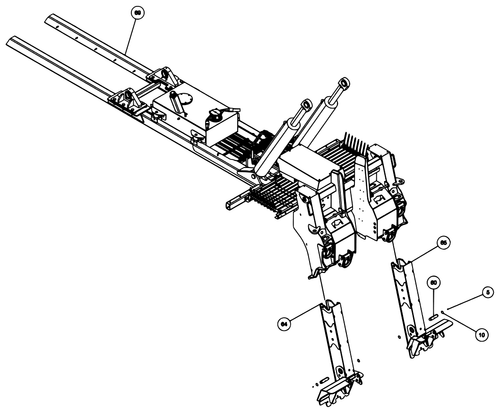

Manual diagram
948570000, 5X5 LIFT BAR ASSEMBLY 948 XHD. You can also view this assembly with live prices and Quick Add on the Vulcan V-70 2-Winch Parts Manual parts page.
