Show all 40 parts sections ▼Hide parts sections ▲
- 5130/5230 (50013626)
- 16-Function Air Bank Assembly - Integrated 12V (09024680)
- Basic Unit Assembly (Bua) (09030523)
- Subframe Assembly (09028964)
- Husco Directional Control Valve (09030342)
- Husco Link Assembly, 4-Spool & 5-Spool Controls (09030344)
- Parker Directional Control Valve (09030345)
- Parker & Walvoil Link Assemblies, 4-Spool & 5-Spool Controls (0903528 / 09004821)
- Walvoil Directional Control Valve (09029025)
- Kit - Valve Cover (0907140)
- Control Assembly - 9 Handle (0907288)
- Control Handle Assembly - Short (0907441)
- Control Assembly - 6 Handle (0907289)
- Kit - Reservoir Assembly (0907802)

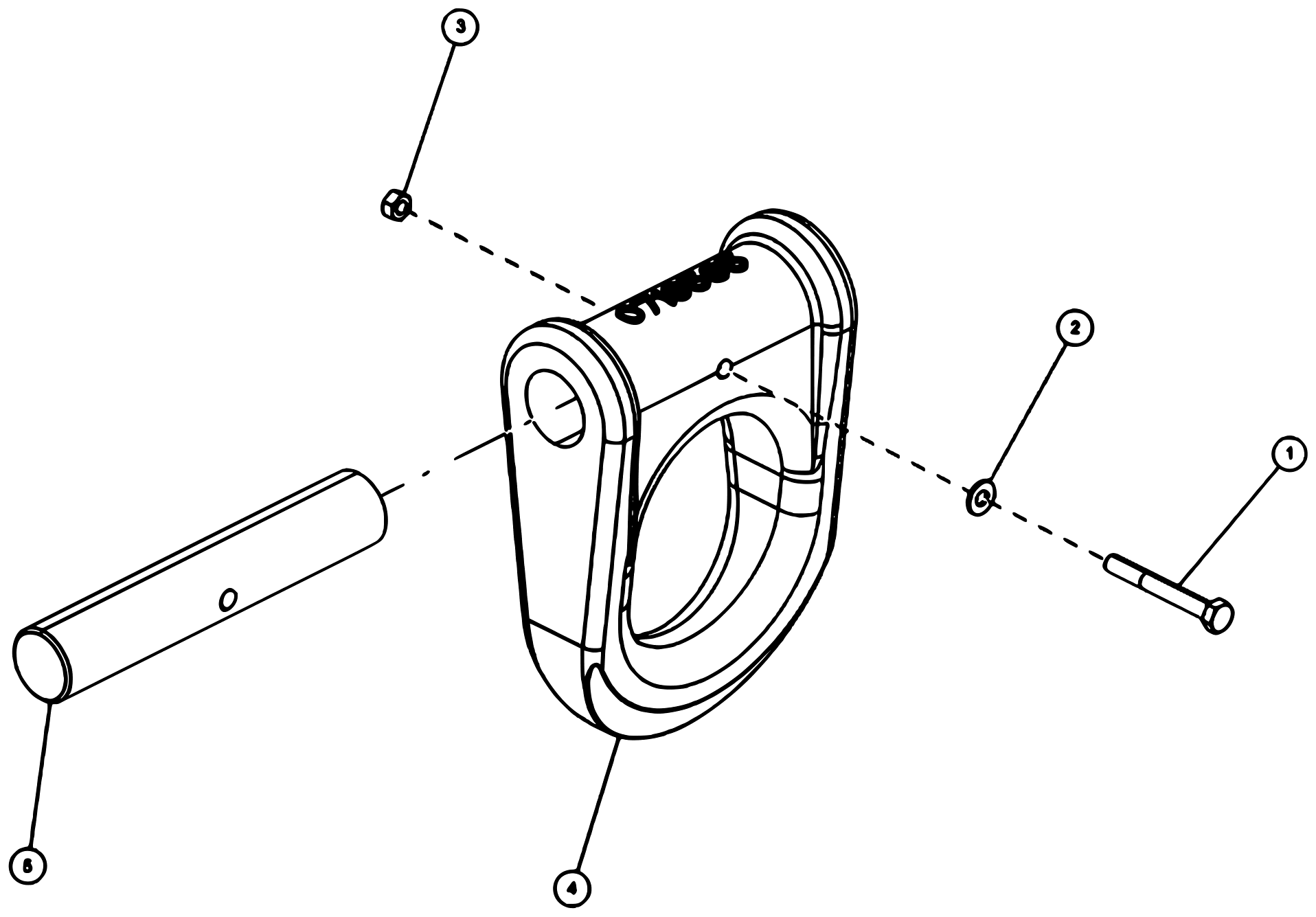

- Kit - D-Ring Parts (0911957)
- 2-Stage Boom Assembly (09028965)
- Boom Swivel Assembly (0906530)
- Kit - Extend Cylinder (0906987)
- Slide Pad Assembly - 3 Stage (0908028)
- Kit - Boom D-Ring (0908431)
- Stinger & Tower (09028966)
- Stinger Assembly (09024283)
- Inner Stinger Assembly - Lowrider (09025620)
- Hook Retainer Assembly (0911762)
- Standard Jack Legs Assembly (09028967)
- Extendable Outriggers Assembly (09028968)
- Pin Assembly - Rear Outrigger Pad (0906963)
- Pin Assembly - Spade Lock (0911123)
- Pin Assembly - Spade Pivot (0911124)
- Spade Assembly - Rear Outriggers (0911167)
- Low Crossbar Assembly - Machined (09030122)
- Lower Illuminated Legend Placement - 9 Handle (0908813)
- Illuminated Legend Assembly - 24.75” (0908784)
- Upper Illuminated Legend Placement - 9 Handle (0908814)
- Illuminated Legend Assembly - 13.75” (0908797)
- Lower Illuminated Legend Placement - 6 Handle (0908815)
- Illuminated Legend Assembly - 16.5” (0908792)
- Upper Illuminated Legend Placement - 6 Handle (0908816)
- Illuminated Legend Assembly - 11” (0908798)
- Air Regulator Gauge Assembly (0911804)

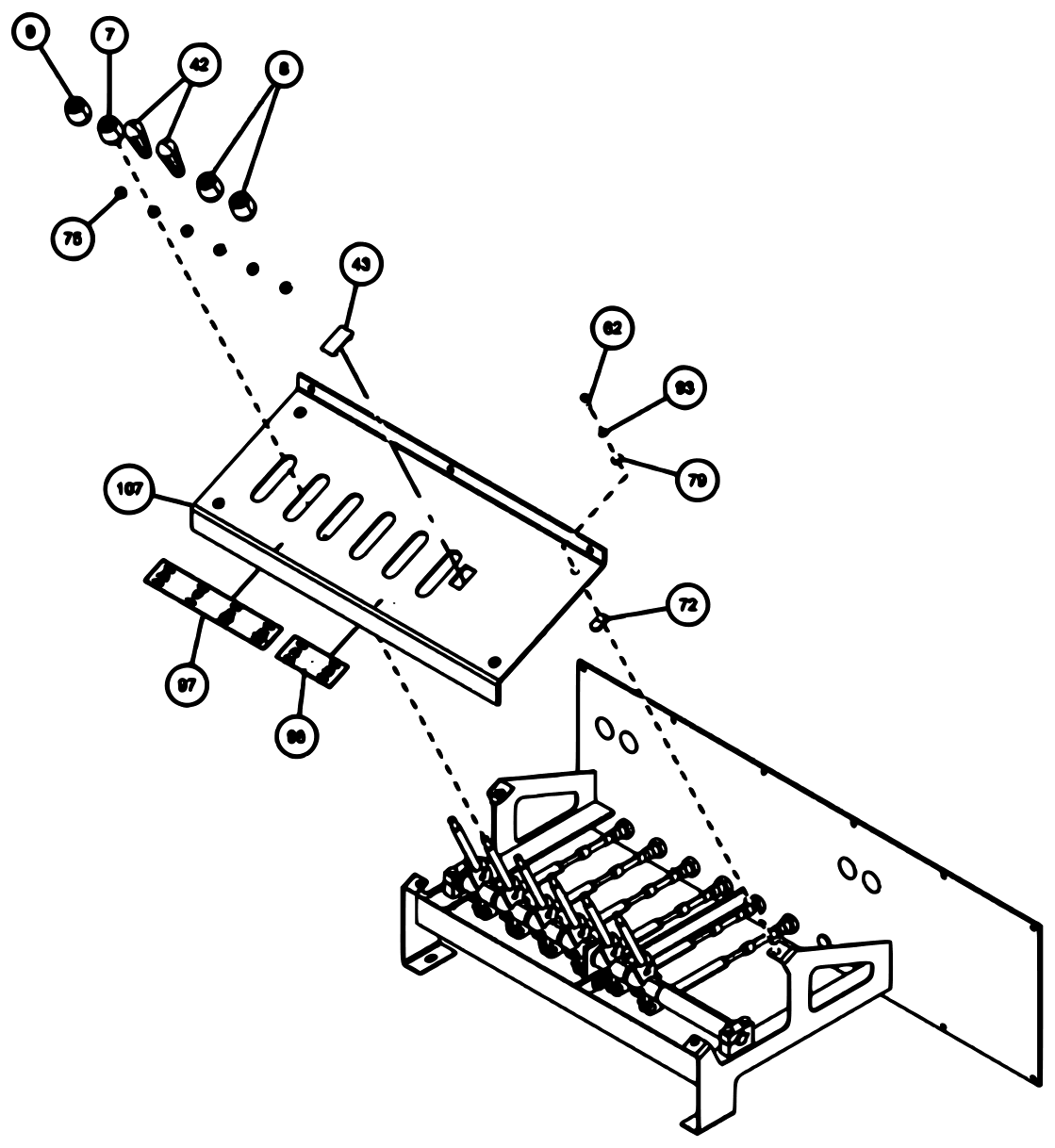

5130/5230 (50013626)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 50013626 | TOP LEVEL | Call for price | — | ||
| 1 | 0200052 | CLEVIS LINK | 7 | $12.43 | |
| 2 | 0300052 | ELBOW, 8MJ-10MB90 | 2 | $11.32 | |
| 3 | 0300287 | FITTING, PIPE BUSHING, 1.25x1 | 2 | Call for price | — |
| 4 | 0300348 | NIPPLE, 1-1/2 X 5 | 2 | $7.93 | |
| 5 | 0300364 | CLAMP-HOSE, 0.875"-2.75" 50"LBS | 4 | $7.07 | |
| 6 | 0300660 | HOSE HYD, 120" | 6 | $113.04 | |
| 7 | 0300835 | KNOB-BOOM (UP-DOWN) | 4 | $13.32 | |
| 8 | 0300836 | KNOB-CTRL-JACK (UP-DOWN) | 8 | $18.95 | |
| 9 | 0300837 | KNOB-BOOM (IN-OUT) | 4 | $15.14 | |
| 10 | 0301473 | HOSE HYD, 18" LG | 2 | $58.36 | |
| 11 | 0301545 | FITTING, ELB 12MJ-12MB 90 | 2 | $18.95 | |
| 12 | 0301547 | FITTING, ELB 8MJ-12MB 90 | 2 | $18.95 | |
| 13 | 0301909 | RECEPTACLE BOOT | 1 | Call for price | — |
| 14 | 0301946 | FITTING, BLKHD CONNECT | 3 | $94.80 | |
| 15 | 0301948 | HD 7 WAY TRAILER CONNECT | 1 | $60.17 | |
| 16 | 0301965 | HOSE HYD, 131" | 2 | $118.53 | |
| 17 | 0301995 | FITTING, ADAPTER STR | 2 | $5.67 | |
| 18 | 0302052 | TEE, 8MJ-8FJX-8MJ RUN | 2 | $15.14 | |
| 19 | 0302085 | FITTING, 90 DEG ADPTR | 4 | Call for price | — |
| 20 | 0302088 | BALL VALVE | 2 | $91.83 | |
| 21 | 0302205 | GAUGE, FLUSH MNTG-6000 PSI | 4 | $45.17 | |
| 22 | 0302534 | FITTING, 45 DEG ELBOW | 3 | $33.38 | |
| 23 | 0302698 | FITTING, HOSE BARB, 1-1/4 | 2 | $32.72 | |
| 24 | 0302856 | KNOB-TILT, 3/8-16 THREAD | 2 | $24.66 | |
| 25 | 0302906 | FITTING, ADAPTER | 2 | $15.32 | |
| 26 | 0302917 | KNOB-WHL LIFT EXT IN-OUT | 2 | $31.37 | |
| 27 | 0303089 | RAMP PAD - 9055/5030 | 2 | $85.72 | |
| 28 | 0303338 | FITTING, ELBOW | 2 | $26.69 | |
| 29 | 0303382 | KNOB - FOLD (UP-DN) | 2 | $17.67 | |
| 30 | 0303392 | HOSE HYD, 73" 12FJX-12-12FJX | 2 | $118.53 | |
| 31 | 0303538 | FITT, ADAPTER -BRASS 8FP-6MP | 3 | $11.66 | |
| 32 | 0303539 | QUICK DISCONNECT 3/8 FPT | 3 | $37.39 | |
| 33 | 0303677 | BACK UP ALARM - 12 / 24 VOLT | 1 | $76.59 | |
| 34 | 0303867 | PUMP, BI-ROTATIONAL | 1 | $2,324.90 | |
| 35 | 0306539 | HOSE BARB 20HOSE16MB90 | 2 | Call for price | — |
| 36 | 0306698 | AIR CYLINDER-1.5BORE/1.71STROK | 7 | $162.32 | |
| 37 | 0306983 | FITT-MALE RUNTEE 1/4T-1/4NPT | 1 | $18.95 | |
| 38 | 0307151 | RUBBER FENDER (5130) - IN FEETPriced per foot | 12 | $18.95 | |
| 38 | 0307151 | RUBBER FENDER (5230) - IN FEETPriced per foot | 24 | $18.95 | |
| 39 | 0307345 | CONNECTOR, 16FJ-12MJ | 5 | $15.05 | |
| 40 | 0307404 | FITTING, HYD 16MJ-10MB | 3 | Call for price | — |
| 41 | 0307424 | FITTING, TEE 16MJ-16MJ-16FJX | 3 | Call for price | — |
| 42 | 0307604 | KNOB, RED LONG - SK0700-07 | 8 | $22.62 | |
| 43 | 0307778 | PLUG, FILLER | 2 | $3.41 | |
| 44 | 0310010 | SUCTION HOSE, 1-1/4ID x50 100R4 | 1 | Call for price | — |
| 45 | 0310631 | MUD FLAP, CENTURY | 2 | $45.58 | |
| 46 | 0310942 | LH 180 CB TANDEM ALUM BODY '10 | 1 | Call for price | — |
| 47 | 0310943 | RH 180 CB TANDEM ALUM BODY '10 | 1 | Call for price | — |
| 48 | 0310981 | TOOLBOX LH AL 206CA 2010 | 1 | Call for price | — |
| 49 | 0310982 | TOOLBOX RH AL 206CA 2010 | 1 | Call for price | — |
| 50 | 0311191 | ROLLER, POLY, 4" X 5/8" | 2 | $46.88 | |
| 51 | 0311355 | HOBBS HOURMETER | 2 | $88.26 | |
| 52 | 0311500 | LIGHT 6"OVAL REVERSE LED | 2 | $127.45 | |
| 53 | 0311502 | LIGHT 6"OVAL CLEAR-AMBER LED | 6 | $32.11 | |
| 54 | 0311503 | GROMMET, LIGHT 6" OVAL | 12 | $2.74 | |
| 55 | 0311514 | 2.5"LED RED MRKRLITE-CLR12/24V | 2 | $13.32 | |
| 56 | 0311516 | GROMMET, LIGHT 2.5" ROUND | 2 | $1.72 | |
| 57 | 0311755 | WATER SEPARATOR-MONNIER | 1 | $256.72 | |
| 58 | 0312309 | LIGHT 6" OVAL GLO-LT STT CLR/R | 4 | $60.17 | |
| 59 | 0400005 | SCREW, 6-32X1/2 PRH SS | 12 | $5.84 | |
| 60 | 0400012 | LKWASHER, #8 SS | 4 | Call for price | — |
| 61 | 0400021 | SCREW, 8-32X1/2 PRH SS | 4 | $5.84 | — |
| 62 | 04000381 | SS BHSCS 1/4-20 X 1 | 28 | Call for price | — |
| 63 | 0400057 | SCREW, 1/4-20X1-1/4 HHC | 7 | $5.84 | |
| 64 | 0400062 | SCREW, 1/4-20X3/4 THC | 49 | $8.01 | |
| 65 | 0400066 | SCREW, 1/4-20X3/4 HHC GR5 | 2 | $5.84 | |
| 66 | 0400103 | SCREW, 5/16-18X1-1/4 HHC GR5 | 8 | $5.84 | |
| 67 | 0400121 | SCREW, 3/8-16X3/4 HHC GR5 | 4 | $5.84 | |
| 68 | 0400128 | SCREW, 3/8-16X1-1/4 FHS GR8 BO | 10 | $8.01 | |
| 69 | 0400181 | SCREW, 1/2-13X1-1/2 HHC GR5 | 2 | $5.84 | |
| 70 | 0400366 | NUT, 1/4-20 HEX | 2 | $5.84 | |
| 71 | 0400367 | NUT, 1/4-20 LOK | 7 | $5.84 | |
| 72 | 0400369 | NUT, 1/4 SPR J | 28 | $5.84 | |
| 73 | 0400382 | NUT, 5/16-18 LOK | 8 | $5.84 | |
| 74 | 0400392 | NUT, 3/8-16 LOK | 4 | $5.84 | |
| 75 | 0400393 | NUT, 3/8-16 JAM | 24 | $5.84 | |
| 76 | 0400401 | NUT, 7/16-20 JAM PL | 7 | $5.84 | |
| 77 | 0400451 | WASHER, 1/4 | 2 | $5.84 | |
| 78 | 0400452 | LKWASHER, 1/4 | 2 | $5.84 | |
| 79 | 0400454 | WASHER, 1/4 SS | 28 | $1.79 | |
| 80 | 0400482 | LKWASHER, 3/8 | 4 | $5.84 | |
| 81 | 0400491 | LKWASHER, 1/2 | 22 | $5.84 | |
| 82 | 0400492 | USS FLAT WASHER, 1/2 | 2 | $5.84 | |
| 83 | 0400498 | WASHER, 1/2X2X0.125 | 20 | $8.01 | |
| 84 | 0400527 | PIN, 5/16X1X5/8 CLEVIS | 7 | $8.01 | |
| 85 | 0400785 | SCREW, 3/8-16X7/8 HHC GR8 | 4 | Call for price | — |
| 86 | 0400900 | NUT, 1/2-13 LOK JAM | 2 | Call for price | — |
| 87 | 0402020 | SCREW, 1/4-20X3/4 HHC SS | 2 | $5.84 | |
| 88 | 0402021 | SCREW, 1/4-20X1 HHC SS | 2 | $5.84 | |
| 89 | 0402043 | SCREW, 3/8-16X1-1/4 HHC SS | 8 | $5.84 | |
| 90 | 0402080 | WASHER, #8 SS | 4 | Call for price | — |
| 91 | 0402094 | NUT, HEX 6-32 SS | 7 | Call for price | — |
| 92 | 0402110 | WASHER, 1/4 SS | 4 | $5.84 | |
| 93 | 0402111 | LKWASHER, 1/4 SS | 32 | $5.84 | |
| 94 | 0402113 | NUT, 1/4-20 LOK SS | 2 | $1.72 | |
| 95 | 0402120 | WASHER, 3/8 SS | 8 | $5.84 | |
| 96 | 0402123 | NUT, 3/8-16 LOK SS | 8 | $5.84 | |
| 97 | 0500914 | DECAL-CTRL PANEL WRECKER | 2 | $47.42 | |
| 98 | 0500915 | DECAL-CTRL PANEL SPADE | 2 | $47.42 | |
| 99 | 0500916 | DECAL-CTRL PNL UNDERLIFT | 1 | $45.58 | |
| 100 | 0501669 | DECAL, AIR FREE SPOOL | 2 | $15.14 | |
| 101 | 07043428 | BRKT, MUDFLAP LW INTEGR | 2 | Call for price | — |
| 102 | 0717386 | BAR - MUDFLAP | 2 | $45.58 | |
| 103 | 0718139 | ANGLE - MUD FLAP MOUNT | 2 | $51.06 | |
| 104 | 0727016 | APANEL, GAUGE 9 HANDLE | 1 | $120.87 | |
| 105 | 0727019 | APANEL, SWITCH | 1 | $95.86 | |
| 106 | 0727033 | APANEL, CONTROL 9 HANDLE | 1 | $155.94 | |
| 107 | 0727034 | APANEL, CONTROL 6 HANDLE | 1 | Call for price | — |
| 108 | 08000546 | FRONT BODY MOUNT | 1 | $856.61 | |
| 109 | 0810021 | BRACKET WLDMT-CHAIN ROLLER | 2 | Call for price | — |
| 110 | 09024680 | AIR BANK 16FXN ASSY, INTGD 12V | 1 | $1,934.10 | |
| 111 | 09030523 | BUA, 5130 | 1 | Call for price | — |
| 112 | 0908813 | ILLUMINATED LEGEND ASSY-LT LWR | 1 | $623.60 | |
| 113 | 0908814 | ILLUMINATED LEGEND ASSY-LT UPP | 1 | $506.91 | |
| 114 | 0908815 | ILLUMINATED LEGEND ASSY-RT LWR | 1 | $492.33 | |
| 115 | 0908816 | ILLUMINATED LEGEND ASSY-RT UPP | 1 | $472.28 | |
| 116 | 0911804 | AIR REGULATOR-GAUGE ASSEMBLY | 2 | $154.02 | |
| 117 | 9010024 | FITT, BRASS CONN 1/4T-1/8MP | 1 | $11.66 | |
| 118 | 9010030 | FITT, BRASS ELBOW 1/4T-1/8MPX | 14 | $13.84 | |
| 119 | 9010520 | FITTING-ELBOW 1/4T-1/4NPT | 2 | $13.84 | |
| 120 | 9024041 | SWITCH, ROCKER SPST RED 12V21A | 18 | $43.74 | |
| 121 | 9041403 | 1/2 NC X 1 1/2 HHCS PL GR8 | 20 | $5.84 | |
| 122 | 9402970 | TOOLBOX MTG. PAD | 14 | $54.72 | |
| 123 | 942480011 | PLATE, SLOT-SS REAR WASHER TBOX | 12 | $25.55 | |
| 124 | FC41 | FITTING-90DEG BLKHD ELB W/ NUT | 2 | $15.67 |
16-Function Air Bank Assembly - Integrated 12V (09024680)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09024680 | AIR BANK 16FXN ASSY, INTGD12V | $1,934.10 | |||
| 1 | 03002200 | PNUT HDP20 24, 2411-001-2405 | 1 | Call for price | — |
| 2 | 03002201 | LKWR HDP20 24, 2414-001-2486 | 1 | Call for price | — |
| 3 | 03015444 | CONN HDP20, HDP24-24-23PE | 1 | Call for price | — |
| 4 | 03015445 | CONN HDP20, HDP26-24-23SE | 1 | Call for price | — |
| 5 | 03015482 | DIST BLOCK, 6+1 RED, 1047480 | 5 | Call for price | — |
| 6 | 03015483 | FLANGE, PTFIX-F, 3274060 | 2 | Call for price | — |
| 7 | 03028328 | DIST BLOCK, PTFIX 6+1 | 1 | Call for price | — |
| 8 | 0310422 | CONN DT RCPT 2 M, DT04-2P | 2 | Call for price | — |
| 9 | 0311596 | AIR BANK-16 POS 12V | 1 | $2,050.38 | |
| 10 | 0400009 | SCREW, 8-32X1-1/2 PRH SS | 2 | $5.84 | |
| 11 | 04000361 | 10-24 SS KEP NUT | 2 | Call for price | — |
| 12 | 0400352 | NUT, 8-32 LOK | 2 | $5.84 | |
| 13 | 04003628 | NUT, LOK, M2.5 985-A2 | 2 | Call for price | — |
| 14 | 04003629 | SCREW, SHC, M2.5 X 16MM, A-2 | 2 | Call for price | — |
| 15 | 0400687 | SCREW, 10-24X3/4 PRH SS | 2 | Call for price | — |
| 16 | 07018065 | BRACKET, HDP20 90 DEG. D | 1 | Call for price | — |
| 17 | 0725047 | PLATE-AIR BANK BACKING | 1 | $56.66 |
Basic Unit Assembly (Bua) (09030523)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09030523 | BUA | Call for price | — | ||
| 1 | 0300041 | CONNECTOR, 8MJ-8MB | 4 | $5.67 | |
| 2 | 0300044 | ADAPTER, 6MJ-8MB | 11 | $3.78 | |
| 3 | 0301388 | ELBOW, 8MJ-8MB90 | 2 | $13.32 | |
| 4 | 0301470 | FITTING, 90ELB 6MJ-8MB90 | 6 | $7.68 | |
| 5 | 0301522 | ADAPTER, 6MJ-6MB | 5 | $3.78 | |
| 6 | 0301620 | ELBOW, 6MJ-6MB90 | 17 | $5.76 | |
| 7 | 0301893 | HOSE HYD, 84 | 2 | $113.04 | |
| 8 | 0302000 | HOSE HYD, 24" | 2 | $40.12 | |
| 9 | 0302508 | ELBOW, 8MJ-8MB90LL | 2 | $13.84 | |
| 10 | 0302514 | ADAPTER 8MJ-6MJ | 12 | $5.67 | |
| 11 | 0302575 | FITTING-BULKHEAD RUN TEE | 2 | $18.95 | |
| 12 | 0302585 | HOSE HYD, 54" | 2 | $71.13 | |
| 13 | 0302596 | HOSE HYD, 34" | 4 | $47.42 | |
| 14 | 0302604 | HOSE HYD, 44" | 2 | $47.42 | |
| 15 | 0302605 | HOSE HYD, 44" | 2 | $67.45 | |
| 16 | 0302808 | HOSE HYD, 18" LG | 2 | $52.88 | |
| 17 | 0303017 | FITTING, CONNECTOR | 6 | $5.67 | |
| 18 | 0303170 | HOSE, HYD. 75" | 7 | $94.80 | |
| 19 | 0303171 | HOSE, HYD. 111" | 2 | $87.20 | |
| 20 | 0303185 | HOSE HYD, 66" LG. | 4 | $72.35 | |
| 21 | 0303389 | HOSE HYD, 46" LG | 2 | $54.77 | |
| 22 | 0303391 | HOSE 8AT2(8FJX-8FJ90) 110" | 2 | $76.71 | |
| 23 | 0303394 | HOSE HYD, 46" | 2 | $42.15 | |
| 24 | 0303748 | HOSE HYD, 136 | 4 | $107.59 | |
| 25 | 03039078 | ORIFICE, 6MJ-6MBR-0.040" | 1 | Call for price | — |
| 26 | 0307345 | CONNECTOR, 16FJ-12MJ | 3 | $15.05 | |
| 27 | 0307404 | FITTING, HYD 16MJ-10MB | 3 | Call for price | — |
| 28 | 0307424 | FITTING, TEE 16MJ-16MJ-16FJX | 3 | Call for price | — |
| 29 | 0307525 | HOSE, HYD ASSY 120" LGTH 90L | 4 | $78.76 | |
| 30 | 0310312 | HOSE, 84" 6FJX-4M3KXTF-6FJX90S | 2 | $78.41 | |
| 31 | 0310881 | 6 WAY DIVERTER VALVE-12V | 2 | $945.12 | |
| 32 | 0312622 | FITTING, 16FJ-6MJ | 3 | Call for price | — |
| 33 | 0400367 | NUT, 1/4-20 LOK | 4 | $5.84 | |
| 34 | 09028964 | 5130 SUBFRAME ASSY | 1 | Call for price | — |
| 35 | 09028965 | 5130 2 STG BOOM | 1 | Call for price | — |
| 36 | 09028966 | STINGER AND TOWER, 5130 | 1 | Call for price | — |
| 37 | 09028967 | 5130 STD JACKS | 1 | Call for price | — |
| 38 | 09028968 | 5130 EXT OUTRIGGERS | 1 | Call for price | — |
| 39 | 09030122 | 5x5 LOW C'BAR ASSY MACHINED | 1 | Call for price | — |
| 40 | 9012594 | FITT, HYD RUN TEE, 6MJx6MBx6MJ | 1 | $21.51 | |
| 41 | 9041058 | 1/4 X 1 3/4 HHCS GR8 | 4 | Call for price | — |
Subframe Assembly (09028964)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09028964 | 5130 SUBFRAME ASSEMBLY | Call for price | — | ||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 14 | $5.84 | |
| 2 | 0300188 | CLAMP, 1-1/2" HOSE | 2 | Call for price | — |
| 3 | 0301620 | ELBOW, 6MJ-6MB90 | 4 | $5.76 | |
| 4 | 0302538 | BUSHING - U/L | 2 | $191.48 | |
| 5 | 0302575 | FITTING-BULKHEAD RUN TEE | 2 | $18.95 | |
| 6 | 03028592 | WEAR PAD, TG LH 5X30 | 2 | Call for price | — |
| 7 | 03028593 | WEAR PAD, TG RH 5X30 | 2 | Call for price | — |
| 8 | 03028594 | WEAR PAD, TG F/R 5X30 | 2 | Call for price | — |
| 9 | 03028595 | WEAR PAD, TG F/R 5X30 | 2 | Call for price | — |
| 10 | 03035894 | HOSE, 45" 5/16 OD BLKHD-QC | 4 | Call for price | — |
| 11 | 03035900 | HOSE, 61" 5/16 OD BLKHD-QC | 2 | Call for price | — |
| 12 | 0307012 | CYL - BOOM LIFT (5035) | 2 | $6,113.93 | |
| 13 | 0307345 | CONNECTOR, 16FJ-12MJ | 2 | $15.05 | |
| 14 | 0400060 | SCREW, 1/4-20X1/2 HHC GR5 | 8 | $5.84 | |
| 15 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 6 | $5.84 | |
| 16 | 0400176 | SCREW, 1/2-13X1 HHC GR5 | 16 | $5.84 | |
| 17 | 0400219 | SCREW, 1/2-13X4-1/2 HHC GR5 | 2 | $8.01 | |
| 18 | 0400286 | SCREW, 3/4-10X2-3/4 HHC GR8 | 12 | $8.01 | |
| 19 | 0400392 | NUT, 3/8-16 LOK | 8 | $5.84 | |
| 20 | 0400408 | NUT, 1/2-13 LOK | 2 | $2.82 | |
| 21 | 0400431 | NUT, 3/4-10 LOK GR8 | 12 | $8.01 | |
| 22 | 0400452 | LKWASHER, 1/4 | 8 | $5.84 | |
| 23 | 0400467 | WASHER, SAE 1/2" HARDENED PL | 16 | $1.70 | |
| 24 | 0400480 | WASHER, 3/8 | 2 | $4.01 | |
| 25 | 07034868 | COVER, JACK 5X30 | 2 | Call for price | — |
| 26 | 0707118 | PIN, LIFT CYL | 2 | $213.39 | |
| 27 | 0711164 | BLOCK, SHEAR | 2 | $5.67 | |
| 28 | 0712522 | BAR | 4 | $6.64 | |
| 29 | 0714581 | PLATE, BOLTING | 4 | $13.23 | |
| 30 | 08000117 | HAND RAIL WELD'T | 2 | Call for price | — |
| 31 | 08022306 | SUBFRAME, 5X30 | 1 | Call for price | — |
| 32 | 09004821 | LINK ASSY, LT & RT CONTROLS | 1 | Call for price | — |
| 33 | 09029025 | DIR CTR VALVE, 4024-7035 WV | 1 | Call for price | — |
| 34 | 09030342 | DIR CTR VALVE, 4024-7035 HUSCO | 1 | Call for price | — |
| 35 | 09030344 | LINKAGE, 4024-7035 VALVE HUSCO | 1 | Call for price | — |
| 36 | 09030345 | DIR CTR VALVE, 4024-7035 PARKE | 1 | Call for price | — |
| 37 | 0903528 | LINK-LT.&RT. SIDE CONT. | 1 | $146.47 | |
| 38 | 0907140 | KIT-VALVE COVER 9055 | 1 | Call for price | — |
| 39 | 0907288 | CONTROL ASSY (9) HANDLES | 1 | $4,104.61 | |
| 40 | 0907289 | RIGHT CONTROL ASSY-(6 HANDLE) | 1 | $2,971.52 | |
| 41 | 0907802 | KIT - RESERVOIR 5130-9055 | 1 | $4,480.78 | |
| 42 | 0911957 | KIT, D-RING PARTS | 2 | Call for price | — |
Husco Directional Control Valve (09030342)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09030042 | HUSCO DIRECTIONAL CONTROL VALVE | Call for price | — | ||
| 1 | 0300044 | ADAPTER, 6MJ-8MB | 11 | $3.78 | |
| 2 | 0300052 | ELBOW, 8MJ-10MB90 | 2 | $11.32 | |
| 3 | 0301388 | ELBOW, 8MJ-8MB90 | 2 | $13.32 | |
| 4 | 0301470 | FITTING, 90ELB 6MJ-8MB90 | 2 | $7.68 | |
| 5 | 0301522 | ADAPTER, 6MJ-6MB | 5 | $3.78 | |
| 6 | 0301730 | VALVE, DOUBLE HOLDING | 1 | $565.26 | |
| 7 | 0301995 | FITTING, ADAPTER STR | 2 | $5.67 | |
| 8 | 0302052 | TEE, 8MJ-8FJX-8MJ RUN | 2 | $15.14 | |
| 9 | 0302085 | FITTING, 90 DEG ADPTR | 2 | Call for price | — |
| 10 | 0302508 | ELBOW, 8MJ-8MB90LL | 2 | $13.84 | |
| 11 | 03028430 | VALVE, 5000/4/4-MCCCM | 1 | Call for price | — |
| 12 | 03028431 | VALVE, 5000/5/5-CCCM | 1 | Call for price | — |
| 13 | 0303017 | FITTING, CONNECTOR | 5 | $5.67 | |
| 14 | 03039078 | ORIFICE, 6MJ-6MBR-0.040" | 1 | Call for price | — |
| 15 | 0400078 | SCREW, 1/4-20X2 HHC GR5 | 2 | $5.84 | |
| 16 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 2 | $5.84 | |
| 17 | 0400157 | SCREW, 3/8-16X1-3/4 HHC GR5 | 8 | $5.84 | |
| 18 | 0400367 | NUT, 1/4-20 LOK | 2 | $5.84 | |
| 19 | 0400382 | NUT, 5/16-18 LOK | 2 | $5.84 | |
| 20 | 0400392 | NUT, 3/8-16 LOK | 8 | $5.84 | |
| 21 | 0400451 | WASHER, 1/4 | 4 | $5.84 | |
| 22 | 07033569 | ANGLE, VALVE PAN 9055 | 1 | Call for price | — |
| 23 | 07033668 | PLATE, VALVE SPACER HUSCO | 4 | Call for price | — |
| 24 | 0719122 | PLATE - VALVE MTG | 1 | $13.26 |
Husco Link Assembly, 4-Spool & 5-Spool Controls (09030344)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09030344 | LINKAGE, 4024-7035 HUSCO | Call for price | — | ||
| 1 | 0200054 | CONNECTOR, CONTROL CABLE | 6 | $10.07 | |
| 2 | 0302457 | CABLE, CONTROL 104 | 5 | $169.59 | |
| 3 | 0303008 | ADJUSTABLE CLEVIS | 3 | $9.50 | |
| 4 | 0303427 | CABLE, CONTROL 114" | 10 | $169.59 | |
| 5 | 0400103 | SCREW, 5/16-18X1-1/4 HHC GR5 | 9 | $5.84 | |
| 6 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 9 | $5.84 | |
| 7 | 0400382 | NUT, 5/16-18 LOK | 9 | $5.84 | |
| 8 | 0400383 | NUT, 5/16-24 HEX | 27 | $5.84 | |
| 9 | 0400392 | NUT, 3/8-16 LOK | 9 | $5.84 | |
| 10 | 0400466 | LKWASHER, 5/16 INT | 27 | $5.84 | |
| 11 | 07033667 | ANGLE, DBL CTRL CABLE MT HUSCO | 2 | Call for price | — |
| 12 | 07033669 | ANGLE, SGL CTRL CABLE MT HUSCO | 1 | Call for price | — |
Parker Directional Control Valve (09030345)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09030345 | DIRECTIONAL CONTROL VALVE | Call for price | — | ||
| 1 | 0300044 | ADAPTER, 6MJ-8MB | 11 | $3.78 | |
| 2 | 0300052 | ELBOW, 8MJ-10MB90 | 2 | $11.32 | |
| 3 | 0301388 | ELBOW, 8MJ-8MB90 | 2 | $13.32 | |
| 4 | 0301470 | FITTING, 90ELB 6MJ-8MB90 | 2 | $7.68 | |
| 5 | 0301522 | ADAPTER, 6MJ-6MB | 5 | $3.78 | |
| 6 | 0301545 | FITTING, ELB 12MJ-12MB 90 | 2 | $18.95 | |
| 7 | 0301730 | VALVE, DOUBLE HOLDING | 1 | $565.26 | |
| 8 | 0301995 | FITTING, ADAPTER STR | 2 | $5.67 | |
| 9 | 0302052 | TEE, 8MJ-8FJX-8MJ RUN | 2 | $15.14 | |
| 10 | 0302508 | ELBOW, 8MJ-8MB90LL | 2 | $13.84 | |
| 11 | 0303017 | FITTING, CONNECTOR | 6 | $5.67 | |
| 12 | 0303093 | VALVE, 4 SPOOL PARKER | 1 | $1,453.30 | |
| 13 | 0303094 | VALVE, 5 SPOOL PARKER | 1 | $1,644.76 | |
| 14 | 03039078 | ORIFICE, 6MJ-6MBR-0.040" | 1 | Call for price | — |
| 15 | 0400078 | SCREW, 1/4-20X2 HHC GR5 | 2 | $5.84 | |
| 16 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 2 | $5.84 | |
| 17 | 0400135 | SCREW, 3/8-16X4-1/2 HHC GR5 | 6 | Call for price | — |
| 18 | 0400367 | NUT, 1/4-20 LOK | 2 | $5.84 | |
| 19 | 0400382 | NUT, 5/16-18 LOK | 2 | $5.84 | |
| 20 | 0400392 | NUT, 3/8-16 LOK | 6 | $5.84 | |
| 21 | 0400451 | WASHER, 1/4 | 4 | $5.84 | |
| 22 | 0704045 | SPACER, CONTROL VALVE | 6 | Call for price | — |
| 23 | 0717827 | PLATE, VALVE MOUNTING | 1 | Call for price | — |
| 24 | 0719122 | PLATE - VALVE MTG | 1 | $13.26 |
Parker & Walvoil Link Assemblies, 4-Spool & 5-Spool Controls (0903528 / 09004821)
Parker Link Assembly, 4-Spool & 5-Spool Controls (0903528)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0903528 | LINK ASSY - RIGHT & LEFT SIDE CONTROLS | $146.47 | |||
| 1 | 0200054 | CONNECTOR, CONTROL CABLE | 6 | $10.07 | |
| 2 | 0302457 | CABLE, CONTROL 104 | 5 | $169.59 | |
| 3 | 0303008 | ADJUSTABLE CLEVIS | 3 | $9.50 | |
| 4 | 0303427 | CABLE, CONTROL 114" | 10 | $169.59 | |
| 5 | 0400103 | SCREW, 5/16-18X1-1/4 HHC GR5 | 9 | $5.84 | |
| 6 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 6 | $5.84 | |
| 7 | 0400382 | NUT, 5/16-18 LOK | 9 | $5.84 | |
| 8 | 0400383 | NUT, 5/16-24 HEX | 27 | $5.84 | |
| 9 | 0400392 | NUT, 3/8-16 LOK | 6 | $5.84 | |
| 10 | 0400466 | LKWASHER, 5/16 INT | 27 | $5.84 | |
| 11 | 0711249 | PLATE, CONTROL BULKHEAD | 2 | $21.91 | |
| 12 | 0711250 | PLATE, CONTROL BULKHEAD | 1 | $16.49 |
Walvoil Link Assembly, 4-Spool & 5-Spool Controls (09004821)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09004824 | LINK ASSEMBLY, LEFT & RIGHT CONTROLS | Call for price | — | ||
| 1 | 0200054 | CONNECTOR, CONTROL CABLE | 6 | $10.07 | |
| 2 | 0302457 | CABLE, CONTROL 104 | 5 | $169.59 | |
| 3 | 0303008 | ADJUSTABLE CLEVIS | 3 | $9.50 | |
| 4 | 0303427 | CABLE, CONTROL 114" | 10 | $169.59 | |
| 5 | 0400103 | SCREW, 5/16-18X1-1/4 HHC GR5 | 9 | $5.84 | |
| 6 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 6 | $5.84 | |
| 7 | 0400382 | NUT, 5/16-18 LOK | 9 | $5.84 | |
| 8 | 0400383 | NUT, 5/16-24 HEX | 27 | $5.84 | |
| 9 | 0400392 | NUT, 3/8-16 LOK | 6 | $5.84 | |
| 10 | 0400466 | LKWASHER, 5/16 INT | 27 | $5.84 | |
| 11 | 0400480 | WASHER, 3/8 | 2 | $4.01 | |
| 12 | 07006646 | ANGLE, CONTROL CABLE MOUNT | 1 | Call for price | — |
| 13 | 07006647 | ANGLE, CONTROL CABLE MOUNT | 1 | Call for price | — |
| 14 | 07006648 | ANGLE, CONTROL CABLE MOUNT | 1 | Call for price | — |
Walvoil Directional Control Valve (09029025)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09029025 | WALVOIL DIRECTIONAL CONTROL VALVE | Call for price | — | ||
| 1 | 0300044 | ADAPTER, 6MJ-8MB | 11 | $3.78 | |
| 2 | 0300052 | ELBOW, 8MJ-10MB90 | 2 | $11.32 | |
| 3 | 03006114 | VALVE, 4-SPOOL CONTROL SDM-100 | 1 | Call for price | — |
| 4 | 03006115 | VALVE, 5-SPOOL CONTROL SDM-100 | 1 | Call for price | — |
| 5 | 0301388 | ELBOW, 8MJ-8MB90 | 2 | $13.32 | |
| 6 | 0301470 | FITTING, 90ELB 6MJ-8MB90 | 2 | $7.68 | |
| 7 | 0301522 | ADAPTER, 6MJ-6MB | 5 | $3.78 | |
| 8 | 0301730 | VALVE, DOUBLE HOLDING | 1 | $565.26 | |
| 9 | 0301995 | FITTING, ADAPTER STR | 2 | $5.67 | |
| 10 | 0302052 | TEE, 8MJ-8FJX-8MJ RUN | 2 | $15.14 | |
| 11 | 0302085 | FITTING, 90 DEG ADPTR | 2 | Call for price | — |
| 12 | 0302508 | ELBOW, 8MJ-8MB90LL | 2 | $13.84 | |
| 13 | 0303017 | FITTING, CONNECTOR | 5 | $5.67 | |
| 14 | 03039078 | ORIFICE, 6MJ-6MBR-0.040" | 1 | Call for price | — |
| 15 | 0400078 | SCREW, 1/4-20X2 HHC GR5 | 2 | $5.84 | |
| 16 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 2 | $5.84 | |
| 17 | 0400130 | SCREW, 3/8-16X3-1/2 HHC GR5 | 6 | $5.84 | |
| 18 | 0400367 | NUT, 1/4-20 LOK | 2 | $5.84 | |
| 19 | 0400382 | NUT, 5/16-18 LOK | 2 | $5.84 | |
| 20 | 0400392 | NUT, 3/8-16 LOK | 6 | $5.84 | |
| 21 | 0400451 | WASHER, 1/4 | 2 | $5.84 | |
| 22 | 0719122 | PLATE - VALVE MTG | 1 | $13.26 | |
| 23 | 0726586 | PLATE - VALVE MOUNTING | 1 | Call for price | — |
Kit - Valve Cover (0907140)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0907140 | KIT - VALVE COVER 9055 | Call for price | — | ||
| 1 | 0400121 | SCREW, 3/8-16X3/4 HHC GR5 | 4 | $5.84 | |
| 2 | 0400132 | SCREW, 3/8-16X1-1/2 HHC GR5 | 4 | $5.84 | |
| 3 | 0400392 | NUT, 3/8-16 LOK | 4 | $5.84 | |
| 4 | 0400482 | LKWASHER, 3/8 | 4 | $5.84 | |
| 5 | 0717066 | COVER - VALVE | 1 | $127.45 | |
| 6 | 0807181 | COVER, SUPPORT WELDMENT | 4 | $44.62 |
Control Assembly - 9 Handle (0907288)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0907288 | CONTROL ASSEMBLY, 9 HANDLES | $4,104.61 | |||
| 1 | 0302457 | CABLE, CONTROL 104 | 3 | $169.59 | |
| 2 | 0302726 | GREASE FITTING, 1/4-28 45 | 9 | $3.78 | |
| 3 | 0303427 | CABLE, CONTROL 114" | 6 | $169.59 | |
| 4 | 0400107 | SCREW, 5/16-18X2-1/2 HHC GR5 | 4 | $5.84 | |
| 5 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 4 | $5.84 | |
| 6 | 0400382 | NUT, 5/16-18 LOK | 8 | $5.84 | |
| 7 | 0400393 | NUT, 3/8-16 JAM | 9 | $5.84 | |
| 8 | 0400463 | WASHER, 5/16 | 12 | $5.84 | |
| 9 | 0400512 | WASHER, 3/4 | 2 | Call for price | — |
| 10 | 0400527 | PIN, 5/16X1X5/8 CLEVIS | 9 | $8.01 | |
| 11 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 12 | 0717198 | PIN - CONTROL HANDLE (9) | 1 | $42.49 | |
| 13 | 0723378 | PLATE-PIN SUPPORT | 2 | $18.24 | |
| 14 | 08000748 | CONTROL FRAME 9 HANDLE | 1 | $766.50 | |
| 15 | 0810644 | CLEVIS WELD'T | 9 | $9.85 | |
| 16 | 0907441 | CONTROL HANDLE ASSY - SHORT | 9 | $93.00 | |
| 17 | FC41 | FITTING-90DEG BLKHD ELB W/ NUT | 2 | $15.67 |
Control Handle Assembly - Short (0907441)
Control Assembly - 6 Handle (0907289)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0907289 | RIGHT CONTROL ASSEMBLY - 6 HANDLE | $2,971.52 | |||
| 1 | 0302457 | CABLE, CONTROL 104 | 2 | $169.59 | |
| 2 | 0302726 | GREASE FITTING, 1/4-28 45 | 6 | $3.78 | |
| 3 | 0303427 | CABLE, CONTROL 114" | 4 | $169.59 | |
| 4 | 0307166 | PLUG 7/8 | 2 | $2.04 | |
| 5 | 0400107 | SCREW, 5/16-18X2-1/2 HHC GR5 | 4 | $5.84 | |
| 6 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 2 | $5.84 | |
| 7 | 0400382 | NUT, 5/16-18 LOK | 6 | $5.84 | |
| 8 | 0400393 | NUT, 3/8-16 JAM | 6 | $5.84 | |
| 9 | 0400463 | WASHER, 5/16 | 8 | $5.84 | |
| 10 | 0400512 | WASHER, 3/4 | 2 | Call for price | — |
| 11 | 0400527 | PIN, 5/16X1X5/8 CLEVIS | 6 | $8.01 | |
| 12 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 13 | 0717203 | PIN - CONTROL HANDLE (6) | 1 | $42.49 | |
| 14 | 0717206 | TUBE - 1.25 OD SPACER | 1 | $16.87 | |
| 15 | 0723378 | PLATE-PIN SUPPORT | 1 | $18.24 | |
| 16 | 08000847 | CONTROL FRAME 6, 7, 8 HANDLE | 1 | $732.13 | |
| 17 | 0810644 | CLEVIS WELD'T | 6 | $9.85 | |
| 18 | 0907441 | CONTROL HANDLE ASSY - SHORT | 6 | $93.00 |
Kit - Reservoir Assembly (0907802)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0907802 | RESERVOIR KIT - 5130-9055 | $4,480.78 | |||
| 1 | 0300287 | FITTING, PIPE BUSHING, 1.25x1 | 2 | Call for price | — |
| 2 | 0300364 | CLAMP-HOSE, 0.875"-2.75" 50"LBS | 2 | $7.07 | |
| 3 | 0301350 | PIPE, 1-1/2 CLOSE NIPPLE | 2 | Call for price | — |
| 4 | 0301894 | SPIN-ON FLTR ASSY | 2 | $278.98 | |
| 5 | 0302227 | CENTER BONDED MOUNT | 4 | $24.66 | |
| 6 | 0302228 | SPECIAL WASHER (LORD) | 4 | $21.89 | |
| 7 | 0302570 | SIGHT GAUGE 3/4 NPT (SVM-12) | 2 | $15.75 | |
| 8 | 0302756 | SUCTION HOSE, 1-1/4IDx100 100R4Priced per foot | 1 | $21.51 | |
| 9 | 0303155 | PIPE PLUG 3/4 NPT MAGNETIC | 2 | $11.66 | |
| 10 | 0303338 | FITTING, ELBOW | 2 | $26.69 | |
| 11 | 0305006 | FILLER CAP (GO205, FB194) | 2 | $63.82 | |
| 12 | 0307344 | SUCTION STRAINER | 2 | $133.13 | |
| 13 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 8 | $5.84 | |
| 14 | 0400149 | SCREW, 3/8-16X5/8 HHC GR5 | 24 | $4.01 | |
| 15 | 0400150 | SCREW, 3/8-16X2-1/2 HHC GR5 | 4 | $5.84 | |
| 16 | 0400392 | NUT, 3/8-16 LOK | 12 | $5.84 | |
| 17 | 0400480 | WASHER, 3/8 | 24 | $4.01 | |
| 18 | 0402011 | SCREW, 10-32X5/8 PRH SS | 12 | Call for price | — |
| 19 | 0706114 | GSKT, CLEANOUT & FILLER COVER | 2 | $42.55 | |
| 20 | 0802747 | PIPE-FILLER WLMT | 2 | Call for price | — |
| 21 | 0803193 | SUPPORT-RESERVOIR WLDMT. | 2 | Call for price | — |
| 22 | 0806653 | RESERVOIR-LEFT WELDMENT | 1 | $1,901.37 | |
| 23 | 0806654 | RESERVOIR-RIGHT WELDMENT | 1 | $1,901.35 |
Kit - D-Ring Parts (0911957)
2-Stage Boom Assembly (09028965)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09028965 | 5130 2-STAGE BOOM | Call for price | — | ||
| 1 | 0300041 | CONNECTOR, 8MJ-8MB | 4 | $5.67 | |
| 2 | 0300113 | GREASE FITTING, 1/4-28 STR | 10 | $5.84 | |
| 3 | 0301620 | ELBOW, 6MJ-6MB90 | 2 | $5.76 | |
| 4 | 0301895 | GREASE FITTING, 1/8 STR PTF | 1 | $5.84 | |
| 5 | 03023209 | BOOM SLIDE PAD | 2 | Call for price | — |
| 6 | 03024213 | CYL, HYD 7.50 X 6.00 - 19.00 | 1 | $2,528.26 | |
| 7 | 03025134 | WINCH DP 2-SPD 25K NARROW DRUM | 2 | $18,867.56 | |
| 8 | 0302514 | ADAPTER 8MJ-6MJ | 12 | $5.67 | |
| 9 | 0302546 | CLAMPING UNIT C-PH-10-2 | 3 | $15.67 | |
| 10 | 0302550 | C-SB-10-12 3/4 SPLIT | 6 | $9.85 | |
| 11 | 0302551 | C-SN-10 SOCKET-HEAD | 3 | $11.66 | |
| 12 | 0302624 | HYD TUBING | 6 | $153.17 | |
| 13 | 03035696 | WEAR PAD, 7.50L X 3.13W X 1/2T | 2 | Call for price | — |
| 14 | 0311460 | 1/4" GREASE TUBINGPriced per foot | 1 | $3.86 | |
| 15 | 0311575 | 1/4x1/4 PTC SWIVEL MALE ELBOW | 2 | $14.01 | |
| 16 | 0312312 | STAUFF DOUBLE TUBE CLAMP 1/2 | 9 | Call for price | — |
| 17 | 0400059 | SCREW, 1/4-20X5/8 HHC GR5 | 2 | $5.84 | |
| 18 | 0400118 | SCREW, 5/16-18X3/4 HHC GR5 | 5 | $5.84 | |
| 19 | 0400121 | SCREW, 3/8-16X3/4 HHC GR5 | 6 | $5.84 | |
| 20 | 0400135 | SCREW, 3/8-16X4-1/2 HHC GR5 | 2 | Call for price | — |
| 21 | 0400141 | SCREW, 3/8-16X7/8 HHC GR5 | 4 | $5.84 | |
| 22 | 0400220 | SCREW, 1/2-13X5-1/2 HHC GR5 | 2 | $8.01 | |
| 23 | 0400262 | SCREW, 5/8-11X2-1/2 HHC GR8 | 32 | $5.84 | |
| 24 | 0400274 | SCREW, 5/8-11X2 HHC GR8 | 4 | $5.84 | |
| 25 | 0400392 | NUT, 3/8-16 LOK | 2 | $5.84 | |
| 26 | 0400408 | NUT, 1/2-13 LOK | 2 | $2.82 | |
| 27 | 0400426 | NUT, 5/8-11 LOK GR8 | 36 | $8.01 | |
| 28 | 0400452 | LKWASHER, 1/4 | 2 | $5.84 | |
| 29 | 0400464 | LKWASHER, 5/16 | 2 | $1.70 | |
| 30 | 0400482 | LKWASHER, 3/8 | 10 | $5.84 | |
| 31 | 0400503 | WASHER, 5/8 GR8 | 40 | $5.84 | |
| 32 | 0400508 | LKWASHER, 5/8 | 4 | $5.84 | |
| 33 | 07018381 | PIN, BOOM TIE BACK | 2 | Call for price | — |
| 34 | 07030709 | PLATE, KEEPER | 2 | Call for price | — |
| 35 | 07030711 | PLATE, KEEPER | 2 | Call for price | — |
| 36 | 07030725 | BOOM, PIN | 2 | Call for price | — |
| 37 | 07033787 | PIN, TILT CYL TOP | 1 | Call for price | — |
| 38 | 07033869 | PIN, TOWER PIVOT | 2 | Call for price | — |
| 39 | 07035756 | PLATE, PAD CAGE 5X30 | 1 | Call for price | — |
| 40 | 0705104 | PLATE, WINCH CABLE SPPT | 1 | $96.61 | |
| 41 | 0711164 | BLOCK, SHEAR | 8 | $5.67 | |
| 42 | 0712380 | D-RING | 2 | $120.33 | |
| 43 | 0715947 | ANGLE, WINCH MTG | 2 | Call for price | — |
| 44 | 0715948 | ANGLE, WINCH MTG | 2 | Call for price | — |
| 45 | 0715949 | ANGLE, WINCH MTG | 2 | Call for price | — |
| 46 | 0715950 | ANGLE, WINCH MTG | 2 | Call for price | — |
| 47 | 0715953 | PIN, BOOM PIVOT | 1 | $661.93 | |
| 48 | 08011651 | BOOM, INNER NYCS30 | 1 | Call for price | — |
| 49 | 08020041 | BOOM, OUTER 5X30 | 1 | Call for price | — |
| 50 | 0906530 | SWIVEL - BOOM ASSEMBLY | 2 | $2,036.81 | |
| 51 | 0906987 | KIT - EXT. CYLINDER (5035) | 1 | Call for price | — |
| 52 | 0908028 | SLIDE PAD ASSY (9055 3 STAGE) | 2 | $82.47 | |
| 53 | 0908431 | KIT - "D" RING BOOM | 1 | $125.80 | |
| 54 | 3012-793001 | PLATE - LUBE MTG. | 1 | $19.68 | |
| 55 | 9010024 | FITT, BRASS CONN 1/4T-1/8MP | 1 | $11.66 | |
| 56 | 9012552 | BULKHEAD ADAPTER 1/8M-1/8F NPT | 1 | $40.12 | |
| 57 | 9012584 | ELBOW-1/4NPT X 3/8TUBE 9 | 1 | $21.51 | |
| 58 | 9044434 | 3/8-16X1 NC FLAT SOCKET HD CAP | 2 | $5.84 | |
| 59 | 9044436 | 5/8-11X1 1/2 HHCS GR5 PL | 4 | Call for price | — |
| 60 | 915030004 | WEAR PAD (UPPER) | 1 | $102.10 | |
| 61 | 915040001 | PAD RETAINING PLATE | 1 | $47.68 | |
| 62 | HD0106 | SPRING PIN 1/4x1.75" LONG-ZINC | 2 | $1.90 |
Boom Swivel Assembly (0906530)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0906530 | SWIVEL BOOM ASSEMBLY | $2,036.81 | |||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 1 | $5.84 | |
| 2 | 0300626 | SHEAVE, 8" 58SHVBBAY 1.5 | 1 | $206.05 | |
| 3 | 0400133 | SCREW, 3/8-16X3 HHC GR5 | 1 | $5.84 | |
| 4 | 0400150 | SCREW, 3/8-16X2-1/2 HHC GR5 | 2 | $5.84 | |
| 5 | 0400392 | NUT, 3/8-16 LOK | 3 | $5.84 | |
| 6 | 0400480 | WASHER, 3/8 | 4 | $4.01 | |
| 7 | 0400554 | PIN, 3/8X1 SPR | 3 | $9.74 | |
| 8 | 0700801 | GUIDE, BTM CABLE | 2 | $23.53 | |
| 9 | 0716134 | SHEAVE SHAFT | 1 | $69.32 | |
| 10 | 0800286 | GUIDE-CABLE | 1 | $288.12 | |
| 11 | 0804448 | BOOM END SWIVEL WLDT-FIII/4024 | 1 | $1,163.37 |
Kit - Extend Cylinder (0906987)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0906987 | KIT - EXTEND CYLINDER 5035 | Call for price | — | ||
| 1 | 0301522 | ADAPTER, 6MJ-6MB | 2 | $3.78 | |
| 2 | 0301959 | SNAP RING-INTERNAL 1-1/2 | 2 | $5.84 | |
| 3 | 0307082 | CYLINDER, BOOM EXT.(W/SUN VALV | 1 | $6,777.80 | |
| 4 | 0400132 | SCREW, 3/8-16X1-1/2 HHC GR5 | 2 | $5.84 | |
| 5 | 0400392 | NUT, 3/8-16 LOK | 2 | $5.84 | |
| 6 | 0400482 | LKWASHER, 3/8 | 2 | $5.84 | |
| 7 | 0707580 | PIN, SPADE CYL ROD CH-50 | 1 | $83.86 | |
| 8 | 9056150 | RETAINING RING - 1 1/2 | 2 | $8.01 | |
| 9 | 915040400 | SPIDER CLAMP WLDM'T, TOP | 1 | $333.70 | |
| 10 | 915040501 | CLAMP PLATE | 2 | $12.43 | |
| 11 | 916350001 | PIN, BOOM EXT CYL 1.5 X 9 5/8 | 1 | $90.22 |
Slide Pad Assembly - 3 Stage (0908028)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908028 | SLIDE PAD ASSEMBLY 9055 3 STAGE | $82.47 | |||
| 1 | 0306825 | SLIDE PAD - 3/4 X 1 X 4 | 1 | $19.68 | |
| 2 | 0400066 | SCREW, 1/4-20X3/4 HHC GR5 | 1 | $5.84 | |
| 3 | 0400126 | SCREW, 3/8-16X1 HHC GR5 | 5 | $5.84 | |
| 4 | 0400451 | WASHER, 1/4 | 1 | $5.84 | |
| 5 | 0400452 | LKWASHER, 1/4 | 1 | $5.84 | |
| 6 | 0400482 | LKWASHER, 3/8 | 5 | $5.84 | |
| 7 | 0717262 | SHIM - SLIDE PAD | 2 | $8.01 | |
| 8 | 0717746 | PLATE, SLIDE PAD SUPPORT | 1 | $38.21 |
Kit - Boom D-Ring (0908431)
Stinger & Tower (09028966)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09028966 | STINGER AND TOWER - 5130 | Call for price | — | ||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 1 | $5.84 | |
| 2 | 0301620 | ELBOW, 6MJ-6MB90 | 2 | $5.76 | |
| 3 | 0301642 | SNAP RING, 1-1/4 DIA | 2 | $5.84 | |
| 4 | 03024252 | CYL, HYD 3.50 X 9.13 - 17.00 | 1 | Call for price | — |
| 5 | 03027717 | BUSHING, TOWER PIVOT | 2 | Call for price | — |
| 6 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 1 | $5.84 | |
| 7 | 0400128 | SCREW, 3/8-16X1-1/4 FHS GR8 BO | 2 | $8.01 | |
| 8 | 0400219 | SCREW, 1/2-13X4-1/2 HHC GR5 | 2 | $8.01 | |
| 9 | 0400408 | NUT, 1/2-13 LOK | 2 | $2.82 | |
| 10 | 0400482 | LKWASHER, 3/8 | 1 | $5.84 | |
| 11 | 07030745 | PIN, TILT CYL DTU-7035 | 1 | Call for price | — |
| 12 | 07033783 | PIN KEEPER, INTEGR FOLD | 1 | Call for price | — |
| 13 | 07033784 | PIN, STINGER PIVOT 5130/DTU | 1 | Call for price | — |
| 14 | 07033785 | PIN, FOLD CYL INTEGR | 1 | Call for price | — |
| 15 | 07033788 | PIN KEEPER, INTEGRATED UL | 1 | Call for price | — |
| 16 | 07033792 | PIN, LOWER FOLD | 1 | Call for price | — |
| 17 | 08021508 | TOWER, 5X30/DTU | 1 | Call for price | — |
| 18 | 09024283 | STINGER, 5130 | 1 | Call for price | — |
| 19 | 0911762 | HOOK RETAINER ASSY, W/O LOWRDR | 1 | $1,601.00 |
Stinger Assembly (09024283)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09024283 | STINGER - 5130 | Call for price | — | ||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 6 | $5.84 | |
| 2 | 0301620 | ELBOW, 6MJ-6MB90 | 2 | $5.76 | |
| 3 | 03024251 | CYL, HYD 3.00 X 59.06 - 43.50 | 1 | Call for price | — |
| 4 | 0302538 | BUSHING - U/L | 2 | $191.48 | |
| 5 | 0303490 | PAD-WEAR 1/2" X 1" X 4" | 2 | $50.14 | |
| 6 | 0400139 | SET SCREW, 3/8-16X1-1/2 SOC | 2 | $5.84 | |
| 7 | 0400155 | SCREW, 3/8-16X3/4 FHS | 6 | $3.72 | |
| 8 | 0400204 | SET SCREW, 1/2-13X3/4 SOC | 4 | $5.84 | |
| 9 | 0400228 | SCREW, 3/8-24X5/8 BSC | 12 | $9.85 | |
| 10 | 0400392 | NUT, 3/8-16 LOK | 2 | $5.84 | |
| 11 | 0400594 | SCREW, 1/4-20X5/8 FHS | 8 | $5.84 | |
| 12 | 04009289 | SCREW, 3/8-24X1-1/4 FHS ZP | 4 | Call for price | — |
| 13 | 0400990 | SET SCREW, 1/2-13X1/2 SOC | 4 | $9.85 | |
| 14 | 0703277 | PAD, SLIDER | 2 | $11.66 | |
| 15 | 07034012 | PIN, UL EXT CYL 5X30 | 1 | Call for price | — |
| 16 | 07034013 | PIN, UL EXT CYL 5X30 | 1 | Call for price | — |
| 17 | 0706995 | BLOCK, STOP 2nd STAGE | 4 | $29.33 | |
| 18 | 0724684P | U/L HEEL POLISHED-4024 | 1 | Call for price | — |
| 19 | 08021712 | STINGER, 1ST STG 5X30 | 1 | Call for price | — |
| 20 | 08021713 | STINGER, 2ND STG 5X30 | 1 | Call for price | — |
| 21 | 09025620 | INNER STINGER ASSY, 5130 LOW | 1 | Call for price | — |
| 22 | 930150003 | TOP PADS | 4 | $28.28 | |
| 23 | 930150004 | BOTTOM PADS | 4 | $18.50 | |
| 24 | BK2003 | WEAR PAD - BOOM | 2 | $21.59 |
Inner Stinger Assembly - Lowrider (09025620)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09025620 | INNER STINGER ASSEMBLY - 5130 LOW | Call for price | — | ||
| 1 | 07035000 | BUSHING, PIVOT- INNER STINGER | 2 | Call for price | — |
| 2 | 07035528 | TUBE, BUSHING SPACER | 1 | Call for price | — |
| 3 | 08022925 | INNER STINGER, LOW C'BAR -5130 | 1 | Call for price | — |
Hook Retainer Assembly (0911762)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0911762 | HOOK RETAINER ASSEMBLY | $1,601.00 | |||
| 1 | 0311909 | SPRING, CABLE RETAINER, LH | 1 | $58.65 | |
| 2 | 0311910 | SPRING, CABLE RETAINER, RH | 1 | $58.65 | |
| 3 | 0312323 | RUBBER BUMPER | 2 | $86.75 | |
| 4 | 0400122 | SCREW, 3/8-16X1-1/4 HHC GR5 | 4 | $5.84 | |
| 5 | 0400149 | SCREW, 3/8-16X5/8 HHC GR5 | 1 | $4.01 | |
| 6 | 0400392 | NUT, 3/8-16 LOK | 2 | $5.84 | |
| 7 | 0400480 | WASHER, 3/8 | 5 | $4.01 | |
| 8 | 0400482 | LKWASHER, 3/8 | 4 | $5.84 | |
| 9 | 0410400 | GREASE FITTING, 1/4-28 STR SS | 2 | Call for price | — |
| 10 | 0802459 | PIN-FOLD CYL. WLDMT | 1 | $145.89 | |
| 11 | 0810272 | HOOK RETAINER WLDMT | 2 | Call for price | — |
| 12 | 0810307 | HOOK RETAINER FRAME WLDMT | 1 | $532.87 |
Standard Jack Legs Assembly (09028967)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09028964 | 5130 STANDARD JACKS | Call for price | — | ||
| 1 | 0301522 | ADAPTER, 6MJ-6MB | 4 | $3.78 | |
| 2 | 0301861 | QUICK PIN, LINCH -B7932 PL 7/16 | 2 | $3.78 | |
| 3 | 03027153 | CYL, HYD 3.50 X 23.50 - 34.50 | 2 | Call for price | — |
| 4 | 03028590 | WEAR PAD, INNER JACK F/R 5X30 | 4 | Call for price | — |
| 5 | 03028591 | WEAR PAD, INNER JACK L/R 5X30 | 4 | Call for price | — |
| 6 | 0400139 | SET SCREW, 3/8-16X1-1/2 SOC | 4 | $5.84 | |
| 7 | 04002347 | 1/2-13 X 3/4 HHCS GR8 ZP | 16 | Call for price | — |
| 8 | 0400392 | NUT, 3/8-16 LOK | 4 | $5.84 | |
| 9 | 0400416 | NUT, 1/2-13 LOK GR8 | 8 | $5.84 | |
| 10 | 0400491 | LKWASHER, 1/2 | 16 | $5.84 | |
| 11 | 07034814 | PIN, JACK TOP 5X30 | 2 | Call for price | — |
| 12 | 07034815 | PIN, JACK BTM 5X30 | 2 | Call for price | — |
| 13 | 0705485 | BLADE, DIG PAD | 2 | $116.73 | |
| 14 | 0712380 | D-RING | 2 | $120.33 | |
| 15 | 0715694 | PIN, SPADE PIVOT | 2 | $126.77 | |
| 16 | 08022325 | JACK LEG, INNER 5X30 | 1 | Call for price | — |
| 17 | 08022326 | JACK LEG, INNER 5X30 | 1 | Call for price | — |
| 18 | 0804334 | PIN - MULTI-POSITION | 2 | $255.28 | |
| 19 | 0807630 | LOWER SPADE PAD WLMT | 2 | $1,108.67 | |
| 20 | 9041404 | SCREW, 1/2-13X1-3/4 HHC GR8 | 8 | $5.84 | |
| 21 | 9046354 | PIN, 1/4X2-1/2 SPR | 4 | $5.84 | |
| 22 | BA0259 | PIN - "D" RING | 2 | $23.53 | |
| 23 | HD0106 | SPRING PIN 1/4x1.75" LONG-ZINC | 2 | $1.90 |
Extendable Outriggers Assembly (09028968)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09028968 | 5130 EXTENDABLE OUTRIGGERS | Call for price | — | ||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 2 | $5.84 | |
| 2 | 0301522 | ADAPTER, 6MJ-6MB | 8 | $3.78 | |
| 3 | 0302546 | CLAMPING UNIT C-PH-10-2 | 2 | $15.67 | |
| 4 | 0302550 | C-SB-10-12 3/4 SPLIT | 4 | $9.85 | |
| 5 | 0302551 | C-SN-10 SOCKET-HEAD | 2 | $11.66 | |
| 6 | 03027153 | CYL, HYD 3.50 X 23.50 - 34.50 | 2 | Call for price | — |
| 7 | 03028590 | WEAR PAD, INNER JACK F/R 5X30 | 4 | Call for price | — |
| 8 | 03028591 | WEAR PAD, INNER JACK L/R 5X30 | 4 | Call for price | — |
| 9 | 0306660 | CYLINDER-W/L EXTEND EXPRESS/2 | 2 | $1,230.82 | |
| 10 | 0310180 | SHACKLE, 1 SCREWPIN - CROSBY | 2 | $80.98 | |
| 11 | 0400059 | SCREW, 1/4-20X5/8 HHC GR5 | 8 | $5.84 | |
| 12 | 0400066 | SCREW, 1/4-20X3/4 HHC GR5 | 2 | $5.84 | |
| 13 | 0400118 | SCREW, 5/16-18X3/4 HHC GR5 | 2 | $5.84 | |
| 14 | 0400126 | SCREW, 3/8-16X1 HHC GR5 | 4 | $5.84 | |
| 15 | 0400139 | SET SCREW, 3/8-16X1-1/2 SOC | 4 | $5.84 | |
| 16 | 0400221 | SET SCREW, 3/8-16X1 SOC | 4 | $5.84 | |
| 17 | 04002347 | 1/2-13 X 3/4 HHCS GR8 ZP | 16 | Call for price | — |
| 18 | 0400392 | NUT, 3/8-16 LOK | 4 | $5.84 | |
| 19 | 0400398 | NUT, 3/8-16 LOK JAM | 4 | $5.84 | |
| 20 | 0400452 | LKWASHER, 1/4 | 10 | $5.84 | |
| 21 | 0400482 | LKWASHER, 3/8 | 4 | $5.84 | |
| 22 | 0400491 | LKWASHER, 1/2 | 16 | $5.84 | |
| 23 | 07034814 | PIN, JACK TOP 5X30 | 2 | Call for price | — |
| 24 | 07034815 | PIN, JACK BTM 5X30 | 2 | Call for price | — |
| 25 | 0723889 | PLATE-HOSE RETAINING | 4 | $24.73 | |
| 26 | 0725307 | PIN - EXTEND CYL (ROD END) | 2 | Call for price | — |
| 27 | 0725308 | PIN - EXTEND CYLINDER (ROD END) | 2 | Call for price | — |
| 28 | 0725309 | COVER - END REAR HORIZ O/R | 2 | Call for price | — |
| 29 | 08022307 | EXT OR, LH 5X30 | 1 | Call for price | — |
| 30 | 08022308 | EXT OR, RH 5X30 | 1 | Call for price | — |
| 31 | 0807635 | PAD REAR OUTRIGGER PAD | 2 | $1,356.67 | |
| 32 | 0810203 | OUTRIGGER INNER WLMT | 2 | Call for price | — |
| 33 | 0906963 | PIN - REAR OUTRIGGER PAD ASSY | 2 | $328.23 | |
| 34 | 0911123 | PIN ASSY - SPADE LOCK | 2 | $103.84 | |
| 35 | 0911124 | PIN ASSY - SPADE PIVOT | 2 | $375.25 | |
| 36 | 0911167 | SPADE ASSY - REAR OUTRIGGER | 2 | $1,258.26 | |
| 37 | 26837356 | PLATE - SPACER | 2 | Call for price | — |
| 38 | GH246 | SPLIT RUBBER GROMMET | 4 | Call for price | — |
Pin Assembly - Rear Outrigger Pad (0906963)
Pin Assembly - Spade Lock (0911123)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0911123 | PIN ASSEMBLY - SPADE LOCK | $103.84 | |||
| 1 | 0302474 | PIN, LINCH 3/16 | 1 | $3.78 | |
| 2 | 0312703 | CABLE, PIN RETAINER (LONG) | 1 | $39.68 | |
| 3 | 0400564 | PIN, 3/8X1-3/4 SPR | 1 | $5.84 | |
| 4 | 0400568 | PIN, 3/8X3 SPR | 1 | $8.01 | |
| 5 | 0402020 | SCREW, 1/4-20X3/4 HHC SS | 1 | $5.84 | |
| 6 | 0724633 | PIN LOCK SPADE | 1 | Call for price | — |
Pin Assembly - Spade Pivot (0911124)
Spade Assembly - Rear Outriggers (0911167)
Low Crossbar Assembly - Machined (09030122)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 09030122 | 5X5 LOW CROSSBAR ASSEMBLY | Call for price | — | ||
| 1 | 0300113 | GREASE FITTING, 1/4-28 STR | 4 | $5.84 | |
| 2 | 0400480 | WASHER, 3/8 | 3 | $4.01 | |
| 3 | 04008108 | SCREW 3/8-16 X 1/2 LOW SHCS | 2 | Call for price | — |
| 4 | 07035048 | PLATE, PIN KEEPER | 1 | Call for price | — |
| 5 | 07035049 | PIN, C'BAR PIVOT - LOW 5X5 | 1 | Call for price | — |
| 6 | 07035568 | THRUST WASHER, LOW 5X5 C'BAR | 2 | Call for price | — |
| 7 | 08026952 | C'BAR, 5x5 LOW PROFILE MACHINE | 1 | Call for price | — |
| 8 | 9012944 | 1 NPT SOC HD PIPE PLUG * | 1 | Call for price | — |
| 9 | 9047057 | DIE SPRING- MHP-42(DANLY) | 1 | $25.55 | |
| 10 | 9052013 | 1" BALL CHROME | 1 | $15.67 |
Lower Illuminated Legend Placement - 9 Handle (0908813)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908813 | LT LOWER ILLUMINATED LEGEND ASSEMBLY | $623.60 | |||
| 1 | 04000381 | SS BHSCS 1/4-20 X 1 | 4 | Call for price | — |
| 2 | 0400454 | WASHER, 1/4 SS | 4 | $1.79 | |
| 3 | 0402111 | LKWASHER, 1/4 SS | 4 | $5.84 | |
| 4 | 0727009 | APANEL, CONTROL 9 HANDLE | 1 | $187.67 | |
| 5 | 0908784 | ILLUMINATED LEGEND ASSY 24.75 | 1 | Call for price | — |
Illuminated Legend Assembly - 24.75” (0908784)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908784 | ILLUMINATED LEGEND ASSEMBLY | Call for price | — | ||
| 1 | 0307998 | LIGHT, LEGEND RED CONTROL STA | 7 | Call for price | — |
| 2 | 0310002 | PLASTIC, DUST COVER-CLEAR 24.7 | 1 | Call for price | — |
| 3 | 0310003 | PLASTIC, COLOR LENS -RED 24.75 | 1 | Call for price | — |
| 4 | 0501584 | LEGEND, PANEL-BOOM/CABLE | 1 | $69.67 | |
| 5 | 0501594 | LEGEND, PANEL-UNDERLIFT | 1 | Call for price | — |
| 6 | 0501595 | LEGEND, PANEL-SPADE | 1 | Call for price | — |
| 7 | 0807056 | CHANNEL, LIGHT&LEGEND WLMT 24.7 | 1 | Call for price | — |
Upper Illuminated Legend Placement - 9 Handle (0908814)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908814 | ILLUMINATED LEGEND ASSEMBLY LT UPPER | $506.91 | |||
| 1 | 04000381 | SS BHSCS 1/4-20 X 1 | 4 | Call for price | — |
| 2 | 0400454 | WASHER, 1/4 SS | 4 | $1.79 | |
| 3 | 0402111 | LKWASHER, 1/4 SS | 4 | $5.84 | |
| 4 | 0727018 | APANEL, CONTROL 9 HANDLE | 1 | $153.20 | |
| 5 | 0908797 | ILLUMINATED LEGEND ASSY 13.75 | 1 | Call for price | — |
Illuminated Legend Assembly - 13.75” (0908797)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908797 | ILLUMINATED LEGEND ASSEMBLY - 13.75 | Call for price | — | ||
| 1 | 0307998 | LIGHT, LEGEND RED CONTROL STA | 4 | Call for price | — |
| 2 | 0310006 | PLASTIC, DUST COVER-CLEAR 13.7 | 1 | $4.77 | |
| 3 | 0310007 | PLASTIC, COLOR LENS -RED 13.75 | 1 | Call for price | — |
| 4 | 0501588 | LEGEND, PANEL-THROTTLE | 1 | $31.37 | |
| 5 | 0501589 | LEGEND, PANEL-CABLE ON/OFF | 1 | $29.42 | |
| 6 | 0501590 | LEGEND, PANEL-CABLE HIGH/LOW | 1 | $29.77 | |
| 7 | 0807058 | CHANNEL, LIGHT&LEGEND WLMT 13.7 | 1 | Call for price | — |
Lower Illuminated Legend Placement - 6 Handle (0908815)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908815 | ILLUMINATED LEGEND ASSEMBLY - LOWER RIGHT | $492.33 | |||
| 1 | 04000381 | SS BHSCS 1/4-20 X 1 | 4 | Call for price | — |
| 2 | 0400454 | WASHER, 1/4 SS | 4 | $1.79 | |
| 3 | 0402111 | LKWASHER, 1/4 SS | 4 | $5.84 | |
| 4 | 0727007 | APANEL, CONTROL 6 HANDLE | 1 | $201.12 | |
| 5 | 0908792 | ILLUMINATED LEGEND ASSY 16.5 | 1 | Call for price | — |
Illuminated Legend Assembly - 16.5” (0908792)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908792 | ILLUMINATED LEGEND ASSEMBLY - 16.5" | Call for price | — | ||
| 1 | 0310004 | PLASTIC, DUST COVER-CLEAR 16.5 | 1 | Call for price | — |
| 2 | 0310005 | PLASTIC, COLOR LENS - RED 16.5 | 1 | Call for price | — |
| 3 | 0501584 | LEGEND, PANEL-BOOM/CABLE | 1 | $69.67 | |
| 4 | 0501595 | LEGEND, PANEL-SPADE | 1 | Call for price | — |
| 5 | 0807057 | CHANNEL, LIGHT&LEGEND WLMT 16.5 | 1 | Call for price | — |
Upper Illuminated Legend Placement - 6 Handle (0908816)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908816 | ILLUMINATED LEGEND ASSEMBLY RIGHT UPPER | $472.28 | |||
| 1 | 04000381 | SS BHSCS 1/4-20 X 1 | 4 | Call for price | — |
| 2 | 0402110 | WASHER, 1/4 SS | 4 | $5.84 | |
| 3 | 0402111 | LKWASHER, 1/4 SS | 4 | $5.84 | |
| 4 | 0719062 | PANEL, SWITCH - 4 | 1 | Call for price | — |
| 5 | 0908798 | ILLUMINATED LEGEND ASSY 11 | 1 | Call for price | — |
Illuminated Legend Assembly - 11” (0908798)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 0908798 | ILLUMINATED LEGEND ASSEMBLY - 11" | Call for price | — | ||
| 1 | 0310008 | PLASTIC, DUST COVER-CLEAR 11 | 1 | $5.89 | |
| 2 | 0310009 | PLASTIC, COLOR LENS - RED 11 | 1 | $6.43 | |
| 3 | 0501589 | LEGEND, PANEL-CABLE ON/OFF | 1 | $29.42 | |
| 4 | 0501590 | LEGEND, PANEL-CABLE HIGH/LOW | 1 | $29.77 | |
| 5 | 0807059 | CHANNEL, LIGHT&LEGENDS WLMT 11 | 1 | Call for price | — |
