Vulcan V-30 Gen 2 (2022 manual)

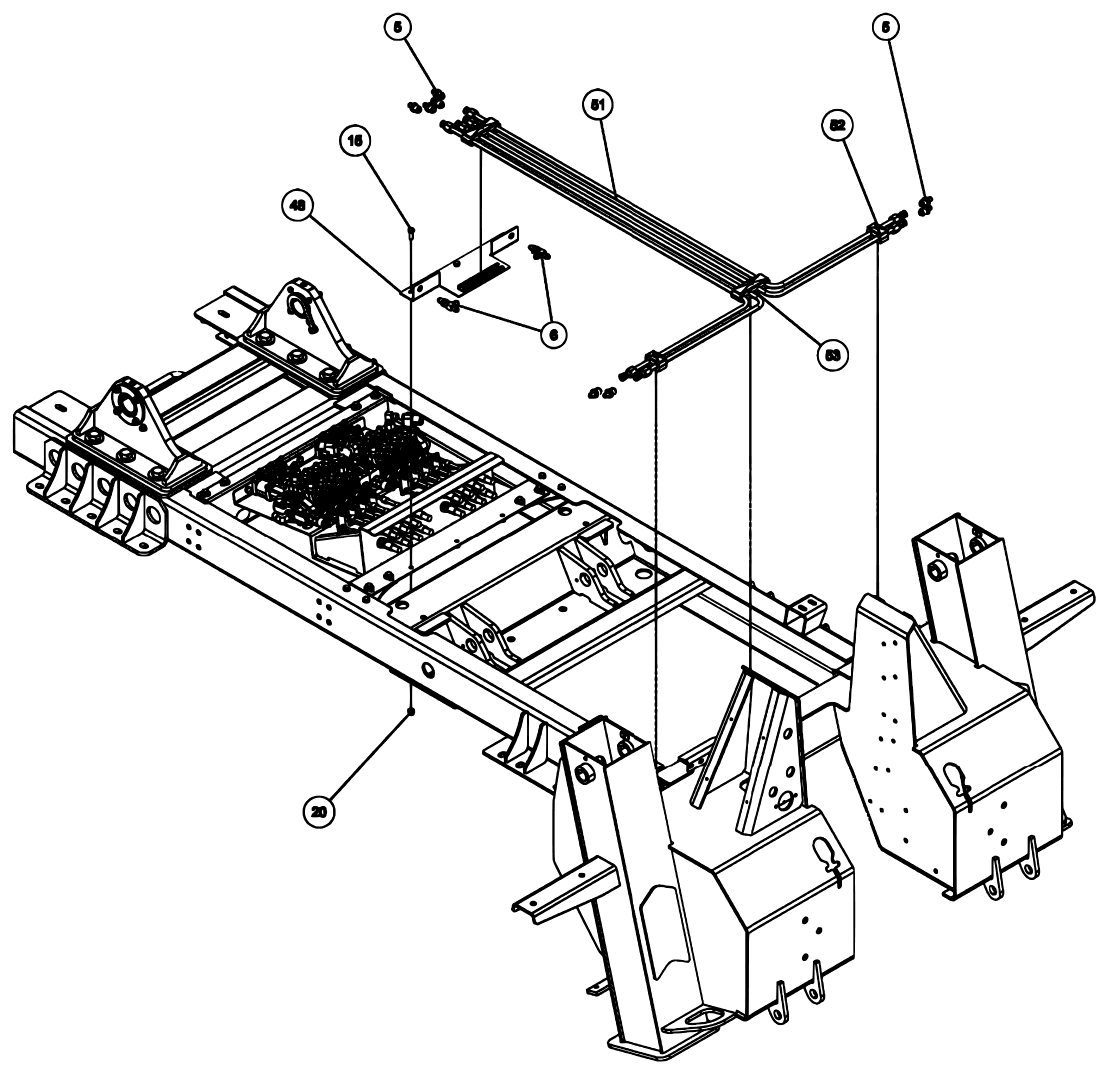

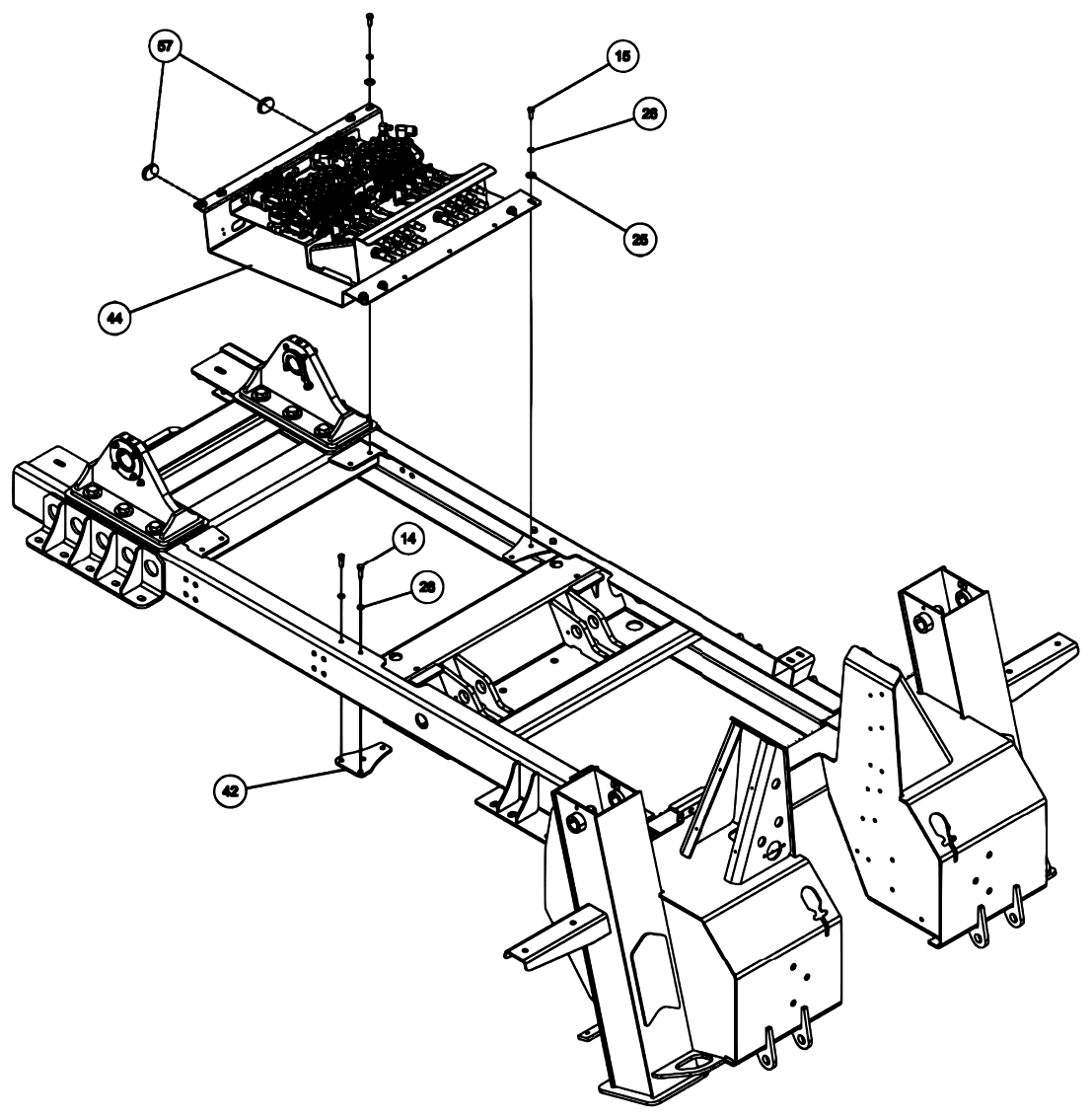

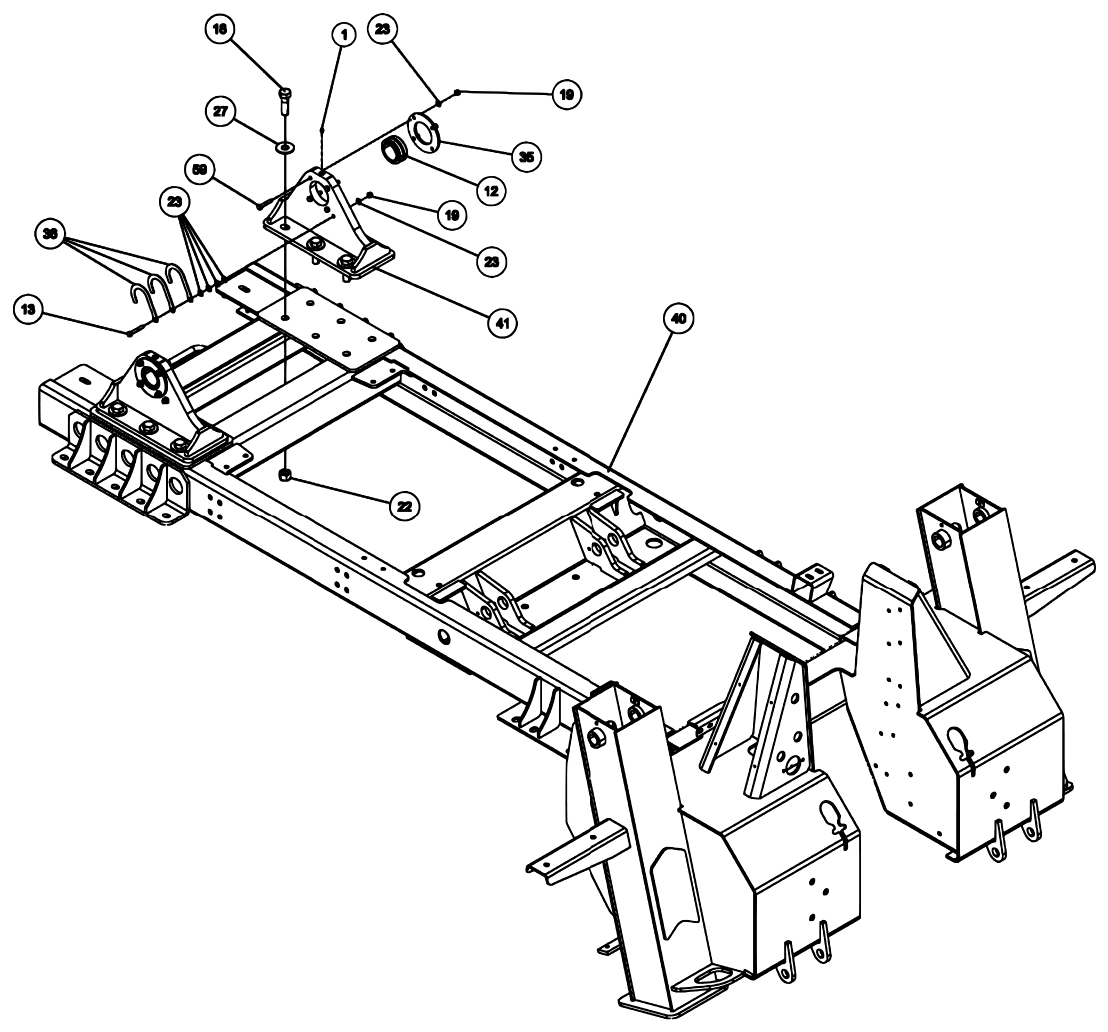

0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 3 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 4 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 5 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 6 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 7 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 8 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 9 of 10)

Vulcan V-30 Gen 2 (2022 manual) 0911729, 3212/V30 Long Tower Subframe Assembly – View 1 of 10 diagram (view 10 of 10)

Show parts list (60 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0301522	ADAPTER, 6MJ-6MB	4	$3.80
3	0301998	HOSE HYD, 24" LG	2	$56.00
4	0302000	HOSE HYD, 24"	2	$39.80
5	0302514	ADAPTER 8MJ-6MJ	8	$5.60
6	0302575	FITTING-BULKHEAD RUN TEE	2	$18.80
7	0302604	HOSE HYD, 44"	1	$47.00
8	0303155	PIPE PLUG 3/4 NPT MAGNETIC	2	$11.60
9	0303948	ELBOW, 12MJ-16MB90	2	$28.00
10	0307383	CHAIN ASSY 5/16 G7 X 12'	2	$64.80
11	0310296	FILTER HEAD ASSY W/ ELEMENT	2	$112.00
12	0312276	BEARING - BOOM PIVOT	2	Call for price	—
13	0400111	SCREW, 5/16-18X2 HHC GR5	2	Call for price	—
14	0400122	SCREW, 3/8-16X1-1/4 HHC GR5	12	$5.80
15	0400126	SCREW, 3/8-16X1 HHC GR5	20	$5.80
16	0400141	SCREW, 3/8-16X7/8 HHC GR5	2	$5.80
17	0400184	SCREW, 1/2-13X2-1/4 HHC GR8	8	$8.00
18	0400288	SCREW, 3/4-10X2-1/2 HHC GR8	12	$9.80
19	0400382	NUT, 5/16-18 LOK	34	$5.80
20	0400392	NUT, 3/8-16 LOK	15	$5.80
21	0400416	NUT, 1/2-13 LOK GR8	16	$5.80
22	0400431	NUT, 3/4-10 LOK GR8	12	$8.00
23	0400463	WASHER, 5/16	18	$5.80
24	0400479	WASHER, 1-1/2X0.125 SHIM	8	$9.80
25	0400480	WASHER, 3/8	26	$4.00
26	0400482	LKWASHER, 3/8	19	$5.80
27	0400489	WASHER, 3/4 SAE GR8	12	$5.80
28	0400497	WASHER, 1/2 GR8	8	$5.80
29	0400633	SCREW, 1/2-13X1-1/2 HHC GR8	8	$5.80
30	0402021	SCREW, 1/4-20X1 HHC SS	8	$5.80
31	0402110	WASHER, 1/4 SS	8	$5.80
32	0402111	LKWASHER, 1/4 SS	8	$5.80
33	0719840	BAR, SPACER - OIL RESERVOIR	4	$36.80
34	0725762	PLATE - RESERVOIR MTG	4	Call for price	—
35	0725768	RETAINING RING PLATE	2	Call for price	—
36	0726045	SPACER - RECOVERY BOOM	6	$24.60
37	08006228	L-ARM TUBE, 3212 RH	1	Call for price	—
38	08006229	L-ARM TUBE, 3212 LH	1	$825.80
39	0810239	HYD TANK WLMT - DUAL V30/3212	2	Call for price	—
40	0810286	SUBFRAME WLMT - 3212/V30	1	Call for price	—
41	0810289	PIVOT BLOCK WLMT	2	Call for price	—
42	0810495	VALVE MTG PLATE WLMT	2	Call for price	—
43	0902842	KIT - "D" RING	1	$260.00
44	0911950	VALVE ASSY - WV 3212/V30	1	Call for price	—
45	3012-791010	LH PANEL - CHAIN BOX 3014-9100	1	Call for price	—
46	3012-791011	RH PANEL - CHAIN BOX 3014-9100	1	Call for price	—
47	3012-801000	PIN WELD'T - LIFT CYL UP.& LOWER	2	$106.60
48	3012-810700	BRACKET WELD'T - BULKHEAD	1	Call for price	—
49	3014-791004	PLATE - COVER	2	$58.00
50	511-4000001	CYL, HYD - BOOM LIFT 26.75" ST	2	$2,472.80
	0304507	Seal kit for 511-4000001 cylinder: SEAL KIT TEXAS 14551		$104.60
51	516-0806700	TUBE ASSY - HYD ON SUBFRAME	4	$158.80
52	566-0820000	2-TUBE CLAMP SET 1/2" STAUFF	2	$16.40
53	566-0840000	4-TUBE CLAMP SET 1/2 STAUFF	2	$48.00
54	806030005	LH BOOM GUIDE PAD - BODY ASSY	2	$86.60
55	806030006	RH BOOM GUIDE PAD - BODY ASSY	2	$72.20
56	810770015	HOSE 29" 4M2T 6FJX90S-6FJX	1	$50.60
57	8603413	DECK PLATE PLUG	2	Call for price	—
58	9018131	BREATHER CAP (LUCAS) 3/4	2	$65.80
59	9041108	5/16 NC X 1 3/4 HHCS PL GR8	8	$5.80
60	9043973	5/16-18X1 1/2 FL.HD.SOC.	24	$5.80

Back to Manual Navigation Menu

0911950, Valve Assembly Walvoil 3212/V30 – View 1 of 5

Vulcan V-30 Gen 2 (2022 manual) 0911950, Valve Assembly Walvoil 3212/V30 – View 1 of 5 diagram (view 3 of 5)

Vulcan V-30 Gen 2 (2022 manual) 0911950, Valve Assembly Walvoil 3212/V30 – View 1 of 5 diagram (view 4 of 5)

Vulcan V-30 Gen 2 (2022 manual) 0911950, Valve Assembly Walvoil 3212/V30 – View 1 of 5 diagram (view 5 of 5)

Show parts list (20 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300041	CONNECTOR, 8MJ-8MB	4	$5.60
2	0300044	FITT, HYD CONN. 6MJ-8MB	10	$3.80
3	0300052	FITTING, ELB 8MJ-10MB 90	2	$11.20
4	0301545	FITTING, ELB 12MJ-12MB 90	1	$18.80
5	0301620	FITTING, HYD. 6MJ - 6MB90	2	$5.80
6	0302085	FITTING, 90 DEG ADPTR	1	Call for price	—
7	0303017	FITTING, CONNECTOR	2	$5.60
8	0312571	VALVE - CONTROL 3212/V30	1	Call for price	—
9	0400126	SCREW, 3/8-16X1 HHC GR5	6	$5.80
10	0400383	NUT, 5/16-24 HEX	32	$5.80
11	0400392	NUT, 3/8-16 LOK	6	$5.80
12	0400463	WASHER, 5/16	4	$5.80
13	0400466	LKWASHER, 5/16 INT	32	$5.80
14	0400480	WASHER, 3/8	9	$4.00
15	0400527	PIN, 5/16X1X5/8 CLEVIS	8	$8.00
16	0400841	SCREW, M8-1.25X20 HHC 10.9	4	$1.00
17	0726608	PANEL - VALVE MTG	1	Call for price	—
18	0801054	CONNECTOR-CONTROL CABLE	8	Call for price	—
19	0810499	VALVE BRKT WLMT	1	Call for price	—
20	9010030	FITT, BRASS ELBOW 1/4T-1/8MPX	12	$13.80

Back to Manual Navigation Menu

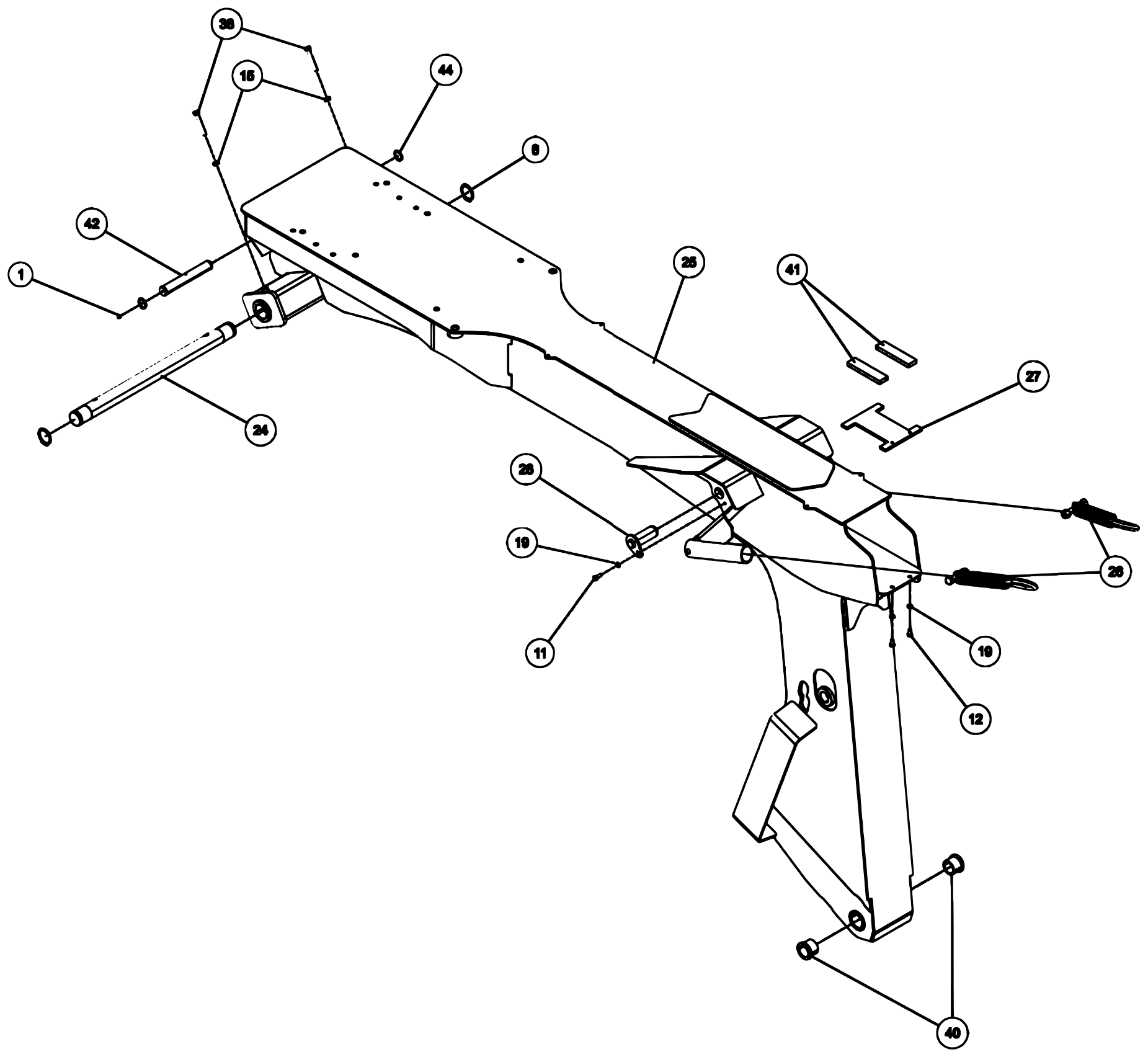

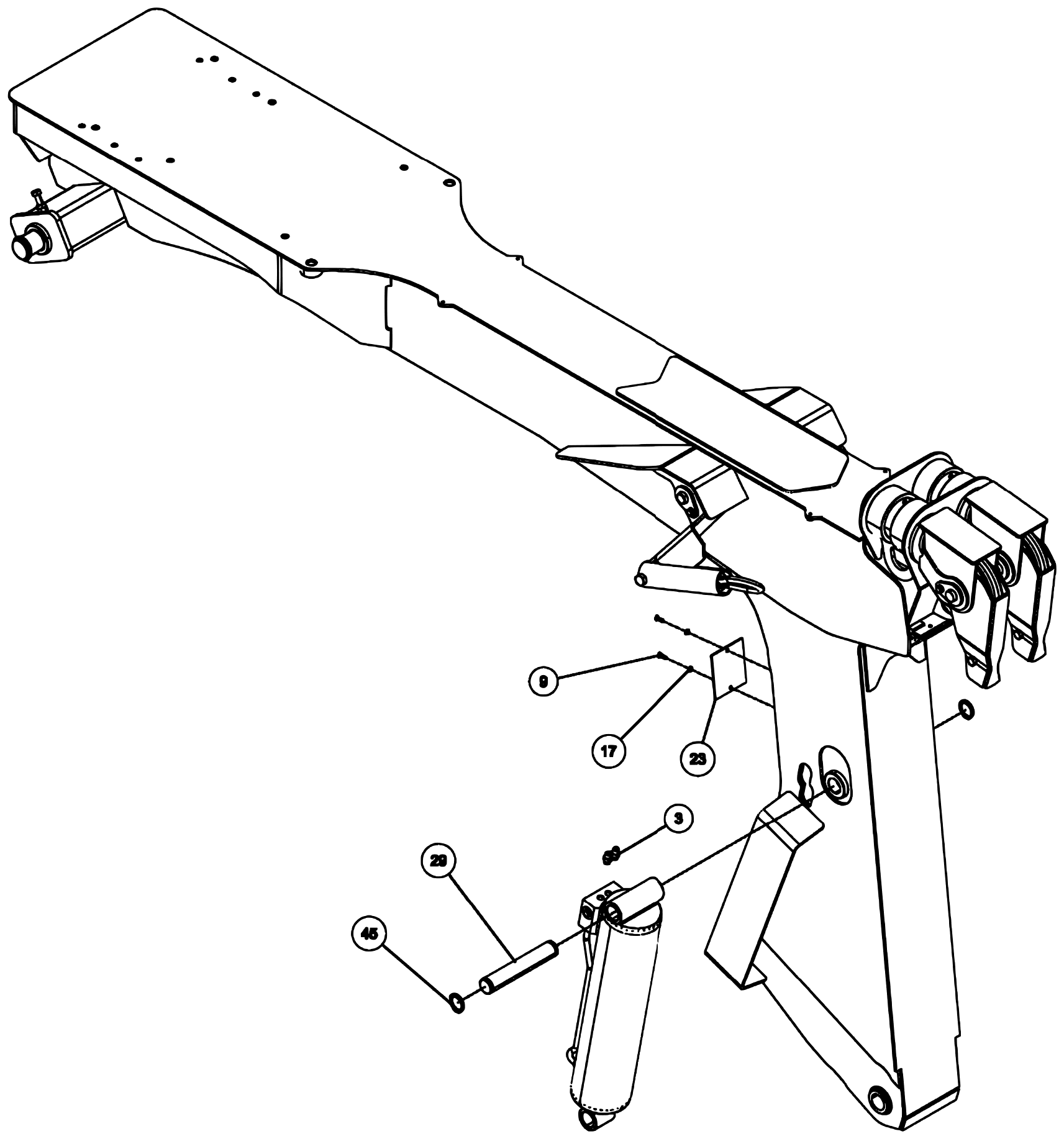

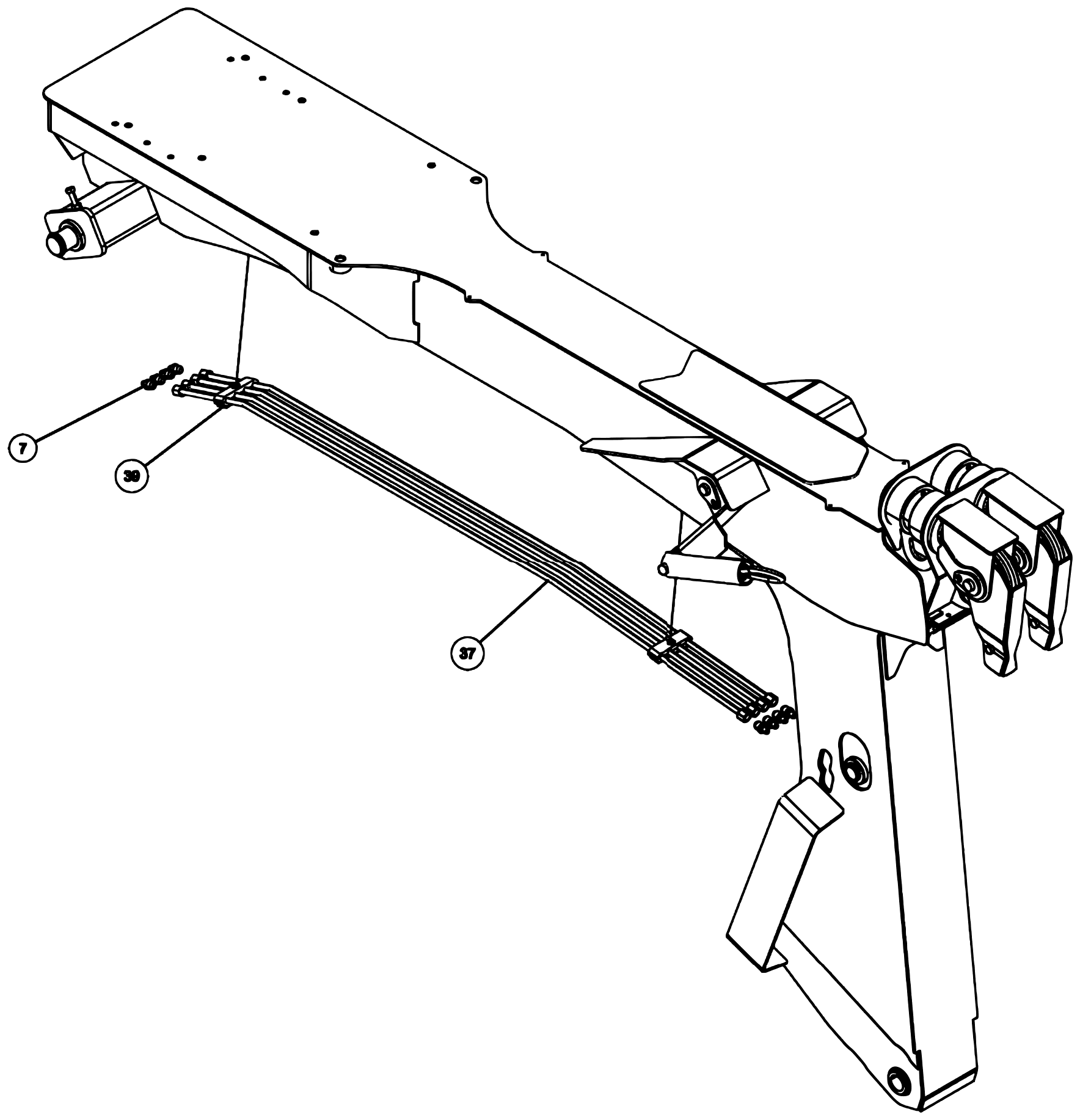

0911730, 3212/V30 Long Tower Boom Assembly – View 1 of 6

Vulcan V-30 Gen 2 (2022 manual) 0911730, 3212/V30 Long Tower Boom Assembly – View 1 of 6 diagram (view 3 of 6)

Vulcan V-30 Gen 2 (2022 manual) 0911730, 3212/V30 Long Tower Boom Assembly – View 1 of 6 diagram (view 4 of 6)

Vulcan V-30 Gen 2 (2022 manual) 0911730, 3212/V30 Long Tower Boom Assembly – View 1 of 6 diagram (view 5 of 6)

Vulcan V-30 Gen 2 (2022 manual) 0911730, 3212/V30 Long Tower Boom Assembly – View 1 of 6 diagram (view 6 of 6)

Show parts list (45 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	3	$5.80
2	0301388	ELBOW, 8MJ-8MB90	4	$13.20
3	0301522	ADAPTER, 6MJ-6MB	2	$3.80
4	0301814	RETAINING RING, 3-1/2" EXTERNAL	2	$11.20
5	0302000	HOSE HYD, 24"	2	$39.80
6	0302340	BUSHING HEX (BRASS) 4MP-2FP	2	$6.60
7	0302514	ADAPTER 8MJ-6MJ	8	$5.60
8	0302776	SNAP RING, EXTERNAL 2	2	$5.60
9	0400066	SCREW, 1/4-20X3/4 HHC GR5	2	$5.80
10	0400103	SCREW, 5/16-18X1-1/4 HHC GR5	4	$5.80
11	0400141	SCREW, 3/8-16X7/8 HHC GR5	2	$5.80
12	0400149	SCREW, 3/8-16X5/8 HHC GR5	2	$4.00
13	0400253	SCREW, 5/8-11X1-3/4 HHC GR5	4	$5.80
14	0400382	NUT, 5/16-18 LOK	4	$5.80
15	0400410	NUT, 1/2-13 JAM	2	$5.80
16	0400421	NUT, 5/8-11 LOK	4	$5.80
17	0400452	LKWASHER, 1/4	2	$5.80
18	0400463	WASHER, 5/16	4	$5.80
19	0400482	LKWASHER, 3/8	4	$5.80
20	0400491	LKWASHER, 1/2	12	$5.80
21	0400505	WASHER, 5/8 SAE	8	$5.80
22	0400633	SCREW, 1/2-13X1-1/2 HHC GR8	12	$5.80
23	0708519	PLATE, COVER BOOM UPPER	1	$15.00
24	0725769	PIN - MAIN BOOM PIVOT	1	Call for price	—
25	0810378	3212/V30 BOOM WLMT LONG TWR	1	$10,070.20
26	0906572	KIT-WINCH CABLE STOW	2	$55.80
27	3012-792001	PLATE - PAD CAGE 3014-920000	1	$60.20
28	3012-801000	PIN WELD'T - LIFT CYL UP.& LOWER	2	$106.60
29	3014-700002	PIN - FOLD (BASE)	1	$225.60
30	3014-791001	PLATE - 14K WASHER 3014-910000	4	Call for price	—
31	3014-792001	PLATE - CABLE WING	2	$21.80
32	3014-821000	BRACKET WELD'T - 14K DP	1	$446.00
33	3014-930000	INNER BOOM ASSEMBLY	1	Call for price	—
34	3014-931000	SHEAVE ASSEMBLY - 3014	2	$1,815.00
35	511-5000001	CYL, HYD - STING. TILT 17.5"ST	1	$2,790.40
	534-5002001	Seal kit for 511-5000001 cylinder: SEAL KIT, 18316 (511-500001)		$180.60
36	514-1501101	WINCH 15K - DP 15J ER1582	2	$7,309.00
37	516-0807801	TUBE ASSY - HYD UNDER MAIN BOOM	4	$182.00
38	541-5050219	HHCS 1/2-13 X 3 FULL THRD ZP	2	$4.20
39	566-0840000	4-TUBE CLAMP SET 1/2 STAUFF	2	$48.00
40	806510001	FLANGE BEARING (ALUM. BRONZE)	2	$66.80
41	880060002	NYLATRON PAD (STINGER UPPER)	2	$16.20
42	897400001	FRONT PIN	1	$232.80
43	9010030	FITT, BRASS ELBOW 1/4T-1/8MPX	2	$13.80
44	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80
45	9056150	RETAINING RING - 1 1/2	2	$8.00

Back to Manual Navigation Menu

0906572, Winch Cable Stow Kit

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0400257	SCREW, 5/8-11X3-1/4 HHC GR5	1	$3.40
2	0400421	NUT, 5/8-11 LOK	1	$5.80
3	9048800	5/8 WELDLESS CHAIN LINK	1	$21.60
4	945030007	CABLE TIE BACK SPRING-1	1	$28.00

Back to Manual Navigation Menu

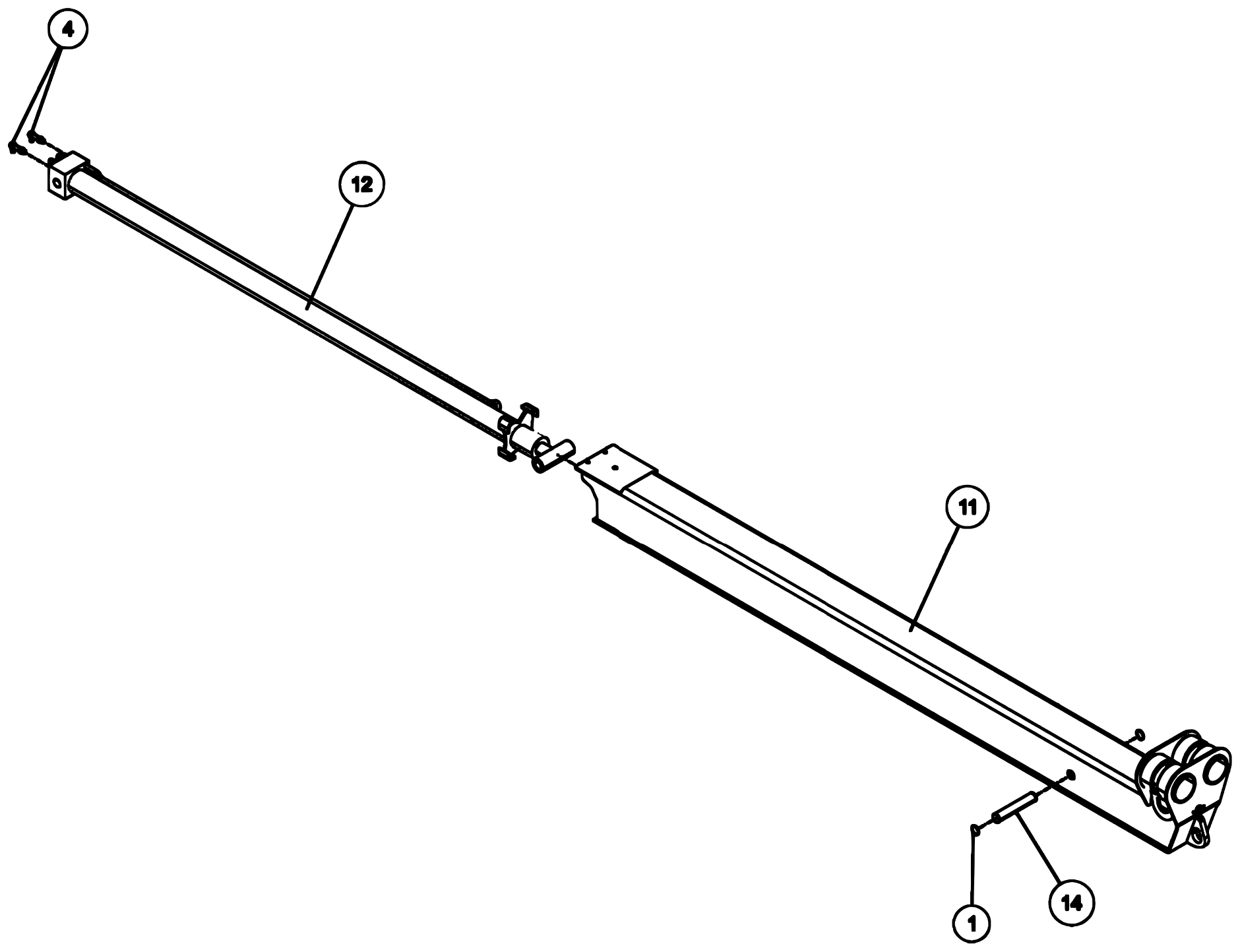

3014-930000, Inner Boom Assembly – View 1 of 2

Show parts list (17 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301642	SNAP RING, 1-1/4 DIA	2	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
3	0301949	3/8" OD AIRLINE, SYNFLEX HOSEPriced per foot	10	$8.00
4	0307460	FITTING, HYD 6MJ-6MB90LL	2	Call for price	—
5	0400060	SCREW, 1/4-20X1/2 HHC GR5	2	$5.80
6	0400147	SCREW, 3/8-24X5/8 HHC GR5	2	$5.80
7	0400452	LKWASHER, 1/4	2	$5.80
8	0400482	LKWASHER, 3/8	2	$5.80
9	3012-792002	PLATE - PAD CAGE	1	$164.60
10	3012-793001	PLATE - LUBE MTG.	1	$19.40
11	3014-830000	INNER BOOM WELD'T - 3014	1	$3,412.80
12	511-3000001	CYL, HYD - MAIN BOOM EXT.76"ST	1	$3,316.00
	534-3002001	Seal kit for 511-3000001 cylinder: SEAL KIT FOR 511-3000001		$62.00
13	535-0500001	NYLATRON PAD	1	$78.20
14	897400002	REAR PIN	1	$72.00
15	9012549	CONNECTOR-MALE 3/8TUBEX1	1	$15.60
16	9012552	BULKHEAD ADAPTER 1/8M-1/8F NPT	1	$39.80
17	9012584	ELBOW-1/4NPT X 3/8TUBE 9	1	$21.20

Back to Manual Navigation Menu

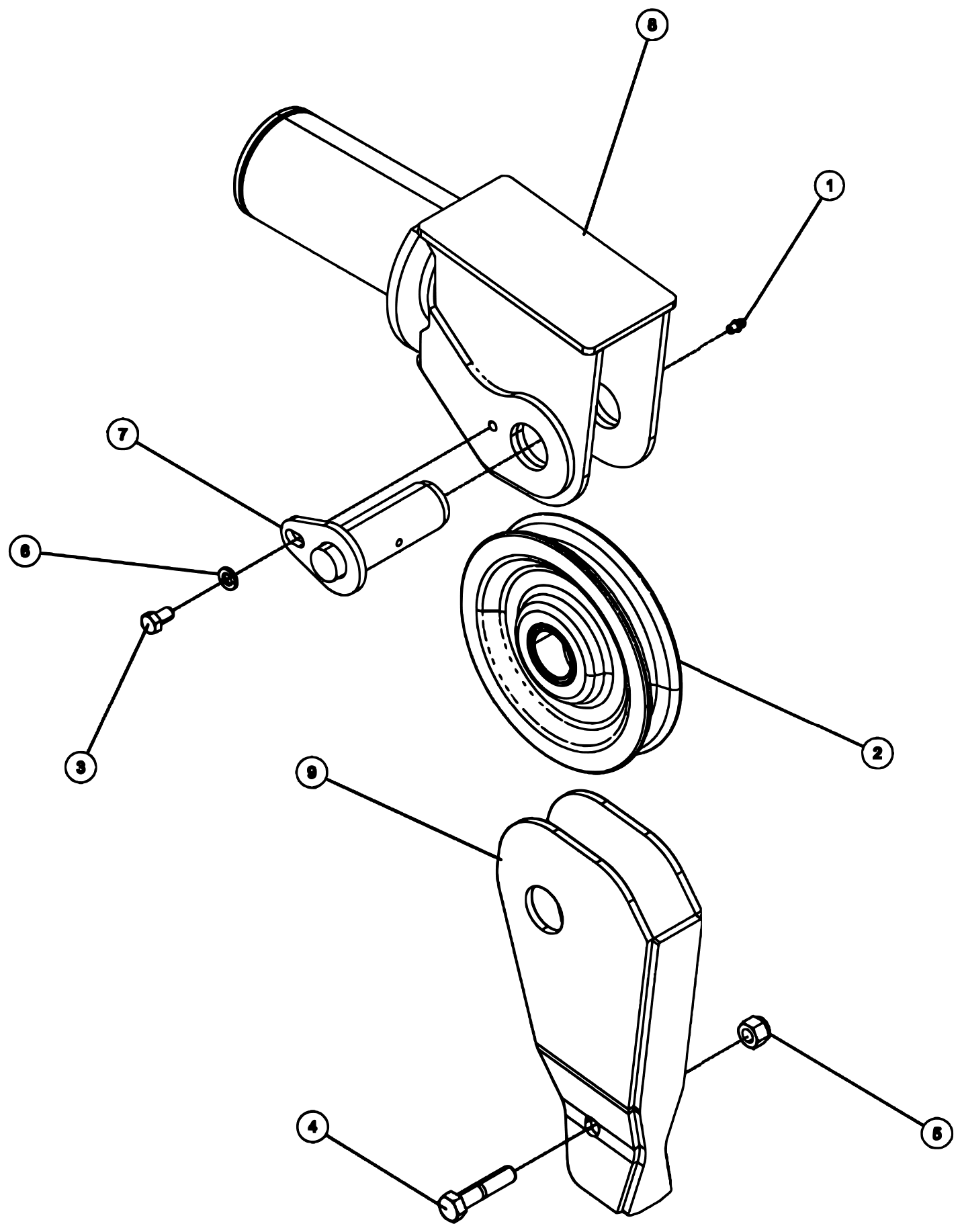

3014-931000, Sheave Assembly

Show parts list (9 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0300626	SHEAVE, 8" 58SHVBBAY 1.5	1	$204.00
3	0400147	SCREW, 3/8-24 X 5/8 HHC GR5	1	$5.80
4	0400184	SCREW, 1/2-13 X 2-1/4 HHC GR8	1	$8.00
5	0400408	NUT, 1/2-13 LOK	1	$2.80
6	0400482	LKWASHER, 3/8	1	$5.80
7	3014-802000	SHEAVE PIN WLMT.	1	$162.40
8	3014-831000	SHEAVE WELD'T - 3014	1	Call for price	—
9	3014-831100	GUIDE - SWIVEL	1	$317.80

Back to Manual Navigation Menu

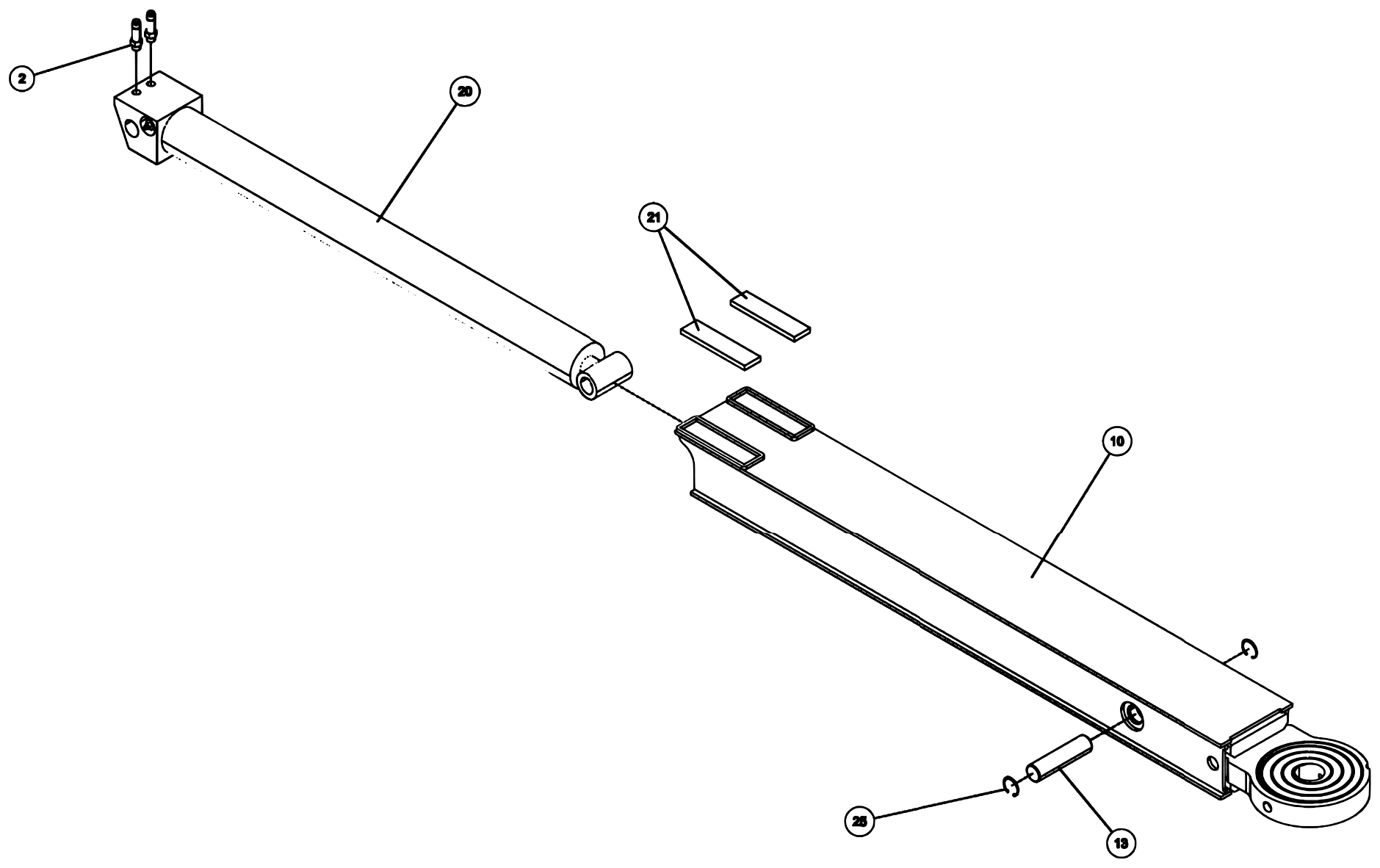

0911841, 3212/V30 GEN2 Underlift Boom Assembly – View 1 of 3

Vulcan V-30 Gen 2 (2022 manual) 0911841, 3212/V30 GEN2 Underlift Boom Assembly – View 1 of 3 diagram (view 3 of 3)

Show parts list (25 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	5	$5.80
2	0302510	ADAPTER, 6MJ-6MBL	1	Call for price	—
3	0400121	SCREW, 3/8-16X3/4 HHC GR5	4	$5.80
4	0400133	SCREW, 3/8-16X3 HHC GR5	1	$5.80
5	0400218	SCREW, 1/2-20X1-1/4 HHC GR5	4	$1.20
6	0400392	NUT, 3/8-16 LOK	1	$5.80
7	0400482	LKWASHER, 3/8	4	$5.80
8	0400491	LKWASHER, 1/2	4	$5.80
9	0400492	WASHER, 1/2	4	$5.80
10	0810449	INNER STINGER WLMT	1	$3,901.00
11	0911829	CROSSBAR ASSY - 3212/V30 GEN 2	1	$3,968.20
12	3012-700002	PIN - STINGER	1	$456.80
13	3012-700003	PIN - U/L EXT (ROD)	1	$29.00
14	3012-794002	PLATE - XBAR POSITIONING	2	$54.20
15	3012-794003	BAR - SPACER	1	$24.40
16	3012-794004	PLATE - U/L PAD CAGE 3014-9400	1	$43.40
17	3014-801000	TILT CYLINDER PIN	1	$99.20
18	3014-840000	U/L OUTER BOOM WELD'T - 3014-	1	$4,042.00
19	3014-960200	KIT-CROSSBAR EXT ASSY V30/3212	1	$1,305.20
20	511-3000002	CYL, HYD - STING. EXT. 34" STR	1	$2,012.80
	534-3002002	Seal kit for 511-3000002 cylinder: SEAL KIT, 14214 (511-3000002)		$124.80
21	896040002	NYLATRON - 6 X 1 1/2 X	4	$11.20
22	897400001	FRONT PIN	1	$232.80
23	9044434	3/8-16X1 NC FLAT SOCKET HD CAP	1	$5.80
24	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80
25	9057125	RETAINING RING, 1-1/4 INT	2	$1.80

Back to Manual Navigation Menu

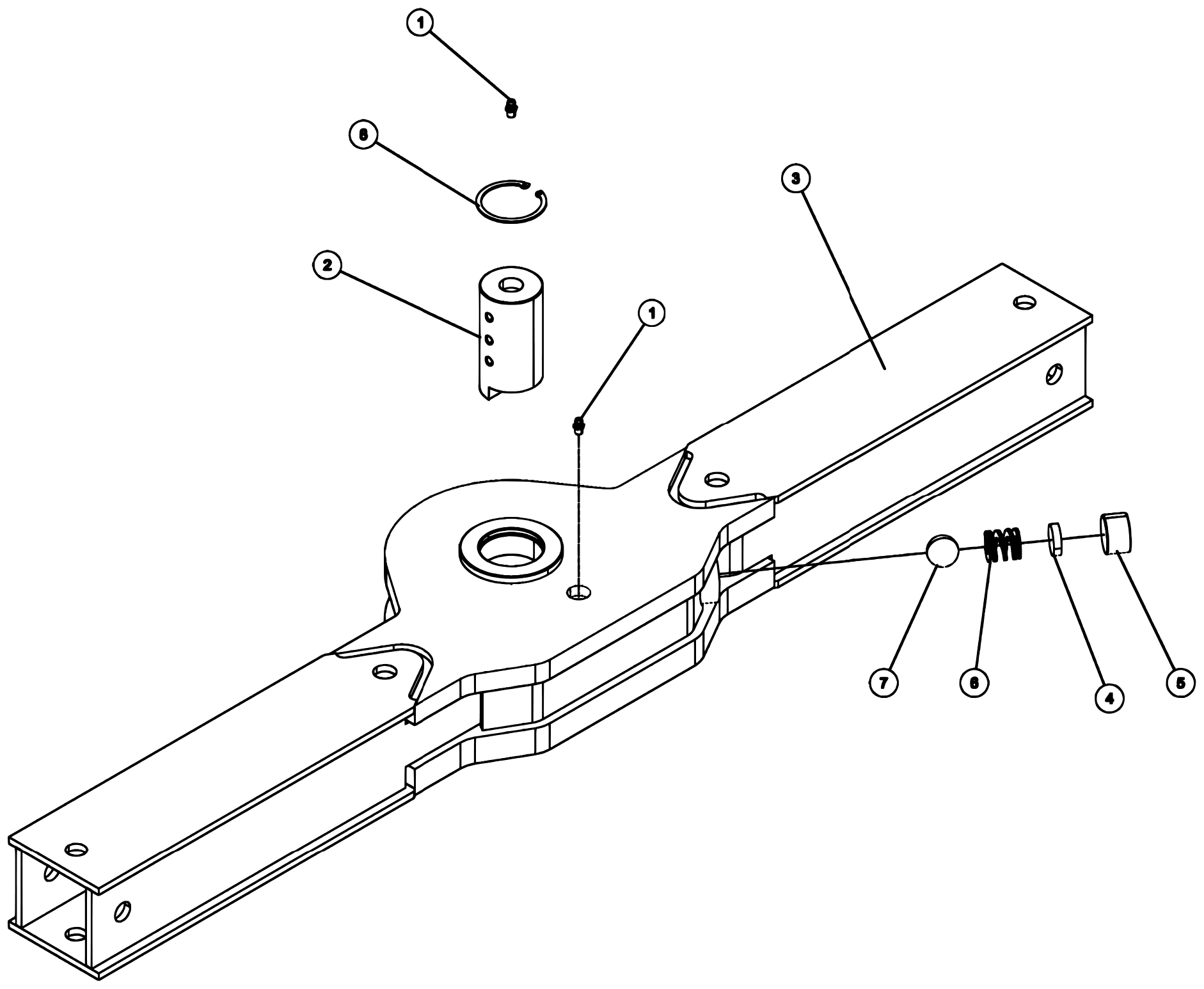

0911829, 3212/V30 GEN2 Crossbar Assembly

Show parts list (8 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0726377	PIN - CROSSBAR PIVOT	1	$666.80
3	0810448	CROSSBAR WLMT - 3212/V30	1	$2,485.60
4	3014-796005	SPACER - XBAR DIE SPRING	1	$11.20
5	9012944	1 NPT SOC HD PIPE PLUG *	1	$7.39
6	9047057	DIE SPRING - MHP-42 (DANLY)	1	$25.20
7	9052013	1" BALL CHROME	1	$15.60
8	HD0151	SNAP RING, 2" INTERNAL	1	$5.80

Back to Manual Navigation Menu

3014-960200, 3212/V30 Crossbar Extension Assembly

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0400398	NUT, 3/8-16 LOK JAM	2	$5.80
2	0400485	WASHER, 3/8 SAE GR8	2	$0.40
3	0400629	SCREW, 1/4-20 X 2-1/2 FHS	2	$5.60
4	0400980	SCREW, 3/8-16 X 1 FHS	2	$5.60
5	3014-760107	PIN - RETAINING	2	$54.20
6	3014-860100	EXTENSION BRKT - XBAR	2	$504.20
7	568-0480001	SPRING - CROSSBAR END	2	$37.00

Back to Manual Navigation Menu

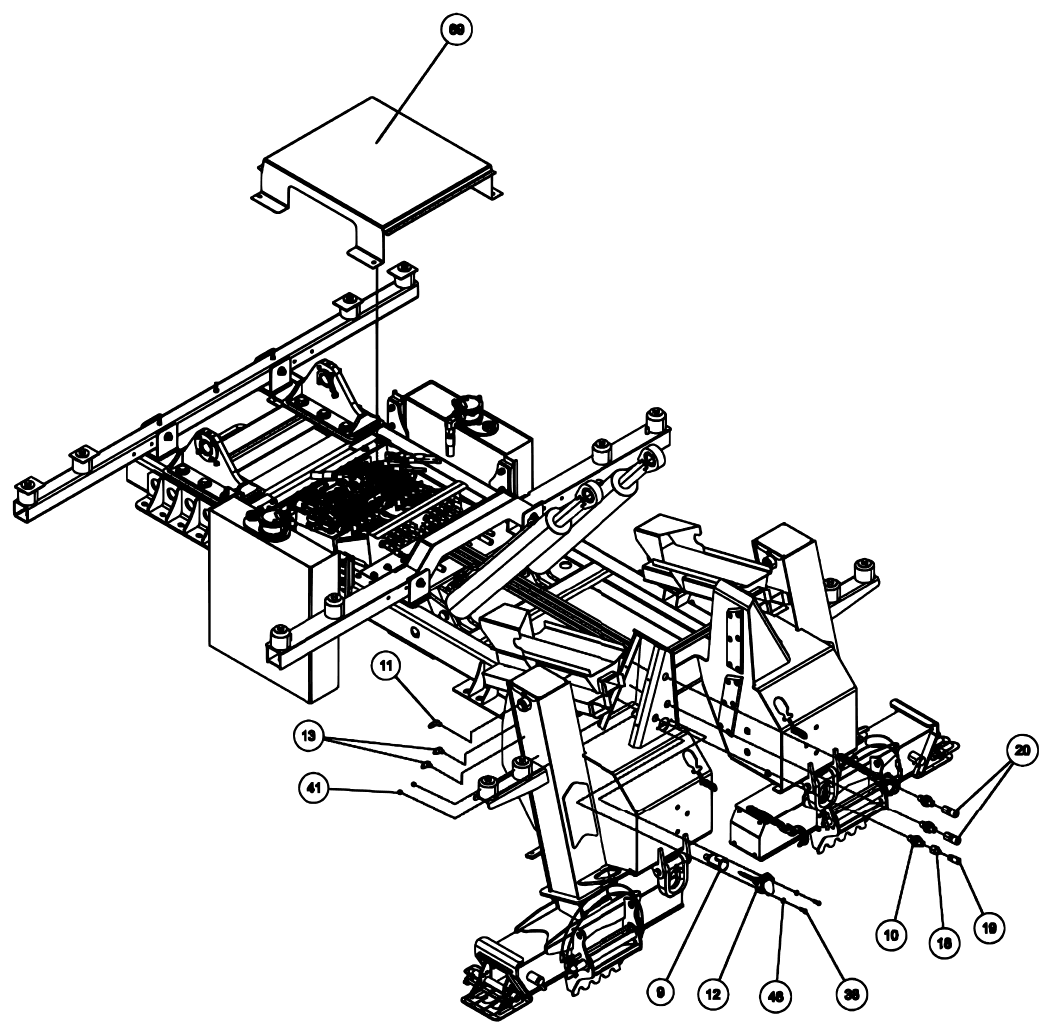

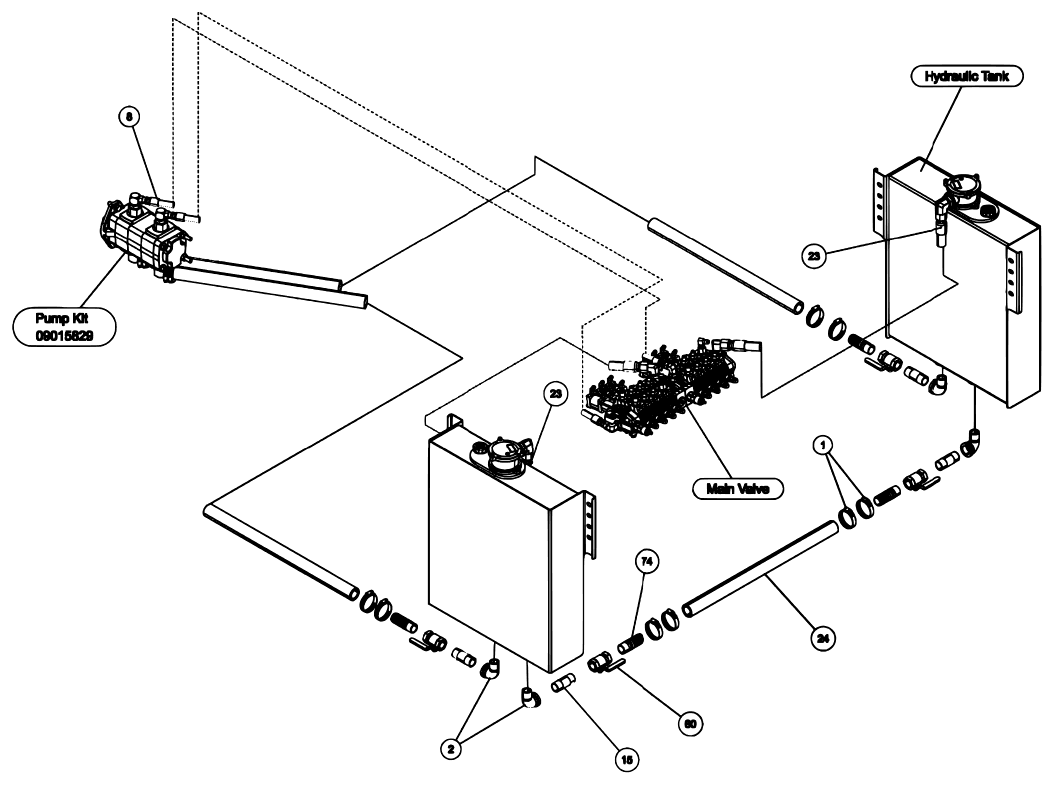

09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 3 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 4 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 5 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 6 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 7 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 8 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 9 of 10)

Vulcan V-30 Gen 2 (2022 manual) 09015090, 3212 GEN2 W/Rear Outrigger Kit – View 1 of 10 diagram (view 10 of 10)

Show parts list (80 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300364	CLAMP-HOSE, 0.875"-2.75" 50"LBS	12	$7.00
2	0300692	FITTING, 1 90DEG STREET	4	$11.20
3	0300834	KNOB- RED CTRL (IN-OUT)	4	$21.20
4	0300835	KNOB-BOOM (UP-DOWN)	2	$13.20
5	0300836	KNOB-CTRL-JACK (UP-DOWN)	4	$18.80
6	0300837	KNOB-BOOM (IN-OUT)	2	$15.00
7	0301577	1/4 OD PLASTIC AIRLINE, BLACKPriced per foot	2	$5.80
8	0301659	HOSE HYD, 150"	2	$117.40
9	0301909	RECEPTACLE BOOT	1	Call for price	—
10	0301946	FITTING, BLKHD CONNECT	3	$93.80
11	0301947	FITTING, 45 DEG ADAPTER	1	Call for price	—
12	0301948	HD 7 WAY TRAILER CONNECT	1	$59.60
13	0302534	FITTING, 45 DEG ELBOW	2	$33.00
14	0302596	HOSE HYD, 34"	2	$47.00
15	0302959	1" NPT X 3 LG NIPPLE	4	$13.00
16	0303380	KNOB-UNDERLIFT (IN-OUT)	2	$15.60
17	0303381	KNOB - UNDERLIFT (UP-DN)	2	$15.60
18	0303538	FITT, ADAPTER - BRASS 8FP-6MP	1	$11.60
19	0303539	QUICK DISCONNECT 3/8 FPT	1	$37.00
20	0304363	QUICK DISCONNECT 1/2 FPT	2	$64.40
21	0307151	RUBBER FENDERPriced per foot	24	$18.80
22	0307216	LIGHT, AMBER LED RECT 5.25X3.3	2	$75.80
23	0307472	HOSE, HYD ASSY 24" LG	2	Call for price	—
24	0310019	SUCTION HOSE, 1-1/4ID X30 100R4	1	$672.20
25	0311502	LIGHT 6"OVAL CLEAR-AMBER LED	4	$31.80
26	0311503	GROMMET, LIGHT 6" OVAL	4	$2.80
27	0311508	LIGHT RECT CLEAR-RED LED	2	$78.80
28	0311510	LIGHT RECT REVERSE W/REFLEX	2	$18.00
29	0311511	GROMMET, TAIL LIGHT, RECTANGULAR	6	$4.00
30	0311514	LIGHT 2.5" CLEAR LENS-RED LED	2	$13.20
31	0311516	GROMMET, LIGHT 2.5" ROUND	2	$1.80
32	0311755	WATER SEPARATOR-MONNIER	1	$254.20
33	0312478	3212 STD G2 ALM BODY LH 82" CA	1	Call for price	—
34	0312479	3212 STD G2 ALM BODY RH 82" CA	1	Call for price	—
35	04000381	SS BHSCS 1/4-20 X 1	16	Call for price	—
36	0400060	SCREW, 1/4-20X1/2 HHC GR5	2	$5.80
37	0400062	SCREW, 1/4-20X3/4 THC	2	$8.00
38	0400109	SCREW, 5/16-18X1 HHC GR5	6	$5.80
39	0400177	SCREW, 1/2-13X1-1/4 HHC GR5	24	$5.80
40	0400237	SCREW, 1/2-13X4 HHC GR5	4	$5.80
41	0400382	NUT, 5/16-18 LOK	2	$5.80
42	0400416	NUT, 1/2-13 LOK GR8	8	$5.80
43	0400451	WASHER, 1/4	2	$5.80
44	0400452	LKWASHER, 1/4	2	$5.80
45	0400454	WASHER, 1/4 SS	20	$1.80
46	0400463	WASHER, 5/16	6	$5.80
47	0400464	LKWASHER, 5/16	4	$1.60
48	0400484	WASH, SPECIAL .406X1-3/4	12	$9.80
49	0400491	LKWASHER, 1/2	28	$5.80
50	0400497	WASHER, 1/2 GR8	20	$5.80
51	0400498	WASHER, 1/2X2X0.125	12	$8.00
52	0400633	SCREW, 1/2-13X1-1/2 HHC GR8	4	$5.80
53	0402021	SCREW, 1/4-20X1 HHC SS	4	$5.80
54	0402111	LKWASHER, 1/4 SS	20	$5.80
55	0726397	PANEL - LH CONTROL 4-HANDLE	1	$202.40
56	0726398	PANEL - RH CONTROL 4-HANDLE	1	Call for price	—
57	08007968	CROSSTUBE, 3212/V30	1	Call for price	—
58	0810491	REAR CROSSMEMBER	1	Call for price	—
59	0910320	CROSSTUBE, LH PIVOT ASSY-FABR	1	$1,828.60
60	0910321	CROSSTUBE, RH PIVOT ASSY-FABR	1	$1,828.60
61	0910535	MNFLD PKG 16 VLV 12VDC W/O HNS	1	$4,124.00
62	0911460	REAR OUTRIGGER KIT-3212 / V-30	1	$17,031.60
63	0911708	LH CONTROL - 3212/V30	1	Call for price	—
64	0911709	RH CONTROL - 3212/V30	1	Call for price	—
65	0911728	3212/V30 LONG TWR CTR SECTION	1	Call for price	—
66	0911804	AIR REGULATOR-GAUGE ASSEMBLY	1	$101.20
67	3012-810300	BRACKET - BODY TUBE	4	$55.40
68	3014-791003	COVER - JACK 3014-910000	2	$50.80
69	3014-791011	PANEL - VALVE COVER	1	$175.20
70	513-0601200	HYD HOSE 3/8X12" 6FJX-6FJX90S	4	$32.80
71	810770013	HOSE, 36" 6FJX-6C2AT-6FJX90S	1	$65.00
72	810770015	HOSE 29" 4M2T 6FJX90S-6FJX	1	$50.60
73	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
74	9012927	NIPPLE - COMBINATION 1 N	4	$46.60
75	9024041	SWITCH-ROCKER, LIGHTED 12V	6	$43.40
76	9041402	1/2 NC X 1 1/4 HHCS PLT GR8	4	$8.00
77	9043830	1/2NCX4 1/2 H.H.C.SCREW	4	Call for price	—
78	9402970	TOOLBOX MTG. PAD	12	$54.20
79	942480011	PLATE, SLOT-SS REAR WASHER TBOX	4	$25.20
80	HC1338	VALVE, BALL, 1 BRASS	4	$65.80

Back to Manual Navigation Menu

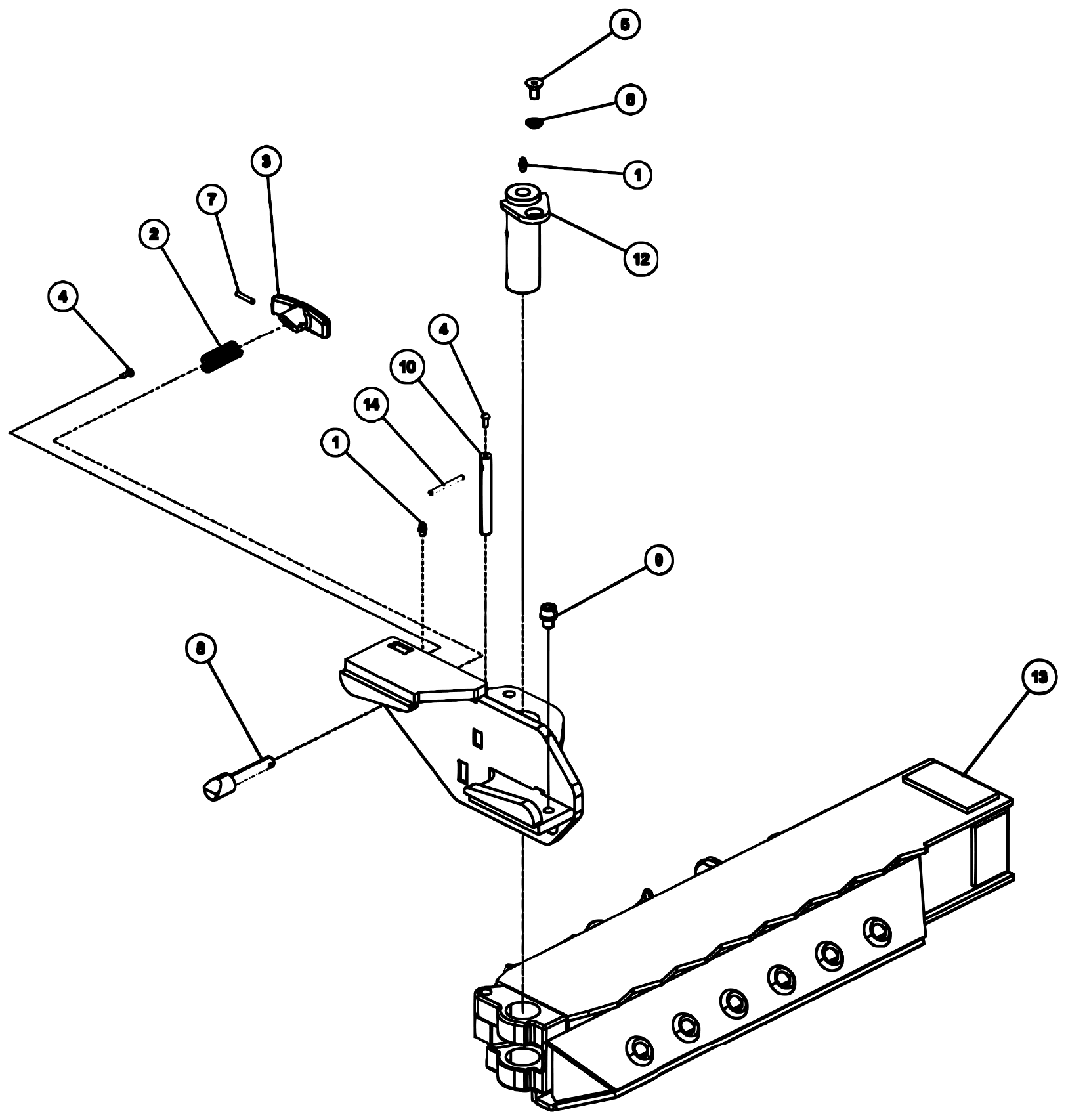

0910320, LH Pivot Crosstube

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0302641	SPRING - PLUNGER PIN	1	$9.40
3	0302648	T HANDLE	1	$13.20
4	0400044	SCREW, 10 X 1/2 DRV	2	$5.80
5	0400349	SCREW, 3/8-16 X 3/4 FHS	1	$11.60
6	0400483	LKWASHER, 3/8 CET	1	$5.80
7	0400559	PIN, 3/16 X 1 SPR	1	$5.80
8	0707505	PIN, PLUNGER	1	$108.40
9	0712933	PIN, ALIGNMENT	1	$39.20	—
10	0714415	PIN (USE 0904744)	1	Call for price	—
11	0807485	ENDPLATE, LH PIVOT - FABRICATED	1	$605.60
12	0807504	PIVOT SHAFT	1	$84.80
13	3014-860600	CROSSTUBE, LH OUTER CENTURY	1	$2,031.40
14	HD0107	3/16" X 2" SPRING PIN	1	$1.80

Back to Manual Navigation Menu

0910321, RH Pivot Crosstube

Show parts list (14 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	2	$5.80
2	0302641	SPRING - PLUNGER PIN	1	$9.40
3	0302648	T HANDLE	1	$13.20
4	0400044	SCREW, 10 X 1/2 DRV	2	$5.80
5	0400349	SCREW, 3/8-16 X 3/4 FHS	1	$11.60
6	0400483	LKWASHER, 3/8 CET	1	$5.80
7	0400559	PIN, 3/16 X 1 SPR	1	$5.80
8	0707505	PIN, PLUNGER	1	$108.40
9	0712933	PIN, ALIGNMENT	1	$39.20	—
10	0714415	PIN (USE 0904744)	1	Call for price	—
11	0807486	ENDPLATE, RH PIVOT - FABRICATED	1	$605.60
12	0807504	PIVOT SHAFT	1	$84.80
13	3014-860700	CROSSTUBE, RH OUTER CENTURY	1	$2,031.40
14	HD0107	3/16" X 2" SPRING PIN	1	$1.80

Back to Manual Navigation Menu

0910535, Manifold Package 16 Valve 12V DC

Show parts list (16 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	03002200	PNUT HDP20 24, 2411-001-2405	1	Call for price	—
2	03002201	LKWR HDP20 24, 2414-001-2486	1	Call for price	—
3	03015444	CONN HDP20, HDP24-24-23PE	1	Call for price	—
4	03015445	CONN HDP20, HDP26-24-23SE	1	Call for price	—
5	03015481	DIST BLOCK, 18+1 BK, 1047436	1	Call for price	—
6	03015482	DIST BLOCK, 6+1 RED, 1047480	1	Call for price	—
7	03015483	FLANGE, PTFIX-F, 3274060	2	Call for price	—
8	0311596	AIR BANK-16 POS 12V	1	$1,804.40
9	0400009	SCREW, 8-32X1-1/2 PRH SS	2	$5.80
10	04000361	10-24 SS KEP NUT	2	Call for price	—
11	0400352	NUT, 8-32 LOK	2	$5.80
12	04003628	NUT, LOK, M2.5 985-A2	2	Call for price	—
13	04003629	SCREW, SHC, M2.5 X 16MM, A-2	2	Call for price	—
14	0400687	SCREW, 10-24X3/4 PRH SS	2	Call for price	—
15	07018065	BRACKET, HDP20 90 DEG. D	1	Call for price	—
16	0725047	PLATE-AIR BANK BACKING	1	$56.00

Back to Manual Navigation Menu

0911460, Rear Outrigger Kit 3212/V30

Show parts list (2 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0911461	LH REAR OUTRIGGER ASSY - 3212	1	Call for price	—
2	0911462	RH REAR OUTRIGGER ASSY - 3212	1	Call for price	—

Back to Manual Navigation Menu

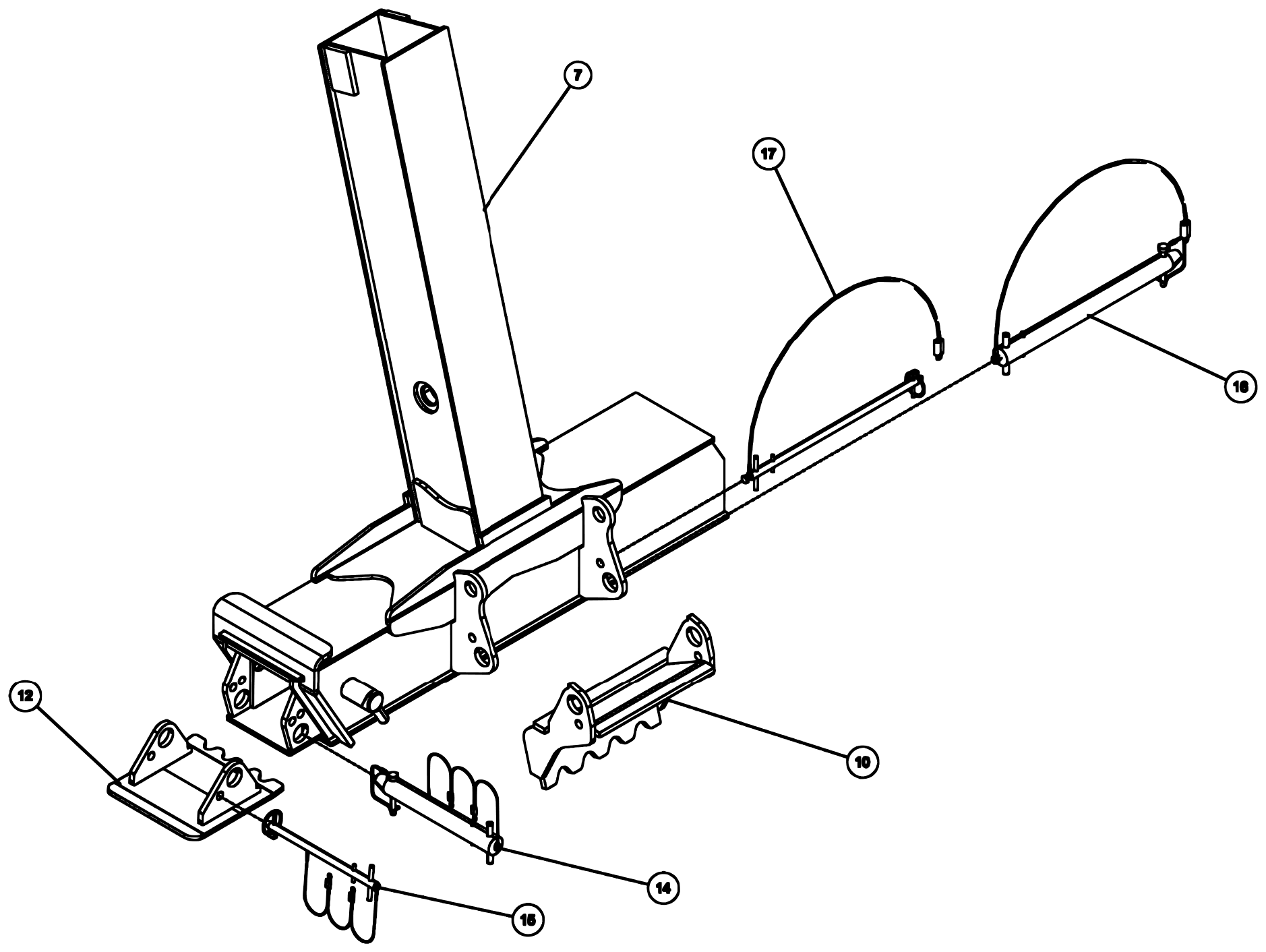

0911461, LH Rear Outrigger Assembly 3212/V30 – View 1 of 4

Vulcan V-30 Gen 2 (2022 manual) 0911461, LH Rear Outrigger Assembly 3212/V30 – View 1 of 4 diagram (view 3 of 4)

Vulcan V-30 Gen 2 (2022 manual) 0911461, LH Rear Outrigger Assembly 3212/V30 – View 1 of 4 diagram (view 4 of 4)

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
3	0302510	ADAPTER, 6MJ-6MBL	2	Call for price	—
4	0400059	SCREW, 1/4-20X5/8 HHC GR5	4	$5.80
5	0400060	SCREW, 1/4-20X1/2 HHC GR5	4	$5.80
6	0400452	LKWASHER, 1/4	8	$5.80
7	0811053	LH REAR OUTRIGGER WELD'T - 3212	1	Call for price	—
8	3014-700001	PIN - SPADE EXT (ROD) 3014-910	1	$110.60
9	3116-712020	PANEL, COVER REAR OUTRIGGER	1	$22.80
10	3116-812500	REAR OUTRIGGER SPADE WELD'T	1	$491.00
11	3116-814000	REAR INNER OUTRIGGER WELD'T	1	Call for price	—
12	3116-814500	REAR OUTRIGGER PAD WELD'T	1	$529.40
13	3116-816800	OUTRIGGER STOP BLOCK WELD'T	2	Call for price	—
14	3116-905003	PIVOT PIN, REAR O/R SPADE ASSY	1	$165.20
15	3116-905004	RETAIN PIN, REAR O/R SPADE ASSY	1	$219.20
16	3116-905005	PIVOT PIN, JACKLEG SPADE ASSY	1	$449.60
17	3116-905006	RETAIN PIN, JACKLEG SPADE ASSY	1	$187.00
18	511-2500002	CYL, HYD - JACKLEG 18" STROKE	1	$2,346.80
	Seal kit for 511-2500002 cylinder: Call for pricing and availability: 770-921-6070
19	810350002	PIN - UPPER TILT CYL.	1	$66.80
20	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80
21	9057125	RETAINING RING, 1-1/4 INT	2	$1.80

Back to Manual Navigation Menu

0911462, RH Rear Outrigger Assembly 3212/V30 – View 1 of 4

Vulcan V-30 Gen 2 (2022 manual) 0911462, RH Rear Outrigger Assembly 3212/V30 – View 1 of 4 diagram (view 3 of 4)

Vulcan V-30 Gen 2 (2022 manual) 0911462, RH Rear Outrigger Assembly 3212/V30 – View 1 of 4 diagram (view 4 of 4)

Show parts list (21 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0300113	GREASE FITTING, 1/4-28 STR	1	$5.80
2	0301895	GREASE FITTING, 1/8 STR PTF	1	$5.80
3	0302510	ADAPTER, 6MJ-6MBL	2	Call for price	—
4	0400059	SCREW, 1/4-20X5/8 HHC GR5	4	$5.80
5	0400060	SCREW, 1/4-20X1/2 HHC GR5	4	$5.80
6	0400452	LKWASHER, 1/4	8	$5.80
7	0811054	RH REAR OUTRIGGER WELD'T - 3212	1	Call for price	—
8	3014-700001	PIN - SPADE EXT (ROD) 3014-910	1	$110.60
9	3116-712020	PANEL, COVER REAR OUTRIGGER	1	$22.80
10	3116-812500	REAR OUTRIGGER SPADE WELD'T	1	$491.00
11	3116-814000	REAR INNER OUTRIGGER WELD'T	1	Call for price	—
12	3116-814500	REAR OUTRIGGER PAD WELD'T	1	$529.40
13	3116-816800	OUTRIGGER STOP BLOCK WELD'T	2	Call for price	—
14	3116-905003	PIVOT PIN, REAR O/R SPADE ASSY	1	$165.20
15	3116-905004	RETAIN PIN, REAR O/R SPADE ASSY	1	$219.20
16	3116-905005	PIVOT PIN, JACKLEG SPADE ASSY	1	$449.60
17	3116-905006	RETAIN PIN, JACKLEG SPADE ASSY	1	$187.00
18	511-2500002	CYL, HYD - JACKLEG 18" STROKE	1	$2,346.80
	Seal kit for 511-2500002 cylinder: Call for pricing and availability: 770-921-6070
19	810350002	PIN - UPPER TILT CYL.	1	$66.80
20	9056125	1.25 NOM HVY DUTY RET RING EXT	2	$3.80
21	9057125	RETAINING RING, 1-1/4 INT	2	$1.80

Back to Manual Navigation Menu

0911708, LH Control 3212/V30 – View 1 of 2

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0302453	CABLE, CONTROL 92	8	$158.80
2	0302726	GREASE FITTING, 1/4-28 45	8	$3.80
3	0303008	ADJUSTABLE CLEVIS	8	$9.40
4	0400057	SCREW, 1/4-20X1-1/4 HHC	8	$5.80
5	0400066	SCREW, 1/4-20X3/4 HHC GR5	4	$5.80
6	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	8	$5.80
7	0400367	NUT, 1/4-20 LOK	8	$5.80
8	0400382	NUT, 5/16-18 LOK	8	$5.80
9	0400383	NUT, 5/16-24 HEX	8	$5.80
10	0400393	NUT, 3/8-16 JAM	8	$5.80
11	0400463	WASHER, 5/16	8	$5.80
12	0400466	LKWASHER, 5/16 INT	8	$5.80
13	0402111	LKWASHER, 1/4 SS	4	$5.80
14	0711235	CLAMP, SHAFT CONTROL BOX	4	$17.40
15	0726405	PIN - CONTROL (4-HANDLE)	2	Call for price	—
16	0810457	CONTROL BAR WLMT (4-HANDLE)	2	Call for price	—
17	0810459	CONTROL FRAME (4-HANDLE)	2	Call for price	—
18	0907441	CONTROL HANDLE ASSY - SHORT	8	$92.00

Back to Manual Navigation Menu

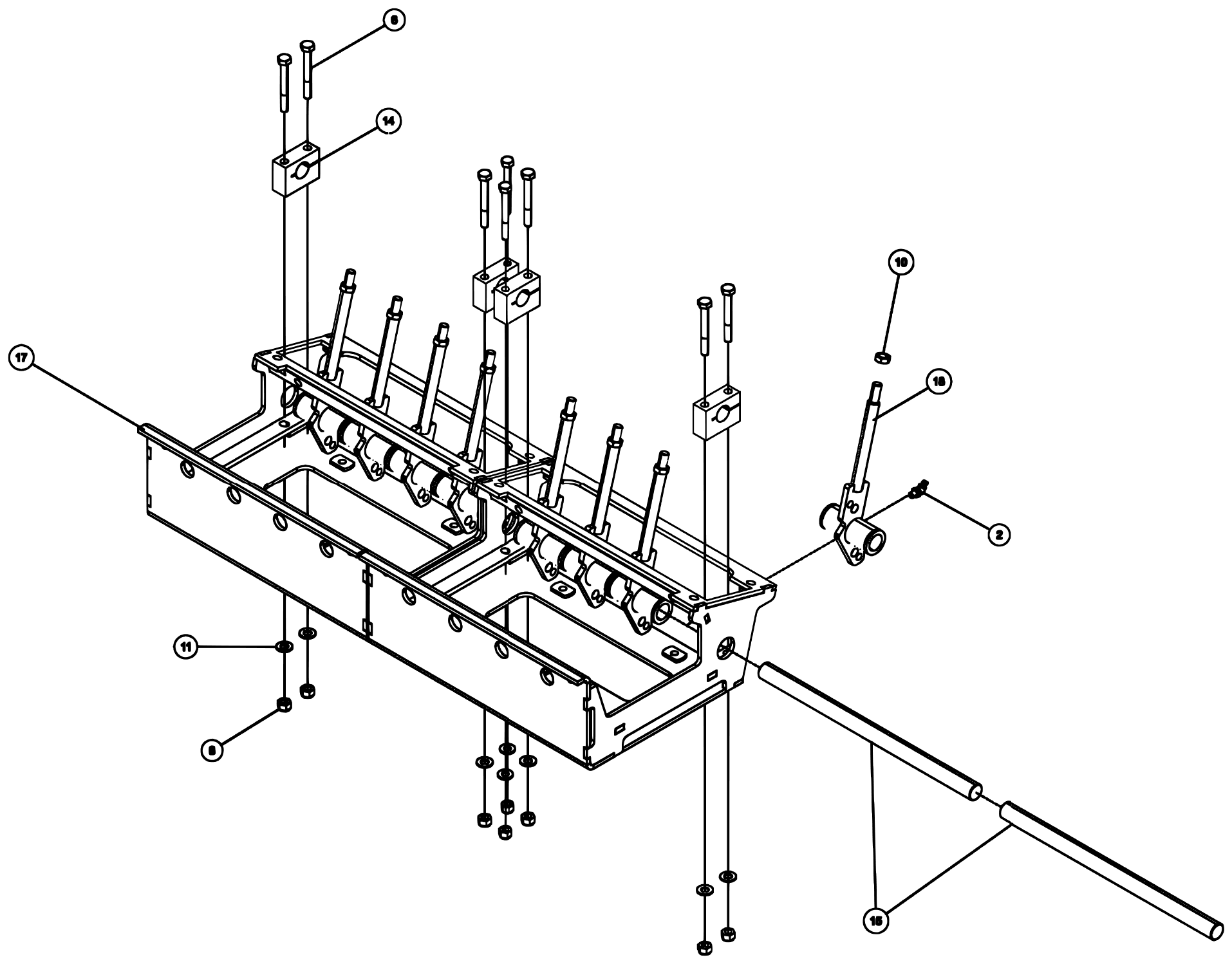

0911709, RH Control 3212/V30 – View 1 of 2

Show parts list (18 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0302453	CABLE, CONTROL 92	8	$158.80
2	0302726	GREASE FITTING, 1/4-28 45	8	$3.80
3	0303008	ADJUSTABLE CLEVIS	8	$9.40
4	0400057	SCREW, 1/4-20X1-1/4 HHC	8	$5.80
5	0400066	SCREW, 1/4-20X3/4 HHC GR5	4	$5.80
6	0400107	SCREW, 5/16-18X2-1/2 HHC GR5	8	$5.80
7	0400367	NUT, 1/4-20 LOK	8	$5.80
8	0400382	NUT, 5/16-18 LOK	8	$5.80
9	0400383	NUT, 5/16-24 HEX	8	$5.80
10	0400393	NUT, 3/8-16 JAM	8	$5.80
11	0400463	WASHER, 5/16	8	$5.80
12	0400466	LKWASHER, 5/16 INT	8	$5.80
13	0402111	LKWASHER, 1/4 SS	4	$5.80
14	0711235	CLAMP, SHAFT CONTROL BOX	4	$17.40
15	0726405	PIN - CONTROL (4-HANDLE)	2	Call for price	—
16	0810457	CONTROL BAR WLMT (4-HANDLE)	2	Call for price	—
17	0810459	CONTROL FRAME (4-HANDLE)	2	Call for price	—
18	0907441	CONTROL HANDLE ASSY - SHORT	8	$92.00

Back to Manual Navigation Menu

0911728, 3212/V30 Long Tower Center Section – View 1 of 5

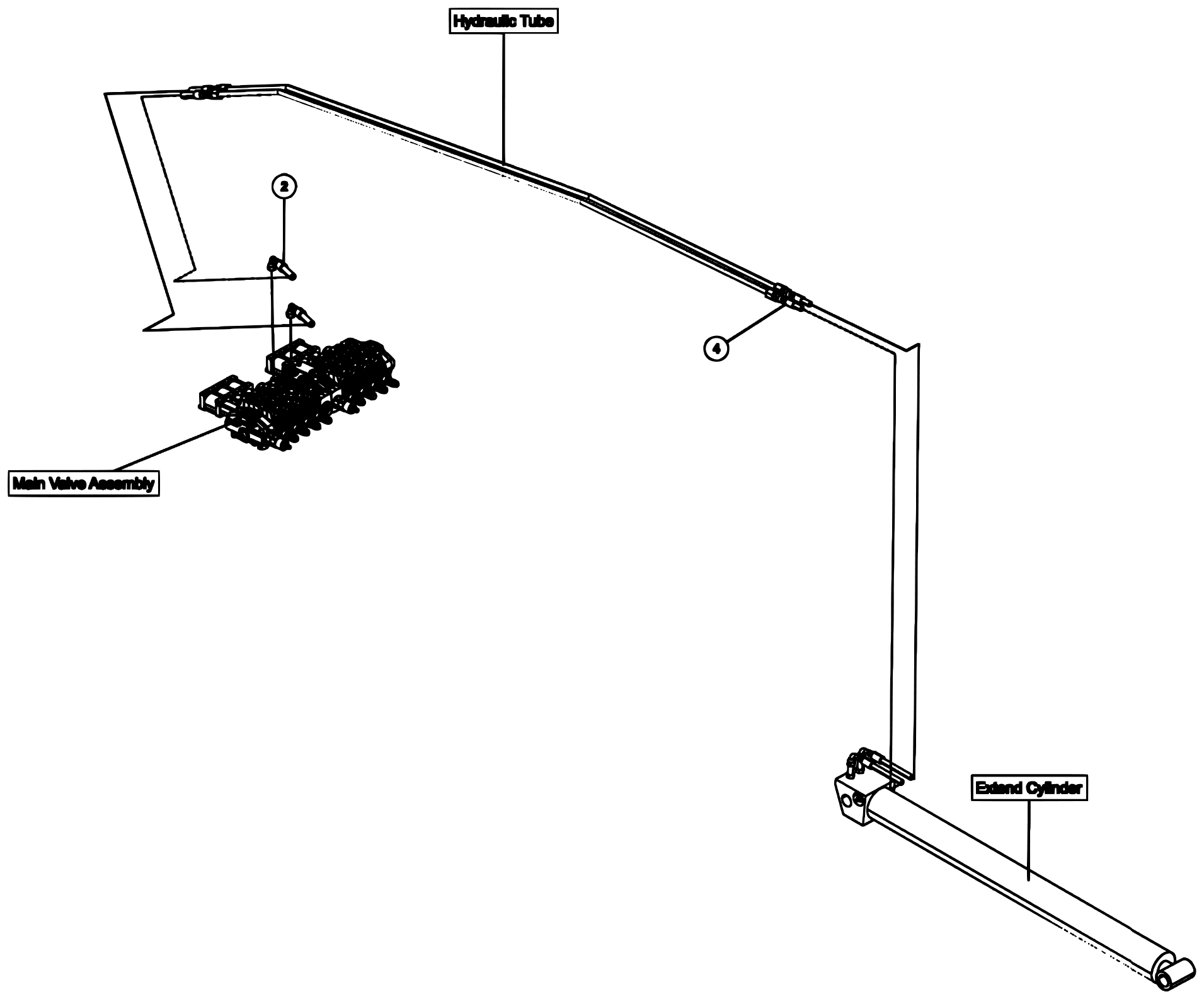

Vulcan V-30 Gen 2 (2022 manual) 0911728, 3212/V30 Long Tower Center Section – View 1 of 5 diagram (view 3 of 5)

Vulcan V-30 Gen 2 (2022 manual) 0911728, 3212/V30 Long Tower Center Section – View 1 of 5 diagram (view 4 of 5)

Vulcan V-30 Gen 2 (2022 manual) 0911728, 3212/V30 Long Tower Center Section – View 1 of 5 diagram (view 5 of 5)

Show parts list (7 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price	Quick Add to Cart
1	0301893	HOSE HYD, 84	4	$112.00
2	0302604	HOSE HYD, 44"	4	$47.00
3	0302605	HOSE HYD, 44"	2	$66.80
4	0311772	HOSE - 82" LONG 3/8"	2	Call for price	—
5	0911729	3212/V30 LONG TWR SUBFR ASSY	1	Call for price	—
6	0911730	3212/V30 LONG TWR BOOM ASSY	1	Call for price	—
7	0911841	U/L BOOM ASSY - 3212/V30 GEN2	1	Call for price	—

Back to Manual Navigation Menu

0911804, Air Regulator-Gauge Assembly

Show parts list (4 parts) ▼Hide parts list ▲

Ref #	Part Number	Description	Qty Used	Price
1	0303365	BRACKET, MOUNTING - AIR PREP	1	$7.60
2	9010520	FITTING-ELBOW 1/4T-1/4NPT	2	$13.80
3	HA0131	REGULATOR, AIR	1	$47.00
4	HA0132	GAUGE 0-160 PSI	1	$24.40

Back to Manual Navigation Menu
