Show all 22 parts sections ▼Hide parts sections ▲
- Subframe Assembly
- Body Assembly
- Boom Assembly
- Underlift & Tower Assembly
- Underlift Hydraulics
- Boom Hydraulics
- Pump, Valve & Filter Hydraulics

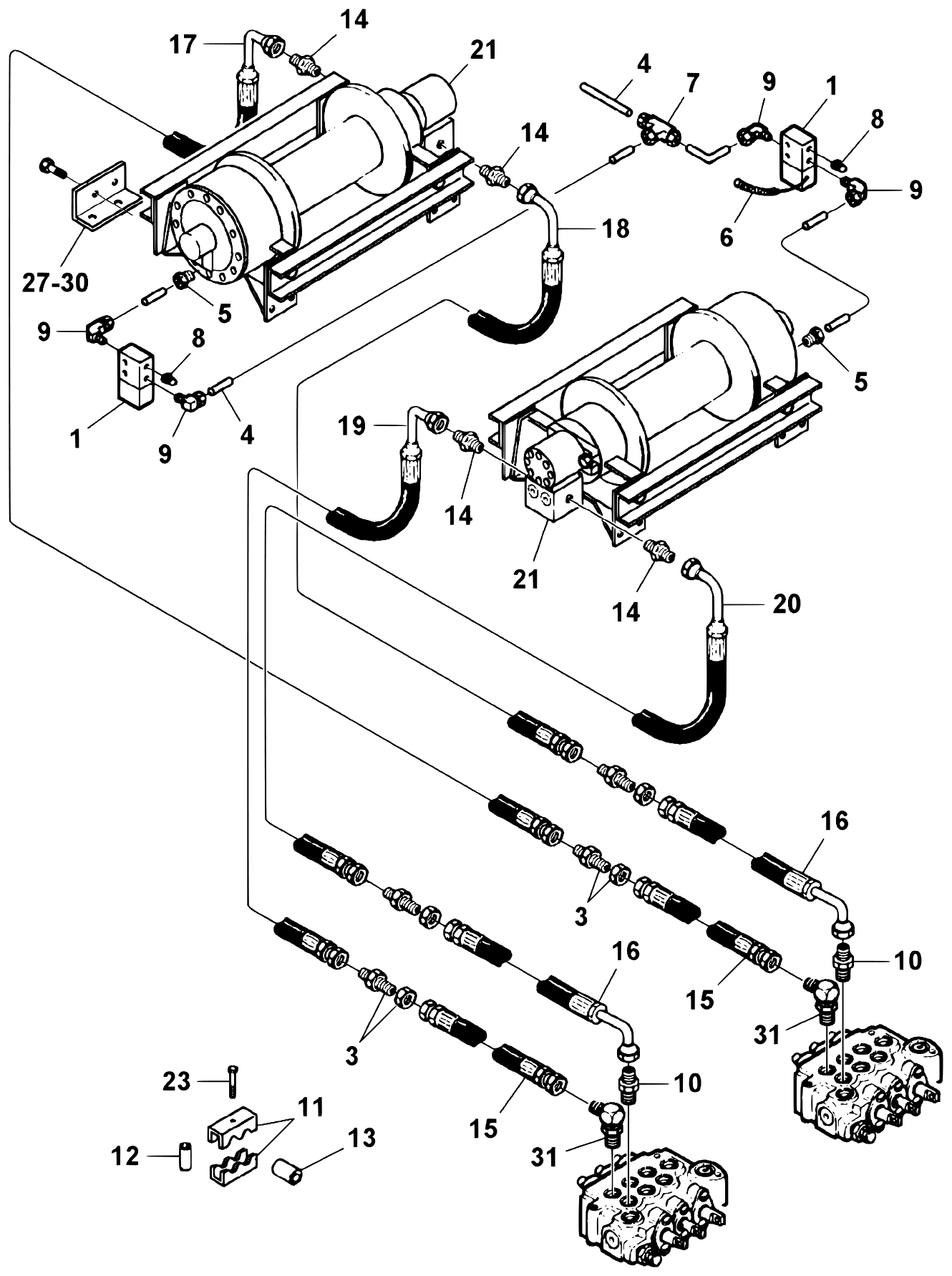

- Winch Hydraulics & Air Free Spool
- Left Control Assembly
- Right Control Assembly

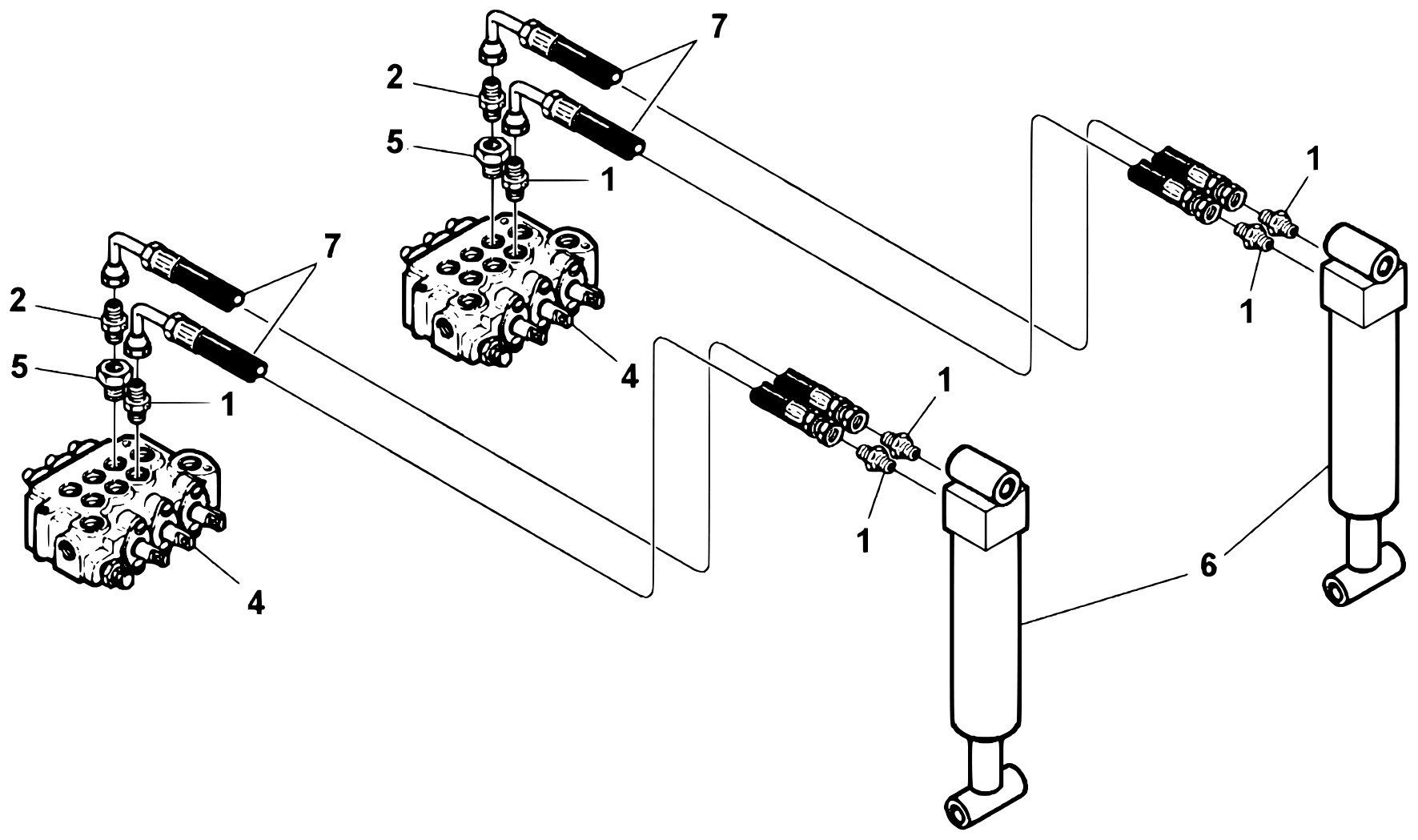

- Rear Spade Hydraulics
- Hydraulic Cylinders
- Hydraulic Cylinders (Cont'd) (1 of 2)
- Hydraulic Cylinders (Cont'd) (2 of 2)
- Glad Hand Kit
- Lift Adapters

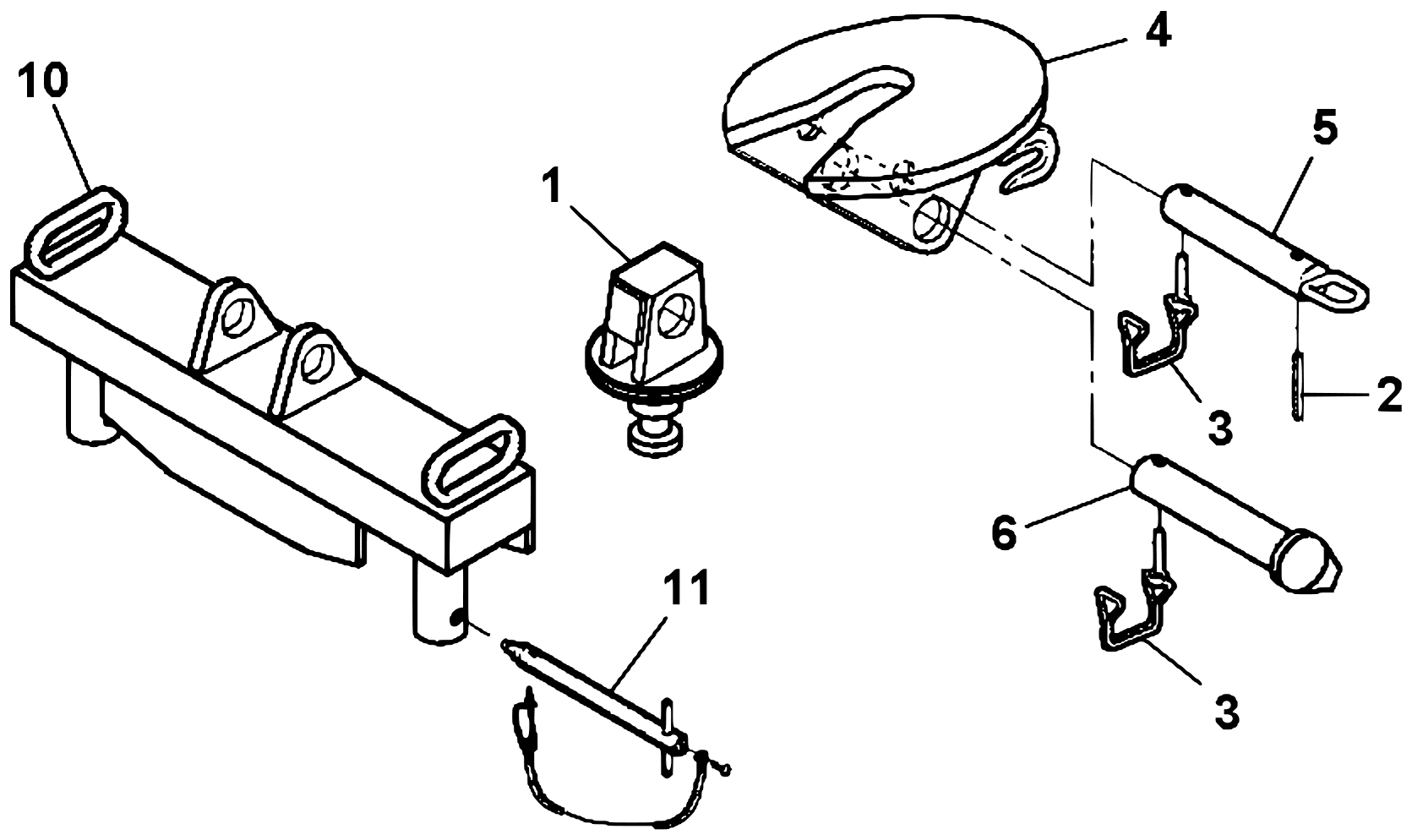

- King Pin Adapter
- Light Kit
- Light Kit (Cont'd) (1 of 4)
- Light Kit (Cont'd) (2 of 4)

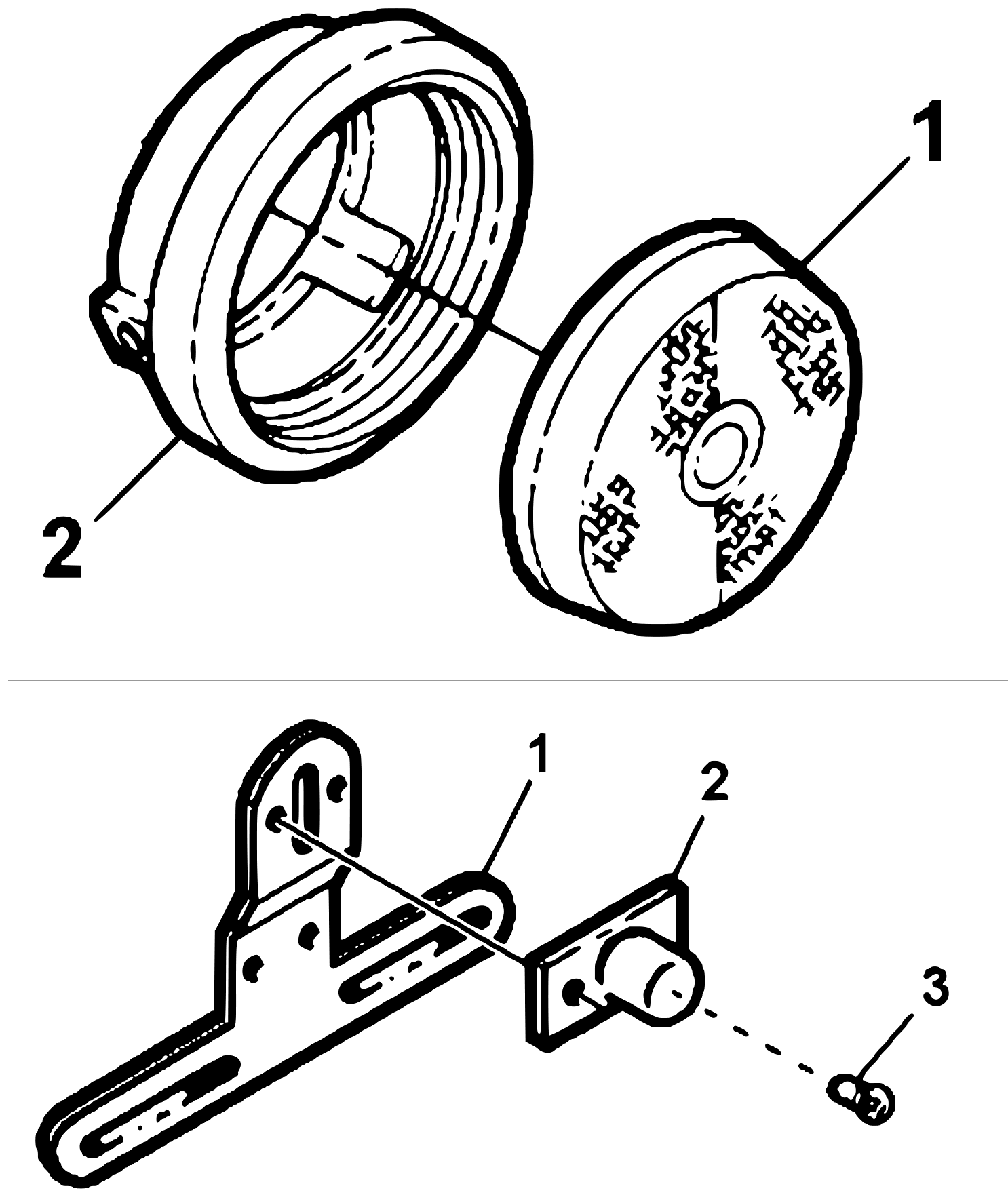

- Light Kit (Cont'd) (3 of 4)
- Light Kit (Cont'd) (4 of 4)
Subframe Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300680 | CYLINDER, REAR SPADE | REF. | Call for price | β |
| 2 | 0302540 | CENTER BONDED MOUNT (BE0102) | 8 | $54.70 | |
| 3 | 0302541 | WASHER, SPECIAL (BE0103) | 20 | $23.72 | |
| 4 | 0302792 | CYLINDER, BOOM ELEVATION | REF. | $7,576.49 | |
| 5 | 0303089 | RAMP PAD | 2 | $85.72 | |
| 6 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 8 | $5.84 | |
| 7 | 0400128 | SCREW, 3/8"-16 X 1-1/4" FL HD SKT | 10 | $8.01 | |
| 8 | 0400139 | SCREW, 3/8"-16 X 1-1/2" HEX SKT SET | 4 | $5.84 | |
| 9 | 0400206 | SCREW, 1/2"-13 X 5" HEX HD CAP | 2 | $9.85 | |
| 10 | 0400211 | SCREW, 1/2"-13 X 1-3/4" HEX HD CAP | 2 | $5.84 | |
| 11 | 0400220 | SCREW, 1/2"-13 X 5-1/2" HEX HD CAP | 1 | $8.01 | |
| 12 | 0400276 | SCREW, 5/8"-11 X 4-1/2" HEX HD CAP | 4 | $8.01 | |
| 13 | 0400281 | SCREW, 3/4"-10 X 3-1/2" HEX HD CAP | 4 | $8.01 | |
| 14 | 0400288 | SCREW, 3/4"-10 X 2-1/2" HEX HD CAP GR8 | 12 | $9.85 | |
| 15 | 0400294 | SCREW, 3/4"-10 X 6-1/2" HEX HD CAP | 4 | $13.84 | |
| 16 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 17 | $5.84 | |
| 17 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 5 | $2.82 | |
| 18 | 0400430 | NUT, 3/4"-10 NYLOK HEX | 4 | $5.84 | |
| 19 | 0400431 | NUT, 3/4"-10 NYLOK HEX GR8 | 12 | $8.01 | |
| 20 | 0400452 | LOCKWASHER, 1/4" HELICAL | 8 | $5.84 | |
| 21 | 0400506 | WASHER, 5/8" FLAT | 8 | $5.84 | |
| 22 | 0400508 | LOCKWASHER, 5/8" HELICAL | 4 | $5.84 | |
| 23 | 0700884 | SHAFT, LOWER JACK | 2 | $61.29 | |
| 24 | 0707117 | SHAFT, UPPER SPADE | 2 | $68.75 | |
| 25 | 0707194 | COVER, SPADE TUBE | 2 | $54.70 | |
| 26 | 0707199 | PIN, SPADE PAD | 2 | $32.11 | |
| 27 | 0708094 | PIN, LIFT CYLINDER | 2 | $317.28 | |
| 28 | 0802211 | FRONT BODY MTG TUBE | 1 | Call for price | β |
| 29 | 0802221 | SPADE PAD | 2 | $313.64 | |
| 30 | 0802398 | SPADE, LEFT INNER | 1 | $3,707.13 | |
| 31 | 0802399 | SPADE, RIGHT INNER | 1 | $3,707.13 | |
| 32 | 0802463 | PIVOT PIN WELDMENT, LIFT CYLINDER | 2 | $255.28 | |
| 33 | 0803571 | SUBFRAME WELDMENT | 1 | Call for price | β |
| 34 | 0803613 | BOOM PIVOT BRACKET | 2 | $958.55 | |
| 35 | 0903729 | SAFETY CHAIN ASSEMBLY (NOT SHOWN) | -- | Call for price | β |
| 0303445 | SAFETY CHAIN, SYSTEM 10, 1/2" x 14' | 2 | $531.08 | ||
| 0400211 | SCREW, 1/2"-13 X 1-3/4" HEX HD CAP | 2 | $5.84 | ||
| 0400408 | NUT, 1/2"-13 NYLOK HEX | 2 | $2.82 | ||
| 0400492 | WASHER, 1/2" FLAT | 2 | $5.84 |
Body Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300345 | RUBBER FENDERPriced per foot | 28 FT. | $25.72 | |
| 2 | 0301223 | MUDFLAP | 2 | $31.48 | |
| 3 | 0301912 | DOOR CHECK, 11" | 6 | $51.06 | |
| 4 | 0302562 | LIGHT BAR, DELUXE (OPTIONAL) | 1 | Call for price | β |
| 5 | 0302978 | LEFT TOOL COMPARTMENT, 156" C.B. | 1 | Call for price | β |
| 6 | 0302979 | RIGHT TOOL COMPARTMENT, 156" C.B. | 1 | Call for price | β |
| 7 | 0303061 | BACK UP ALARM (NOT SHOWN) | 1 | $76.59 | |
| 8 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 6 | $5.84 | |
| 9 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 8 | $5.84 | |
| 10 | 0400288 | SCREW, 3/4"-10 X 2-1/2" HEX HD CAP GR8 | 38 | $9.85 | |
| 11 | 0400369 | CLIP, 1/4" TINNERMAN | 6 | $5.84 | |
| 12 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 8 | $5.84 | |
| 13 | 0400431 | NUT, 3/4"-10 NYLOK HEX GR8 | 38 | $8.01 | |
| 14 | 0400451 | WASHER, 1/4" FLAT | 6 | $5.84 | |
| 15 | 0400566 | RIVET, 1/4" | 76 | $1.63 | |
| 16 | 0705090 | MUDFLAP MTG ANGLE, LEFT | 1 | $17.67 | |
| 17 | 0705091 | MUDFLAP MTG ANGLE, RIGHT | 1 | $29.33 | |
| 18 | 0705092 | BAR, MUDFLAP | 2 | $45.58 | |
| 19 | 0706609 | RETAINING STRIP, FENDER | 4 | $60.17 | |
| 20 | 0707174 | TAILGATE MOUNTING ANGLE | 2 | $35.22 | |
| 21 | 0707175 | MOUNTING PLATE | 2 | $118.53 | |
| 22 | 0709453 | MOUNTING PLATE | 2 | $258.92 | |
| 23 | 0711286 | SPACER, REAR FRAME BRACKET | 2 | Call for price | β |
| 24 | 0711289 | SWITCH PANEL, RIGHT | 1 | $160.45 | |
| 25 | 0711290 | CONTROL PANEL, RIGHT | 1 | $209.72 | |
| 26 | 0711291 | GAUGE PANEL | 1 | $96.61 | |
| 27 | 0711292 | CONTROL PANEL | 1 | $233.40 | |
| 28 | 0802224 | VERTICAL SUPPORT, L.H. | 1 | Call for price | β |
| 29 | 0802225 | VERTICAL SUPPORT, R.H. | 1 | Call for price | β |
| 30 | 0802226 | MOUNTING BRACKET | 2 | Call for price | β |
| 31 | 0802260 | TOP CHANNEL | 1 | $4,144.74 | |
| 32 | 0902286 | CHALLENGER NAMEPLATE KIT | 1 | $191.48 |
Boom Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300113 | GREASE FITTING | 5 | $5.84 | |
| 2 | 0300311 | SHEAVE, 10" | 2 | $573.63 | |
| 3 | 0301923 | SLIDE PAD, BOOM BOTTOM | 2 | $76.59 | |
| 4 | 0302378 | COMPRESSION SPRING | 4 | $73.22 | |
| 5 | 0302538 | BUSHING, 3-1/2" O.D. X 3" I.D. X 2-1/2" | 2 | $191.48 | |
| 6 | 0302830 | CYLINDER, EXTEND | REF. | $18,799.86 | |
| 7 | 0302831 | SNAP RING, INTERNAL | 4 | $5.67 | |
| 8 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 4 | $5.84 | |
| 9 | 0400132 | SCREW, 3/8"-16 X 1-1/2" HEX HD CAP | 8 | $5.84 | |
| 10 | 0400133 | SCREW, 3/8"-16 X 3" HEX HD CAP | 6 | $5.84 | |
| 11 | 0400140 | SCREW, 3/8"-16 X 4" HEX HD CAP | 2 | $5.84 | |
| 12 | 0400248 | SCREW, 5/8"-11 X 1" HEX HD CAP | 4 | $5.84 | |
| 13 | 0400392 | NUT, 3/8"-16 NYLOK HEX | 8 | $5.84 | |
| 14 | 0400408 | NUT, 1/2"-13 NYLOK HEX | 4 | $2.82 | |
| 15 | 0400482 | LOCKWASHER, 3/8" HELICAL | 4 | $5.84 | |
| 16 | 0400492 | WASHER, 1/2" FLAT | 8 | $5.84 | |
| 17 | 0400506 | WASHER, 5/8" X 1-3/4" FLAT | 4 | $5.84 | |
| 18 | 0400508 | LOCKWASHER, 5/8" HELICAL | 4 | $5.84 | |
| 19 | 0400543 | COTTER PIN, 1/8" X 3/4" SS | 4 | $5.84 | |
| 20 | 0400557 | ROLL PIN, 1/2" X 1-1/4" | 6 | $5.84 | |
| 21 | 0700511 | BOTTOM, CABLE GUIDE | 2 | $33.38 | |
| 22 | 0700563 | SHAFT, SHEAVE | 2 | $118.53 | |
| 23 | 0700776 | SLIDE PAD | 2 | $65.64 | |
| 24 | 0700778 | TOP SPACER, OUTER BOOM | 2 | $59.81 | |
| 25 | 0707176 | PIVOT PIN, BOOM | 1 | $985.61 | |
| 26 | 0707190 | PIVOT ROD | 2 | $49.20 | |
| 27 | 0707235 | SPRING CHANNEL | 2 | $45.58 | |
| 28 | 0708124 | PIN, TILT CYLINDER BASE | 1 | $266.24 | |
| 29 | 0708127 | PIN, EXTEND CYLINDER (BASE) | 1 | $133.13 | |
| 30 | 0708128 | PIN, EXTEND CYLINDER (ROD) | 1 | $65.64 | |
| 31 | 0709706 | PLATE, FLAPPER DP 45,000 LB. WINCH | 2 | $145.89 | |
| 32 | 0800222 | BOOM END SWIVEL, LEFT | 1 | Call for price | β |
| 33 | 0800223 | BOOM END SWIVEL, RIGHT | 1 | Call for price | β |
| 34 | 0802027 | CABLE GUIDE | 2 | $362.89 | |
| 35 | 0802218 | SPRING PIN | 4 | $91.19 | |
| 36 | 0802397 | INNER BOOM WELDMENT | 1 | $18,546.42 | |
| 37 | 0802438 | TENSIONER MOUNTING PLATE | 2 | $488.67 | |
| 38 | 0802499 | TENSIONER BRACKET | 2 | $204.27 | |
| 39 | 0802860 | OUTER BOOM WELDMENT | 1 | $37,291.89 |
Underlift & Tower Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300110 | SNAP RING, 1" | 2 | $5.84 | |
| 2 | 0300113 | GREASE FITTING | 3 | $5.84 | |
| 3 | 0301197 | COMPRESSION SPRING, CROSSBAR | 1 | $9.33 | |
| 4 | 0301398 | STEEL BALL, 1-3/16" DIA. | 1 | $15.67 | |
| 5 | 0301691 | OBLONG LINK | 2 | $37.76 | |
| 6 | 0301811 | CYLINDER, BOOM EXTENSION | REF. | $8,854.72 | |
| 7 | 0301817 | SLIDE PAD | 3 | $49.20 | |
| 8 | 0301818 | SLIDE PAD | 2 | $49.20 | |
| 9 | 0301822 | O-RING, PIVOT PIN | 1 | $3.78 | |
| 10 | 0302273 | SPRING | 2 | $67.45 | |
| 11 | 0302537 | CYLINDER, FOLD | REF. | Call for price | β |
| 12 | 0302538 | BUSHING, 3.5" O.D. X 3" I.D. X 2.5" SPRING | 4 | $191.48 | |
| 13 | 0302791 | CYLINDER, TILT | REF. | $2,871.94 | |
| 14 | 0303088 | BUSHING, PIVOT PIN | 1 | $397.53 | |
| 15 | 0303097 | WASHER, THRUST | 1 | $91.19 | |
| 16 | 0303098 | WASHER, THRUST | 1 | $54.70 | |
| 17 | 0400044 | SCREW, #10 TYPE "U" DRIVE | 8 | $5.84 | |
| 18 | 0400121 | SCREW, 3/8"-16 X 3/4" HEX HD CAP | 1 | $5.84 | |
| 19 | 0400151 | SCREW, 3/8"-24 X 3/4" HEX HD CAP GR5 | 6 | $5.84 | |
| 20 | 0400152 | SCREW, 3/8"-24 X 5/8" FLAT SKT HD | 4 | $5.84 | |
| 21 | 0400176 | SCREW, 1/2"-13 X 1" HEX HD CAP | 3 | $5.84 | |
| 22 | 0400196 | SCREW, 1/2"-13 X 1-1/4", SKT HD CAP | 4 | $8.01 | |
| 23 | 0400205 | SCREW, 1/2"-13 X 3" HEX HD CAP GR5 | 2 | $5.84 | |
| 24 | 0400206 | SCREW, 1/2"-13 X 5" HEX HD CAP | 4 | $9.85 | |
| 25 | 0400271 | SCREW, 5/8"-11 X 4-1/2" SKT HD CAP | 2 | $13.84 | |
| 26 | 0400408 | NUT, LOCK 1/2"-13 | 6 | $2.82 | |
| 27 | 0400481 | LOCKWASHER, 3/8" EXT. TOOTH | 6 | $5.84 | |
| 28 | 0400482 | LOCKWASHER, 3/8" | 1 | $5.84 | |
| 29 | 0400491 | LOCKWASHER, 1/2" HELICAL | 3 | $5.84 | |
| 30 | 0400508 | LOCKWASHER, 5/8" | 2 | $5.84 | |
| 31 | 0703231 | PLATE, STOP, OUTER BOOM | 2 | $16.97 | |
| 32 | 0703233 | PLATE, STOP | 1 | $35.75 | |
| 33 | 0703235 | SHAFT, INNER BOOM CYLINDER | 1 | $89.86 | |
| 34 | 0703236 | SHAFT, OUTER BOOM CYLINDER | 1 | $160.45 | |
| 35 | 0703277 | PAD, SLIDER | 2 | $11.66 | |
| 36 | 0707179 | PIN | 1 | $219.10 | |
| 37 | 0708124 | PIN, TILT CYLINDER BASE | 1 | $266.24 | |
| 38 | 0708125 | PIN, TILT CYLINDER ROD | 1 | $299.04 | |
| 39 | 0708470 | SPACER, DETENT SPRING | 1 | $17.67 | |
| 40 | 0710051 | PIN, PIVOT, TOP HALF | 1 | $302.66 | |
| 41 | 0710052 | PIN, PIVOT, BOTTOM | 1 | $302.66 | |
| 42 | 0710450 | BAR, RETRACT | 2 | $41.94 | |
| 43 | 0800590 | TEE HANDLE | REF. | $29.33 | |
| 44 | 0800998 | BOOM, 2ND STAGE | 1 | $5,964.54 | |
| 45 | 0802155 | FORK ADAPTER, L.H. (SHOWN) | REF. | Call for price | β |
| 46 | 0802156 | FORK ADAPTER, R.H. | REF. | Call for price | β |
| 47 | 0802393 | BOOM, OUTER | 1 | $9,281.40 | |
| 48 | 0802394 | UNDERLIFT TOWER | 1 | $10,845.27 | |
| 49 | 0802459 | PIN, FOLD CYLINDER | 1 | $145.89 | |
| 50 | 0802460 | TOWER PIVOT PIN | 2 | $260.78 | |
| 51 | 0802461 | PIN, UNDERLIFT PIVOT | 1 | $403.01 | |
| 52 | 0802914 | CROSSBAR | 1 | $3,132.72 | |
| 53 | 0802915 | BOOM, 3RD STAGE | 1 | $6,042.20 | |
| 54 | 0900900 | PIN, RETAINER | REF. | $33.12 |
Underlift Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300044 | CONNECTOR, 6MJ-8MB | 7 | $3.78 | |
| 2 | 0300206 | BRANCH TEE, 6MJ-6MJ-4MP | 1 | $6.80 | |
| 3 | 0300209 | ELBOW, 6MJ-6MP90 | 1 | $8.04 | |
| 4 | 0301425 | CONNECTOR, 6MJ-6MP | 1 | $3.78 | |
| 5 | 0301473 | HOSE ASSEMBLY, 18" | 2 | $58.36 | |
| 6 | 0301470 | ELBOW, 6MJ-8MP90 | 6 | $7.68 | |
| 7 | 0301522 | CONNECTOR, 6MJ-6MB | 1 | $3.78 | |
| 8 | 0301620 | ELBOW, 6MJ-6MB90 | 2 | $5.76 | |
| 9 | 0301730 | DOUBLE HOLDING VALVE | 1 | $565.26 | |
| 10 | 0301731 | HOLDING VALVE | 1 | $331.88 | |
| 11 | 0301837 | INLINE ORIFICE | 1 | Call for price | β |
| 12 | 0302035 | HOSE ASSEMBLY, 18" | 1 | $37.76 | |
| 13 | 0302504 | TUBE ASSEMBLY | 6 | $233.40 | |
| 14 | 0302514 | ADAPTER, 8MJ-6MJ | 6 | $5.67 | |
| 15 | 0302537 | CYLINDER, FOLD | REF. | Call for price | β |
| 16 | 0302548 | CLAMPING UNIT | 4 PR. | $28.28 | |
| 17 | 0302549 | SPLIT BUSHING | 24 | $5.67 | |
| 18 | 0302551 | STACKING NUT, SKT HD | 8 | $11.66 | |
| 19 | 0302576 | BULKHEAD UNION W/NUT | 6 | $12.43 | |
| 20 | 0302584 | HOSE ASSEMBLY, 50" | 2 | $63.82 | |
| 21 | 0302791 | CYLINDER, TILT | REF. | $2,871.94 | |
| 22 | 0302798 | CONTROL VALVE, VDP11DDC10 | REF. | $1,300.16 | |
| 23 | 0302805 | HOSE ASSEMBLY, 10" | 2 | $30.11 | |
| 24 | 0302812 | HOSE ASSEMBLY, 78" | 1 | $56.19 | |
| 25 | 0302813 | HOSE ASSEMBLY, 108" | 2 | $103.94 | |
| 26 | 0302842 | TEE, 8MJ-8MJ-8MB | 2 | Call for price | β |
| 27 | 0302911 | HOSE ASSEMBLY, 88" | 1 | $73.37 | |
| 28 | 0302914 | HOSE ASSEMBLY, 35" | 1 | $70.82 | |
| 29 | 0302915 | HOSE ASSEMBLY, 12" | 2 | $56.54 | |
| 30 | 0303017 | CONNECTOR, 8MB-6FB | 1 | $5.67 | |
| 31 | 0303342 | HOSE ASSEMBLY, 30" | 6 | $47.42 | |
| 32 | 0303348 | HOSE ASSEMBLY, 48" | 2 | $77.31 | |
| 33 | 0303501 | CYLINDER, EXTEND | REF. | $6,945.56 | |
| 34 | 0303561 | HOSE ASSEMBLY, 24" | 1 | Call for price | β |
| 35 | 0303562 | HOSE ASSEMBLY, 37" | 1 | $48.11 | |
| 36 | 0303563 | HOSE ASSEMBLY, 27" | 1 | $42.49 | |
| 37 | 0400118 | SCREW, 5/16"-18 X 3/4" HEX HD CAP | 8 | $5.84 |
Boom Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300041 | CONNECTOR, 8MJ-8MB | 2 | $5.67 | |
| 2 | 0300113 | GREASE FITTING | 4 | $5.84 | |
| 3 | 0300644 | HOSE CLAMP, 8" | 2 | $19.68 | |
| 4 | 0300657 | HOSE ASSEMBLY, 46" | 2 | $85.72 | |
| 5 | 0300659 | HOSE ASSEMBLY, 45" | 4 | $61.95 | |
| 6 | 0301376 | CONNECTOR, 6MJ-8MB | 2 | Call for price | β |
| 7 | 0301388 | ELBOW, 8MJ-8MB90 | 4 | $13.32 | |
| 8 | 0301731 | HOLDING VALVE | 2 | $331.88 | |
| 9 | 0301778 | CONNECTOR, 6MJ-10MB | 2 | Call for price | β |
| 10 | 0302051 | ELBOW, 8MJ-6MP90 | 2 | $8.46 | |
| 11 | 0302296 | CONTROL VALVE, VDP12CDD118 | REF. | $1,513.42 | |
| 12 | 0302568 | HYDRAULIC TUBING | 2 | Call for price | β |
| 13 | 0302569 | WIRE TIE, 29-3/4" (NOT SHOWN) | 4 | Call for price | β |
| 14 | 0302574 | BULKHEAD RUN TEE, 8MJ-BLKHD-8MJ | 2 | Call for price | β |
| 15 | 0302576 | BULKHEAD UNION, 8MJ-8BLKHD | 2 | $12.43 | |
| 16 | 0302792 | LIFT CYLINDER | 2 | $7,576.49 | |
| 17 | 0302796 | TEE, 8MJ-8MJ-8FJX | 2 | Call for price | β |
| 18 | 0302797 | ELBOW, 8MJ-4MP90 | 2 | Call for price | β |
| 19 | 0302830 | EXTEND CYLINDER | 1 | $18,799.86 | |
| 20 | 0302930 | CONNECTOR, 8MJ-6MP | 2 | Call for price | β |
| 21 | 0303343 | HOSE ASSEMBLY, 45" | 2 | Call for price | β |
| 22 | 0303346 | HOSE ASSEMBLY, 48" | 1 | Call for price | β |
| 23 | 0303347 | HOSE ASSEMBLY, 50" | 1 | Call for price | β |
| 24 | 0303354 | HOSE ASSEMBLY, 33" | 1 | $70.68 | |
| 25 | 0303355 | HOSE ASSEMBLY, 33" | 1 | $75.53 | |
| 26 | 0400064 | SCREW, 1/4"-20 X 2-1/4" RD HD SLOTTED | 4 | Call for price | β |
| 27 | 0400366 | NUT, 1/4"-20 HEX | 4 | $5.84 | |
| 28 | 0400451 | WASHER, 1/4" FLAT | 4 | $5.84 | |
| 29 | 0400452 | LOCKWASHER, 1/4" HELICAL | 4 | $5.84 | |
| 30 | 0703001 | MOUNTING BRACKET, CHECK VALVE | 2 | $24.66 |
Pump, Valve & Filter Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300052 | ELBOW, 8MJ-10MB90 | 1 | $11.32 | |
| 2 | 0300136 | RETURN LINE FILTER ASSEMBLY | 1 | $64.70 | |
| 3 | 0300287 | BUSHING, 1-1/4" X 1" | 2 | Call for price | β |
| 4 | 0300364 | CLAMP, HOSE, 1" - 2-1/4" | 6 | $7.07 | |
| 5 | 0300434 | HOSE BARB, 2", 32C4-32MP | 1 | Call for price | β |
| 6 | 0300446 | PIPE PLUG, 3/4" NPT | 2 | $5.67 | |
| 7 | 0300558 | SUCTION HOSE, 2"Priced per foot | 15 FT. | $23.42 | |
| 8 | 0300615 | ELBOW, 12MJ-12MP90 | 1 | $14.88 | |
| 9 | 0300666 | BARB, 24C4-24MP | 1 | Call for price | β |
| 10 | 0300671 | SUCTION HOSE, 1-1/2"Priced per foot | 16 FT. | $30.11 | |
| 11 | 0301373 | PIPE BUSHING, 2" NPT TO 1-1/2" NPT | 1 | Call for price | β |
| 12 | 0301545 | ELBOW, 12MJ-12MB90 | 3 | $18.95 | |
| 13 | 0301637 | ELBOW FLANGE, 32-32FL90 W/ FLANGE KIT | 1 | $378.34 | |
| 14 | 0301659 | HOSE ASSEMBLY, 150" | 1 | $118.53 | |
| 15 | 0301696 | ELBOW, 6MJ-6FJX90 | 3 | Call for price | β |
| 16 | 0301836 | HYDRAULIC PUMP, OPPOSITE ENGINE | 1 | $9,777.37 | |
| 17 | 0301894 | FILTER ASSEMBLY, SPIN-ON | 2 | $278.98 | |
| 18 | 0301904 | ELBOW, 8MJ-12FL90 | 1 | Call for price | β |
| 19 | 0301905 | O-RING FLANGE KIT, 12FH | 1 | Call for price | β |
| 20 | 0301961 | BALL VALVE, BRONZE | 2 | Call for price | β |
| 21 | 0301965 | HOSE ASSEMBLY, 131" | 3 | $118.53 | |
| 22 | 0301995 | ADAPTER, 8FJ-6MJ | 1 | $5.67 | |
| 23 | 0302052 | RUN TEE, 8MJ-8FJX-8MJ | 1 | $15.14 | |
| 24 | 0302083 | ELBOW, 16MJ-12MB90 | 2 | $31.37 | |
| 25 | 0302205 | GAUGE, HYDRAULIC PRESSURE | 3 | $45.17 | |
| 26 | 0302227 | CENTER BONDED MOUNT | 4 | $24.66 | |
| 27 | 0302228 | SPECIAL WASHER | 4 | $21.89 | |
| 28 | 0302242 | FLANGE FITTING, 24-24FL90 | 1 | $377.44 | |
| 29 | 0302296 | CONTROL VALVE, VDP12CDD118 | 2 | $1,513.42 | |
| 30 | 0302367 | PIPE NIPPLE, 2" X 4" | 2 | Call for price | β |
| 31 | 0302466 | AIR SHIFT PTO (NOT SHOWN) | 1 | Call for price | β |
| 32 | 0302570 | SIGHT GAUGE | 2 | $15.75 | |
| 33 | 0302577 | CONNECTOR, 6MJ-4FP | 3 | $4.23 | |
| 34 | 0302798 | CONTROL VALVE, VDP11DDC10 | 1 | $1,300.16 | |
| 35 | 0302826 | TEE, 12MJ-12FJX-12MJ | 2 | $37.76 | |
| 36 | 0302829 | ADAPTER, 12FJ-6MJ | 2 | Call for price | β |
| 37 | 0302901 | HOSE ASSEMBLY, 120" | 2 | $246.16 | |
| 38 | 0302932 | ELBOW, 12MJ-20FL90 W/ FLANGE KIT | 2 | $153.17 | |
| 39 | 0303290 | HOSE CLAMP, 2-1/2" INSULATED | 6 | $19.68 | |
| 40 | 0303338 | ELBOW, 16MJ-16MP45 | 2 | $26.69 | |
| 41 | 0303340 | HOSE ASSEMBLY, 50" | 1 | Call for price | β |
| 42 | 0303341 | HOSE ASSEMBLY, 36" | 2 | $156.48 | |
| 43 | 0305006 | FILLER CAP | 2 | $63.82 | |
| 44 | 0400081 | SCREW, 1/4"-20 X 3-1/2" HEX HD CAP | 2 | Call for price | β |
| 45 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 32 | $5.84 | |
| 46 | 0400150 | SCREW, 3/8"-16 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 47 | 0400177 | SCREW, 1/2"-13 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 48 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 2 | $5.84 | |
| 49 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 12 | $5.84 | |
| 50 | 0400451 | WASHER, 1/4" FLAT | 2 | $5.84 | |
| 51 | 0400482 | LOCKWASHER, 3/8" HELICAL | 24 | $5.84 | |
| 52 | 0400491 | LOCKWASHER, 1/2" HELICAL | 4 | $5.84 | |
| 53 | 0706114 | GASKET, CLEANOUT & FILLER COVER | 2 | $42.55 | |
| 54 | 0802429 | RESERVOIR WELDMENT, LEFT | 1 | $1,872.66 | |
| 55 | 0802430 | RESERVOIR WELDMENT, RIGHT | 1 | $1,870.87 | |
| 56 | 0802747 | FILLER PIPE WELDMENT | 2 | Call for price | β |
| 57 | 0803193 | RESERVOIR SUPPORT WELDMENT | 2 | Call for price | β |
Winch Hydraulics & Air Free Spool
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300324 | VALVE, SOLENOID AIR CONTROL | 2 | $164.65 | |
| 2 | 0300897 | RUBBER GROMMET | 4 | $3.78 | |
| 3 | 0301093 | BULKHEAD UNION, 3/4" JIC | 4 | Call for price | β |
| 4 | 0301577 | AIR HOSE, 1/4" O.D.Priced per foot | 10 FT. | $5.84 | |
| 5 | 0301610 | CONNECTOR, 4TB-4MP | 2 | $10.57 | |
| 6 | 0302431 | CONVOLUTED LOOM, 3/8"Priced per foot | 10 FT. | $0.30 | |
| 7 | 0302607 | TEE UNION, 4TB-4TB-4TB | 1 | $15.14 | |
| 8 | 0302677 | BREATHER VENT, 1/8" MP | 2 | $7.68 | |
| 9 | 0302678 | ELBOW, 1/4" TUBE X 1/8" MP90 | 4 | $5.67 | |
| 10 | 0302827 | CONNECTOR, 10MJ-10MB | 2 | $7.68 | |
| 11 | 0302835 | CLAMPING UNIT | 5 | Call for price | β |
| 12 | 0302836 | STACKING NUT, SKT HD | 5 | $7.68 | |
| 13 | 0302837 | SPLIT BUSHING, 1" | 10 | $5.67 | |
| 14 | 0303079 | CONNECTOR, 10MJ-8MB | 4 | $5.88 | |
| 15 | 0303344 | HOSE ASSEMBLY, 46" | 2 | Call for price | β |
| 16 | 0303345 | HOSE ASSEMBLY, 48" | 2 | Call for price | β |
| 17 | 0303349 | HOSE ASSEMBLY, 81" | 1 | Call for price | β |
| 18 | 0303350 | HOSE ASSEMBLY, 89" | 1 | $172.60 | |
| 19 | 0303351 | HOSE ASSEMBLY, 105" | 1 | $123.03 | |
| 20 | 0303352 | HOSE ASSEMBLY, 117" | 1 | $202.91 | |
| 21 | 0303504 | WINCH, DP MODEL S50-50K, SINGLE SPEED | 2 | Call for price | β |
| 22 | 0400034 | SCREW, #10-32 X 1/2" RD HD PHIL | 4 | Call for price | β |
| 23 | 0400118 | SCREW, 5/16"-18 X 3/4" HEX HD CAP | 5 | $5.84 | |
| 24 | 0400288 | SCREW, 3/4"-10 X 2-1/2" HEX HD CAP | 16 | $9.85 | |
| 25 | 0400431 | NUT, 3/4" HEX NYLOK | 16 | $8.01 | |
| 26 | 0400455 | LOCKWASHER, #10 HELICAL | 4 | Call for price | β |
| 27 | 0709702 | ANGLE - WINCH MOUNTING | 2 | $113.04 | |
| 28 | 0709703 | ANGLE - WINCH MOUNTING | 2 | $113.04 | |
| 29 | 0709704 | ANGLE - WINCH MOUNTING | 2 | $113.04 | |
| 30 | 0709705 | ANGLE - WINCH MOUNTING | 2 | $113.04 | |
| 31 | GX263 | ELBOW, 10MJ-10MB90 | 2 | $15.14 |
Left Control Assembly
Left Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300341 | CONTROL KNOB, W/L (UP/DOWN) | 1 | $9.25 | |
| 2 | 0300834 | CONTROL KNOB, (IN/OUT) | 2 | $21.51 | |
| 3 | 0300835 | CONTROL KNOB, BOOM (UP/DOWN) | 1 | $13.32 | |
| 4 | 0300836 | CONTROL KNOB, JACK (UP/DOWN) | 2 | $18.95 | |
| 5 | 0300837 | CONTROL KNOB, BOOM (IN/OUT) | 1 | $15.14 | |
| 6 | 0301884 | CONTROL CABLE, 96" | 1 | $169.59 | |
| 7 | 0302457 | CONTROL CABLE, 104" | 4 | $169.59 | |
| 8 | 0302726 | GREASE FITTING, 1/4"-28 X 45Β° | 9 | $3.78 | |
| 9 | 0302856 | CONTROL KNOB, TILT (UP/DOWN) | 1 | $24.66 | |
| 10 | 0302917 | CONTROL KNOB, W/L EXTEND (IN/OUT) | 1 | $31.37 | |
| 11 | 0303008 | ADJUSTABLE CLEVIS | 12 | $9.50 | |
| 12 | 0303427 | CONTROL CABLE, 114" | 4 | $169.59 | |
| 13 | 0400066 | SCREW, 1/4"-20 X 3/4" HEX HD CAP | 2 | $5.84 | |
| 14 | 0400103 | SCREW, 5/16"-18 X 1-1/4" HEX HD CAP | 9 | $5.84 | |
| 15 | 0400107 | SCREW, 5/16"-18 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 16 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 17 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 2 | $5.84 | |
| 18 | 0400379 | NUT, 5/16"-18 "J" TINNERMAN | 4 | $8.01 | |
| 19 | 0400382 | NUT, 5/16"-18 HEX NYLOK | 9 | $5.84 | |
| 20 | 0400383 | NUT, 5/16"-24 HEX | 36 | $5.84 | |
| 21 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 10 | $5.84 | |
| 22 | 0400393 | NUT, 3/8"-16 HEX JAM | 9 | $5.84 | |
| 23 | 0400451 | WASHER, 1/4" FLAT | 4 | $5.84 | |
| 24 | 0400466 | WASHER, 5/16" INTERNAL TOOTH | 24 | $5.84 | |
| 25 | 0400512 | WASHER, 3/4" FLAT (SPECIAL) | 10 | Call for price | β |
| 26 | 0400532 | CLEVIS PIN, 5/16" X 1" | 9 | $5.84 | |
| 27 | 0400541 | COTTER PIN, 1/16" X 3/4" | 9 | $5.84 | |
| 28 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 29 | 0711245 | PLATE, SHAFT SUPPORT | 1 | $21.49 | |
| 30 | 0711246 | PIN, CONTROL BOX | 1 | $33.78 | |
| 31 | 0711284 | SUPPORT, CONTROL (LEFT) | 1 | $51.06 | |
| 32 | 0711285 | SUPPORT, CONTROL (RIGHT) | 1 | $40.10 | |
| 33 | 0801054 | CONTROL CABLE CONNECTOR | 6 | Call for price | β |
| 34 | 0803182 | CONTROL FRAME WELDMENT | 1 | $709.00 | |
| 35 | 0803294 | CONTROL HANDLE WELDMENT | 9 | $133.19 |
Remote Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| -- | REMOTE CONTROL ASSEMBLY | -- | Call for price | β | |
| 36 | 0300166 | WIRE CONNECTOR, SPADE | 10/16 | Call for price | β |
| 37 | 0301574 | ELBOW, 4TB-4MP90 | 1 | Call for price | β |
| 38 | 0301577 | AIR HOSE, 1/4" O.D. (FT.)Priced per foot | 15/25 | $5.84 | |
| 39 | 0301610 | CONNECTOR, 4TB-4MP | 2/4 | $10.57 | |
| 40 | 0301618 | BRASS PLUG, 4MP | 2/3 | $8.01 | |
| 41 | 0302048 | CABLE SEALING GRIP | 2 | Call for price | β |
| 42 | 0302340 | HEX PIPE BUSHING | 2 | $6.64 | |
| 43 | 0302431 | CONVOLUTED LOOM, 3/8" X 8"Priced per foot | 1 | $0.30 | |
| 44 | 0302434 | CABLE TIE, 4" 18 LB. | 35/65 | Call for price | β |
| 45 | 0302677 | BREATHER VENT, 2MP | 1/2 | $7.68 | |
| 46 | 0302678 | ELBOW, 4TB-2MP | 16/28 | $5.67 | |
| 47 | 0302844 | AIR SOLENOID VALVE (8) | 1 | Call for price | β |
| -- | 0303479 | AIR SOLENOID VALVE (14) | 1 | Call for price | β |
| 48 | 0303226 | CIRCUIT BREAKER, HI-AMP WATERPROOF | 1 | $120.33 | |
| 49 | 0303235 | TERMINAL BLOCK | 1/2 | Call for price | β |
| 50 | 0303250 | POWER PAL, 15 POSITION | 1 | Call for price | β |
| 51 | 0303251 | POWER PAL, 8 POSITION | 1 | Call for price | β |
| 52 | 0303322 | ELECTRICAL CABLE, 16/10 SO (FT.) | 8/20 | Call for price | β |
| 53 | 0303335 | AIR CYLINDER | 4/7 | Call for price | β |
| 54 | 0303363 | AIR FILTER/REGULATOR | 1 | $144.04 | |
| 55 | 0303364 | AIR LUBRICATOR | 1 | $133.13 | |
| 56 | 0303365 | MOUNTING BRACKET | 1 | $7.68 | |
| 57 | 0400025 | SCREW, #8-32 X 3/4" RD HD SLOTTED | 2/4 | $5.84 | |
| 58 | 0400057 | SCREW, 1/4"-20 X 1-1/4" HEX HD CAP | 4/7 | $5.84 | |
| 59 | 0400078 | SCREW, 1/4"-20 X 2" HEX HD CAP | 2/4 | $5.84 | |
| 60 | 0400351 | HEX NUT & STAR WASHER, #8-32 | 2/4 | $5.84 | |
| 61 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 6/11 | $5.84 | |
| 62 | 0400401 | NUT, 7/16"-20 HEX JAM | 4/7 | $5.84 | |
| 63 | 0400451 | WASHER, 1/4" FLAT | 2/4 | $5.84 | |
| 64 | 0400527 | CLEVIS PIN, 5/16" X 5/8" COTTERLESS | 4/7 | $8.01 | |
| 65 | 0711277 | SUPPORT, SOLENOID VALVE (8) | 1 | Call for price | β |
| -- | 0711836 | SUPPORT, SOLENOID VALVE (14) | 1 | Call for price | β |
| 66 | 0803181 | CLEVIS WELDMENT | 4/7 | $9.55 | |
| 67 | HA0132 | GAUGE, 0-160 PSI | 1 | $24.66 |
Right Control Assembly
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300834 | CONTROL KNOB, (IN/OUT) | 2 | $21.51 | |
| 2 | 0300835 | CONTROL KNOB, BOOM (UP/DOWN) | 1 | $13.32 | |
| 3 | 0300836 | CONTROL KNOB, JACK (UP/DOWN) | 2 | $18.95 | |
| 4 | 0300837 | CONTROL KNOB, BOOM (IN/OUT) | 1 | $15.14 | |
| 5 | 0302457 | CONTROL CABLE, 104" | 3 | $169.59 | |
| 6 | 0302726 | GREASE FITTING, 1/4"-28 X 45Β° | 6 | $3.78 | |
| 7 | 0303008 | ADJUSTABLE CLEVIS | 6 | $9.50 | |
| 8 | 0303427 | CONTROL CABLE, 114" | 3 | $169.59 | |
| 9 | 0400103 | SCREW, 5/16"-18 X 1-1/4" HEX HD CAP | 6 | $5.84 | |
| 10 | 0400107 | SCREW, 5/16"-18 X 2-1/2" HEX HD CAP | 4 | $5.84 | |
| 11 | 0400122 | SCREW, 3/8"-16 X 1-1/4" HEX HD CAP | 4 | $5.84 | |
| 12 | 0400379 | NUT, 5/16"-18 "J" TINNERMAN | 4 | $8.01 | |
| 13 | 0400382 | NUT, 5/16"-18 HEX NYLOK | 10 | $5.84 | |
| 14 | 0400383 | NUT, 5/16"-24 HEX | 18 | $5.84 | |
| 15 | 0400392 | NUT, 3/8"-16 HEX NYLOK | 4 | $5.84 | |
| 16 | 0400393 | NUT, 3/8"-16 HEX JAM | 6 | $5.84 | |
| 17 | 0400466 | WASHER, 5/16" INTERNAL TOOTH | 18 | $5.84 | |
| 18 | 0400480 | WASHER, 3/8" FLAT | 4 | $4.01 | |
| 19 | 0400512 | WASHER, 3/4" FLAT (SPECIAL) | 7 | Call for price | β |
| 20 | 0400532 | CLEVIS PIN, 5/16" X 1" | 6 | $5.84 | |
| 21 | 0400541 | COTTER PIN, 1/16" X 3/4" | 6 | $5.84 | |
| 22 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 | $17.67 | |
| 23 | 0711247 | PIN, CONTROL BOX | 1 | $47.42 | |
| 24 | 0711284 | SUPPORT, CONTROL (LEFT) | 1 | $51.06 | |
| 25 | 0711285 | SUPPORT, CONTROL (RIGHT) | 1 | $40.10 | |
| 26 | 0803183 | CONTROL FRAME WELDMENT | 1 | Call for price | β |
| 27 | 0803294 | CONTROL HANDLE WELDMENT | 6 | $133.19 |
Rear Spade Hydraulics
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300044 | CONNECTOR, 6MJ-8MB | 6 | $3.78 | |
| 2 | 0301522 | CONNECTOR, 6MJ-6MB | 2 | $3.78 | |
| 3 | 0301601 | HOSE CLAMP, 5/8" INSULATED (NOT SHOWN) | 20 | $3.78 | |
| 4 | 0302296 | CONTROL VALVE, VDP12CDD118 | REF. | $1,513.42 | |
| 5 | 0303017 | CONNECTOR, 8MB-6FB | 2 | $5.67 | |
| 6 | 0303691 | HYDRAULIC CYLINDER | 2 | Call for price | β |
| 7 | 0303748 | HOSE ASSEMBLY, 136" | 4 | $107.59 |
Hydraulic Cylinders
Hydraulic Cylinders (Cont'd) (1 of 2)
Hydraulic Cylinders (Cont'd) (2 of 2)
Glad Hand Kit
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301909 | RECEPTACLE BOOT | 1 | Call for price | β |
| 2 | 0301944 | GLAD HAND COUPLING | 2 | Call for price | β |
| 3 | 0301945 | GLAD HAND PLUG | 2 | $39.10 | |
| 4 | 0301946 | BULKHEAD CONNECTOR | 2 | $94.80 | |
| 5 | 0301947 | ADAPTER, 1/4" NPM X 3/8" SYN. HOSE | 2 | Call for price | β |
| 6 | 0301948 | HD 7-WAY TRAILER CONNECTOR | 1 | $60.17 | |
| 7 | 0400070 | SCREW, 1/4"-20 X 1" HEX HD CAP | 2 | $5.84 | |
| 8 | 0400367 | NUT, 1/4"-20 HEX NYLOK | 2 | $5.84 | |
| 9 | 0400451 | WASHER, 1/4" FLAT | 2 | $5.84 | |
| 10 | 0400463 | WASHER, 5/16" FLAT | 2 | $5.84 | |
| 11 | 0703795 | AIR HOSE, 3/8" X 48" SYNFLEX | 2 | Call for price | β |
Lift Adapters
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0200018 | FORK, SHORT (3" OPENING) | 2 | $160.45 | |
| 2 | 0200019 | FORK, SHORT (4-1/2" OPENING) | 2 | $178.69 | |
| 3 | 0200020 | FORK, MEDIUM (3" OPENING) | 2 | $218.80 | |
| 4 | 0200021 | FORK, MEDIUM (4-1/2" OPENING) | 2 | $253.45 | |
| 5 | 0200022 | FORK, LONG (3" OPENING) | 2 | $264.40 | |
| 6 | 0200023 | FORK, LONG (4-1/2" OPENING) | 2 | $342.83 | |
| 7 | 0200024 | FORK, OFFSET REAR AXLE (6" OPENING) | 2 | $253.45 | |
| 8 | 0400585 | HAIR PIN COTTER, 1-1/4" | 2 | $5.84 | |
| 9 | 0711002 | MODIFIED BOLT | 2 | Call for price | β |
| 10 | 0800590 | TEE HANDLE | 4 | $29.33 | |
| 11 | 0801186 | CHAIN HOOK ADAPTER, R.H. | 1 | $377.33 | |
| 12 | 0801187 | CHAIN HOOK ADAPTER, L.H. | 1 | Call for price | β |
| 13 | 0801459 | RISER BRACKET | 2 | $902.62 | |
| 14 | 0802810 | SPRING LIFT BRACKET | 2 | Call for price | β |
| 15 | 0803591 | OFFSET FORK ADAPTER, LT | 1 | $911.39 | |
| 16 | 0803592 | OFFSET FORK ADAPTER, RT | 1 | $911.39 | |
| 17 | 0900900 | RETAINER PIN ASSEMBLY | 2 | $33.12 | |
| 18 | 0902321 | RETAINER PIN, SPRING LIFT BRACKET | 2 | Call for price | β |
King Pin Adapter
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0803605 | KING PIN ADAPTER WELDMENT | 1 | $1,490.35 | |
| 0902782 | FIFTH WHEEL ADAPTER (COMPLETE) | -- | Call for price | β | |
| 2 | 0400555 | ROLL PIN, 3/8" X 1-1/2" | 1 | $5.84 | |
| 3 | HD1259 | SNAPPER PIN | 2 | $13.84 | |
| 4 | VA0660 | FIFTH WHEEL PIVOT PLATE WELDMENT | 1 | Call for price | β |
| 5 | VA0661 | PULL PIN WELDMENT | 1 | $136.75 | |
| 6 | VA0662 | PIVOT PIN WELDMENT | 1 | $129.48 | |
| 124002211 | PINTLE HOOK KIT (COMPLETE) | -- | $1,319.25 | ||
| 7 | 0302198 | PINTLE HOOK (NOT SHOWN) | 1 | $251.63 | |
| 8 | 0400176 | SCREW, 1/2"-13 X 1" HEX HD CAP | 4 | $5.84 | |
| 9 | 0400491 | LOCKWASHER, 1/2" HELICAL | 4 | $5.84 | |
| 10 | 0803604 | 5TH WHEEL, KING PIN ADAPTER & PINTLE HOOK BRACKET WELDMENT | 1 | Call for price | β |
| 11 | 0902378 | RETAINING PIN ASSEMBLY | 2 | $63.72 |
Light Kit
Light Kit (Cont'd) (1 of 4)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0300442 | 3-LIGHT BAR ASSEMBLY (COMPLETE) | $33.38 | ||
| 2 | 0300507 | BULB, MARKER LIGHT | Call for price | β | |
| 3 | 0200511 | LENS, 3-LIGHT BAR | Call for price | β | |
| 1 | 0301390 | LIGHT, TURN (COMPLETE) | $29.33 | ||
| 2 | 0304123 | BEZEL MOUNTING SCREW | Call for price | β | |
| 3 | 0304124 | CHROME BEZEL | $13.32 | ||
| 4 | 0304125 | LENS & BULB ASSEMBLY | Call for price | β | |
| 5 | 0304126 | GROMMET & PLUG KIT | Call for price | β |
Light Kit (Cont'd) (2 of 4)
Light Kit (Cont'd) (3 of 4)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0301740 | GROMMET & PLUG, MARKER LIGHT | $18.95 | ||
| 2 | 0301741 | SEALED MARKER LIGHT, RED | $9.50 | ||
| 3 | 0301742 | SEALED MARKER LIGHT, AMBER | $23.53 | ||
| 1 | 0300076 | BRACKET, LICENSE PLATE | $7.32 | ||
| 2 | 0300273 | LICENSE PLATE ILLUMINATOR (COMPLETE) | $25.52 | ||
| 3 | 0300512 | BULB, LICENSE PLATE ILLUMINATOR | Call for price | β |
Light Kit (Cont'd) (4 of 4)
| Ref # | Part Number | Description | Qty Used | List Price | Quick Add to Cart |
|---|---|---|---|---|---|
| 1 | 0302611 | LIGHT, AMBER MARKER (COMPLETE) | $45.58 |
