Century 9055XL / XP850 Bua-9055 Outriger Syst-FACT12V – OEM Part No. 0910353
Genuine replacement Bua-9055 Outriger Syst-FACT12V (part no. 0910353) for the Century 9055XL / XP850 (2021 manual), manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 0910353 |
|---|---|
| Manual description | BUA-9055 OUTRIGER SYST-FACT12V |
| Fits | Century 9055XL / XP850 (2021 manual) |
| Assembly | 09011768, Basic Unit Assembly, 9055XL XP850; 0910353, Basic Unit Assembly 9055 Outrigger |
| Diagram reference (item) no. | 119 (09011768, Basic Unit Assembly, 9055XL XP850); (0910353, Basic Unit Assembly 9055 Outrigger) |
| Quantity used per assembly | 1 (09011768, Basic Unit Assembly, 9055XL XP850); - (0910353, Basic Unit Assembly 9055 Outrigger) |
| Source | Century 9055XL XP850 Parts Manual, Form No. 05003703 (April 2021) |

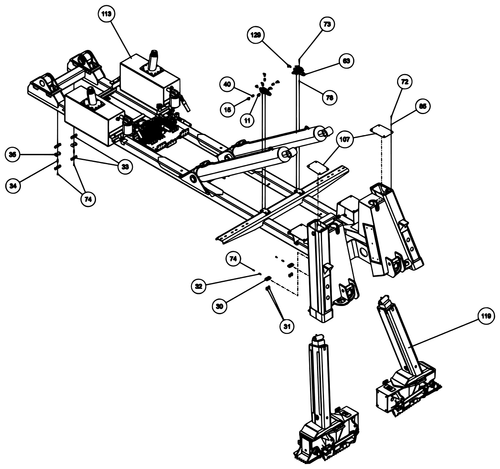

Parts diagrams:
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 0300044 | FITT, HYD CONN. 6MJ-8MB | 4 |
| 2 | 0302546 | CLAMPING UNIT C-PH-10-2 | 2 |
| 3 | 0302550 | C-SB-10-12 3/4 SPLIT | 4 |
| 4 | 0302551 | C-SN-10 SOCKET-HEAD | 2 |
| 5 | 0307843 | CYL, HYD TI-S40030032PPBZ | 2 |
| 6 | 0400066 | SCREW, 1/4-20X3/4 HHC GR5 | 2 |
| 7 | 0400118 | SCREW, 5/16-18X3/4 HHC GR5 | 2 |
| 8 | 0400139 | SET SCREW, 3/8-16X1-1/2 SOC | 4 |
| 9 | 0400392 | NUT, 3/8-16 LOK | 4 |
| 10 | 0400452 | LKWASHER, 1/4 | 2 |
| 11 | 0713128 | SHAFT, LOWER SPADE | 2 |
| 12 | 0713129 | SHAFT, UPPER SPADE | 2 |
| 13 | 0723889 | PLATE-HOSE RETAINING | 4 |
| 14 | 0807635 | PAD REAR OUTRIGGER PAD | 2 |
| 15 | 09000068 | LH OUTRIGGER LEG ASSY | 1 |
| 16 | 09000070 | RH OUTRIGGER LEG ASSY | 1 |
| 17 | 0906963 | PIN - REAR OUTRIGGER PAD ASSY | 2 |
| 18 | 0912051 | CENTURY SPADE KIT | 1 |
| 19 | GH246 | SPLIT RUBBER GROMMET | 4 |
0910353 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Century 9055XL XP850 Parts Manual, Form No. 05003703 (April 2021), page 73. The list has 19 parts. Ref numbers match the diagram below.
Manual diagram
0910353, BASIC UNIT ASSEMBLY 9055 OUTRIGGER. You can also view this assembly with live prices and Quick Add on the Century 9055XL XP850 Parts Manual parts page.
