Century Series 10 Gen 2 carrier part. Series 10 Gen 2 19-19.5 Ft Subframe Components - Inboard Tilt; Series 10 Gen 2 21-22 Ft Subframe Components - Inboard Tilt; Series 10 Gen 2 19-19.5 Ft Subframe Components - Outboard Tilt; Series 10 Gen 2 21-22 Ft Subframe Components - Outboard Tilt. Part number 09006108.
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 03009029 | IGUS 2000.02.12 END LINK - FEMALE | 1 |
| 2 | 03005611 | IGUS 200.02.055 LINK | 41 |
| 3 | 03009028 | IGUS 2100.02.12 END LINK - MALE | 1 |
| 4 | 0403165 | BOLT SHCS #10-24 UNC x 2 ZP | 4 |
| 5 | 0400450 | FLAT WASHER #10 SAE ZP | 4 |
| 6 | 0400358 | NUT NYLOK #10-24 UNC ZP | 4 |
09006108 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Vulcan Series 10 Gen II Aluminum & Steel Carriers Parts Manual • PN. 0540040 • REV. 01/2022, page 9. The list has 6 parts. Ref numbers match the diagram below.

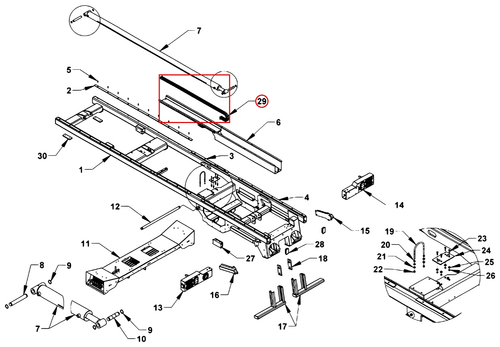

Manual diagram
IGUS TRACK AND BOLT KIT - 09006108 - 120" SLIDEBACK CYLINDER STROKE. You can also view this assembly with live prices and Quick Add on the Vulcan Series 10 Gen II Aluminum & Steel Carriers Parts Manual parts page.
