Century 4024/T2 Rear Spade Assembly – OEM Part No. 0906399
Genuine replacement Rear Spade Assembly (part no. 0906399) for the Century 4024 / T2, manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 0906399 |
|---|---|
| Manual description | REAR SPADE ASSY |
| Fits | Century 4024 / T2 |
| Assembly | Bua 4024/T2 2009 (0910768); Rear Spade Assembly (0906399) |
| Diagram reference (item) no. | 38 (Bua 4024/T2 2009 (0910768)); -- (Rear Spade Assembly (0906399)) |
| Quantity used per assembly | 1 (Bua 4024/T2 2009 (0910768)); (Rear Spade Assembly (0906399)) |
| Source | Century 4024 / T2 Parts Manual, Form No. 05006247 (Rev. 02/2025) |
Parts diagrams:
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 0301861 | QUICK PIN,LINCH -B7932 PL 7/16 | 2 |
| 2 | 0310013 | CYL, HYD TI-S24023424PPBZ | 2 |
| 3 | 0400139 | SET SCREW, 3/8-16X1-1/2 SOC | 4 |
| 4 | 0400392 | NUT, 3/8-16 LOK | 4 |
| 5 | 0400416 | NUT, 1/2-13 LOK GR8 | 8 |
| 6 | 0705485 | BLADE, DIG PAD | 2 |
| 7 | 0705500 | SHAFT, LOWER SPADE | 2 |
| 8 | 0707394 | SHAFT, UPPER SPADE | 2 |
| 9 | 0715694 | PIN, SPADE PIVOT | 2 |
| 10 | 0804334 | PIN - MULTI-POSITION | 2 |
| 11 | 0807630 | LOWER SPADE PAD WLMT | 2 |
| 12 | 0807664 | INNER SPADE WELD'T L.H.(4024) | 1 |
| 13 | 0807665 | INNER SPADE WELD'T R.H.(4024) | 1 |
| 14 | 9041404 | SCREW, 1/2-13X1-3/4 HHC GR8 | 8 |
| 15 | 9046354 | PIN, 1/4X2-1/2 SPR | 2 |
0906399 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Century 4024 / T2 Parts Manual, Form No. 05006247 (Rev. 02/2025), page 54. The list has 15 parts. Ref numbers match the diagram below.

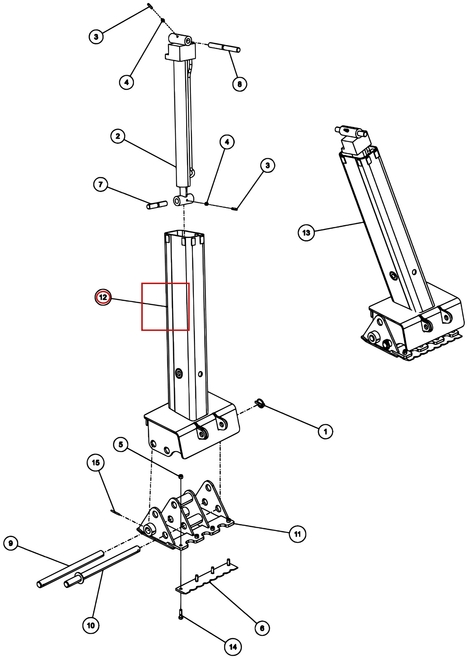

Manual diagram
REAR SPADE ASSEMBLY (0906399). You can also view this assembly with live prices and Quick Add on the Century 4024 / T2 Parts Manual parts page.
