Century 4024/T2 Control Assembly (9 Handle) – OEM Part No. 0907893
Genuine replacement Control Assembly (9 Handle) (part no. 0907893) for the Century 4024 / T2, manufactured by Miller Industries Towing Equipment Inc.
| Manufacturer part number | 0907893 |
|---|---|
| Manual description | CONTROL ASSY (9 HANDLE) |
| Fits | Century 4024 / T2 |
| Assembly | 4024 T2 (50017777) - Complete Parts List (Identical List Printed on Pages 3-23); Control Assembly (9 Handle) (0907893) |
| Diagram reference (item) no. | 72 (4024 T2 (50017777) - Complete Parts List (Identical List Printed on Pages 3-23)); -- (Control Assembly (9 Handle) (0907893)) |
| Quantity used per assembly | 1 (4024 T2 (50017777) - Complete Parts List (Identical List Printed on Pages 3-23)); (Control Assembly (9 Handle) (0907893)) |
| Source | Century 4024 / T2 Parts Manual, Form No. 05006247 (Rev. 02/2025) |
Parts diagrams:
Parts included
These are the parts that make up this assembly. Quantities are per assembly. Part numbers that we carry link to those products.
| Ref | Part Number | Description | Qty |
|---|---|---|---|
| 1 | 0302453 | CABLE, CONTROL 92 | 6 |
| 2 | 0302455 | CABLE, CONTROL 79 | 3 |
| 3 | 0302726 | GREASE FITTING, 1/4-28 45 | 9 |
| 4 | 0400107 | SCREW, 5/16-18X2-1/2 HHC GR5 | 4 |
| 5 | 0400109 | SCREW, 5/16-18X1 HHC GR5 | 4 |
| 6 | 0400382 | NUT, 5/16-18 LOK | 8 |
| 7 | 0400383 | NUT, 5/16-24 HEX | 9 |
| 8 | 0400393 | NUT, 3/8-16 JAM | 9 |
| 9 | 0400451 | WASHER, 1/4 | 8 |
| 10 | 0400512 | WASHER, 3/4 | 2 |
| 11 | 0400527 | PIN, 5/16X1X5/8 CLEVIS | 9 |
| 12 | 0711235 | CLAMP, SHAFT CONTROL BOX | 2 |
| 13 | 0717198 | PIN - CONTROL HANDLE (9) | 1 |
| 14 | 0723378 | PLATE-PIN SUPPORT | 2 |
| 15 | 08000748 | CONTROL FRAME 9 HANDLE | 1 |
| 16 | 0810644 | CLEVIS WELD'T | 9 |
| 17 | 0907441 | CONTROL HANDLE ASSY - SHORT | 9 |
0907893 is listed at the top of this manual page with no reference number, so every part on the page is included. Source: Century 4024 / T2 Parts Manual, Form No. 05006247 (Rev. 02/2025), page 28. The list has 17 parts. Ref numbers match the diagram below.

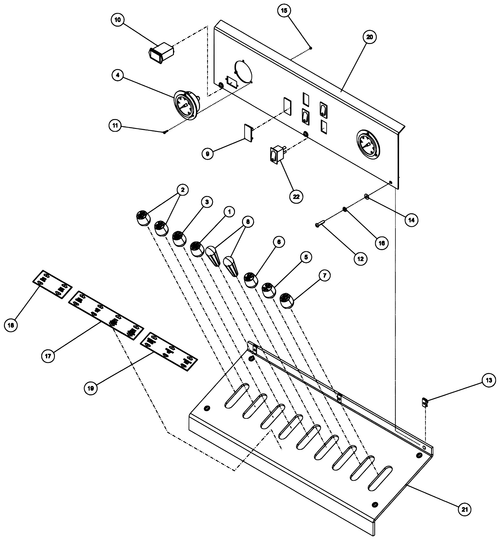

Manual diagram
CONTROL ASSEMBLY (9 HANDLE) (0907893). You can also view this assembly with live prices and Quick Add on the Century 4024 / T2 Parts Manual parts page.
